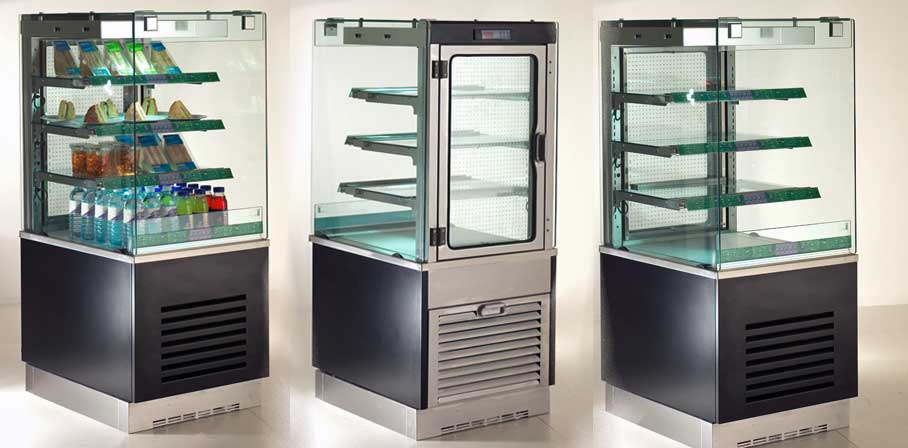

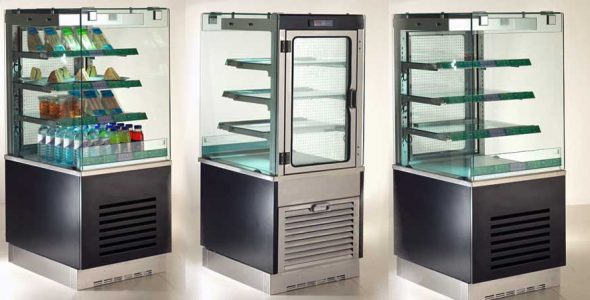

Kubus freestanding chilled and ambient patisseries are a deco cubist companion to CED’s premium Kubus drop in display range. Available in both self help and assisted service, Kubus patisseries feature a clean rectilinear design, enhanced by durable chrome plated  aluminium superstructures and lighting ducts, enclosed within a toughened flat glass serve over hood. Kubus patisseries maximize sales by providing customers with an extensive display area and merchandising space, within a minimal footprint.

Visual

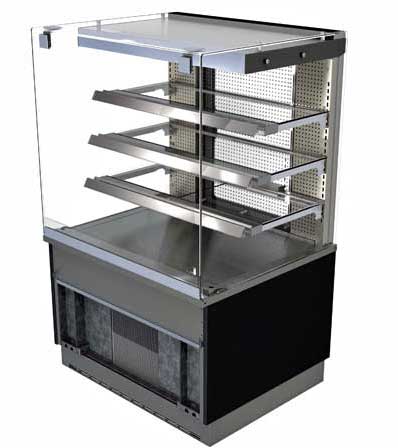

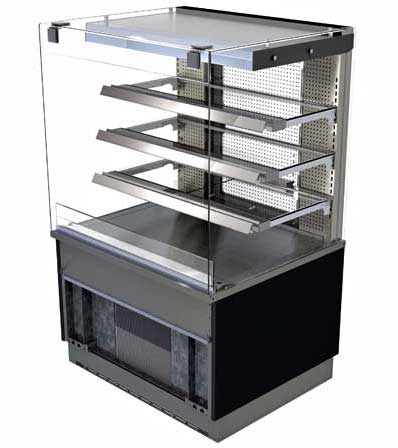

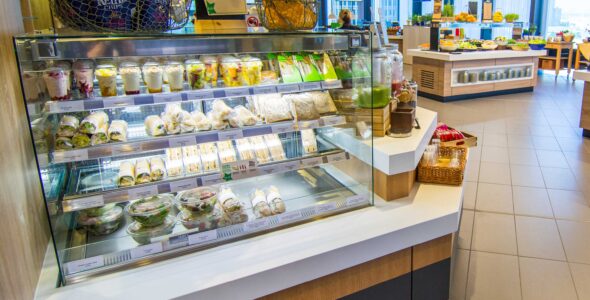

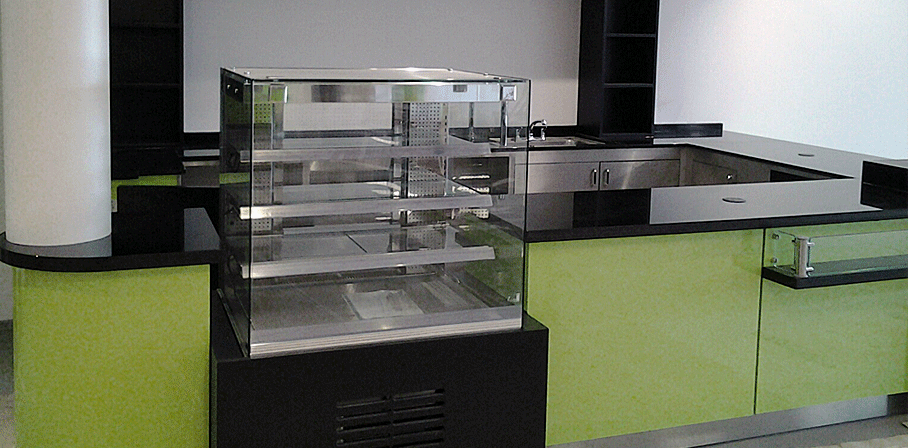

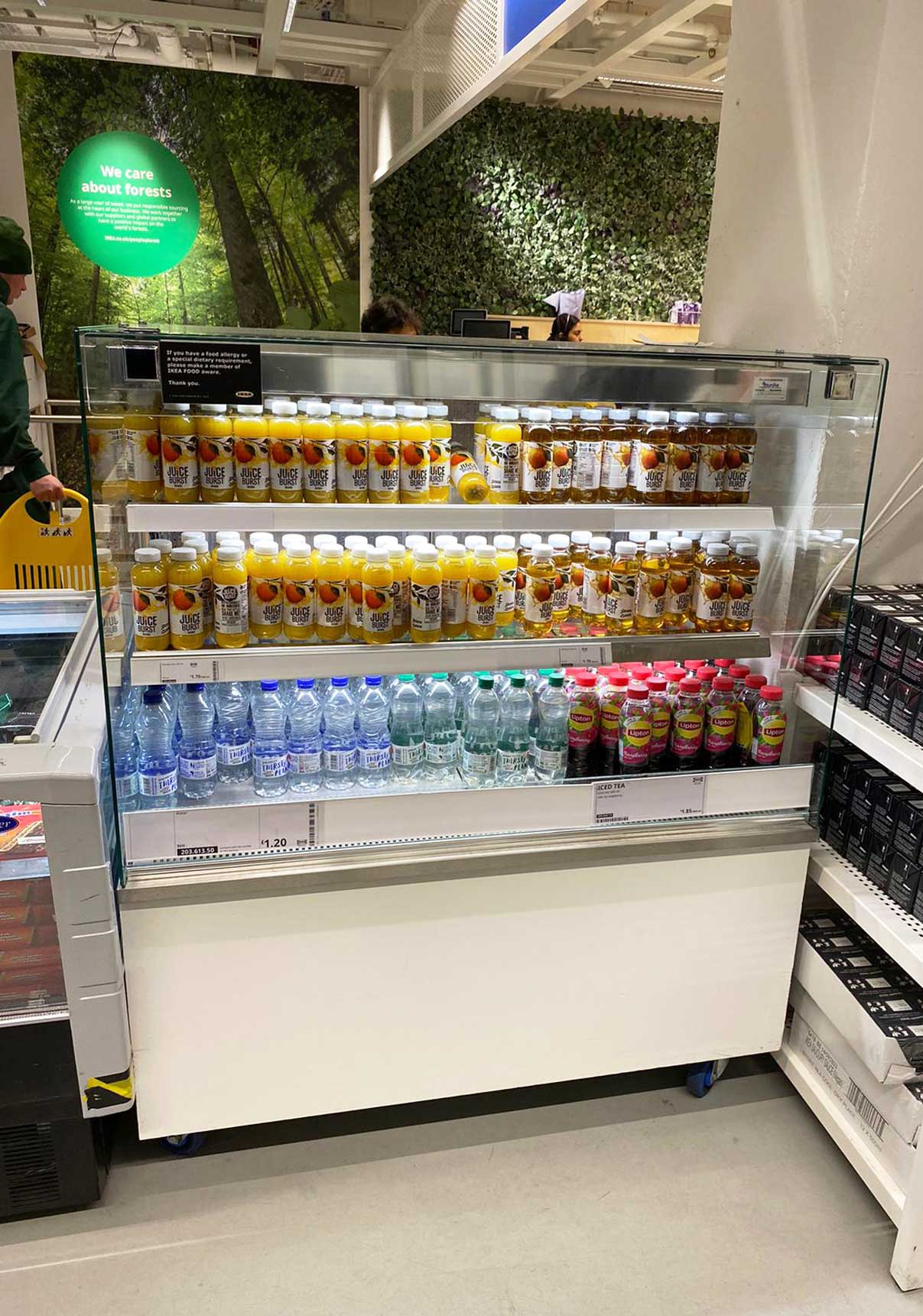

Self Help Cold Patisserie (Rear Doors) (HT)

Kubus-SH-Cold-RD



Features

Self Help Cold Patisserie (Rear Doors) (HT)
Features

  • Rectangular glass profile is designed to compliment other drop in and patisserie units within the Kubus range.
  • Freestanding self help chilled patisserie, open fronted with rear loading to four display levels.
  • Ideal for the display of wrapped chilled produce & drinks.
  • Chilled by energy efficient hydrocarbon refrigeration (HT).
  • Can achieve temperatures 0-5 deg. C in 27 deg. C ambient at 55% relative humidity.
  • Integral fan blown refrigerated air curtain system.
  • Stainless steel  canopy, open fronted display and side glass for self help/ serve over presentation.
  • Eye level gantry mounted control panel in canopy head rear – operator side.
  • Double glazed, hinged rear door/s for easier restocking access.
  • Three toughened glass shelves, adjustable in height and angle.
  • Additional chilled steel deck area for further worktop height merchandising.
  • Low energy diffused LED lighting to each display level.
  • 24 hour operation as standard.
  • Integral automatic condensate water evaporation, eliminates the need for site drainage.
  • Optional S/steel fascia panel in black epoxy coat or satin polish finish.
  • Optional non standard air flow in/ out to operator side available on self help cold (rear doors) 1200mm & 2000mm patisserie models (AF12/ AF20).
  • 40mm point of sale ticket strip & product stop to each display level.
  • Steel base in black epoxy coat (standard) or satin polish finish (optional).
  • Kick plinth in stainless steel satin polish finish
  • Mobile positioning/ transportation combined castor/ feet.
  • Adjustable final positioning/ levelling feet.
  • ‘C’ profile safety edge to all exposed edge glass.



Food Types

Self Help Cold Patisserie (Rear Doors) (HT)
Food Display Types



Drinks (Deck Area): Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.





Food (Deck and Shelving Area): Pies, pasties, sausage rolls & cooked meats, sandwich fillings, baked potato fillings, salad items & cheese, sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, fruit in juice & fruit.



Dimensions

Self Help Cold Patisserie (Rear Doors) (HT)
Dimensions

Model

KPC6HT

KPC9HT

KPC12HT KPC12HT+AF12

KPC20HT KPC20HT+AF20

Length (mm)

600

900

1200

2000

Depth (mm)

750

750

750

750

Height (mm)

1423/1433

1423/1433

1423/1433

1421/1431

Weight (uncrated) (kg)

145

190

240

390

Power (kW)

1.47

1.70

1.80

1.9

Total Heat Rejection
@ 25°C Ambient (watts)

1508

2004

2235

2235

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V



  • Control panel to ‘operator side’ of gantry.
  • HT = R290 Refrigerant


Downloads

General Layout Drawings.
Kubus Self Help Cold Patisseries (Rear Doors) (HT)



General Layout Drawings.
Kubus Self Help Cold Patisseries (Rear Doors) (HT)+ Airflow In/Out Operator Side



Fitting Instructions & User Manual.
Kubus Self Help Cold Patisseries (Rear Doors) (HT) &
Kubus Self Help Cold Patisseries (Rear Doors) (HT) + Airflow In/Out Operator Side.




Kubus-cold

Visual

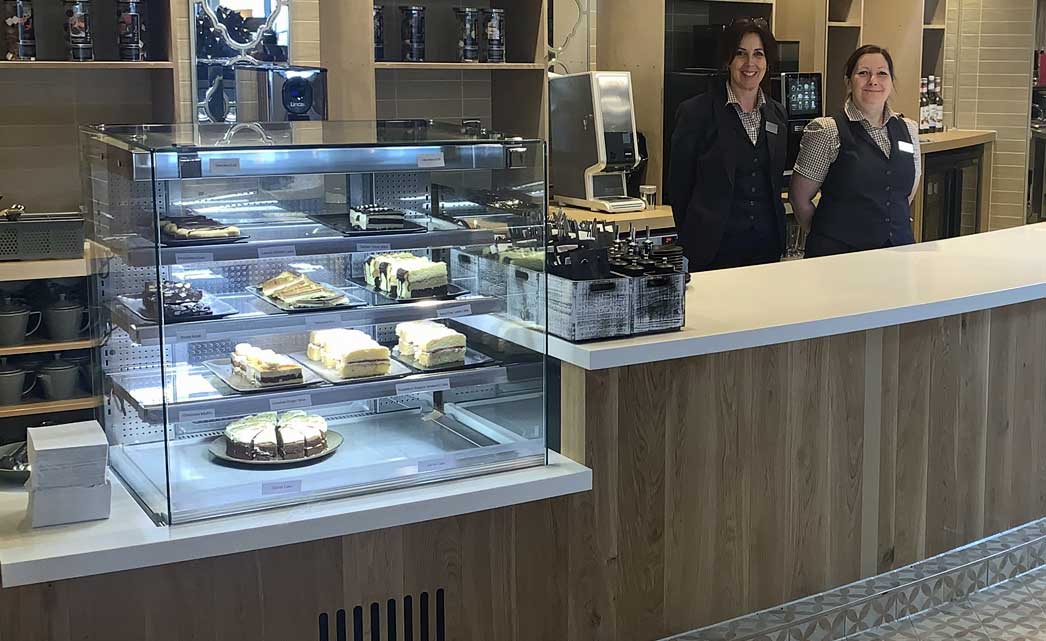

Assisted Service Cold Patisserie (Rear Doors) (HT)

Kubus-AS-Cold-RD



Features

Assisted Service Cold Patisserie (Rear Doors) (HT)
Features

  • Rectangular glass profile is designed to compliment other drop in and patisserie units within the kubus range.
  • Freestanding assisted service chilled patisserie, closed front with rear loading to four display levels.
  • Ideal for the display of wrapped chilled produce & drinks.
  • Chilled by energy efficient hydrocarbon refrigeration (HT).
  • Can achieve temperatures 0-5 deg. C in 27 deg. C ambient at 55% relative humidity.
  • Integral fan blown refrigerated air curtain system.
  • Stainless steel  canopy, full height front and side glass for assisted service/ serve over presentation.
  • Eye level gantry mounted control panel in canopy head rear – operator side.
  • Double glazed, hinged rear door/s for easier restocking access.
  • Three toughened glass shelves, adjustable in height and angle.
  • Additional chilled steel deck area for further worktop height merchandising.
  • Full height front glass is mounted on locking tilt hinge for easier cleaning.
  • Low energy diffused LED lighting to each display level.
  • 24 hour operation as standard.
  • Integral automatic condensate water evaporation, eliminates the need for site drainage.
  • Optional S/steel fascia panel in black epoxy coat or satin polish finish.
  • Optional non standard air flow in/ out to operator side available on assisted service cold (rear doors) 1200mm & 2000mm patisserie models (AF12/ AF20).
  • 40mm point of sale ticket strip & product stop to each display level.
  • Steel base in black epoxy coat (standard) or satin polish finish (optional).
  • Kick plinth in stainless steel satin polish finish
  • Mobile positioning/ transportation combined castor/ feet.
  • Adjustable final positioning/ levelling feet.
  • ‘C’ profile safety edge to all exposed edge glass.


Food Types

Assisted Service Cold Patisserie (Rear Doors) (HT)
Food Display Types



Drinks (Deck Area): Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.



Food (Deck and Shelving Area): Pies, pasties, sausage rolls & cooked meats, sandwich fillings, baked potato fillings, salad items & cheese, sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, fruit in juice & fruit.

Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts.



Dimensions

Assisted Service Cold Patisserie (Rear Doors) (HT)
Dimensions

Model

KPC6ASHT

KPC9ASHT

KPC12ASHT/ KPC12ASHT+AF12

KPC20ASHT/ KPC20ASHT+AF20

Length (mm)

600

900

1200

2000

Depth (mm)

750

750

750

750

Height (mm)

1423/1433

1423/1433

1423/1433

1421/1431

Weight (uncrated) (kg)

145

190

240

390

Power (kW)

1.47

1.70

1.80

1.9

Total Heat Rejection
@ 25°C Ambient (watts)

1070

1508

2004

2235

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V>



  • Control panel to ‘operator side’ of gantry.
  • HT = R290 Refrigerant


Downloads

General Layout Drawings.
Kubus Assisted Service Cold Patisseries (Rear Doors) (HT)



General Layout Drawings.
Kubus Assisted Service Cold Patisseries (Rear Doors) (HT)+ Airflow In/Out Operator Side



Fitting Instructions & User Manual.
Kubus Assisted Service Cold Patisseries (Rear Roors) (HT) &
Kubus Assisted Service Cold Patisseries (Rear Doors) (HT) + Airflow In/Out Operator Side.




Kubus-cold

Visual

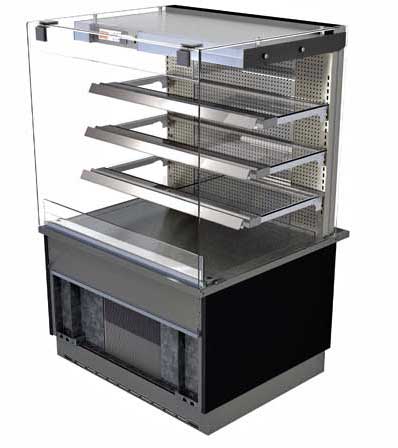

Self Help Cold Patisserie (Fixed Back) (HT)

Kubus-SH-Cold-FB



Features

Self Help Cold Patisserie (Fixed Back) (HT)
Features

  • Rectangular glass profile is designed to compliment other drop in and patisserie units within the Kubus range.
  • Freestanding self help, wall sited chilled patisserie, open fronted with front loading to four display levels.
  • Ideal for the display of wrapped chilled produce & drinks.
  • Chilled by energy efficient hydrocarbon refrigeration (HT).
  • Can achieve temperatures 0-5 deg. C in 27 deg. C ambient at 55% relative humidity.
  • Integral fan blown refrigerated air curtain system.
  • Stainless steel  canopy, open fronted display and side glass for self help/ serve over presentation.
  • Eye level gantry mounted control panel in canopy head rear – operator side.
  • Stainless steel rear fixed back panels in display, allow for positioning the display against a wall.
  • Three toughened glass shelves, adjustable in height and angle.
  • Additional chilled steel deck area for further worktop height merchandising.
  • Low energy diffused LED lighting to each display level.
  • 24 hour operation as standard.
  • Integral automatic condensate water evaporation, eliminates the need for site drainage.
  • Optional S/steel fascia panel in black epoxy coat or satin polish finish.
  • 40mm point of sale ticket strip & product stop to each display level.
  • Steel base in black epoxy coat (standard) or satin polish finish (optional).
  • Kick plinth in stainless steel satin polish finish
  • Mobile positioning/ transportation combined castor/ feet.
  • Adjustable final positioning/ levelling feet.
  • ‘C’ profile safety edge to all exposed edge glass.


Food Types

Self Help Cold Patisserie (Fixed Back) (HT)
Food Display Types



Drinks (Deck Area): Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.



Food (Deck and Shelving Area): Pies, pasties, sausage rolls & cooked meats, sandwich fillings, baked potato fillings, salad items & cheese, sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes, pastries, cakes, yoghurt, fruit in juice & fruit.



Dimensions

Self Help Cold Patisserie (Fixed Back) (HT)
Dimensions

Model

KPC6FBHT

KPC9FBHT

KPC12FBHT

KPC20FBHT

Length (mm)

600

900

1200

2000

Depth (mm) + 75 wall stand off bracket

750 + 75

750 + 75

750 +75

750 +75

Height (mm)

1423/1433

1423/1433

1423/1433

1421/1431

Weight (uncrated) (kg)

145

190

240

390

Power (kW)

1.47

1.70

1.80

1.9

Total Heat Rejection
@ 25°C Ambient (watts)

1508

2004

2235

2235

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V>

  • Control panel to ‘customer side’ of gantry.
  • HT = R290 Refrigerant


Downloads

General Layout Drawings.
Kubus Self Help Cold Patisseries (Fixed Back) (HT)



Fitting Instructions & User Manual.
Kubus Self Help Cold Patisseries (Fixed Back) (HT)
