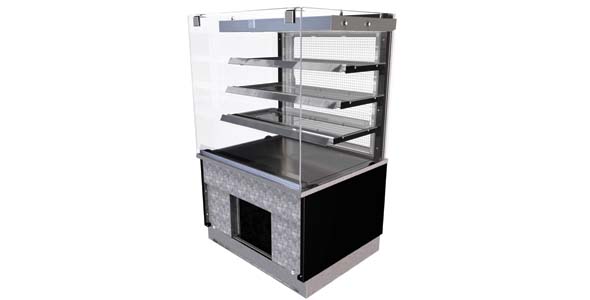

Kubus Assisted Service Cold Patisserie (Rear Doors)

Main Features

Main Features:

• Rectilinear glass profile is designed to compliment other drop in and patisserie units within the kubus range.
• 24 hour operation as standard.
• Cold units feature integral chilled hydrocarbon refrigeration.
• Eye level gantry mounted digital control panel.
• Energy efficient & integral automatic condensate water evaporation, eliminates the need for site drainage.

Special features

Special Features:

• Closed full height glass front ( hinged), rear loading to four display levels.
• Three toughened glass shelves, adjustable in height and angle.
• Pre chilled produce held between 0 – 5 deg C. (max 25 deg C, 50% relative humidity).
• Cutting edge integral chilled hydrocarbon refrigeration.
• Low energy diffused triphosphor lighting to each display level.
• 40mm point of sale ticket strip & product stop to each display level.
• Toughened glass canopy and full height front glass screen for serve over presentation.
• Steel base in black epoxy coat (standard) or satin polish finish (optional).
• Kick plinth in stainless steel satin polish finish
• Rear loading & fitted with bright polished steel rear door/s.
• Energy saving integral evaporation on all cold models.
• Thermal frame breaks to minimise condensation.
• Eye level gantry mounted digital control panel to operator side.
• Mobile positioning/ transportation castors.
• Adjustable final positioning/ levelling feet.
• ‘C’ profile safety edge to all exposed edge  glass
• Optional LED lighting
• Optional fascia panel for freestanding use, black epoxy coat or satin polish s/steel finish

Display Examples

Drinks (Deck Area)

• Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Deck and Shelving Area)

• Pies, pasties, sausage rolls & cooked meats, sandwich fillings, baked potato fillings, salad items & cheese, sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, fruit in juice & fruit.)
• Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts.

Dimensions

Downloads

General arrangement drawing.

Fitting Instructions.
