Kubus Cold Multideck – Roller Shutter (HT)

Visual

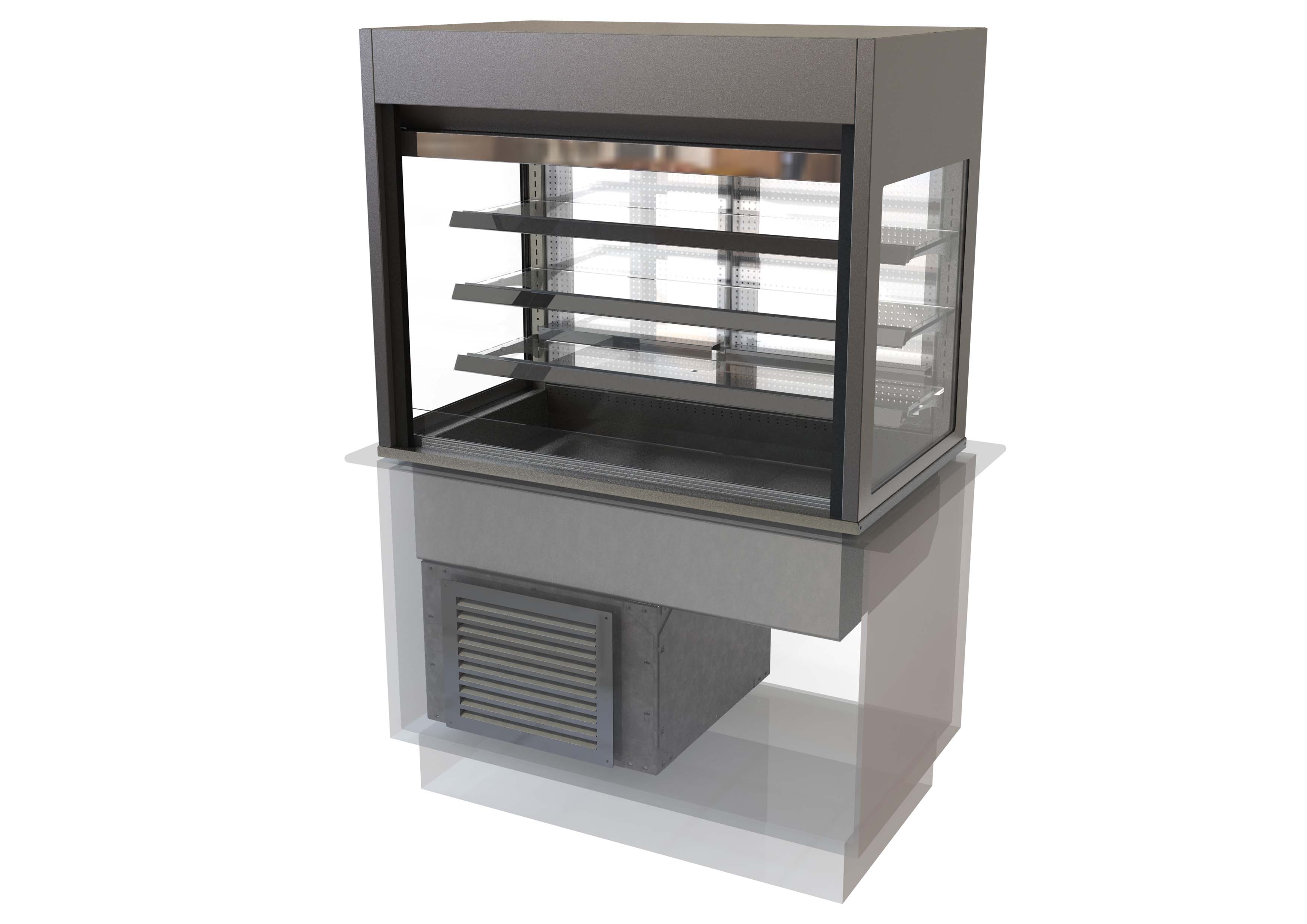

Self Help Cold Multideck – Roller Shutter, Rear Doors (HT)

Features

Self Help Cold Multideck – Roller Shutter, Rear Doors (HT).
Features

• Rectilinear flat stainless steel profile houses intergral lockable roller shutter.
• A high security addition to the Kubus range.
• Cold multideck display features integral energy efficient chilled hydrocarbon refrigeration (HT).
• Self help application.
• 3 tier toughened cold glass shelving, adjustable in both height and angle, for increased product display area.
• Additional cold well area typically used as bottle storage.
• Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
• Features eye-level gantry mounted digital temperature display and control panel (operator side).
• Product illumination is from diffused LED lighting (4000 Kelvin) in a rectangular profile gantry.
• Integral automatic condensate water evaporation eliminates the need for site drainage.
• Rear hinged double glazed lockable doors offer easier restocking access and visual stock checking.
• Superstructure in satin polished steel and aluminium profile.
• Double glazed glass side viewing panels for improved merchandising.
• 24-hour operation as standard.
• Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
• Refrigeration condensing unit is housed in an underslung self contained cradle.
• Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
• Modular removable deck plate system for easier cleaning and maintenance.
• Features ‘tamper proof’ temperature control facility.
• 40mm tall ‘point of sale’ display/ ticket strips are fitted as standard.

Food Types

Self Help Cold Multideck – Roller Shutter, Rear Doors (HT).
Food Display Types.

Drinks (Deck Area): Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Deck and Shelving Area): Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.

Dimensions

Self Help Cold Multideck – Roller Shutter, Rear Doors (HT).
Dimensions.

Downloads

General Layout Drawings.
Kubus Self Help Cold Multidecks – Roller Shutter,
Rear Doors (HT).

Fitting Instructions & User Manual.
Kubus Self Help Cold Multidecks – Roller Shutter,
Rear Doors (HT).

Visual

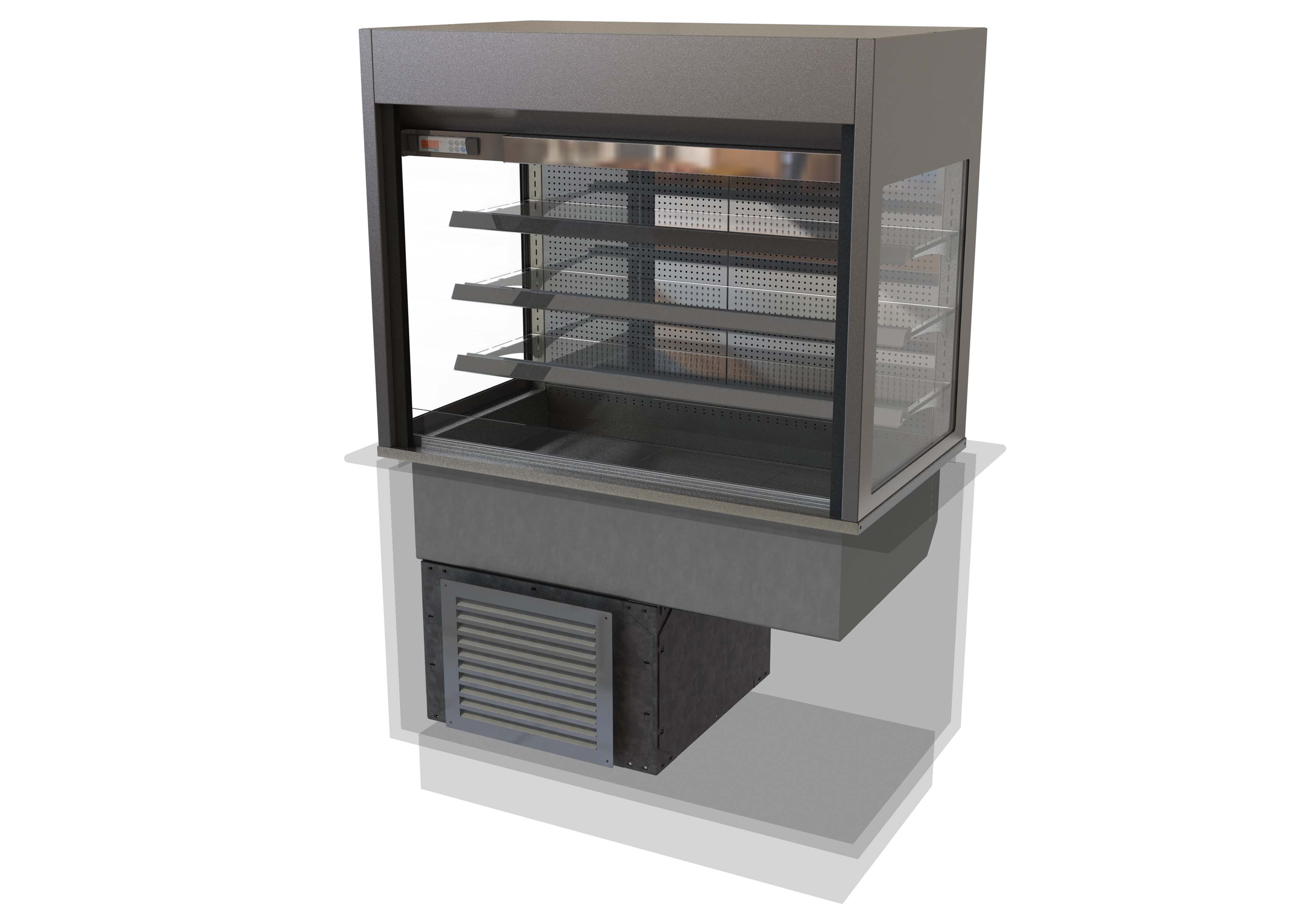

Self Help Cold Multideck – Roller Shutter, Fixed Back (HT)

Features

Self Help Cold Multideck – Roller Shutter, Fixed Back (HT).
Features.

• Rectilinear flat stainless steel profile houses intergral lockable roller shutter.
• A high security addition to the Kubus range.
• Cold multideck display features integral energy efficient chilled hydrocarbon refrigeration (HT).
• Self help application.
• For wall or alcove sited locations.
• 3 tier toughened cold glass shelving, adjustable in both height and angle, for increased product display area.
• Additional cold well area typically used as bottle storage.
• Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
• Features eye-level gantry mounted digital temperature display and control panel (customer side).
• Product illumination is from diffused LED lighting (4000 Kelvin) in a rectangular profile gantry.
• Integral automatic condensate water evaporation eliminates the need for site drainage.
• Bright polish stainless steel perforated back panels for front restocking access.
• Superstructure in satin polished steel and aluminium profile.
• Double glazed glass side viewing panels for improved merchandising.
• 24-hour operation as standard.
• Rear worktop mounted grill & condensing unit exhaust flue remove heat behind display. (Removable if not required)
• Airflow kit option available (AF1 – air in/out to customer side)
• Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
• Refrigeration condensing unit is housed in an underslung self contained cradle.
• Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
• Modular removable deck plate system for easier cleaning and maintenance.
• Features ‘tamper proof’ temperature control facility.
• 40mm tall ‘point of sale’ display/ ticket strips are fitted as standard.

Food Types

Self Help Cold Multideck – Roller Shutter, Fixed Back (HT).
Food Display Types.

Drinks (Deck Area): Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Deck and Shelving Area): Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.

Dimensions

Self Help Cold Multideck – Roller Shutter, Fixed Back (HT)
Dimensions.

Downloads

General Layout Drawings.
Kubus Self Help Cold Multideck – Roller Shutter,
Fixed Back (HT).

Fitting Instructions & User Manual.
Kubus Self Help Cold Multideck – Roller Shutter,
Fixed Back (HT).
