Page-Header-Hotcupbord-InsifabricationDesignline Hot Cupboard Types.
CED’s Designline hot cupboards are constructed from sturdy 0.9mm 430gd panel work carcasses with 1.5mm thick 304 gd worktops & heated using incoloy elements.
Designline hot cupboards are available as
– a solid steel worktop or ‘plain top’ model,
– a combined dry heat bain marie top & hot cupboard under,
– a combined wet well bain marie top & hot cupboard under,
– as a covenient ‘roll under’ counter model – fitted with locking castors.
A pass-through option of the plain top hot cupboard – with doors to both sides of the unit – completes the range.
CED standard hot cupboards can be purchased at either 850mm high or 900mm high – to suit industry standard kitchen area worktop heights – and up to 800mm deep, for optimum storage capacity. The roll under model is made at a convenient 650mm high size to allow seemless integration into a servery counter.

Hot Cupboard Types :

Plain top

Hot Cupboard – Plain Top
Features.



















  • Freestanding s/steel insulated hot cupboard with plain steel strengthened worktop.
  • Constructed in 0.9mm 430gd s/steel panel work with 1.5mm thick 304 gd s/steel worktop.
  • Available as either 850mm or 900mm worktop height as standard.
  • Fitted with set of sliding s/steel doors to operator side of hot cupboard.
  • Fully removable s/steel mid shelf with supporting removable box section steel bars.
  • Single control panel is mounted to operator right hand side of cupboard
  • Supplied with individual rotary thermostatic temperature control for hot cupboard.
  • Illuminating individual On/Off switch for heated section & separate indicator light showing ‘heating power on’.
  • Adjustable height levelling feet for accurate final site positioning.
  • Fully removable control panel section, for improved service access.
  • Supplied in a standard depth of 700mm for optimum heated storage space.
  • Supplied with plug top and 2M lead (<3kW).

Hot Cupboard – Plain Top
Options.

  • Optional Digital temperature display
  • Optional conversion to mobile (100mm diam. castors, 2 locking)
  • Optional fan assisted hot cupboard
  • Optional pass through version
  • Optional heights and depths available on request.

Hot Cupboard – Plain Top
Dimensions

Length (mm) Depth (mm) Height (mm) Power (kW)

1200

700

850/900

1.5

1500

700

850/900

2.0

1800

700

850/900

2.5

2100

700

850/900

3.0

2400

700

850/900

3.0



Dry Bain Marie

Hot Cupboard – Dry Heat Bain Marie
Features.
page-header-hotcupboard



  • Freestanding s/steel combined independently controlled dry heat bain marie & insulated hot cupboard.
  • Dry heat bain marie upper section supplied with removable G/N container support bars.
  • Constructed in 0.9mm 430gd s/steel panel work with 1.5mm thick 304 gd s/steel worktop.
  • Available as either 850mm or 900mm worktop height as standard.
  • Fitted with set of sliding s/steel doors to operator side of hot cupboard.
  • Fully removable s/steel mid shelf with supporting removable box section steel bars.
  • Dual control panel is mounted to operator right hand side of cupboard
  • Supplied with individual rotary thermostatic temperature controls for hot cupboard & bain marie sections.
  • Illuminating individual On/Off switches for each heated section & separate indicator lights showing ‘heating power on’.
  • Adjustable height levelling feet for accurate final site positioning.
  • Fully removable control panel section, for improved service access.
  • Supplied in a standard depth of 700mm for optimum heated hot cupboard storage space.
  • Supplied with plug top and 2M lead (<3kW) or 2M cable for hard wiring by others (>3kW).
  • *G/N containers not supplied.

Hot Cupboard – Dry Heat Bain Marie
Options.

  • Optional Digital temperature display
  • Optional conversion to mobile (100mm diam. castors, 2 locking)
  • Optional fan assisted hot cupboard section
  • Optional pass through version
  • Optional heights and depths available on request.

Hot Cupboard – Dry Heat Bain Marie
Dimensions

Length (mm) Depth (mm) Height (mm) Power (kW)

1200

700

850/900

3.0

1500

700

850/900

4.0

1800

700

850/900

4.5

2100

700

850/900

5.5

2400

700

850/900

6.0



Wet Bain Marie

Hot Cupboard – Wet Well Bain Marie (Manual Fill)
Features
page-header-hotcupboard



  • Freestanding s/steel combined wet well bain marie & insulated hot cupboard, independently controlled.
  • Wet well manually filled bain marie upper section supplied with removable G/N container support bars.
  • Constructed in 0.9mm 430gd s/steel panel work with 1.5mm thick 304 gd s/steel worktop.
  • Fitted with set of sliding s/steel doors to operator side of hot cupboard.
  • Available as either 850mm or 900mm worktop height as standard.
  • Bain marie is fitted with 3/4″ BSP lever valve/handle & 15mm swivel arm drain, for emptying the tank, accessed behind the sliding hot cupboard door.
  • Fully removable s/steel mid shelf with supporting removable box section steel bars.
  • Dual control panel is mounted to operator right hand side of cupboard
  • Supplied with individual rotary thermostatic temperature controls for hot cupboard & bain marie sections.
  • Illuminating individual On/Off switches for each heated section & separate indicator lights showing ‘heating power on’.
  • Adjustable height levelling feet for accurate final site positioning.
  • Fully removable control panel section, for improved service access.
  • Supplied in a standard depth of 700mm for optimum heated hot cupboard storage space.
  • Supplied with 2M cable for hard wiring by others (<3kW) or 2M cable for hard wiring by others (>3 kW).
  • *G/N containers not supplied.

Hot Cupboard – Wet Well Bain Marie (Manual Fill)
Options.

  • Optional Digital temperature display
  • Optional conversion to mobile (100mm diam. castors, 2 locking)
  • Optional fan assisted hot cupboard section
  • Optional pass through version
  • Optional heights and depths available on request.

Hot Cupboard – Wet Well Bain Marie
Dimensions

Length (mm) Depth (mm) Height (mm) Power (kW)

1200

700

850/900

4.0

1500

700

850/900

5.0

1800

700

850/900

6.5

2100

700

850/900

7.0

2400

700

850/900

7.0



Roll Under

Hot Cupboard – Roll Under
Features.

















  • Mobile s/steel insulated hot cupboard with plain steel worktop.
  • Constructed in 0.9mm 430gd s/steel panel work with 1.5mm thick 304 gd s/steel worktop.
  • 900 mm, 1200 mm or 1500 mm standard lengths.
  • Available as 650 mm worktop height as standard, for seemless integration in a servery counter.
  • Fitted with set of sliding s/steel doors to operator side of hot cupboard.
  • Fully removable s/steel mid shelf with supporting removable box section steel bars.
  • Single control panel is mounted to operator right hand side of cupboard
  • Supplied with individual rotary thermostatic temperature control for hot cupboard.
  • Illuminating individual On/Off switch for heated section & separate indicator light showing ‘heating power on’.
  • Mounted on braked castors for accurate final site positioning.
  • Fully removable control panel section, for improved service access.
  • Supplied in a standard depth of 650mm for optimum heated storage space within a counter void.
  • Supplied with plug top and 2M lead (>3kW).

*A 50mm clearance void is recommended around the hot cupboard within counter void, to circulate warm air created.

Hot Cupboard – Roll Under
Options

  • Optional Digital temperature display.
  • Optional fan assisted hot cupboard section.
  • Optional heights and depths available on request.

Hot Cupboard – Roll Under
Dimensions

Length (mm) Depth (mm) Height (mm) Power (kW)

900/ 1200

650

650

1.0/1.5

1500

650

650

2.0



Add On Hot Gantry

Heated Tiered Gantry
Features



heated-gantry-



  • Optional heated gantry can be added above plain top, pass-through or bain marie type hot cupboard worktops.
  • Gantry can be independently fitted to other equipment (Servery Pass etc.).
  • Available in single, double and triple tier heated versions.
  • Ideal for short term heated meal/plate storage etc.
  • Heated solid steel shelf/ pass is supported on sturdy steel box section gantry.
  • Individual 300 w quartz infra red holding lamps sited under the shelf surface, 1 per gastronom section (350mm centres)
  • Gantry lengths to suit all CED standard hot cupboards.
  • Fitted with dimmer control switches to each heated shelf.
  • (<3kw) Gantry wired integrally to hot cupboard control panel and supplied with 2M single electrical cable & 13 amp plug top.
  • (>3kw) Wired integrally and supplied with 2M cable only, will need to be hard wired or fitted with commando plug.

Heated Tiered Gantry
Dimensions

Heated Tiered Gantry – Model Sizes                      *add kw to hot cupboard kw = Total Load*

Gantry

Gantry Length

Heat Lamp Qty/

Power (kW)

O/all Depth

O/all Height

Single
heated

1200mm

3 (0.9 kW)

300mm

450mm

1500mm

3 (0.9 kW)

300mm

450mm

1800mm

4 (1.2 kW)

300mm

450mm

2100mm

5 (1.5 kW)

300mm

450mm

2400mm

6 (1.8 kW)

300mm

450mm

Double
heated

1200mm

6 (1.8 kW)

300mm

700mm

1500mm

6 (1.8 kW)

300mm

700mm

1800mm

8 (2.4 kW)

300mm

700mm

2100mm

10 (3.0 kW)

300mm

700mm

2400mm

12 (3.6 kW)

300mm

700mm

Triple

heated

1200mm

9 (2.7 kW)

300mm

N/A

1500mm

9 (2.7 kW)

300mm

N/A

1800mm

12 (3.6 kW)

300mm

N/A

2100mm

15 (4.5 kW)

300mm

N/A

2400mm

15 (4.5 kW)

300mm

N/A



Downloads

General Layout Drawings/ Cleaning Information/ UKCA + CE Conformance.
Designline Hot Cupboards

User Manuals.
Designline Hot Cupboards




Hot Cupboard
Options.

Digital Temperature Display. Digi-control
As standard, the hot cupboard is thermostatically controlled with rotary temperature indicator dials, an optional digital temperature display can be incorporated.

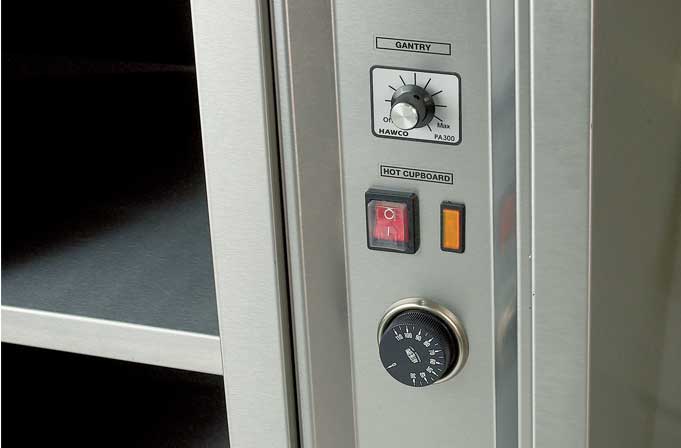

Control Panel Location.hot-cupd-controls---close-u The control panel is sighted to operator right hand side but can be mounted to operator left, to suit operational needs.HOTCUPBOARD-DOUBLE HEATED GANTRY





Heated Tiered Gantry.
Further choices include heated single, double and triple tiered ‘heated meal’ holding gantries or ambient storage gantries. *Heated gantries have 300W quartz lamps per gastronom and are fitted with dimmer switches to each heated tier.
Mobile Hot Cupboard. The plain top hot cupboard, the pass through hot cupboard & both dry heat/wet well bain marie hot cupboards are supplied with factory fitted adjustable static feet. The units can be made mobile with the addition of a set of locking castors.
Fan Assisted. The standard range of hot cupboards heat their storage space by naturally rising heat, created from heated elements in the base – ideal for many sauce based pre-cooked products, heated plate storage etc. The fan assisted option circulates heat and temperature more evenly, if the hot cupboard is always used to it’s full capacity.

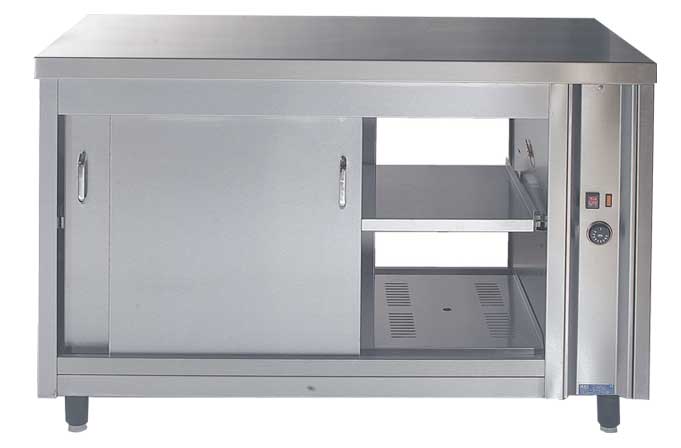

Pass Though Hot cupboard.pass-through-h-cupbd.  An additional pair of sliding doors -added during manufacture- can convert the standard range of 800/900mm high hot cupboards to give access to the storage area from both sides.
Material/ Size Variation. The standard range of CED hot cupboards can be produced to facilitate a bespoke size or material variation, e.g. to suit a marine environment etc.

*CED’s bespoke double tier heated gantry examples are shown.

bespoke-heated-gantry

bespoke-heated-gantry-2-tie
