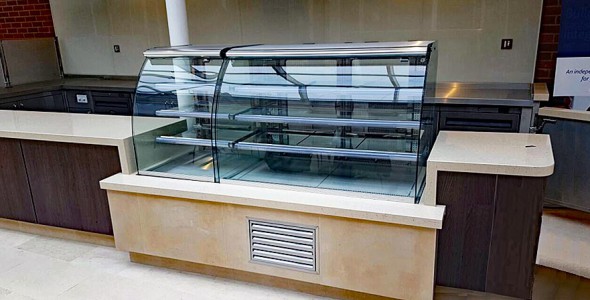

CED Fabrications - Designline Brand - Chilled LogoDesignline freestanding chilled and ambient patisseries offer classic elliptical styling, engineered to accompany our premium Designline drop in display range.
Available in both self help and assisted service, Designline patisseries maintain the elliptical shape of the original drop in displays, but now with larger display area and improved merchandising space. The cold patisserie is available in 600, 900, 1200 mm & also a large 2M wide supermarket version.

Visual

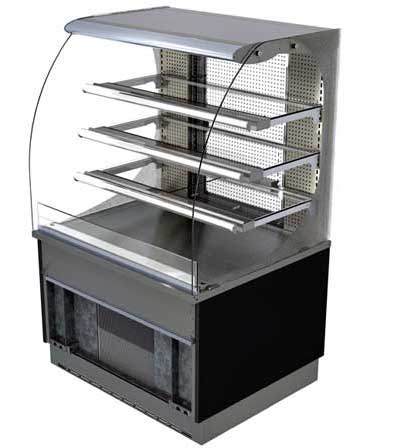

Self Help Cold Patisserie (Rear Doors) (HT)CED Fabrications - Designline Brand - Chilled Logo

Designline-SHCold-RD



Features

Self Help Cold Patisserie (Rear Doors) (HT)CED Fabrications - Designline Brand - Chilled Logo
Features

  • Curved glass profile is designed to compliment other drop in and patisserie units within the Designline range.
  • Freestanding self help chilled patisserie, open fronted with rear loading to four display levels.
  • Ideal for the display of wrapped chilled produce & drinks.
  • Chilled by energy efficient hydrocarbon refrigeration (HT).
  • Can achieve temperatures 0-5 deg. C in 27 deg. C ambient at 55% relative humidity.
  • Integral fan blown refrigerated air curtain system.
  • Stainless steel  canopy, open fronted display and side glass for self help/ serve over presentation.
  • Eye level gantry mounted control panel in canopy head rear – operator side.
  • Double glazed, hinged rear door/s for easier restocking access.
  • Three toughened glass shelves, adjustable in height and angle.
  • Additional chilled steel deck area for additional worktop height merchandising.
  • Low energy diffused LED lighting to each display level.
  • 24 hour operation as standard.
  • Integral automatic condensate water evaporation, eliminates the need for site drainage.
  • Optional S/steel fascia panel in black epoxy coat or satin polish finish.
  • Optional non standard air flow in/ out to operator side available on self help cold (rear doors) 1200mm & 2000mm patisserie models (AF12/ AF20).
  • 40mm point of sale ticket strip & product stop to each display level.
  • Steel base in black epoxy coat (standard) or satin polish finish (optional).
  • Kick plinth in stainless steel satin polish finish
  • Mobile positioning/ transportation combined castor/ feet.
  • Adjustable final positioning/ levelling feet.
  • ‘C’ profile safety edge to all exposed edge glass.


Food Types

Self Help Cold Patisserie (Rear Doors) (HT)CED Fabrications - Designline Brand - Chilled Logo
Food Display Types



Drinks (Deck Area):  Still, carbonated, bottled, canned or carton water, UHT dairy, lemonade, wine, beer, lager, fruit juice & health drinks.



Food (Deck and Shelving Area): Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes, & pastries, cakes, yoghurt, fruit juice & fruit.



Dimensions

Self Help Cold Patisserie (Rear Doors) (HT)CED Fabrications - Designline Brand - Chilled Logo
Dimensions

Model

PC6HT

PC9HT

PC12HT   PC12HT+AF12

PC20HT   PC20HT+AF20

Length (mm)

600

900

1200

2000

Depth (mm)

750

750

750

750

Height (mm)

1405/1415

1405/1415

1405/1415

1405/1415

Weight (uncrated) (kg)

145

190

240

390

Power (kW)

1.47

1.70

1.80

1.9

Total Heat Rejection
@ 25°C Ambient (watts)

1508

2004

2235

2235

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V



  • (HT) = R290 Refrigerant
  • Control panel to operator side





Downloads

General Layout Drawings.CED Fabrications - Designline Brand - Chilled Logo
Designline Self Help Cold Patisseries (Rear Doors) (HT)



General Layout Drawings.
Designline Self Help Cold Patisseries (Rear Doors) (HT)+ Airflow In/Out Operator Side



Fitting Instructions & User Manual.
Designline Self Help Cold Patisseries (Rear Doors) (HT) &
Designline Self Help Cold Patisseries (Rear Doors) (HT)+ Airflow In/Out Operator Side.




Designline-Cold

Visual

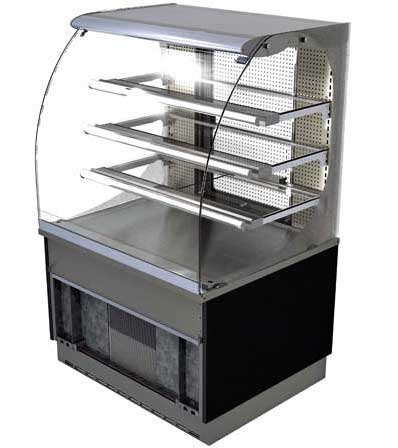

Assisted Service Cold Patisserie (Rear Doors) (HT)CED Fabrications - Designline Brand - Chilled Logo

Designline-AS-Cold-RD-



Features

Assisted Service Cold Patisserie (Rear Doors) (HT)CED Fabrications - Designline Brand - Chilled Logo
Features

  • Curved full height front & side glass profile is designed to compliment other drop in and patisserie units within the Designline range.
  • Freestanding assisted service chilled patisserie, closed front with rear loading to four display levels.
  • Ideal for the display of wrapped chilled produce & drinks.
  • Chilled by energy efficient hydrocarbon refrigeration (HT).
  • Can achieve temperatures 0-5 deg. C in 27 deg. C ambient at 55% relative humidity.
  • Integral fan blown refrigerated air curtain system.
  • Stainless steel  canopy, full height front & side glass for assisted service/ serve over presentation.
  • Eye level gantry mounted control panel in canopy head rear – operator side.
  • Double glazed, hinged rear door/s for easier restocking access.
  • Three toughened glass shelves, adjustable in height and angle.
  • Additional chilled steel deck area for additional worktop height merchandising.
  • Low energy diffused LED lighting to each display level.
  • 24 hour operation as standard.
  • Integral automatic condensate water evaporation, eliminates the need for site drainage.
  • Full height front glass is mounted on locking tilt hinge for easier cleaning.
  • Optional S/steel fascia panel in black epoxy coat or satin polish finish.
  • Optional non standard air flow in/ out to operator side available on assisted service cold (rear doors) 1200mm & 2000mm patisserie models only (AF12/ AF20).
  • 40mm point of sale ticket strip & product stop to each display level.
  • Steel base in black epoxy coat (standard) or satin polish finish (optional).
  • Kick plinth in stainless steel satin polish finish
  • Mobile positioning/ transportation combined castor/ feet.
  • Adjustable final positioning/ levelling feet.
  • ‘C’ profile safety edge to all exposed edge glass.


Food Types

Assisted Service Cold Patisserie (Rear Doors) (HT)CED Fabrications - Designline Brand - Chilled Logo
Food Display Types



Drinks (Deck Area): Still & carbonated, bottled, canned or carton water, UHT dairy, lemonade, wine, beer, lager, fruit juice & health drinks.



Food (Deck and Shelving Area): Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes, & pastries, cakes, yoghurt, fruit juice & fruit.



Dimensions

Assisted Service Cold Patisserie (Rear Doors) (HT)CED Fabrications - Designline Brand - Chilled Logo
Dimensions

Model

PC6ASHT

PC9ASHT

PC12ASHT  PC12ASHT+AF12

PC20ASHT  PC20ASHT+AF20

Length (mm)

600

900

1200

2000

Depth (mm)

750

750

750

750

Height (mm)

1405/1415

1405/1415

1405/1415

1405/1415

Weight (uncrated) (kg)

145

190

240

390

Power (kW)

1.23

1.50

1.73

1.9

Total Heat Rejection
@ 25°C Ambient (watts)

1070

1508

2004

2235

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V



  • (HT) = R290 Refrigerant
  • Control panel to operator side



Downloads

General Layout Drawings.CED Fabrications - Designline Brand - Chilled Logo
Designline Assisted Service Cold Patisseries (Rear Doors) (HT)





General Layout Drawings.
Designline Assisted Service Cold Patisseries (Rear Doors) (HT)+ Airflow In/Out Operator Side



Fitting Instructions & User Manual.
Designline Assisted Service Cold Patisseries (Rear Doors) (HT) &
Designline Assisted Service Cold Patisseries (Rear Doors) (HT)+ Airflow In/Out Operator Side.




Designline-Cold

Visual

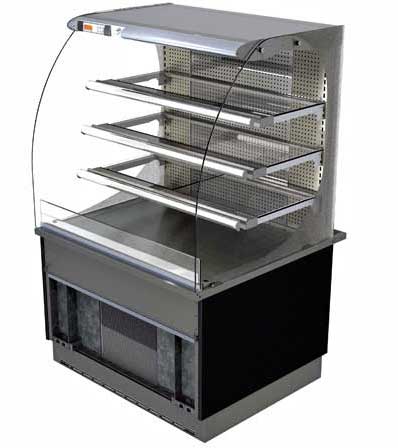

Self Help Cold Patisserie (Fixed Back) (HT)CED Fabrications - Designline Brand - Chilled Logo

Designline-SH-Cold-FB



Features

Self Help Cold Patisserie (Fixed Back) (HT)CED Fabrications - Designline Brand - Chilled Logo
Features

  • Curved glass profile is designed to compliment other drop in and patisserie units within the Designline range.
  • Freestanding self help, wall sited chilled patisserie, open fronted with front loading to four display levels.
  • Ideal for the display of wrapped chilled produce & drinks.
  • Chilled by energy efficient hydrocarbon refrigeration (HT).
  • Can achieve temperatures 0-5 deg. C in 27 deg. C ambient at 55% relative humidity.
  • Integral fan blown refrigerated air curtain system.
  • Stainless steel  canopy, open fronted display and side glass for self help/ serve over presentation.
  • Eye level gantry mounted control panel in canopy head rear – operator side.
  • Stainless steel rear fixed back panels in display, allow for positioning the display against a wall.
  • Three toughened glass shelves, adjustable in height and angle.
  • Additional chilled steel deck area for additional worktop height merchandising.
  • Low energy diffused LED lighting to each display level.
  • 24 hour operation as standard.
  • Integral automatic condensate water evaporation, eliminates the need for site drainage.
  • Optional S/steel fascia panel in black epoxy coat or satin polish finish.
  • 40mm point of sale ticket strip & product stop to each display level.
  • Steel base in black epoxy coat (standard) or satin polish finish (optional).
  • Kick plinth in stainless steel satin polish finish
  • Mobile positioning/ transportation combined castor/ feet.
  • Adjustable final positioning/ levelling feet.
  • ‘C’ profile safety edge to all exposed edge glass.


Food Types

Self Help Cold Patisserie (Fixed Back) (HT)CED Fabrications - Designline Brand - Chilled Logo
Food Display Types



Drinks (Deck Area): Still & carbonated, bottled, canned or carton water, UHT dairy, lemonade, wine, beer, lager, fruit juice & health drinks.



Food (Deck and Shelving Area): Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes, & pastries, cakes, yoghurt, fruit juice & fruit.



Dimensions

Self Help Cold Patisserie (Fixed Back) (HT)CED Fabrications - Designline Brand - Chilled Logo
Dimensions

Model

PC6FBHT

PC9FBHT

PC12FBHT

PC20FBHT

Length (mm)

600

900

1200

2000

Depth (mm) + 75 wall stand off bracket

750 +75

750 +75

750 +75

750 +75

Height (mm)

1405/1415

1405/1415

1405/1415

1405/1415

Weight (uncrated) (kg)

145

190

240

390

Power (kW)

1.47

1.70

1.80

1.9

Total Heat Rejection
@ 25°C Ambient (watts)

1508

2004

2235

2235

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V



  • (HT) = R290 Refrigerant
  • Control panel to customer side



Downloads

General Layout Drawings.CED Fabrications - Designline Brand - Chilled Logo
Designline Self Help Cold Patisseries (Fixed Back) (HT)






Fitting Instructions & User Manual.

Designline Self Help Cold Patisseries (Fixed Back) (HT)
