Designline drop in displays are elliptically styled displays utilising a clean curved design perspective, enhanced by durable chrome plated aluminium superstructures and lighting ducts, all enclosed within toughened curved glass hoods, sneeze screens and side panels.

Visual

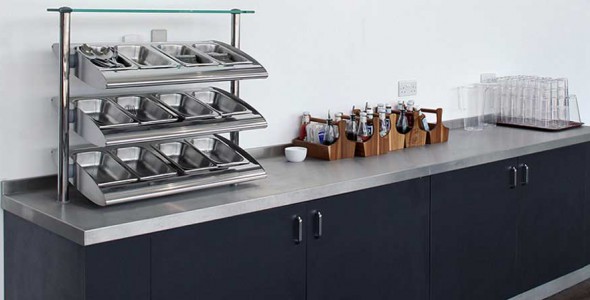

Self Help Cutlery/ Condiment Unit

Ambient Cutlery Condiments Unit



Features

Self Help Cutlery/ Condiment Unit
Features

  • Curved unit profile is designed to compliment other units within the range.
  • Worktop mounted cutlery & condiments display with overhead impulse display shelf.
  • Self help application.
  • Superstructure supports 3 levels of elliptical shaped inclined shelving.
  • Features additional eye level toughened glass impulse/ display shelf.
  • Product illumination is from diffused LED lighting (4000 Kelvin) in the elliptical profile gantry and under top and midshelf, for increased visual display.
  • Unit is supplied with a full compliment of G/N containers for the display of cutlery, condiments, creamers, sachets etc.
  • Lighting is controlled from a push button switch on bottom shelf end plate.
  • Superstructure in bright polished steel and aluminium profile.
  • Supplied with post fixing plates, bolts, 2 m lead & plug top, for connection to a single 13 Amp socket (13A 230V 50 Hz).



Food Types

Self Help Cutlery/ Condiment Unit
Food Display Types



3 Tier Gastronorm Shelving: Assorted cutlery, milk, cream, creamers, sugars, sweeteners, butters and spreads, jams, marmalades, sachet type salt, vinegar, pepper, sauces.



Glass Shelf Area: Fruit, (basket displayed) flowers, napkins, menus, wine lists, table condiment sets, corporate branding



Dimensions

Self Help Cutlery/ Condiment Unit
Dimensions

Model

CCU1

CCU2

CCU3

Capacity

1/1 GN

2/1 GN

3/1 GN

Length (mm)

450

800

1150

Depth (mm)

421

421

421

Height above worktop (mm)

708

708

708

1/9 x 65mm deep Gn containers (top shelf)

3

6

9

1/6 x 65mm deep Gn containers (middle shelf)

2

4

6

1/4 x 65mm deep Gn containers (bottom shelf)

2

4

6

Weight (uncrated) (kg)

14

22

30

Power (kW)

0.1

0.1

0.1

Electrical supply

13A 230V

13A 230V

13A 230V



  • Light switch located on bottom shelf end plate.


Downloads

General Layout Drawings
Designline Self Help Cutlery/ Condiment Units





Fitting Instructions & User Manual.
Designline Self Help Cutlery/ Condiment Units
