This durable ambient storage cupboard forms part of the Glide range of mobile dining carts – a choice of cold, hot & ambient commercial catering carts that combine to form a food severy counter solution as unique as your requirements !

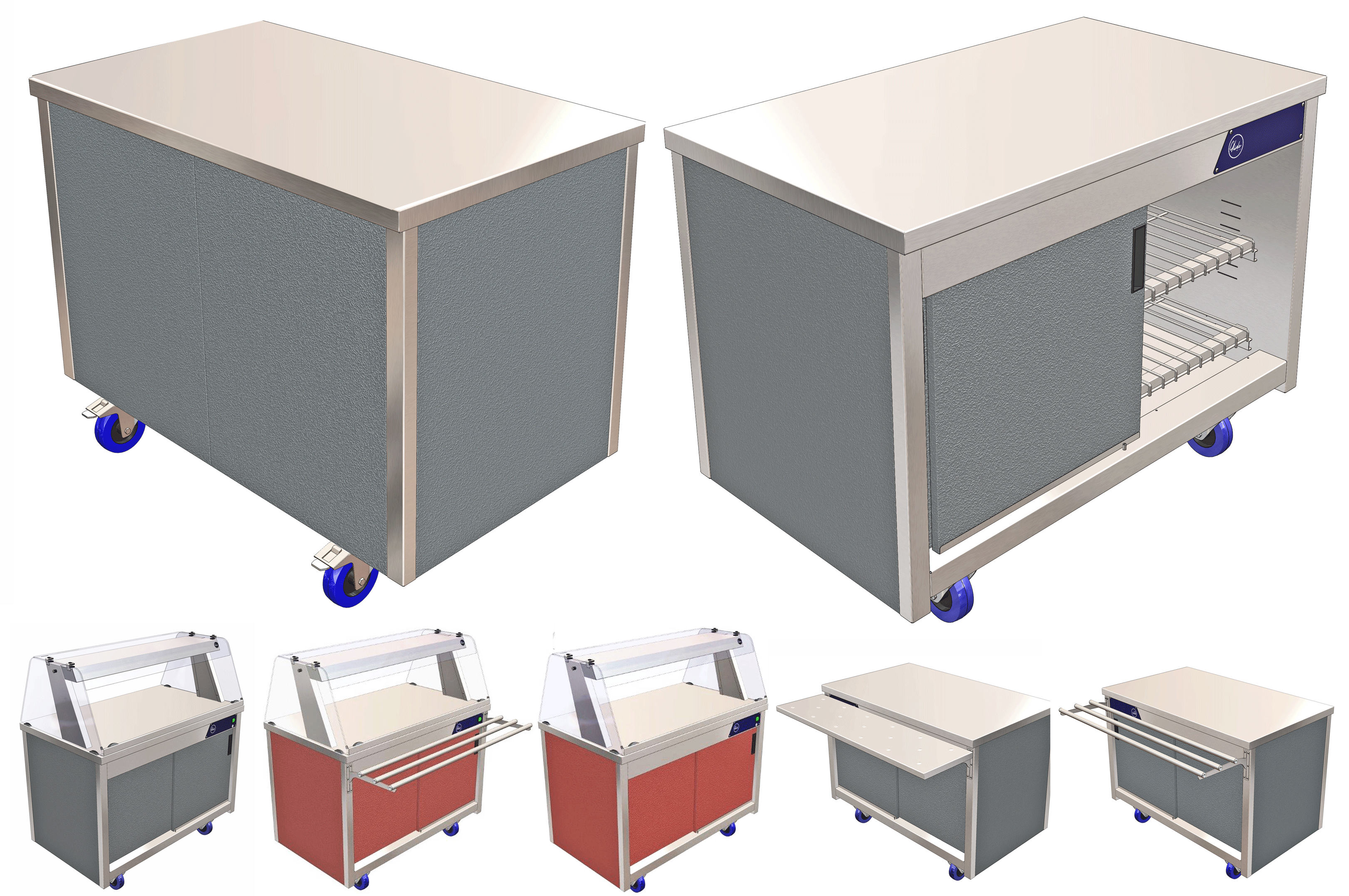

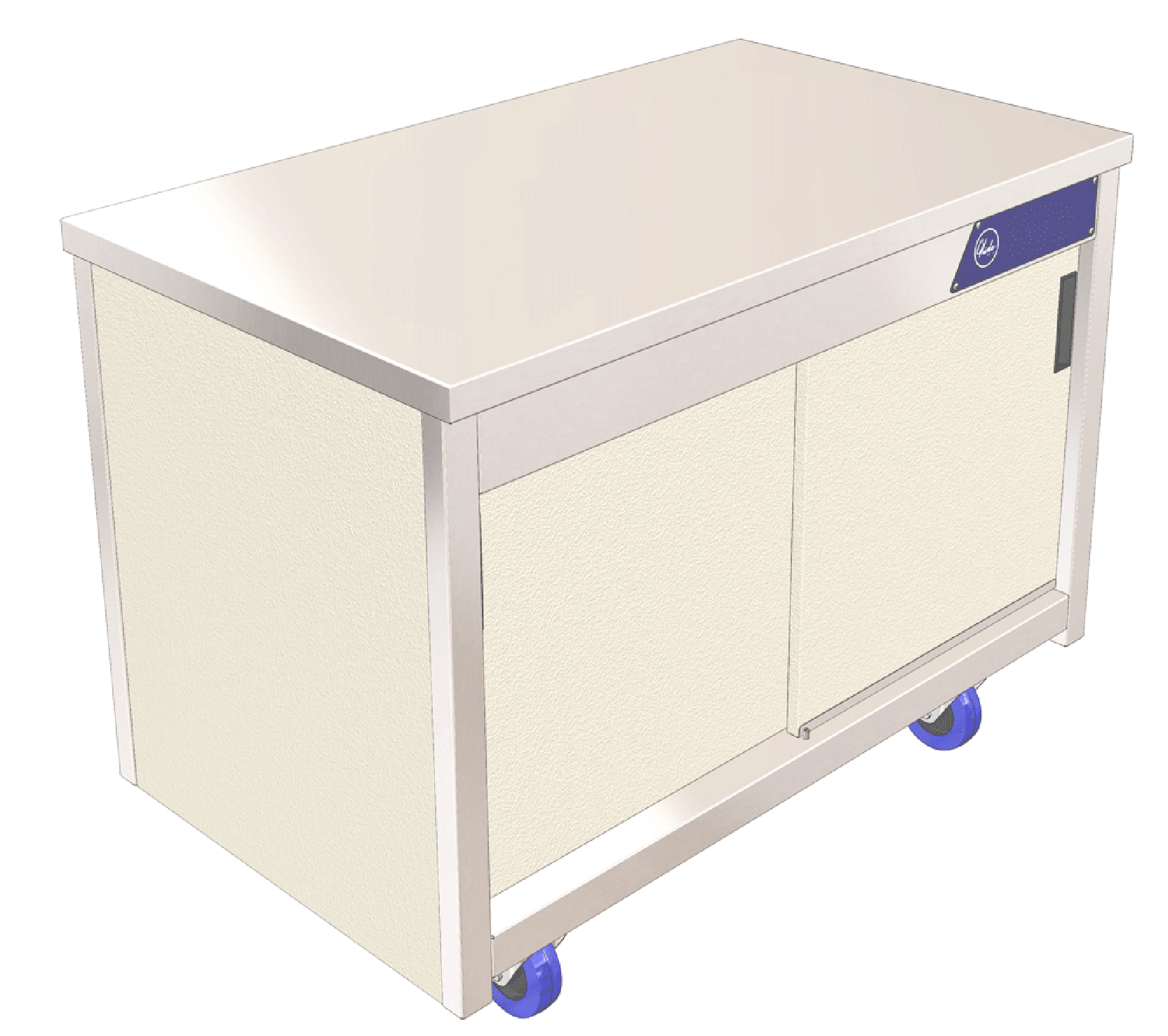

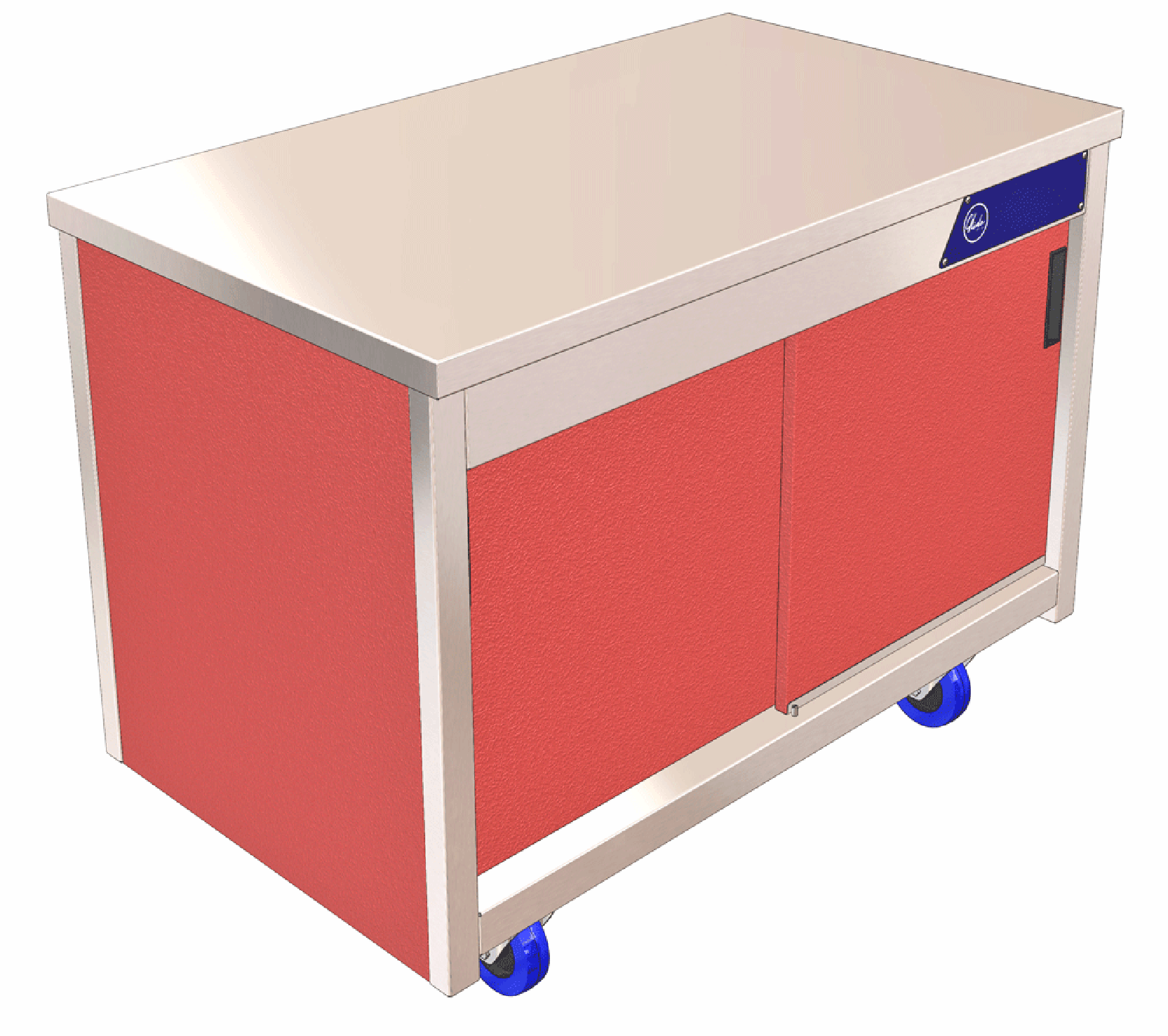

Glide Ambient Cupboard (Plain Top). The plain top ambient storage cupboard (no gantry) is made in 4 different Gn sizes to suit your servery layout. The standard cupboard features a s/steel plain worktop with a rear cupboard under. Behind the removable rear sliding s/steel cupboard doors, are two tiers of internal grid shelves for plate/ container storage. The cupboards accept plates, dishes or up to 10x 1-1 Gn size (200mm deep) gastronorm containers (not included), depending on cupboard size. The front/side base panels are finished in leathergrain plastisol steel, colour merlin grey (BS 18B25), Each model comes with lockable castors.

Height Options.
Low Height Model (Glide Junior)
in 850mm or 800mm high options for junior/ primary use.

Accessories & Finishes.



Folding Steel Solid or Tubular Tray Slides. Tray slides add 40mm to unit depth and are set at the worktop height – 55mm.


Colour Finishes To Font/ Side Panels.
11 alternative choices of durable steel, colour & wood effect finishes for ambient cupboard front/ side panels, to compliment other selected models in the servery colour scheme.

Gantry Options.
Ambient/ Island Or Deli Gantry.

LED reversible glass gantry or island gantry options can be added to increase food presentation space.
The deli gantry option also includes a glass mid-shelf.

Heated Gantry.
Heated gantry option provides short term hot holding of plated meals under.

Visual

Glide Ambient Cupboard (Plain Top).
Visual



Features

Glide Ambient Cupboard (Plain Top).
Features

  • Glide mobile dining cart, plain s/steel worktop with ambient store cupboard (no gantry).
  • Free standing application.
  • Available in 4 no. gastronorm lengths x 700mm (d) x 900mm (h).
  • Front/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Worktop in 304 gd steel, all other external steel surfaces (sliding doors etc.) in 430gd.
  • Ambient rear store cupboard fitted with removable sliding s/steel doors.
  • Cupboard fitted with adjustable height shelving, removable grid shelves, for easy cleaning.
  • Fitted with lockable non-marking rubber tyre castors.
  • Accommodates up to (10) x 1-1 Gn 200mm (d) containers (not included), depending on model size.

Glide Range: Electrical Connections.

  • Most Glide mobile units are operated by 13A plug top connected to a dedicated single socket outlet (SSO) (13A), unless its’ power supply exceeds 13A.
  • If connected to a double socket outlet, care must be taken not to exceed the circuit capacity.

Glide Range: Electrical Trailing Lead Protection.

  • CED recommend the use of  proprietary cable covers to protect overground trailing leads, to reduce trip hazards, limit accidental electrical partial plug disconnection and to keep wire safe from impact damage, as damaged cable wire can cause an electrical fault.
  • HSE GOV.UK Guidance On Planning And Managing Temporary Electrical Installations Re: Cabling.
    ‘Route cables to minimise tripping hazards or potential mechanical damage, and in a position that allows them to be safely installed and removed. Give particular care to the position of cable connections. You can also use cable ramps or similar to protect cables running overground across route ways to help avoid them becoming tripping hazards’

Options

  • Folding s/steel solid tray slide available*.
  • Folding s/steel tubular tray rail Ø25 tube, available*.
  • Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm)*.
  • 11 solid colour & woodgrain base panel finishes available.
  • Low height model 850mm (h) available.
  • *Low height model 800mm (h) available. * Bespoke option with extended lead time*.
  • Ambient self help/ assisted serve gantry – 397 mm(h) c/w LED lighting (opaque cover, colour 4000k), reversible curved glass sneeze screen & end glass.
  • Ambient assisted service deli gantry – 540 mm(h) c/w LED lighting (opaque cover, colour 4000k), full height curved glass screen, end glass, glass mid shelf.
  • Ambient self help island gantry – 397 mm(h) c/w LED lighting (opaque cover, colour 4000k), double curved glass sneeze screen & end glass.
  • Heated self help/ assisted serve gantry – 397 mm(h) c/w 200w quartz infra red jacketed safety lamps, reversible curved glass sneeze screen & end glass.

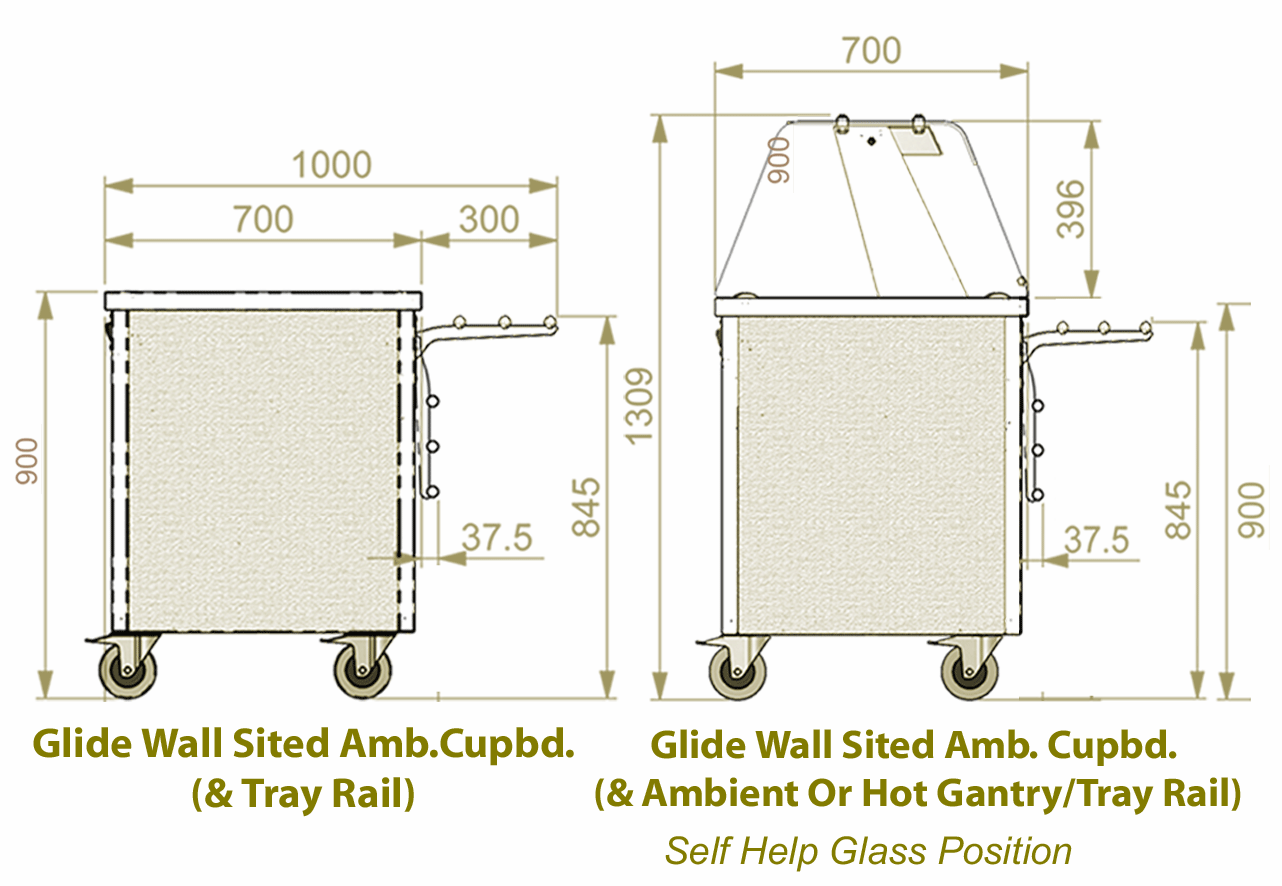

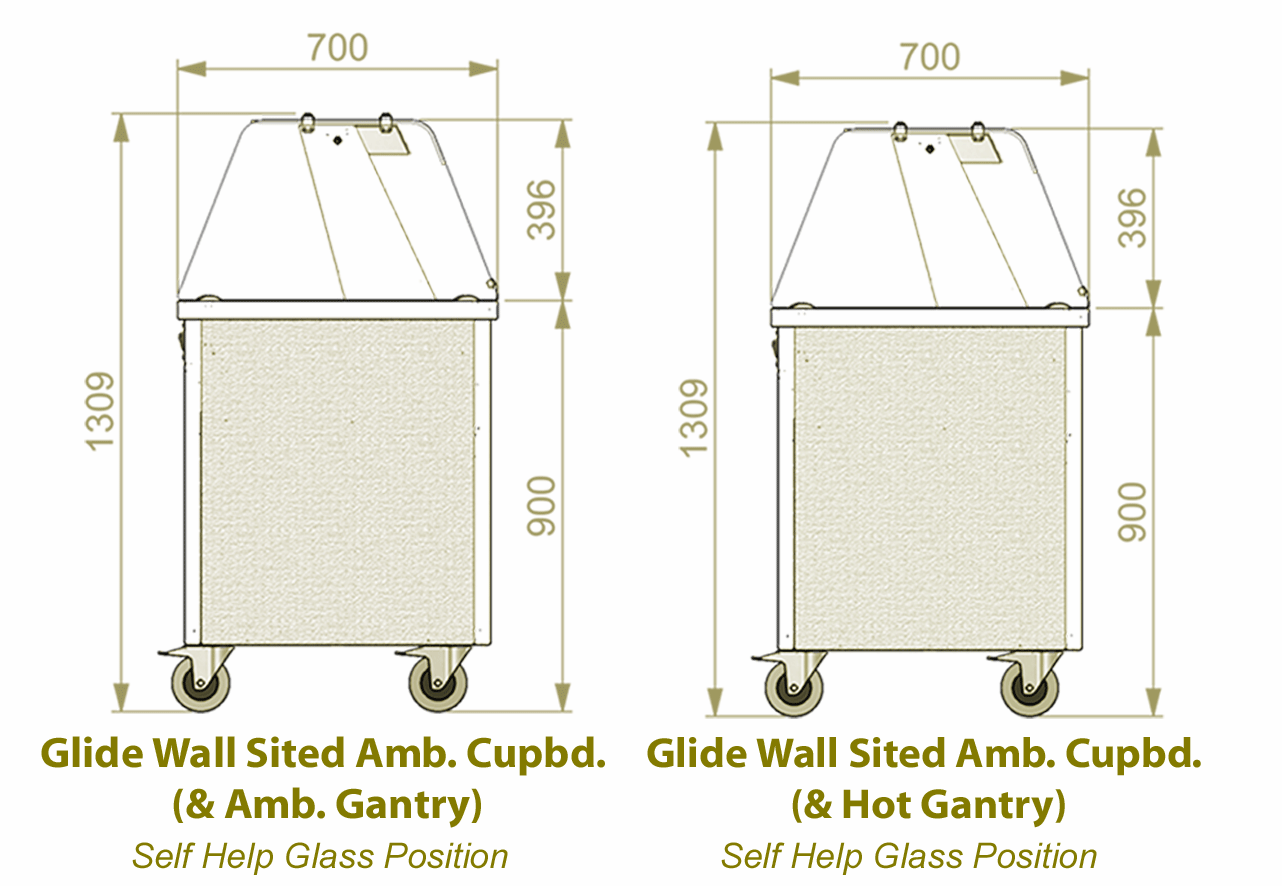

Dimensions

Glide Ambient Cupboard (Plain Top).
Dimensions

Model Code

GACP2xxx

GACP3xxx

GACP4xxx

GACP5xxx

Capacity (Gn)

2-1

3-1

4-1

5-1

Length (mm)

825

1175

1525

1875

Depth (mm)

700

700

700

700

Height (mm)

900

900

900

900

Storage Cupboard
Removable S/Steel Sliding Doors & Adjustable Height Shelving

Included

Included

Included

Included

Removable Shelving
Chrome Grid Cupboard Shelving

Included

Included

Included

Included

Cupboard Storage Capacity
Max. Qty 1-1 Gn Containers,
Containers Not Included

4

6

8

10

Optional Trayslide – Revised Model Depth (mm)
Folding Tray Slide Option In Down Position

740

740

740

740

Optional Trayslide – Revised Model Depth (mm)
Folding Tray Slide Option In Up Position

1000

1000

1000

1000

Optional Trayslide Height (mm)
(Base Unit (h) – 55mm)

845

845

845

845

*Optional Ambient Gantry (Power kw)
c/w 3m lead & Plug, for connection to dedicated 13A SSO.

0.008

0.014

0.016

0.022

*Optional Heated Gantry (Power kw)
c/w 200w Quartz Infra-red Jacketed Safety Lamps, 3m lead & Plug, for connection to dedicated 13A SSO.

0.4

0.6

0.8

1.0

Optional Model Height G850H (mm)

850

850

850

850

Optional Model Height *G800H (mm)
*bespoke option, extended lead time*

800

800

800

800

Weight (kg) – Uncrated

60

70

82

91

*When Gantry option is added to model, the control panel blank plate is replaced with a control panel featuring illuminated rocker switch/power isolation*

Options                                                                                          Option Code

Model Code

GACP2

GACP3

GACP4

GACP5

Glide S/Steel Drop Down Tubular Tray Rail

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm High Model

G850H

G850H

G850H

G850H

Glide 800mm High Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

Glide Ambient Gantry. Reversible Curved Glass, End Glass, LED, 397mm (h)

GAG2

GAG3

GAG4

GAG5

Glide Ambient Deli Gantry. Full Height Curved Front Glass/ End Glass. Glass Mid shelf, LED, 540mm (h)

GADG2

GADG3

GADG4

GADG5

Glide Ambient Island Gantry. Double Curved Island Glass/ End Glass, LED, 397mm (h)

GAIG2

GAIG3

GAIG4

GAIG5

Glide Heated Gantry. Reversible Curved Glass, End Glass, 200w quartz infra-red jacketed safety lamps, 397mm (h)

GHG2PTAC

GHG3PTAC

GHG4PTAC

GHG5PTAC

Glide Colour Finish Base Panels (Front & Sides).
Ocean Blue (BS 18C37)

GBLUECHA2

GBLUECHA3

GBLUECHA4

GBLUECHA5

Glide S/Steel Finish Base Panels (Front & Sides).
S/Steel (430 gd)

GSSTLCHA2

GSSTLCHA3

GSSTLCHA4

GSSTLCHA5

Glide Colour Finish Base Panels (Front & Sides).
Goosewing Light Grey (BS 10A05)

GGREYCHA2

GGREYCHA3

GGREYCHA4

GGREYCHA5

Glide Colour Finish Base Panels (Front & Sides).
Forest Green (RAL 6002)

GGRENCHA2

GGRENCHA3

GGRENCHA4

GGRENCHA5

Glide Colour Finish Base Panels (Front & Sides).
Poppy Red (BS 04E5B)

GPREDCHA2

GPREDCHA3

GPREDCHA4

GPREDCHA5

Glide Colour Finish Base Panels (Front & Sides).
Buttermilk Cream (BS 10C31)

GCREMCHA2

GCREMCHA3

GCREMCHA4

GCREMCHA5

Glide Colour Finish Base Panels (Front & Sides).
White (BS 00E55)

GWHITCHA2

GWHITCHA3

GWHITCHA4

GWHITCHA5

Glide Colour Finish Base Panels (Front & Sides).
Black (BS 00E53)

GBLAKCHA2

GBLAKCHA3

GBLAKCHA4

GBLAKCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Walnut (DL85)

GWALNCHA2

GWALNCHA3

GWALNCHA4

GWALNCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Beech (DL76)

GBEECCHA2

GBEECCHA3

GBEECCHA4

GBEECCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Oak (DL84)

GOAKCHA2

GOAKCHA3

GOAKCHA4

GOAKCHA5

Popular Model Codes & Options

SUMMARY : Popular Model Codes & Options

Model Code

Option Code

Option Code

Option Code

Glide Ambient Cupboard
(& S/Steel Drop Down
Solid Tray Slide)

GACP2
GACP3
GACP4
GACP5

GSTS2
GSTS3
GSTS4
GSTS5

GSTS2
GSTS3
GSTS4
GSTS5

Glide Ambient Cupboard
(& S/Steel Drop Down
Tubular Tray Rail)

GACP2
GACP3
GACP4
GACP5

GTTS2
GTTS3
GTTS4
GTTS5

YYYY

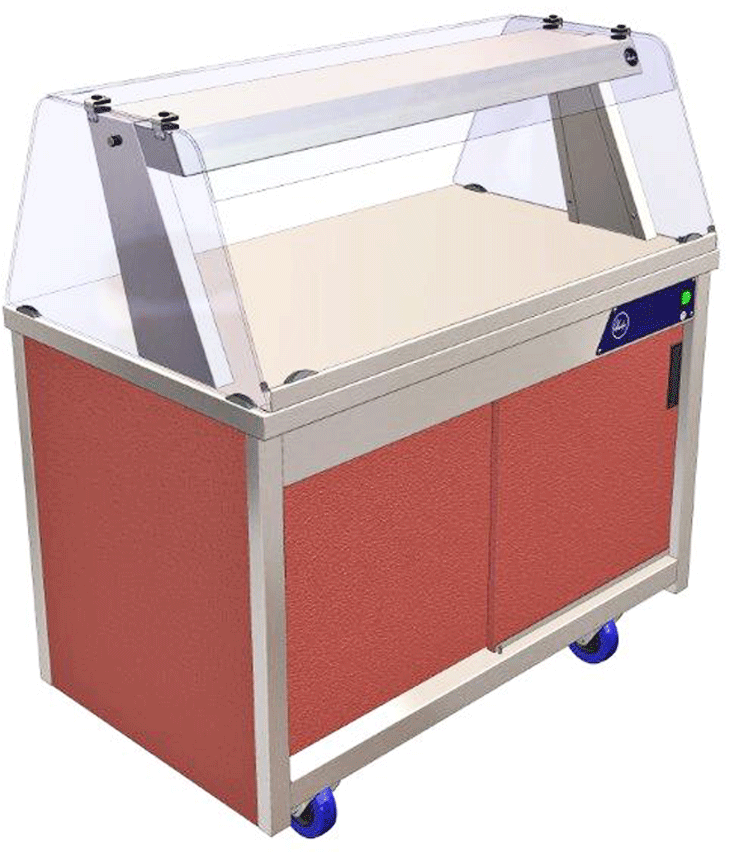

Glide Ambient Cupboard
(& Ambient Gantry –
Reversible Curved Glass/End Glass)

GACP2
GACP3
GACP4
GACP5

GAG2
GAG3
GAG4
GAG5

YYYY

Glide Ambient Cupboard
(& Ambient Deli Gantry –
Full Height Curved Front Glass/Mid shelf & End Glass)

GACP2
GACP3
GACP4
GACP5

GADG2
GADG3
GADG4
GADG5

GPREDCHA2

Glide Ambient Cupboard
(& Ambient Island Gantry –
Double Curved Glass/End Glass)

GACP2
GACP3
GACP4
GACP5

GAIG2
GAIG3
GAIG4
GAIG5

GPREDCHA2

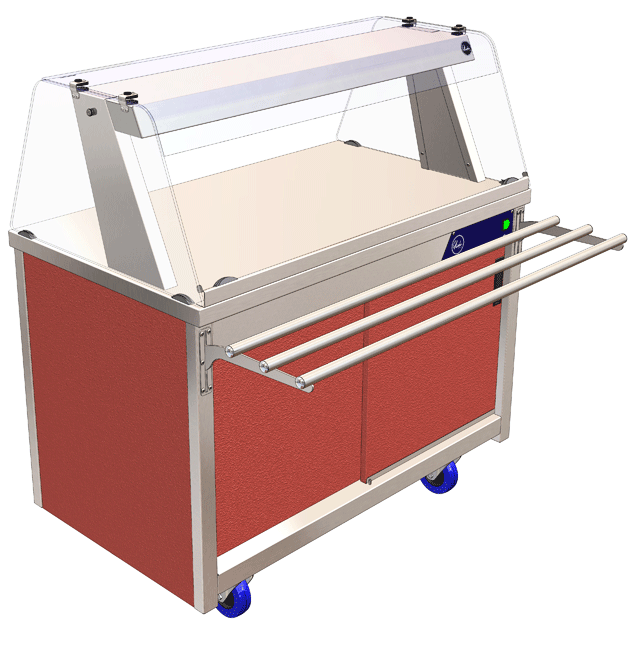

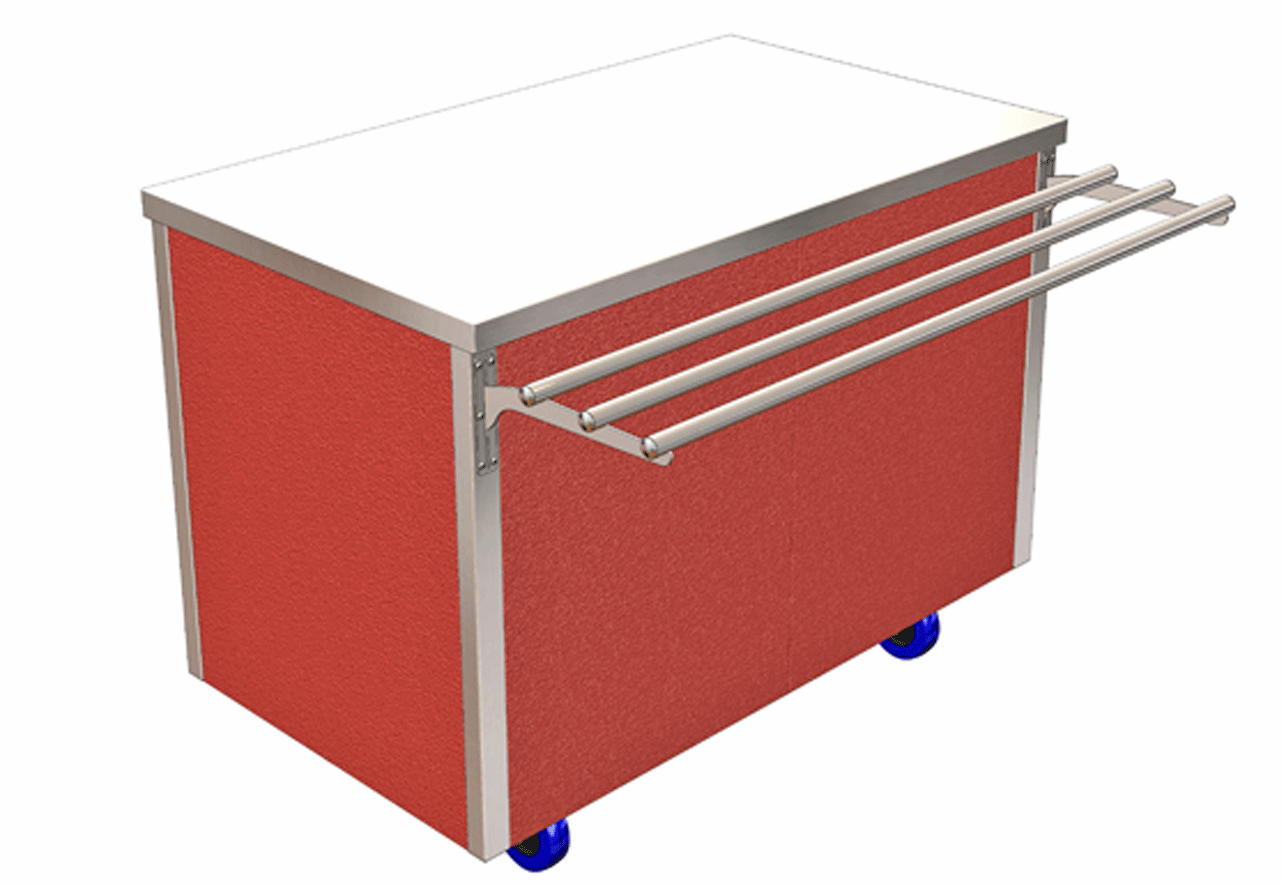

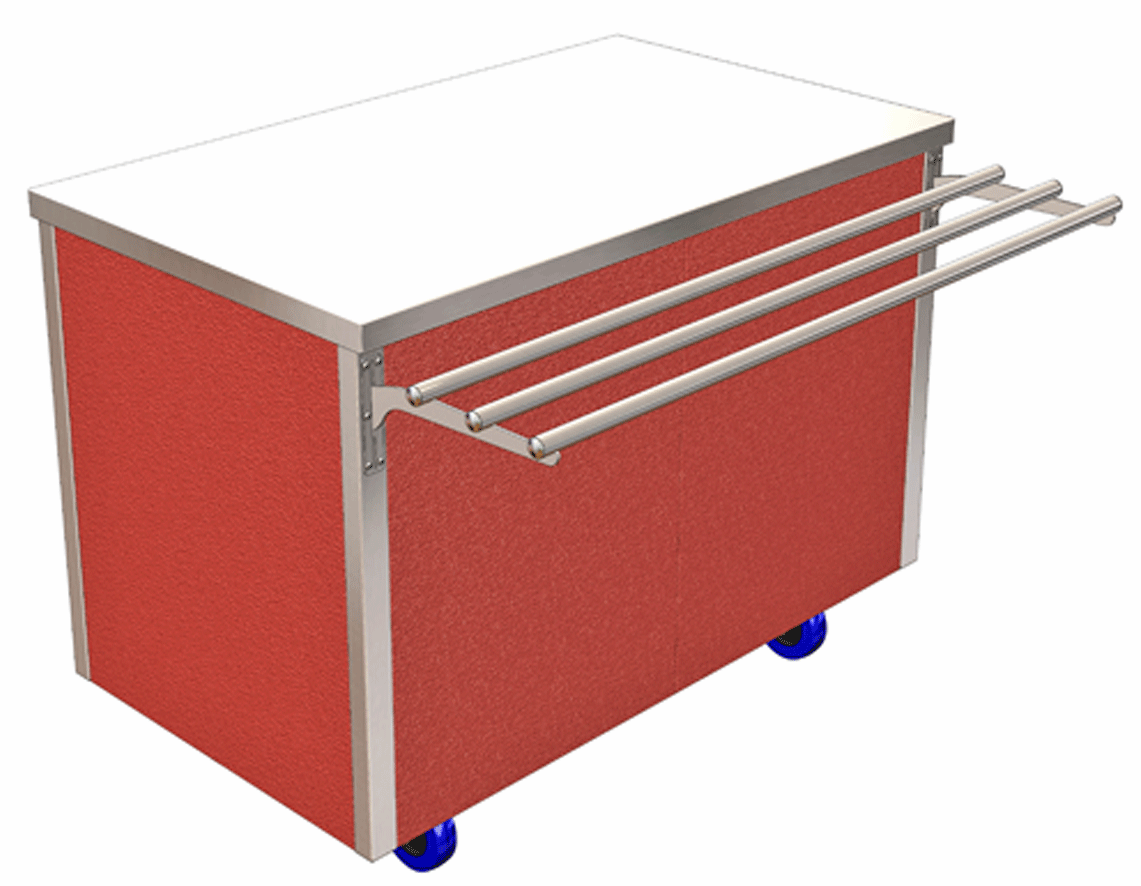

Glide Ambient Cupboard
(& Ambient Gantry) & (S/Steel Drop Down Tubular Tray Rail)
& (Colour Panel Finish Red)

GACP2
GACP3
GACP4
GACP5

GAG2
GAG3
GAG4
GAG5

GTTS2
GTTS3
GTTS4
GTTS5

GPREDCHA2
GPREDCHA3
GPREDCHA4
GPREDCHA5

Glide Ambient Cupboard
(& Heated Gantry –
Reversible Curved Glass/End Glass)

GACP2
GACP3
GACP4
GACP5

GHG2PTAC
GHG3PTAC
GHG4PTAC
GHG5PTAC

GPREDCHA2

Glide Ambient Cupboard
(& Colour Panel Finish – Red)

GACP2
GACP3
GACP4
GACP5

GPREDCHA2
GPREDCHA3
GPREDCHA4
GPREDCHA5

GPREDCHA2



Options

Glide Ambient Cupboard (Plain Top).
Options.

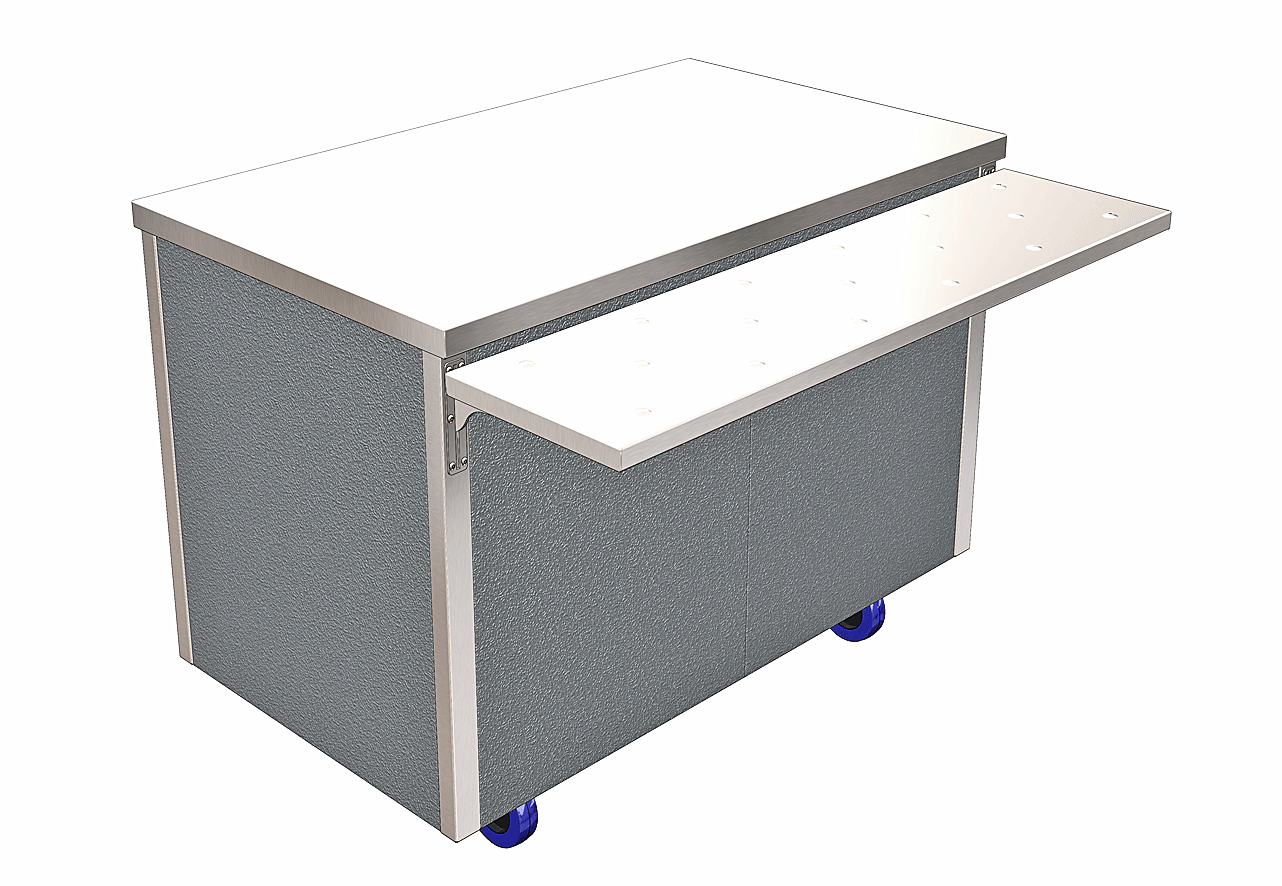

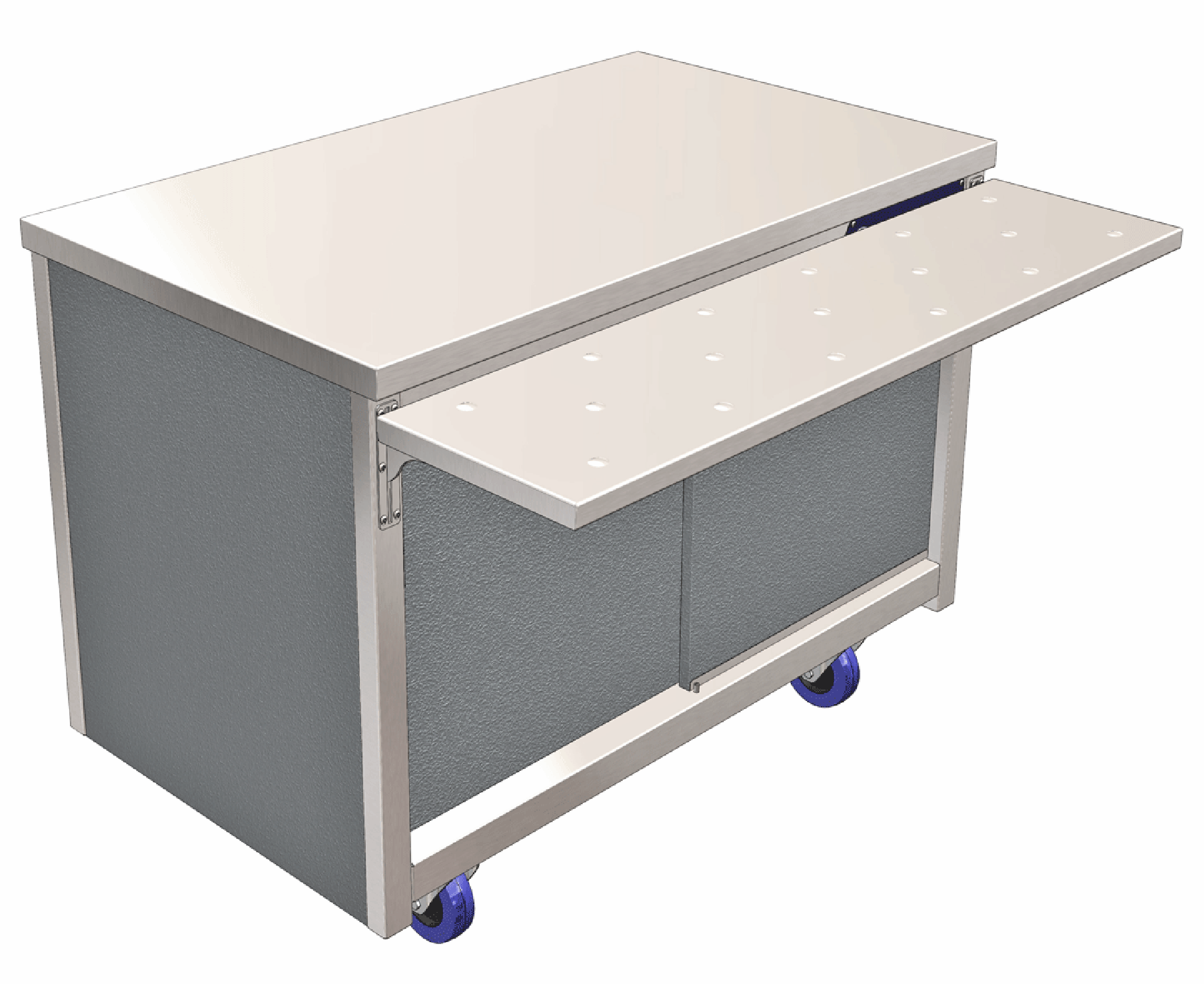

Glide S/Steel Folding Solid Tray Slide.
(Option Codes GSTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type, up position adds 302mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

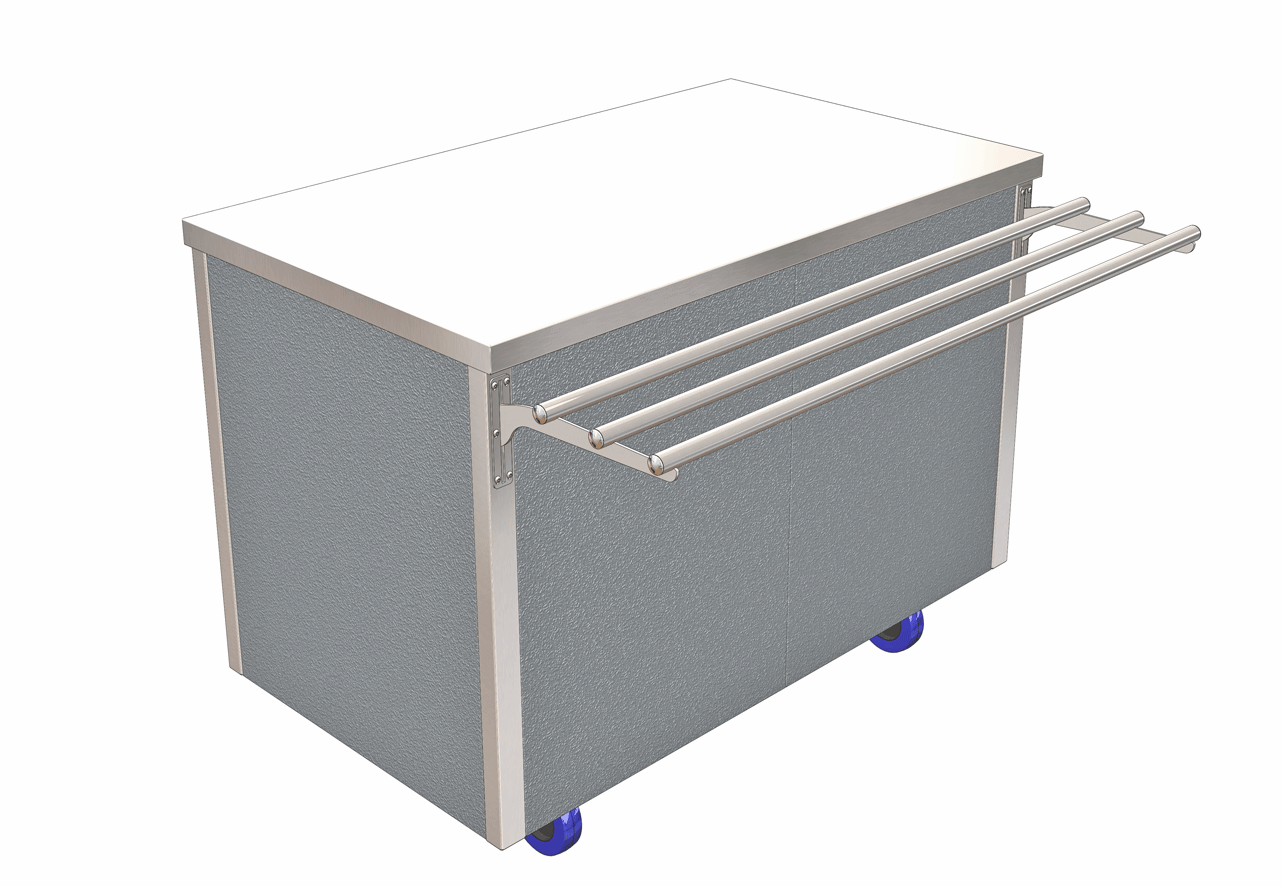

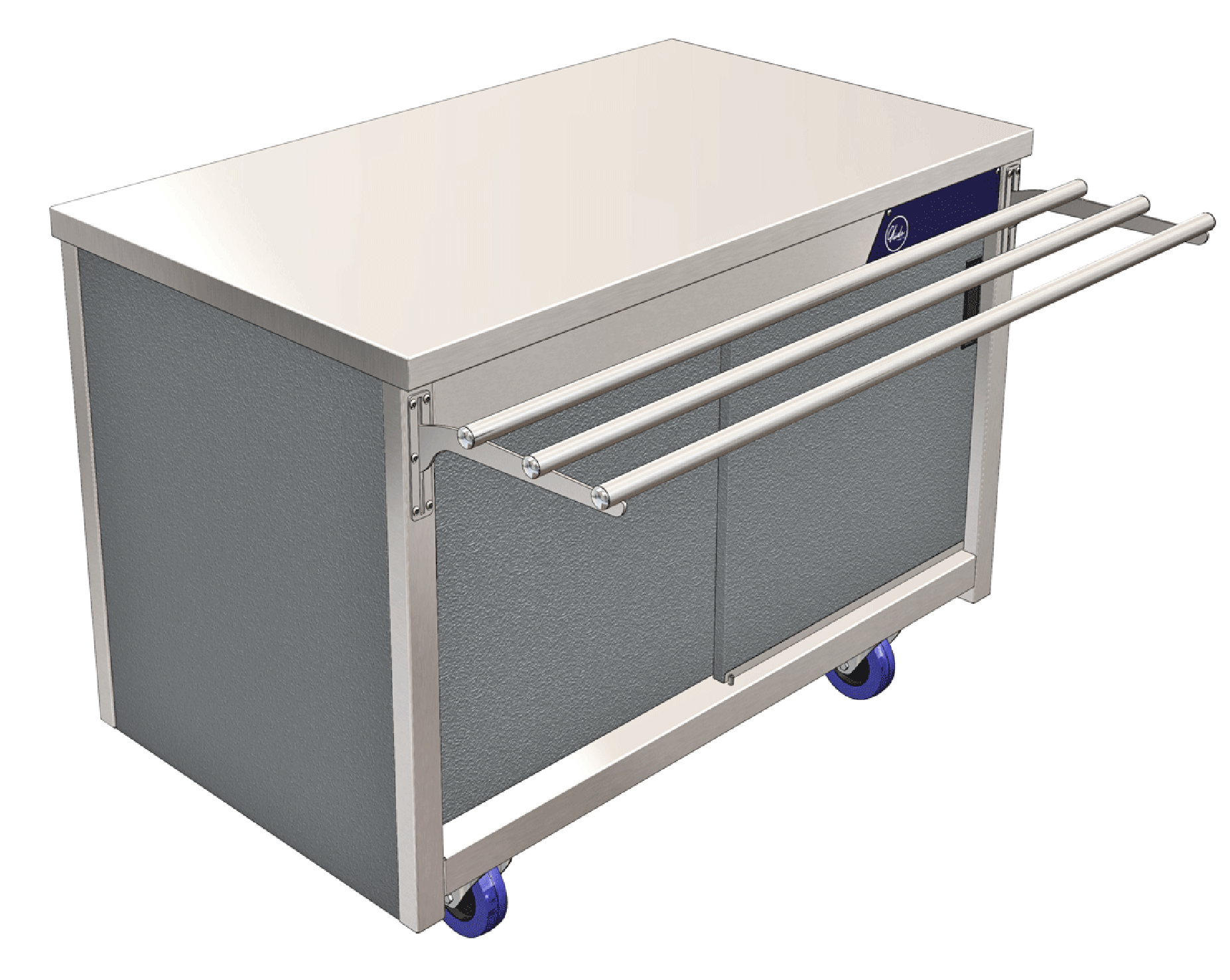

Glide S/Steel Folding Tubular Tray Rail.
(Option Codes GTTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube, drop down bracket type, up position adds 298 mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Low Height Model ( Glide Junior) – 850mm.
(Option Code G850H) Glide junior option: (all cold, hot, ambient, till & corner units) 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model ( Glide Junior) – 800mm.
(Option Code G800H) Glide junior option: (all cold, hot, ambient, till & corner units) 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). * Bespoke Option/ Extended Lead Time *

Glide Ambient & Heated Gantry Options.

*When Gantry option is added to model, the control panel blank plate is replaced with a control panel featuring illuminated rocker switch/power isolation*

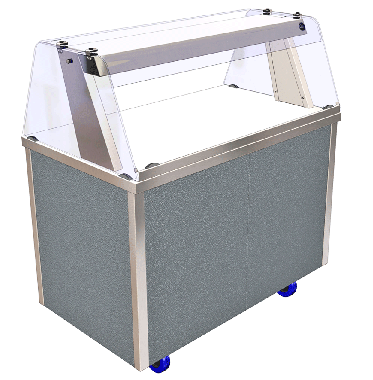

Glide Ambient Gantry.
(Option Codes GAG2 – 5) Glide option: 2-1 Gn to 5-1 Gn, ambient gantry, s/steel, c/w LED lighting, opaque cover, colour 4000k, reversible single curved glass sneeze screen, self help/ ass. serve use, + 397(h) above worktop, end glass.
Power rating GAG2 – 0.008 Kw. GAG3 – 0.014 Kw. GAG4 – 0.016 Kw. GAG5 – 0.022 Kw.

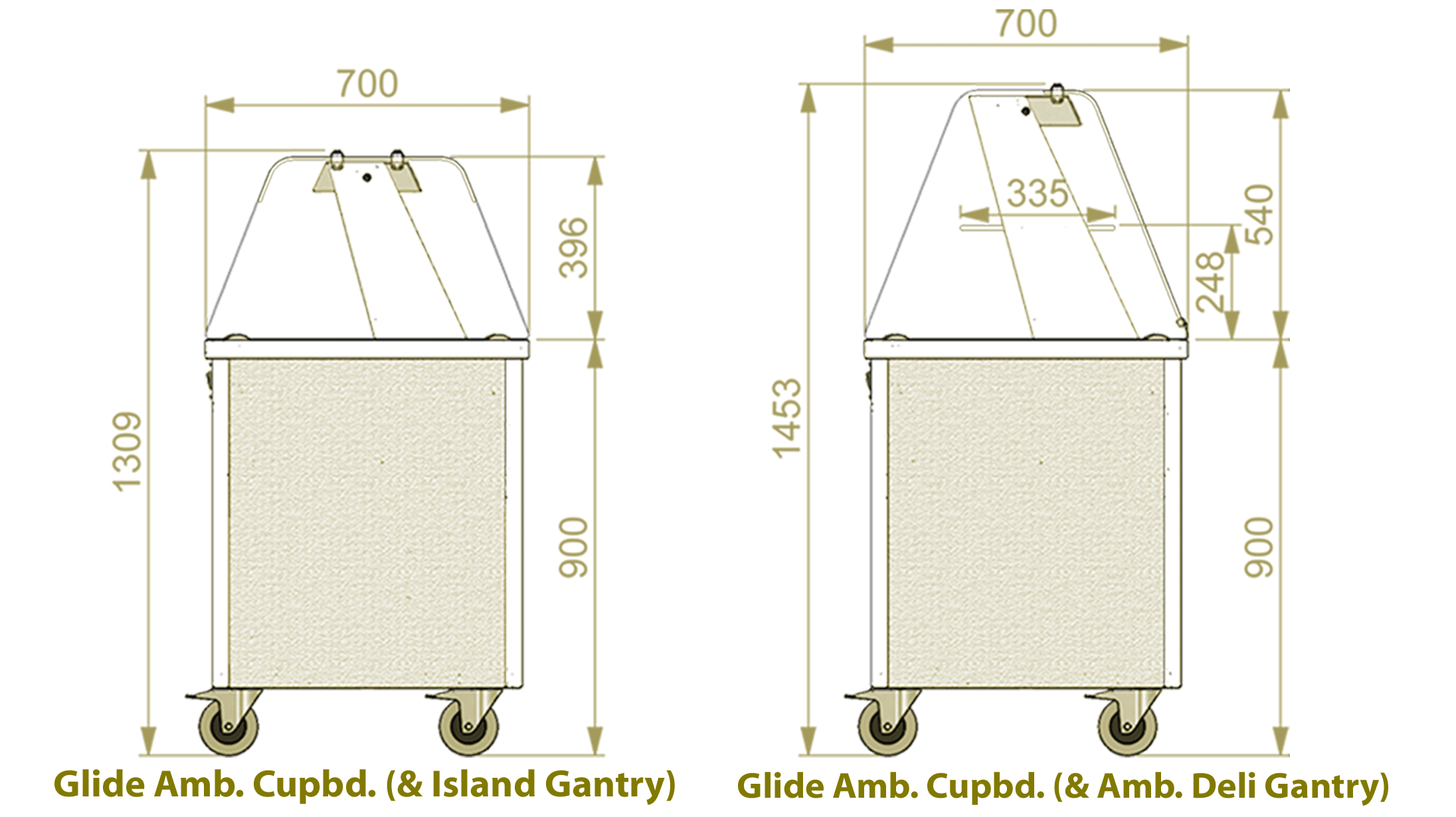

Glide Ambient Deli Gantry.
(Option Codes GADG2 – 5)
Glide option: 2-1 Gn to 5-1 Gn, ambient deli gantry, s/steel, c/w LED lighting, opaque cover, colour 4000k, full height single curved glass sneeze screen, assisted service use, + 540 (h) above worktop, glass mid shelf, end glass. Power rating GADG2 – 0.008 Kw. GADG3 – 0.014 Kw. GADG4 – 0.016 Kw. GADG5 – 0.022 Kw.

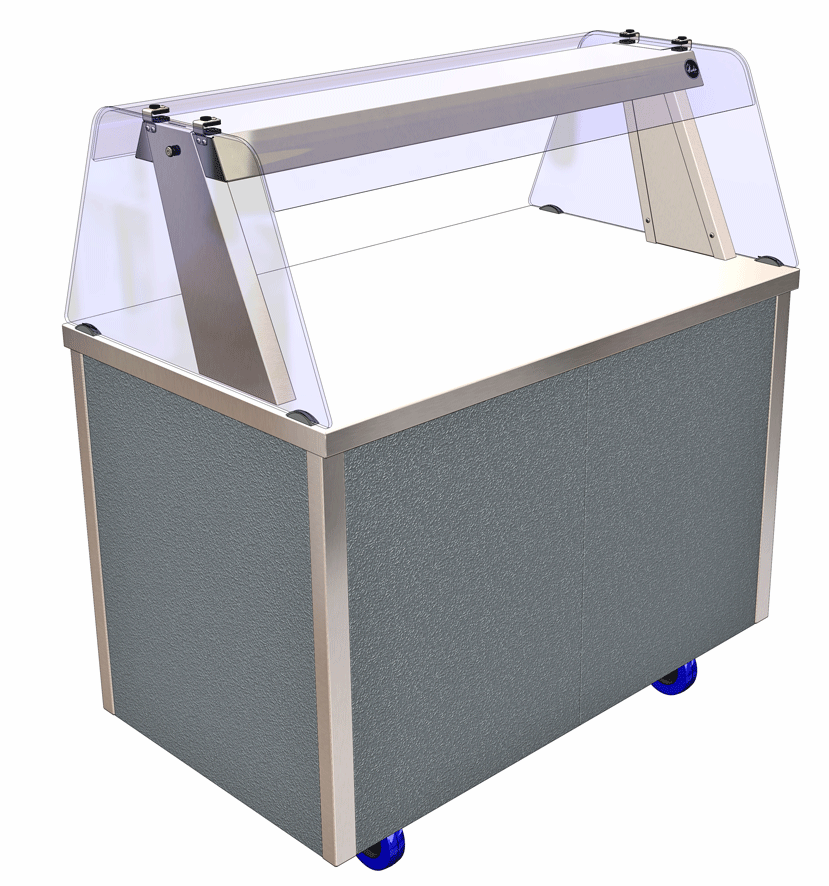

Glide Ambient Island Gantry.

(Option Codes GAIG2 – 5) Glide option: 2-1 Gn to 5-1 Gn, ambient island gantry, s/steel, c/w LED lighting, opaque cover, colour 4000k, double curved glass sneeze screen, self help use, + 397(h) above worktop, end glass. Power rating GAG2 – 0.008 Kw. GAG3 – 0.014 Kw. GAG4 – 0.016 Kw. GAG5 – 0.022 Kw.

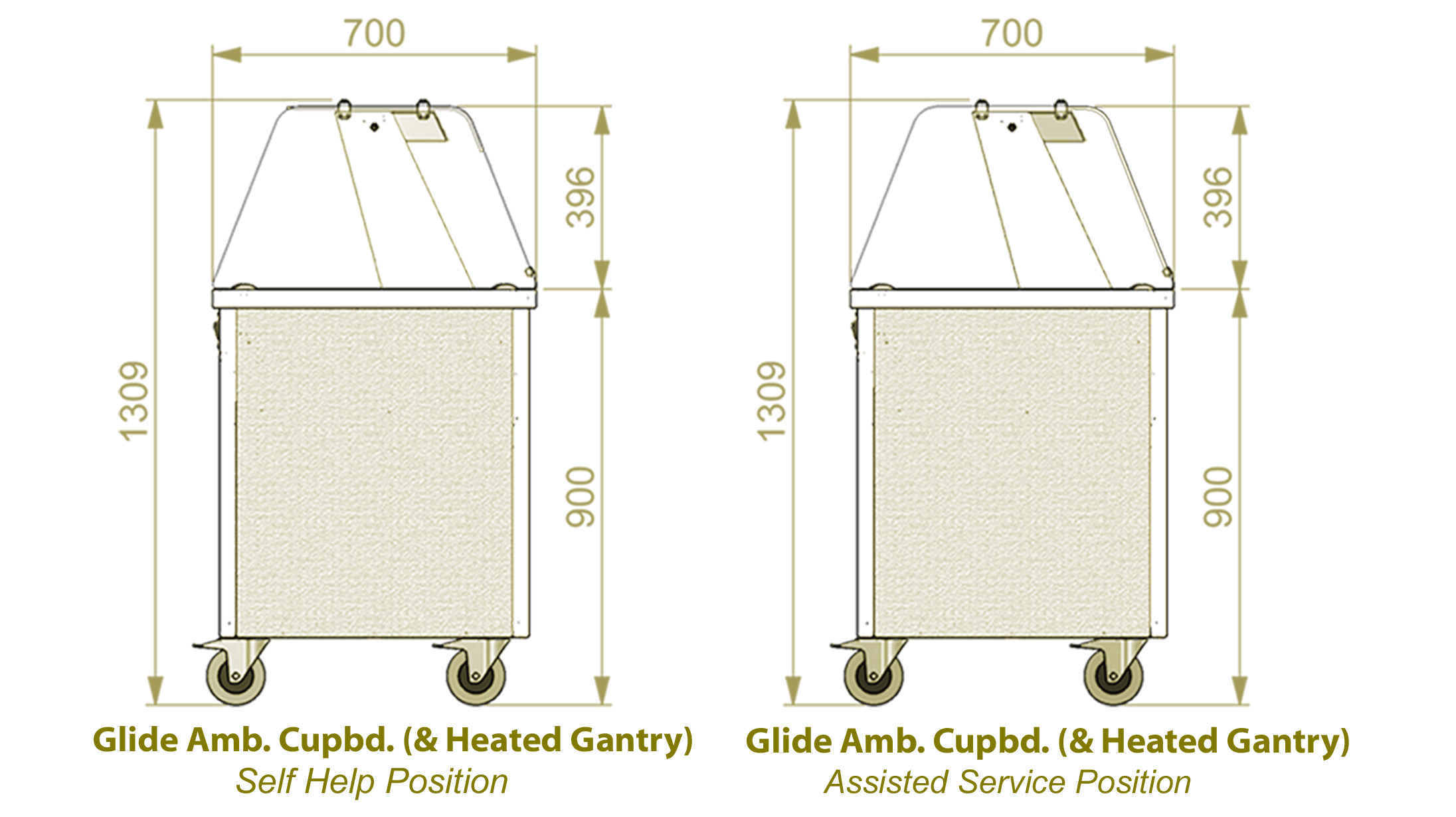

Glide Heated Gantry.
(Option Codes GHG2PTAC – GHG5PTAC) Glide option: 2-1 Gn to 5-1 Gn, heated gantry, s/steel, reversible single curved glass sneeze screen, self help/ ass. serve use, + 397(h) above worktop, reinforced worktop for heat, fitted with 200w quartz infra-red jacketed safety lamps.
Power rating GHG2PTAC – 0.40 Kw. GHG3PTAC – 0.60 Kw. GHG4PTAC – 0.80 Kw. GHG5PTAC – 1.0 Kw.

Glide Colour Finishes To Front/ Side Panels.

Blue Finish. (Option Codes GBLUECHA2 – GBLUECHA5) 2-1 Gn to 5-1 Gn full set of front panel/ sides in leathergrain plastisol steel, colour ocean blue (BS 18C37). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

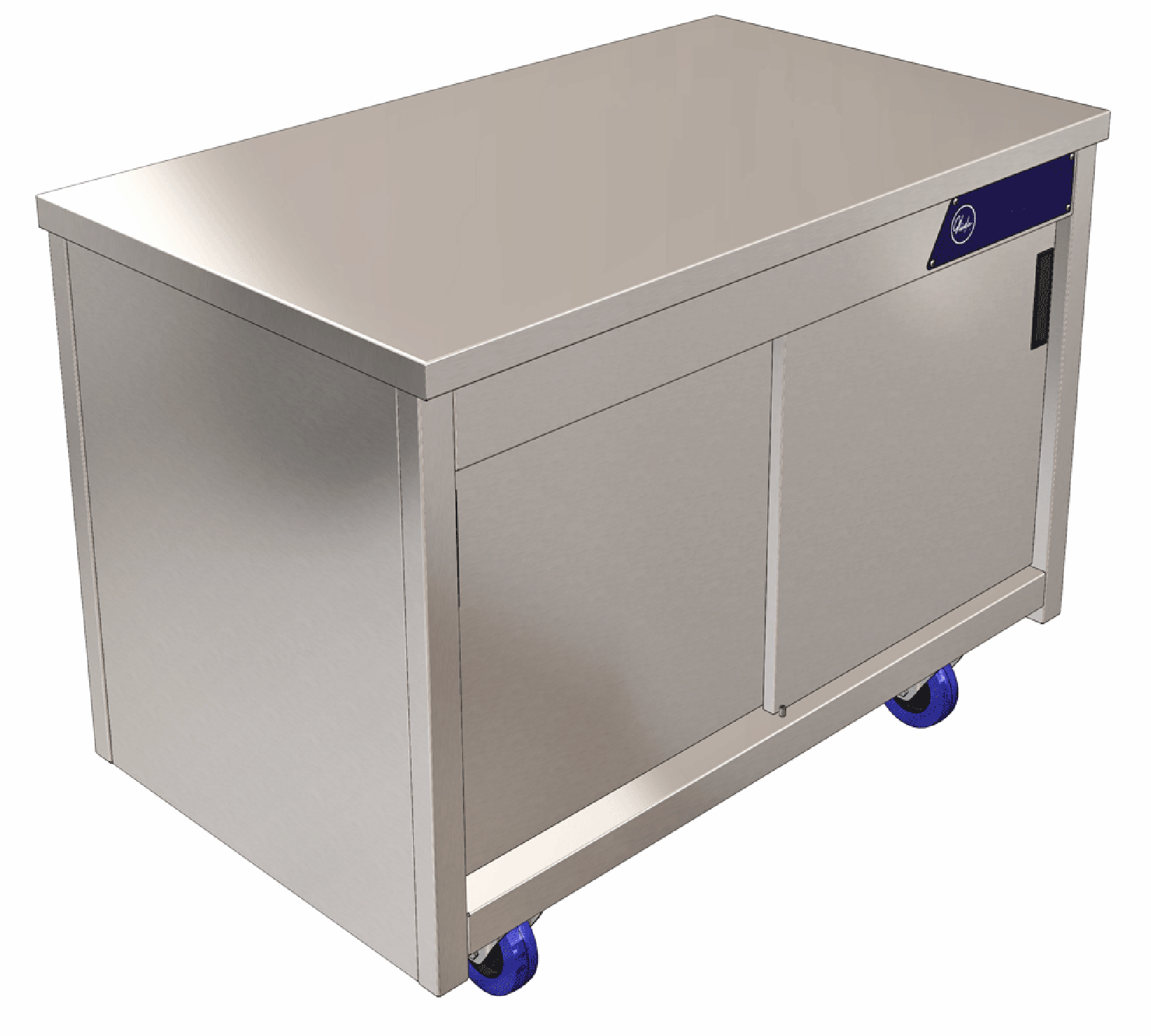

S/steel Finish. (Option Code GSSTLCHA2 – GSSTLCHA5) 2-1 Gn to 5-1 Gn full set of front panel/ sides in satin s/steel 430 gd. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Light Grey Finish. (Option Codes GGREYCHA2 – GGREYCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour goosewing light grey (BS 10A05). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

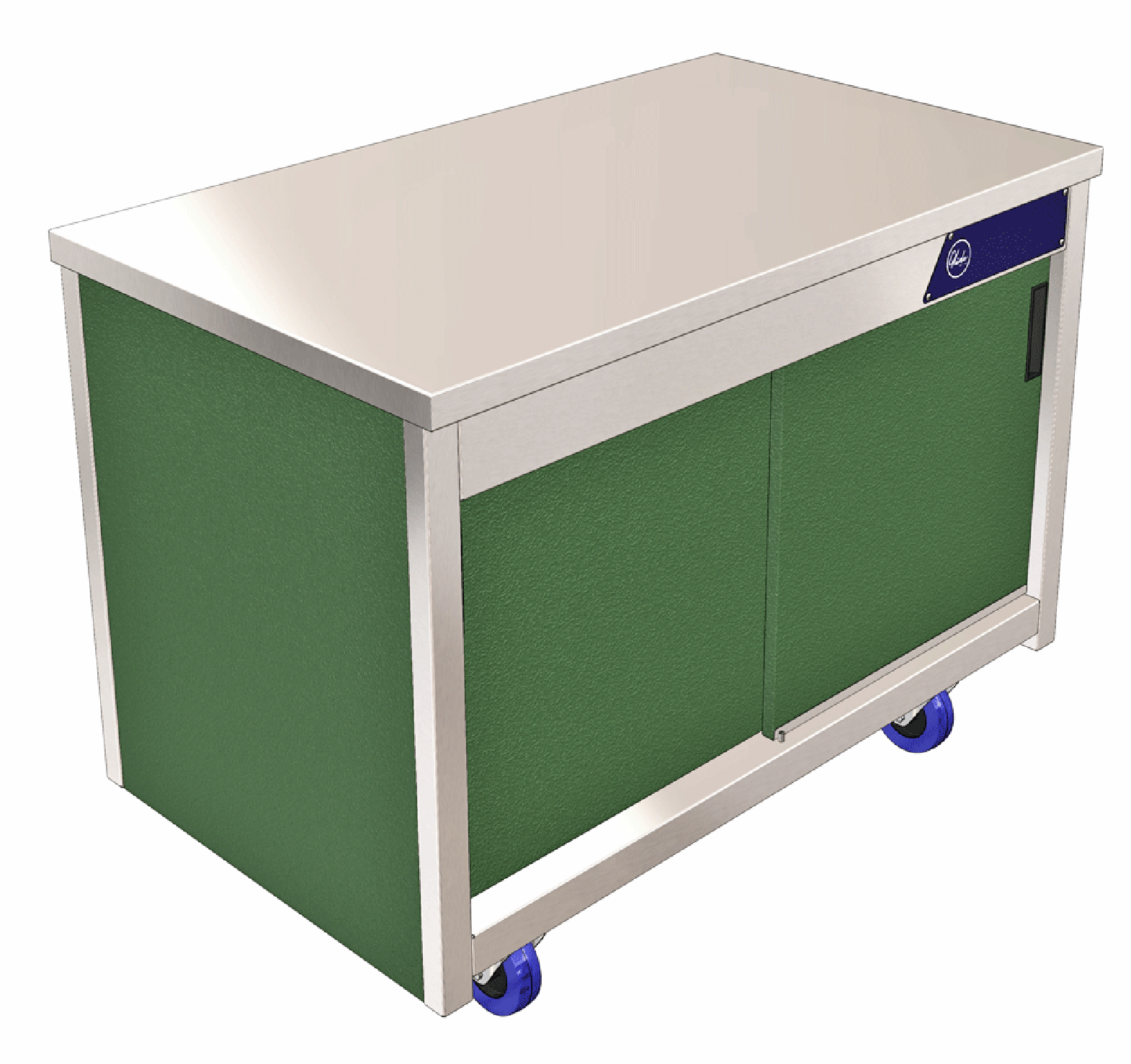

Forest Green Finish. (Option Codes GGRENCHA2 – GGRENCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour forest green/heritage (RAL 6002). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Poppy Red Finish. (Option Codes GPREDCHA2 – GPREDCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour poppy red (BS 04E5B). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Cream Finish. (Option Codes GCREMCHA2 – GCREMCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

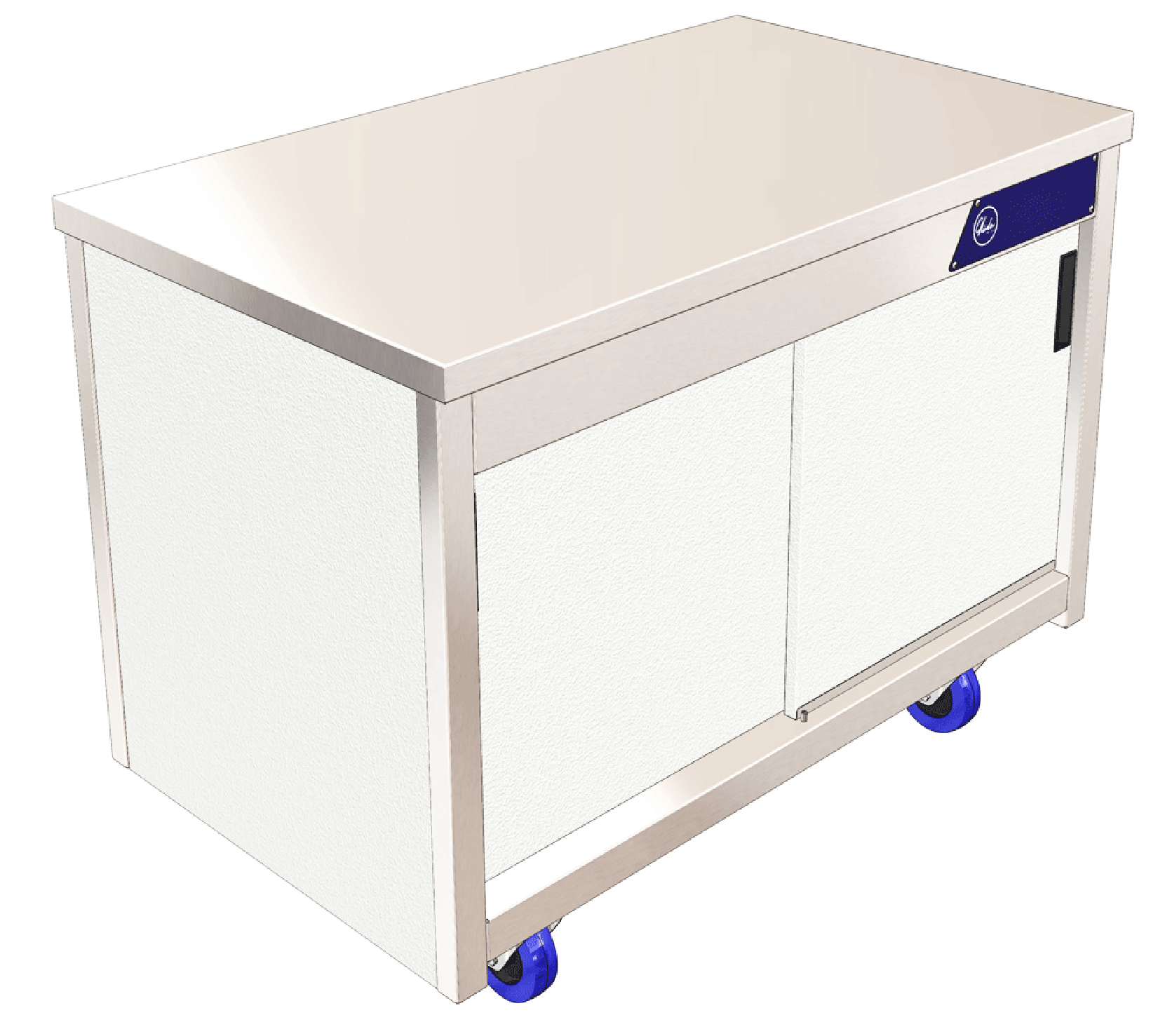

White Finish. (Option Codes GWHITCHA2 – GWHITCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour white (BS 00E55). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

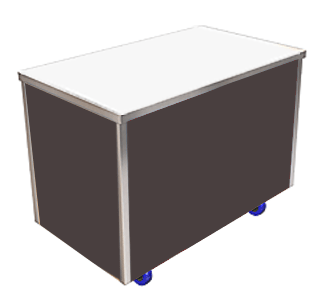

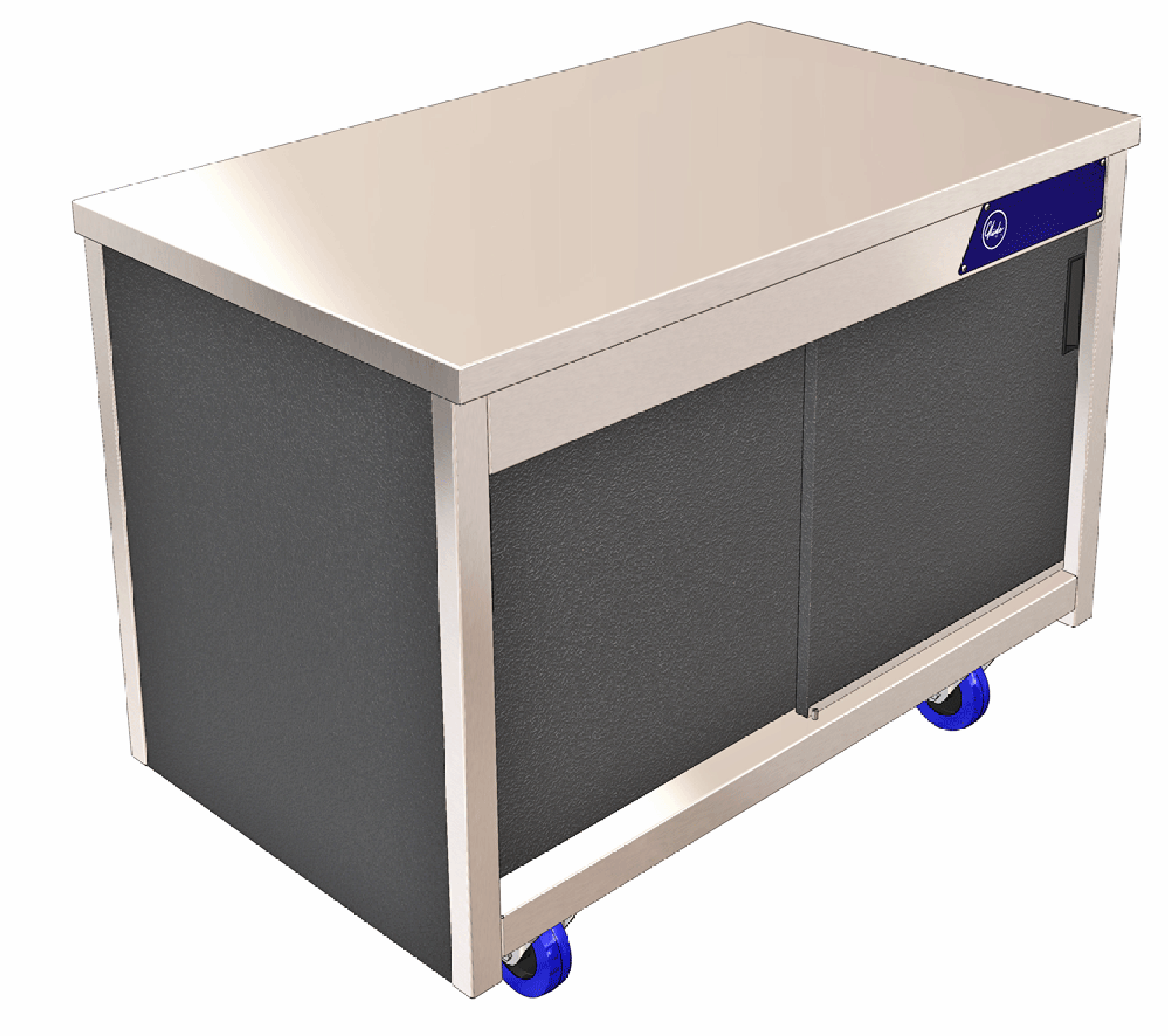

Black Finish. (Option Codes GBLAKCHA2 – GBLAKCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour black (BS 00E53). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).



Beech Woodgrain Finish. (Option Codes GBEECCHA2 – GBEECCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect, DL76 beech finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

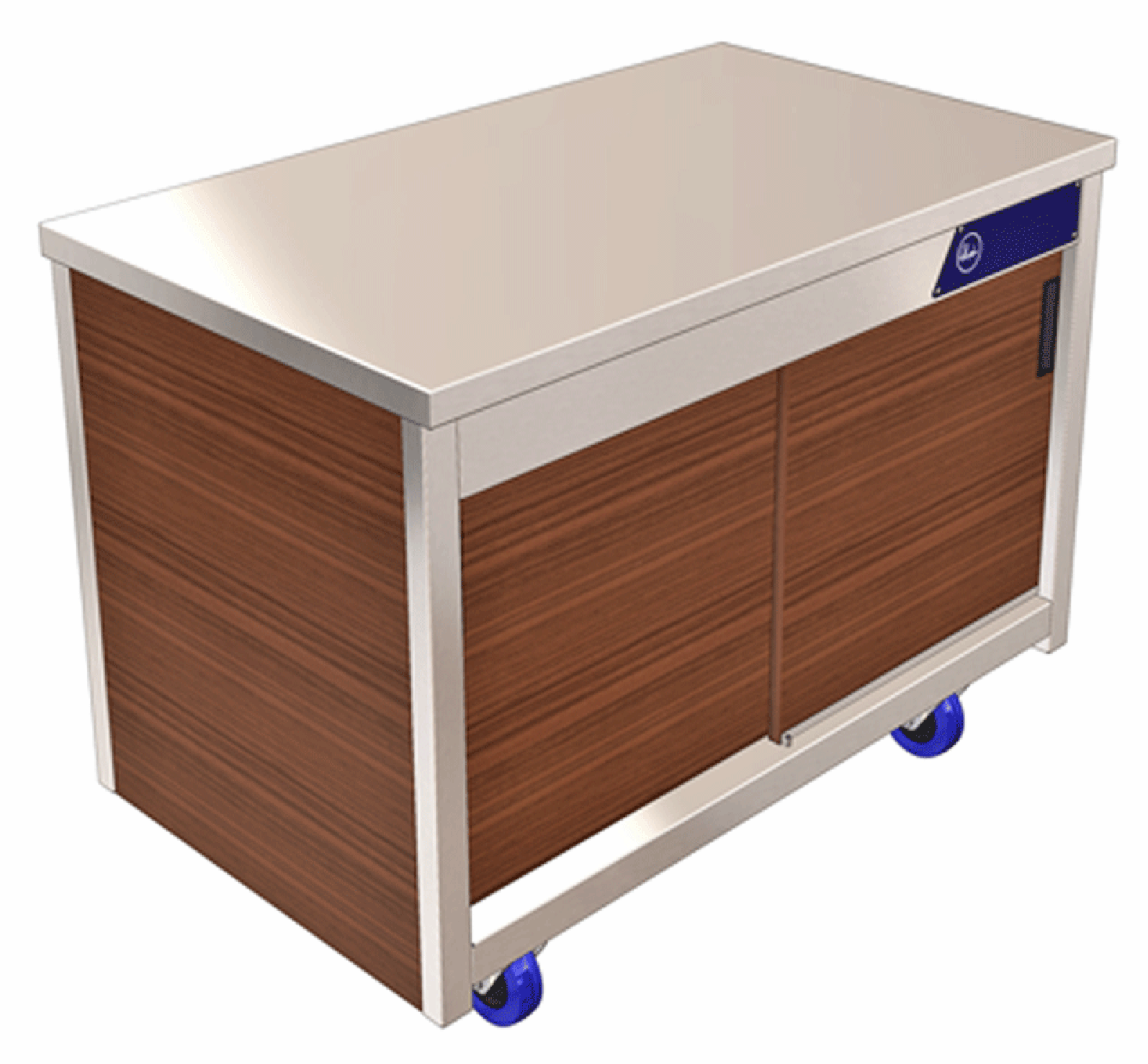

Walnut Woodgrain Finish. (Option Codes GWALNCHA2 – GWALNCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect panel, DL85 walnut finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

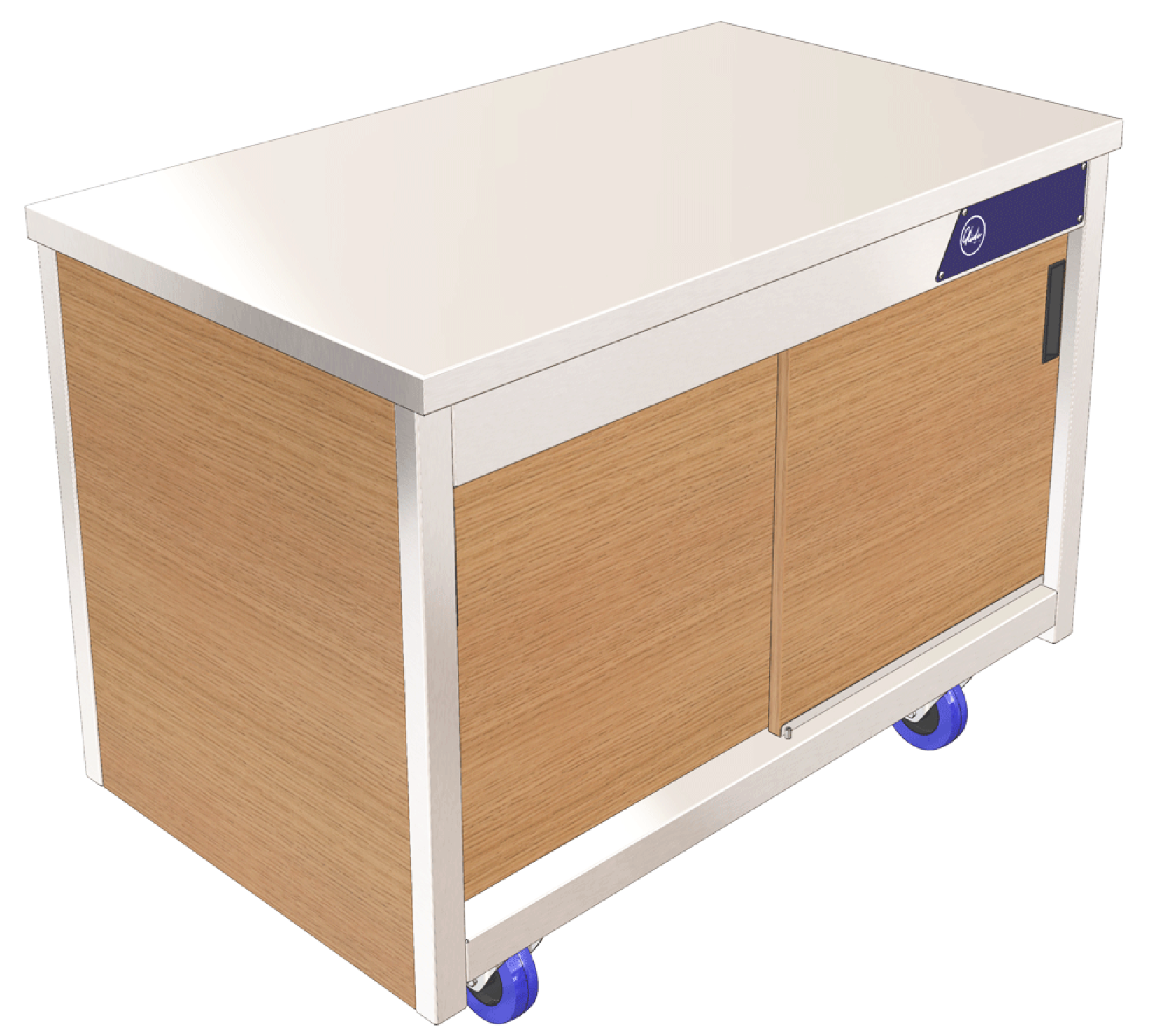

Oak Woodgrain Finish. (Option Codes GOAKCHA2 – GOAKCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect, DL84 oak finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Options                                                                                   Option Code

Model Code

GACP2xxx

GACP3xxx

GACP4xxx

GACP5xxx

Glide S/Steel Drop Down Tubular Tray Rail

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm High Model

G850H

G850H

G850H

G850H

Glide 800mm High Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

Glide Ambient Gantry. Reversible Curved Glass, End Glass, LED, 397mm (h)

GAG2

GAG3

GAG4

GAG5

Glide Ambient Deli Gantry. Full Height Curved Front Glass/ End Glass. Glass Mid shelf, LED, 540mm (h)

GADG2

GADG3

GADG4

GADG5

Glide Ambient Island Gantry. Double Curved Island Glass/ End Glass, LED, 397mm (h)

GAIG2

GAIG3

GAIG4

GAIG5

Glide Heated Gantry. Reversible Curved Glass, End Glass, 200w quartz infra-red jacketed safety lamps, 397mm (h)

GHG2PTAC

GHG3PTAC

GHG4PTAC

GHG5PTAC

Glide Colour Finish Base Panels (Front & Sides)
Ocean Blue (BS 18C37)

GBLUECHA2

GBLUECHA3

GBLUECHA4

GBLUECHA5

Glide S/Steel Finish Base Panels (Front & Sides)
S/Steel (430 gd)

GSSTLCHA2

GSSTLCHA3

GSSTLCHA4

GSSTLCHA5

Glide Colour Finish Base Panels (Front & Sides)
Goosewing Light Grey (BS 10A05)

GGREYCHA2

GGREYCHA3

GGREYCHA4

GGREYCHA5

Glide Colour Finish Base Panels (Front & Sides)
Forest Green (RAL 6002)

GGRENCHA2

GGRENCHA3

GGRENCHA4

GGRENCHA5

Glide Colour Finish Base Panels (Front & Sides)
Poppy Red (BS 04E5B)

GPREDCHA2

GPREDCHA3

GPREDCHA4

GPREDCHA5

Glide Colour Finish Base Panels (Front & Sides)
Buttermilk Cream (BS 10C31)

GCREMCHA2

GCREMCHA3

GCREMCHA4

GCREMCHA5

Glide Colour Finish Base Panels (Front & Sides)
White (BS 00E55)

GWHITCHA2

GWHITCHA3

GWHITCHA4

GWHITCHA5

Glide Colour Finish Base Panels (Front & Sides)
Black (BS 00E53)

GBLAKCHA2

GBLAKCHA3

GBLAKCHA4

GBLAKCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides)
Walnut (DL85)

GWALNCHA2

GWALNCHA3

GWALNCHA4

GWALNCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides)
Beech (DL76)

GBEECCHA2

GBEECCHA3

GBEECCHA4

GBEECCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides)
Oak (DL84)

GOAKCHA2

GOAKCHA3

GOAKCHA4

GOAKCHA5



Popular Model Codes & Options.

Glide Ambient Cupboard (Plain Top) ( & Solid Tray Slide)
Model Code Option Code
GACP2         GSTS2
GACP3         GSTS3
GACP4         GSTS4
GACP5         GSTS5

Glide Ambient Cupboard (Plain Top) ( & Tubular Tray Rail)
Model Code Option Code
GACP2          GTTS2
GACP3          GTTS3
GACP4          GTTS4
GACP5          GTTS5

Glide Ambient Cupboard (Plain Top) ( & Ambient Gantry)
Model Code Option Code
GACP2          GAG2
GACP3          GAG3
GACP4          GAG4
GACP5          GAG5



Glide Ambient Cupboard (Plain Top) ( & Ambient Deli Gantry)
Model Code Option Code
GACP2          GADG2
GACP3          GADG3
GACP4          GADG4
GACP5          GADG5





Glide Ambient Cupboard (Plain Top) ( & Ambient Island Gantry)
Model Code Option Code
GACP2          GAIG2
GACP3          GAIG3
GACP4          GAIG4
GACP5          GAIG5



Glide Ambient Cupboard (Plain Top) ( & Amb. Gantry/Tray Rail/ Colour Finish-Red)
Model Code Option Codes
GACP2         GAG2  GTTS2  GPREDCHA2
GACP3         GAG3  GTTS3  GPREDCHA3
GACP4         GAG4  GTTS4  GPREDCHA4
GACP5         GAG5  GTTS5  GPREDCHA5



Glide Amb. Cupboard (Plain Top) (& Heated Gantry)
Model Code Option Code
GACP2          GHG2PTAC
GACP3          GHG3PTAC
GACP4          GHG4PTAC
GACP5          GHG5PTAC





Glide Ambient Cupboard (Plain Top) ( & Tray Rail/ Colour Finish – Red)
Model Code Option Code Option Code
GACP2          GTTS2           GPREDCHA2
GACP3          GTTS3           GPREDCHA3
GACP4          GTTS4           GPREDCHA4
GACP5          GTTS5           GPREDCHA5



Downloads

General Layout Drawings
Glide Ambient Cupboard (Plain Top).







Specification Sheet, Base Panel Colour Options, User Manual.
Glide Ambient Cupboard (Plain Top).




Visual

(Wall Sited) Glide Ambient Cupboard (Plain Top).
Visual



Features

(Wall Sited) Glide Ambient Cupboard (Plain Top).
Features

  • Glide mobile, wall sited dining cart, plain s/steel worktop with ambient store cupboard (no gantry).
  • Wall sited application.
  • Available in 4 no. gastronorm lengths x 700mm (d) x 900mm (h).
  • Removable front facing sliding cupboard doors in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Rear/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Worktop in 304 gd steel, all other external steel surfaces in 430gd.
  • Cupboard fitted with adjustable height shelving, removable grid shelves, for easy cleaning.
  • Fitted with lockable non-marking rubber tyre castors.
  • Accommodates up to (10) x 1-1 Gn 200mm (d) containers (not included), depending on model size.

Glide Range: Electrical Connections.

  • Most Glide mobile units are operated by 13A plug top connected to a dedicated single socket outlet (SSO) (13A), unless its’ power supply exceeds 13A.
  • If connected to a double socket outlet, care must be taken not to exceed the circuit capacity.

Glide Range: Electrical Trailing Lead Protection.

  • CED recommend the use of  proprietary cable covers to protect overground trailing leads, to reduce trip hazards, limit accidental electrical partial plug disconnection and to keep wire safe from impact damage, as damaged cable wire can cause an electrical fault.
  • HSE GOV.UK Guidance On Planning And Managing Temporary Electrical Installations Re: Cabling.
    ‘Route cables to minimise tripping hazards or potential mechanical damage, and in a position that allows them to be safely installed and removed. Give particular care to the position of cable connections. You can also use cable ramps or similar to protect cables running overground across route ways to help avoid them becoming tripping hazards’

Options

  • Folding s/steel solid tray slide available*.
  • Folding s/steel tubular tray rail Ø25 tube, available*.
  • Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm)*.
  • 11 solid colour & woodgrain base panel finishes available.
  • Low height model 850mm (h) available.
  • *Low height model 800mm (h) available. * Bespoke option with extended lead time*.
  • Ambient self help gantry – 397 mm(h) c/w LED lighting (opaque cover, colour 4000k), curved glass sneeze screen & end glass.
  • Heated self help gantry – 397 mm(h) c/w 200w quartz infra red jacketed safety lamps, curved glass sneeze screen & end glass.


Dimensions

(Wall Sited) Glide Ambient Cupboard (Plain Top).
Dimensions



Model Code

GWSACP2xxx

GWSACP3xxx

GWSACP4xxx

GWSACP5xxx

Capacity (Gn)

2-1

3-1

4-1

5-1

Length (mm)

825

1175

1525

1875

Depth (mm)

700

700

700

700

Height (mm)

900

900

900

900

Storage Cupboard
Removable Front Facing Sliding Doors & Adjustable Height Shelving

Included

Included

Included

Included

Removable Shelving
Chrome Grid Cupboard Shelving

Included

Included

Included

Included

Cupboard Storage Capacity
Max. Qty 1-1 Gn Containers,
Containers Not Included

4

6

8

10

Optional Trayslide – Revised Model Depth (mm)
Folding Tray Slide Option In Down Position

740

740

740

740

Optional Trayslide – Revised Model Depth (mm)
Folding Tray Slide Option In Up Position

1000

1000

1000

1000

Optional Trayslide Height (mm)
(Base Unit (h) – 55mm)

845

845

845

845

*Optional Ambient Gantry (Power kw)
c/w 3m lead & Plug, for connection to dedicated 13A SSO.

0.008

0.014

0.016

0.022

*Optional Heated Gantry (Power kw)
c/w 200w Quartz Infra-red Jacketed Safety Lamps, 3m lead & Plug, for connection to dedicated 13A SSO.

0.4

0.6

0.8

1.0

Optional Model Height G850H (mm)

850

850

850

850

Optional Model Height *G800H (mm)
*bespoke option, extended lead time*

800

800

800

800

Weight (kg) – Uncrated

60

70

82

91

*When Gantry option is added to model, the control panel blank plate is replaced with a control panel featuring illuminated rocker switch/power isolation*

Options                                                                                     Option Code

Model Code

GWSACP2

GWSACP3

GWSACP4

GWSACP5

Glide S/Steel Drop Down Tubular Tray Rail

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm High Model

G850H

G850H

G850H

G850H

Glide 800mm High Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

(Wall Sited) Glide Ambient Gantry. Self Help Curved Glass, End Glass, LED, 397mm (h)

GWSAG2

GWSAG3

GWSAG4

GWSAG5

(Wall Sited) Glide Heated Gantry. Self Help Curved Glass, End Glass, 200w quartz infra-red jacketed safety lamps, 397mm (h)

GWSHG2PTAC

GWSHG3PTAC

GWSHG4PTAC

GWSHG5PTAC

Glide Colour Finish Base Cupboard (Front Cupboard Doors & Sides).
Ocean Blue (BS 18C37)

GBLUEWSA2

GBLUEWSA3

GBLUEWSA4

GBLUEWSA5

Glide Colour Finish Base Cupboard (Front Cupboard Doors & Sides).
S/Steel (430 gd)

GSSTLWSA2

GSSTLWSA3

GSSTLWSA4

GSSTLWSA5

Glide Colour Finish Base Cupboard (Front Cupboard Doors & Sides).
Goosewing Light Grey (BS 10A05)

GGREYWSA2

GGREYWSA3

GGREYWSA4

GGREYWSA5

Glide Colour Finish Base Cupboard (Front Cupboard Doors & Sides).
Forest Green (RAL 6002)

GGRENWSA2

GGRENWSA3

GGRENWSA4

GGRENWSA5

Glide Colour Finish Base Cupboard (Front Cupboard Doors & Sides).
Poppy Red (BS 04E5B)

GPREDWSA2

GPREDWSA3

GPREDWSA4

GPREDWSA5

Glide Colour Finish Base Cupboard (Front Cupboard Doors & Sides).
Buttermilk Cream (BS 10C31)

GCREMWSA2

GCREMWSA3

GCREMWSA4

GCREMWSA5

Glide Colour Finish Base Cupboard (Front Cupboard Doors & Sides).
White (BS 00E55)

GWHITWSA2

GWHITWSA3

GWHITWSA4

GWHITWSA5

Glide Colour Finish Base Cupboard (Front Cupboard Doors & Sides).
Black (BS 00E53)

GBLAKWSA2

GBLAKWSA3

GBLAKWSA4

GBLAKWSA5

Glide Wood Grain Effect Finish Base Cupboard (Front Cupboard Doors & Sides).
Walnut (DL85)

GWALNWSA2

GWALNWSA3

GWALNWSA4

GWALNWSA5

Glide Wood Grain Effect Finish Base Cupboard (Front Cupboard Doors & Sides).
Beech (DL76)

GBEECWSA2

GBEECWSA3

GBEECWSA4

GBEECWSA5

Glide Wood Grain Effect Finish Base Cupboard (Front Cupboard Doors & Sides).
Oak (DL84)

GOAKWSA2

GOAKWSA3

GOAKWSA4

GOAKWSA5

Popular Model Codes & Options

SUMMARY : Popular Model Codes & Options

Model Code

Option Code

Option Code

Option Code

(Wall Sited) Glide Ambient Cupboard (Plain Top)
(& S/Steel Drop Down Solid Tray Slide)

GWSACP2
GWSACP3
GWSACP4
GWSACP5

GSTS2
GSTS3
GSTS4
GSTS5

GSTS2
GSTS3
GSTS4
GSTS5

(Wall Sited) Glide Ambient Cupboard (Plain Top)
(& S/Steel Drop Down Tubular Tray Rail)

GWSACP2
GWSACP3
GWSACP4
GWSACP5

GTTS2
GTTS3
GTTS4
GTTS5

YYYY

(Wall Sited) Glide Ambient Cupboard (Plain Top)
(& (Wall Sited Ambient Gantry)

GWSACP2
GWSACP3
GWSACP4
GWSACP5

GWSAG2
GWSAG3
GWSAG4
GWSAG5

(Wall Sited) Glide Ambient Cupboard (Plain Top)
(& Wall Sited Ambient Gantry) &
(S/S Drop Down Tubular Tray Rail)
& (Colour Panel Finish Red)

GWSACP2
GWSACP3
GWSACP4
GWSACP5

GWSAG2
GWSAG3
GWSAG4
GWSAG5

GTTS2
GTTS3
GTTS4
GTTS5

GPREDWSA2
GPREDWSA3
GPREDWSA4
GPREDWSA5

(Wall Sited) Glide Ambient Cupboard (Plain Top)
(& Wall Sited Heated Gantry)

GWSACP2
GWSACP3
GWSACP4
GWSACP5

GWSHG2PTAC
GWSHG3PTAC
GWSHG4PTAC
GWSHG5PTAC

GPREDCHA2

(Wall Sited) Glide Ambient Cupboard (Plain Top)
(& Colour Panel Finish – Red)

GWSACP2
GWSACP3
GWSACP4
GWSACP5

GPREDWSA2
GPREDWSA3
GPREDWSA4
GPREDWSA5

GPREDCHA2



Options

(Wall Sited) Glide Ambient Cupboard (Plain Top).
Options.

Glide S/Steel Folding Solid Tray Slide.
(Option Codes GSTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type, up position adds 302mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.



Glide S/Steel Folding Tubular Tray Rail.
(Option Codes GTTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube, drop down bracket type, up position adds 298 mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Low Height Model ( Glide Junior) – 850mm.
(Option Code G850H) Glide junior option: (all cold, hot, ambient, till & corner units) 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model ( Glide Junior) – 800mm.
(Option Code G800H) Glide junior option: (all cold, hot, ambient, till & corner units) 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). * Bespoke Option/ Extended Lead Time *

(Wall Sited) Glide Ambient & Heated Gantry Options.

*When Gantry option is added to model, the control panel blank plate is replaced with a control panel featuring illuminated rocker switch/power isolation*

(Wall Sited) Glide Ambient Gantry.
(Option Codes GWSAG2 – 5) Glide option: 2-1 Gn to 5-1 Gn, ambient gantry, s/steel, c/w LED lighting, opaque cover, colour 4000k, single curved glass sneeze screen, self help use, + 397(h) above worktop, end glass.
Power rating GWSAG2 (0.008 Kw). GWSAG3 (0.014 Kw). GWSAG4 (0.016 Kw). GWSAG5 (0.022 Kw).





(Wall Sited) Glide Heated Gantry.
(Option Codes GWSHG2PTAC – GWSHG5PTAC) Glide option: 2-1 Gn to 5-1 Gn, heated gantry, s/steel, reversible single curved glass sneeze screen, self help use, + 397(h) above worktop, reinforced worktop for heat, fitted with 200w quartz infra-red jacketed safety lamps.
Power rating GWSHG2PTAC (0.40 Kw). GWSHG3PTAC (0.60 Kw). GWSHG4PTAC (0.80 Kw). GWSHG5PTAC (1.0 Kw).



Glide Colour Finish To Base Cupboard (Front Cupboard Doors & Sides).

Blue Finish. (Option Codes GBLUEWSA2 – GBLUEWSA5). Glide option: wall sited 2-1 Gn to 5-1 Gn size, front sliding cupbd. doors/ side panels in leathergrain plastisol steel, colour ocean blue (BS 18C37). Side panels/doors lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

S/steel Finish. (Option Code GSSTLWSA2 – GSSTLWSA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, front sliding cupbd. doors/ side panels in satin s/steel 430 gd. Side panels/doors lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Light Grey Finish. (Option Codes GGREYWSA2 – GGREYWSA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, front sliding cupbd. doors/ side panels in leathergrain plastisol steel, colour goosewing light grey (BS 10A05). Side panels/doors lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).



Forest Green Finish. (Option Codes GGRENWSA2 – GGRENWSA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, front sliding cupbd. doors/ side panels in leathergrain plastisol steel, colour forest green/heritage (RAL 6002). Side panels/doors lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).



Poppy Red Finish. (Option Codes GPREDWSA2 – GPREDWSA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, front sliding cupbd. doors/ side panels in leathergrain plastisol steel, colour poppy red (BS 04E5B). Side panels/doors lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Cream Finish. (Option Codes GCREMWSA2 – GCREMWSA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, front sliding cupbd. doors/ side panels in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31). Side panels/doors lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

White Finish. (Option Codes GWHITWSA2 – GWHITWSA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, front sliding cupbd. doors/ side panels in leathergrain plastisol steel, colour white (BS 00E55). Side panels/doors lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Black Finish. (Option Codes GBLAKWSA2 – GBLAKWSA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, front sliding cupbd. doors/ side panels in leathergrain plastisol steel, colour black (BS 00E53). Side panels/doors lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Beech Woodgrain Finish. (Option Codes GBEECWSA2 – GBEECWSA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, front sliding cupbd. doors/ side panels in wood grain effect, DL76 beech finish. Side panels/doors lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).



Walnut Woodgrain Finish. (Option Codes GWALNWSA2 – GWALNWSA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, front sliding cupbd. doors/ side panels in wood grain effect panel, DL85 walnut finish. Side panels/doors lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Oak Woodgrain Finish. (Option Codes GOAKWSA2 – GOAKWSA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, front sliding cupbd. doors/ side panels in wood grain effect panel, DL84 oak finish. Side panels/doors lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Options                                                                                            Option Code

Model Code

GWSACP2xxx

GWSACP3xxx

GWSACP4xxx

GWSACP5xxx

Glide S/Steel Drop Down Tubular Tray Rail

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm High Model

G850H

G850H

G850H

G850H

Glide 800mm High Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

(Wall Sited) Glide Ambient Gantry. Curved Glass, End Glass, 397mm (h)

GWSAG2

GWSAG3

GWSAG4

GWSAG5

(Wall Sited) Glide Heated Gantry. Curved Glass, End Glass, 397mm (h)

GWSHG2PTAC

GWSHG3PTAC

GWSHG4PTAC

GWSHG5PTAC

Glide Colour Finish Base Cupboard (Front Cupboard Doors & Sides).
Ocean Blue (BS 18C37)

GBLUEWSA2

GBLUEWSA3

GBLUEWSA4

GBLUEWSA5

Glide Colour Finish Base Cupboard (Front Cupboard Doors & Sides).
S/Steel (430 gd)

GSSTLWSA2

GSSTLWSA3

GSSTLWSA4

GSSTLWSA5

Glide Colour Finish Base Cupboard (Front Cupboard Doors & Sides).
Goosewing Light Grey (BS 10A05)

GGREYWSA2

GGREYWSA3

GGREYWSA4

GGREYWSA5

Glide Colour Finish Base Cupboard (Front Cupboard Doors & Sides).
Forest Green (RAL 6002)

GGRENWSA2

GGRENWSA3

GGRENWSA4

GGRENWSA5

Glide Colour Finish Base Cupboard (Front Cupboard Doors & Sides).
Poppy Red (BS 04E5B)

GPREDWSA2

GPREDWSA3

GPREDWSA4

GPREDWSA5

Glide Colour Finish Base Cupboard (Front Cupboard Doors & Sides).
Buttermilk Cream (BS 10C31)

GCREMWSA2

GCREMWSA3

GCREMWSA4

GCREMWSA5

Glide Colour Finish Base Cupboard (Front Cupboard Doors & Sides).
White (BS 00E55)

GWHITWSA2

GWHITWSA3

GWHITWSA4

GWHITWSA5

Glide Colour Finish Base Cupboard (Front Cupboard Doors & Sides).
Black (BS 00E53)

GBLAKWSA2

GBLAKWSA3

GBLAKWSA4

GBLAKWSA5

Glide Wood Grain Effect Finish Base Cupboard (Front Cupbd. Doors & Sides)
Walnut (DL85)

GWALNWSA2

GWALNWSA3

GWALNWSA4

GWALNWSA5

Glide Wood Grain Effect Finish Base Cupboard (Front Cupbd. Doors & Sides)
Beech (DL76)

GBEECWSA2

GBEECWSA3

GBEECWSA4

GBEECWSA5

Glide Wood Grain Effect Finish Base Cupboard (Front Cupbd. Doors & Sides)
Oak (DL84)

GOAKWSA2

GOAKWSA3

GOAKWSA4

GOAKWSA5



Popular Model Codes & Options.

(Wall Sited) Glide Ambient Cupboard (Plain Top) (& Solid Tray Slide)
Model Code   Option Code
GWSACP2     GSTS2
GWSACP3     GSTS3
GWSACP4     GSTS4
GWSACP5     GSTS5



(Wall Sited) Glide Ambient Cupboard (Plain Top) (& Tubular Tray Rail)
Model Code   Option Code
GWSACP2     GTTS2
GWSACP3     GTTS3
GWSACP4     GTTS4
GWSACP5     GTTS5

(Wall Sited) Glide Ambient Cupboard (Plain Top) (& Ambient Gantry)
Model Code    Option Code
GWSACP2      GWSAG2
GWSACP3      GWSAG3
GWSACP4      GWSAG4
GWSACP5      GWSAG5





(Wall Sited) Glide Ambient Cupboard (Plain Top) (& Heated Gantry)
Model Code    Option Code
GWSACP2      GWSHG2PTAC
GWSACP3      GWSHG3PTAC
GWSACP4      GWSHG4PTAC
GWSACP5      GWSHG5PTAC





(Wall Sited) Glide Ambient Cupboard (Plain Top) (& Ambient Gantry/ Colour Finish – Red)
Model Code     Option Code   Option Code
GWSACP2        GWSAG2        GPREDWSA2
GWSACP3        GWSAG3        GPREDWSA3
GWSACP4        GWSAG4        GPREDWSA4
GWSACP5        GWSAG5        GPREDWSA5





(Wall Sited) Glide Ambient Cupboard (Plain Top) (& Heated Gantry/Colour Finish-Red)
Model Code    Option Code         Option Code
GWSACP2      GWSHG2PTAC    GPREDWSA2
GWSACP3      GWSHG3PTAC    GPREDWSA3
GWSACP4      GWSHG4PTAC    GPREDWSA4
GWSACP5      GWSHG5PTAC    GPREDWSA5





(Wall Sited) Glide Amb. Cupboard (Plain Top) (& Ambient Gantry) (& Tray Rail & Colour Finish-Red)
Model Code  Option       Option   Option
GWSACP2    GWSAG2  GTTS2  GPREDWSA2
GWSACP3    GWSAG3  GTTS3  GPREDWSA3
GWSACP4    GWSAG4  GTTS4  GPREDWSA4
GWSACP5    GWSAG5  GTTS5  GPREDWSA5



(Wall Sited) Glide Ambient Cupboard (Plain Top) (& Heated Gantry) (& Tray Rail/ Colour Finish – Red)
Model          Option                 Option   Option
GWSACP2  GWSHG2PTAC  GTTS2  GPREDWSA2
GWSACP3  GWSHG3PTAC  GTTS3  GPREDWSA3
GWSACP4  GWSHG4PTAC  GTTS4  GPREDWSA4
GWSACP5  GWSHG5PTAC  GTTS5  GPREDWSA5



Downloads

General Layout Drawings
(Wall Sited) Glide Ambient Cupboard (Plain Top).







Specification Sheet, Base Panel Colour Options, User Manual.
(Wall Sited) Glide Ambient Cupboard (Plain Top).
