Glide Electrical MCB Station

Visual

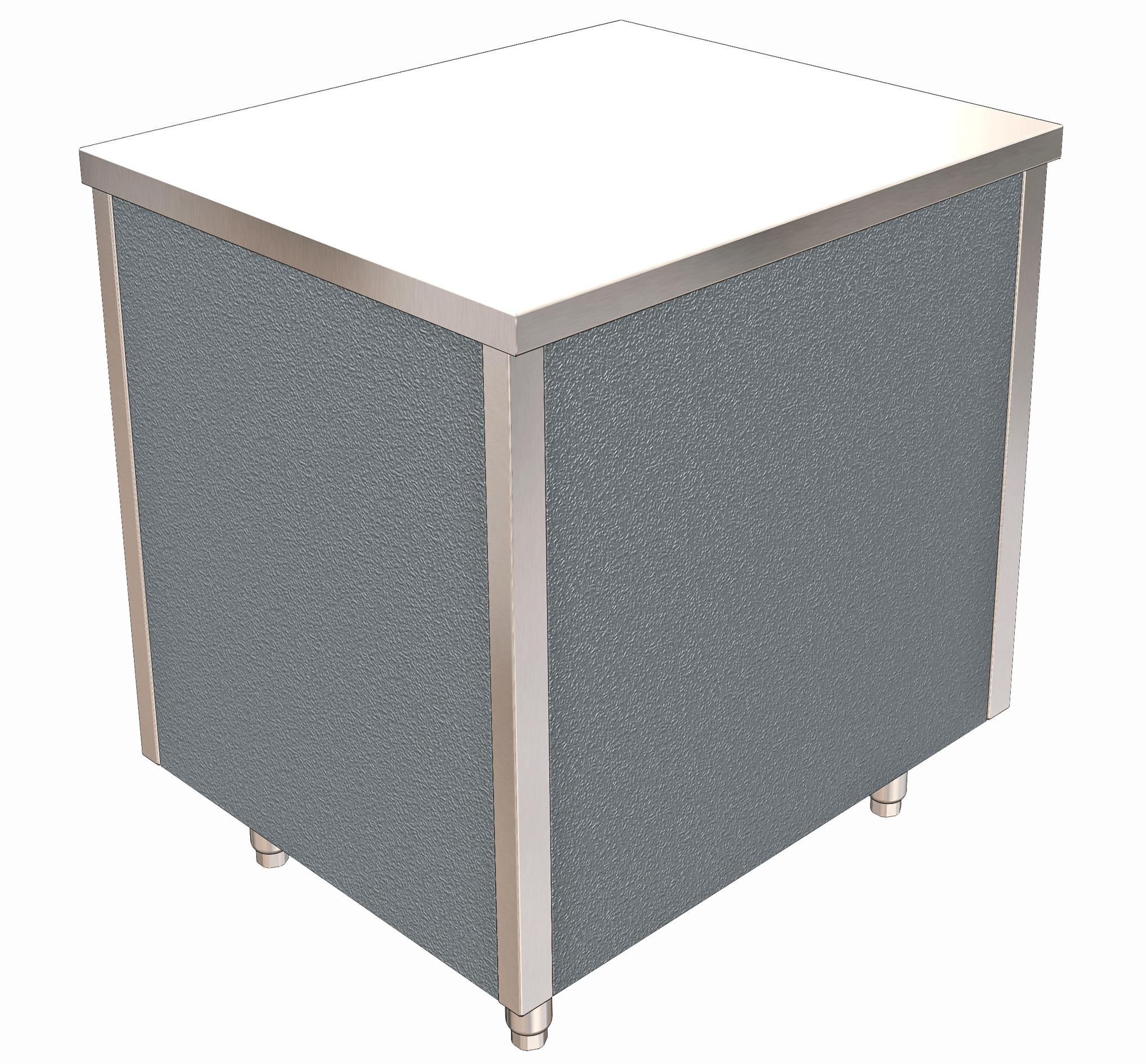

Glide Electrical MCB Station.
Visual

Features

Glide Electrical MCB Station.
Features

• Model code : GMCB2.
• Glide electrical MCB station, 2-1Gn size, designed to work with multiple Glide units (max. 8) to allow powering from one point, where wall/floor sockets are not available.
• O/all size 825(l) x 700(d) x 900mm(h).

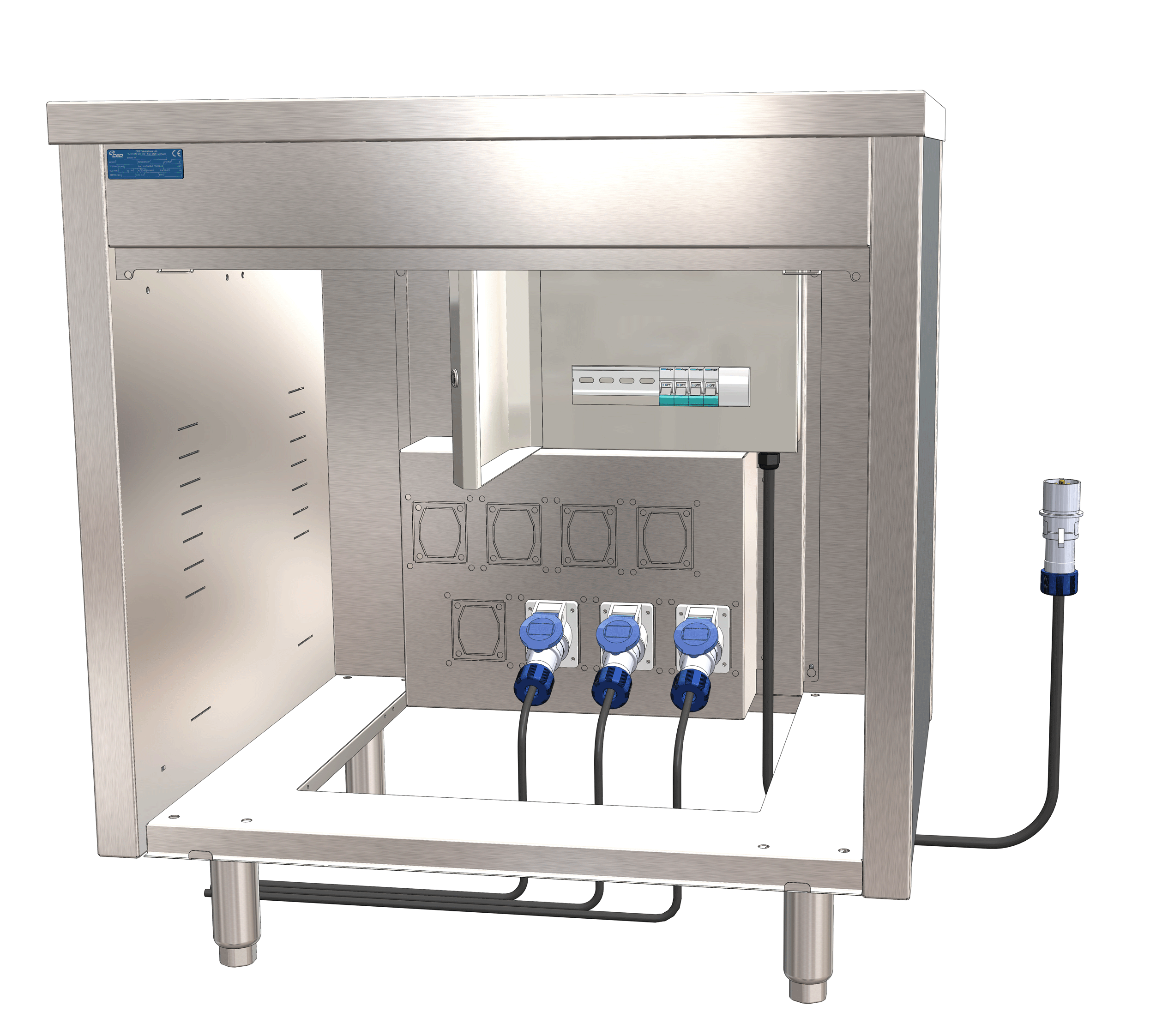

• Fitted internally with distribution board, appropriately sized circuit breakers & connection below for max. 8x 16-32A commando plugs.
• Dining cart internal connections to MCB station on trailing commando plugs via floor void.
• External incoming mains elec. supply (230v or 415v 50 Hz) to electrical MCB station is by a 3 Metre lead/commando plug (supplied), or is left for hard wiring (by others).
• Max. distance from incoming mains elec. supply to electrical MCB station is 3M.
• Distribution board includes RCD protection for the incoming supply.
• Plain top s/steel worktop in 304 gd. All other steel surfaces 430gd.
• Front/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).

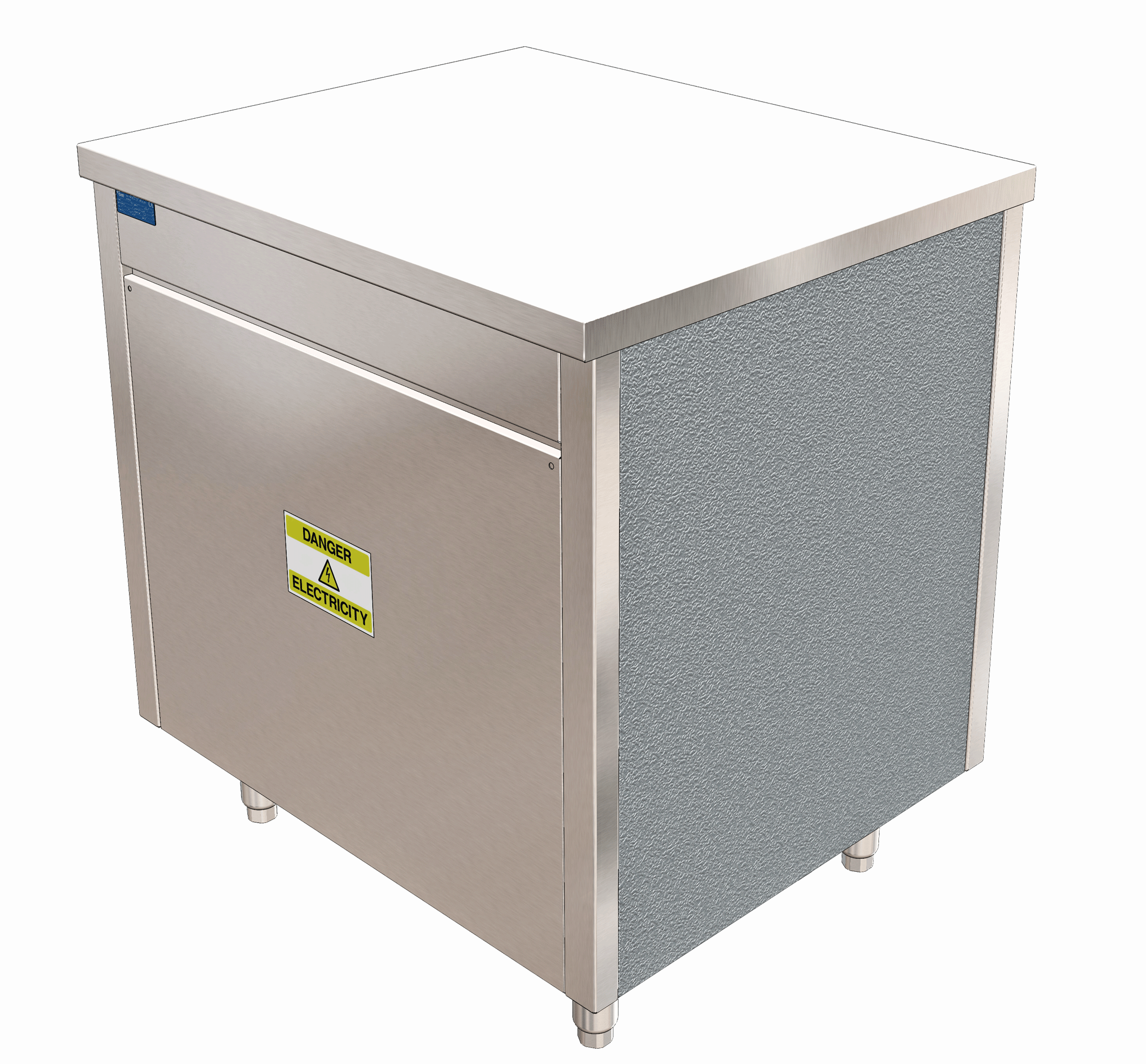

• Rear cupboard under is finished with screw fix, lift-off access panel, electrical hazard sign & floor void for cable entry.
• Adjustable height feet.
• Unit is not mobile. (Tray rail optional)

Options

• Optional folding s/steel solid tray slide available (option code GSTS2).
• Optional folding s/steel tubular tray rail Ø25 tube, available (option code GTTS2).
• Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm).
• Optional choice of 11 solid colour & woodgrain base outer side panel finishes available.
• Optional low height model 850mm (h) available.
• Optional low height model 800mm (h) available.*
• 800mm (h) = bespoke option with extended lead time.*

Dimensions

Glide Electrical MCB Station.
Dimensions

• Model Code: GMCB2.
• Description: Glide electrical MCB station, 2-1Gn size, designed to work with multiple Glide units (max. 8) to allow powering from one point.
• Gastronorm Size: 2/1 Gn size.
• Model Dimensions: 825 mm (l) x 700 mm (d) x 900 mm (h) – adj. height feet not mobile.
• Model Weight: 60 kg.
• Distribution Board Capacity: Fitted internally with distribution board, appropriately sized circuit breakers & connection sockets below for max. 8x 16-32A commando plugs.
• Panel Finishes: Front/ side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
• Steel Finishes: Worktop in 304 gd steel, all other external steel surfaces (rear access panel/ corner trims etc.) in 430gd.
• Total power: Variable.
• External Incoming Mains Elec. Supply: (230v or 415v 50 Hz) to electrical MCB station by 3 Metre lead/commando plug (supplied), or left for hard wiring (by others). Incoming supply RCD protection included.
• Model Depth (With Optional Folding Tray Slide/Tray Rail Fitted): Tray slide up = 1000mm (d)/ tray slide down = 740mm (d).
• Height Options: Optional low height of 850mm (h) available (G850H), * optional low height of 800mm (h) available.* 800mm (h) = bespoke option with extended lead time.
• Optional Tray Slide Height:
  standard 900 mm (h) worktop = 845 mm,
  low height 850 mm model = 795mm (h),
  low height 800 mm model = 745mm (h).

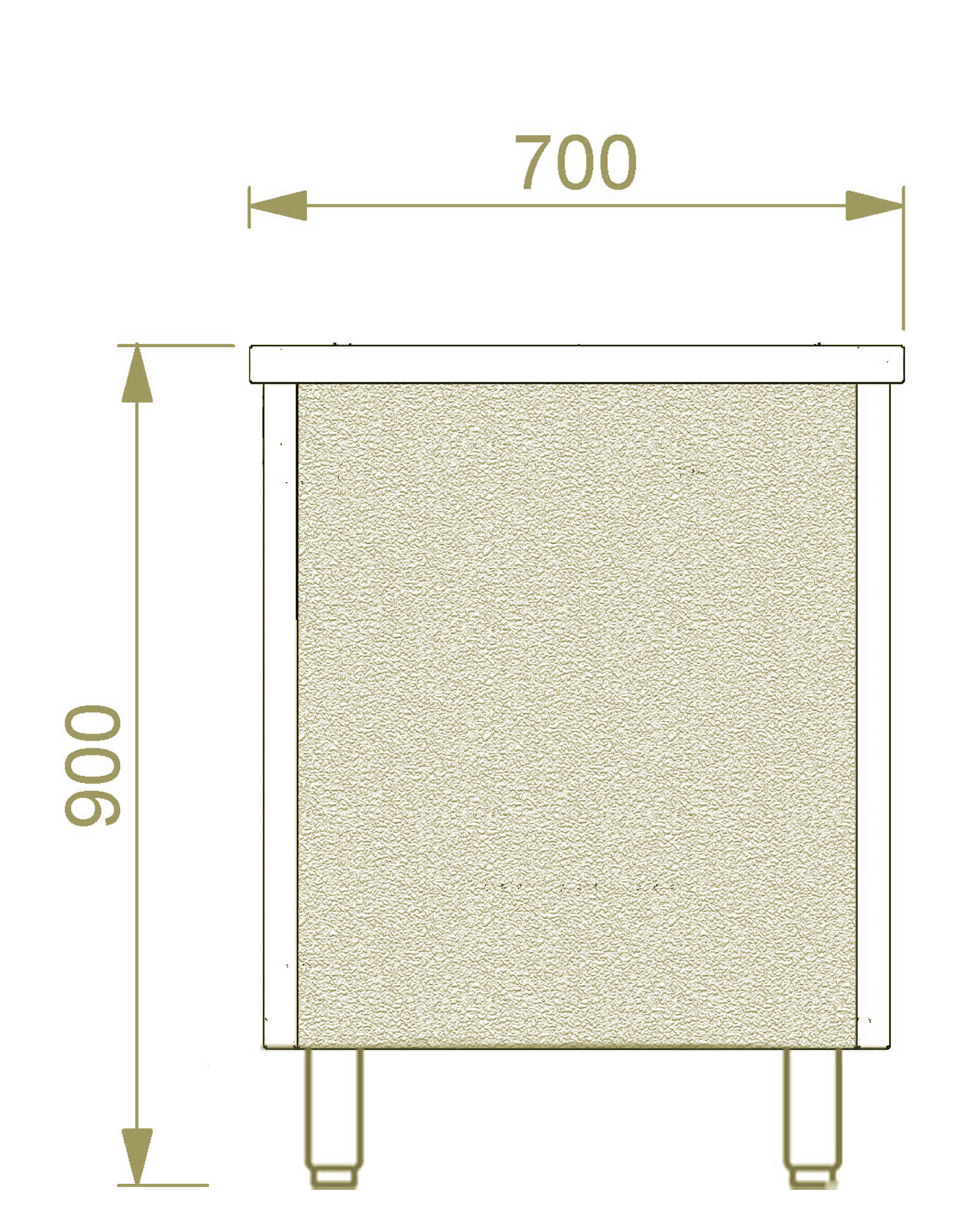

                                                       Dimensions (GMCB2)

Options : Glide Electrical MCB Station (Model GMCB2).

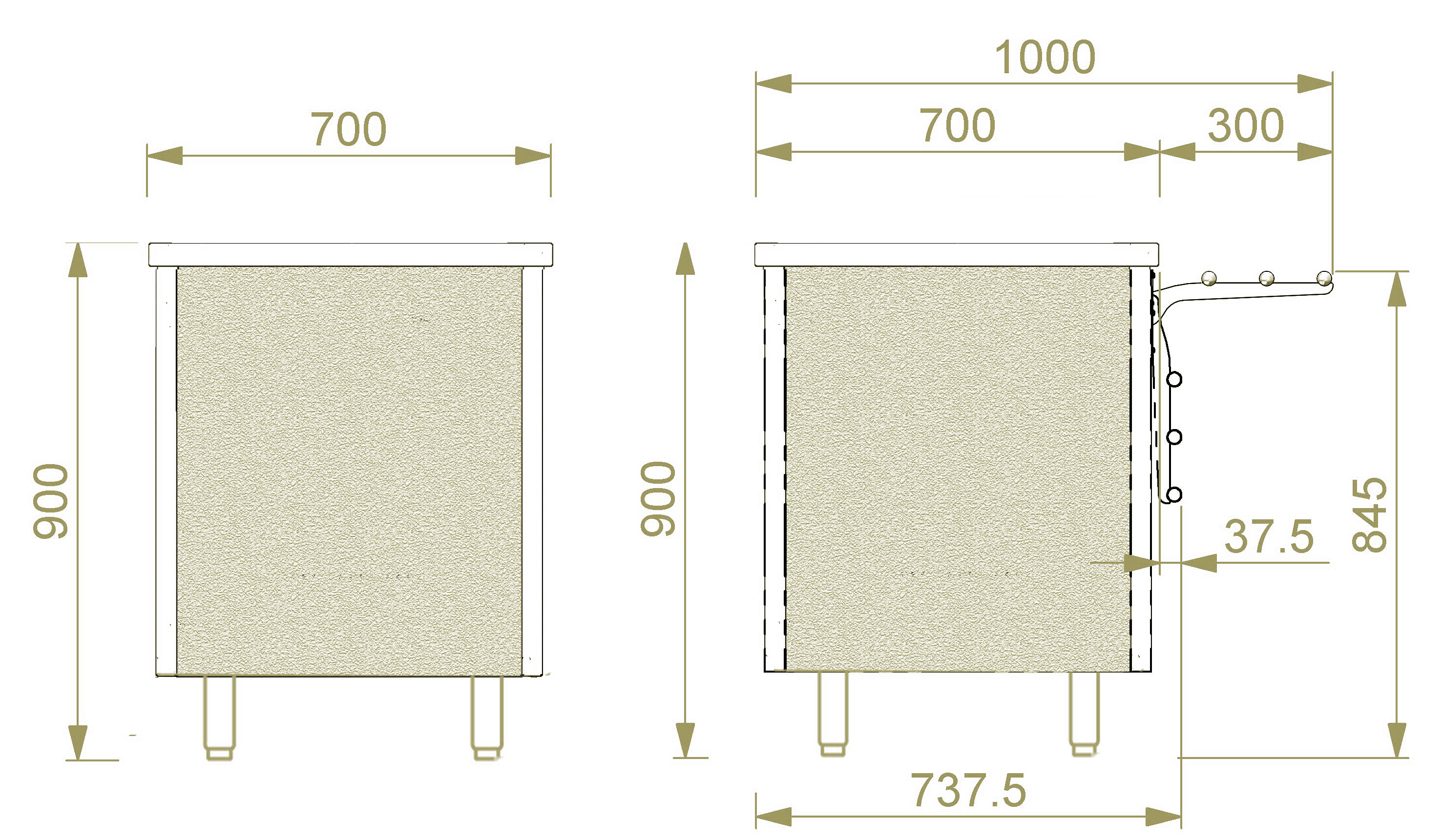

              Dimensions (GMCB2)                     Dimensions (GMCB2 & GTTS2)

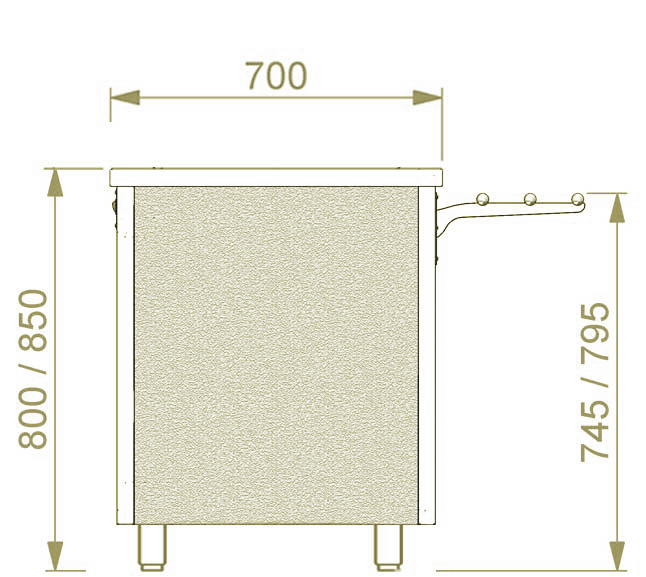

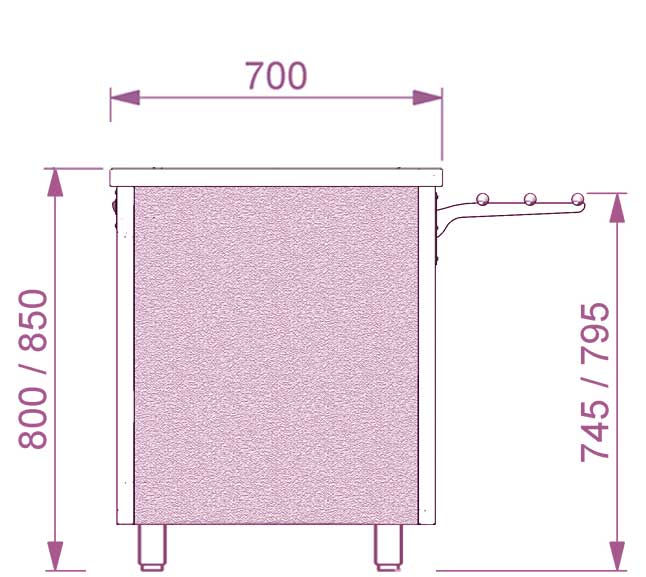

                Dimensions (GMCB2 & G850H) or (GMCB2 & G800H)

Popular Model Codes & Options

Options

Glide Electrical MCB Station.
Options.

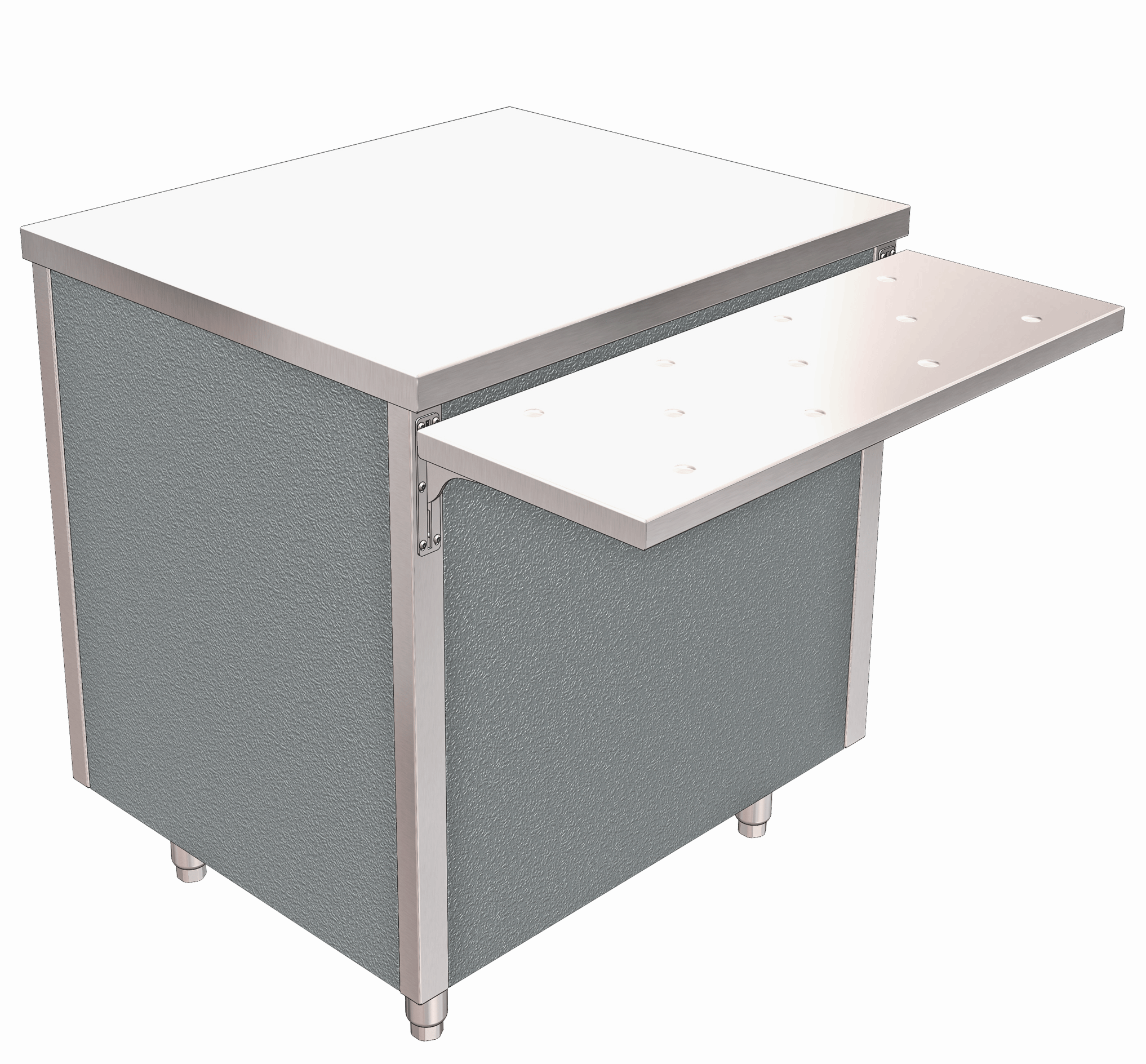

Glide S/Steel Folding Solid Tray Slide.
(Option Code GSTS2) Glide option: 2-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type.
Up position adds 302mm to depth. Down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Glide S/Steel Folding Tubular Tray Rail.
(Option Code GTTS2) Glide option: 2-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube. Drop down bracket type.
Up position adds 298 mm to depth. Down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Low Height Model ( Glide Junior) – 850mm.
(Option Code G850H) Glide junior option:  850mm (h) base unit, c/w 100mm adjustable height feet.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model ( Glide Junior) – 800mm.
(Option Code G800H) Glide junior option: 800mm (h) base unit, c/w 100mm adjustable height feet.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). * Bespoke Option/ Extended Lead Time *

Glide Colour Finishes To Front/ Side Panels.

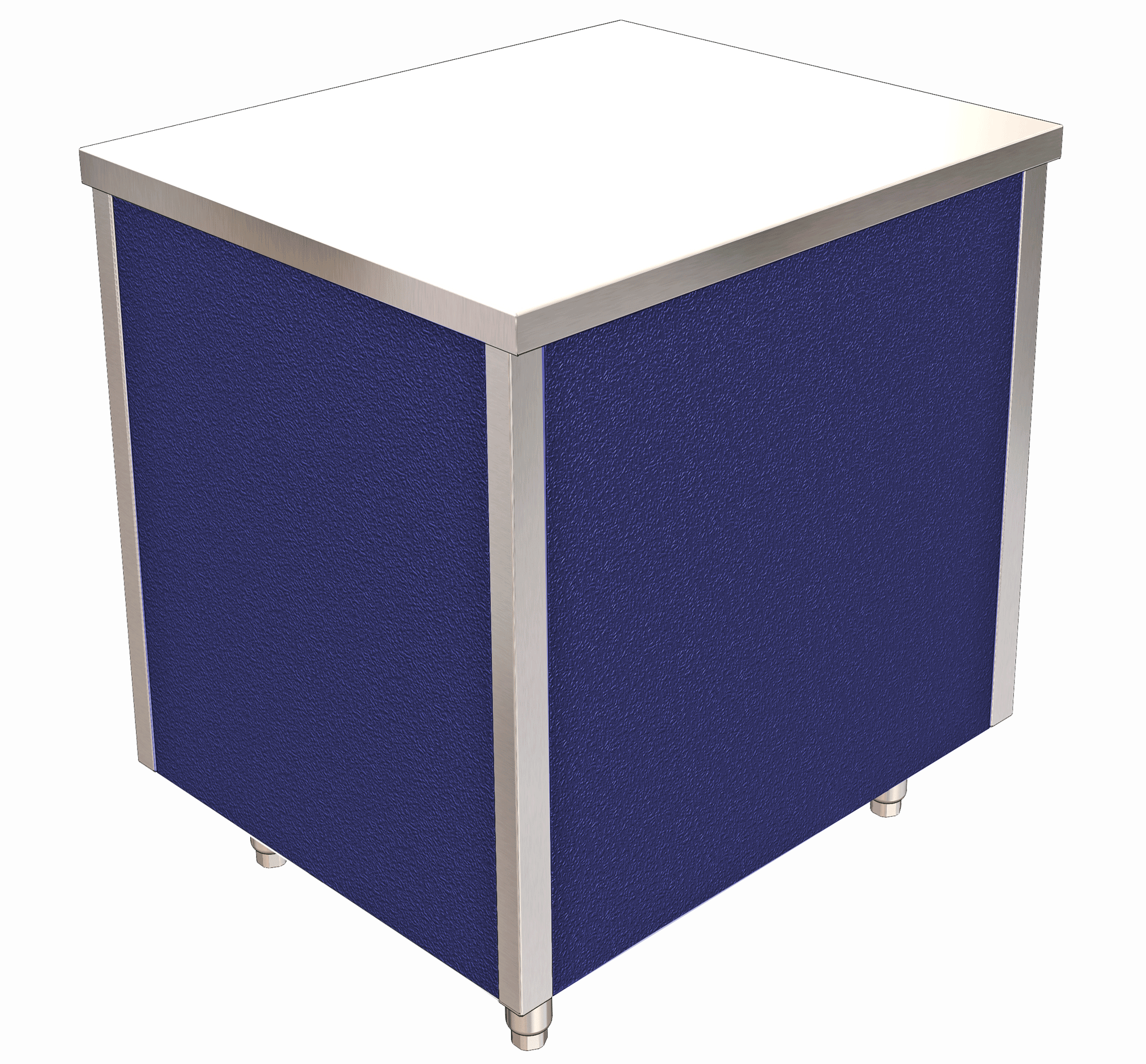

Blue Finish. (Option Code GBLUECHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour ocean blue (BS 18C37) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

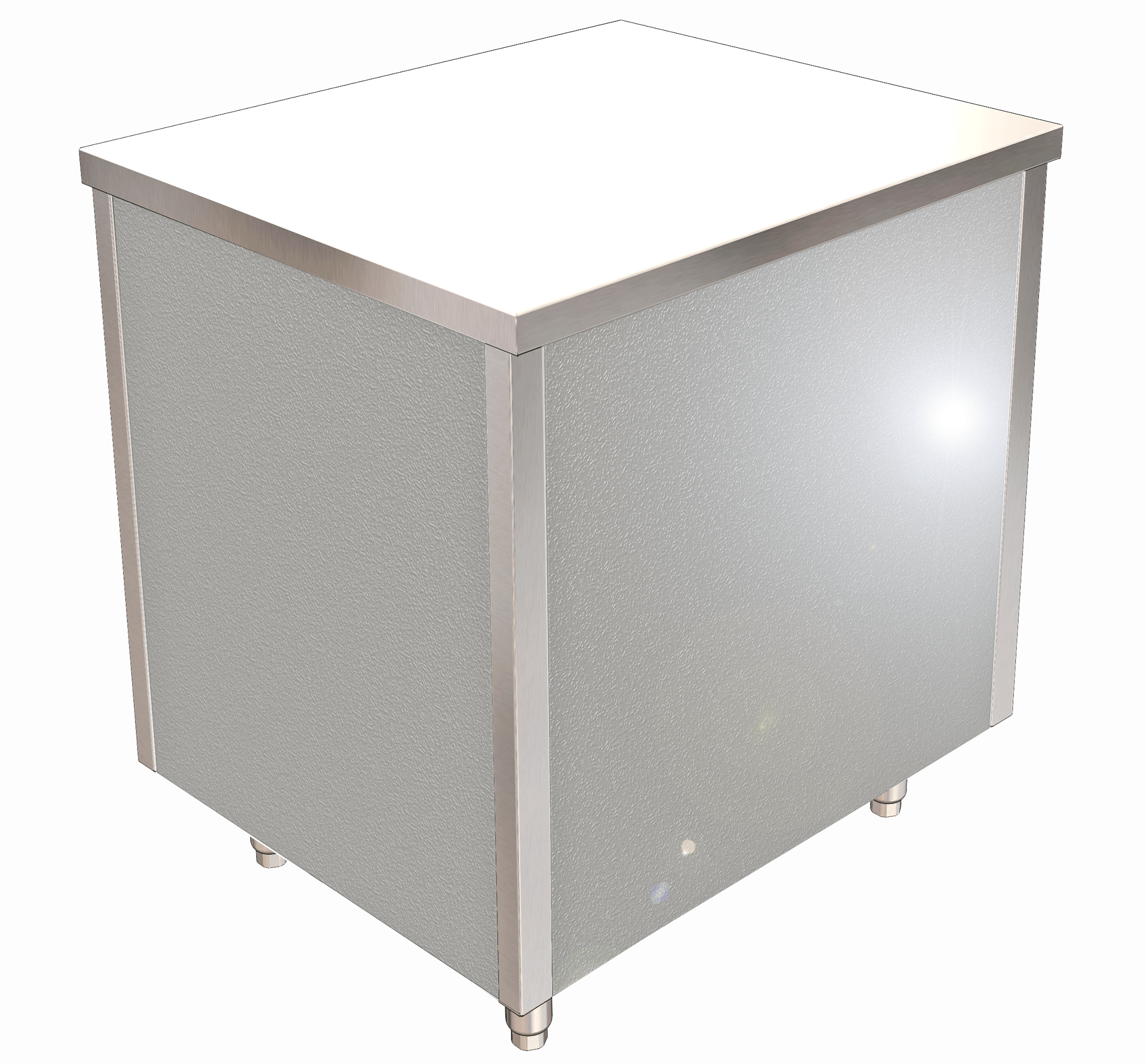

S/steel Finish. (Option Code GSSTLCHA2) 2-1 Gn set of outer side panels in satin s/steel 430 gd. to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Light Grey Finish. (Option Code GGREYCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour goosewing light grey (BS 10A05) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Forest Green Finish. (Option Code GGRENCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour forest green/heritage (RAL 6002) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Poppy Red Finish. (Option Code GPREDCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour poppy red (BS 04E5B) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

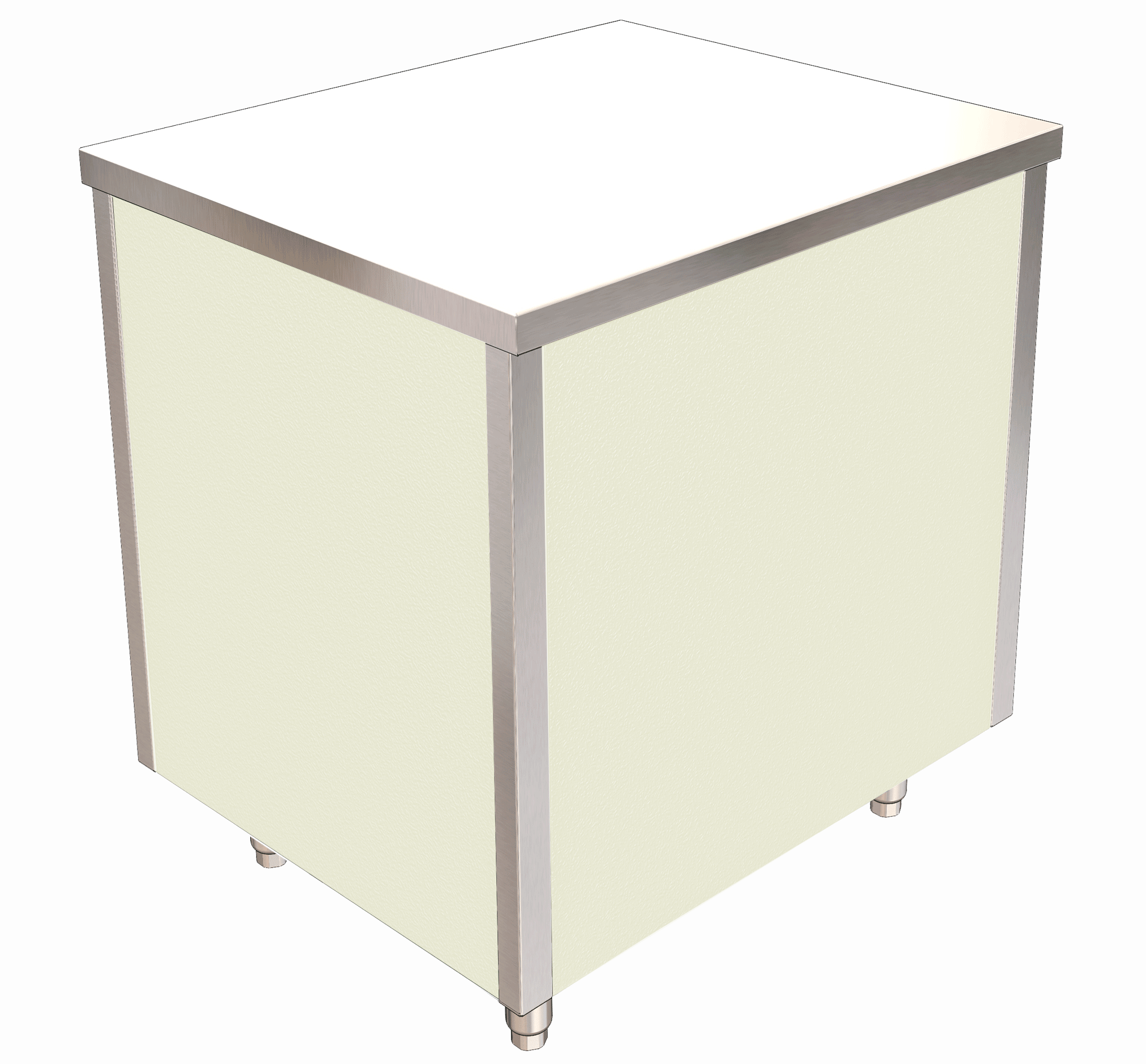

Cream Finish. (Option Code GCREMCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

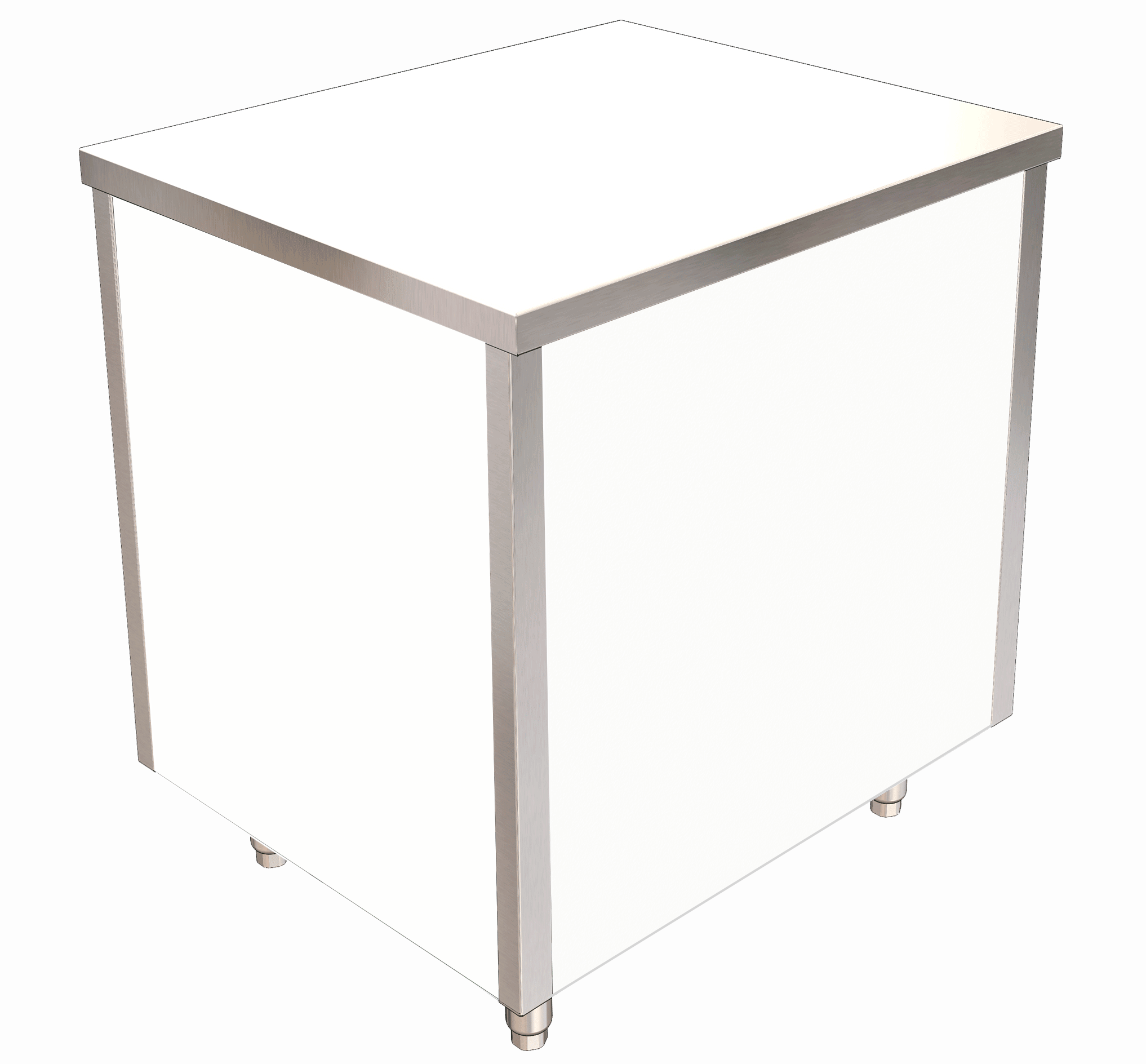

White Finish. (Option Code GWHITCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour white (BS 00E55)  to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Black Finish. (Option Code GBLAKCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour black (BS 00E53) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Beech Woodgrain Finish. (Option Code GBEECCHA2) 2-1 Gn set of outer side panels in wood grain effect DL76 beech finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Walnut Woodgrain Finish. (Option Code GWALNCHA2) 2-1 Gn set of outer side panels in wood grain effect panel DL85 walnut finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Oak Woodgrain Finish. (Option Code GOAKCHA2)  2-1 Gn set of outer side panels in wood grain effect DL84 oak finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Options : Glide Electrical MCB Station (Model GMCB2).

Popular Model Codes & Options.

Glide Electrical MCB Station
(& Tray Slide).
Model Code     Option Code
GMCB2              GSTS2

Glide Electrical MCB Station
(& Tray Rail).
Model Code    Option Code
GMCB2             GTTS2

Glide Electrical MCB Station
(& Colour Finish – Red).
Model Code    Option Code
GMCB2            GPREDCHA2

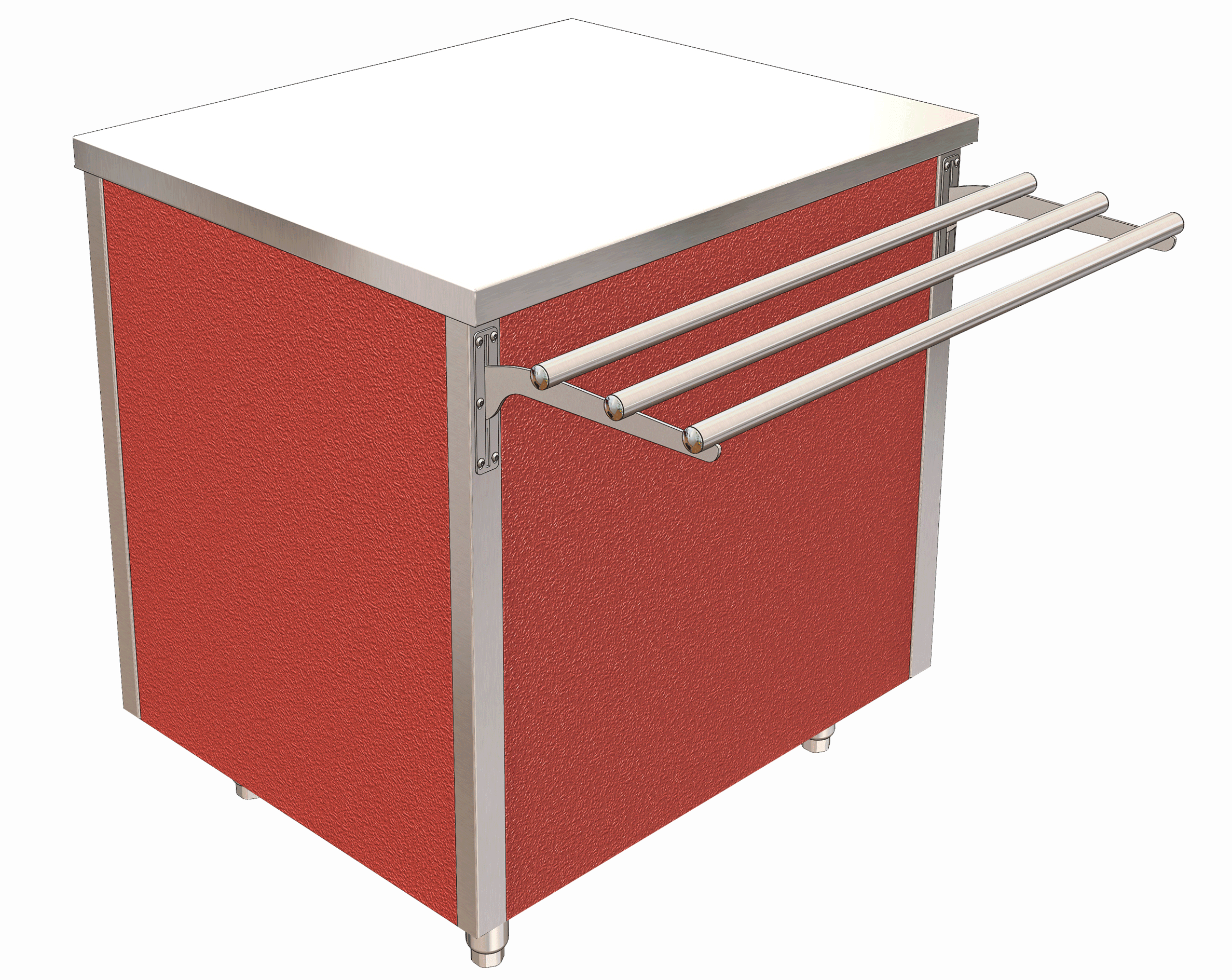

Glide Electrical MCB Station
(& Tray Rail & Colour Finish – Red).
Model Code    Option Code   Option Code
GMCB2            GTTS2            GPREDCHA2

Glide Electrical MCB Station
(& Colour Finish – Black).
Model Code    Option Code
GMCB2            GBLAKCHA2

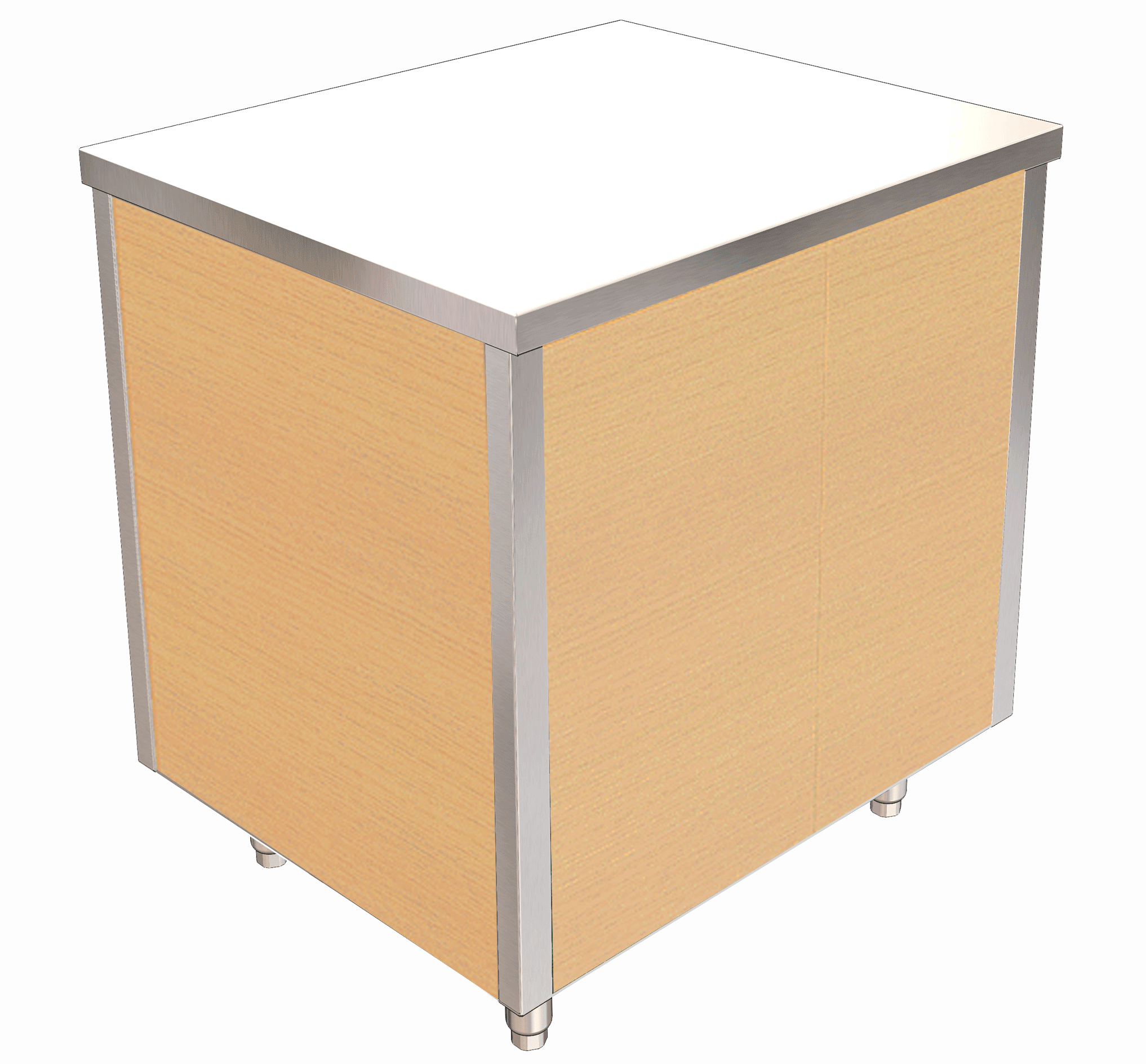

Glide Electrical MCB Station
(& Woodgrain Effect Finish – Beech).
Model Code   Option Code
GMCB2           GBEECCHA2

Downloads

General Layout Drawings
Glide Electrical MCB Station.

Specification Sheet, Base Panel Colour Options, User Manual.
Glide Electrical MCB Station.
