This durable heated storage cupboard forms part of the Glide range of mobile dining carts – a choice of cold, hot & ambient commercial catering carts that combine to form a food severy counter solution as unique as your requirements !

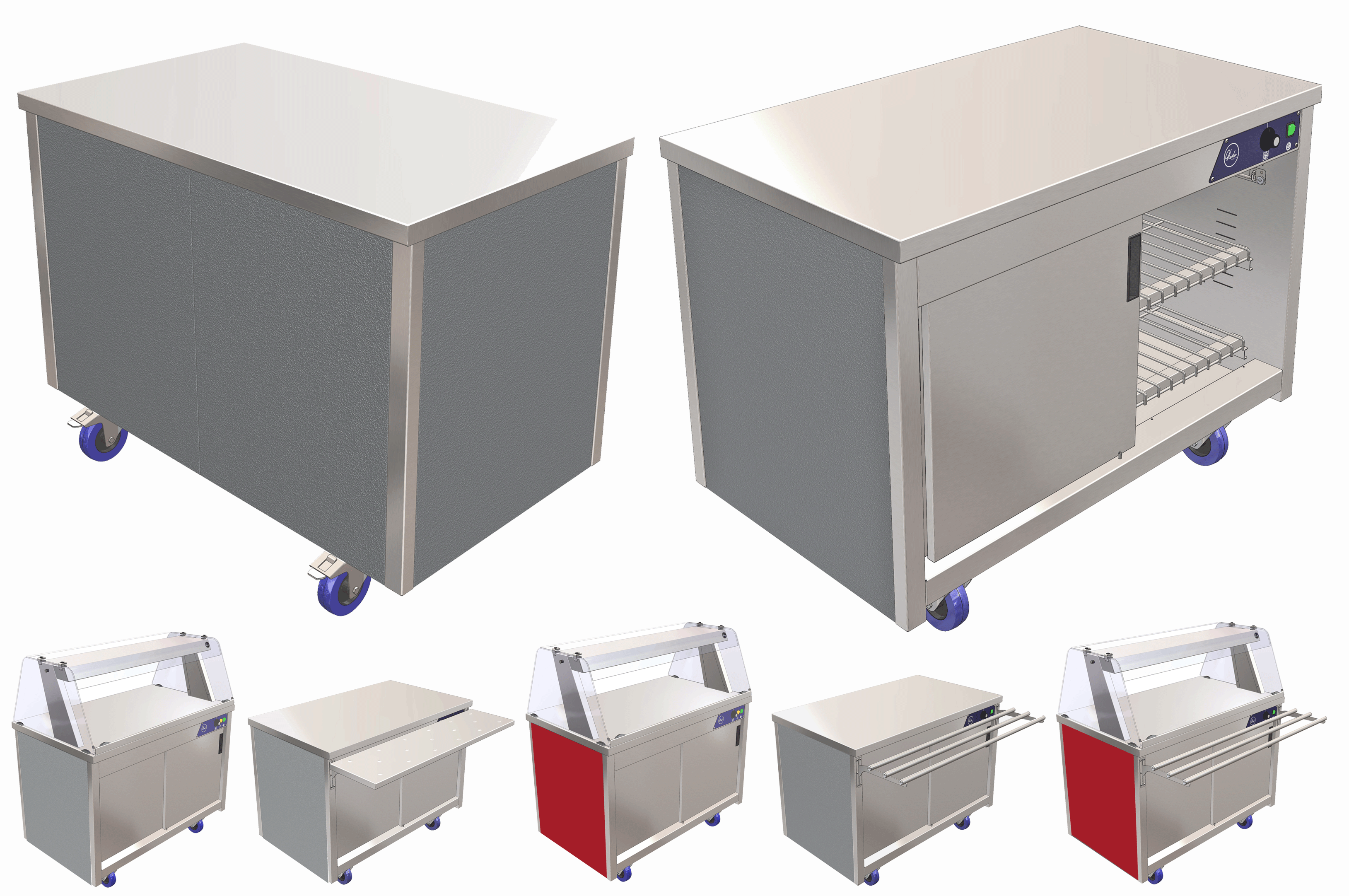

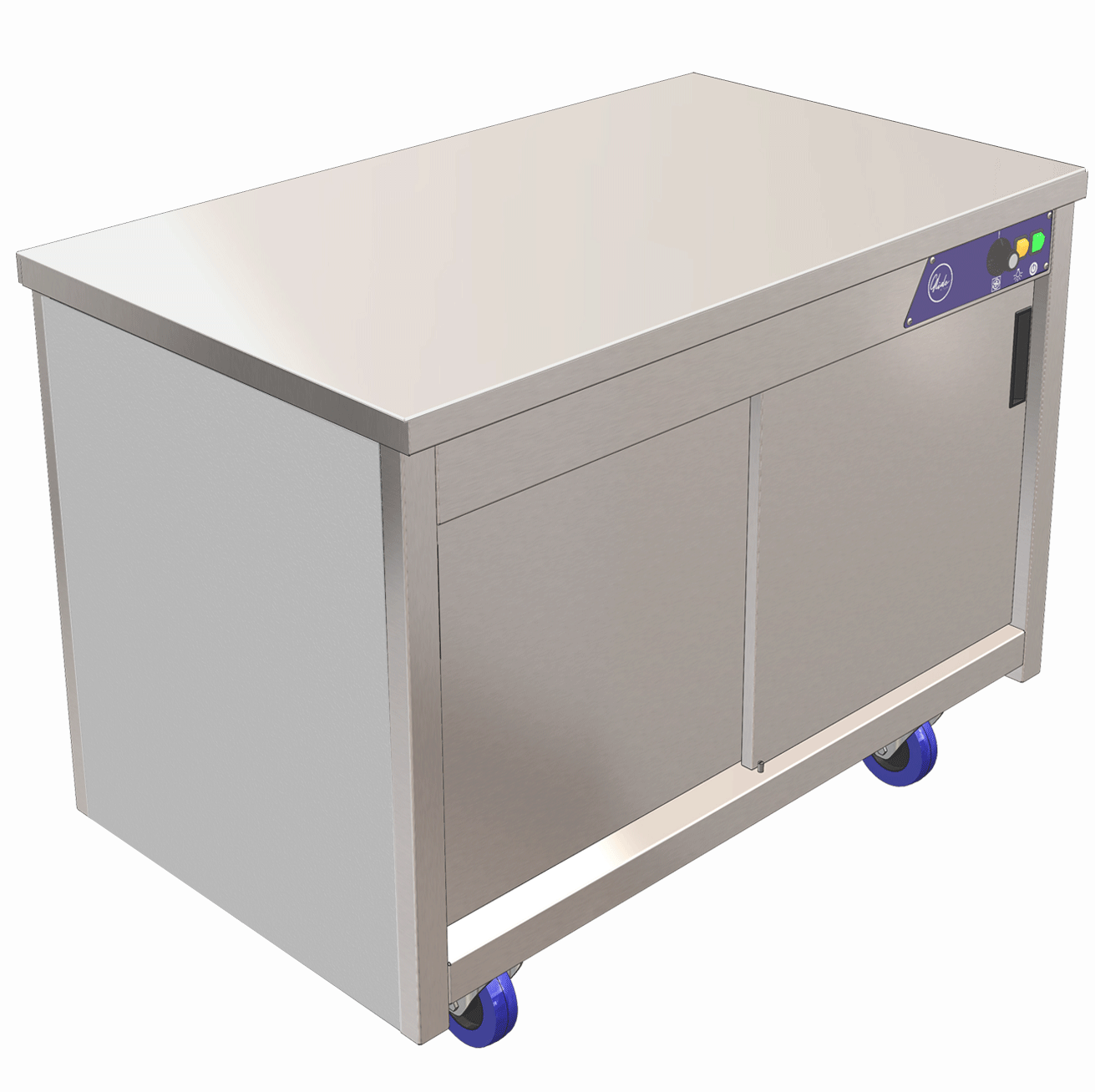

Glide Hot Cupboard (Plain Top). The hot cupboard (no gantry) features a fan blown heating assembly which evenly distributes heat around the space. The hot cupboard is made in 4 different sizes to suit your servery layout. The model features a s/steel plain work surface and a rear store cupboard under. Behind lift-off rear sliding s/steel cupboard doors, are two tiers of removable, height adjustable grid shelves for plate/ container storage. The wire shelves help distribute heat around the cupboard and support plate holding, dish storage or up to ten 1-1 Gn size (150mm deep) gastronorm containers (not included), depending on cupboard size. The front/side base panels are finished in leathergrain plastisol steel, colour merlin grey (BS 18B25), Each model comes with lockable castors.

Height Options.
Low Height Model (Glide Junior)
in 850mm or 800mm high options for junior/ primary use.

Accessories & Finishes.




Folding Steel Solid or Tubular Tray Slides. Tray slides add 40mm to unit depth and are set at the worktop height – 55mm.


Colour Finishes To Side/ Rear Panels.
11 alternative choices of durable steel, colour & wood effect finishes for hot cupboard front/ side panels, to compliment other selected models in the servery colour scheme.



Gantry Options.

Ambient/ Island Or Deli Gantry.
LED reversible glass gantry or island gantry options can be added to increase temporary holding/ short term food presentation space, plate storage or food container display using the residual heat from the worktop. The deli gantry option also includes a glass mid-shelf.

Heated Gantry.
Heated gantry option provides short term hot holding of plated meals under.

Visual

Glide Hot Cupboard (Plain Top).
Visual



Features

Glide Hot Cupboard (Plain Top).
Features

  • Glide mobile dining cart, plain s/steel worktop with hot cupboard storage to rear (no gantry).
  • Free standing application.
  • Fan assisted heating to hot cupboard with thermostat control.
  • Gantry options & mains power are operated by individual neon indicator switches.
  • Supplied with 3m lead & 13 amp UK plug (13A 230v 50Hz).
  • Available in 4 no. gastronorm lengths – 825/1175/1525/1875mm (l) x 700mm (d) x 900mm (h).
  • Front/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Worktop in 304 gd steel, all other external steel surfaces (corner angles/ sliding doors etc.) in 430gd.

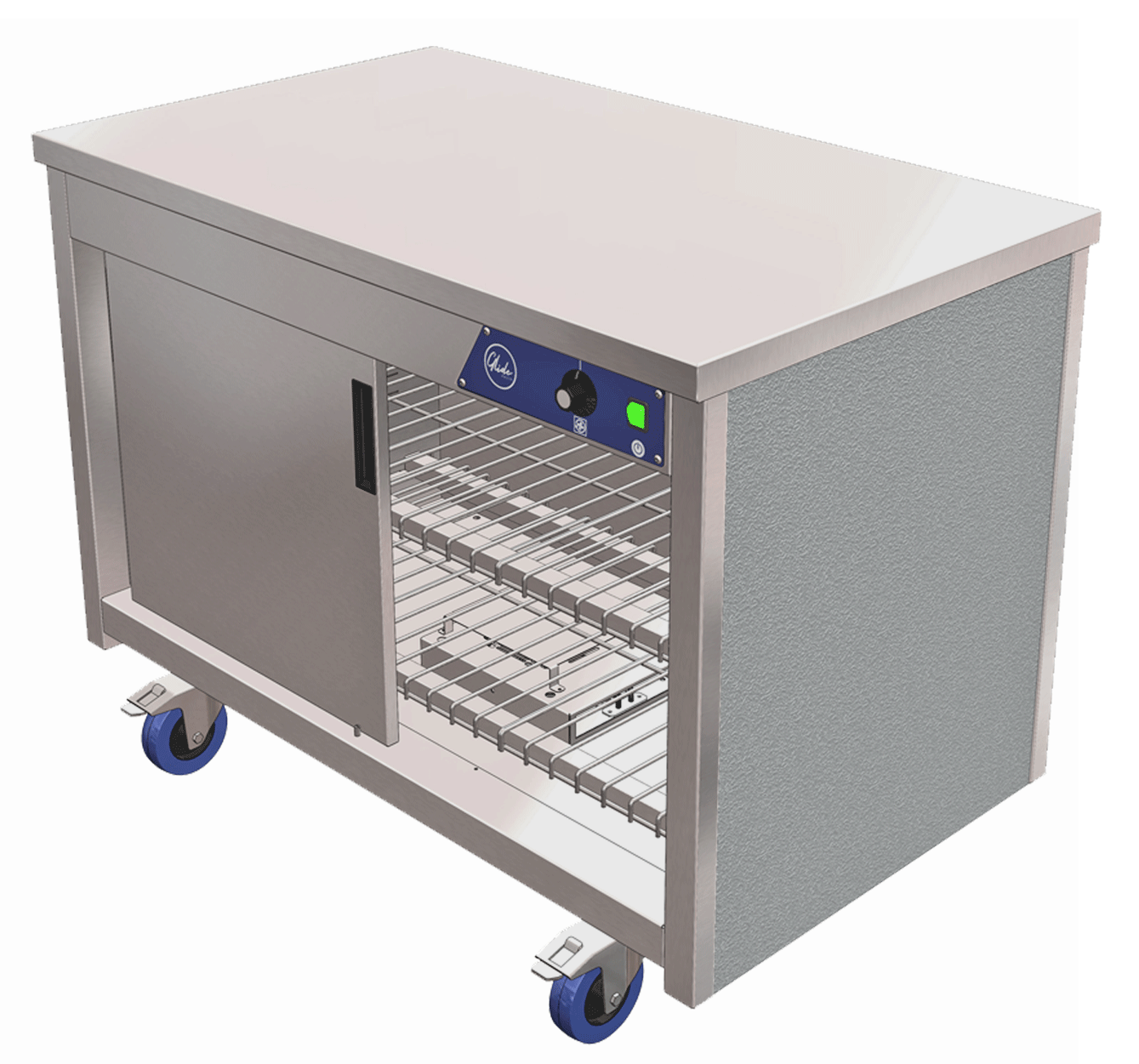

  • Rear hot storage cupboard fitted with removable sliding s/steel doors.
  • Hot cupboard fitted with adjustable height shelving, removable grid shelves, for easy cleaning.
  • Fitted with lockable non-marking rubber tyre castors.
  • Accommodates up to (10) x 1-1 Gn 150mm (d) containers (not included), depending on model size.

Options

  • Folding s/steel solid tray slide available*.
  • Folding s/steel tubular tray rail Ø25 tube, available*.
  • Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm)*.
  • 11 solid colour & woodgrain base panel finishes available.
  • Low height model 850mm (h) available.
  • *Low height model 800mm (h) available. * Bespoke option with extended lead time*.
  • Ambient self help/ assisted serve gantry – 397 mm(h) c/w LED lighting (opaque cover, colour 4000k), reversible curved glass sneeze screen & end glass.
  • Ambient assisted service deli gantry – 540 mm(h) c/w LED lighting (opaque cover, colour 4000k), full height curved glass screen, end glass, glass mid shelf.
  • Ambient self help island gantry – 397 mm(h) c/w LED lighting (opaque cover, colour 4000k), double curved glass sneeze screen & end glass.
  • Heated self help/ assisted serve gantry – 397 mm(h) c/w 200w quartz infra red jacketed safety lamps, reversible curved glass sneeze screen & end glass.

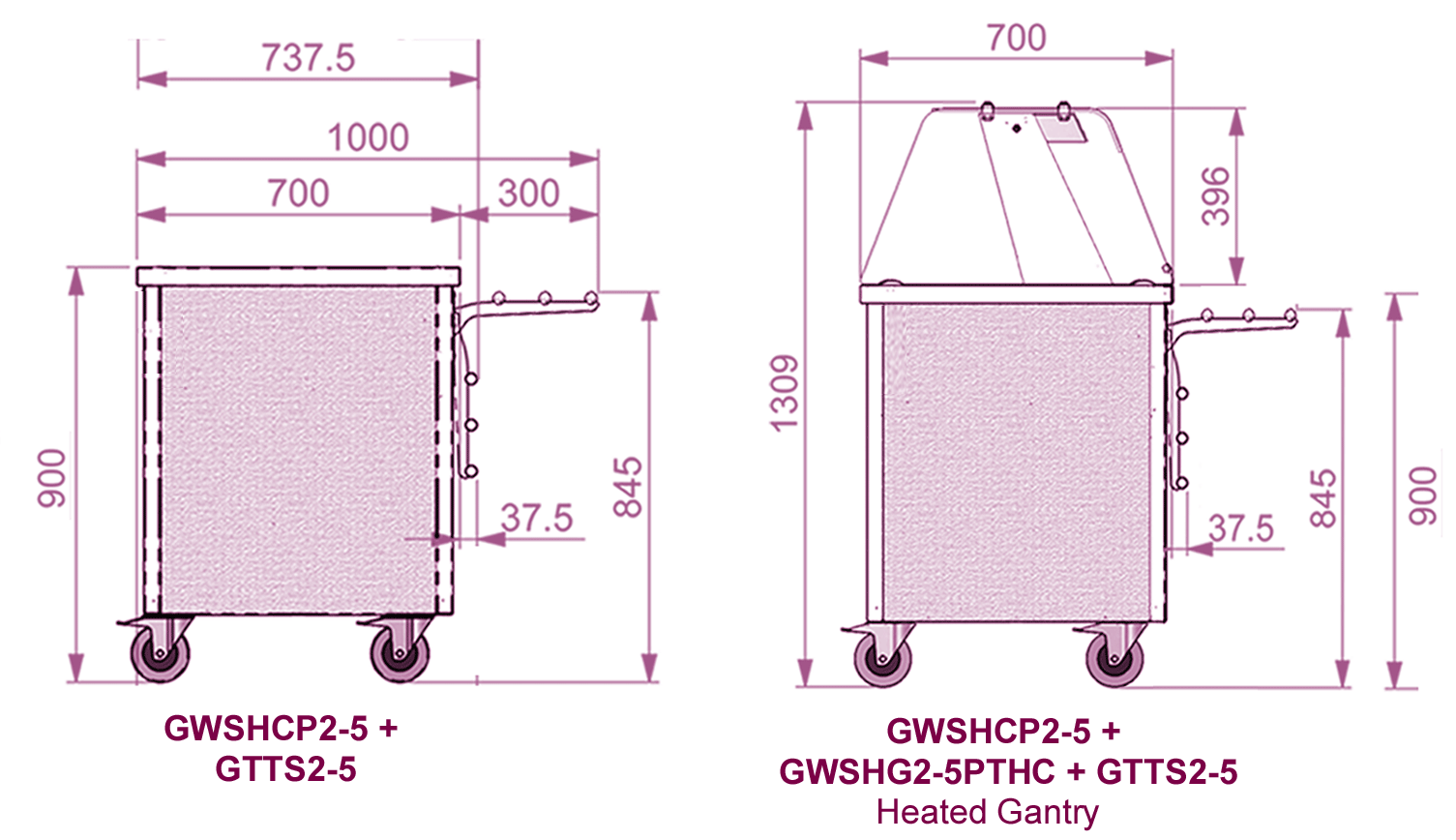

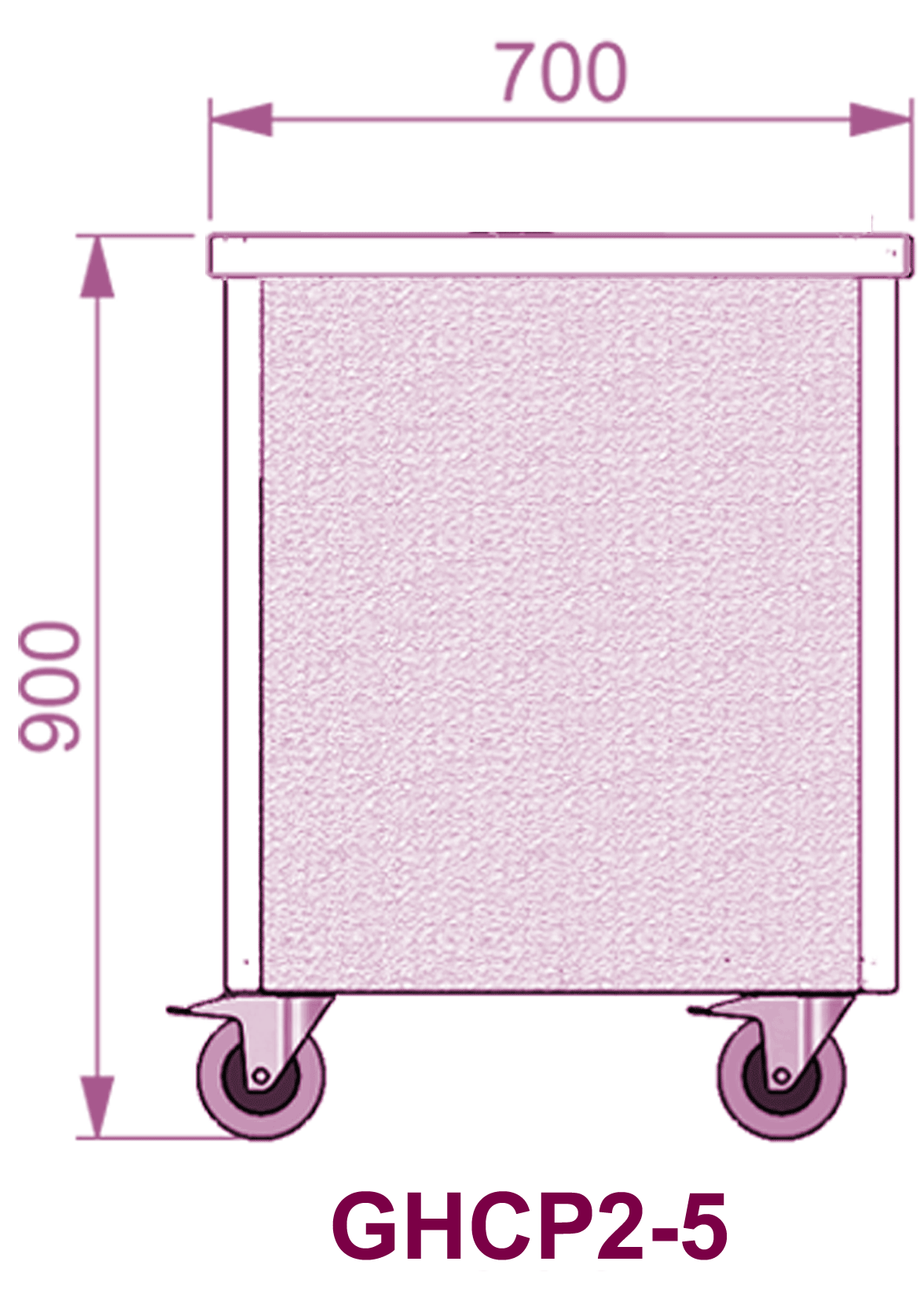

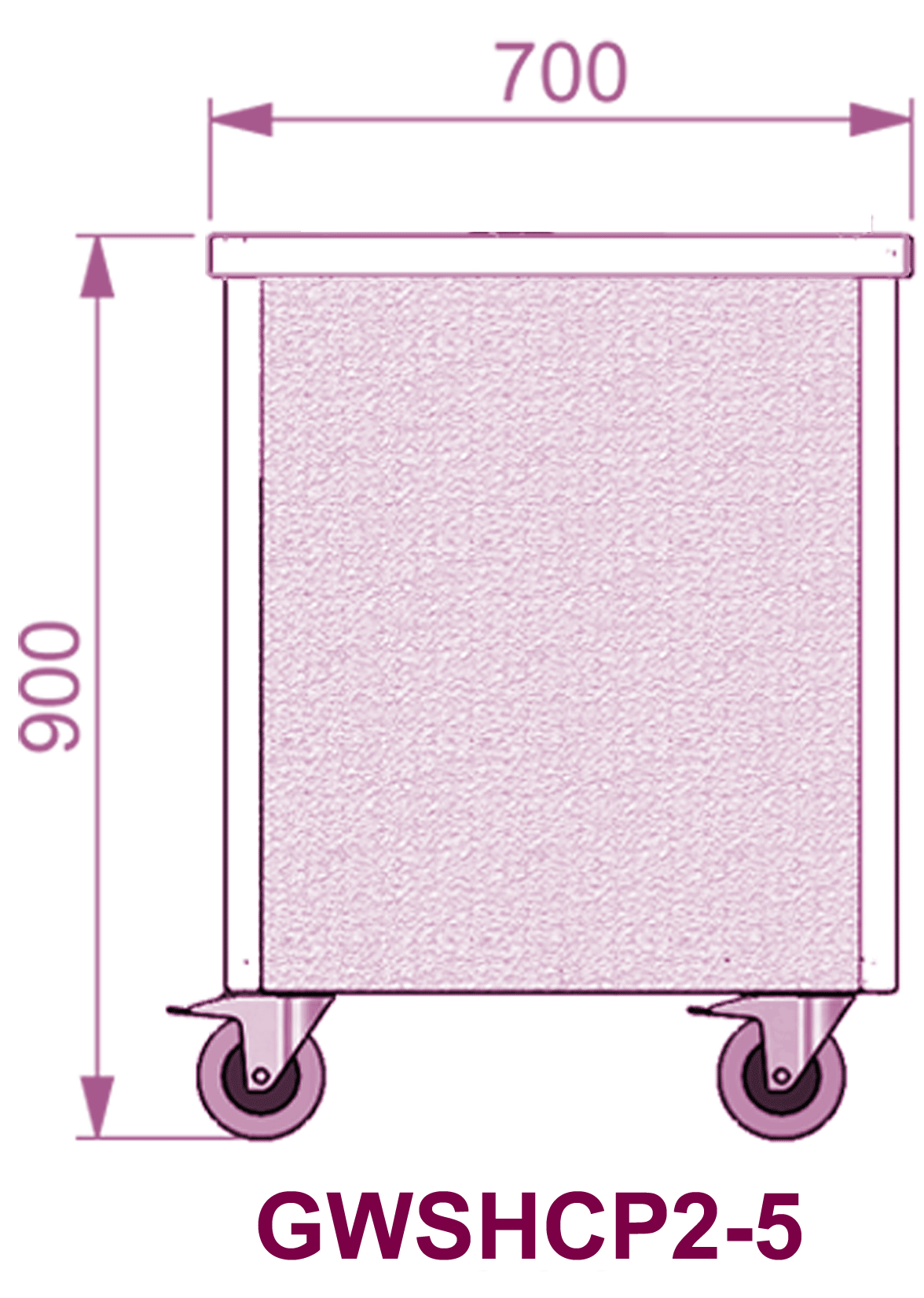

Dimensions

Glide Hot Cupboard (Plain Top).
Dimensions

Model Code

GHCP2xxx

GHCP3xxx

GHCP4xxx

GHCP5xxx

Capacity (Gn)

2-1

3-1

4-1

5-1

Length (mm)

825

1175

1525

1875

Depth (mm)

700

700

700

700

Height (mm)

900

900

900

900

Total Power (kw)
Plain Top Model

1.83

1.83

1.83

1.83

Total Power (kw)
Model + Hot Gantry Option

c/w 200w Quartz Infra-red Jacketed Safety Lamps, 3m lead & Plug.

2.23

2.43

2.63

2.83

Total Power (kw)
Model + Ambient Gantry Option

c/w 3m lead & Plug.

1.83

1.84

1.84

1.85

Fan Assisted Heating

Included

Included

Included

Included

Hot Cupboard Features
Removable Rear S/Steel Sliding Doors, Adjustable Height Shelving &
Removable Chrome Grid Cupboard Shelving

Included

Included

Included

Included

Cupboard Storage Capacity
Max. Qty 1-1 Gn Containers 150mm (h), Containers Not Included

4

6

8

10

Optional Trayslide – Revised Model Depth (mm)
Folding Tray Slide Option In Down Position

740

740

740

740

Optional Trayslide – Revised Model Depth (mm)
Folding Tray Slide Option In Up Position

1000

1000

1000

1000

Optional Trayslide Height (mm)
(Base Unit (h) – 55mm)

845

845

845

845

Model Weight (kg) : Plain Top Model

45

67

90

112

+ Optional Hot Gantry Weight (kg)

+7

+9

+12

+16

+ Optional Ambient Gantry Weight (kg)

+7

+9

+12

+16

+ Optional Ambient Deli Gantry Weight (kg)

+12

+17

+21

+26

+ Optional Ambient Island Gantry Weight (kg)

+9

+11

+13

+18

Optional Model Height G850H (mm)

850

850

850

850

Optional Model Height *G800H (mm)
*bespoke option, extended lead time*

800

800

800

800



*When Gantry option is added to model, the control panel with thermostat/ power isolation is replaced with a control panel featuring thermostat & illuminated rocker switch/power isolation*

Options                                                                                          Option Code

Model Code

GHCP2

GHCP3

GHCP4

GHCP5

Glide S/Steel Drop Down Tubular Tray Rail

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm High Model

G850H

G850H

G850H

G850H

Glide 800mm High Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

Glide Ambient Gantry.
Reversible Curved Glass, End Glass, LED, 397mm (h)
*For use above the residual heated worktop i.e. temporary plate/ cup/ food container storage*

GAG2

GAG3

GAG4

GAG5

Glide Ambient Deli Gantry.
Full Height Curved Front Glass/ End Glass. Glass Mid shelf, LED, 540mm (h)
*For use above the residual heated worktop i.e. temporary plate/ cup/ food container storage*

GADG2

GADG3

GADG4

GADG5

Glide Ambient Island Gantry.
Double Curved Island Glass/ End Glass, LED, 397mm (h)
*For use above the residual heated worktop i.e. temporary plate/ cup/ food container storage*

GAIG2

GAIG3

GAIG4

GAIG5

Glide Heated Gantry.
Reversible Curved Glass, End Glass, 200w quartz infra-red jacketed safety lamps, 397mm (h)
*For use above the residual heated worktop together with top heat*

GHG2PTHC

GHG3PTHC

GHG4PTHC

GHG5PTHC

Glide Colour Finish Base Panels (Front & Sides).
Ocean Blue (BS 18C37)

GBLUECHA2

GBLUECHA3

GBLUECHA4

GBLUECHA5

Glide S/Steel Finish Base Panels (Front & Sides).
S/Steel (430 gd)

GSSTLCHA2

GSSTLCHA3

GSSTLCHA4

GSSTLCHA5

Glide Colour Finish Base Panels (Front & Sides).
Goosewing Light Grey (BS 10A05)

GGREYCHA2

GGREYCHA3

GGREYCHA4

GGREYCHA5

Glide Colour Finish Base Panels (Front & Sides).
Forest Green (RAL 6002)

GGRENCHA2

GGRENCHA3

GGRENCHA4

GGRENCHA5

Glide Colour Finish Base Panels (Front & Sides).
Poppy Red (BS 04E5B)

GPREDCHA2

GPREDCHA3

GPREDCHA4

GPREDCHA5

Glide Colour Finish Base Panels (Front & Sides).
Buttermilk Cream (BS 10C31)

GCREMCHA2

GCREMCHA3

GCREMCHA4

GCREMCHA5

Glide Colour Finish Base Panels (Front & Sides).
White (BS 00E55)

GWHITCHA2

GWHITCHA3

GWHITCHA4

GWHITCHA5

Glide Colour Finish Base Panels (Front & Sides).
Black (BS 00E53)

GBLAKCHA2

GBLAKCHA3

GBLAKCHA4

GBLAKCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Walnut (DL85)

GWALNCHA2

GWALNCHA3

GWALNCHA4

GWALNCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Beech (DL76)

GBEECCHA2

GBEECCHA3

GBEECCHA4

GBEECCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Oak (DL84)

GOAKCHA2

GOAKCHA3

GOAKCHA4

GOAKCHA5





Popular Model Codes & Options

SUMMARY : Popular Model Codes & Options

Model Code

Option Code

Option Code

Option Code

Glide Hot Cupboard
(& S/Steel Drop Down
Solid Tray Slide)

GHCP2
GHCP3
GHCP4
GHCP5

GSTS2
GSTS3
GSTS4
GSTS5

GSTS2
GSTS3
GSTS4
GSTS5

Glide Hot Cupboard
(& S/Steel Drop Down
Tubular Tray Rail)

GHCP2
GHCP3
GHCP4
GHCP5

GTTS2
GTTS3
GTTS4
GTTS5

YYYY

Glide Hot Cupboard
(& Ambient Gantry –
Reversible Curved Glass/End Glass)

GHCP2
GHCP3
GHCP4
GHCP5

GAG2
GAG3
GAG4
GAG5

YYYY

Glide Hot Cupboard
(& Ambient Deli Gantry –
Full Height Curved Front Glass/Mid shelf & End Glass)

GHCP2
GHCP3
GHCP4
GHCP5

GADG2
GADG3
GADG4
GADG5

GPREDCHA2

Glide Hot Cupboard
(& Ambient Island Gantry –
Double Curved Glass/End Glass)

GHCP2
GHCP3
GHCP4
GHCP5

GAIG2
GAIG3
GAIG4
GAIG5

GPREDCHA2

Glide Hot Cupboard
(& Ambient Gantry) & (S/Steel Drop Down Tubular Tray Rail) & (Colour Panel Finish Red)

GHCP2
GHCP3
GHCP4
GHCP5

GAG2
GAG3
GAG4
GAG5

GTTS2
GTTS3
GTTS4
GTTS5

GPREDCHA2
GPREDCHA3
GPREDCHA4
GPREDCHA5

Glide Hot Cupboard
(& Heated Gantry –
Reversible Curved Glass/End Glass)

GHCP2
GHCP3
GHCP4
GHCP5

GHG2PTHC
GHG3PTHC
GHG4PTHC
GHG5PTHC

GPREDCHA2

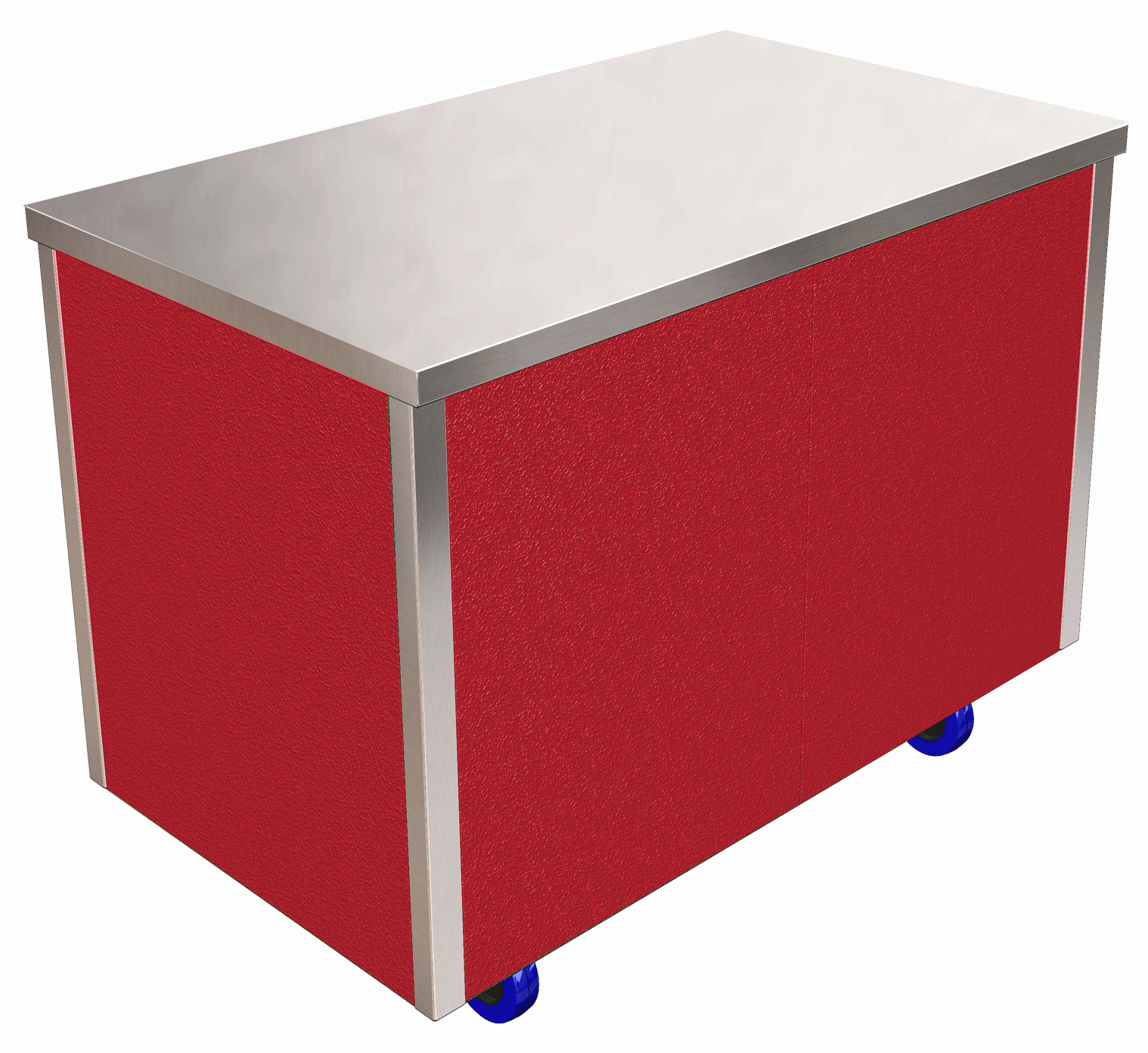

Glide Hot Cupboard
(& Colour Panel Finish – Red)

GHCP2
GHCP3
GHCP4
GHCP5

GPREDCHA2
GPREDCHA3
GPREDCHA4
GPREDCHA5

GPREDCHA2



Options

Glide Hot Cupboard (Plain Top).
Options.

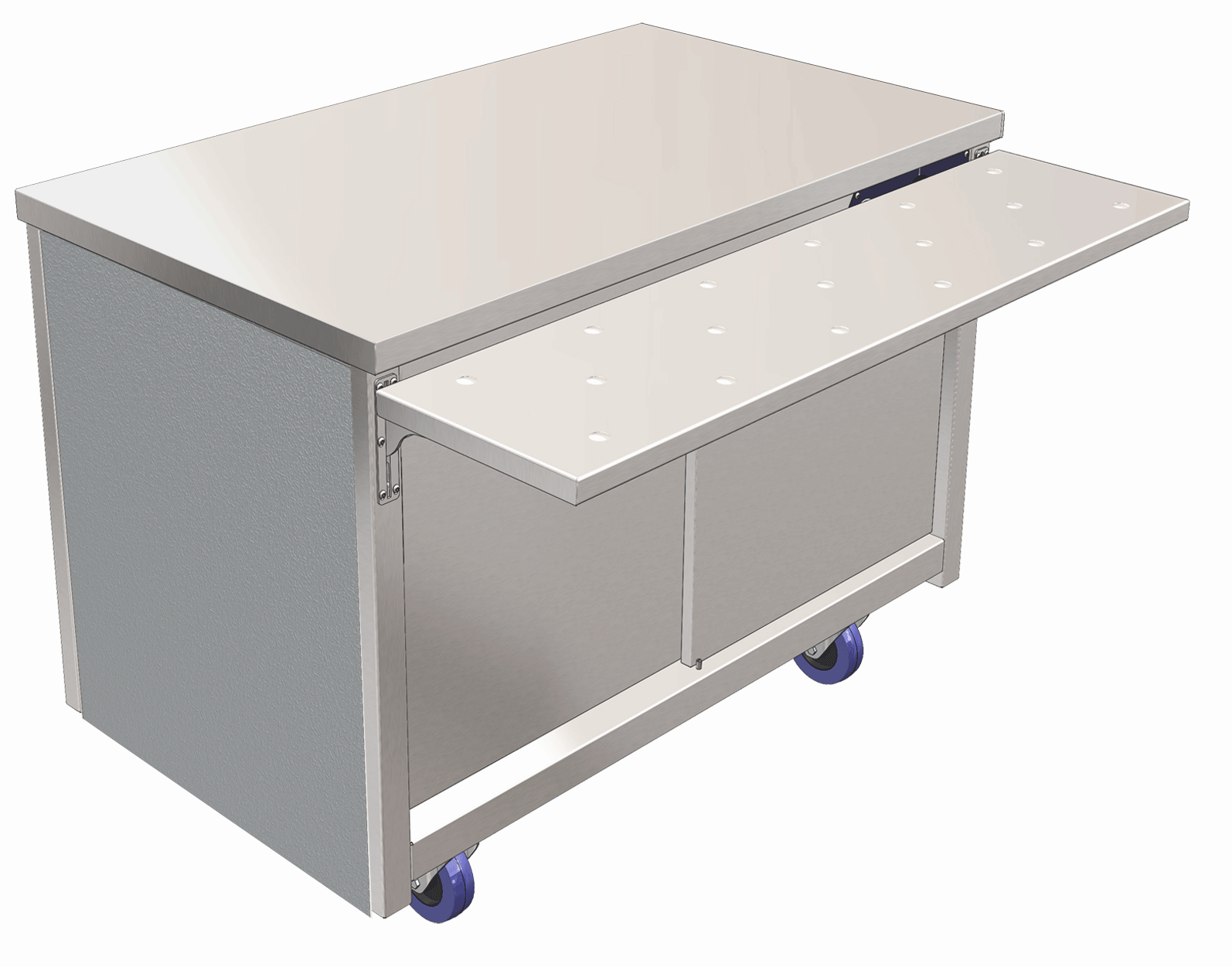

Glide S/Steel Folding Solid Tray Slide.
(Option Codes GSTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type, up position adds 302mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

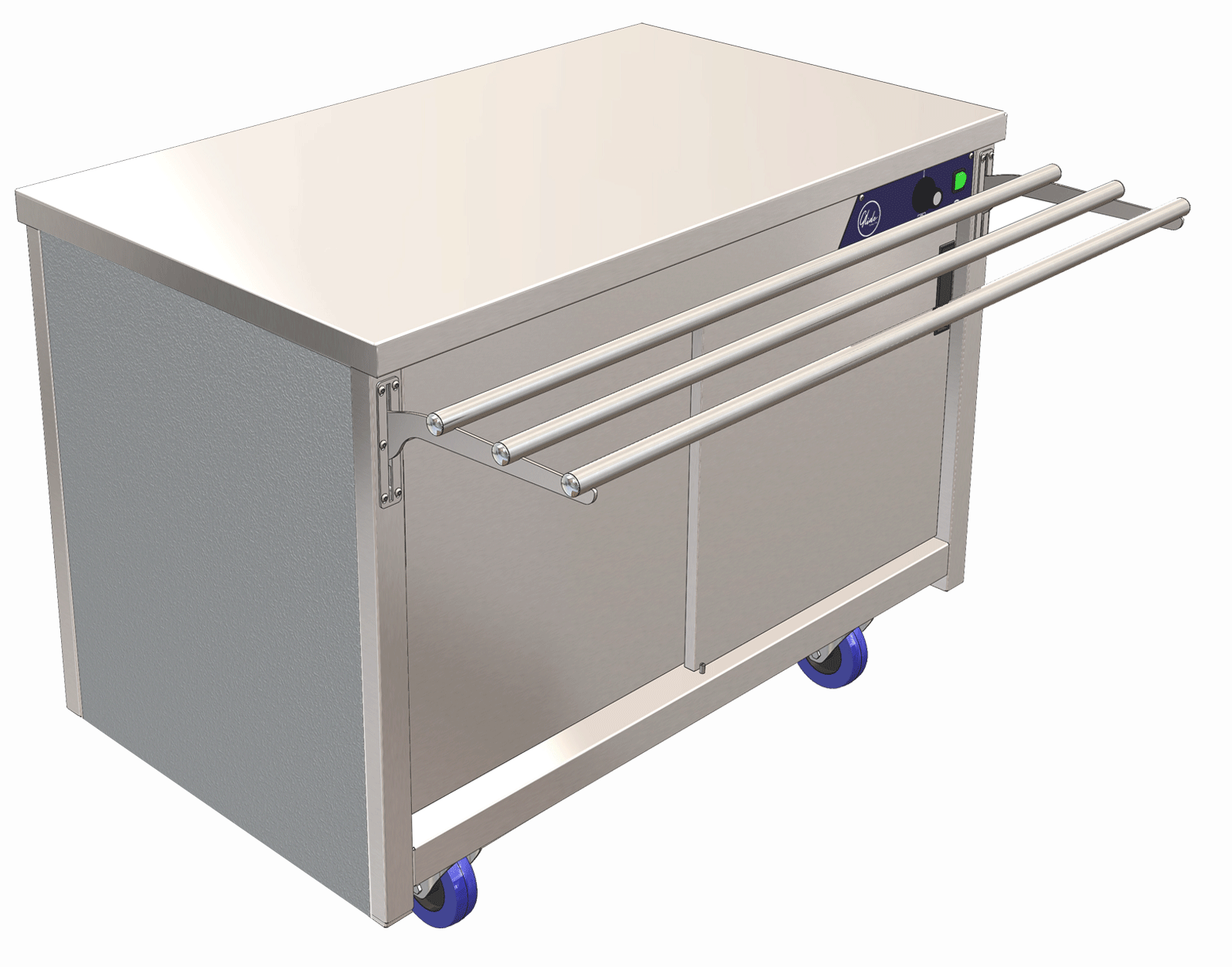

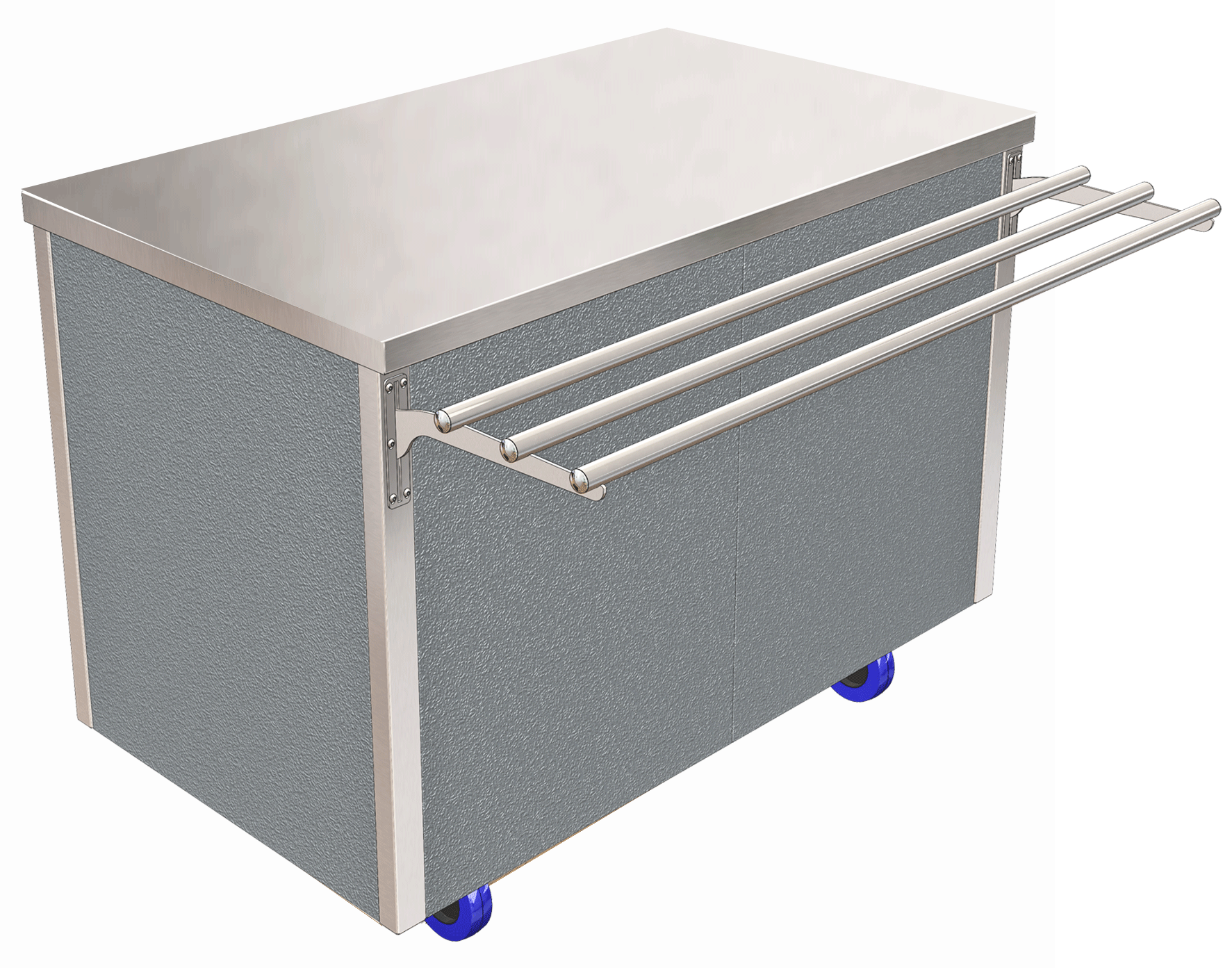

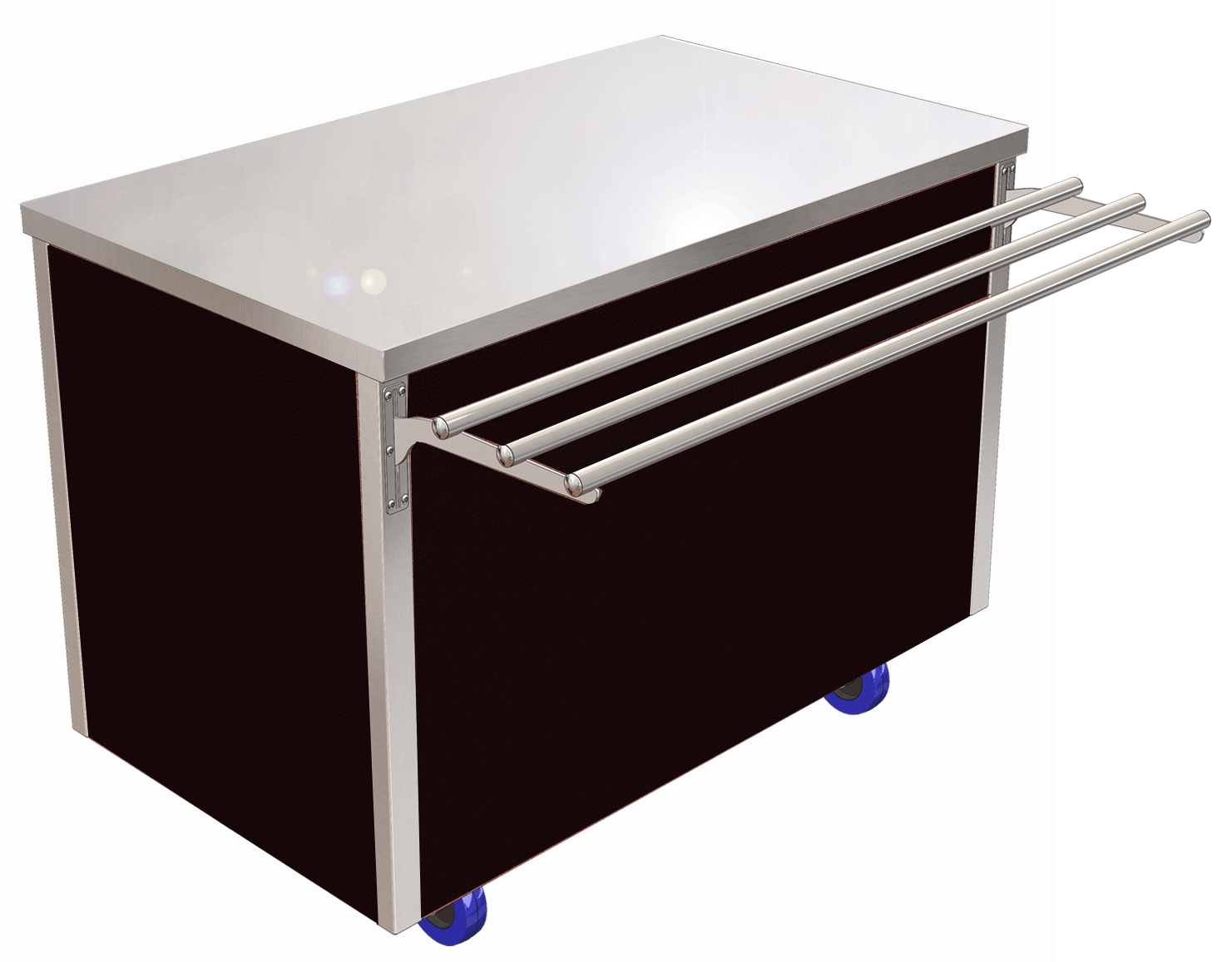

Glide S/Steel Folding Tubular Tray Rail.
(Option Codes GTTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube, drop down bracket type, up position adds 298 mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

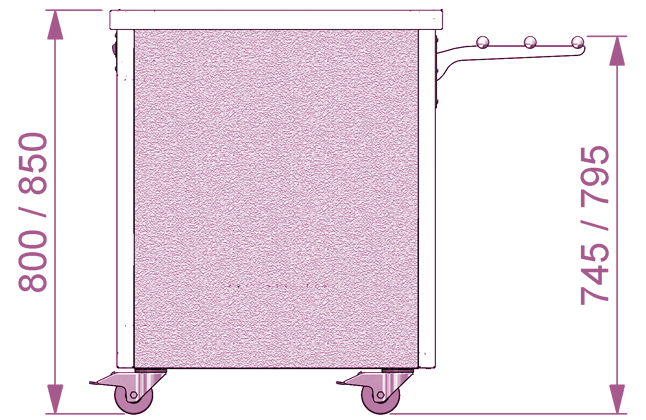

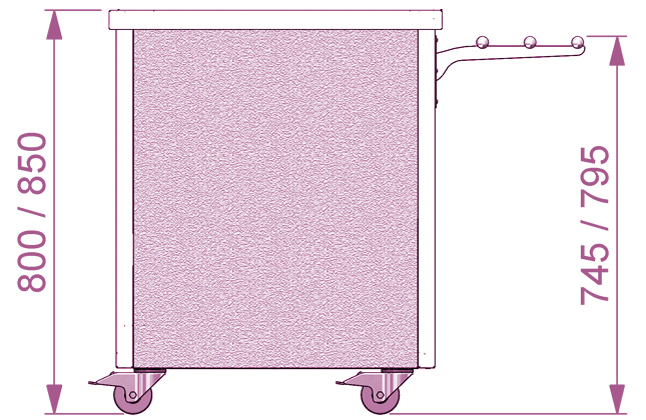

Low Height Model ( Glide Junior) – 850mm.
(Option Code G850H) Glide junior option: (all cold, hot, ambient, till & corner units) 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model ( Glide Junior) – 800mm.
(Option Code G800H) Glide junior option: (all cold, hot, ambient, till & corner units) 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). * Bespoke Option/ Extended Lead Time *

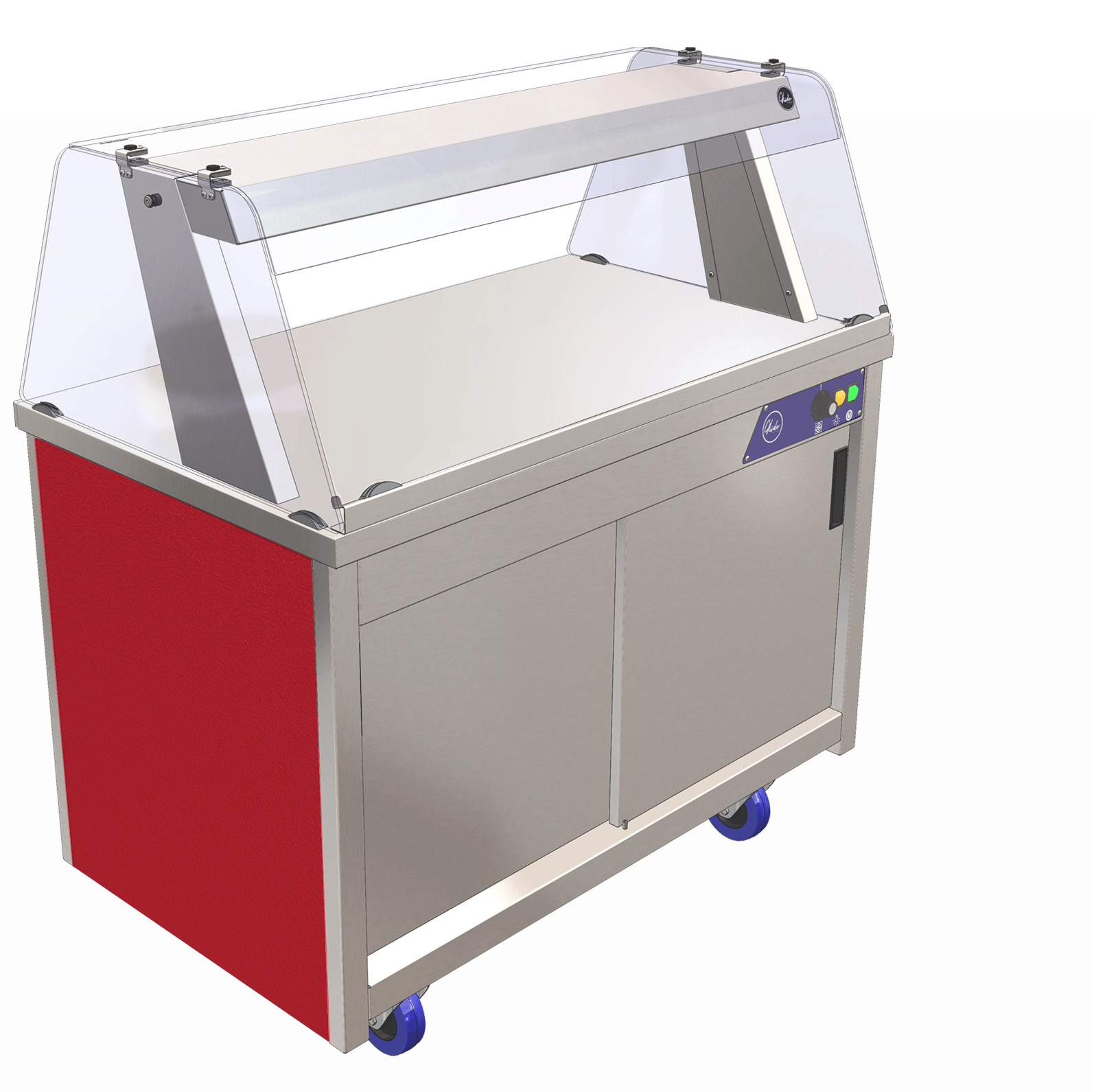

Glide Ambient & Heated Gantry Options.

*When Gantry option is added to model, the control panel with thermostat/ power isolation is replaced with a control panel featuring thermostat & illuminated rocker switch/ power isolation*





P

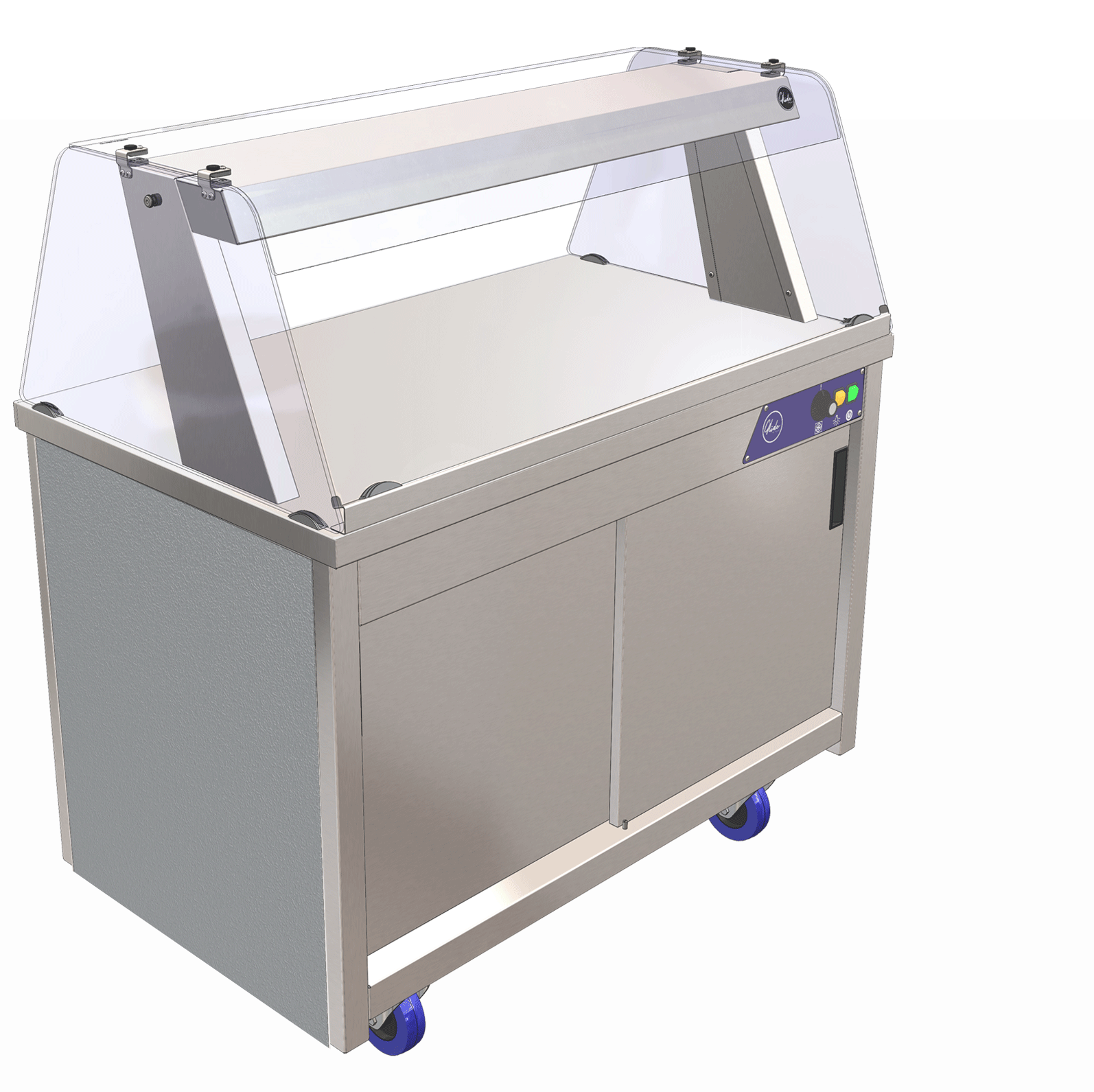

Glide Ambient Gantry.
(Option Codes GAG2 – 5) Glide option: 2-1 Gn to 5-1 Gn, ambient gantry, s/steel, c/w LED lighting, opaque cover, colour 4000k, reversible single curved glass sneeze screen, self help/ ass. serve use, + 397(h) above worktop, end glass. For use above the residual heated worktop i.e. temporary plate/ cup/ food container storage.

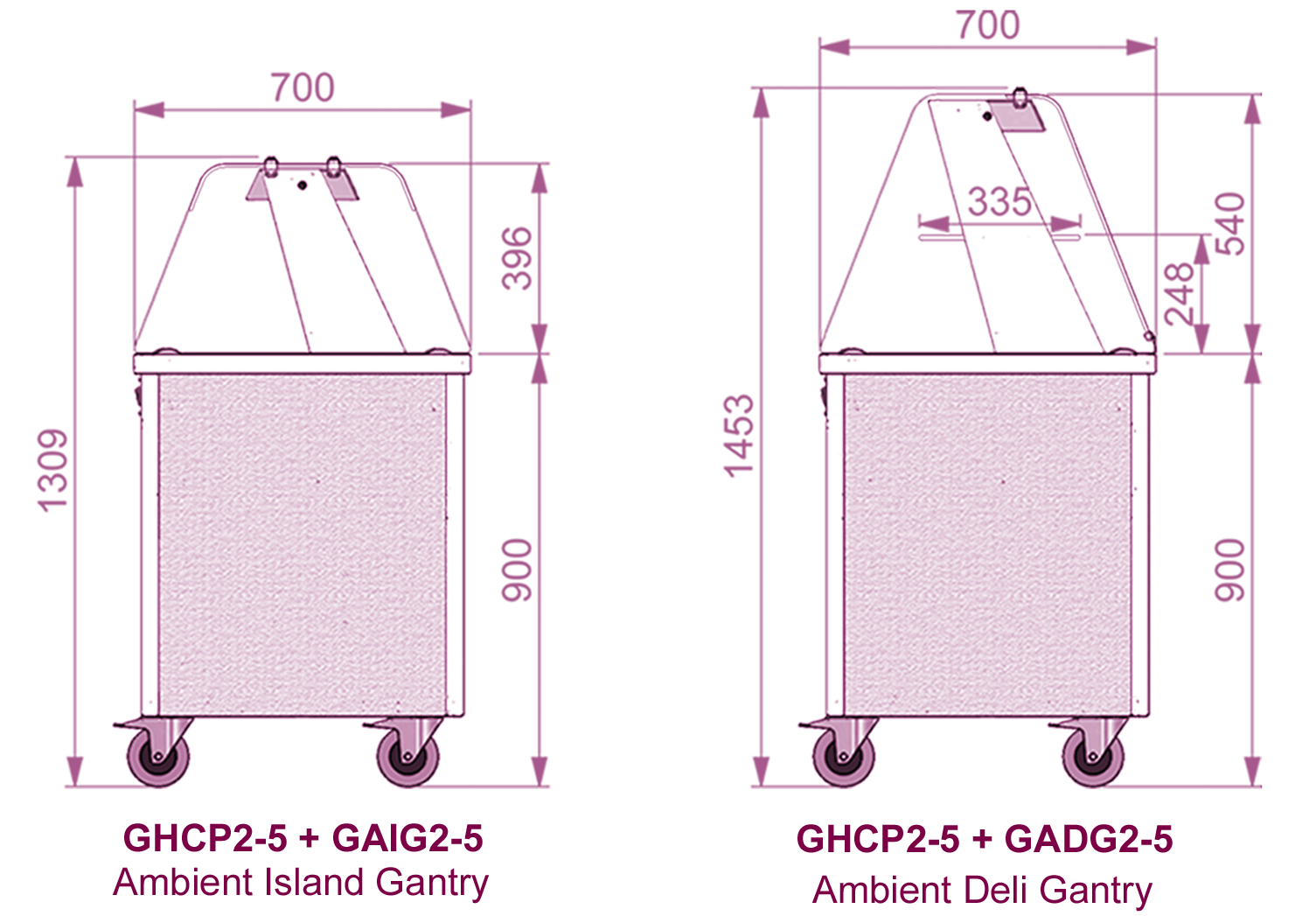

Glide Ambient Deli Gantry.
(Option Codes GADG2 – 5)
Glide option: 2-1 Gn to 5-1 Gn, ambient deli gantry, s/steel, c/w LED lighting, opaque cover, colour 4000k, full height single curved glass sneeze screen, assisted service use, + 540 (h) above worktop, glass mid shelf, end glass. For use above the residual heated worktop i.e. temporary plate/ cup/ food container storage.


Glide Ambient Island Gantry.

(Option Codes GAIG2 – 5) Glide option: 2-1 Gn to 5-1 Gn, ambient island gantry, s/steel, c/w LED lighting, opaque cover, colour 4000k, double curved glass sneeze screen, self help use, + 397(h) above worktop, end glass. For use above the residual heated worktop i.e. temporary plate/ cup/ food container storage.



Glide Heated Gantry.
(Option Codes GHG2PTHC – GHG5PTHC) Glide option: 2-1 Gn to 5-1 Gn, heated gantry, s/steel, reversible single curved glass sneeze screen, self help/ ass. serve use, + 397(h) above worktop, reinforced worktop for heat, fitted with 200w quartz infra-red jacketed safety lamps.
For use above the residual heated worktop together with top heat.





Glide Colour Finishes To Front/ Side Panels.

Blue Finish. (Option Codes GBLUECHA2 – GBLUECHA5) 2-1 Gn to 5-1 Gn full set of front panel/ sides in leathergrain plastisol steel, colour ocean blue (BS 18C37). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).

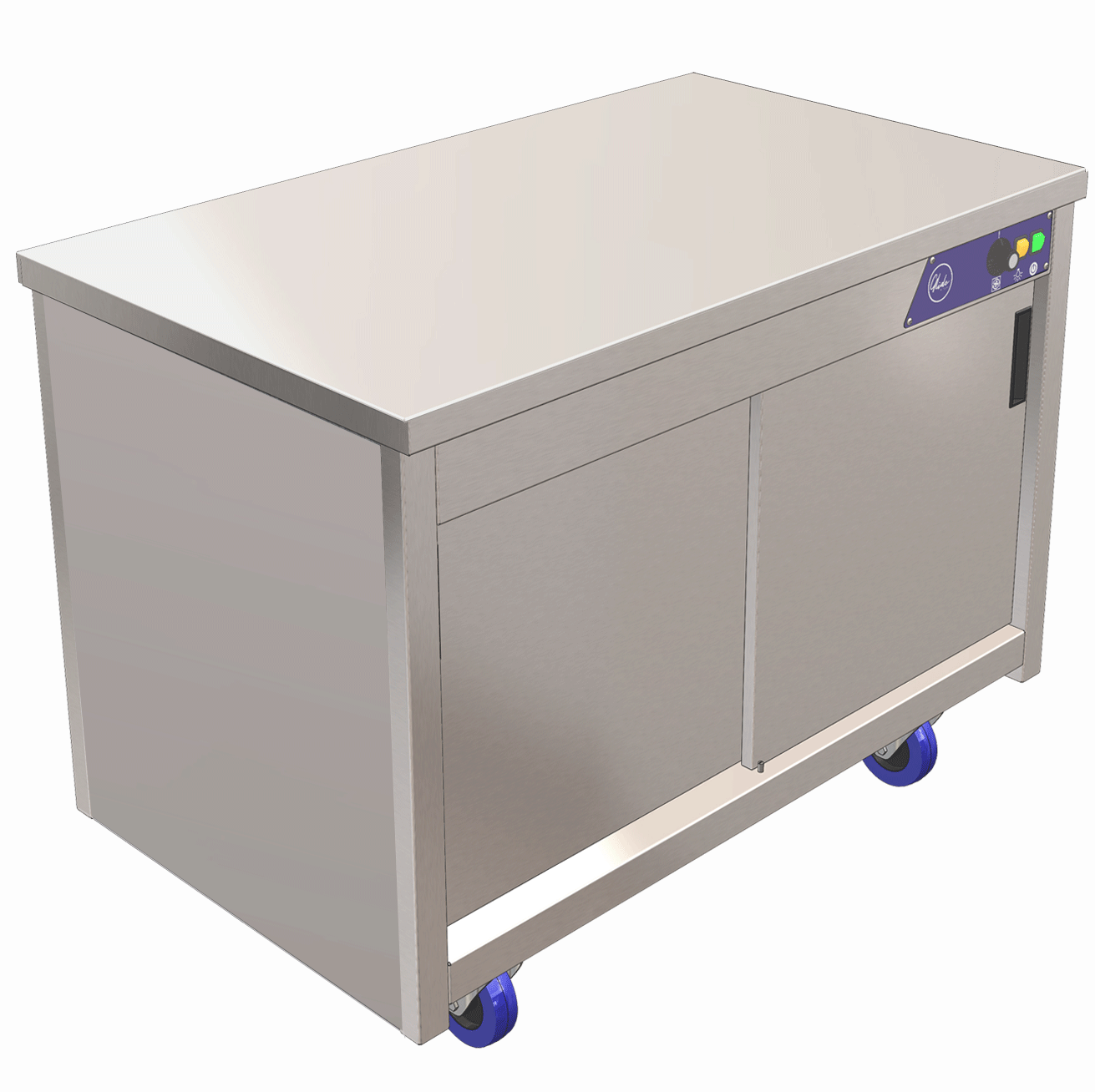

S/steel Finish. (Option Code GSSTLCHA2 – GSSTLCHA5) 2-1 Gn to 5-1 Gn full set of front panel/ sides in satin s/steel 430 gd. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).

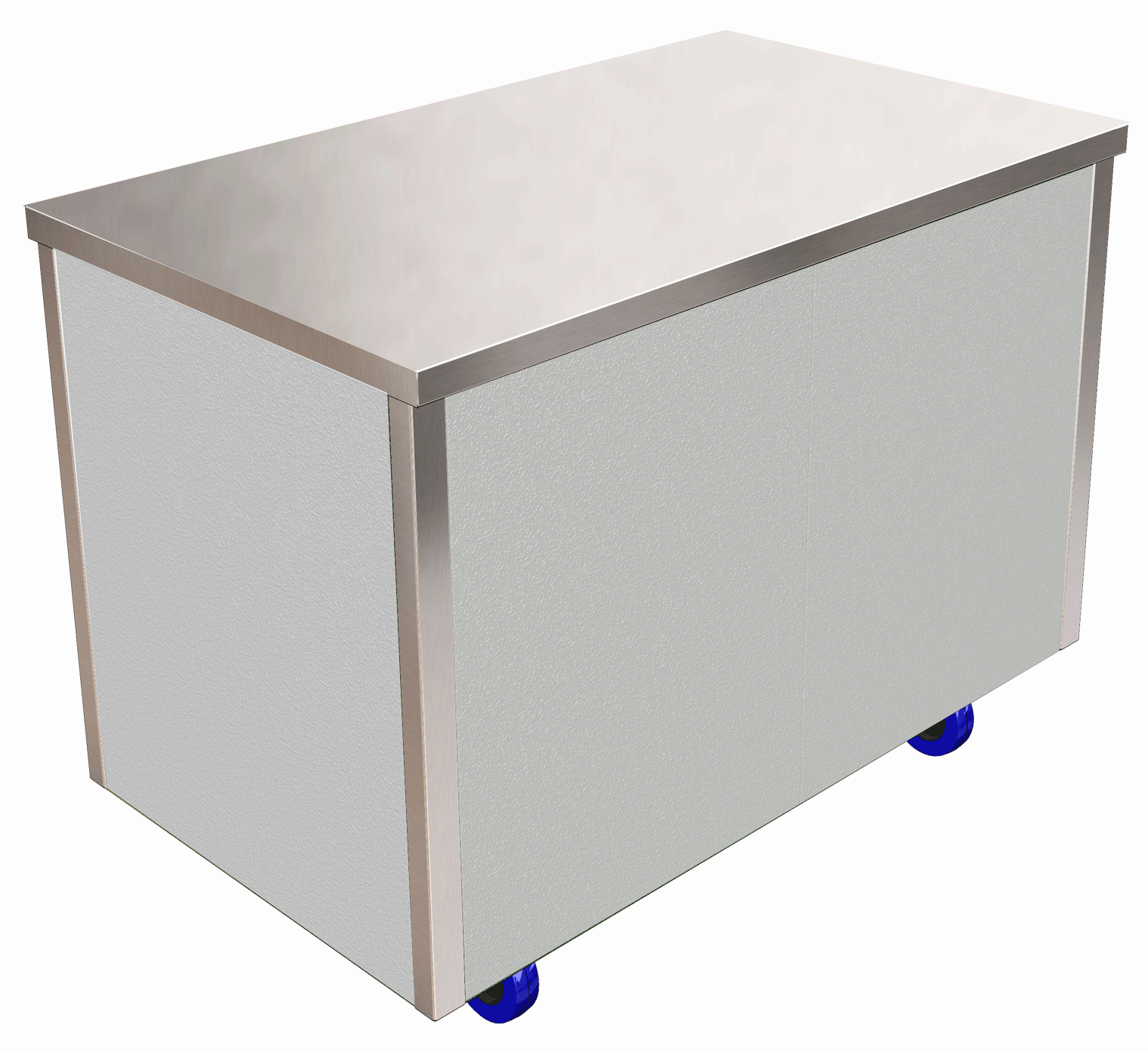

Light Grey Finish. (Option Codes GGREYCHA2 – GGREYCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour goosewing light grey (BS 10A05). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).



Forest Green Finish. (Option Codes GGRENCHA2 – GGRENCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour forest green/heritage (RAL 6002). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).

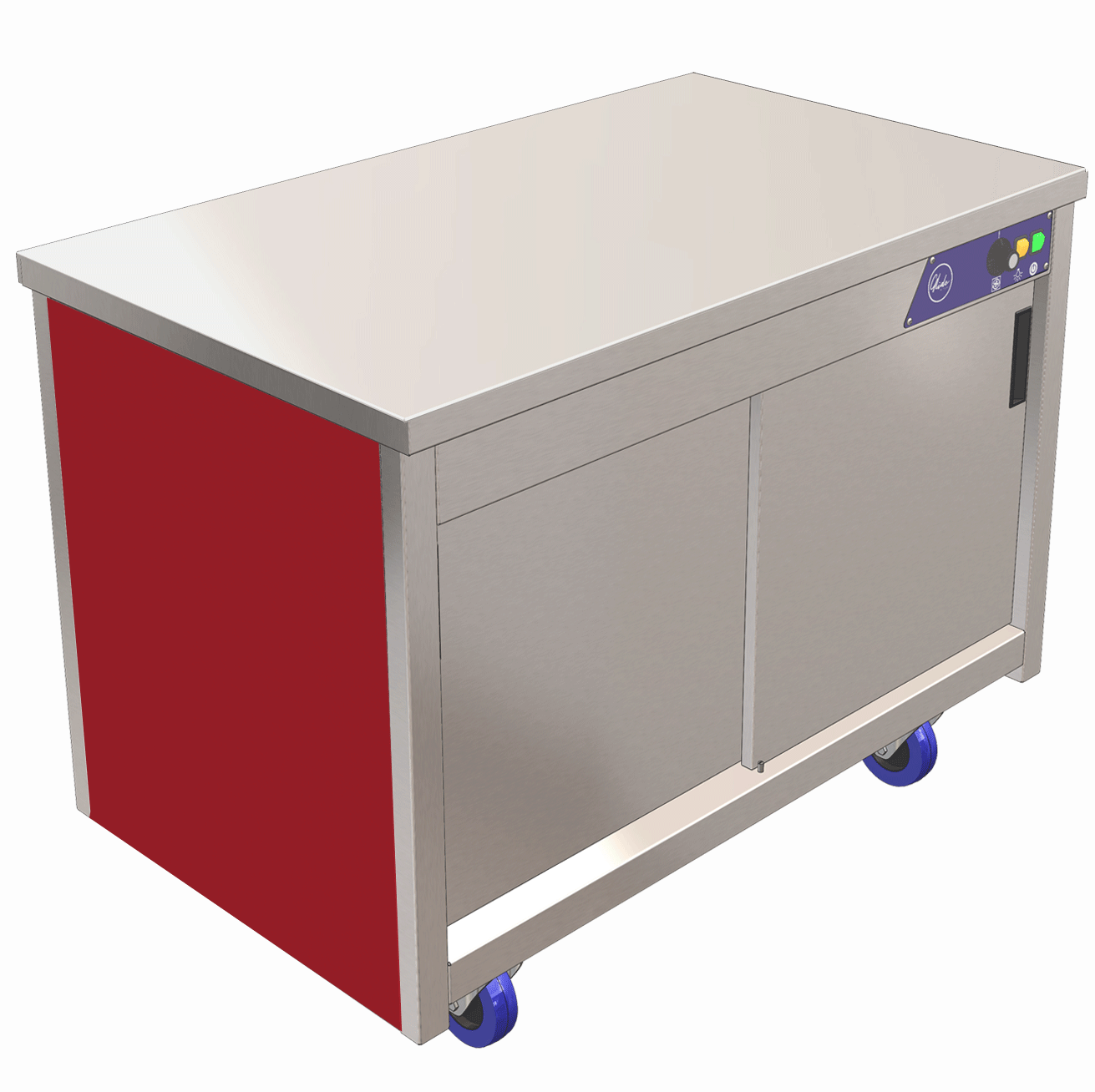

Poppy Red Finish. (Option Codes GPREDCHA2 – GPREDCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour poppy red (BS 04E5B). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).

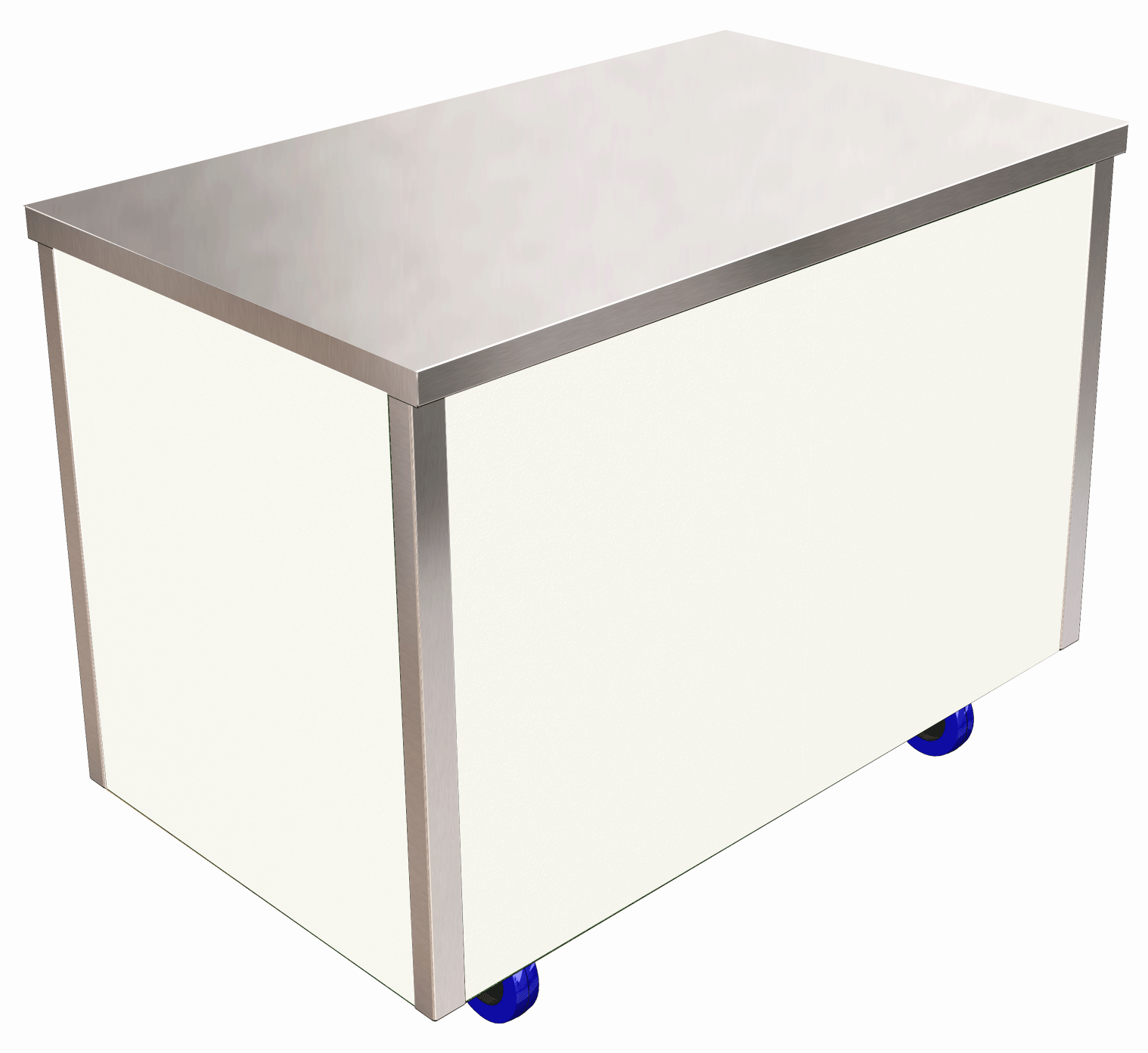

Cream Cream Finish. (Option Codes GCREMCHA2 – GCREMCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).

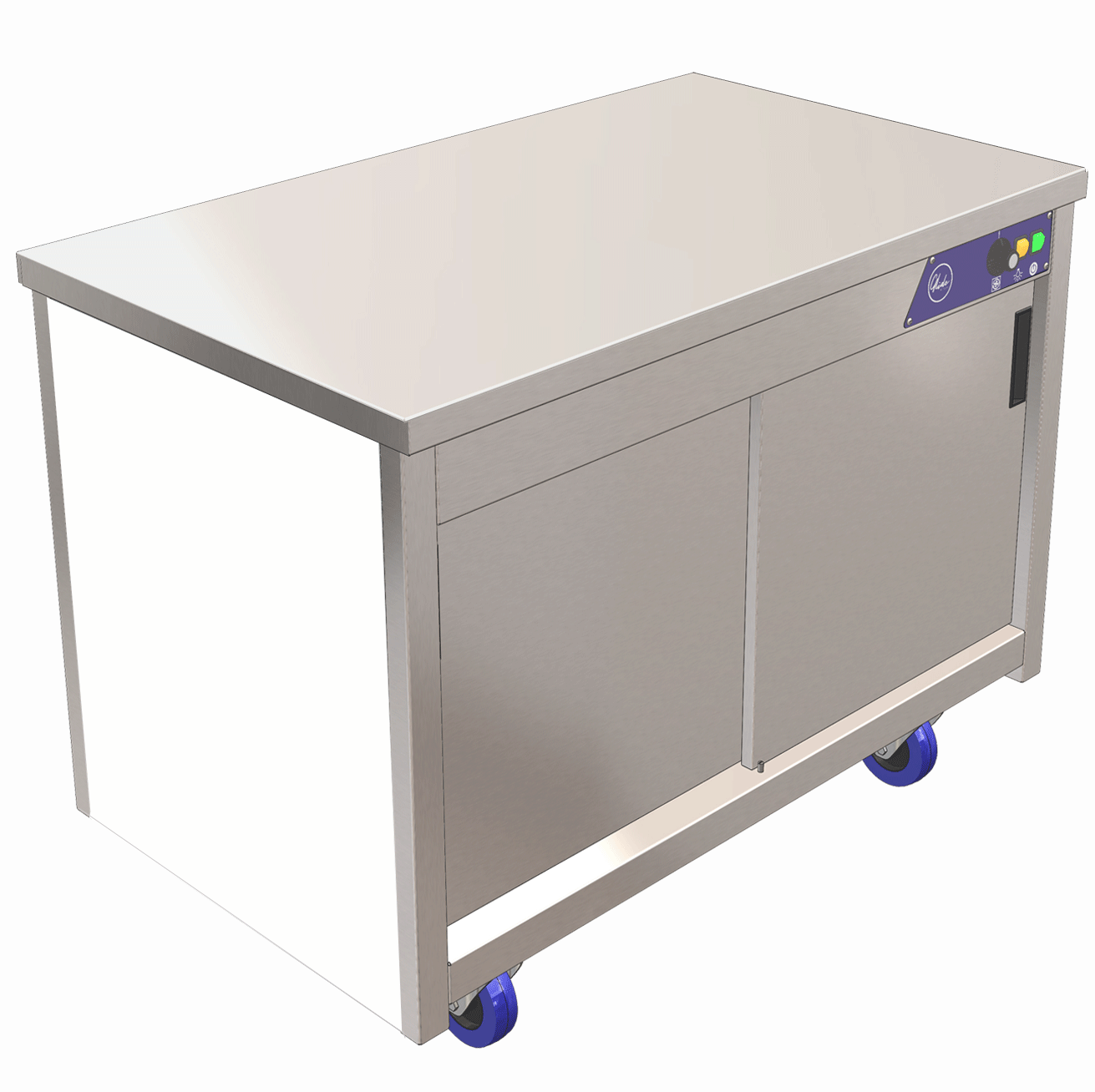

White Finish. (Option Codes GWHITCHA2 – GWHITCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour white (BS 00E55). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).

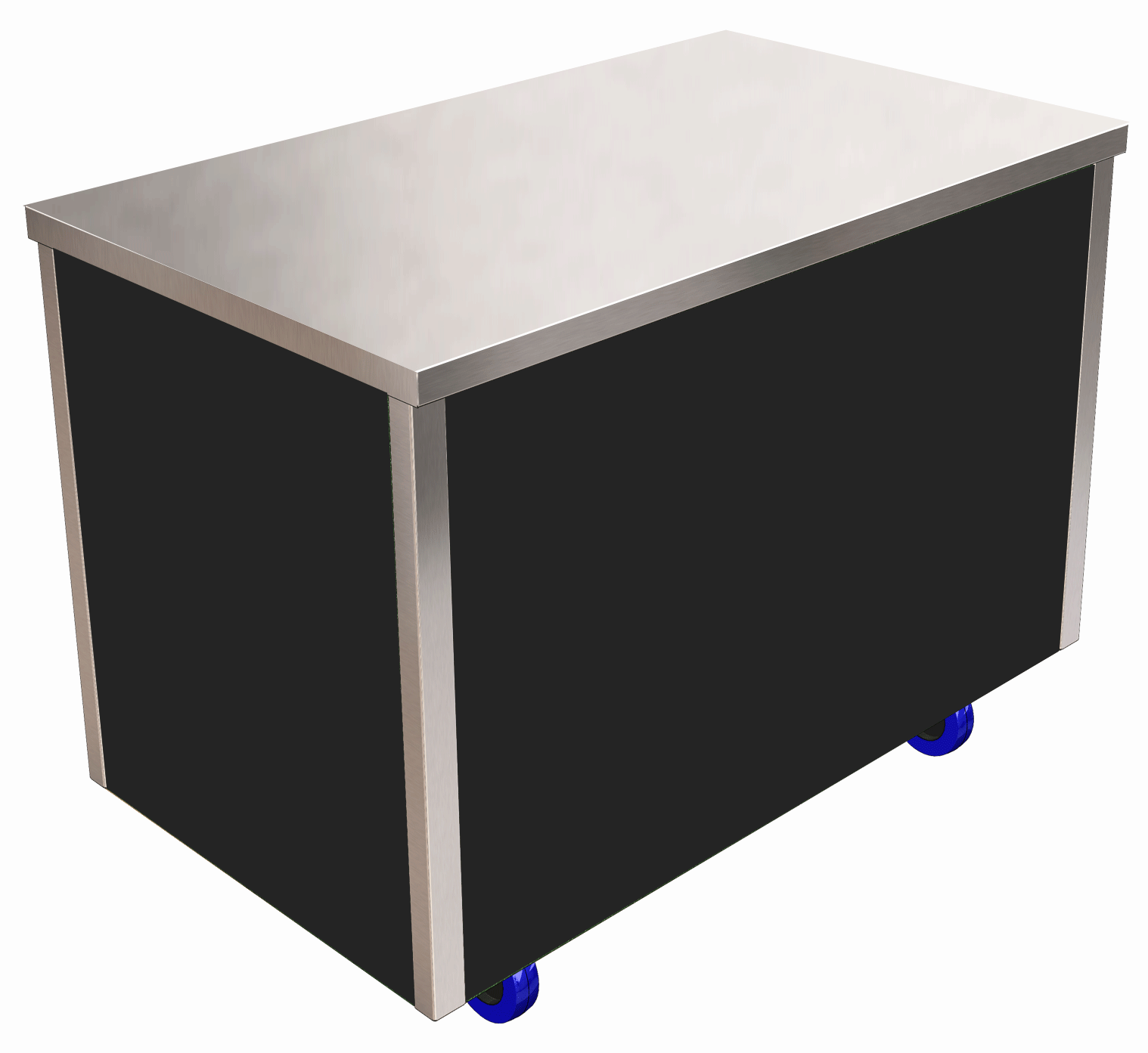

Black Black  Black Finish. (Option Codes GBLAKCHA2 – GBLAKCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour black (BS 00E53). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).

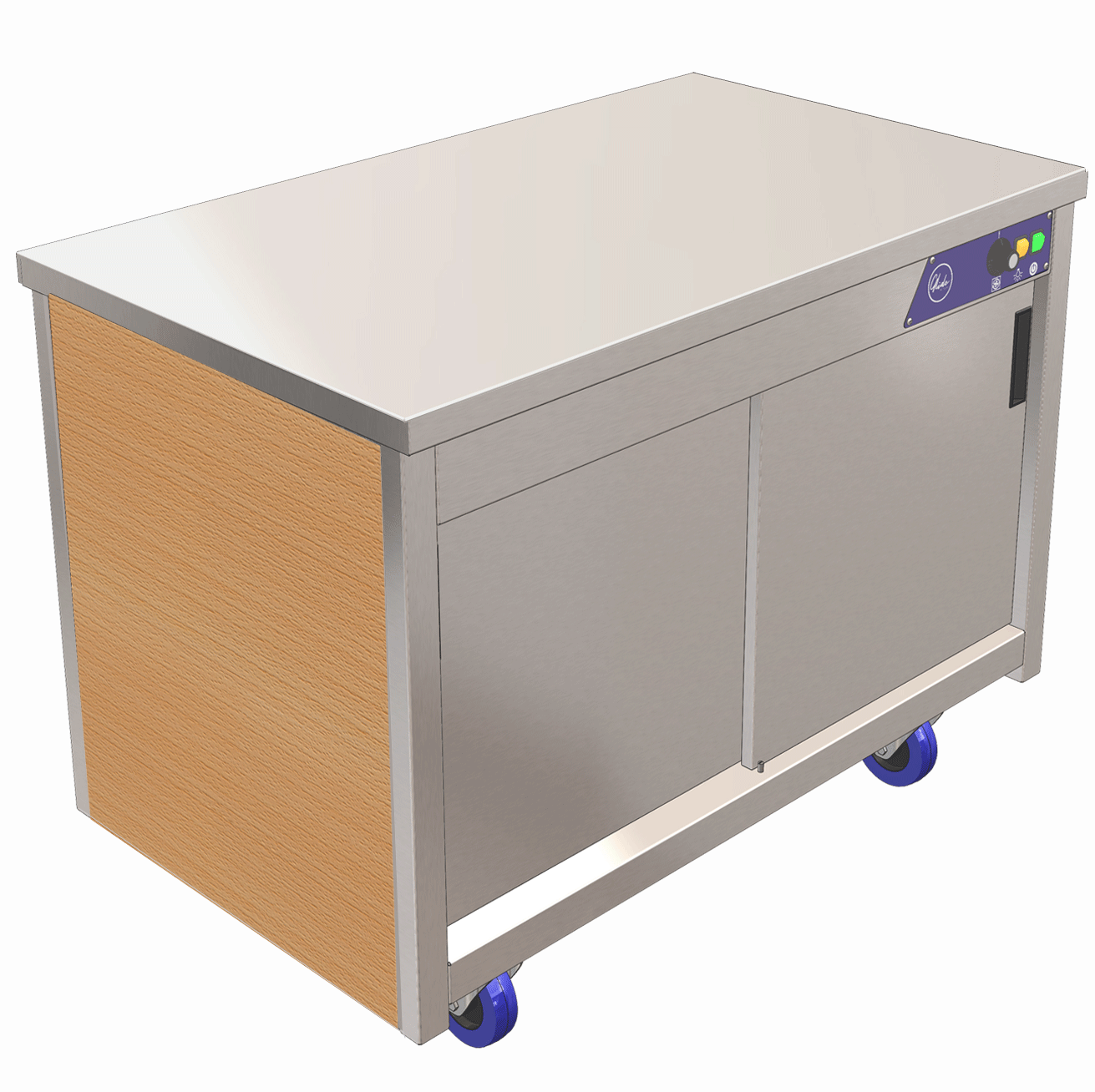

Beech Woodgrain Finish. (Option Codes GBEECCHA2 – GBEECCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect, DL76 beech finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).

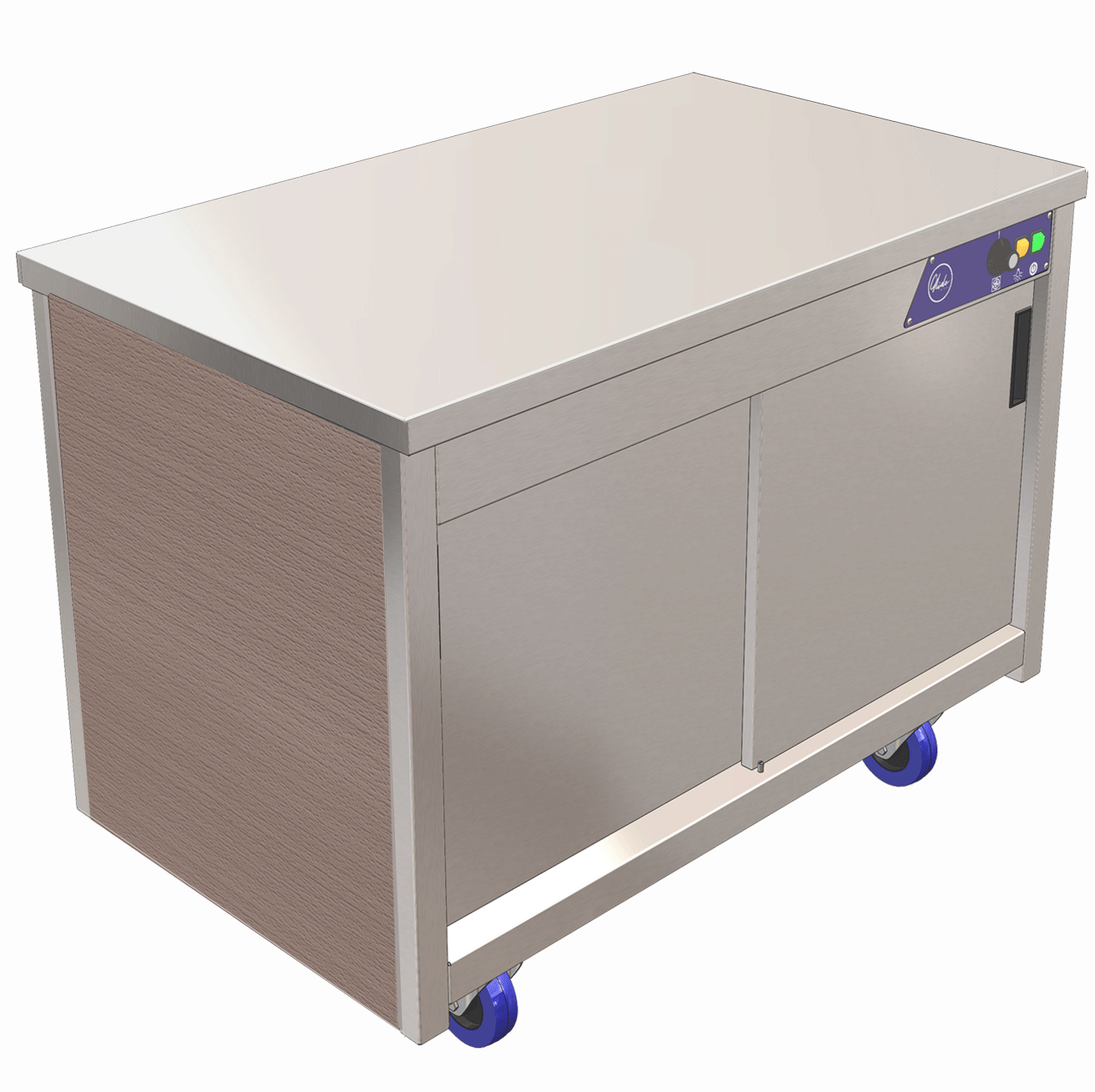

Walnut Walnut Woodgrain Finish. (Option Codes GWALNCHA2 – GWALNCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect panel, DL85 walnut finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).



Oak Woodgrain Finish. (Option Codes GOAKCHA2 – GOAKCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect, DL84 oak finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).



Options                                                                                          Option Code

Model Code

GHCP2

GHCP3

GHCP4

GHCP5

Glide S/Steel Drop Down Tubular Tray Rail

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm High Model

G850H

G850H

G850H

G850H

Glide 800mm High Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

Glide Ambient Gantry.
Reversible Curved Glass, End Glass, LED, 397mm (h)


*For use above the residual heated worktop i.e. temporary plate/ cup/ food container storage*

GAG2

GAG3

GAG4

GAG5

Glide Ambient Deli Gantry.
Full Height Curved Front Glass/ End Glass. Glass Mid shelf, LED, 540mm (h)

*For use above the residual heated worktop i.e. temporary plate/ cup/ food container storage*

GADG2

GADG3

GADG4

GADG5

Glide Ambient Island Gantry.
Double Curved Island Glass/ End Glass, LED, 397mm (h)


*For use above the residual heated worktop i.e. temporary plate/ cup/ food container storage*

GAIG2

GAIG3

GAIG4

GAIG5

Glide Heated Gantry.
Reversible Curved Glass, End Glass, 200w quartz infra-red jacketed safety lamps, 397mm (h)


*For use above the residual heated worktop together with top heat*

GHG2PTHC

GHG3PTHC

GHG4PTHC

GHG5PTHC

Glide Colour Finish Base Panels (Front & Sides).
Ocean Blue (BS 18C37)

GBLUECHA2

GBLUECHA3

GBLUECHA4

GBLUECHA5

Glide S/Steel Finish Base Panels (Front & Sides).
S/Steel (430 gd)

GSSTLCHA2

GSSTLCHA3

GSSTLCHA4

GSSTLCHA5

Glide Colour Finish Base Panels (Front & Sides).
Goosewing Light Grey (BS 10A05)

GGREYCHA2

GGREYCHA3

GGREYCHA4

GGREYCHA5

Glide Colour Finish Base Panels (Front & Sides).
Forest Green (RAL 6002)

GGRENCHA2

GGRENCHA3

GGRENCHA4

GGRENCHA5

Glide Colour Finish Base Panels (Front & Sides).
Poppy Red (BS 04E5B)

GPREDCHA2

GPREDCHA3

GPREDCHA4

GPREDCHA5

Glide Colour Finish Base Panels (Front & Sides).
Buttermilk Cream (BS 10C31)

GCREMCHA2

GCREMCHA3

GCREMCHA4

GCREMCHA5

Glide Colour Finish Base Panels (Front & Sides).
White (BS 00E55)

GWHITCHA2

GWHITCHA3

GWHITCHA4

GWHITCHA5

Glide Colour Finish Base Panels (Front & Sides).
Black (BS 00E53)

GBLAKCHA2

GBLAKCHA3

GBLAKCHA4

GBLAKCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Walnut (DL85)

GWALNCHA2

GWALNCHA3

GWALNCHA4

GWALNCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Beech (DL76)

GBEECCHA2

GBEECCHA3

GBEECCHA4

GBEECCHA5



Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Oak (DL84)

GOAKCHA2

GOAKCHA3

GOAKCHA4

GOAKCHA5



Popular Model Codes & Options.

Glide Hot Cupboard (Plain Top) ( & Solid Tray Slide)
Model Code Option Code
GHCP2         GSTS2
GHCP3         GSTS3
GHCP4         GSTS4
GHCP5         GSTS5

Glide Hot Cupboard (Plain Top) ( & Tubular Tray Rail)
Model Code Option Code
GHCP2          GTTS2
GHCP3          GTTS3
GHCP4          GTTS4
GHCP5          GTTS5

Glide Hot Cupboard (Plain Top) ( & Ambient Gantry)
Model Code Option Code
GHCP2          GAG2
GHCP3          GAG3
GHCP4          GAG4
GHCP5          GAG5





Glide Hot Cupboard (Plain Top) ( & Ambient Deli Gantry)
Model Code Option Code
GHCP2          GADG2
GHCP3          GADG3
GHCP4          GADG4
GHCP5          GADG5





Glide Hot Cupboard (Plain Top) ( & Ambient Island Gantry)
Model Code Option Code
GHCP2          GAIG2
GHCP3          GAIG3
GHCP4          GAIG4
GHCP5          GAIG5





Glide Hot Cupboard (Plain Top) ( & Amb. Gantry/Tray Rail/ Colour Finish-Red)
Model Code Option Codes
GHCP2         GAG2  GTTS2  GPREDCHA2
GHCP3         GAG3  GTTS3  GPREDCHA3
GHCP4         GAG4  GTTS4  GPREDCHA4
GHCP5         GAG5  GTTS5  GPREDCHA5



Glide Hot Cupboard (Plain Top) (& Heated Gantry)
Model Code Option Code
GHCP2          GHG2PTHC
GHCP3          GHG3PTHC
GHCP4          GHG4PTHC
GHCP5          GHG5PTHC





Glide Hot Cupboard (Plain Top) ( & Tray Rail/ Colour Finish – Red)
Model Code Option Code Option Code
GHCP2          GTTS2           GPREDCHA2
GHCP3          GTTS3           GPREDCHA3
GHCP4          GTTS4           GPREDCHA4
GHCP5          GTTS5           GPREDCHA5



Glide Hot Cupboard (Plain Top) ( & Tray Rail/ Colour Finish – Black)
Model Code Option Code Option Code
GHCP2          GTTS2           GBLAKCHA2
GHCP3          GTTS3           GBLAKCHA3
GHCP4          GTTS4           GBLAKCHA4
GHCP5          GTTS5           GBLAKCHA5





Glide Hot Cupboard (Plain Top) ( & Amb. Gantry/Tray Rail/ Colour Finish-Black)
Model Code Option Codes
GHCP2         GAG2  GTTS2  GBLAKCHA2
GHCP3         GAG3  GTTS3  GBLAKCHA3
GHCP4         GAG4  GTTS4  GBLAKCHA4
GHCP5         GAG5  GTTS5  GBLAKCHA5



Downloads

General Layout Drawings
Glide Hot Cupboard (Plain Top).





Specification Sheet, Base Panel Colour Options, User Manual.
Glide Hot Cupboard (Plain Top).




Visual

(Wall Sited) Glide Hot Cupboard (Plain Top).
Visual



Features

(Wall Sited) Glide Hot Cupboard (Plain Top).
Features

  • Glide mobile dining cart, plain s/steel worktop with hot cupboard storage to front (no gantry).
  • Wall sited, alcove or island application (back to back).
  • Fan assisted heating to hot cupboard with thermostat control.
  • Gantry options & mains power are operated by individual neon indicator switches.
  • Supplied with 3m lead & 13 amp UK plug (13A 230v 50Hz).
  • Available in 4 no. gastronorm lengths – 825/1175/1525/1875mm (l) x 700mm (d) x 900mm (h).
  • Front facing hot storage cupboard fitted with removable sliding s/steel doors.
  • Rear/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Worktop in 304 gd steel, all other external steel surfaces (corner angles/ sliding doors etc.) in 430gd.
  • Hot cupboard fitted with adjustable height shelving, removable grid shelves, for easy cleaning.
  • Fitted with lockable non-marking rubber tyre castors.
  • Accommodates up to (10) x 1-1 Gn 150mm (d) containers (not included), depending on model size.

Options

  • Folding s/steel solid tray slide available*.
  • Folding s/steel tubular tray rail Ø25 tube, available*.
  • Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm)*.
  • 11 solid colour & woodgrain base panel finishes available.
  • Low height model 850mm (h) available.
  • *Low height model 800mm (h) available. * Bespoke option with extended lead time*.
  • Ambient self help gantry – 397 mm(h) c/w LED lighting (opaque cover, colour 4000k), reversible curved glass sneeze screen & end glass.
  • Heated self help gantry – 397 mm(h) c/w 200w quartz infra red jacketed safety lamps, reversible curved glass sneeze screen & end glass.


Dimensions

(Wall Sited) Glide Hot Cupboard (Plain Top).
Dimensions



Model Code

GWSHCP2

GWSHCP3

GWSHCP4

GWSHCP5

Capacity (Gn)

2-1

3-1

4-1

5-1

Length (mm)

825

1175

1525

1875

Depth (mm)

700

700

700

700

Height (mm)

900

900

900

900

Total Power (kw)
Plain Top Model

1.83

1.83

1.83

1.83

Total Power (kw)
Model + Hot Gantry Option (self help)
c/w 200w Quartz Infra-red Jacketed Safety Lamps, 3m lead & Plug.
*For use above the residual heated worktop together with top heat*

2.23

2.43

2.63

2.83

Total Power (kw)
Model + Ambient Gantry Option (self help)
c/w 3m lead & Plug. *
*For use above the residual heated worktop i.e. temporary plate/ cup/ food container storage*

1.83

1.84

1.84

1.85

Fan Assisted Heating

Included

Included

Included

Included

Hot Cupboard Features
Removable Front S/Steel Sliding Doors, Adjustable Height Shelving &
Removable Chrome Grid Cupboard Shelving

Included

Included

Included

Included

Cupboard Storage Capacity
Max. Qty 1-1 Gn Containers 150mm (h), Containers Not Included

4

6

8

10

Optional Trayslide – Revised Model Depth (mm)
Folding Tray Slide Option In Down Position

740

740

740

740

Optional Trayslide – Revised Model Depth (mm)
Folding Tray Slide Option In Up Position

1000

1000

1000

1000

Optional Trayslide Height (mm)
(Base Unit (h) – 55mm)

845

845

845

845

Model Weight (kg) : Plain Top Model

45

67

90

112

+ Optional Hot Gantry Weight (kg)

+7

+9

+12

+16

+ Optional Ambient Gantry Weight (kg)

+7

+9

+12

+16

Optional Model Height G850H (mm)

850

850

850

850

Optional Model Height *G800H (mm)
*bespoke option, extended lead time*

800

800

800

800



*When Gantry option is added to model, the control panel with thermostat/ power isolation is replaced with a control panel featuring thermostat & illuminated rocker switch/power isolation*



Options                                                                                     Option Code

Model Code

GWSHCP2

GWSHCP3

GWSHCP4

GWSHCP5

Glide S/Steel Drop Down Tubular Tray Rail

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm High Model

G850H

G850H

G850H

G850H

Glide 800mm High Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

(Wall Sited) Glide Ambient Gantry. Self Help Curved Glass, End Glass, LED, 397mm (h)
*For use above the residual heated worktop i.e. temporary plate/ cup/ food container storage*

GWSAG2

GWSAG3

GWSAG4

GWSAG5

(Wall Sited) Glide Heated Gantry. Self Help Curved Glass, End Glass, 200w quartz infra-red jacketed safety lamps, 397mm (h)
*For use above the residual heated worktop together with top heat*

GWSHG2PTHC

GWSHG3PTHC

GWSHG4PTHC

GWSHG5PTHC

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Ocean Blue (BS 18C37)

GBLUECHA2

GBLUECHA3

GBLUECHA4

GBLUECHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
S/Steel (430 gd)

GSSTLCHA2

GSSTLCHA3

GSSTLCHA4

GSSTLCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Goosewing Light Grey (BS 10A05)

GGREYCHA2

GGREYCHA3

GGREYCHA4

GGREYCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Forest Green (RAL 6002)

GGRENCHA2

GGRENCHA3

GGRENCHA4

GGRENCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Poppy Red (BS 04E5B)

GPREDCHA2

GPREDCHA3

GPREDCHA4

GPREDCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Buttermilk Cream (BS 10C31)

GCREMCHA2

GCREMCHA3

GCREMCHA4

GCREMCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
White (BS 00E55)

GWHITCHA2

GWHITCHA3

GWHITCHA4

GWHITCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Black (BS 00E53)

GBLAKCHA2

GBLAKCHA3

GBLAKCHA4

GBLAKCHA5

Glide Wood Grain Effect Finish Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Walnut (DL85)

GWALNCHA2

GWALNCHA3

GWALNCHA4

GWALNCHA5

Glide Wood Grain Effect Finish Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Beech (DL76)

GBEECCHA2

GBEECCHA3

GBEECCHA4

GBEECCHA5

Glide Wood Grain Effect Finish Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Oak (DL84)

GOAKCHA2

GOAKCHA3

GOAKCHA4

GOAKCHA5



Popular Model Codes & Options

SUMMARY : Popular Model Codes & Options

Model Code

Option Code

Option Code

Option Code

(Wall Sited) Glide Hot Cupboard (Plain Top)
(& S/Steel Drop Down Solid Tray Slide)

GWSHCP2
GWSHCP3
GWSHCP4
GWSHCP5

GSTS2
GSTS3
GSTS4
GSTS5

GSTS2
GSTS3
GSTS4
GSTS5

(Wall Sited) Glide Hot Cupboard (Plain Top)
(& S/Steel Drop Down Tubular Tray Rail)

GWSHCP2
GWSHCP3
GWSHCP4
GWSHCP5

GTTS2
GTTS3
GTTS4
GTTS5

YYYY

(Wall Sited) Glide Hot Cupboard (Plain Top)
(& Wall Sited Ambient Gantry)

GWSHCP2
GWSHCP3
GWSHCP4
GWSHCP5

GWSAG2
GWSAG3
GWSAG4
GWSAG5

(Wall Sited) Glide Hot Cupboard (Plain Top)
(& Wall Sited Ambient Gantry) &
(S/S Drop Down Tubular Tray Rail)
& (Colour Panel Finish Red)

GWSHCP2
GWSHCP3
GWSHCP4
GWSHCP5

GWSAG2
GWSAG3
GWSAG4
GWSAG5

GTTS2
GTTS3
GTTS4
GTTS5

GPREDCHA2
GPREDCHA3
GPREDCHA4
GPREDCHA5

(Wall Sited) Glide Hot Cupboard (Plain Top)
(& Wall Sited Heated Gantry)

GWSHCP2
GWSHCP3
GWSHCP4
GWSHCP5

GWSHG2PTHC
GWSHG3PTHC
GWSHG4PTHC
GWSHG5PTHC

GPREDCHA2

(Wall Sited) Glide Hot Cupboard (Plain Top)
(& Colour Panel Finish – Red)

GWSHCP2
GWSHCP3
GWSHCP4
GWSHCP5

GPREDCHA2
GPREDCHA3
GPREDCHA4
GPREDCHA5

GPREDCHA2



Options

(Wall Sited) Glide Hot Cupboard (Plain Top).
Options.





Glide S/Steel Folding Solid Tray Slide.
(Option Codes GSTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type, up position adds 302mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.



Glide S/Steel Folding Tubular Tray Rail.
(Option Codes GTTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube, drop down bracket type, up position adds 298 mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Low Height Model ( Glide Junior) – 850mm.
(Option Code G850H) Glide junior option: (all cold, hot, ambient, till & corner units) 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model ( Glide Junior) – 800mm.
(Option Code G800H) Glide junior option: (all cold, hot, ambient, till & corner units) 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). * Bespoke Option/ Extended Lead Time *



(Wall Sited) Glide Ambient & Heated Gantry Options.

*When Gantry option is added to model, the control panel with thermostat/ power isolation is replaced with a control panel featuring thermostat & illuminated rocker switch/power isolation*







(Wall Sited) Glide Ambient Gantry.
(Option Codes GWSAG2 – 5) Glide option: 2-1 Gn to 5-1 Gn, ambient gantry, s/steel, c/w LED lighting, opaque cover, colour 4000k, single curved glass sneeze screen, self help use, + 397(h) above worktop, end glass.
For use above the residual heated worktop i.e. temporary plate/ cup/ food container storage.



(Wall Sited) Glide Heated Gantry.
(Option Codes GWSHG2PTHC – GWSHG5PTHC) Glide option: 2-1 Gn to 5-1 Gn, heated gantry, s/steel, single curved glass sneeze screen, self help use, + 397(h) above worktop, reinforced worktop for heat, fitted with 200w quartz infra-red jacketed safety lamps.
For use above the residual heated worktop together with top heat.



Glide Colour Finish To Base Cupboard (Rear & Side Panels).

Blue Finish. (Option Codes GBLUECHA2 – GBLUECHA5). Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in leathergrain plastisol steel, colour ocean blue (BS 18C37).  Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.

S/steel Finish. (Option Code GSSTLCHA2 – GSSTLCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in satin s/steel 430 gd. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.

Light Grey Finish. (Option Codes GGREYCHA2 – GGREYCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in leathergrain plastisol steel, colour goosewing light grey (BS 10A05). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.

Forest Green Finish. (Option Codes GGRENCHA2 – GGRENCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in leathergrain plastisol steel, colour forest green/heritage (RAL 6002). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.



Poppy Red Finish. (Option Codes GPREDCHA2 – GPREDCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in leathergrain plastisol steel, colour poppy red (BS 04E5B). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.

Cream Finish. (Option Codes GCREMCHA2 – GCREMCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.

White Finish. (Option Codes GWHITCHA2 – GWHITCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in leathergrain plastisol steel, colour white (BS 00E55). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.

Black Finish. (Option Codes GBLAKCHA2 – GBLAKCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in leathergrain plastisol steel, colour black (BS 00E53). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.

Beech Woodgrain Finish. (Option Codes GBEECCHA2 – GBEECCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in wood grain effect, DL76 beech finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.



Walnut Woodgrain Finish. (Option Codes GWALNCHA2 – GWALNCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in wood grain effect panel, DL85 walnut finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.

Oak Woodgrain Finish. (Option Codes GOAKCHA2 – GOAKCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in wood grain effect panel, DL84 oak finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.



Options                                                                                     Option Code

Model Code

GWSHCP2

GWSHCP3

GWSHCP4

GWSHCP5

Glide S/Steel Drop Down Tubular Tray Rail

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm High Model

G850H

G850H

G850H

G850H

Glide 800mm High Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

(Wall Sited) Glide Ambient Gantry. Self Help Curved Glass, End Glass, LED, 397mm (h)
*For use above the residual heated worktop i.e. temporary plate/ cup/ food container storage*

GWSAG2

GWSAG3

GWSAG4

GWSAG5

(Wall Sited) Glide Heated Gantry. Self Help Curved Glass, End Glass, 200w quartz infra-red jacketed safety lamps, 397mm (h)
*For use above the residual heated worktop together with top heat*

GWSHG2PTHC

GWSHG3PTHC

GWSHG4PTHC

GWSHG5PTHC

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Ocean Blue (BS 18C37)

GBLUECHA2

GBLUECHA3

GBLUECHA4

GBLUECHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
S/Steel (430 gd)

GSSTLCHA2

GSSTLCHA3

GSSTLCHA4

GSSTLCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Goosewing Light Grey (BS 10A05)

GGREYCHA2

GGREYCHA3

GGREYCHA4

GGREYCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Forest Green (RAL 6002)

GGRENCHA2

GGRENCHA3

GGRENCHA4

GGRENCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Poppy Red (BS 04E5B)

GPREDCHA2

GPREDCHA3

GPREDCHA4

GPREDCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Buttermilk Cream (BS 10C31)

GCREMCHA2

GCREMCHA3

GCREMCHA4

GCREMCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
White (BS 00E55)

GWHITCHA2

GWHITCHA3

GWHITCHA4

GWHITCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Black (BS 00E53)

GBLAKCHA2

GBLAKCHA3

GBLAKCHA4

GBLAKCHA5

Glide Wood Grain Effect Finish Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Walnut (DL85)

GWALNCHA2

GWALNCHA3

GWALNCHA4

GWALNCHA5

Glide Wood Grain Effect Finish Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Beech (DL76)

GBEECCHA2

GBEECCHA3

GBEECCHA4

GBEECCHA5



Glide Wood Grain Effect Finish Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Oak (DL84)

GOAKCHA2

GOAKCHA3

GOAKCHA4

GOAKCHA5



Popular Model Codes & Options.

(Wall Sited) Glide Hot Cupboard (Plain Top) (& Solid Tray Slide)
Model Code   Option Code
GWSHCP2     GSTS2
GWSHCP3     GSTS3
GWSHCP4     GSTS4
GWSHCP5     GSTS5



(Wall Sited) Glide Hot Cupboard (Plain Top) (& Tubular Tray Rail)
Model Code   Option Code
GWSHCP2     GTTS2
GWSHCP3     GTTS3
GWSHCP4     GTTS4
GWSHCP5     GTTS5





(Wall Sited) Glide Hot Cupboard (Plain Top) (& Ambient Gantry)
Model Code    Option Code
GWSHCP2      GWSAG2
GWSHCP3      GWSAG3
GWSHCP4      GWSAG4
GWSHCP5      GWSAG5





(Wall Sited) Glide Hot Cupboard (Plain Top) (& Heated Gantry)
Model Code    Option Code
GWSHCP2      GWSHG2PTHC
GWSHCP3      GWSHG3PTHC
GWSHCP4      GWSHG4PTHC
GWSHCP5      GWSHG5PTHC





(Wall Sited) Glide Hot Cupboard (Plain Top) (& Ambient Gantry/ Colour Finish – Red)
Model Code     Option Code   Option Code
GWSHCP2        GWSAG2        GPREDCHA2
GWSHCP3        GWSAG3        GPREDCHA3
GWSHCP4        GWSAG4        GPREDCHA4
GWSHCP5        GWSAG5        GPREDCHA5





(Wall Sited) Glide Hot Cupboard (Plain Top) (& Ambient Gantry/Tray Rail)
Model Code    Option Code  Option Code
GWSHCP2      GWSAG2        GTTS2
GWSHCP3      GWSAG3        GTTS3
GWSHCP4      GWSAG4        GTTS4
GWSHCP5      GWSAG5        GTTS5





(Wall Sited) Glide Hot Cupboard (Plain Top) (& Colour Finish-Green)
Model Code  Option
GWSHCP2    GGRENCHA2
GWSHCP3    GGRENCHA3
GWSHCP4    GGRENCHA4
GWSHCP5    GGRENCHA5

(Wall Sited) Glide Hot Cupboard (Plain Top)  (& Heated Gantry)
(& Tray Rail/ Colour Finish – Red)

Model          Option                 Option   Option
GWSHCP2  GWSHG2PTHC  GTTS2  GPREDCHA2
GWSHCP3  GWSHG3PTHC  GTTS3  GPREDCHA3
GWSHCP4  GWSHG4PTHC  GTTS4  GPREDCHA4
GWSHCP5  GWSHG5PTHC  GTTS5  GPREDCHA5



Downloads

General Layout Drawings
(Wall Sited) Glide Hot Cupboard (Plain Top).





Specification Sheet, Base Panel Colour Options, User Manual.
(Wall Sited) Glide Hot Cupboard (Plain Top).
