The energy efficient, environmentally friendly fan blown cold well is part of the Glide range of mobile dining carts – a choice of cold, hot & ambient commercial catering carts that combine to form a food severy counter solution as unique as your requirements !

Features. The cold well circulates a constant stream of cold air within the display area, maintaining pre-chilled food between 2- 5 degrees C, just right for your fruit and vegetables, salads and cold drinks. This mobile self contained display is available in four different Gastronorm lengths, with locking castors to easily position your equipment around your serving space. The display accepts various presentation dishes and up to 5 no. 1-1Gn (x100) container pans.

Digital temperature control, automatic defrost & our auto condensate evaporation tray allow 24 hour operation if required.
All Glide cold displays use a highly efficient, naturally occurring hydrocarbon refrigerant gas within hermetically sealed condensing units, which reduce energy consumption and your carbon footprint !

Glide Cold Well – No Gantry. The mobile, self contained display is available in four different Gn lengths with locking castors, to easily position your equipment around the serving space. The well accepts 1-1Gn (x100) containers in the well/ storage area – perfect for bulk presentation of fruit or other morning goods.
The freestanding model has refrigeration airflow in/ out to operator side, with no ventilation on show to customer side. The fan blown well can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% humidity). A wall sited option is also available that has air in/out to customer side, for use in alcoves or back to back as island displays.

Gantry Options.

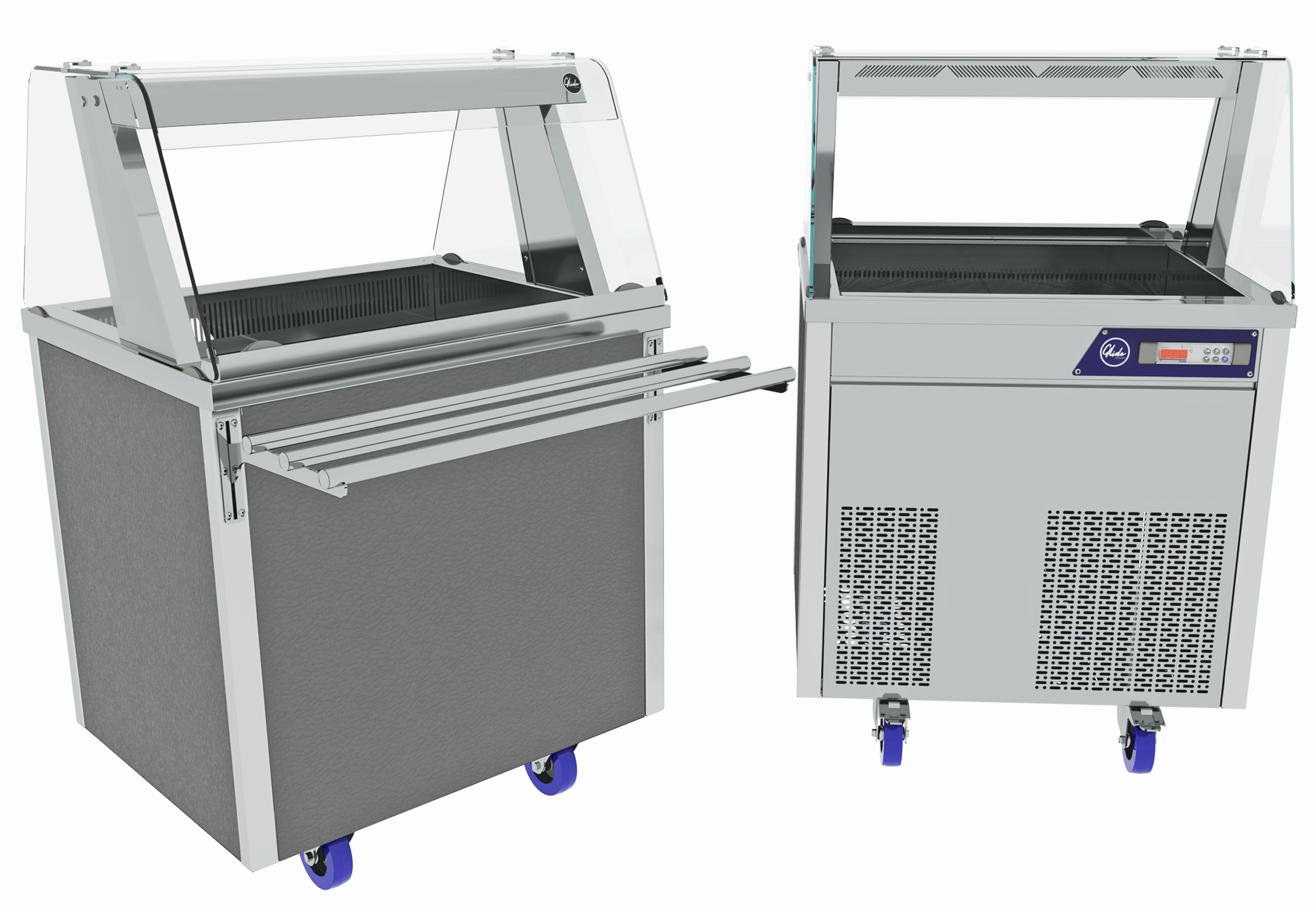

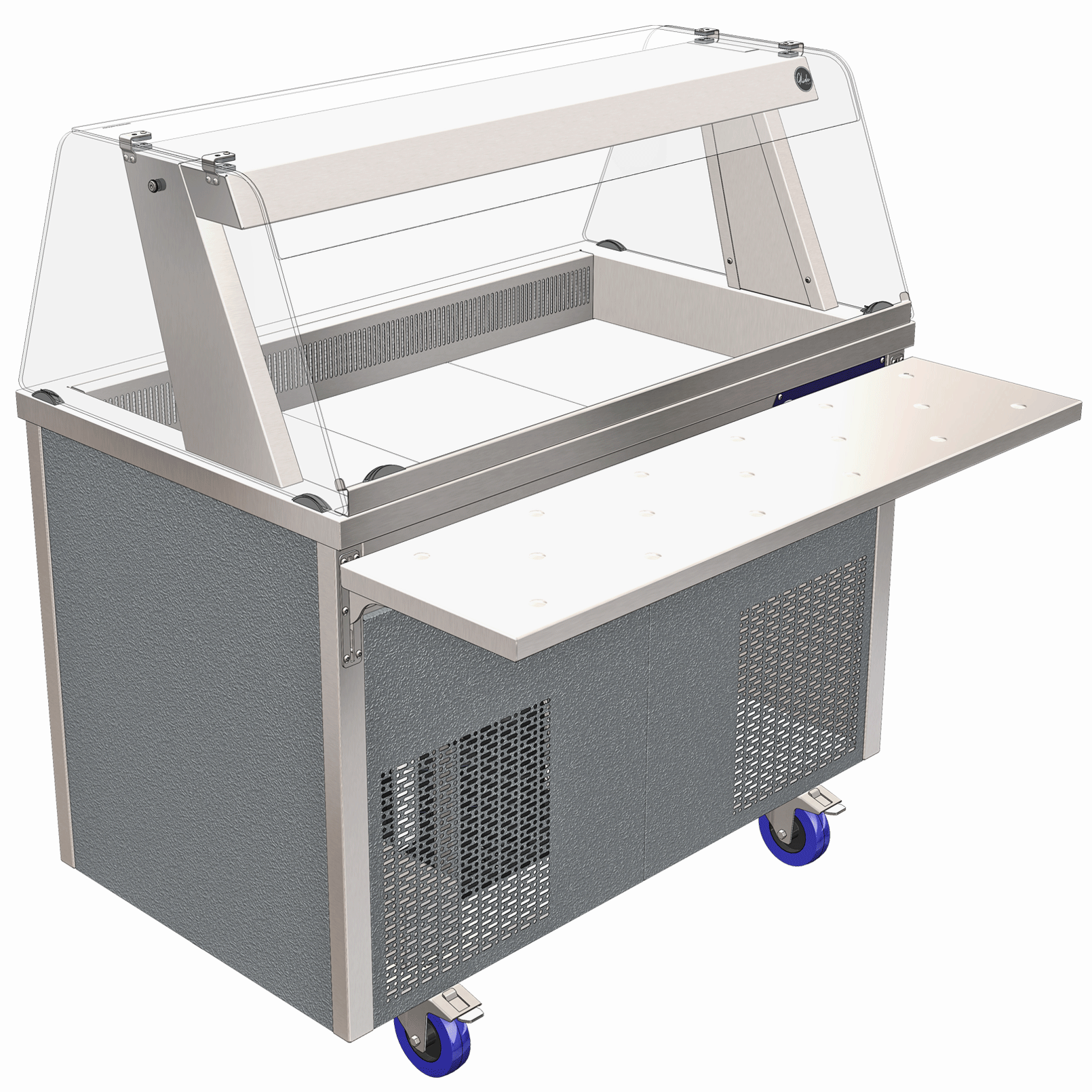

Cold Well Gantry. Curved self help/ assisted service glass gantry c/w LED
lighting – opaque safety cover, colour 4000k. Reversible curved glass sneeze screen & side glass.

Cold Deli Gantry. Assisted service curved glass gantry c/w LED lighting – opaque safety cover, colour 4000k. Glass mid shelf/ full front curved glass & side glass.



Cold Island Gantry. Self help island curved glass gantry c/w LED lighting – opaque safety cover, colour 4000k, double curved glass sneeze screen & side glass.

Height Options.


Low Height Model (Glide Junior). Available in 850mm or 800mm worktop heights for junior/ primary use.





Accessories & Finishes.

Folding Steel Solid or Tubular Tray Slides. Tray slides add 40mm to unit depth and are set at the worktop height – 55mm.

Colour Finishes To Base Panels. 11 alternative choices of durable steel, colour & wood effect finishes for cold multideck base panels, to compliment other selected models in the servery colour scheme.

Rear Deli Preparation Shelf. Rear s/steel work surface & 1-1Gn (L) hook over polyethylene cutting board.

Additional Cutting Board. Extra boards can be used in multiples with the rear prep. shelf accessory.

Gastronorm Pan Support Collar. 1-1Gn removable steel trivet collar, accepts either 1/3, 1/2 or 1/1Gn x 100(d) food containers (Pans Not included).

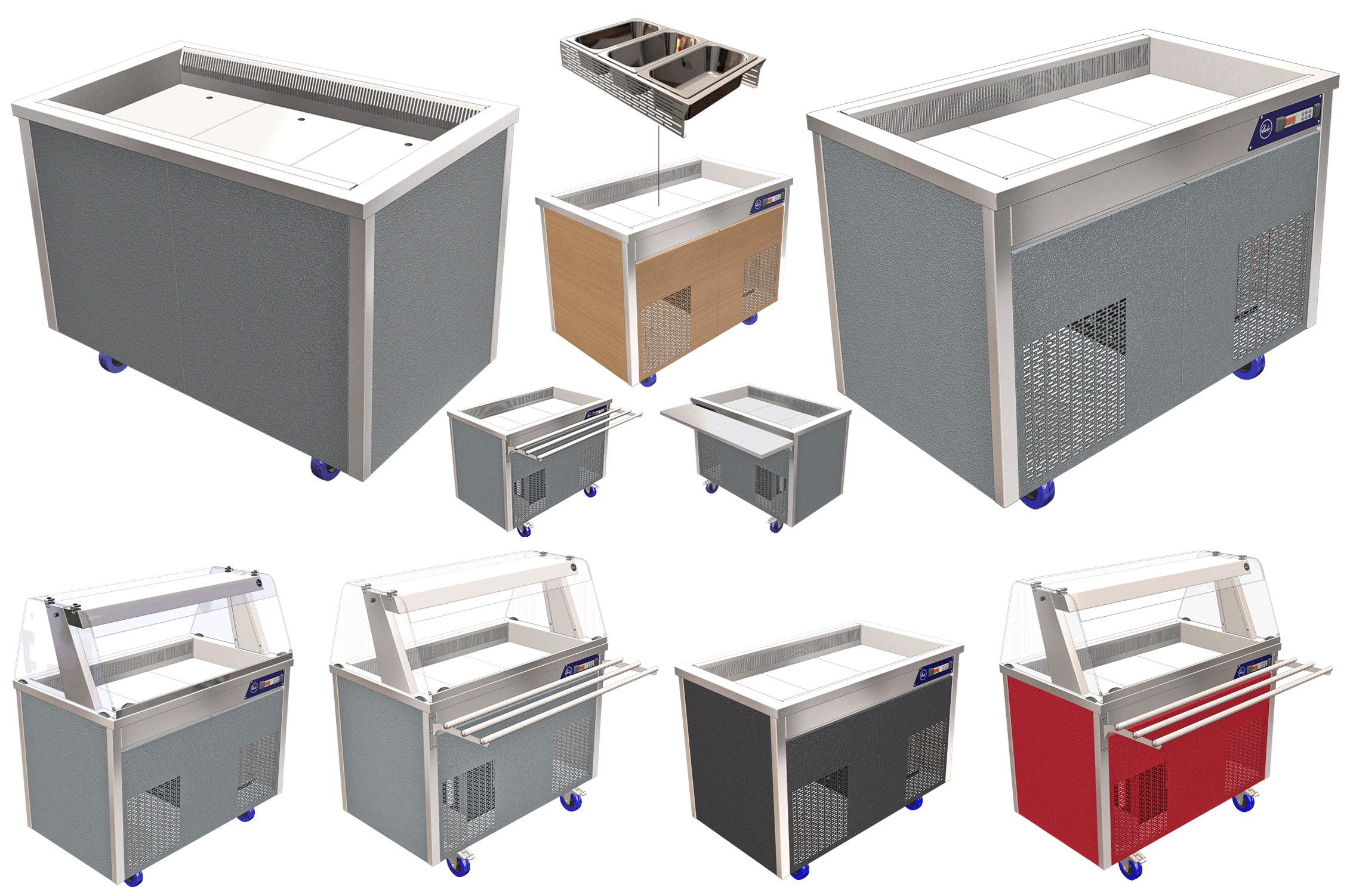

Visual

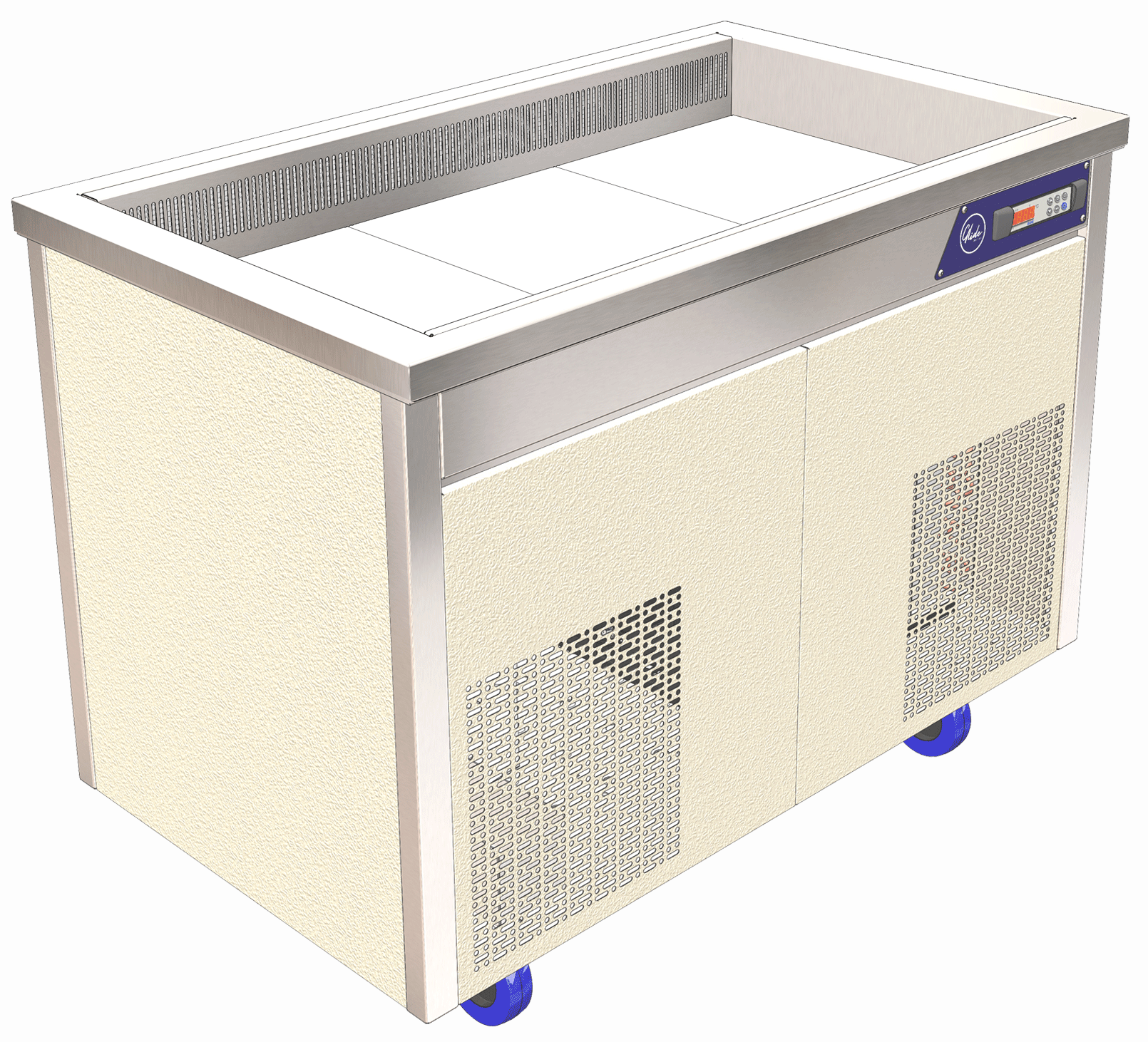

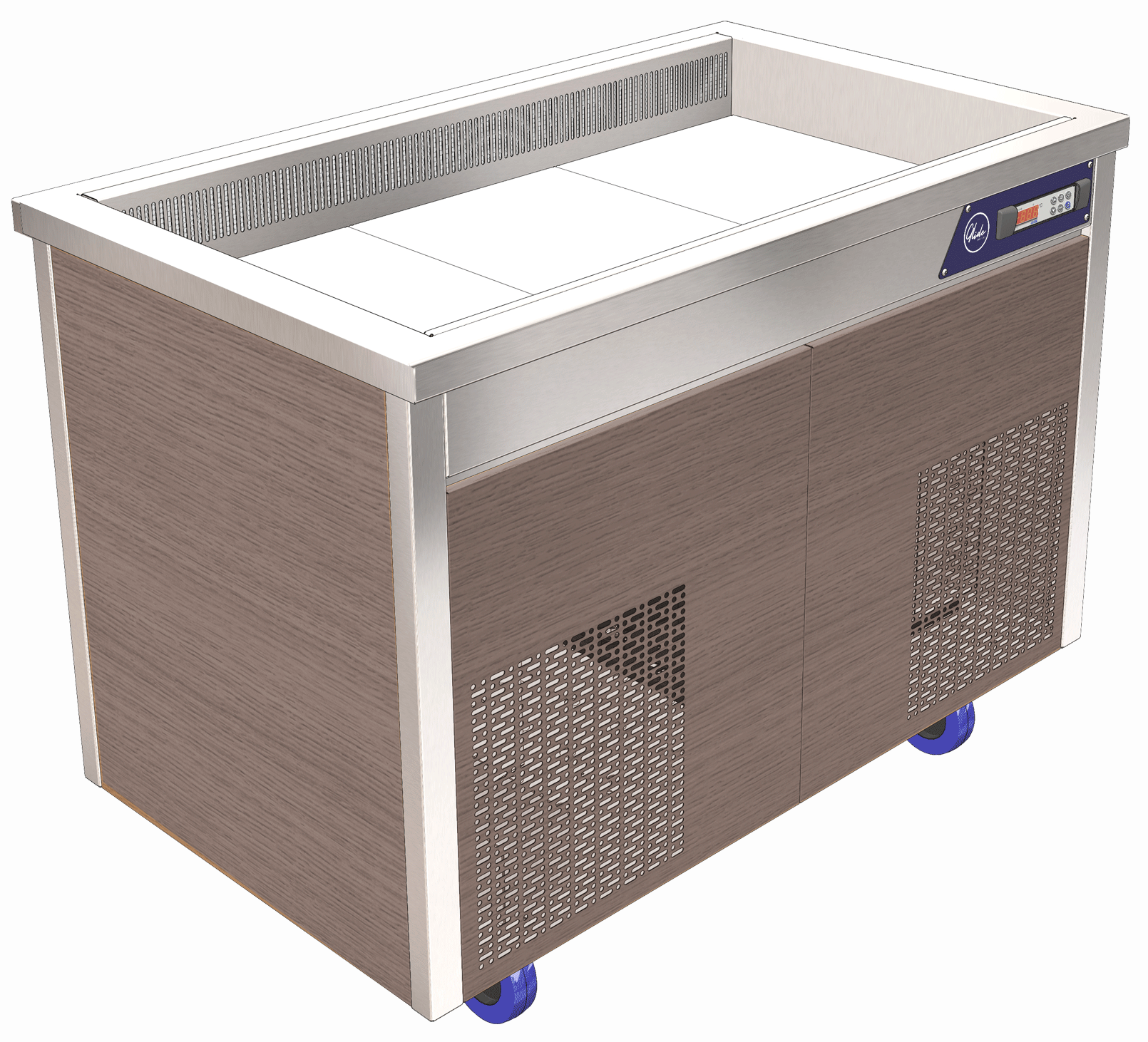

Glide Cold Well – No Gantry.
Visual



Features

Glide Cold Well – No Gantry.
Features

  • Glide mobile dining cart, fan blown cold well (no gantry).
  • Free standing application.
  • Available in 2-1Gn (825mm), 3-1Gn (1175mm), 4-1Gn (1525mm) & 5-1Gn (1875mm) lengths.
  • Model dimensions: 700 mm (d) x 900mm (worktop h).
  • Refrigerated cold well display with integral, energy efficient chilled hydrocarbon refrigeration.
  • Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
  • Refrigeration airflow in/ out to operator side – no ventilation on show to customer side.
  • Digital temperature display and control panel (to operator side).
  • 24-hour operation as standard.
  • Front/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Worktop & removable deck plates in 304 gd. s/steel, all other external steel surfaces in 430gd (base corners/ rear lift off ventilation panels etc.).
  • Cold well area also accepts 1-1Gn (x100) container pans in the well/ storage area.
  • Integral automatic condensate water evaporation eliminates the need for site drainage.

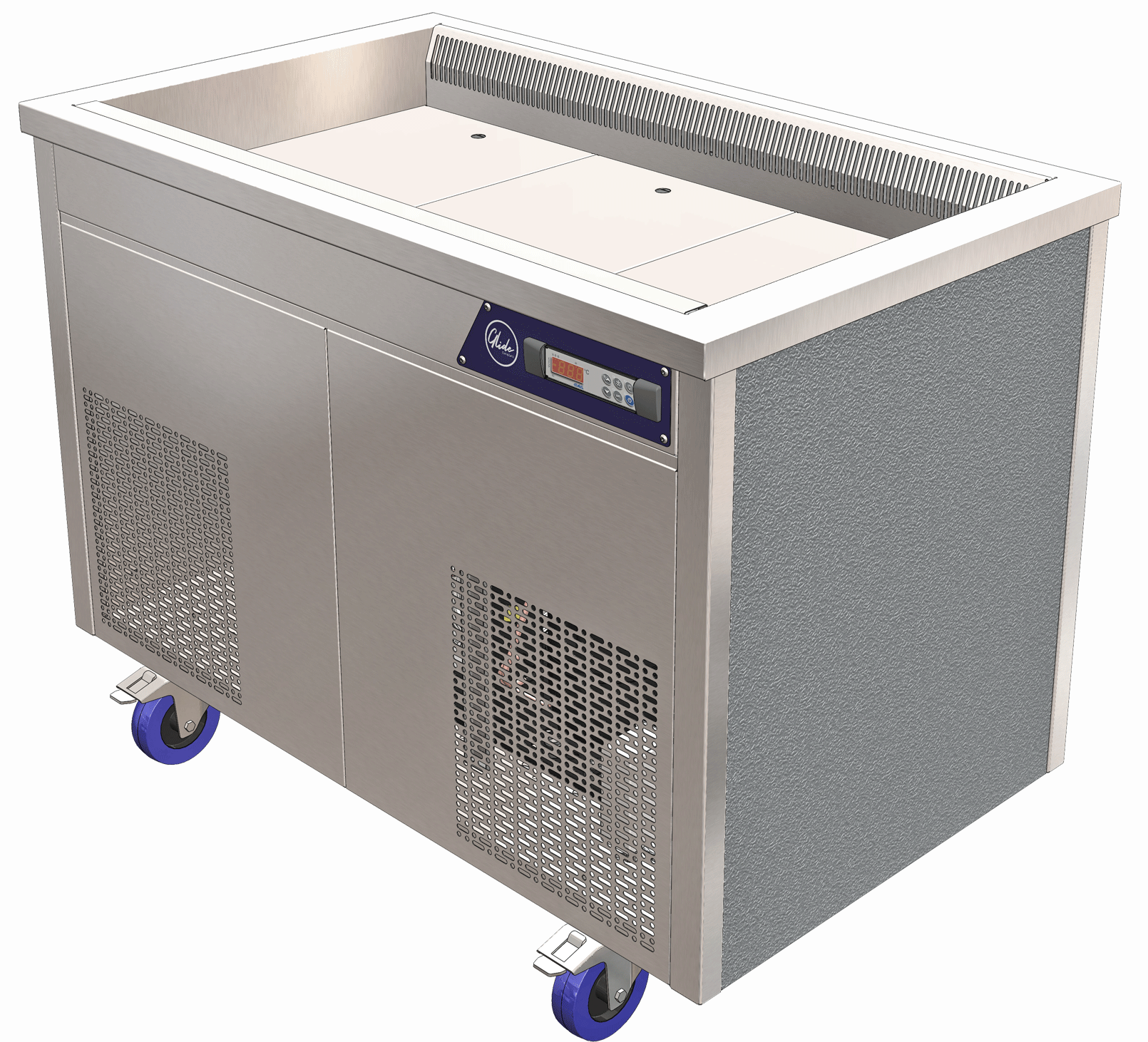

  • Condensing unit housed in self contained base with removable rear s/steel service & maintenance panel.
  • Fitted with lockable non-marking rubber tyre castors.
  • Power Supply: Supplied with 3m lead & 13 amp UK plug (13A 230v 50Hz).

Options

  • 11 solid colour & woodgrain base panel finishes.
  • Self help/ assisted service curved glass gantry c/w LED lighting (colour 400ok & opaque safety cover) & side glass.
  • Assisted service full height curved deli glass gantry c/w LED lighting (colour 400ok & opaque safety cover), glass mid shelf & side glass.
  • Self help island double curved glass gantry c/w LED lighting (colour 400ok & opaque safety cover) & side glass.
  • Rear Deli s/steel preparation shelf c/w 1 no. polyethylene cutting board.
  • Additional rear cutting board.
  • Gastronorm pan 1-1Gn support collar, accepts either 3x 1-3, 2x 1-2 or 1x 1-1Gn x 100(d) food containers, pans not included.
  • Folding s/steel solid tray slide available*.
  • Folding s/steel tubular tray rail Ø25 tube, available*.
  • Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm).*
  • Low height model 850mm worktop (h) available.
  • Low height model 800mm worktop (h) available.*
    Bespoke option with extended lead time.*
  • Optional tray slide height: for
    standard 900 mm (h) worktop = 845 mm,
    low height 850 mm (h) model = 795mm,
    low height 800 mm (h) model = 745mm.

Food Display Examples

  • Drinks (Well Area). Still & carbonated, bottled, canned or cartoned, water, UHT dairy, lemonade, carbonated drinks, fruit juice & health drinks.
  • Food (Well Area): Sandwiches, baguettes, rolls, panini, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.

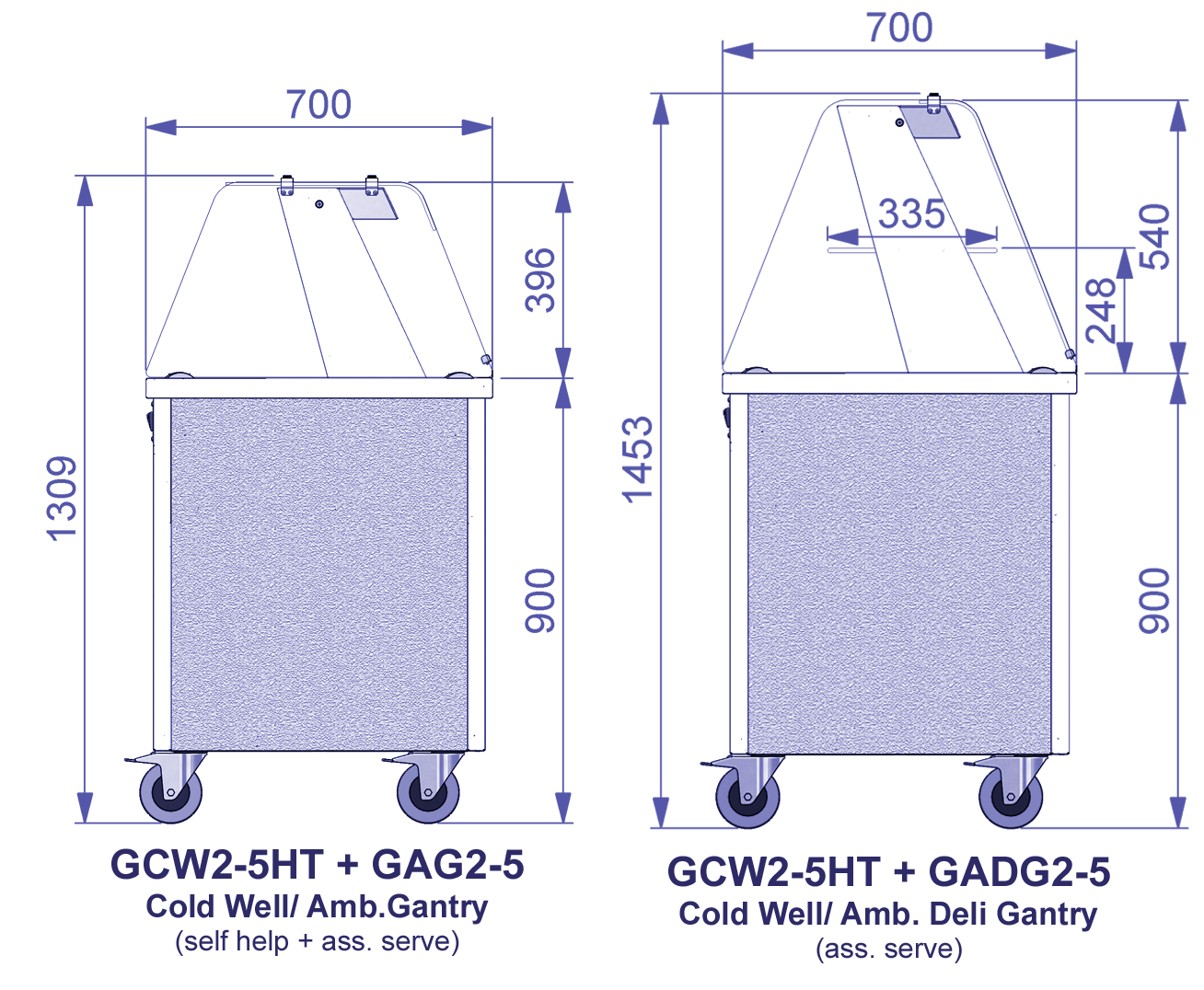

Dimensions

Glide Cold Well – No Gantry.
Dimensions

Model Code

GCW2HT

GCW3HT

GCW4HT

GCW5HT

Capacity (Gn)

2-1

3-1

4-1

5-1

Length (mm)

825

1175

1525

1875

Depth (mm)

700

700

700

700

Worktop Height (mm)

900

900

900

900

Weight (kg) Uncrated

95

125

155

185

Total Power  (kW)
(No Gantry Model) c/w 3m lead & Plug.

1.22

1.22

1.44

1.65

Total Power (kw)
Model + LED Light Gantry Option
(colour 4000k opaque safety cover), model fitted with 3m lead & Plug.

1.23

1.23

1.46

1.68

Total Heat Rejection
@ 25°C Ambient (watts)

1508

2235

2235

2235

Digital Temperature Display & Control Panel

Included

Included

Included

Included

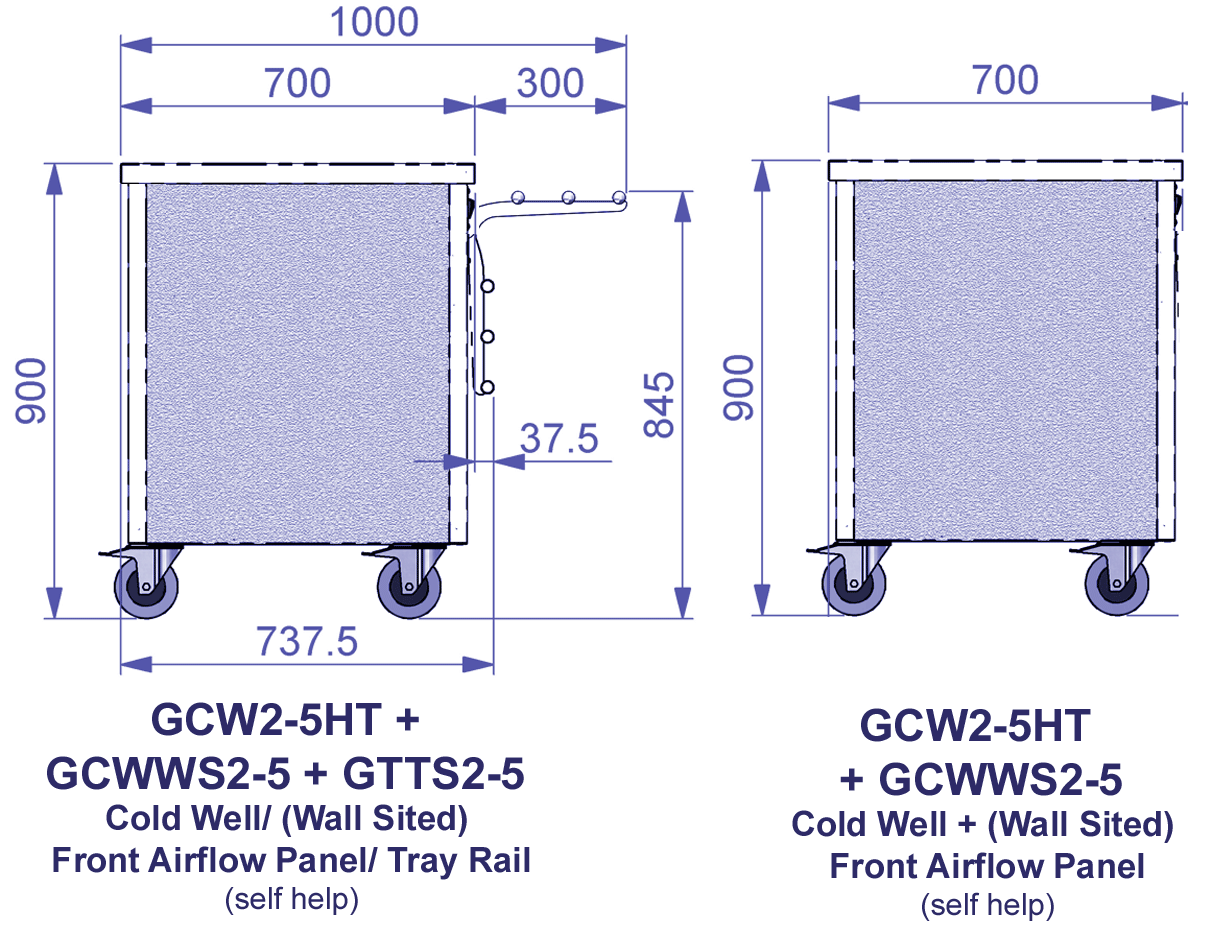

Revised Model Depth (mm) –
(Optional Drop Down Trayslide,

Folding Tray Slide In ‘Down’ Position)

740

740

740

740

Revised Model Depth (mm) –
(Optional Drop Down Trayslide,
Folding Tray Slide In ‘Up’ Position)

1000

1000

1000

1000

Optional Trayslide Height (mm)
(Base Unit worktop 900(h) – 55mm)

845

845

845

845

Refrigerant Type

r290

r290

r290

r290

LED Lighting Gantry
Colour 4000k, opaque safety cover

Optional

Optional

Optional

Optional

Model Height With Optional  (G850H) Worktop (mm)
Optional tray slide = 795mm (h)

850

850

850

850

Model Height With Optional (G800H) Worktop (mm)
Optional tray slide = 745mm (h)

*bespoke, extended lead time*

800

800

800

800

Refrigerant (ODP)
Ozone Depletion Potential


Zero

Zero

Zero

Zero

Refrigerant (GWP)
Global Warming Potential

3

3

3

3

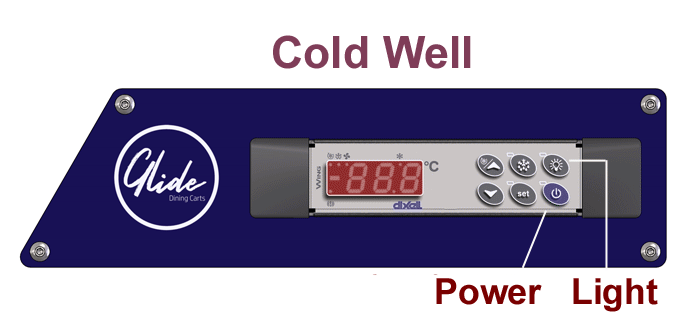

* Lockable digital control panel features temperature display, power on/off, LED lighting control (if required) & temperature adjustment. Display can be locked in ‘tamper proof ‘ mode to stop adjustment of operating parameters by pressing up/ down arrows simultaneously*



Options – Glide Cold Well – No Gantry.

Option                                                                                          Option Code

Model Code

GCW2HT

GCW3HT

GCW4HT

GCW5HT

Glide Cold Well Gantry.
397mm (H) c/w LED light, curved glass & end glass – reversible sneeze screen for self help/ ass. serve use.

GAG2

GAG3

GAG4

GAG5

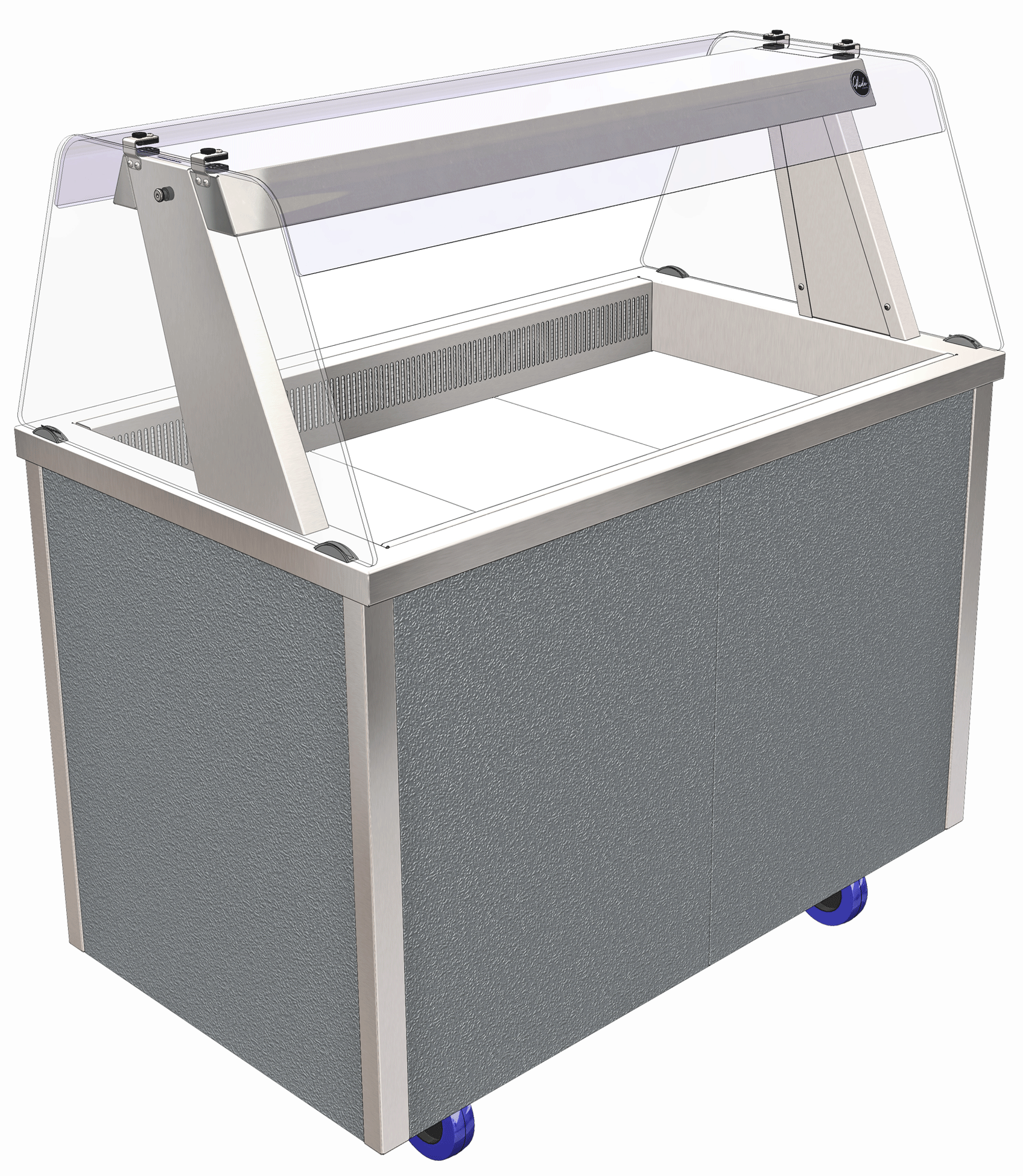

Glide Cold Island Gantry.
397mm (H) c/w LED light, double curved sneeze screen glass & end glass – for self help use.

GAIG2

GAIG3

GAIG4

GAIG5

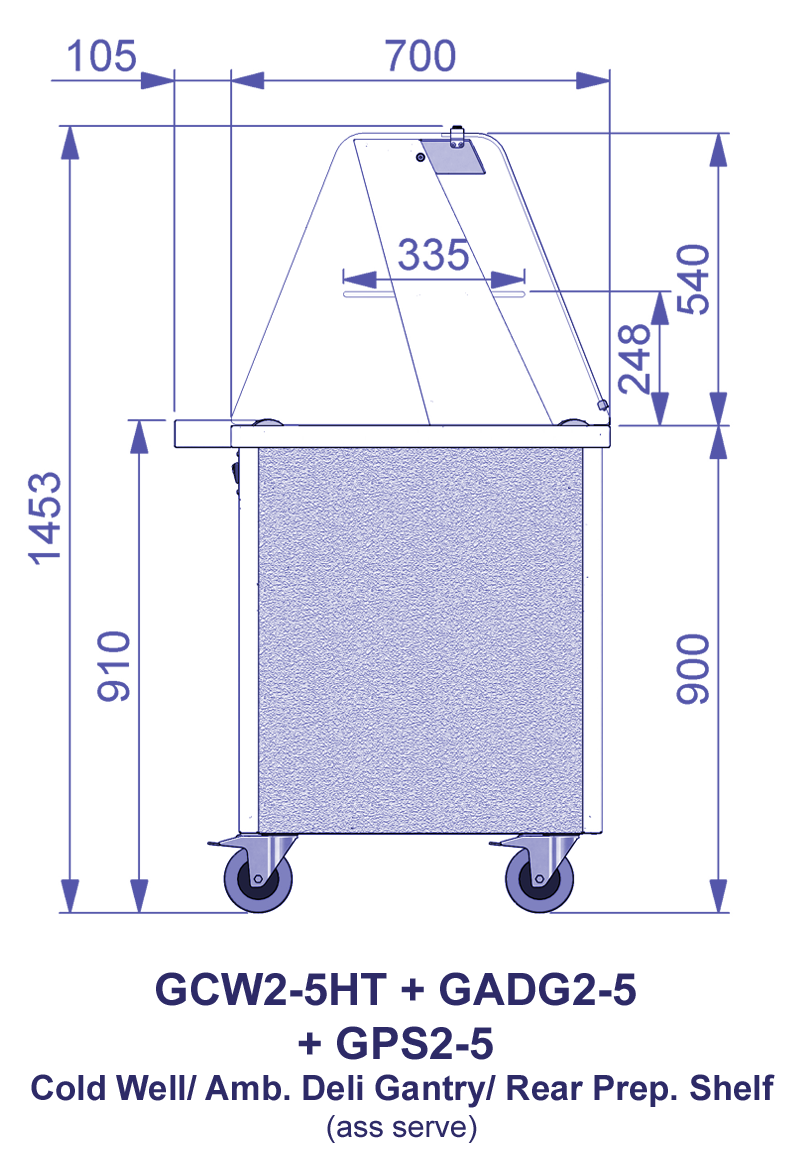

Glide Cold Deli Gantry.
540mm (H) c/w LED light, full height curved front glass & end glass, glass midshelf (ambient) – for ass. serve use.

GADG2

GADG3

GADG4

GADG5

Glide S/Steel Rear Deli Preparation Shelf (+1 Cutting Board). Rear shelf for sandwich prep. 180mm (D) c/w polyethylene cutting board – 350mm(L) x 250mm(D) x 30mm(H).

GPS2

GPS3

GPS4

GPS5

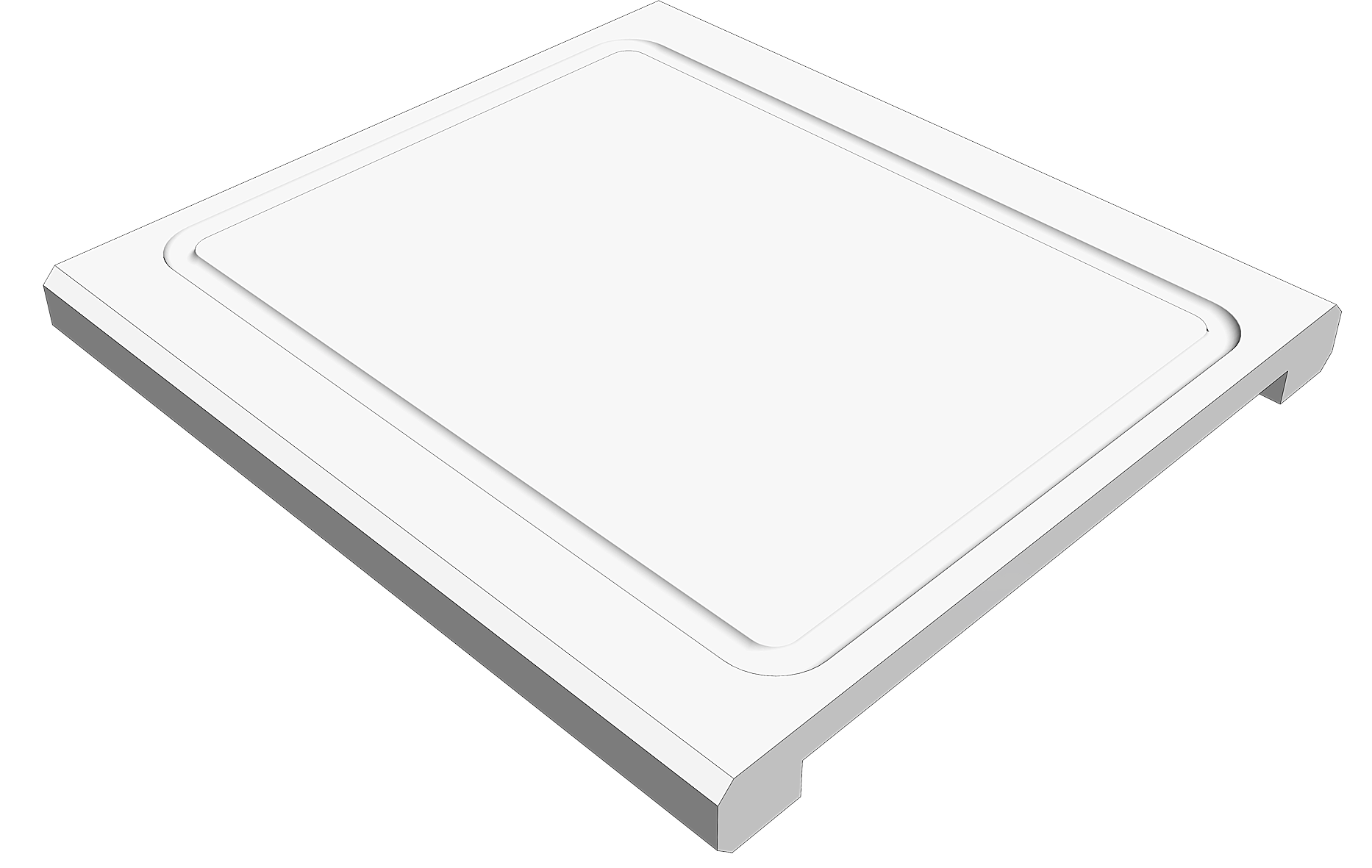

Glide Extra 1-1 Gn Cutting Board.
Hook over chopping board in white polyethylene, 350mm(L) x 250mm(D) x 30mm (H).

KCB1

KCB1

KCB1

KCB1

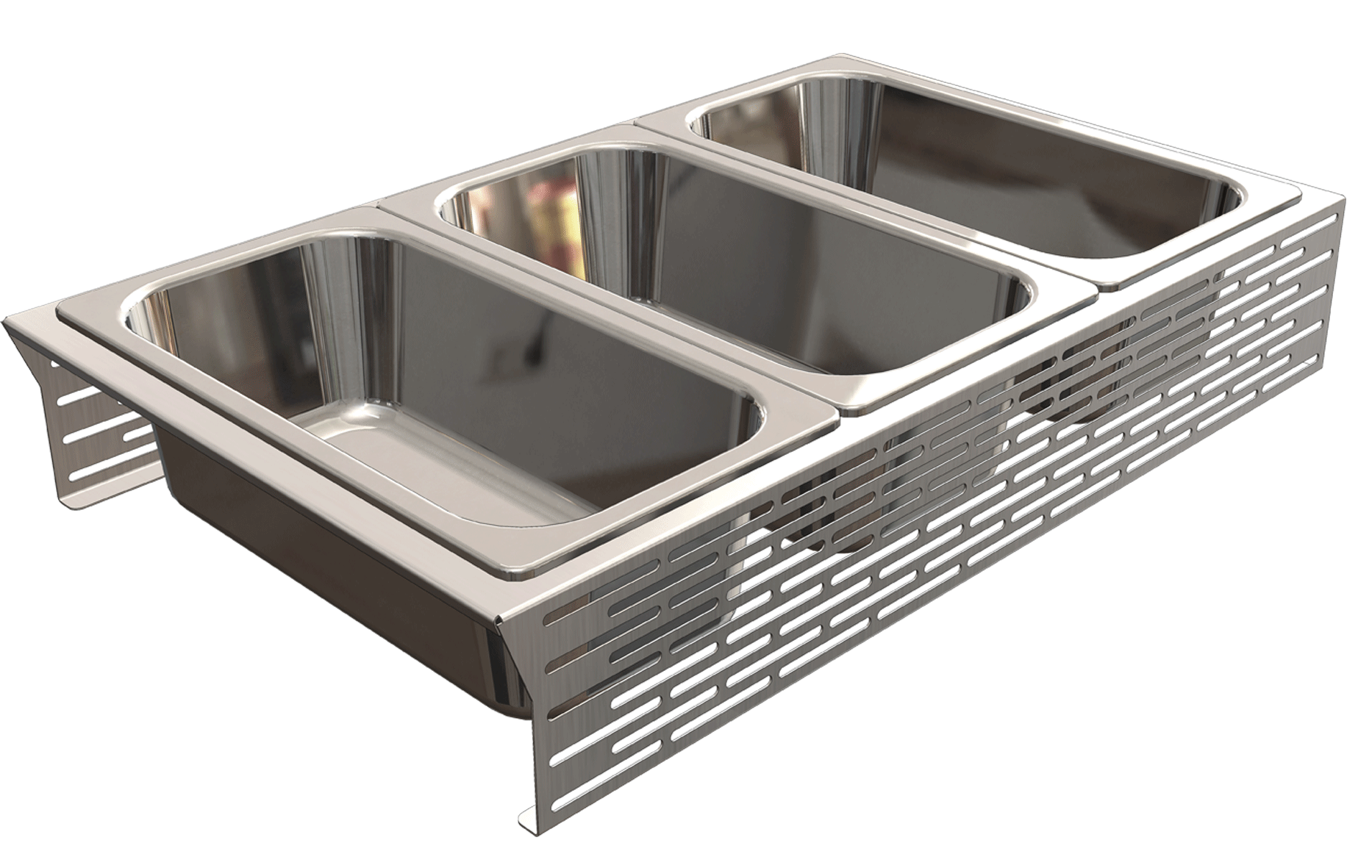

Glide 1-1 Gn Gastronorm Pan Support Collar.
1-1Gn size x 100mm (D) Gn container support for use inside chilled well, ventilated frame accepts 2 x 1-2 Gn, 3 x 1-3 Gn or 1 x 1-1 Gn containers (not supplied)

GPSC

GPSC

GPSC

GPSC

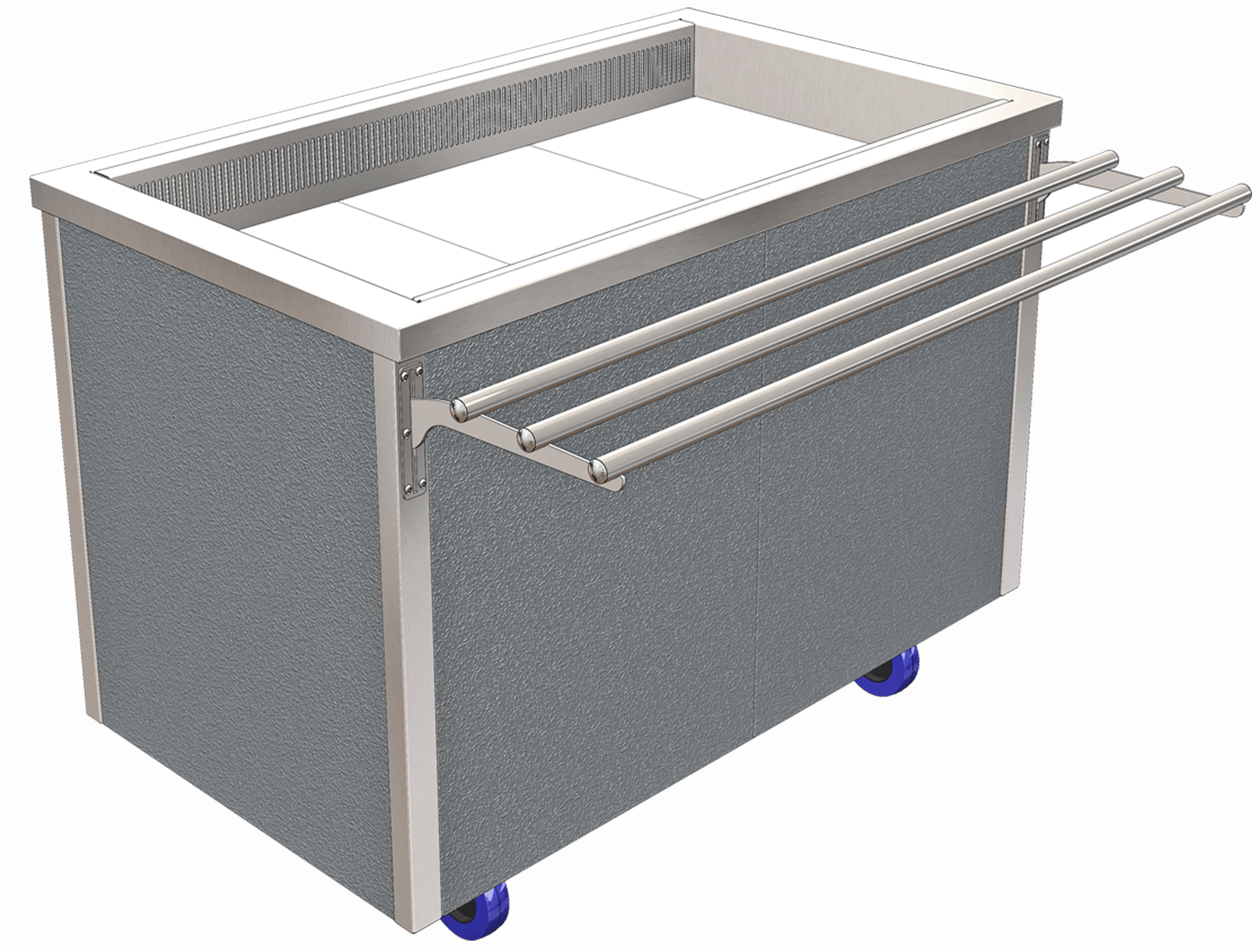

Glide S/Steel Drop Down Tubular Tray Rail.

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide.

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm (H) Worktop Model.

G850H

G850H

G850H

G850H

Glide 800mm (H) Worktop Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

Glide Colour Finish Base Panels (Front & Sides).
Ocean Blue (BS 18C37)

GBLUECHA2

GBLUECHA3

GBLUECHA4

GBLUECHA5

Glide S/Steel Finish Base Panels (Front & Sides).
S/Steel (430 gd)

GSSTLCHA2

GSSTLCHA3

GSSTLCHA4

GSSTLCHA5

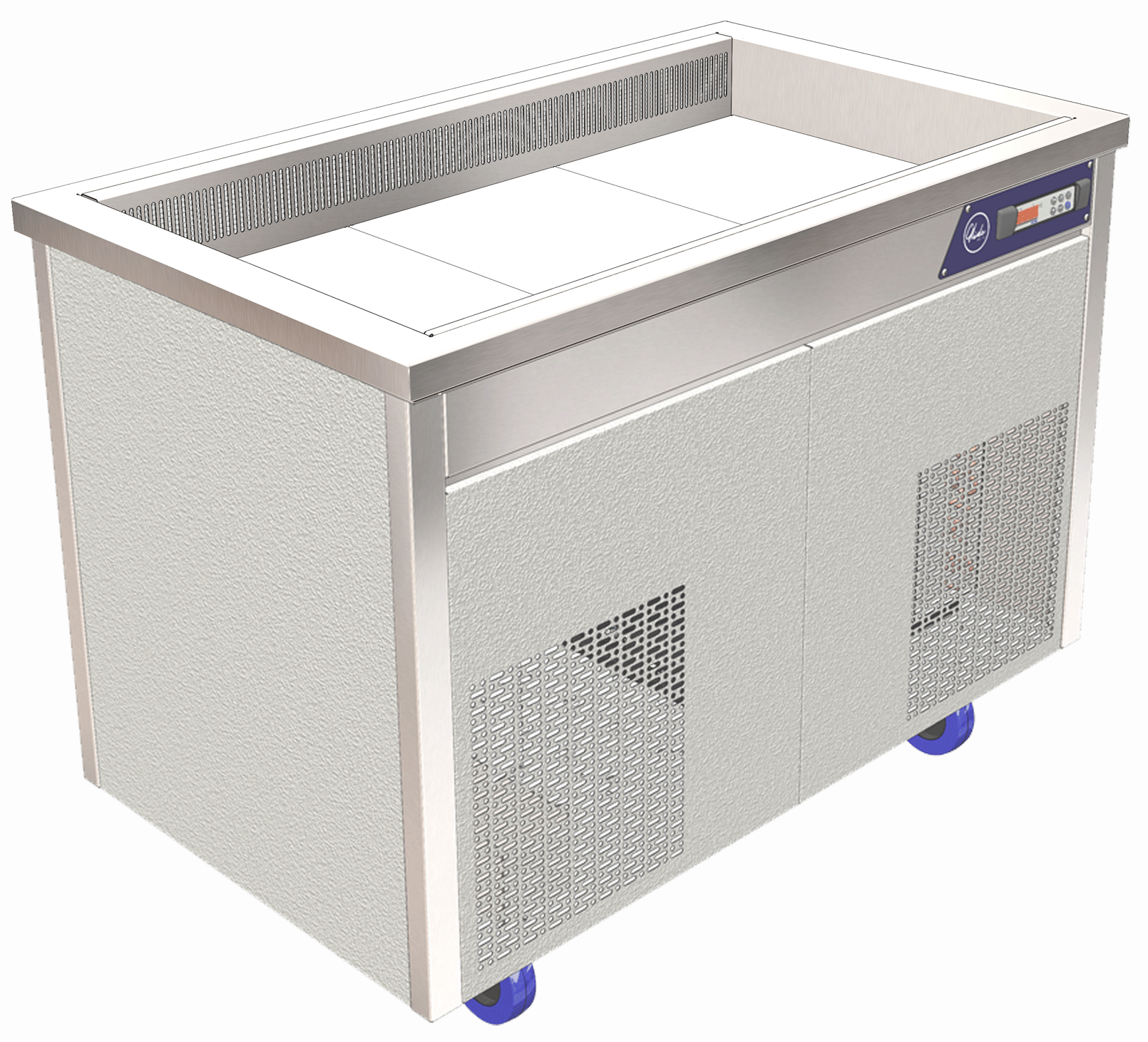

Glide Colour Finish Base Panels (Front & Sides).
Goosewing Light Grey (BS 10A05)

GGREYCHA2

GGREYCHA3

GGREYCHA4

GGREYCHA5

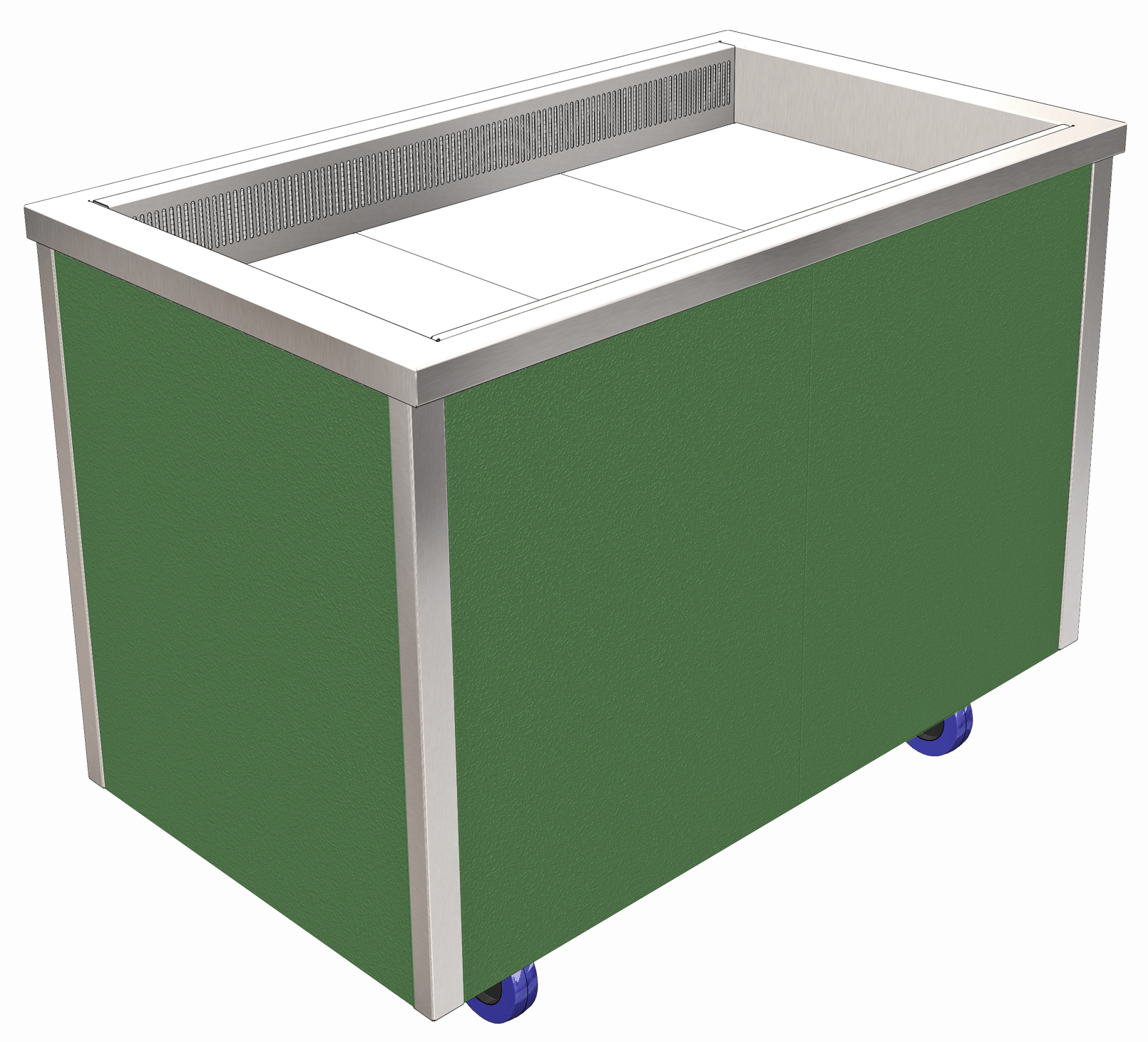

Glide Colour Finish Base Panels (Front & Sides).
Forest Green (RAL 6002)

GGRENCHA2

GGRENCHA3

GGRENCHA4

GGRENCHA5

Glide Colour Finish Base Panels (Front & Sides).
Poppy Red (BS 04E5B)

GPREDCHA2

GPREDCHA3

GPREDCHA4

GPREDCHA5

Glide Colour Finish Base Panels (Front & Sides).
Buttermilk Cream (BS 10C31)

GCREMCHA2

GCREMCHA3

GCREMCHA4

GCREMCHA5

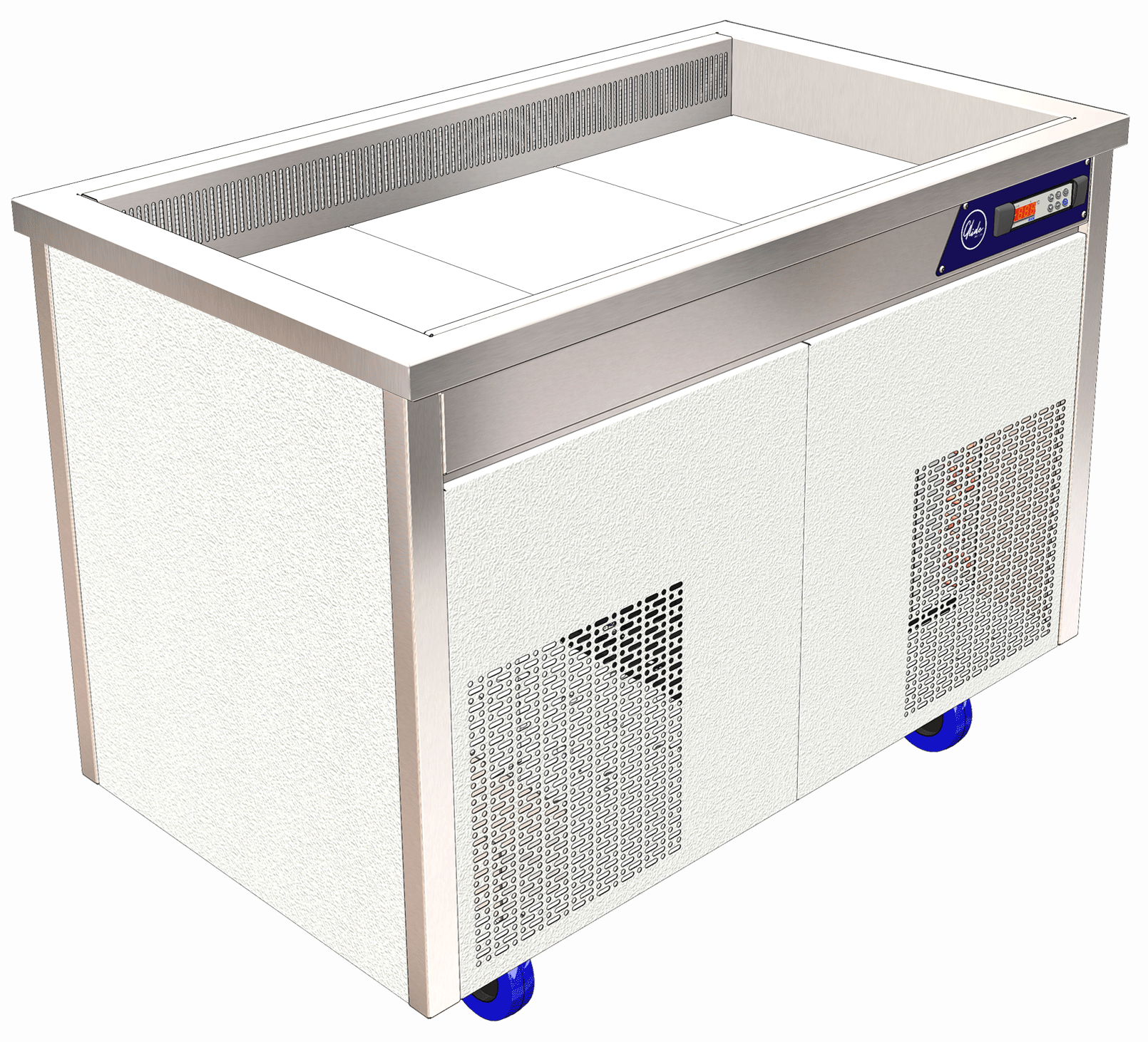

Glide Colour Finish Base Panels (Front & Sides).
White (BS 00E55)

GWHITCHA2

GWHITCHA3

GWHITCHA4

GWHITCHA5

Glide Colour Finish Base Panels (Front & Sides).

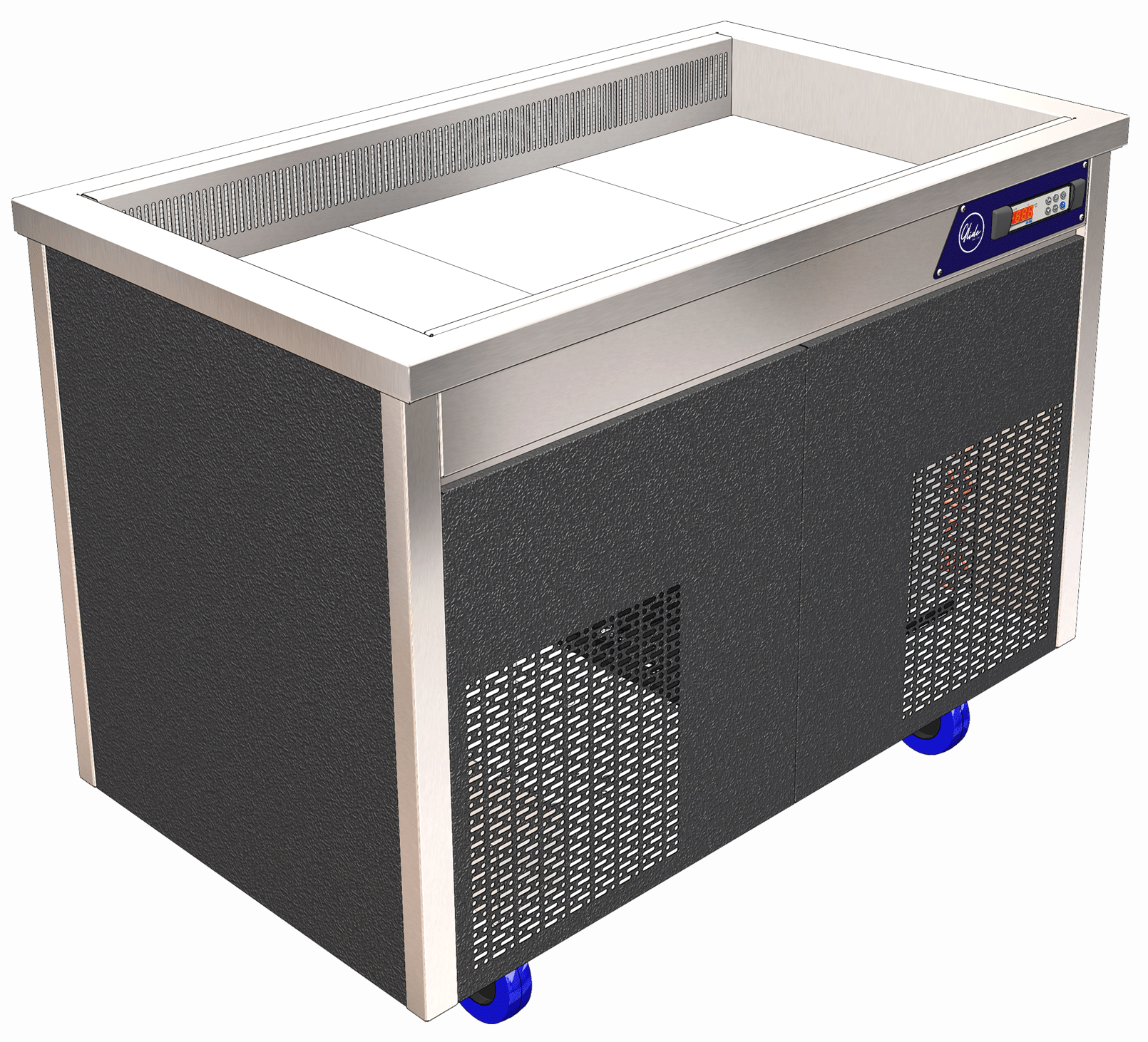

Black (BS 00E53)

GBLAKCHA2

GBLAKCHA3

GBLAKCHA4

GBLAKCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Walnut (DL85)

GWALNCHA2

GWALNCHA3

GWALNCHA4

GWALNCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).

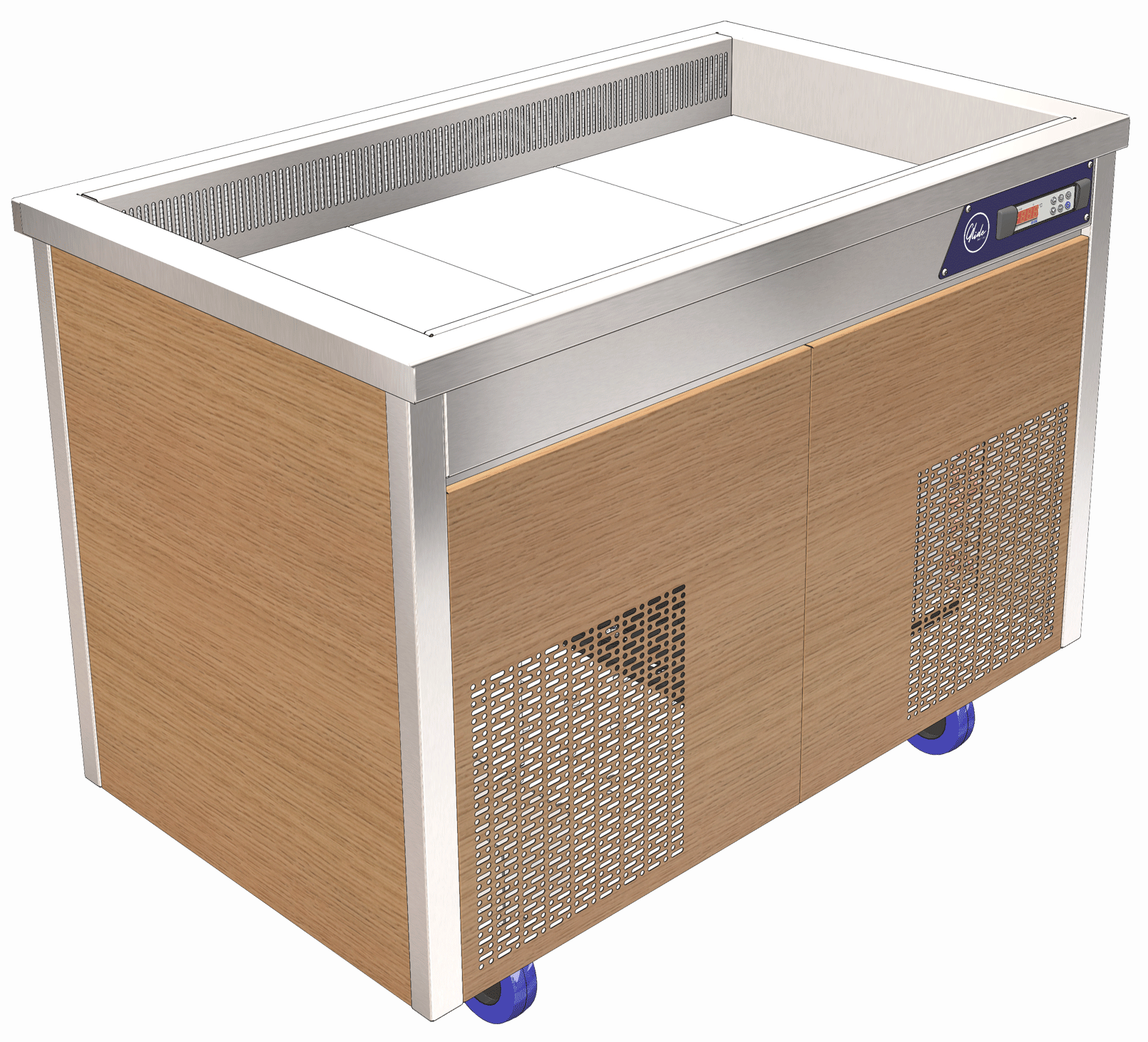

Beech (DL76)

GBEECCHA2

GBEECCHA3

GBEECCHA4

GBEECCHA5

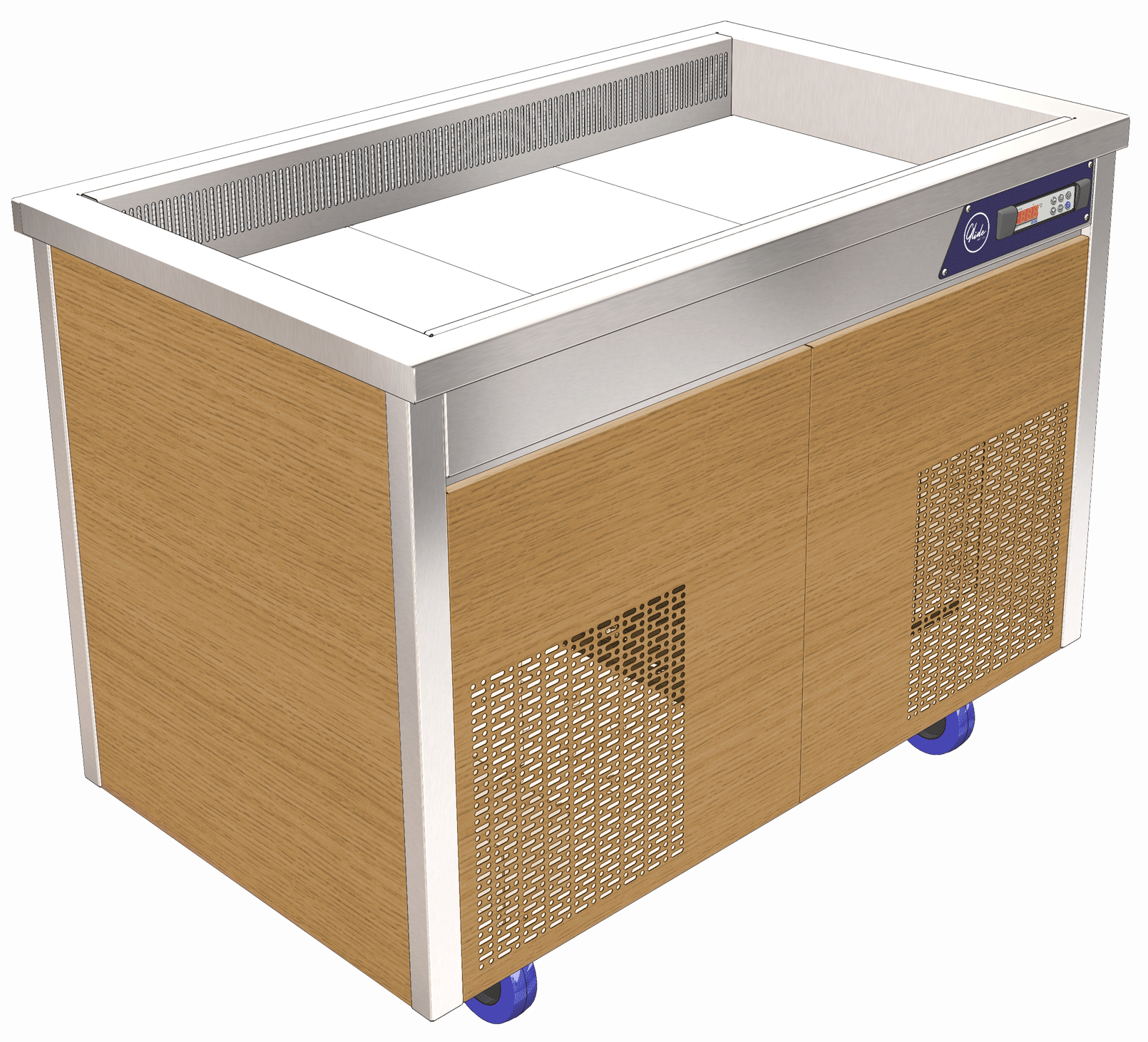

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Oak (DL84)

GOAKCHA2

GOAKCHA3

GOAKCHA4

GOAKCHA5


Popular Model Codes & Options

Description Model Code Option Code Option Code Option Code

Glide Cold Well – No Gantry &
(S/Steel Drop Down
Solid Tray Slide)

GCW2HT
GCW3HT
GCW4HT
GCW5HT

GSTS2
GSTS3
GSTS4
GSTS5

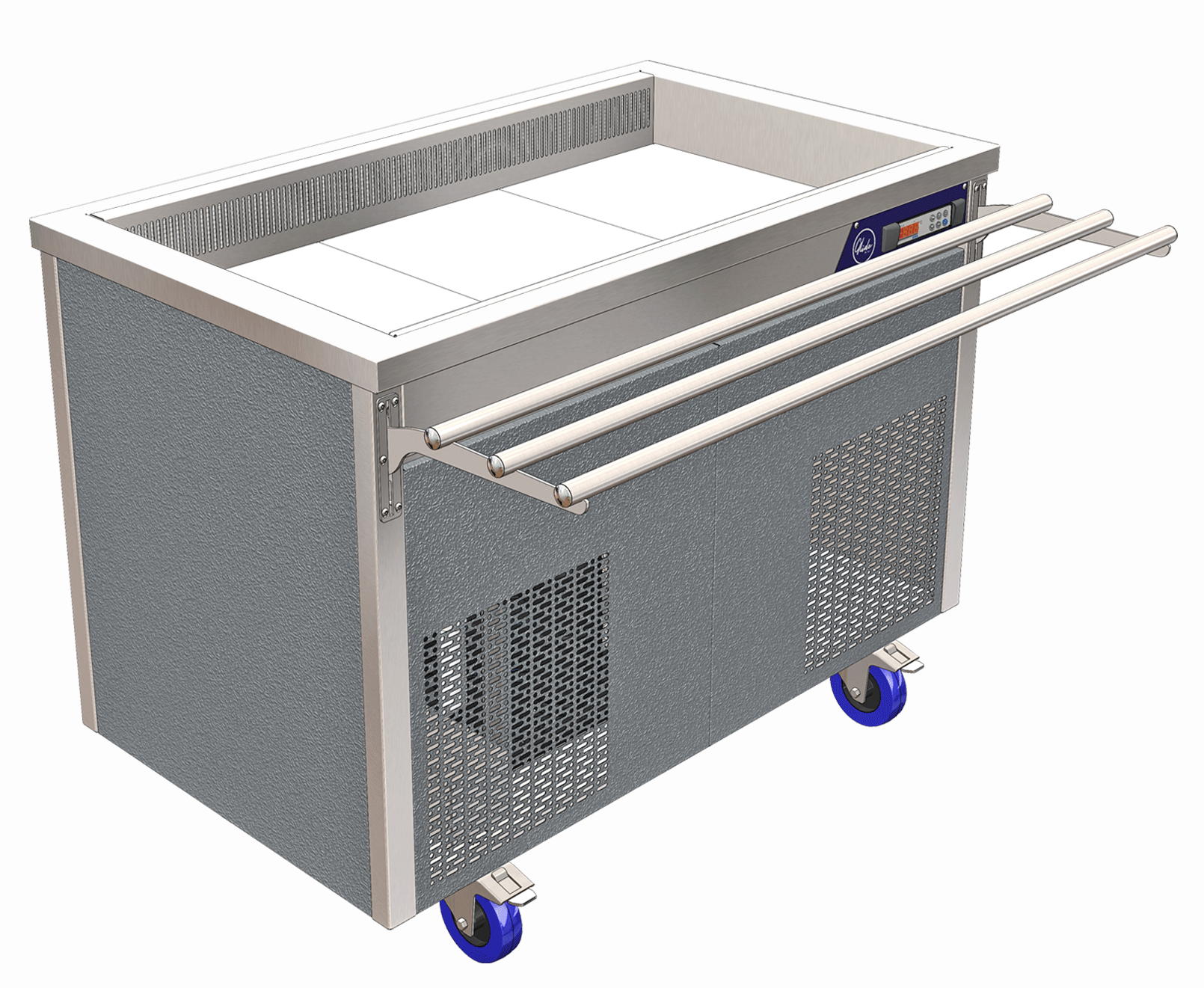

Glide Cold Well – No Gantry &
(S/Steel Drop Down Tubular Tray Rail)

GCW2HT
GCW3HT
GCW4HT
GCW5HT

GTTS2
GTTS3
GTTS4
GTTS5

Glide Cold Well – No Gantry &
(Cold Well Gantry c/w LED Lighting,
Self Help/ Ass. Serve
)

GCW2HT
GCW3HT
GCW4HT
GCW5HT

GAG2
GAG3
GAG4
GAG5

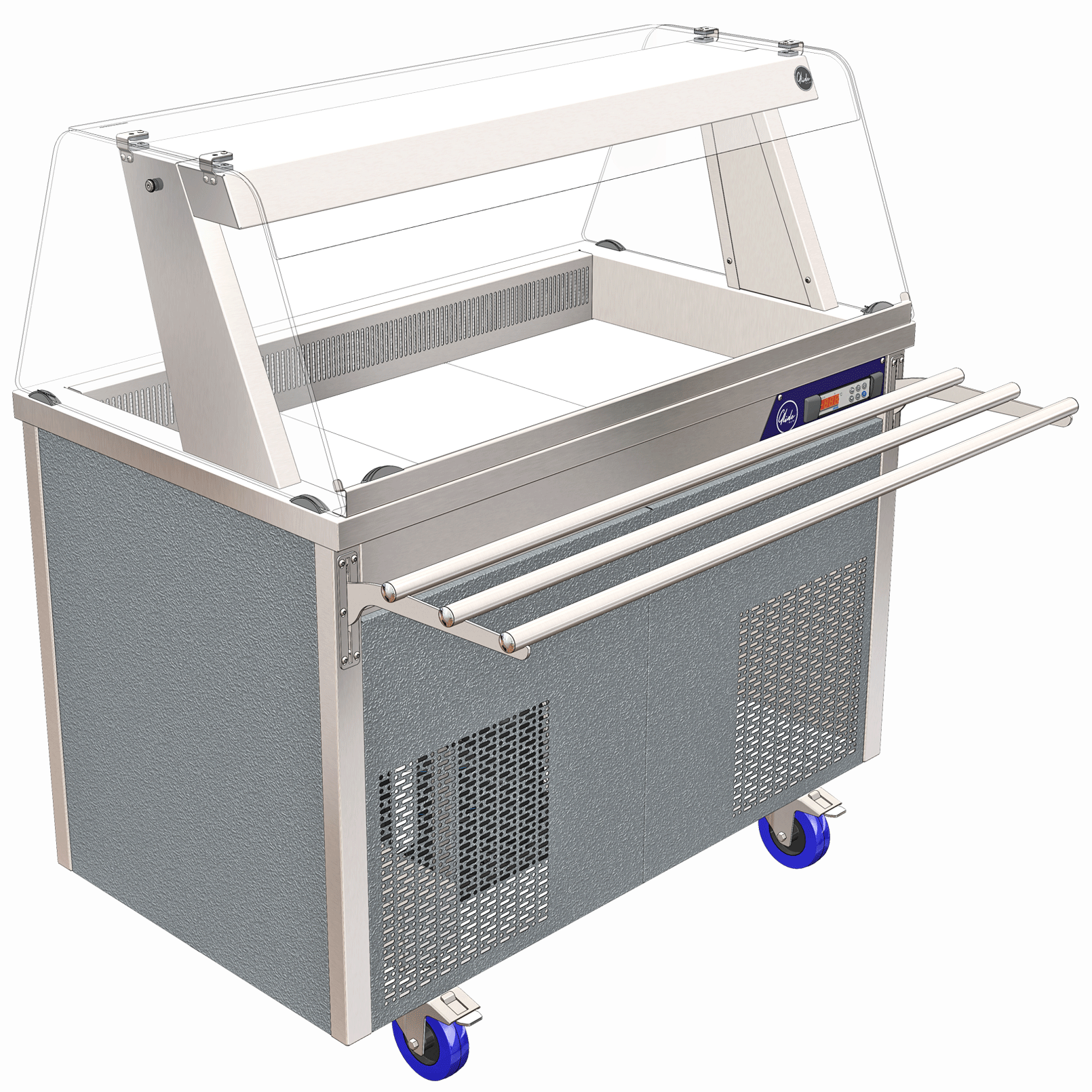

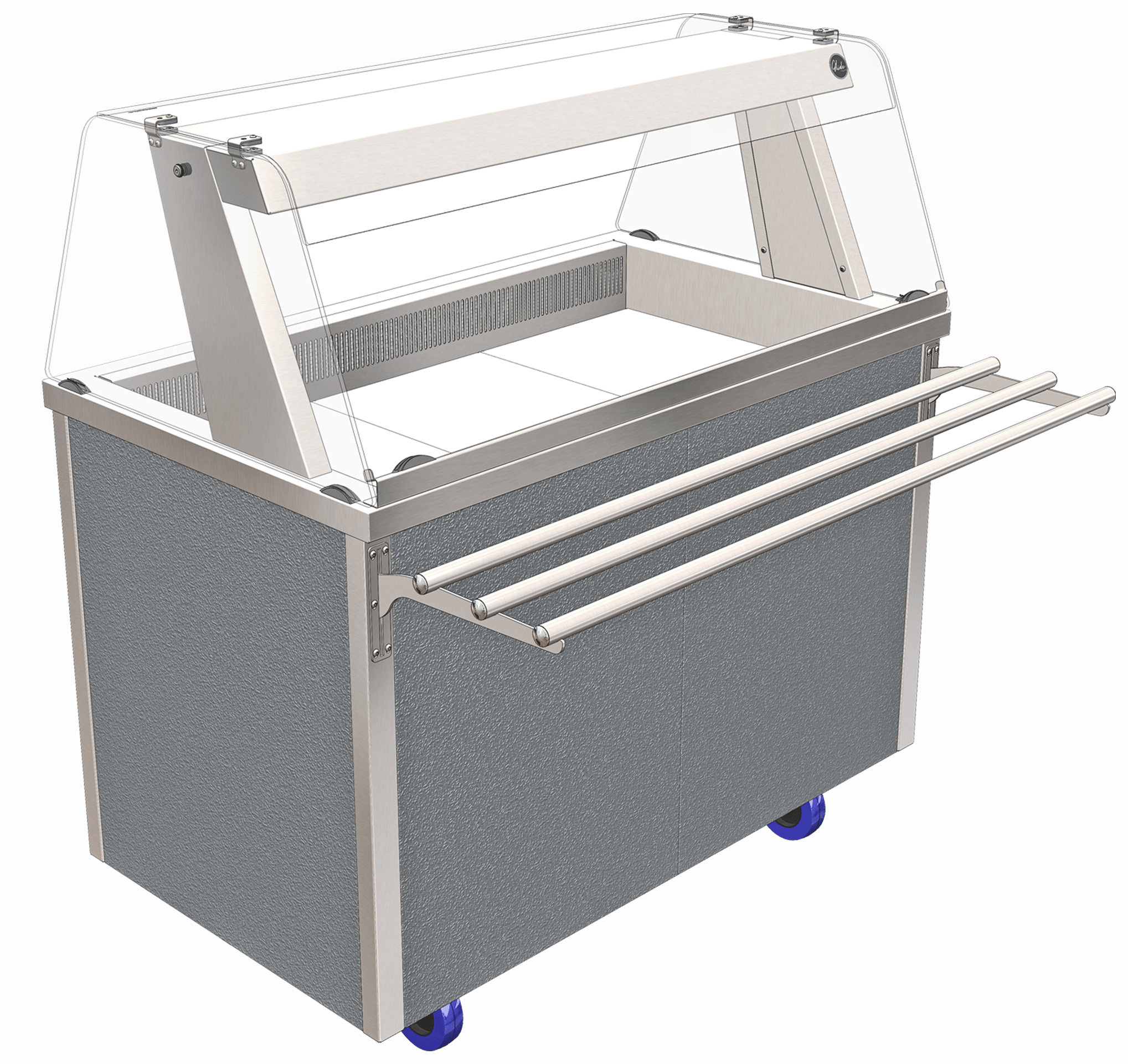

Glide Cold Well – No Gantry &
(Cold Well Gantry c/w LED Lighting)
(Drop Down Tubular Tray Slide)

GCW2HT
GCW3HT
GCW4HT
GCW5HT

GAG2
GAG3
GAG4
GAG5

GTTS2
GTTS3
GTTS4
GTTS5

Glide Cold Well – No Gantry &
(Cold Island Gantry c/w LED Lighting, Self Help)

GCW2HT
GCW3HT
GCW4HT
GCW5HT

GAIG2
GAIG3
GAIG4
GAIG5

Glide Cold Well – No Gantry &
(Cold Deli Gantry c/w LED Lighting, Ass. Serve)

GCW2HT
GCW3HT
GCW4HT
GCW5HT

GADG2
GADG3
GADG4
GADG5

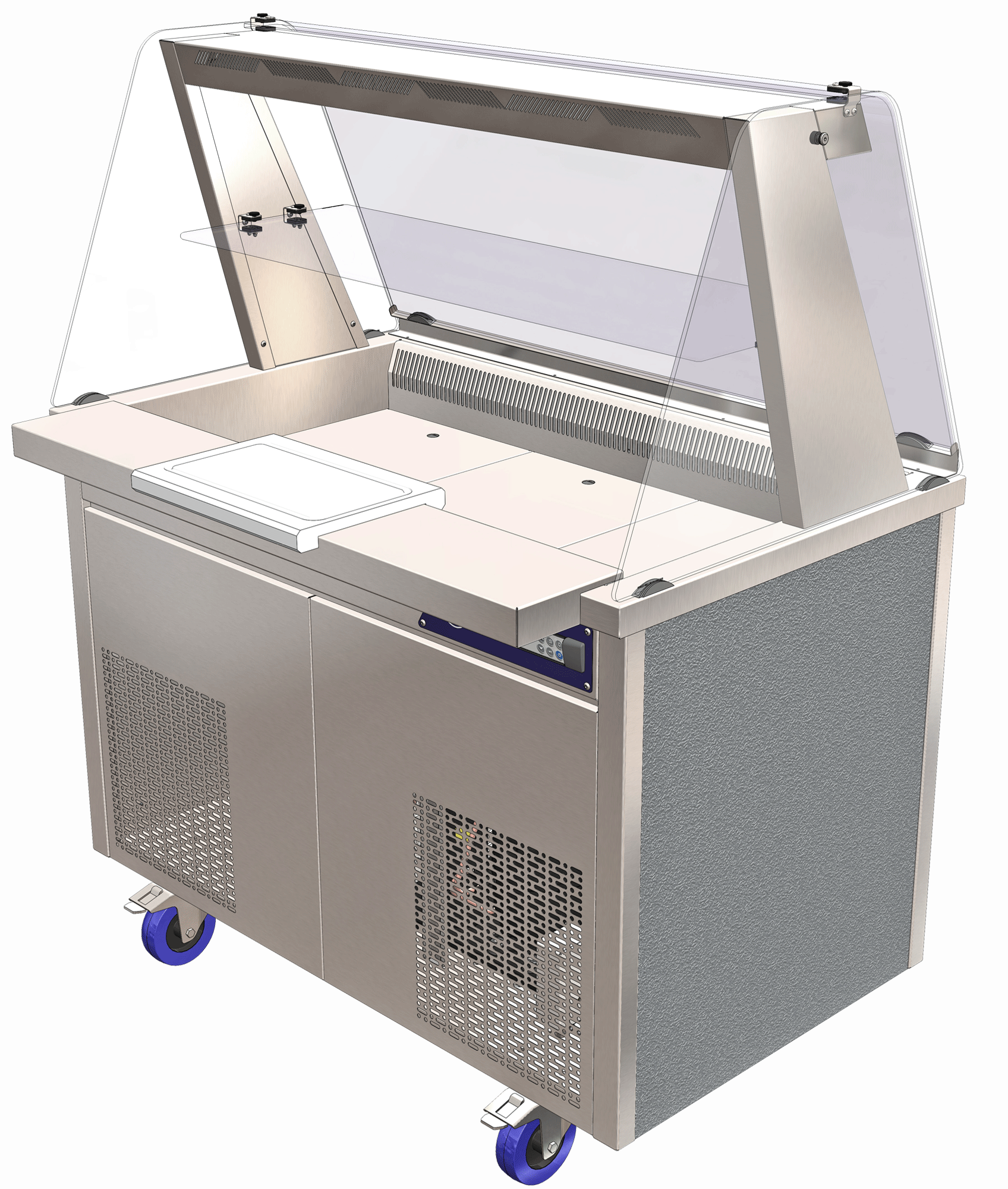

Glide Cold Well – No Gantry &
(Cold Deli Gantry c/w LED Lighting, Ass. Serve)
(S/Steel Rear Deli Preparation Shelf (+1 Cutting Board).

GCW2HT
GCW3HT
GCW4HT
GCW5HT

GADG2
GADG3
GADG4
GADG5

GPS2
GPS3
GPS4
GPS5

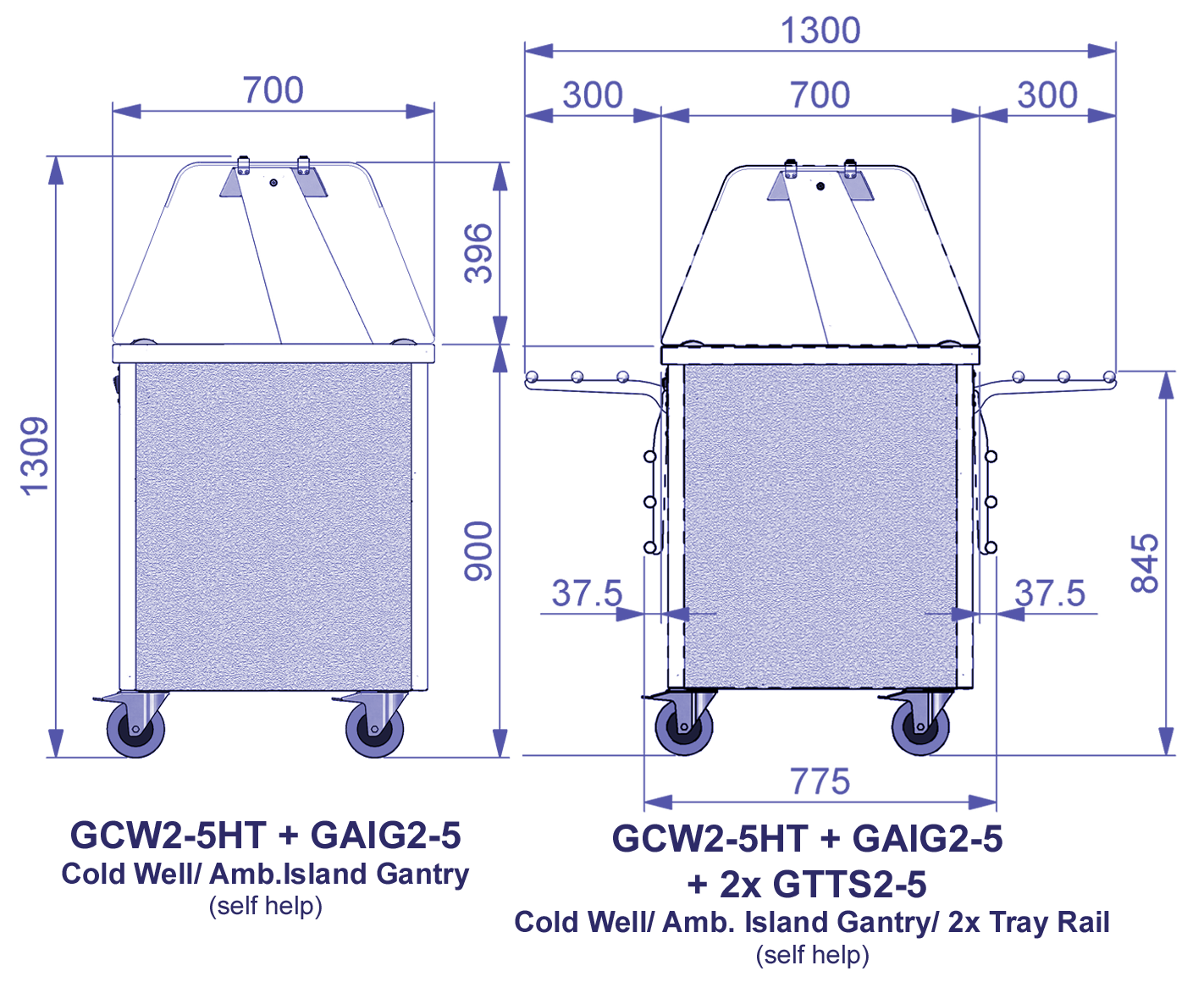

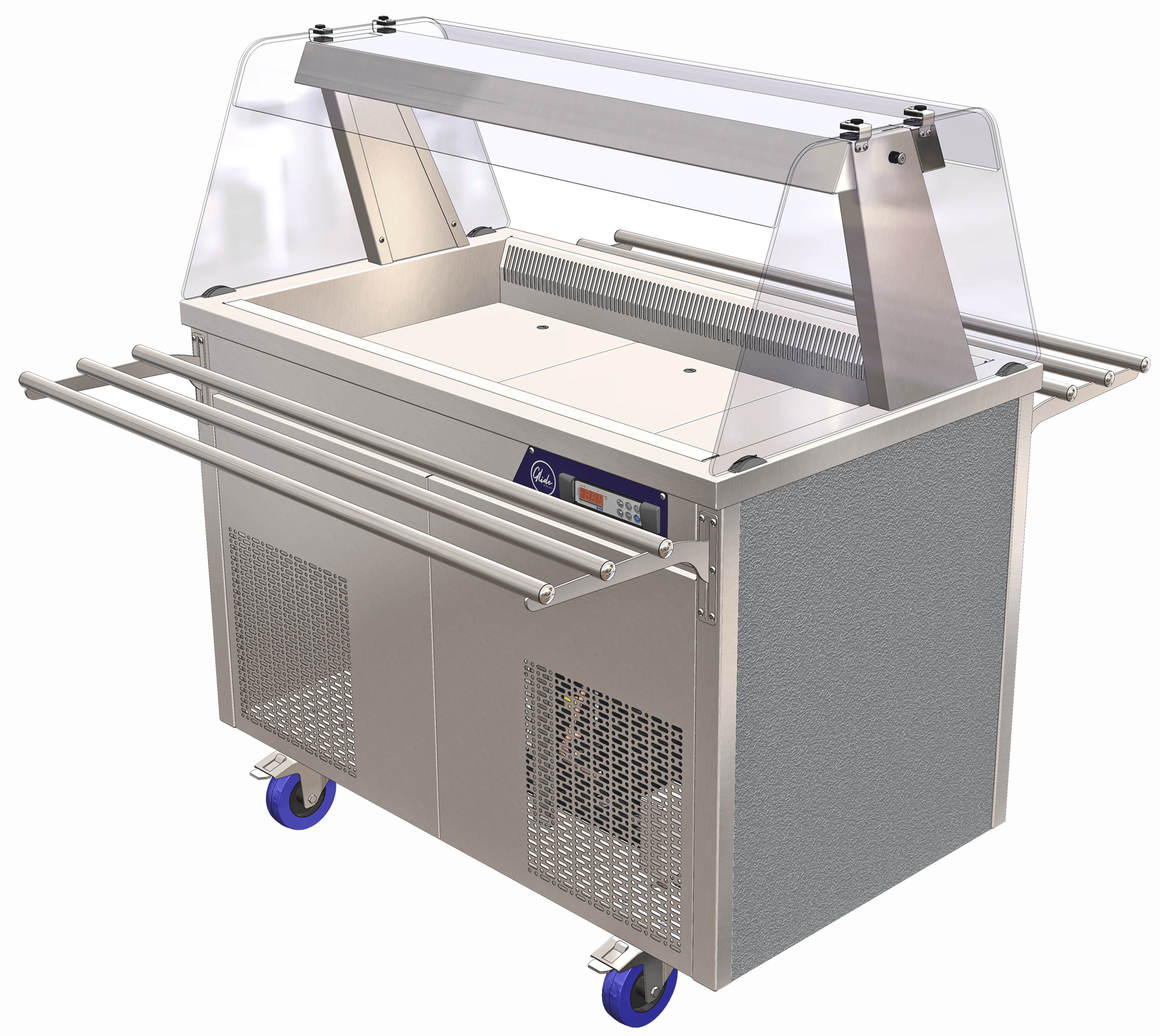

Glide Cold Well – No Gantry &
(Cold Island Gantry c/w LED Lighting, Self Help)
2 no.(Drop Down Tubular Tray Rail Sets).

GCW2HT
GCW3HT
GCW4HT
GCW5HT

GAIG2
GAIG3
GAIG4
GAIG5

(2) GTTS2
(2) GTTS3
(2) GTTS4
(2) GTTS5

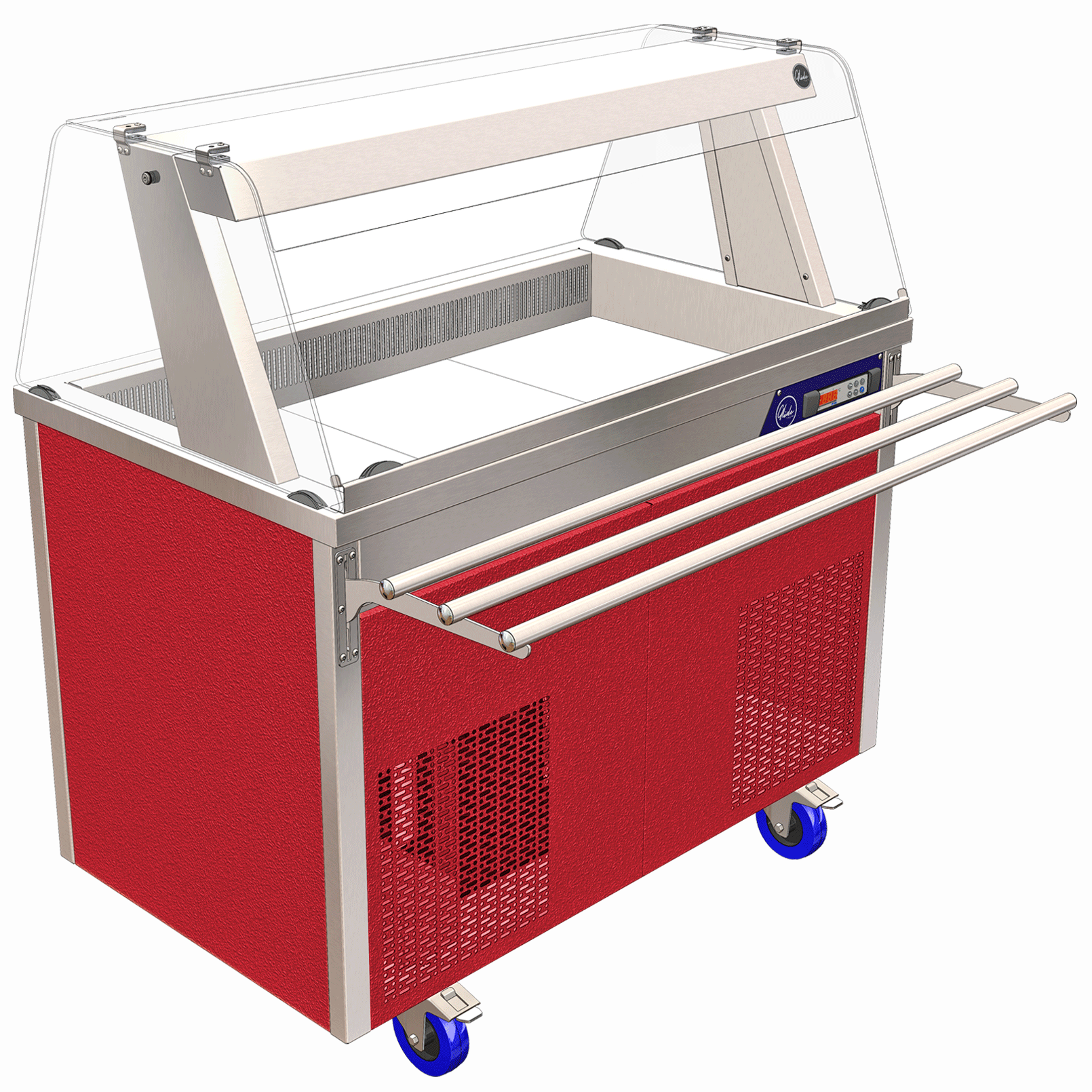

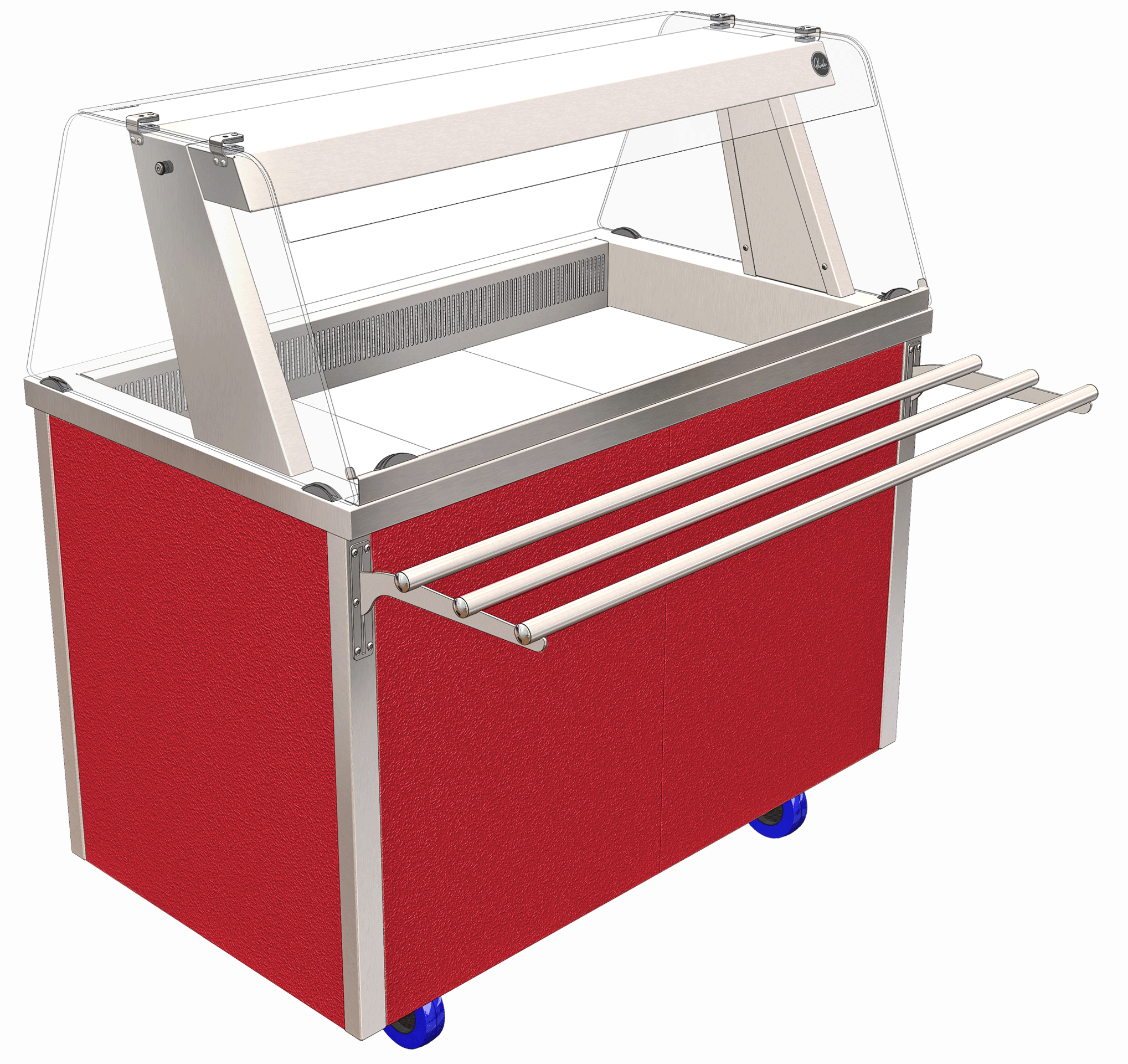

Glide Cold Well – No Gantry &
(Cold Well Gantry c/w LED Lighting)
Drop Down Tubular Tray Slide)

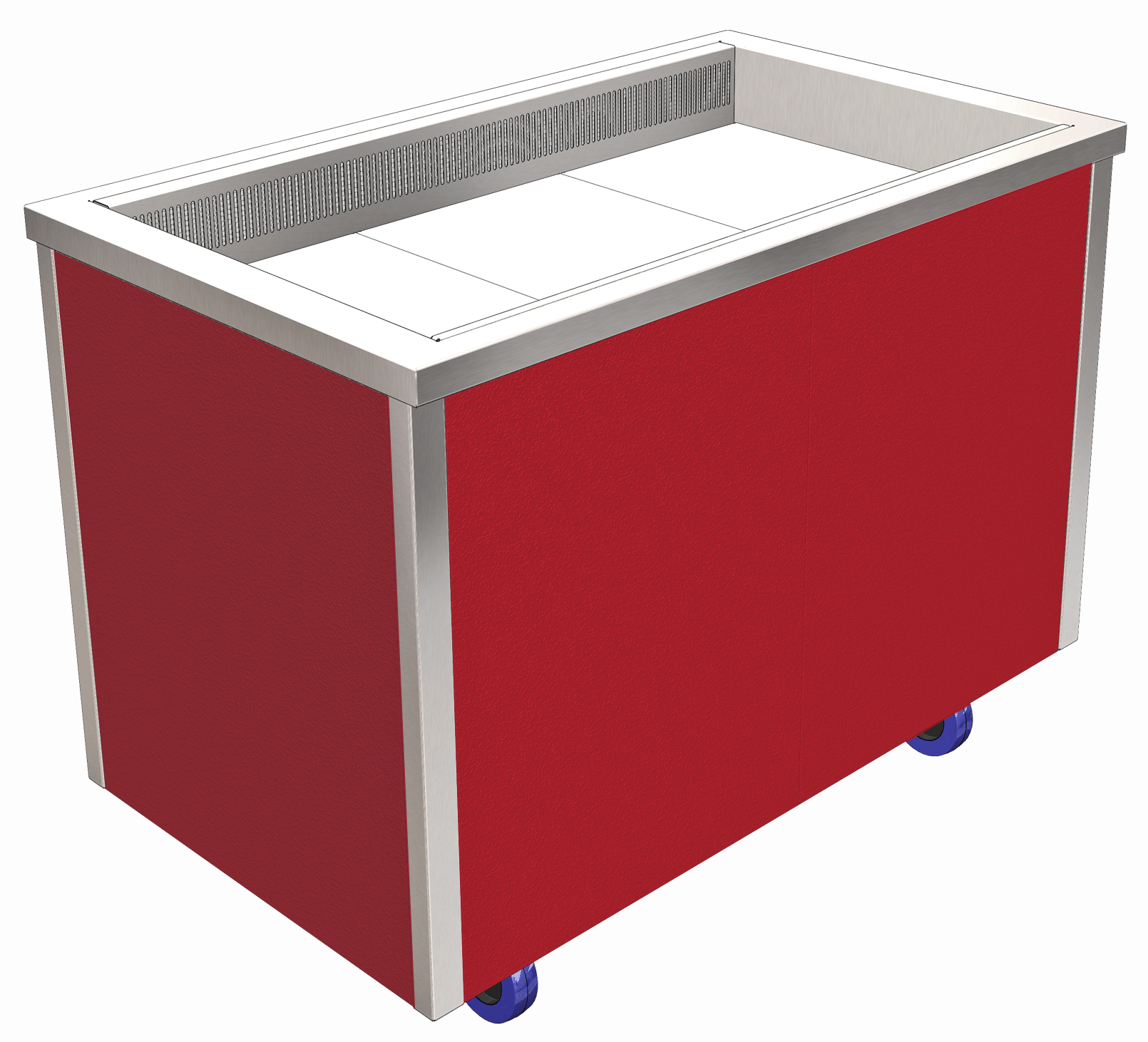

(Colour Finish Base Panels – Poppy Red)

GCW2HT
GCW3HT
GCW4HT
GCW5HT

GAG2
GAG3
GAG4
GAG5

GTTS2
GTTS3
GTTS4
GTTS5

GPREDCHA2
GPREDCHA3
GPREDCHA4
GPREDCHA5



Options

Glide Cold Well – No Gantry.
Options.



Glide Cold Well Gantry c/w LED Lighting (S. Help & A. Serve).
(Option Codes GAG2-5) Glide option: 2-1 Gn to 5-1 Gn, ambient gantry, s/steel, c/w LED lighting, opaque safety cover, colour 4000k, reversible single curved glass sneeze screen, self help or assisted serve use, + 397(h) above worktop, end glass.



Glide Cold Island Well Gantry c/w LED Lighting (S. Help).
(Option Codes GAIG2-5) Glide option: 2-1 Gn to 5-1 Gn, self help island gantry, s/steel, ambient, double curved sneeze screen glass, end glass, c/w LED gantry lighting, opaque cover, colour 4000k, self help use, + 397 mm(h) above worktop.



Glide Cold Deli Gantry c/w LED Lighting
(A. Serve).

(Option Codes GADG2-5) Glide option: 2-1 Gn to 5-1 Gn, assisted service ambient deli gantry, s/steel, full height single curved glass front, end glass, glass mid shelf (not chilled), c/w LED gantry lighting, opaque cover, colour 4000k, ass. serve use, + 540 mm(h) above worktop.

Glide S/Steel Rear Deli Preparation Shelf
(+1 Cutting Board)

(Option Codes GPS2-5) Glide option: 2-1 Gn to 5-1 Gn, rear s/steel deli preparation shelf, 180mm (d),+ 10mm (h) above worktop, supplied with (1) 1-1 Gn hook over polypropelene cutting board, cutting board dimensions: 350mm (l) x 250(d) x 30(h). (Factory fit option).

Glide Extra 1-1 Gn Cutting Board.
(Option Code KCB1) Glide option: 1-1 Gn polypropelene white chopping board, 350 mm(l) x 250 mm(d) x 30 mm(h), hook on. (For use with Glide rear preparation shelf option GPS2-5).

Glide 1-1 Gn Gastronorm Pan Support Collar.
(Option Code GPSC) Glide option: 1-1 Gn size x 100mm (d) Gn container support, for use inside chilled well area, ventilated s/steel frame, accepts 2 x 1-2 Gn, 3 x 1-3 Gn, or 1 x 1-1Gn containers (Containers not supplied).

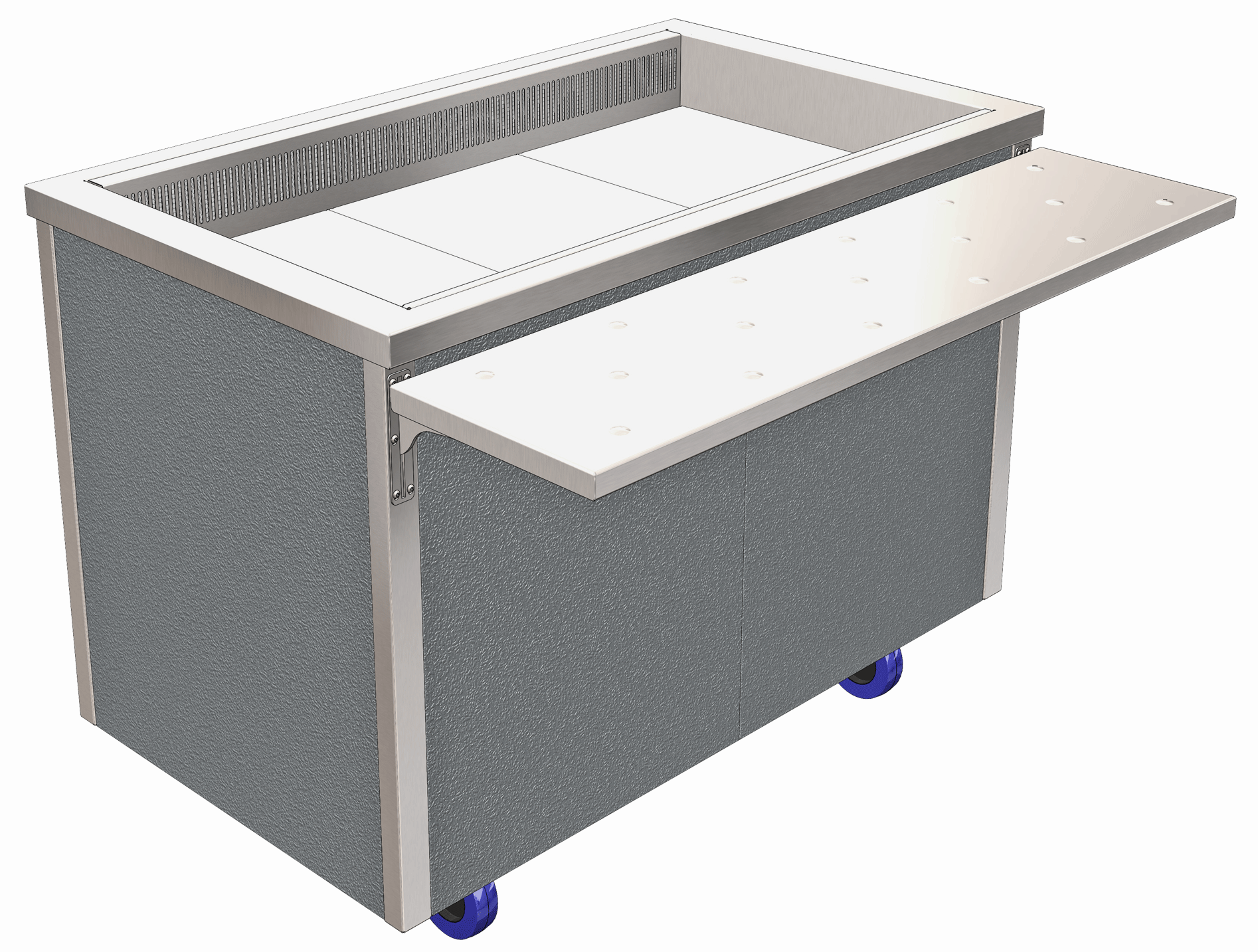

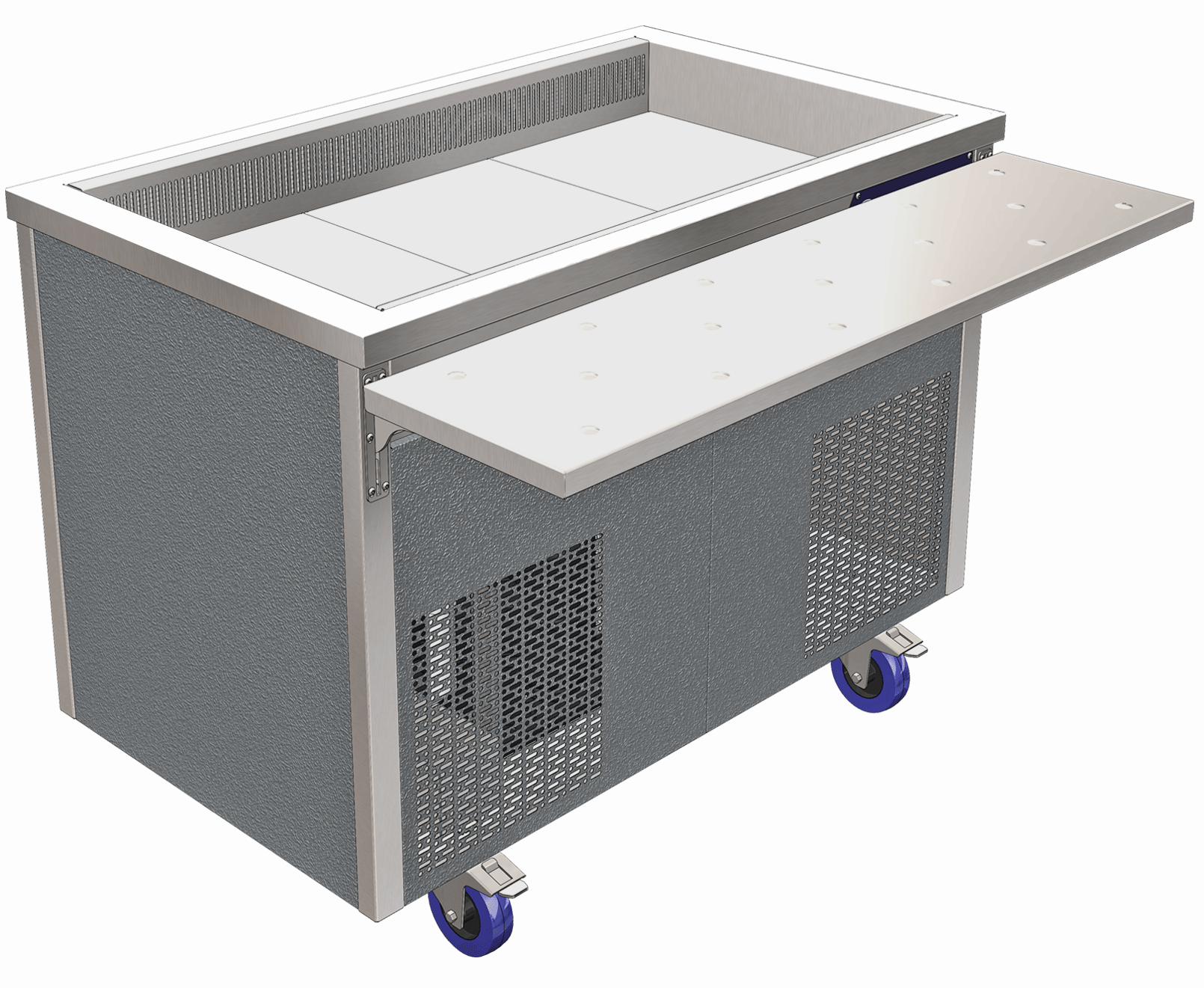

Glide S/Steel Folding Solid Tray Slide.
(Option Codes GSTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type, up position adds 302mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Glide S/Steel Folding Tubular Tray Rail.
(Option Codes GTTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube, drop down bracket type, up position adds 298 mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Low Height Model (Glide Junior) – 850mm. (Option Code G850H) Glide junior option: 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model (Glide Junior) – 800mm.*
(Option Code G800H) Glide junior option: 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). *Bespoke Option/ Extended Lead Time *

Glide Colour Finishes To Front/ Side Panels.

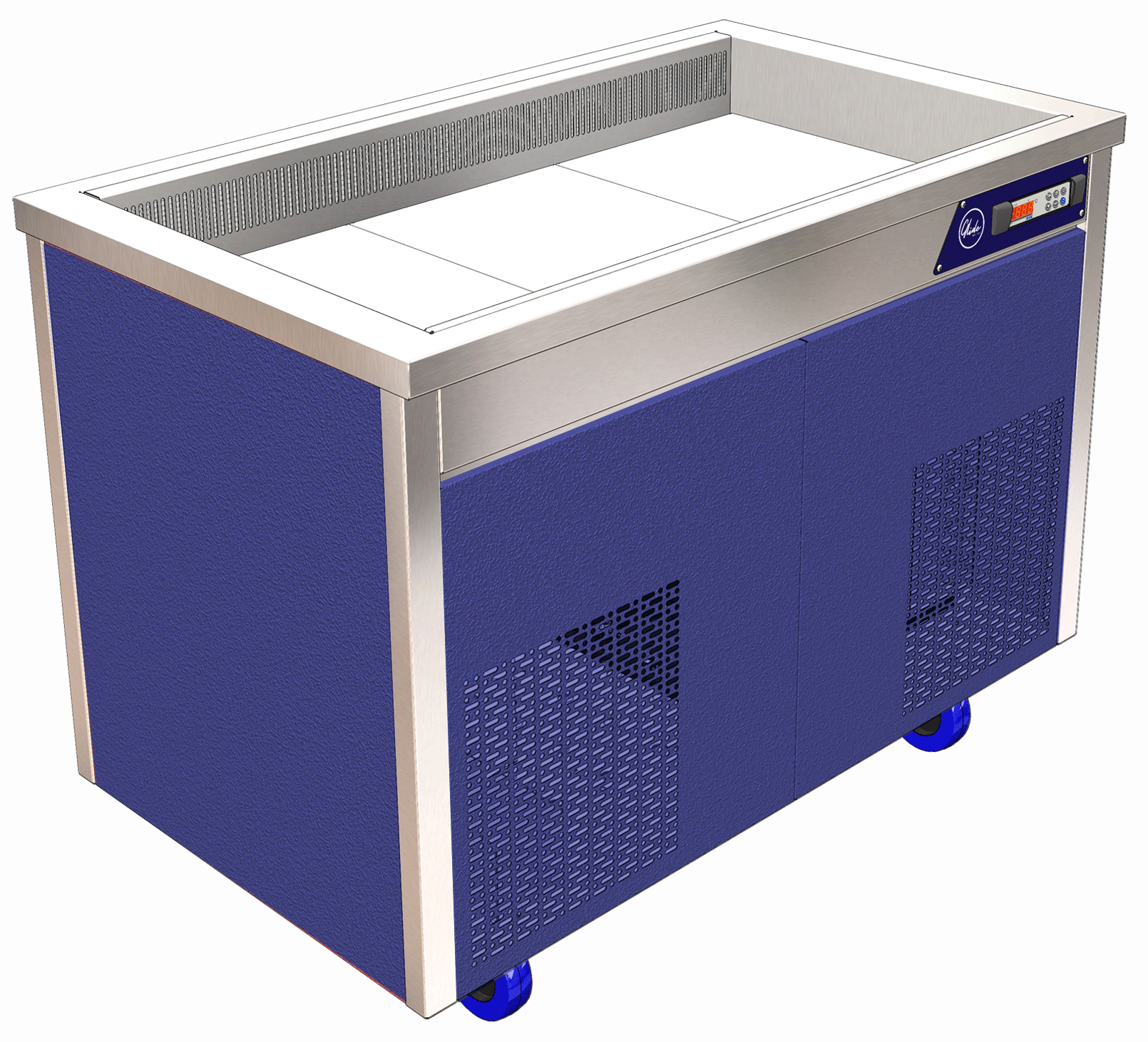

Blue Finish. (Option Codes GBLUECHA2 – GBLUECHA5) 2-1 Gn to 5-1 Gn full set of front panel/ sides in leathergrain plastisol steel, colour ocean blue (BS 18C37). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

S/steel Finish. (Option Code GSSTLCHA2 – GSSTLCHA5) 2-1 Gn to 5-1 Gn full set of front panel/ sides in satin s/steel 430 gd. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Light Grey Finish. (Option Codes GGREYCHA2 – GGREYCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour goosewing light grey (BS 10A05). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Forest Green Finish. (Option Codes GGRENCHA2 – GGRENCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour forest green/heritage (RAL 6002). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Poppy Red Finish. (Option Codes GPREDCHA2 – GPREDCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour poppy red (BS 04E5B). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Cream Finish. (Option Codes GCREMCHA2 – GCREMCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

White Finish. (Option Codes GWHITCHA2 – GWHITCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour white (BS 00E55). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Black Finish. (Option Codes GBLAKCHA2 – GBLAKCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour black (BS 00E53). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Beech Woodgrain Finish. (Option Codes GBEECCHA2 – GBEECCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect, DL76 beech finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Walnut Woodgrain Finish. (Option Codes GWALNCHA2 – GWALNCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect panel, DL85 walnut finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Oak Woodgrain Finish. (Option Codes GOAKCHA2 – GOAKCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect, DL84 oak finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).



Options – Glide Cold Well – No Gantry.

Option                                                                                          Option Code

Model Code

GCW2HT

GCW3HT

GCW4HT

GCW5HT

Glide Cold Well Gantry.
397mm (H) c/w LED light, curved glass & end glass – reversible sneeze screen for self help/ ass. serve use.

GAG2

GAG3

GAG4

GAG5

Glide Cold Island Gantry.
397mm (H) c/w LED light, double curved sneeze screen glass & end glass – for self help use.

GAIG2

GAIG3

GAIG4

GAIG5

Glide Cold Deli Gantry.
540mm (H) c/w LED light, full height curved front glass & end glass, glass midshelf (ambient) – for ass. serve use.

GADG2

GADG3

GADG4

GADG5

Glide S/Steel Rear Deli Preparation Shelf (+1 Cutting Board). Rear shelf for sandwich prep. 180mm (D) c/w polyethylene cutting board – 350mm(L) x 250mm(D) x 30mm(H).

GPS2

GPS3

GPS4

GPS5

Glide Extra 1-1 Gn Cutting Board.
Hook over chopping board in white polyethylene, 350mm(L) x 250mm(D) x 30mm (H).

KCB1

KCB1

KCB1

KCB1

Glide 1-1 Gn Gastronorm Pan Support Collar.
1-1Gn size x 100mm (D) Gn container support for use inside chilled well, ventilated frame accepts 2 x 1-2 Gn, 3 x 1-3 Gn or 1 x 1-1 Gn containers (not supplied)

GPSC

GPSC

GPSC

GPSC

Glide S/Steel Drop Down Tubular Tray Rail.

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide.

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm (H) Worktop Model.

G850H

G850H

G850H

G850H

Glide 800mm (H) Worktop Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

Glide Colour Finish Base Panels (Front & Sides).
Ocean Blue (BS 18C37)

GBLUECHA2

GBLUECHA3

GBLUECHA4

GBLUECHA5

Glide S/Steel Finish Base Panels (Front & Sides).
S/Steel (430 gd)

GSSTLCHA2

GSSTLCHA3

GSSTLCHA4

GSSTLCHA5

Glide Colour Finish Base Panels (Front & Sides).
Goosewing Light Grey (BS 10A05)

GGREYCHA2

GGREYCHA3

GGREYCHA4

GGREYCHA5

Glide Colour Finish Base Panels (Front & Sides).
Forest Green (RAL 6002)

GGRENCHA2

GGRENCHA3

GGRENCHA4

GGRENCHA5

Glide Colour Finish Base Panels (Front & Sides).
Poppy Red (BS 04E5B)

GPREDCHA2

GPREDCHA3

GPREDCHA4

GPREDCHA5

Glide Colour Finish Base Panels (Front & Sides).
Buttermilk Cream (BS 10C31)

GCREMCHA2

GCREMCHA3

GCREMCHA4

GCREMCHA5

Glide Colour Finish Base Panels (Front & Sides).
White (BS 00E55)

GWHITCHA2

GWHITCHA3

GWHITCHA4

GWHITCHA5

Glide Colour Finish Base Panels (Front & Sides).
Black (BS 00E53)

GBLAKCHA2

GBLAKCHA3

GBLAKCHA4

GBLAKCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Walnut (DL85)

GWALNCHA2

GWALNCHA3

GWALNCHA4

GWALNCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Beech (DL76)

GBEECCHA2

GBEECCHA3

GBEECCHA4

GBEECCHA5



Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Oak (DL84)

GOAKCHA2

GOAKCHA3

GOAKCHA4

GOAKCHA5



Popular Model Codes & Options.

Glide Cold Well – No Gantry &
(Solid Tray Slide)

Model Code  Option Code
GCW2HT     GSTS2
GCW3HT     GSTS3
GCW4HT     GSTS4
GCW5HT     GSTS5



Glide Cold Well – No Gantry &
(Tubular Tray Rail)

Model Code  Option Code
GCW2HT     GTTS2
GCW3HT     GTTS3
GCW4HT     GTTS4
GCW5HT     GTTS5



Glide Cold Well – No Gantry &
(Glide Cold Well Gantry).

Model Code  Option Code
GCW2HT     GAG2
GCW3HT     GAG3
GCW4HT     GAG4
GCW5HT     GAG5





Glide Cold Well – No Gantry &
(Glide Cold Well Gantry) &
(Drop Down Tray Rail).

Model Code  Option Codes
GCW2HT     GAG2   GTTS2
GCW3HT     GAG3   GTTS3
GCW4HT     GAG4   GTTS4
GCW5HT     GAG5    GTTS5



Glide Cold Well – No Gantry &
(Glide Cold Island Well Gantry).

Model Code  Option Codes
GCW2HT     GAIG2
GCW3HT     GAIG3
GCW4HT     GAIG4
GCW5HT     GAIG5





Glide Cold Well – No Gantry &
(Glide Cold Deli Gantry).

Model Code  Option Codes
GCW2HT     GADG2
GCW3HT     GADG3
GCW4HT     GADG4
GCW5HT     GADG5





Glide Cold Well – No Gantry &
(Glide Cold Deli Gantry) &
(Glide S/Steel Rear Deli Preparation Shelf).

Model Code  Option Codes
GCW2HT     GADG2  GPS2
GCW3HT     GADG3  GPS3
GCW4HT     GADG4  GPS4
GCW5HT     GADG5  GPS5





Glide Cold Well – No Gantry &
(Glide Cold Island Well Gantry) &
2x (Glide Drop Down Tubular Tray Slide).
Model Code  Option Codes
GCW2HT     GAIG2   GTTS2
GCW3HT     GAIG3   GTTS3
GCW4HT     GAIG4   GTTS4
GCW5HT     GAIG5    GTTS5



Glide Cold Well – No Gantry &
(Glide Cold Well Gantry) &
(Drop Down Tray Rail) &
(Colour Finish – Red)

Model Code  Option Codes
GCW2HT     GAG2    GTTS2    GPREDCHA2
GCW3HT     GAG3    GTTS3    GPREDCHA3
GCW4HT     GAG4    GTTS4    GPREDCHA4
GCW5HT     GAG5    GTTS5    GPREDCHA5



Downloads

General Layout Drawings
Glide Cold Well – No Gantry.





Specification Sheet, Base Panel Colour Options, User Manual.
Glide Cold Well – No Gantry.




Visual

(Wall Sited) Glide Cold Well – No Gantry.
Visual



Features

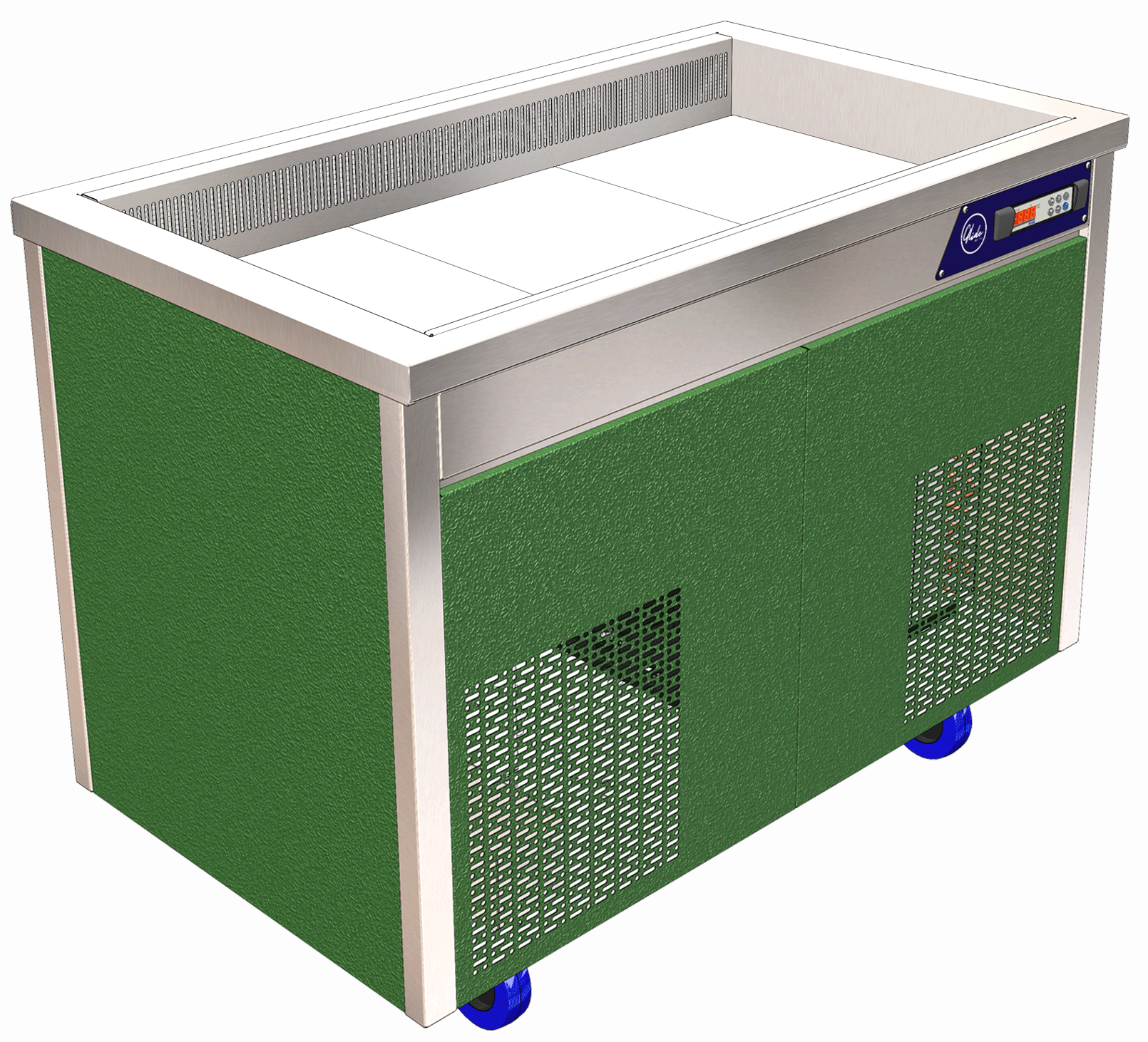

(Wall Sited) Glide Cold Well – No Gantry.
Features

  • Glide mobile dining cart, fan blown cold well (no gantry).
  • Wall sited self help application (For wall, alcove, recess or back to back island displays).
  • (Wall sited) front airflow panel option (code GCWWS2-5) – converts model to refrigeration airflow in/out customer side – control panel moves to customer side.
  • Available in 2-1Gn (825mm), 3-1Gn (1175mm), 4-1Gn (1525mm) & 5-1Gn (1875mm) lengths.
  • Model dimensions: 700 mm (d) x 900mm (worktop h).
  • Refrigerated cold well display with integral, energy efficient chilled hydrocarbon refrigeration.
  • Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
  • Refrigeration airflow in/ out to customer side – lift off service/ ventilation panel to customer side.
  • Digital temperature display and control panel (to operator side).
  • 24-hour operation as standard.
  • Ventilated front/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Worktop & removable deck plates in 304 gd. s/steel, all other external steel surfaces in 430gd (base corners/ rear lift off ventilation panels etc.).
  • Cold well area also accepts 1-1Gn (x100) container pans in the well/ storage area.
  • Integral automatic condensate water evaporation eliminates the need for site drainage.
  • Condensing unit housed in self contained base with removable front ventilated grey plastisol service/ maintenance panel.
  • Fitted with lockable non-marking rubber tyre castors.
  • Power Supply: Supplied with 3m lead & 13 amp UK plug (13A 230v 50Hz).

Options

  • 11 solid colour & woodgrain base panel finishes.
  • (Wall Sited) self help curved glass gantry c/w LED lighting (colour 400ok & opaque safety cover) & side glass.
  • Gastronorm pan 1-1Gn support collar, accepts either 3x 1-3, 2x 1-2 or 1x 1-1Gn x 100(d) food containers, pans not included.
  • Folding s/steel solid tray slide available.*
  • Folding s/steel tubular tray rail Ø25 tube, available.*
  • Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm).*
  • Low height model 850mm worktop (h) available.
  • Low height model 800mm worktop (h) available.*
    Bespoke option with extended lead time.*
  • Optional tray slide height: for
    standard 900 mm (h) worktop = 845 mm,
    low height 850 mm (h) model = 795mm,
    low height 800 mm (h) model = 745mm.

Food Display Examples

  • Drinks (Well Area). Still & carbonated, bottled, canned or cartoned, water, UHT dairy, lemonade, carbonated drinks, fruit juice & health drinks.
  • Food (Well Area): Sandwiches, baguettes, rolls, panini, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.


Dimensions

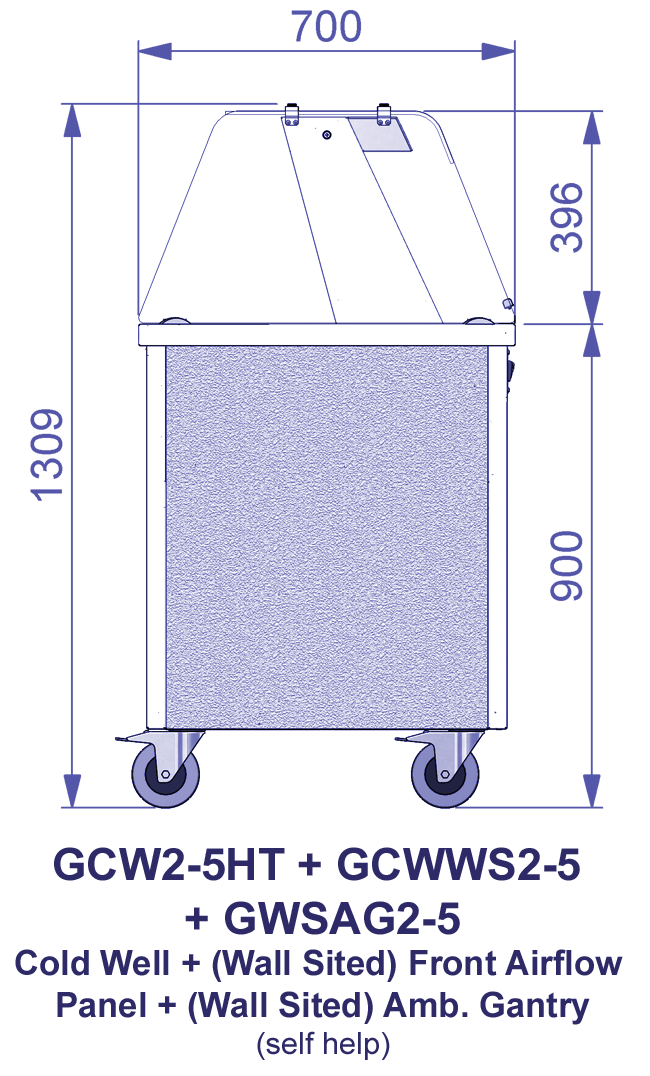

(Wall Sited) Glide Cold Well – No Gantry.
Dimensions

Model Code

GCW2HT
+GCWWS2

GCW3HT
+GCWWS3

GCW4HT
+GCWWS4

GCW5HT
+GCWWS5

Capacity (Gn)

2-1

3-1

4-1

5-1

Length (mm)

825

1175

1525

1875

Depth (mm)

700

700

700

700

Worktop Height (mm)

900

900

900

900

Weight (kg) Uncrated

95

125

155

185

Total Power  (kW)
(No Gantry Model) c/w 3m lead & Plug.

1.22

1.22

1.44

1.65

Total Power (kw)
Model + (Wall Sited) LED Light Gantry Option (Colour 4000k c/w opaque safety cover), model fitted with 3m lead & Plug.

1.23

1.23

1.46

1.68

Total Heat Rejection
@ 25°C Ambient (watts)

1508

2235

2235

2235

Digital Temperature Display & Control Panel (Customer Side Valance Panel)

Included

Included

Included

Included

Revised Model Depth (mm) – (Optional Drop Down Trayslide,
Folding Tray Slide In ‘Down’ Position)

740

740

740

740

Revised Model Depth (mm) –
(Optional Drop Down Trayslide,
Folding Tray Slide In ‘Up’ Position)

1000

1000

1000

1000

Optional Trayslide Height (mm)
(Base Unit worktop 900(h) – 55mm)

845

845

845

845

Refrigerant Type

r290

r290

r290

r290

(Wall Sited) LED Lighting Gantry
Colour 4000k, opaque safety cover

Optional

Optional

Optional

Optional

Model Height With Optional  (G850H) Worktop (mm)
Optional tray slide = 795mm (h)

850

850

850

850

Model Height With Optional (G800H) Worktop (mm)
Optional tray slide = 745mm (h)
*bespoke, extended lead time*

800

800

800

800

Refrigerant (ODP)
Ozone Depletion Potential

Zero

Zero

Zero

Zero

Refrigerant (GWP)
Global Warming Potential

3

3

3

3



* Lockable digital control panel to customer side valance panel, features temperature display, power on/off, LED lighting control (if required) & temperature adjustment. Display can be locked in ‘tamper proof ‘ mode to stop adjustment of operating parameters by pressing up/ down arrows simultaneously*



Options – (Wall Sited) Glide Cold Well – No Gantry.

Option                                                                                          Option Code

Model Code

GCW2HT
(+GCWWS2)

GCW3HT
(+GCWWS3)

GCW4HT
(+GCWWS4)

GCW5HT
(+GCWWS5)

(Wall sited) Front Airflow Panel.
Air in/out customer side, in leathergrain plastisol, steel colour merlin grey (BS 18B25), lifts off for maintenance & service access, control panel fitted above in slim s/steel valance panel.

GCWWS2

GCWWS3

GCWWS4

GCWWS5

(Wall Sited) Glide Cold Well Gantry.
397mm (H) c/w LED light, curved sneeze screen glass & end glass  for self help.

GWSAG2

GWSAG3

GWSAG4

GWSAG5

Glide 1-1 Gn Gastronorm Pan Support Collar.
1-1Gn size x 100mm (D) Gn container support for use inside chilled well, ventilated frame accepts 2 x 1-2 Gn, 3 x 1-3 Gn or 1 x 1-1 Gn containers (not supplied)

GPSC

GPSC

GPSC

GPSC

Glide S/Steel Drop Down Tubular Tray Rail.

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide.

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm (H) Worktop Model.

G850H

G850H

G850H

G850H

Glide 800mm (H) Worktop Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

Glide Colour Finish Base Panels (Front & Sides).
Ocean Blue (BS 18C37)

GBLUEWSC2

GBLUEWSC3

GBLUEWSC4

GBLUEWSC5

Glide S/Steel Finish Base Panels (Front & Sides).
S/Steel (430 gd)

GSSTLWSC2

GSSTLWSC3

GSSTLWSC4

GSSTLWSC5

Glide Colour Finish Base Panels (Front & Sides).
Goosewing Light Grey (BS 10A05)

GGREYWSC2

GGREYWSC3

GGREYWSC4

GGREYWSC5

Glide Colour Finish Base Panels (Front & Sides).
Forest Green (RAL 6002)

GGRENWSC2

GGRENWSC3

GGRENWSC4

GGRENWSC5

Glide Colour Finish Base Panels (Front & Sides).
Poppy Red (BS 04E5B)

GPREDWSC2

GPREDWSC3

GPREDWSC4

GPREDWSC5

Glide Colour Finish Base Panels (Front & Sides).
Buttermilk Cream (BS 10C31)

GCREMWSC2

GCREMWSC3

GCREMWSC4

GCREMWSC5

Glide Colour Finish Base Panels (Front & Sides).
White (BS 00E55)

GWHITWSC2

GWHITWSC3

GWHITWSC4

GWHITWSC5

Glide Colour Finish Base Panels (Front & Sides).
Black (BS 00E53)

GBLAKWSC2

GBLAKWSC3

GBLAKWSC4

GBLAKWSC5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Walnut (DL85)

GWALNWSC2

GWALNWSC3

GWALNWSC4

GWALNWSC5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Beech (DL76)

GBEECWSC2

GBEECWSC3

GBEECWSC4

GBEECWSC5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Oak (DL84)

GOAKWSC2

GOAKWSC3

GOAKWSC4

GOAKWSC5

Popular Model Codes & Options

Description Model Code Option Code Option Code Option Code Option Code

(Wall Sited) Glide Cold Well – No Gantry &
(Wall sited Front Airflow Panel)
(S/Steel Drop Down
Solid Tray Slide)

GCW2HT
GCW3HT
GCW4HT
GCW5HT

GCWWS2
GCWWS3
GCWWS4
GCWWS5

GSTS2
GSTS3
GSTS4
GSTS5

(Wall Sited) Glide Cold Well – No Gantry &
(Wall sited Front Airflow Panel)
(S/Steel Drop Down
Tubular Tray Rail)

GCW2HT
GCW3HT
GCW4HT
GCW5HT

GCWWS2
GCWWS3
GCWWS4
GCWWS5

GTTS2
GTTS3
GTTS4
GTTS5

(Wall Sited) Glide Cold Well – No Gantry &
(Wall sited Front Airflow Panel)

(Wall Sited Cold Well Gantry)

GCW2HT
GCW3HT
GCW4HT
GCW5HT

GCWWS2
GCWWS3
GCWWS4
GCWWS5

GWSAG2
GWSAG3
GWSAG4
GWSAG5

(Wall Sited) Glide Cold Well – No Gantry &
(Wall sited Front Airflow Panel)

(Wall Sited Cold Well Gantry)
(Drop Down Tubular Tray Rail)

GCW2HT
GCW3HT
GCW4HT
GCW5HT

GCWWS2
GCWWS3
GCWWS4
GCWWS5

GWSAG2
GWSAG3
GWSAG4
GWSAG5

GTTS2
GTTS3
GTTS4
GTTS5

(Wall Sited) Glide Cold Well – No Gantry &
(Wall sited Front Airflow Panel)
(Wall Sited Cold Well Gantry)
(Drop Down Tubular Tray Rail)
(Colour Finish – Poppy Red)

GCW2HT
GCW3HT
GCW4HT
GCW5HT

GCWWS2
GCWWS3
GCWWS4
GCWWS5

GWSAG2
GWSAG3
GWSAG4
GWSAG5

GTTS2
GTTS3
GTTS4
GTTS5

GPREDWSC2
GPREDWSC3
GPREDWSC4
GPREDWSC5



Options

(Wall Sited) Glide Cold Well – No Gantry.
Options.



(Wall Sited) Glide Cold Well Gantry c/w LED Lighting (S. Help).
(Option Codes GWSAG2-5) Glide option: 2-1 Gn to 5-1 Gn, ambient gantry, s/steel, c/w LED lighting, opaque safety cover, colour 4000k, single curved glass sneeze screen, self help use, + 397(h) above worktop, end glass *(Wall sited) front airflow panel option also shown*





Glide 1-1 Gn Gastronorm Pan Support Collar.
(Option Code GPSC)
Glide option: 1-1 Gn size x 100mm (d) Gn container support, for use inside chilled well area, ventilated s/steel frame, accepts 2 x 1-2 Gn, 3 x 1-3 Gn, or 1 x 1-1Gn containers (Containers not supplied).

Glide S/Steel Folding Solid Tray Slide.
(Option Codes GSTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type, up position adds 302mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm *(Wall sited) front airflow panel option also shown*

Glide S/Steel Folding Tubular Tray Rail.
(Option Codes GTTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube, drop down bracket type, up position adds 298 mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm *(Wall sited) front airflow panel option also shown*

Low Height Model (Glide Junior) – 850mm. (Option Code G850H) Glide junior option: 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model (Glide Junior) – 800mm.*
(Option Code G800H) Glide junior option: 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). *Bespoke Option/ Extended Lead Time *

Glide Colour Finishes To Front/ Side Panels.

Blue Finish. (Option Codes GBLUEWSC2 – GBLUEWSC5) 2-1 Gn to 5-1 Gn full set of front ventilated panel/ sides in leathergrain plastisol steel, colour ocean blue (BS 18C37). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix)

S/steel Finish. (Option Code GSSTLWSC2 – GSSTLWSC5) 2-1 Gn to 5-1 Gn full set of front ventilated panel/ sides in satin s/steel 430 gd. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix)

Light Grey Finish. (Option Codes GGREYWSC2 – GGREYWSC5) 2-1 Gn to 5-1 Gn full set of front ventilated panel/ sides in leathergrain plastisol steel, colour goosewing light grey (BS 10A05). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix)

Forest Green Finish. (Option Codes GGRENWSC2 – GGRENWSC5) 2-1 Gn to 5-1 Gn full set of front ventilated panel/ sides in leathergrain plastisol steel, colour forest green/heritage (RAL 6002). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix)

Poppy Red Finish. (Option Codes GPREDWSC2 – GPREDWSC5) 2-1 Gn to 5-1 Gn full set of front ventilated panel/ sides in leathergrain plastisol steel, colour poppy red (BS 04E5B). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix)

Cream Finish. (Option Codes GCREMWSC2 – GCREMWSC5) 2-1 Gn to 5-1 Gn full set of front ventilated panel/ sides in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix)

White Finish. (Option Codes GWHITWSC2 – GWHITWSC5) 2-1 Gn to 5-1 Gn full set of front ventilated panel/ sides in leathergrain plastisol steel, colour white (BS 00E55). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix)

Black Finish. (Option Codes GBLAKWSC2 – GBLAKWSC5) 2-1 Gn to 5-1 Gn full set of front ventilated panel/ sides in leathergrain plastisol steel, colour black (BS 00E53). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix)

Beech Woodgrain Finish. (Option Codes GBEECWSC2 – GBEECWSC5) 2-1 Gn to 5-1 Gn full set of front ventilated panel/ sides in wood grain effect, DL76 beech finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix)

Walnut Woodgrain Finish. (Option Codes GWALNWSC2 – GWALNWSC5) 2-1 Gn to 5-1 Gn full set of front ventilated panel/ sides in wood grain effect panel, DL85 walnut finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix)

Oak Woodgrain Finish. (Option Codes GOAKWSC2 – GOAKWSC5) 2-1 Gn to 5-1 Gn full set of front ventilated panel/ sides in wood grain effect, DL84 oak finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix)



Options – (Wall Sited) Glide Cold Well – No Gantry.

Option                                                                                          Option Code

Model Code

GCW2HT
(+GCWWS2)

GCW3HT
(+GCWWS3)

GCW4HT
(+GCWWS4)

GCW5HT
(+GCWWS5)

(Wall sited) Front Airflow Panel.
Air in/out customer side, in leathergrain plastisol, steel colour merlin grey (BS 18B25), lifts off for maintenance & service access, control panel fitted above in slim s/steel valance panel.

GCWWS2

GCWWS3

GCWWS4

GCWWS5

(Wall Sited) Glide Cold Well Gantry.
397mm (H) c/w LED light, curved sneeze screen glass & end glass  for self help.

GWSAG2

GWSAG3

GWSAG4

GWSAG5

Glide 1-1 Gn Gastronorm Pan Support Collar.
1-1Gn size x 100mm (D) Gn container support for use inside chilled well, ventilated frame accepts 2 x 1-2 Gn, 3 x 1-3 Gn or 1 x 1-1 Gn containers (not supplied)

GPSC

GPSC

GPSC

GPSC

Glide S/Steel Drop Down Tubular Tray Rail.

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide.

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm (H) Worktop Model.

G850H

G850H

G850H

G850H

Glide 800mm (H) Worktop Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

Glide Colour Finish Base Panels (Front & Sides).
Ocean Blue (BS 18C37)

GBLUEWSC2

GBLUEWSC3

GBLUEWSC4

GBLUEWSC5

Glide S/Steel Finish Base Panels (Front & Sides).
S/Steel (430 gd)

GSSTLWSC2

GSSTLWSC3

GSSTLWSC4

GSSTLWSC5

Glide Colour Finish Base Panels (Front & Sides).
Goosewing Light Grey (BS 10A05)

GGREYWSC2

GGREYWSC3

GGREYWSC4

GGREYWSC5

Glide Colour Finish Base Panels (Front & Sides).
Forest Green (RAL 6002)

GGRENWSC2

GGRENWSC3

GGRENWSC4

GGRENWSC5

Glide Colour Finish Base Panels (Front & Sides).
Poppy Red (BS 04E5B)

GPREDWSC2

GPREDWSC3

GPREDWSC4

GPREDWSC5

Glide Colour Finish Base Panels (Front & Sides).
Buttermilk Cream (BS 10C31)

GCREMWSC2

GCREMWSC3

GCREMWSC4

GCREMWSC5

Glide Colour Finish Base Panels (Front & Sides).
White (BS 00E55)

GWHITWSC2

GWHITWSC3

GWHITWSC4

GWHITWSC5

Glide Colour Finish Base Panels (Front & Sides).
Black (BS 00E53)

GBLAKWSC2

GBLAKWSC3

GBLAKWSC4

GBLAKWSC5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Walnut (DL85)

GWALNWSC2

GWALNWSC3

GWALNWSC4

GWALNWSC5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Beech (DL76)

GBEECWSC2

GBEECWSC3

GBEECWSC4

GBEECWSC5



Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Oak (DL84)

GOAKWSC2

GOAKWSC3

GOAKWSC4

GOAKWSC5



Popular Model Codes & Options.



(Wall Sited) Glide Cold Well – No Gantry & (Wall sited Front Airflow Panel) &
(Solid Tray Slide).

Model Code  Option Codes
GCW2HT     GCWWS2   GSTS2
GCW3HT     GCWWS3   GSTS3
GCW4HT     GCWWS4   GSTS4
GCW5HT     GCWWS5   GSTS5



Glide Cold Well – No Gantry & (Wall sited Front Airflow Panel) &
(Tubular Tray Rail).

Model Code  Option Codes
GCW2HT      GCWWS2   GSTS2
GCW3HT      GCWWS3   GTTS3
GCW4HT      GCWWS4   GTTS4
GCW5HT      GCWWS5   GTTS5



Glide Cold Well – No Gantry & (Wall sited Front Airflow Panel) &
(Wall Sited Glide Cold Well Gantry).

Model Code  Option Codes
GCW2HT      GCWWS2   GWSAG2
GCW3HT      GCWWS3   GWSAG3
GCW4HT      GCWWS4   GWSAG4
GCW5HT      GCWWS5   GWSAG5



Glide Cold Well – No Gantry & (Wall sited Front Airflow Panel) &
(Wall Sited Glide Cold Well Gantry) & (Drop Down Tray Rail).

Model Code  Option Codes
GCW2HT      GCWWS2   GWSAG2  GTTS2
GCW3HT      GCWWS3   GWSAG3  GTTS3
GCW4HT      GCWWS4   GWSAG4  GTTS4
GCW5HT      GCWWS5   GWSAG5   GTTS5



Glide Cold Well – No Gantry & (Wall sited Front Airflow Panel) &
(Wall Sited Glide Cold Well Gantry) & (Drop Down Solid Tray Slide).
Model Code  Option Codes
GCW2HT      GCWWS2   GWSAG2  GSTS2
GCW3HT      GCWWS3   GWSAG3  GSTS3
GCW4HT      GCWWS4   GWSAG4  GSTS4
GCW5HT      GCWWS5   GWSAG5   GSTS5

Glide Cold Well – No Gantry & (Wall sited Front Airflow Panel) &
(Wall Sited Glide Cold Well Gantry) & (Drop Down Tray Rail) &
(Colour Finish – Red).

Model Code  Option Codes
GCW2HT      GCWWS2   GWSAG2  GTTS2  GPREDWSC2
GCW3HT      GCWWS3   GWSAG3  GTTS3  GPREDWSC3
GCW4HT      GCWWS4   GWSAG4  GTTS4  GPREDWSC4
GCW5HT      GCWWS5   GWSAG5  GTTS5  GPREDWSC5



Downloads

General Layout Drawings
(Wall Sited) Glide Cold Well – No Gantry.





Specification Sheet, Base Panel Colour Options, User Manual.
(Wall Sited) Glide Cold Well – No Gantry.





Model GCW2HT + GAG2 + GTTS2

Model GCW3HT + GAG3 + GTTS3
