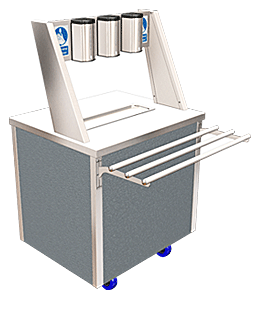

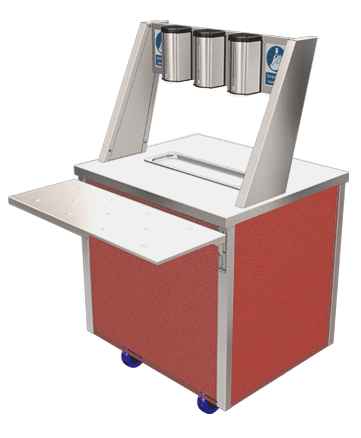

This modern auto electronic sanitising unit & storage cupboard forms part of the Glide range of mobile dining carts – a choice of cold, hot & ambient commercial catering carts that combine to form a food severy counter solution as unique as your requirements !

Glide Sanitising Dispenser Unit. This mobile sanitising point has lockable castors & is made in a convenient 2-1Gn size of 825(l) x 700(d) x 900mm(h). It can be positioned
within a counter run to suit the servery layout, or used at the dining hall entrance.
The model has (3)x auto electronic sanitising dispensers offering 1500 dose capacity & a gel storage cupboard under. The dispensers are suitable for high alcohol sanitiser gel =/>60%, have touchless operation from a sensor & use 4x rechargeable AA batteries each (recharging batteries/ battery charger included). The s/steel worktop has a removable drip tray (2-4 Gn x 20mm).
The front/side base panels are finished in leathergrain plastisol steel, colour merlin grey (BS 18B25). The unit has an ambient rear store cupboard c/w removable sliding s/steel doors & grid shelves.

Height Options. Low Height Model (Glide Junior) – in 850mm or 800mm high options for junior/ primary use.

Accessories & Finishes.
Folding Steel Solid or Tubular Tray Slides – Tray slides add 40mm to unit depth and are set at the worktop height – 55mm.

Colour Finishes To Front/ Side Panels  11 alternative choices of durable steel, colour & wood effect finishes for sanitiser unit front/ side panels, to compliment other selected models in the servery colour scheme.

Visual

Glide Sanitising Dispenser Unit.
Visual



Features

Glide Sanitising Dispenser Unit.
Features

  • Glide mobile dining cart, sanitising dispenser unit
  • Free standing application.
  • Model Code GSAN2.
  • 1500 dose capacity.
  • Gel storage cupboard under.
  • Unit size 825mm (l) x 700mm (d) x 900mm (h).
  • Suitable for high alcohol sanitiser gel =/>60%,
  • (3)x auto electronic gel dispensers with touchless, automatic infra-red detection cell.
  • Hinged dispenser lids for re-filling insitu.
  • Supplied with 4x rechargeable AA batteries each.
  • Supplied with battery charger included.
  • 1 no. removable drip tray (2-4 Gn x 20mm Gn pan).
  • Front/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25),
  • Worktop in 304 gd steel, all other external steel surfaces (sliding doors etc.) in 430gd.
  • Ambient rear store cupboard fitted with removable sliding s/steel doors.
  • Cupboard fitted with adjustable height shelving, removable grid shelves, for easy cleaning.
  • Fitted with lockable non-marking rubber tyre castors.
  • Unit weight 33kg.

Options

  • Optional folding s/steel solid tray slide available (option code GSTS2).
  • Optional folding s/steel tubular tray rail Ø25 tube, available (option code GTTS2).
  • Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm).
  • Optional choice of 11 solid colour & woodgrain base panel finishes available.
  • Optional low height model 850mm (h) available.
  • Optional low height model 800mm (h) available.**
  • **800mm (h) = bespoke option with extended lead time.**

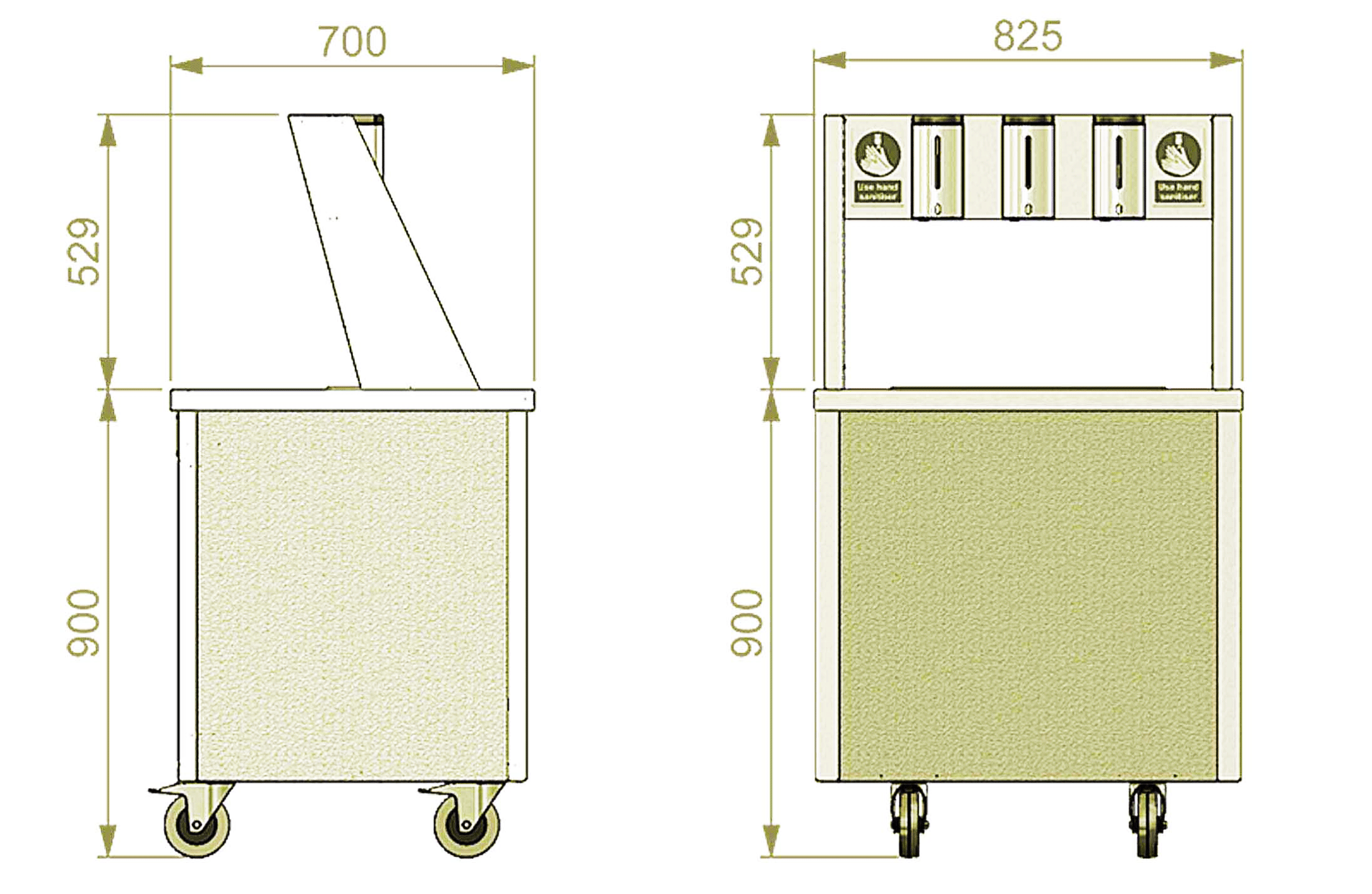

Dimensions

Glide Sanitising Dispenser Unit.
Dimensions

  • Model Code GSAN2.
  • 2/1 Gn Capacity.
  • Dimensions: 825mm (L) x 700mm (D) x 900mm (H).
  • Model weight 33 kg.
  • Total Sanitising Dispenser Capacity 1500 doses.
  • Dispensers Type: Hands Free Automatic Infra-Red Detection Cell.
  • Each Dispenser Supplied With 4 No. AA Rechargeable Batteries.
  • Battery Charger Included.
  • Worktop Finish 304gd S/steel.
  • Outer Panel Finish Plastisol Steel, Colour Merin Grey (BS18B25).
  • Other External Surface Finishes 430gd S/steel.
  • Lift Out Drip Tray Supplied – 2/4Gn x 20mm Container.
  • Rear Ambient Storage Cupboard c/w Removable Sliding S/steel Doors.
  • Adjustable Height Cupboard Shelving c/w Removable Wire Grid Shelves.
  • Supplied With Lockable Castors With Non-Marking Rubber Tyres.
  • Power Supply N/A.

OPTIONS :  Glide Sanitising Dispenser Unit (Model GSAN2).

Option

Code

Option

Code

Option

Code

Solid
S/steel
Tray Slide
(Folding)

GSTS2

Tubular
S/steel Tray
Rail
(Folding)

GTTS2

Low Height
Model
850mm (h)

G850H

Low Height
Model
800mm (h)

G800H

Satin S/steel
Panels
(430gd.)

GSSTLCHA2

Colour Panels
Ocean Blue
(BS18C37)

GBLUECHA2

Colour Panels
Light Grey
(BS10A05)

GGREYCHA2

Colour Panels
Forest Green
(RAL6002)

GGRENCHA2

Colour Panels
Poppy Red
(BS04E5B)

GPREDCHA2

Colour Panels
Cream
(BS10c31)

GCREMCHA2

Colour Panels
White
(BS00E55)

GWHITCHA2

Colour Panels
Black
(BS00E53)

GBLAKCHA2

Woodgrain Panels
Walnut
(DL85)

GWALNCHA2

Woodgrain Panels
Beech
(DL76)

GBEECCHA2

Woodgrain Panels
Oak
(DL84)

GOAKCHA2

Popular Model Codes & Options

SUMMARY : Popular Model Codes & Options

Model Code

Option Code

XXX

Glide Sanitising Dispenser Unit
(& Tray Slide)

GSAN2

GSTS2

YYYYX

Glide Sanitising Dispenser Unit
(& Tray Rail)

GSAN2

GTTS2

YYYY

Glide Sanitising Dispenser Unit
(& Colour Finish – Red)

GSAN2

GPREDCHA2

YYYY

Glide Sanitising Dispenser Unit
(& Tray Rail & Colour Finish – Red)

GSAN2

GTTS2

GPREDCHA2

Glide Sanitising Dispenser Unit
(& Tray Slide & Colour Finish – Red)

GSAN2

GSTS2

GPREDCHA2

Glide Sanitising Dispenser Unit
(& Colour Finish – Blue)

GSAN2

GBLUECHA2

YYYY



Options

Glide Sanitising Dispenser Unit.
Options.

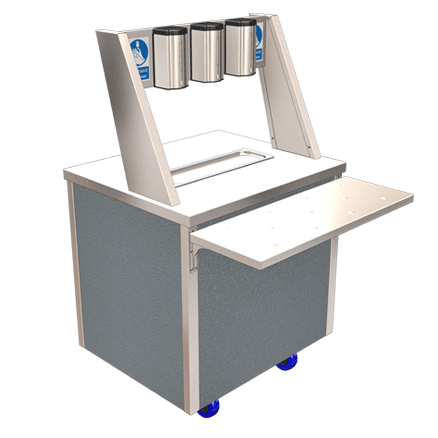

Glide S/Steel Folding Solid Tray Slide.
(GSTS2) Glide option: 2-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type, up position adds 302mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

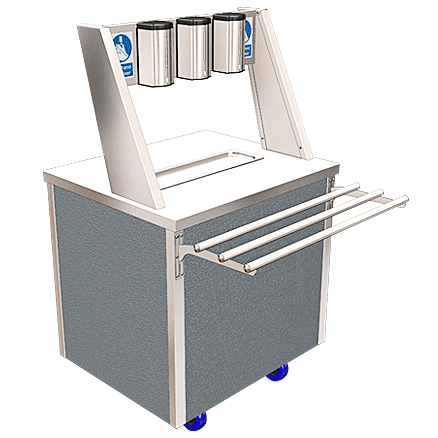

Glide S/Steel Folding Tubular Tray Rail.
(GTTS2) Glide option: 2-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube, drop down bracket type, up position adds 298 mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Low Height Model ( Glide Junior) – 850mm.
(G850H) Glide junior option: (all cold, hot, ambient, till & corner units) 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model ( Glide Junior) – 800mm.
(G800H) Glide junior option: (all cold, hot, ambient, till & corner units) 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). * Bespoke Option/ Extended Lead Time *

Glide Colour Finishes To Front/ Side Panels.

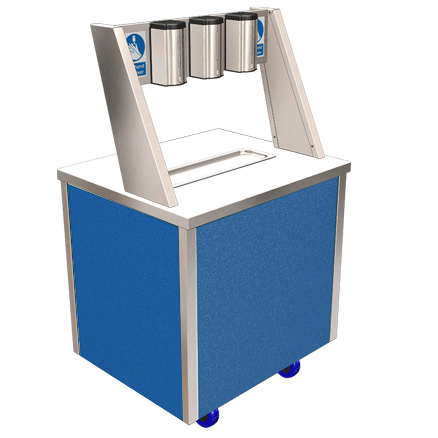

Blue Finish. (Option Code GBLUECHA2) 2-1 Gn full set of front panel/ sides in leathergrain plastisol steel, colour ocean blue (BS 18C37). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix). This common set of panels fits all 2-1 Gn cold wells/m.decks-doors/ amb. cupbds/ hot cupbds.

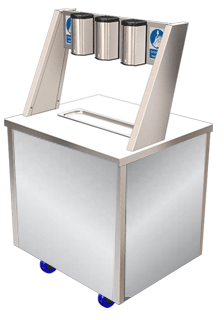

S/steel Finish. (Option Code GSSTLCHA2) 2-1 Gn full set of front panel/ sides in satin s/steel 430 gd. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix). This common set of panels fits all 2-1 Gn cold wells/m.decks-doors/ amb. cupbds/ hot cupbds.

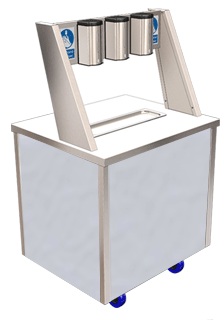

Light Grey Finish. (Option Code GGREYCHA2) 2-1 Gn full front panel/ sides in leathergrain plastisol steel, colour goosewing light grey (BS 10A05). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix). This common set of panels fits all 2-1 Gn cold wells/m.decks-doors/ amb. cupbds/ hot cupbds.

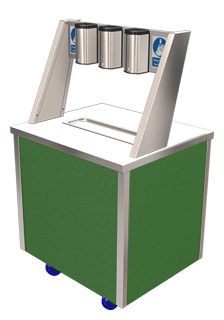

Forest Green Finish. (Option Code GGRENCHA2) 2-1 Gn full front panel/ sides in leathergrain plastisol steel, colour forest green/heritage (RAL 6002). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix). This common set of panels fits all 2-1 Gn cold wells/m.decks-doors/ amb. cupbds/ hot cupbds.

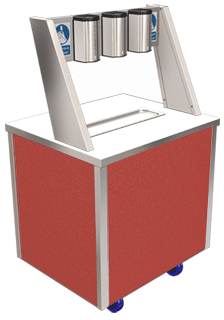

Poppy Red Finish. (Option Code GPREDCHA2) 2-1 Gn full front panel/ sides in leathergrain plastisol steel, colour poppy red (BS 04E5B). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix). This common set of panels fits all 2-1 Gn cold wells/m.decks-doors/ amb. cupbds/ hot cupbds.

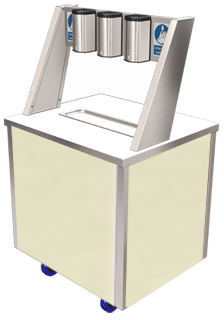

Cream Finish. (Option Code GCREMCHA2) 2-1 Gn full front panel/ sides in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix). This common set of panels fits all 2-1 Gn cold wells/m.decks-doors/ amb. cupbds/ hot cupbds.

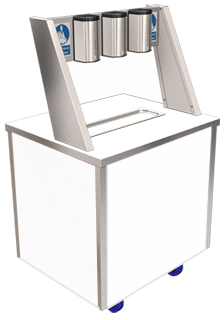

White Finish. (Option Code GWHITCHA2) 2-1 Gn full front panel/ sides in leathergrain plastisol steel, colour white (BS 00E55). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix). This common set of panels fits all 2-1 Gn cold wells/m.decks-doors/ amb. cupbds/ hot cupbds.

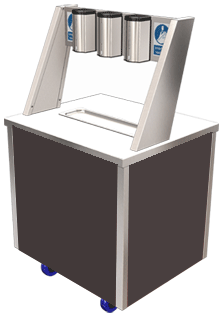

Black Finish. (Option Code GBLAKCHA2) 2-1 Gn full front panel/ sides in leathergrain plastisol steel, colour black (BS 00E53). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix). This common set of panels fits all 2-1 Gn cold wells/m.decks-doors/ amb. cupbds/ hot cupbds.

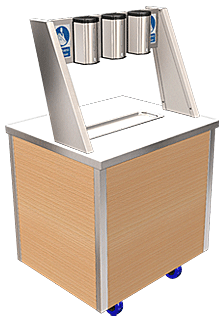

Beech Woodgrain Finish. (Option Code GBEECCHA2) 2-1 Gn full front panel/ sides in wood grain effect, DL76 beech finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix). This common set of panels fits all 2-1 Gn cold wells/m.decks-doors/ amb. cupbds/ hot cupbds.

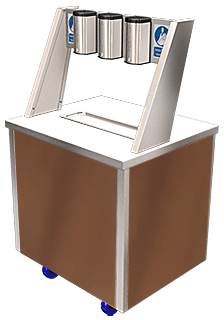

Walnut Woodgrain Finish. (Option Code GWALNCHA2) 2-1 Gn full front panel/ sides in wood grain effect panel, DL85 walnut finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix). This common set of panels fits all 2-1 Gn cold wells/m.decks-doors/ amb. cupbds/ hot cupbds.

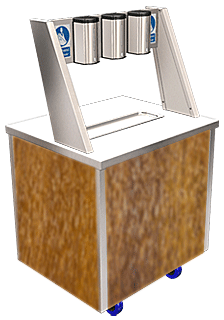

Oak Woodgrain Finish. (Option Code GOAKCHA2)  2-1 Gn full front panel/ sides in wood grain effect, DL84 oak finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix). This common set of panels fits all 2-1 Gn cold wells/m.decks-doors/ amb. cupbds/ hot cupbds.



Options Codes :  Glide Sanitising Dispenser Unit (Model GSAN2).

Option

Code

Option

Code

Option

Code

Solid
S/steel
Tray Slide
(Folding)

GSTS2

Tubular
S/steel Tray
Rail
(Folding)

GTTS2

Low Height
Model
850mm (h)

G850H

Low Height
Model
800mm (h)

G800H

Satin S/steel
Panels
(430gd.)

GSSTLCHA2

Colour Panels
Ocean Blue
(BS18C37)

GBLUECHA2

Colour Panels
Light Grey
(BS10A05)

GGREYCHA2

Colour Panels
Forest Green
(RAL6002)

GGRENCHA2

Colour Panels
Poppy Red
(BS04E5B)

GPREDCHA2

Colour Panels
Cream
(BS10c31)

GCREMCHA2

Colour Panels
White
(BS00E55)

GWHITCHA2

Colour Panels
Black
(BS00E53)

GBLAKCHA2

Woodgrain Panels
Walnut
(DL85)

GWALNCHA2

Woodgrain Panels
Beech
(DL76)

GBEECCHA2

Woodgrain Panels
Oak
(DL84)

GOAKCHA2



Popular Model Codes & Options.

Glide Sanitising Dispenser Unit ( & Tray Slide)
Model Code      Option Code
GSAN2              GSTS2







Glide Sanitising Dispenser Unit ( & Tray Rail)
Model Code      Option Code
GSAN2              GTTS2







Glide Sanitising Dispenser Unit (& Colour Finish – Red)
Model Code      Option Code
GSAN2             GPREDCHA2









Glide Sanitising Dispenser Unit ( & Tray Rail & Colour Finish – Red)
Model Code      Option Code    Option Code
GSAN2              GTTS2            GPREDCHA2







Glide Sanitising Dispenser Unit (& Tray Slide & Colour Finish – Red)
Model Code      Option Code     Option Code
GSAN2              GSTS2             GPREDCHA2









Glide Sanitising Dispenser Unit (& Colour Finish – Blue)
Model Code      Option Code
GSAN2             GBLUECHA2





Downloads

General Layout Drawings
Glide Sanitising Dispenser Unit.







Specification Sheet, Base Panel Colour Options, User Manual.
Glide Sanitising Dispenser Unit.




Visual

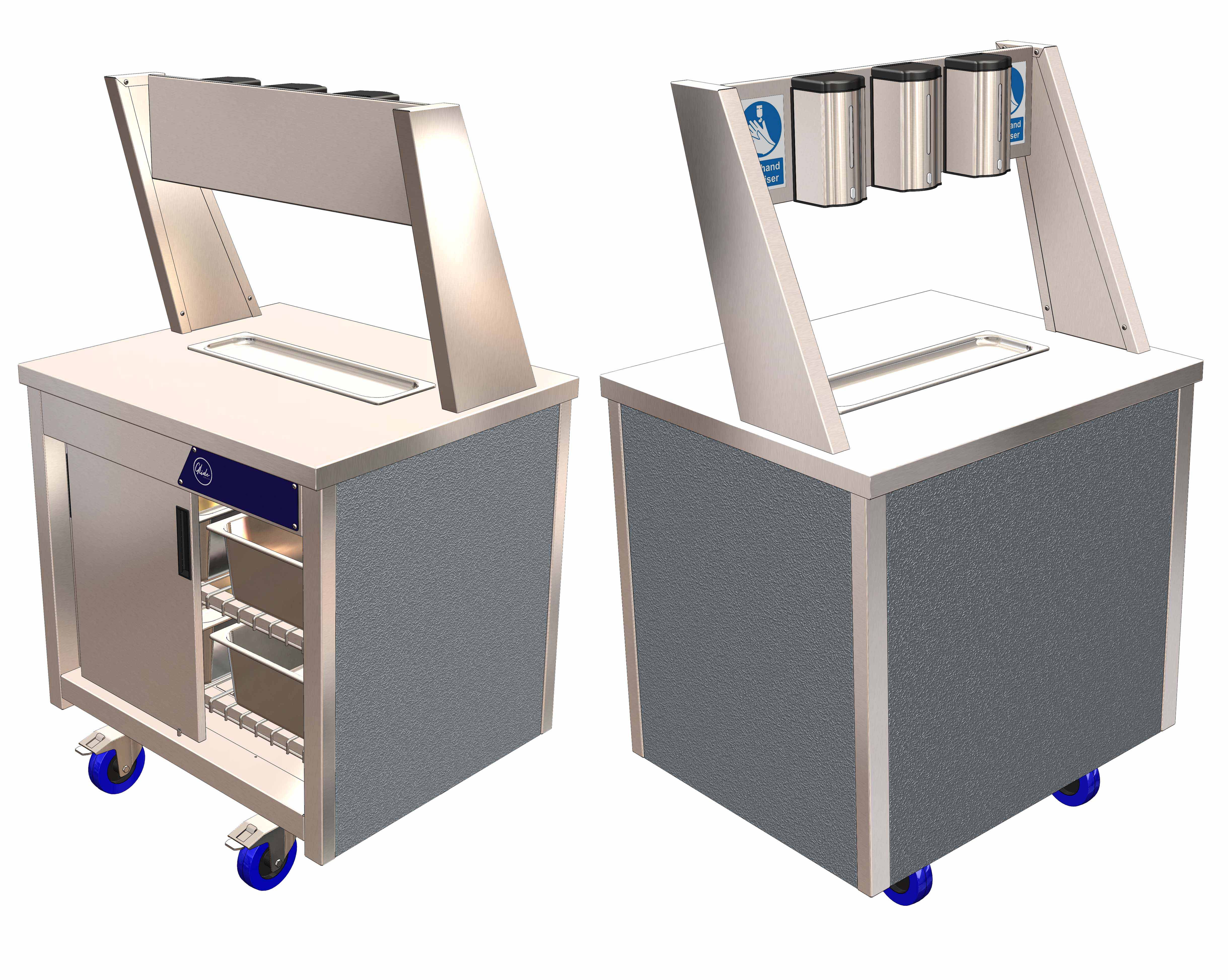

(Wall Sited) Glide Sanitising Dispenser Unit.
Visual



Features

(Wall Sited) Glide Sanitising Dispenser Unit.
Features

  • Glide mobile dining cart, sanitising dispenser unit.
  • Wall sited application.
  • Model Code GWSSAN2.
  • 1500 dose capacity.
  • Gel storage cupboard under.
  • Unit size 825mm (l) x 700mm (d) x 900mm (h).
  • Suitable for high alcohol sanitiser gel =/>60%,
  • (3)x auto electronic gel dispensers with touchless, automatic infra-red detection cell.
  • Hinged dispenser lids for re-filling insitu.
  • Supplied with 4x rechargeable AA batteries each.
  • Supplied with battery charger included.
  • 1x removable drip tray (2-4 Gn x 20mm Gn pan).
  • Rear/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25),
  • Worktop in 304 gd steel, all other external steel surfaces (sliding doors etc.) in 430gd.
  • Ambient front facing store cupboard fitted with removable front sliding doors, doors finished in leathergrain plastisol steel, colour merlin grey (BS 18B25),
  • Cupboard fitted with adjustable height shelving & removable grid shelves, for easy cleaning.
  • Fitted with lockable non-marking rubber tyre castors.
  • Unit weight 33kg.
  • Optional folding s/steel solid tray slide available.
  • Optional folding s/steel tubular tray rail Ø25 tube, available.
  • Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm).
  • Optional choice of 11 solid colour & woodgrain base panel finishes available.
  • Optional low height model 850mm (h) available.
  • Optional low height model 800mm (h) available.
  • **800 mm = Bespoke option with extended lead time**.

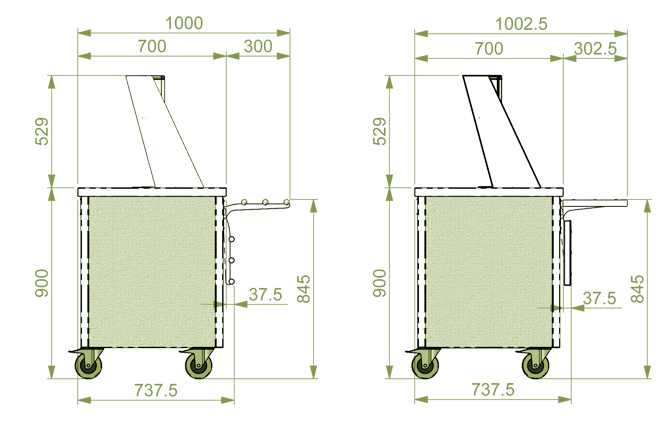

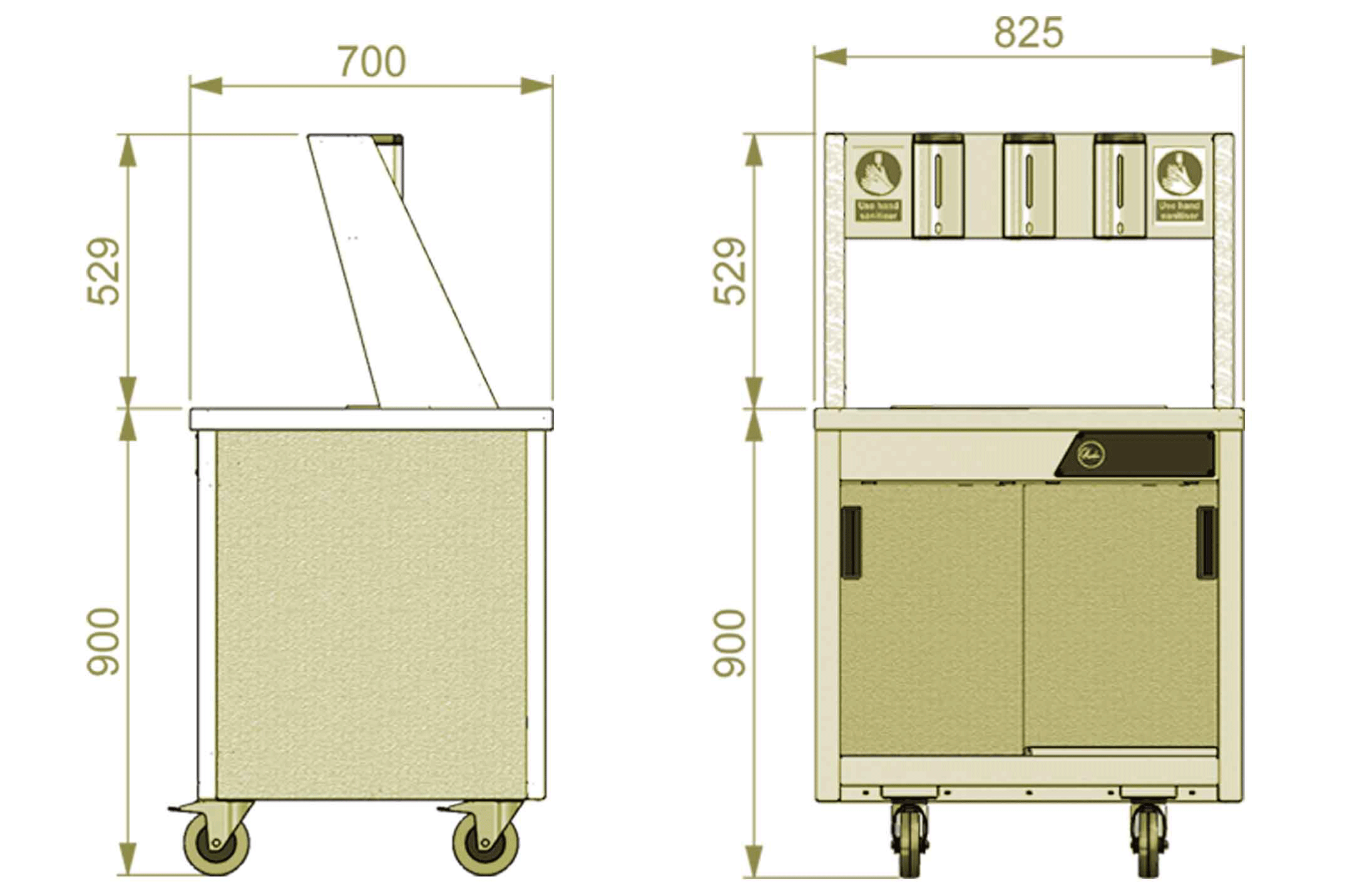

Dimensions

(Wall Sited) Glide Sanitising Dispenser Unit.
Dimensions

  • Model Code GWSSAN2.
  • 2/1 Gn Capacity.
  • Dimensions: 825mm (L) x 700mm (D) x 900mm (H).
  • Model weight 33 kg.
  • Total Sanitising Dispenser Capacity 1500 doses.
  • Dispensers Type: Hands Free Automatic Infra-Red Detection Cell.
  • Each Dispenser Supplied With 4 No. AA Rechargeable Batteries.
  • Battery Charger Included.
  • Worktop Finish 304gd S/steel.
  • Outer Panel Finish Plastisol Steel, Colour Merin Grey (BS18B25).
  • Other External Surface Finishes 430gd S/steel.
  • Lift Out Drip Tray Supplied – 2/4Gn x 20mm Container.
  • Rear Ambient Storage Cupboard c/w Removable Sliding S/steel Doors.
  • Adjustable Height Cupboard Shelving c/w Removable Wire Grid Shelves.
  • Supplied With Lockable Castors With Non-Marking Rubber Tyres.
  • Power Supply N/A.

OPTIONS :  (Wall Sited) Glide Sanitising Dispenser Unit (Model GWSSAN2).

Option

Code

Option

Code

Option

Code

Solid
S/steel
Tray Slide
(Folding)

GSTS2

Tubular
S/steel Tray
Rail
(Folding)

GTTS2

Low Height
Model
850mm (h)

G850H

Low Height
Model
800mm (h)

G800H

Satin S/steel
Panels
(430gd.)

GSSTLWSA2

Colour Panels
Ocean Blue
(BS18C37)

GBLUEWSA2

Colour Panels
Light Grey
(BS10A05)

GGREYWSA2

Colour Panels
Forest Green
(RAL6002)

GGRENWSA2

Colour Panels
Poppy Red
(BS04E5B)

GPREDWSA2

Colour Panels
Cream
(BS10c31)

GCREMWSA2

Colour Panels
White
(BS00E55)

GWHITWSA2

Colour Panels
Black
(BS00E53)

GBLAKWSA2

Woodgrain Panels
Walnut
(DL85)

GWALNWSA2

Woodgrain Panels
Beech
(DL76)

GBEECWSA2

Woodgrain Panels
Oak
(DL84)

GOAKWSA2

Popular Model Codes & Options

SUMMARY : Popular Model Codes & Options

Model Code

Option Code

XXX

Wall Sited Glide Sanitising Dispenser Unit
( & Tray Slide)

GWSSAN2

GSTS2

YYYYX

Wall Sited Glide Sanitising Dispenser Unit
( & Tray Rail)

GWSSAN2

GTTS2

YYYY

Wall Sited Glide Sanitising Dispenser Unit
(& Colour Finish – Red)

GWSSAN2

GPREDWSA2

YYYY

Wall Sited Glide Sanitising Dispenser Unit
(& Tray Rail & Colour Finish – Red)

GWSSAN2

GTTS2

GPREDWSA2



Wall Sited Glide Sanitising Dispenser Unit
(& Tray Slide & Colour Finish – Red)

GWSSAN2

GSTS2

GPREDWSA2

Wall Sited Glide Sanitising Dispenser Unit
(& Colour Finish – Blue)

GWSSAN2

GBLUEWSA2

YYYY



Options

(Wall Sited) Glide Sanitising Dispenser Unit.
Options.

Glide S/Steel Folding Solid Tray Slide.
(GSTS2) Glide option: 2-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type, up position adds 302mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.





Glide S/Steel Folding Tubular Tray Rail.
(GTTS2) Glide option: 2-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube, drop down bracket type, up position adds 298 mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Low Height Model ( Glide Junior) – 850mm.
(G850H) Glide junior option: (all cold, hot, ambient, till & corner units) 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model ( Glide Junior) – 800mm.
(G800H) Glide junior option: (all cold, hot, ambient, till & corner units) 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). * Bespoke Option/ Extended Lead Time *

Glide Colour Finishes To Front/ Side Panels.

Blue Finish. (Option Code GBLUEWSA2) 2-1 Gn full set of front doors/ sides in leathergrain plastisol steel, colour ocean blue (BS 18C37). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

S/steel Finish. (Option Code GSSTLWSA2) 2-1 Gn full set of front doors/ sides in satin s/steel 430 gd. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Light Grey Finish. (Option Code GGREYWSA2) 2-1 Gn full front doors/ sides in leathergrain plastisol steel, colour goosewing light grey (BS 10A05). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Forest Green Finish. (Option Code GGRENWSA2) 2-1 Gn full front doors/ sides in leathergrain plastisol steel, colour forest green/heritage (RAL 6002). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Poppy Red Finish. (Option Code GPREDWSA2) 2-1 Gn full front doors/ sides in leathergrain plastisol steel, colour poppy red (BS 04E5B). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Cream Finish. (Option Code GCREMWSA2) 2-1 Gn full front doors/ sides in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

White Finish. (Option Code GWHITWSA2) 2-1 Gn full front doors/ sides in leathergrain plastisol steel, colour white (BS 00E55). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Black Finish. (Option Code GBLAKWSA2) 2-1 Gn full front doors/ sides in leathergrain plastisol steel, colour black (BS 00E53). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Beech Woodgrain Finish. (Option Code GBEECWSA2) 2-1 Gn full front doors/ sides in wood grain effect, DL76 beech finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Walnut Woodgrain Finish. (Option Code GWALNWSA2) 2-1 Gn full front doors/ sides in wood grain effect panel, DL85 walnut finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).

Oak Woodgrain Finish. (Option Code GOAKWSA2)  2-1 Gn full front doors/ sides in wood grain effect, DL84 oak finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel (if fitted) & has an under-panel mechanical screw fix).



Options Codes : (Wall Sited) Glide Sanitising Dispenser Unit (Model GWSSAN2).

Option

Code

Option

Code

Option

Code

Solid
S/steel
Tray Slide
(Folding)

GSTS2

Tubular
S/steel Tray
Rail
(Folding)

GTTS2

Low Height
Model
850mm (h)

G850H

Low Height
Model
800mm (h)

G800H

Satin S/steel
Panels
(430gd.)

GSSTLWSA2

Colour Panels
Ocean Blue
(BS18C37)

GBLUEWSA2

Colour Panels
Light Grey
(BS10A05)

GGREYWSA2

Colour Panels
Forest Green
(RAL6002)

GGRENWSA2

Colour Panels
Poppy Red
(BS04E5B)

GPREDWSA2

Colour Panels
Cream
(BS10c31)

GCREMWSA2

Colour Panels
White
(BS00E55)

GWHITWSA2

Colour Panels
Black
(BS00E53)

GBLAKWSA2

Woodgrain Panels
Walnut
(DL85)

GWALNWSA2

Woodgrain Panels
Beech
(DL76)

GBEECWSA2

Woodgrain Panels
Oak
(DL84)

GOAKWSA2



Popular Model Codes & Options.

(Wall Sited) Glide Sanitising Dispenser Unit ( & Tray Slide)
Model Code      Option Code
GWSSAN2        GSTS2







(Wall Sited) Glide Sanitising Dispenser Unit
( & Tray Rail)

Model Code      Option Code
GWSSAN2        GTTS2







(Wall Sited) Glide Sanitising Dispenser Unit (& Colour Finish – Red)
Model Code      Option Code
GWSSAN2        GPREDWSA2







(Wall Sited) Glide Sanitising Dispenser Unit ( & Tray Rail & Colour Finish – Red)
Model Code      Option Code    Option Code
GWSSAN2        GTTS2             GPREDWSA2







(Wall Sited) Glide Sanitising Dispenser Unit (& Tray Slide & Colour Finish – Red)
Model Code      Option Code     Option Code
GWSSAN2        GSTS2             GPREDWSA2







(Wall Sited) Glide Sanitising Dispenser Unit (& Colour Finish – Blue)
Model Code      Option Code
GWSSAN2        GBLUEWSA2



Downloads

General Layout Drawings
(Wall Sited) Glide Sanitising Dispenser Unit.







Specification Sheet, Base Panel Colour Options, User Manual.
(Wall Sited) Glide Sanitising Dispenser Unit.
