The soup station dry heat bain marie & ambient storage cupboard forms part of the Glide range of mobile dining carts – a choice of cold, hot & ambient commercial catering carts that combine to form a food severy counter solution as unique as your requirements !

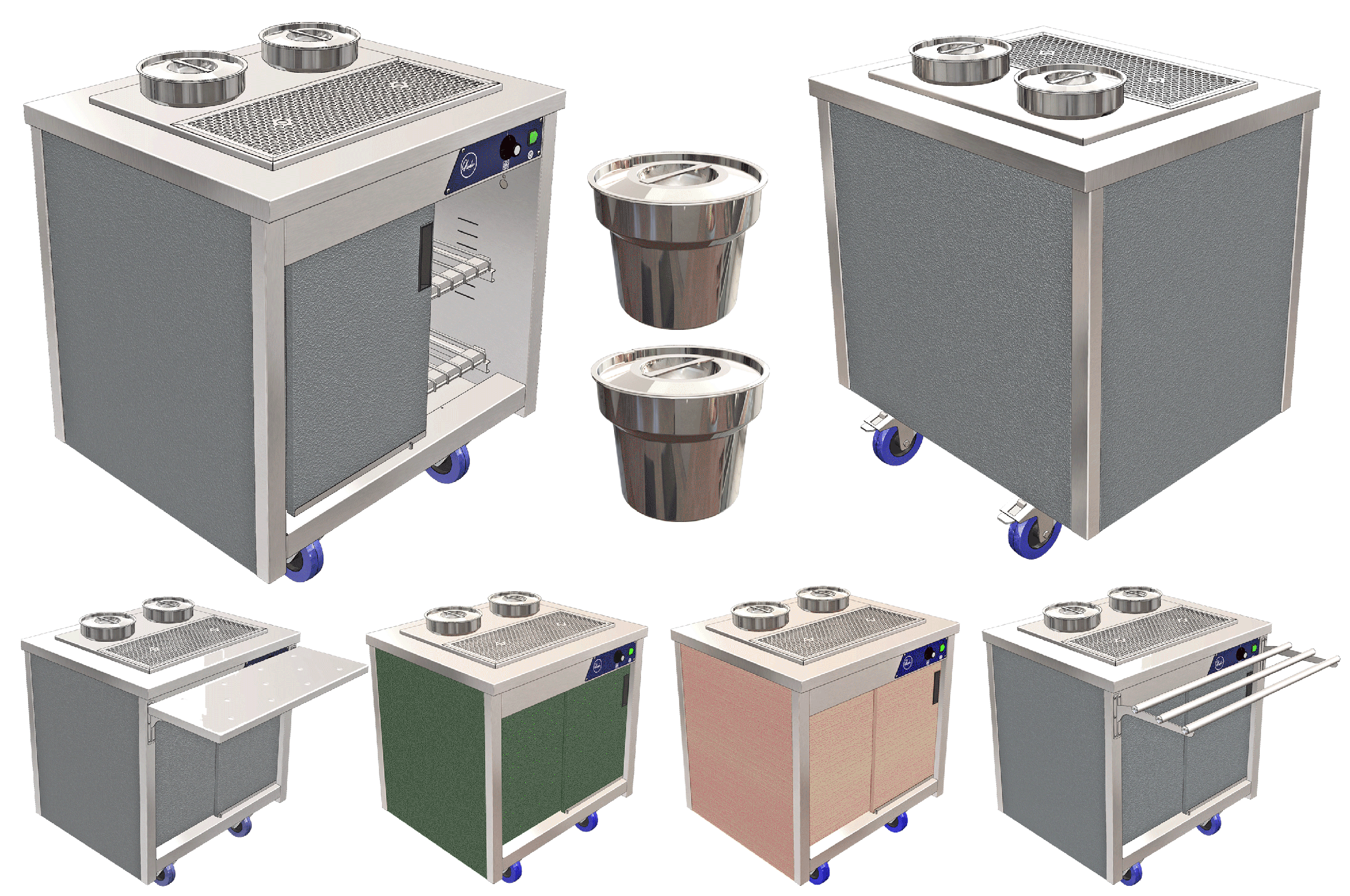

Glide Soup Station.
The Glide soup station is a mobile bain marie (dry heat) & ambient storage cupboard with full front/ side fascia panels, a reversible s/steel bain marie insert & a cupboard with two tiers of wire rack shelving below.

Each shelf is adjustable in height and fully removable for cleaning. The operator side rear s/steel sliding doors are also removable. The soup station features 2 x 4.5 litre containers with notched lids (for ladles) and a removable drip tray section. The containers can be used to hold gravy, custard etc. by adjusting the thermostat control.

The Soup Station is available as 2-1Gn (825mm) long x 700mm (D), 900mm (H) & has locking heavy duty castors.

Reversible Top.
The soup station has a reversible bain marie insert within a s/steel worktop. Standard insert position is Assisted Service = 2x 4.5 lt. soup pots to front, 1x drip tray to rear. Optional insert position is Self Help = 1x drip tray to front, 2x 4.5 lt. soup pots to rear. (The insert lifts out for reversing to a self help position & allows simple repositioning of the suspended hairpin heating element under).

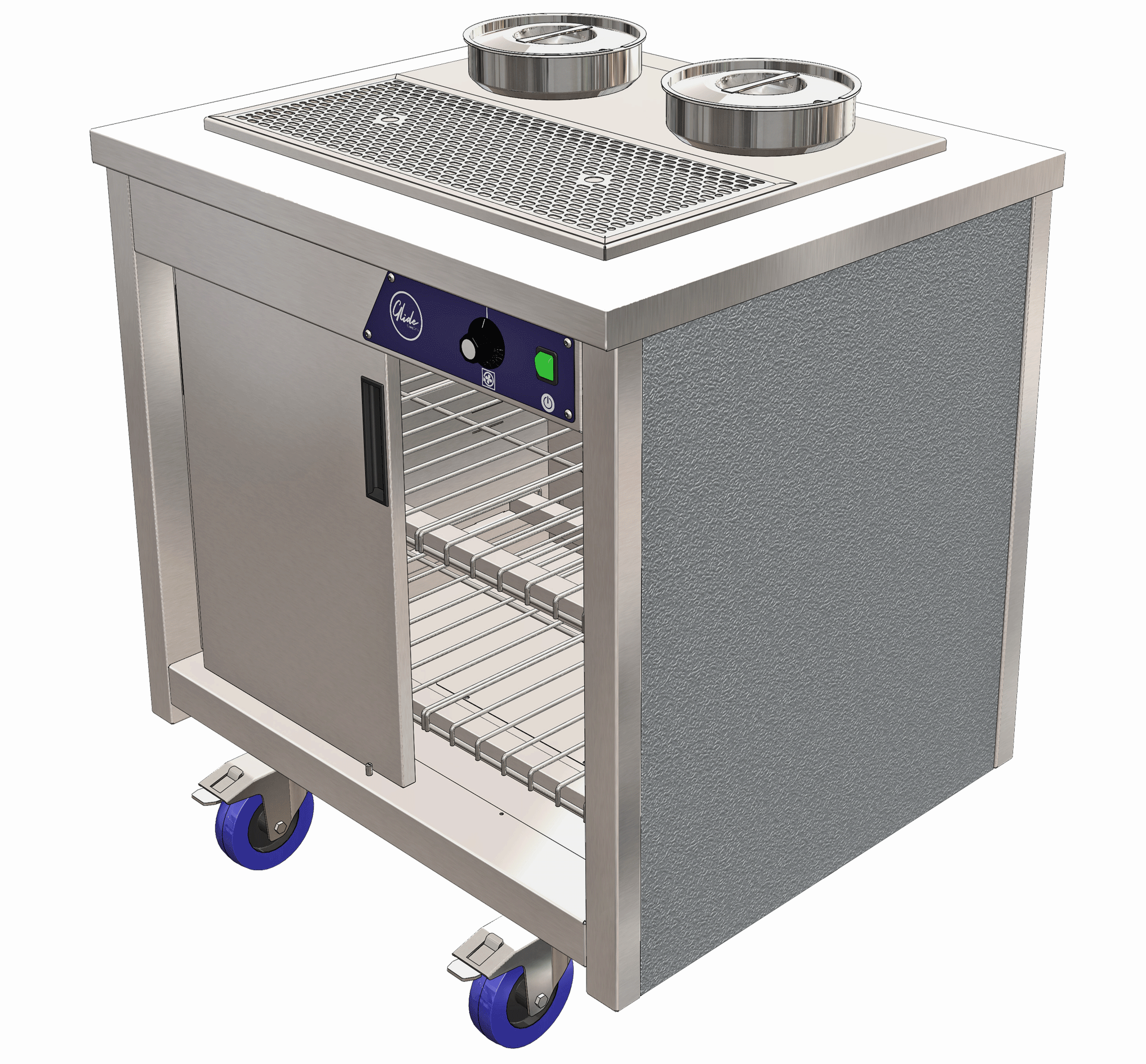

Ambient Storage Cupboard. The ambient storage cupboard underneath has 2 tier adjustable internal grid shelves, both are removable for cleaning. The rear sliding s/steel cupboard doors are also removable for access. The front/side base panels are in leathergrain plastisol steel, colour merlin grey (BS 18B25), The unit has lockable castors and control panel to operator side. It is supplied with a 3m lead and a 13A UK plug top (0.75 Kw).

The soup station features thermostatic control & a neon mains power on/off switch.

Finishes & Options. Base and outer end panels in plastisol steel, colour merlin grey. The bain marie worktop is made from 304 gd s/steel & the rear facing doors & surfaces are in 430gd.s/steel. The soup station can be customised with many accessories such as tray slides, tray rails, colour finishes and low height versions for junior/ primary age use.

Wall Sited. A wall sited version of the Soup Station is also available, for use in alcoves, recesses or back to back as island units, c/w front facing sliding merlin grey plastisol steel finish doors/ sides, low heights, & colour finishes for the base cupboard front ambient sliding doors & sides. (See separate model GWSSUP2).

Height Options. Low Height Model (Glide Junior) – in 850mm or 800mm high options for junior/ primary use.

Accessories & Finishes.

Folding Steel Solid or Tubular Tray Slides Tray slides add 40mm to unit depth and are set at the worktop height – 55mm.

Colour Finishes To Front/ Side Panels – 11 alternative choices of durable steel, colour & wood effect finishes for front/ side panels, to compliment other selected models in the servery colour scheme.

Visual

Glide Soup Station.
Visual



Features

Glide Soup Station.
Features

  • Glide mobile dining cart, bain marie (dry heat) soup station and ambient storage cupboard.
  • Free standing application.
  • Pre-heated soup, gravy or custard holding.
  • Model Code GSUP2.
  • Bain marie (dry heat) section with 2 x 4.5 lt. soup pots/ notched lids in a reversible insert within s/steel worktop.
  • Bain marie section includes 1 x removable drip tray.

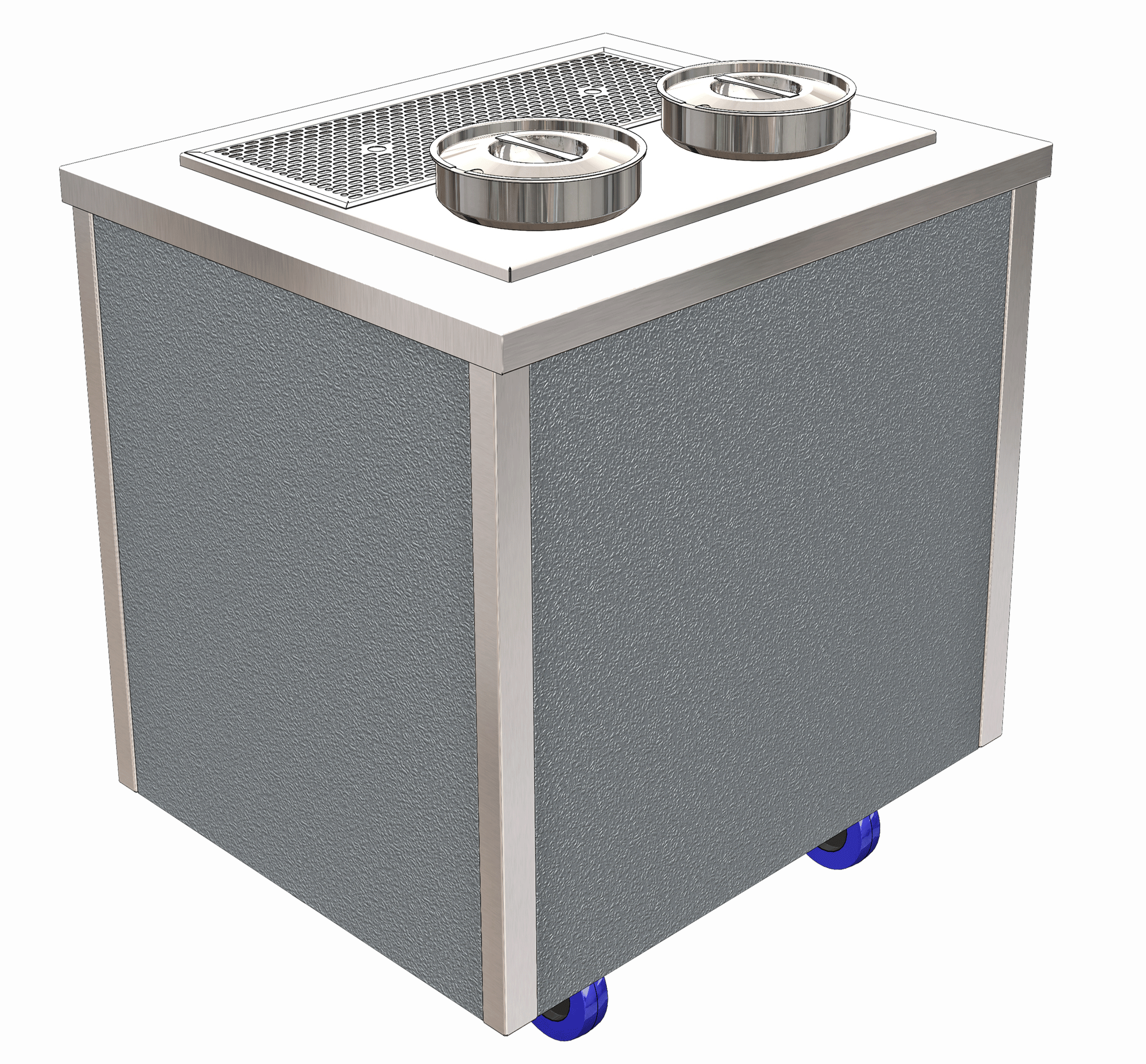

  • Assisted Service (Standard Position) or Self Help (Reversible Section)

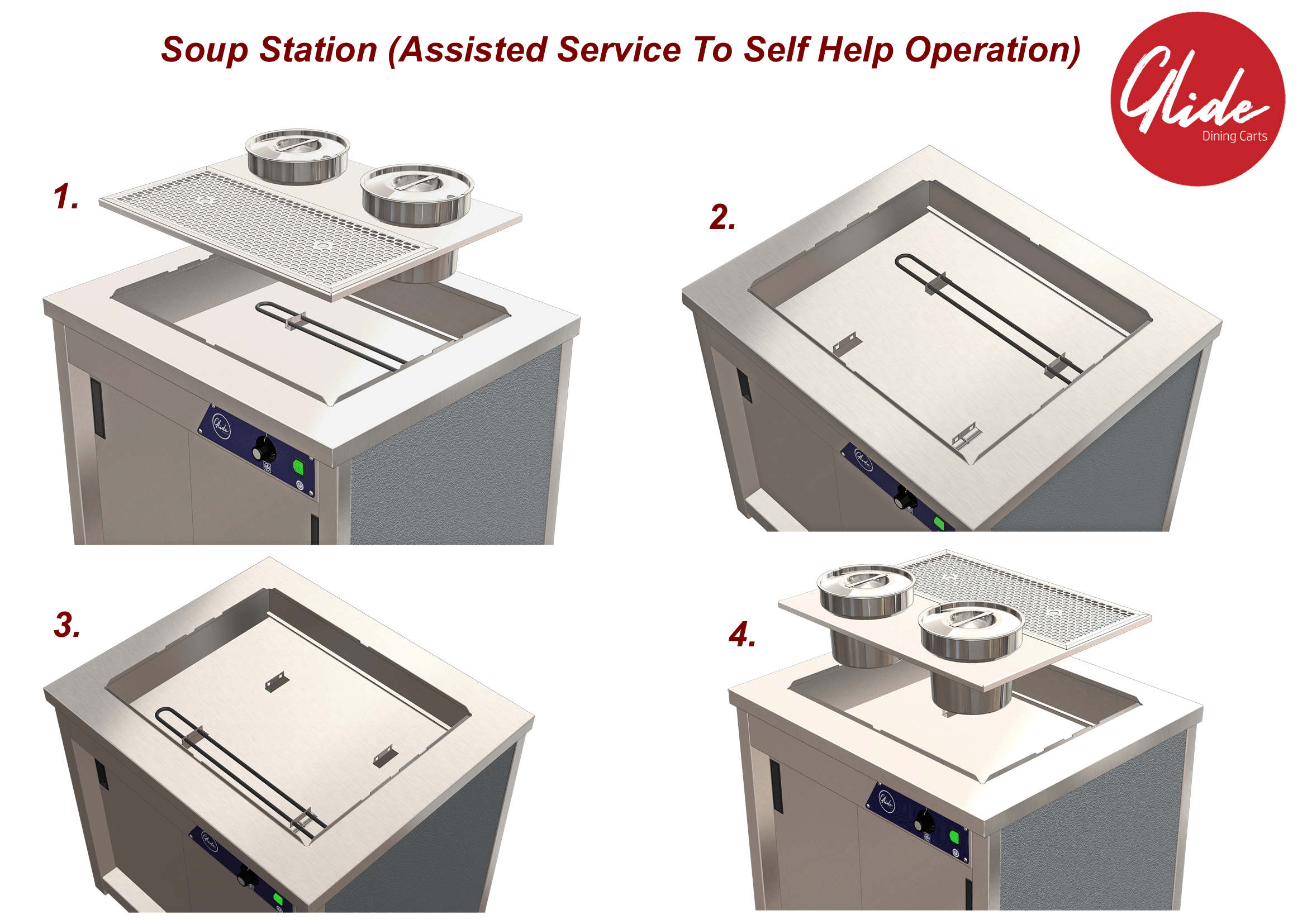

  • Bain marie (dry heat) section lifts out for reversing the service position & allows simple repositioning of suspended hairpin element under.
  • Model size 825 mm (l) x 700 mm (d) x 900 mm (h) – 2/1 Gn size.
  • Rear ambient storage cupboard fitted with removable sliding s/steel doors.
  • Cupboard fitted with adjustable height shelving, removable grid shelves, for easy cleaning.
  • Fitted with lockable non-marking rubber tyre castors.
  • Storage cupboard accommodates up to (4) x 1-1 Gn 150mm (d) containers (not included).
  • Front/ side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Worktop in 304 gd steel, all other external steel surfaces (rear sliding doors/ valance & corner trims etc.) in 430gd.
  • Model weight 45kg.
  • Total power 0.75kW 13A 230v.
  • Fitted with 3m lead & plug top, for connection to dedicated 13A SSO.
  • Bain marie soup station features thermostatic control & neon mains power on/off switch.
  • Wall sited version (Model GWSSUP2) for alcoves, recesses or within a wall sited counter run.

Glide Range: Electrical Connections.

  • Most Glide mobile units are operated by 13A plug top connected to a dedicated single socket outlet (SSO) (13A), unless its’ power supply exceeds 13A.
  • If connected to a double socket outlet, care must be taken not to exceed the circuit capacity.

Glide Range: Electrical Trailing Lead Protection.

  • CED recommend the use of  proprietary cable covers to protect overground trailing leads, to reduce trip hazards, limit accidental electrical partial plug disconnection and to keep wire safe from impact damage, as damaged cable wire can cause an electrical fault.
  • HSE GOV.UK Guidance On Planning And Managing Temporary Electrical Installations Re: Cabling.
    ‘Route cables to minimise tripping hazards or potential mechanical damage, and in a position that allows them to be safely installed and removed. Give particular care to the position of cable connections. You can also use cable ramps or similar to protect cables running overground across route ways to help avoid them becoming tripping hazards’

Options

  • Optional folding s/steel solid tray slide available (option code GSTS2).
  • Optional folding s/steel tubular tray rail Ø25 tube, available (option code GTTS2).
  • Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm).
  • Optional choice of 11 solid colour & woodgrain base outer side panel finishes available.
  • Optional low height model 850mm (h) available.
  • Optional low height model 800mm (h) available.*
  • 800mm (h) = bespoke option with extended lead time.*

*For best performance always keep lids on containers when not serving, stir food in containers regularly*

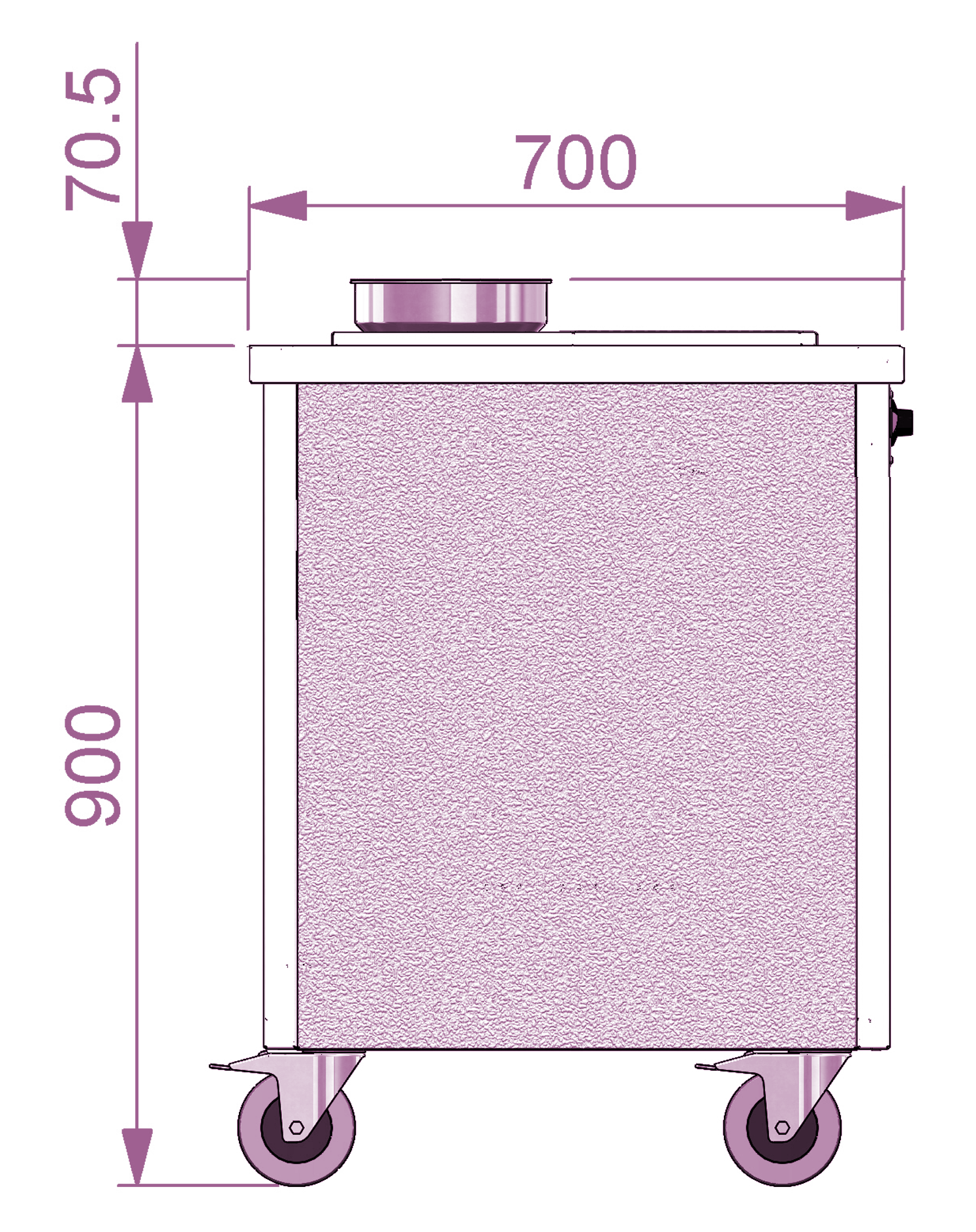

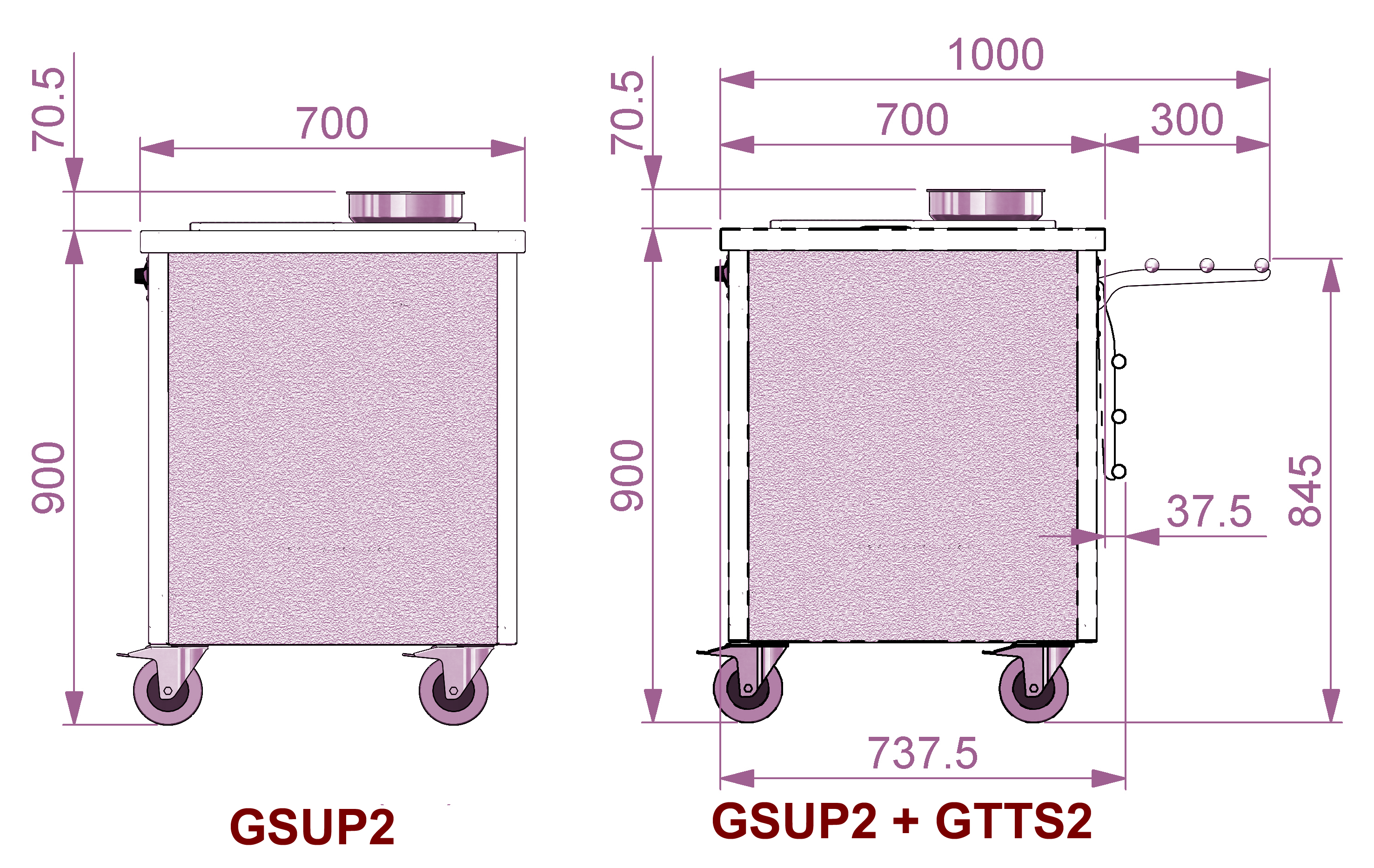

Dimensions

Glide Soup Station.
Dimensions

  • Model Code GSUP2.
  • Glide mobile dining cart, bain marie (dry heat) soup station and ambient storage cupboard.
  • 2/1 Gn size.

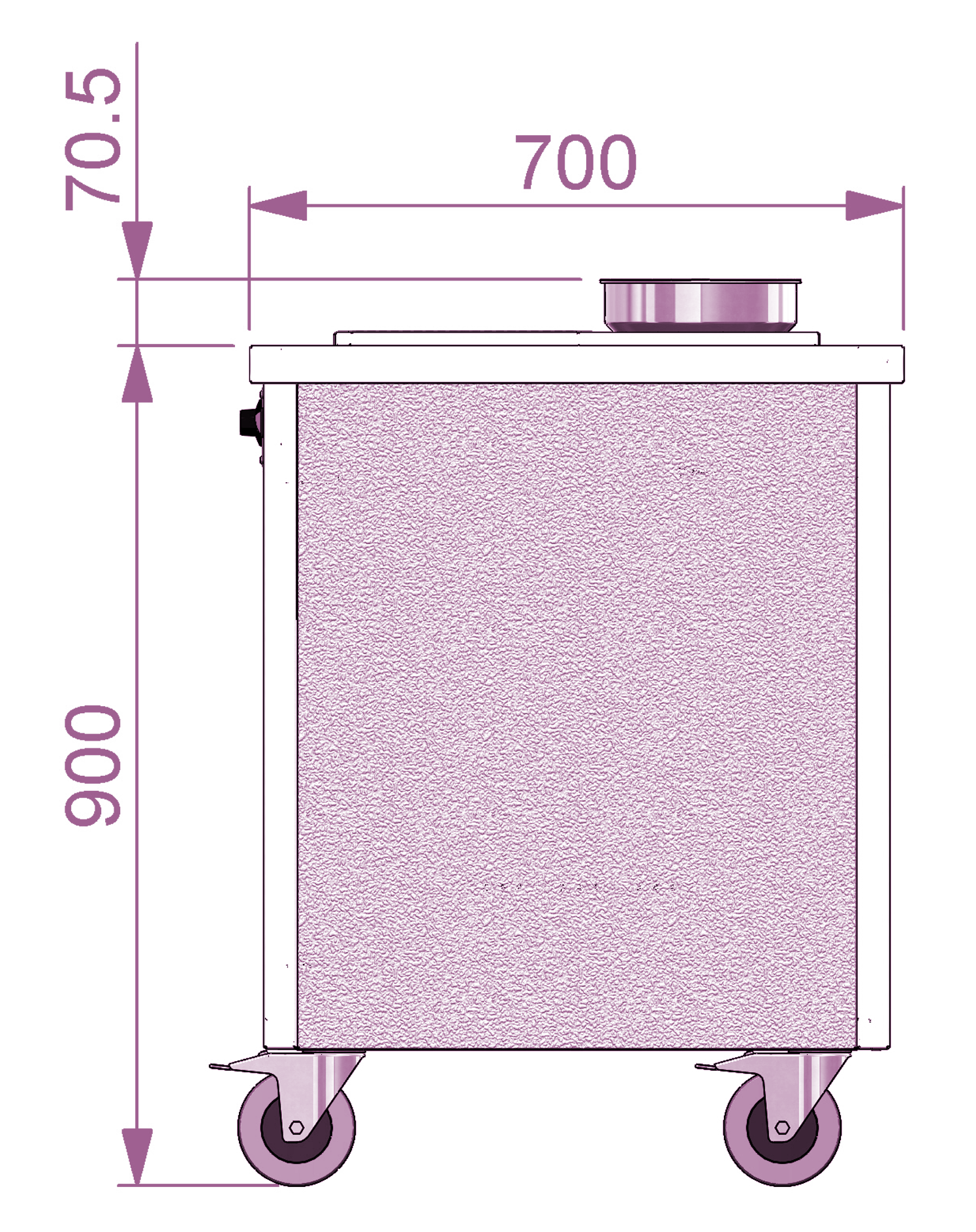

  • Model dimensions: 825 mm (l) x 700 mm (d) x 900 mm (h).
  • Model weight 45 kg.
  • Bain marie soup station features thermostatic control & neon mains power on/off switch.
  • Storage cupboard accommodates up to (4) x 1-1 Gn 150mm (d) containers (not included).
  • Front/ side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Worktop in 304 gd steel, all other external steel surfaces (rear sliding doors/ valance & corner trims etc.) in 430gd.
  • Model weight 45kg.
  • Total power 0.75kW 13A 230v.
  • Fitted with 3m lead & plug top, for connection to dedicated 13A SSO.
  • Model depth with optional folding tray slide/tray rail fitted: tray slide up = 1000mm (d)/ tray slide down = 740mm (d).
  • Optional low height model 850mm (h) available.
  • Optional low height model 800mm (h) available.*
  • 800mm (h) = bespoke option with extended lead time.*

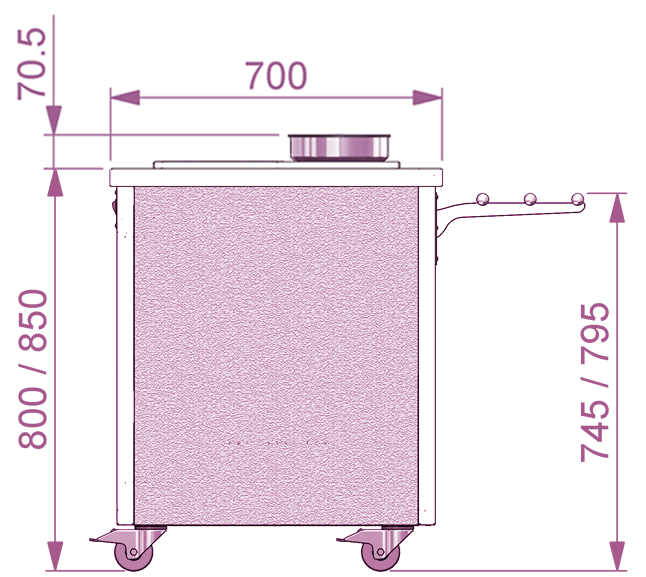

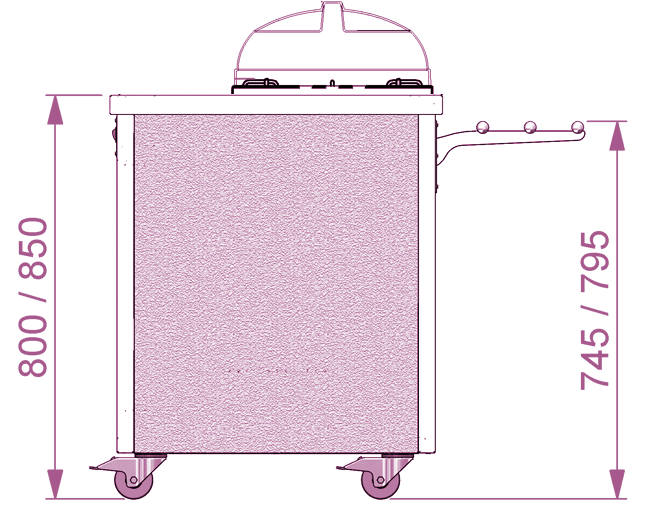

  • Optional tray slide height:
    standard 900 mm (h) worktop
    = 845 mm,
    low height 850 mm model
    = 795mm (h),
    low height 800 mm model
    = 745mm (h).
  • Supplied With Lockable Castors With Non-Marking Rubber Tyres.

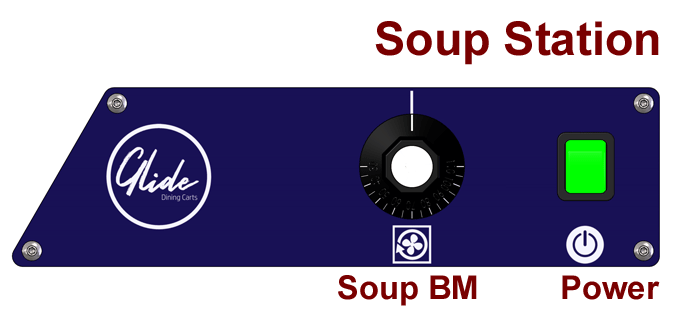

* Control panel to operator side features thermostat control & illuminated rocker switch for power on/off .


Options : Glide Soup Station (Model GSUP2).

Option

Code

Option

Code

 Option

Code

Drop Down Solid
S/steel
Tray Slide

GSTS2

Drop Down Tubular
S/steel Tray
Rail

GTTS2

Low Height
Model
850mm (h)

G850H

Low Height
Model
800mm (h)

G800H

Satin S/steel
Front & Side Panels
(430gd.)

GSSTLCHA2

Colour Front & Side Panels
Ocean Blue
(BS18C37)

GBLUECHA2

Colour Front & Side Panels
Light Grey
(BS10A05)

GGREYCHA2

Colour Front & Side Panels
Forest Green
(RAL6002)

GGRENCHA2

Colour Front & Side Panels
Poppy Red
(BS04E5B)

GPREDCHA2

Colour Front & Side Panels
Cream
(BS10c31)

GCREMCHA2

Colour Front & Side Panels
White
(BS00E55)

GWHITCHA2

Colour Front & Side Panels
Black
(BS00E53)

GBLAKCHA2

Woodgrain Front & Side Panels
Walnut
(DL85)

GWALNCHA2

Woodgrain Front & Side Panels
Beech
(DL76)

GBEECCHA2

Woodgrain Front & Side Panels
Oak
(DL84)

GOAKCHA2





Popular Model Codes & Options

Model

Model Code

Option Code

Option Code



Glide Soup Station
(& Solid Tray Slide)

GSUP2

GSTS2

Glide Soup Station
(& Tubular Tray Rail)

GSUP2

GTTS2

Glide Soup Station
(& Colour Finish Ends – Red)

GSUP2

GPREDCHA2

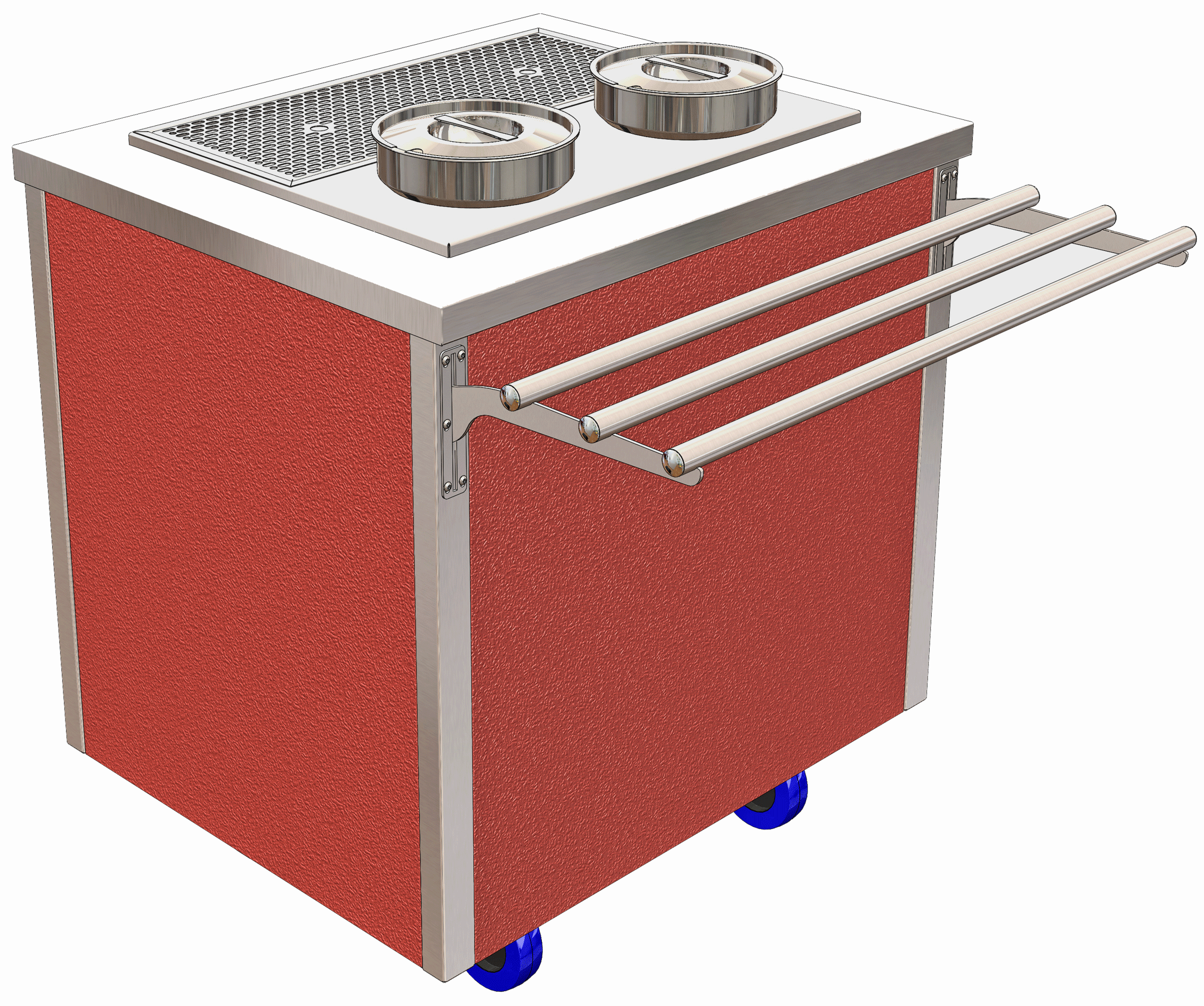

Glide Soup Station
(& Tubular Tray Rail & Colour Finish Front/ Sides – Red)

GSUP2

GTTS2

GPREDCHA2



Glide Soup Station
(& Solid Tray Slide & Colour Finish Front/ Sides – Red)

GSUP2

GSTS2

GPREDCHA2



Glide Soup Station
(& Colour Finish Ends – Blue)

GSUP2

GBLUECHA2



Options

Glide Soup Station.
Options.

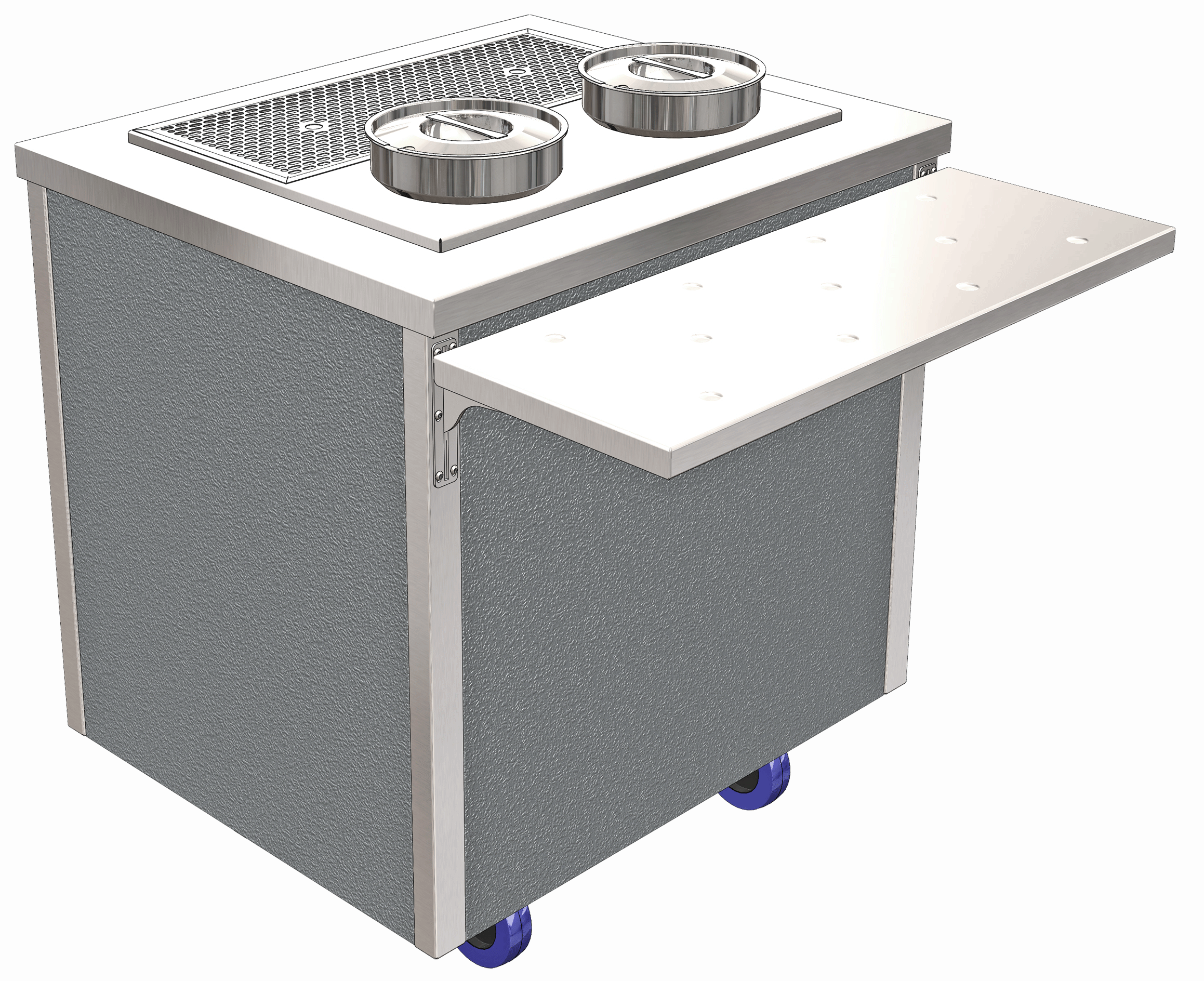

Glide S/Steel Folding Solid Tray Slide.
(Option Code GSTS2) Glide option: 2-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type.
Up position adds 302mm to depth. Down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

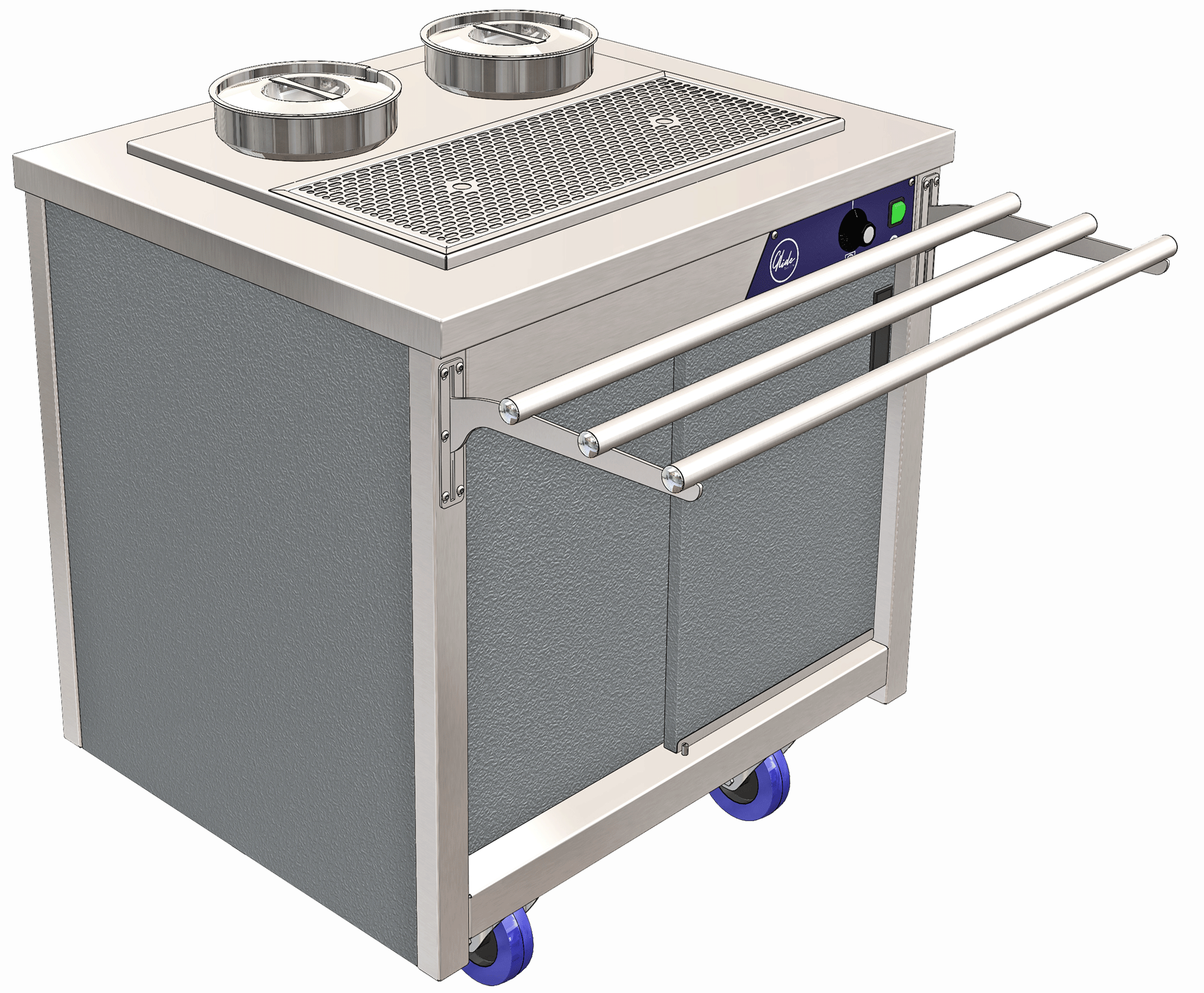

Glide S/Steel Folding Tubular Tray Rail.
(Option Code GTTS2) Glide option: 2-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube. Drop down bracket type.
Up position adds 298 mm to depth. Down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

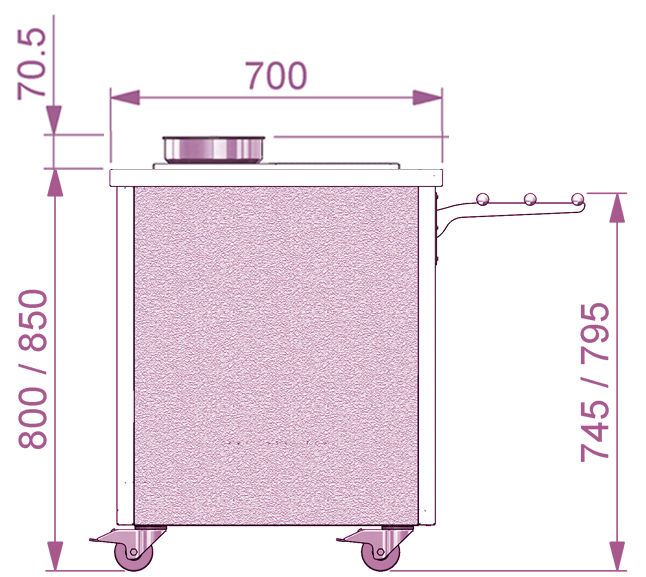

Low Height Model ( Glide Junior) – 850mm.
(Option Code G850H) Glide junior option: (all cold, hot, ambient, till & corner units) 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model ( Glide Junior) – 800mm.
(Option Code G800H) Glide junior option: (all cold, hot, ambient, till & corner units) 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). * Bespoke Option/ Extended Lead Time *

Glide Colour Finishes To Front/ Side Panels.

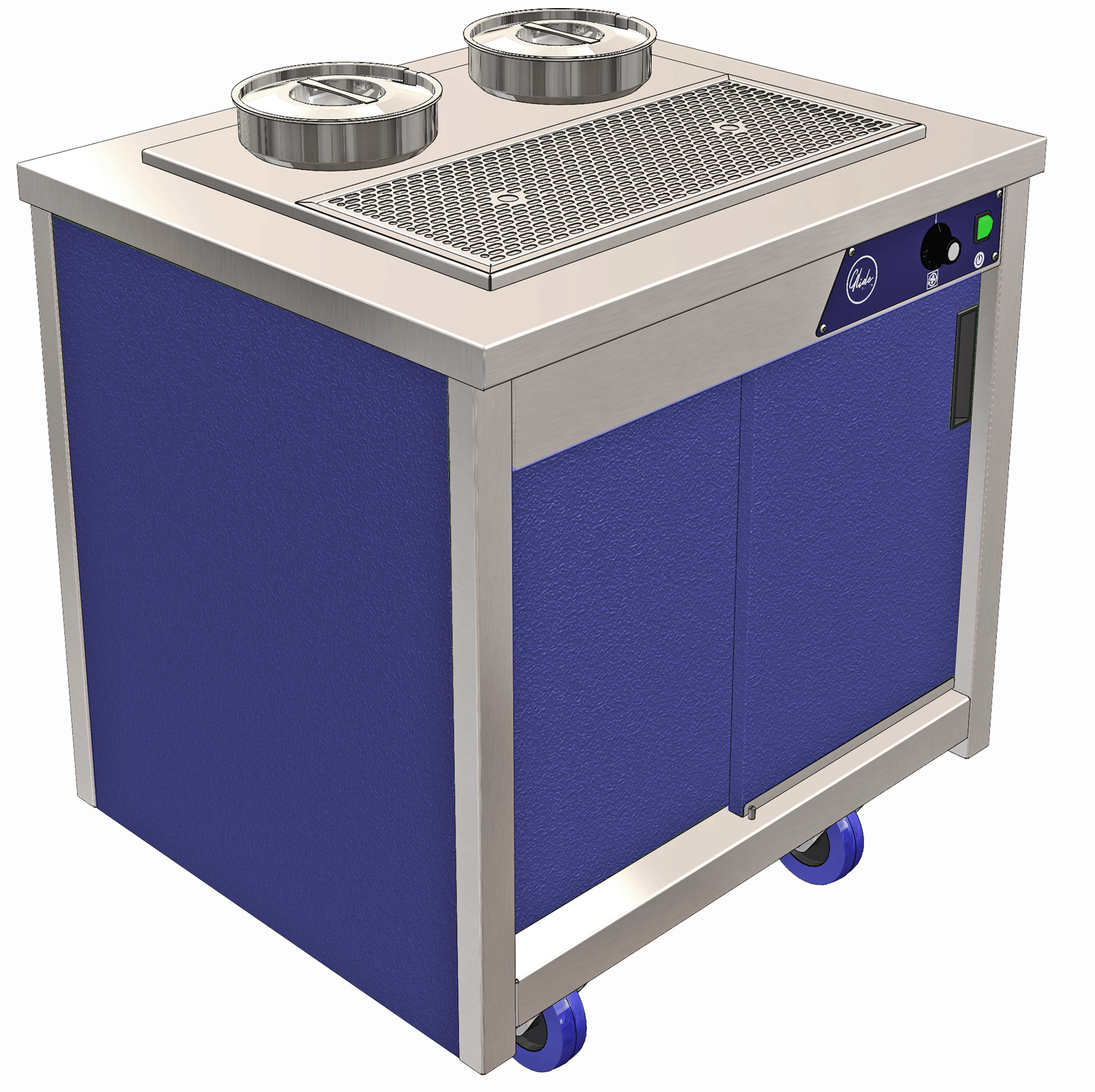

Blue Finish. (Option Code GBLUECHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour ocean blue (BS 18C37) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

S/steel Finish. (Option Code GSSTLCHA2) 2-1 Gn set of outer side panels in satin s/steel 430 gd. to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

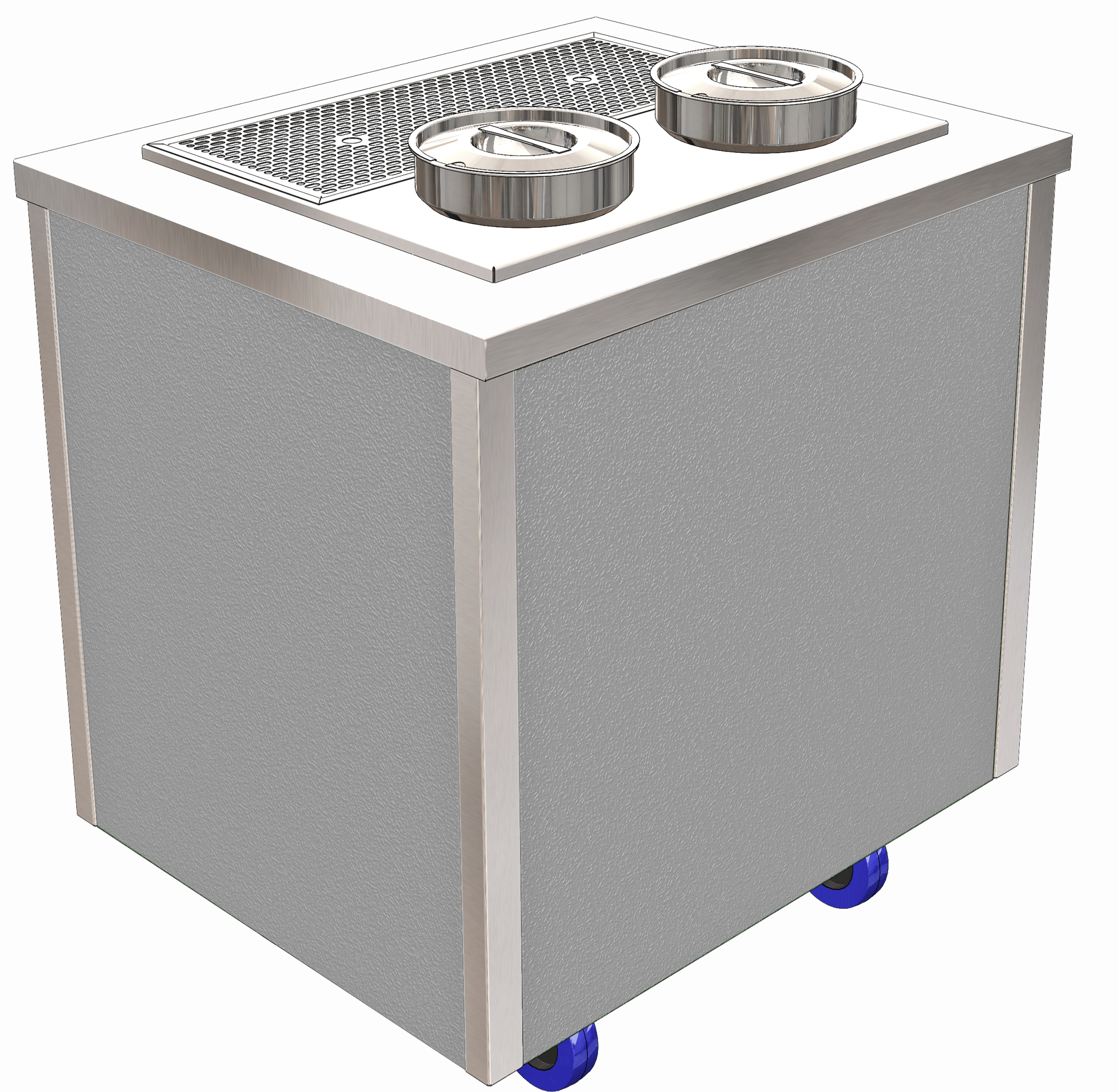

Light Grey Finish. (Option Code GGREYCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour goosewing light grey (BS 10A05) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

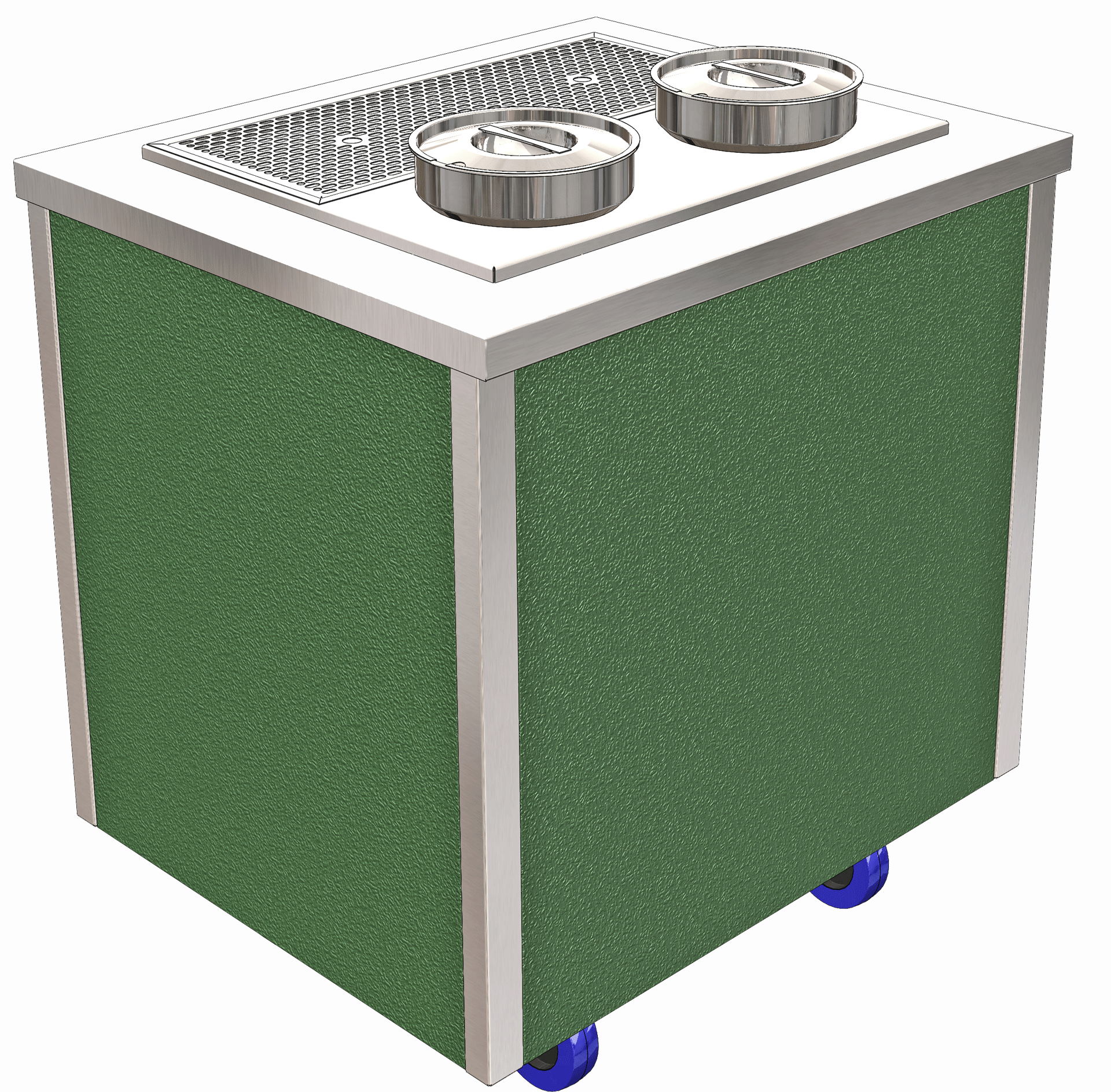

Forest Green Finish. (Option Code GGRENCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour forest green/heritage (RAL 6002) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

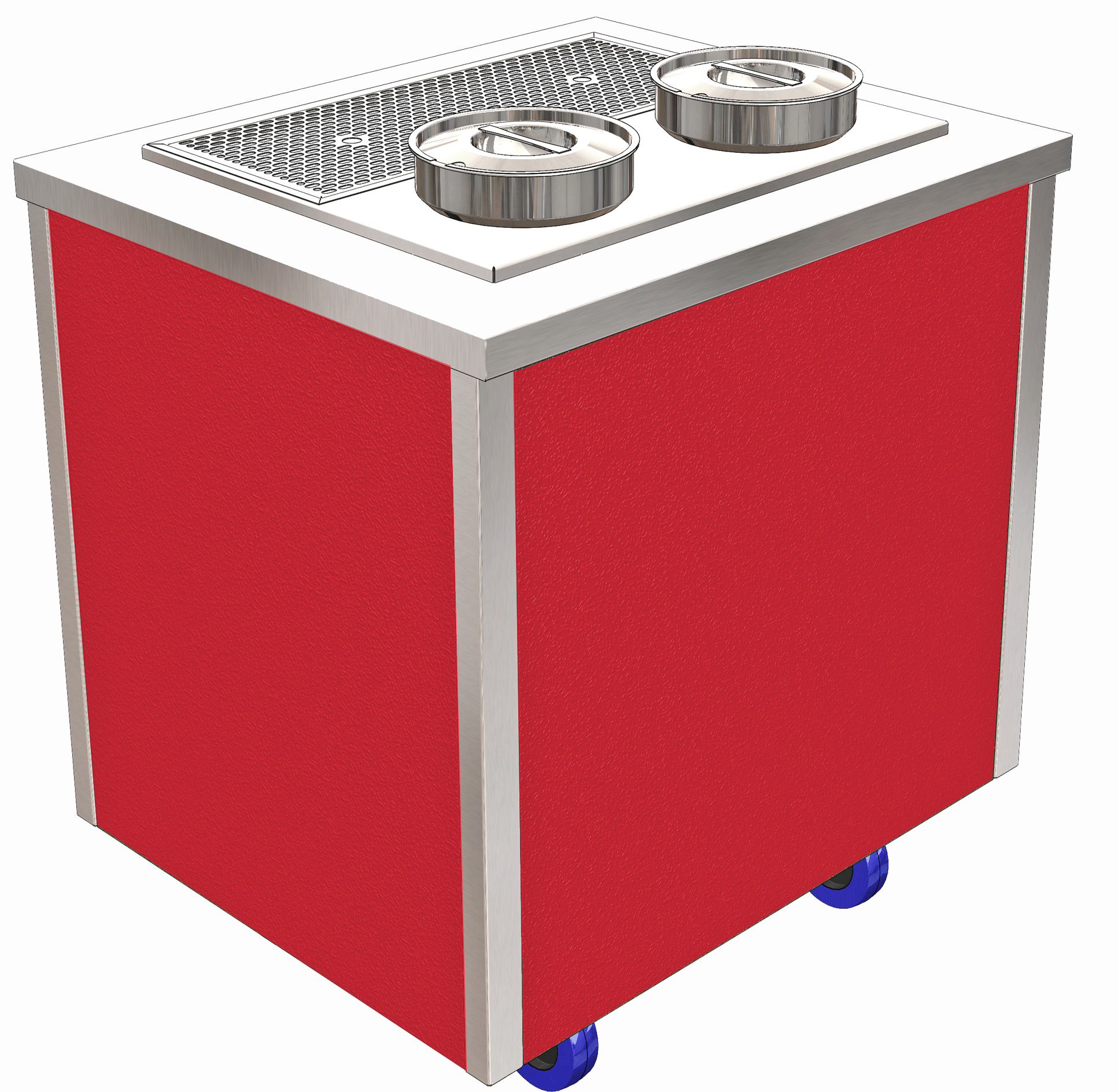

Poppy Red Finish. (Option Code GPREDCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour poppy red (BS 04E5B) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Cream Finish. (Option Code GCREMCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

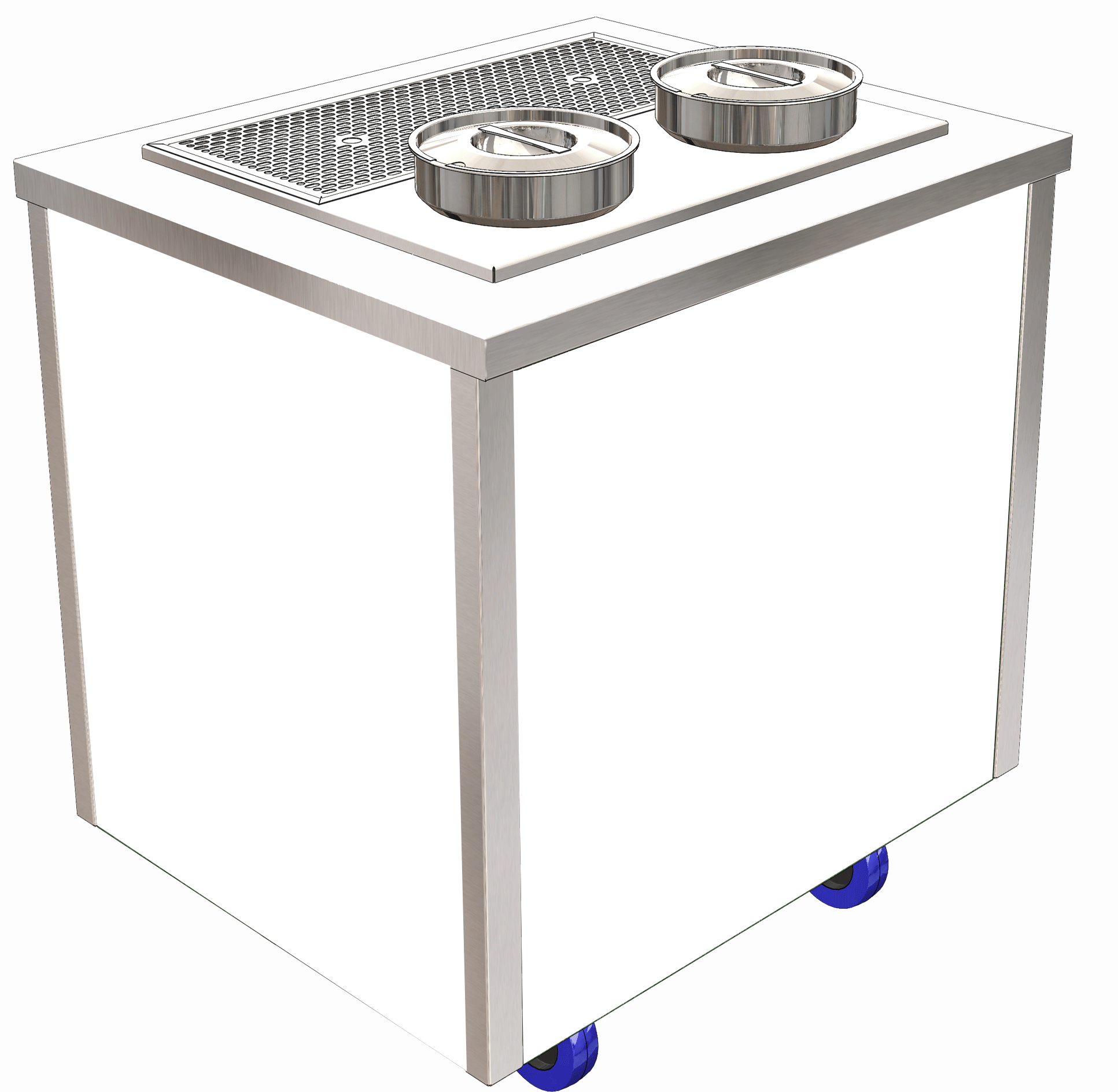

White Finish. (Option Code GWHITCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour white (BS 00E55)  to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Black Finish. (Option Code GBLAKCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour black (BS 00E53) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

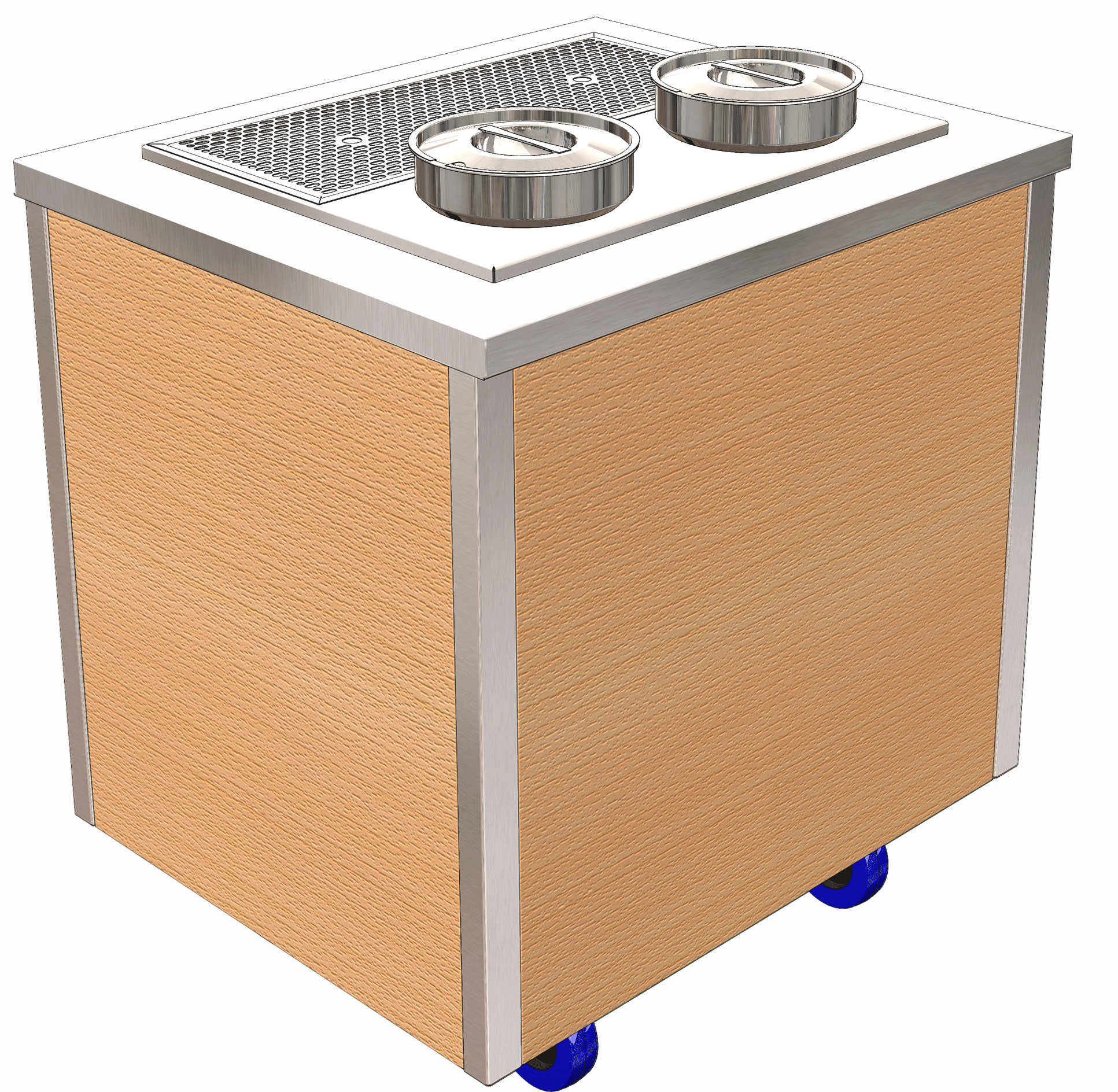

Beech Woodgrain Finish. (Option Code GBEECCHA2) 2-1 Gn set of outer side panels in wood grain effect DL76 beech finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

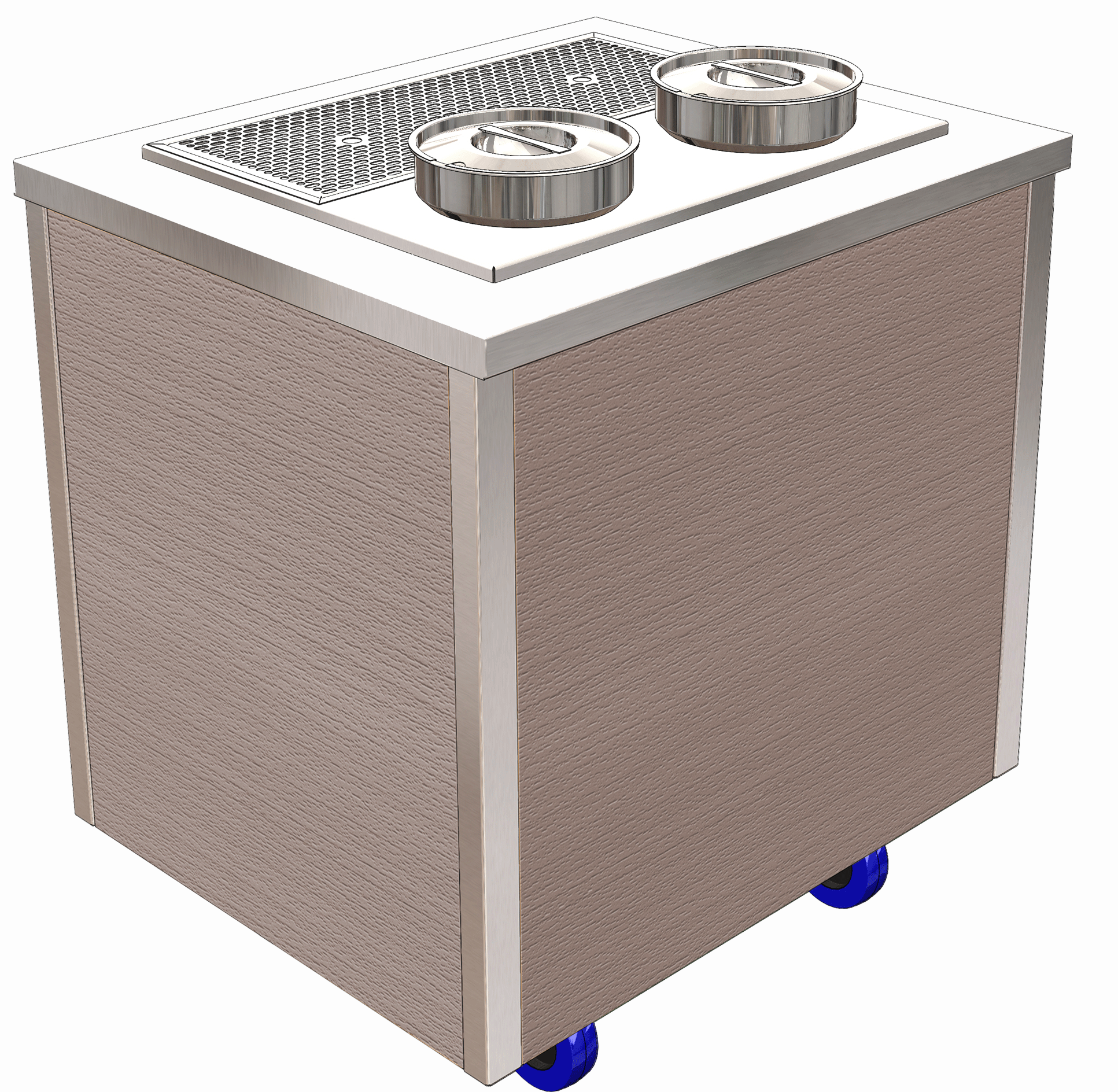

Walnut Woodgrain Finish. (Option Code GWALNCHA2) 2-1 Gn set of outer side panels in wood grain effect panel DL85 walnut finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Oak Woodgrain Finish. (Option Code GOAKCHA2)  2-1 Gn set of outer side panels in wood grain effect DL84 oak finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.





Options : Glide Soup Station (Model GSUP2).

Option

Code

Option

Code

 Option

Code

Drop Down Solid
S/steel
Tray Slide

GSTS2

Drop Down Tubular
S/steel Tray
Rail

GTTS2

Low Height
Model
850mm (h)

G850H

Low Height
Model
800mm (h)

G800H

Satin S/steel
Front & Side Panels
(430gd.)

GSSTLCHA2

Colour Front & Side Panels
Ocean Blue
(BS18C37)

GBLUECHA2

Colour Front & Side Panels
Light Grey
(BS10A05)

GGREYCHA2

Colour Front & Side Panels
Forest Green
(RAL6002)

GGRENCHA2

Colour Front & Side Panels
Poppy Red
(BS04E5B)

GPREDCHA2

Colour Front & Side Panels
Cream
(BS10c31)

GCREMCHA2

Colour Front & Side Panels
White
(BS00E55)

GWHITCHA2

Colour Front & Side Panels
Black
(BS00E53)

GBLAKCHA2

Woodgrain Front & Side Panels
Walnut
(DL85)

GWALNCHA2

Woodgrain Front & Side Panels
Beech
(DL76)

GBEECCHA2

Woodgrain Front & Side Panels
Oak
(DL84)

GOAKCHA2



Popular Model Codes & Options.

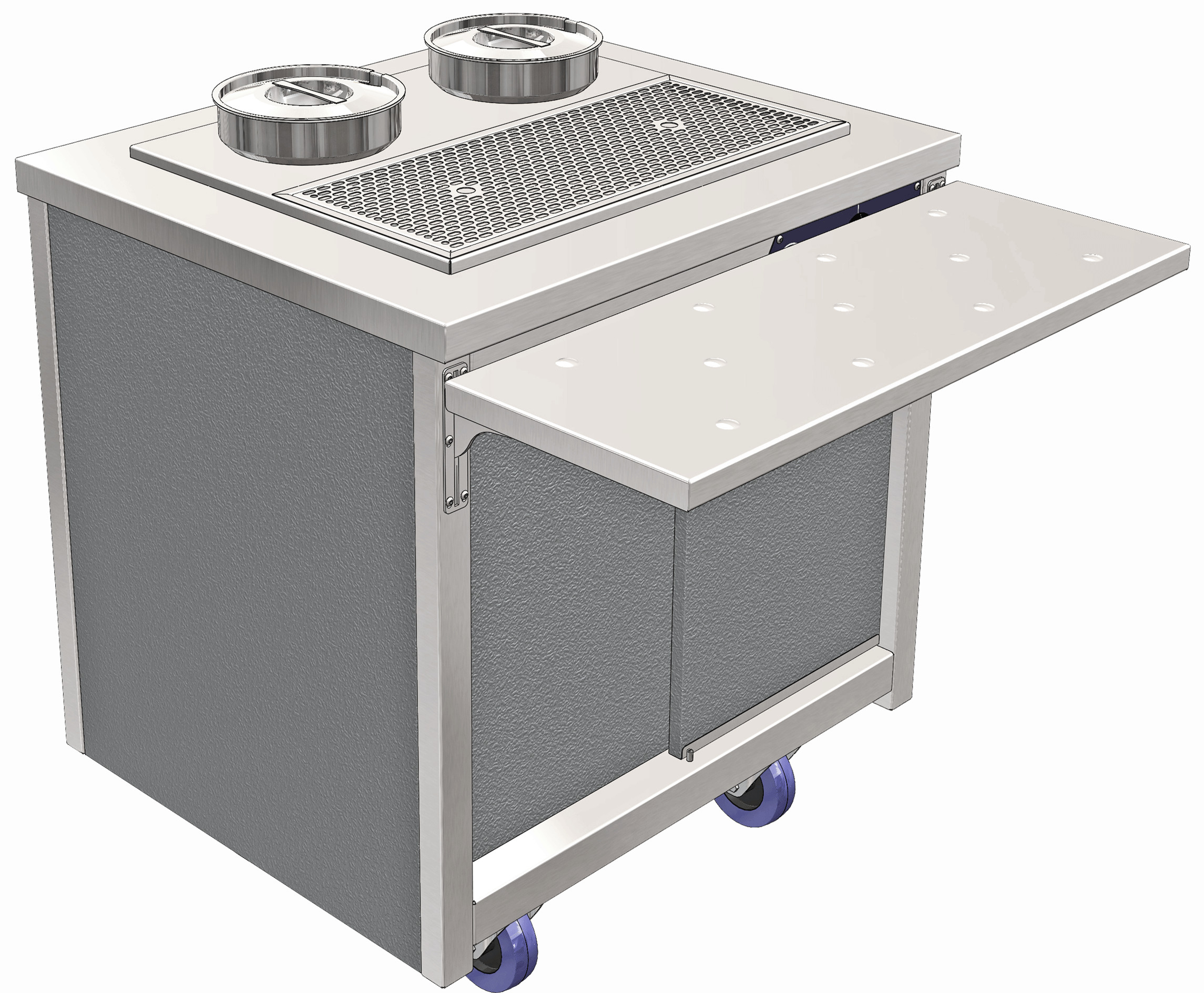

Glide Soup Station
(& Tray Slide).

Model Code     Option Code
GSUP2              GSTS2





Glide Soup Station
(& Tray Rail).

Model Code    Option Code
GSUP2             GTTS2







Glide Soup Station
(& Colour Finish – Red).

Model Code    Option Code
GSUP2            GPREDCHA2







Glide Soup Station
(& Tray Rail & Colour Finish – Red).

Model Code    Option Code   Option Code
GSUP2            GTTS2            GPREDCHA2

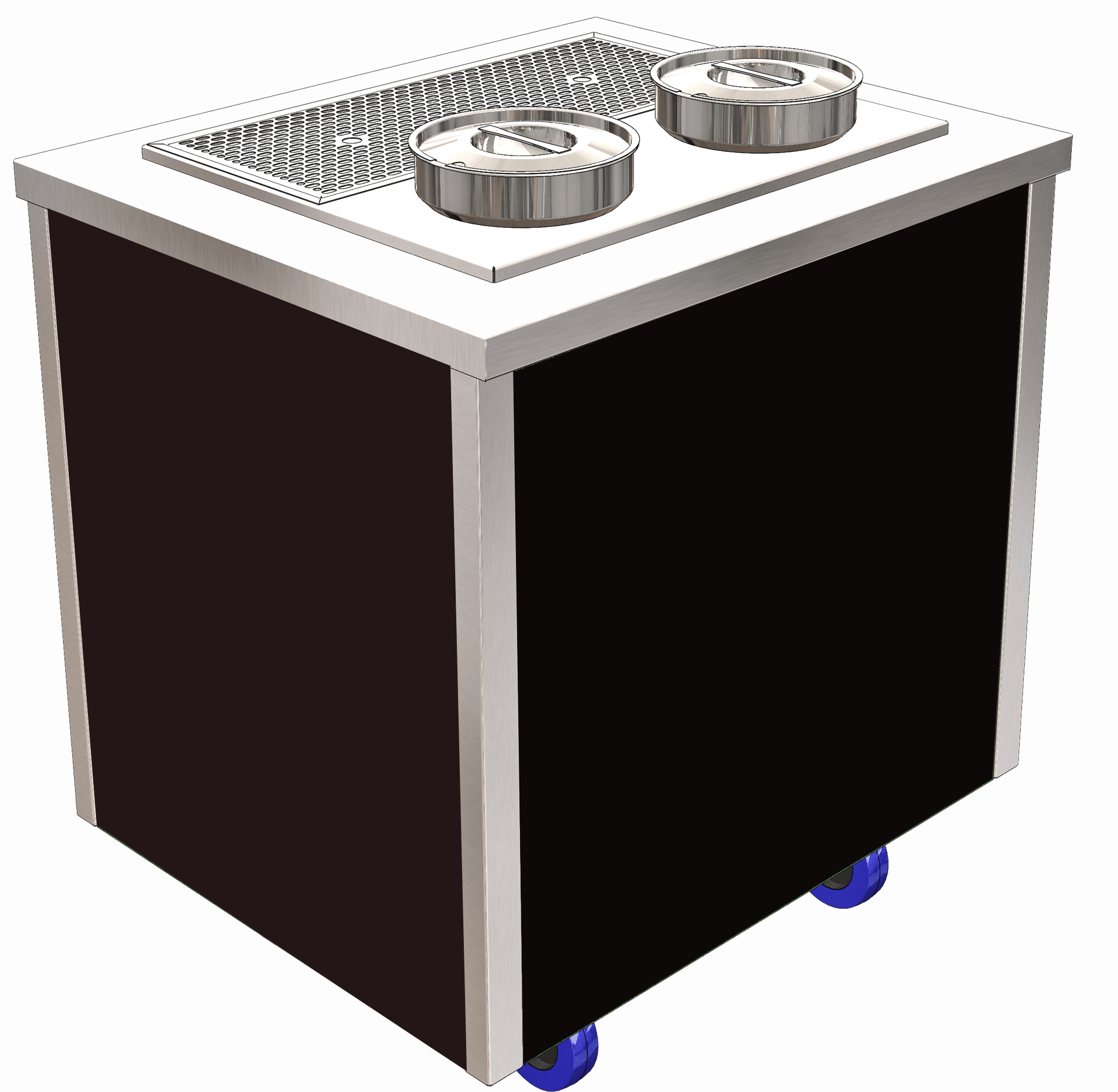

Glide Soup Station
(& Colour Finish – Black).

Model Code    Option Code
GSUP2            GBLAKCHA2

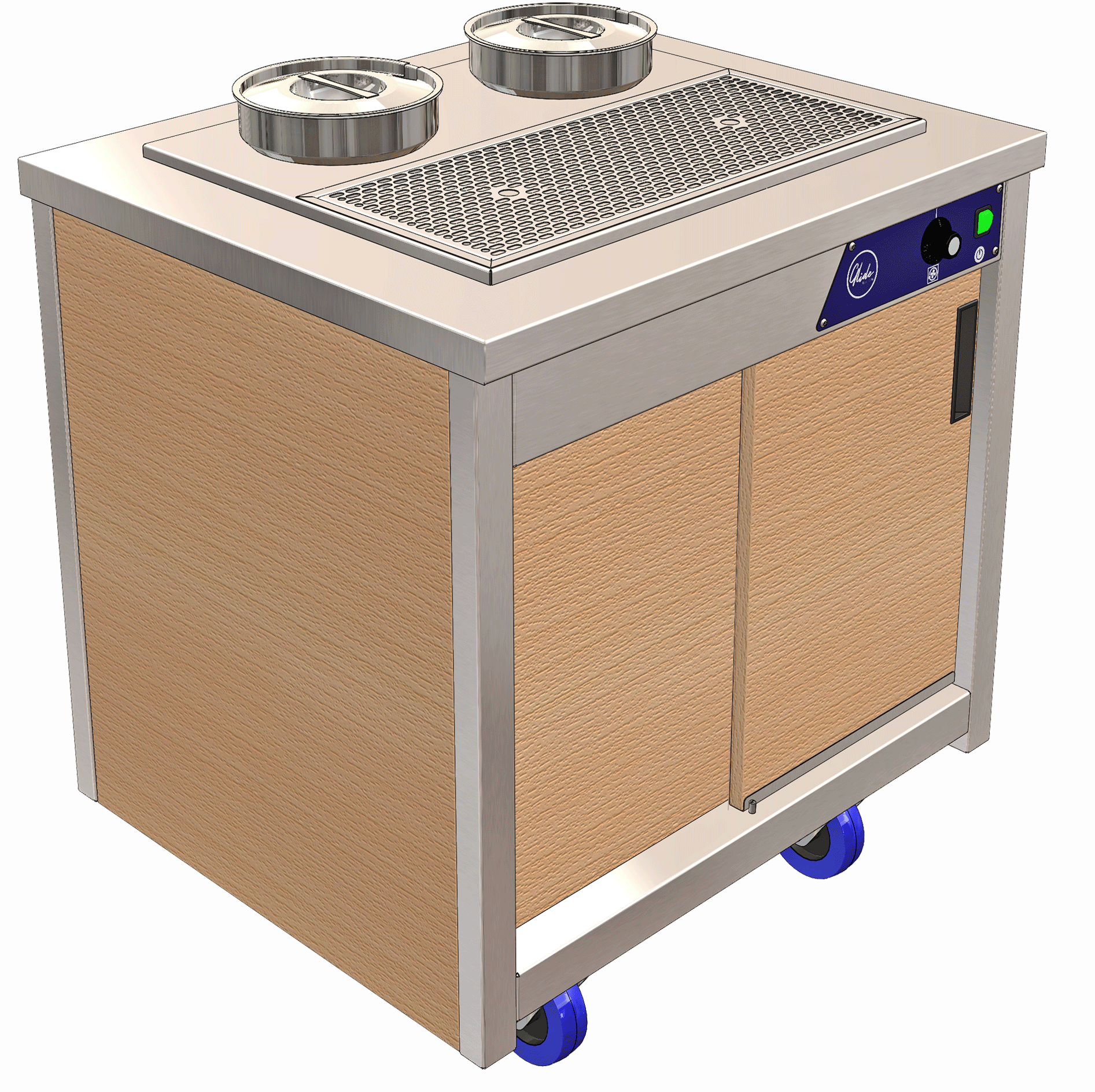

Glide Soup Station
(& Woodgrain Effect Finish – Beech).

Model Code   Option Code
GSUP2           GBEECCHA2





Downloads

General Layout Drawings
Glide Soup Station.







Specification Sheet, Base Panel Colour Options, User Manual, Energy Facts.
Glide Soup Station.




Visual

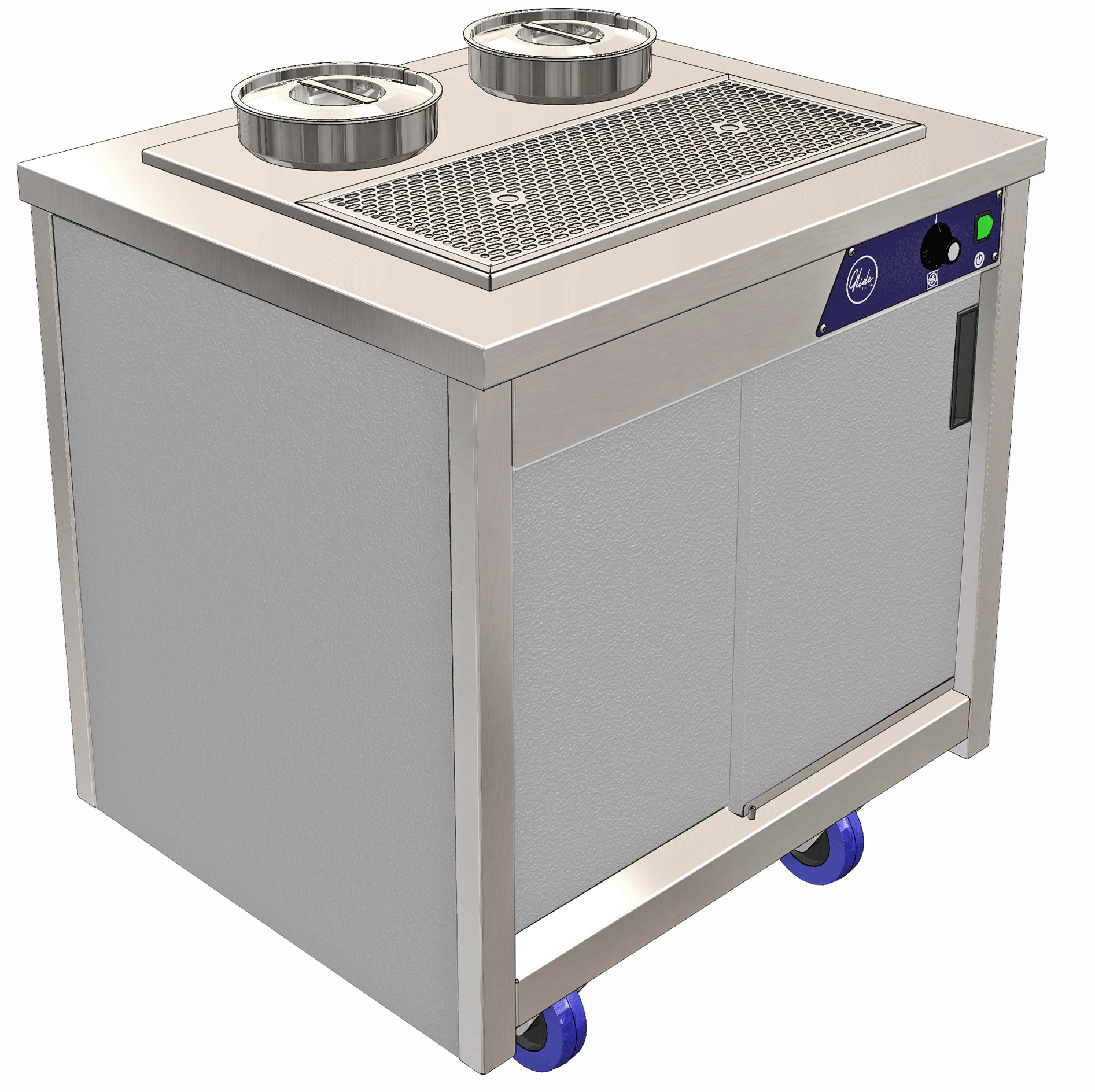

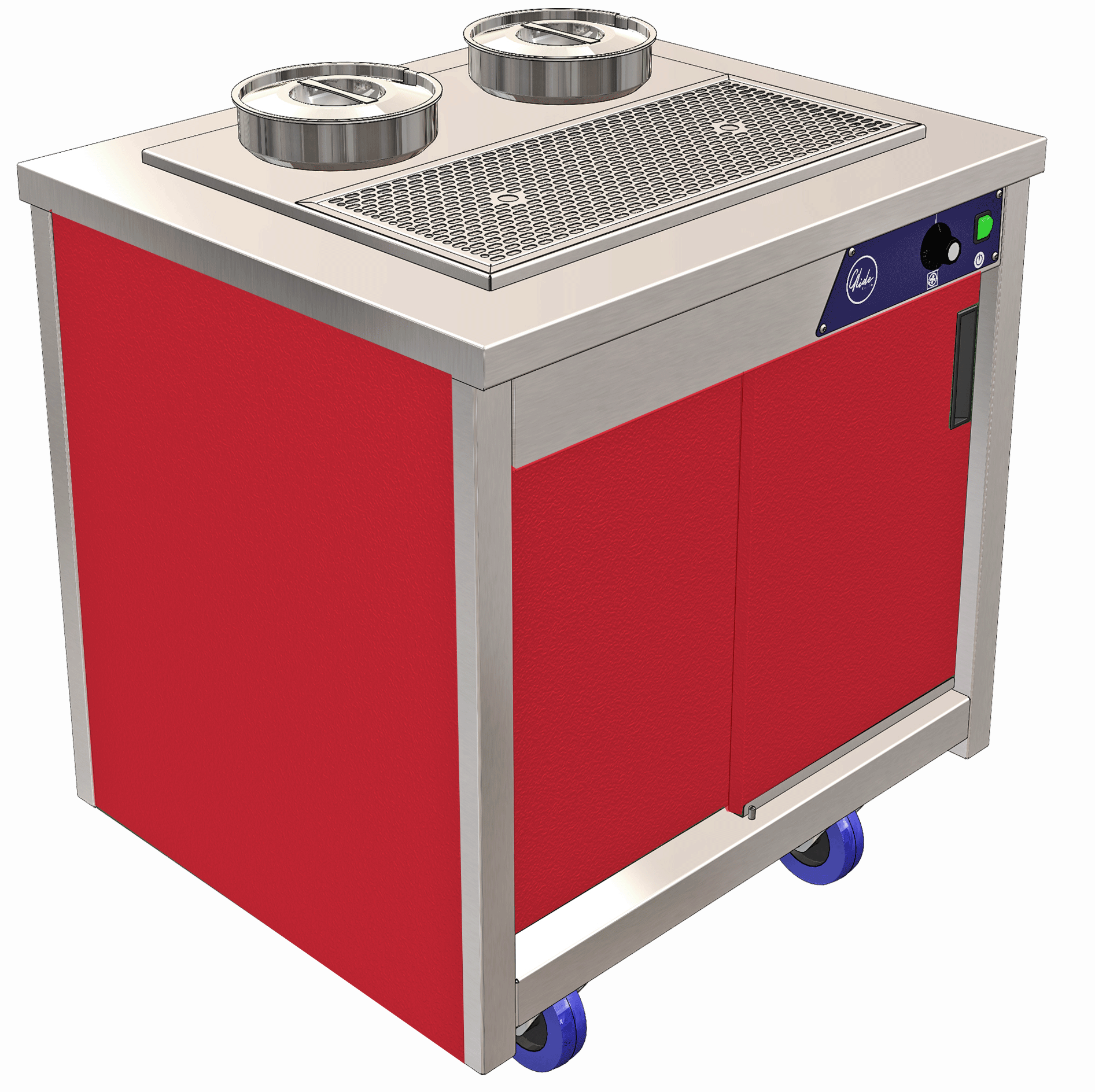

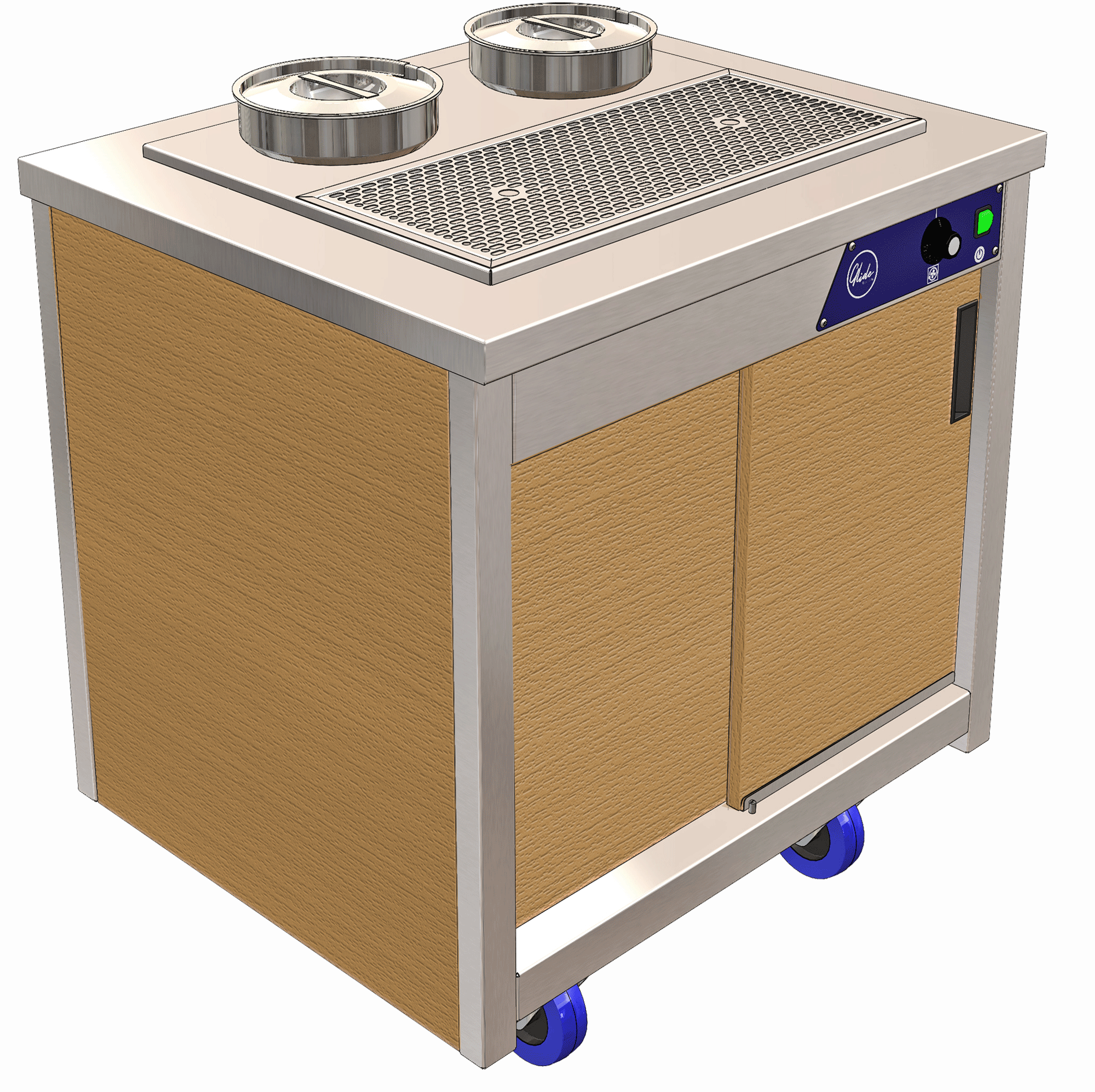

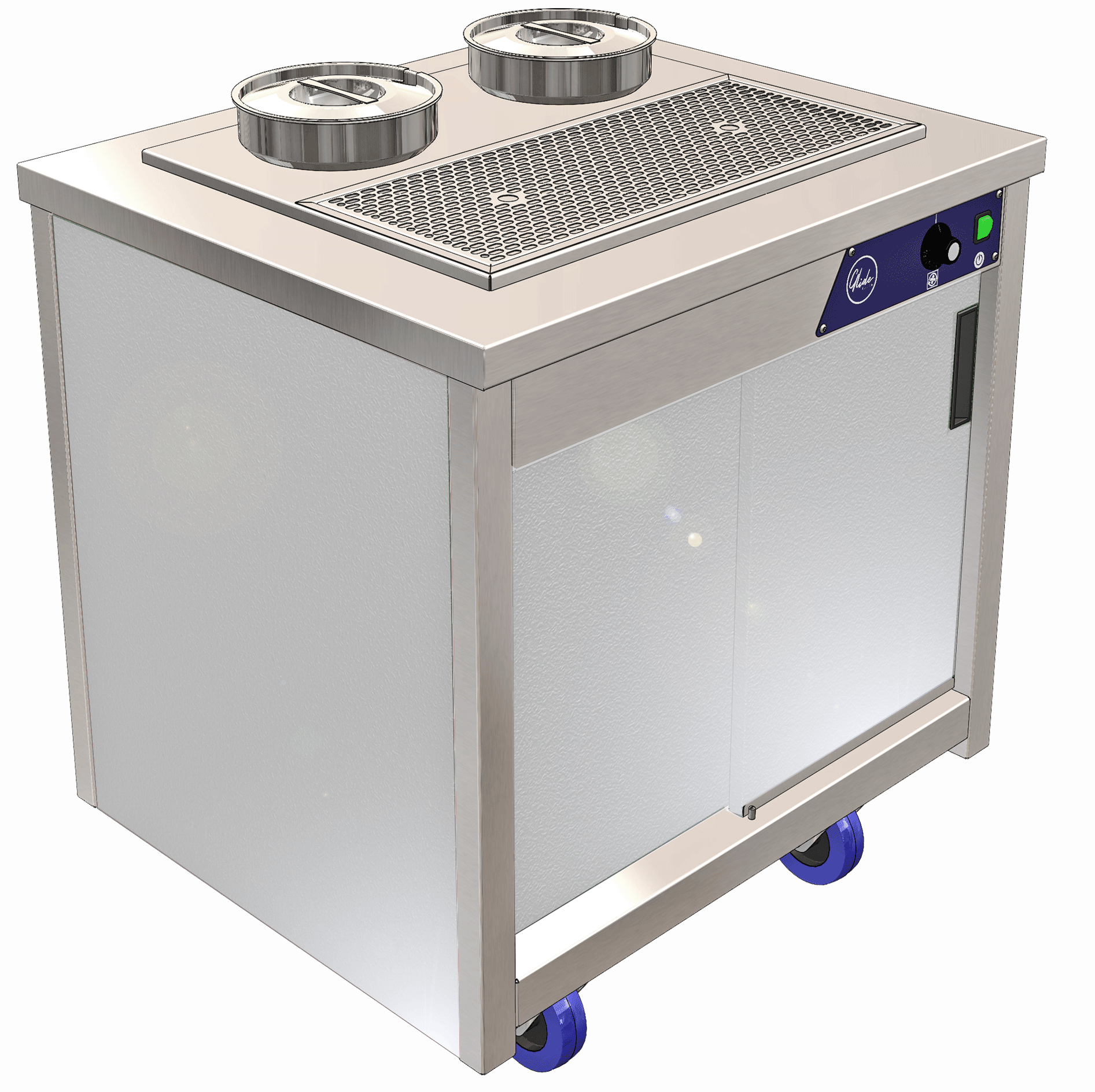

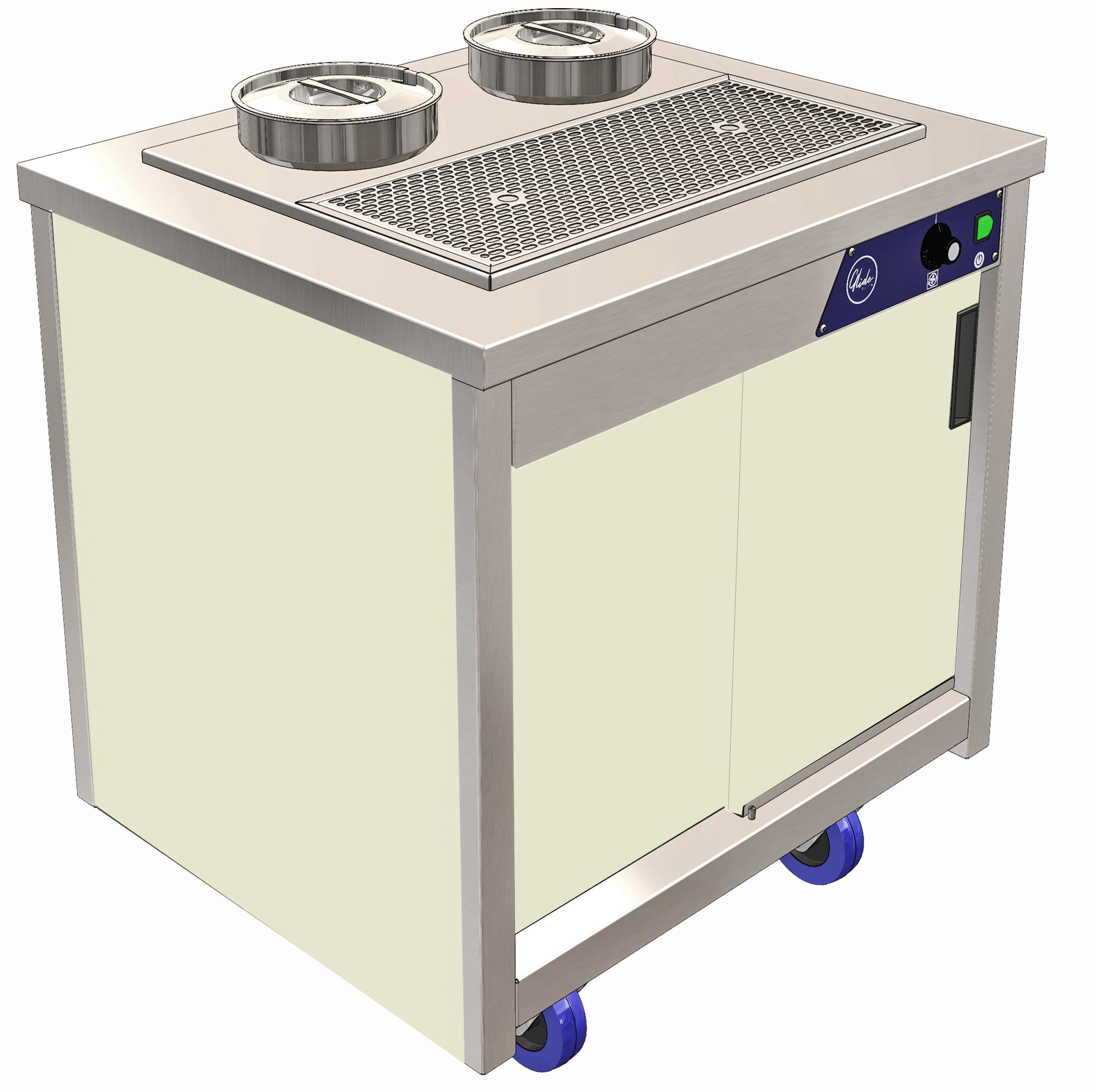

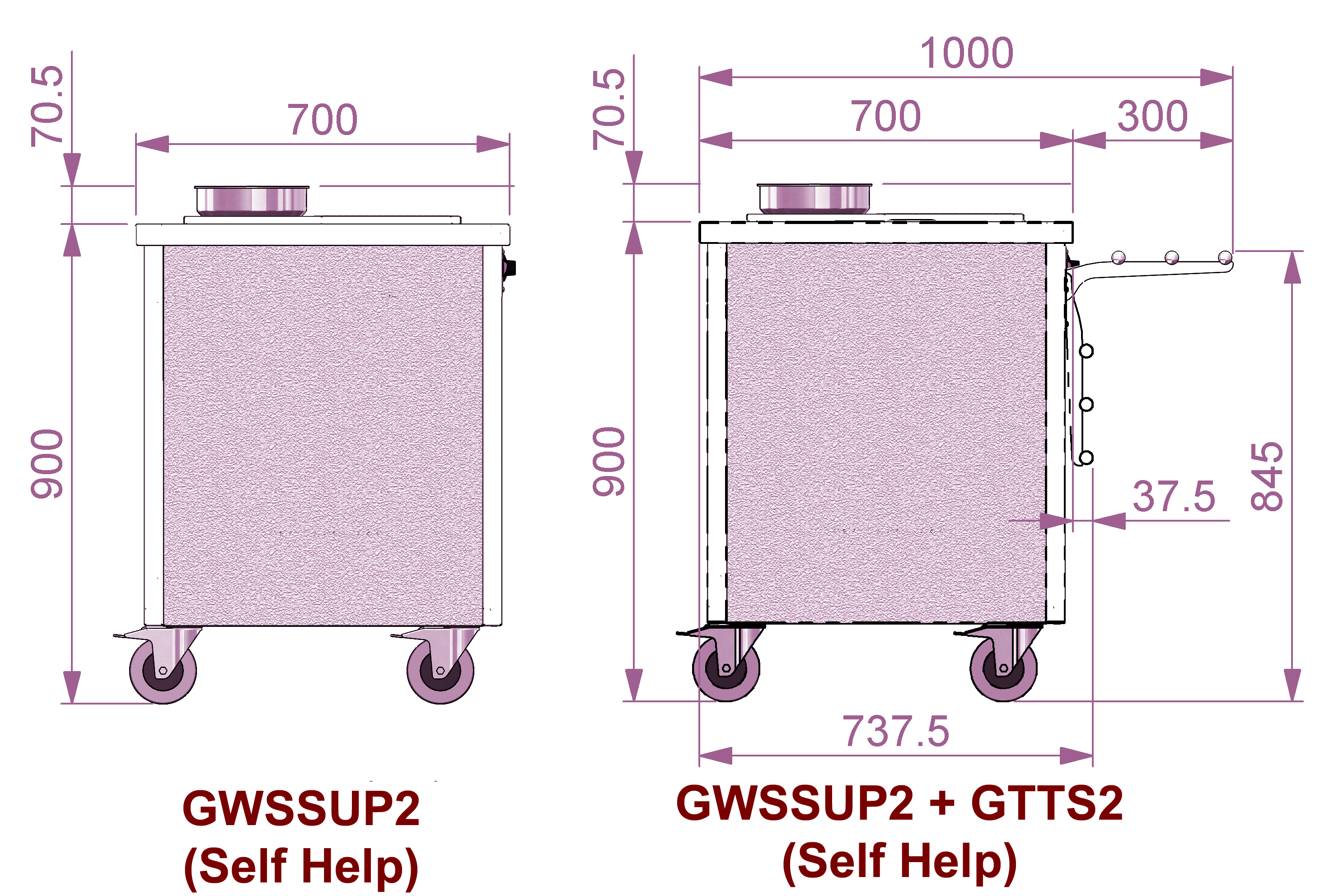

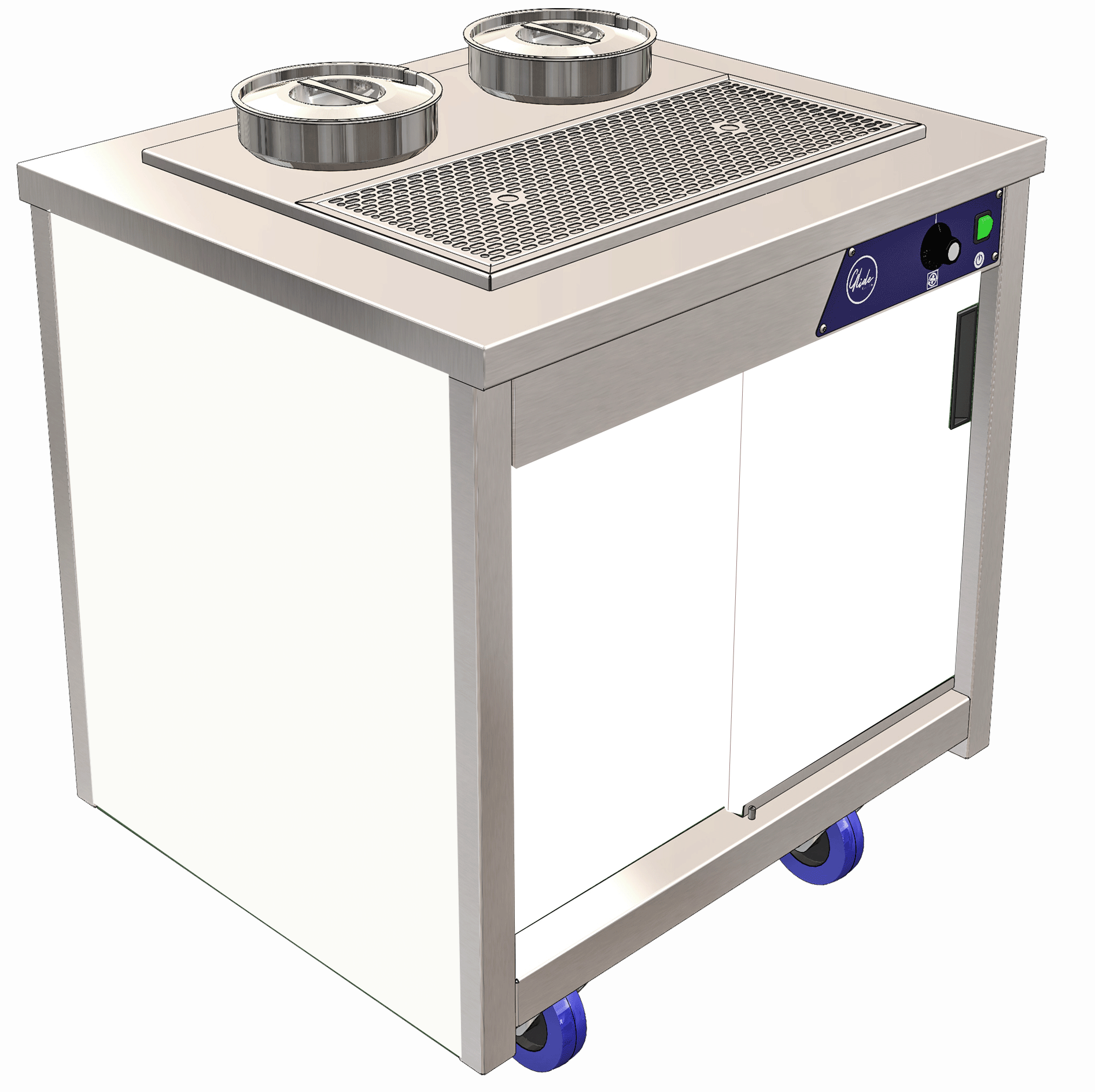

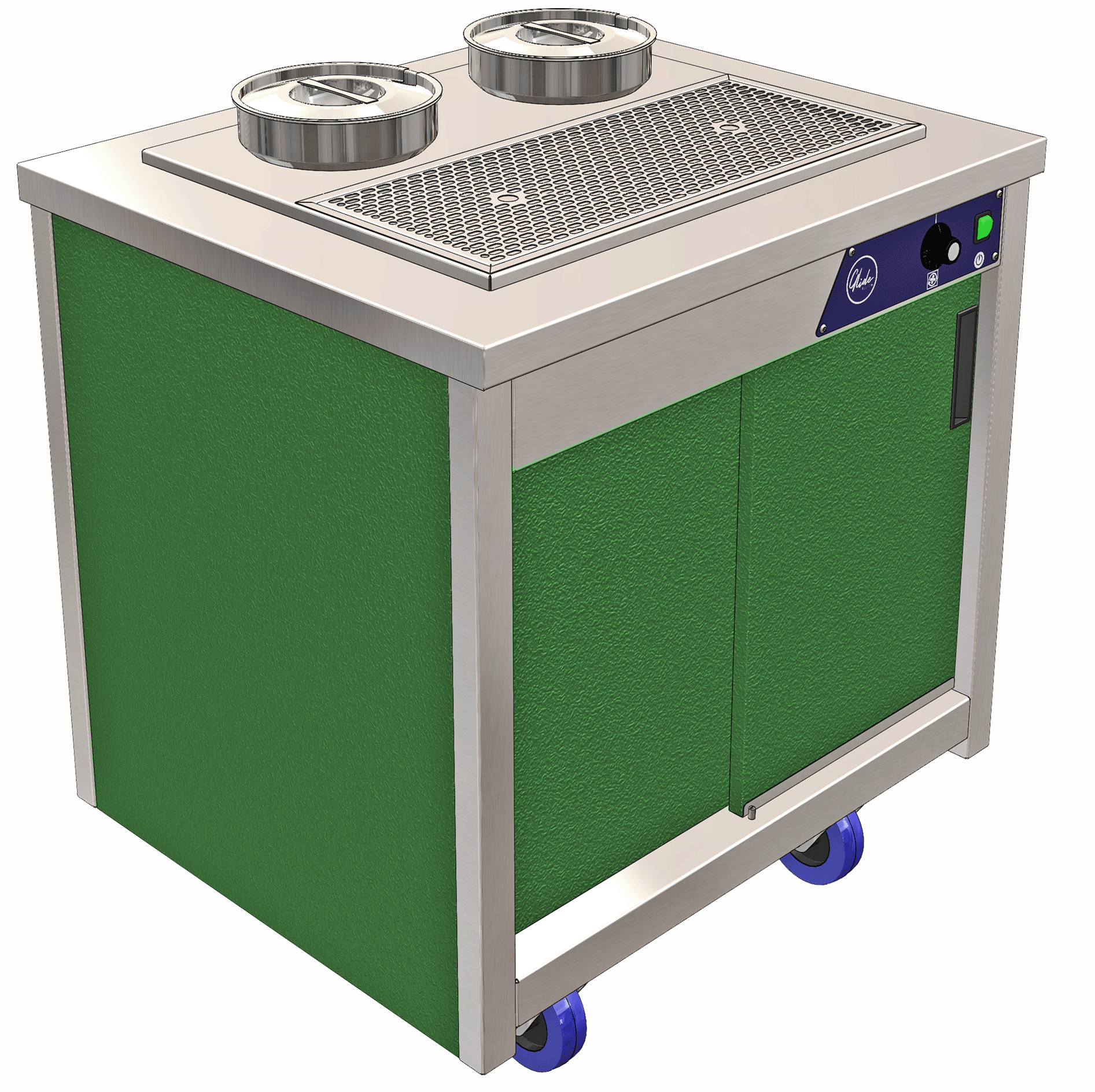

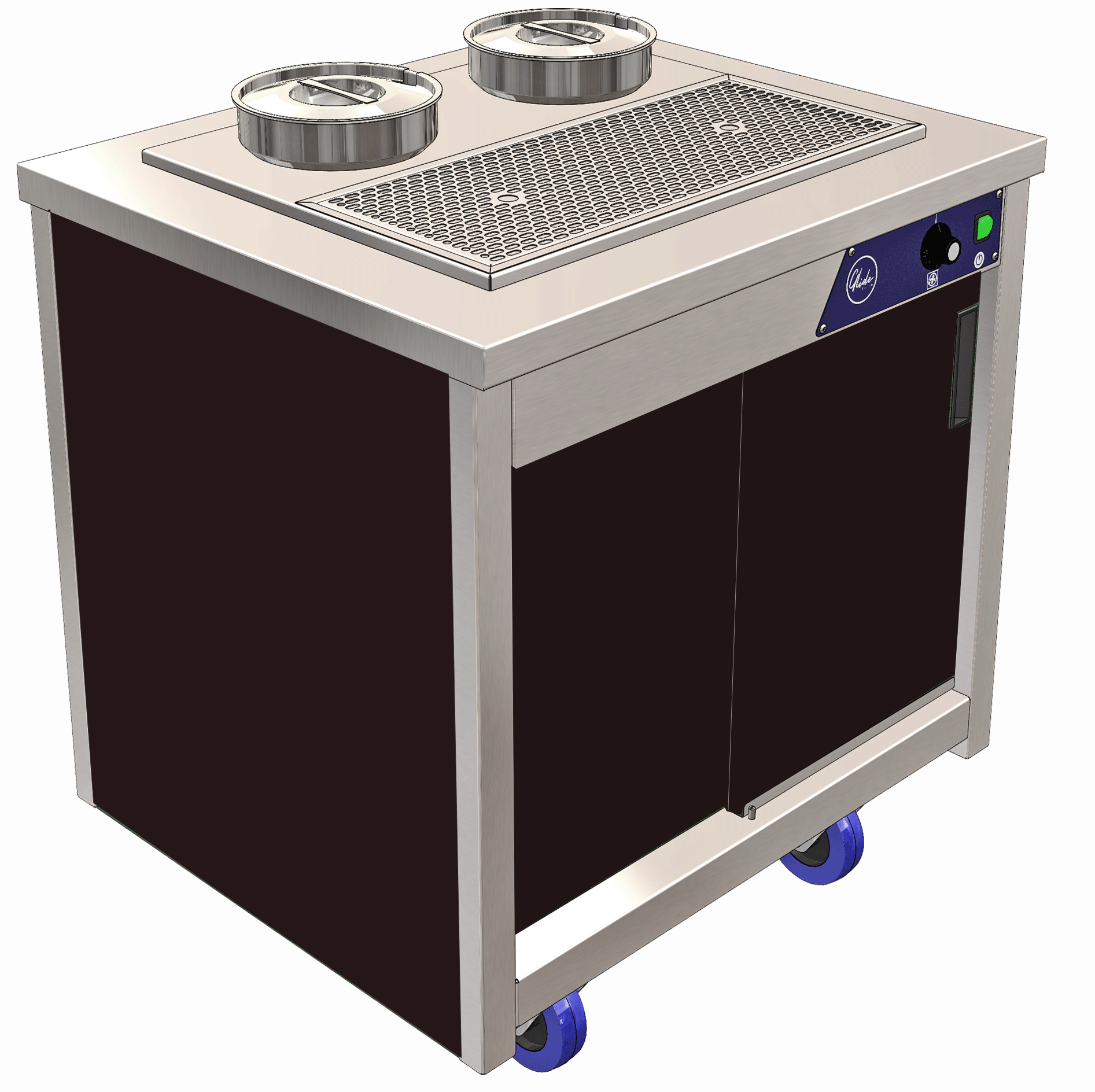

(Wall Sited) Glide Soup Station.
Visual



Features

(Wall Sited) Glide Soup Station.
Features

  • Glide mobile dining cart, (wall sited) bain marie (dry heat) soup station and ambient storage cupboard.
  • Wall sited application. Wall, alcove, recess or back to back as island units.
  • Pre-heated soup, gravy or custard holding.
  • Model Code GWSSUP2.
  • (Wall sited) bain marie (dry heat) features self serve insert with 2 x 4.5 lt. soup pots/ notched lids & 1 x removable drip tray to front, fitted within s/steel worktop.
  • Self help use.
  • Model size 825 mm (l) x 700 mm (d) x 900 mm (h) – 2/1 Gn size.
  • Front facing ambient storage cupboard, fitted with removable sliding plastisol steel doors, colour merlin grey (BS 18B25).
  • Cupboard is fitted with adjustable height shelving, removable grid shelves, for easy cleaning.
  • Storage cupboard accommodates up to (4) x 1-1 Gn 150mm (d) containers (not included).
  • Model is fitted with lockable non-marking rubber tyre castors.
  • Sliding doors, rear & side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Worktop in 304 gd steel, all other external steel surfaces (front valance panel & corner trims etc.) in 430gd.
  • Model weight 45kg.
  • Total power 0.75kW 13A 230v.
  • Fitted with 3m lead & plug top, for connection to dedicated 13A SSO.
  • (Wall sited) bain marie soup station features thermostatic control & neon mains power on/off switch to front valance panel.

Glide Range: Electrical Connections.

  • Most Glide mobile units are operated by 13A plug top connected to a dedicated single socket outlet (SSO) (13A), unless its’ power supply exceeds 13A.
  • If connected to a double socket outlet, care must be taken not to exceed the circuit capacity.

Glide Range: Electrical Trailing Lead Protection.

  • CED recommend the use of  proprietary cable covers to protect overground trailing leads, to reduce trip hazards, limit accidental electrical partial plug disconnection and to keep wire safe from impact damage, as damaged cable wire can cause an electrical fault.
  • HSE GOV.UK Guidance On Planning And Managing Temporary Electrical Installations Re: Cabling.
    ‘Route cables to minimise tripping hazards or potential mechanical damage, and in a position that allows them to be safely installed and removed. Give particular care to the position of cable connections. You can also use cable ramps or similar to protect cables running overground across route ways to help avoid them becoming tripping hazards’

Options

  • Optional folding s/steel solid tray slide available (option code GSTS2).
  • Optional folding s/steel tubular tray rail Ø25 tube, available (option code GTTS2).
  • Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm).
  • Optional choice of 11 solid colour & woodgrain side panel & front sliding door finishes available.
  • Optional low height model 850mm (h) available.
  • Optional low height model 800mm (h) available.*
  • 800mm (h) = bespoke option with extended lead time.*

*For best performance always keep lids on containers when not serving, stir food in containers regularly*



Dimensions

(Wall Sited) Glide Soup Station.
Dimensions

  • Model Code GWSSUP2.
  • Glide mobile dining cart, (wall sited) self help bain marie (dry heat) soup station and ambient storage cupboard.
  • 2/1 Gn size.
  • Model dimensions: 825 mm (l) x 700 mm (d) x 900 mm (h).
  • Model weight 45 kg.
  • Bain marie (dry heat) soup station features thermostatic control & neon mains power on/off switch to front.
  • Front facing ambient storage cupboard accommodates up to (4) x 1-1 Gn 150mm (d) containers (not included).
  • Front facing sliding cupbd. doors & rear/ side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Worktop in 304 gd. steel, all other external steel surfaces (front valance panel & corner trims etc.) in 430gd.
  • Model weight 45kg.
  • Total power 0.75kW 13A 230v.
  • Fitted with 3m lead & plug top, for connection to dedicated 13A SSO.
  • Model depth with optional folding tray slide/tray rail fitted: tray slide up = 1000mm (d)/ tray slide down = 740mm (d).
  • Optional low height model 850mm (h) available.
  • Optional low height model 800mm (h) available.*
  • 800mm (h) = bespoke option with extended lead time.*
  • Optional tray slide height:
    standard 900 mm (h) worktop = 845 mm,
    low height 850 mm model = 795mm (h),
    low height 800 mm model = 745mm (h).
  • Supplied With Lockable Castors With Non-Marking Rubber Tyres.

* Control panel to customer side features thermostat control & illuminated rocker switch for power on/off.

Options : (Wall Sited) Glide Soup Station. (Model GWSSUP2)

Option

Code

Option

Code

 Option

Code

Drop Down Solid
S/steel
Tray Slide

GSTS2

Drop Down Tubular
S/steel Tray
Rail

GTTS2

Low Height
Model
850mm (h)

G850H

Low Height
Model
800mm (h)

G800H

Satin S/steel
Side & Rear Panels
(430gd.)

GSSTLWSA2

Colour Side & Rear Panels
Ocean Blue
(BS18C37)

GBLUEWSA2

Colour Side & Rear Panels
Light Grey
(BS10A05)

GGREYWSA2

Colour Side & Rear Panels
Forest Green
(RAL6002)

GGRENWSA2

Colour Side & Rear Panels
Poppy Red
(BS04E5B)

GPREDWSA2

Colour Side & Rear Panels
Cream
(BS10c31)

GCREMWSA2

Colour Side & Rear Panels
White
(BS00E55)

GWHITWSA2

Colour Side & Rear Panels
Black
(BS00E53)

GBLAKWSA2

Woodgrain Side & Rear Panels
Walnut
(DL85)

GWALNWSA2

Woodgrain Side & Rear Panels
Beech
(DL76)

GBEECWSA2

Woodgrain Side & Rear Panels
Oak
(DL84)

GOAKWSA2





Popular Model Codes & Options

Model

Model Code

Option Code

Option Code

(Wall Sited) Glide Soup Station
(& Solid Tray Slide)

GWSSUP2

GSTS2

(Wall Sited) Glide Soup Station
(& Tubular Tray Rail)

GWSSUP2

GTTS2

(Wall Sited) Glide Soup Station
(& Colour Finish Ends – Red)

GWSSUP2

GPREDWSA2

(Wall Sited) Glide Soup Station
(& Tubular Tray Rail & Colour Finish Ends – Red)

GWSSUP2

GTTS2

GPREDWSA2



(Wall Sited) Glide Soup Station
(& Solid Tray Slide & Colour Finish Ends – Red)

GWSSUP2

GSTS2

GPREDWSA2



(Wall Sited) Glide Soup Station
(& Colour Finish Ends – Blue)

GWSSUP2

GBLUEWSA2



Options

(Wall Sited) Glide Soup Station.
Options.



Glide S/Steel Folding Solid Tray Slide.
(GSTS2) Glide option: 2-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type.
Up position adds 302mm to depth. Down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.



Glide S/Steel Folding Tubular Tray Rail.
(GTTS2) Glide option: 2-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube. Drop down bracket type.
Up position adds 298 mm to depth. Down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Low Height Model ( Glide Junior) – 850mm.
(G850H) Glide junior option: 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model ( Glide Junior) – 800mm.
(G800H) Glide junior option: 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high) *Bespoke Option/ Extended Lead Time.*

Glide Colour Finishes To Front Sliding Doors & Side Panels (Ambient Cupbd.)

Blue Finish. (Option Code GBLUEWSA2) 2-1 Gn set of outer side panels/front sliding ambient cupbd. doors in leathergrain plastisol steel, colour ocean blue (BS 18C37) – to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

S/steel Finish. (Option Code GSSTLWSA2) 2-1 Gn set of outer side panels/front sliding ambient cupbd. doors in satin s/steel 430 gd. – to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Light Grey Finish. (Option Code GGREYWSA2) 2-1 Gn set of outer side panels/front sliding ambient cupbd. doors in leathergrain plastisol steel, colour goosewing light grey (BS 10A05) – to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Forest Green Finish. (Option Code GGRENWSA2) 2-1 Gn set of outer side panels/front sliding ambient cupbd. doors in leathergrain plastisol steel, colour forest green/heritage (RAL 6002) – to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Poppy Red Finish. (Option Code GPREDWSA2) 2-1 Gn set of outer side panels/front sliding ambient cupbd. doors in leathergrain plastisol steel, colour poppy red (BS 04E5B) – to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Cream Finish. (Option Code GCREMWSA2) 2-1 Gn set of outer side panels/front sliding ambient cupbd. doors in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31) – to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

White Finish. (Option Code GWHITWSA2) 2-1 Gn set of outer side panels/front sliding ambient cupbd. doors in leathergrain plastisol steel, colour white (BS 00E55) – to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Black Finish. (Option Code GBLAKWSA2) 2-1 Gn set of outer side panels/front sliding ambient cupbd. doors in leathergrain plastisol steel, colour black (BS 00E53) – to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Beech Woodgrain Finish. (Option Code GBEECWSA2) 2-1 Gn set of outer side panels/front sliding ambient cupbd. doors in wood grain effect DL76 beech finish – to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Walnut Woodgrain Finish. (Option Code GWALNWSA2) 2-1 Gn set of outer side panels/front sliding ambient cupbd. doors in wood grain effect panel DL85 walnut finish – to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Oak Woodgrain Finish. (Option Code GOAKWSA2)  2-1 Gn set of outer side panels/front sliding ambient cupbd. doors in wood grain effect DL84 oak finish – to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.





Options : (Wall Sited) Glide Soup Station. (Model GWSSUP2)

Option

Code

Option

Code

 Option

Code

Drop Down Solid
S/steel
Tray Slide

GSTS2

Drop Down Tubular
S/steel Tray
Rail

GTTS2

Low Height
Model
850mm (h)

G850H

Low Height
Model
800mm (h)

G800H

Satin S/steel
Side & Rear Panels
(430gd.)

GSSTLWSA2

Colour Side & Rear Panels
Ocean Blue
(BS18C37)

GBLUEWSA2

Colour Side & Rear Panels
Light Grey
(BS10A05)

GGREYWSA2

Colour Side & Rear Panels
Forest Green
(RAL6002)

GGRENWSA2

Colour Side & Rear Panels
Poppy Red
(BS04E5B)

GPREDWSA2

Colour Side & Rear Panels
Cream
(BS10c31)

GCREMWSA2

Colour Side & Rear Panels
White
(BS00E55)

GWHITWSA2

Colour Side & Rear Panels
Black
(BS00E53)

GBLAKWSA2

Woodgrain Side & Rear Panels
Walnut
(DL85)

GWALNWSA2

Woodgrain Side & Rear Panels
Beech
(DL76)

GBEECWSA2

Woodgrain Side & Rear Panels
Oak
(DL84)

GOAKWSA2



Popular Model Codes & Options.

(Wall Sited) Glide Soup Station
(& Tray Slide).

Model Code       Option Code
GWSSUP2         GSTS2





(Wall Sited) Glide Soup Station
Model Code      Option Code
GWSSUP2       GTTS2







(Wall Sited) Glide Soup Station
(& Colour Finish – Red).

Model Code    Option Code
GWSSUP2      GPREDWSA2







(Wall Sited) Glide Soup Station
(& Tray Rail & Colour Finish – Red).

Model Code   Option Code  Option Code
GWSSUP2     GTTS2           GPREDWSA2







(Wall Sited) Glide Soup Station
(& Tray Slide & Colour Finish – Red).

Model Code     Option Code   Option Code
GWSSUP2       GSTS2            GPREDWSA2







(Wall Sited) Glide Soup Station
(& Colour Finish – Blue).

Model Code      Option Code
GWSSUP2        GBLUEWSA2





Downloads

General Layout Drawings
(Wall Sited) Glide Soup Station.





Specification Sheet, Base Panel Colour Options, User Manual, Energy Facts.
(Wall Sited) Glide Soup Station.
