Option AF1 – Non Standard Airflow (Cold).
Air In/Out Customer Side.

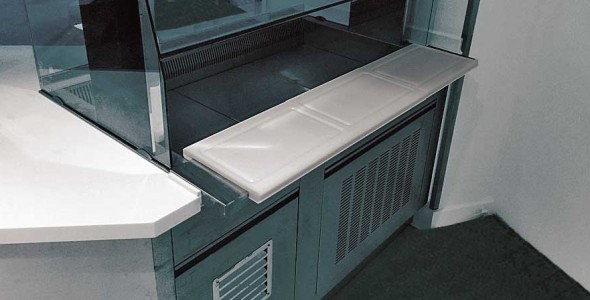

When the counter is wall sited, cold unit air intake and air outlet have to be brought through the counter front fascia panel. Kubus drop in cold displays can be factory fitted with an inline fan and flexible duct to provide air in/out to customer side.

  • The option air in/out to customer side is generally for use with self help cold displays (as assisted service cold displays are not normally located in wall sited counters).
  • Fixed back multidecks do not need airflow option AF1 as they vent the air outlet through a rear worktop mounted grill, supplied as standard.

 Option AF2 – Non Standard Airflow (Cold).
Air In/Out Operator Side. (Shown Above)
When the counter is free-standing, customers may not want cold unit air grilles on the counter front fascia panel.
Kubus drop in cold displays can be factory fitted with an inline fan and flexible duct to provide air in/out to operator side.

  • This option can be used with all cold displays.
  • 2/1 Gn size units require additional counter space adjacent to the drop in location, to site the fan/duct.

Visual AF1

Non Standard Airflow Kit (Cold) AF1.
Air In/Out Customer Side.

Non Standard Airflow Option - In & Out Customer Side



Visual AF2

Non Standard Airflow Kit (Cold) AF2.
Air In/Out Operator Side.

Non Standard Airflow Option - In & Out Operator Side



Features

Non Standard Airflow Kit (Cold).
Features.



AF1 – In/Out Customer Side Airflow.
(Factory Fit With Initial Order Only)

  • Non standard airflow – in / out customer side.
  • Inline fan assisted ducting for removal of heat/ moisture from condensing unit.
  • Suitable for wall sited counters etc.
  • Fitted with 2 metre flexible duct, with bright polished steel air intake & extract grille.

AF2 – In/Out Operator Side Airflow.
(Factory Fit With Initial Order Only)

  • Non standard airflow – in / out operator side.
  • Inline fan assisted ducting for removal of heat/ moisture from condensing unit.
  • Suitable for counters where intake grille is not required on customer side fascia panel.
  • Fitted with 2 metre flexible duct, with bright polished steel air intake & extract grille.


Dimensions

Non Standard Airflow Kit (Cold).
Dimensions.



Model

AF1 (Customer Side)

AF2 (Operator Side)

Capacity

N/A

N/A

Length (mm)

2000

2000

Width (mm)

150

150

Weight (uncrated) (kg)

0.75

0.75

Power (kW)

+ 0.07

+ 0.07

Electrical supply

See model

See model



Downloads

General Layout Drawings.
Non Standard Airflow Options (Cold Displays).







Fitting Instructions.
Non Standard Airflow Kit (Cold)

**Please see the individual Kubus model fitting Instructions, located in their ‘download’ sections**
