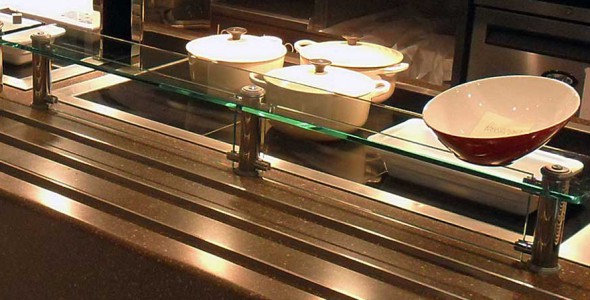

Designline optional low-screen centre and end posts can provide customer protection from heated surfaces, such as hot plates and bain maries, while maintaining a self help operation.

Visual

Low Screen Posts



Designline Glass Screen Centre/ End Post



Features

Low Screen Posts
Features

  • Ideal for low height (150mm) customer protection from theatre cooking equipment, hot plates and bain maries or assisted service designation.

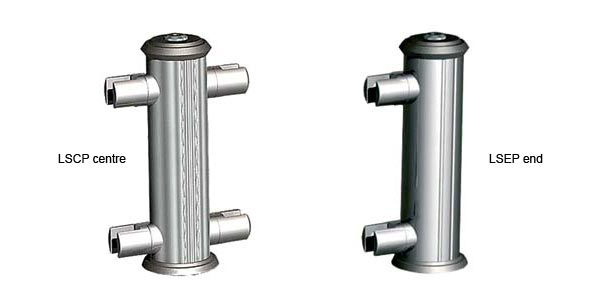

  • Choice of chrome plated/ extruded aluminum centre (LSCP) or end (LSEP) posts.
  • Posts (only) supplied for bolting through countertop surfaces.
  • Suitable for glass screens up to 10mm thick (glass is optional)
  • Supplied with chrome glass support brackets, collars, M8 worktop fixing bolts & clamping plates.


Dimensions

Low Screen Posts
Dimensions

Model LSCP (Centre Post) LSEP (End Post)

O/all Length (mm)

89

66

O/all Depth (mm)

49

49

O/all Height (mm)

149

149

Weight (uncrated) (kg)

1

1



  • Glass Available As Option





Downloads

 General Layout Drawings
Low Screen Centre & End Posts
