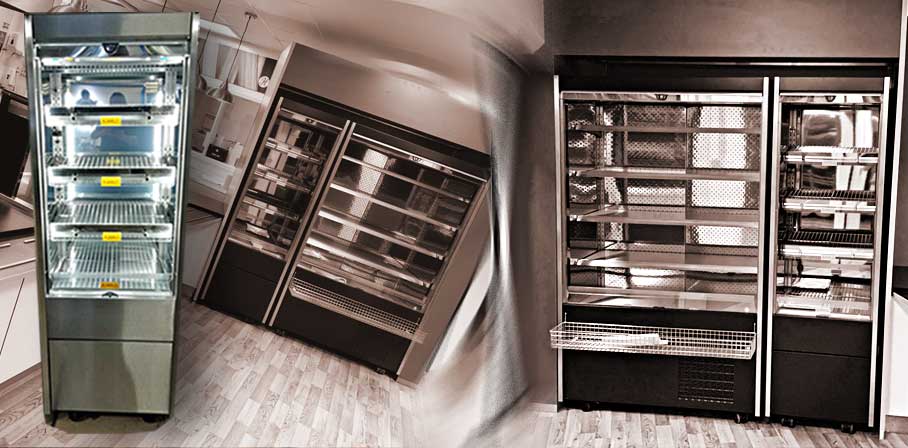

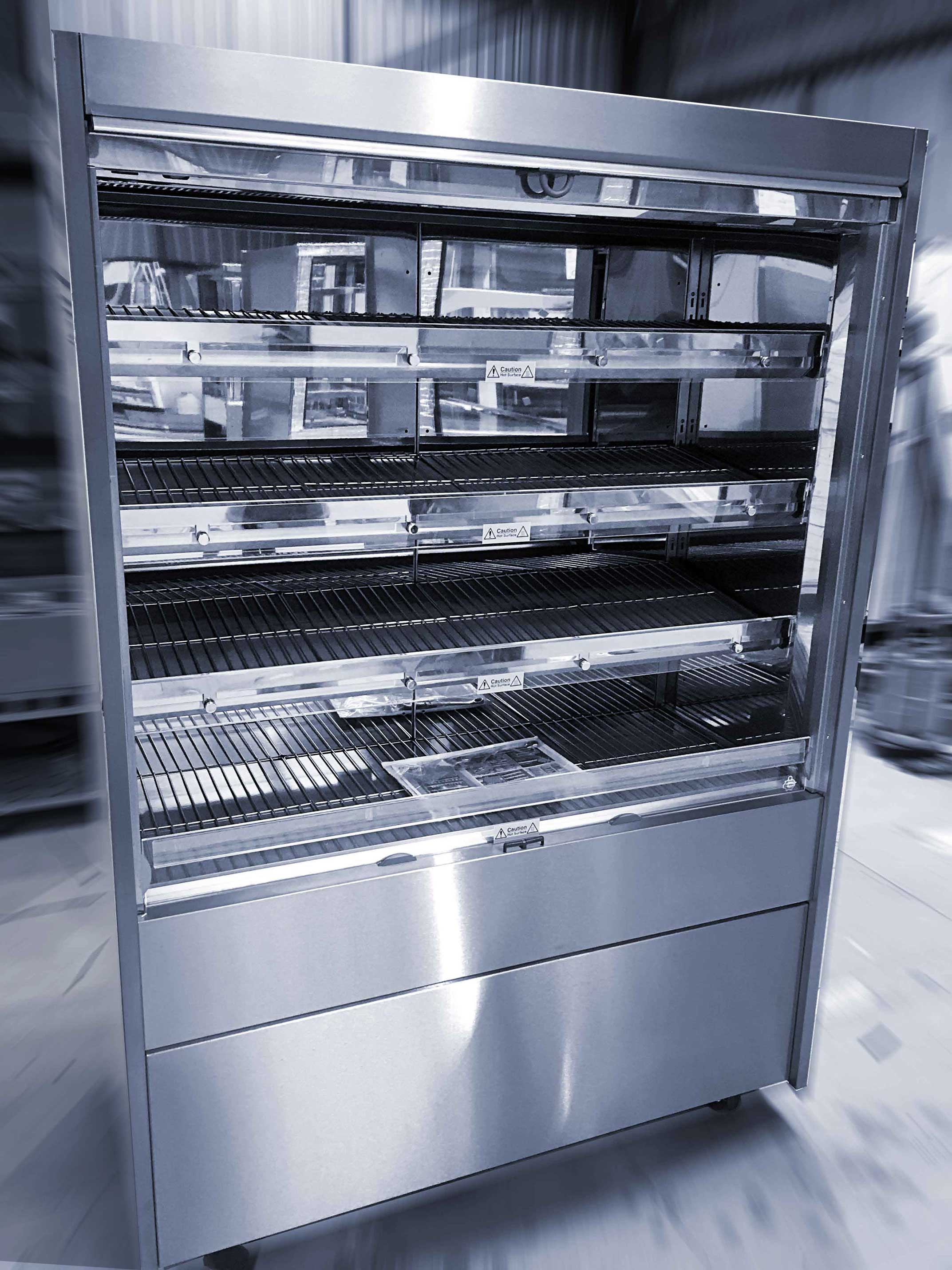

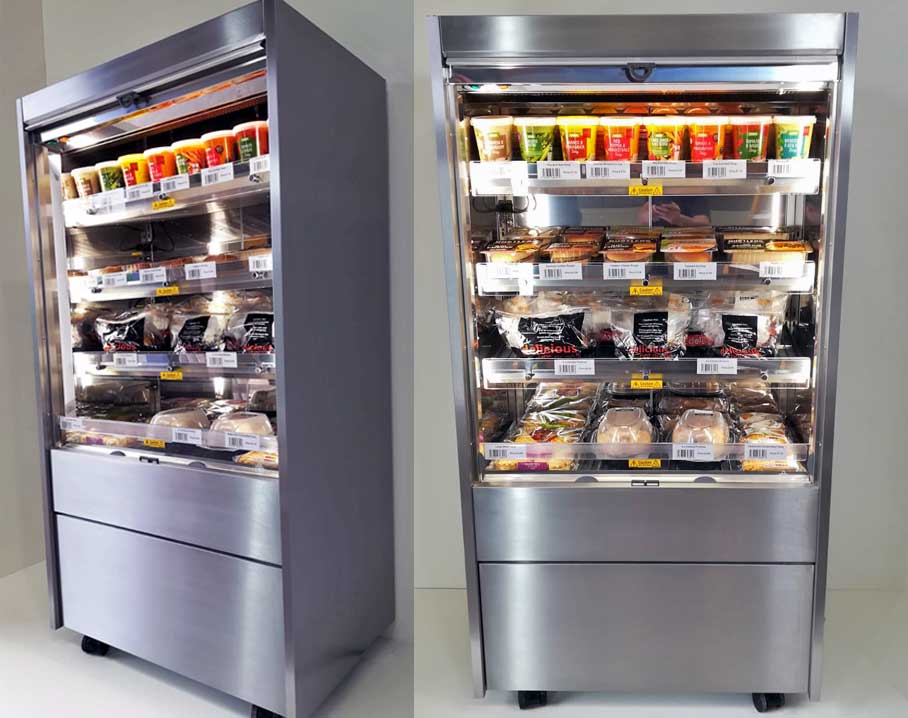

CED’s ‘Money Maker’ range of heated merchandisers, are designed to complement our environmentally friendly refrigerated grab n’ go models. These free standing, hot holding merchandisers are ideal for the display of pre-heated cooked food, packaged, cartoned or unwrapped heated produce.

Food core holding temperature in the cabinet (70-75 degrees C) is achieved by a combination of both static, fan blown and convected hot air. Each of the four display tier heated zones can be independently set by digital displays mounted behind the front panel. On/ off & lighting switches are located in the canopy, the cabinet can also be used with lighting only as an ambient merchandiser.

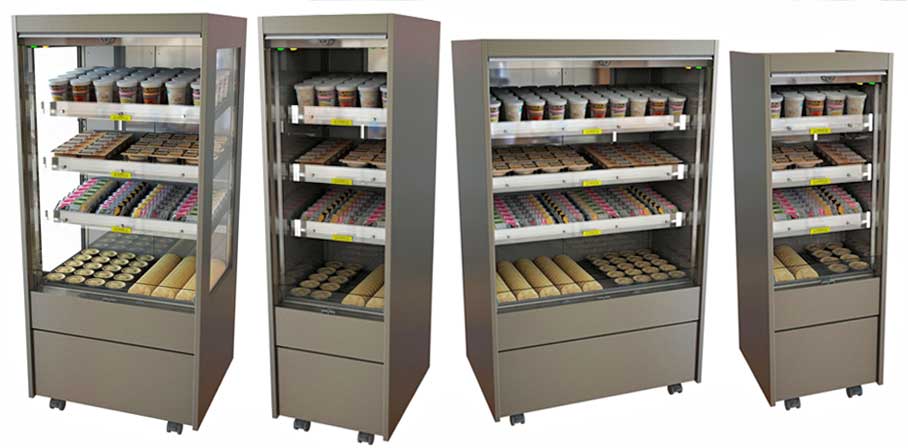

CED’s self help heated merchandisers are available in 600, 900 & 1200mm widths, either as slim depth (635mm) or larger depth (795mm) & all are fitted with 3 adjustable coated steel/aluminium shelves and hot hold display deck. The bright polished steel back and inner side panels offer a truly inviting merchandising space, where food display is enhanced by both horizontal & vertical covered T5 fluorescent cool white lighting. Matching chilled models are available.

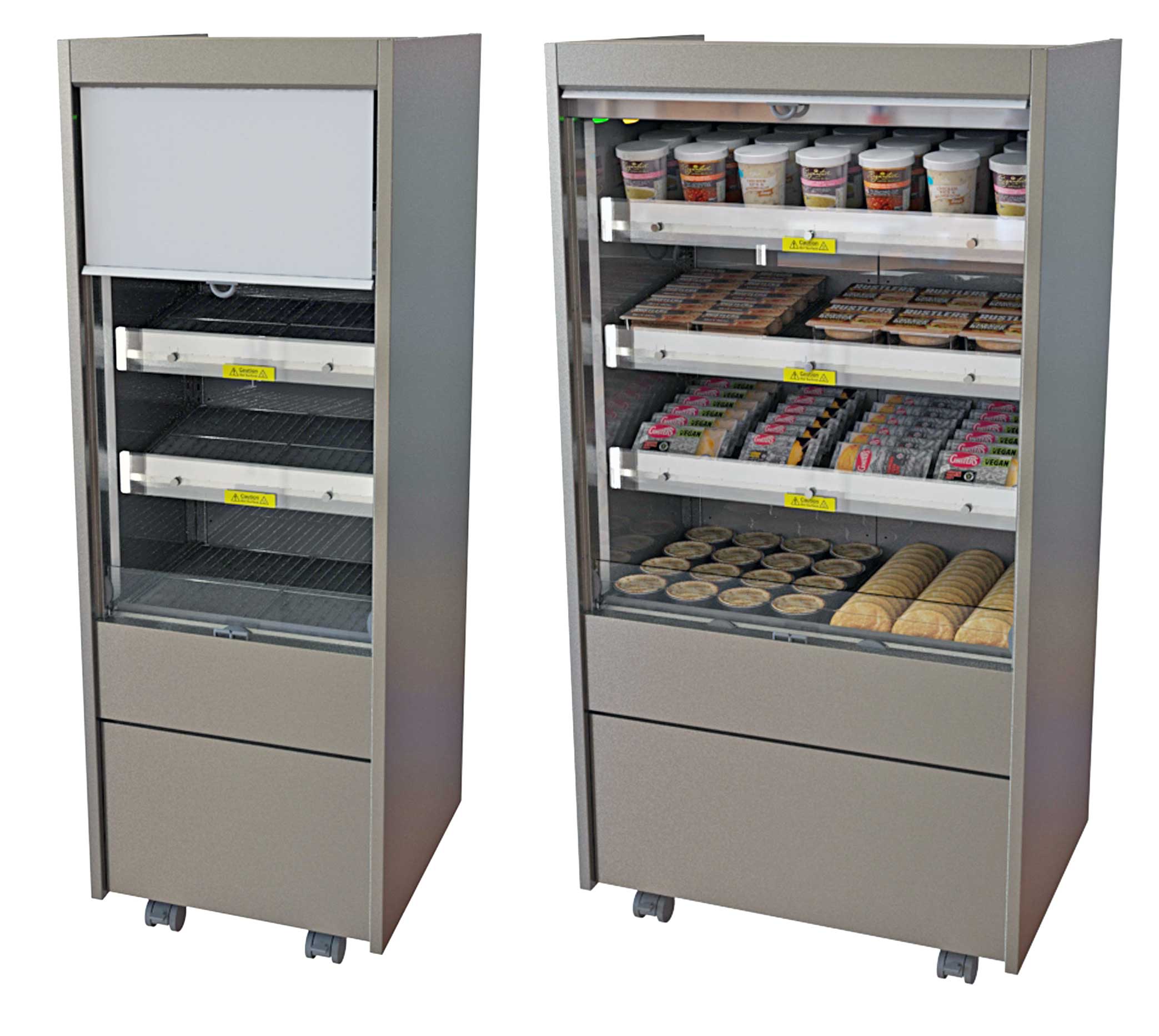

Night Blind Models. Each hot holding model is supplied with an energy saving retractable insulated night blind, 24 hour hot holding operational use, adjustable height/ angled shelving, solid insulated steel end panels and durable locking castors. Each display tier also features a 40mm ticket strip holder.

Night Blind/ Side Glass Models. The Money Maker hot merchandiser is also available with panoramic double glazed side glass, for more visible merchandising.

Each heated merchandiser is mobile & mounted on durable locking castors with a central adjustable foot, for smooth delivery, final positioning & levelling.

Options. A heavy duty castor, rear door option, wire impulse baskets and a large choice of powder coated external finishes are also available.

Visual

Money Maker Slim Heated Merchandiser
Visual



Features

Money Maker Slim Heated Merchandiser
Features

  • Mobile hot holding merchandiser in a range of sizes, for retail locations where space is a premium.
  • Ideal for the display of pre-heated cooked food, packaged & cartoned heated produce, whether for snack, breakfast or lunch offers.
  • Heated by both static heat and fan blown heated air.
  • Product temperature maintained at 70- 75 deg. C in +18 deg. C ambient.
  • Self help (fixed back) application.
  • 4 tier food display levels comprising 3 steel/ coated aluminum shelves and hot deck display area.
  • The temperature of each of the 4 display tier heated zones can be independently set, using digital displays mounted behind the front panel.
  • Shelving is adjustable in both height/angle with removable steel wire food display grids on all display levels.
  • Vertical & horizontal covered fluorescent lighting to display area (4000 Kelvin) – to match chilled merchandiser models.
  • Fitted with an energy saving retractable insulated night blind.
  • Available in 600, 900 & 1200mm wide.
  • Slim unit depth 635mm, unit height 1725 mm.
  • 24-hour operation.
  • Superstructure in bright polished (internal) and satin (external) steel.

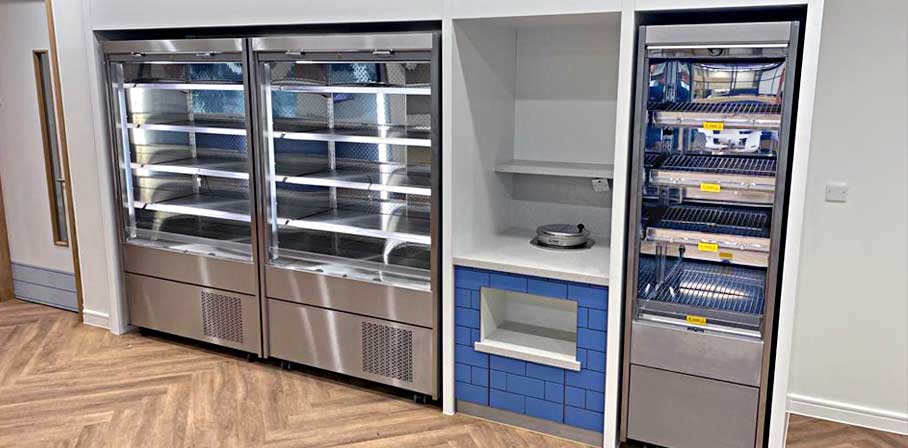

  • Bright polished steel rear back panel for typical use in wall sited situation.
  • User friendly ‘On/ Off’ and lighting switches discreetly mounted in canopy.
  • Features 4 ‘tamper proof’ digital control panels – concealed in lift off front fascia panel – which allow variable temperature holding to each tier.
  • Cabinet can also be used with lighting only as an ambient merchandiser.
  • 40 mm tall ‘point of sale’ display/ ticket strips are fitted as standard.
  • 600mm/ 900mm wide models supplied with 2m lead, cord wrap & parking socket, for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • 1200mm wide models supplied with 2m lead & single phase 32A commando plug (32A 230V 50Hz).
  • Removable steel front fascia panel, for ease of cleaning/ service maintenance.
  • Modular removable shelving system for easier cleaning and maintenance.
  • Adjustable final positioning/ levelling feet.

Options

  • Ø 100 mm heavy duty castor (2 braked to customer side)
    **unit height increases to 1765 mm**.
  • Panoramic glazed side panels.
  • Hook in chrome wire impulse basket.
  • Mobile timber impulse basket.
  • Double glazed rear door/s (Set).
  • Coloured external surface finishes available (20 RAL Colours).
  • Export plug option (<3kW Models) – compatible with type C, E & F sockets. State plug type at point of order.
  • Export Packing Case.


Dimensions

Money Maker Slim Heated Merchandiser
Dimensions

Model

MMH600S

MMH900S

MMH1200S

Capacity (Litres)

134

207

281

Length (mm)

600

900

1200

Depth (mm)

635

635

635

Height (mm)

1725

1725

1725

3 Tiers + Deck

Included

Included

Included

Night blind

Included

Included

Included

Shelf Depth (mm)

336

336

336

Deck Depth (mm)

428

428

428

Weight (uncrated) ( kg)

112

151

190

Power (kW)

2.57

2.57

4.1

Electrical Supply

13A 230V

13A 230V

32A 230V *

* Unit Supplied With Commando Plug



Option Codes

Model

MMH600S

MMH900S

MMH1200S

D/Glazed Side Panels

DGPS

DGPS

DGPS

Ø100mm H. Duty Castor
(1765mm Unit Height)

HDC6

HDC9

HDC12

Hook In Chrome Wire Impulse Basket

MMIB6

MMIB9

MMIB12

Mobile Impulse Timber Basket
Basket (Redwood Clear Varnish)

MITB6

MITB9

MITB12

Wood Stain To Mobile Impulse Timber Basket
(Oak/ Wenge/ Ash Grey)

MITB6S

MITB9S

MITB12S

Rear Doors.

MMHDR6S

MMHDR9S

MMHDR12S

Coloured Surface Finish (20 Colours).

MMPCO

MMPCO

MMPCO



Food Types

Money Maker Slim Heated Merchandiser
Food Display Types.



Food: Pre-heated cooked food, packaged & cartoned heated product. Hot wrapped buritos, sandwiches, rolls, breads & baguettes, hot savouries, pies, pastries & sausage rolls, chicken, pizza, cartoned soup and oats.



Options

Money Maker Slim Heated Merchandiser
Options.




Ø 100mm Heavy Duty Castor.

Set of heavy duty castors – 2 braked to customer side (200 kg load/ castor).*1765 mm Unit Height*

Model

MMH600S

MMH900S

MMH1200S

Option – Ø 100 mm Heavy Duty Castor                                (1765 mm Unit Height)

HDC6

HDC9

HDC12

Revised Height (mm)

1765

1765

1765

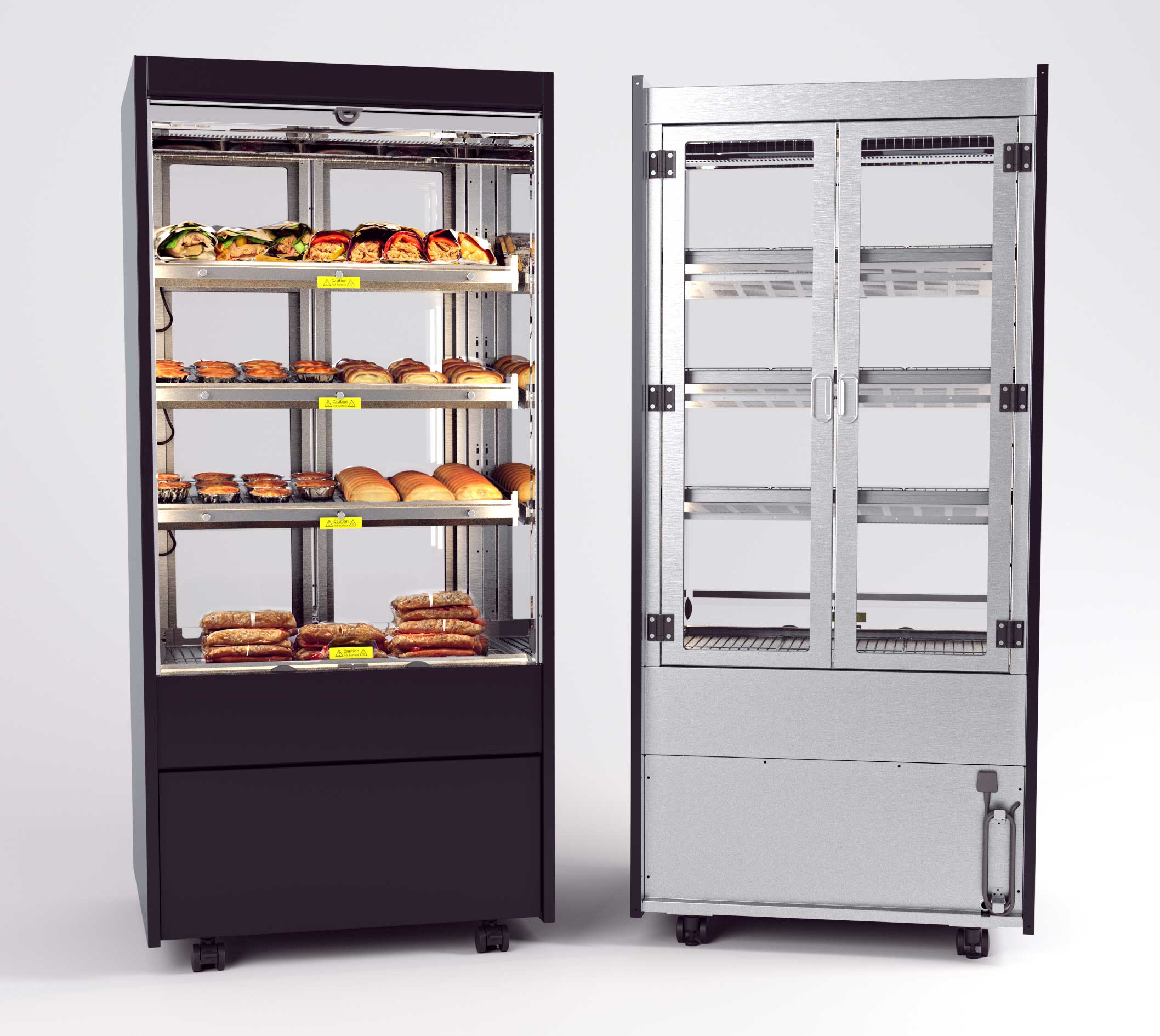

Double Glazed Rear Door Set.
Set of rear s/steel hinged door/s with double glazed window, allows re-stocking of the cabinet from operator side, when the unit is not wall sited.

Model

MMH600S

MMH900S

MMH1200S

Option – Double Glazed Rear Door (Set).

MMHDR6S

MMHDR9S

MMHDR12S

Qty. Doors Per Model.

One

Two

Two





Wire Impulse Basket.
Factory fitted hook in chrome wire basket, continuous open frame type, for local display of food bags, sauce pots, condiments, cutlery, folded luncheon napkins (163mm sq.), ambient product (crisps etc.) to merchandiser front. Ideal for maximizing impulse sales, meal deal offers. Basket depth accepts 6 x standard 32.5 g crisp packets.

Model

MMH600S

MMH900S

MMH1200S

Option – Hook In Impulse Basket.

MMIB6

MMIB9

MMIB12

Basket Size L x H x D (mm)

540 x 99 x 210

840 x 99 x 210

1140 x 99 x 210





Mobile Impulse Basket.
Freestanding mobile timber impulse basket, with open slat redwood frame in clear satin varnish finish, steel support straps & lockable castors, for local display of ambient product ( crisps etc.) to merchandiser front.  Ideal for maximizing impulse sales, meal deal offers. Timber Basket (storage area) depth accepts 10 x standard 32.5 g crisp packets.



Model

MMH600S

MMH900S

MMH1200S

Option – Mobile Impulse Timber Basket
(Varnish Finish).

MITB6

MITB9

MITB12

Basket Size L x H x D (mm)

600 x 660 x 300

900 x 660 x 300

1200 x 660 x 300

Storage Area L x H x D (mm)

570 x 270 x 147

870 x 270 x 147

1170 x 270 x 147





Colour Stain To Mobile Impulse Timber Basket.
Blanchon wood stain in Oak, Wenge or Ash Grey applied prior to varnish finish.

 [Download not found]

Model

MMH600S

MMH900S

MMH1200S

Option – Wood Stain
(Oak/ Wenge/ Ash Grey).

MITB6S

MITB9S

MITB12S

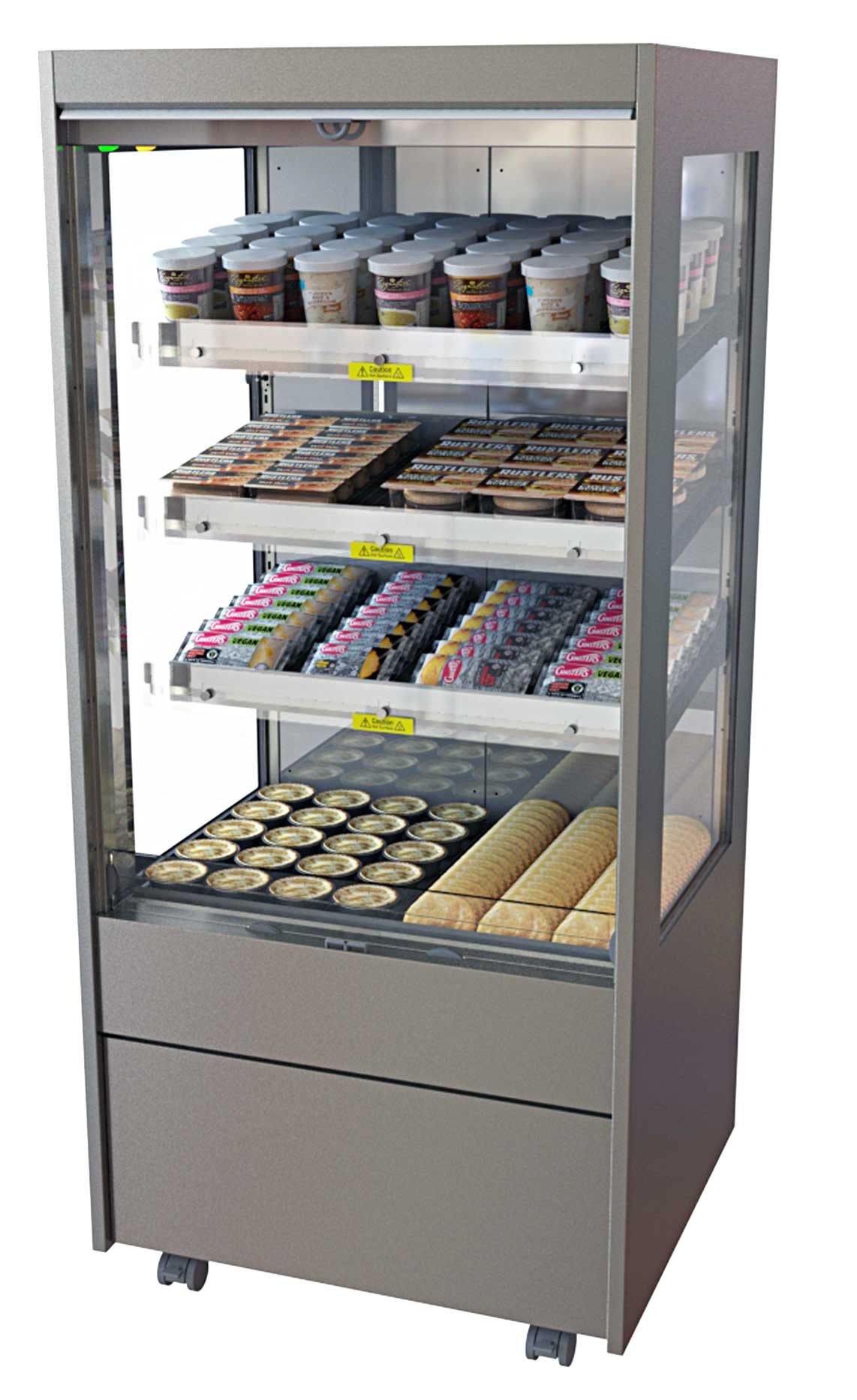

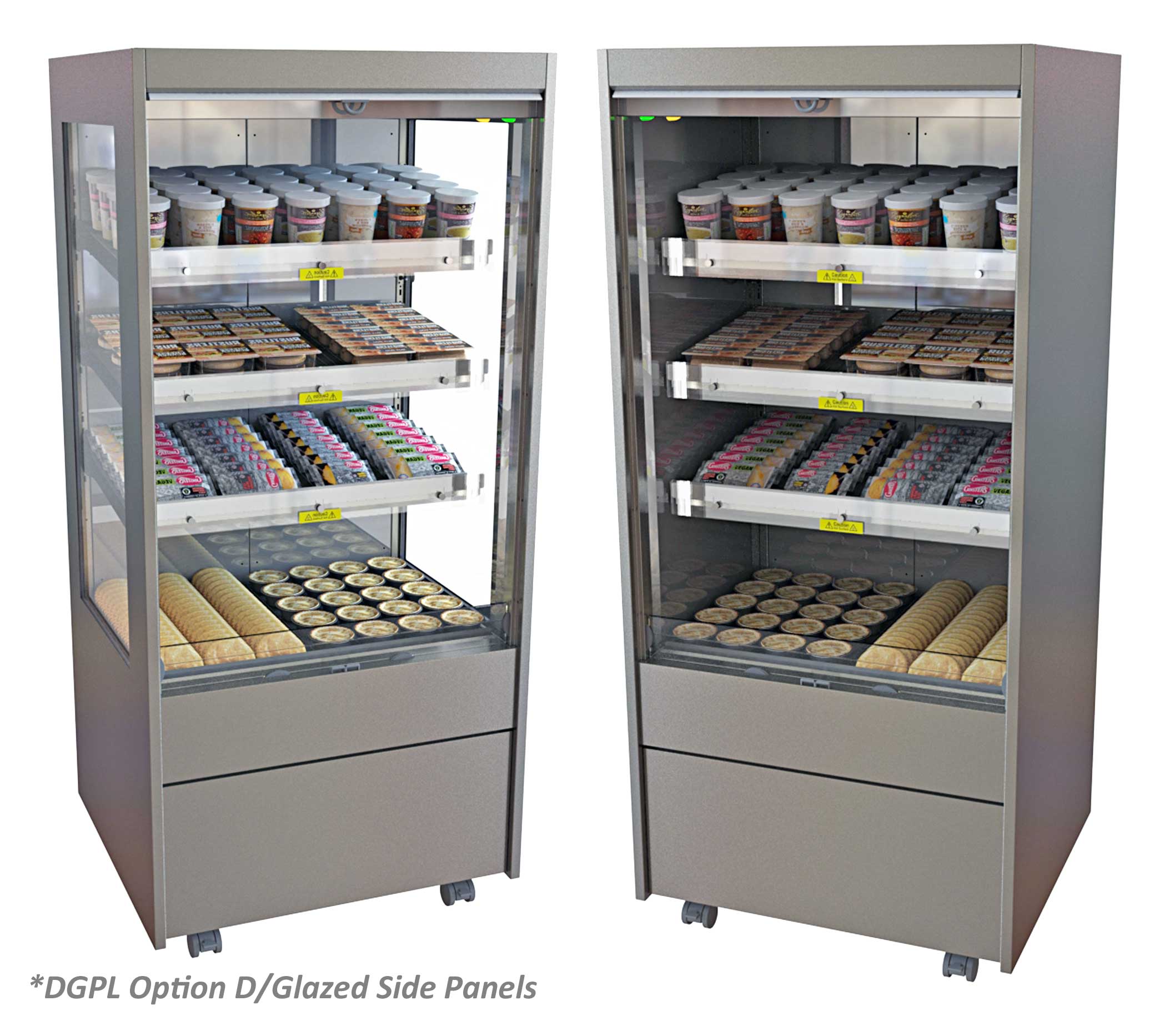

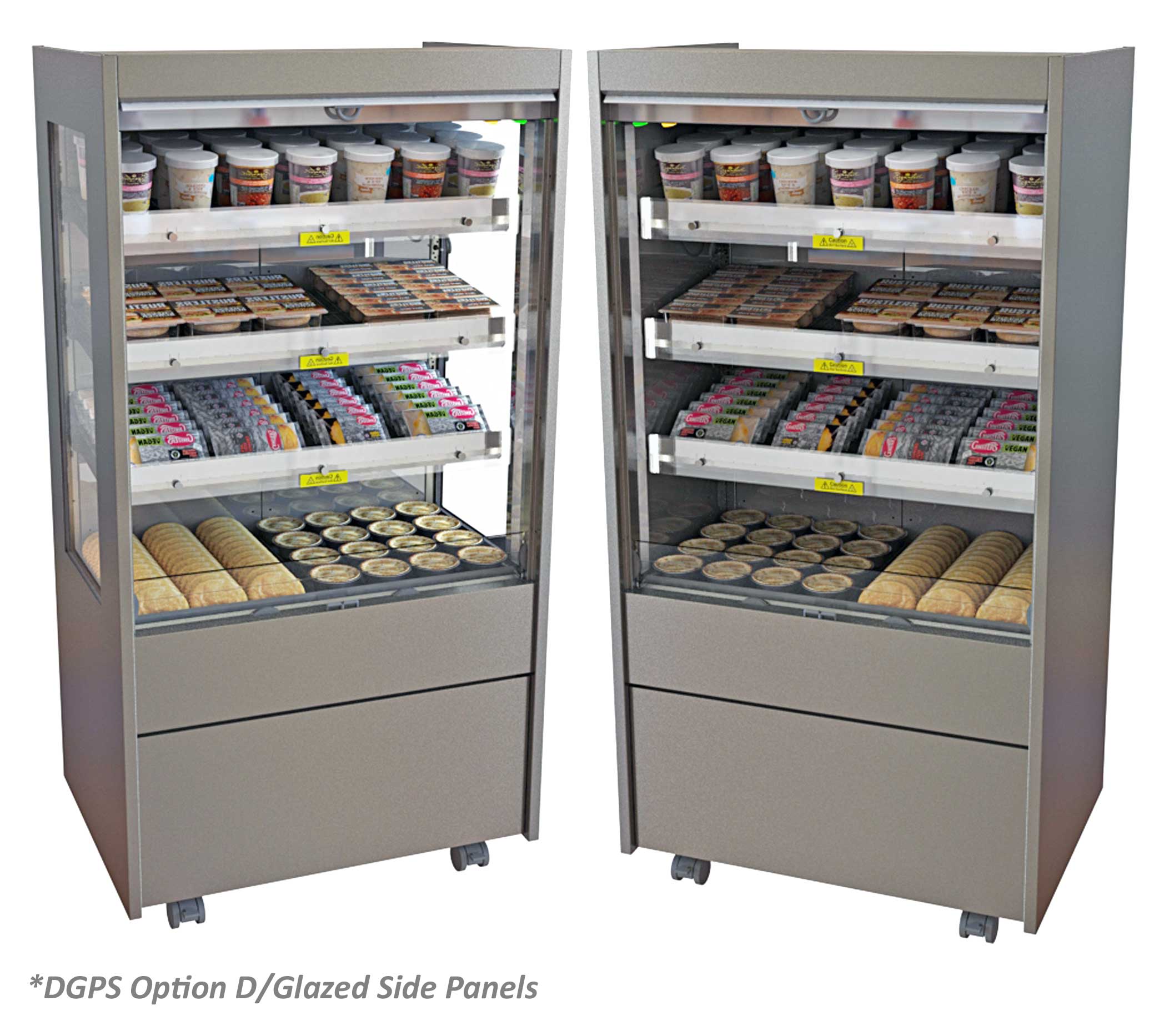

Panoramic Glazed Side Panels.
Partially double glazed end panels provide a more panoramic view of displayed merchandise, whilst also adding more natural light to the cabinet. Vertical LED lighting is retained to the display area.



Model

MMH600S

MMH900S

MMH1200S

Option – Panoramic Glazed Side Panels

DGPS

DGPS

DGPS

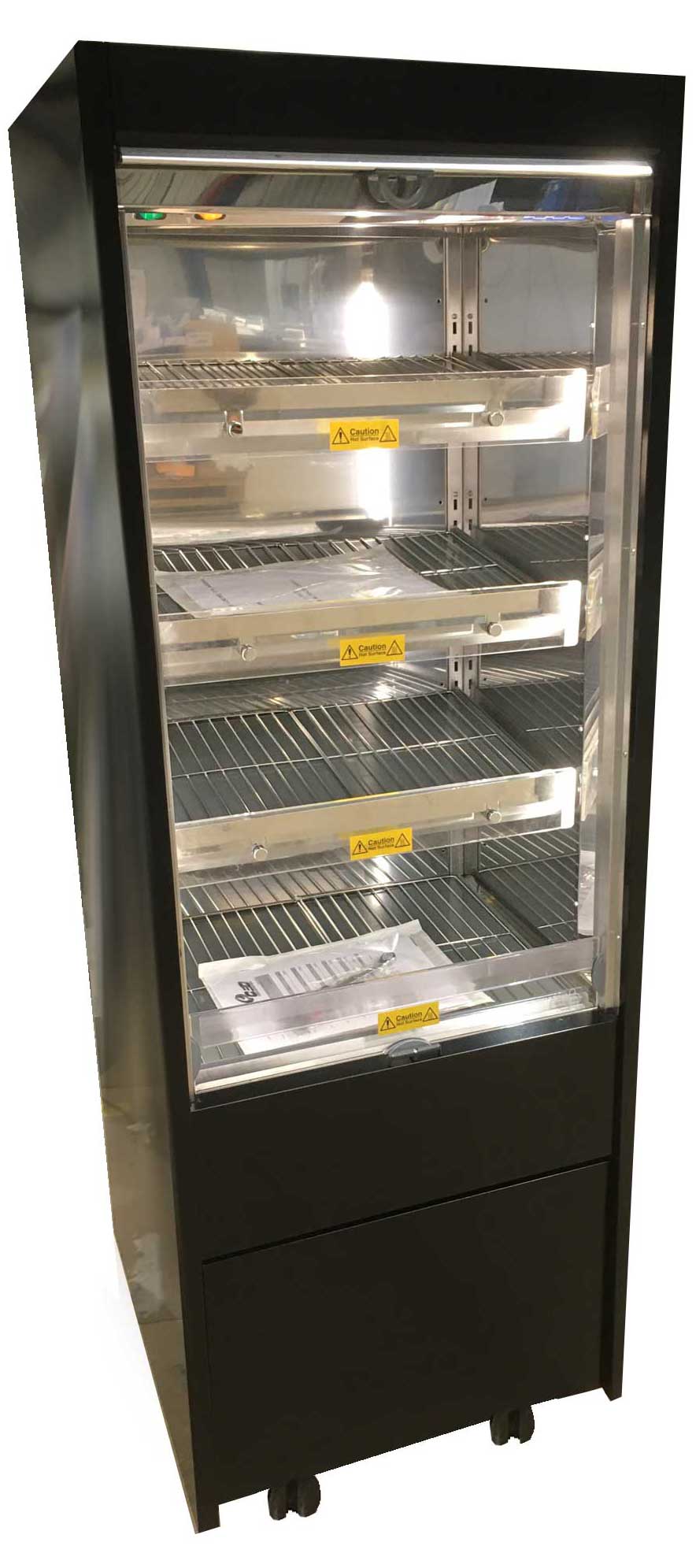

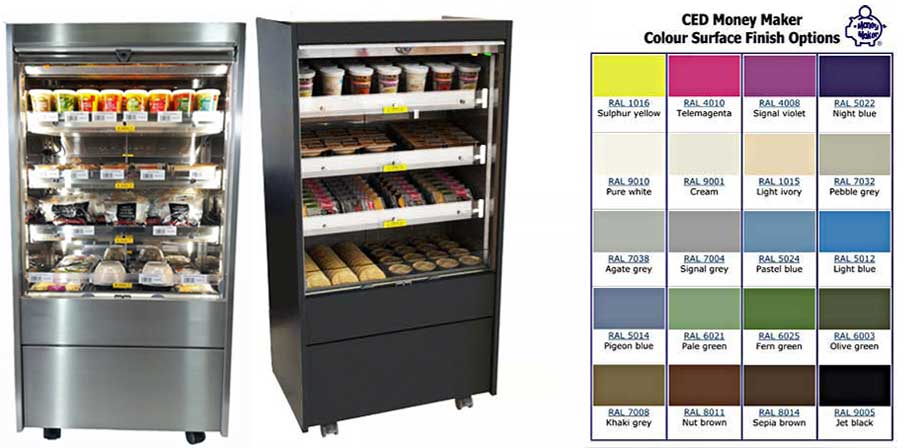

Coloured Surface Finish.
A tough, durable powder coated colour finish can be applied to the external body of the merchandiser, to match many standard RAL colour references.



Model

MMH600S

MMH900S

MMH1200S

Option – Coloured Surface Finish.

MMPCO

MMPCO

MMPCO

**Please state selected RAL Reference at point of order**





Installation Service Of ‘Money Maker’ Heated Merchandiser.
The new merchandiser can be delivered direct to site/positioned, de-papered, switched on and left operational for customers. (Standard terms of installation i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

WEEE Disposal Of Redundant Merchandiser.
Collection and WEEE disposal of the redundant cabinet can also take place on delivery of any new CED Money Maker Merchandiser. (Standard terms of collection i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

Model

MMH600S

MMH900S

MMH1200S

Option – Unpack & Position Money Maker.

MMUP69

MMUP69

MMUP1215

Option – WEEE Disposal Of Redundant Multideck During Delivery.

MMWEEE

MMWEEE

MMWEEE





Euro Plug (<3kW Models).
Euro plug electrical option – compatible with type C, E & F sockets. For use in France, Germany, Greece, Belgium, Spain, Norway, Russia, Morocco, Algeria, Tunisia.

Model

MMH600S

MMH900S

Euro Plug Code.

EXPLUG

EXPLUG













Export Packing Case.
Money Maker Merchandiser Export Packing Case to ISPM 15 (2013). O/All case dims: as listed below. Recommended for non mainland UK destinations.

Model

MMH600S

MMH900S

MMH1200S

Export Packing Case.

EXMM6S

EXMM9S

EXMM12S

O/All Case Dims. L x W x H (mm).

700 x 785 x 1935

1000 x 785 x 1935

1300 x 785 x 1935

Case Weight (kg) *Not Including Merchandiser*

49

60

70





Downloads

General Layout Drawings/ Fitting Details.
Money Maker Slim Heated Merchandiser





Specification Sheets, User Manual, CE & UKCA Conformance.
Money Maker Slim Heated Merchandiser






Visual

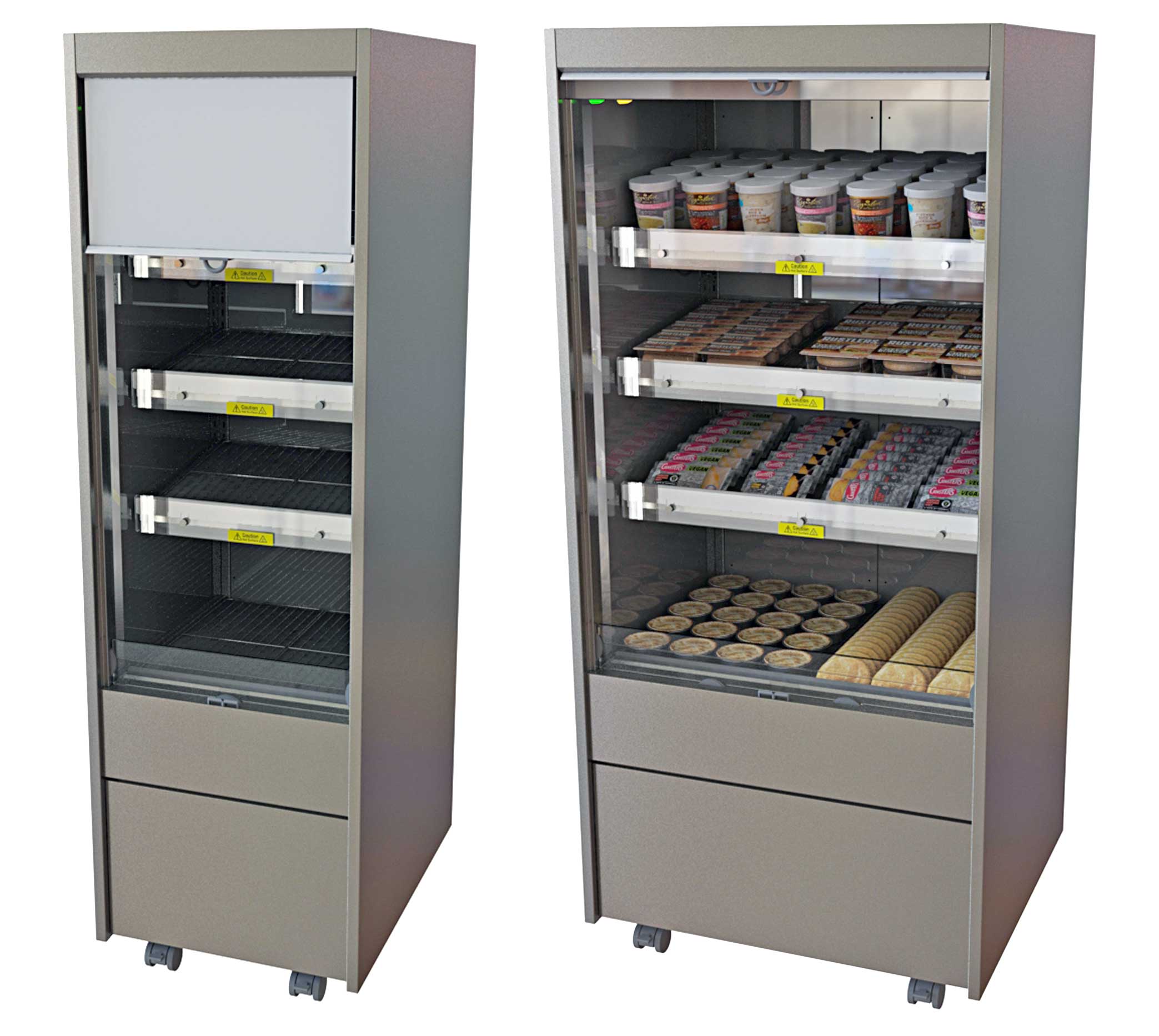

Money Maker Large Heated Merchandiser
Visual




Features

Money Maker Large Heated Merchandiser
Features

    • Mobile hot holding merchandiser in a range of sizes, for retail locations where maximum merchandising capacity is premium.
    • Ideal for the display of pre-heated cooked food, packaged & cartoned heated produce, whether for snack, breakfast or lunch offers.
    • Heated by both static heat and fan blown heated air.
    • Product temperature maintained at 70- 75 deg. C in +18 deg. C ambient.
    • Self help (fixed back) application.
    • 4 tier food display levels comprising 3 steel/ coated aluminum shelves and hot deck display area.
    • The temperature of each of the 4 display tier heated zones can be independently set, using digital displays mounted behind the front panel.
    • Shelving is adjustable in both height/angle with removable steel wire food display grids on all display levels.
    • Vertical & horizontal covered fluorescent lighting to display area (4000 Kelvin) – to match chilled models.
    • Fitted with an energy saving retractable insulated night blind.
    • Available in 600, 900 & 1200mm wide.
    • Large unit depth 795mm, unit height 1965 mm.
    • 24-hour operation.
    • Superstructure in bright polished (internal) and satin (external) steel.
    • Bright polished steel rear back panel for typical use in wall sited situation
    • User friendly ‘On/ Off’ and lighting switches discreetly mounted in canopy.
    • Features 4 ‘tamper proof’ digital control panels – concealed in lift off front fascia panel – which allow variable temperature holding to each tier.
    • Cabinet can also be used with lighting only as an ambient merchandiser.
    • 40 mm tall ‘point of sale’ display/ ticket strips are fitted as standard.
    • 600mm/ 900mm wide models supplied with 2m lead, cord wrap & parking socket, for connection to a single 13 Amp socket (13A 230V 50 Hz).
    • 1200mm wide models supplied with 2m lead & single phase 32A commando plug (32A 230V 50Hz).
    • Removable steel front fascia panel, for ease of cleaning/ service maintenance.
    • Modular removable shelving system for easier cleaning and maintenance.
    • Adjustable final positioning/ levelling feet.

    Options

    • Ø 100 mm heavy duty castor (2 braked to customer side)
      **unit height increases to 2005 mm**.
    • Panoramic glazed side panels.
    • Hook in chrome wire impulse basket.
    • Mobile timber impulse basket.
    • Double glazed rear door/s (Set).
    • Coloured external surface finishes available (20 RAL Colours).
    • Export plug option (<3kW Models) – compatible with type C, E & F sockets. State plug type at point of order.
    • Export Packing Case.


Dimensions

Money Maker Large Heated Merchandiser
Dimensions



Model

MMH600L

MMH900L

MMH1200L

Capacity (Litres)

228

353

478

Length (mm)

600

900

1200

Depth (mm)

795

795

795

Height (mm)

1965

1965

1965

3 Tiers + Deck

Included

Included

Included

Night blind

Included

Included

Included

Shelf Depth (mm)

428

428

428

Deck Depth (mm)

553

553

553

Weight (uncrated) ( kg)

152

191

230

Power (kW)

2.57

2.87

4.1

Electrical Supply

13A 230V

13A 230V

32A 230V*

* Unit Supplied With Commando Plug



Option Codes

Model

MMH600L

MMH900L

MMH1200L

D/Glazed Side Panels

DGPL

DGPL

DGPL

Ø100mm H.Duty Castor
(2005mm Unit Height)

HDC6

HDC9

HDC12

Hook In Chrome Wire Impulse Basket

MMIB6

MMIB9

MMIB12

Mobile Impulse Timber Basket
Basket (Redwood Clear Varnish)

MITB6

MITB9

MITB12

Wood Stain To Mobile Impulse Timber Basket
(Oak/ Wenge/ Ash Grey)

MITB6S

MITB9S

MITB12S

Rear Doors.

MMHDR6L

MMHDR9L

MMHDR12L

Coloured Surface Finish (20 Colours).

MMPCO

MMPCO

MMPCO



Food Types

Money Maker Large Heated Merchandiser
Food Display Types.



Food: Pre-heated cooked food, packaged & cartoned heated product. Hot wrapped buritos, sandwiches, rolls, breads & baguettes, hot savouries, pies, pastries & sausage rolls, chicken, pizza, cartoned soup and oats.



Options

Money Maker Large Heated Merchandiser
Options.




Ø 100mm Heavy Duty Castor.
Set of heavy duty castors – 2 braked to customer side (200 kg load/ castor).*2005 mm Unit Height*

Model

MMH600L

MMH900L

MMH1200L

Option – Ø 100 mm Heavy Duty Castor                                (2005 mm Unit Height)

HDC6

HDC9

HDC12

Revised Height (mm)

2005

2005

2005

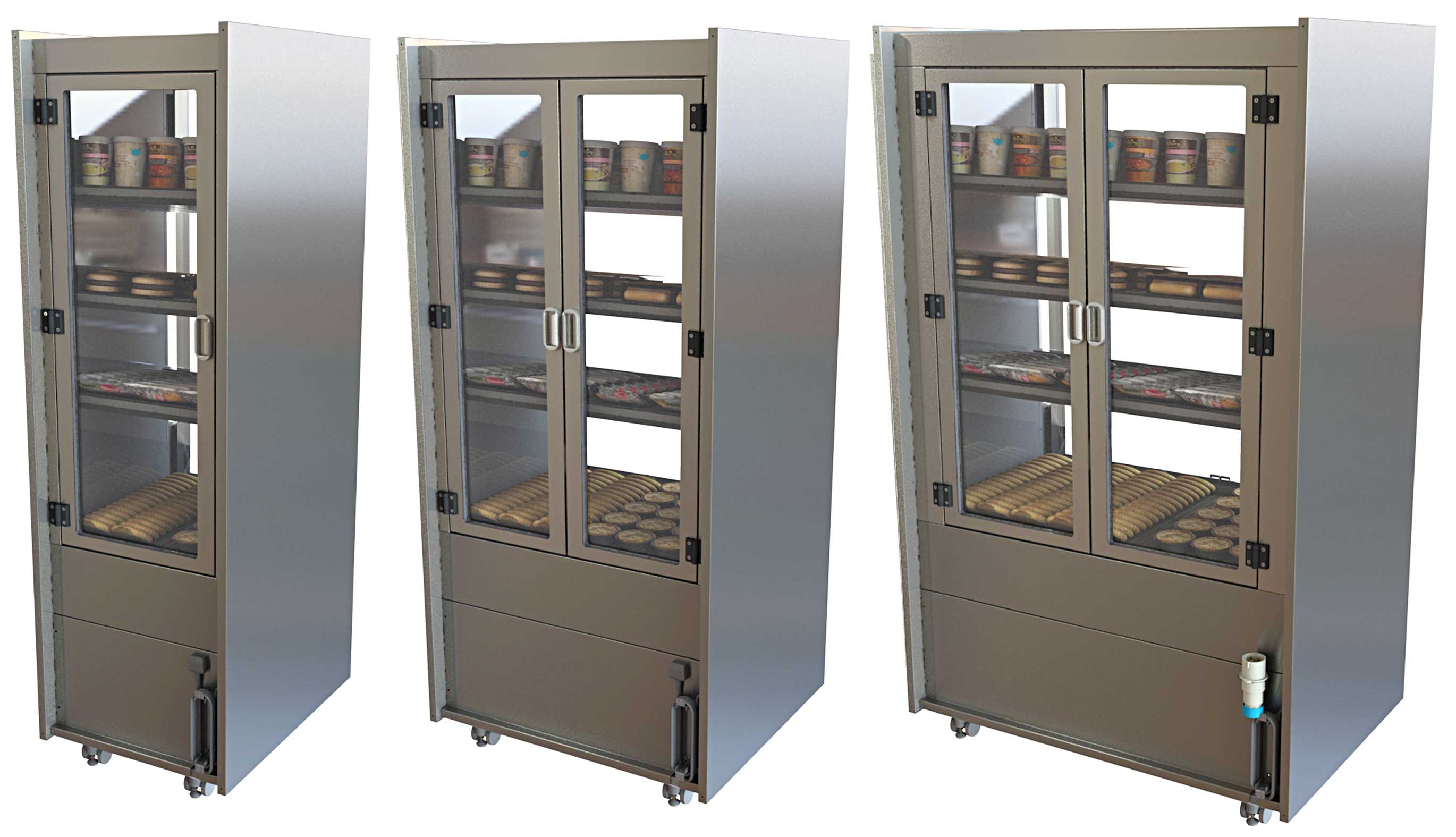

Double Glazed Rear Door Set.
Set of rear s/steel hinged door/s with double glazed window, allows re-stocking of the cabinet from operator side, when the unit is not wall sited.

Model

MMH600L

MMH900L

MMH1200L

Option – Double Glazed Rear Door (Set).

MMHDR6L

MMHDR9L

MMHDR12L

Qty. Doors Per Model.

One

Two

Two





Wire Impulse Basket.
Factory fitted hook in chrome wire basket, continuous open frame type, for local display of food bags, sauce pots, condiments, cutlery, folded luncheon napkins (163mm sq.), ambient product (crisps etc.) to merchandiser front. Ideal for maximizing impulse sales, meal deal offers. Basket depth accepts 6 x standard 32.5 g crisp packets.

Model

MMH600L

MMH900L

MMH1200L

Option – Hook In Impulse Basket.

MMIB6

MMIB9

MMIB12

Basket Size L x H x D (mm)

540 x 99 x 210

840 x 99 x 210

1140 x 99 x 210





Mobile Impulse Timber Basket.
Freestanding mobile timber impulse basket, with open slat redwood frame in clear satin varnish finish, steel support straps & lockable castors, for local display of ambient product ( crisps etc.) to merchandiser front.  Ideal for maximizing impulse sales, meal deal offers. Timber Basket (storage area) depth accepts 10 x standard 32.5 g crisp packets.



Model

MMH600L

MMH900L

MMH1200L

Option – Mobile Impulse Timber Basket
(Varnish Finish).

MITB6

MITB9

MITB12

Basket Size L x H x D (mm)

600 x 660 x 300

900 x 660 x 300

1200 x 660 x 300

Storage Area L x H x D (mm)

570 x 270 x 147

870 x 270 x 147

1170 x 270 x 147





Colour Stain To Mobile Impulse Timber Basket.
Blanchon wood stain in Oak, Wenge or Ash Grey applied prior to varnish finish.



Model

MMH600L

MMH900L

MMH1200L

Option – Wood Stain
(Oak/ Wenge/ Ash Grey).

MITB6S

MITB9S

MITB12S





Panoramic Glazed Side Panels. Partially double glazed end panels provide a more panoramic view of displayed merchandise, whilst also adding more natural light to the cabinet. Vertical LED lighting is retained to the display area.



Model

MMH600L

MMH900L

MMH1200L

Option – Panoramic Glazed Side Panels

DGPL

DGPL

DGPL













Coloured Surface Finish.
A tough, durable powder coated colour finish can be applied to the external body of the merchandiser, to match many standard RAL colour references.



Model

MMH600L

MMH900L

MMH1200L

Option – Coloured Surface Finish.

MMPCO

MMPCO

MMPCO

**Please state selected RAL Reference at point of order**





Installation Service Of ‘Money Maker’ Heated Merchandiser.
The new merchandiser can be delivered direct to site/positioned, de-papered, switched on and left operational for customers. (Standard terms of installation i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

WEEE Disposal Of Redundant Merchandiser.
Collection and WEEE disposal of the redundant cabinet can also take place on delivery of any new CED Money Maker Merchandiser. (Standard terms of collection i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

Model

MMH600L

MMH900L

MMH1200L

Option – Unpack & Position Money Maker.

MMUP69

MMUP69

MMUP1215

Option – WEEE Disposal Of Redundant Multideck During Delivery.

MMWEEE

MMWEEE

MMWEEE





Euro Plug (<3kW Models).
Euro plug electrical option – compatible with type C, E & F sockets. For use in France, Germany, Greece, Belgium, Spain, Norway, Russia, Morocco, Algeria, Tunisia.

Model

MMH600L

MMH900L

Euro Plug Code.

EXPLUG

EXPLUG













Export Packing Case. Money Maker Merchandiser Export Packing Case to ISPM 15 (2013). O/All case dims: as listed below. Recommended for non mainland UK destinations.

Model

MMH600L

MMH900L

MMH1200L

Export Packing Case.

EXMM6L

EXMM9L

EXMM12L

O/All Case Dims. L x W x H (mm).

700 x 945 x 2175

1000 x 945 x 2175

1300 x 945 x 2175

Case Weight (kg) *Not Including Merchandiser*

61

73

85







Downloads

General Layout Drawings/ Fitting Details.
Money Maker Large Heated Merchandiser





Specification Sheets, User Manual, CE & UKCA Conformance.
Money Maker Slim Heated Merchandiser






 &nbsp
