Quick Service Fabrication. We’ve taken our vast experience producing every conceivable kind of made to measure commercial kitchen fabrication, in order to develop the new Quick Service fabrication range.
Quick Service now offers dealers a complete range of CED standard fabrication in the popular sizes you want.
Quick Service 2 Year Warranty. There is no compromise on quality with Quick Service fabrication either, otherwise we couldn’t offer our 2 year warranty as standard.
Quick Service Choice. There’s over 150 of our most popular kitchen equipment products to select from, including single or double bowl sinks, wall & corner cupboards, wall & corner benches, centre benches, heavy duty wall shelving, pan storage & microwave shelving.

Quick Service Wall Shelving.

Solid Steel Wall Shelving.
Quick Service wall shelves are perfect for back of house equipment storage. Simple yet sturdy, they are constructed from 430 gd 1.2 thk. steel with 30mm sq box section bracket supports (Heavy Duty). Each length features a durable 1.2 mm thick 430 gd. solid steel shelf and has a 35 mm deep turn down to 3 faces and a rear wall up stand of 20 mm.

Rodded Pan Storage Shelving.
Quick Service pan storage shelves are an open frame, heavy duty shelf for the storage & drainage of pots, pans and cooking utensils. The shelf is generally sited over sink unit areas within the kitchen. The shelf is constructed of a welded 430 gd. 1.2 thk. 30mm box section outer frame and integral wall bracket legs.
A series of 10mm diameter 304 gd. steel bars run end to end in the shelf, forming an open storage space that also allows ventilation. The rack is available in 1200 or 1500mm lengths – each 300mm deep. The integral cantilever wall brackets are pre-drilled for final fixing.

Microwave Shelving.
Quick Service microwave shelving accepts a freestanding microwave oven, the shelving is constructed from 1.2mm thick 430 gd. s/steel.

Medium Duty Microwave Shelf.
The medium duty version is a 3 sided folded shelf that is pre-drilled for wall fixing. A folded 30mm turn down with 15mm return flange to the front edge, adds strength to the horizontal support. The shelf is 560 or 600mm long and available in three depths.

Heavy Duty Microwave Shelf.
The folded shelf is constructed from 1.2mm thick 430 gd. s/steel and mounted on 430 gd. 1.2 thk. welded cantilever 30mm box section wall brackets, pre-drilled for site fixing. Additional strength is provided by 32mm turn down edges and a rear up stand of 30mm. The electrical cable of the microwave can then pass behind the shelf up stand when insitu. The shelf is 560 or 600mm long and available in three depths.

Quick Service Shelving Types.

Visual

Solid Steel Wall Shelving.
(Heavy Duty Wall Shelf).
Visual.














Specification

Solid Steel Wall Shelving.
(Heavy Duty Wall Shelf).
Features.

  • Commercial s/steel shelving supported on cantilever box section brackets, perfect for back of house utensil/ container & equipment storage.
  • Available in 600 up to 2400 mm lengths (100mm increments) x 300mm deep.
  • Available in 600, 900, 1200, 1500, 1800, 2100 & 2400mm lengths x 400mm deep.
  • Durable 1.2 mm thick 430 gd. solid steel shelf (250mm high).
  • Steel shelf has a 35 mm deep turn down to 3 faces and a rear wall up stand of 20 mm.
  • Pre-drilled box section support brackets (430 gd 1.2 thk. 30 mm sq) for fixing shelf insitu – Ø 6mm fixing holes (Fixings Not Supplied).
  • Black heat resistant nylon bungs supplied to blank off through fixing holes on face of brackets ( Ø 16mm).
  • Double sided tape strips supplied, for attaching shelf to wall brackets.
  • Additional support brackets provided, depending on the shelf length selected.
  • Plastic bungs fitted to wall bracket ends.





Dimensions

Solid Steel Wall Shelving.
(Heavy Duty Wall Shelf – 300mm Deep).
Dimensions.

Model

QWS
63HD2

QWS
73HD2

QWS
83HD2

QWS
93HD2

QWS
103HD2

QWS
113HD2

QWS
123HD2

Type

H.Duty
Wall Shelf

H.Duty
Wall Shelf

H.Duty
Wall Shelf

H.Duty
Wall Shelf

H.Duty
Wall Shelf

H.Duty
Wall Shelf

H.Duty
Wall Shelf

*Max.Load

35 kg

35 kg

35 kg

35 kg

35 kg

35 kg

35 kg

Shelf
Length

600
(mm)

700
(mm)

800
(mm)

900
(mm)

1000
(mm)

1100
(mm)

1200
(mm)

Shelf
Depth

300
(mm)

300
(mm)

300
(mm)

300
(mm)

300
(mm)

300
(mm)

300
(mm)

Shelf Height
(Total)

250
(mm)

250
(mm)

250
(mm)

250
(mm)

250
(mm)

250
(mm)

250
(mm)

Shelf Edge
(Depth)

35
(mm)

35
(mm)

35
(mm)

35
(mm)

35
(mm)

35
(mm)

35
(mm)

Box Section
Brackets

2

2

2

2

2

2

2

Fixing
Hole Size

Ø 6
(mm)

Ø 6
(mm)

Ø 6
(mm)

Ø 6
(mm)

Ø 6
(mm)

Ø 6
(mm)

Ø 6
(mm)

Shelf
Up-stand (Height)

20
(mm)

20
(mm)

20
(mm)

20
(mm)

20
(mm)

20
(mm)

20
(mm)

Weight

3 (kg)

4 (kg)

4 (kg)

4 (kg)

5 (kg)

5 (kg)

5 (kg)

* Max Load = (Kg) Distributed Across Total Surface Area Of Shelf (Solid Wall Mounting)

Model

QWS
133HD2

QWS
143HD2

QWS
153HD3

QWS
163HD3

QWS
173HD3

QWS
183HD3

QWS
193HD3

Type

H.Duty
Wall Shelf

H.Duty
Wall Shelf

H.Duty
Wall Shelf

H.Duty
Wall Shelf

H.Duty
Wall Shelf

H.Duty
Wall Shelf

H.Duty
Wall Shelf

*Max.Load

35 kg

35 kg

65 kg

65 kg

65 kg

65 kg

65 kg

Shelf
Length

1300
(mm)

1400
(mm)

1500
(mm)

1600
(mm)

1700
(mm)

1800
(mm)

1900
(mm)

Shelf
Depth

300
(mm)

300
(mm)

300
(mm)

300
(mm)

300
(mm)

300
(mm)

300
(mm)

Shelf Height
(Total)

250
(mm)

250
(mm)

250
(mm)

250
(mm)

250
(mm)

250
(mm)

250
(mm)

Shelf Edge
(Depth)

35
(mm)

35
(mm)

35
(mm)

35
(mm)

35
(mm)

35
(mm)

35
(mm)

Box Section
Brackets

2

2

3

3

3

3

3

Fixing
Hole Size

Ø 6
(mm)

Ø 6
(mm)

Ø 6
(mm)

Ø 6
(mm)

Ø 6
(mm)

Ø 6
(mm)

Ø 6
(mm)

Shelf
Up-stand (Height)

20
(mm)

20
(mm)

20
(mm)

20
(mm)

20
(mm)

20
(mm)

20
(mm)

Weight

6 (kg)

6 (kg)

7 (kg)

7 (kg)

8 (kg)

8 (kg)

8 (kg)

* Max Load = (Kg) Distributed Across Total Surface Area Of Shelf (Solid Wall Mounting)

Model

QWS
203HD3

QWS
213HD3

QWS
223HD3

QWS
233HD3

QWS
243HD4

Type

H.Duty
Wall Shelf

H.Duty
Wall Shelf

H.Duty
Wall Shelf

H.Duty
Wall Shelf

H.Duty
Wall Shelf

*Max.Load

65 kg

65 kg

65 kg

65 kg

100 kg

Shelf
Length

2000
(mm)

2100
(mm)

2200
(mm)

2300
(mm)

2400
(mm)

Shelf
Depth

300
(mm)

300
(mm)

300
(mm)

300
(mm)

300
(mm)

Shelf Height
(Total)

250
(mm)

250
(mm)

250
(mm)

250
(mm)

250
(mm)

Shelf Edge
(Depth)

35
(mm)

35
(mm)

35
(mm)

35
(mm)

35
(mm)

Box Section
Brackets

3

3

3

3

4

Fixing
Hole Size

Ø 6
(mm)

Ø 6
(mm)

Ø 6
(mm)

Ø 6
(mm)

Ø 6
(mm)

Shelf
Up-stand (Height)

20
(mm)

20
(mm)

20
(mm)

20
(mm)

20
(mm)

Weight

9 (kg)

9 (kg)

9 (kg)

10 (kg)

11 (kg)

* Max Load = (Kg) Distributed Across Total Surface Area Of Shelf (Solid Wall Mounting)

Solid Steel Wall Shelving.
(Heavy Duty Wall Shelf – 400mm Deep).
Dimensions.

Model

QWS
64HD2

QWS
94HD2

QWS
124HD2

QWS
154HD3

QWS
184HD3

QWS
214HD3

QWS
244HD4

Type

H.Duty
Wall Shelf

H.Duty
Wall Shelf

H.Duty
Wall Shelf

H.Duty
Wall Shelf

H.Duty
Wall Shelf

H.Duty
Wall Shelf

H.Duty
Wall Shelf

*Max.Load

35 kg

35 kg

35 kg

65 kg

65 kg

65 kg

100 kg

Shelf
Length

600
(mm)

900
(mm)

1200
(mm)

1500
(mm)

1800
(mm)

2100
(mm)

2400
(mm)

Shelf
Depth

400
(mm)

400
(mm)

400
(mm)

400
(mm)

400
(mm)

400
(mm)

400
(mm)

Shelf Height
(Total)

250
(mm)

250
(mm)

250
(mm)

250
(mm)

250
(mm)

250
(mm)

250
(mm)

Shelf Edge
(Depth)

35
(mm)

35
(mm)

35
(mm)

35
(mm)

35
(mm)

35
(mm)

35
(mm)

Box Section
Brackets

2

2

2

3

3

3

4

Fixing
Hole Size

Ø 6
(mm)

Ø 6
(mm)

Ø 6
(mm)

Ø 6
(mm)

Ø 6
(mm)

Ø 6
(mm)

Ø 6
(mm)

Shelf
Up-stand (Height)

20
(mm)

20
(mm)

20
(mm)

20
(mm)

20
(mm)

20
(mm)

20
(mm)

Weight

4 (kg)

5 (kg)

7 (kg)

9 (kg)

10 (kg)

11 (kg)

13 (kg)

* Max Load = (Kg) Distributed Across Total Surface Area Of Shelf (Solid Wall Mounting)


Downloads

General Layout Drawings.
All Solid Steel Wall Shelving.




Specification Sheet & User Guide.
All Solid Steel Wall Shelving.






Visual

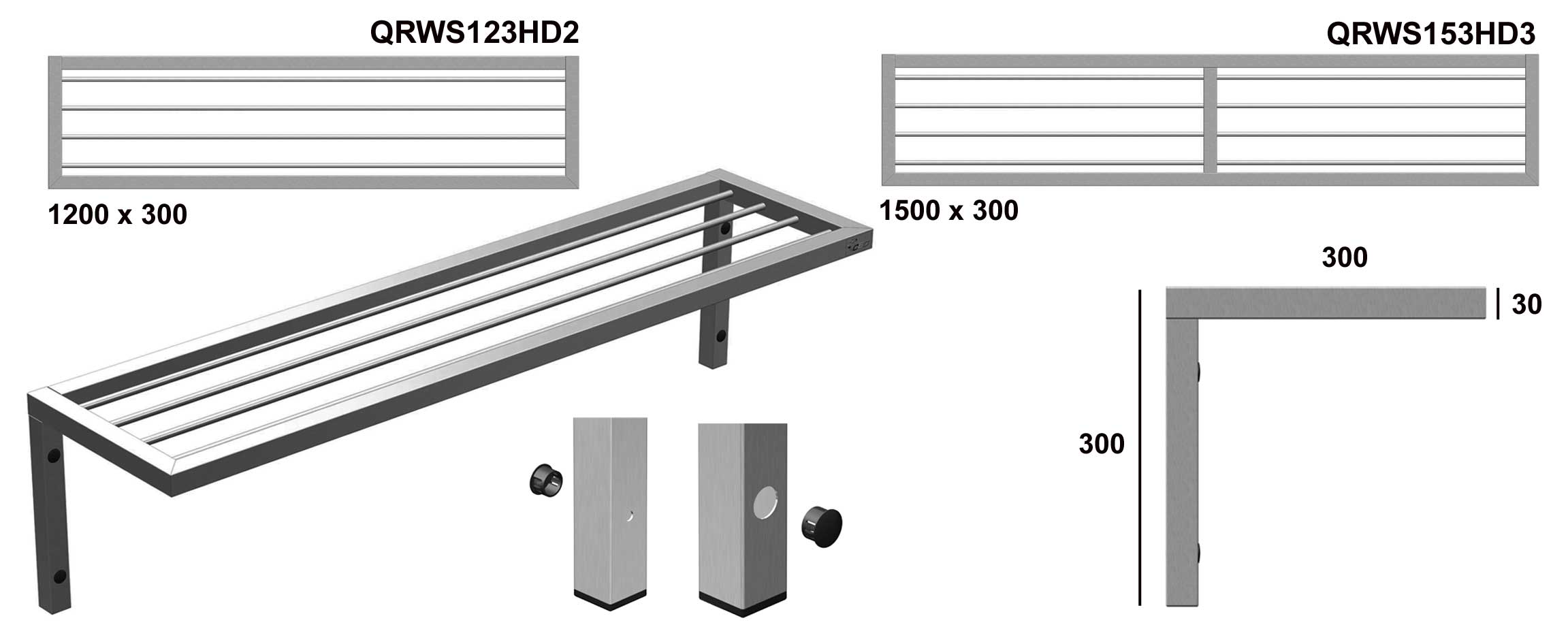

Rodded Pan Storage Shelf.
Visual



Specification

Rodded Pan Storage Shelf.
Specification



  • Commercial s/steel open frame heavy duty pan storage shelf, supported on fully welded cantilever box section brackets.
  • Perfect for back of house utensil storage.
  • Available in 1200 and 1500mm lengths x 300mm deep.
  • Durable 10 mm diameter integral 304 gd. steel rods form open shelving area.
  • Outer rack perimeter frame in fully welded 430 gd 1.2 thk. 30 mm box section.
  • Pre-drilled box section support brackets (430 gd 1.2 thk. 30 mm sq) for fixing shelf insitu – Ø 6mm fixing holes (Fixings Not Supplied).
  • Black heat resistant nylon bungs supplied to blank off through fixing holes on face of brackets ( Ø 16mm)
  • Welded bracket ends (in lieu of blanking plugs) to allow pan shelf to be sited over hot cooking areas.
  • Additional box section support brackets provided, depending on the shelf length selected.



Dimensions

Rodded Pan Storage Shelf.
Dimensions.

Model

QRWS
123HD2

QRWS
153HD3

Type

Rod
Wall Shelf

Rod
Wall Shelf

Shelf Length

1200 (mm)

1500 (mm)

Shelf Depth

300 (mm)

300 (mm)

Shelf Height
(Total)

300 (mm)

300 (mm)

Shelf Edge (Depth)

30 (mm)

30 (mm)

Box Section Brackets

2

3

Fixing Hole Size

 Ø 6
(mm)

 Ø 6
(mm)

*Max.Load

35 kg

65 kg

Steel Rod (Pan Supports) Diameter (mm)

10

10

Weight

7 kg

9 kg



Downloads

General Layout Drawings.
All Rodded Pan Storage Shelves.




Specification Sheet & User Guide.
All Rodded Pan Storage Shelves.






Visual

Microwave Shelving.
(Medium Duty Microwave Shelf).
Features.














Microwave Shelving.
(Heavy Duty Microwave Shelf).
Features.



Specification

Microwave Shelving.
(Medium Duty Microwave Shelf).
Features.


  • Commercial medium duty s/steel microwave shelf.
  • Constructed from 1.2 mm thick 430 gd. s/steel
  • Available as 560 mm long x 460 mm deep.
  • Available as 600 mm long x 450 mm deep.
  • Available as 600 mm long x 600 mm deep.
  • 3 sided folded shelf and folded return side cheeks for strengthening.
  • Side cheeks pre-drilled for wall fixings (Ø  7.2mm hole) – Fixings Not Supplied.
  • Folded 30 mm front turn down to front edge for strengthening.
  • Max. load 20 kg.

Microwave Shelving.
(Heavy Duty Microwave Shelf).
Features.

  • Commercial heavy duty s/steel microwave shelf.
  • Shelf constructed from 1.2 mm thick 430 gd. s/steel.
  • Mounted on cantilever type welded 430 gd. 1.2 thk. 30 mm box section wall brackets.
  • Available as 560 mm long x 560 mm deep.
  • Available as 600 mm long x 450 mm deep.
  • Available as 600 mm long x 600 mm deep.
  • Pre-drilled box section support brackets (430 gd 1.2 thk. 30 mm sq) for fixing shelf insitu – Ø 6mm fixing holes (Fixings Not Supplied).
  • Black heat resistant nylon bungs supplied to blank off through fixing holes on face of brackets ( Ø 16mm).
  • Double sided tape strips supplied, for attaching shelf to wall brackets.
  • Shelf strengthened with 32 mm turn down to edges/ rear up stand of 30 mm.
  • Electrical cable of microwave can pass behind shelf up stand when insitu.
  • Max. load 35 kg.


Dimensions

Microwave Shelving.
(Medium & Heavy Duty Microwave Shelf).

Model

QMS
5646MD

QMS
645MD

QMS
66MD

QMS
5656HD

QMS
645HD

QMS
66HD

Type

M.Duty M.Wave Shelf

M.Duty M.Wave Shelf

M.Duty M.Wave Shelf

H.Duty M.Wave Shelf

H.Duty M.Wave Shelf

H.Duty M.Wave Shelf

*Max.Load

20 kg

20 kg

20 kg

35 kg

35 kg

35 kg

Shelf Length

560
(mm)

600
(mm)

600
(mm)

560
(mm)

600
(mm)

600
(mm)

Shelf Depth

460
(mm)

450
(mm)

600
(mm)

560
(mm)

450
(mm)

600
(mm)

Shelf Height

325
(mm)

325
(mm)

325
(mm)

400
(mm)

400
(mm)

400
(mm)

Support Bracket

Folded Sides

Folded Sides

Folded Sides

Box Section

Box Section

Box Section

Shelf Rear
Up-stand (Height)

30
(mm)

30
(mm)

30
(mm)

30
(mm)

30
(mm)

30
(mm)

Fixing Holes Size

 Ø  7.2
(mm)

Ø  7.2
(mm)

Ø  7.2
(mm)

Ø  6
(mm)

Ø  6
(mm)

Ø  6
(mm)

Unit Weight

6 (kg)

6 (kg)

7 (kg)

7 (kg)

6 (kg)

7 (kg)

* Max Load = (Kg) Distributed Across Total Surface Area Of Shelf (Solid Wall Mounting)


Downloads

General Layout Drawings.
All Microwave Shelving.




Specification Sheet & User Guide.
All Microwave Shelving.
