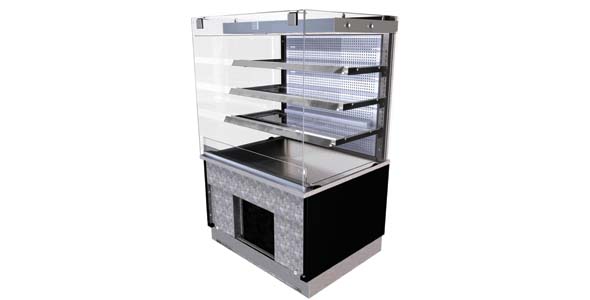

Kubus freestanding chilled and ambient patisseries are a deco cubist companion to CED’s premium Kubus drop in display range. Available in both self help and assisted service, Kubus patisseries feature a clean rectilinear design, enhanced by durable chrome plated  aluminium superstructures and lighting ducts, enclosed within a toughened flat glass serve over hood. Kubus patisseries maximize sales by providing customers with an extensive display area and merchandising space, within a minimal footprint.

Main Features

Main Features:

  • Rectilinear glass profile is designed to compliment other drop in and patisserie units within the kubus range.
  • 24 hour operation as standard.
  • Cold units feature integral chilled hydrocarbon refrigeration.
  • Eye level gantry mounted digital control panel to customer side.
  • Energy efficient & integral automatic condensate water evaporation, eliminates the need for site drainage.


Special features

Special Features:

  • Open fronted, front loading to four display levels.
  • Three toughened glass shelves, adjustable in height and angle.
  • Pre chilled produce held between 0 – 5 deg C. (max 25 deg C, 50% relative humidity).
  • Cutting edge integral chilled hydrocarbon refrigeration.
  • Low energy diffused triphosphor lighting to each display level.
  • 40mm point of sale ticket strip & product stop to each display level.
  • Toughened glass canopy and sneeze screen for serve over presentation.
  • Steel base in black epoxy coat (standard) or satin polish finish (optional).
  • Kick plinth in stainless steel satin polish finish
  • Front loading & fitted with bright polished steel inner perforated back panel.
  • Energy saving integral evaporation on all cold models.
  • Thermal frame breaks to minimise condensation.
  • Eye level gantry mounted digital control panel to customer side.
  • Mobile positioning/ transportation castors.
  • Adjustable final positioning/ levelling feet.
  • ‘C’ profile safety edge to all exposed edge  glass
  • Optional LED lighting
  • Optional fascia panel for freestanding use, black epoxy coat or satin polish s/steel finish


Display Examples

Drinks (Deck Area)

  • Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Deck and Shelving Area)

  • Pies, pasties, sausage rolls & cooked meats, sandwich fillings, baked potato fillings, salad items & cheese, sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes, pastries, cakes, yoghurt, fruit in juice & fruit.


Dimensions

Kubus self help cold patisserie ( fixed back ). R290 Refrigerant



model

KPC6FBHT

KPC9FBHT

KPC12FBHT

KPC20FB

Length (mm)

600

900

1200

2000

Depth (mm) + 75 wall stand off bracket

750 + 75

750 + 75

750 +75

750 +75

Height (mm)

1423/1433

1423/1433

1423/1433

1421/1431

Weight (uncrated) (kg)

145

190

240

390

Power (kW)

1.47

1.70

1.80

1.9

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V>

Note – Control panel to ‘customer side’ of gantry.
