TOURNUS_300_rvbBread Making Units.

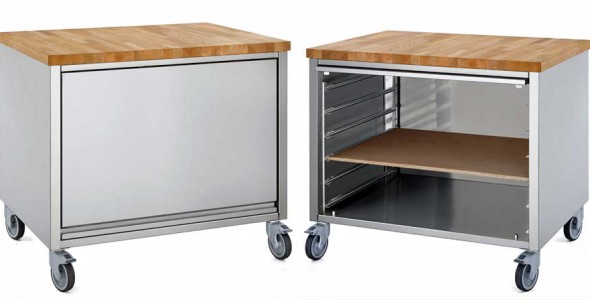

The Tournus bread making unit is an enclosed s/steel mobile work station, which features a 900 mm high preparation worktop, made of 26 mm thick glued Beech plywood. The space under the worktop is given over to 6 tiers of storage, with U shaped angle brackets fitted to side walls, supporting either steel wire frame grids or marine ply shelving.

One steel side of the enclosed trolley is a panel with continuous formed handle, which lifts up and slides in underneath the worktop, giving access to the shelving within. The enclosed trolley can be used to store dough whilst proving.

The trolley is o/all 1025 mm (L) x 816 mm (D) x 900 mm (H) and is available with two internal storage sizes of 800 mm (L) x 600 (D), or 900 mm (L) x 700 (D) to suit optional stainless steel shelf grids. The model with internal size of 900 mm (L) x 700 (D) can also be fitted with 15 mm thick marine ply shelving.

Each model is fitted with 4 x Ø 125 mm castors, 2 of which are braked for parking.

Visual

Bread Making Units.TOURNUS_300_rvb
Visual
Codes---Bread-Making---Main



Features

Bread Making Units.TOURNUS_300_rvb
Features
Codes---Bread-Making---Main

  • Enclosed s/steel mobile bread making work station.
  • Made of food quality stainless steel.
  • Trolley dimensions: O/all 1025 mm (L) x 816 mm (D) x 900 mm (H).
  • Worktop, made of 26 mm thick glued Beech plywood.
  • 6 tiers of storage, with U shaped angle brackets.
  • Lift up side panel slides in underneath the worktop, to give access to under-counter shelving.
  • Enclosed trolley can be used to store dough whilst proving.
  • Two internal storage sizes of 800 mm (L) x 600 (D), or 900 mm (L) x 700 (D).
  • Model Code 504 700 – Internal storage size model 800 mm (L) x 600 (D) – accepts optional stainless steel wire grid shelves (Option 805 087).
  • Model Code 504 701 – Internal storage size model 900 mm (L) x 700 (D) – accepts optional stainless steel reinforced wire grid shelves (Option 805 088).
  • Model Code 504 701 – Internal storage size model 900 mm (L) x 700 (D) – accepts optional 15 mm thick marine ply shelves (Option 221 092).
  • Each model fitted with 4 x Ø 125 mm castors, 2 of which are braked for parking.


Dimensions

Bread Making Units.TOURNUS_300_rvb
Dimensions
Codes---Bread-Making---Main

Bread Making Units.

Model

504 700

504 701

Description

Enclosed s/steel mobile bread making work station. (Internal Storage Size 800 mm (L) x 600 (D).

Enclosed s/steel mobile bread making work station. (Internal Storage Size 900 mm (L) x 700 (D).

Worktop Type

26 mm thick glued Beech plywood.

26 mm thick glued Beech plywood.

Lift up side panel (slides in underneath worktop – shelving access).

Included

Included

4 x Ø 125 mm castors, 2 braked for parking.

Included

Included

6 tiers of storage, with U shaped angle brackets.

Included

Included

Length (mm)

1025

1025

Depth (mm)

816

816

Height (mm)

900

900



Options

Bread Making Units.TOURNUS_300_rvb
Options

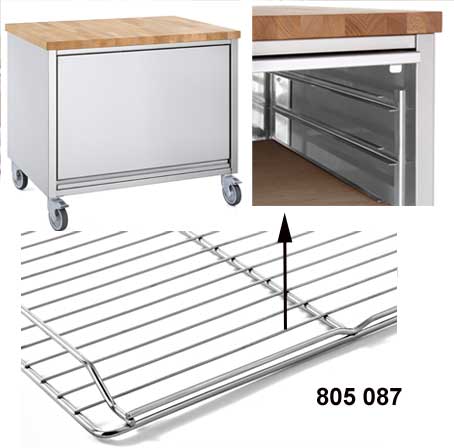

805-087Stainless Steel Grid Shelf 800 mm (L) x 600 mm (D).

Grid shelf For Insertion In U shape shelf support bracket within Bread Making Unit Model 504 700 –  Option Code 805 087.







reinforced-805-088Stainless Steel Grid Reinforced Shelf 900 mm (L) x 700 mm (D).

Grid shelf For Insertion In U shape shelf support bracket within Bread Making Unit Model 504 701 –  Option Code 805 088.

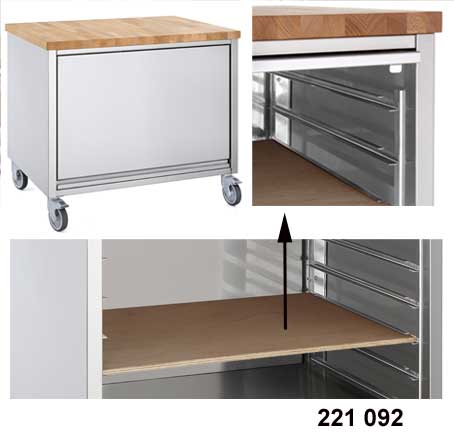

221-092Marine Ply, 15 mm thick Shelf 900 mm (L) x 700 mm (D).

Marine ply shelf For Insertion In U shape shelf support bracket within Bread Making Unit Model 504 701 –  Option Code 221 092.
