CED Fabrications - Designline Brand - Chilled LogoDesignline Cold Hydrocarbon (HT) Drop In Displays.

The full range of Designline chilled drop in displays utilise our cutting edge Hydrocarbon Technology – a solution that’s kinder to the environment and your budget with lower running costs than conventional R404a refrigerant. (The Designline chilled range of models are still also available in R404a refrigerant). The Designline range of chilled displays include salad wells, island wells, delis, tiered delis, multi level delis and multidecks, all fitted with convenient eye level, gantry mounted digital controls.

Self Help Displays.

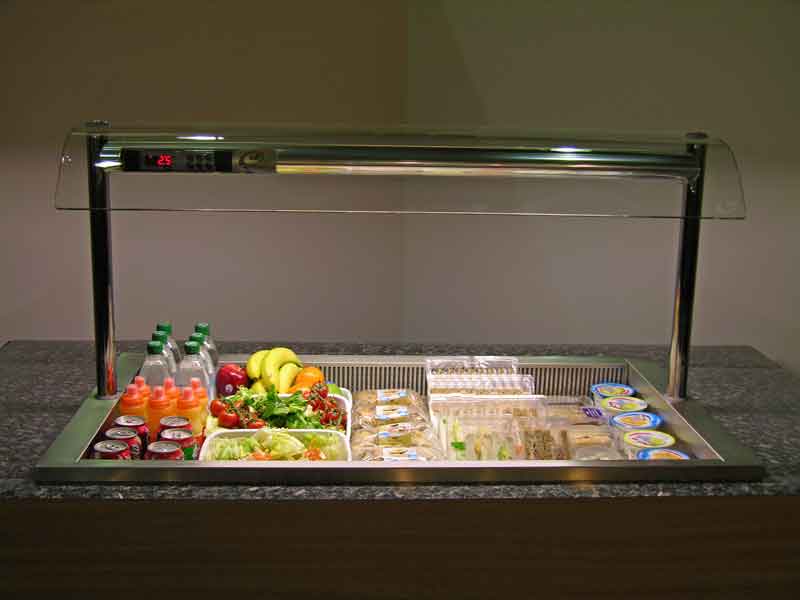

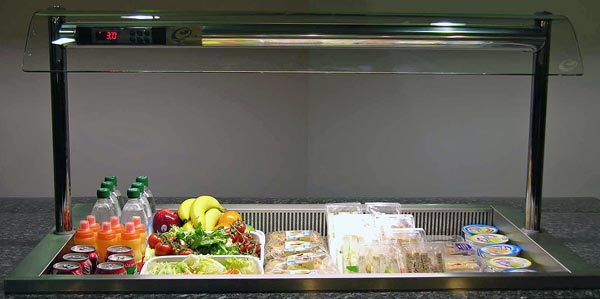

Self Help Cold Well or Self Help Cold Island Well.

Designline-Chilled-WellThe traditional fan blown salad well can be supplied with hydrocarbon refrigerant. Both standard and island styles are available – the standard style in up to a 6/1G/n size. Integral gantry mounted control panels suite effortlessly within chromed alluminum superstructures supporting either single (cold well) or double (island cold well) curved sneeze guards.

Cold Well – No Gantry

page-header-d.line-cold-wel
The chilled well-no gantry display is made without the elliptical superstructure and the control panel is supplied with a mounting plate on a 2 M loom. The fan blown display allows a bespoke UV bonded glass gantry or other type gantry superstructure to be fitted over the display (by others).

Self Help Multideck-Rear Doors.


page-header-d.line-m.deck
The Designline self help cold multideck is a perfect match to the assisted service version. The shelving and well area features are retained, as to is the rear access door/s and shelf edge ticket strip. The display\’s adustable height shelving will allow for varied product presentation and unobstructed customer access. Again, the control panel is conveniently sited in the gantry nose. (See MDR2-4HT).

Self Help Multideck – Fixed Back.

Designline Self Help Chilled Multideck Drop In Display (Fixed Back)A matching wall sited version is also available with steel rear back panel, replacing the rear door (See MDF2-4HT).

Self Help Cold Deli.
The deli is now also available as a self help model and is fitted with sneeze screen, ambient glass mid shelf and side glass, above the well area. The display also features a rear food preparation shelf.

Assisted service displays.

Designline displays for use with an assisted service operation include cold wells, delis, cold multi level delis and cold multidecks.

Assisted Service Cold Deli.

Designline Cold-Deli Drop In DisplayThe cold deli is one of the most popular within the Designline chilled hydrocarbon range. The fan blown chilled well area features a rear steel preparation shelf – commonly used for sandwich preparation – and the option of removable polypropelene chopping boards, that neatly hook over the shelf. Above the chilled well area at eye level,  a curved flat ambient impulse shelf  is sited, for increased merchandising of ambient goods. The deli features a full height curved glass front sneeze guard, which tilts forward on a discreet locking hinge, for simple cleaning. The Designline single shelf chilled deli is available in up to a 5/1Gn size (See CDL2-5HT).

Assisted Service Cold Multi Level Cold Deli .

page-header-CMDL3HT

Featuring eye-level gantry mounted control panels, the chilled mulit level deli boasts twin ambient glass display shelving over the fan blown chilled well area, increasing product display diversity.  The twin shelf model is available in 3/1 & 4/1Gn size. (See CMDL3-4HT).

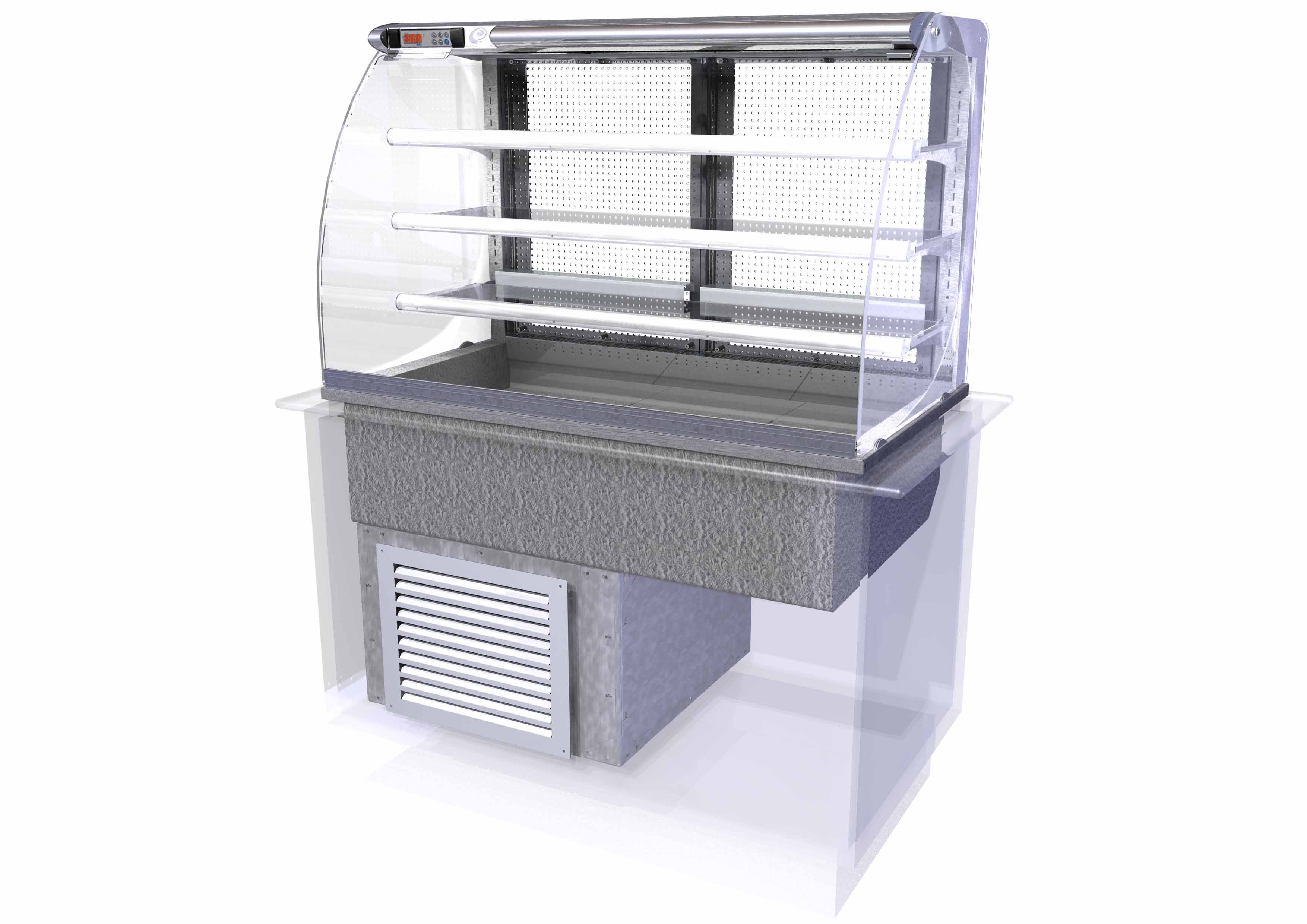

Assisted Service Cold Multideck.

Designline Assisted Service Chilled Multideck Drop In Display The assisted service version of the Designline multideck boasts 3 tiers of chilled toughened glass display shelving and large chilled bottle well area. The features are beautifully presented behind a full height curved toughened glass hood and elliptical sides. Operator access is from durable side hung rear steel door/s. Each display level is supplied with a combined product stop and industry standard 40mm ticket strip to each shelf edge. Operator control panel is conveniently sited in the gantry nose.

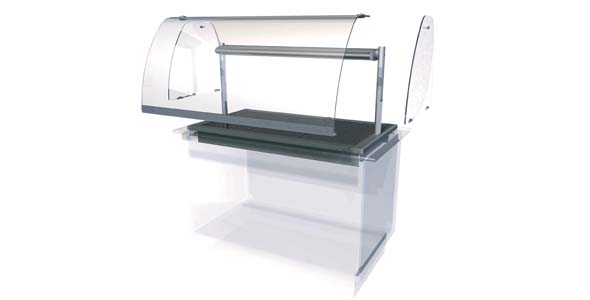

Assisted Service Cold Well.

page-hedr-d.CW3ASHTWith the addition of factory fitted full height front curved glass and ends, the self help chilled well becomes assisted service. The traditional salad well in the Designline style is available up to a 5/1G/n size. The integral gantry mounted control panel mounts within the chromed alluminum superstructure, supporting the optional full height curved glass screen and ends.  (See CW2-5HT & option AS2-5).

Assisted Service Cold Tiered Deli.

page-hedr-d.line-c.tier-delThe tiered cold deli has a two tier system of chilled food display in the well area, a combination of removable stepped trivet stands and a raised rear air box increases the capacity of cold storage, allowing multi level chilled product presentation in well area. The display also features rear sliding acrylic doors.

Contact Cooled Well or Mobile Contact Cooled Well.

page-hedr-d.line-CGTThe contact cold well is a small cold drop in display that fits in a counter top, with gastronorm containers and notched serving spoon lids. The display is perfect for holding bottled drinks or cold fillings for jacket potatoes. The free standing mobile version of the display can be used locally to a potato holding oven.

Designline Drop In Displays – Remote Refrigeration.

central-plant-image

The Designline range of cold displays can also be produced for use with a r404a  central refrigeration plant, serving the units remotely.

Designline choice.

Hitachi
Compliment your selections with Designline ancillary items, such as cutlery condiment units, chopping boards, carving & hotplate inserts. Designline drop in displays feature intelligent, tamper proof & gantry mounted digital control display technology, housed within innovative elliptical touch safe materials. Choose from matching self help, heated or chilled displays, assisted service heated or chilled deli displays, plus ambient displays

Designline styling.

page-header-2---D.LINE-COLD
Designline drop in displays are elliptically styled displays utilising a clean curved design perspective, enhanced by durable chrome plated aluminium superstructures and lighting ducts, all enclosed within toughened curved glass hoods, sneeze screens and side panels.

Designline quality & reliability.

page-header---D.LINE-COLD

Designed, constructed and independently CE approved to meet the latest exacting European standards, Designline are now established as an industry classic, backed by CED’s continued assurance of beautiful toughness and ruthless reliability in the field.
