TOURNUS_300_rvbWaste Management (Sorting Units & Tables).

Tournus dining area waste management units and tables are particularly useful in volume dining applications, such as schools and colleges. The models allow pre-sorting of waste food and crockery prior to washing.
SORTING

Sorting Units (Food Waste/ Crockery).

These wall sited counters are available in either 720 or 900 mm high finished units ( to suit children or adult use). They are made from s/steel frames and clad in a choice of 21 laminate panel colours, with a 1.5 mm thick s/steel worktop.
Food Collection: The worktop houses 2 no. Ø 190-280 mm waste disposal chutes with rubber surrounds, 2 no. bin bag holders are provided for under the waste chutes. A hinged door under the tray rest is provided for access to bin bags.
Cutlery Collection: A cut out section is supplied with 3 no. dishwasher safe, clear co polyester 1/3 GN cutlery containers, for used cutlery.
Cup/ Glass Collection: A 150 mm deep recessed section with angled diamond point base and discharge point is provided for glass dish-wash basket storage. The unit comes with a continuous tray rest to customer side.  The sorting units are o/all 997 mm deep and are 2100 mm long.

Pre-Sorting Units (Food Waste).

 PRE-SORTING

The pre-sorting unit is a 900 mm high station, dedicated for food waste disposal. Clad in a choice of 21 standard laminate panel colours, they are available with either 2 or 3 waste chute disposal points.
Model Types. The pre-sorting waste disposal unit is offered as either free-standing (rear waste access & round edge s/steel worktop profiles) or as wall sited (100 mm high worktop splash-back & front doors for waste access).
Food Collection: Pre-sorting stations are supplied as standard with continuous tray slide & either 2 or 3 no. independent bin bag holders.
Pre-sorting stations are made as either 1200 mm long (for 2 bag holders) or 1700 mm long (for 3 bag holders) and are 915 mm deep (including tray slide).

Pre-Sorting Tables (Food Waste).

 pre-sorting-tables-1

The pre-sorting table is an open framed 900 mm food waste disposal table. The table is supported on 4 no. Ø 45 mm s/steel tubular legs with foot adjustment.
They are available with either 2 or 3 waste chute disposal points.
Model Types. The waste disposal table is offered as either free-standing (round edge s/steel worktop profile) or as wall sited (100 mm high worktop splash-back). Pre-sorting tables are supplied with either 2 or 3 no. independent bin bag holders & are made either 1200 mm long (2 bag holders) or 1700 mm long (3 bag holders). The o/all table depth is 600 mm. The open table does not feature tray slide.

Sorting Units

Sorting Units (Food Waste, Cutlery & Cups).TOURNUS_300_rvb
Features.

  • S/steel waste management unit that allows pre-sorting of waste food and crockery prior to washing.
  • Wall sited unit
  • Available as 720 or 900 mm high finished units ( to suit children or adult use).
  • S/steel frame and laminated fascia panels (choice of 21 colours).
  • 1.5 mm thick s/steel worktop.
  • Food collection via 2 no. Ø 190-280 mm waste disposal chutes with rubber surrounds.
  • 2 no. independent bin bag holders provided for under waste chutes.
  • Supplied with a continuous tray rest to customer side.
  • Hinged door under tray rest provided for access to bin bags.
  • Worktop cut-out with 3 no. dishwasher safe, clear co polyester 1/3 GN cutlery containers, for used cutlery.
  • 150 mm deep recessed worktop (angled diamond point base and discharge point) for glass dish-wash basket storage.
  • (Model Code 507 540): Child Height – O/all dimensions: 2100 mm (L) x 997 mm (D) x 720 mm (H)
  • (Model Code 507 541): Adult Height – O/all dimensions: 2100 mm (L) x 997 mm (D) x 900 mm (H)

Sorting Units (Food Waste, Cutlery & Cups).
Dimensions

Model Code:

507 540

507 541

Description.

Wall Sited Sorting Unit For
Food Waste/Crockery
(Child Height).

Wall Sited Sorting Unit For
Food Waste/Crockery
(Adult Height).

Laminated Fascias/
Front Access Door
To Bin Bags.

Included.

Included.

Worktop Type.

S/steel (1.5 mm).

S/steel (1.5 mm).

Ø 190 mm Waste Chutes Supplied (Qty)
(Ø 280 mm O.D. Rubber Flange).

2

2

Under-counter Bin Bag Holders
Supplied (Qty).

2

2

1/3 GN Clear Cutlery Containers
Supplied (Qty).

3

3

Glass Basket Worktop Recess
/Drain & Trap.

Included

Included

Full Length 4 Tube S/steel Tray Rail.

Included

Included

O/all Unit Height (mm)

720

900

O/all  Unit Length (mm)

2100

2100

O/all Unit Depth (mm)
Inc. Tray Rail

997

997



Pre-Sorting Units

Pre-Sorting Units (Food Waste). TOURNUS_300_rvb
Features.

pre-sorting-clarification

  • S/steel waste management unit that allows volume disposal of waste foods in busy dining areas, in preparation for crockery cleaning.
  • Available as 1200 mm long (2 Bin Bag Holders) or 1700 mm long (3 Bin Bag Holders).
  • All models supplied with continuous tray rest to customer side.
  • 900 mm high finished worktop height.
  • Available as free-standing or wall sited unit.
  • S/steel frame and laminated fascia panels (choice of 21 colours).
  • Food disposal is through Ø 190 waste disposal chutes with a Ø 280 mm rubber surround.
  • Freestanding or wall sited models : 1200 mm long model – 2 no. independent bin bag holders provided for under waste chutes.
  • Freestanding or wall sited models : 1700 mm long model – 3 no. independent bin bag holders provided for under waste chutes.
  • Freestanding models : 1.5 mm thick s/steel worktop with rounded edges.
  • Wall sited models : 1.5 mm thick s/steel worktop with rounded front edge & 100 mm high rear up-stand.
  • Wall Sited models : Feature hinged door under tray rest (provided for access to bin bags).
  • (Model Code 507 535): Free-Standing Pre-Sorting Unit – 2 Bag Holder. Dims: 1200 mm (L) x 915 mm (D) x 900 mm (H).
  • (Model Code 507 536): Free-Standing Pre-Sorting Unit – 3 Bag Holder. Dims: 1700 mm (L) x 915 mm (D) x 900 mm (H).
  • (Model Code 507 542): Wall-Sited Pre-Sorting Unit – 2 Bag Holder. Dims: 1200 mm (L) x 915 mm (D) x 900 mm (H).
  • (Model Code 507 543): Wall-Sited Pre-Sorting Unit – 3 Bag Holder. Dims : 1700 mm (L) x 915 mm (D) x 900 mm (H).

Pre-Sorting Units (Food Waste).
Dimensions.

Model Code:

507 535

507 536

507 542

507 543

Description.

Free-Standing
Pre-Sorting Unit
For Food Disposal

(2 Bag Holder).

Free-Standing
Pre-Sorting Unit
For Food Disposal

(3 Bag Holder).

Wall-Sited
Pre-Sorting Unit
For Food Disposal

(2 Bag Holder).

Wall-Sited
Pre-Sorting Unit
For Food Disposal

(3 Bag Holder).

Laminated Fascias/
Bin Bag Access Type.

Included
(Rear Bag Access).

Included
(Rear Bag Access).

Included
(Front Bag Access Door).

Included
(Front Bag Access Door).

Worktop Type.

S/steel
(1.5 mm).

S/steel
(1.5 mm).

S/steel
(1.5 mm)
+ 100 mm Up-stand.

S/steel
(1.5 mm)
+ 100 mm Up-stand.

Ø 190 mm Waste Chutes
Supplied (Qty)
(Ø 280 mm O.D.
Rubber Flange).

2

3

2

3

Under-counter
Bin Bag Holders Supplied
(Qty).

2

3

2

3

Full Length 4 Tube S/steel Tray Rail.

Included

Included

Included

Included

O/all Unit Height (mm)

900

900

900

900

O/all Unit Length (mm)

1200

1700

1200

1700

O/all Unit Depth (mm)
Inc. Tray Rail

915

915

915

915



Pre-Sorting Tables

Pre-Sorting Tables (Food Waste). TOURNUS_300_rvb
Features.

pre-sorting-tables-1

  • S/steel open frame waste management table that allows volume disposal of waste foods in busy dining areas, in preparation for crockery cleaning.
  • Available as 1200 mm long (2 Bin Bag Holders) or 1700 mm long (3 Bin Bag Holders).
  • S/steel worktop with laminated core for soundproofing and strength..
  • 900 mm high finished worktop height.
  • Available as free-standing or wall sited unit.
  • S/steel frame with Ø 45 mm adjustable legs.
  • Food disposal is through Ø 190 waste disposal chutes with a Ø 280 mm rubber surrounds.
  • Freestanding or wall sited models : 1200 mm long model – 2 no. independent bin bag holders provided for under waste chutes.
  • Freestanding or wall sited models : 1700 mm long model – 3 no. independent bin bag holders provided for under waste chutes.
  • Freestanding models : 1.5 mm thick s/steel worktop with rounded edges.
  • Wall sited models : 1.5 mm thick s/steel worktop with rounded front edge & 100 mm high rear up-stand.
  • Bin bag holder locating guides to underside of worktop.
  • (Model Code 507 531): Free-Standing Pre-Sorting Table – 2 Bag Holder. Dims: 1200 mm (L) x 600 mm (D) x 900 mm (H).
  • (Model Code 507 532): Free-Standing Pre-Sorting Table – 3 Bag Holder. Dims: 1700 mm (L) x 600 mm (D) x 900 mm (H).
  • (Model Code 507 537): Wall-Sited Pre-Sorting Table – 2 Bag Holder. Dims: 1200 mm (L) x 600 mm (D) x 900 mm (H).
  • (Model Code 507 538): Wall-Sited Pre-Sorting Table – 3 Bag Holder. Dims : 1700 mm (L) x 600 mm (D) x 900 mm (H).

Pre-Sorting Tables (Food Waste).
Dimensions.

Model Code:

507 531

507 532

507 537

507 538

Description.

Free-Standing
Pre-Sorting Table
For Food Disposal

(2 Bag Holder).

Free-Standing
Pre-Sorting Table
For Food Disposal

(3 Bag Holder).

Wall-Sited
Pre-Sorting Table
For Food Disposal

(2 Bag Holder).

Wall-Sited
Pre-Sorting Table
For Food Disposal

(3 Bag Holder).

Bin Bag Holder Access Guide.

Included
(Rear Bag Access).

Included
(Rear Bag Access).

Included
(Front Bag Access).

Included
(Front Bag Access).

Worktop Type.

S/steel (laminated core)
(1.5 mm).

S/steel (laminated core)
(1.5 mm).

S/steel (laminated core)
(1.5 mm)
+ 100 mm Up-stand.

S/steel (laminated core)
(1.5 mm)
+ 100 mm Up-stand.

Ø 190 mm Waste Chutes Supplied
(Qty)
(Ø 280 mm O.D.
Rubber Flange).

2

3

2

3

Under-counter
Bin Bag Holders Supplied
(Qty).

2

3

2

3

Adjustable S/steel Ø 45 mm Frame Legs.

Included

Included

Included

Included

O/all Unit Height (mm)

900

900

900

900

O/all Unit Length (mm)

1200

1700

1200

1700

O/all Unit Depth (mm)

600

600

600

600



Options

Waste Management (Sorting Units & Tables).TOURNUS_300_rvb
Options



Sorting Unit Only – Options.

option-rear-panel

Sorting Unit (Model 507 540) –
Rear Laminated Panel For Freestanding Application – Option Code 702 053.

1

1

option---add-remove-waste-d

Sorting Units (Models 507 540 + 507 541) –
Add/ Remove Waste Disposal Hole – Option Code 701 102.

1

1

option---glass-basket-secti

Sorting Units (Models 507 540 + 507 541) –
Add/ Remove The Recess For Dish-wash Basket (Cup Storage) – Option Code 702 042.

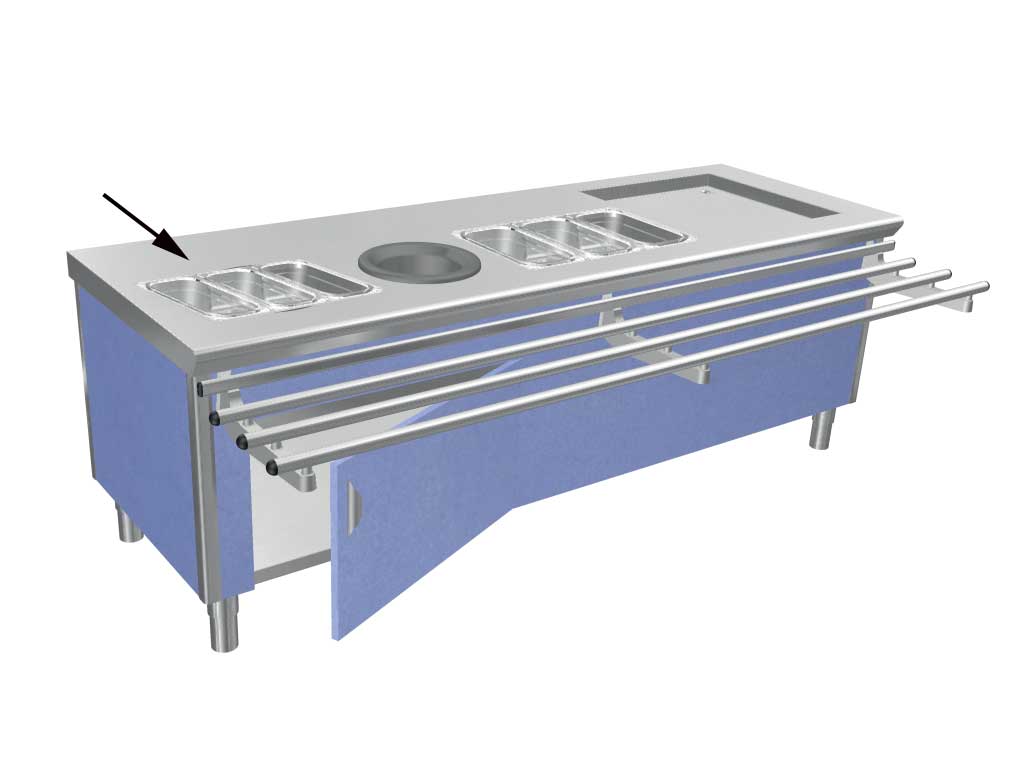

option---add-remove-cutlerySorting Units (Models 507 540 + 507 541) –
Add/ Remove Cut Out For Cutlery Containers – Option Code 702 062.

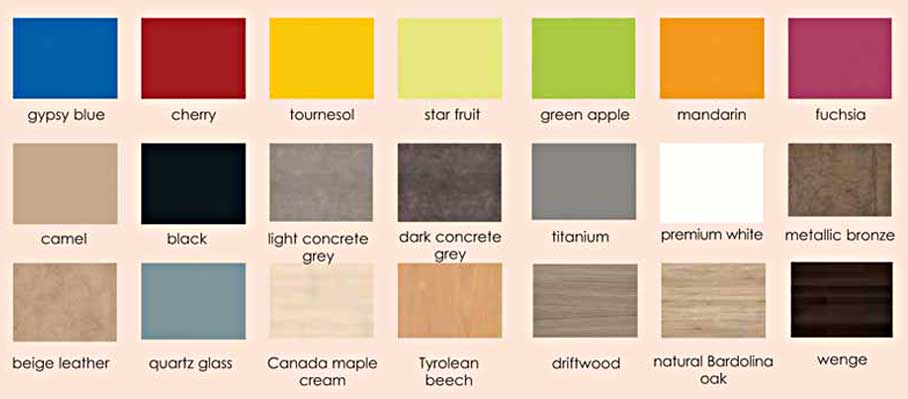

Sorting Units, Pre-Sorting Units – Standard Laminate Colour Options.



Standard Laminate Panel Colour Selction, From Eurodekor Range                         State Colour Reference With Order.



Sorting Units, Pre-Sorting Units & Pre-Sorting Table Options.



SORTING-3

Sorting Units (Models 507 540 + 507 541)
Pre-Sorting Units (Free-Standing Models 507 535 + 507 536)
Pre Sorting Units (Wall Sited Models 507 542 + 507 543) –
Non Standard Laminate Panel Colour, Chosen From Eurodekor Range – Option Code 703 503.



option-296-298Sorting Units (Model 507 540 + 507 541)
Pre-Sorting Units
(Free-Standing Models 507 535 + 507 536)
Pre Sorting Units
(Wall-Sited Models 507 542 + 507 543)

Pre-Sorting Tables
(Models 507 531/ 507 532/ 507 537 + 507 538) –

Coloured Labels For Waste Segregation – Option Code 296 298.

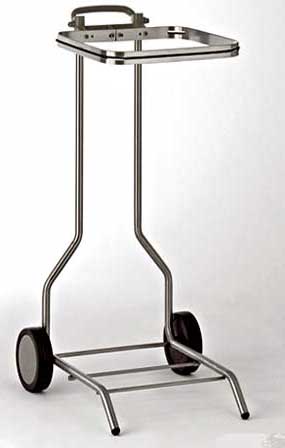

waste-bag-holder-sparePre-Sorting Units (Free-Standing Models 507 535/ 507 536) +
Pre-Sorting Tables
(Free-Standing Models 507 531/ 507 532) –

Spare Bin Bag Holder (800 mm High).Option Code 804 460.

1

1

waste-bag-holder-sparePre-Sorting Units (Wall Sited Models 507 542/ 507 543) –
Spare Bin Bag Holder (600 mm High) – Option Code 804 459.





bag-holder---118845Sorting Units, Pre-Sorting Units & Pre-Sorting Tables – Options.
Removable ABS Tray For Bin Bag Holders (Base Support For Bin Bag) – Option Code 118 845.
