GN-Container-Trolleys-Main2TOURNUS_300_rvbGN Container Dispenser Trolleys.
The Tournus range of S/steel GN container dispenser trolleys are ideal for storing or transporting large volumes of loaded GN containers or trays. They have fully welded GN container tray runners and product stops at each end, fitted to either 1/1 GN & 2/1 GN capacity 25 mm x 25 mm s/steel frames.
GN Container Dispenser Trolleys – Stacking Type.
Where space is a premium, the stacking versions of the GN container dispenser trolleys will push together/interlock when empty, to reduce the occupied equipment space.
GN Container Dispenser Trolleys – Transport Type.
A 1/1 GN sized vehicle transportation version is also available, with retaining bars and tray stops to hold loaded/ empty containers insitu during transit.
Euronorm Container /Crate & Tray Dispenser Trolleys.
A 400 mm x 600 mm, 400 mm x 800 mm & 600 mm x 800 mm Euronorm sized container, crate, tray or dough tray dispensing version is also available, with L shaped runners and stop ends. These typical baking industry models are in a choice of heights and with choice of depths between storage levels to suit. These trolleys will also accept Euronorm sized 585 mm x 410 mm trays.

Visual

GN Container & Euronorm Dispenser Trolleys.TOURNUS_300_rvb
Visual.

GN-Container-Trolleys-Featu



Features

GN Container & Euronorm Dispenser Trolleys.TOURNUS_300_rvb
Features.

Gastronorm Container (1/1 GN & 2/1 GN) Dispenser Trolleys.GN-Container-Trolleys-welde

  • S/steel GN container trolley, available in 1/1 GN or 2/1 GN container storage sizes.
  • Welded 25 mm x 25 mm S/steel frame, with 30 mm x 20 mm s/steel horizontal support bars.
  • Each tier fitted with S/steel L shaped tray runners and product stops on each runner.
  • 1/1 GN or 2/1 GN container trolley available with 6, 8, 10, 15, 17 or 20 storage tiers.
  • 6 tier 1/1 GN or 2/1 GN trolley supplied with s/steel top shelf (760 mm high).
  • 8 tier 1/1 GN or 2/1 GN trolley supplied with s/steel top shelf (900 mm high).
  • GN Capacity: 1/1 GN or 2/1 GN up to 65 mm deep container per tier (100 mm & 150 mm deep will also fit).
  • 4 no. Ø 125 mm swivel wheels with annular bumpers & polyamide covers, including 2 braked.
  • Maximum load : 20 kg per level. 250 kg per trolley.
  • Model codes for 1/1 GN trolleys – 6 Tier (804 201), 8 Tier (804 203), 10 Tier (804 204), 15 Tier (804 206), 17 Tier (804 207), 20 Tier (804 209).
  • Model codes for 2/1 GN trolleys – 6 Tier (804 231), 8 Tier (804 233), 10 Tier (804 234), 15 Tier (804 236), 17 Tier (804 237), 20 Tier (804 239).

Stackable Gastronorm Container Dispenser Trolleys.features---stackable-trolle

stackable-GN-trolley---stac

  • S/steel GN container trolley, available in 1/1 GN or 2/1 GN container storage sizes.
  • Welded 25 mm x 25 mm S/steel frame.
  • 30 mm x 20 mm s/steel horizontal ‘Z shape’ support bars, allowing trolleys to be stacked inside each other to reduce storage space.
  • Each tier fitted with S/steel L shaped tray runners and product stops on each runner.
  • 1/1 GN or 2/1 GN container trolley available with 20 storage tiers only.
  • GN Capacity: 1/1 GN or 2/1 GN up to 65 mm deep container per tier (100 mm & 150 mm deep will also fit).
  • 4 no. Ø 125 mm swivel wheels with annular bumpers & polyamide covers, including 2 braked.
  • Maximum load : 20 kg per level. 200 kg per trolley.
  • Model code for 1/1 GN trolley – 20 Tier (804 229).
  • Model code for 2/1 GN trolley – 20 Tier (804 259).

GN Container Dispenser Trolley – Transport (Supply Chain) Type.804-212-transport-trolley

  • S/steel GN container transporting trolley, available in 1/1 GN container storage size – 15 storage tiers.
  • Welded 25 mm x 25 mm S/steel frame.
  • Full height vertical closing bar to front/ fixed vertical product stop to rear of trolley, facilitates heavy duty use i.e. supply chain vehicle transportation, loading & unloading.
  • Each tier fitted with S/steel L shaped tray runners and product stops on each runner.
  • 30 mm x 20 mm s/steel horizontal support bars.
  • GN Capacity: 1/1 GN up to 65 mm deep container per tier (100 mm & 150 mm deep will also fit).
  • 4 no. Ø 125 mm swivel wheels with annular bumpers & polyamide covers, including 2 braked.
  • Maximum load : 20 kg per level. 200 kg per trolley.
  • Model code for 1/1 GN transporting trolley – 15 Tier (804 212).

Euronorm Container/ Crate, Tray Or Tray Dispenser Trolleys.euronorm-trolley---feature

  • S/steel Euronorm container/ crate/ tray transporting trolley for 400 x 600/ 400 x 800 or 600 x 800 mm Euronorm sizes, available in 900 mm & 1785 mm  heights.
  • Typical use in baking industry/ dough trays etc.
  • Trolleys to suit 50, 80 & 120 mm deep crates.
  • Trolleys to suit 73, 115 & 120 mm deep containers.
  • Welded 25 mm x 25 mm S/steel frame construction with horizontal 30 x 20 mm support bars.
  • Each tier fitted with S/steel L shaped tray runners and product stops on each runner.
  • 900 mm high model features 9 tiers and 1.5 mm thick stainless steel worktop – suits 50 mm deep crates (70 mm spacing between tiers).
  • 1785 mm high model with 12 tiers – suits 50, 80, 73, 115 & 120 mm deep crates & containers (125 mm spacing between tiers).
  • 1785 mm high model with 16 tiers – suits 50, 73 & 80 mm deep crates & containers (94 mm spacing between tiers).
  • 1785 mm high model with 20 tiers – suits 50 & 73 mm deep crates & containers (75 mm spacing between tiers).
  • 4 no. Ø 125 mm swivel wheels with annular bumpers & polyamide covers, including 2 braked.
  • Maximum load : 20 kg per level. 200 kg per trolley.
  • Model code for 900 mm high Euronorm trolley – 9 Tier, 400 wide entry – 400 x 600 Euronorm size (804 155).
  • Model code for 1785 mm high Euronorm trolley – 12 Tier, 400 wide entry – 400 x 600 Euronorm size (804 156).
  • Model code for 1785 mm high Euronorm trolley – 16 Tier, 400 wide entry – 400 x 600 Euronorm size (804 157).
  • Model code for 1785 mm high Euronorm trolley – 16 Tier, 600 wide entry – 600 x 400 Euronorm size (804 158).
  • Model code for 1785 mm high Euronorm trolley – 20 Tier, 400 wide entry – 400 x 600 Euronorm size (804 159).
  • Model code for 1785 mm high Euronorm trolley – 20 Tier, 600 wide entry – 600 x 400 Euronorm size (804 160).
  • Model code for 1785 mm high Euronorm trolley – 20 Tier 400 wide entry – 400 x 800 Euronorm size (804 161).
  • Model code for 1785 mm high Euronorm trolley – 16 Tier 600 wide entry – 600 x 800 Euronorm size (804 162).
  • Model code for 1785 mm high Euronorm trolley – 20 Tier 600 wide entry – 600 x 800 Euronorm size (804 163).

euronorme-containers-&-crat



Dimensions

GN Container & Euronorm Dispenser Trolleys.TOURNUS_300_rvb
Dimensions.

GN-Container-Trolleys-weldeGastronorm Container Dispenser Trolleys (1/1 GN).

Model

804 201

804 203

804 204

804 206

804 207

804 209

GN Capacity.

1/1 GN

1/1 GN

1/1 GN

1/1 GN

1/1 GN

1/1 GN

Storage Tiers

6

8

10

15

17

20

S/steel Top Shelf

Included

Included

N/A

N/A

N/A

N/A

O/all Unit Height (mm)

760

900

1650

1490

1650

1785

O/all Unit Width (mm)

457

457

457

457

457

457

O/all Unit Depth (mm)

656

656

656

656

656

656

Weight (Kg)

12

13

15

15

16

17

Height Between Tiers (mm)

81

81

144

81

81

77







GN-Container-Trolleys-weldeGastronorm Container Dispenser Trolleys (2/1 GN).





Model

804 231

804 233

804 234

804 236

804 237

804 239

GN Capacity.

2/1 GN

2/1 GN

2/1 GN

2/1 GN

2/1 GN

2/1 GN

Storage Tiers

6

8

10

15

17

20

S/steel Top Shelf

Included

Included

N/A

N/A

N/A

N/A

O/all Unit Height (mm)

760

900

1650

1490

1650

1785

O/all Unit Width (mm)

659

659

659

659

659

659

O/all Unit Depth (mm)

773

773

773

773

773

773

Weight (Kg)

16

17

17

19

21

23

Height Between Tiers (mm)

81

81

144

81

81

77





features---stackable-trolleStackable Gastronorm Container Dispenser Trolleys.





Model

804 229

804 259

GN Capacity.

1/1 GN

2/1 GN

Storage Tiers

20

20

O/all Unit Height (mm)

1785

1785

O/all Unit Width (mm)

454

659

O/all Unit Depth (mm)

653

773

Weight (Kg)

20

26

Height Between Tiers (mm)

77

77





804-212-transport-trolleyGN Container Dispenser Trolley – Transport (Supply Chain) Type.



Model

804 212

GN Capacity.

1/1 GN

Storage Tiers

15

O/all Unit Height (mm)

1485

O/all Unit Width (mm)

384

O/all Unit Depth (mm)

583

Weight (Kg)

17

Height Between Tiers (mm)

85





Mobile Ambient Plate Dispensers.

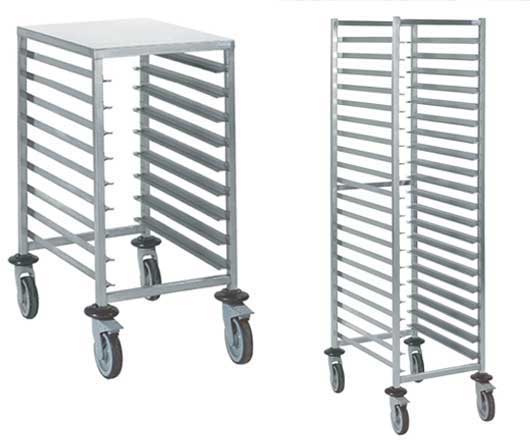

A---euronorm-trolley---feat(400 x 600 mm) Euronorm Container/Crate, Tray Or Tray Dispenser Trolleys.



Model

804 155

804 156

804 157

804 158

804 159

804 160

Euronorm Capacity.

400 x 600

400 x 600

400 x 600

600 x 400

400 x 600

600 x 400

Storage Tiers

9

12

16

16

20

20

Entry Opening Width (mm)

400

400

400

600

400

600

S/steel Top Shelf

Included

N/A

N/A

N/A

N/A

N/A

O/all Unit Height (mm)

900

1785

1785

1785

1785

1785

O/all Unit Width (mm)

539

539

539

732

539

732

O/all Unit Depth (mm)

725

725

725

525

725

525

Weight (Kg)

17

19

21

20

23

19

Height Between Tiers (mm)

70

125

94

94

75

75





A---euronorm-trolley---feat(400 x 800 mm/ 600 x 800 mm) Euronorm Container/Crate, Tray Or Tray Dispenser Trolleys.

Model

804 161

804 162

804 163

Euronorm Capacity.

400 x 800

600 x 800

600 x 800

Storage Tiers

20

16

20

Entry Opening Width (mm)

400

600

600

O/all Unit Height (mm)

1785

1785

1785

O/all Unit Width (mm)

539

732

732

O/all Unit Depth (mm)

925

925

925

Weight (Kg)

27

25

27

Height Between Tiers (mm)

75

94

75





Options

GN Container & Euronorm Dispenser Trolleys.TOURNUS_300_rvb
Options.

Washable Polyamide Covers For Gastronorm Container (1/1 GN & 2/1 GN) Dispenser Trolleys.

228-169-cover





Option Code

221 235

221 236

221 240

221 241

228 168

228 169

Washable Type Cover

Yes

Yes

Yes

Yes

Yes

Yes

Zip Fronted Type

N/A

N/A

Yes

Yes

Yes

Yes

Suitable For 1/1 GN Model Codes

804 201
804 203

N/A

804 206

N/A

804 204
804 207
804 209

N/A

Suitable For 2/1 GN Model Codes

N/A

804 231
804 233

N/A

804 236

N/A

804 234
804 237
804 239

O/all Cover Height (mm)

740

740

1325

1325

1620

1620

O/all Cover Width (mm)

405

610

405

610

405

610

O/all Cover Depth (mm)

590

710

605

725

590

710













Disposable Polyamide Covers For Gastronorm Container (1/1 GN & 2/1 GN) Dispenser Trolleys.
(Set Of 100 Covers)

disposable-GN-Trolley--cove

Option Code

228 170

228 171

Disposable Type Cover (Uni-size)

Yes

Yes

Suitable For All 1/1 GN Model Codes

Yes (1 Size)

N/A

Suitable For All 2/1 GN Model Codes

N/A

Yes (1 Size)

















Tie Bar Addition – 15, 17 or 20 Tier Gastronorm Container (1/1 GN & 2/1 GN) Dispenser Trolleys.

Option Code 702 221
Horizontal Tie bar For 15, 17 or 20 Tier Gastronorm Container (1/1 GN or 2/1GN) Dispenser Trolleys.
e.g. 1/1 GN Models 804 206, 804 207, 804 209
e.g. 2/1 GN Models 804 236, 804 237, 804 239.



Stainless steel wheels (Set)

Option Code 702 181

steel-castor-option
