Guide Post (For Ropes/Hooks).
CED’s elegant mirror finished stainless steel guide posts and braided guide ropes are specially designed to help form waiting lines, direct the flow of crowds, control access and enhance safety. These robust, independent and flexible barrier solutions clearly identify waiting areas and can be inter-connected in four different directions , via the four way s/steel rope hook receiver on the post top.

Eye Catching Features.
The solid, weighted, stable post base is hidden under a mirror finish outer cover. The base features an integral rubber gasket which prevents floor damage.

Ropes/Hooks. The posts are linked together with hanging barrier ropes to cordon off the desired space. You can choose between classic red or black Ø 28mm braided guide ropes. Each rope is 1.5M long and features chrome alloy circular clips at each end, for a simple post connection. Ropes are sold separately to the postsremember to order 1 less rope than the set of posts required.

Guide Post & A4 Sign Holder. The mirror finished post top features a steel plated rope hook receiver, held in place by a threaded dome cap. Simply unscrew and then re-fit the cap to add the sign holder mounting bracket. The post can then be used as a barrier and also a communication point for your customers ! The A4 size, chrome finished sign holder is waterproof and portrait orientation. The visible printable area is 208 mm (w) x 295 mm (h).

Guide Post & Electronic Sanitiser
(Alcohol Gel).
Easy To Use!
By placing your hands underneath the electronic dispenser, the infra red detection cell discharges a measured dose of sanitising gel. The dispenser is simple to refill too. The guide post features a large dispensing capacity of approx. 500 doses. The slotted window in the electronic dispenser provides easy monitoring of gel level. You can easily install or relocate the guide post and electronic dispenser in many locations as there is no electrical connection.

An optional electrical plug (For Sanitiser). The dispenser uses (4 x) AA batteries – not included. There is also an option for a UK plug with 2m electrical lead (Option Code ESPDP).

Health & Safety. Guide posts provide an ideal solution for risk assessments, undertaken by businesses in compliance with the FDA June 2020 UK Government Guidance ‘Keeping workers and customers safe during COVID-19 in restaurants, pubs, bars and takeaway services’.

Visual

Guide Post (For Ropes/Hooks),
With A4 Sign, With Electronic Sanitiser.
Visual





Features

Guide Post (For Ropes/Hooks),
With A4 Sign, With Electronic Sanitiser.
Features




(HGRB) Guide Rope
 (Black).
(HGRR) Guide Rope (Red).

*Sold Separately

  • A braided guide rope with chrome alloy hook to each end: 1.5m long x Ø 28mm.
  • Creates an elegant barrier for a stable, long-lasting crowd control solution.
  • The chrome alloy circular hooks connect to a four direction fastening head on the guide post top.
  • Braided guide rope colours: Red (HGRR) Black (HGRB)
  • Easily installed with guide posts in many locations, as no electrical connection is required.

(HGP) Guide Post (For Rope/Hooks).

  • A free standing guide post for attaching ropes to create an elegant barrier for social distancing, customer flow or temporary access restrictions.
  • S/steel mirror finish post and base with 4 way s/steel rope hook receiver to post top.
  • Weighted stable base with integral rubber gasket, prevents floor damage.
  • Guide post height 1070 mm.
  • Rope hook receiver height 1057 mm.
  • Guide post base diameter 320 mm.
  • For use with braided guide ropes 1.5m long x Ø 28mm: Red (HGRR) Black (HGRB).
  • Guide post also available with A4 vertical sign holder (HGPSH).
  • Guide post also available with electronic sanitiser dispenser (HGPESD).
  • Easily installed in many locations, as no electrical connection is required.

(HGPSH) Guide Post & A4 Sign Holder (For Rope/Hooks).

  • A free standing guide post for attaching ropes to create an elegant barrier for social distancing, customer flow or temporary access restrictions.
  • S/steel mirror finish post and base with 4 way s/steel rope hook receiver to post top.
  • Fitted with chrome finish A4, portrait orientation vertical sign holder, for use as a communication point.
  • Sign holder visible printable area is 208 mm (w) x 295 mm (h).
  • Simple sign replacement from behind perspex front cover, by click fastening outer frame sections.
  • For use with braided guide ropes 1.5m long x Ø 28mm: Red (HGRR) Black (HGRB).
  • Weighted stable base with integral rubber gasket, prevents floor damage.
  • Guide post o/all height 1425 mm.
  • Rope hook receiver height 1057 mm.
  • Guide post base diameter 320 mm.
  • Guide post also available with electronic sanitiser dispenser (HGPESD).
  • Easily installed in many locations, as no electrical connection is required.

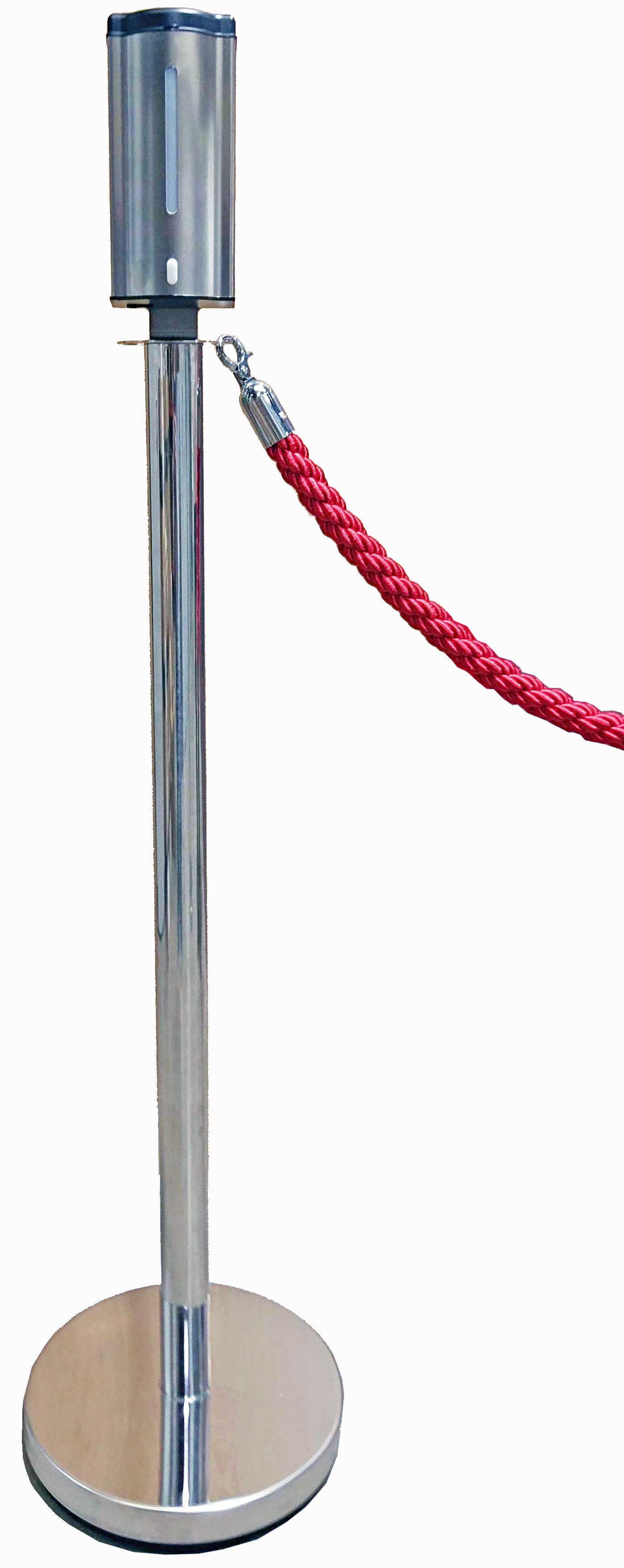

(HGPESD) Guide Post & Electronic Sanitiser (For Rope/Hooks).

  • A free standing guide post for attaching ropes to create an elegant barrier for social distancing, customer flow or temporary access restrictions.
  • For use with braided guide ropes 1.5m long x Ø 28mm: Red (HGRR) Black (HGRB).
  • Creates a hygienic sanitising point & barrier for a stable, long-lasting crowd control solution.
  • S/steel mirror finish post and base with 4 way s/steel rope hook receiver to post top.
  • Fitted with integrated electronic hands free dispenser to post top – 600ml capacity (alcohol gel).
  • Infra-red electronic cell detects hands to auto dispense the sanitising gel – appx. 500 doses.
  • Suitable for high alcohol sanitising gels =/>60%.
  • Dispenser requires (4x) AA batteries – not included.
  • Option of electrical connection lead with UK plug (lead length 2m) (Option Code ESPDP).
  • CE certified sanitiser dispenser.
  • Gel dispensing capacity 600ml/ appx. 500 doses.
  • Weighted stable base with integral rubber gasket, prevents floor damage.
  • Guide post o/all height 1280 mm.
  • Rope hook receiver height 1057 mm.
  • Guide post base diameter 320 mm.
  • Guide post also available with A4 vertical sign holder (HGPSH).
  • Easily installed in many locations, as no electrical connection is required.


Dimensions

Guide Post (For Ropes/Hooks),
With A4 Sign, With Electronic Sanitiser.
Dimensions



 * Rope Sold Separately

Model

*HGRR

*HGRB

HGP

HGPSH

HGPESD

Description

Guide Rope

Guide Rope

Guide Post (For Ropes/Hooks)

Guide Post (For Ropes/Hooks) + A4 Sign Holder

Guide Post (For Ropes/Hooks) + Electronic Sanitiser (Alcohol Gel)

Guide Rope Colour.

Red

Black

N/A

N/A

N/A

Guide Rope Length (m) x Ø.

1.5m long x Ø 28mm

1.5m long x Ø 28mm

N/A

N/A

N/A

4 Direction Rope Fastening (By Hook) To Post Top.

N/A

N/A

Included

Included

Included

Guide Rope Braided Material.

Polyester

Polyester

N/A

N/A

N/A

Dispenser Power Supply (4x AA Batteries).

N/A

N/A

N/A

N/A

Not Included

Dispenser Suitable For High Alcohol Sanitising Gels =/>60%.

N/A

N/A

N/A

N/A

Yes

Dispenser Electrical 2M lead + UK plug (Option Code).

N/A

N/A

N/A

N/A

ESPDP

Sign Holder : Visible Printable Area (W) x (H) in mm.

N/A

N/A

208 x 295

208 x 295

N/A

Model Height (mm)

N/A

N/A

1070

1070(+355)

1070(+210)

Model Post Width x Base Depth (mm)

N/A

N/A

Ø 51(w) x Ø 320 (base)

Ø 51(w) x Ø 320 (base)

Ø 51(w) x Ø 320 (base)

Model Weight (Kg)

0.07

0.07

6.8

8.7

7.7



Downloads

Sales & Technical Information.
Guide Posts (For Ropes/Hooks),
With A4 Sign, With Electronic Sanitiser.

Guide Post (For Rope/ Hooks) - Technical SpecificationGuide Post (For Rope/ Hooks) – Technical Specification CE Conformance - Electronic Sanitiser Gel DispenserCE Conformance – Electronic Sanitiser Gel Dispenser



General Layout Drawings.
Guide Posts (For Ropes/Hooks),
With A4 Sign, With Electronic Sanitiser.

Guide Post (For Rope/ Hooks) - 2D All Models (DXF)Guide Post (For Rope/ Hooks) – 2D All Models (DXF) Guide Post (For Rope/ Hooks) - 2D All Models (DWG)Guide Post (For Rope/ Hooks) – 2D All Models (DWG) Guide Post (For Rope/ Hooks) - 2D All Models (PDF)Guide Post (For Rope/ Hooks) – 2D All Models (PDF)
