Electronic Sanitising Post & Dispenser (Alcohol Gel).
CED’s electronic sanitising post & alcohol gel dispenser is hands free and specially designed to help maintain a hygienic environment that allows you to combine safety and practicality at low cost. Public Health England advise that using a sanitising gel with an alcohol content of 60% and above, is effective at killing corona virus.

Economic. This free-standing steel post and electronic sanitising gel dispenser can be placed in several locations for efficiency and security, to encourage PPB (personal protective behaviour).

Easy To Use.  By placing your hands underneath the electronic dispenser, the infra red detection cell discharges a measured dose of sanitising gel. The dispenser is simple to refill too. The electronic dispenser can be fitted to the sanitising post in one of two dispensing heights to suit use by either adults 996mm (h) or children 796mm (h). The sanitiser post features a large dispensing capacity of approx. 500 doses. The slotted window in the electronic dispenser provides easy monitoring of gel level.

Practical. You can easily install or relocate the sanitising post and electronic dispenser in many locations as there is no electrical connection. The dispenser uses (4 x) AA batteries – not included.

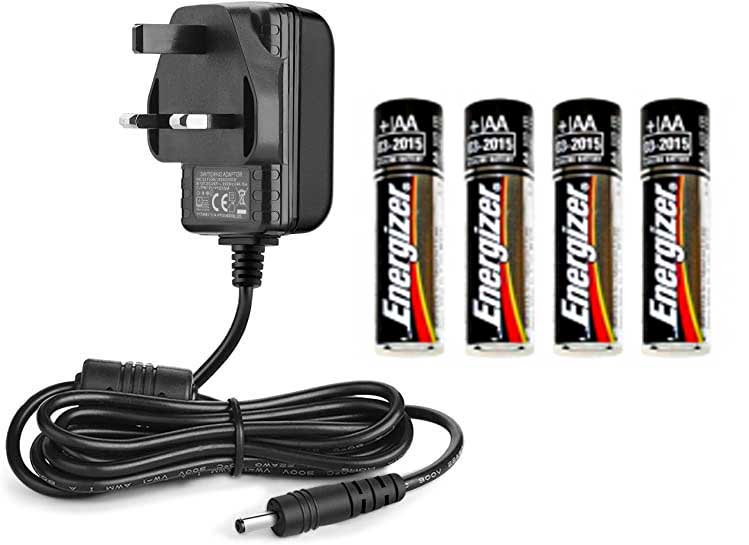

There is also an option for a UK adaptor plug with 2m electrical lead (Option Code ESPDP).

Eye Catching. With its’ stylish function, the CED sanitising post and electronic dispenser can be strategically placed in multiple locations where hygiene is to be maintained..at the entrance to your establishment, reception desks, offices, changing rooms etc.

Suitable For Adults & Children.

The dual height sanitising post is ideal for helping control hygiene in schools too.  Setting the dispenser at the lower height position, the children’s version makes it easy to instill the importance of hygiene in collective environments.

With a usable 796mm dispensing height for children, the sanitising post and auto – dispenser can be positioned in a host of strategic locations like dining halls, classrooms and wherever children congregate.

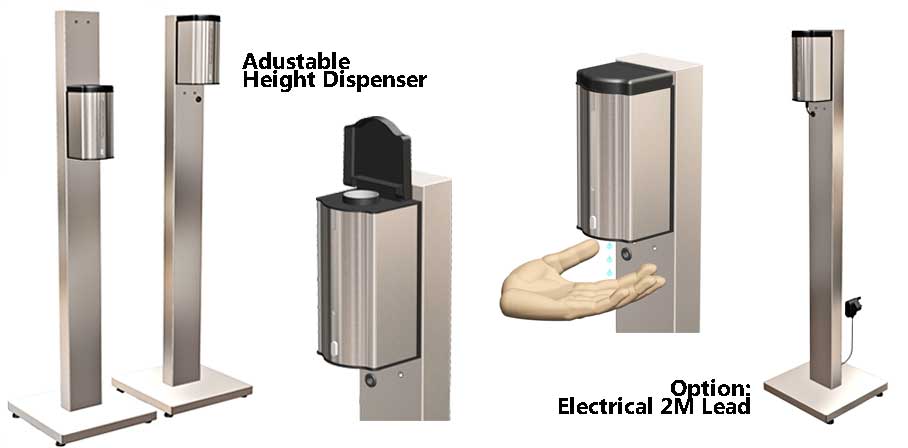

Visual

Electronic Sanitising Post & Dispenser (Alcohol Gel).
Visual

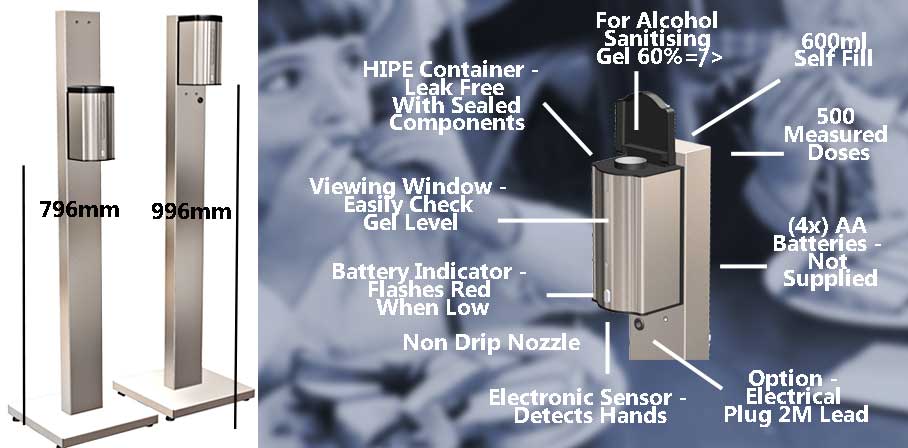

Features

Electronic Sanitising Post & Dispenser (Alcohol Gel).
Features

  • 430gd Stainless steel electronic sanitising post & alcohol gel dispenser, with two dispensing height settings.
  • Infra-red electronic cell detects hands to auto dispense the sanitising gel.
  • Free standing 1.2mm thk. welded stainless steel post with 300mm x 300mm square base and top mounted 600ml integrated auto electronic dispenser.
  • Steel front gel dispenser suitable for high alcohol sanitising gels =/>60%.
  • Requires (4x) AA batteries – not included.
  • Model code – Electronic Sanitising Post & Dispenser Adults/Childrens Model – 1200mm (h) (ESPD).
  • Model code – Electronic Sanitising Gel Dispenser – Wall Sited 100(W) x 92 (d) x 203(h) (ESD)
  • Option – Electrical connection lead with UK plug (lead length 2m) (Option Code ESPDP)
  • Large gel dispensing capacity of appx. 500 doses.
  • Easily refillable dispenser, with integral gel container.
  • Viewing window to easily monitor gel level within the dispenser.
  • Easily install or relocate the sanitising post and dispenser in many locations, as no electrical connection is required.
  • Adjustable flanged feet to base.
  • CE certified.
  • Weight: (ESPD) Adult/Children’s height model = 6.2 Kg.
  • Sanitising post is fitted with open grommets for discreet passage of the 2 M electrical dispenser cable through the front and down the rear of the stand, if electrical option is required.
  • Adjustable dispensing height settings: For adults = 996mm/ For children = 796mm.


Dimensions

Electronic Sanitising Post & Dispenser (Alcohol Gel).
Dimensions

Electronic Sanitising Post & Dispenser (Alcohol Gel).

Model

ESPD

ESD

ESPDP

Description

Electronic Sanitising Post & Alcohol Gel Auto-Dispenser.

Electronic Sanitising Gel Auto-Dispenser (wall sited).

Electrical connection lead c/w UK plug For Alcohol Gel Auto-Dispenser.

600ml Integrated Electronic Pump Gel Dispenser.

Included

Included

N/A

Requires (4x) AA batteries.

Not Included

Not Included

N/A

Sanitiser Gel Dispensing Dose Appx. Qty. Prior To Refill.

500

500

N/A

Suitable for alcohol sanitising gels =/>60%.

Yes

Yes

N/A

430 Gd Welded Stainless Steel Stand Height (mm)

1200

Dispenser Dims. 100(W) x 92 (d) x 203(h)

N/A

430 Gd Welded Stainless Steel Stand Material Thk. (mm)

1.2

N/A

N/A

Base width x depth (mm)

300 x 300

N/A

N/A

Adults Dispensing Height (mm)

996

N/A

N/A

Childrens Dispensing Height (mm)

796

N/A

N/A

Viewing Window
(To Monitor Gel Level Within Dispenser)

Included

Included

N/A

Model Weight (Kg)

2.82

1.00

N/A

Option: ESPDP Electrical Plug – Lead Length ( M)

N/A

N/A

2



Downloads

Sales & Technical Information.
Electronic Sanitising Post & Dispenser (Alcohol Gel).



General Layout Drawings.
Electronic Sanitising Post & Dispenser (Alcohol Gel).
