Kubus Accessories

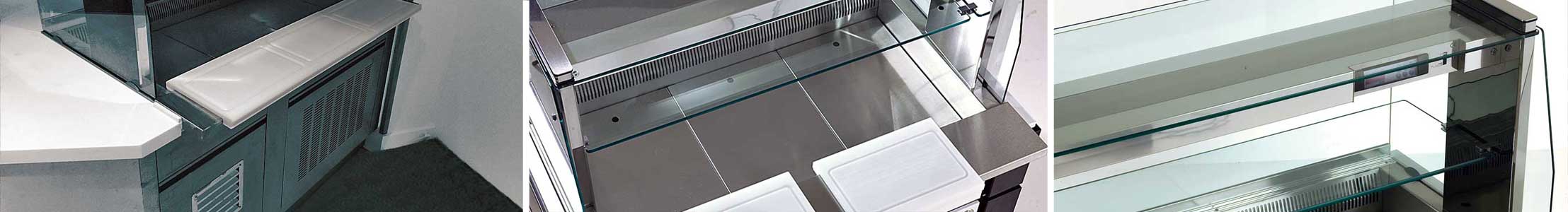

Many Kubus accessories are available for additional design flexibility.
Assisted service glass conversion-Kubus self help chilled well. Full height glass screen and end glass can be added to the Kubus cold well, if the planned operation is to be assisted service ( See KAS2-5).
Night blind- Kubus chilled multideck. Energy saving features such as retractable insulated night blinds are available for the Kubus self help cold multideck-rear door model too (See KNB2-4).

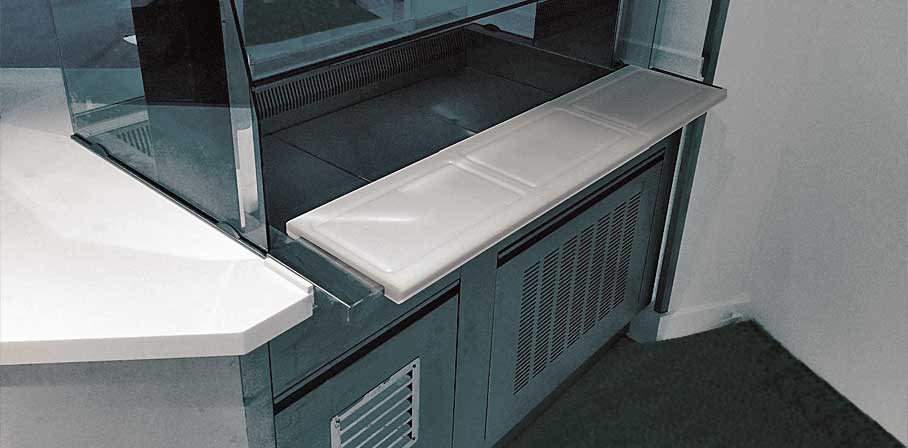

Cutting board – Kubus chilled/m./level deli. Optional 1/1Gn rectangular profile polyethylene cutting boards for theatre preparation of sandwich fillings, fit individually or in multiples over the rear preparation shelf of the Kubus chilled deli and multi level chilled deli (See KCB1).

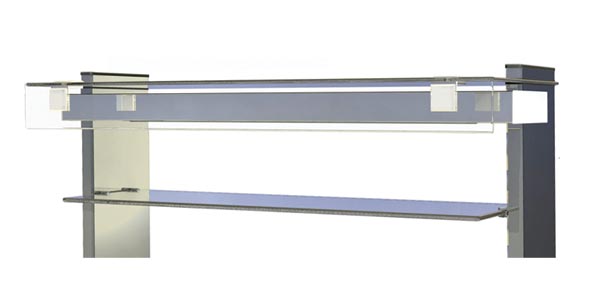

Glass midshelf – Kubus chilled well. The Kubus chilled well and chilled island well can be provided with additional ambient display areas over the chilled base, by the optional factory fitted ambient glass mid shelf (See KMS2-5).

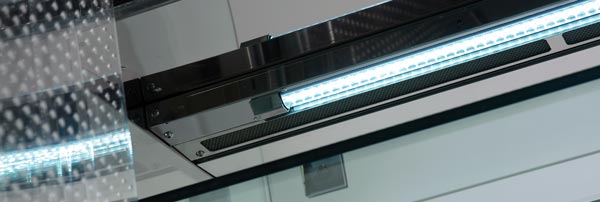

LED lighting – all Kubus chilled displays. With up to a 9 year lifespan, optional long-life low energy LED lighting can be factory fitted to the Kubus cold well, cold deli, cold multi level deli ( See LED2-LED4S) in lieu of the triphopsphor standard. The LED lighting option is also available as a factory fit for the Kubus cold multideck ( See LED2-4M).

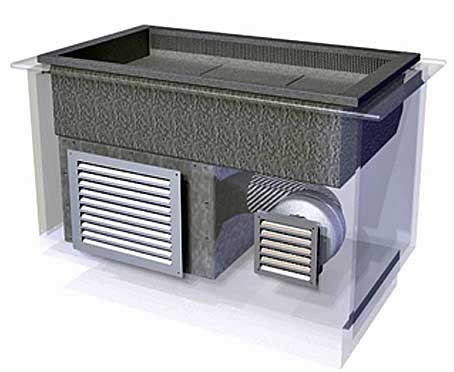

Non standard airflow – Kubus chilled displays. Air in/ out to operator side. Optional non standard airflow arrangements are available for use with most chilled models when the counter design requires that air intake grilles are not to be seen on the front fascia (See AF2). Air in/out to customer side. If the counter is wall sited, the option of air in/out to customer side can be added to the self help Kubus cold well ( See AF1). **The Kubus self help cold multideck – fixed back model which would be used in this scenario (See KMDF2-4) does not normally require this option. The model discharges warm air generated during it’s operation through a rear worktop mounted grill.

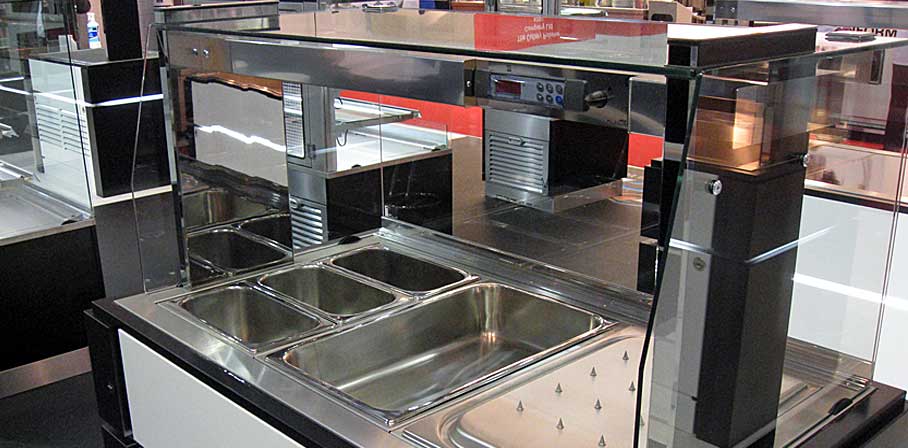

Carving/ hotplate inserts – Kubus heated bain marie. Optional 1/1Gn spiked carving inserts and hotplate inserts can be used in conjunction with the Kubus bain marie. The carving insert can be used to convert sections of the bain marie to a carving operation (See CINS1). The hotplate insert can be used to convert sections of the bain marie to short term hotplate operation, allowing food display in ceramic or oven proof dishes, plated meal holding etc. ( See HINS1)

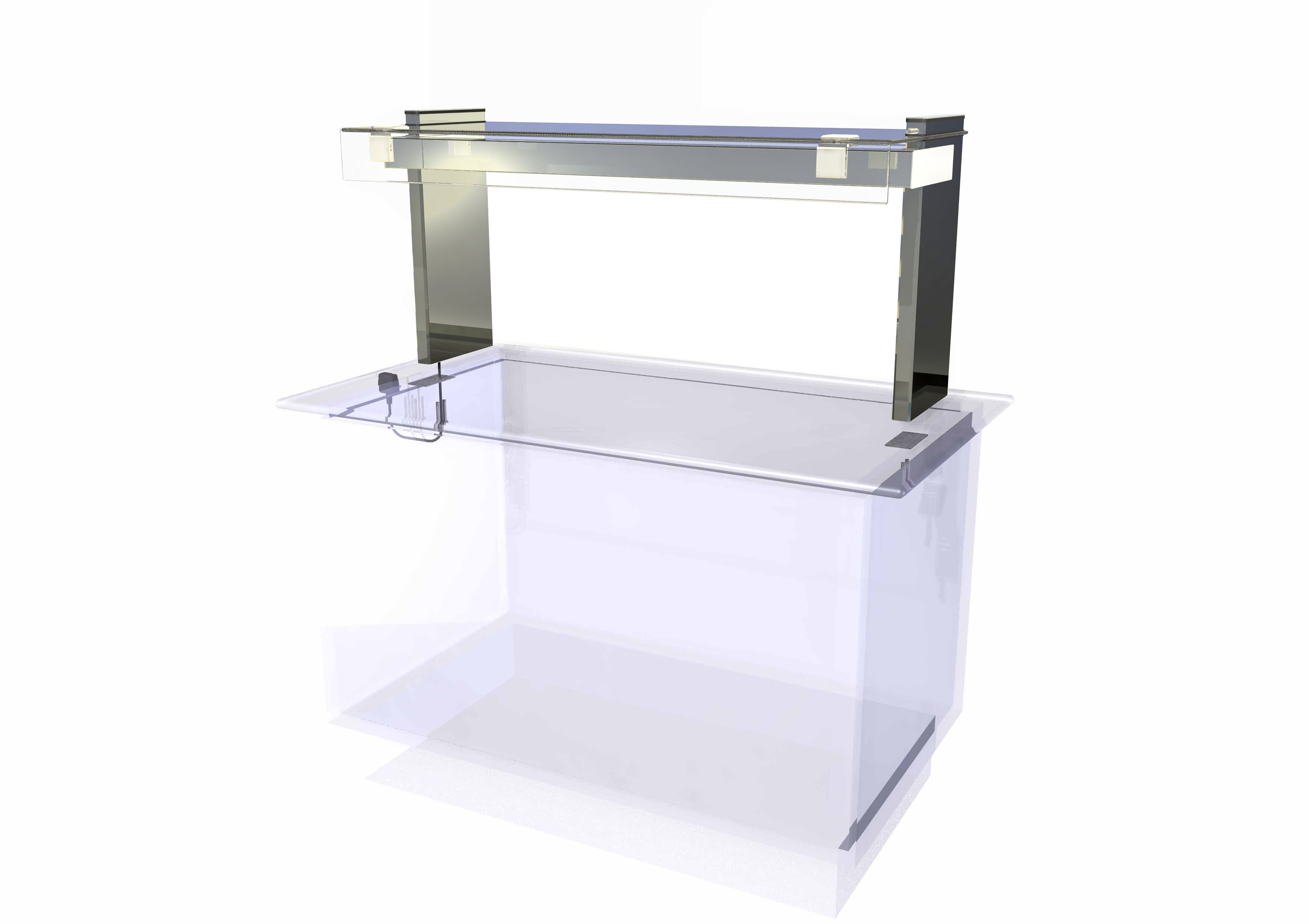

Kubus heated gantry. For an alternative type of short term plated meal holding, or to create a heated pass through section on a steel counter top, the various sizes of Kubus heated gantry sizes can be used. (See KHG2-KHG6). Surface heat to the produce is provided from traditional quartz halogen, with the supersturcture supporting a toughened sneeze protection glass screen.
Dimmer control – Kubus heated gantry. An optional heated gantry dimmer control (with integral mounting plate) can be fitted to the operator side valance panel of the counter ( See QC1).
Kubus styling. Cabinet Kubus drop in displays are a new deco cubist companion to the classic elliptical Designline styling. Cabinet Kubus displays optimise a clean rectilinear design perspective, enhanced by durable chrome plated aluminium superstructures and lighting ducts, all enclosed within toughened flat glass hoods, sneeze screens and side panels.
