Manual Sanitiser Point:
Table Top Or Wall Mounted (Alcohol Gel).
The CED alcohol gel sanitising point has a twin set of manual dispensers, providing a combined 1 litre capacity and are specially designed to help maintain a hygienic environment in high traffic volume areas. These sanitiser points allow you to combine safety and practicality at low cost and are ideally suited to reception points, entrance areas, wash areas, servery counter pay points or cutlery collection areas..

Easy To Use.
Public Health England advise that using a sanitising gel that has an alcohol content of 60% and above, is effective at killing corona virus.

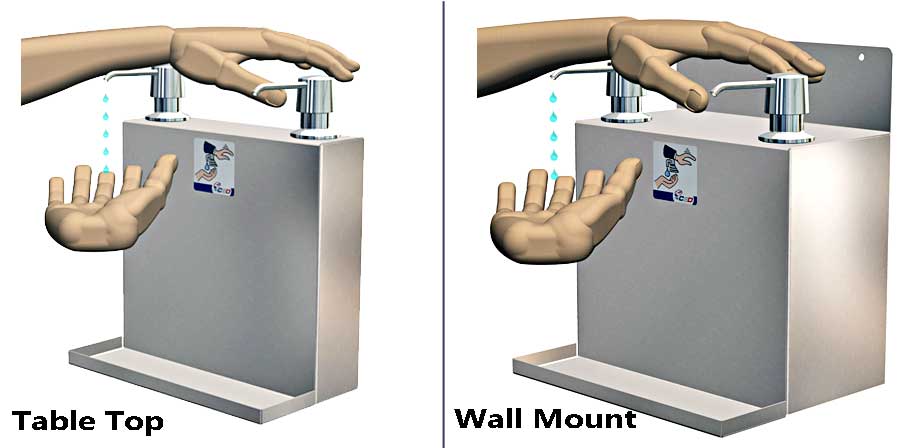

Each 500 ml dispenser suits alcohol gel =/> 60%. Just apply light pressure with the forearm to dispense 1-2ml of the sanitising gel.

Easy To Refill.

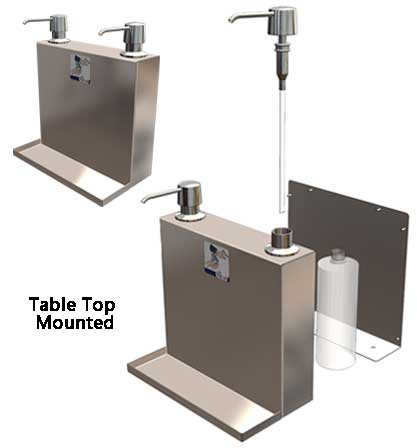

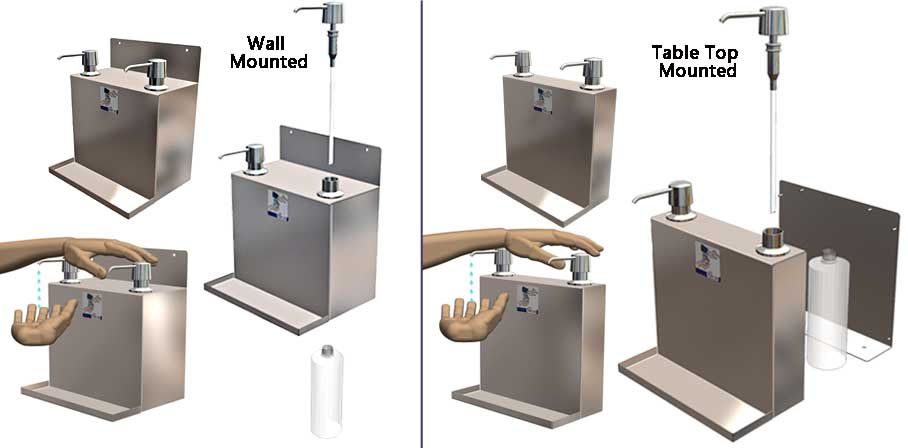

(Table Top). When the table top dispenser has been screw fixed down to a worktop (for stability when using/ theft prevention), the daily alcohol gel re-fill is done by removing the top portion of the tap (which has the suction pipe attached also).The bottles underneath can be accessed for periodic deep clean by removing the screws to rear.

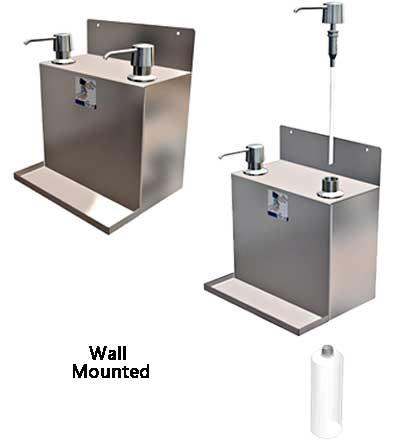

(Wall Mounted). The bottom of the wall mounted sanitiser point is open under, so depending on the fixing height used, daily gel re-fill can be done by removing the top portion of the tap or by unscrewing the bottles from underneath.



Hygienic & Durable. These heavy duty sanitiser points are manufactured from hygienic, easily cleaned 430 gd. s/steel and can be placed in high traffic locations, to encourage PPB (personal protective behaviour). The spring loaded dispenser has been tested for a lifetime delivery of 50,000 doses too !

Practical. You can easily install or relocate the sanitising points in many locations as there is no electrical connection.

Compact & Space Saving. With their minimal footprint, CED’s sanitiser points can be strategically placed in multiple locations where hygiene needs to be maintained..at the entrance to your establishment, reception desks, offices, changing rooms, kitchen areas etc.

Suitable For Adults & Children. The sanitiser point is ideal for schools and colleges. Site them in dining halls, classrooms or wherever children congregate to help promote the importance of hygiene in collective environments.

Visual

Manual Sanitiser Point: Table Top/ Wall Mount
(Alcohol Gel)

Visual



Features

Manual Sanitiser Point: Table Top/ Wall Mount
(Alcohol Gel)

Features

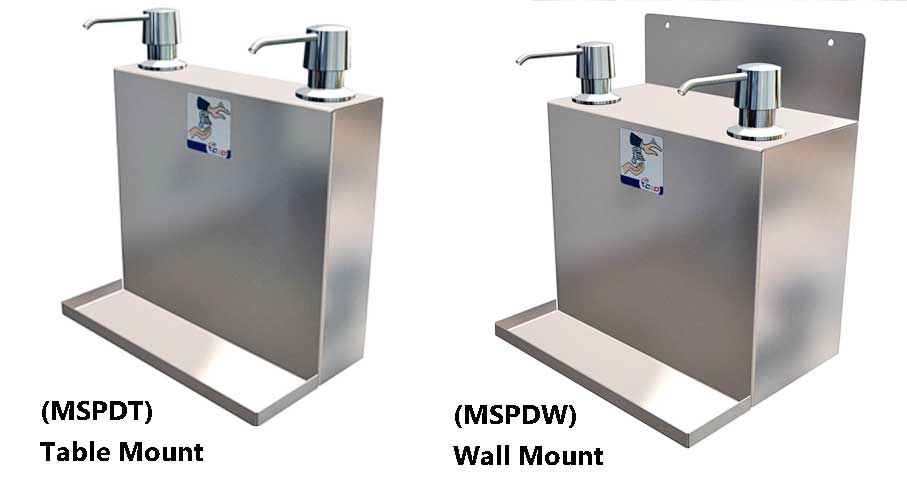

(MSPDT) Manual Sanitiser Point: Table Top (Alcohol Gel).

  • Stainless steel, part welded, worktop mounted housing in satin polished 430 gd. Steel

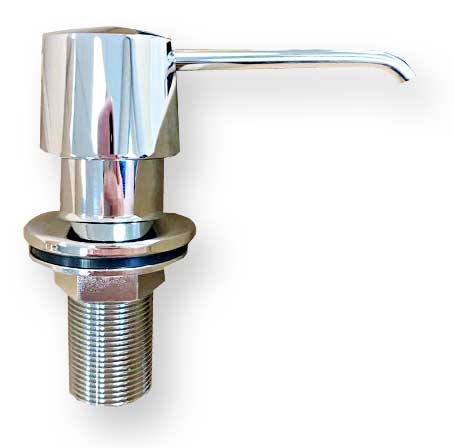

  • 2 no. heavy duty chrome/ brass pump dispensers
  • 2 no. 500ml sanitising gel storage bottles.
  • Apply light pressure with the forearm to manually dispense the sanitising gel.
  • Appx. 560 doses per unit when both dispensers full.
  • Accepts high alcohol sanitising gel =/>60% alcohol
  • Easily refilled by removal and refit of two part dispensing tap section.
  • Gel storage bottles can be accessed for periodic deep clean by removing the screws to rear.
  • Screw fix removable back/base for initial counter top mounting of housing/ theft prevention.
  • Folded S/steel drip tray to housing base.
  • CED User label graphic fitted to front face of housing (see attached)
  • Dispenser positions enable ergonomic use with forearm.
  • Supplied in cardboard packaging – shipping weight 3Kg.

(MSPDW) Manual Sanitiser Point: Wall Mounted (Alcohol Gel).

  • Stainless steel, part welded, wall mounted housing in satin polished 430 gd. Steel
  • 2 no. heavy duty chrome/ brass pump dispensers
  • 500ml sanitising gel storage bottles.
  • Apply light pressure with the forearm to manually dispense the sanitising gel.
  • Appx. 560 doses per unit when both dispensers full.
  • Accepts high alcohol sanitising gel =/>60% alcohol
  • Easily refilled by removal and refit of upper two part dispensing tap section.
  • Unscrew and refill gel bottles from open frame underneath, depending on preferred method.
  • Pre-drilled for mounting housing to a wall (fixings not supplied)
  • S/steel wipe down rear upstand to prevent soiling of wall
  • Folded S/steel drip tray to housing base, open underneath for service access.
  • CED User label graphic fitted to front face of housing (see attached)
  • Dispenser position depths enable ergonomic use with forearm.
  • Supplied in cardboard packaging – shipping weight 3Kg.


Dimensions

Manual Sanitiser Point: Table Top/ Wall Mount
(Alcohol Gel)

Dimensions

(MSPDT) + (MSPDW) Manual Sanitiser Point: Table Top Or Wall Mount
(Alcohol Gel).

Manual Sanitiser Point: Table Top/ Wall Mount (Alcohol Gel)

Model

MSPDT

MSPDW

Description

(Table Top Mounted)
Sanitising Point + (2 no.) Dispensers (Alcohol Gel).

(Wall Mounted)
Sanitising Point + (2 no.) Dispensers (Alcohol Gel).

(Welded) Stainless Steel Type

430 gd.

430 gd.

(2 no.) 500ml Integrated Pump Gel Dispenser

Included

Included

Sanitiser Gel Dispensing Dose Qty. Prior To Refill (Per Bottle)

250 – 300

250 – 300

Suitable for high alcohol sanitising gels =/>60%.

Yes

Yes

Alcohol Gel Qty. Dispensed Per Use (ml).

1-2

1-2

Model Height (mm)

302

305

Model Width x Depth (mm)

270 x 70 (+80)

270 x 135(+80)

Model Weight (Kg)

3

3

Mounting hole diameter – 2 no. *Fixings are not supplied*

6 mm

6 mm



Downloads

Sales & Technical Information.
Manual Sanitiser Point: Table Top/ Wall Mount
(Alcohol Gel).

Manual Sanitiser Point - T.Top + Wall Mount - Technical SpecificationManual Sanitiser Point – T.Top + Wall Mount – Technical Specification



General Layout Drawings.
Manual Sanitiser Point: Table Top/ Wall Mount
(Alcohol Gel).

Manual Sanitiser Point - T.Top & Wall Mount - 2D All ModelsManual Sanitiser Point – T.Top & Wall Mount – 2D All Models Manual Sanitiser Point - T.Top & Wall Mount - 2D All ModelsManual Sanitiser Point – T.Top & Wall Mount – 2D All Models Manual Sanitiser Point - T.Top & Wall Mount - 2D All ModelsManual Sanitiser Point – T.Top & Wall Mount – 2D All Models
