Designline drop in displays are elliptically styled displays utilising a clean curved design perspective, enhanced by durable chrome plated aluminium superstructures and lighting ducts, all enclosed within toughened curved glass hoods, sneeze screens and side panels.

Visual

Self Help Ambient Gantry

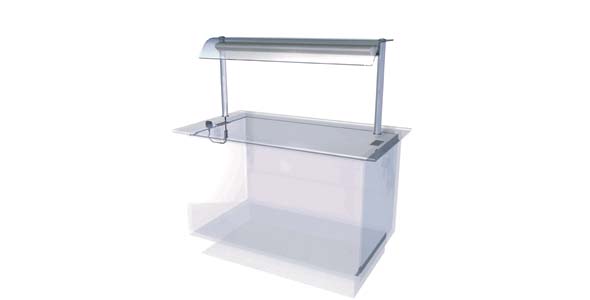

Designline Self Help Ambient Gantry (AG2-5)



Features

Self Help Ambient Gantry
Features

  • Curved toughened glass sneeze guard profile is designed to compliment other units within the range.
  • Ambient gantry for illumination and sneeze guard protection of worktop displayed ambient product.
  • Self help application.
  • Product illumination is provided from diffused LED lighting (4000 Kelvin) in an elliptical profile.
  • Elliptical glass profile is designed to compliment other units within the range.
  • Lighting is controlled from a push button switch on gantry end plate.
  • Superstructure in bright polished steel and aluminium profile.
  • Supplied with post fixing plates, bolts, 2 m lead & plug top, for connection to a single 13 Amp socket (13A 230V 50 Hz).


Food Types

Self Help Ambient Gantry
Food Display Types



Drinks: Racked wine, impulse drinks (still & carbonated), bottled, canned & cartoned, water, UHT dairy, lemonade, wine, beer, lager, fruit juice & health drinks, fruit, (basket displayed).



Food: Chocolate, confectionery, crisps, snacks, cakes, flowers, napkins, menus, wine list, table condiment sets, corporate branding, art & craft, souvenirs.



  • Sandwiches, baguettes, rolls, barmcakes & cheese subject to local health regulations re: display times


Dimensions

Self Help Ambient Gantry
Dimensions

Model

AG2

AG3

AG4

AG5

Capacity

2/1 GN

3/1 GN

4/1 GN

5/1 GN

Length (mm)

800

1150

1500

1850

Depth (mm)

377

377

377

377

Height above worktop (mm)

535

535

535

535

Weight (uncrated) (kg)

10

13

17

21

Power (kW)

0.1

0.1

0.1

0.1

Electrical supply

13A 230V

13A 230V

13A 230V

13A 230V



Downloads

General Layout Drawings.
Designline Self Help Ambient Gantries.

Designline Self Help Ambient GantriesDesignline Self Help Ambient Gantries Designline Self Help Ambient GantriesDesignline Self Help Ambient Gantries Designline Self Help Ambient GantriesDesignline Self Help Ambient Gantries



Fitting Instructions.
Designline Self Help Ambient Gantries.

Fitting Designline Self Help Ambient GantriesFitting Designline Self Help Ambient Gantries



Website-AMB-DESIGNLINE-LH-H

Visual

Self Help Ambient Island Gantry

Designline Self Help Ambient Island Gantry (AG3&4I)



Features

Self Help Ambient Island Gantry
Features

  • Double curved toughened glass sneeze guard profile is designed to compliment other units within the range.
  • Ambient island gantry for illumination and sneeze guard protection of worktop displayed ambient product, where access is required from both sides (i.e. freestanding island counter)
  • Self help application.
  • Product illumination is provided from diffused LED lighting (4000 Kelvin) in an elliptical profile.
  • Elliptical glass profile is designed to compliment other units within the range.
  • Lighting is controlled from a push button switch on gantry end plate.
  • Superstructure in bright polished steel and aluminium profile.
  • Supplied with post fixing plates, bolts, 2 m lead & plug top, for connection to a single 13 Amp socket (13A 230V 50 Hz).


Food Types

Self Help Ambient Island Gantry
Food Display Types



Drinks: Racked wine, impulse drinks (still & carbonated), bottled, canned & cartoned, water, UHT dairy, lemonade, wine, beer, lager, fruit juice & health drinks, fruit, (basket displayed).



Food: Chocolate, confectionery, crisps, snacks, cakes, flowers, napkins, menus, wine list, table condiment sets, corporate branding, art & craft, souvenirs.



  • Sandwiches, baguettes, rolls, barmcakes & cheese subject to local health regulations re: display times


Dimensions

Self Help Ambient Island Gantry
Dimensions

Model

AIG3

AIG4

Capacity

3/1 GN

4/1 GN

Length (mm)

1150

1500

Depth (mm)

550

550

Height above worktop (mm)

535

535

Weight (uncrated) (kg)

16

19

Power (kW)

0.1

0.1

Electrical supply

13A 230V

13A 230V



Downloads

General Layout Drawings.
Designline Self Help Ambient Island Gantries.

Designline Self Help Ambient Island GantriesDesignline Self Help Ambient Island Gantries Designline Self Help Ambient Island GantriesDesignline Self Help Ambient Island Gantries Designline Self Help Ambient Island GantriesDesignline Self Help Ambient Island Gantries



Fitting Instructions.
Designline Self Help Ambient Gantries.

Fitting Designline Self Help Ambient Island GantriesFitting Designline Self Help Ambient Island Gantries
