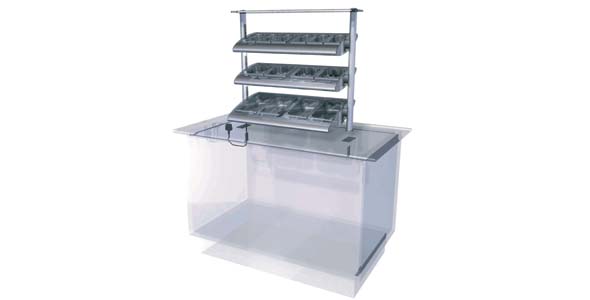

Designline drop in displays are elliptically styled displays utilising a clean curved design perspective, enhanced by durable chrome plated aluminium superstructures and lighting ducts, all enclosed within toughened curved glass hoods, sneeze screens and side panels.

Visual

Self Help Cutlery/ Condiment Unit

Ambient Cutlery Condiments Unit



Features

Self Help Cutlery/ Condiment Unit
Features

  • Curved unit profile is designed to compliment other units within the range.
  • Worktop mounted cutlery & condiments display with overhead impulse display shelf.
  • Self help application.
  • Superstructure supports 3 levels of elliptical shaped inclined shelving.
  • Features additional eye level toughened glass impulse/ display shelf.
  • Product illumination is from diffused LED lighting (4000 Kelvin) in the elliptical profile gantry and under top and midshelf, for increased visual display.
  • Unit is supplied with a full compliment of G/N containers for the display of cutlery, condiments, creamers, sachets etc.
  • Lighting is controlled from a push button switch on bottom shelf end plate.
  • Superstructure in bright polished steel and aluminium profile.
  • Supplied with post fixing plates, bolts, 2 m lead & plug top, for connection to a single 13 Amp socket (13A 230V 50 Hz).



Food Types

Self Help Cutlery/ Condiment Unit
Food Display Types



3 Tier Gastronorm Shelving: Assorted cutlery, milk, cream, creamers, sugars, sweeteners, butters and spreads, jams, marmalades, sachet type salt, vinegar, pepper, sauces.



Glass Shelf Area: Fruit, (basket displayed) flowers, napkins, menus, wine lists, table condiment sets, corporate branding



Dimensions

Self Help Cutlery/ Condiment Unit
Dimensions

Model

CCU1

CCU2

CCU3

Capacity

1/1 GN

2/1 GN

3/1 GN

Length (mm)

450

800

1150

Depth (mm)

421

421

421

Height above worktop (mm)

708

708

708

1/9 x 65mm deep Gn containers (top shelf)

3

6

9

1/6 x 65mm deep Gn containers (middle shelf)

2

4

6

1/4 x 65mm deep Gn containers (bottom shelf)

2

4

6

Weight (uncrated) (kg)

14

22

30

Power (kW)

0.1

0.1

0.1

Electrical supply

13A 230V

13A 230V

13A 230V



  • Light switch located on bottom shelf end plate.


Downloads

General Layout Drawings
Designline Self Help Cutlery/ Condiment Units

Designline Self Help Cutlery Condiment UnitsDesignline Self Help Cutlery Condiment Units Designline Self Help Cutlery Condiment UnitsDesignline Self Help Cutlery Condiment Units Designline Self Help Cutlery Condiment UnitsDesignline Self Help Cutlery Condiment Units



Fitting Instructions.
Designline Self Help Cutlery/ Condiment Units

Fitting Designline Self Help Cutlery Condiment UnitsFitting Designline Self Help Cutlery Condiment Units
