Medium Duty/ Heavy Duty Wall Shelving
.

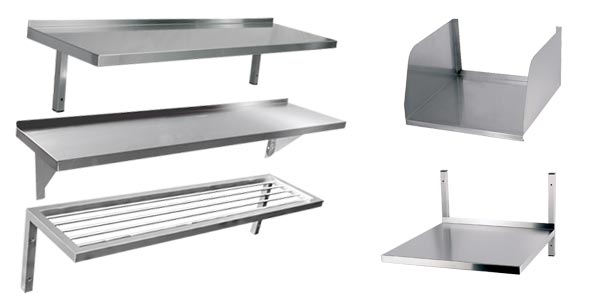

CED’s Designline wall shelves are perfect for back of house light equipment storage. Simple yet sturdy, they are constructed from 430 gd 1.2 thk. 30 mm sq box section bracket support framing or gusset bracket supports, with a durable 1.2 mm thick 430 gd. solid steel shelf as standard. Each wall shelf type has a 35 mm deep turn down to 3 faces and a rear wall up stand of 20 mm.

Medium Duty Wall Shelving.
The medium duty wall shelf is supplied with pre-drilled and folded steel ‘gusset brackets’ and is available as 600, 900, 1200, 1500, 1800, 2100 and 2400 mm long, each length available is 300 mm deep as standard.
Heavy Duty Wall Shelving. The heavy duty wall shelf is supplied with pre-drilled L- shaped ‘box section support brackets’ and is available as 600, 900, 1200, 1500, 1800, 2100 and 2400 mm long, with additional support brackets provided, depending on the shelf length selected. The heavy duty wall shelf can be supplied in three depths however – either 300, 400 or 500 mm deep. The box section steel brackets are supplied pre-drilled for securing to a wall surface on site.

Rodded Pot Racks.
An open framed heavy duty rack for the storage & drainage of pots, pans and cooking utensils, the rack is generally sited over sink unit areas within the kitchen. The shelf is constructed of a welded 430 gd. 1.2 thk. 30 mm box section outer frame and integral wall bracket legs. Within the frame a series of 10 mm diameter 304 gd. steel bars run end to end, forming the shelf storage space. The rack is made in 600, 900, 1200, 1500, 1800, 2100 or 2400 mm lengths – each length also available either 300, 400 or 500 mm deep. The integral cantilever wall brackets are pre-drilled for final fixing.

Microwave Shelving ( Medium Duty/ Heavy Duty).
CED manufacture simple yet sturdy shelving that accepts a freestanding microwave oven, the shelving is constructed from 1.2 mm thick 430 gd. s/steel.

Medium Duty Microwave Shelf.
The medium duty version is a 3 sided folded shelf and side cheeks that are pre-drilled for wall fixing. There is a folded 30 mm turn down with 15 mm return flange to the front edge – which adds strength to the horizontal support. The standard medium duty microwave shelf is 600 mm long and available either 450 or 600 mm deep.

Heavy Duty Microwave Shelf.
The heavy duty microwave shelf is 600 mm long as standard and available either 450 or 600 mm deep. The shelf is constructed from 1.2 mm thick 430 gd. s/steel and is mounted on cantilever type welded 430 gd. 1.2 thk. 30 mm box section wall brackets, pre-drilled for site fixing. The shelf is additionally strengthened with turn down 32 mm edges and a rear up stand of 30 mm. The electrical cable of the microwave can then pass behind the shelf up stand when insitu.

Shelf Types:

Medium Duty

Wall Shelf (Medium Duty)
Features.




  • Commercial s/steel shelving supported on cantilever folded steel brackets, perfect for back of house utensil/ container & equipment storage.
  • Available in 600, 900, 1200, 1500, 1800, 2100 and 2400 mm lengths x 300 mm deep.
  • Durable 1.2 mm thick 430 gd. solid steel shelf.
  • Steel shelf has a 35 mm deep turn down to 3 faces and a rear wall up stand of 20 mm.
  • Supplied with 430 gd 1.2 thk. folded steel gusset bracket shelf supports.
  • Pre-drilled gusset support brackets, for fixing insitu. (Fixings Not Supplied).
  • Additional gusset support brackets provided, depending on the shelf length selected.

Wall Shelf (Medium Duty)
Options.

  • Non standard sizes available on request.

Wall Shelf (Medium Duty)
Dimensions

Length

300 mm Deep

600 mm

900 mm

1200 mm

1500 mm

1800 mm

2100 mm

2400 mm




Heavy Duty

Wall Shelf (Heavy Duty)
Features.

  • Commercial s/steel shelving supported on cantilever box section brackets, perfect for back of house utensil/ container & equipment storage.
  • Available in 600, 900, 1200, 1500, 1800, 2100 and 2400 mm lengths.
  • Each shelf length available 300, 400 or 500 mm deep.
  • Durable 1.2 mm thick 430 gd. solid steel shelf.
  • Steel shelf has a 35 mm deep turn down to 3 faces and a rear wall up stand of 20 mm.
  • Supplied with 430 gd 1.2 thk. 30 mm sq box section bracket support framing.
  • Pre-drilled L-shaped box section support brackets, for fixing insitu. (Fixings Not Supplied)
  • Additional support brackets provided, depending on the shelf length selected.

Wall Shelf (Heavy Duty)
Options.

  • Non standard sizes available on request.

Wall Shelf (Heavy Duty)
Dimensions

Length

Brackets

300 mm Deep

400 mm Deep

500 mm Deep

600 mm

2

900 mm

2

1200 mm

2

1500 mm

3

1800 mm

3

2100 mm

3

2400 mm

4





Pot Rack

Rodded Pot Rack
Features.


  • Commercial s/steel open framed heavy duty pot drainage rack, supported on fully welded cantilever box section brackets.
  • Perfect for back of house utensil storage.
  • Available in 600, 900, 1200, 1500, 1800, 2100 and 2400 mm lengths x 300 mm deep.
  • Each rack length available 300, 400 or 500 mm deep.
  • Durable 10 mm diameter integral 304 gd. steel rods form open shelving area.
  • Outer rack perimeter frame in fully welded 430 gd 1.2 thk. 30 mm box section.
  • Pre-drilled box section support brackets, for fixing insitu. (Fixings Not Supplied)
  • Additional box section support brackets provided, depending on the shelf length selected.

Rodded Pot Rack
Options.

  • Non standard sizes available on request.

Rodded Pot Rack
Dimensions

Length

300 mm Deep

400 mm Deep

500 mm Deep

600 mm

900 mm

1200 mm*

1500 mm*

1800 mm*

2100 mm*

2400 mm*



M.Wave Shelf MD

Microwave Shelf (Medium Duty)
Features.


  • Commercial medium duty s/steel microwave shelf.
  • Constructed from 1.2 mm thick 430 gd. s/steel
  • Available as 600 mm long x 450 mm deep.
  • Available as 600 mm long x 600 mm deep.
  • 3 sided folded shelf and folded return side cheeks for strengthening.
  • Side cheeks pre-drilled for wall fixing. (Fixings Not Supplied)
  • Folded 30 mm front turn down to front edge for strengthening.

Microwave Shelf (Medium Duty)
Options.

  • Non standard sizes available on request.

Microwave Shelf (Medium Duty)
Dimensions

Microwave Shelf (Medium Duty) – Model Sizes.

Length (mm)

Strength

Depth (mm)

600

Medium Duty

450

600

Medium Duty

600






M.Wave Shelf HD

Microwave Shelf (Heavy Duty)
Features.

  • Commercial heavy duty s/steel microwave shelf.
  • Shelf constructed from 1.2 mm thick 430 gd. s/steel.
  • Mounted on cantilever type welded 430 gd. 1.2 thk. 30 mm box section wall brackets.
  • Available as 600 mm long x 450 mm deep.
  • Available as 600 mm long x 600 mm deep.
  • Pre-drilled box section support brackets, for fixing insitu. (Fixings Not Supplied)
  • Shelf strengthened with 32 mm turn down to edges/ rear up stand of 30 mm.
  • Electrical cable of microwave can pass behind shelf up stand when insitu.

Microwave Shelf (Heavy Duty)
Options.

  • Non standard sizes available on request.

Microwave Shelf (Heavy Duty)
Dimensions

Microwave Shelf (Heavy Duty) – Model Sizes.

Length (mm)

Strength

Depth (mm)

600

Heavy Duty

450

600

Heavy Duty

600
