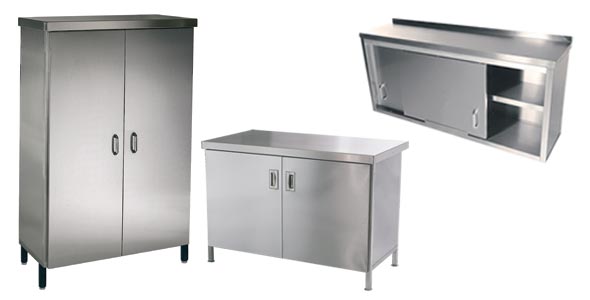

Wall/ Base Cupboard/ C.O.S.H.H./ Storage Cupboards.
CED’s Designline range of standard commercial grade wall cupboards, base cupboards, storage & C.O.S.H.H. cupboards offer valuable kitchen storage or work space and are constructed from sturdy 30 mm 430 gd. sq box section framing with durable 1.5 mm thick 304 gd. steel worktops and 1.2 mm thick 430 gd. shelves as standard. All outer panels and doors are formed from 430 gd. 0.9 thick stainless steel. C.O.S.H.H. cupboards are produced as all 304 gd. steel.

Wall Cupboard Features.
wall-cupboard-iso.-Wall cupboards are available in five standard lengths (600, 900, 1200, 1500 or 1800 mm long) with a choice of sliding or hinged doors & are 300 mm deep & 540 mm high.
Wall cupboards are fully enclosed and either fabricated or frame constructed, with wrap round side panels and welded base shelf.
The internal mid shelf is adjustable in height. The roof features a small rear up stand for sealing against a surface where items may be stored on top.
A full height flush steel back panel lines the internal space and can be fixed through to conceal screw heads.
Wall Cupboard Doors.
*Hinged Doors. 600, 900 & 1200 mm long wall cupboards are fitted as standard with side hinged steel doors, of inner/outer panel construction. Each door is mounted on sturdy cabinet hinges  and fitted with chrome finish D handle.
*Sliding Doors. 900, 1200, 1500 & 1800 mm long wall cupboards can alternatively be fitted with top hung sliding steel doors, again inner/ outer panel constructed, running on a horizontal frame mounted track, complete with central door channel guide and D handle.

Base Cupboard Features. Base-Cupboard-
Base cupboards are a fully enclosed storage and work space unit, available in six standard lengths, either 650 or 700 mm deep.
Standard base cupboard height is 900 mm to suit most kitchen area back counters and CED’s range of open framed centre and wall benches.
Cupboards are of box section frame construction with 30 mm welded base shelf, an adjustable height removable mid shelf on strengthened support rails, and a full height back panel and wrap round side panels, which cover the frame.
A full height steel back panel fully encloses the storage space within.
*Base cupboards up to 1200 mm long are fitted with hinged doors
*Over 1200 mm they are supplied with sliding doors.
The legs of the base cupboard are fitted with adjustable height flanged  feet, for securing the unit to a floor surface on site.
Base Cupboard Leg Heights.
The standard leg height of the base cupboard is either:
*135 mm (door to floor) to suit suited items such as CED hot cupboards/ adjacent counter kick plinth heights etc.
*A tall leg height version of 210 mm (door to floor) is available, to enable the cupboards to line through with our wall/ centre benches.
Base Cupboard Worktop Types.
Each base cupboard type has a standard choice of two types of worktop :
a) a free standing centre bench worktop with 50 mm turn down to each edge, or
b) a wall bench worktop with 50 mm high up stand to the rear.
*Wall bench worktop type cupboard legs are inset 100 mm to the rear, to allow for service pipework behind.
*Centre bench worktops & wall bench worktop legs are set inboard of the worktop 50 mm at each end.
Base Cupboard Doors.
Base cupboards up to 1200 mm long are fitted with side hinged steel doors, of inner/outer panel construction. Each door is mounted on sturdy cabinet hinges  and fitted with chrome finish D handle.
Cupboards greater than 1200 mm long are fitted with top hung sliding steel doors, again inner/ outer panel constructed, running on a horizontal frame mounted track, complete with central door channel guide and D handle.

C.O.S.H.H. & Storage Cupboard Features. storage-cupboard-coshh-
C.O.S.H.H. cupboards are ideal for the storage of bleaches, ammonia and other hazardous cleaning chemicals. They are fully enclosed, lockable storage units, available as either 900 or 1200 mm long. Each length is available either 450 or 600 mm deep. Both C.O.S.H.H. & storage cupboard heights are 1800 mm. Storage cupboards are manufactured in 430 gd steel, the C.O.S.H.H. cupboard is made using 304 gd. s/steel, with lockable doors as standard.

Both C.O.S.H.H. & storage cupboards are made from box section frame with welded base and mid shelf. Two further adjustable height removable mid shelves are supplied, carried on strengthened support rails. Both C.O.S.H.H. & storage cupboard leg height is 135 mm (door to floor) to suit suited items – such as CED hot cupboards/ adjacent counter kick plinth heights etc.
A full height back panel, solid welded roof, hinged doors and wrap round side panels fully encloses the storage space within.

The cupboards are fitted with side hinged steel doors, of inner/outer panel construction.

Each door is mounted on sturdy cabinet hinges and also fitted with chrome finish D handle.
The legs of C.O.S.H.H. & Storage cupboards are fitted with adjustable height flanged  feet, for securing the unit to a floor surface on site.

Wall Cupboard

Wall Cupboard
Features


  • Wall mounted commercial s/steel fully enclosed storage cupboard.
  • Outer panels, doors, top & base shelf constructed in 430 gd (0.9 thk.) s/steel.
  • Available in 600, 900, 1200, 1500 & 1800 mm standard lengths.
  • Adjustable height 430 gd (1.2 thk.) s/steel storage mid-shelf.
  • Standard cupboard height 540 mm. Standard cupboard depth 300 mm.
  • Rear up stand to roof for sealing against a surface where items may be stored on top.
  • Full height flush steel back panel can be fixed through to conceal screw heads.
  • Hinged Door models : 600, 900 & 1200 mm models feature side hinged steel doors (inner/outer panel type) fitted with chrome D handles.
  • Sliding Door models : 900, 1200, 1500 & 1800 mm models feature top hung sliding steel doors (inner/ outer panel type) fitted with chrome D handles.
  • Sliding door models fitted with central door channel guide.

Wall Cupboard
Options

  • Lockable doors (Hinged or sliding door cupboard types)  – 2 no. suited keys per lock.
  • Wall cupboard sloping top – Sloping top to the wall cupboard. Reduces surface build up of dust/ debris & makes for easier cleaning.
  • Wall cupboard (Non standard size) – Available up to 600 mm high and depth of 350 mm. Standard material specification applies.
  • Flush steel door handles. Inset steel handles replace the standard D handle.

Wall Cupboard
Dimensions

Door type

Length

Depth

Height

Sliding Door Type.

900 mm

300 mm

540 mm

1200 mm

300 mm

540 mm

1500 mm

300 mm

540 mm

1800 mm

300 mm

540 mm

Hinged Door Type.

600 mm

300 mm

540 mm

900 mm

300 mm

540 mm

1200 mm

300 mm

540 mm



Base Cupboard

Base Cupboard (Wall Sited/ Freestanding)
Features.

  • Commercial s/steel fully enclosed storage cupboard and steel work surface.
  • Worktop made from 304 gd (1.5 thk.) s/steel. Outer panels & doors constructed in 430 gd (0.9 thk.) s/steel supported on 30 x 30 box section 430 gd (1.2 thk.) framework. Base shelving in 430 gd (1.2 thk.)
  • Standard base cupboard height is 900 mm to suit most kitchen area back counters.
  • Available in 900, 1200, 1500, 1800, 2100 & 2400 mm standard lengths.
  • All standard lengths also available in 650/ 700 mm depth.
  • Adjustable height, removable full length mid shelf on strengthened lift out support rails.
  • 30 mm welded base shelf.
  • Steel worktop type for wall sited cupboard : – features 50 mm rear wall up stand. (Wall bench worktop type).
  • Steel worktop type for freestanding cupboard :– features 50 mm turn down to each edge. (Centre bench worktop type).
  • Standard base cupboards <1200 mm long – fitted with side hung steel doors, mounted on sturdy cabinet hinges with D handles.
  • Standard base cupboards >1200 mm long fitted with top hung sliding steel doors c/w central door channel guide & D handles.
  • All doors constructed from inner/ outer panel work in s/steel.
  • Full height rear back panel to cupboard base.
  • Cupboard legs fitted with adjustable height flanged feet, for positioning & fixing to a floor surface on site.
  • Standard leg height of cupboard set at 135 mm (door to floor) – to suite with other CED equipment/ adjacent counter kick plinth heights.

Base Cupboard
Options.

  • Lockable doors (Hinged or sliding door cupboard types)  – 2 no. suited keys per lock.
  • Flush steel door handles. (Inset steel handles replace the standard D handle).
  • Mobile base cupboard – Set of castors (2 braked –  max load 210 Kg).
  • Base cupboard – Sliding doors ( Replace standard side hung doors on 900/ 1200 mm long models).
  • Base cupboard Non standard leg height 210 mm – door to floor ( To suite with CED wall/ centre bench base shelf heights).
  • Base cupboard – Non standard size (Standard material specification applies).
  • Non standard base cupboard height > 900 ( i.e. 850 mm to suit certain kitchen area back counters).

Base Cupboards (Wall Sited/ Freestanding)
Dimensions

Length

Depth

Height

900mm*

650mm

900mm

1200mm*

650mm

900mm

1500mm

650mm

900mm

1800mm

650mm

900mm

900mm*

700mm

900mm

1200mm*

700mm

900mm

1500mm

700mm

900mm

1800mm

700mm

900mm

* With sliding or hinged doors, all other sizes are sliding doors



Storage Cupboard

Storage Cupboard
Features.


  • Free standing commercial s/steel, fully enclosed storage cupboard.
  • Four tier storage internally.
  • 30 mm deep welded base shelf (1 no.)
  • 30 mm deep fixed mid shelf. (1 no.)
  • 2 no. Adjustable mid shelves on strengthened lift out support rails.
  • Outer panels & doors constructed in 430 gd (0.9 thk.) s/steel.
  • Base and mid shelving in 430 gd (1.2 thk.)
  • Standard cupboard height 1800 mm.
  • Available in 600, 900 or 1200 mm standard lengths.
  • Standard cupboard lengths also available 450 or 600 mm deep.
  • Fitted with side hung steel doors, mounted on sturdy cabinet hinges with D handles.
  • All doors constructed from inner/ outer panel work in s/steel.
  • Full height rear back panel to cupboard base.
  • Cupboard legs fitted with adjustable height feet, for positioning & fixing to a floor surface on site.
  • Standard leg height of cupboard set at 135 mm (door to floor) – to suite with other CED equipment/ adjacent counter kick plinth heights.

Storage Cupboard
Options.

  • Lockable doors (Hinged door cupboard type)  – 2 no. suited keys per lock.
  • Flush steel door handles. (Inset steel handles replace the standard D handle).
  • Mobile storage cupboard – Set of castors (2 braked –  max load 210 Kg).
  • Storage cupboard – Non standard size (Standard material specification applies).

Storage Cupboard
Dimensions

*430 Grade Stainless Steel

Depths

Length

Height

450 mm

600 mm

 600mm                                 1800mm                                ✔                                          ✔

900mm

1800mm

1200mm

1800mm





COSHH Cupboard

C.O.S.H.H. Cupboard
Features.

  • Free standing commercial s/steel, fully enclosed C.O.S.H.H. hazardous materials storage cupboard.
  • Four tier storage internally.
  • All 304 gd s/steel – outer panels/ doors in 304 gd (0.9 thk.) s/steel.
  • Base and mid shelving in 304 gd (0.90/1.2 thk.) s/steel.
  • Standard cupboard height 1800 mm.
  • Available in 600, 900 or 1200 mm standard lengths.
  • Available 450 or 600 mm deep.
  • 30 mm deep welded base shelf (1 no.)
  • 30 mm deep welded mid shelf. (1 no.)
  • 2 no. Adjustable mid shelves on strengthened lift out support rails.
  • Fitted with side hung, locking steel doors, mounted on sturdy cabinet hinges with D handles.
  • All doors constructed from inner/ outer panel work in s/steel.
  • Full height rear back panel to cupboard base.
  • Cupboard legs fitted with adjustable height feet, for positioning & fixing to a floor surface on site.
  • Standard leg height of cupboard set at 135 mm (door to floor) – to suite with other CED equipment/ adjacent counter kick plinth heights.

C.O.S.H.H. Cupboard
Options.

  • Flush steel door handles. (Inset steel handles replace the standard D handle).
  • Mobile C.O.S.H.H. cupboard – Set of castors (2 braked –  max load 210 Kg).
  • C.O.S.H.H. cupboard – Non standard size (Standard material specification applies).

C.O.S.H.H. Cupboard
Dimensions

* 304 Grade Stainless Steel

Depths

Length

Height

450 mm

600 mm

 600mm                                 1800mm                                ✔                                          ✔

900mm

1800mm

1200mm

1800mm



Downloads

General Layout Drawings.
Wall/ Base Cupboard/ C.O.S.H.H./ Storage Cupboards.



Standard CED Wall-Base Cupboards ( DXF files)Standard CED Wall-Base Cupboards ( DXF files) [Download not found] [Download not found]



Wall/ Base/ Storage Cupboard Options.

Bespoke Cupboard Sizes.
Non standard sizes of wall cupboard are available up to 600 mm high and depth of 350 mm. The standard material specification applies.

Sloping Cupboard Top.Wall-cupboard---option-slop
The addition of a sloping top to the wall cupboard allows easier cleaning of the roof and doesn’t harbour debris.





                                                                cupboard---locking-door-optLockable Cupboard Doors.
Secure storage areas can be created by an optional lock, which can be provided to either a hinged or sliding set of doors. Two suited keys are provided with each lock.







Mobile Cupboards.
castor-option--Typically if the base cupboard is fitted with a centre bench type worktop (not wall sited) a mobile base cupboard option is available, where a set of castors – 2 braked. ( max load 210 Kg) are added to the standard unit. Tall C.O.S.H.H & Storage cupboards are also available in a mobile version.



Flush Steel Cupboard Handles.
Standard-HandlesThe Standard cupboard door D handle can be replaced with a flush steel handle inset into the door face, often requested for low level doors where a D handle would protrude, such as base cupboards.









*1500 mm long wall cupboard with lockable sliding doors shown.page-base--cupboardsfabrication
