Patiss-Panel-Options-logoFront Fascia Panel – Steel.
If the Kubus or Designline patisserie is to be used in a free-standing scenario, an optional satin finish stainless steel ventilated or solid fascia panel is available as a factory fit. The panels fit all cold, heated and ambient Kubus/ Designline patisserie models.

*If the patisserie is to be used in a servery counter- i.e. behind a shop fitted fascia panel-this option is not required.

Visual

Front Fascia Panel-SteelPatiss-Panel-Options-logo

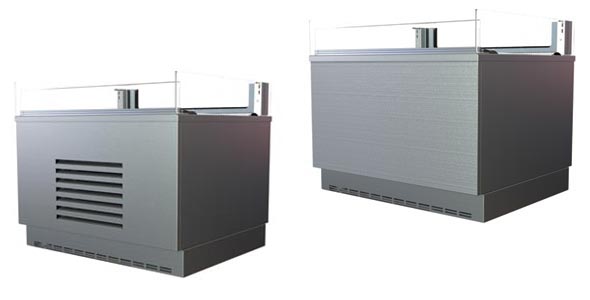

Amb-Stainless-Front



Features

Front Fascia Panel-SteelPatiss-Panel-Options-logo
Features



  • Satin finish stainless steel ventilated or solid fascia panel accessory, for free standing cold, heated & ambient models.
  • Fits all cold, heated and ambient Kubus/ Designline patisserie models.
  • Option KCSF6/ KCSF9/ KCSF12/ KCSF20 – ventilated panel fits cold 600, 900, 1200 & 2000 Kubus or Designline patisserie models.
  • Option KASF6/ KASF9/ KASF12 – solid panel fits heated & ambient 600, 900 & 1200 Kubus or Designline patisserie models.
  • Option KASF12/ KASF20 – solid panel fits cold 1200 & 2000 Kubus or Designline patisseries with optional airflow in/out operator side.


Dimensions

Front Fascia Panel-SteelPatiss-Panel-Options-logo
Dimensions



Cold Patisserie (Ventilated Panel)               Hot & Ambient Patisserie (Solid Panel)

Option code

KCSF6

KCSF9

KCSF12

KCSF20

KASF6

KASF9

*KASF12

**KASF20

Unit size (mm)

600

900

1200

2000

600

900

1200

2000



Choosing A Steel Front Fascia Panel For A Cold Patisserie With Air In/ Out Operator Side.

1200 mm Models.
*If non standard airflow AF12 is required on Kubus KPC12HT, KPC12ASHT or Designline PC12HT, PC12ASHT-select solid fascia panel option KASF12.

2000 mm Models
**If non standard airflow AF20 is required on Kubus KPC20HT, KPC20ASHT or Designline PC20HT, PC20ASHT-select solid fascia panel option KASF20.
