We’ve taken our vast experience producing every conceivable kind of made to measure commercial kitchen fabrication, in order to develop the new Quick Service fabrication range.
Quick Service now offers dealers a complete range of CED standard fabrication in the popular sizes you want.
With stock available and ready to go, you can configure your kitchen equipment layout and have that kitchen on site in 2/6 working days after your order, because in a next day world it’s what your customers have come to expect.
There is no compromise on quality with Quick Service fabrication either, otherwise we couldn’t offer our 2 year warranty as standard.
There’s over 150 of our most popular kitchen equipment products to select from, including single or double bowl sinks, wall & corner cupboards, wall & corner benches, centre benches, heavy duty wall shelving, pan storage & microwave shelving.

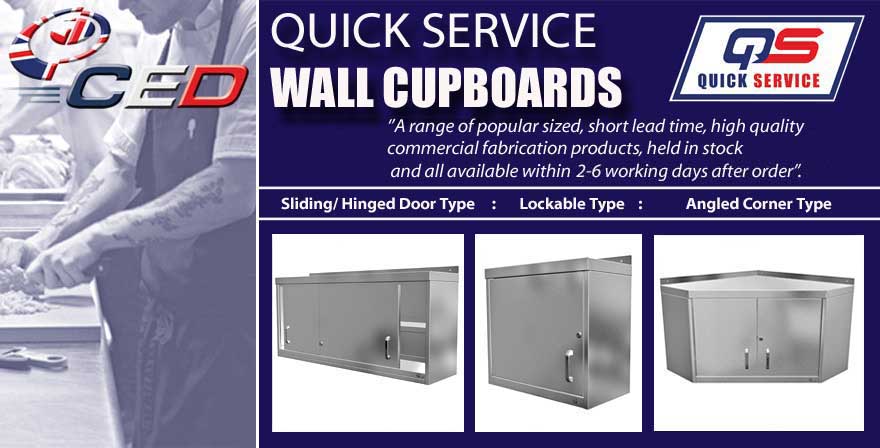

Wall Cupboards.
Quick Service wall cupboards are made from high quality 430gd stainless steel & provide hygenic storage in the commercial kitchen area. They are available with either sliding or hinged doors – either door type is also offered with lockable doors.

Sliding door models are available in five standard lengths (900, 1000, 1200, 1500 or 1800mm long) & are 300mm deep & 540mm high. The sliding doors can be taken out for deep cleaning, without the need for tools.

Hinged door cupboards are available in 450, 600, 750, 900 or 1200mm long & are 300mm deep & 540mm high. Wall cupboards are fully enclosed with wrap round side panels and base shelf.

The internal mid shelf is adjustable in height. The roof features a small rear up stand for sealing against a surface where items may be stored on top.
A full height flush steel back panel lines the internal space. A rear wall hook is also supplied, to support the load, in addition to the fixing holes provided on the roof rear upstand (Fixing hole size Ø 7.2mm).

The Quick Service angled corner wall cupboard (with doors) utilises dead space and can be used in conjunction with 300mm deep cupboards either side, to provide continuous high level storage. The angled corner cupboard offers a deeper storage area and is available as a lockable version also. These cupboards can be used in conjunction with Quick Service angled corner wall benches, to maximise continuous working areas in the kitchen.

Wall Cupboard Types

Visual

Wall Cupboard (With Sliding Doors).
Visual.



Specification

Wall Cupboard (With Sliding Doors)
Specification.

  • Wall mounted commercial s/steel fully enclosed storage cupboard.
  • Outer panels, doors, top & base shelf constructed in 430 gd (0.9 thk.) s/steel.
  • Available in 900, 1000, 1200, 1500 & 1800 mm standard lengths.
  • Adjustable height 430 gd (1.2 thk.) s/steel storage mid-shelf.
  • Standard cupboard height 540 mm.
  • Standard cupboard depth 300 mm.
  • Rear up stand to roof for sealing against a surface where items may be stored on top.
  • Roof upstand fixing hole size Ø 7.2mm.
  • Full height flush steel back panel.
  • Wall mounting support brackets supplied – fixing hole size Ø 7.2mm.
  • Sliding door models feature top hung sliding steel doors (inner/ outer panel type) fitted with chrome D handles..
  • Sliding door models fitted with central door channel guide.



Lockable Wall Cupboard (With Sliding Doors)
Specification.

  • Wall mounted commercial s/steel fully enclosed lockable storage cupboard.
  • Outer panels, doors, top & base shelf constructed in 430 gd (0.9 thk.) s/steel.
  • Available in 900, 1000, 1200, 1500 & 1800 mm standard lengths.
  • Adjustable height 430 gd (1.2 thk.) s/steel storage mid-shelf.
  • Standard cupboard height 540 mm. Standard cupboard depth 300 mm.
  • 40mm (H) rear up stand to roof for sealing against a surface where items may be stored on top.
  • Roof upstand fixing hole size Ø 7.2mm.
  • Full height flush steel back panel.
  • Wall mounting support brackets supplied – fixing hole size Ø 7.2mm.
  • Lockable sliding door models feature top hung sliding steel doors (inner/ outer panel type) fitted with chrome D handles.
  • Lockable sliding door models fitted with central door channel guide.
  • Plunge lock and two suited keys.
Quick Service Wall Cupboard- SpecificationQuick Service Wall Cupboard- Specification Quick Service Lockable Wall Cupboard- SpecificationQuick Service Lockable Wall Cupboard- Specification


Dimensions

Wall Cupboard (With Sliding Doors).
Dimensions.

Model

QWC
93S

QWC
103S

QWC
123S

QWC
153S

QWC
183S

Type

Wall Cupboard Sliding Door

Wall Cupboard Sliding Door

Wall Cupboard Sliding Door

Wall Cupboard Sliding Door

Wall Cupboard Sliding Door

Length
(mm)

900

1000

1200

1500

1800

Depth
(mm)

300

300

300

300

300

Model
Height (mm)

540

540

540

540

540

Capacity (Lt.)

127

140

168

211

254

*Roof Upstand
(mm)

40

40

40

40

40

Adjustable Height Shelf

Included

Included

Included

Included

Included

Wall Bracket.
(Qty).

4

4

4

4

4

Weight
(Kg).

31

33

39

47

55

*Roof Upstand/Wall Bracket Fixing Hole Size Ø 7.2mm.



Lockable Wall Cupboard (With Sliding Doors).
Dimensions.

Model

QWC
93LS

QWC
103LS

QWC
123LS

QWC
153LS

QWC
183LS

Type

Lockable Wall Cupbd. Sliding Door

Lockable Wall Cupbd. Sliding Door

Lockable Wall Cupbd. Sliding Door

Lockable Wall Cupbd. Sliding Door

Lockable Wall Cupbd. Sliding Door

Length
(mm)

900

1000

1200

1500

1800

Depth
(mm)

300

300

300

300

300

Model
Height (mm)

540

540

540

540

540

Capacity (Lt.)

127

140

168

211

254

*Roof Upstand
(mm)

40

40

40

40

40

Adjustable Height Shelf

Included

Included

Included

Included

Included

Wall Bracket
(Qty).

4

4

4

4

4

Weight
(Kg).

31

33

39

47

55

*Roof Upstand/Wall Bracket Fixing Hole Size Ø 7.2mm.





Visual

Wall Cupboard (With Hinged Doors).
Visual.





Specification

Wall Cupboard (With Hinged Doors)
Specification.

  • Wall mounted commercial s/steel fully enclosed storage cupboard.
  • Outer panels, doors, top & base shelf constructed in 430 gd (0.9 thk.) s/steel.
  • Available in 450, 600, 750, 900 & 1200 mm standard lengths.
  • Adjustable height 430 gd (1.2 thk.) s/steel storage mid-shelf.
  • Standard cupboard height 540 mm. Standard cupboard depth 300 mm.
  • Rear up stand to roof for sealing against a surface where items may be stored on top.
  • Roof upstand fixing hole size Ø 7.2mm.
  • Full height flush steel back panel.
  • Wall mounting support brackets supplied – fixing hole size Ø 7.2mm.
  • Hinged door models feature side hung steel doors (inner/ outer panel type) fitted with chrome D handles.

Lockable Wall Cupboard (With Hinged Doors).
Specification.

  • Wall mounted commercial s/steel fully enclosed storage cupboard.
  • Outer panels, doors, top & base shelf constructed in 430 gd (0.9 thk.) s/steel.
  • Available in 450, 600, 750, 900 & 1200 mm standard lengths.
  • Adjustable height 430 gd (1.2 thk.) s/steel storage mid-shelf.
  • Standard cupboard height 540 mm. Standard cupboard depth 300 mm.
  • Rear up stand to roof for sealing against a surface where items may be stored on top.
  • Roof upstand fixing hole size Ø 7.2mm.
  • Full height flush steel back panel.
  • Wall mounting support brackets supplied – fixing hole size Ø 7.2mm.
  • Lockable hinged door models feature side hung steel doors (inner/ outer panel type) fitted with chrome D handles.
  • Barrel lock and two suited keys.
Quick Service Wall Cupboard- SpecificationQuick Service Wall Cupboard- Specification Quick Service Lockable Wall Cupboard- SpecificationQuick Service Lockable Wall Cupboard- Specification


Dimensions

Wall Cupboard (With Hinged Doors).
Dimensions.

Model

QWC
453HL

QWC
63HL

QWC
453HR

QWC
63HR

QWC
753H

QWC
93H

QWC
123H

Type

Wall Cupbd. L.Hinged Door

Wall Cupbd. L.Hinged Door

Wall Cupbd. R.Hinged Door

Wall Cupbd. R.Hinged Door

Wall Cupbd. Hinged Doors

Wall Cupbd. Hinged Doors

Wall Cupbd. Hinged Doors

Length (mm)

450

600

450

600

750

900

1200

Door Hinged

Left

Left

Right

Right

Double

Double

Double

Depth (mm)

300

300

300

300

300

300

300

Model
Height (mm)

540

540

540

540

540

540

540

Capacity (Lt.)

64

84

64

84

104

127

168

*Roof
Upstand (mm)

40

40

40

40

40

40

40

Adjustable
Shelf

Included

Included

Included

Included

Included

Included

Included

Wall Bracket (Qty.)

4

4

4

4

4

4

4

Weight (Kg)

18

21

18

21

26

30

37

*Roof Upstand/Wall Bracket Fixing Hole Size Ø 7.2mm.



Lockable Wall Cupboard (With Hinged Doors)
Dimensions.

Model

QWC
453LHL

QWC
63LHL

QWC
453LHR

QWC
63LHR

QWC
753LH

QWC
93LH

QWC
123LH

Type

Lockable Wall Cupbd. L.Hinged Door

Lockable Wall Cupbd. L.Hinged Door

Lockable Wall Cupbd. R.Hinged Door

Lockable Wall Cupbd. R.Hinged Door

Lockable Wall Cupboard Hinged Doors

Lockable Wall Cupboard Hinged Doors

Lockable Wall Cupboard Hinged Doors

Length (mm)

450

600

450

600

750

900

1200

Door Hinged

Left

Left

Right

Right

Double

Double

Double

Depth (mm)

300

300

300

300

300

300

300

Model
Height (mm)

540

540

540

540

540

540

540

Capacity (Lt.)

64

84

64

84

104

127

168

*Roof
Upstand (mm)

40

40

40

40

40

40

40

Adjustable
Shelf

Included

Included

Included

Included

Included

Included

Included

Wall
Bracket (Qty.)

4

4

4

4

4

4

4

Weight (Kg)

18

21

18

21

26

30

37

*Roof Upstand/Wall Bracket Fixing Hole Size Ø 7.2mm.





Visual

Angled Corner Wall Cupboard (With Doors).
Visual.



Specification

Angled Corner Wall Cupboard (With Doors).
Specification.

  • Wall mounted commercial s/steel fully enclosed angled corner storage cupboard.
  • Can be used in conjunction with 300mm deep cupboards either side, to provide continuous high level storage.
  • Outer panels, doors, top & base shelf constructed in 430 gd (0.9 thk.) s/steel.
  • Available in a 750mm standard angled length.
  • Adjustable height 430 gd (1.2 thk.) s/steel storage mid-shelf.
  • Standard cupboard height 540 mm. Cupboard shelf depth – up to 690 mm.
  • Rear up stand to roof for sealing against a surface where items may be stored on top.
  • Roof upstand fixing hole Size Ø 7.2mm.
  • Full height flush steel back panel.
  • Wall mounting support brackets supplied – fixing hole size Ø 7.2mm.
  • Hinged door model features side hung steel doors (inner/ outer panel type) fitted with chrome D handles.



Lockable Angled Corner Wall Cupboard (With Doors)
Specification.

  • Wall mounted commercial s/steel fully enclosed angled corner storage cupboard.
  • Can be used in conjunction with 300mm deep cupboards either side, to provide continuous high level storage.
  • Outer panels, doors, top & base shelf constructed in 430 gd (0.9 thk.) s/steel.
  • Available in a 750mm standard angled length.
  • Adjustable height 430 gd (1.2 thk.) s/steel storage mid-shelf.
  • Standard cupboard height 540 mm. Cupboard shelf depth – up to 690 mm.
  • Rear up stand to roof for sealing against a surface where items may be stored on top.
  • Roof upstand fixing hole Size Ø 7.2mm.
  • Full height flush steel back panel.
  • Wall mounting support brackets supplied – fixing hole size Ø 7.2mm.
  • Hinged door model features side hung steel doors (inner/ outer panel type) fitted with chrome D handles.
  • Barrel lock and two suited keys.
Quick Service Wall Cupboard- SpecificationQuick Service Wall Cupboard- Specification Quick Service Lockable Wall Cupboard- SpecificationQuick Service Lockable Wall Cupboard- Specification


Dimensions

Angled Corner Wall Cupboard (With Doors).
Dimensions.

Model

QAWC753H

Type

Angled Corner Wall Cupboard Hinged Doors

Angled Corner Length (mm)

750

O/all Width/Depth (mm)

820 (w) x 820 (d)

Model
Height (mm)

540

Capacity (Lt.)

188

*Roof
Upstand (mm)

40

Adjustable
Shelf

Included

Wall
Brackets (Qty.)

4

Weight (Kg)

39

*Roof Upstand/Wall Bracket Fixing Hole Size Ø 7.2mm.



Lockable Angled Corner Wall Cupboard (With Doors).
Dimensions.

Model

QAWC753LH

Type

Angled Corner Wall Cupboard Hinged Doors

Angled Corner Length (mm)

750

O/all Width/Depth (mm)

820 (w) x 820 (d)

Model
Height (mm)

540

Capacity (Lt.)

188

*Roof
Upstand (mm)

40

Adjustable
Shelf

Included

Wall
Brackets (Qty.)

4

Weight (Kg)

39

*Roof Upstand/Wall Bracket Fixing Hole Size Ø 7.2mm.
