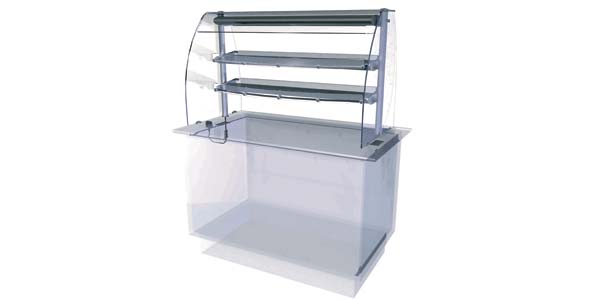

Designline Self help ambient multi level gantry (c/w) undershelf lights
Designline drop in displays are elliptically styled displays utilising a clean curved design perspective, enhanced by durable chrome plated aluminium superstructures and lighting ducts, all enclosed within toughened curved glass hoods, sneeze screens and side panels.
Main Features
Self Help Ambient Multi Level Gantry C/W Undershelf Lights – Main Features:
- Self help ambient confectionery/morning goods display gantry, for counter top installation.
- Two inclined curved toughened glass impulse/ display shelves & undershelf lighting.
- Elliptical glass profile is designed to compliment other units within the range.
Special features
Self Help Ambient Multi Level Gantry C/W Undershelf Lights – Special Features:
- Product illumination is from diffused triphosphor lighting in an elliptical profile gantry.
- Each shelf fitted with clear acrylic product stop/ point of sale fixing points.
- Superstructure supports a toughened curved sneeze protection glass screen & profiled end glass.
- Lighting is controlled from an elliptical push button switch on gantry end plate.
- Self help application.
- Superstructure in bright polished steel and aluminium profile.
- Supplied with post fixing plates, post collars, end glass supports, fixing bolts, 2 m lead & plug top, for connection to a single 13 Amp socket (13A 230V 50 Hz).
Display Examples
Drinks
- Still & carbonated, bottled, canned or carton, water, UHT dairy, lemonade, wine, beer, lager, fruit juice & health drinks.
Food
- Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts & breakfast cereals.
* Sandwiches, baguettes, rolls, barm cakes & cheese subject to local health regulations re: display times
Dimensions
|
Self help ambient multi level gantry undershelf lights |
|||
| model | MMG2 | MMG3 | MMG4 |
|
Capacity |
2/1 GN |
3/1 GN |
4/1 GN |
|
Length (mm) |
821 |
1171 |
1521 |
|
Depth (mm) |
594 |
594 |
594 |
|
Height above worktop (mm) |
695 |
695 |
695 |
|
Weight (uncrated) (kg) |
30 |
40 |
50 |
|
Power (kW) |
0.1 |
0.1 |
0.1 |
|
Electrical supply |
13A 230V |
13A 230V |
13A 230V |
Downloads
General arrangement drawing.
 MMG2(DXF) |
 MMG3(DXF) |
 MMG4(DXF) |
|
Fitting Instructions.
 MMG2, 3, 4 fitting instructions |
|||
Translator
 |  |  |  |
 |  |  |  |
