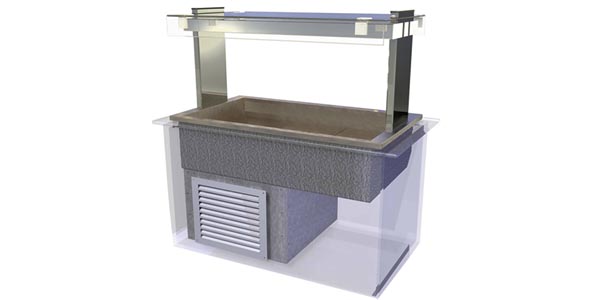

Kubus self help cold island well

Cabinet Kubus drop in displays are a new deco cubist companion to the classic elliptical Designline styling. Cabinet Kubus displays optimise a clean rectilinear design perspective, enhanced by durable chrome plated aluminium superstructures and lighting ducts, all enclosed within toughened flat glass hoods, sneeze screens and side panels.

Main Features

Main Features:

Features eye-level gantry mounted digital temperature display and control panel.
Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
Integral automatic condensate water evaporation eliminates the need for site drainage.
Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
Rectilinear glass profile is designed to compliment other units within the range.
24-hour operation as standard.

Special features

Special Features:

Product illumination is from diffused triphosphor lighting in a rectilinear profile gantry.
Superstructure supports a toughened double sneeze protection glass screen
Refrigeration condensing unit is housed in an underslung self contained cradle.
Self help application.
Modular removable deck plate system for easier cleaning and maintenance.
Superstructure in bright polished steel and aluminium profile.
Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
Features ‘tamper proof’ temperature control facility.

Food Display Examples

Drinks (Deck Area)

Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Deck and Shelving Area)

Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.

Dimensions

Self help cold island well
Model	KCIW2	KCIW3	KCIW4	KCIW5
Capacity	2/1 GN	3/1 GN	4/1 GN	5/1 GN
Length (mm)	825	1175	1525	1875
Depth (mm)	660	660	660	660
Height above worktop (mm)	540	540	540	540
Depth below worktop (mm)	677	677	677	677
Weight (uncrated) (kg)	96	116	136	156
Power (kW)	1.22	1.22	1.46	1.66
Electrical supply	13A 230V	13A 230V	13A 230V	13A 230V
