TOURNUS_300_rvbRacking : Aluminium & Polypropylene Shelving.
Tournus storage racking systems can be used in many environments, from kitchens to cold rooms (-30°C to +60°C). The system is quick and easy to assemble – without tools, by simply snapping into place the parts which stiffen the structure.

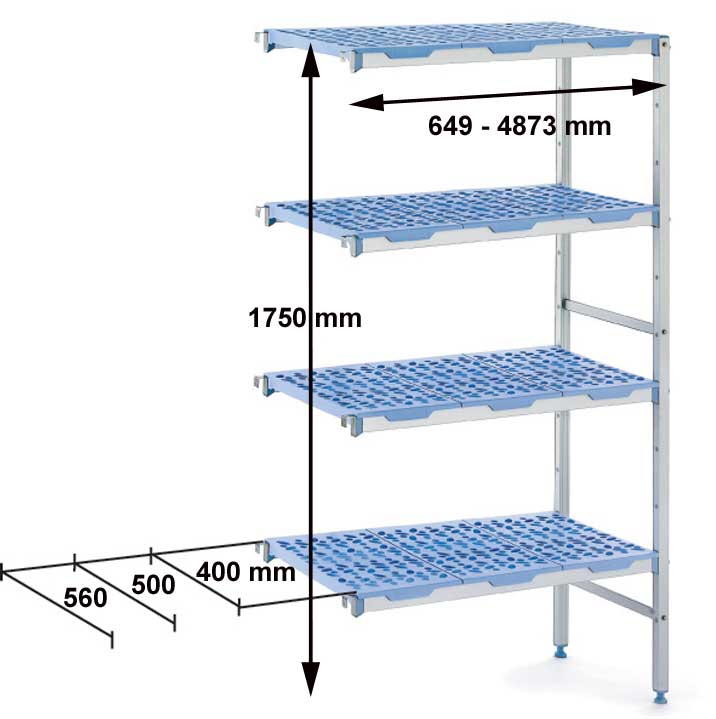

With the ability to create straight runs or angled racking layouts, the system comprises of individual components that can be quickly assembled into a multitude of different types, heights and widths of storage racks.

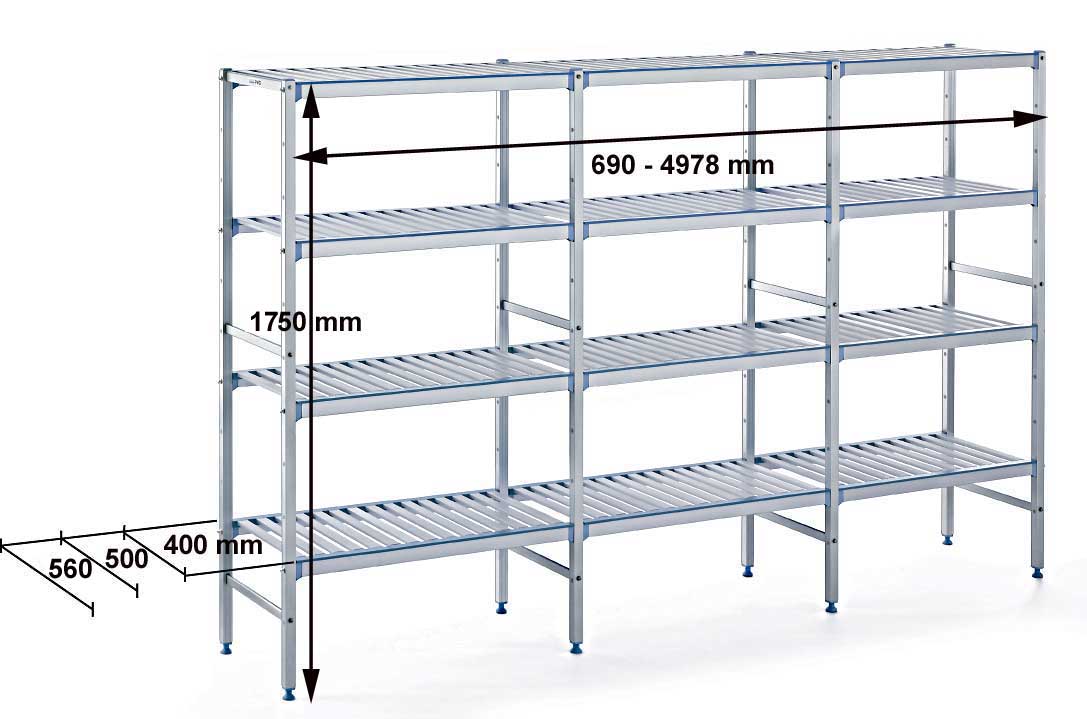

1750 mm high racks have 3, 4 or 5 tiers. 2050 mm high racks have 4, 5 or 6 tiers.

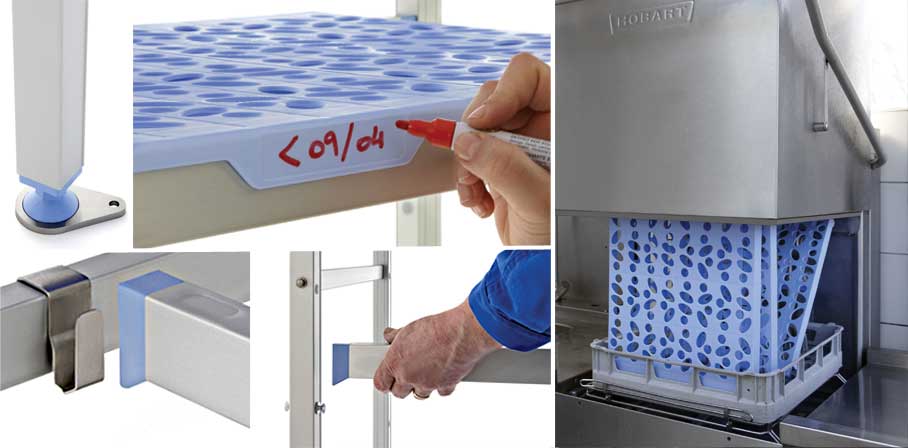

Shelves. The hygienic racking shelves are supplied with ‘clip-in’ horizontal support bars and either removable polypropylene or aluminium slat shelf. Shelves are available in 12 different lengths (608 mm to 1714 mm long) and either 400, 500 or 560 mm deep.

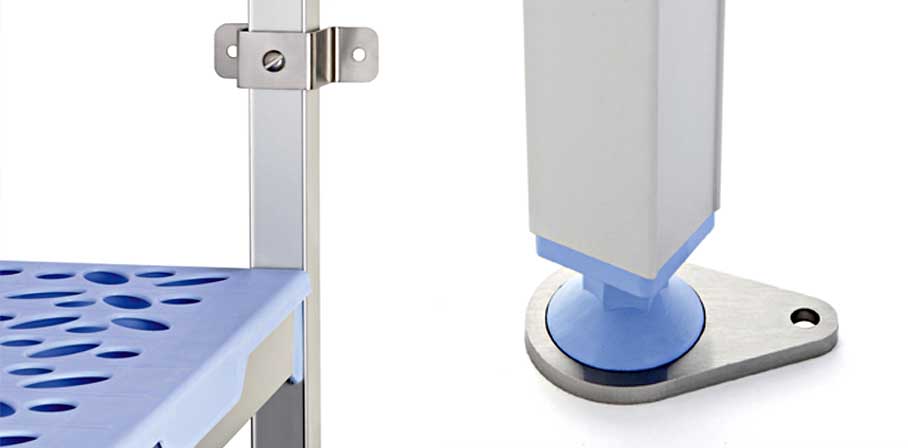

The sturdy, locking assemblies and adjustable feet ensure high stability, with a load resistance of 150 kg per level, for any length of shelving up to 1512 mm. The removable shelves are machine washable up to 90°C.

End Frames/ Uprights. Upright 32 x 30 mm aluminium end frames with pre-fitted tie bars, allow either 1750 or 2050 mm high systems to be made. The upright end frames come with facility to accept either 3, 4, 5 or 6 tier shelving, and are available for either 400, 500 or 560 mm deep shelf sections.

See how simple assembly of the Tournus racking system is :

Visual

Racking : Aluminium & Polypropylene Shelving.TOURNUS_300_rvb
Visual

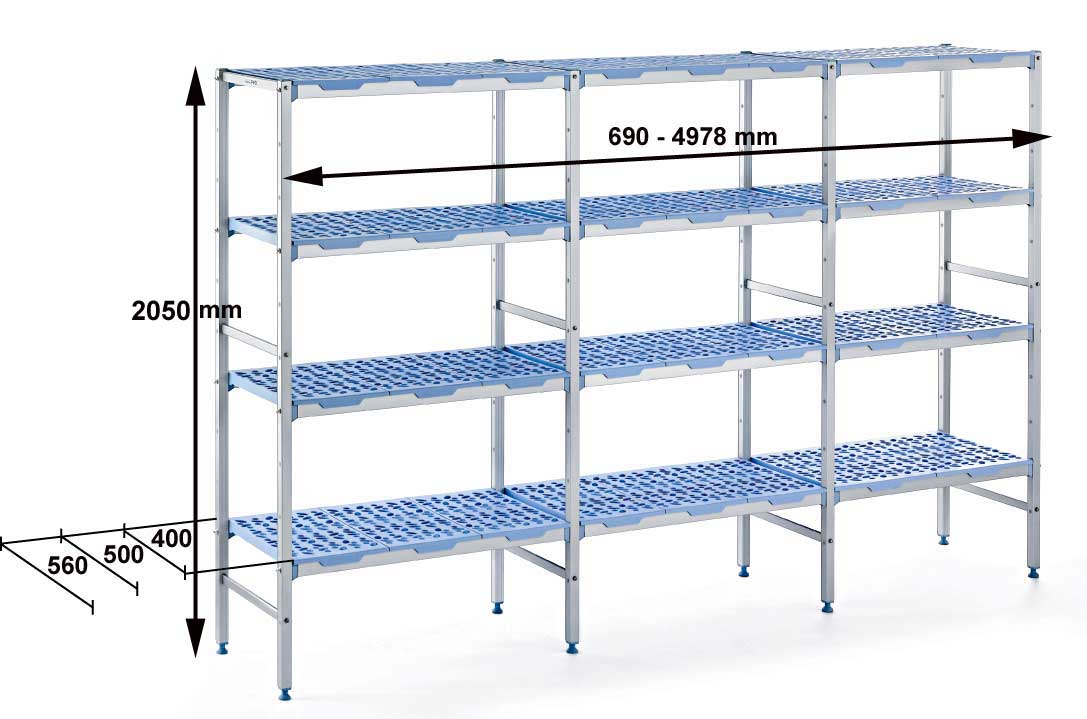

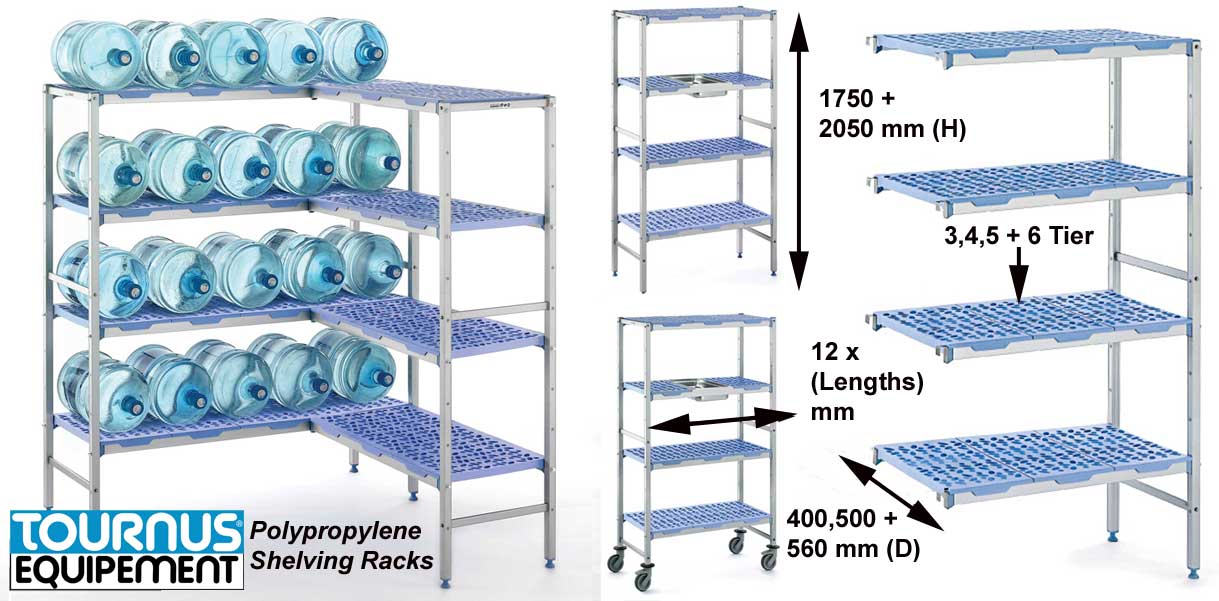

Polypropylene Shelving Racking

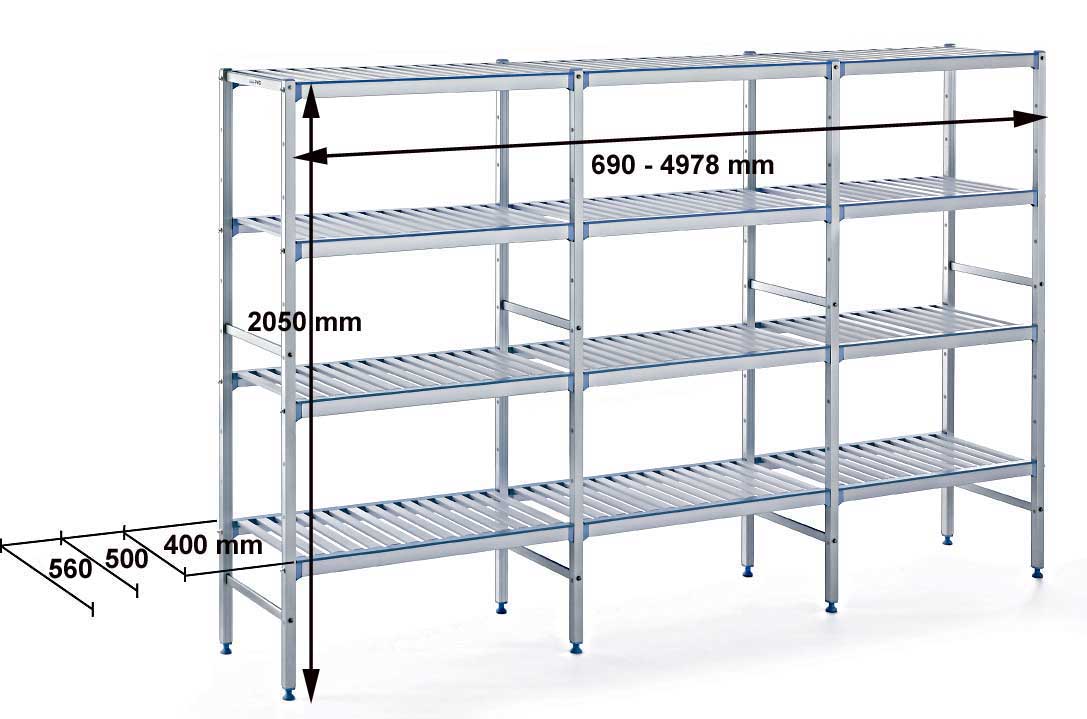

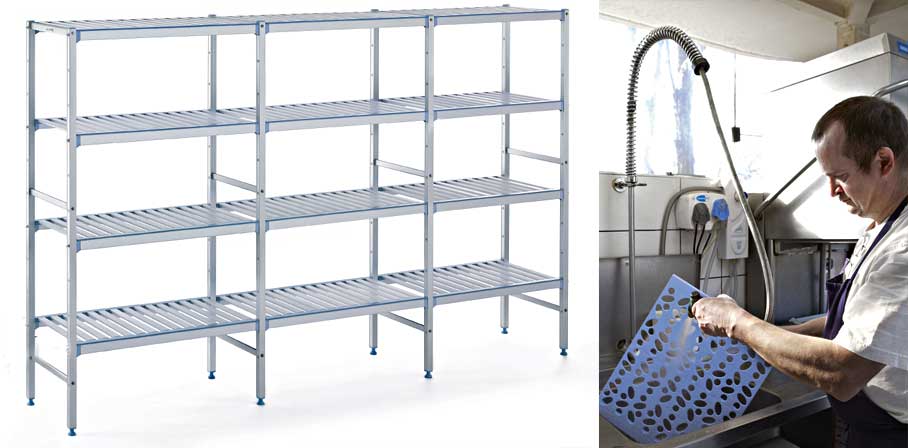

Aluminium Slatted Shelving Racking.



Components

Racking : Aluminium & Polypropylene Shelving.TOURNUS_300_rvb
Individual Components.

Each of the individual components below can be configured together (using the racking product designer – see separate tab) to make a multitude of independent, connected or angled racks with various heights, lengths, depths and storage tiers :

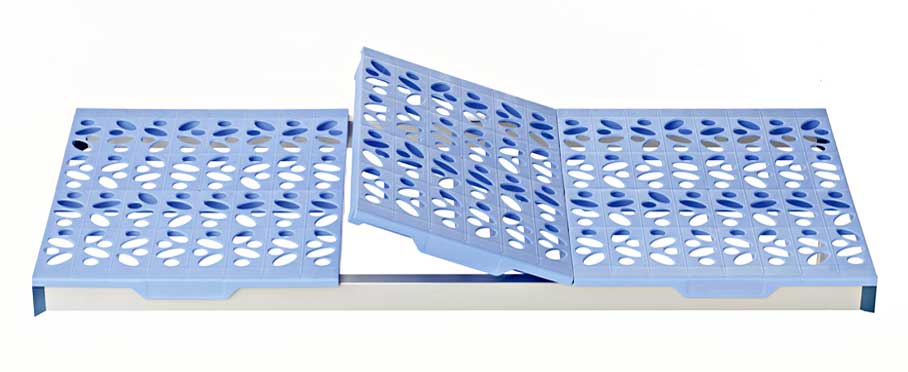

Polypropylene Shelf Component (c/w ‘Clip-In’ Support Bars).

  • Supplied with ‘clip-in’ horizontal support bars and removable polypropylene shelf.
  • Shelf available in 12 different lengths (608 mm to 1714 mm long).
  • Shelf available in 3 different depths (400 mm, 500 mm & 560 mm deep).
  • 560 mm deep shelf can accept GN Container in lieu of polypropylene sections.
  • Sturdy, locking support bar assemblies ensure high stability.
  • Load resistance of 150 kg per level, for any length of shelving up to 1512 mm.
  • Hygienic & removable,  shelf is machine washable (up to 90°C).
  • Shelf hooks over the top of the support bars.
  • Shelf has turn down edges, with sections on shelf edge where white board erasable marker pens can be used –  to note the contents of the shelf.
 Polypropylene Shelf Component Lengths/ Model Codes.

Shelf Depth (mm)

400 mm

Code

500 mm

Code

560 mm
(GN Depth)

Code

Shelf Length (mm)

608

500 366

608

500 386

608

500 416

Length (mm)

708

500 367

708

500 387

708

500 417

Length (mm)

808

500 368

808

500 388

808

500 418

Length (mm)

910

500 369

910

500 389

910

500 419

Length (mm)

1010

500 370

1010

500 390

1010

500 420

Length (mm)

1110

500 371

1110

500 391

1110

500 421

Length (mm)

1210

500 372

1210

500 392

1210

500 422

Length (mm)

1312

500 373

1312

500 393

1312

500 423

Length (mm)

1412

500 374

1412

500 394

1412

500 424

Length (mm)

1512

500 375

1512

500 395

1512

500 425

Length (mm)

1612

500 376

1612

500 396

1612

500 426

Length (mm)

1714

500 377

1714

500 397

1714

500 427

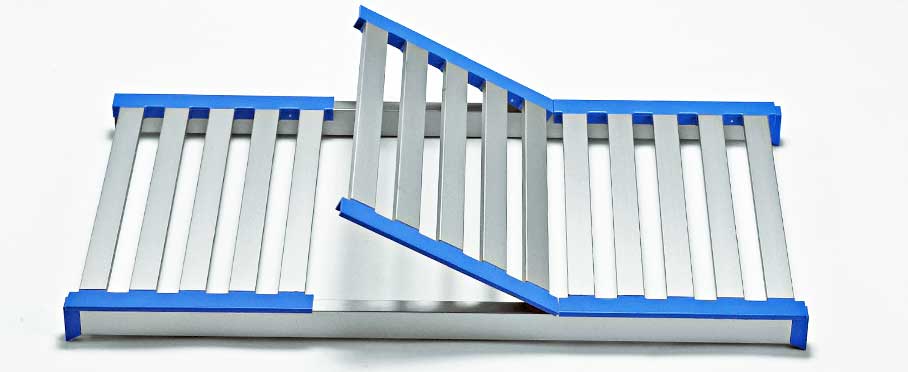

Aluminium Slat Shelf Component (c/w ‘Clip-In’ Support Bars).



  • Supplied with ‘clip-in’ horizontal support bars and removable anodised aluminium ‘slat’ rail shelf.
  • Shelf available in 12 different lengths (608 mm to 1714 mm long).
  • Shelf available in 3 different depths (400 mm, 500 mm & 560 mm deep).
  • 560 mm deep shelf can accept GN Container in lieu of aluminium slat section.
  • Sturdy, locking support bar assemblies ensure high stability.
  • Load resistance of 150 kg per level, for any length of shelving up to 1512 mm.
  • Hygienic & removable, shelf is machine washable (up to 90°C).
  • Shelf hooks over the top of the support bars.
Aluminium Slat Shelf Component Lengths/ Model Codes.

Shelf Depth (mm)

400 mm

Code

500 mm

Code

560 mm
(GN Depth)

Code

Shelf Length (mm)

608

500 466

608

500 516

608

500 666

Length (mm)

708

500 467

708

500 517

708

500 667

Length (mm)

808

500 468

808

500 518

808

500 668

Length (mm)

910

500 469

910

500 519

910

500 669

Length (mm)

1010

500 470

1010

500 520

1010

500 670

Length (mm)

1110

500 471

1110

500 521

1110

500 671

Length (mm)

1210

500 472

1210

500 522

1210

500 672

Length (mm)

1312

500 473

1312

500 523

1312

500 673

Length (mm)

1412

500 474

1412

500 524

1412

500 674

Length (mm)

1512

500 475

1512

500 525

1512

500 675

Length (mm)

1612

500 476

1612

500 526

1612

500 676

Length (mm)

1714

500 477

1714

500 527

1714

500 677

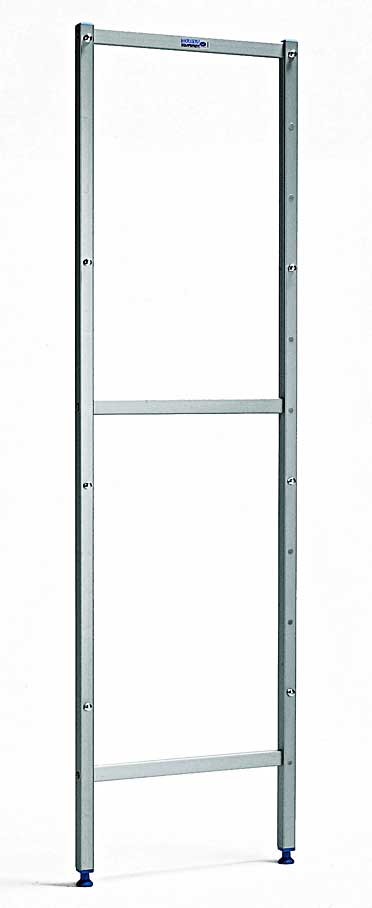

End Frame/ Upright Component Sizes.



  • Upright end frame component, made from 32 x 30 mm anodised aluminium (Suppled with pre-fitted tie bars).
  • Upright end frame available either 1750 mm or 2050 mm high.
  • 1750 mm high upright end frame: Available for either 3, 4 or 5 tier shelving.
  • 1750 mm high upright end frame: Available for either 400 mm, 500 mm or 560 mm deep shelving.
  • 2050 mm high upright end frame: Available for either 4, 5 or 6 tier shelving.
  • 2050 mm high upright end frame: Available for either 400 mm, 500 mm or 560 mm deep shelving.
  • Upright end frame supplied with screwed fixing studs per tier, for connecting ‘clip-in’ horizontal shelf support bars and removable polypropylene or aluminium ‘slat’ rail shelf.
  • End frame fitted with adjustable feet (c/w hygienic internal thread system to avoid harboring bacteria).
1750 mm High Upright End Frame Component: Sizes/ Model Codes.

Shelf Depth (mm).

400 mm

Code

500 mm

Code

560 mm
(GN Depth)

Code

Shelf Tiers Required (Qty).

3

500 103

3

500 123

3

500 153

Shelf Tiers Required (Qty).

4

500 104

4

500 124

4

500 154

Shelf Tiers Required (Qty).

5

500 105

5

500 125

5

500 155



2050 mm High Upright End Frame Component: Sizes/ Model Codes.

Shelf Depth (mm).

400 mm

Code

500 mm

Code

560 mm
(GN Depth)

Code

Shelf Tiers Required (Qty).

4

500 214

4

500 224

4

500 234

Shelf Tiers Required (Qty).

5

500 215

5

500 225

5

500 235

Shelf Tiers Required (Qty).

6

500 216

6

500 226

6

500 236



Polyprop. Racks

Racking : Polypropylene Shelf Racks.TOURNUS_300_rvb
Racking Types.

The individual components can be assembled together using the ‘product designer’ tab, to make a multitude of independent, connected or angled racking, with various heights, lengths, depths and storage tiers. (Each combination created has a unique model code, listed below).

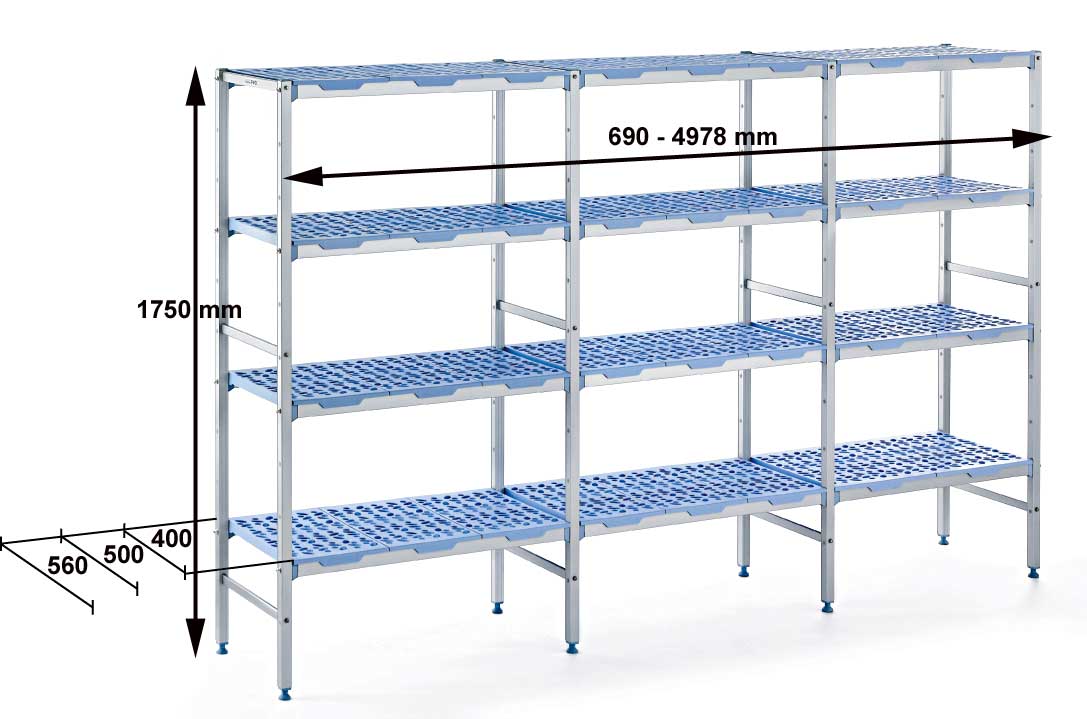

1750 mm High Polypropylene Shelf Racking Types (Straight Run Types).
