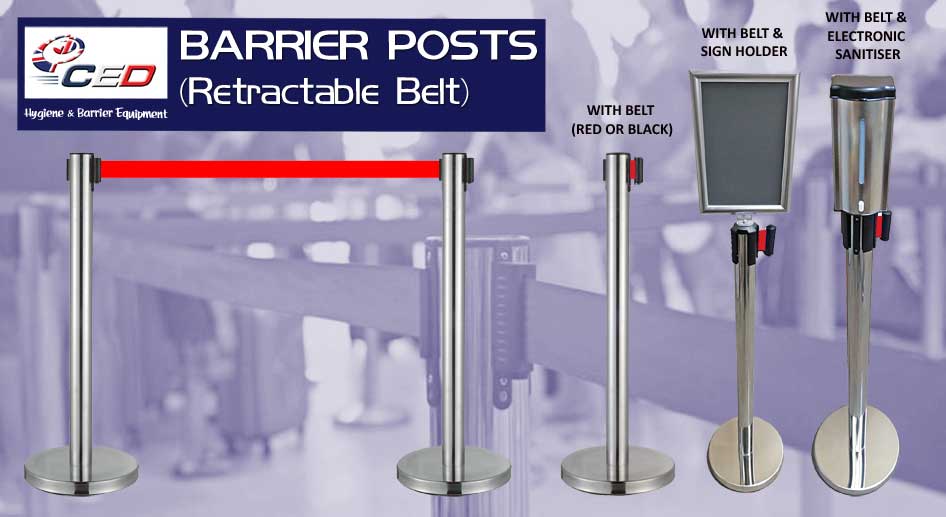

Barrier Posts & Retractable Belts.
CED’s elegant mirror finished stainless steel barrier posts with their integral retractable belts, are specially designed to help form waiting lines, direct the flow of crowds, control access and enhance safety.
These robust, independent and flexible barrier solutions clearly identify waiting areas and can be inter-connected in four different directions , via the four way moulded belt clip receiver in the post top.

Eye Catching Features.

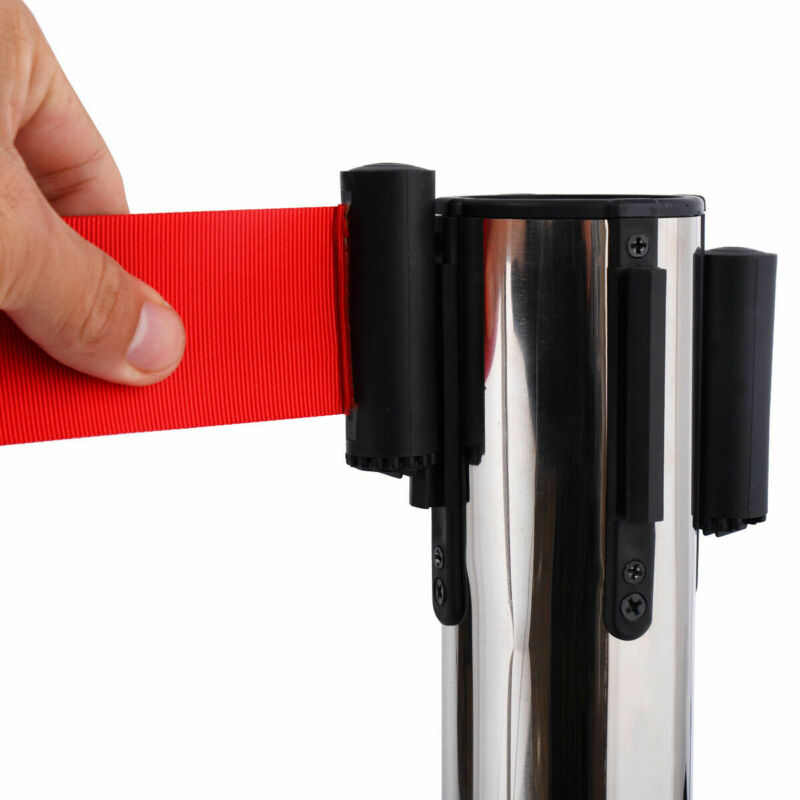

The solid, weighted, stable post base is hidden under a mirror finish outer cover. The base features an integral rubber gasket which prevents floor damage. The posts are linked together with retractable 50mm wide nylon barrier belts, to cordon off the desired space. You can choose between classic red or black belts. Each tape is 2M long and features lockable connection clips that slot onto the adjoining post, for a simple post connection. Just turn the top of the connection clip to lock it to the four way connection point on the post top.

Barrier Post & A4 Sign Holder. The simple push fit cap locates the sign holder on the barrier post. The post can then be used as a barrier and also a communication point for your customers ! The A4 size, chrome finished sign holder is waterproof and portrait orientation. The visible printable area is 208 mm (w) x 295 mm (h).

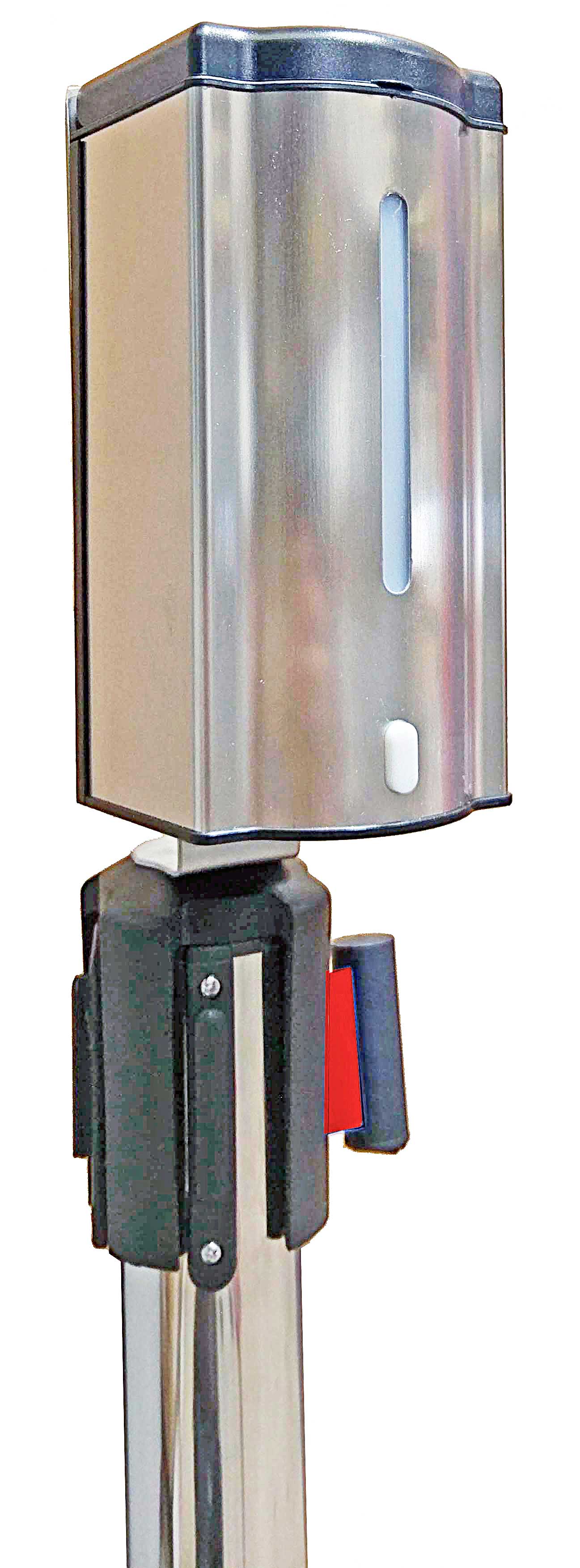

Barrier Post & Electronic Sanitiser Dispenser (Alcohol Gel). The same simple push fit cap locates the hands free sanitiser dispenser on the barrier post. The 600ml dispenser delivers appx. 500 doses and uses 4 x AA batteries (not supplied).

An optional electrical plug (For Sanitiser) – Lead Length ( 2 M) is available (Code ESPDP)

Health & Safety. Barrier posts provide an ideal solution for risk assessments, undertaken by businesses in compliance with the FDA June 2020 UK Government Guidance ‘Keeping workers and customers safe during COVID-19 in restaurants, pubs, bars and takeaway services’.



Visual

Barrier Post (Retractable Belt):
With A4 Sign/ With Electronic Sanitiser (Alcohol Gel).

Visual



Features

Barrier Post (Retractable Belt):
With A4 Sign/ With Electronic Sanitiser (Alcohol Gel).
Features

(HBPR) Barrier Post (Red Retractable Belt).
(HBPB) Barrier Post
(Black Retractable Belt).

  • A free standing barrier post with integral retracting 50mm x 2M nylon belt.
  • Creates a barrier for a stable, long-lasting crowd control solution.
  • S/steel mirror finish post and base with an integral belt & four direction fastening head to post top.
  • Weighted stable base with integral rubber gasket, prevents floor damage.
  • Barrier post height 1060mm
  • Retractable belt end can be locked to the adjoining post receiver, to prevent mis-use.
  • Barrier post base diameter 320mm.
  • Available with red or black retracting belt: 2m long x 50mm wide.
  • Also available with electronic hands free sanitiser (alcohol gel) or A4 vertical sign holder & red or black retracting belt.
  • Easily installed in many locations, as no electrical connection is required.

(HBPRSH) Barrier Post & A4 Sign Holder (Red Retractable Belt).
(HBPBSH) Barrier Post & A4 Sign Holder
(Black Retractable Belt).

  • A free standing barrier post with integral retracting 50mm x 2M nylon belt.
  • Creates a barrier for a stable, long-lasting crowd control solution.
  • S/steel mirror finish post and base with an integral belt & four direction fastening head to post top.
  • Fitted with chrome finish A4, portrait orientation vertical sign holder, for use as a communication point.
  • Sign holder visible printable area is 208 mm (w) x 295 mm (h).
  • Simple sign replacement from behind perspex front cover, by click fastening outer frame sections.
  • Weighted stable base with integral rubber gasket, prevents floor damage.
  • Barrier post height 1060mm (+360mm).
  • Retractable belt end can be locked to the adjoining post receiver, to prevent mis-use.
  • Barrier post base diameter 320mm.
  • Available with red or black retracting belt: 2m long x 50mm wide.
  • Also available with electronic hands free sanitiser (alcohol gel) & red or black retracting belt.
  • Easily installed in many locations, as no electrical connection is required.

(HBPRESD) Barrier Post & Electronic Sanitiser (Red Retractable Belt).
(HBPBESD) Barrier Post & & Electronic Sanitiser
(Black Retractable Belt).

  • A free standing barrier post with integral retracting 50mm x 2M nylon belt.
  • Creates a hygienic sanitising point & barrier for a stable, long-lasting crowd control solution.
  • S/steel mirror finish post and base with an integral belt & four direction fastening head to post top.
  • Fitted with integrated electronic hands free dispenser – 600ml capacity (alcohol gel).
  • Infra-red electronic cell detects hands to auto dispense the sanitising gel – appx. 500 doses.
  • Suitable for high alcohol sanitising gels =/>60%.
  • Dispenser requires (4x) AA batteries – not included.
  • Option of electrical connection lead with UK plug (lead length 2m) (Option Code ESPDP).
  • CE Certified.
  • Gel dispensing capacity 600ml/ appx. 500 doses.
  • Weighted stable base with integral rubber gasket, prevents floor damage.
  • Barrier post height 1060mm (+240mm).
  • Retractable belt end can be locked to the adjoining post receiver, to prevent mis-use.
  • Barrier post base diameter 320mm.
  • Available with red or black retracting belt: 2m long x 50mm wide.
  • Also available with A4 sign holder & red or black retracting belt.
  • Easily installed in many locations, as no electrical connection is required.


Dimensions

Barrier Post (Retractable Belt):
With A4 Sign/ With Electronic Sanitiser (Alcohol Gel).
Dimensions

Barrier Post (Retractable Belt):
With A4 Sign/ With Electronic Sanitiser (Alcohol Gel).

Model

HBPR

HBPB

HBPRSH

HBPBSH

HBPRESD

HBPBESD

Description

Barrier Post.

Barrier Post.

Barrier Post + A4 Sign Holder.

Barrier Post + A4 Sign Holder..

Barrier Post + Electronic Sanitiser (Alcohol Gel).

Barrier Post + Electronic Sanitiser (Alcohol Gel).

Belt Colour

Red

Black

Red

Black

Red

Black

Retractable Nylon Belt Length (M).

2

2

2

2

2

2

4 Direction Belt Fastening To Post Top.

Included.

Included.

Included.

Included.

Included.

Included.

Locking Belt Connection.

Yes

Yes

Yes

Yes

Yes

Yes

Dispenser Power Supply (4x AA Batteries).

N/A

N/A

N/A

N/A

Not Included

Not Included

Dispenser Suitable For High Alcohol Sanitising Gels =/>60%.

N/A

N/A

N/A

N/A

Yes

Yes

Dispenser Electrical 2M lead + UK plug (Option Code).

N/A

N/A

N/A

N/A

ESPDP

ESPDP

Sign Holder : Visible Printable Area (W) x (H) in mm.

N/A

N/A

208 x 295

208 x 295

N/A

N/A

Model Height (mm)

1060

1060

1060(+360)

1060(+360)

1060(+240)

1060(+240)

Model Post Width x Base Depth (mm)

Ø 63(w) x Ø 320 (base)

Ø 63(w) x Ø 320 (base)

Ø 63(w) x Ø 320 (base)

Ø 63(w) x Ø 320 (base)

Ø 63(w) x Ø 320 (base)

Ø 63(w) x Ø 320 (base)

Model Weight (Kg)

6.8

6.8

8.8

8.8

7.8

7.8



Downloads

Sales & Technical Information.
Barrier Post (Retractable Belt):
With A4 Sign/ With Electronic Sanitiser (Alcohol Gel).

Barrier Post (Retractable Belt) - Technical SpecificationBarrier Post (Retractable Belt) – Technical Specification CE Conformance - Electronic Sanitiser Gel DispenserCE Conformance – Electronic Sanitiser Gel Dispenser



General Layout Drawings.
Barrier Post (Retractable Belt):
With A4 Sign/ With Electronic Sanitiser (Alcohol Gel).

Barrier Post (Retractable Belt) - 2D All ModelsBarrier Post (Retractable Belt) – 2D All Models Barrier Post (Retractable Belt) - 2D All ModelsBarrier Post (Retractable Belt) – 2D All Models Barrier Post (Retractable Belt) - 2D All ModelsBarrier Post (Retractable Belt) – 2D All Models
