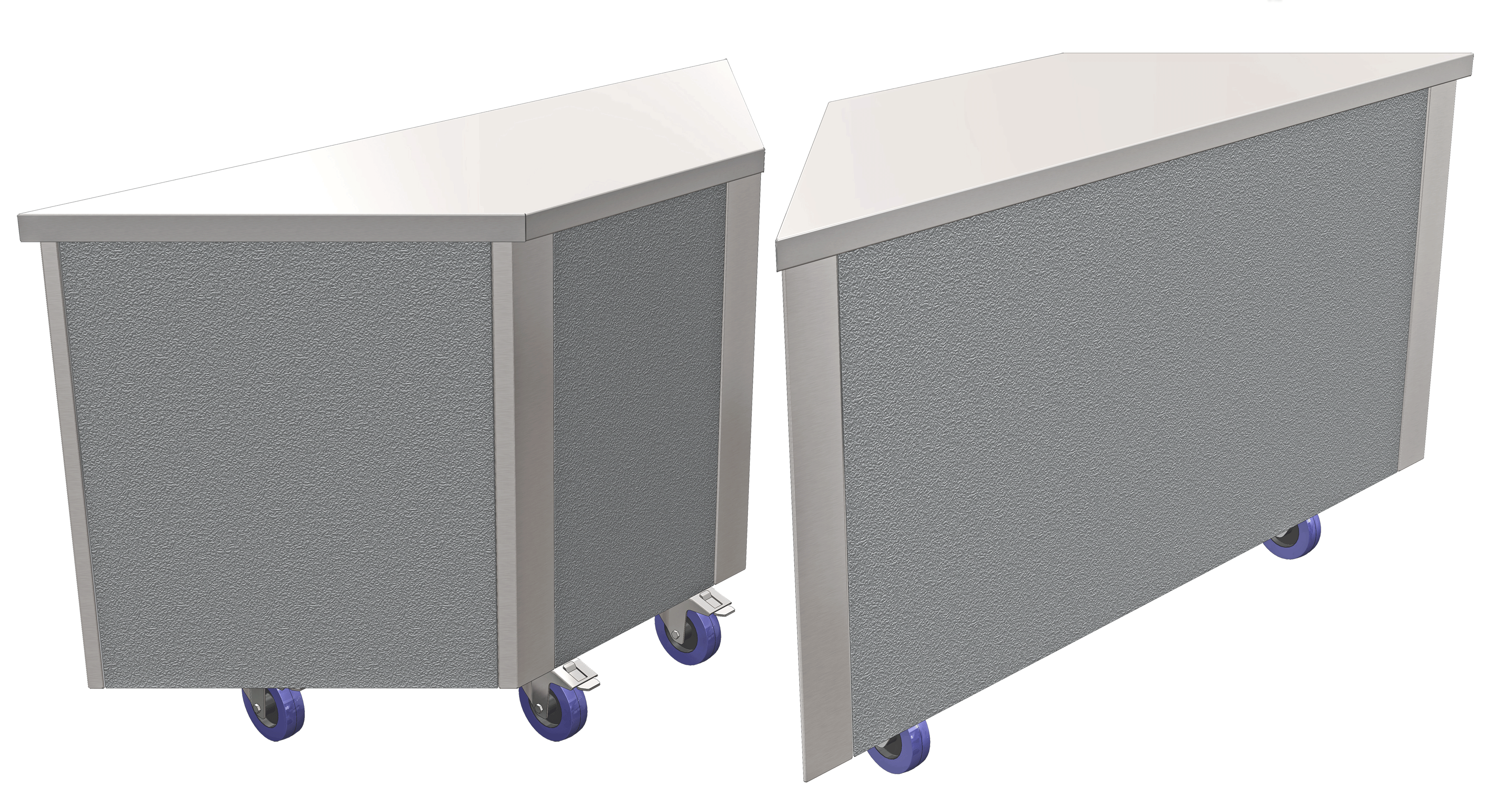

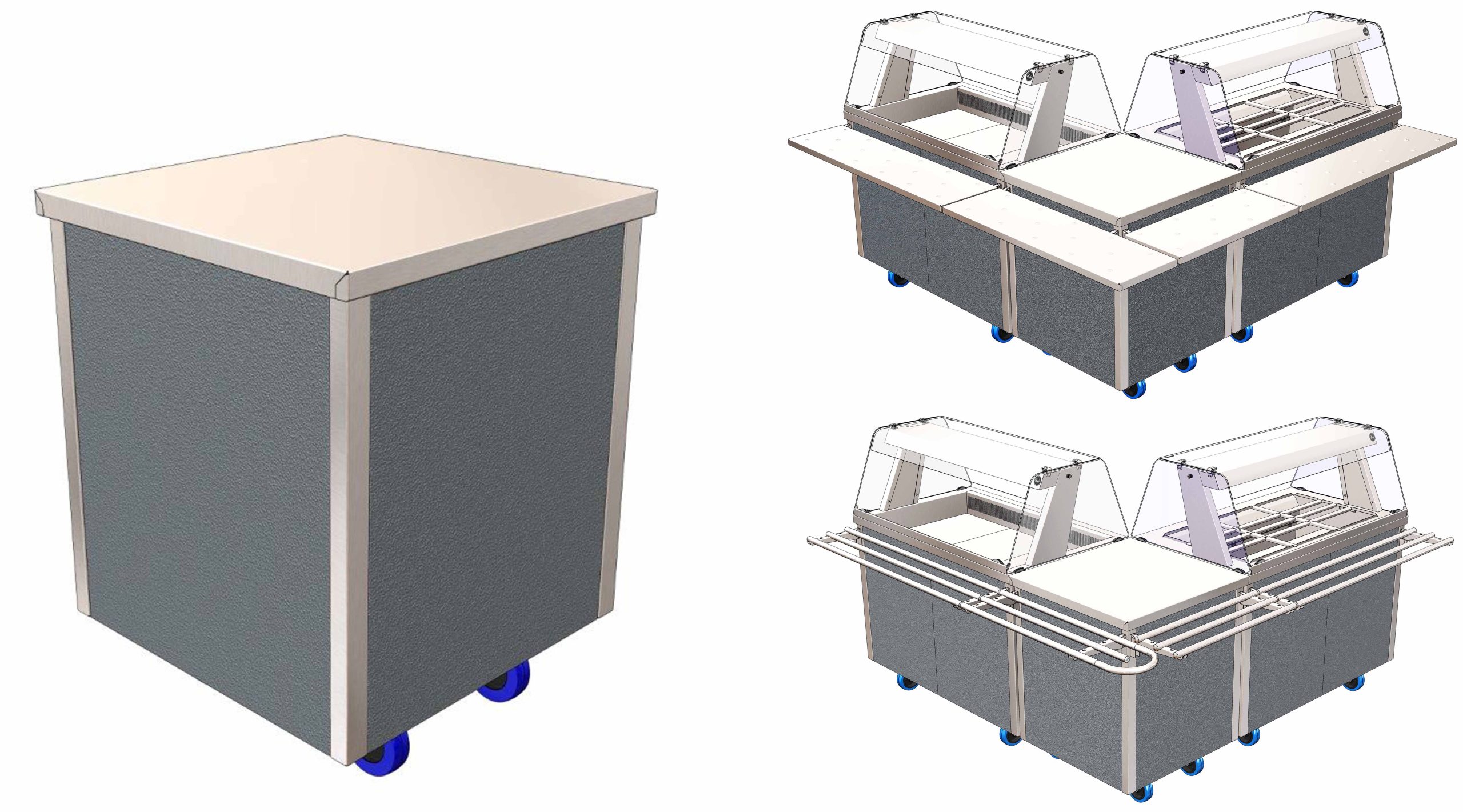

Glide 90° Ext. / Int. Corner Units.

Glide 90°External / Internal Corner Units.

These 90°corner units are available as an external (GC90EX) or internal unit (GC90IN) which, when positioned next to other Glide dining carts, change the directional flow of the servery counter, to an external or internal right angled corner.
Features.
These corner work stations have lockable castors & are finished on some sides to form external or internal corners between adjacent dining carts. Their flexibile nature means they can be adapted to different positions, GC90IN GC90EX
helping ease customer flow around the servery.
Each corner infill unit has a plain s/steel 304 gd. worktop, front and side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25) and lockable castors. h

Tubular drop-down tray rails or tray slides can be added to the outside external angled faces of the external 90° corner infill unit, to continue the detail around the servery perimeter. They are both 900mm high and are 700mm deep along each side where they position next to an adjacent 700mm deep Glide unit. The s/steel worktop is suitable for supporting non electrical counter top equipment also. (max 55Kg). These are an ambient unit with no electrical power supply.

Accessories & Finishes.
Low Height Model (Glide Junior). 850mm or 800mm high option codes for junior/ primary use.
Colour Finishes. 11 alternative choices of durable steel, colour & wood effect for all external front/ rear & side panels, to compliment other selected models in the servery colour scheme. Panels lift off for ease of replacement.
Folding Steel Solid or Tubular Tray Slides (To External Face). Tray slides + 40mm (d) height = (h) – 55mm.

Visual

Glide 90° External Corner Unit (GC90EX).
Visual

Features

Glide 90° External Corner Unit (GC90EX).
Features

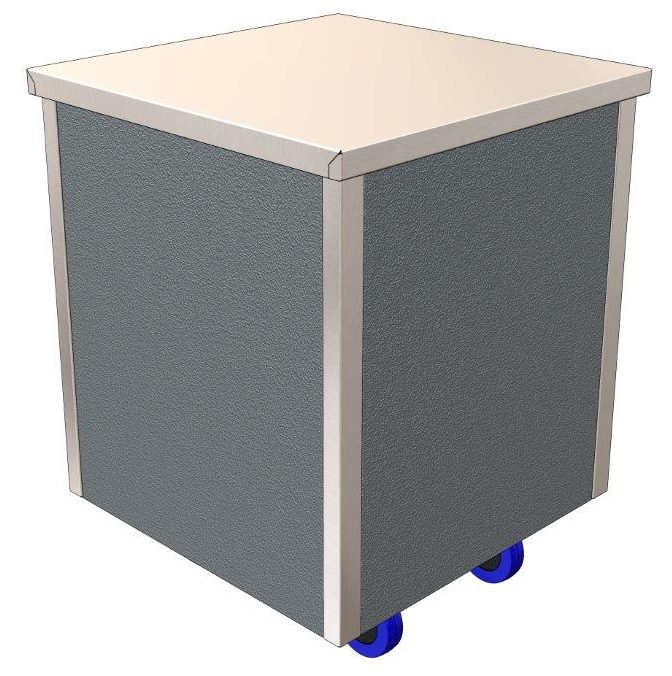

Model Code: GC90EX.
Glide mobile dining cart, plain top ambient 90° external corner unit (no gantry).
Free standing application.
For use as a freestanding external right angle corner in counter run between adjacent Glide units.
O/all dimensions 700 mm (l) x 700 mm (d) x 900 mm (h).
Worktop in 304 gd steel, all other external/internal steel surfaces (inner base/ corner angles etc.) in 430gd.
Front/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
Fitted with lockable non-marking rubber tyre castors.
Unit weight 48 kg.
Tray rails are not included.

Options

Optional folding s/steel solid tray slide set available = +2 kg (option code GSTS90EX).
Optional folding s/steel tubular tray rail Ø25 tube set available = +2 kg (option code GTTS90EX).
Unit depth with tray slide/rail fitted = tray slide up 1003 mm/ tray slide down 737 mm.
Optional choice of 11 solid colour & woodgrain base outer front/side/rear panel finishes available.
Optional low height model 850mm (h) available.
Optional low height model 800mm (h) available.*
800mm (h) = bespoke option with extended lead time*.

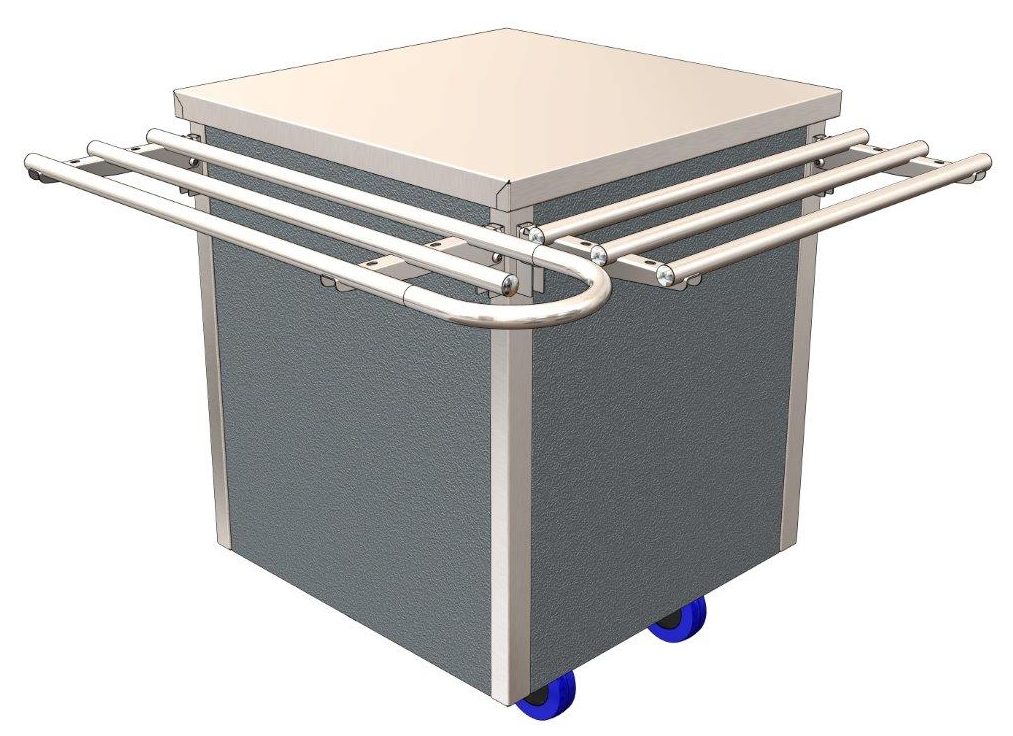

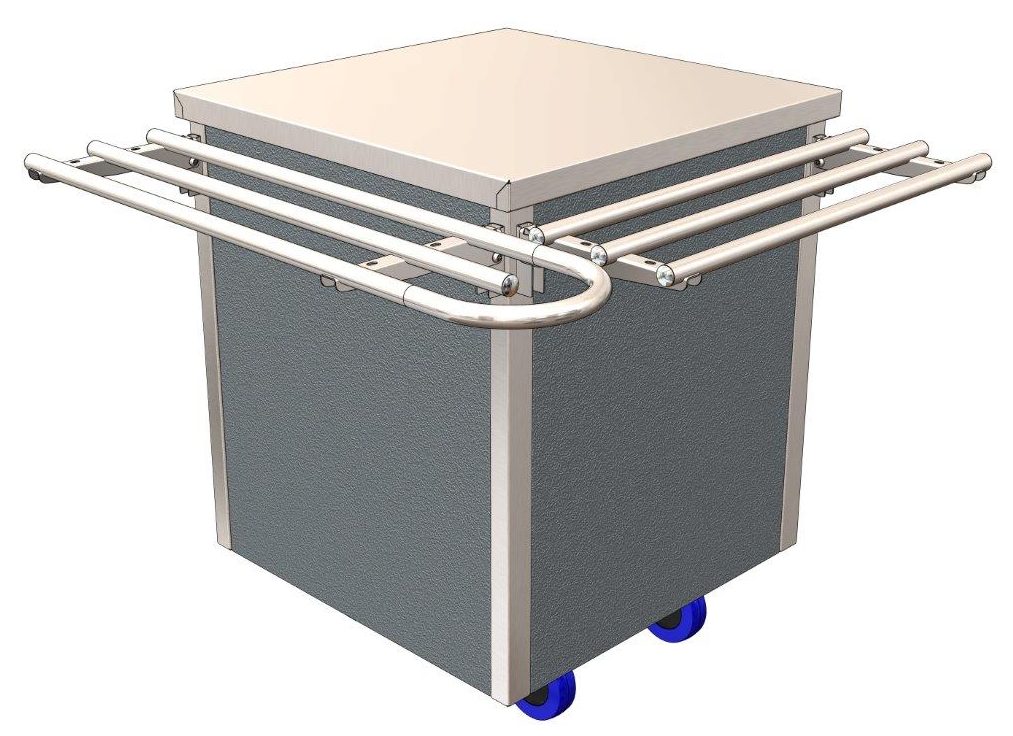

Model GC90EX + GTTS90EX

Model GC90EX + GTTS90EX – In Position

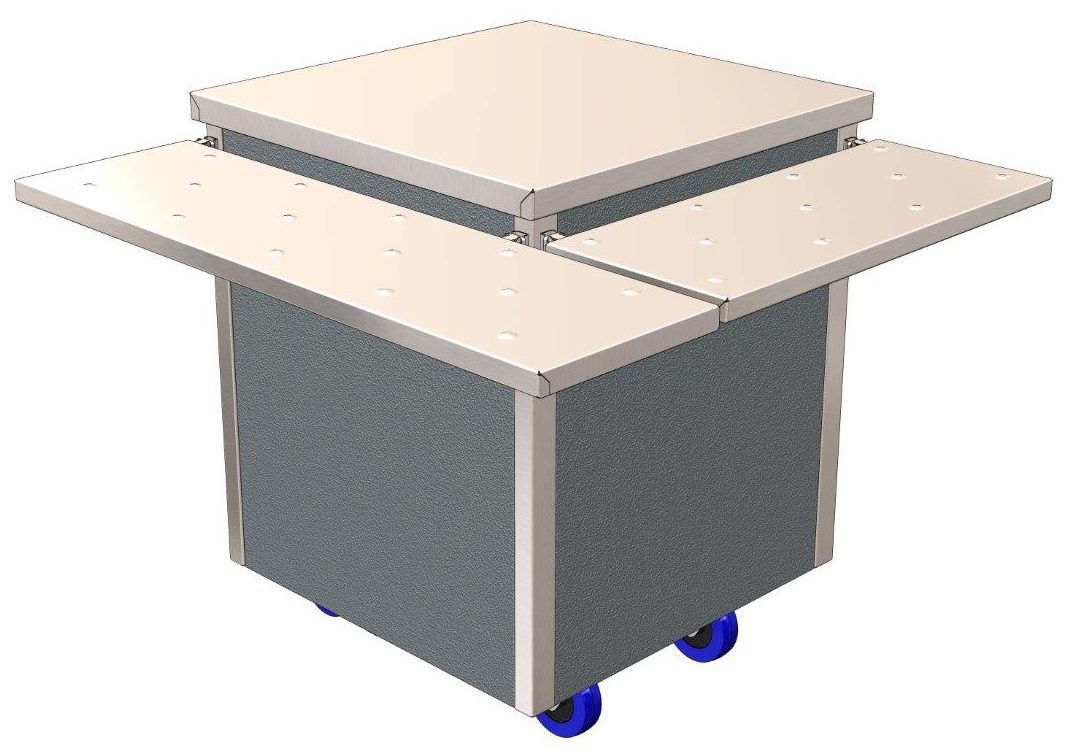

Model GC90EX + GSTS90EX.

Model GC90EX + GSTS90EX – In Position.

Dimensions

Glide 90° External Corner Unit (GC90EX).
Dimensions

Model Code: GC90EX.
Glide mobile dining cart, plain top ambient 90° external corner infill unit (no gantry).
Free standing application.
For use as a freestanding external angled corner infill in counter run between adjacent Glide units.
O/all dimensions 700 mm (l) x 700 mm (d)* x 900 mm (h).
Worktop in 304 gd steel, all other external/internal steel surfaces (inner base/ corner angles etc.) in 430gd.
Front/side/ rear base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
Fitted with lockable non-marking rubber tyre castors.
Unit weight 48 kg.
Unit depth (with tray slide/ rail option fitted) Tray slide up = 1003 mm (d)/ when tray slide down = 737 mm (d).
Tray slide/ rail option height (for 900mm (h) model) = 845mm (h) (tray slide option GSTS90EX/ tray rail option GTTS90EX).
850mm (h) model option = (Option G850H). * Tray rail option height = 795mm (h)
800mm (h) model option = (Option G800H). * Tray rail option height = 745mm (h)
Embodied Carbon (kg/CO2e) = 484 kg/C02e.

OPTIONS : Glide 90° External Corner Unit (GC90EX).
Option	Code	Option	Code	Option	Code
Low Height Model 800 mm (h)	G800H	Low Height Model 850mm (h)	G850H	Drop Down S/Steel Tubular Tray Rail	GTTS90EX
Drop Down Solid S/Steel Tray Slide	GSTS90EX	Colour Front / Side Panels Ocean Blue (BS18C37)	GBLUE90EX	Satin S/steel Front / Side Panels (430gd.)	GSSTL90EX
Colour Front / Side Panels Light Grey (BS10A05)	GGREY90EX	Colour Front / Side Panels Forest Green (RAL6002)	GGREN90EX	Colour Front / Side Panels Poppy Red (BS04E5B)	GPRED90EX
Colour Front / Side Panels Cream (BS10c31)	GCREM90EX	Colour Front / Side Panels White (BS00E55)	GWHIT90EX	Colour Front / Side Panels Black (BS00E53)	GBLAK90EX
Woodgrain Front / Side Panels Walnut (DL85)	GWALN90EX	Woodgrain Front / Side Panels Beech (DL76)	GBEEC90EX	Woodgrain Front / Side Panels Oak (DL84)	GOAK90EX

Popular Model Codes & Options
xxx	Model Code	Option Code
Glide 90° External Corner Unit (GC90EX). (& 850mm Low Height Option (Glide Junior)	GC90EX	G850H
Glide 90° External Corner Unit (GC90EX). (& 800mm Low Height Option (Glide Junior)* Bespoke Option With Extended lead Time	GC90EX	G800H
Glide 90° External Corner Unit (GC90EX). (& Drop Down S/Steel Tubular Tray Rail * Fitted To External Angled Face	GC90EX	GTTS90EX
Glide 90° External Corner Unit (GC90EX). (& Drop Down S/Steel Solid Tray Slide * Fitted To External Angled Face	GC90EX	GSTS90EX
Glide 90° External Corner Unit (GC90EX). (& Colour Front/ Side/ Rear Panels Ocean Blue – BS18C37)	GC90EX	GBLUE90EX
Glide 90° External Corner Unit (GC90EX). (& Colour Front/ Side/ Rear Panels Stainless Steel 430 gd.)	GC90EX	GSSTL90EX
Glide 90° External Corner Unit (GC90EX). (& Colour Front/ Side/ Rear Panels Light Grey – BS10A05)	GC90EX	GGREY90EX
Glide 90° External Corner Unit (GC90EX). (& Colour Front/ Side/ Rear Panels Forest Green – RAL 6002)	GC90EX	GGREN90EX
Glide 90° External Corner Unit (GC90EX). (& Colour Front/ Side/ Rear Panels Poppy Red – BS 04E5B)	GC90EX	GPRED90EX
Glide 90° External Corner Unit (GC90EX). (& Colour Front/ Side/ Rear Panels Buttermilk Cream – BS 10c31)	GC90EX	GCREM90EX
Glide 90° External Corner Unit (GC90EX). (& Colour Front/ Side/ Rear Panels White – BS 00E55)	GC90EX	GWHIT90EX
Glide 90° External Corner Unit (GC90EX). (& Colour Front/ Side/ Rear Panels Black- BS 00E53)	GC90EX	GBLAK90EX
Glide 90° External Corner Unit (GC90EX). (& Woodgrain Effect Front/ Side/ Rear Panels Walnut – DL85)	GC90EX	GWALN90EX
Glide 90° External Corner Unit (GC90EX). (& Woodgrain Effect Front/ Side/ Rear Panels Oak – DL84)	GC90EX	GOAK90EX
Glide 90° External Corner Unit (GC90EX). (& Woodgrain Effect Front/ Side/ Rear Panels Beech – DL76)	GC90EX	GBEEC90EX

Options

Glide 90° External Corner Unit (GC90EX).
Options.

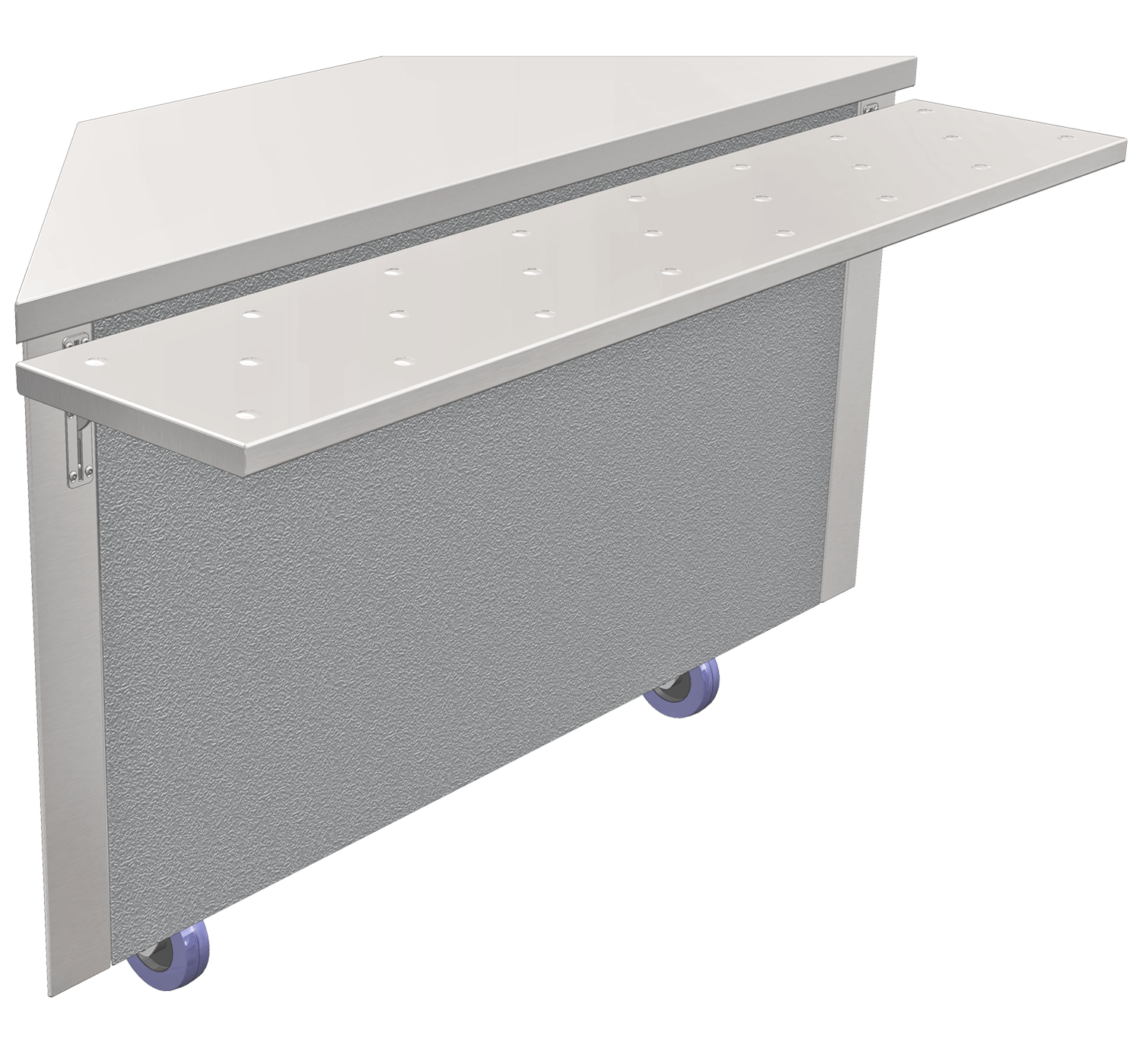

Glide S/Steel Folding Solid Tray Slide.
(Option Code GSTS90EX) Glide option: 1509mm (L), s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type.
Up position adds 302mm to depth. Down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

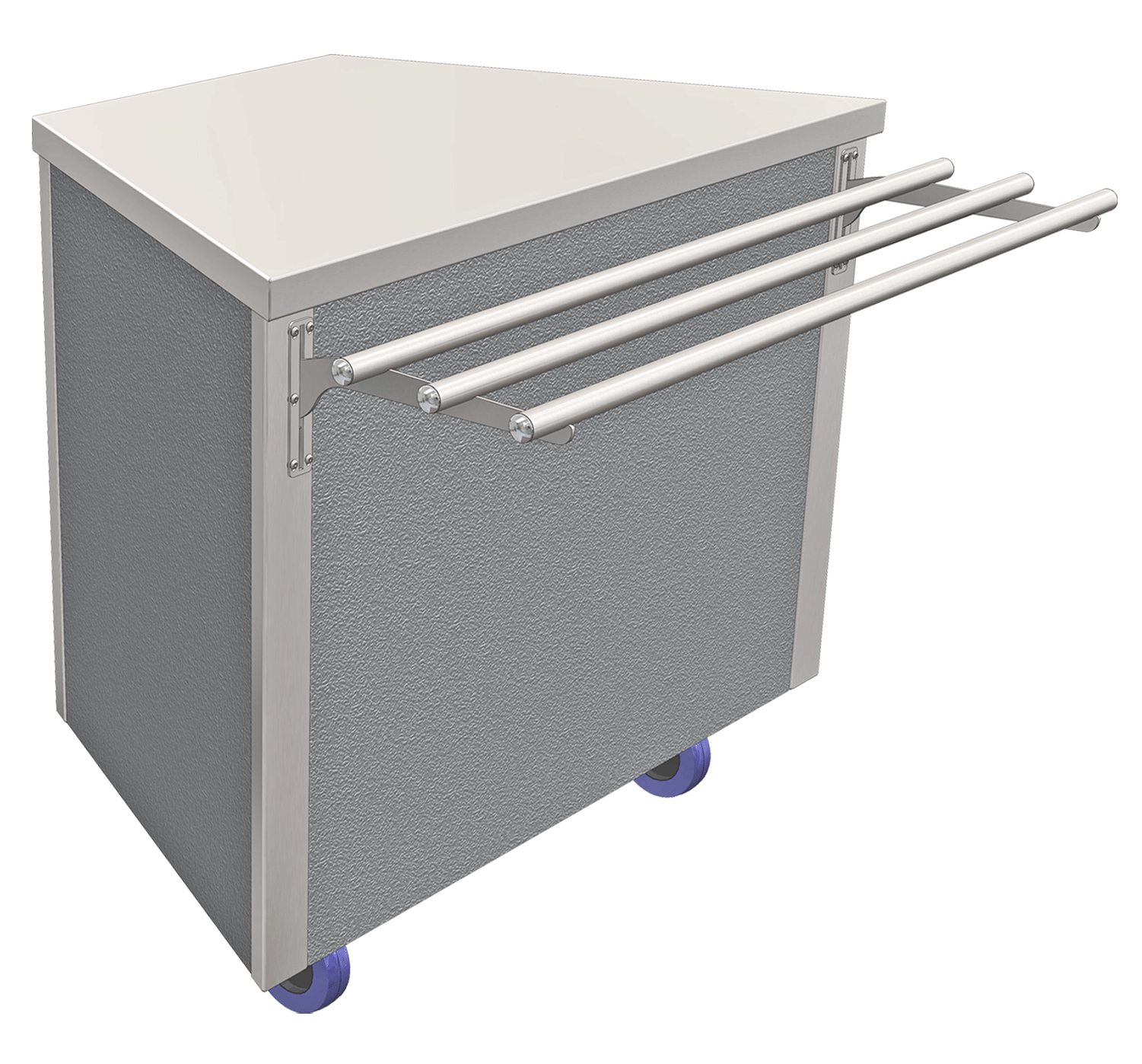

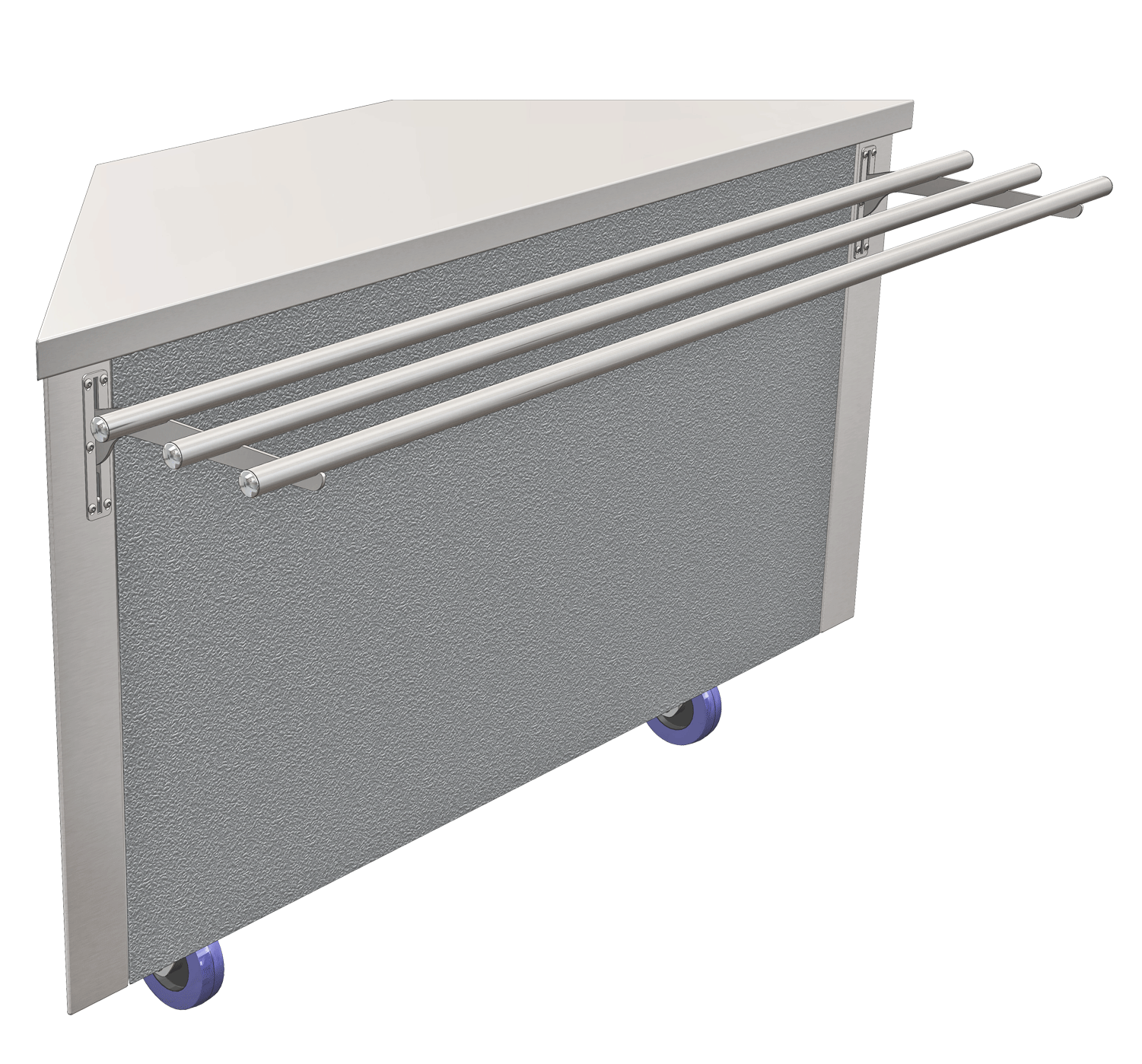

Glide S/Steel Folding Tubular Tray Rail.
(Option Code GTTS90EX) Glide option: 1509mm (L), s/steel tubular tray rail, 304 gd. Ø25 tube. Drop down bracket type.
Up position adds 300 mm to depth. Down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Low Height Model (Glide Junior) – 850mm.
(Option Code G850H) Glide junior option: 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model (Glide Junior) – 800mm.
(Option Code G800H*) Glide junior option: 800mm (h) base unit, c/w 100mm lockable castors. Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). * Bespoke Option/ Extended Lead Time *

Glide Colour Finishes To Front/ Side Panels.

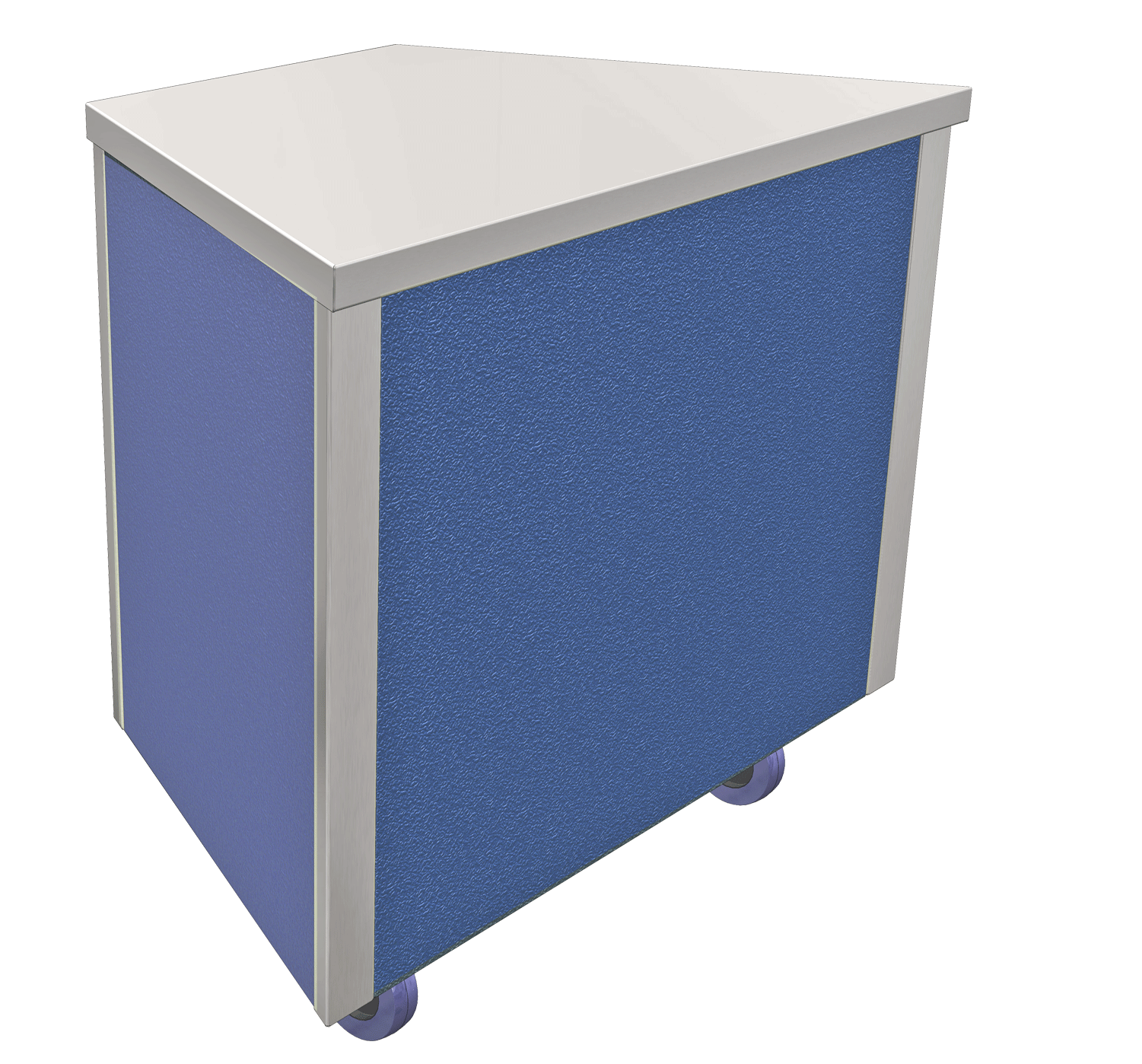

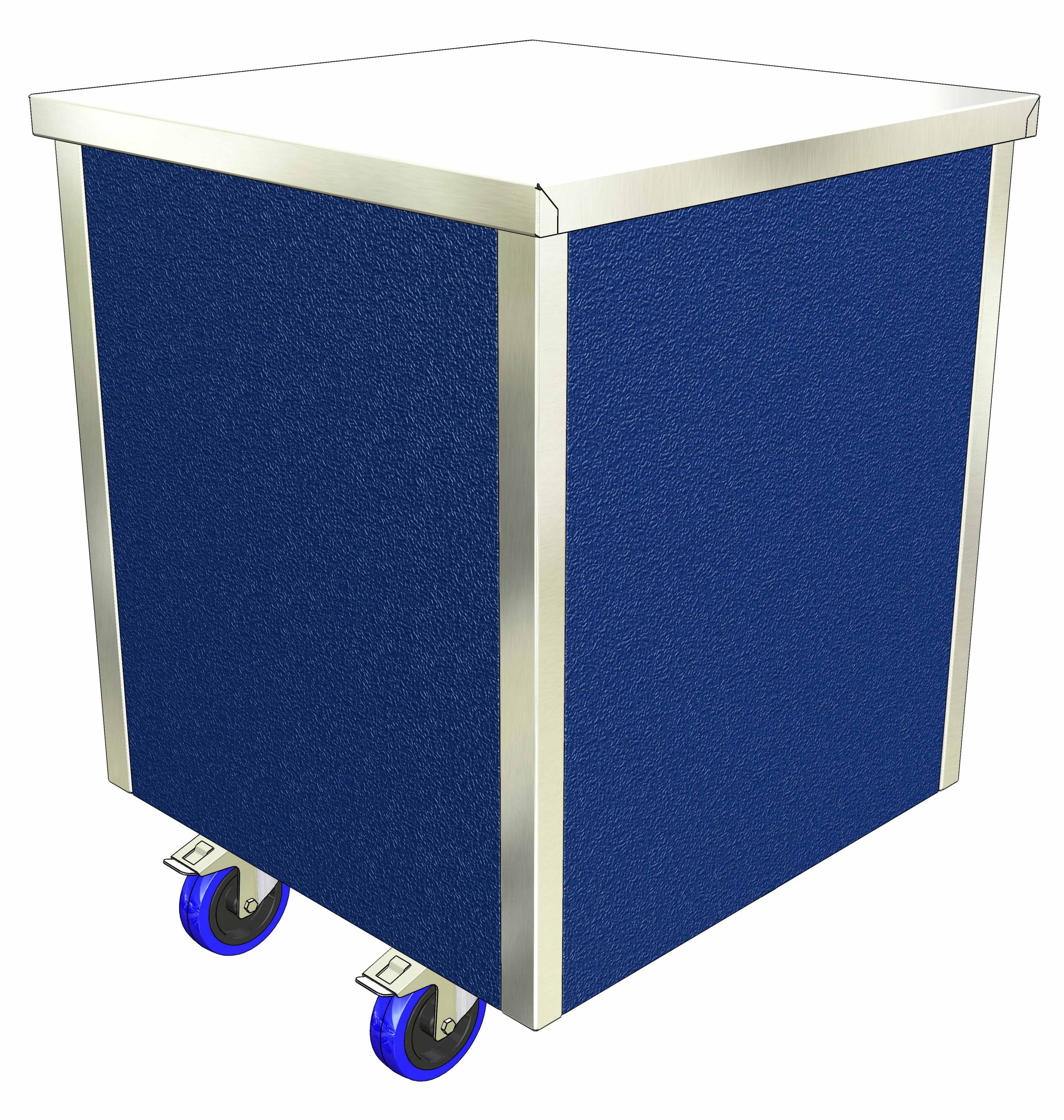

Blue Finish. (Option Code GBLUE90EX) Set of outer front/ side/ rear panels in leathergrain plastisol steel, colour ocean blue (BS 18C37) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

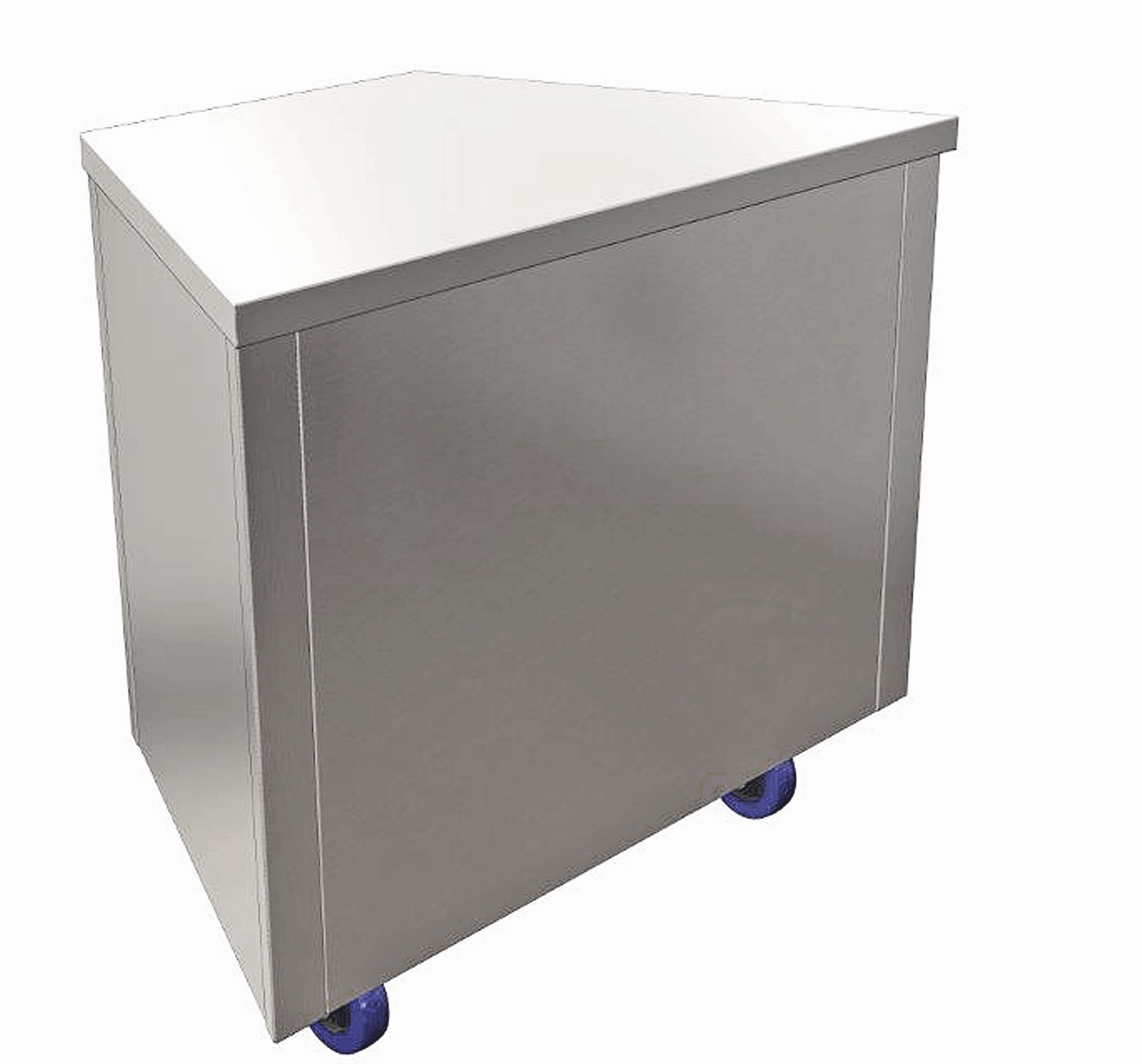

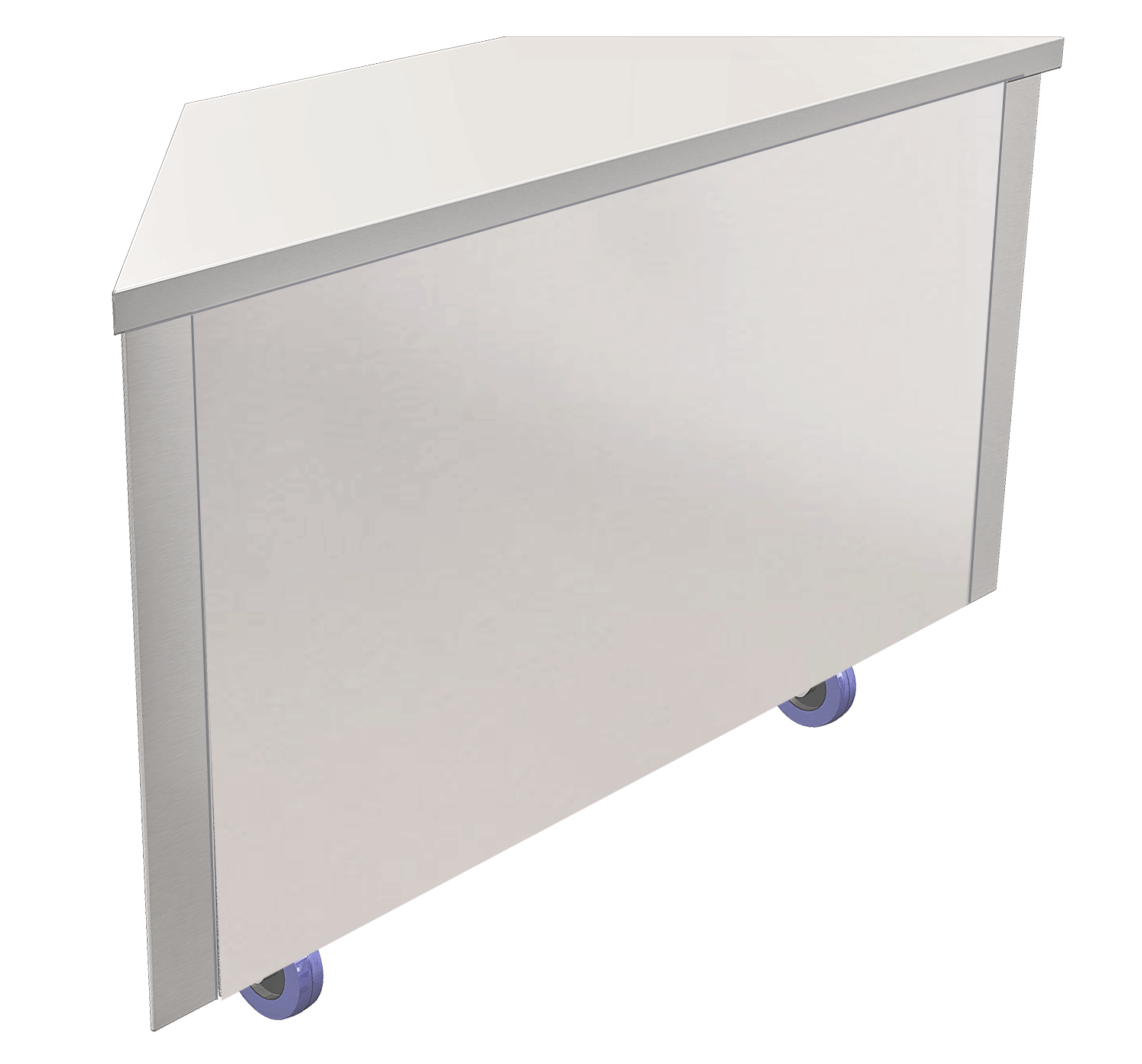

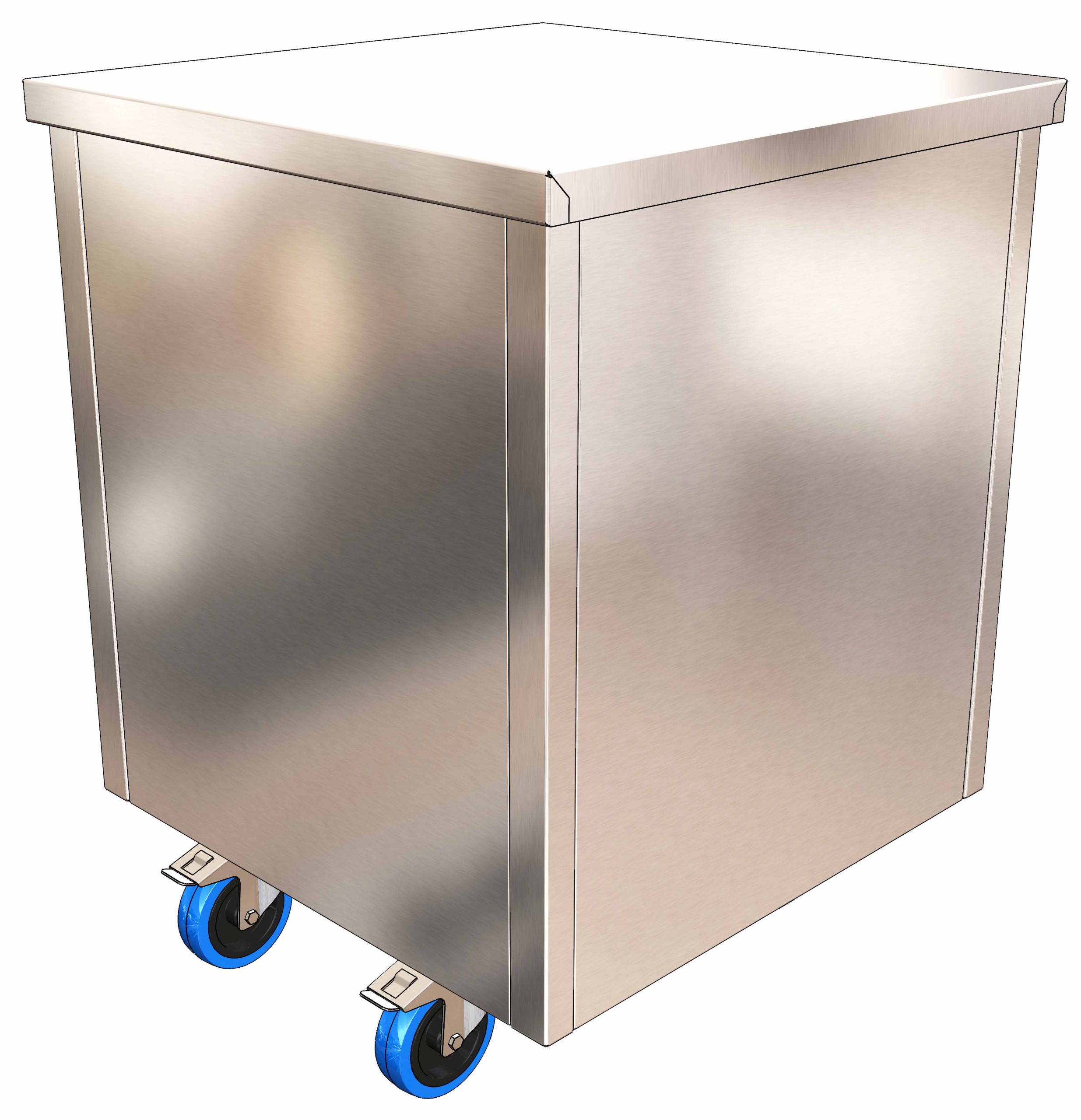

S/steel Finish. (Option Code GSSTL90EX) Set of outer front/ side/ rear panels in satin s/steel 430 gd. to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

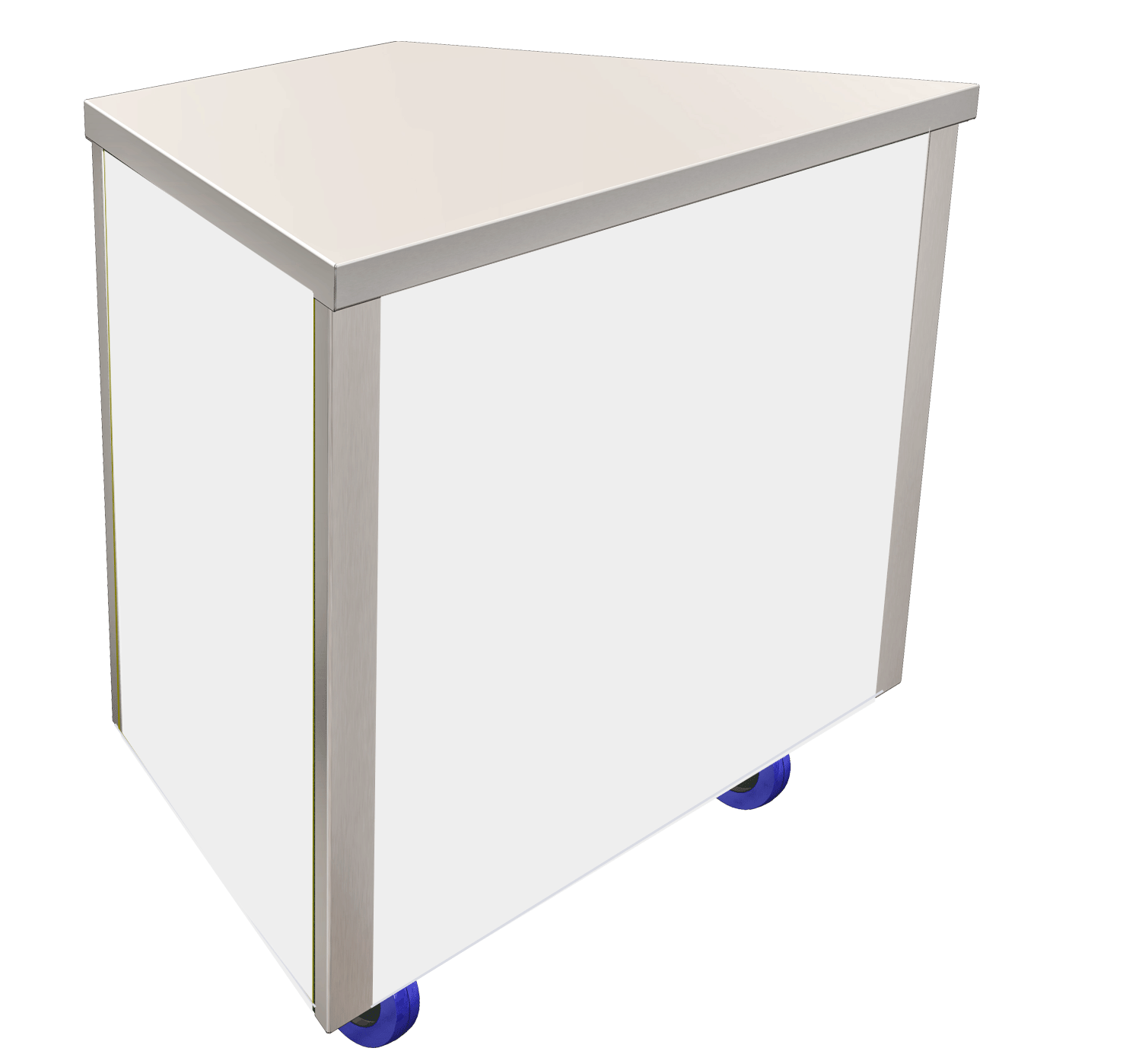

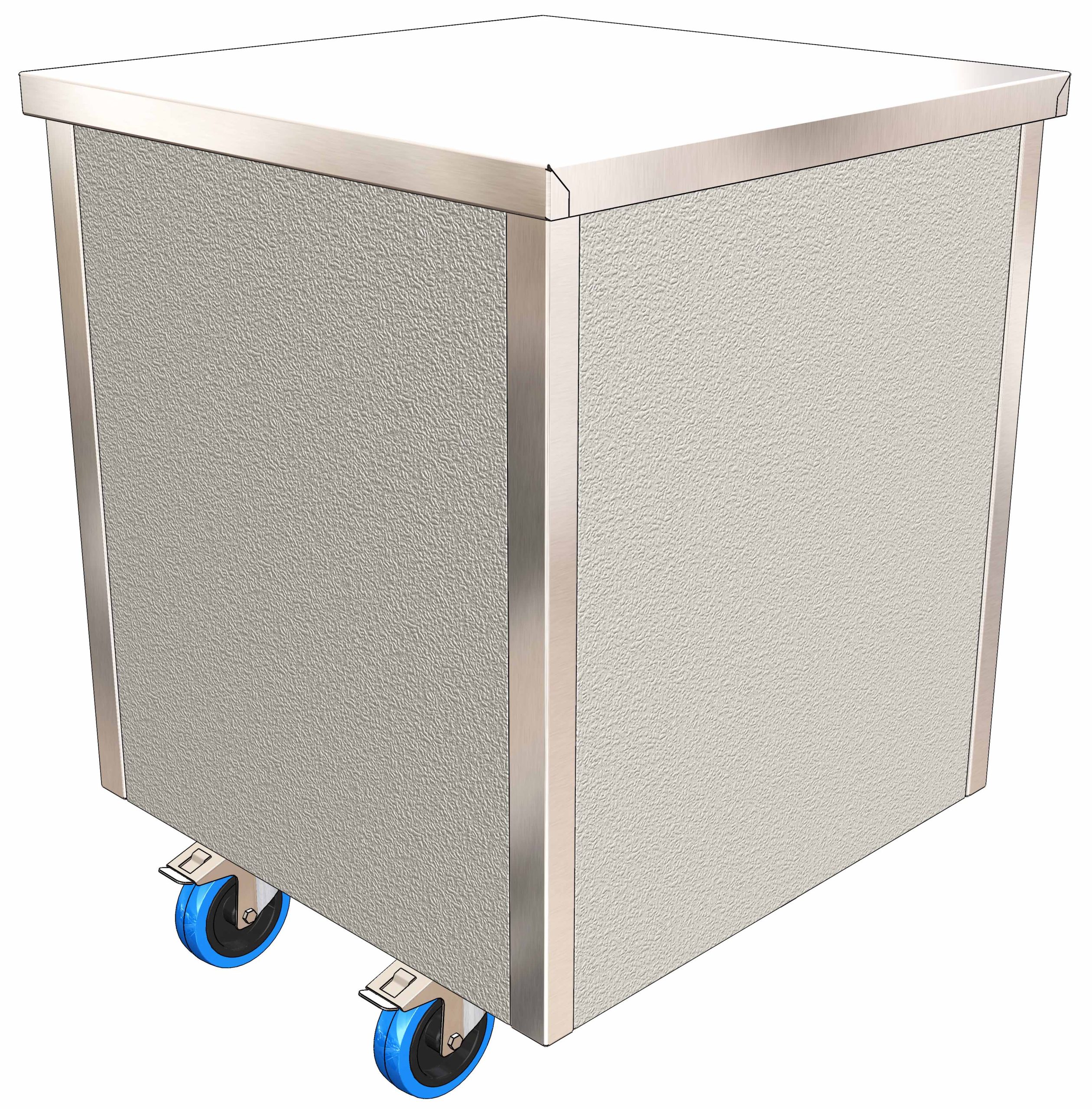

Light Grey ……Light Grey Finish. (Option Code GGREY90EX) Set of outer front/ side/ rear panels in leathergrain plastisol steel, colour goosewing light grey (BS 10A05) to suite with other Glide dining carts fitted with colour options. Panels lift off for ease of replacement.

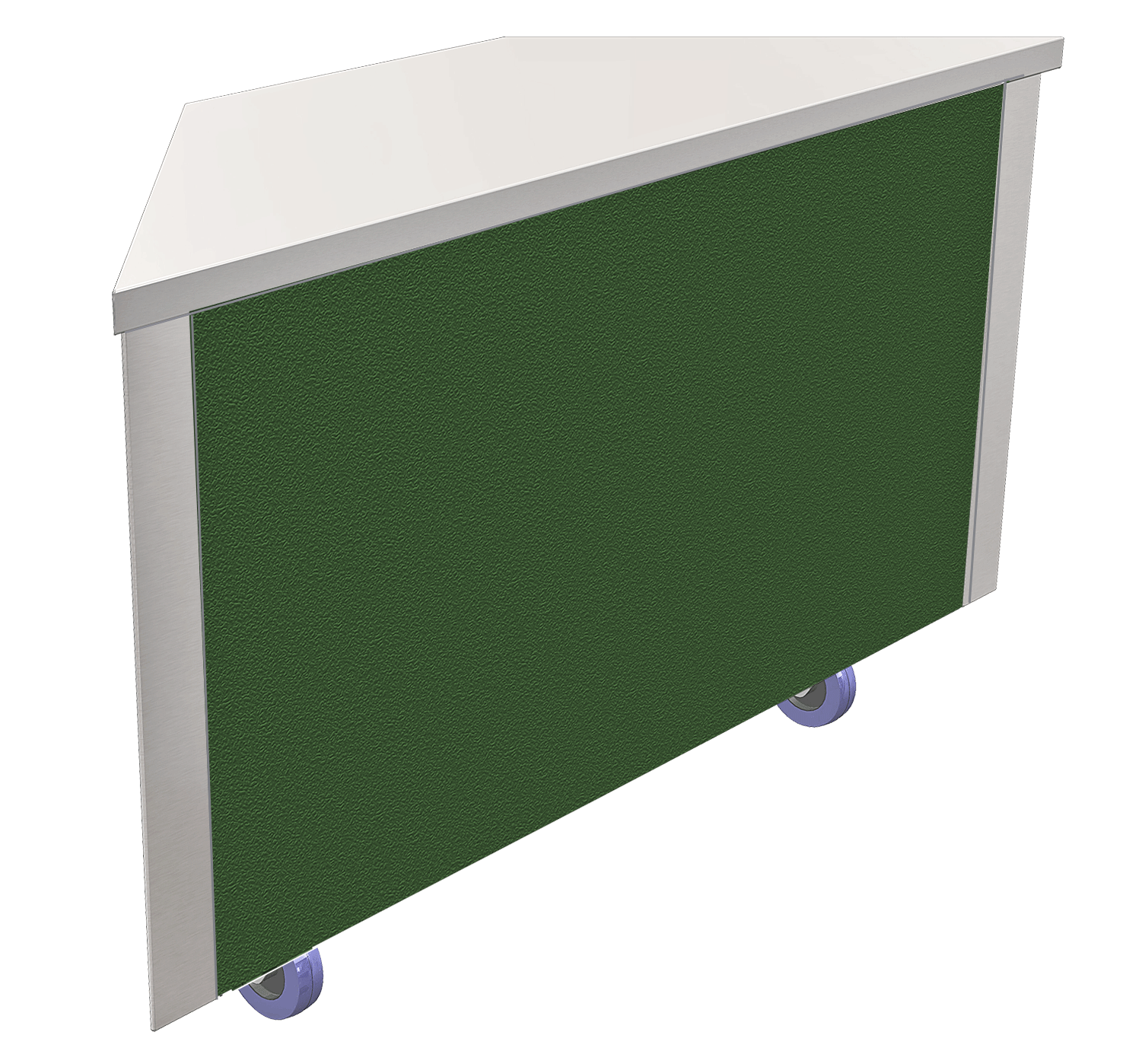

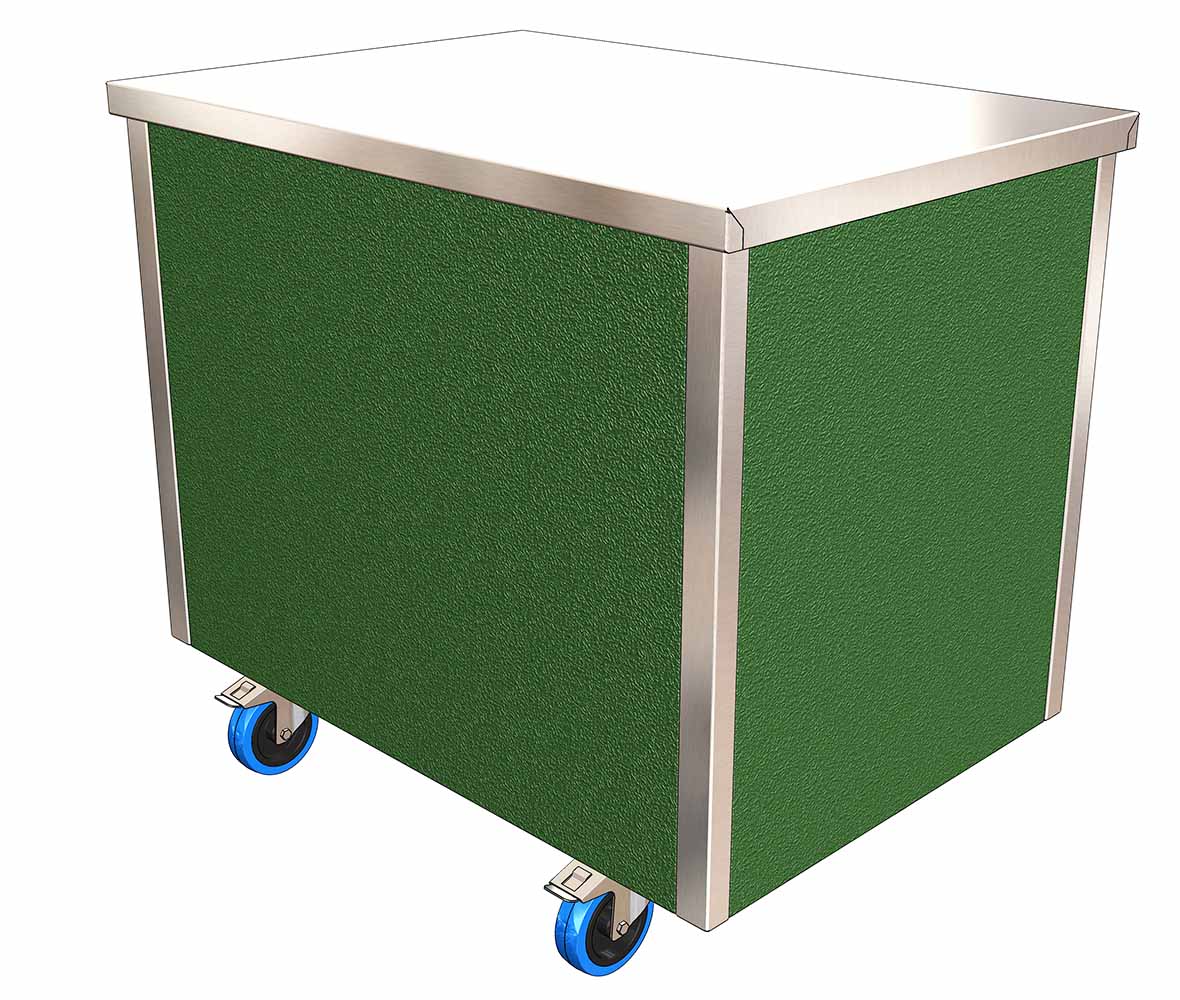

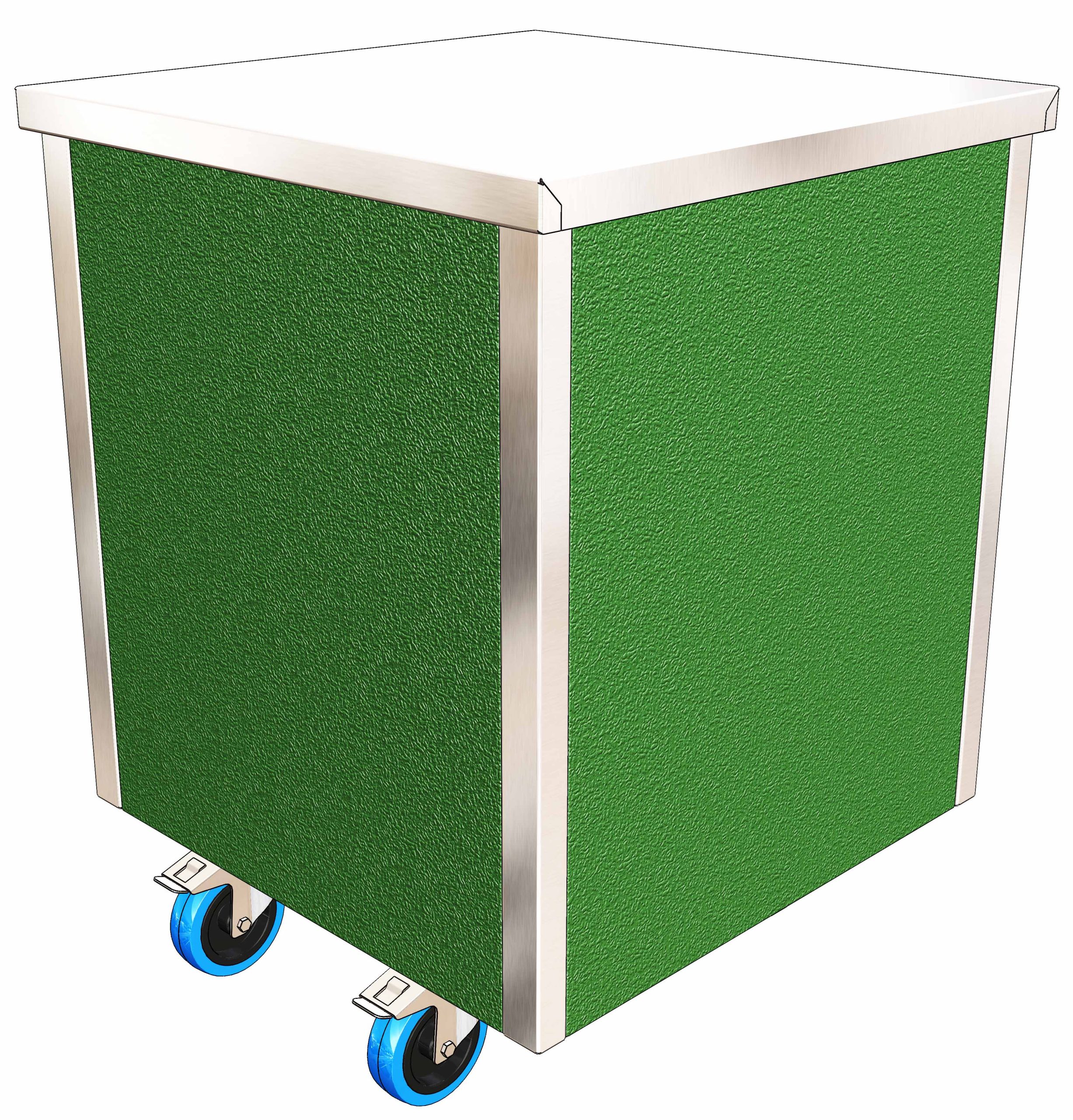

Forest Green Finish. (Option Code GGREN90EX) Set of outer front/ side/ rear panels in leathergrain plastisol steel, colour forest green/heritage (RAL 6002) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

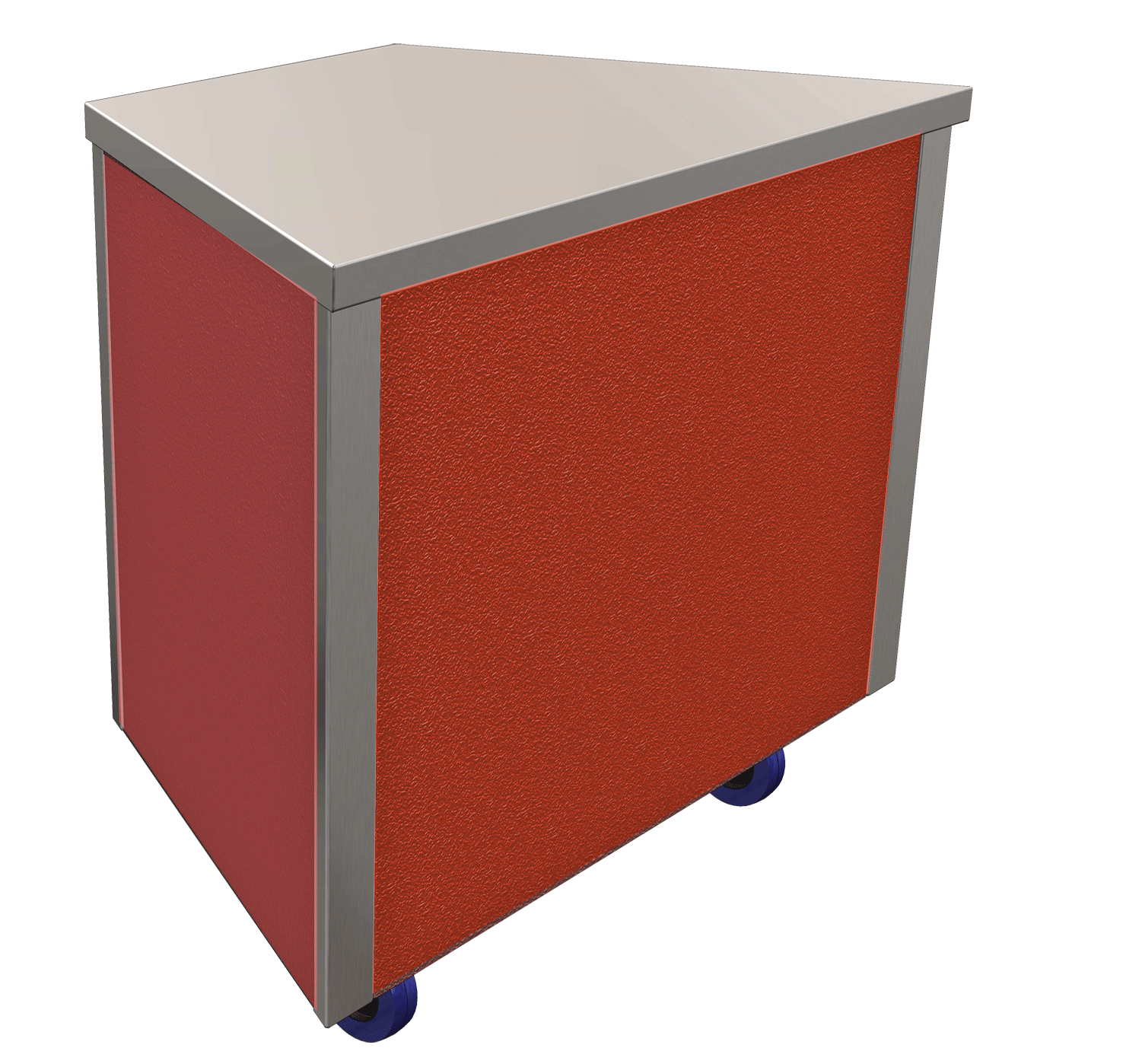

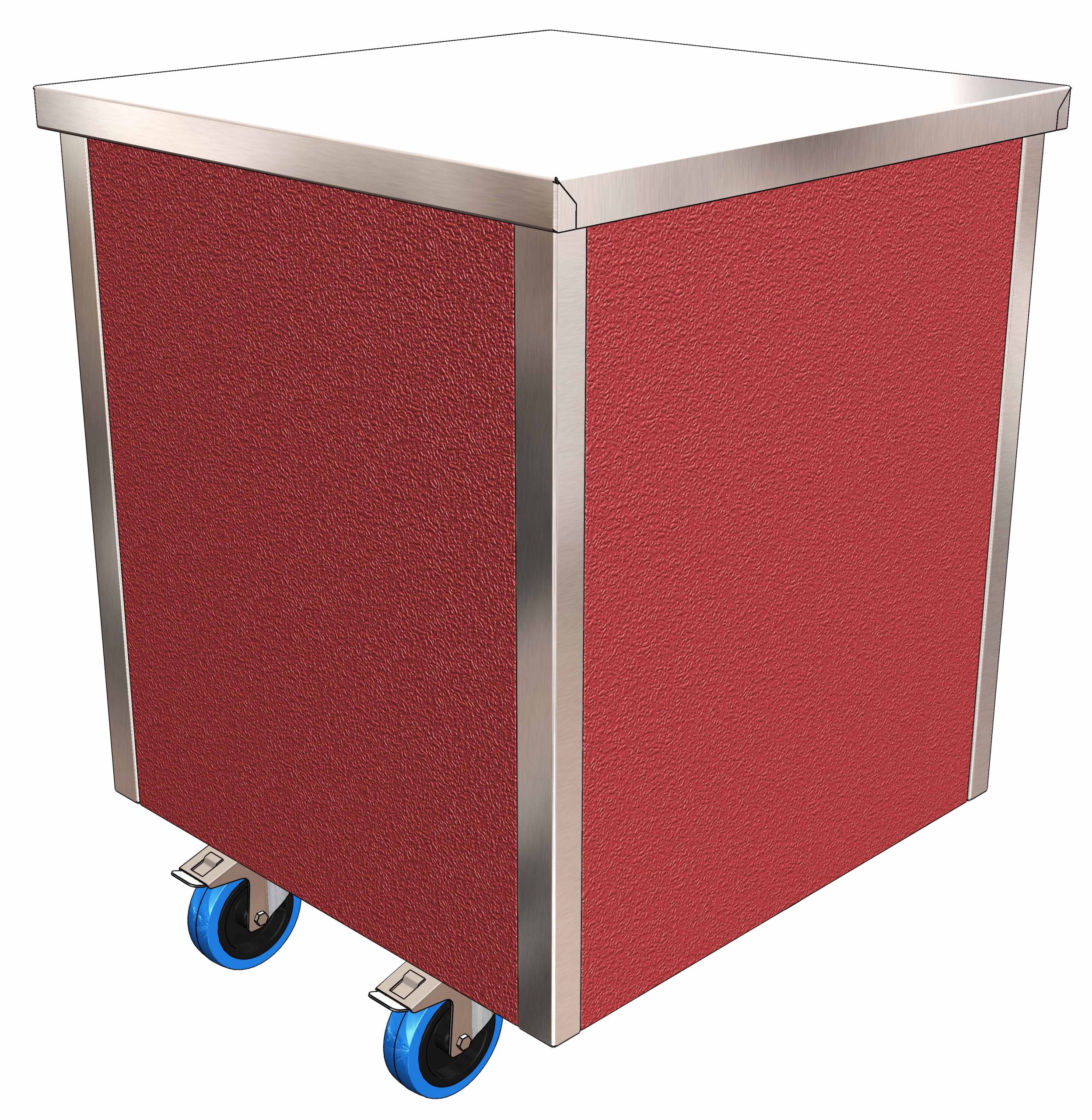

Poppy Red Poppy Red Finish. (Option Code GPRED90EX) Set of outer front/ side/ rear panels in leathergrain plastisol steel, colour poppy red (BS 04E5B) to suite with other Glide dining carts fitted with colour options. Panels lift off for ease of replacement.

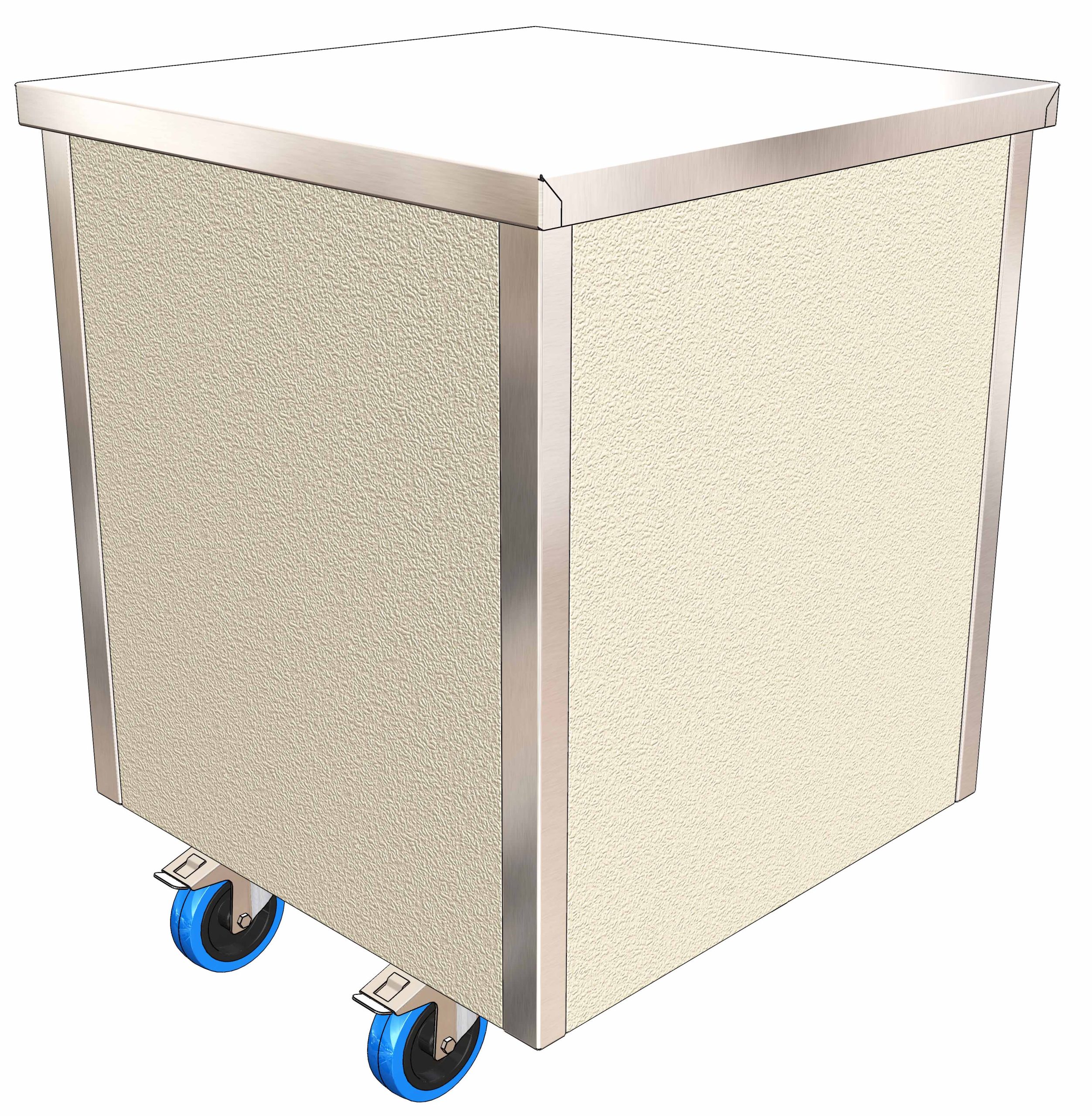

Cream Finish. (Option Code GCREM90EX) Set of outer front/ side/ rear panels in plastisol steel, colour buttermilk cream/ honesty (BS 10C31) to suite with other Glide dining carts with colour options. Panels lift off for easy replacement.

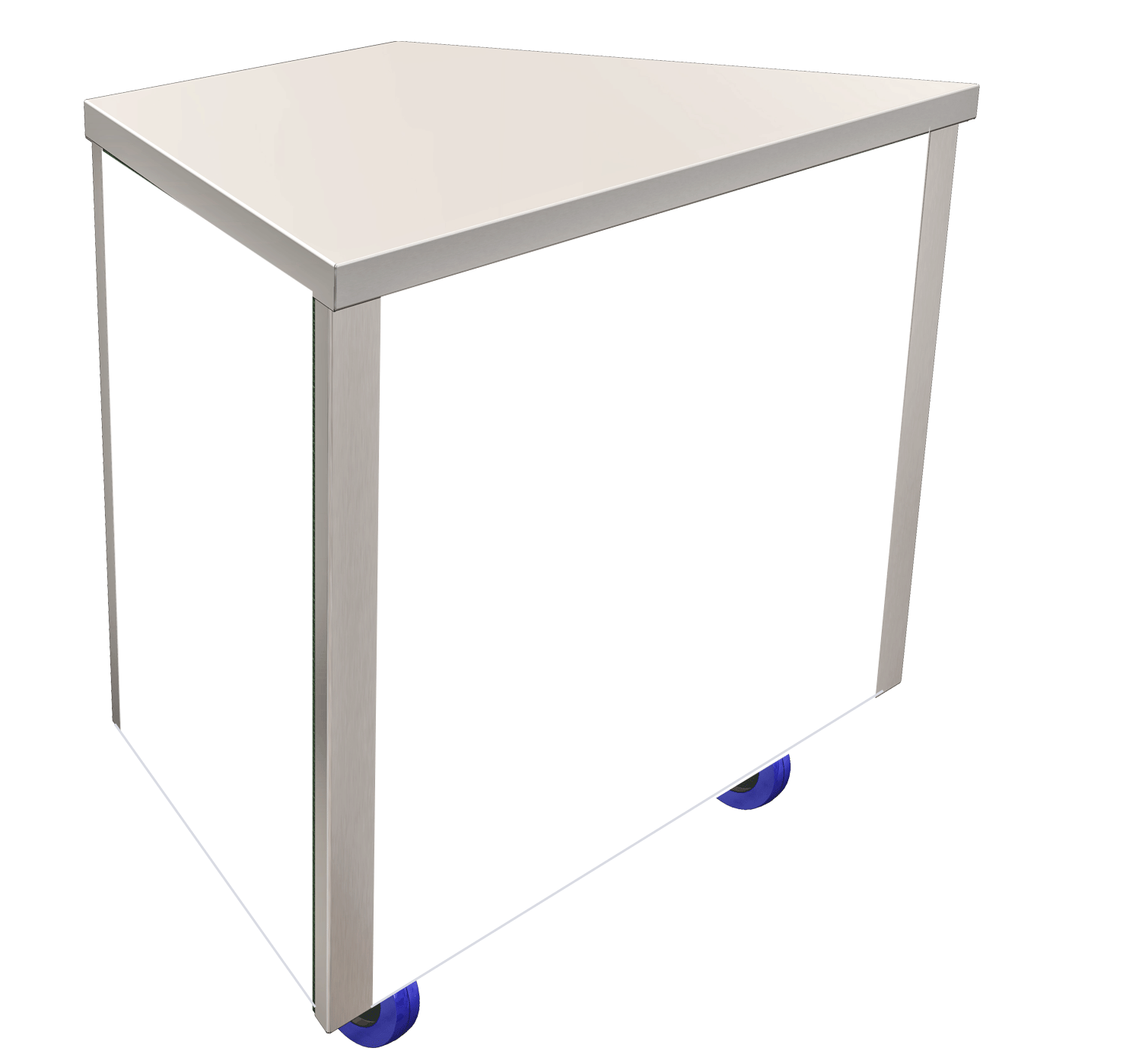

White Finish. (Option Code GWHIT90EX) Set of outer front/ side/ rear panels in leathergrain plastisol steel, colour white (BS 00E55) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

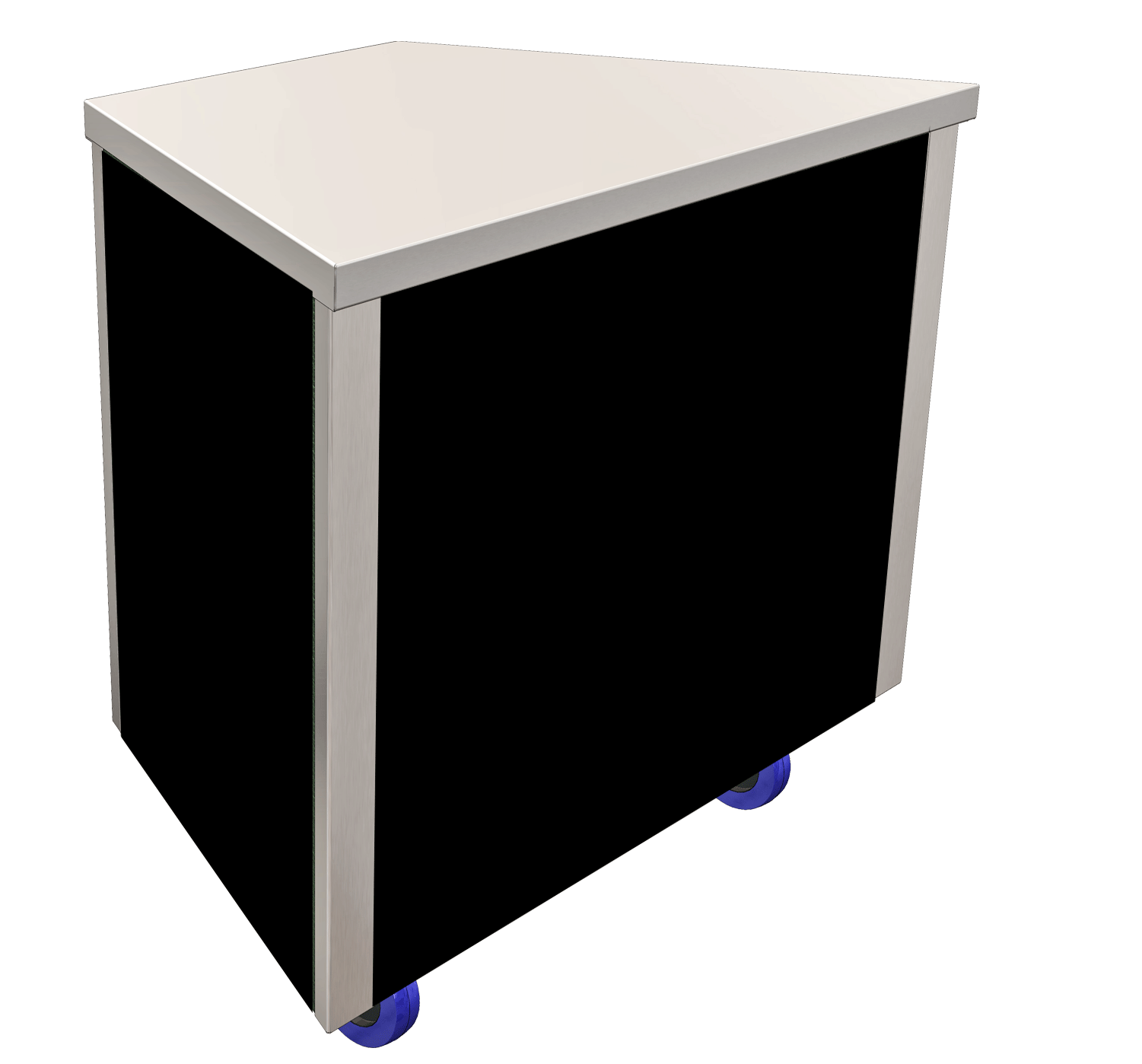

Black Finish. (Option Code GBLAK90EX) Set of outer front/ side/ rear panels in leathergrain plastisol steel, colour black (BS 00E53) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Beech Beech Woodgrain Finish. (Option Code GBEEC90EX) Set of outer front/ side/ rear panels in wood grain effect DL76 beech finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

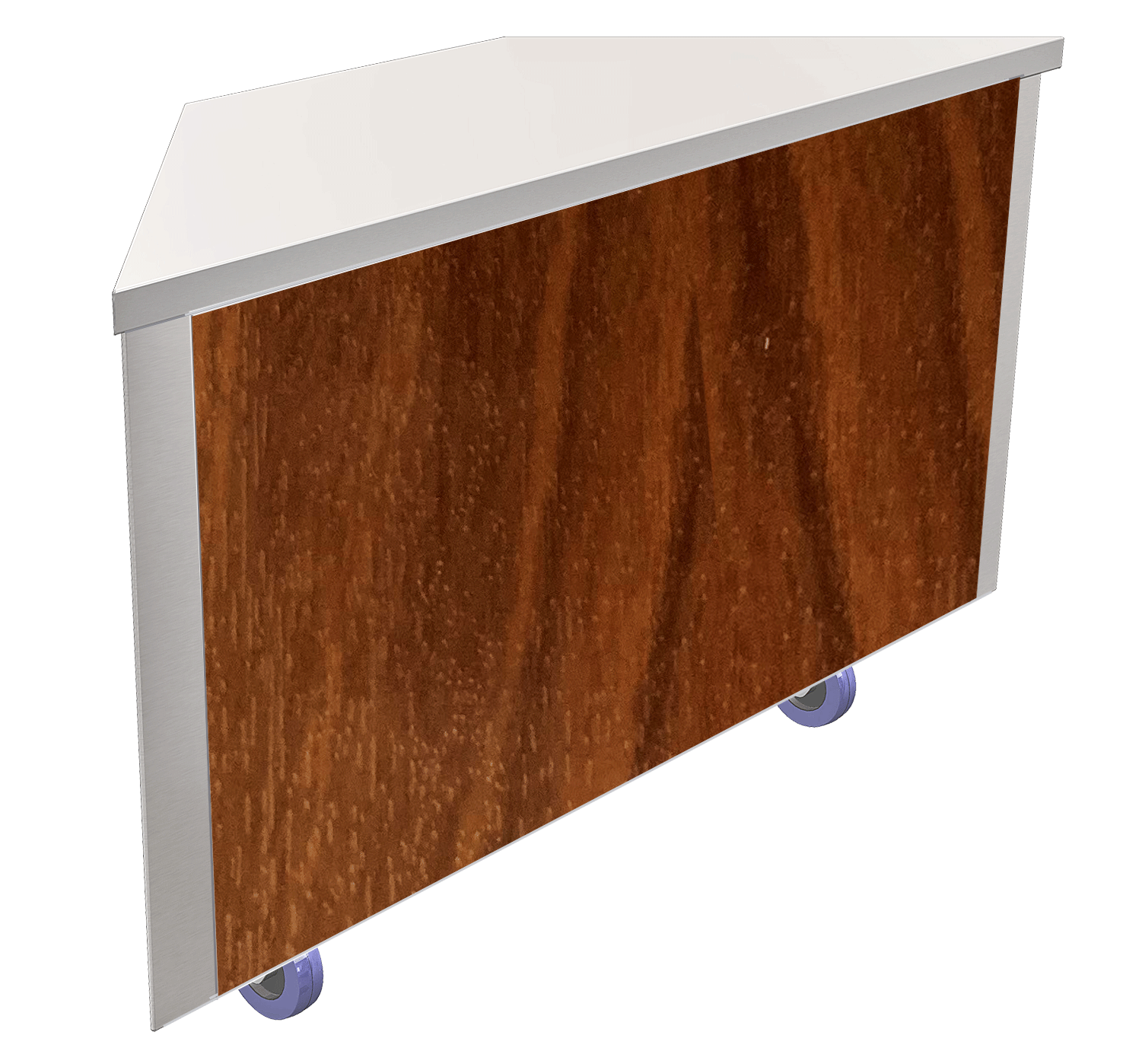

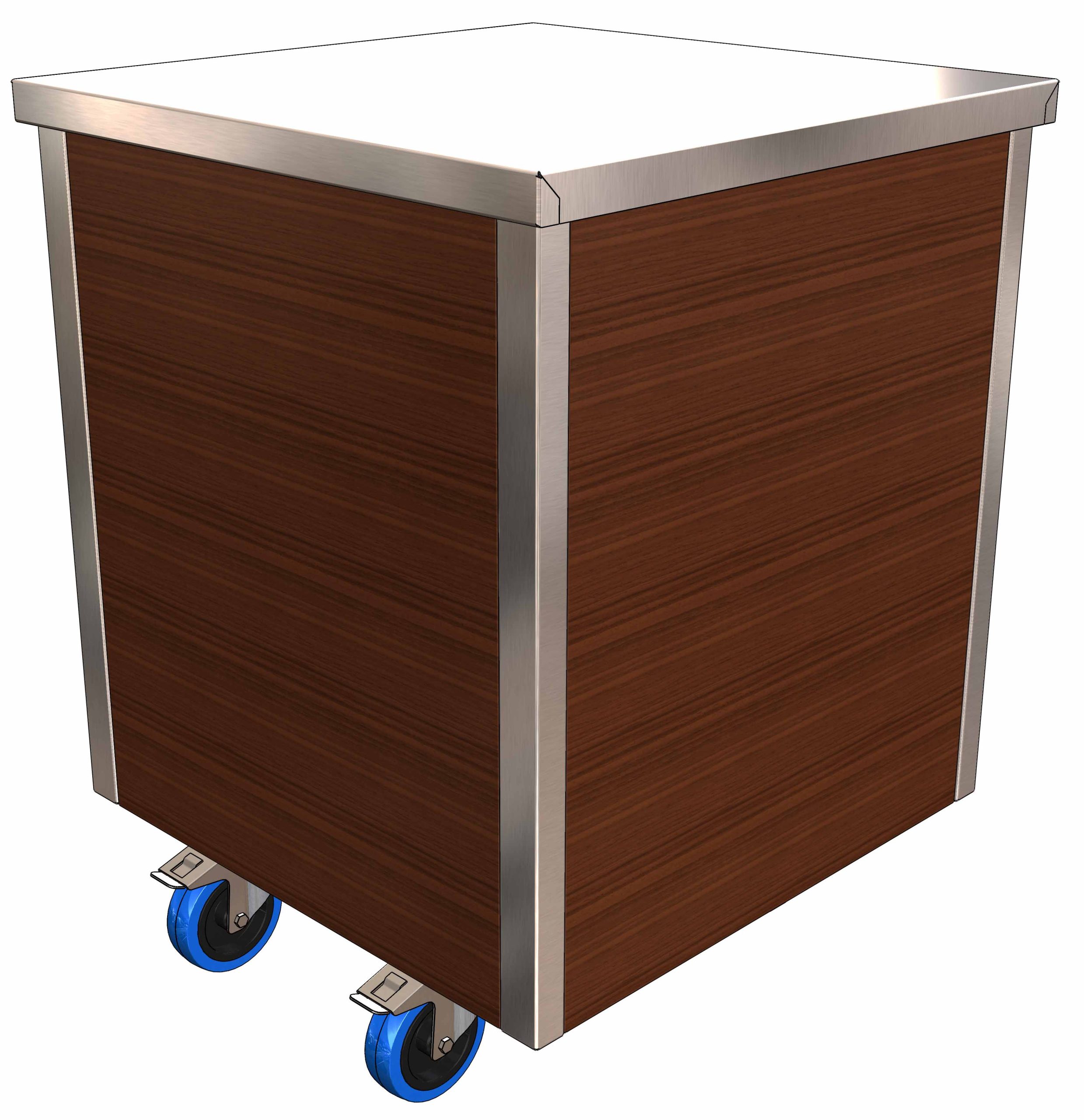

Walnut Woodgrain Finish. (Option Code GWALN90EX) Set of outer front/ side/ rear panels in wood grain effect panel DL85 walnut finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

00

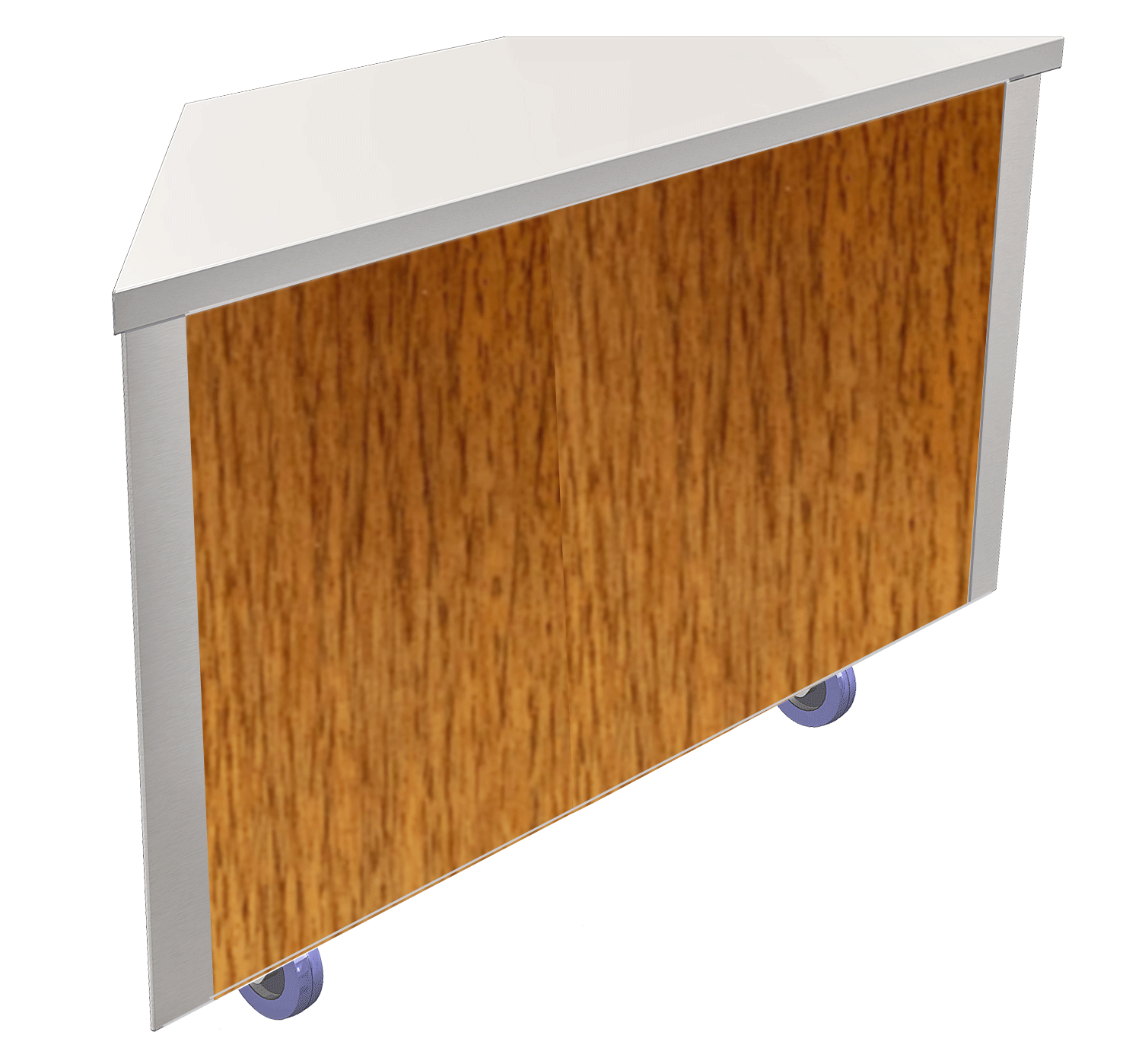

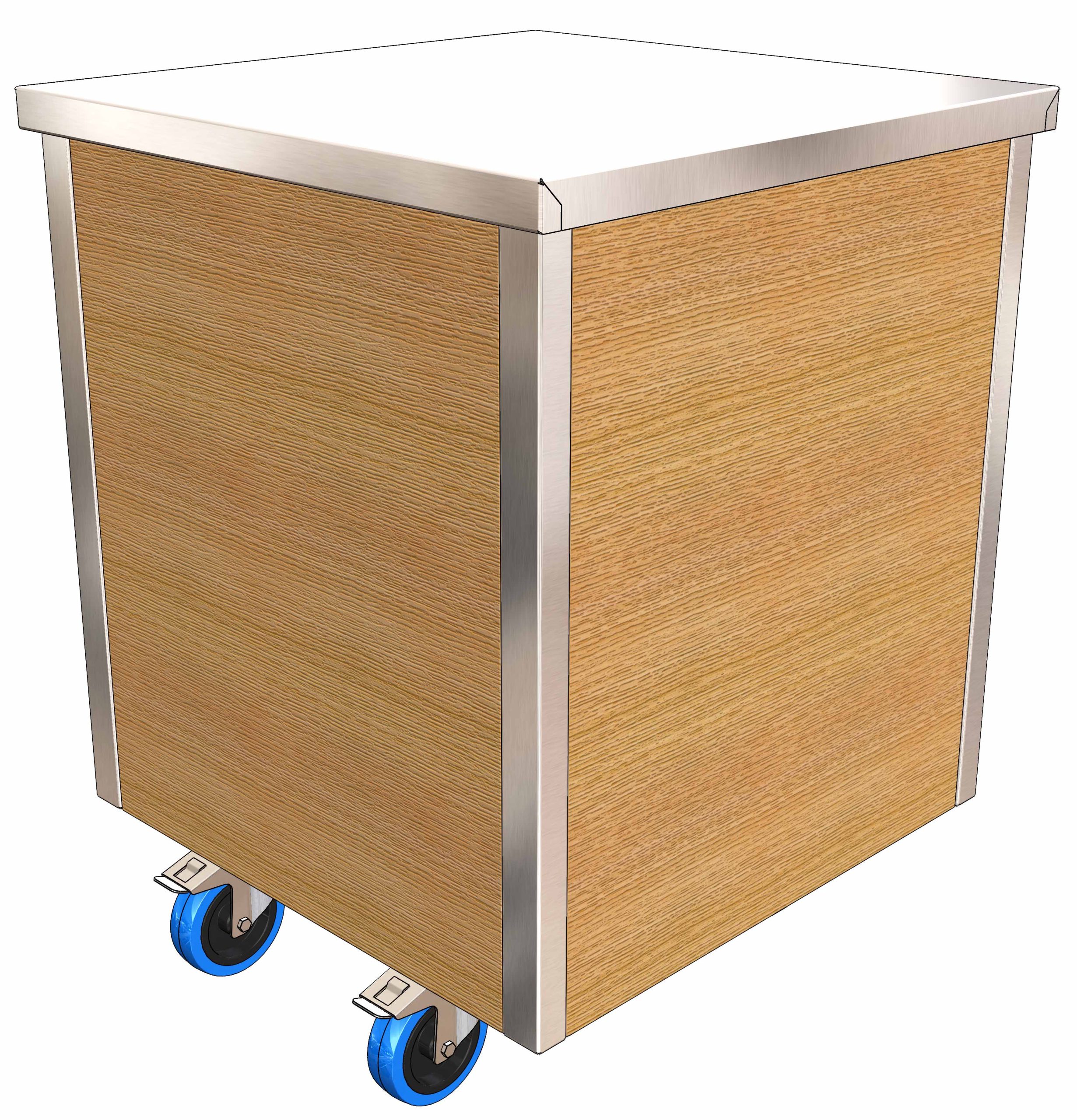

Oak Woodgrain Finish. (Option Code GOAK90EX) Set of outer front/ side/ rear panels in wood grain effect DL84 oak finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

OPTIONS : Glide 90° External Corner Unit (GC90EX).
Option	Code	Option	Code	Option	Code
Low Height Model 800 mm (h)	G800H	Low Height Model 850mm (h)	G850H	Drop Down S/Steel Tubular Tray Rail	GTTS90EX
Drop Down Solid S/Steel Tray Slide	GSTS90EX	Colour Front / Side Panels Ocean Blue (BS18C37)	GBLUE90EX	Satin S/steel Front / Side Panels (430gd.)	GSSTL90EX
Colour Front / Side Panels Light Grey (BS10A05)	GGREY90EX	Colour Front / Side Panels Forest Green (RAL6002)	GGREN90EX	Colour Front / Side Panels Poppy Red (BS04E5B)	GPRED90EX
Colour Front / Side Panels Cream (BS10c31)	GCREM90EX	Colour Front / Side Panels White (BS00E55)	GWHIT90EX	Colour Front / Side Panels Black (BS00E53)	GBLAK90EX
Woodgrain Front / Side Panels Walnut (DL85)	GWALN90EX	Woodgrain Front / Side Panels Beech (DL76)	GBEEC90EX	Woodgrain Front / Side Panels Oak (DL84)	GOAK90EX

Popular Model Codes & Options.

Glide 90° External Corner Unit (G90EX).
(& Colour Front/ Side Panels Ocean Blue – BS18C37)
Model Code Option Code
GC90EX GBLUE90EX

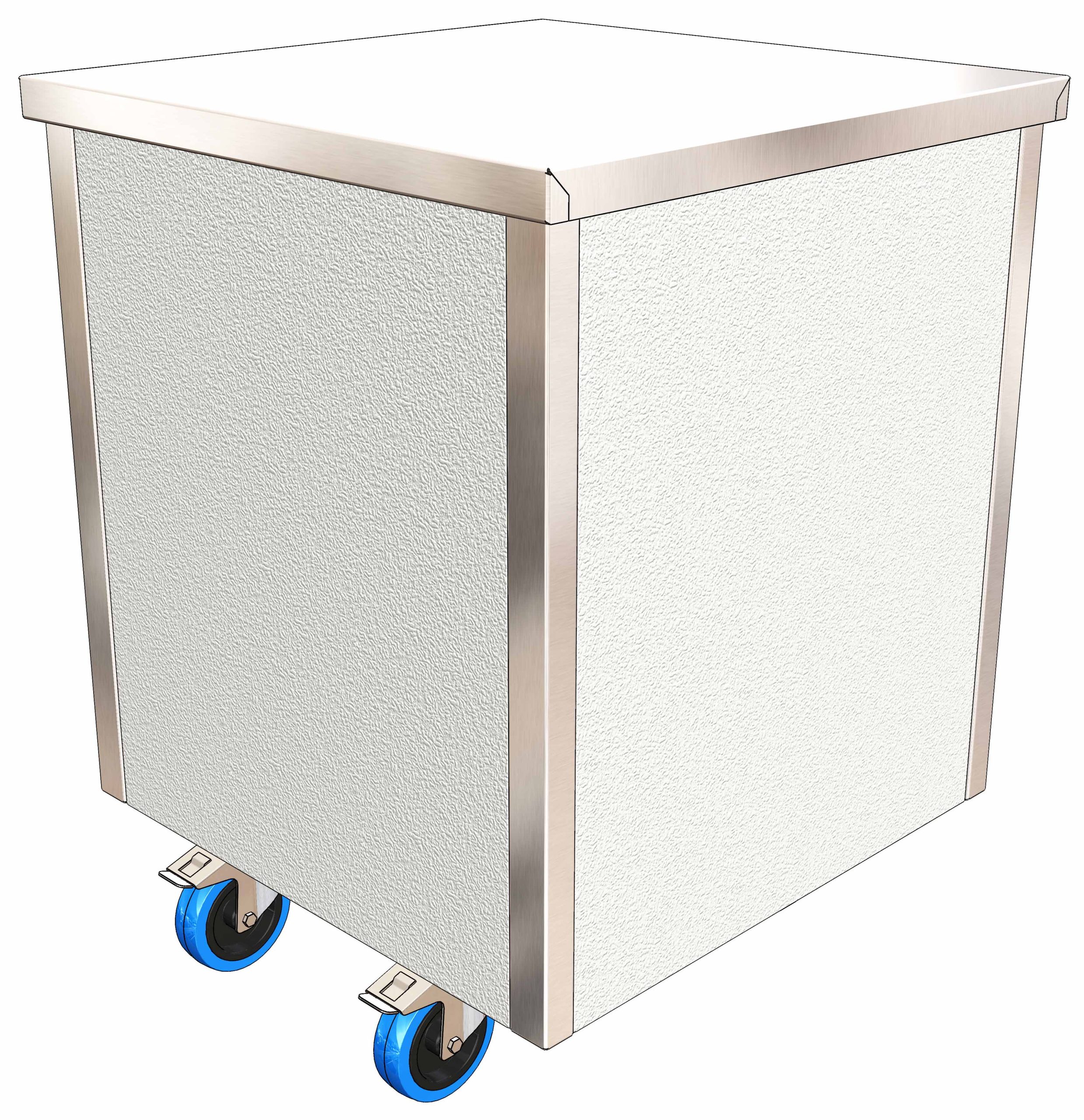

Glide 90° External Corner Unit (G90EX).
(& Colour Front/ Side Panels
White – BS 00E55)
Model Code Option Code
GC90EX GWHIT90EX

Glide 90° External Corner Unit (G90EX).
(& Colour Front/ Side Panels
Black – BS 00E53)
Model Code Option Code
GC90EX GBLAK90EX

Glide 90° External Corner Unit (G90EX).
(& Colour Front/ Side Panels
Poppy Red – BS 04E5B)
Model Code Option Code
GC90EX GPRED90EX

Glide 90° External Corner Unit (G90EX).
(& Woodgrain Effect Front/ Side Panels
Beech – DL76)
Model Code Option Code
GC90EX GBEEC90EX

Glide 90° External Corner Unit (G90EX).
(& Woodgrain Effect Front/ Side Panels
Oak – DL84)
Model Code Option Code
GC90EX GOAK90EX

Downloads

General Layout Drawings
Glide 90° External Corner Unit (G90EX).

Specification Sheet, Base Panel Colour Options, User Manual.
Glide 90° External Corner Unit (GC90EX).

TM65 Sustainability Certification.
Glide 90° External Corner Unit (GC90EX).

Visual

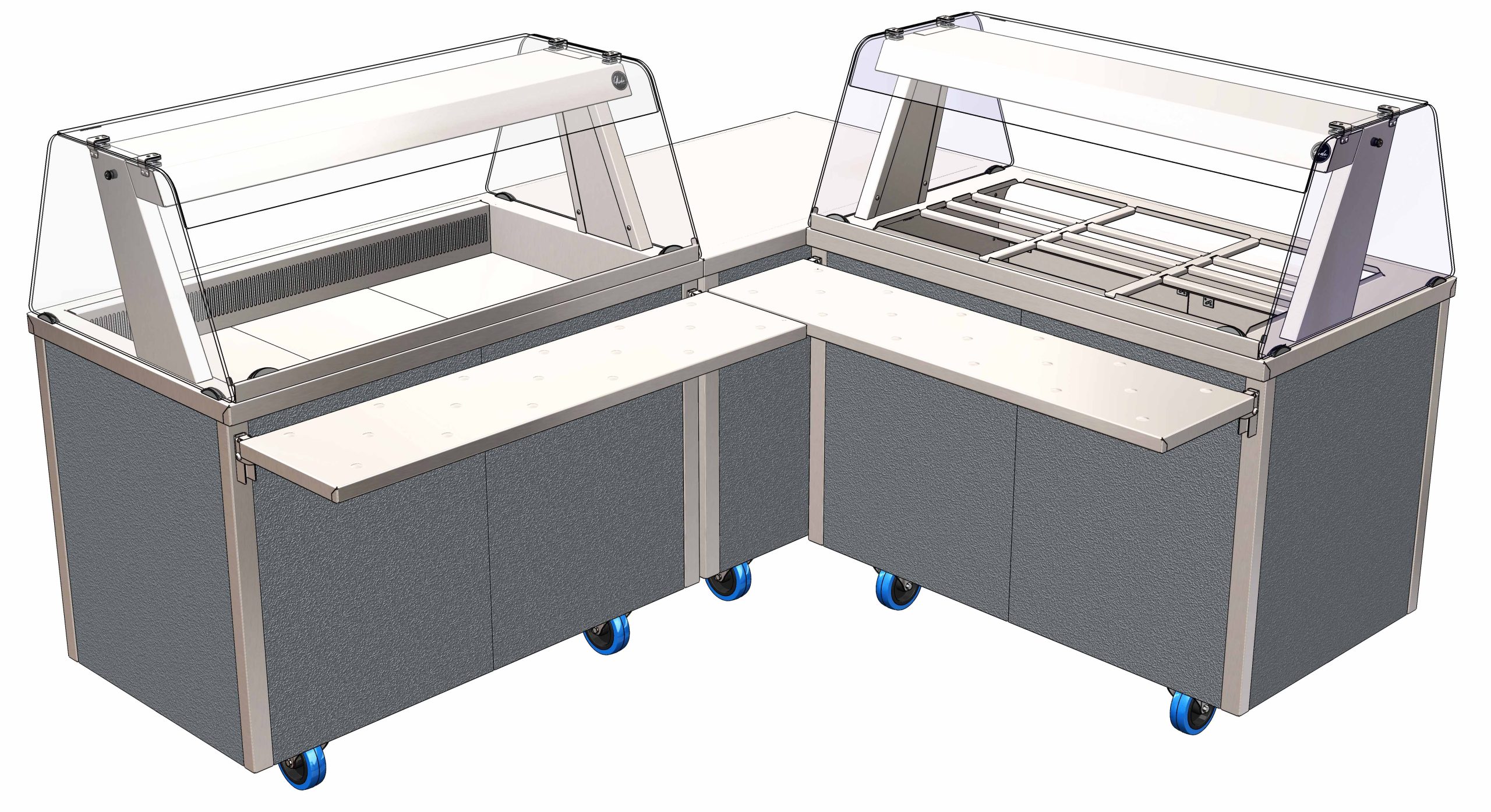

Glide 90° Internal Corner Unit (GC90IN).
Visual

Features

Glide 90° Internal Corner Unit (GC90IN).
Features

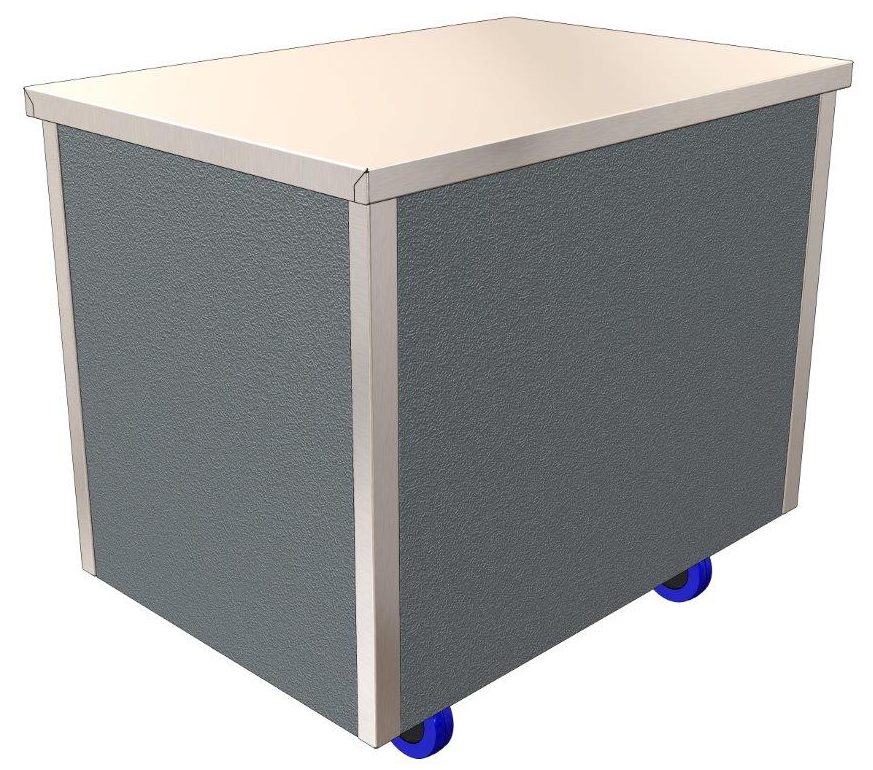

Model Code GC90IN.
Glide mobile dining cart, plain top ambient 90° internal corner unit (no gantry).
Free standing application.
For use as a freestanding internal right angle corner in a counter run between adjacent Glide units.
O/all dimensions 1010 mm (l) x 700 mm (d) x 900 mm (h).
Worktop in 304 gd steel, all other external/internal steel surfaces (inner base/ corner angles etc.) in 430gd.
Front/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
Fitted with lockable non-marking rubber tyre castors.
Unit weight 58 kg.

Options

Optional choice of 11 solid colour & woodgrain base outer front/side/rear panel finishes available.
Optional low height model 850mm (h) available.
Optional low height model 800mm (h) available.*
800mm (h) = bespoke option with extended lead time*.

Model GC90IN

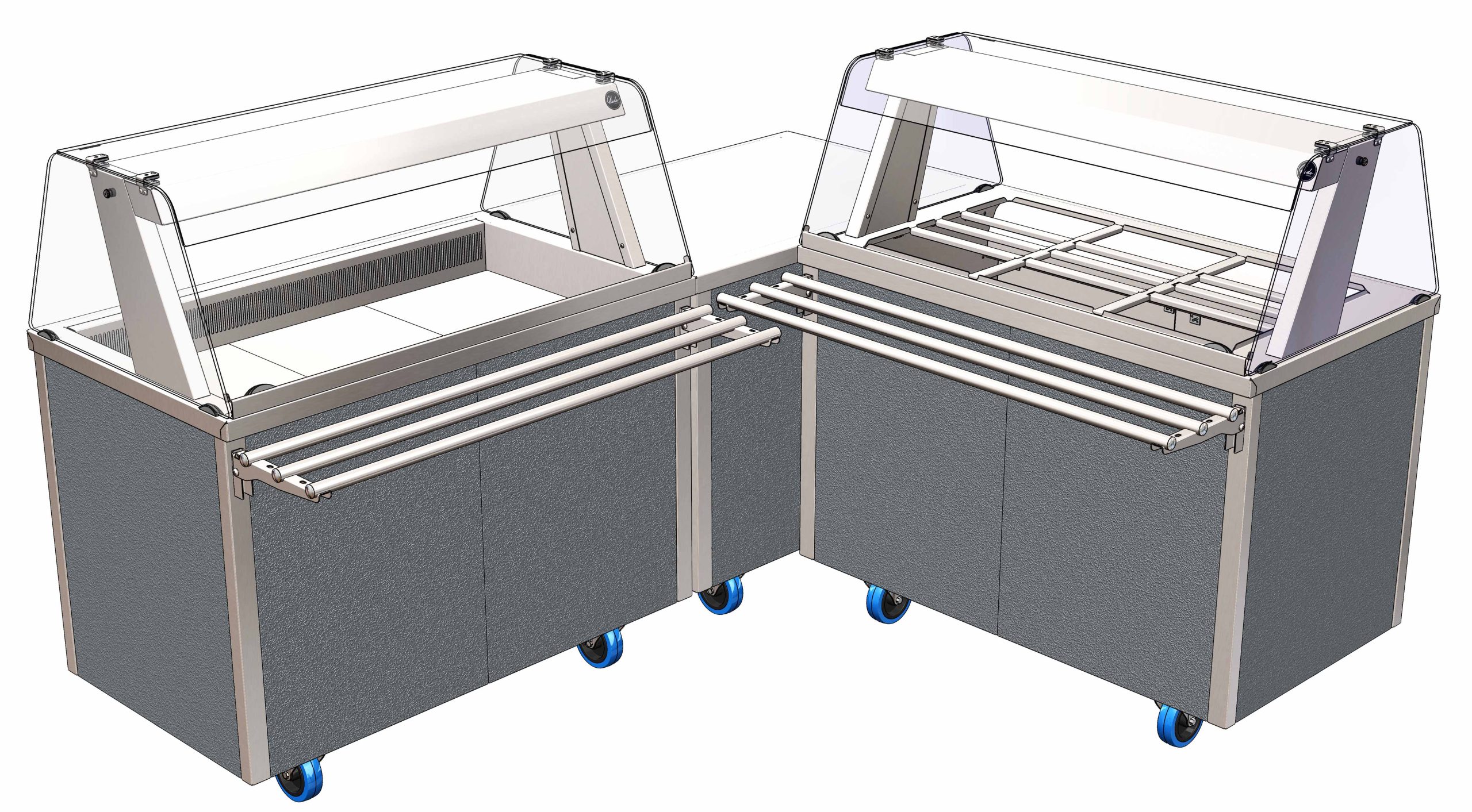

Model GC90IN – In Position.

Dimensions

Glide 90° Internal Corner Unit (GC90IN).
Dimensions

Model Code GC90IN.
Glide mobile dining cart, plain top ambient 90° internal corner infill unit (no gantry).
Free standing application.
For use as a freestanding internal angled corner infill in counter run between adjacent Glide units.
O/all dimensions 1010 mm (l) x 700 mm (d) x 900 mm (h).
Worktop in 304 gd steel, all other external/internal steel surfaces (inner base/ corner angles etc.) in 430gd.
Front/side/ rear base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
Fitted with lockable non-marking rubber tyre castors.
Unit weight 58 kg.
Low height model option (G850H) = 850mm (h)
Low height model option (G800H) = 800mm (h)
Embodied Carbon (kg/CO2e) = 484 kg/C02e.

OPTIONS : Glide 90° Internal Corner Unit (GC90IN).
Option	Code	Option	Code	Option	Code
Low Height Model 800 mm (h)	G800H	Low Height Model 850mm (h)	G850H	Colour Front / Side Panels Ocean Blue (BS18C37)	GBLUE90IN
Satin S/steel Front / Side Panels (430gd.)	GSSTL90IN	Colour Front / Side Panels Light Grey (BS10A05)	GGREY90IN	Colour Front / Side Panels Forest Green (RAL6002)	GGREN90IN

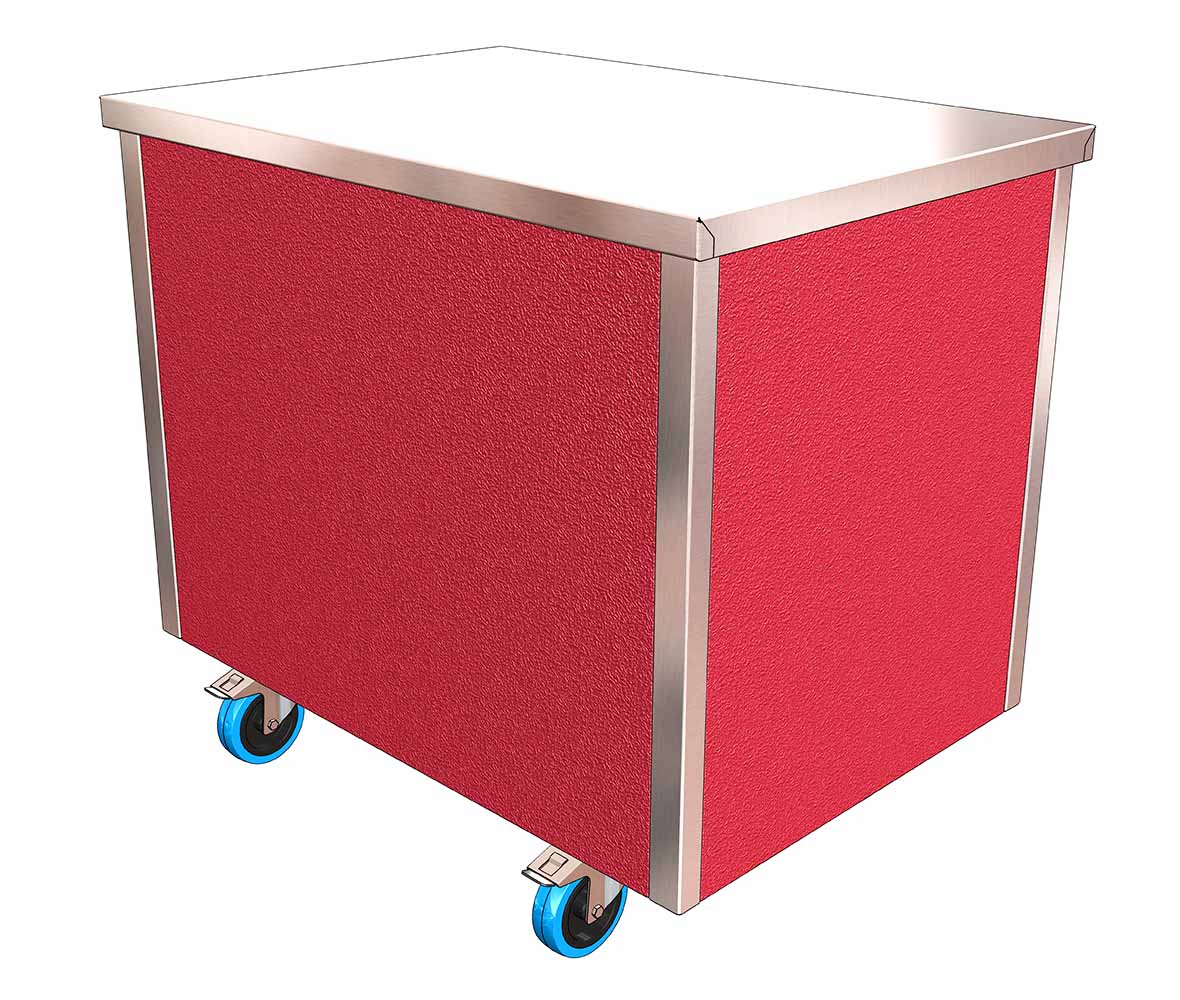

Colour Front / Side Panels Poppy Red (BS04E5B)	GPRED90IN	Colour Front / Side Panels Cream (BS10c31)	GCREM90IN	Colour Front / Side Panels White (BS00E55)	GWHIT90IN

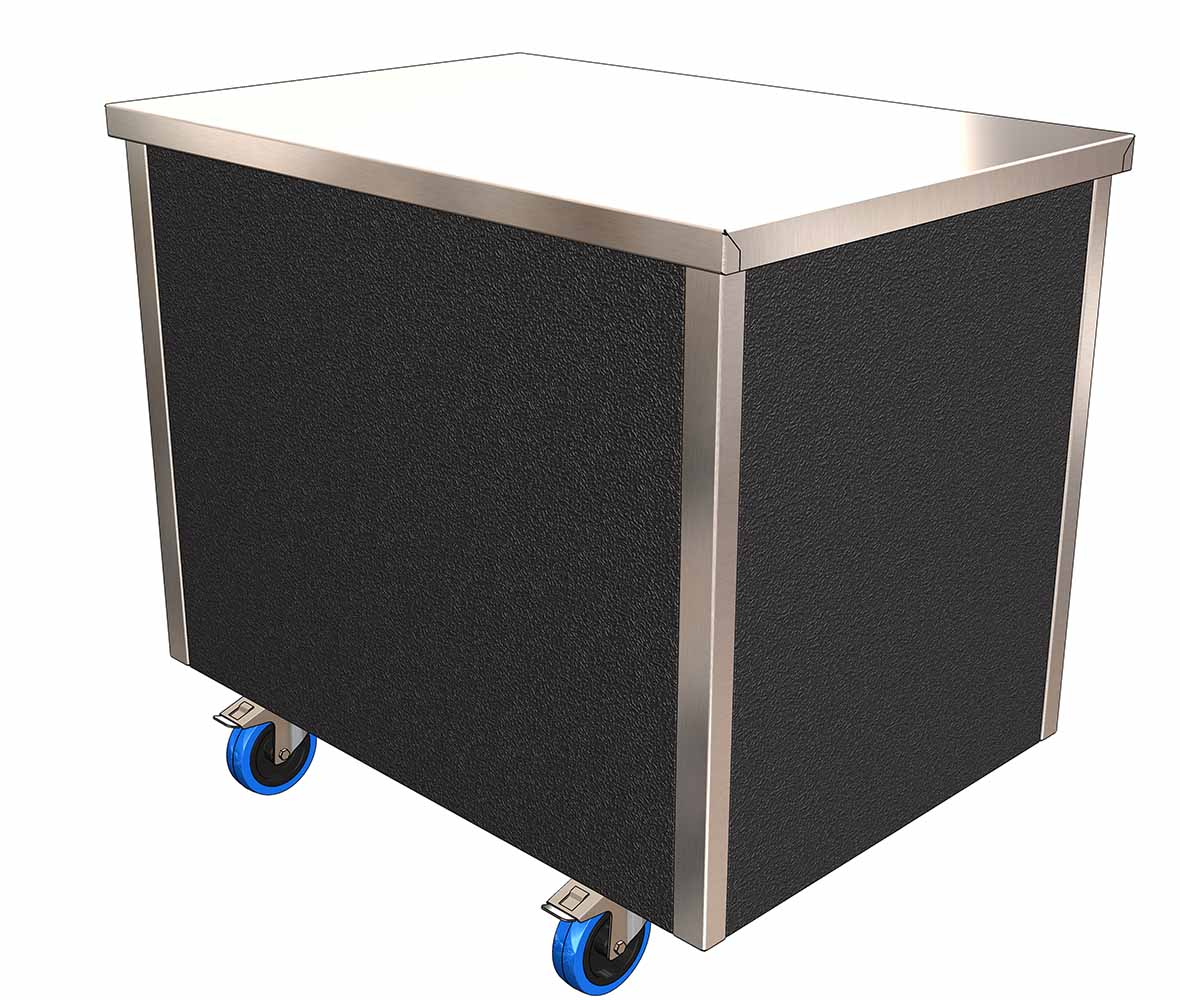

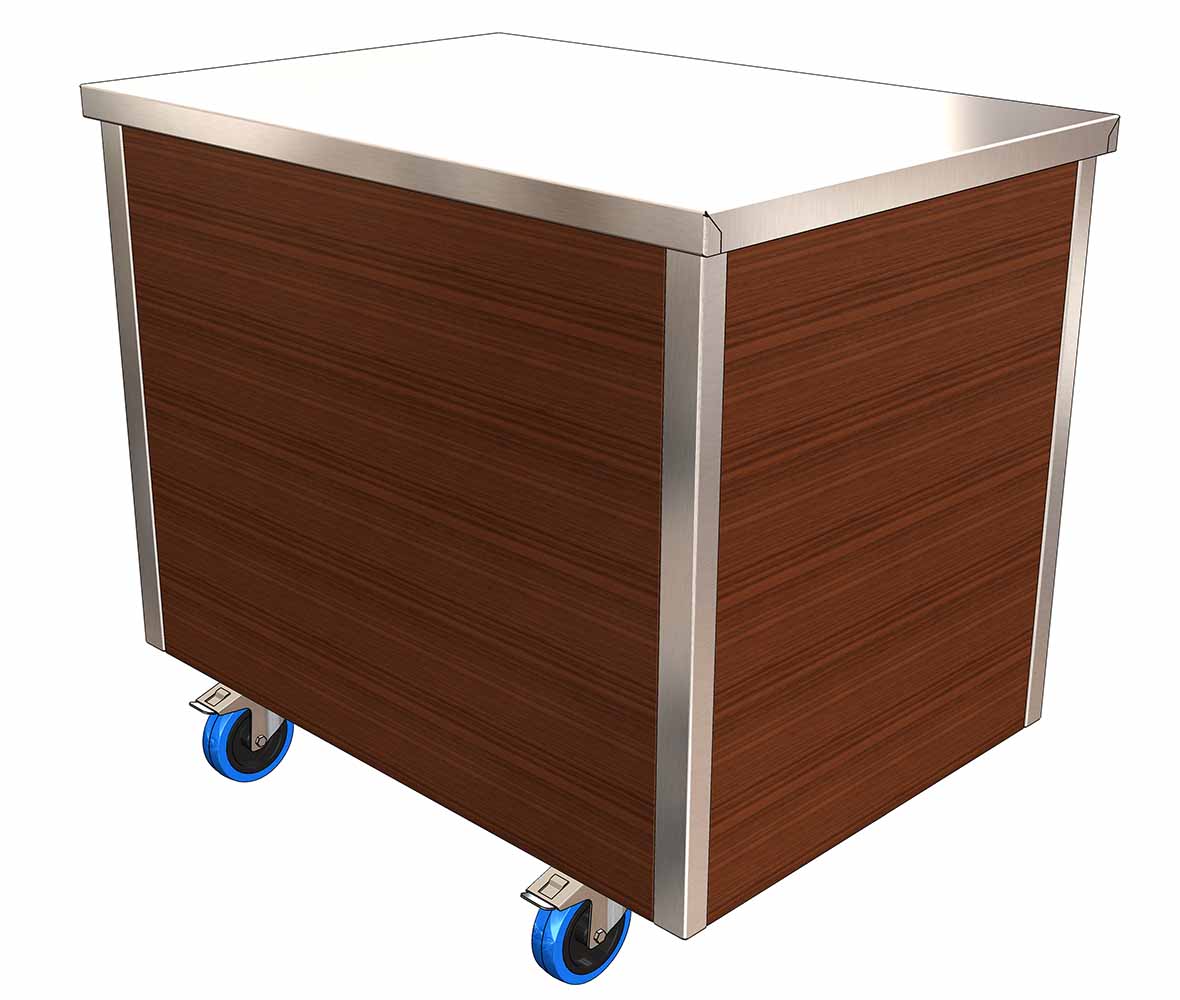

Colour Front / Side Panels Black (BS00E53)	GBLAK90IN	Woodgrain Front / Side Panels Walnut (DL85)	GWALN90IN	Woodgrain Front / Side Panels Beech (DL76)	GBEEC90IN

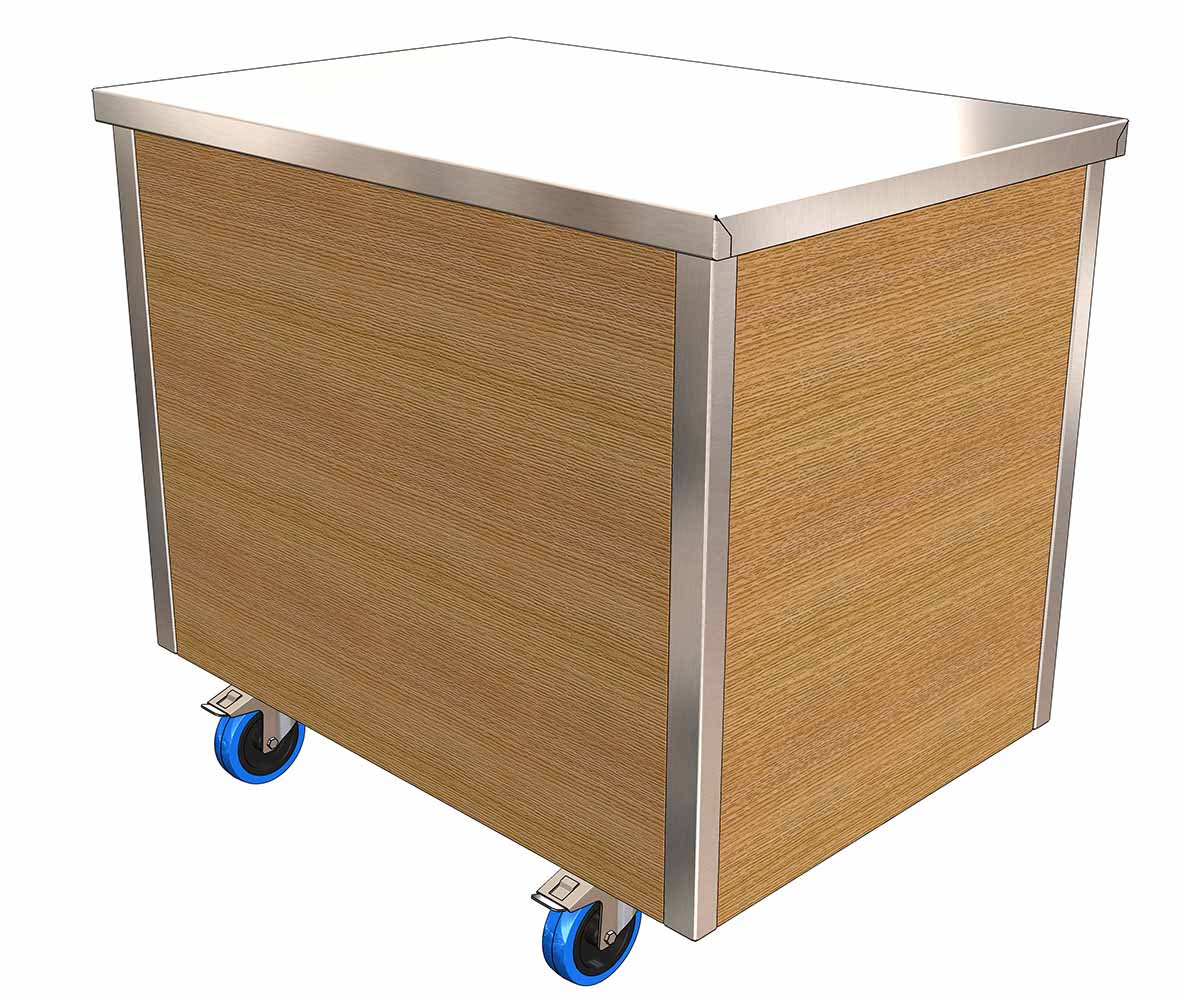

Woodgrain Front / Side Panels Oak (DL84)	GOAK90IN	XXX	XXXX	XXX	XXX

Popular Model Codes & Options
xxx	Model Code	Option Code
Glide 90° Internal Corner Unit (GC90IN). (& 850mm Low Height Option (Glide Junior)	GC90IN	G850H
Glide 90° Internal Corner Unit (GC90IN). (& 800mm Low Height Option (Glide Junior)* Bespoke Option With Extended lead Time	GC90IN	G800H
Glide 90° Internal Corner Unit (GC90IN). (& Colour Front/ Side/ Rear Panels Ocean Blue – BS18C37)	GC90IN	GBLUE90IN
Glide 90° Internal Corner Unit (GC90IN). (& Colour Front/ Side/ Rear Panels Stainless Steel 430 gd.)	GC90IN	GSSTL90IN
Glide 90° Internal Corner Unit (GC90IN). (& Colour Front/ Side/ Rear Panels Light Grey – BS10A05)	GC9IN	GGREY90IN
Glide 90° Internal Corner Unit (GC90IN). (& Colour Front/ Side/ Rear Panels Forest Green – RAL 6002)	GC90IN	GGREN90IN
Glide 90° Internal Corner Unit (GC90IN). (& Colour Front/ Side/ Rear Panels Poppy Red – BS 04E5B)	GC90IN	GPRED90IN
Glide 90° Internal Corner Unit (GC90IN). (& Colour Front/ Side/ Rear Panels Buttermilk Cream – BS 10c31)	GC90IN	GCREM90IN
Glide 90° Internal Corner Unit (GC90IN). (& Colour Front/ Side/ Rear Panels White – BS 00E55)	GC90IN	GWHIT90IN
Glide 90° Internal Corner Unit (GC90IN). (& Colour Front/ Side/ Rear Panels Black- BS 00E53)	GC90IN	GBLAK90IN
Glide 90° Internal Corner Unit (GC90IN). (& Woodgrain Effect Front/ Side/ Rear Panels Walnut – DL85)	GC90IN	GWALN90IN
Glide 90° Internal Corner Unit (GC90IN). (& Woodgrain Effect Front/ Side/ Rear Panels Oak – DL84)	GC90IN	GOAK90IN
Glide 90° Internal Corner Unit (GC90IN). (& Woodgrain Effect Front/ Side/ Rear Panels Beech – DL76)	GC90IN	GBEEC90IN

Options

Glide 90° Internal Corner Unit (GC90IN).
Options.

Low Height Model (Glide Junior) – 850mm.
(Option Code G850H) Glide junior option: 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model (Glide Junior) – 800mm.
(Option Code G800H*) Glide junior option: 800mm (h) base unit, c/w 100mm lockable castors. Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). * Bespoke Option/ Extended Lead Time *

Glide Colour Finishes To Front/ Side Panels.

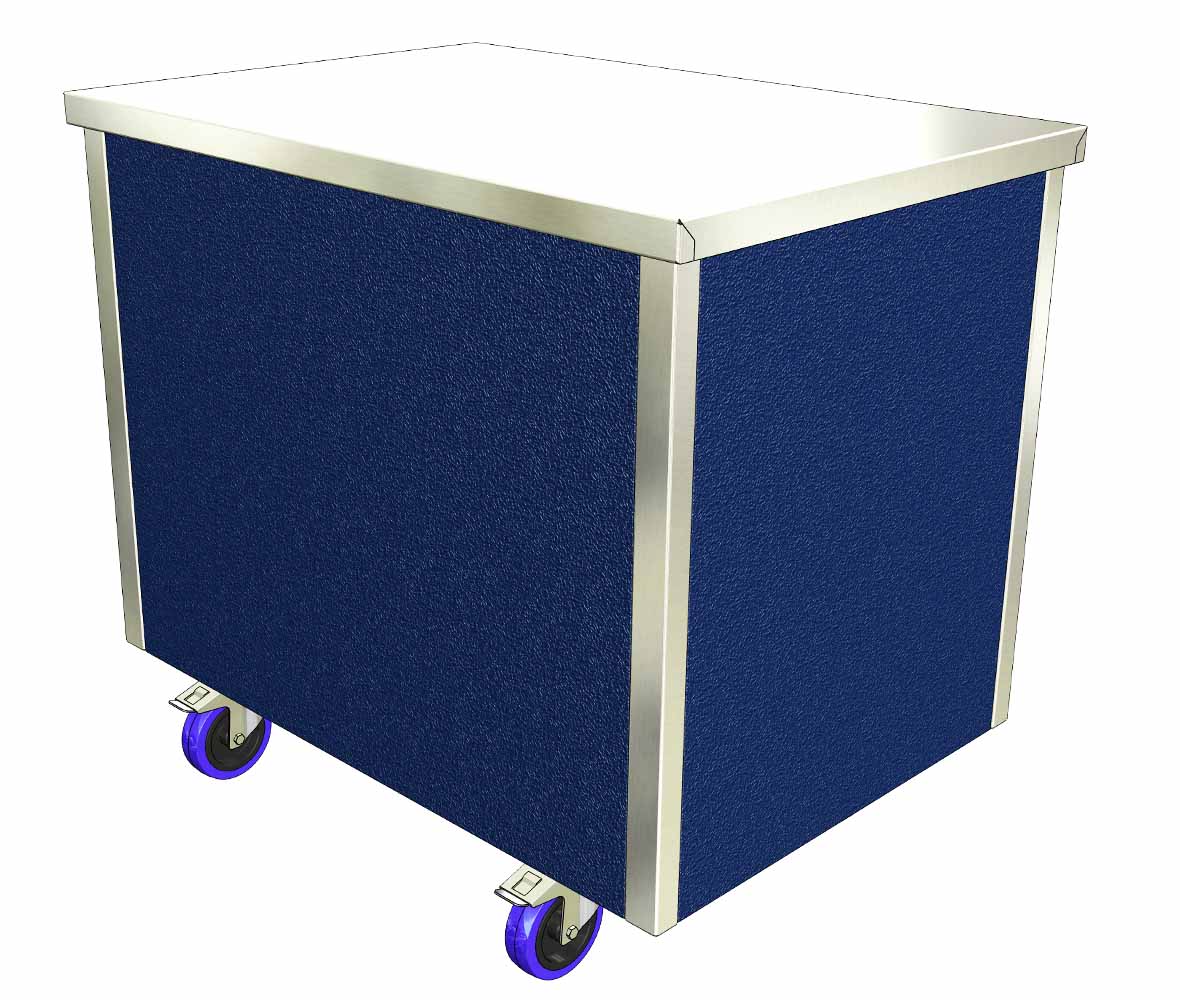

Blue Finish. (Option Code GBLUE90IN) Set of outer front/ side/ rear panels in leathergrain plastisol steel, colour ocean blue (BS 18C37) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

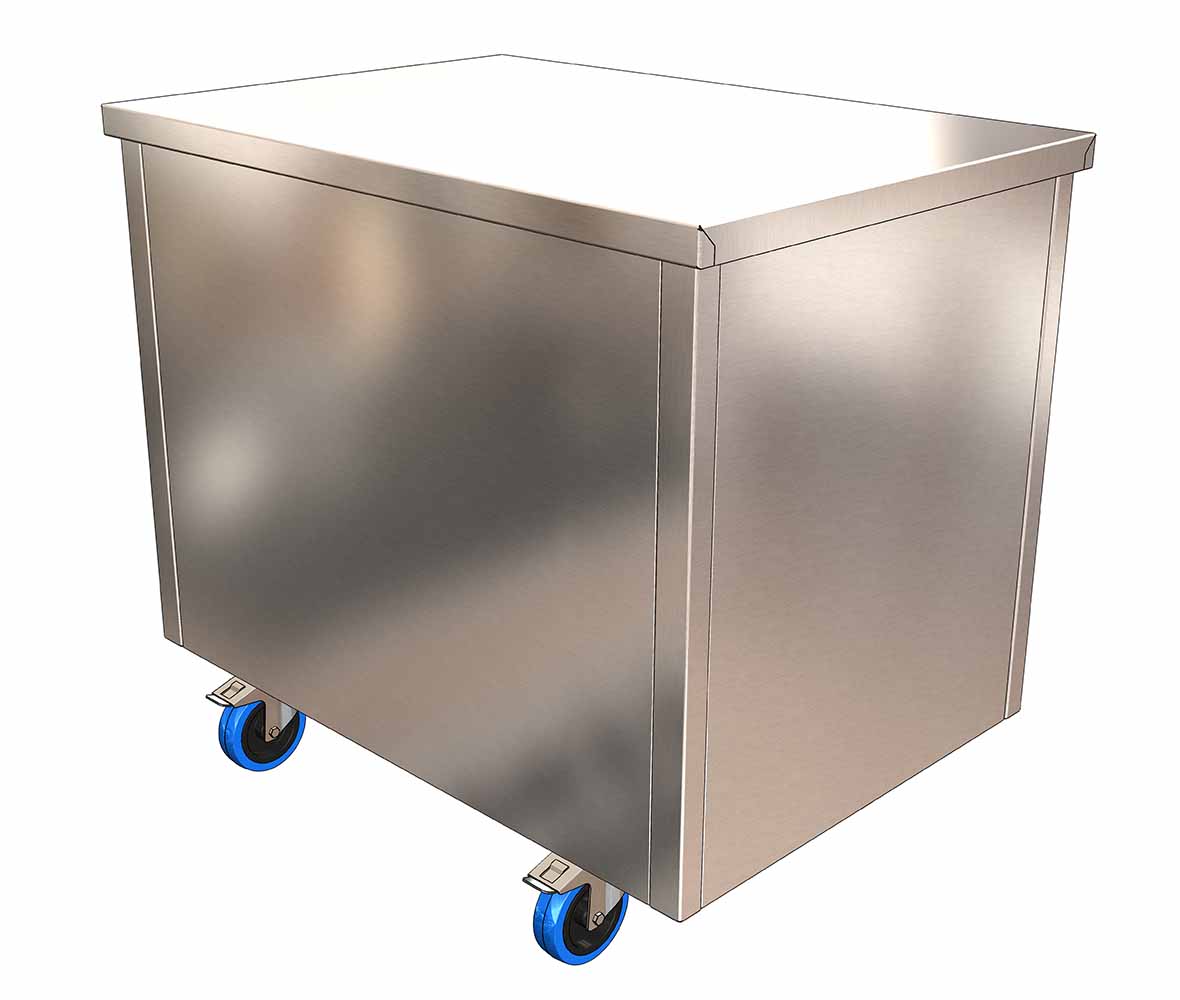

S/Steel Finish. (Option Code GSSTL90IN) Set of outer front/ side/ rear panels in satin s/steel 430 gd. to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

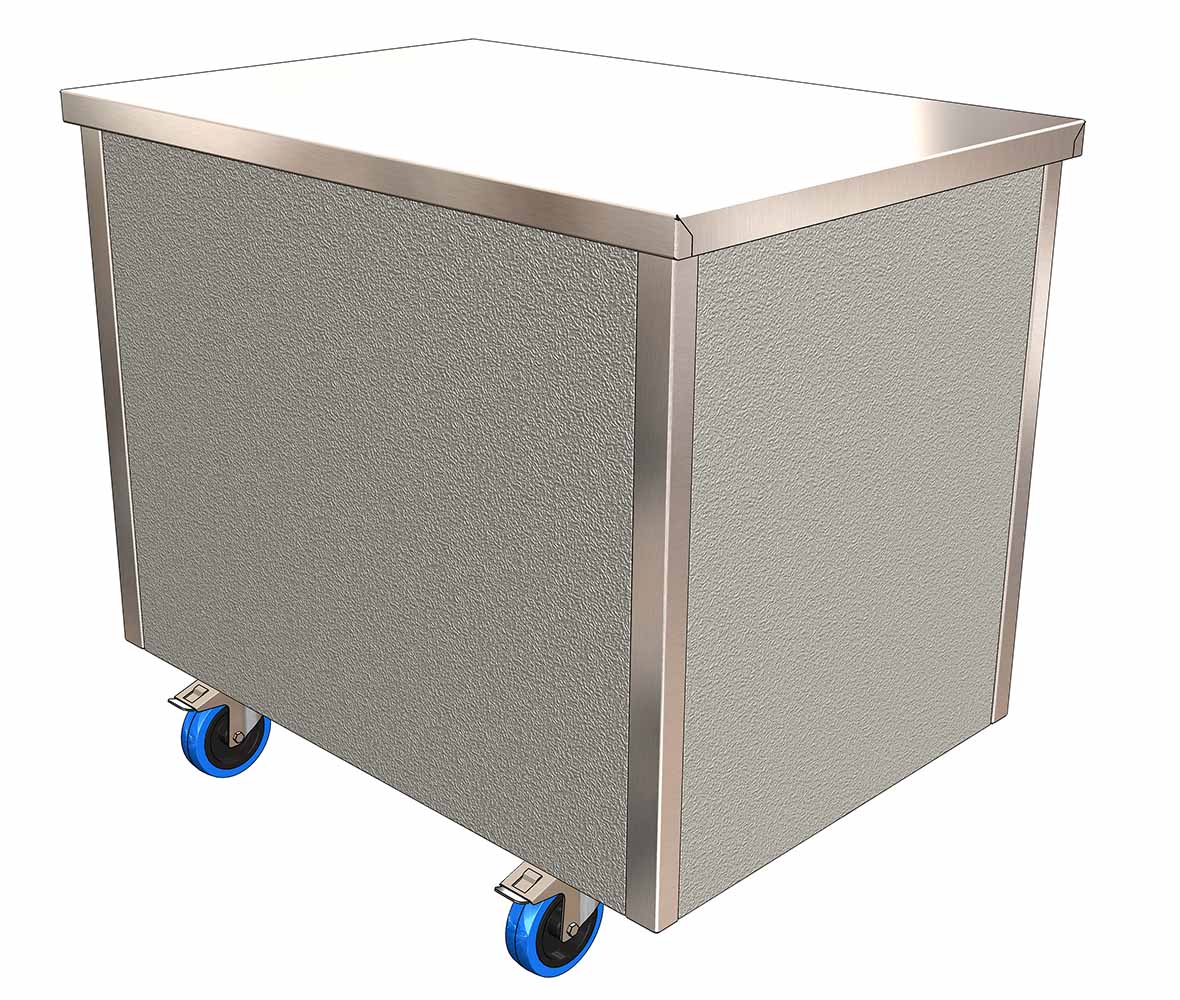

Light Grey ……Light Grey Finish. (Option Code GGREY90IN) Set of outer front/ side/ rear panels in leathergrain plastisol steel, colour goosewing light grey (BS 10A05) to suite with other Glide dining carts fitted with colour options. Panels lift off for ease of replacement.

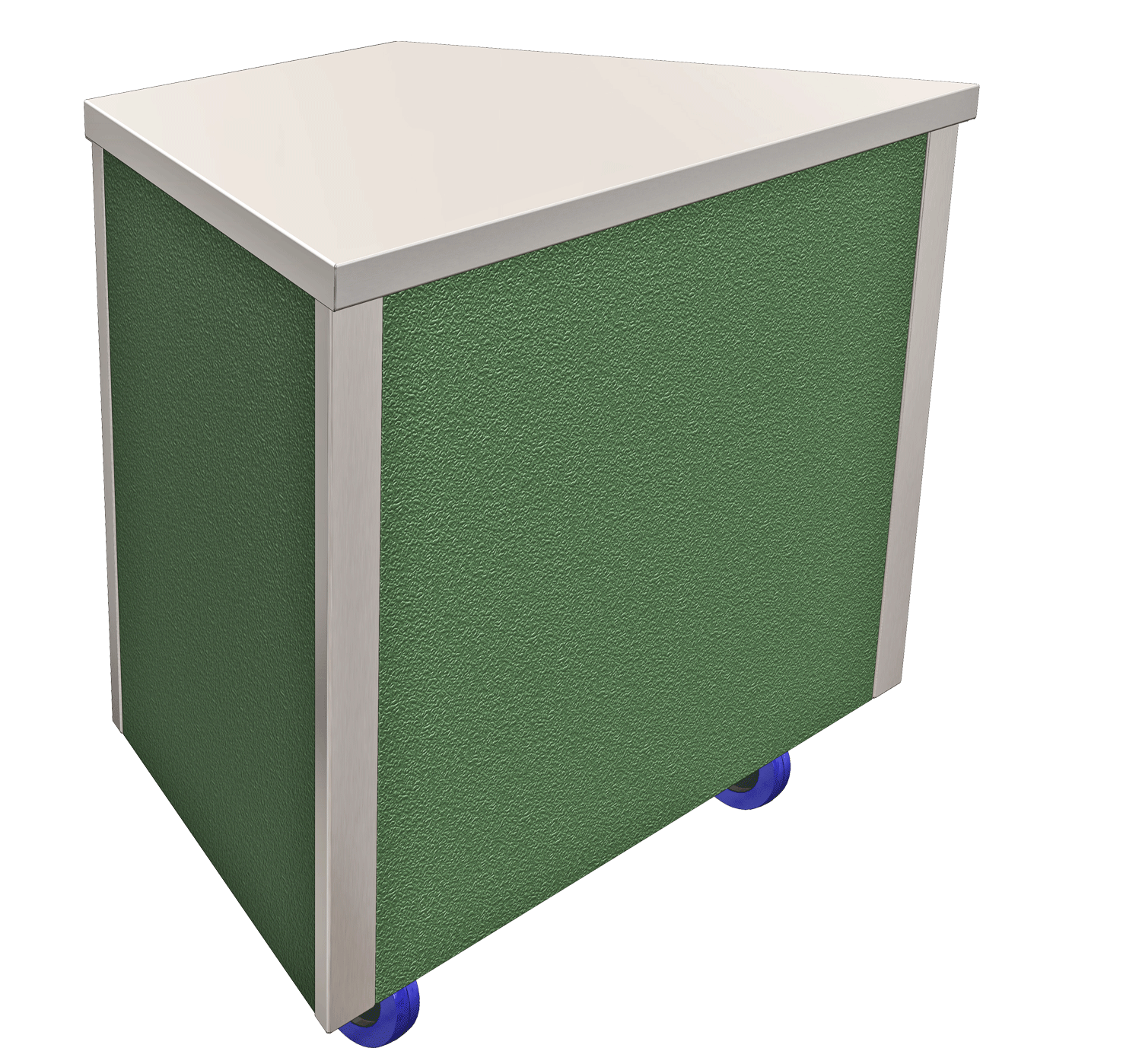

Forest Green Finish. (Option Code GGREN90IN) Set of outer front/ side/ rear panels in leathergrain plastisol steel, colour forest green/heritage (RAL 6002) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Poppy Red Poppy Red Finish. (Option Code GPRED90IN) Set of outer front/ side/ rear panels in leathergrain plastisol steel, colour poppy red (BS 04E5B) to suite with other Glide dining carts fitted with colour options. Panels lift off for ease of replacement.

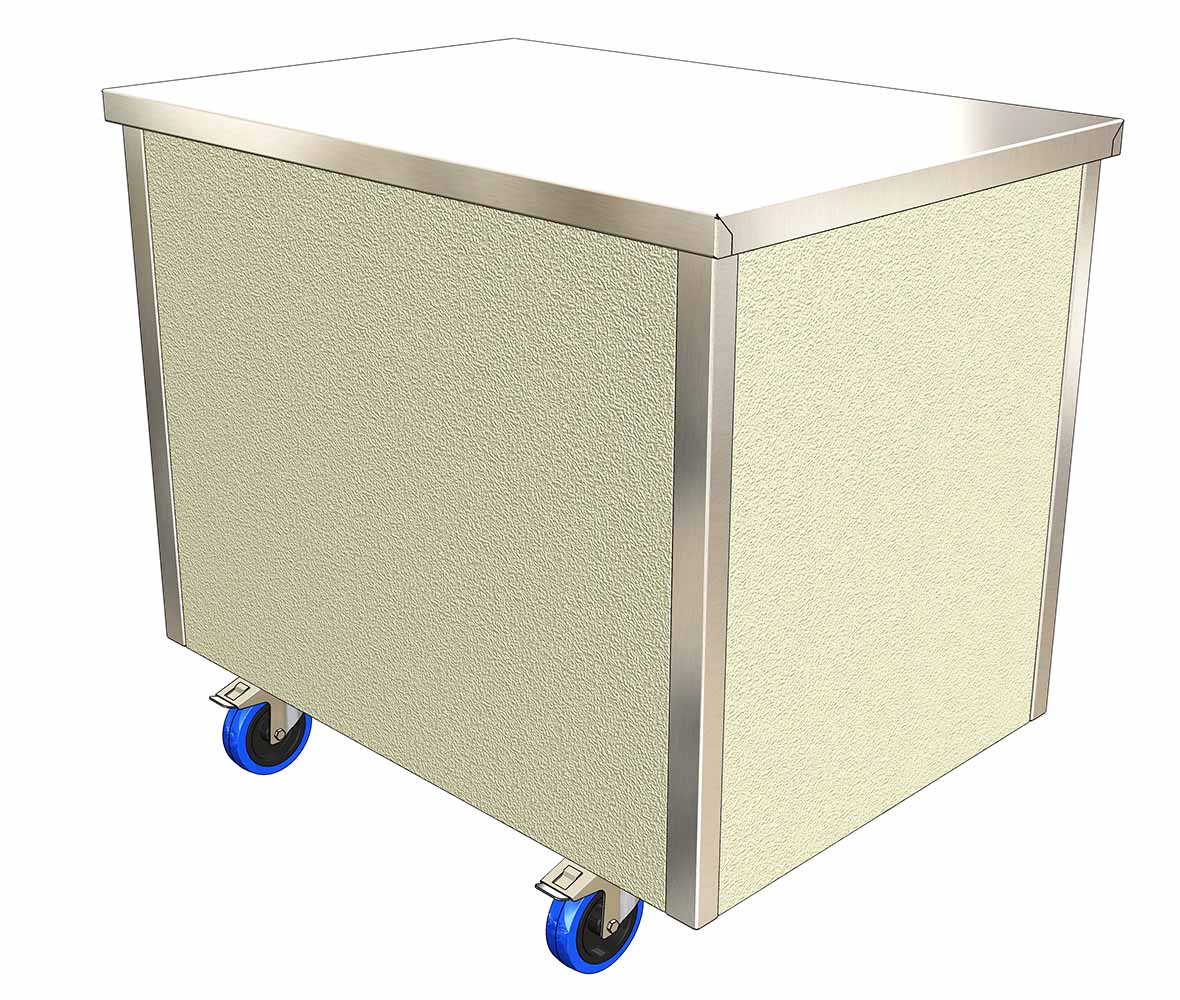

Cream Finish. (Option Code GCREM90IN) Set of outer front/ side/ rear panels in plastisol steel, colour buttermilk cream/ honesty (BS 10C31) to suite with other Glide dining carts with colour options. Panels lift off for easy replacement.

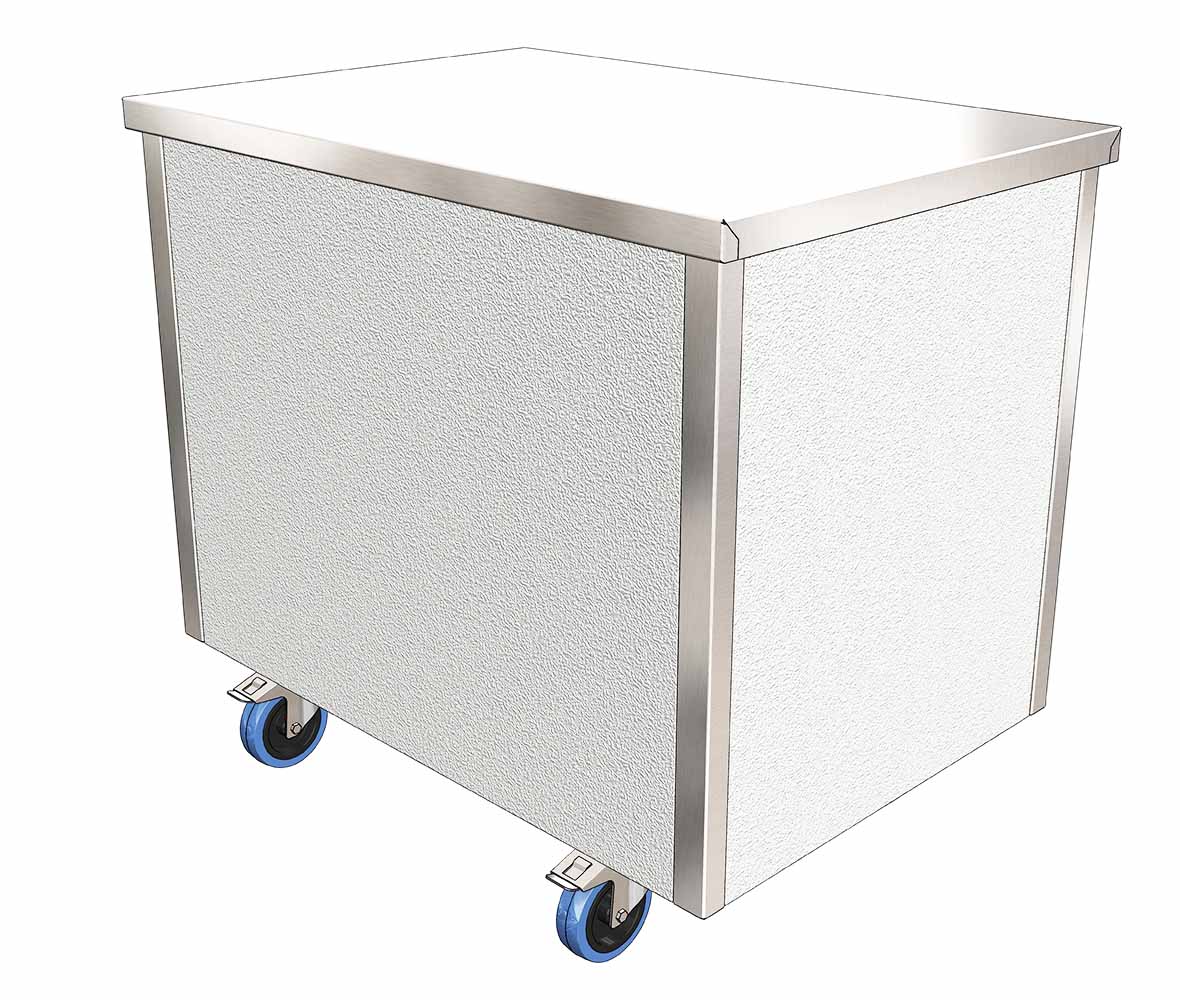

White Finish. (Option Code GWHIT90IN) Set of outer front/ side/ rear panels in leathergrain plastisol steel, colour white (BS 00E55) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Black Finish. (Option Code GBLAK90IN) Set of outer front/ side/ rear panels in leathergrain plastisol steel, colour black (BS 00E53) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

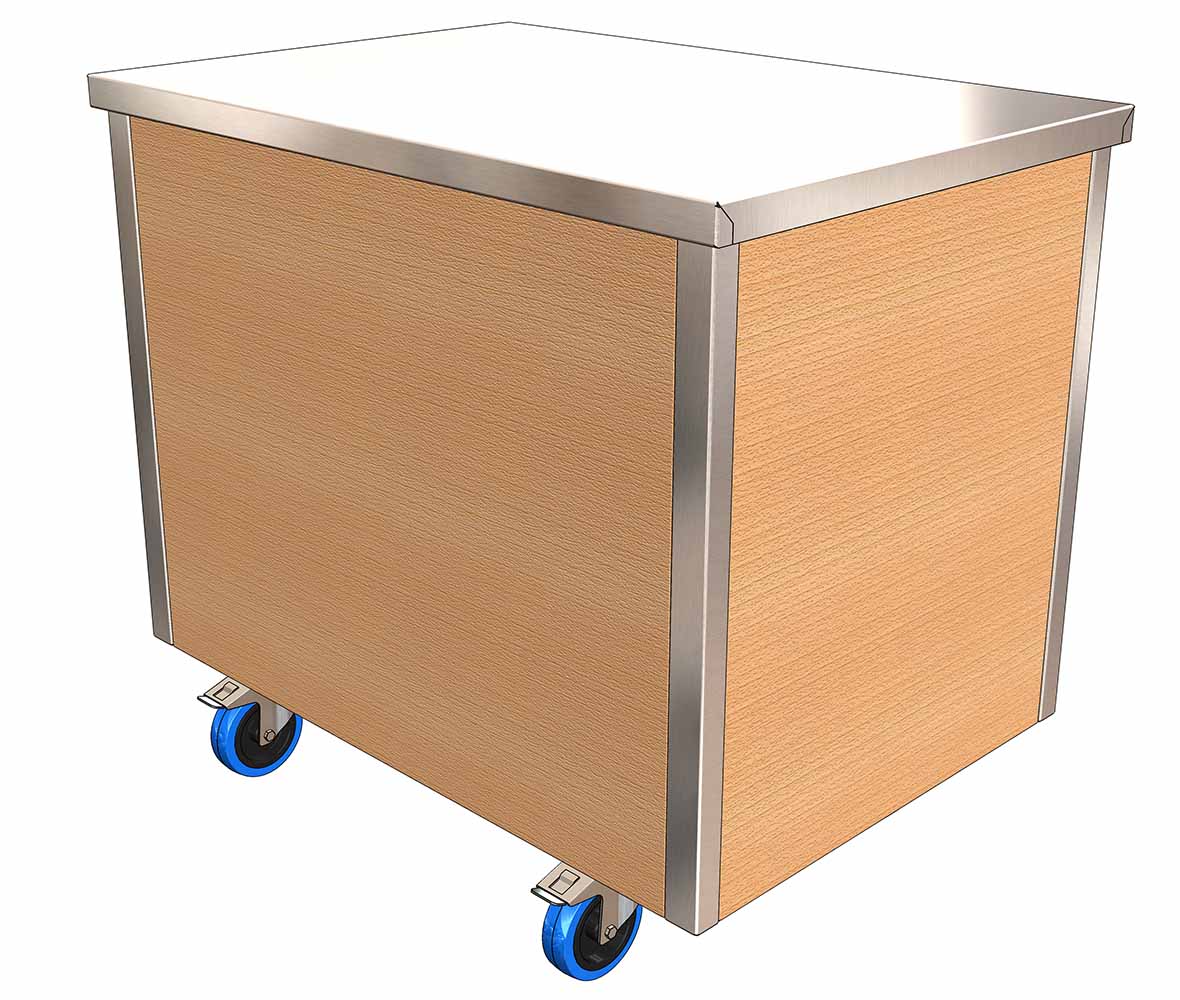

Beech Beech Woodgrain Finish. (Option Code GBEEC90IN) Set of outer front/ side/ rear panels in wood grain effect DL76 beech finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Walnut Woodgrain Finish. (Option Code GWALN90IN) Set of outer front/ side/ rear panels in wood grain effect panel DL85 walnut finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

00

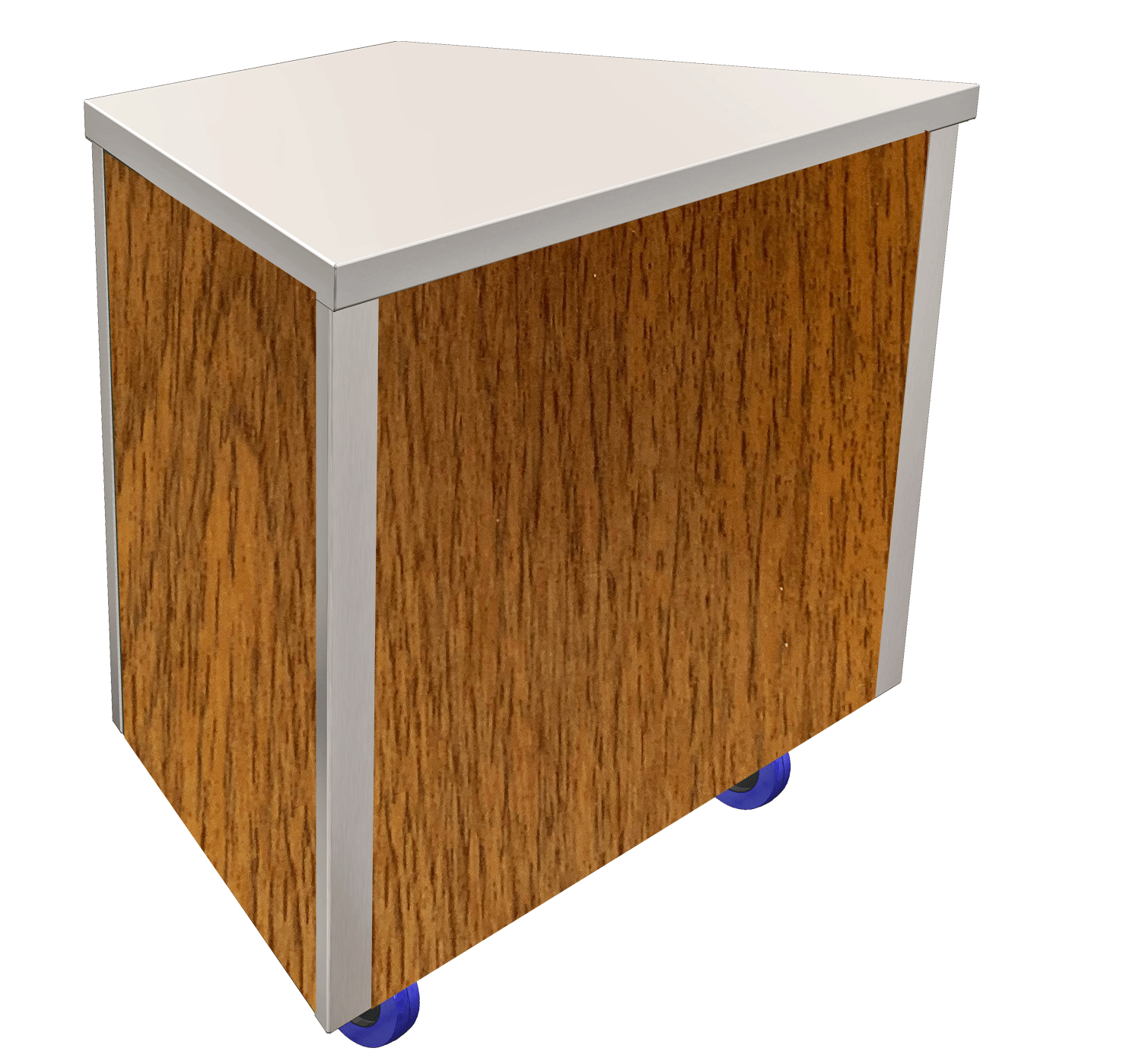

Oak Woodgrain Finish. (Option Code GOAK90IN) Set of outer front/ side/ rear panels in wood grain effect DL84 oak finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

OPTIONS : Glide 90° Internal Corner Unit (GC90IN).
Option	Code	Option	Code	Option	Code
Low Height Model 800 mm (h)	G800H	Low Height Model 850mm (h)	G850H	Colour Front / Side Panels Ocean Blue (BS18C37)	GBLUE90IN
Satin S/steel Front / Side Panels (430gd.)	GSSTL90IN	Colour Front / Side Panels Light Grey (BS10A05)	GGREY90IN	Colour Front / Side Panels Forest Green (RAL6002)	GGREN90IN
Colour Front / Side Panels Poppy Red (BS04E5B)	GPRED90IN	Colour Front / Side Panels Cream (BS10c31)	GCREM90IN	Colour Front / Side Panels White (BS00E55)	GWHIT90IN
Colour Front / Side Panels Black (BS00E53)	GBLAK90IN	Woodgrain Front / Side Panels Walnut (DL85)	GWALN90IN	Woodgrain Front / Side Panels Beech (DL76)	GBEEC90IN
Woodgrain Front / Side Panels Oak (DL84)	GOAK90IN	XXX	XXX	XXX	XXX
