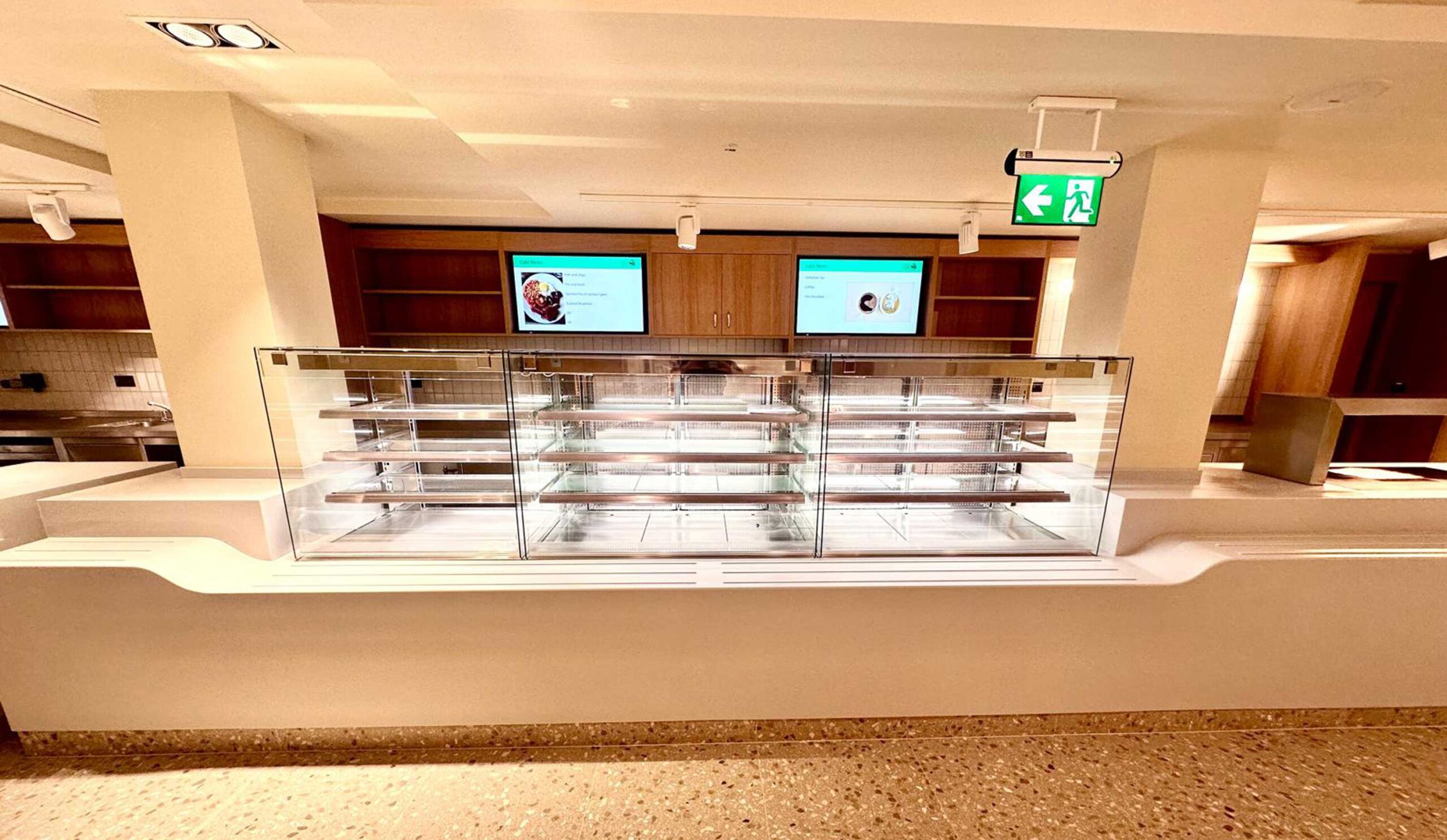

Kubus Cold Drop In Patisserie
New for 2025 CED introduce a full range of ‘drop in’ serve over height patisseries in a wide choice of cold, hot & ambient displays to fit in servery counter worktops.

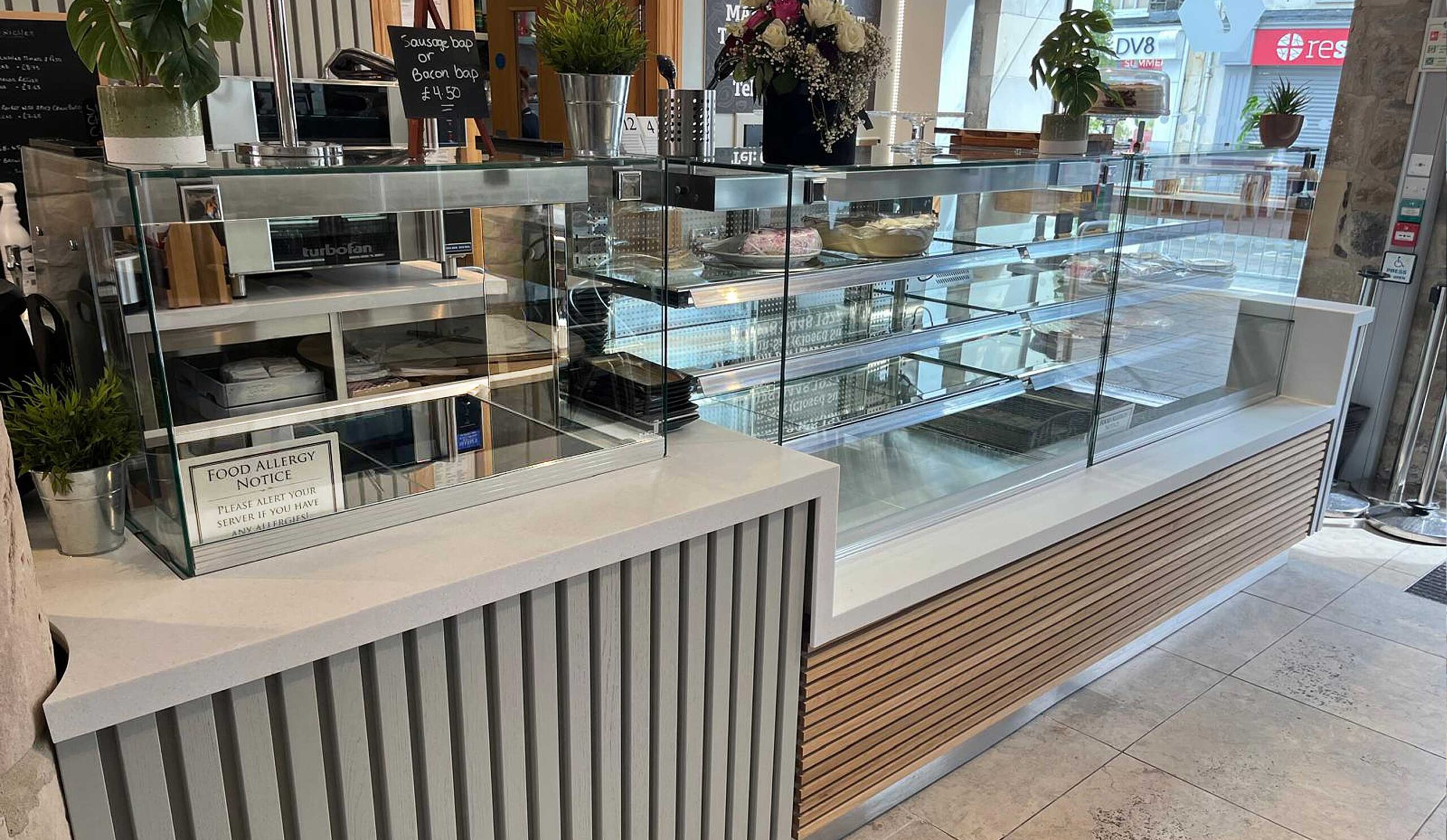

The flexible self-contained Kubus chilled patisserie is available in 600, 900, 1200 & 1800 mm long with rear doors or fixed back panels, for strategically positioning around your serving space. Each chilled display comprises four illuminated chilled display levels with 4000K colour LED lighting. The drop in patisseries maximize sales space by providing an extensive display area and merchandising space, within a minimal 750mm deep footprint.
Innovation As Standard.
The Kubus drop in chilled patisserie features energy saving refrigeration, diffused LED lighting & ‘point of sale’ branding.
Airflow options allow for a smooth counter frontage by diverting refrigeration ventilation.
Chilled by integral hydrocarbon refrigerants, each cold patisserie contains intelligent, gantry mounted digital control technology & CED’s continued assurance of beautiful toughness and ruthless reliability in the field.

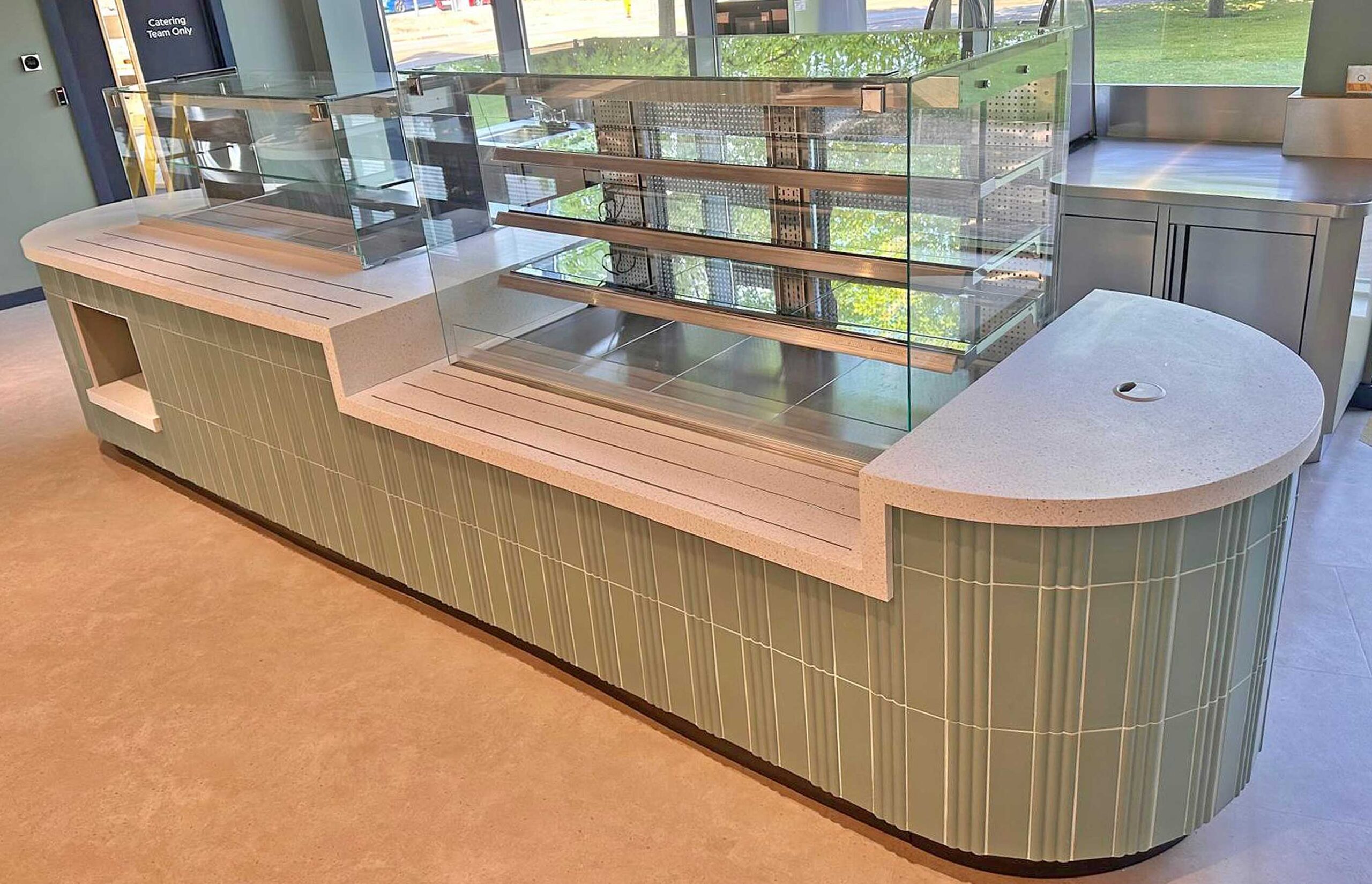

Self Help (Drop In) Cold Patisserie (Rear Doors) (HT)

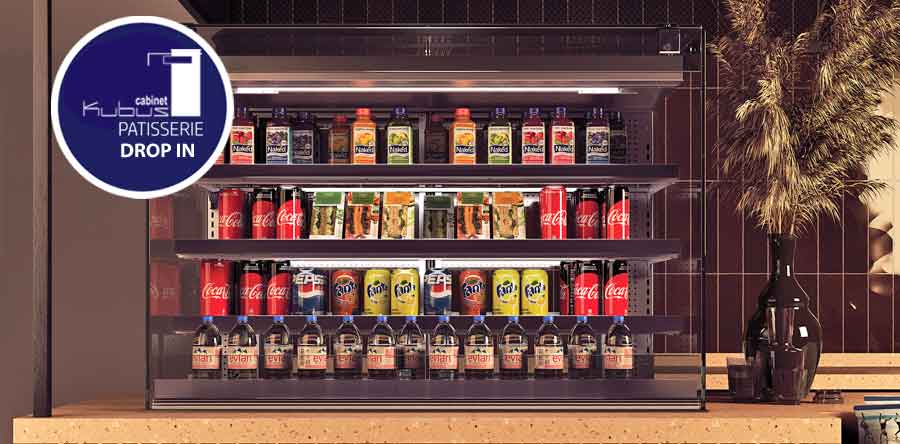

Visual

Self Help (Drop In) Cold Patisserie (Rear Doors) (HT)
Features

- Drop in self help chilled patisserie, open fronted with rear loading to four display levels.
- Available in 600/ 900/ 1200/ 1500 & 1800mm (w) x 750mm(d) sizes.
- Chilled by energy efficient hydrocarbon refrigeration (HT).
- Refrigeration condensing unit is housed in an underslung self contained cradle.
- Integral fan blown refrigerated air curtain system.
- 3 tier cold toughened glass shelving, adjustable in both height and angle, for increased product display area.
- Additional chilled steel deck area for further worktop height merchandising.
- Low energy diffused LED lighting to each display level.
- Self help application, ideal for the display of wrapped chilled produce & drinks.
- Integral automatic condensate water evaporation tray – eliminates the need for site drainage.

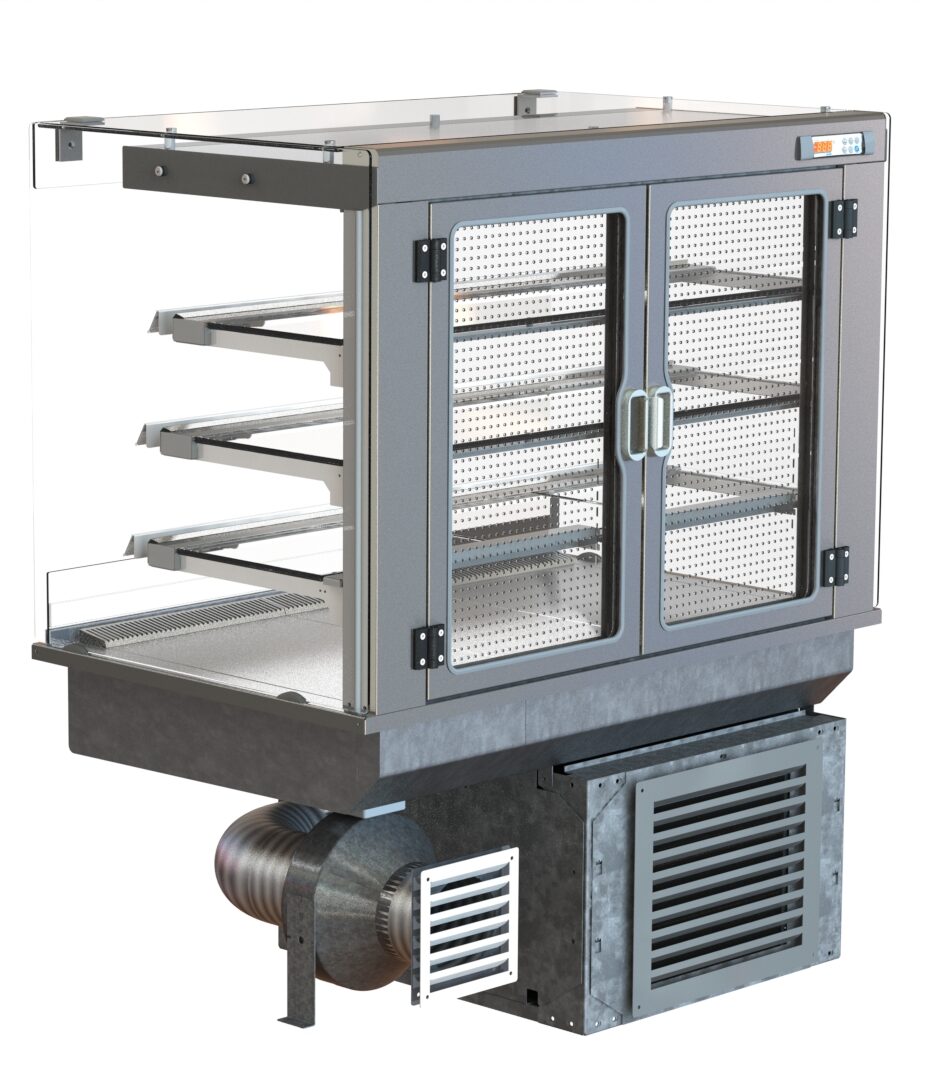

- Rear hinged double glazed doors offer easier restocking access and visual stock checking.
- Rectangular glass profile is designed to compliment other drop in displays and freestanding patisserie units within the Kubus range.
- Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
- Features eye-level gantry mounted digital temperature display and control panel (operator side).
- Superstructure finished in bright polished, satin finish steel with side glass profile.
- Canopy head also finished in top glass.
- 24-hour operation as standard.
- Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
- Modular removable deck plate system for easier cleaning and maintenance.
- Features ‘tamper proof’ locking temperature control facility.
- 40mm tall ‘point of sale’ display/ ticket strips are fitted as standard.
- Standard refrigeration airflow – Air in to customer side/ air out to operator side.
- Optional (factory fit) fan assisted airflow kit ‘PAF2’ – Airflow in/ out to operator side.
- Optional (factory fit) fan assisted airflow kit ‘PAF1’ – Airflow in/ out to customer side.
- Optional night blind – factory fit only.
Self Help (Drop In) Cold Patisserie (Rear Doors) (HT)
Dimensions

|
Model
|
KPC6HTD
|
KPC9HTD
|
KPC12HTD
|
KPC15HTD
|
KPC18HTD
|
Capacity (Litres)
|
162
|
247
|
331
|
389
|
469
|
Length (mm)
|
600
|
900
|
1200
|
1500
|
1800
|
Depth (mm)
|
750
|
750
|
750
|
750
|
750
|
Height Above Worktop (mm)
|
843
|
843
|
843
|
843
|
843
|
Depth Below Worktop (mm)
|
565
|
565
|
565
|
565
|
565
|
Weight (uncrated) (kg)
|
141
|
188
|
240
|
294
|
346
|
Power (kW)
|
1.32
|
1.54
|
1.68
|
1.71
|
1.76
|
Total Heat Rejection
@ 32°C Ambient (watts)
|
1340
|
2010
|
2317
|
2317
|
2489
|
Standard Airflow:
In Customer/ Air Out
Operator Side.
|
Included
|
Included
|
Included
|
Included
|
Included
|
Optional Airflow Kit Fan
+ Power (kW):
|
0.07
|
0.07
|
0.07
|
0.07
|
0.07
|
Electrical Supply
|
13A 230V
|
13A 230V
|
13A 230V
|
13A 230V
|
13A 230V
|
Self Help Cold Patisserie (Rear Doors) (HT)
Options

|
Options
|
KPC6HTD
|
KPC9HTD
|
KPC12HTD
|
KPC15HTD
|
KPC18HTD
|
Fan Assisted Airflow Kit – In/ Out Operator Side
(Factory Fit Only).
|
PAF2
|
PAF2
|
PAF2
|
PAF2
|
PAF2
|
Fan Assisted Airflow Kit – In/ Out Customer Side
(Factory Fit Only).
|
PAF1
|
PAF1
|
PAF1
|
PAF1
|
PAF1
|
Night Blind:
(Factory Fit Only).
|
KNB6
|
KNB9
|
KNB12
|
KNB15
|
KNB18
|
Gantry Controls To Customer Side:
(Operator Side Standard ).
|
KCUSP6
|
KCUSP9
|
KCUSP12
|
KCUSP15
|
KCUSP18
|
|

Self Help (Drop In) Cold Patisserie (Rear Doors) (HT)
Food Display Types

Drinks |(Deck Area): Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.
Food (Deck And Shelving Area): Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.

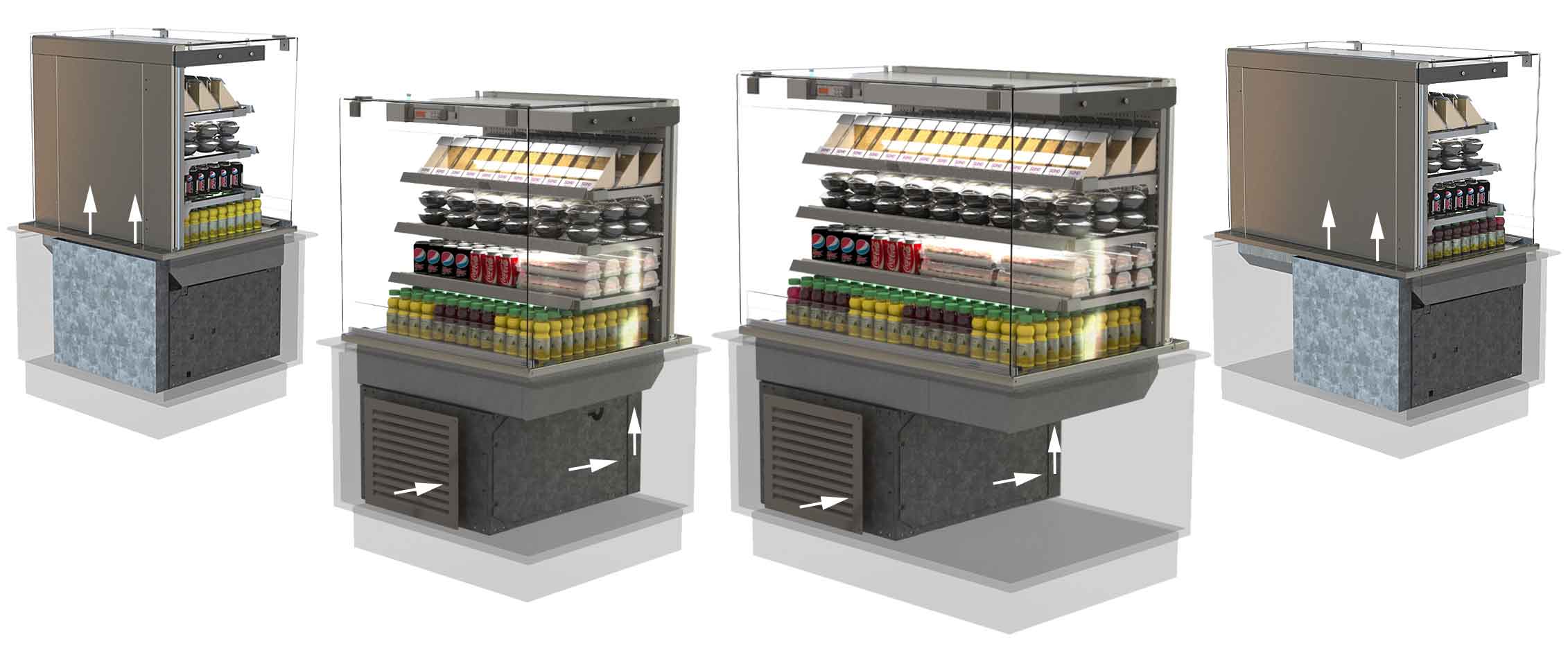

General Layout Drawings.
Kubus Self Help (Drop In) Cold Patisserie (Rear Doors) (HT).

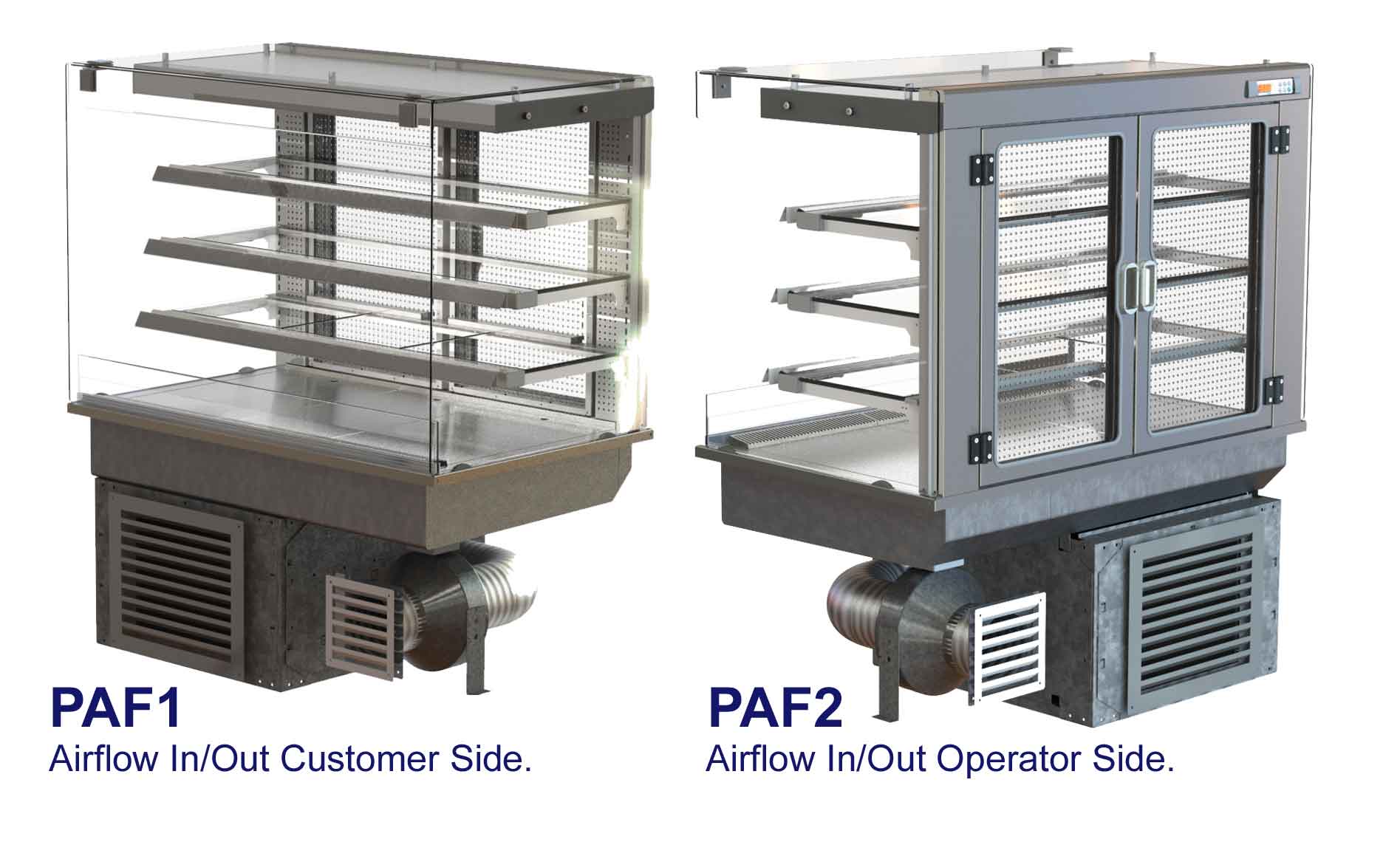

Option: Patisserie Airflow In/Out Operator Side (PAF2)
Option: Patisserie Airflow In/Out Customer Side (PAF1)
Fitting Instructions.
Kubus Self Help (Drop In) Cold Patisserie (Rear Doors) (HT).
Spec Sheet, User Manual, Energy Facts.
Kubus Self Help (Drop In) Cold Patisserie (Rear Doors) (HT).
Ass. Serve (Drop In) Cold Patisserie (Rear Door) (HT)

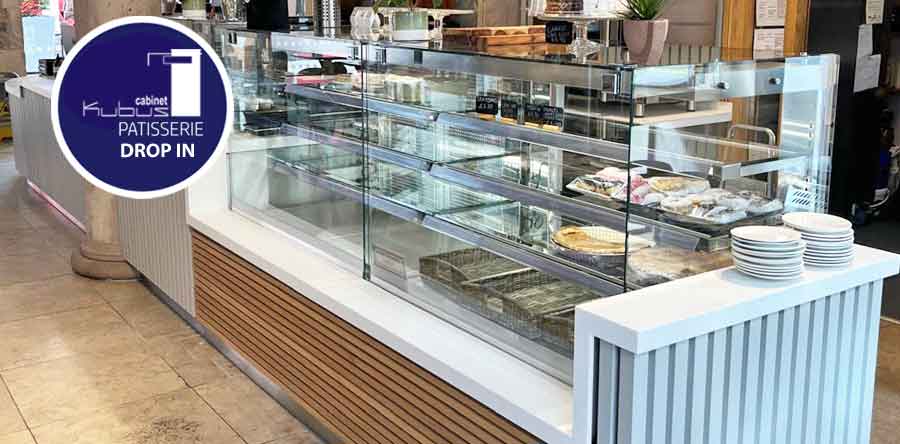

Visual

Ass. Serve (Drop In) Cold Patisserie (Rear Door) (HT)
Features.

- Drop in assisted serve chilled patisserie, closed front with rear loading to four display levels.
- Available in 600/ 900/ 1200/ 1500 & 1800mm (w) x 750mm(d) sizes.
- Chilled by energy efficient hydrocarbon refrigeration (HT).
- Refrigeration condensing unit is housed in an underslung self contained cradle.
- Integral fan blown refrigerated air curtain system.
- 3 tier cold toughened glass shelving, adjustable in both height and angle, for increased product display area.
- Additional chilled steel deck area for further worktop height merchandising.
- Low energy diffused LED lighting to each display level.
- Assisted serve application, ideal for the display of wrapped & unwrapped chilled produce & drinks.
- Full height front glass, mounted on locking tilt hinge – pulls forward easier cleaning.
- Stainless steel canopy, full height front & side glass for assisted service/ serve over presentation.
- Integral automatic condensate water evaporation tray – eliminates the need for site drainage.
- Rear hinged double glazed doors – for restocking access and visual stock checking.
- Rectangular glass profile is designed to compliment other drop in displays and freestanding patisserie units within the Kubus range.
- Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
- Features eye-level gantry mounted digital temperature display and control panel (operator side).
- Canopy head also finished in top glass.
- 24-hour operation as standard.
- Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
- Modular removable deck plate system for easier cleaning and maintenance.
- Features ‘tamper proof’ temperature control facility.
- 40mm tall ‘point of sale’ display/ ticket strips are fitted as standard.
- Standard refrigeration airflow – Air in to customer side/ air out to operator side.
- Optional (factory fit) fan assisted airflow kit ‘PAF2’ – Airflow in/ out to operator side.
- Optional (factory fit) fan assisted airflow kit ‘PAF1’ – Airflow in/ out to customer side.
- Optional night blind – factory fit only.
Ass. Serve (Drop In) Cold Patisserie (Rear Door) (HT)
Dimensions.

|
Model
|
KPC6ASHTD
|
KPC9ASHTD
|
KPC12ASHTD
|
KPC15ASHTD
|
KPC18ASHTD
|
Capacity (Litres)
|
162
|
247
|
331
|
389
|
469
|
Length (mm)
|
600
|
900
|
1200
|
1500
|
1800
|
Depth (mm)
|
750
|
750
|
750
|
750
|
750
|
Height Above Worktop (mm)
|
843
|
843
|
843
|
843
|
843
|
Depth Below Worktop (mm)
|
565
|
565
|
565
|
565
|
565
|
Weight (uncrated) (kg)
|
144
|
191
|
243
|
298
|
349
|
Power (kW)
|
1.17
|
1.36
|
1.57
|
1.71
|
1.76
|
Total Heat Rejection
@ 32°C Ambient (watts)
|
1080
|
1340
|
2010
|
2317
|
2489
|
Standard Airflow:
In Customer/ Air Out
Operator Side.
|
Included
|
Included
|
Included
|
Included
|
Included
|
Optional Airflow Kit Fan
+ Power (kW):
|
0.07
|
0.07
|
0.07
|
0.07
|
0.07
|
Electrical Supply
|
13A 230V
|
13A 230V
|
13A 230V
|
13A 230V
|
13A 230V
|
Ass. Serve (Drop In) Cold Patisserie (Rear Door) (HT)
Options

|
Options
|
KPC6ASHTD
|
KPC9ASHTD
|
KPC12ASHTD
|
KPC15ASHTD
|
KPC18ASHTD
|
Fan Assisted Airflow Kit – In/ Out Operator Side
(Factory Fit Only).
|
PAF2
|
PAF2
|
PAF2
|
PAF2
|
PAF2
|
Fan Assisted Airflow Kit – In/ Out Customer Side
(Factory Fit Only).
|
PAF1
|
PAF1
|
PAF1
|
PAF1
|
PAF1
|
|

Ass. Serve (Drop In) Cold Patisserie (Rear Door) (HT)
Food Display Types.

Drinks (Deck Area): Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.
Food (Deck And Shelving Area): Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.

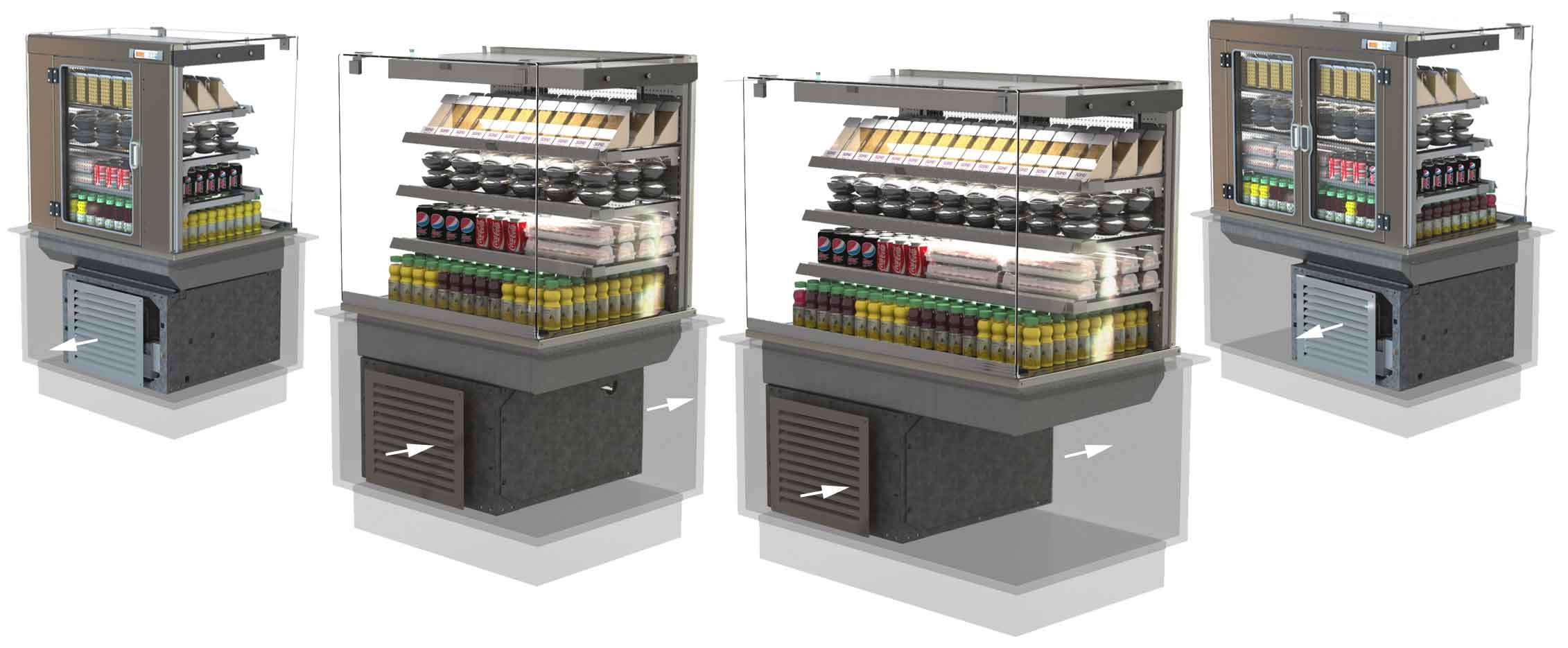

General Layout Drawings.
Kubus Ass. Serve (Drop In) Cold Patisserie (Rear Door) (HT)
Option: Patisserie Airflow In/Out Operator Side (PAF2)
Option: Patisserie Airflow In/Out Customer Side (PAF1)
Fitting Instructions.
Spec Sheet, User Manual, Energy Facts.
Kubus Ass. Serve (Drop In) Cold Patisserie (Rear Doors) (HT).
Self Help (Drop In) Cold Patisserie (Fixed Back) (HT)
Visual

Self Help (Drop In) Cold Patisserie (Fixed Back) (HT)
Features.

- Drop in self help chilled patisserie, open fronted with fixed rear back panel, front loading to four display levels.
- Wall sited application.
- Available in 600/ 900/ 1200/ 1500 & 1800mm (w) x 750mm (+75mm) (d) sizes.
- Chilled by energy efficient hydrocarbon refrigeration (HT).
- Refrigeration condensing unit is housed in an underslung self contained cradle.
- Rear cradle mounted flue and worktop mounted grille – to expel air to rear of display.
- Integral fan blown refrigerated air curtain system.
- 3 tier cold toughened glass shelving, adjustable in both height and angle, for increased product display area.
- Additional chilled steel deck area for further worktop height merchandising.
- Low energy diffused LED lighting to each display level.
- Self help wall sited application, ideal for the display of wrapped chilled produce & drinks.
- Integral automatic condensate water evaporation tray – eliminates the need for site drainage.
- Rear perforated steel back panel.
- Rectangular glass profile is designed to compliment other drop in displays and freestanding patisserie units within the Kubus range.
- Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
- Features eye-level gantry mounted digital temperature display and control panel (customer side).
- Superstructure finished in bright polished, satin finish steel with side glass profile.
- Canopy head also finished in top glass.
- 24-hour operation as standard.
- Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
- Modular removable deck plate system for easier cleaning and maintenance.
- Features ‘tamper proof’ temperature control facility.
- 40mm tall ‘point of sale’ display/ ticket strips are fitted as standard.
- Standard refrigeration airflow – Air in to customer side/ air out to operator side
(rear cradle flue & worktop grille supplied).
- Optional (factory fit) fan assisted airflow kit ‘PAF2’ – Airflow in/ out to operator side.
- Optional (factory fit) fan assisted airflow kit ‘PAF1’ – Airflow in/ out to customer side.
- Optional night blind – factory fit only.
Self Help (Drop In) Cold Patisserie (Fixed Back) (HT)
Dimensions.

|
Model
|
KPC6FBHTD
|
KPC9FBHTD
|
KPC12FBHTD
|
KPC15FBHTD
|
KPC18FBHTD
|
Capacity (Litres)
|
162
|
247
|
331
|
389
|
469
|
Length (mm)
|
600
|
900
|
1200
|
1500
|
1800
|
Depth (mm) +75mm rear air outlet
flue & worktop mounted grille.
|
750 (+75)
|
750 (+75)
|
750 (+75)
|
750 (+75)
|
750 (+75)
|
Height Above Worktop (mm)
|
843
|
843
|
843
|
843
|
843
|
Depth Below Worktop (mm)
|
565
|
565
|
565
|
565
|
565
|
Weight (uncrated) (kg)
|
141
|
188
|
240
|
294
|
346
|
Power (kW)
|
1.32
|
1.54
|
1.68
|
1.71
|
1.76
|
Total Heat Rejection
@ 32°C Ambient (watts)
|
1340
|
2010
|
2317
|
2317
|
2489
|
Standard Airflow:
In Customer/ Air Out
Operator Side.
|
Included
|
Included
|
Included
|
Included
|
Included
|
Optional Airflow Kit Fan
+ Power (kW):
|
0.07
|
0.07
|
0.07
|
0.07
|
0.07
|
Electrical Supply
|
13A 230V
|
13A 230V
|
13A 230V
|
13A 230V
|
13A 230V
|
Self Help Cold Patisserie (Fixed Back) (HT)
Options

|
Options
|
KPC6FBHTD
|
KPC9FBHTD
|
KPC12FBHTD
|
KPC15FBHTD
|
KPC18FBHTD
|
Fan Assisted Airflow Kit – In/ Out Operator Side
(Factory Fit Only)
Fixed Back Unit Depth Is Less 75mm (= 750mm).
|
PAF2
|
PAF2
|
PAF2
|
PAF2
|
PAF2
|
Fan Assisted Airflow Kit – In/ Out Customer Side
(Factory Fit Only)
Fixed Back Unit Depth Is Less 75mm (= 750mm).
|
PAF1
|
PAF1
|
PAF1
|
PAF1
|
PAF1
|
Night Blind:(Factory Fit Only).
|
KNB6FB
|
KNB9FB
|
KNB12FB
|
KNB15FB
|
KNB18FB
|
Gantry Controls To Operator Side:
(Customer Side Standard).
|
KCOPP6
|
KCOPP9
|
KCOPP12
|
KCOPP15
|
KCOPP18
|
|
Self Help (Drop In) Cold Patisserie (Fixed Back) (HT)
Food Display Types.

Drinks (Deck Area): Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.
Food (Deck And Shelving Area): Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.
General Layout Drawings.

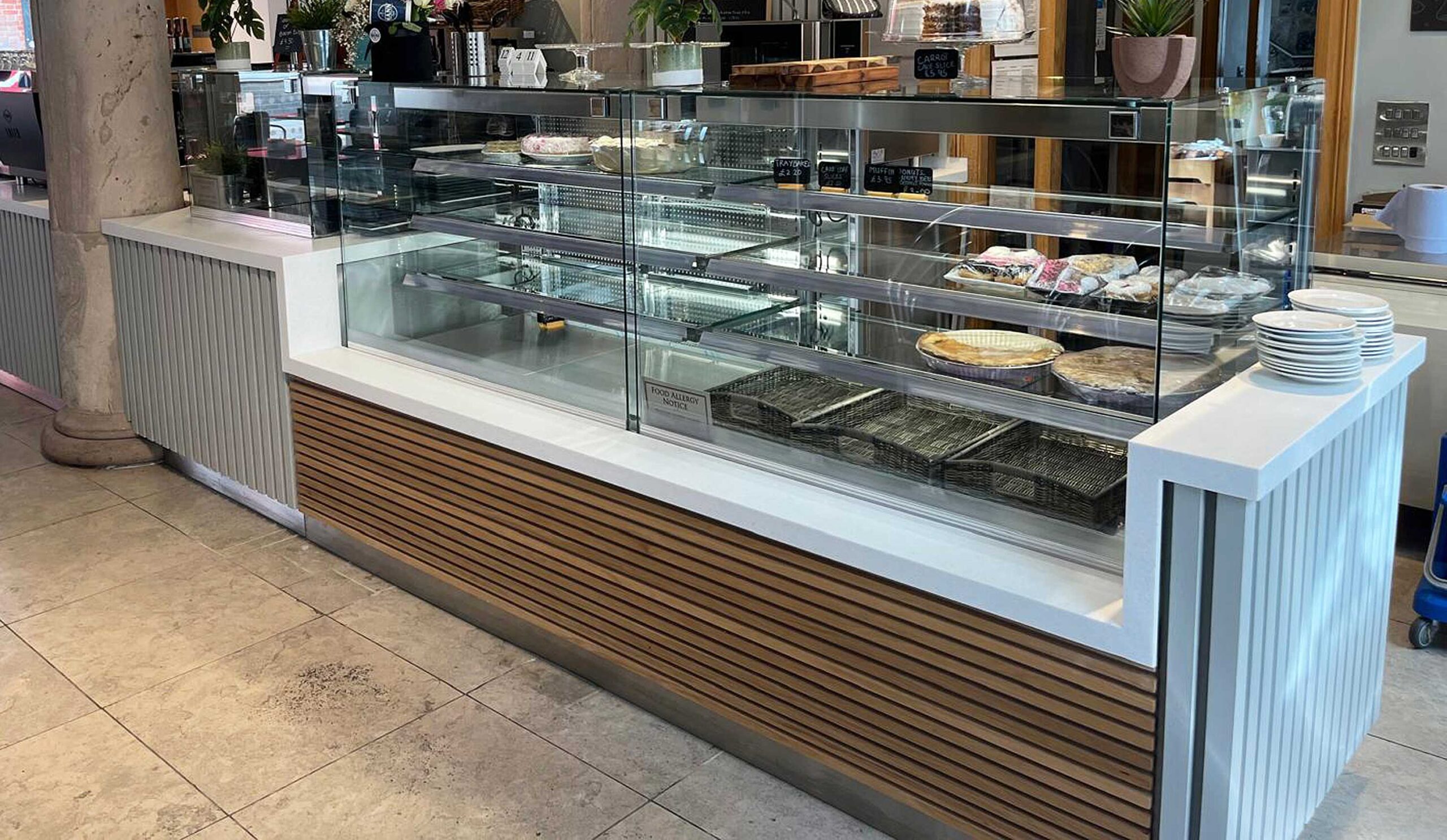

Self Help (Drop In) Cold Patisserie (Fixed Back) (HT).

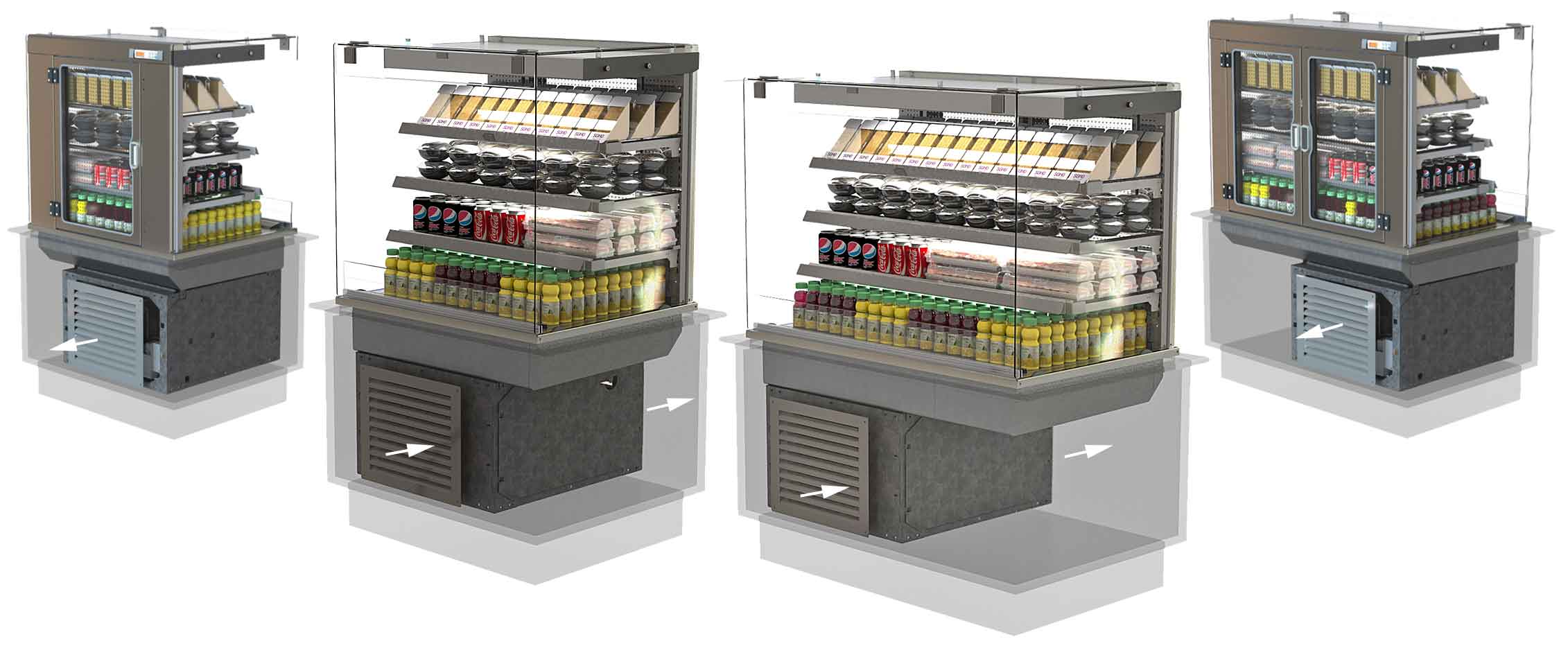

Option: Patisserie Airflow In/Out Operator Side (PAF2)
Option: Patisserie Airflow In/Out Customer Side (PAF1)
Fitting Instructions.
Spec Sheet, User Manual, Energy Facts.
Kubus Self Help (Drop In) Cold Patisserie (Fixed Back) (HT).
.
