Storage Racks
CED’s commercial s/steel tiered shelf racking is ideal for many types of kitchen equipment storage – from utensils to containers. All our storage rack shelving is manufactured from sturdy 430 gd 1.2 thk. s/steel, supported on fully welded 430 gd 1.2 thk. 30mm s/steel box framing.

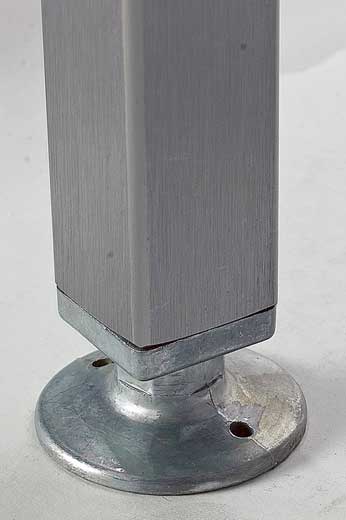

Adjustable-FootEach rack is supplied with adjustable height flanged feet for securing to a finished floor surface. Storage rack shelving can be produced as either solid s/steel construction or as a perforated surface – where ventilation to stored items may be required.

solid-shelf-frame-interfaceStorage Rack (Solid Shelving)
Standard solid shelf storage racks are available in two heights, 1500 mm & 1800 mm high – 1500 mm height racks have 3 tiers of shelving, 1800 mm high racks have 4 tiers of shelving.
The solid shelf rack is available in 900, 1200, 1500, 1800 & 2100 mm lengths, all 540 mm deep.



Storage Rack ( Perforated Shelving) perforated-shelf-close-up-
Standard perforated shelf storage racks are also available in two heights, 1500 mm & 1800 mm high – 1500 mm height racks have 3 tiers of shelving, 1800 mm high racks have 4 tiers of shelving.
The perforated shelf rack is available in 900, 1200, 1500, 1800 & 2100 mm lengths, all 540 mm deep.



Storage Rack Types.

Solid shelf Rack

Storage Rack (Solid Shelving)
Features.
*Optional castor set shown.

solid-shelf-rack-with-casto



  • Commercial s/steel 3 or 4 tiered shelf racking.
  • Solid folded tray shelving constructed in 430 gd 1.2 thk. s/steel.
  • Fully welded construction with 430 gd 1.2 thk. 30mm s/steel box framing.
  • Frame fitted with adjustable height flanged feet for securing to a finished floor surface
  • Available in two heights, 1500 mm & 1800 mm high.
  • 1500 mm height racks have 3 tiers of shelving.
  • 1800 mm high racks have 4 tiers of shelving.
  • Standard rack depth 540 mm.
  • Solid shelf rack is available in 900, 1200, 1500, 1800 & 2100 mm lengths.

Storage Rack (Solid Shelving)
Options.

  • Mobile rack – set of castors (2 no. braked).
  • Non standard rack sizes available on request.

Storage Rack (Solid Shelving)
Dimensions

Length

Depth

Height

No. Of Tiers

900 mm

540 mm

1500 mm

3 Tier

1200 mm

540 mm

1500 mm

3 Tier

1500 mm

540 mm

1500 mm

3 Tier

1800 mm

540 mm

1500 mm

3 Tier

2100 mm

540 mm

1500 mm

3 Tier

900 mm

540 mm

1800 mm

4 Tier

1200 mm

540 mm

1800 mm

4 Tier

1500 mm

540 mm

1800 mm

4 Tier

1800 mm

540 mm

1800 mm

4 Tier

2100 mm

540 mm

1800 mm

4 Tier



Perforated shelf Rack

Storage Rack (Perforated Shelving)
Features.perforated-shelf-rack

  • Commercial s/steel 3 or 4 tiered shelf racking.
  • Perforated folded tray shelving constructed in 430 gd 1.2 thk. s/steel.
  • Fully welded construction with 430 gd 1.2 thk. 30mm s/steel box framing.
  • Frame fitted with adjustable height flanged feet for securing to a finished floor surface
  • Available in two heights, 1500 mm & 1800 mm high.
  • 1500 mm height racks have 3 tiers of shelving.
  • 1800 mm high racks have 4 tiers of shelving.
  • Standard rack depth 540 mm.
  • Perforated shelf rack is available in 900, 1200, 1500, 1800 & 2100 mm lengths.

Storage Rack (Perforated Shelving)
Options.

  • Mobile rack – set of castors (2 no. braked).
  • Non standard rack sizes available on request.

Storage Rack (Perforated Shelving)
Dimensions

Length

Depth

Height

No. Of Tiers

900 mm

540 mm

1500 mm

3 Tier

1200 mm

540 mm

1500 mm

3 Tier

1500 mm

540 mm

1500 mm

3 Tier

1800 mm

540 mm

1500 mm

3 Tier

2100 mm

540 mm

1500 mm

3 Tier

900 mm

540 mm

1800 mm

4 Tier

1200 mm

540 mm

1800 mm

4 Tier

1500 mm

540 mm

1800 mm

4 Tier

1800 mm

540 mm

1800 mm

4 Tier

2100 mm

540 mm

1800 mm

4 Tier



Downloads

General Layout Drawings
Storage Racks






Storage Racks Options.

Mobile Rack – Set Of Castors (2 No. Braked).

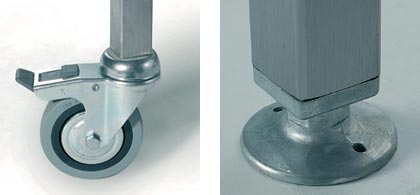

In lieu of the standard flanged adjustable foot supplied, both the solid shelf or perforated shelf versions of the storage rack can be fitted with a set of castors to make the rack mobile. Two of the castors are braked.

Non Standard Rack Sizes Available On Request.

In addition to the standard rack sizes available, CED can produce bespoke size racks to suit a particular requirement.
