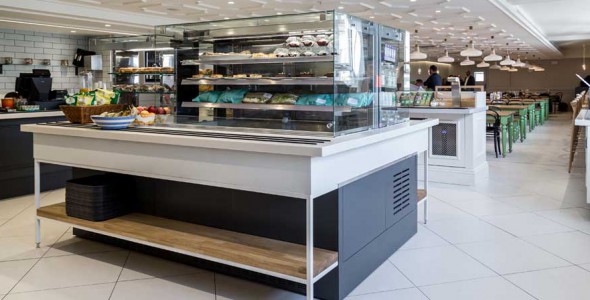

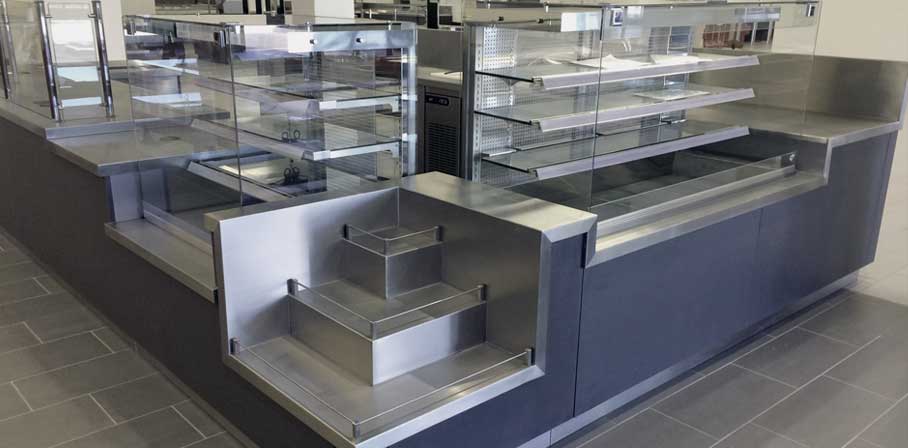

CED Kubus drop in displays are a deco cubist companion to the classic elliptical Designline styling. Kubus displays optimise a clean rectilinear design perspective, enhanced by durable chrome plated  aluminium superstructures and lighting ducts, all enclosed within toughened flat glass hoods, sneeze screens and side panels.

Visual

Self Help Cold Multideck (Rear Doors) (HT).

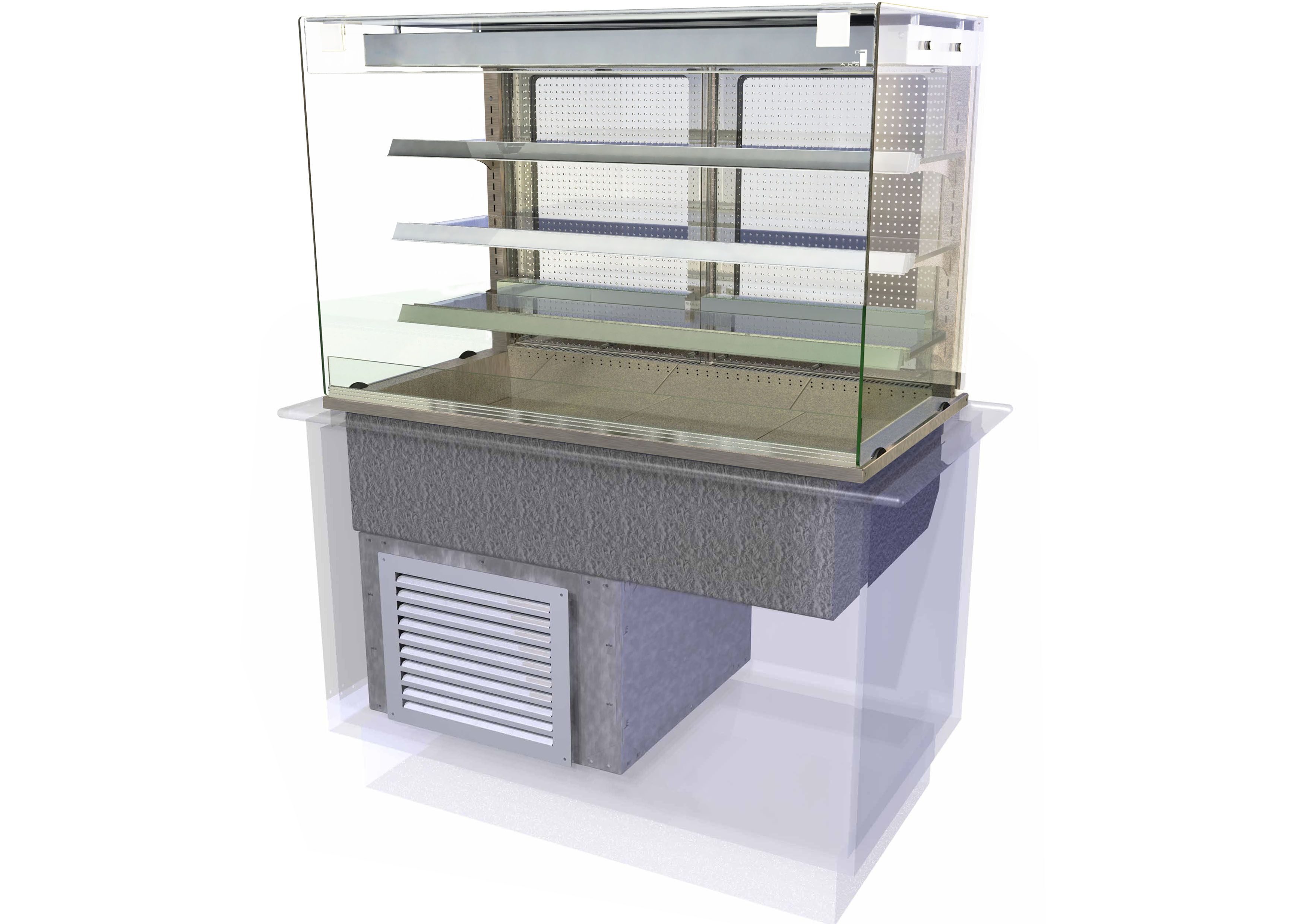

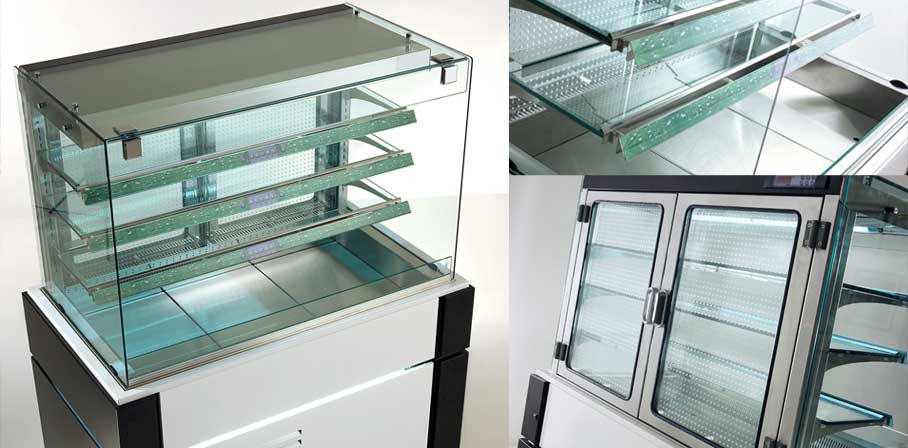

Kubus Cold Multideck (Rear Doors)



Features

Self Help Cold Multideck (Rear Doors) (HT).
Features

  • Rectilinear flat toughened glass profile is designed to compliment other units within the Kubus range.
  • Cold multideck display features integral energy efficient chilled hydrocarbon refrigeration (HT).
  • Self help application.
  • 3 tier toughened cold glass shelving, adjustable in both height and angle, for increased product display area.
  • Additional cold well area typically used as bottle storage.
  • Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
  • Features eye-level gantry mounted digital temperature display and control panel (operator side).
  • Product illumination is from diffused LED lighting (4000 Kelvin) in a rectangular profile gantry.
  • Integral automatic condensate water evaporation eliminates the need for site drainage.
  • Rear hinged double glazed doors offer easier restocking access and visual stock checking.
  • Superstructure in bright polished steel and aluminium profile.
  • 24-hour operation as standard.
  • Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • Refrigeration condensing unit is housed in an underslung self contained cradle.
  • Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
  • Modular removable deck plate system for easier cleaning and maintenance.
  • Features ‘tamper proof’ temperature control facility.
  • 40mm tall ‘point of sale’ display/ ticket strips are fitted as standard.





Food Types

Self Help Cold Multideck (Rear Doors) (HT).
Food Display Types.



Drinks (Deck Area): Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Deck and Shelving Area): Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.



Dimensions

Self Help Cold Multideck (Rear Doors) (HT).
Dimensions.

Model

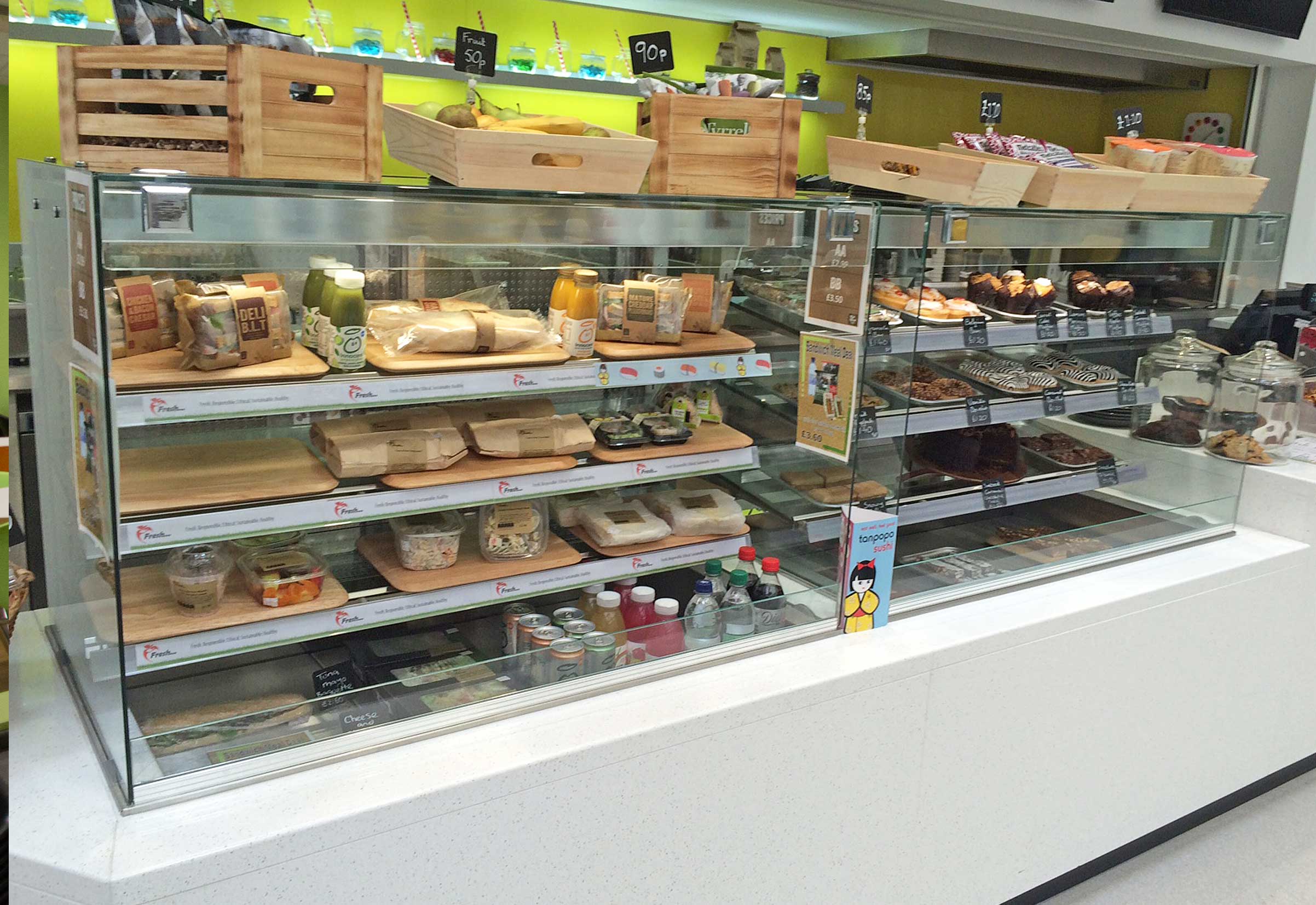

KMDR2HT

KMDR3HT

KMDR4HT

KMDR5HT

GN Size

2/1 GN

3/1 GN

4/1 GN

5/1 GN

Storage Capacity (Litres)

176

272

361

436

Length (mm)

825

1175

1525

1875

Depth (mm)

660

660

660

660

Height above worktop (mm)

775

775

775

775

Depth below worktop (mm)

677

677

677

677

Weight (Uncrated) (kg)

150

170

212

240

Power (kW)

1.65

1.73

1.73

2.2

Total Heat Rejection
@ 32°C Ambient (watts)

2004

2235

2235

2235

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V



  • Control panel to ‘operator side’ of gantry.
  • (HT) = 290 Refrigerant.





Downloads

General Layout Drawings.
Kubus Self Help Cold Multideck (Rear Doors) (HT).





General Layout Drawings.
Non Standard Airflow Options (Cold Displays).



Fitting Instructions & User Manual.
Kubus Self Help Cold Multideck (Rear Doors) (HT).





AA-KUBUS COLD BANNER

Visual

Assisted Service Cold Multideck (Rear Doors) (HT).

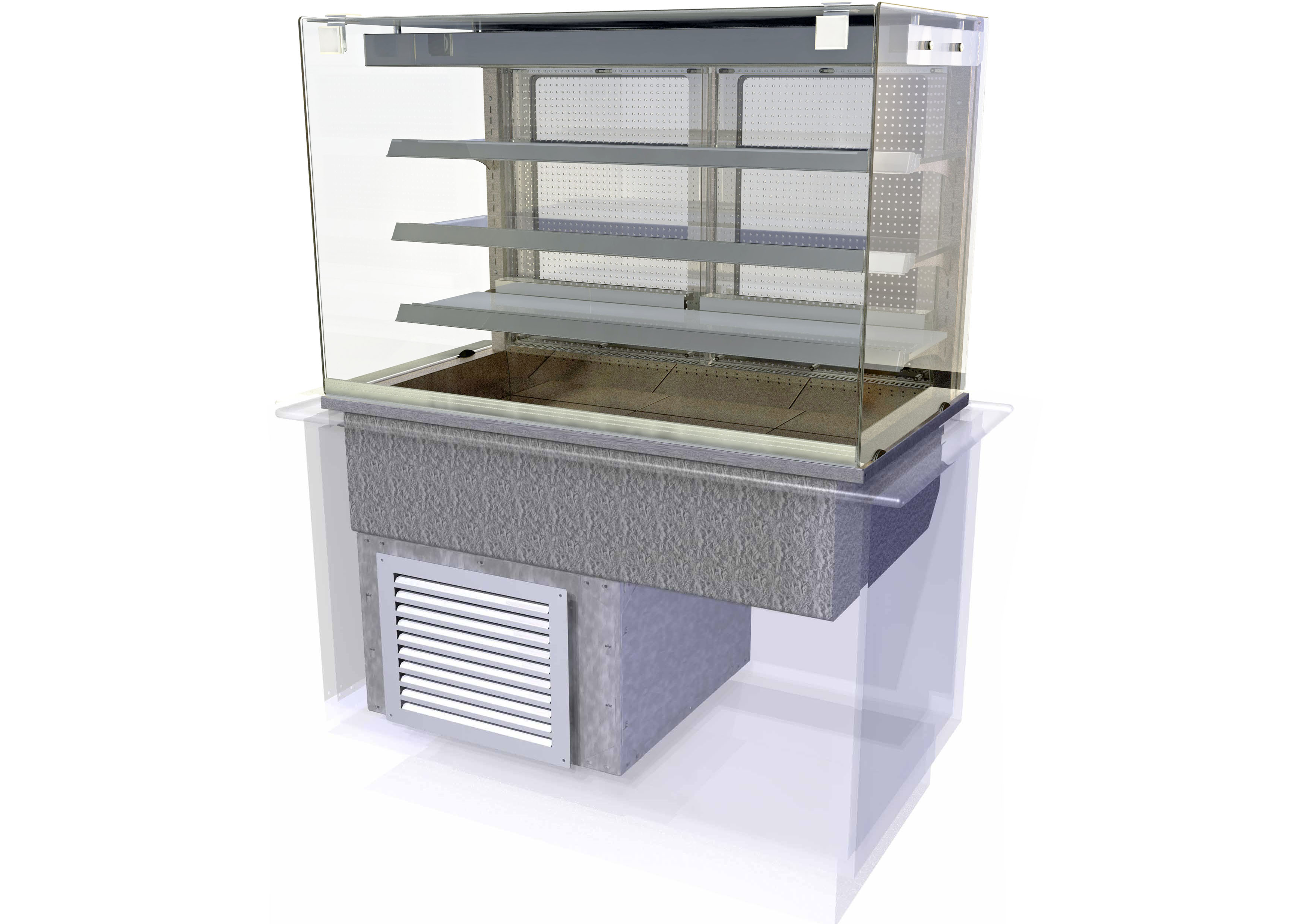

Kubus Cold Multideck (Assisted Service - Rear Doors)



Features

Assisted Service Cold Multideck (Rear Doors) (HT).
Features.

  • Rectilinear flat toughened glass profile is designed to compliment other units within the Kubus range.
  • Full height, hinged, glass front screen.
  • Cold multideck display features integral energy efficient chilled hydrocarbon refrigeration (HT).
  • Assisted service application.
  • 3 tier toughened cold glass shelving, adjustable in both height and angle, for increased product display area.
  • Additional cold well area typically used as bottle storage.
  • Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
  • Features eye-level gantry mounted digital temperature display and control panel (operator side).
  • Product illumination is from diffused LED lighting (4000 Kelvin) in a rectangular profile gantry.
  • Integral automatic condensate water evaporation eliminates the need for site drainage.
  • Rear hinged double glazed doors offer easier restocking access and visual stock checking.
  • Superstructure in bright polished steel and aluminium profile.
  • 24-hour operation as standard.
  • Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • Refrigeration condensing unit is housed in an underslung self contained cradle.
  • Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
  • Modular removable deck plate system for easier cleaning and maintenance.
  • Features ‘tamper proof’ temperature control facility.
  • 40mm tall ‘point of sale’ display/ ticket strips are fitted as standard.


Food Types

Assisted Service Cold Multideck (Rear Doors) (HT).
Food Display Types.



Drinks (Deck Area):  Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Deck and Shelving Area): Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.



Dimensions

Assisted Service Cold Multideck (Rear Doors) (HT).
Dimensions.

Model

KMDR2ASHT

KMDR3ASHT

KMDR4ASHT

KMDR5ASHT

GN Size

2/1 GN

3/1 GN

4/1 GN

5/1 GN

Storage Capacity (Litres)

176

272

361

436

Length (mm)

825

1175

1525

1875

Depth (mm)

660

660

660

660

Height above worktop (mm)

775

775

775

775

Depth below worktop (mm)

677

677

677

677

Weight (Uncrated) (kg)

160

180

222

249

Power (kW)

1.75

1.74

1.82

2.2

Total Heat Rejection
@ 32°C Ambient (watts)

2010

2010

2317

2317

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V



  • Control panel to ‘operator side’ of gantry.
  • (HT) = R290 Refrigerant.


Downloads

General Layout Drawings.
Kubus Assisted Service Cold Multideck (Rear Doors) (HT).



General Layout Drawings.
Non Standard Airflow Options (Cold Displays).



Fitting Instructions & User Manual.
Kubus Assisted Service Cold Multideck (Rear Doors) (HT).




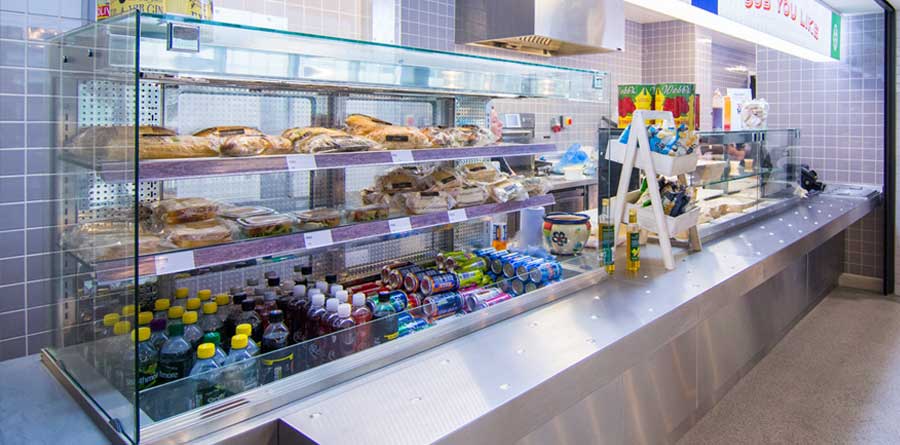

AA-KUBUS COLD BANNER

Visual

Self Help Cold Multideck (Fixed Back) (HT).

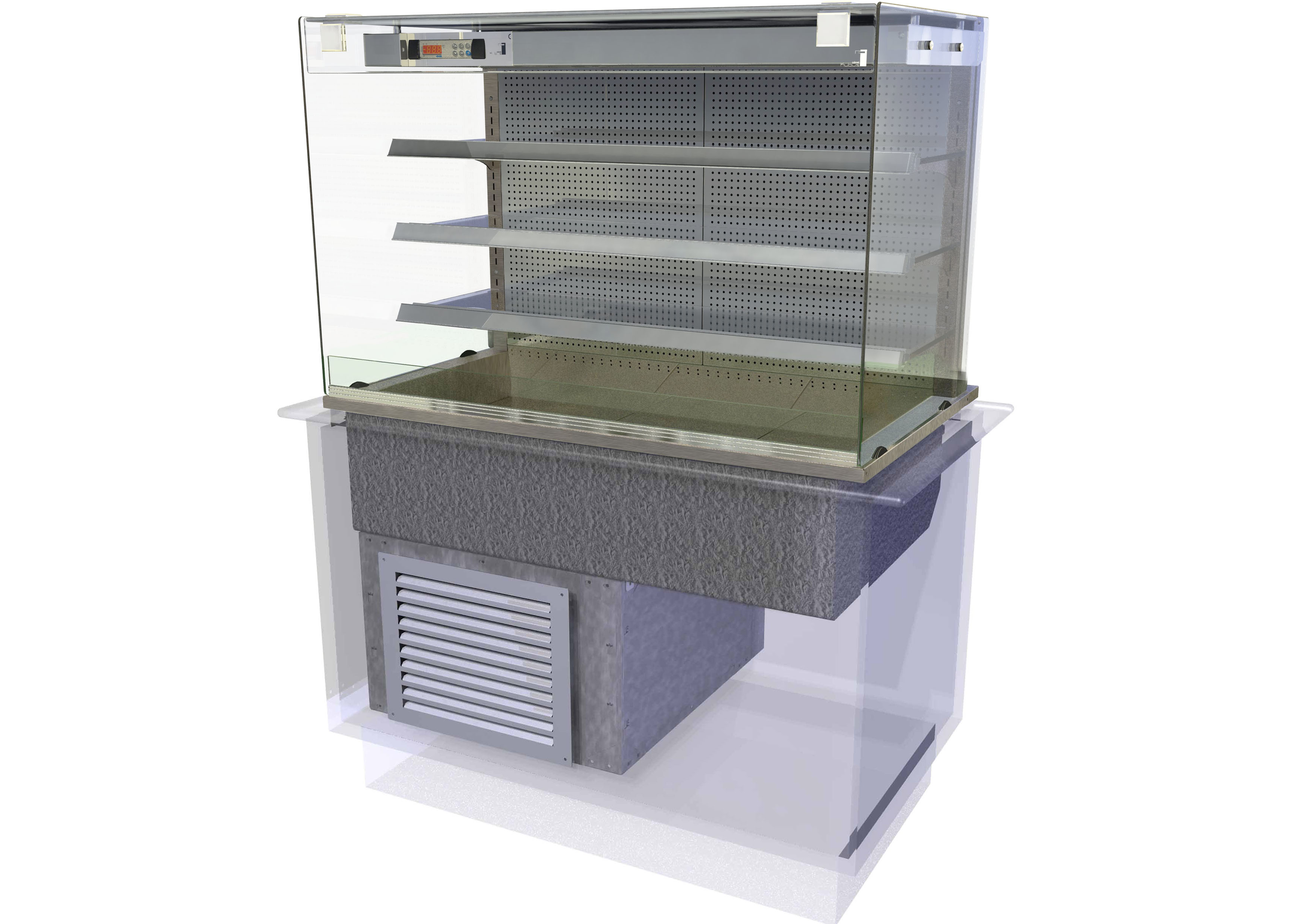

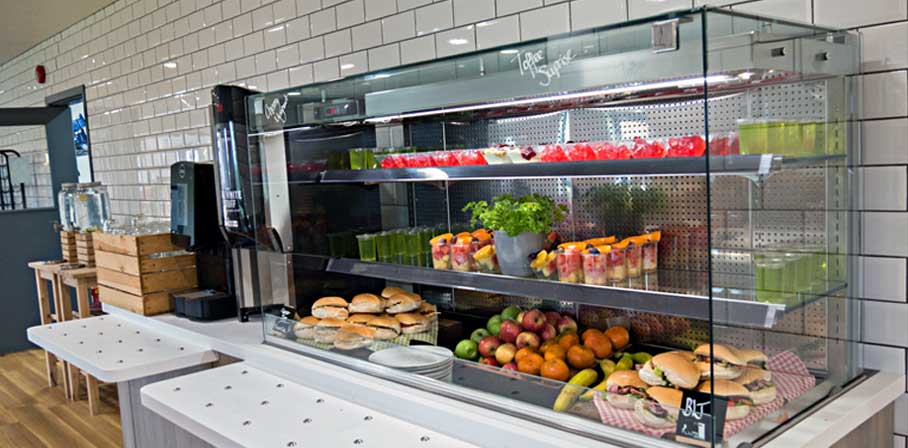

Kubus Cold Multideck (Fixed Back)



Features

Self Help Cold Multideck (Fixed Back) (HT).
Features.

  • Rectilinear flat toughened glass profile is designed to compliment other units within the Kubus range.
  • Cold multideck display features integral energy efficient chilled hydrocarbon refrigeration (HT).
  • Self help application.
  • Bright polished steel rear back panel for typical use in wall sited situation
  • 3 tier toughened cold glass shelving, adjustable in both height and angle, for increased product display area.
  • Additional cold well area typically used as bottle storage.
  • Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
  • Features eye-level gantry mounted digital temperature display and control panel (customer side).
  • Product illumination is from diffused LED lighting (4000 Kelvin) in a rectangular profile gantry.
  • Integral automatic condensate water evaporation eliminates the need for site drainage.
  • Superstructure in bright polished steel and aluminium profile.
  • 24-hour operation as standard.
  • Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • Refrigeration condensing unit is housed in an underslung self contained cradle.
  • Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
  • Modular removable deck plate system for easier cleaning and maintenance.
  • Features ‘tamper proof’ temperature control facility.
  • 40mm tall ‘point of sale’ display/ ticket strips are fitted as standard.


Food Types

Self Help Cold Multideck (Fixed Back) (HT).
Food Display Types.



Drinks (Deck Area):  Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Deck and Shelving Area): Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.



Dimensions

Self Help Cold Multideck (Fixed Back) (HT).
Dimensions.

Model

KMDF2HT

KMDF3HT

KMDF4HT

KMDF5HT

GN Size

2/1 GN

3/1 GN

4/1 GN

5/1 GN

Storage Capacity (Litres)

176

272

361

436

Length (mm)

825

1175

1525

1875

Depth (mm)

660 + 75*

660 + 75*

660 + 75*

660 + 75*

Height above worktop (mm)

775

775

775

775

Depth below worktop (mm)

677

677

677

677

Weight (Uncrated) (kg)

138

158

200

238

Power (kW)

1.65

1.73

1.73

2.2

Total Heat Rejection
@ 32°C Ambient (watts)

2004

2235

2235

2235

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V



  • Complete with 75 mm deep removable rear worktop grill / flue (air out) for use in a wall sited counter.
  • Control panel to ‘customer side’ canopy hood.
  • (HT) = R290 Refrigerant.


Downloads

General Layout Drawings.
Self Help Cold Multideck (Fixed Back) (HT).





General Layout Drawings.
Non Standard Airflow Options (Cold Displays).
Note – Units vent air off though worktop mounted grille as standard



Fitting Instructions & User Manual.
Self Help Cold Multideck (Fixed Back) (HT).




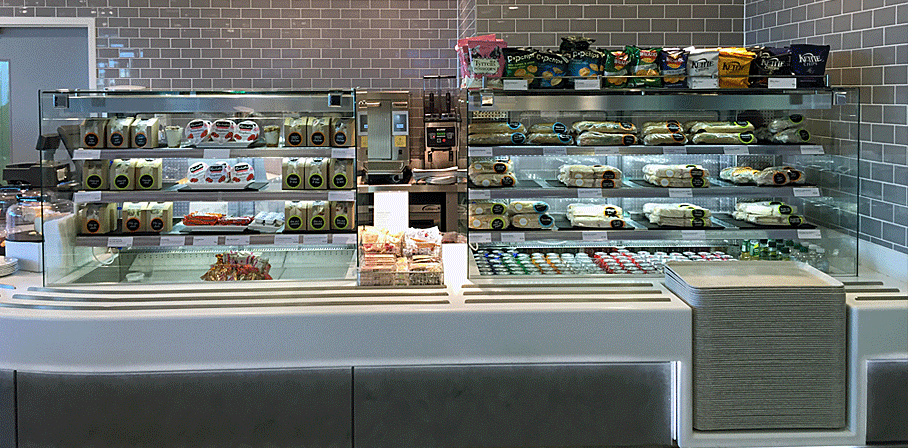

AA-KUBUS COLD BANNERkubus-cold-mdeck-2kubus-multideck-2kubus-cold-mdeck-3
