Quick Service Fabrication. We’ve taken our vast experience producing every conceivable kind of made to measure commercial kitchen fabrication, in order to develop the new Quick Service fabrication range. Quick Service now offers dealers a complete range of CED standard fabrication in the popular sizes you want.
Quick Service 2 Year Warranty. There is no compromise on quality with Quick Service fabrication either, otherwise we couldn’t offer our 2 year warranty as standard.
Quick Service Choice. There’s over 150 of our most popular kitchen equipment products to select from, including single or double bowl sinks, wall & corner cupboards, wall & corner benches, centre benches, heavy duty wall shelving, pan storage & microwave shelving.

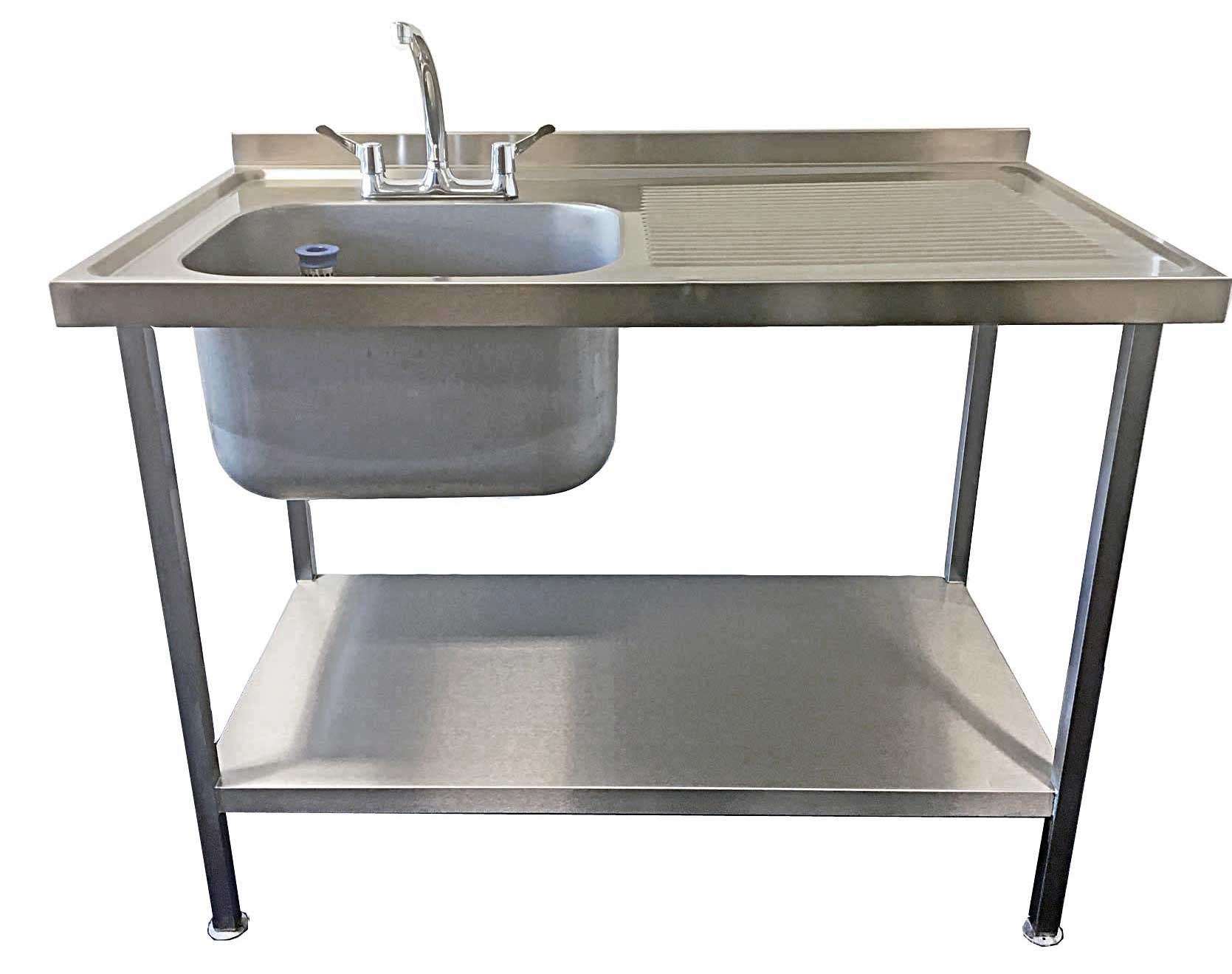

Single/ Double Bowl Sink Units. CED’s Quick Service range of fully welded standard single and double bowl catering sink units are constructed from sturdy 30mm sq box section framing with durable 1.2mm thick 304 gd. steel worktops and 304 gd. bowls as standard.
Each sink unit has a recessed steel drainer worktop section with raised drainer embossed pattern and is fitted with a choice of bowl sizes.
Quick Service sink units come complete with waste fitting and strainer waste for bowl, a 50 mm wall upstand to the worktop & a solid steel storage under-shelf below. The legs of the single or double bowl sink unit are fitted with adjustable height flanged feet, for securing the unit to a floor surface on site. The sink unit legs are inset 100 mm to the rear, to allow for service pipework behind. Taps, waste traps & pipes are not supplied. Standard sink height is 900mm – to suit most kitchen areas.
Basin/Pillar Or Mixer Taps. A range of our optional WRAS approved, high quality ‘lever arm’ type 1/2″ taps are available with these Quick Service products. Select from either basin taps, high neck pillar taps or mixer taps.
Quick Service Sink Unit Types.

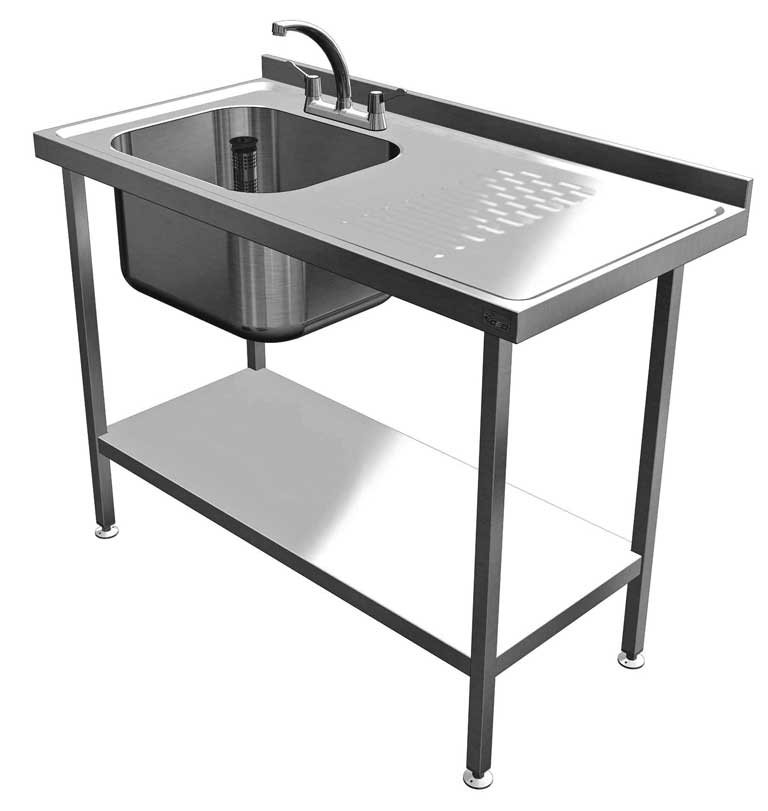

Single Bowl Sink Units.
Visual.
Single Bowl Sink Units.
Specification.
- Free standing commercial s/steel single bowl sink unit with left or right hand or double drainer worktop.
- Worktop constructed in 304 gd (1.2 thk.) s/steel with 304 gd s/steel bowl, supported on 30 x 30 box section 430 gd (1.2 thk.) framework.
- Welded low level 430 gd (1.2 thk.) s/steel storage under-shelf.
- Available in 1200 & 1400mm popular lengths.
- Available in 600, 650 & 700mm depths.
- Standard sink height is 900mm – to suit most kitchen area back counters.
- 600+ 650mm deep models: bowl size: 59 Lt. (500 long x 400 wide x 300 mm deep).
- 700mm deep models: bowl size: 79 Lt. (600 long x 450 wide x 300 mm deep).
- Sound deadening is fitted to bowl base.
- Flat drainer worktop features raised drainer pattern, enabling less surface contact whilst drying dishes etc.
- Drip mould edging surround to worktop area prevents water spillage.
- 50 mm high splashback/wall upstand to rear of worktop.
- Supplied with 38mm (1 1/2″) waste fitting and a 255mm high strainer waste for each bowl.
- Sink unit legs inset 100 mm to the rear, to allow for service pipework behind.
- Frame fitted with flanged levelling feet for mechanical fixing to floor surface.
- Sink height adjustment: -15/+35mm.
- Taps, 38mm (1 1/2″) waste traps & waste pipework are not supplied (Taps Optional).
- Optional Set – 1/2″ High neck pillar taps – supplied loose (lever arm type) WRAS Approved.
- Optional Set – 1/2″ Basin taps – supplied loose (lever arm type) WRAS Approved.
- Optional 1/2″ Mixer tap – supplied loose (lever arm type) WRAS Approved.
1017 downloads

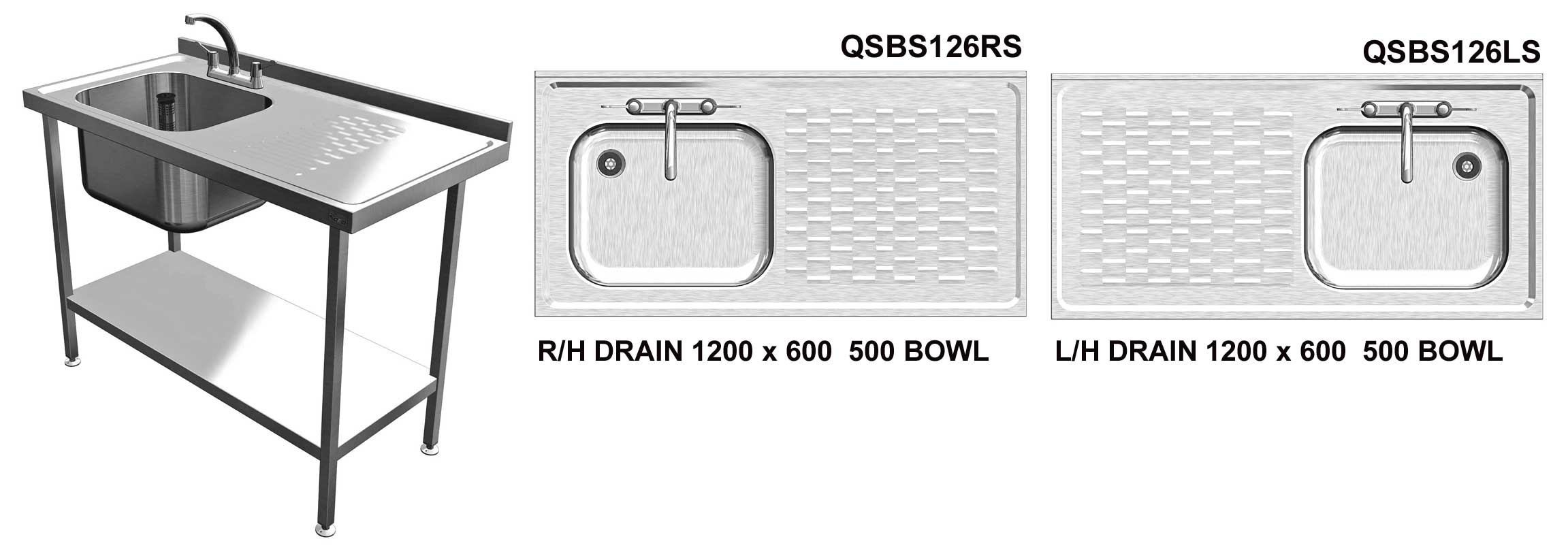

Single Bowl Sink Units.
(600mm deep) Dimensions.
Model Code
|
QSBS
126RS
|
QSBS
126LS
|
Description
|
1200×600
R/H Drain
500 Bowl
|
1200×600
L/H Drain
500 Bowl
|
Length
(mm)
|
1200
|
1200
|
Depth
(mm)
|
600
|
600
|
Worktop Height
(mm)
|
900
|
900
|
Drainer Position
|
Right
|
Left
|
Bowl Size
(mm)
|
500×400
x300
|
500×400
x300
|
Bowl Capacity
(Litres)
|
59
|
59
|
Weight
(uncrated) (kg)
|
29
|
29
|
Height Adjustment
(mm)
|
-15/+35
|
-15/+35
|
Waste Fitting/
Strainer Waste
|
Yes
|
Yes
|
Taps
|
Optional
|
Optional
|
Single Bowl Sink Units.
(650mm deep) Dimensions.
Model Code
|
QSBS
1265LS
|
QSBS
1265RS
|
Description
|
1200×650
L/H Drain
500 Bowl
|
1200×650
R/H Drain
500 Bowl
|
Length (mm)
|
1200
|
1200
|
Depth
(mm)
|
650
|
650
|
Worktop Height
(mm)
|
900
|
900
|
Drainer Position
|
Left
|
Right
|
Bowl Size
(mm)
|
500×400
x300
|
500×400
x300
|
Bowl Capacity
(Litres)
|
59
|
59
|
Weight
(uncrated)(kg)
|
31
|
31
|
|
Height Adjustment
(mm)
|
-15/+35
|
-15/+35
|
Waste Fitting/
Strainer Waste
|
Yes
|
Yes
|
Taps
|
Optional
|
Optional
|

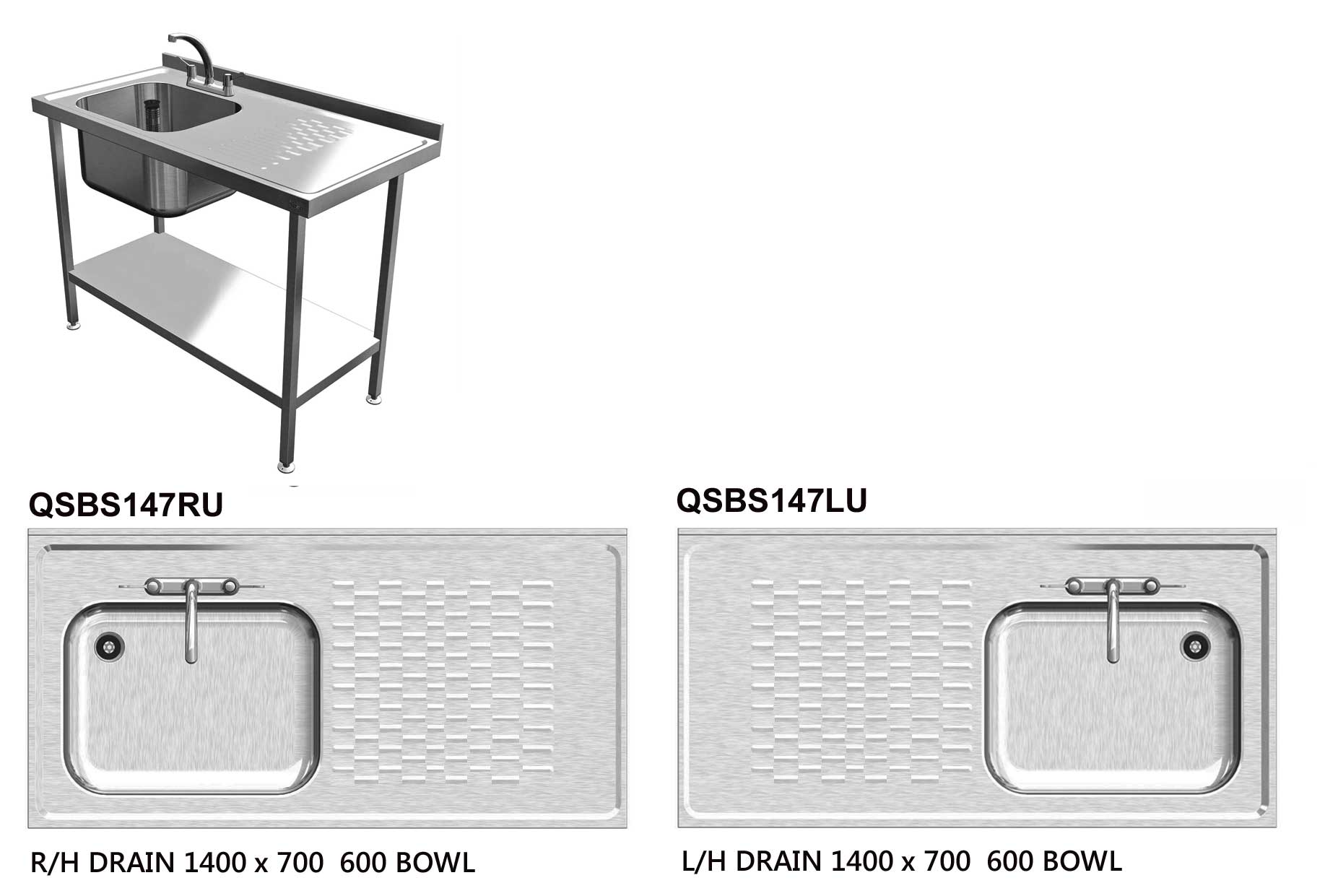

Single Bowl Sink Units.
(700mm deep) Dimensions.
Model
|
QSBS
147RU
|
QSBS
147LU
|
Description
|
1400×700
R/H Drain
600 Bowl
|
1400x700
L/H Drain
600 Bowl
|
Length
(mm)
|
1400
|
1400
|
Depth
(mm)
|
700
|
700
|
Worktop Height
(mm)
|
900
|
900
|
Drainer Position
|
Right
|
Left
|
Bowl Size
(mm)
|
600×450
x300
|
600×450
x300
|
Bowl Capacity
(Litres)
|
79
|
79
|
Weight
(uncrated)(kg)
|
37
|
37
|
Height Adjustment
(mm)
|
-15/+35
|
-15/+35
|
Waste Fitting/
Strainer Waste
|
Yes
|
Yes
|
Taps
|
Optional
|
Optional
|
Single Bowl Sink Units.
Options.
(Set) ‘Lever Arm’ Type Taps.
A choice of optional 1/2″ ‘lever arm’ taps can be supplied with all Quick Service sink units. All taps are WRAS approved.
|
Model
|
CEDLPT0953
|
CEDLBT0954
|
CEDLMM0955
|
Description
|
Set – ½” High Neck Pillar Tap Lever Arm
|
Set – ½” Basin Tap Lever Arm
|
Set – ½” Mixer Tap Lever Arm
|
General Layout Drawings.
All Single Bowl Sink Units.
Specification Sheet & User Guide.
All Single Bowl Sink Units.
Double Bowl Sink Units.
Visual.
Double Bowl Sink Units.
Specification.
- Free standing commercial s/steel double bowl sink unit with left or right hand or double drainer worktop.
- Worktop constructed in 304 gd (1.2 thk.) s/steel with 304 gd s/steel bowl, supported on 30 x 30 box section 430 gd (1.2 thk.) framework.
- Welded low level 430 gd (1.2 thk.) s/steel storage under-shelf.
- Available in 1800 & 2400mm popular lengths.
- Available in 600 & 650mm depths.
- Standard sink height is 900mm – to suit most kitchen area back counters.
- Bowl size: 79 Lt. (600 long x 450 wide x 300 mm deep).
- Sound deadening is fitted to bowl bases.
- Flat drainer worktop features raised drainer pattern, enabling less surface contact whilst drying dishes etc.
- Drip mould edging surround to worktop area prevents water spillage.
- 50 mm high splashback/wall upstand to rear of worktop.
- Supplied with 38mm (1 1/2″) waste fittings and 255mm high strainer wastes for each bowl.
- Sink unit legs inset 100mm to the rear, to allow for service pipework behind.
- Frame fitted with flanged levelling feet for mechanical fixing to floor surface.
- Sink height adjustment: -15/+35mm.
- Taps, 38mm (1 1/2″) waste traps & waste pipework are not supplied (Taps Optional).
- Optional Set – 1/2″ High neck pillar taps – supplied loose (lever arm type) WRAS Approved.
- Optional Set – 1/2″ Basin taps – supplied loose (lever arm type) WRAS Approved.
- Optional 1/2″ Mixer tap – supplied loose (lever arm type) WRAS Approved.
898 downloads

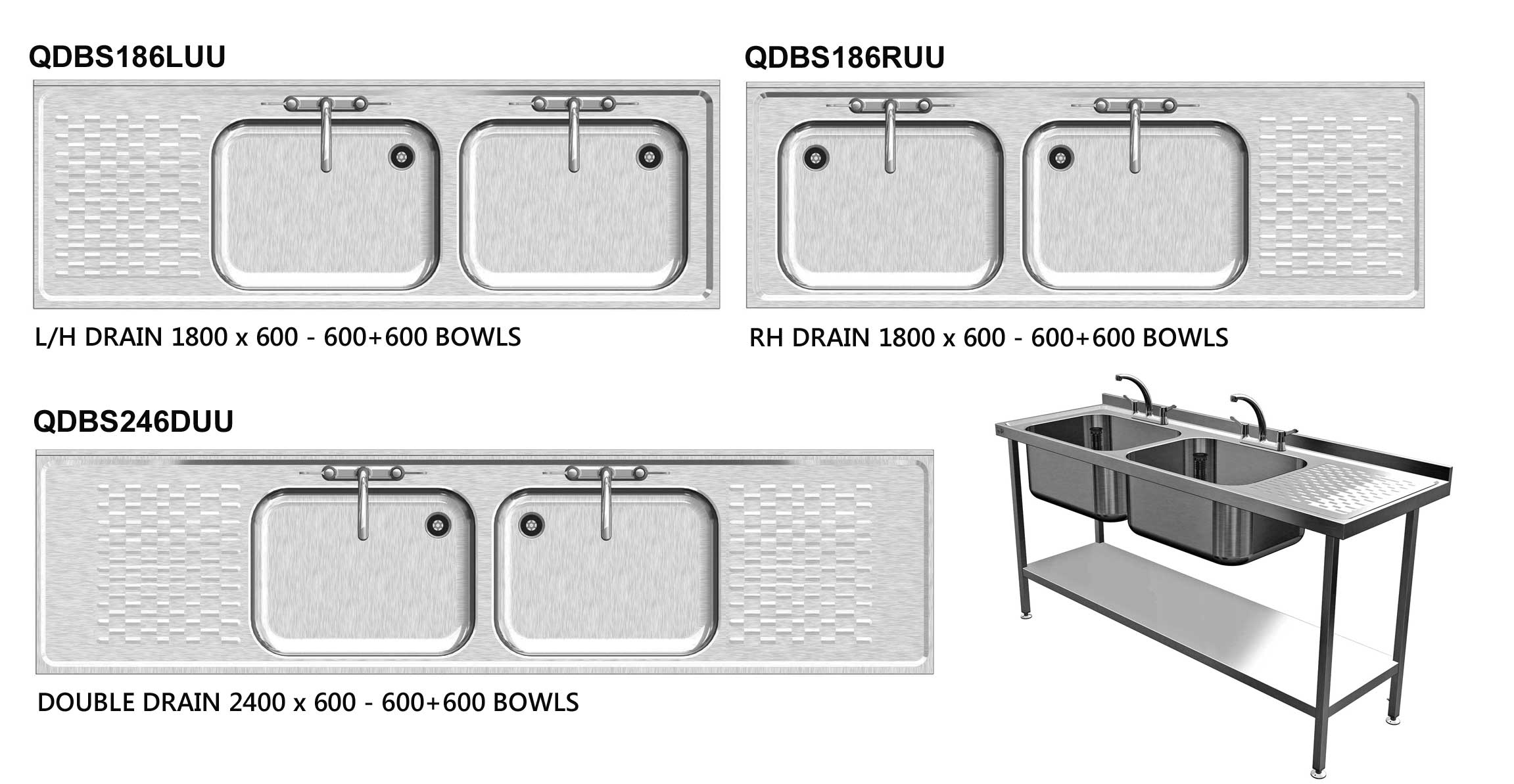

Double Bowl Sink Units.
(600mm deep) Dimensions.
Model Code
|
QDBS
186LUU
|
QDBS
186RUU
|
QDBS
246DUU
|
Description
|
1800×600
L/H Drain
600+600 Bowl
|
1800×600
R/H Drain
600+600 Bowl
|
2400×600
Dbl. Drain
600+600 Bowl
|
Length
(mm)
|
1800
|
1800
|
2400
|
Depth
(mm)
|
600
|
600
|
600
|
Worktop Height
(mm)
|
900
|
900
|
900
|
Drainer Position
|
Left
|
Right
|
Double
|
Bowl Size
(mm)
|
600x450x300
600x450x300
|
600x450x300
600x450x300
|
600x450x300
600x450x300
|
Bowl Capacity
Each (Litres)
|
79
79
|
79
79
|
79
79
|
Weight
(uncrated) (kg)
|
47
|
47
|
56
|
Height Adjustment
(mm)
|
-15/+35
|
-15/+35
|
-15/+35
|
Waste Fitting/
Strainer Waste
|
Yes
|
Yes
|
Yes
|
Taps
|
Optional
|
Optional
|
Optional
|

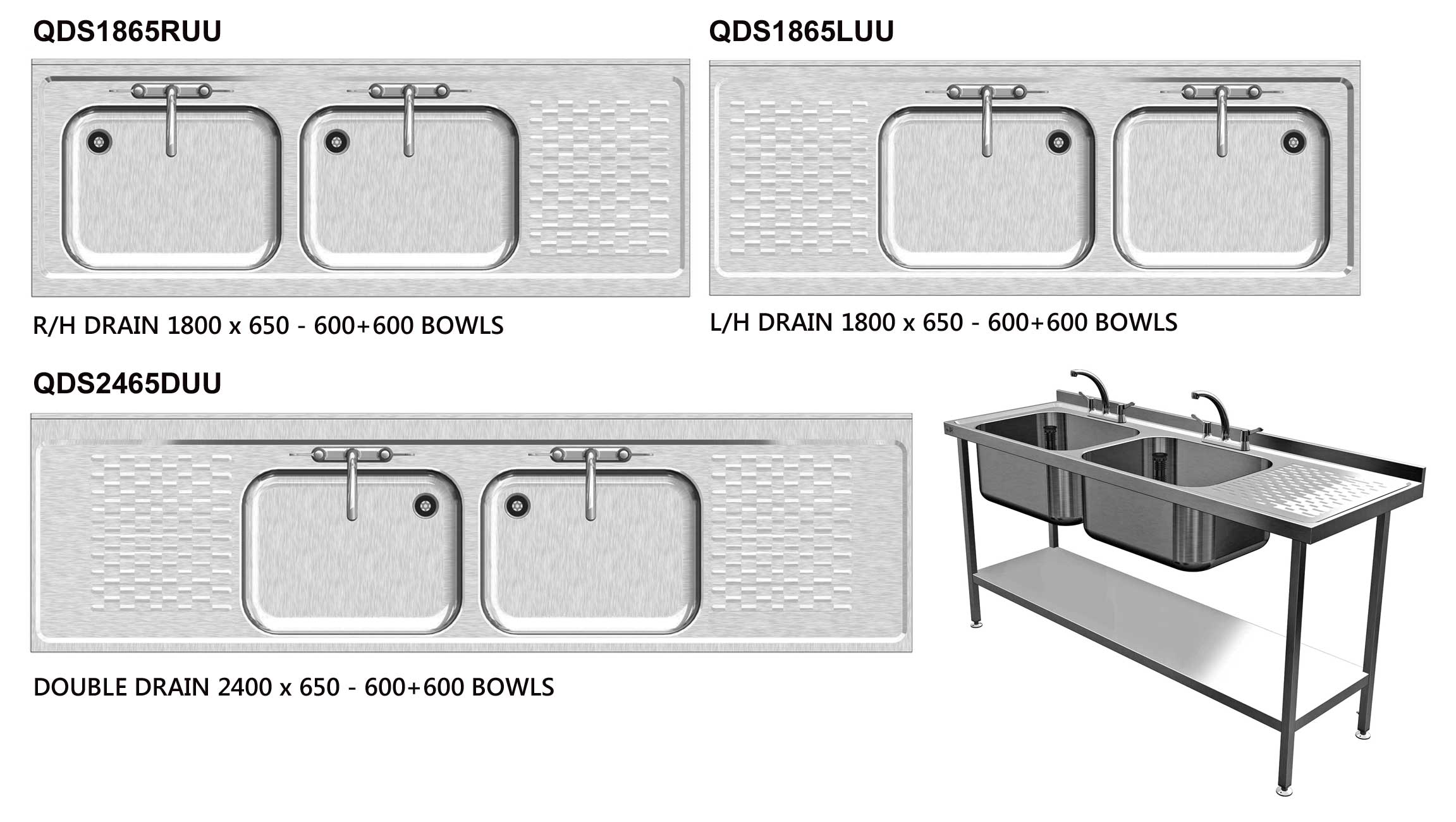

Double Bowl Sink Units.
(650mm deep) Dimensions.
Model
|
QDS
1865RUU
|
QDS
1865LUU
|
QDS
2465DUU
|
Description
|
1800×650
R/H Drain
600+600 Bowl
|
1800×650
L/H Drain
600+600 Bowl
|
2400×650
Double Drain
600+600 Bowl
|
Length
(mm)
|
1800
|
1800
|
2400
|
Depth
(mm)
|
650
|
650
|
650
|
Worktop Height
(mm)
|
900
|
900
|
900
|
Drainer Position
|
Right
|
Left
|
Double
|
Bowl Size
(mm)
|
600x450x300
600x450x300
|
600x450x300
600x450x300
|
600x450x300
600x450x300
|
Bowl Capacity
Each (Litres)
|
79
79
|
79
79
|
79
79
|
Weight
(uncrated)(kg)
|
49
|
49
|
58
|
Height Adjustment
(mm)
|
-15/+35
|
-15/+35
|
-15/+35
|
Waste Fitting/
Strainer Waste
|
Yes
|
Yes
|
Yes
|
Taps
|
Optional
|
Optional
|
Optional
|
Double Bowl Sink Units.
Options.
(Set) ‘Lever Arm’ Type Taps.
A choice of optional 1/2″ ‘lever arm’ taps can be supplied with all Quick Service sink units. All taps are WRAS approved.
* 2 Tap Sets Required For Double Bowl Range |
Model
|
CEDLPT0953
|
CEDLBT0954
|
CEDLMM0955
|
Description
|
1 Set – ½” High Neck Pillar Tap Lever Arm
|
1 Set – ½” Basin Tap Lever Arm
|
1 Set – ½” Mixer Tap Lever Arm
|
General Layout Drawings.
All Double Bowl Sink Units.
Specification Sheet & User Guide.
All Double Bowl Sink Units.
