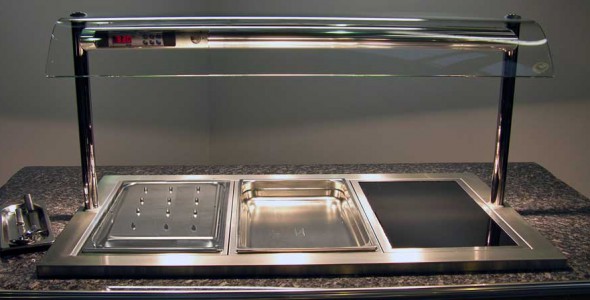

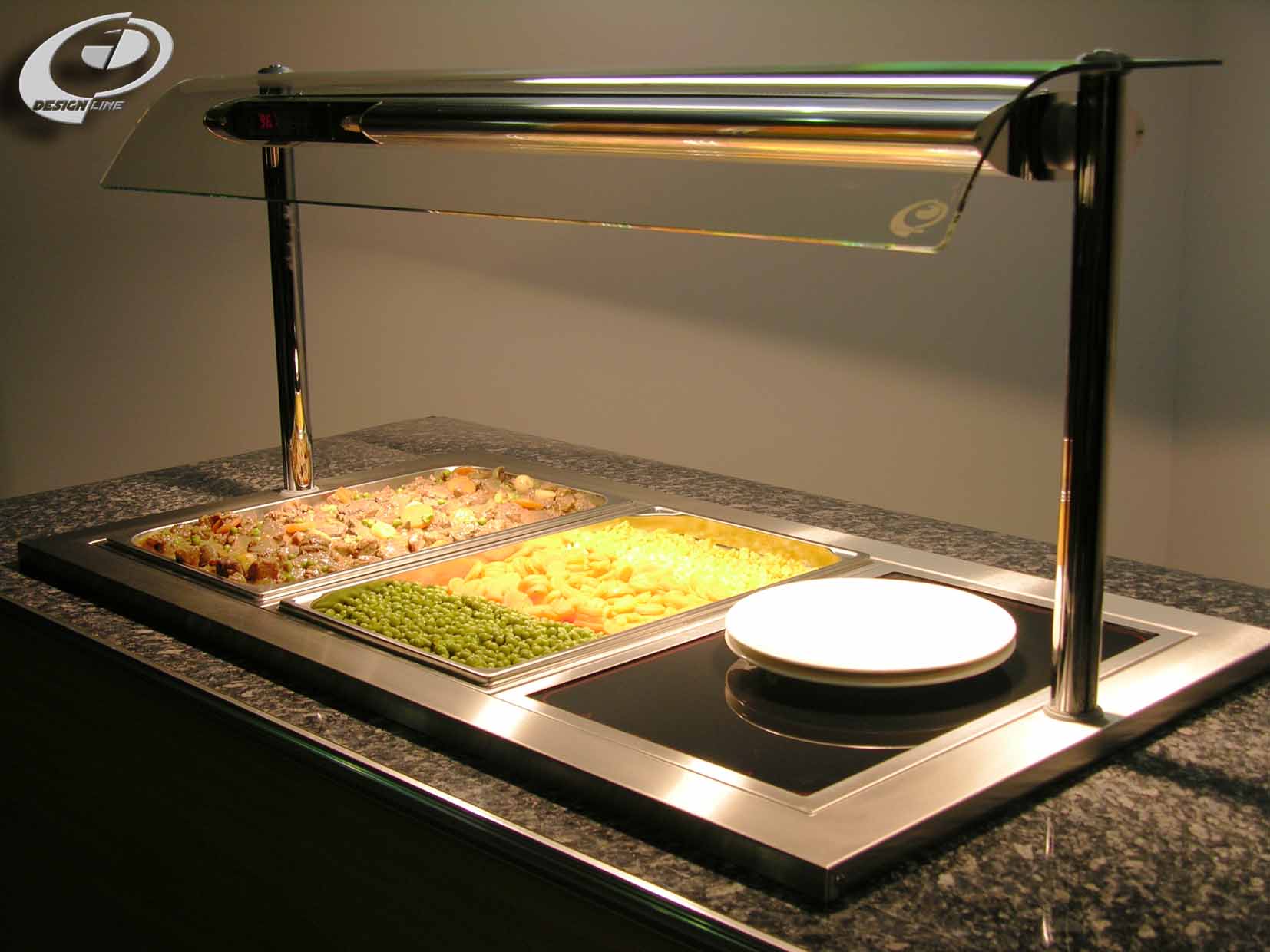

Hotplate inserts and carving inserts are available for use with Designline dry heat and wet well bain maries. 2 options are available for the hotplate insert, a lift out and handle version. The carving insert features a removable juice collecting tray and spiked insert lid.
Hotplate & Carving Inserts![brand-logos-d-heated](https://www.cedfabsltd.co.uk/wp-content/uploads/2011/04/brand-logos-d-heated.gif)
![AAA--Bain-Marie-Inserts](https://www.cedfabsltd.co.uk/wp-content/uploads/2011/05/AAA-Bain-Marie-Inserts.jpg)
Hotplate Insert.![](https://www.cedfabsltd.co.uk/wp-content/uploads/2011/04/brand-logos-d-heated.gif)
Features. (HINS1 & HINS2)
- For short term holding use.
- For use with dry heat & wet well bain marie.
- Converts heated bain marie G/n sections to short term (15-20 mins) hotplate type presentation during varied serving periods.
- Glass hotplate drop in insert.
- Option HINS1 – Hotplate glass surface in lift out steel collar.
- Option HINS2 – Hotplate glass surface in steel collar with lift up handle.
Carvery Insert.![](https://www.cedfabsltd.co.uk/wp-content/uploads/2011/04/brand-logos-d-heated.gif)
Features. (CINS1)
- For use with dry heat & wet well bain marie.
- 1/1Gn spiked drop in carving insert with drain holes.
- Carving plate features easily removable spiked carving deck.
- Converts heated bain marie G/n sections to carving operation during varied serving periods.
- Supplied with 150 mm deep removable juice collecting tray, suitably sized for dishwashers.
Hotplate & Carving Inserts.![](https://www.cedfabsltd.co.uk/wp-content/uploads/2011/04/brand-logos-d-heated.gif)
Dimensions.
Model |
HINS1 |
HINS2 |
CINS1 |
Capacity
|
1/1 GN
|
1/1 GN
|
1/1 GN
|
Width (mm)
|
347
|
347
|
347
|
Depth (mm)
|
546
|
546
|
546
|
Weight (uncrated) (kg)
|
5
|
5
|
4
|
Hotplate & Carving Inserts.![](https://www.cedfabsltd.co.uk/wp-content/uploads/2011/04/brand-logos-d-heated.gif)
General arrangement drawing.
