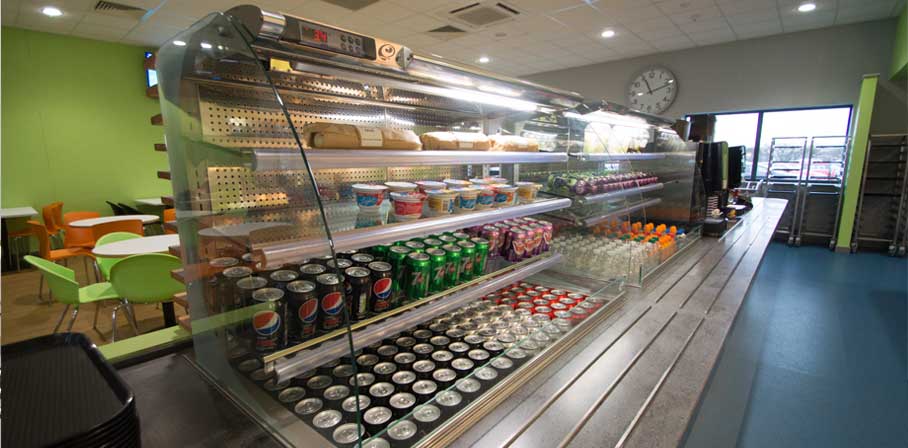

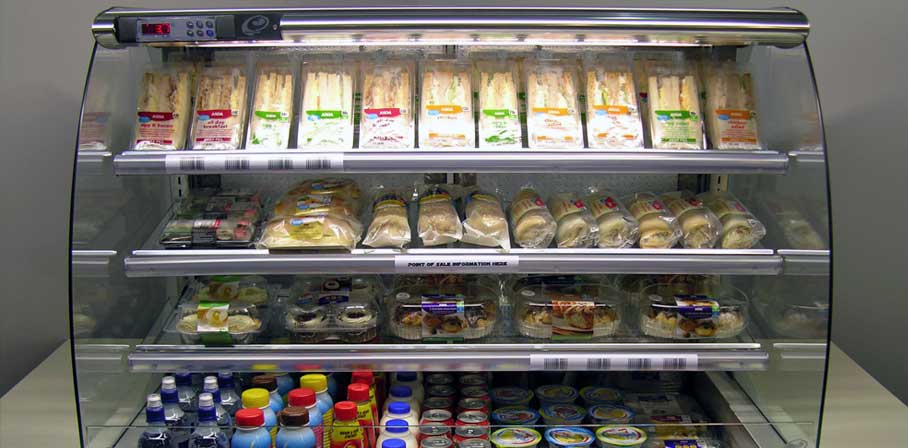

CED Fabrications - Designline Brand - Chilled LogoDesignline drop in displays are elliptically styled displays utilising a clean curved design perspective, enhanced by durable chrome plated aluminium superstructures and lighting ducts, all enclosed within toughened curved glass hoods, sneeze screens and side panels.

Visual

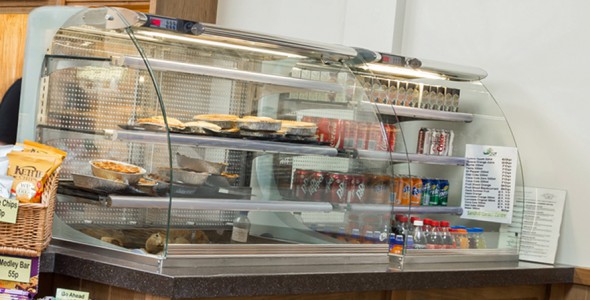

Self Help Cold Multideck (Rear Doors) (HT)CED Fabrications - Designline Brand - Chilled Logo
Visual.

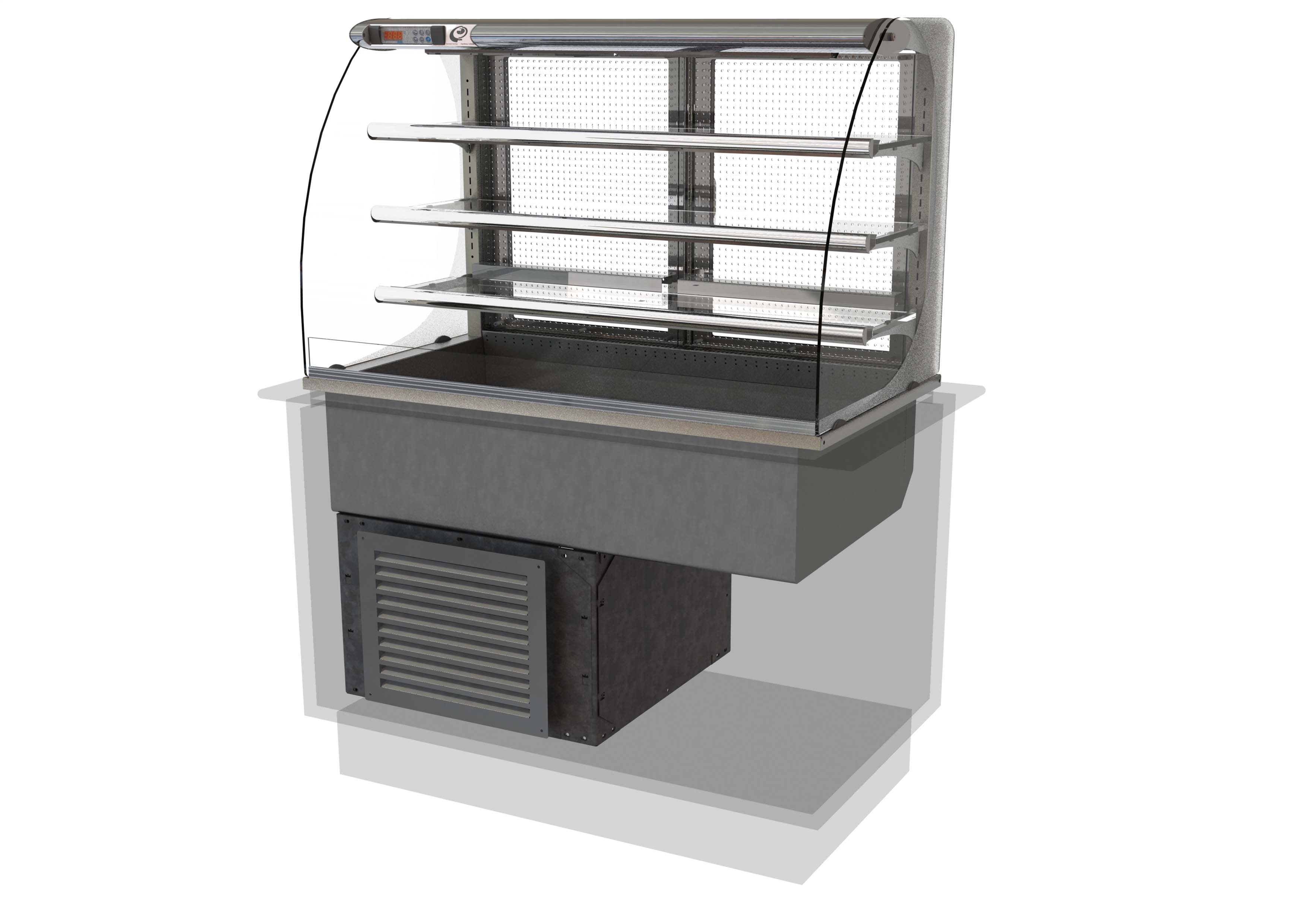

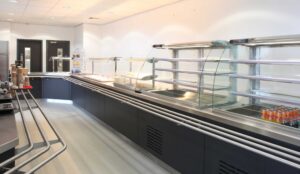

Designline Self Help Cold Multideck (Rear Doors) (MDR2-5HT)



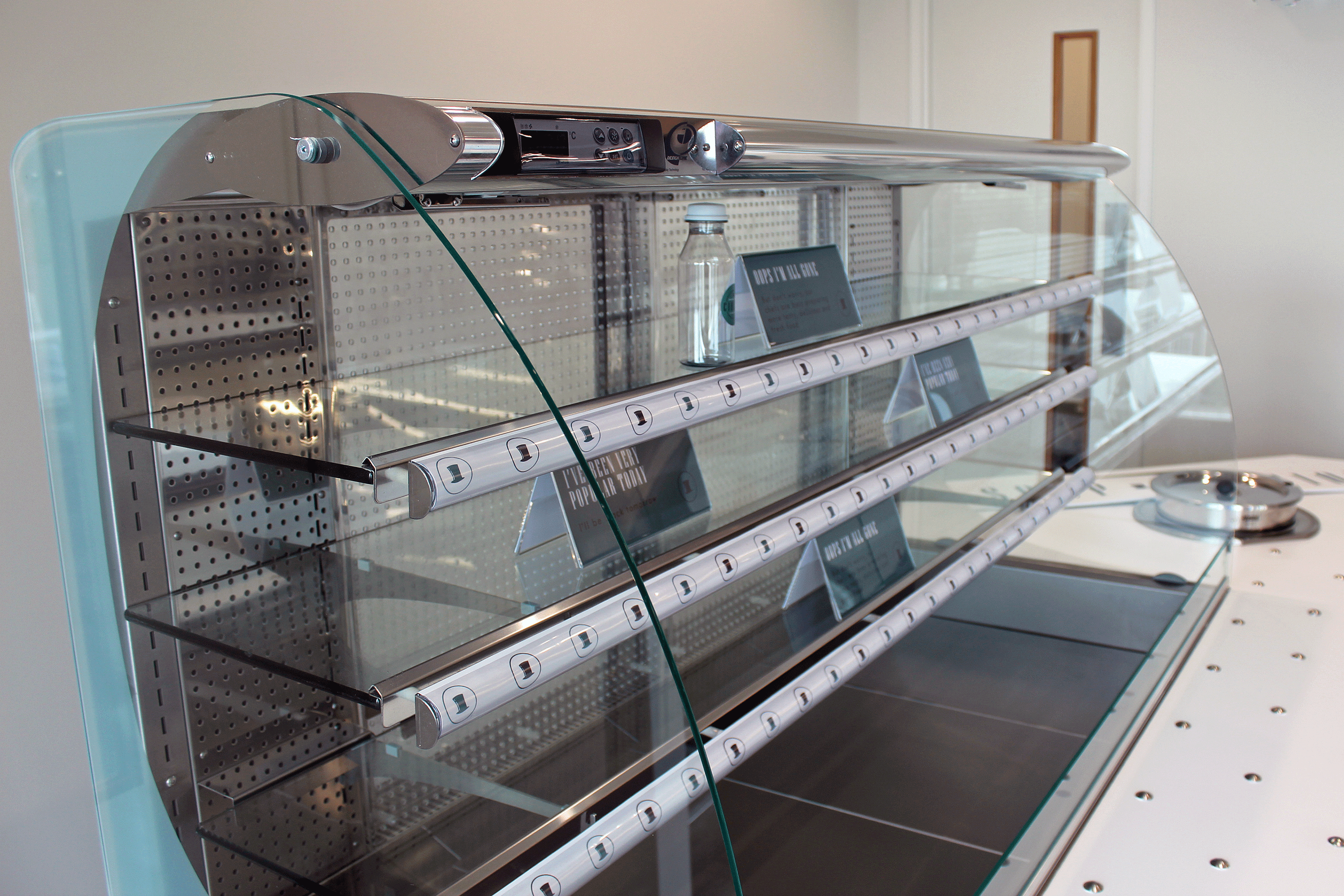

Features

Self Help Cold Multideck (Rear Doors) (HT).CED Fabrications - Designline Brand - Chilled Logo
Features.

  • Curved toughened end glass profile is designed to compliment other units within the Designline range.
  • Cold multideck display features integral energy efficient chilled hydrocarbon refrigeration (HT).
  • Self help application.
  • 3 tier toughened cold glass shelving, adjustable in both height and angle, for increased product display area.
  • Additional cold well area typically used as bottle storage.
  • Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
  • Features eye-level gantry mounted digital temperature display and control panel (customer side).
  • Product illumination is from diffused LED lighting (4000 Kelvin) in an elliptical profile gantry.
  • Integral automatic condensate water evaporation eliminates the need for site drainage.
  • Rear hinged double glazed doors offer easier restocking access and visual stock checking.
  • Superstructure in bright polished steel and aluminium profile.
  • 24-hour operation as standard.
  • Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • Refrigeration condensing unit is housed in an underslung self contained cradle.
  • Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
  • Modular removable deck plate system for easier cleaning and maintenance.
  • Features ‘tamper proof’ temperature control facility.
  • 40mm tall ‘point of sale’ display/ ticket strips are fitted as standard.


Food Types

Self Help Cold Multideck (Rear Doors) (HT).CED Fabrications - Designline Brand - Chilled Logo
Food Display Types.



Drinks (Well Area): Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Well & Shelving Area): Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.



Dimensions

Self Help Cold Multideck (Rear Doors) (HT).CED Fabrications - Designline Brand - Chilled Logo
Dimensions.

Model

MDR2HT

MDR3HT

MDR4HT

MDR5HT

GN Size

2/1 GN

3/1 GN

4/1 GN

5/1 GN

Storage Capacity (Litres)

176

272

361

436

Length (mm)

825

1175

1525

1875

Depth (mm)

660

660

660

660

Height Above Worktop (mm)

750

750

750

750

Depth Below Worktop (mm)

677

677

677

677

Weight (Un-crated) (kg)

145

165

207

238

Power (kW)

1.65

1.73

1.73

2.2

Total Heat Rejection @32°C Ambient (Watts)

2004

2235

22235

2235

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V



  • (HT) = 290 Refrigerant.
  • Control Panel Is Mounted To Customer Side.


Downloads

General Layout Drawings.CED Fabrications - Designline Brand - Chilled Logo
Designline Self Help Cold Multideck (Rear Doors) (HT).





General Layout Drawings.
Non Standard Airflow Options (Cold Displays).





Fitting Instructions & User Manual.
Designline Self Help Cold Multideck (Rear Doors) (HT).




COLD-DESIGNLINE-LH-HEADER

Visual

Assisted Service Cold Multideck (Rear Doors) (HT)CED Fabrications - Designline Brand - Chilled Logo
Visual.


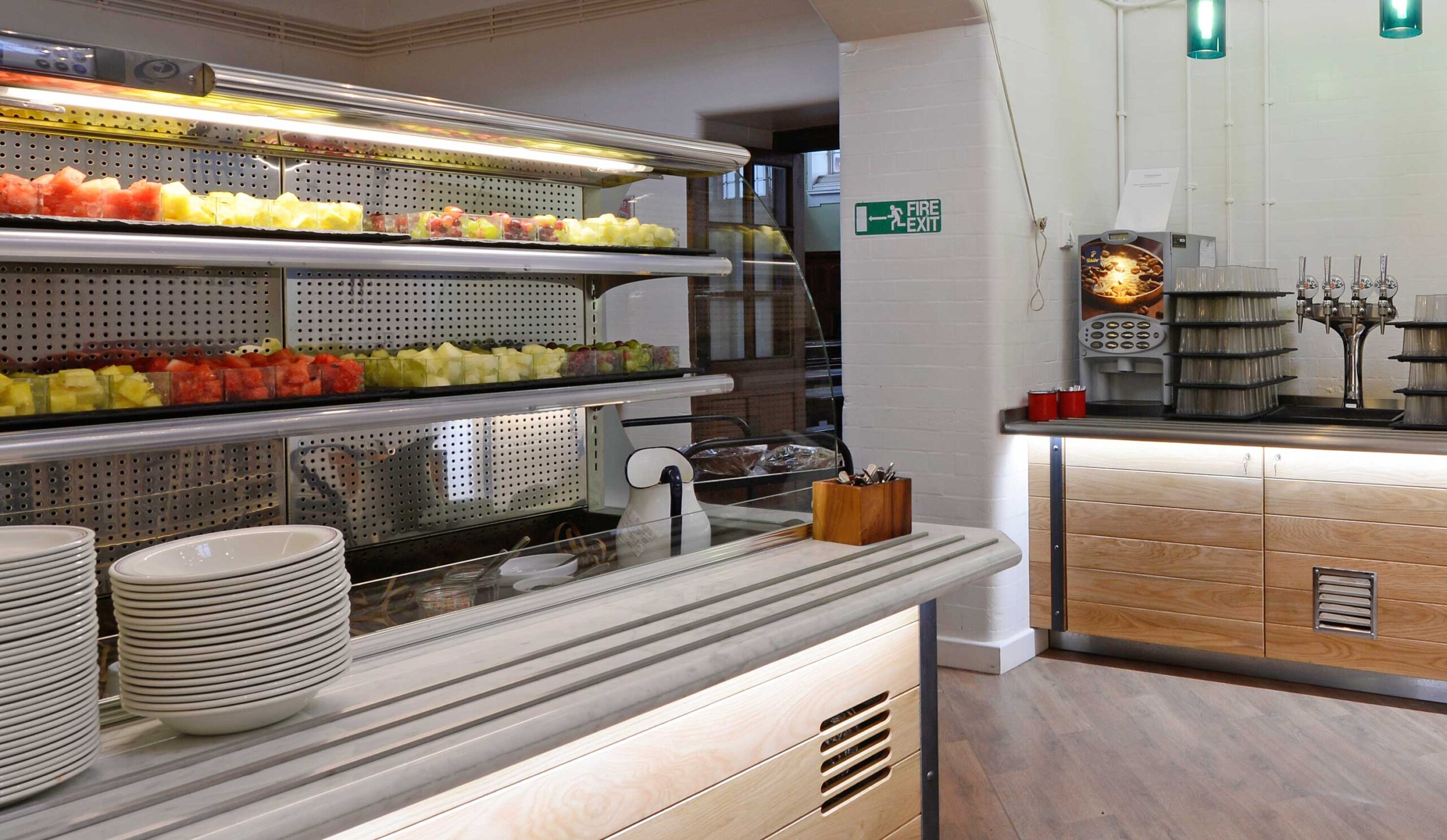

Designline Assisted Service Cold Multideck (Rear Doors) (MDR2-5ASHT)





Features

Assisted Service Cold Multideck (Rear Doors) (HT)CED Fabrications - Designline Brand - Chilled Logo
Features.

  • Curved toughened glass profile is designed to compliment other units within the Designline range.
  • Full height curved, hinged, toughened glass front screen.
  • Cold multideck display features integral energy efficient chilled hydrocarbon refrigeration (HT).
  • Assisted service application.
  • 3 tier toughened cold glass shelving, adjustable in both height and angle, for increased product display area.
  • Additional cold well area typically used as bottle storage.
  • Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
  • Features eye-level gantry mounted digital temperature display and control panel (customer side).
  • Product illumination is from diffused LED lighting (4000 Kelvin) in an elliptical profile gantry.
  • Integral automatic condensate water evaporation eliminates the need for site drainage.
  • Rear hinged double glazed doors offer easier restocking access and visual stock checking.
  • Superstructure in bright polished steel and aluminium profile.
  • 24-hour operation as standard.
  • Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • Refrigeration condensing unit is housed in an underslung self contained cradle.
  • Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
  • Modular removable deck plate system for easier cleaning and maintenance.
  • Features ‘tamper proof’ temperature control facility.
  • 40mm tall ‘point of sale’ display/ ticket strips are fitted as standard.


Food Types

Assisted Service Cold Multideck (Rear Doors) (HT)CED Fabrications - Designline Brand - Chilled Logo
Food Display Types.



Drinks (Well Area): Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.



Food (Well & Shelving Area):  Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.



Dimensions

Assisted Service Cold Multideck (Rear Doors) (HT)CED Fabrications - Designline Brand - Chilled Logo
Dimensions

Model

MDR2ASHT

MDR3ASHT

MDR4ASHT

MDR5ASHT

GN Size

2/1 GN

3/1 GN

4/1 GN

5/1 GN

Storage Capacity (Litres)

176

272

361

436

Length (mm)

825

1175

1525

1875

Depth (mm)

660

660

660

660

Height Above Worktop (mm)

750

750

750

750

Depth Below Worktop (mm)

677

677

677

677

Weight (Un-crated) (kg)

155

175

217

244

Power (kW)

1.75

1.74

1.82

2.2

Total Heat Rejection @32°C Ambient (Watts)

2010

2010

2317

2317

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V



  • (HT) = 290 Refrigerant.
  • Control Panel Is Mounted To Customer Side.


Downloads

General Layout Drawings.CED Fabrications - Designline Brand - Chilled Logo
Designline Assisted Service Cold Multidecks (Rear Doors) (HT)





General Layout Drawings.
Non Standard Airflow Options (Cold Displays).



Fitting Instructions & User Manual.
Designline Assisted Service Cold Multidecks (Rear Doors) (HT)




DLINE-PAGE-INSERT-COLD

Visual

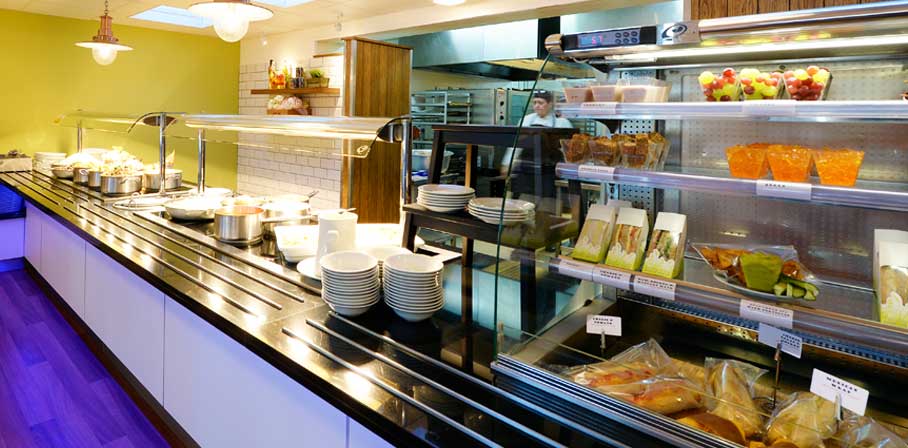

Self Help Cold Multideck (Fixed Back) (HT).CED Fabrications - Designline Brand - Chilled Logo
Visual.

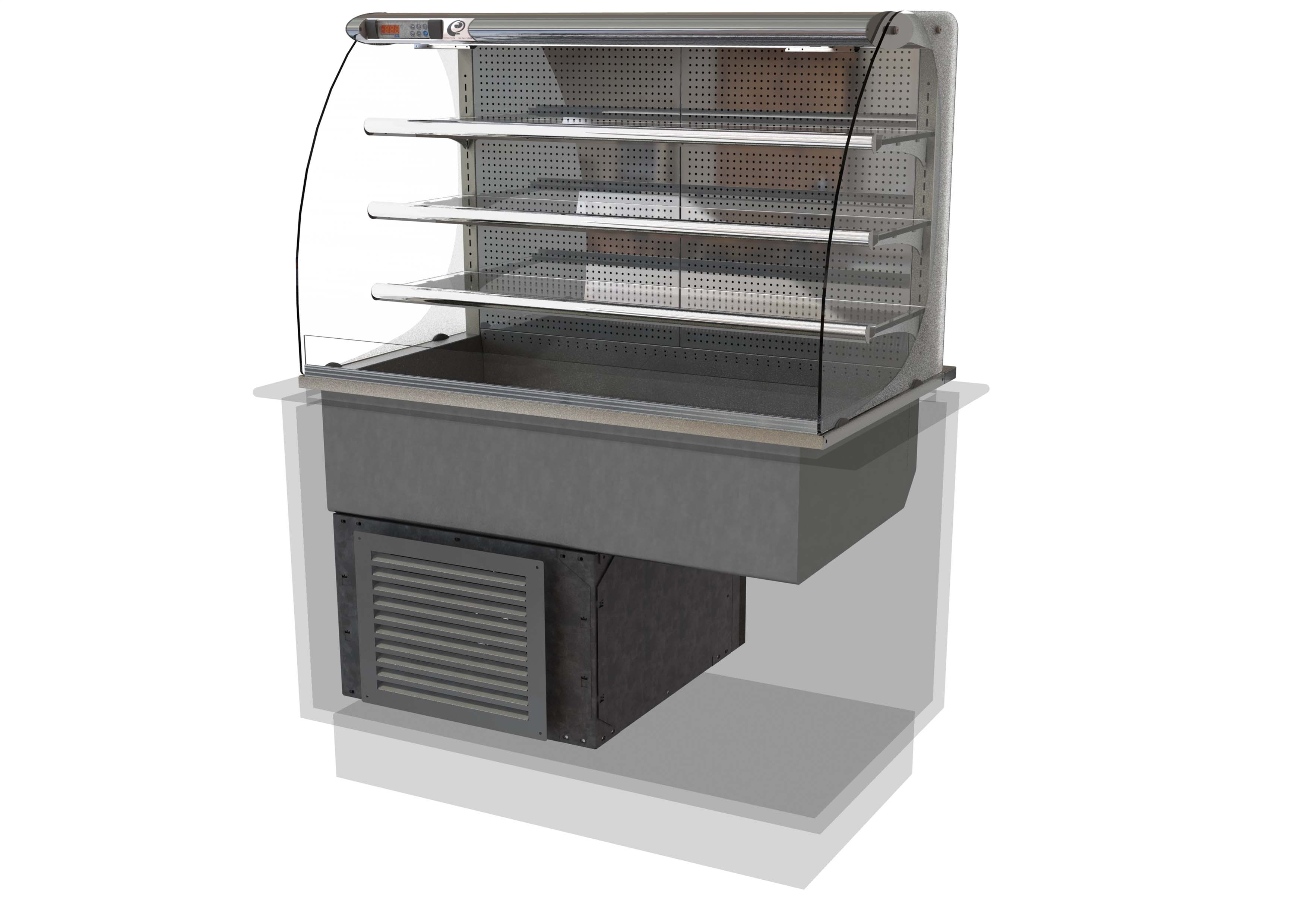

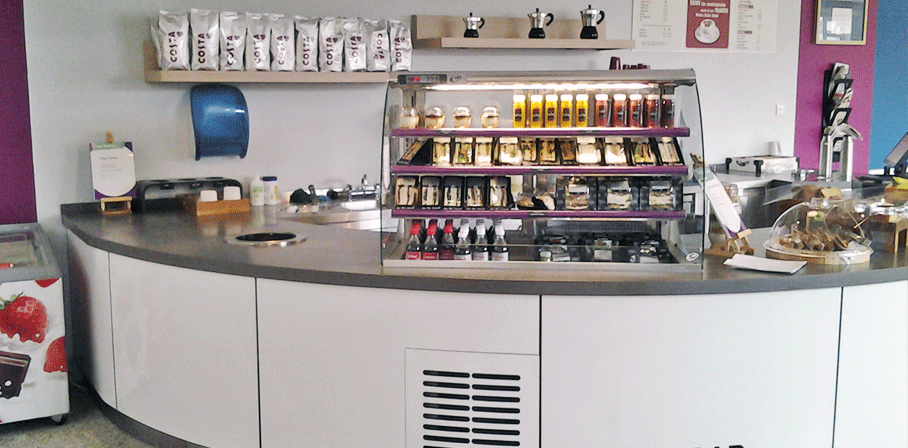

Designline Self Help Cold Multideck (Fixed Back) (MDF2-5HT)



Features

Self Help Cold Multideck (Fixed Back) (HT).CED Fabrications - Designline Brand - Chilled Logo
Features.

  • Curved toughened end glass profile is designed to compliment other units within the Designline range.
  • Cold multideck display features integral energy efficient chilled hydrocarbon refrigeration (HT).
  • Self help application.
  • Bright polished steel rear back panel for typical use in wall sited situation
  • 3 tier toughened cold glass shelving, adjustable in both height and angle, for increased product display area.
  • Additional cold well area typically used as bottle storage.
  • Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
  • Features eye-level gantry mounted digital temperature display and control panel (customer side).
  • Product illumination is from diffused LED lighting (4000 Kelvin) in an elliptical profile gantry.
  • Integral automatic condensate water evaporation eliminates the need for site drainage.
  • Superstructure in bright polished steel and aluminium profile.
  • 24-hour operation as standard.
  • Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • Refrigeration condensing unit is housed in an underslung self contained cradle.
  • Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
  • Modular removable deck plate system for easier cleaning and maintenance.
  • Features ‘tamper proof’ temperature control facility.
  • 40mm tall ‘point of sale’ display/ ticket strips are fitted as standard.


Food Types

Self Help Cold Multideck (Fixed Back) (HT).CED Fabrications - Designline Brand - Chilled Logo
Food Display Types.



Drinks (Well Area): Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.



Food (Well & Shelving Area): Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.



Dimensions

Self Help Cold Multideck (Fixed Back) (HT).CED Fabrications - Designline Brand - Chilled Logo
Dimensions.

Model

MDF2HT

MDF3HT

MDF4HT

MDF5HT

GN Size

2/1 GN

3/1 GN

4/1 GN

5/1 GN

Storage Capacity (Litres)

176

272

361

436

Length (mm)

825

1175

1525

1875

Depth (mm)

660 + 75*

660 + 75*

660 + 75*

660 + 75*

Height Above Worktop (mm)

750

750

750

750

Depth Below Worktop (mm)

677

677

677

677

Weight (Un-crated) (kg)

133

153

195

238

Power (kW)

1.65

1.73

1.73

2.2

Total Heat Rejection @32°C Ambient (Watts)

2004

2235

2235

2235

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V



  • (HT) = 290 Refrigerant.
  • Control Panel Is Mounted To Customer Side.
  • * 75 mm Deep Removable Rear Worktop Grill / Flue (Air Outlet) For Use In A Wall Sited Counter.


Downloads

General Layout Drawings.CED Fabrications - Designline Brand - Chilled Logo
Designline Self Help Cold Multidecks (Fixed Back) (HT)





General Layout Drawings.
Non Standard Airflow Options (Cold Displays).
*Fixed back model expels air through a rear worktop mounted grille ( & rear cradle flue) as standard*.





Fitting Instructions & User Manual.
Designline Self Help Cold Multidecks (Fixed Back) (HT)
