Two Tier Table Top Hot Merchandiser

Hot Hold/ Grab n’ Go. These energy efficient, hot merchandisers are factory pre-set at 75°C and offer customers two tiers of independently controlled grab n’ go hot food holding, within a minimal 763mm (w) footprint.
The 13A heated self help s/steel displays are finished in a signature food safe black coating & are ideal for the display of pre-heated cooked food, packaged, cartoned or unwrapped heated product. A branded header panel with vinyl transfer can be provided.
Operating. Available as straight or inclined shelf versions, these merchandisers feature digitally controlled static shelf heating to maintain food core, while variable, quartz infrared jacketed top heat lamps surround the food surface. Removable s/ steel wire grid shelf covers allow heat circulation around packaged food types.
The lift-out steel bar dividers – also included – allow food to be stored in rows.

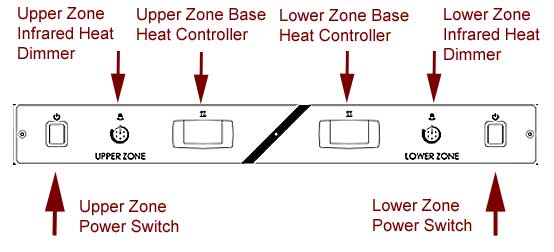

The temperature of each heated zone can be independently set using its’ own digital display & infrared top heat regulator, each mounted in the operator side base. Product temperature is maintained at 70 – 75°C in +18°C ambient.
Energy Saving. In quieter serving periods, either upper or lower zones can be independently switched off to conserve energy.
These open faced, rear loading merchandisers operate with a max. 2.85 kW power supply when both zones are operating.
Panoramic product display is provided through glazed side panels, which also offer environmental side draught protection.
Function. The ergonomic design has ‘touch safe’ extruded alluminum shelf and canopy edges, to allow serve through or grab n’ go use at counter top height.

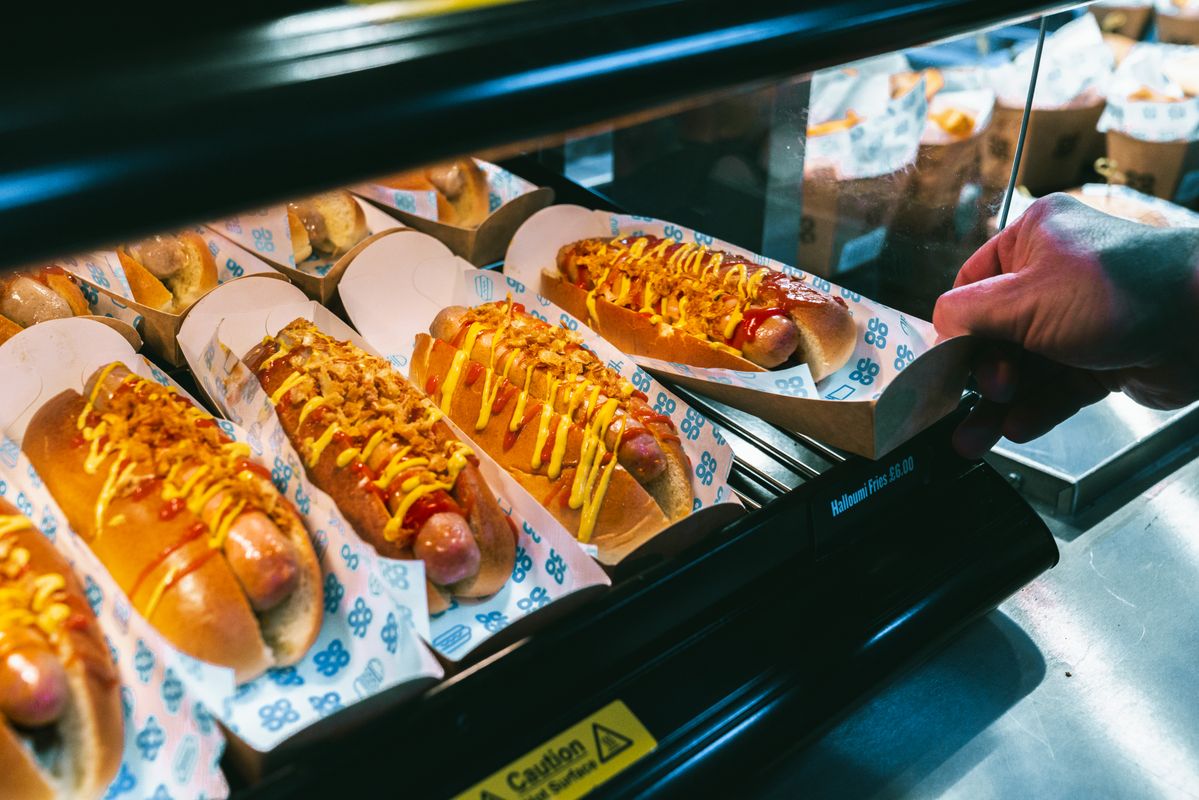

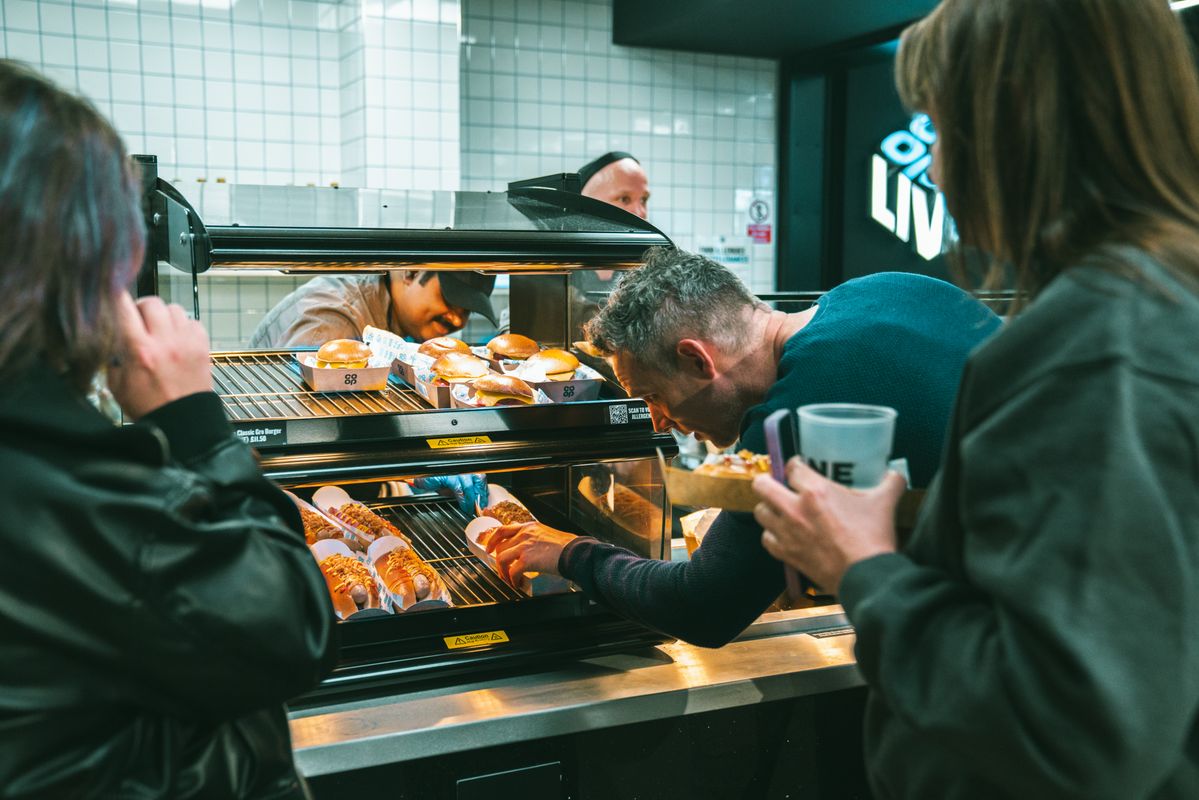

 The merchandiser can be used either front of house as a short term food set down point, or a hot holding area for wrapped/ unwrapped pre-heated goods.
The units are stabilised with rubber feet and feature a 2m lead and UK 13A plug top (230v 50 Hz). A 40mm (H) ticket strip mount is provided to each shelf front.
Model Types Available.
Freestanding. Choose from either single tier or 2 tier versions with inclined or straight display shelves (controls to rear).
Wall Sited. Alternatively choose a wall sited version either single or 2 tier (controls to front customer side) depending on your available location.

Visual

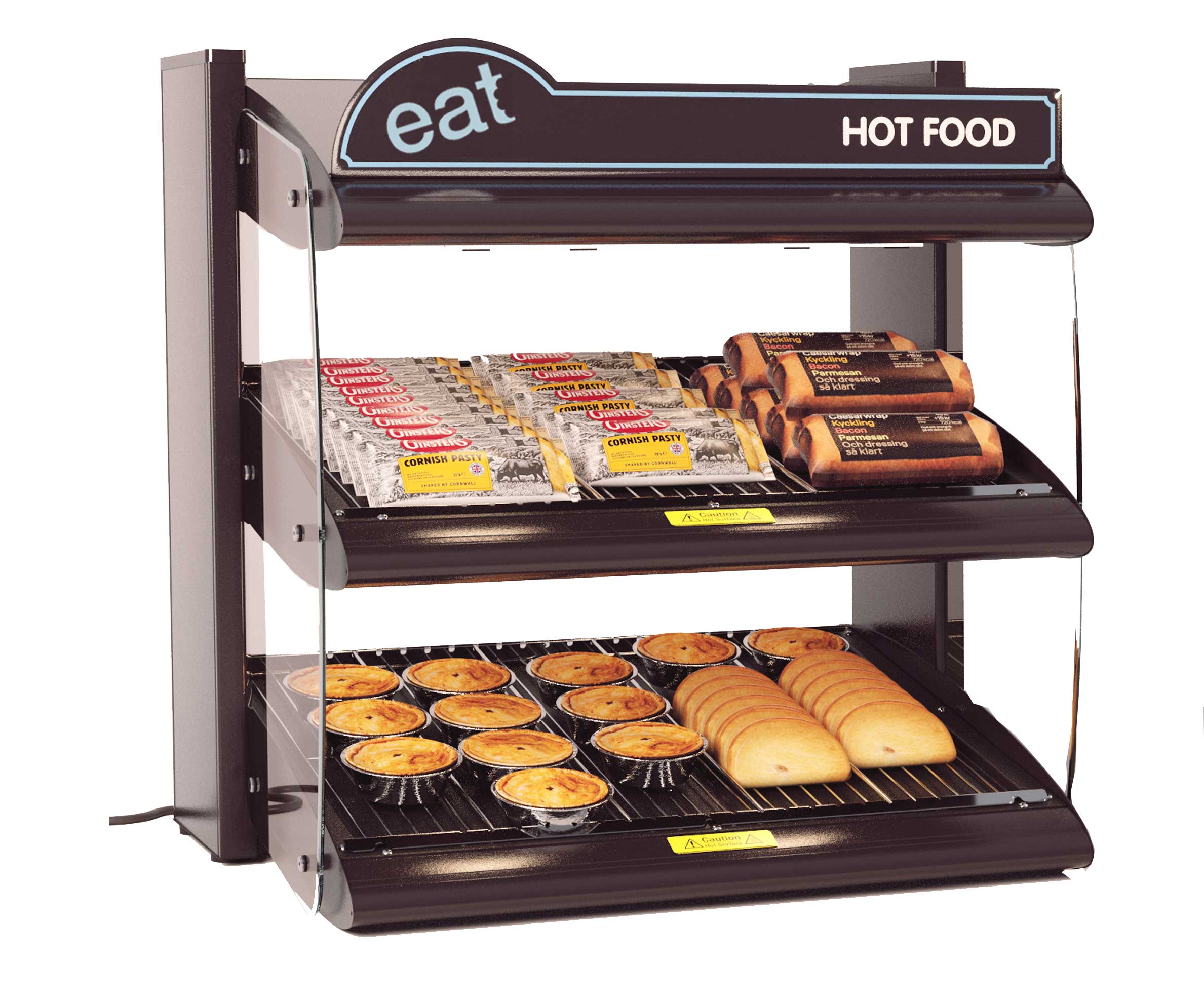

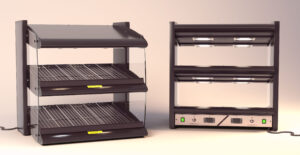

2 Tier Self Help Hot Merchandiser (Inclined Shelf).
Visual



Features

2 Tier Self Help Hot Merchandiser (Inclined Shelf).
Features

Model Code DTTHM2: (Two Tier Inclined Shelf)

  • Table top self help heated merchandiser, open fronted with rear loading to two display levels.
  • For the display of pre-heated cooked food, unwrapped, packaged or cartoned heated product.
  • Open fronted display used as short term food set down or grab n’ go.
  • 2 no. inclined heated shelves.
  • Controls to operator side base.
  • Both upper & lower zones independently controlled.
  • Temperature of each heated zone independently adjusted by digital display & infrared top heat regulator.
  • Factory set for 70 – 75°C (+18°C ambient).
  • 430gd s/steel & alluminum in food safe polyester black coating (Ral 9005).
  • Mains power to each zone controlled by separate neon on/off switch.
  • Adjustable static base heat maintains food core, variable jacketed, overhead infrared top heat lamps surround food surface.
  • Energy saving facility: For less busy serving periods, upper or lower zones can be independently switched off to conserve energy.
  • Model dimensions: 763 mm (L) x 715 mm (D) x 771 mm (H).
  • 2 no. s/steel wire shelf grids per shelf, for use with packaged & cartoned heated produce (ea. 553 x 299 mm) .
  • 5 no. removable steel divider bars per tier allow food to be stored in rows.
  • 40 mm (H) ticket strip mount is provided to each shelf front.
  • Shelf display dimensions ea. 637 mm (L) x 558 mm (D) x 230 mm (H)
  • Supplied with 2m lead & 13 amp UK plug (13A 230V 50Hz) 2.85 kW.
  • Easy, cleanable surfaces and a durable design ensure low maintenance for users.
  • CE & UKCA Certified equipment.
  • ‘C’ profile safety edge to all exposed edge glass.
  • Re-stocking access by open rear.
  • Toughened glass side panels provide panoramic product display, offer environmental side draught protection & add natural lighting.
  • Display is stabilised with rubber feet.

Options

  • (Code DCOL2) Optional plain polyester powder coating colour.
  • (Code DBH2) Optional brand header graphics black mounting panel.
  • (Code DVG2) Optional vinyl graphic label, applied to brand header panel. Artwork to be provided, size 680(w) x 122/85mm (h) MOQ 10 units.
  • (Code DGDR2) Optional rear lift up glass doors, hinged toughened 6mm glass – set of 2 per zone, 4 total.
  • (Code DFFH) Optional french fries holder, s/steel collar & 9 no. removable bars: allow fries cartons/bags to be stood in rows.


Food Types

2 Tier Self Help Hot Merchandiser (Inclined Shelf).
Food Display Types

Liquid Based Foods (Deck And Shelving Area): Soups, noodles, rice, beans, porridge in tubs/ pots with lids etc.

Food (Deck And Shelving Area): Wrapped or unwrapped pastries, packaged items e.g. katsu chicken, rice and noodle dishes, bagged whole chicken, stews, curry, chilli dishes, grilled burgers and sandwiches, hot baguettes, hot ciabatta, pasta in sauce, ribs with sauce, chicken portions.



Dimensions

2 Tier Self Help Hot Merchandiser (Inclined Shelf).
Dimensions

Model

DTTHM2

Length (mm)

763

Depth (mm)

715

Height (mm)

771

Weight (Uncrated) (kg)

31

Capacity (Litres)

163.5

Shelving Display Position

Inclined

Upper/ Lower Zone Control Panel – Location

(Rear) Operator Side

40mm(H) Ticket Strip Mount Each Shelf

Included

Max. Power (kW)

2.85

Electrical Supply

13A 230V 50Hz





Options

2 Tier Self Help Hot Merchandiser (Inclined Shelf).
Options

Options

For Model
DTTHM2

Graphics Header Panel:
Brand header graphics panel,
680 mm (w) x 122/85 mm (h),
powder coated black

DBH2

Vinyl Graphic label:
Vinyl graphic label, 680 mm (w) x 122/85 mm (h),
supplied from artwork provided.
Applied to brand header graphics mounting panel
(MOQ 10 Units)

DVG2

Alternative Colour Finish:
Alternative plain ral colour to black (Ral 9005)

DCOL2

Rear Lift Up Glass Doors:
Rear hinged glass (6 mm) lift up doors (set of 2) 4 no.

DGDR2

French Fries Holder:
S/steel collar & (9 no.) support bars – allow fries cartons/ bags to be stood in rows.
315 mm (w) x 550 mm(d).
(appx. 27 cartons per holder)

DFFH

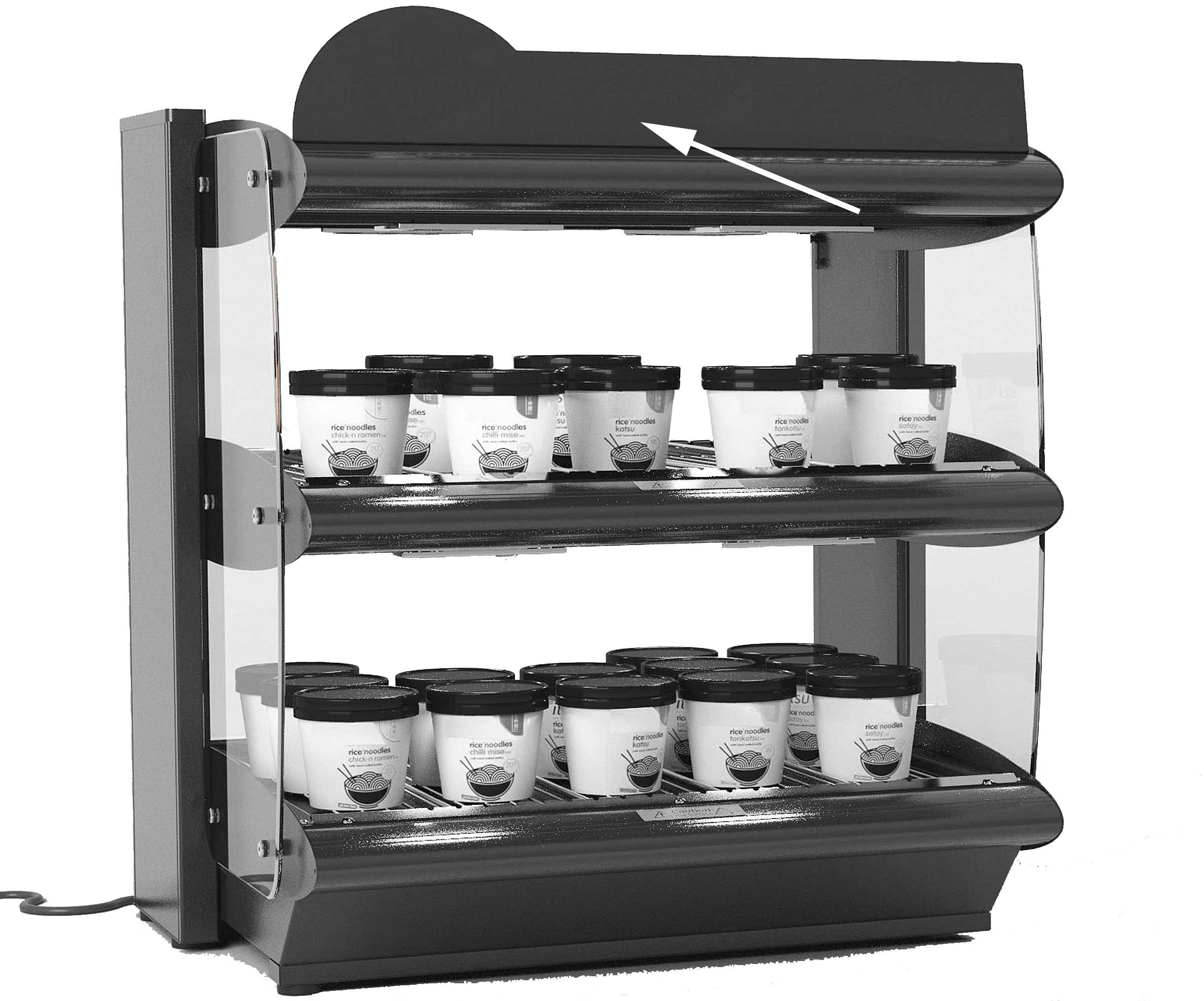

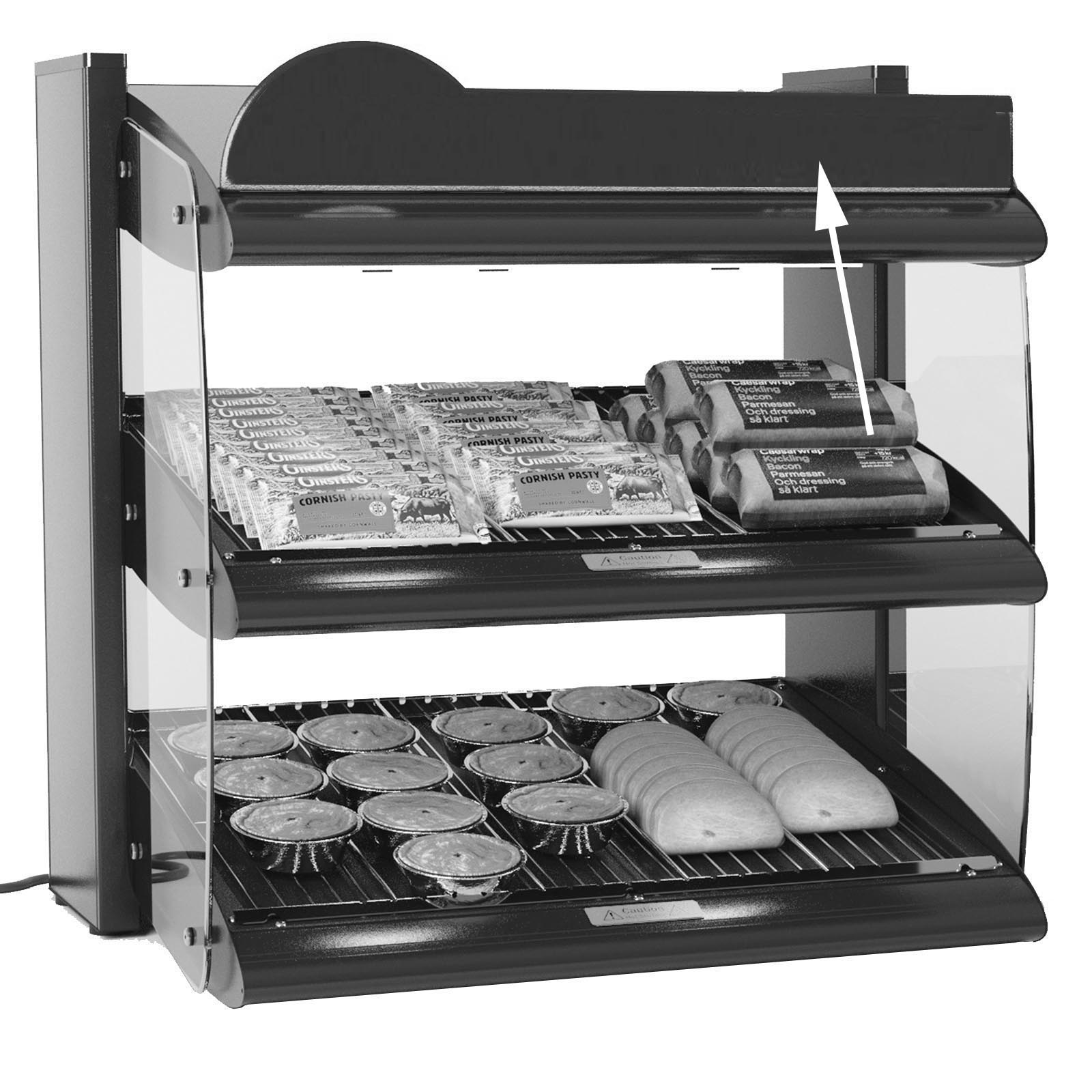

(Option DBH2) Graphics Header Panel:
Brand header graphics panel,
680 mm (w) x 122/85 mm (h),
powder coated black

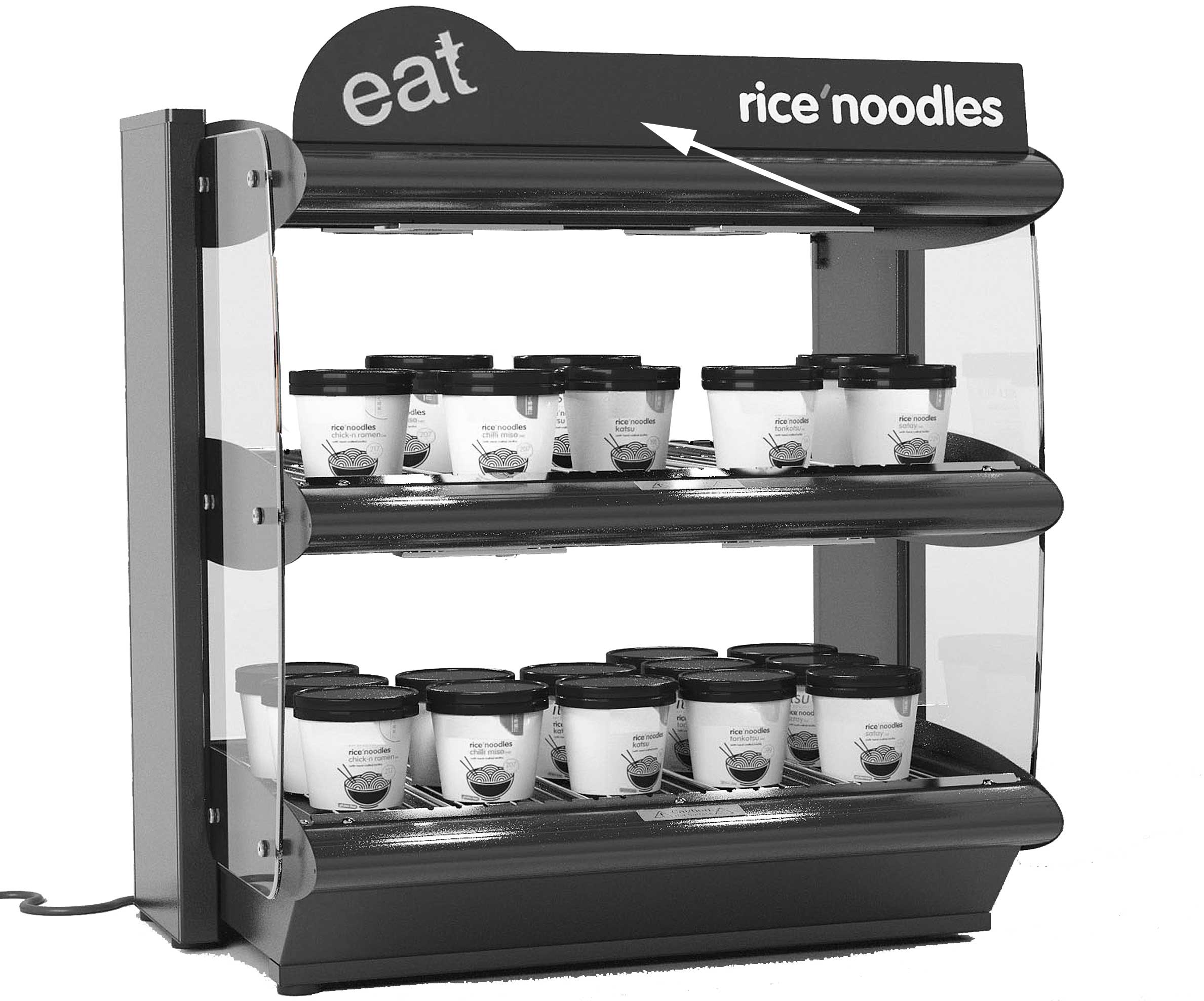

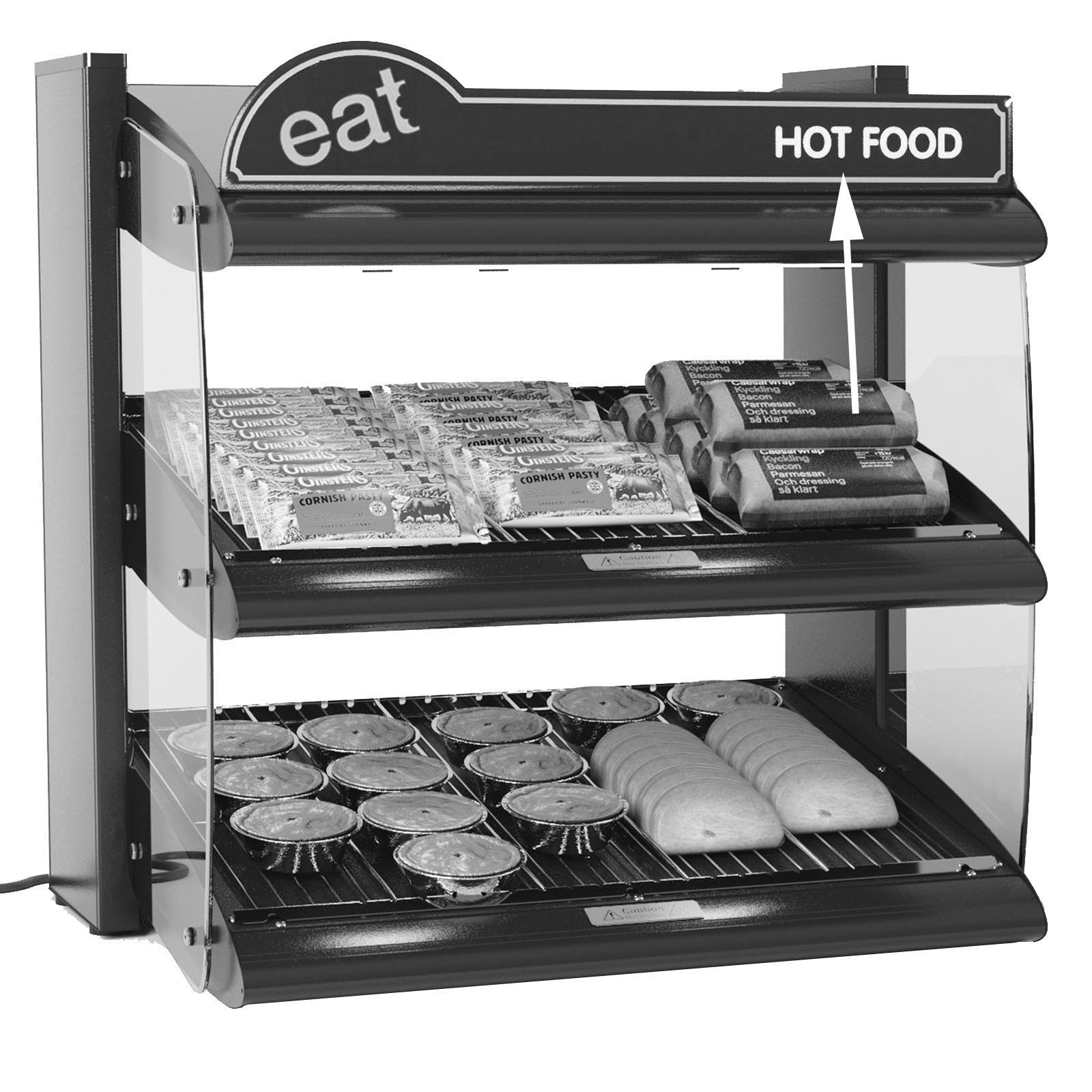

(Option DVG2) Vinyl Graphic label:
Vinyl graphic label, 680 mm (w) x 122/85 mm (h),
supplied from artwork provided.
Applied to brand header graphics mounting panel
(MOQ 10 Units)

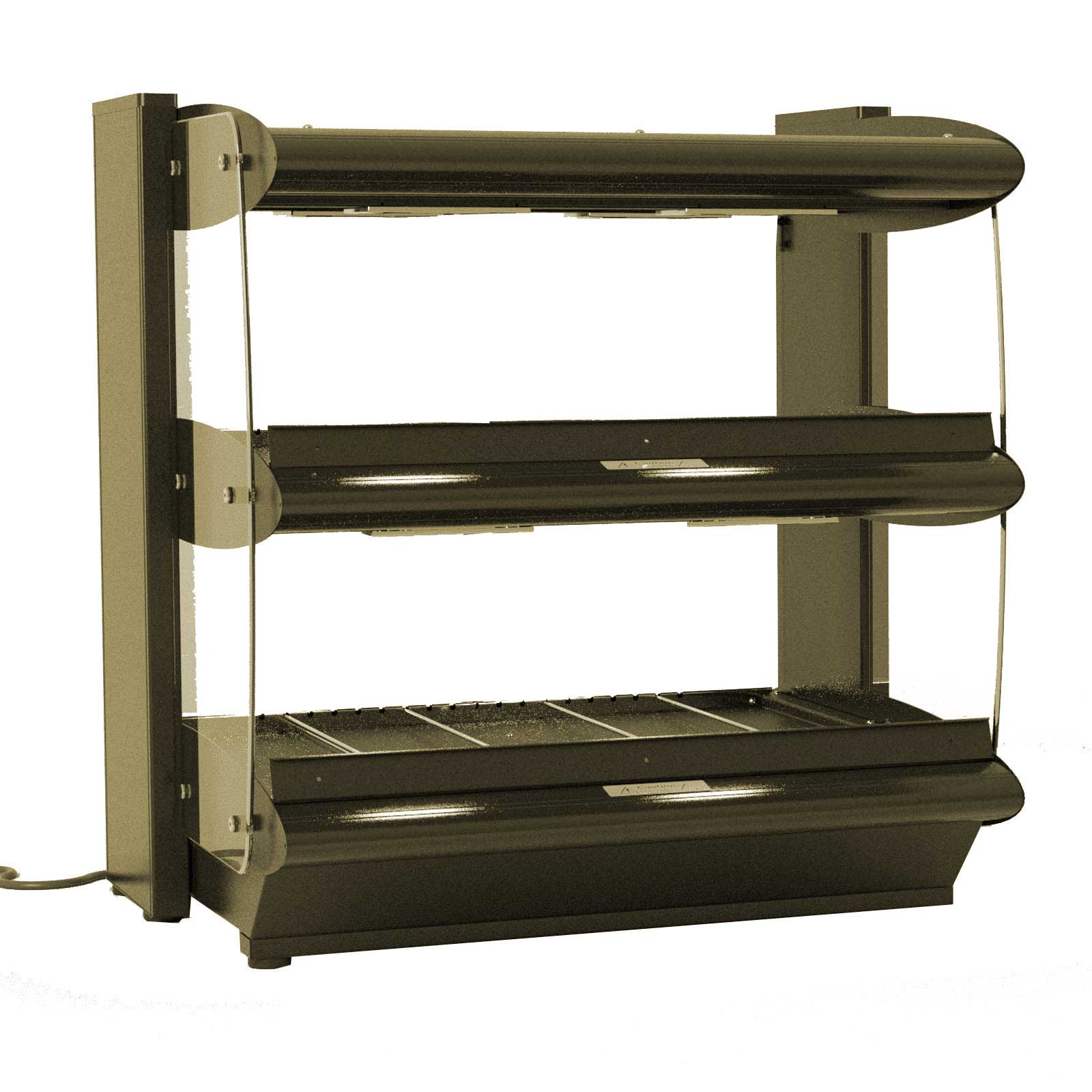

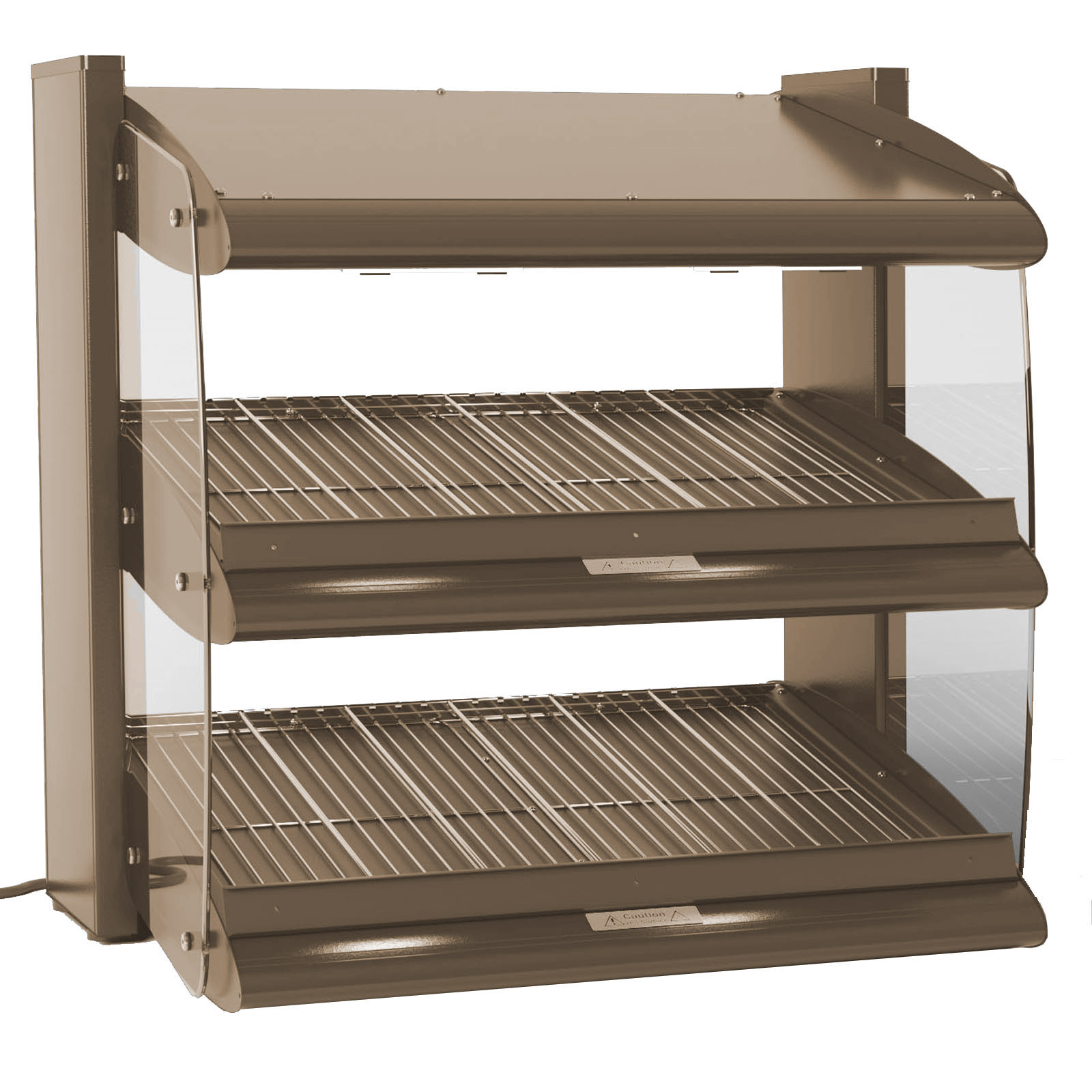

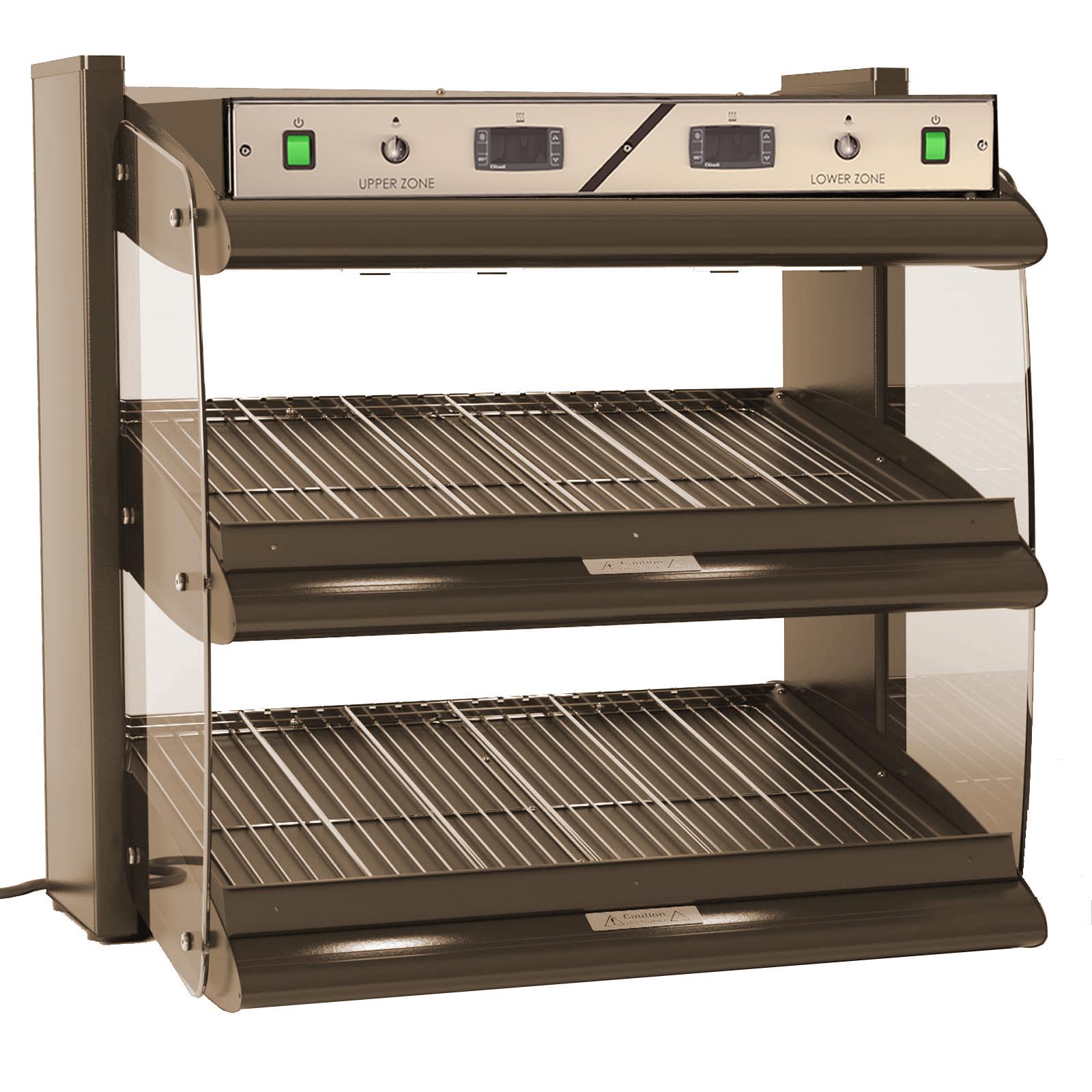

(Option DCOL2) Alternative Colour Finish:
Alternative plain ral polyester powder coating colour to black (Ral 9005)

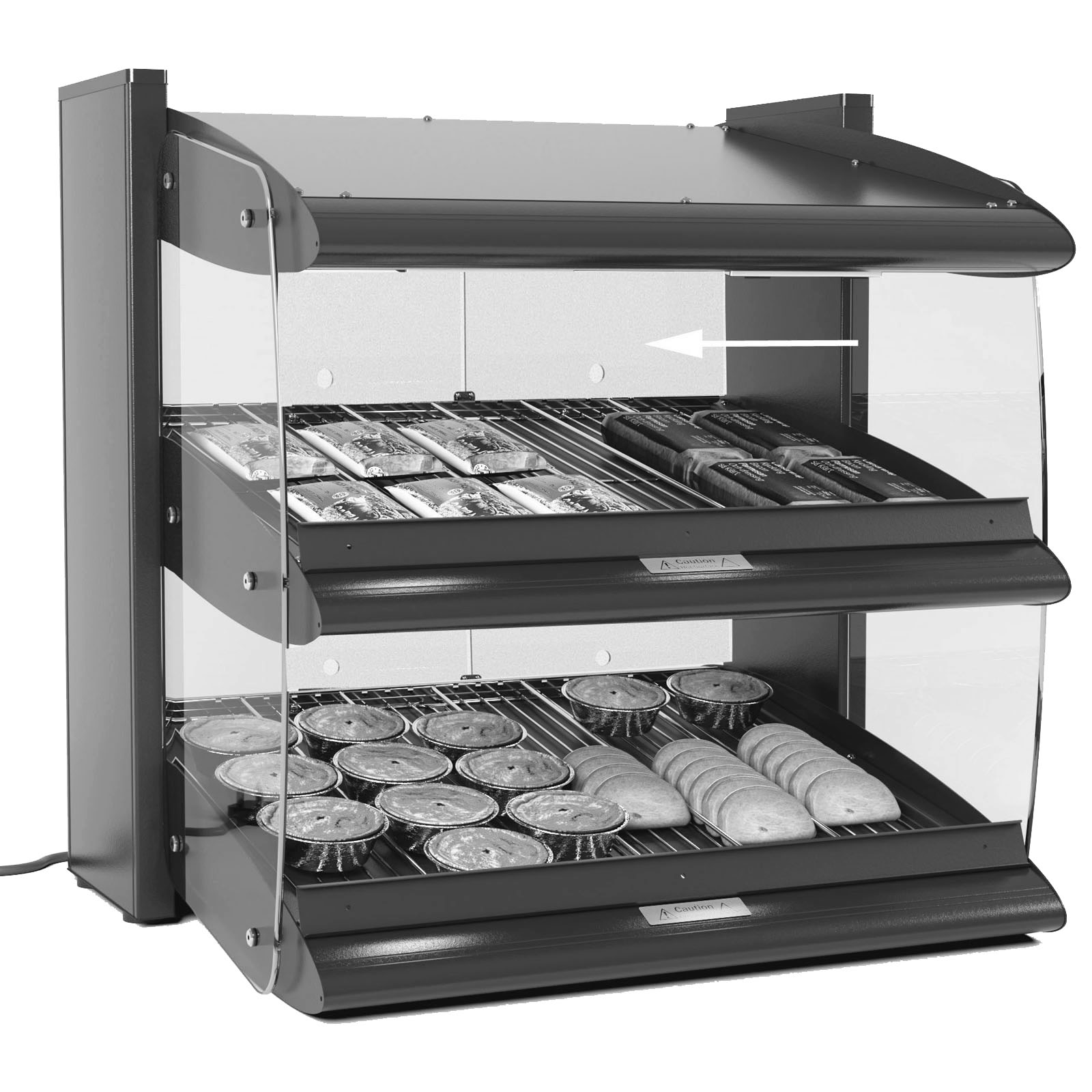

(Option DGDR2) Rear Lift Up Glass Doors:
Rear hinged glass (6 mm) lift up doors (set of 2) 4 no.











(Option DFFH)
French Fries Holder:
S/steel collar & (9 no.) support bars – allow fries cartons/ bags to be stood in rows.
315 mm (w) x 550 mm (d).
(appx. 27 cartons per holder)
Option example shown opposite/below.





Downloads

General Layout Drawings.
2 Tier Self Help Hot Merchandiser (Inclined Shelf).

Spec. Sheet, User Manual, CE/ UKCA Conformance.
2 Tier Self Help Hot Merchandiser (Inclined Shelf).



Visual

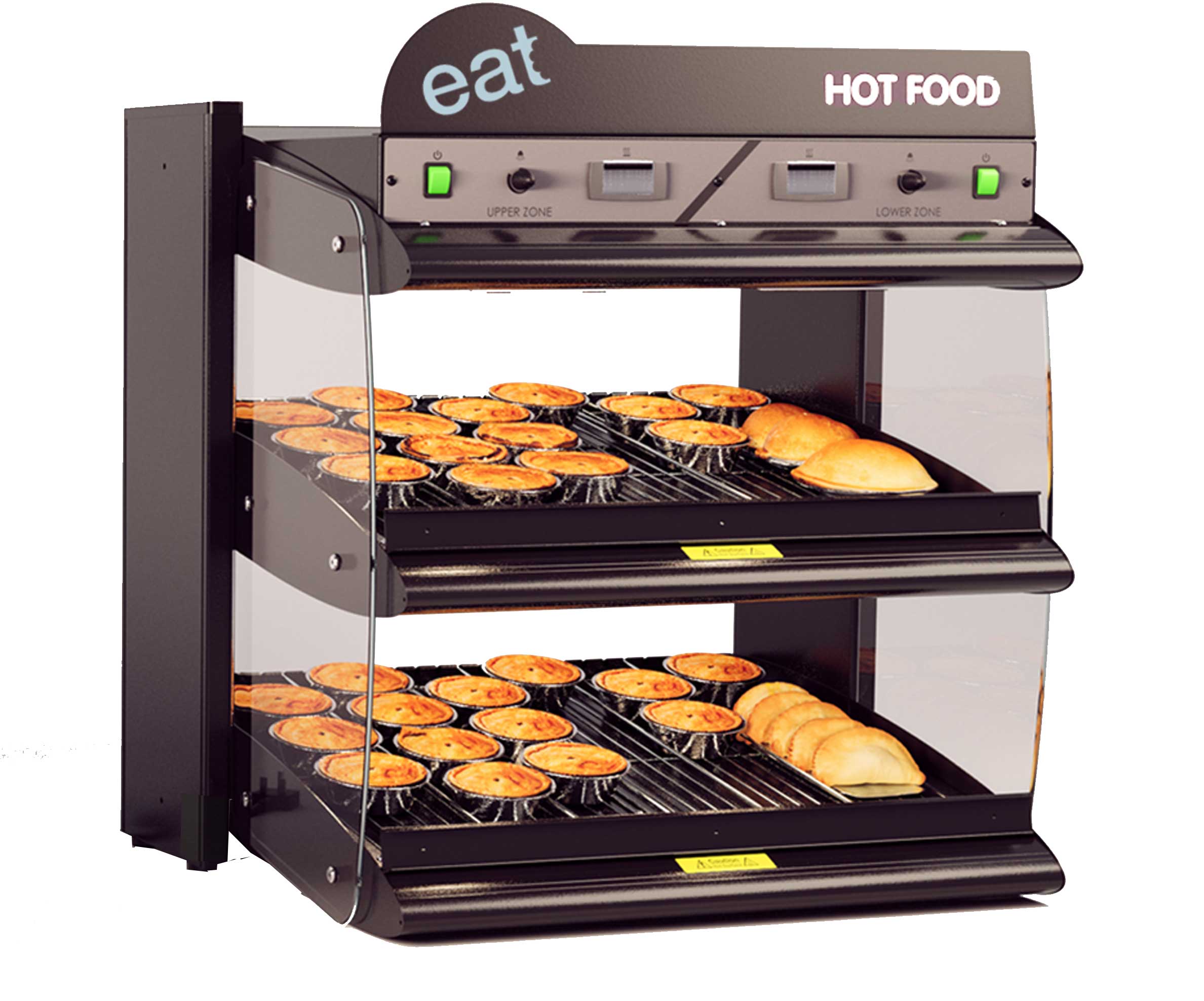

(Wall Sited) 2 Tier Self Help Hot Merchandiser (Inclined Shelf).
Visual



Features

(Wall Sited) 2 Tier Self Help Hot Merchandiser (Inclined Shelf).
Features

Model Code DTTHM2W: (Wall Sited Two Tier Inclined Shelf)

  • Wall sited table top self help heated merchandiser, open fronted with front (or rear) loading to two display levels.
  • For the display of pre-heated cooked food, unwrapped, packaged or cartoned heated product.
  • Open fronted display used as short term food set down or grab n’ go.
  • 2 no. inclined heated shelves.
  • Controls to front customer side canopy.
  • Both upper & lower zones independently controlled.
  • Temperature of each heated zone independently adjusted by digital display & infrared top heat regulator.
  • Factory set for 70 – 75°C (+18°C ambient).
  • 430gd s/steel & alluminum in food safe polyester black coating (Ral 9005).
  • Mains power to each zone controlled by separate neon on/off switch.
  • Adjustable static base heat maintains food core, variable jacketed, overhead infrared top heat lamps surround food surface.
  • Energy saving facility: For less busy serving periods, upper or lower zones can be independently switched off to conserve energy.
  • Model dimensions: 763 mm (L) x 715 mm (D) x 771 mm (H).
  • 2 no. s/steel wire shelf grids per shelf, for use with packaged & cartoned heated produce (ea. 553 x 299 mm) .
  • 5 no. removable steel divider bars per tier allow food to be stored in rows.
  • 40 mm (H) ticket strip mount is provided to each shelf front.
  • Shelf display dimensions ea. 637 mm (L) x 558 mm (D) x 230 mm (H)
  • Supplied with 2m lead & 13 amp UK plug (13A 230V 50Hz) 2.85 kW.
  • Easy, cleanable surfaces and a durable design ensure low maintenance for users.
  • CE & UKCA Certified equipment.
  • ‘C’ profile safety edge to all exposed edge glass.
  • Re-stocking access by open rear.
  • Toughened glass side panels provide panoramic product display, offer environmental side draught protection & add natural lighting.
  • Display is stabilised with rubber feet.

Options

  • (Code DCOL2) Optional plain polyester powder coating colour.
  • (Code DBH2) Optional brand header graphics black mounting panel.
  • (Code DVG2) Optional vinyl graphic label, applied to brand header panel. Artwork to be provided, size 680(w) x 122/85mm (h) MOQ 10 units.
  • (Code DGDR2W) Optional front lift up glass doors, hinged toughened 6mm glass – set of 2 per zone, 4 total.
  • (Code DFFH) Optional french fries holder, s/steel collar & 9 no. removable bars: allow fries cartons/bags to be stood in rows.


Food Types

(Wall Sited) 2 Tier Self Help Hot Merchandiser (Inclined Shelf).
Food Display Types



Liquid Based Foods (Deck And Shelving Area): Soups, noodles, rice, beans, porridge in tubs/ pots with lids etc.

Food (Deck And Shelving Area): Wrapped or unwrapped pastries, packaged items e.g. katsu chicken, rice and noodle dishes, bagged whole chicken, stews, curry, chilli dishes, grilled burgers and sandwiches, hot baguettes, hot ciabatta, pasta in sauce, ribs with sauce, chicken portions.



Dimensions

(Wall Sited) 2 Tier Self Help Hot Merchandiser (Inclined Shelf).
Dimensions



Model

DTTHM2W

Length (mm)

763

Depth (mm)

715

Height (mm)

771

Weight (Uncrated) (kg)

31

Capacity (Litres)

163.5

Shelving Display Position

Inclined

Upper/ Lower Zone Control Panel – Location

(Front) Customer Side

40mm(H) Ticket Strip Mount Each Shelf

Included

Max. Power (kW)

2.85

Electrical Supply

13A 230V 50Hz







Options

(Wall Sited) 2 Tier Self Help Hot Merchandiser (Inclined Shelf).
Options



Options

For Model
DTTHM2W

Graphics Header Panel:
Brand header graphics panel,
680 mm (w) x 122/85 mm (h),
powder coated black

DBH2

Vinyl Graphic label:
Vinyl graphic label, 680 mm (w) x 122/85 mm (h),
supplied from artwork provided.
Applied to brand header graphics mounting panel
(MOQ 10 Units)

DVG2

Alternative Colour Finish:
Alternative plain ral colour to black (Ral 9005)

DCOL2

Front Lift Up Glass Doors:
Front hinged glass (6 mm) lift up doors (set of 2) 4 no.

DGDR2W

French Fries Holder:
S/steel collar & (9 no.) support bars – allow fries cartons/ bags to be stood in rows.
315 mm (w) x 550 mm(d).
(appx. 27 cartons per holder)

DFFH

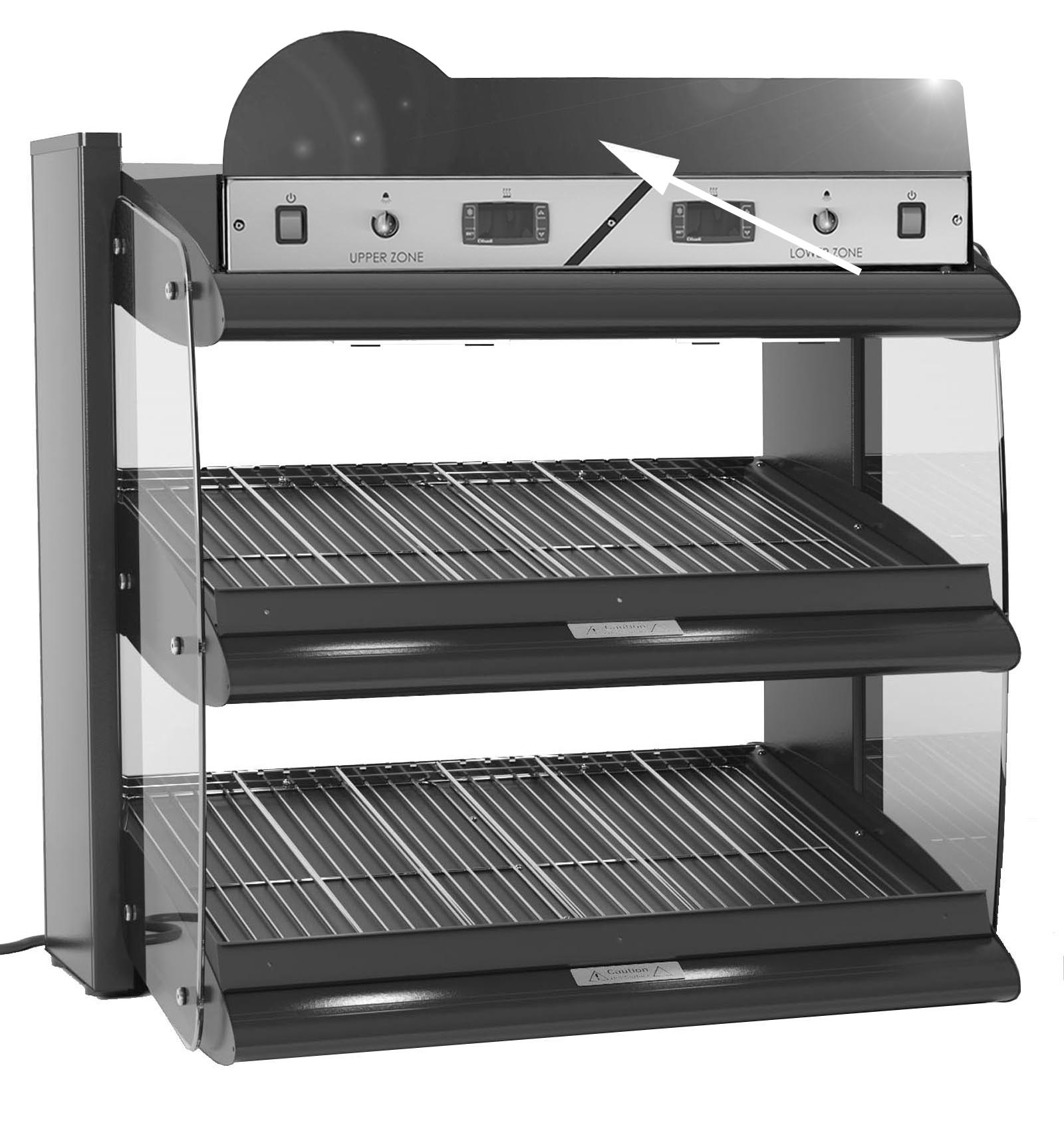

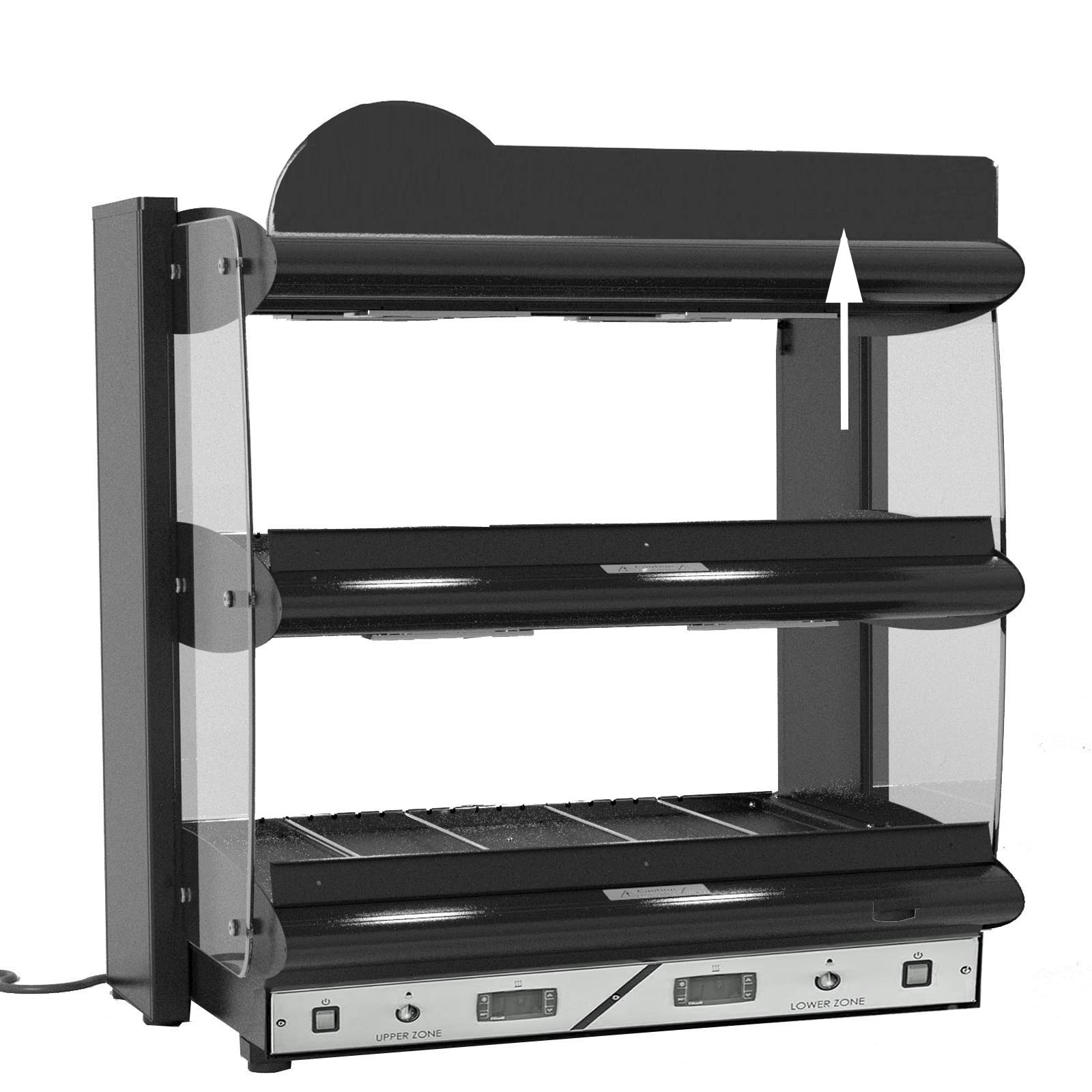

(Option DBH2) Graphics Header Panel:
Brand header graphics panel,
680 mm (w) x 122/85 mm (h),
powder coated black

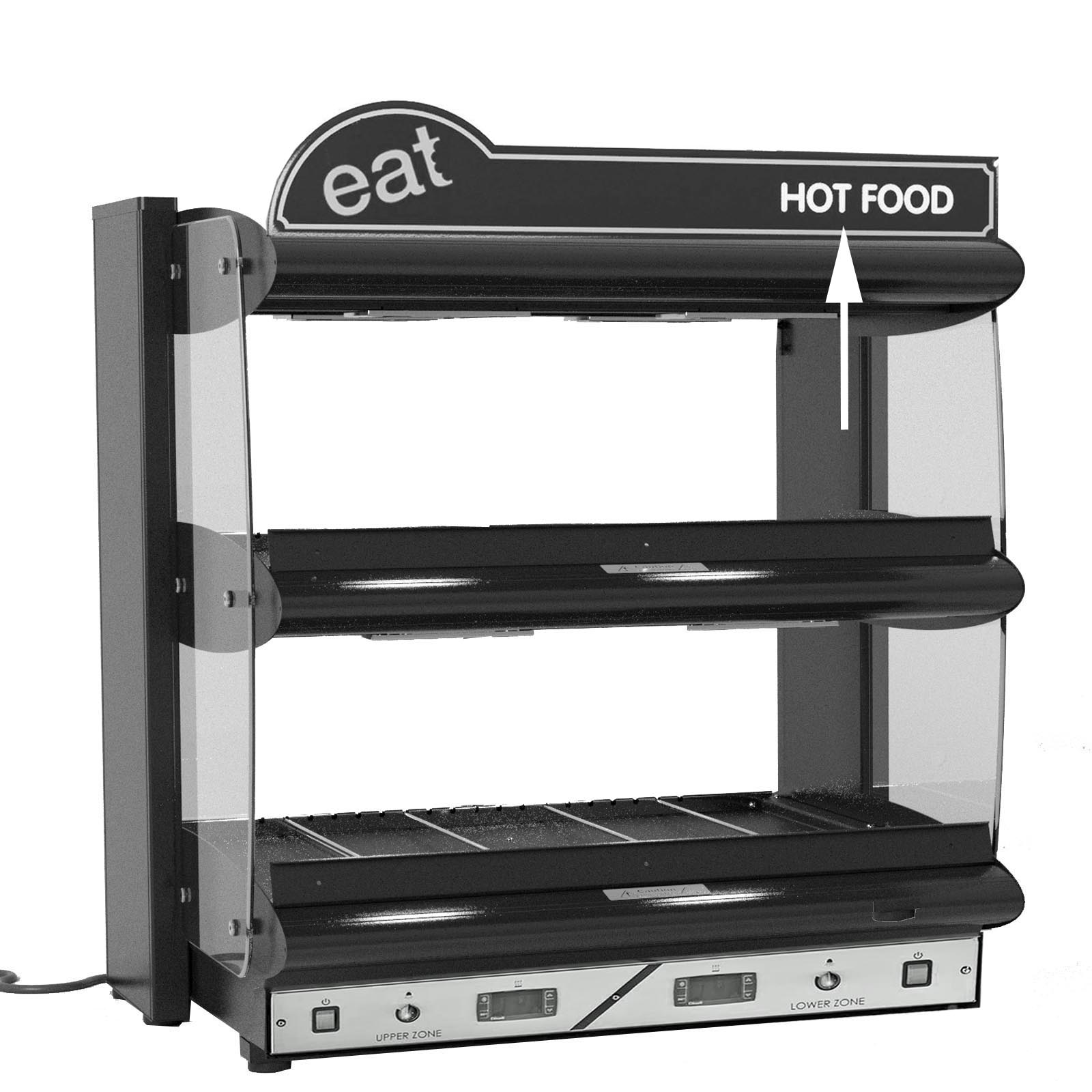

(Option DVG2) Vinyl Graphic label:
Vinyl graphic label, 680 mm (w) x 122/85 mm (h),
supplied from artwork provided.
Applied to brand header graphics mounting panel
(MOQ 10 Units)

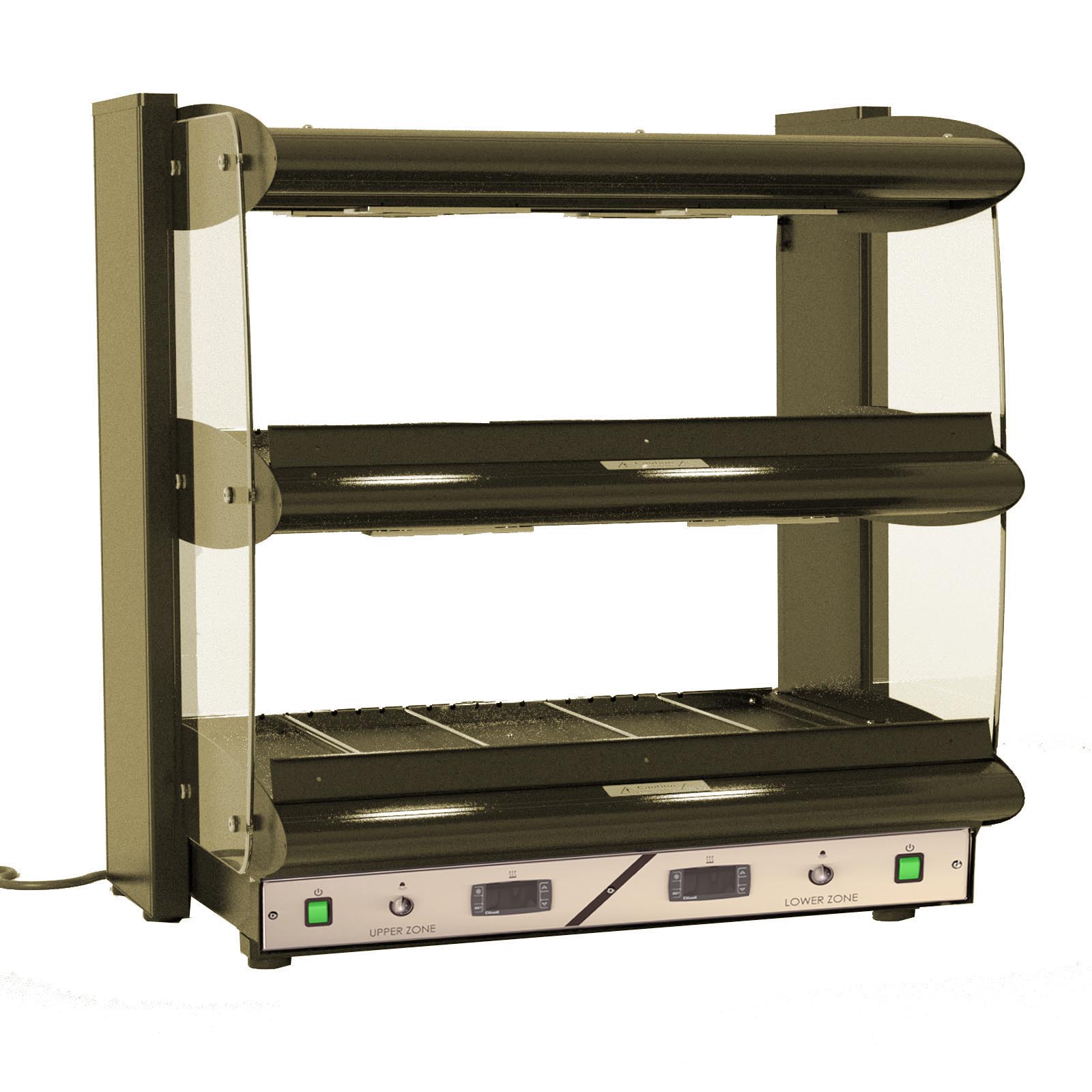

(Option DCOL2) Alternative Colour Finish:
Alternative plain ral polyester powder coating colour to black (Ral 9005)

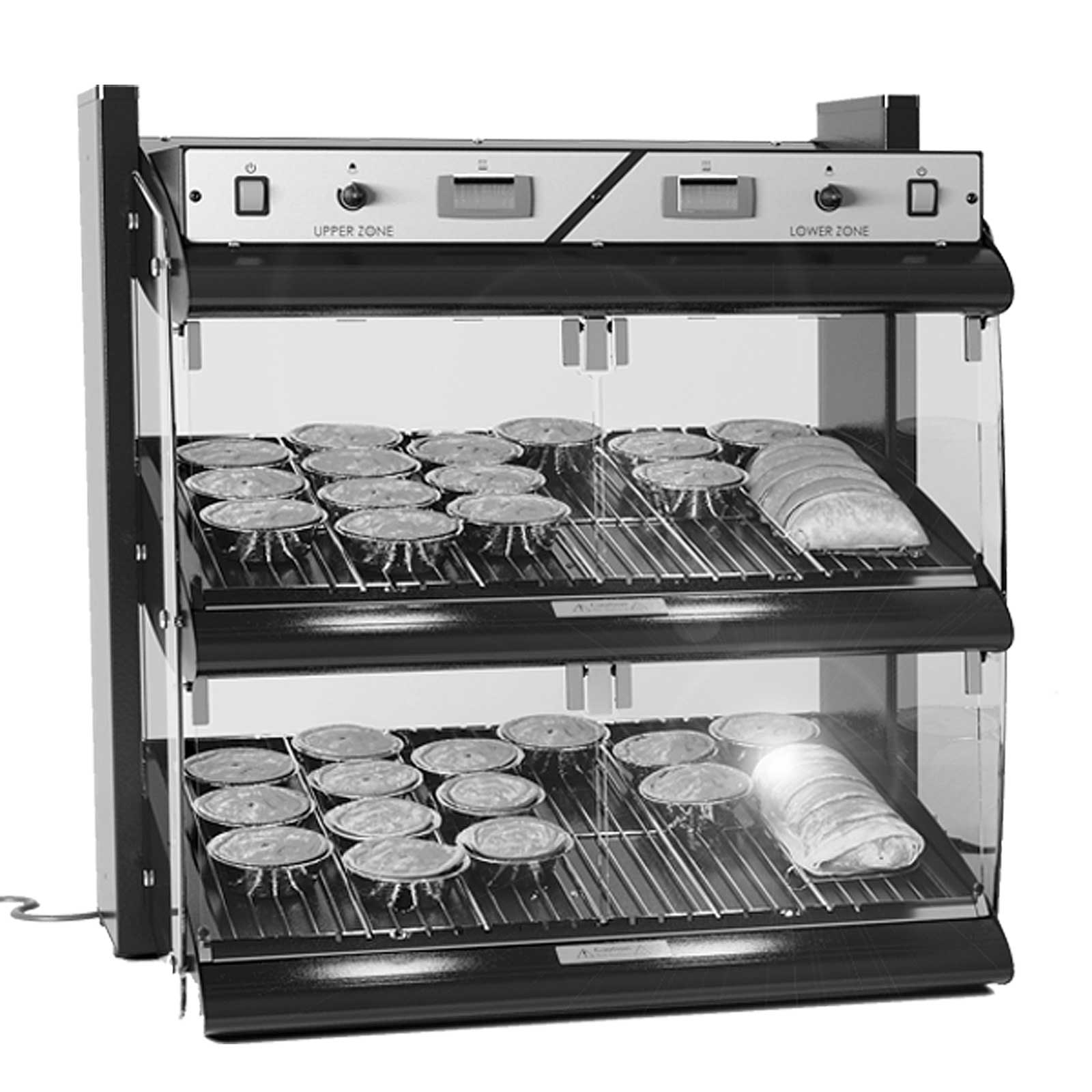

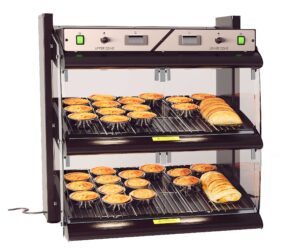

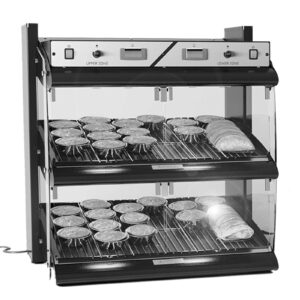

(Option DGDR2W) Front Lift Up Glass Doors:
Front hinged glass (6 mm) lift up doors (set of 2) 4 no.

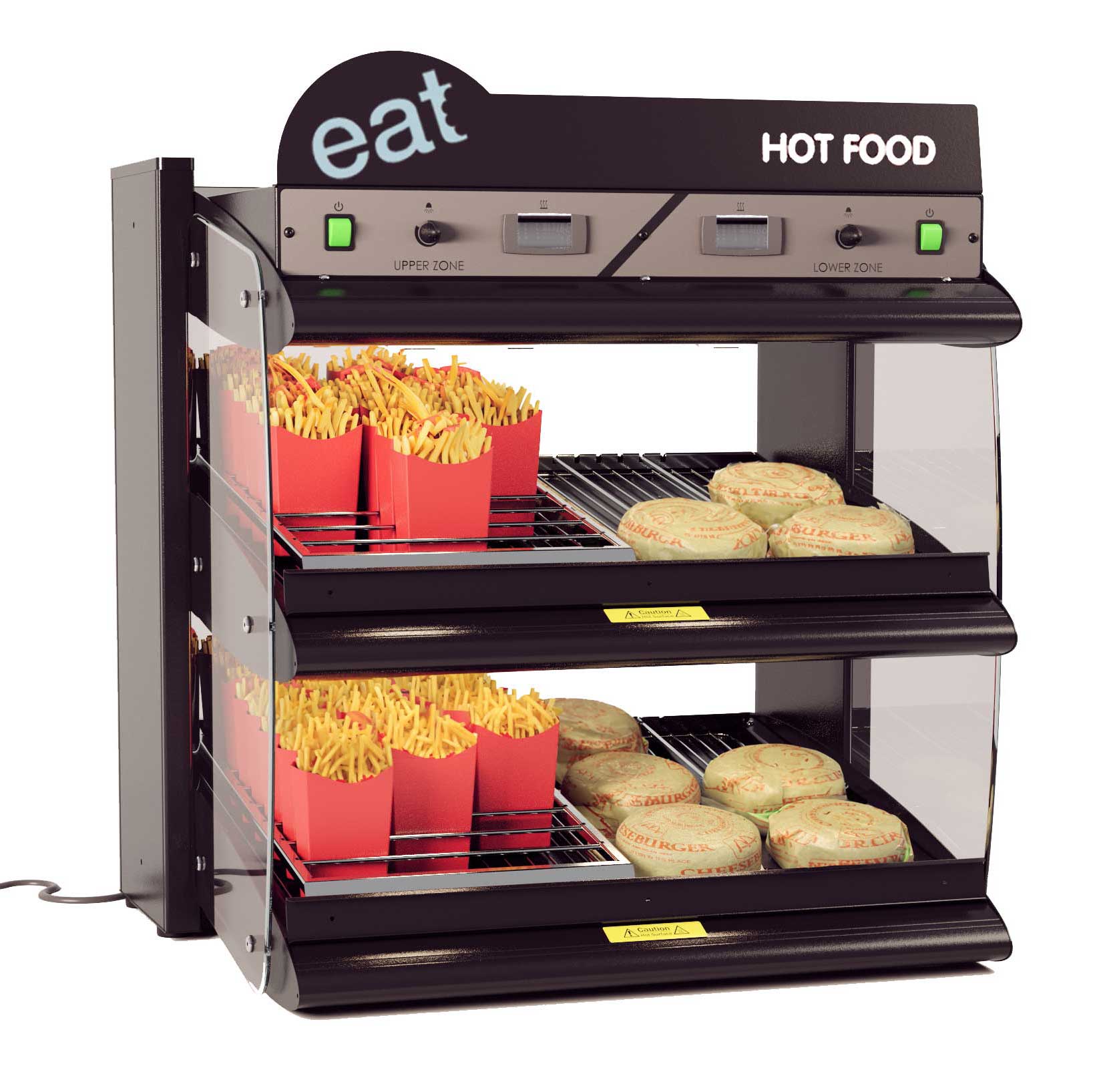

(Option DFFH)
French Fries Holder:
S/steel collar & (9 no.) support bars – allow fries cartons/ bags to be stood in rows.
315 mm (w) x 550 mm(d).
(appx. 27 cartons per holder)
Option example shown opposite/below.





Downloads

General Layout Drawings.
(Wall Sited) 2 Tier Self Help Hot Merchandiser (Inclined Shelf).

Spec. Sheet, User Manual, CE/ UKCA Conformance.
(Wall Sited) 2 Tier Self Help Hot Merchandiser (Inclined Shelf).



Visual

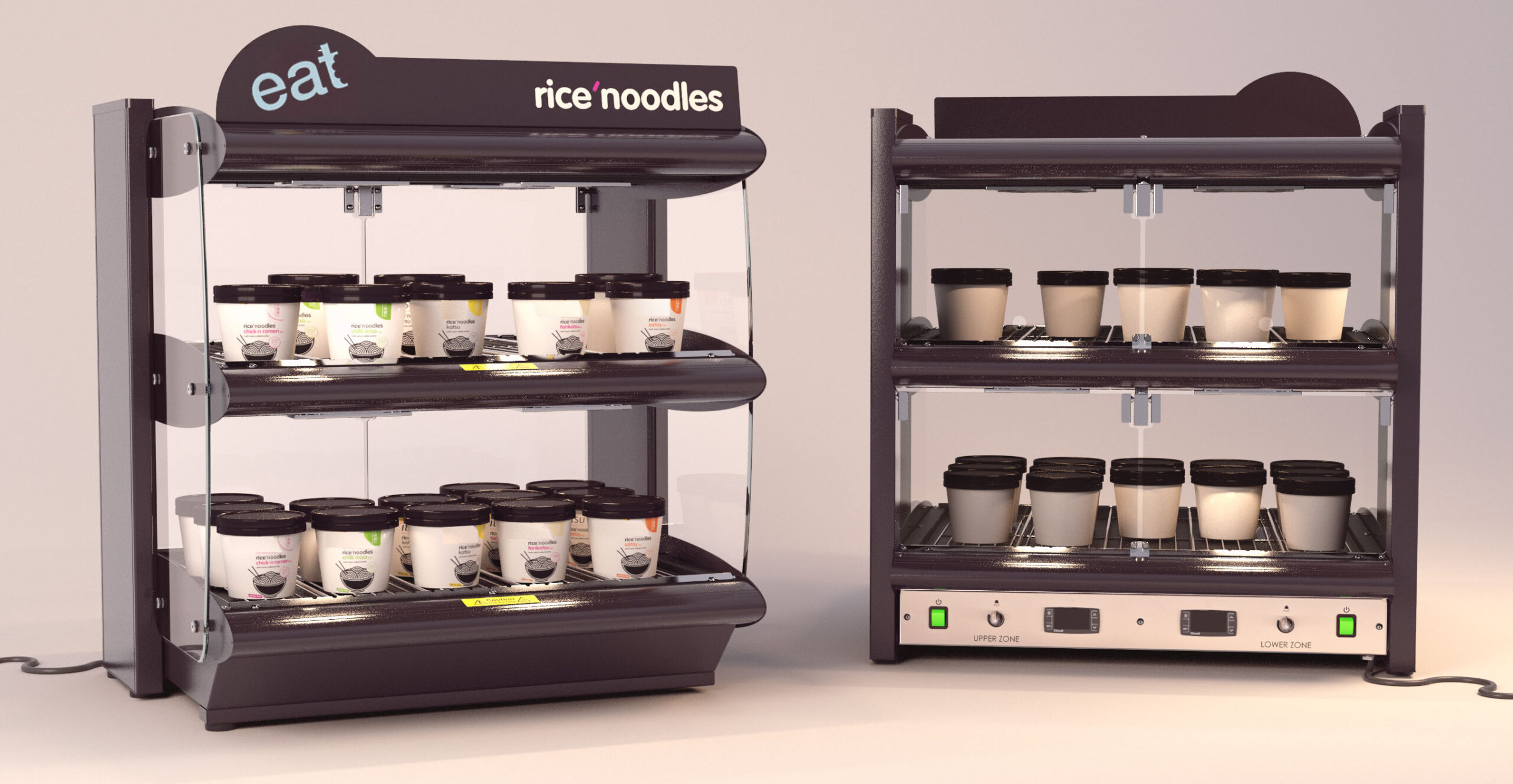

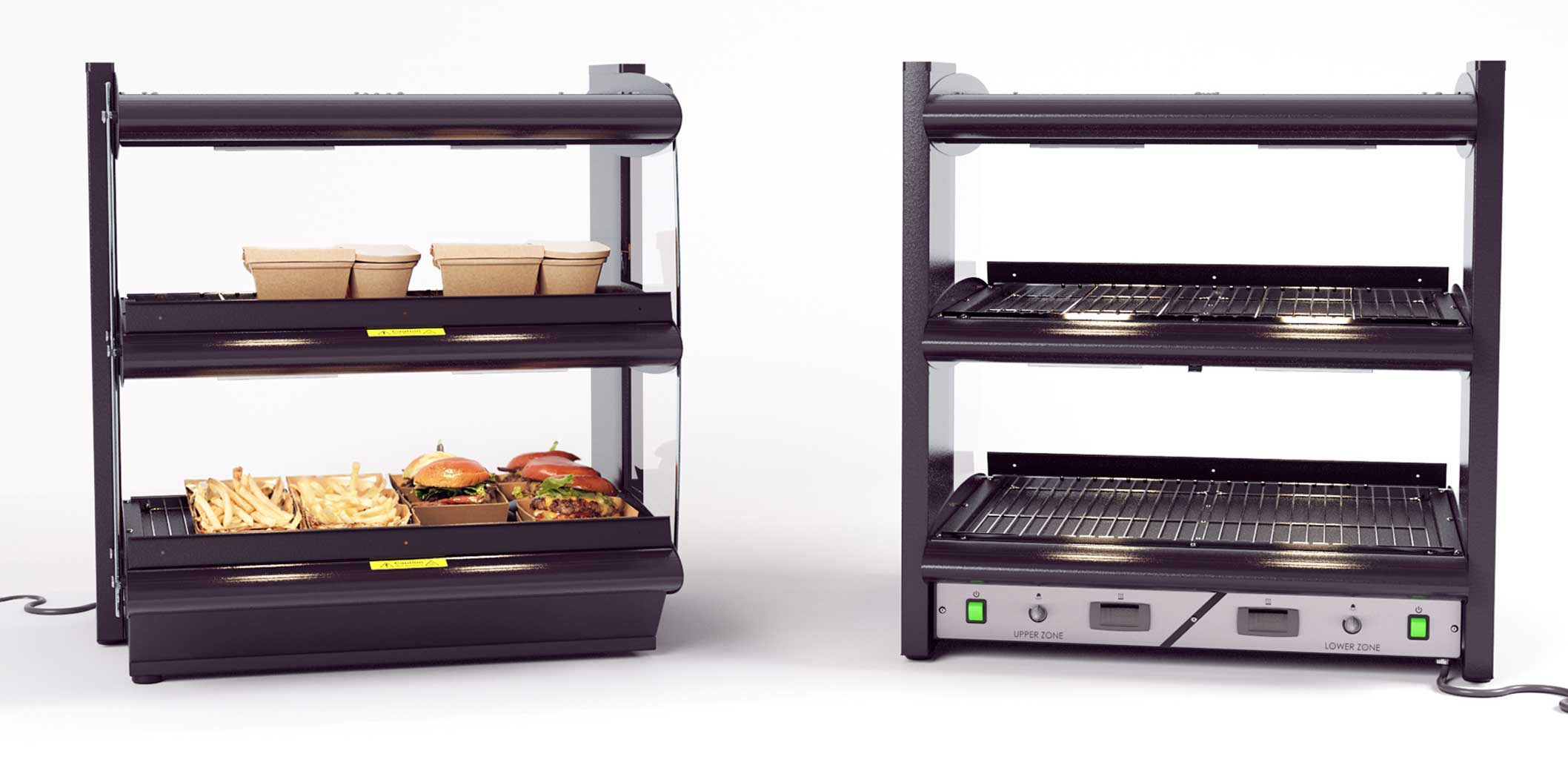

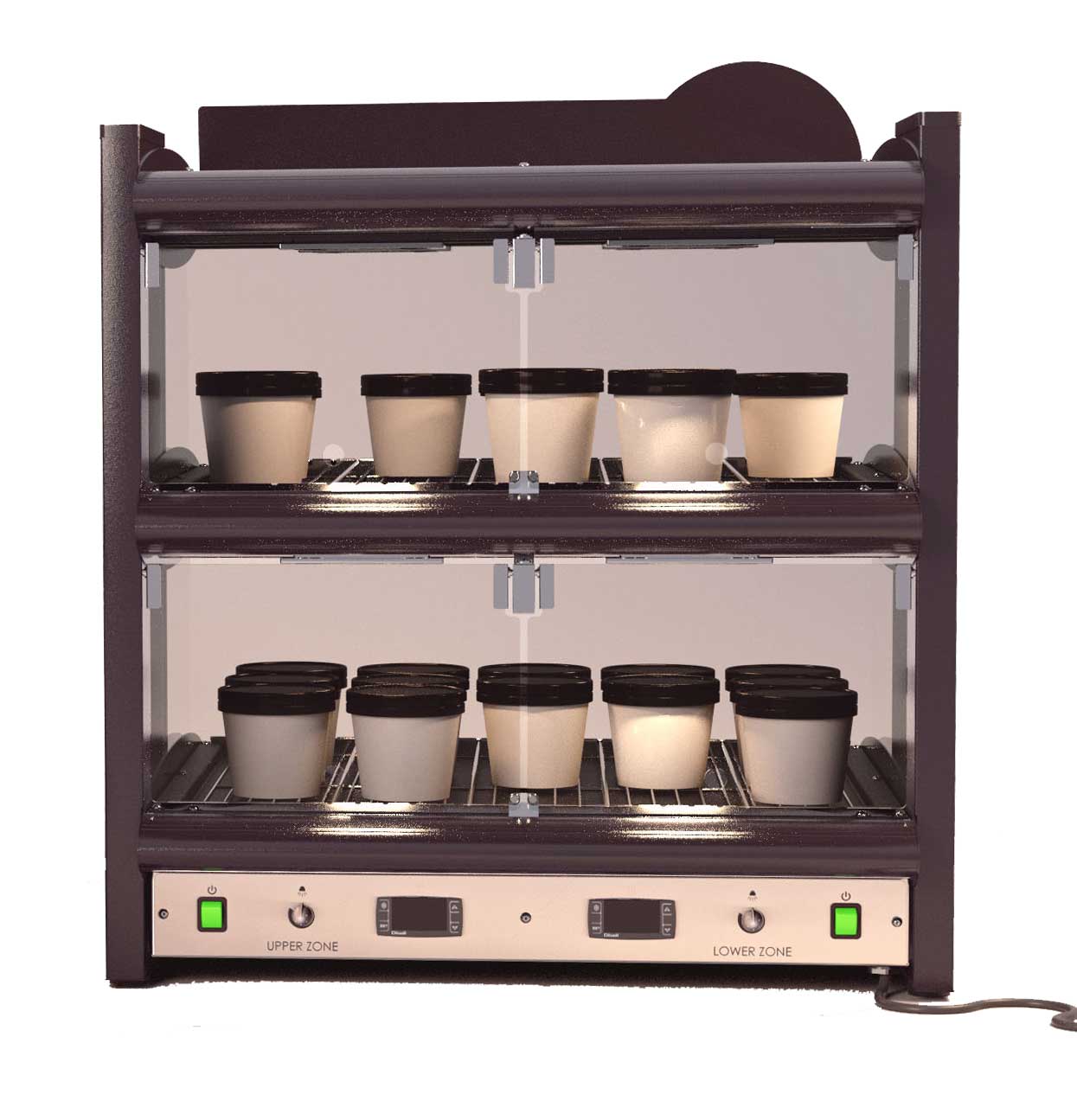

2 Tier Self Help Hot Merchandiser (Straight Shelf).
Visual



Features

2 Tier Self Help Hot Merchandiser (Straight Shelf).
Features

Model Code DTTHMS2: (Two Tier Straight Shelf)

  • Table top self help heated merchandiser, open fronted with rear loading to two display levels.
  • For the display of pre-heated cooked food, unwrapped, packaged or cartoned heated product.
  • Open fronted display used as short term food set down or grab n’ go.
  • 2 no. straight horizontal heated shelves.
  • Controls to operator side base.
  • Both upper & lower zones independently controlled.
  • Temperature of each heated zone independently adjusted by digital display & infrared top heat regulator.
  • Factory set for 70 – 75°C (+18°C ambient).
  • 430gd s/steel & alluminum in food safe polyester black coating (Ral 9005).
  • Mains power to each zone controlled by separate neon on/off switch.
  • Adjustable static base heat maintains food core, variable jacketed, overhead infrared top heat lamps surround food surface.
  • Energy saving facility: For less busy serving periods, upper or lower zones can be independently switched off to conserve energy.
  • Model dimensions: 763 mm (L) x 726 mm (D) x 792 mm (H).
  • 2 no. s/steel wire shelf grids per shelf, for use with packaged & cartoned heated produce (ea. 553 x 299 mm) .
  • 5 no. removable steel divider bars per tier allow food to be stored in rows.
  • 40 mm (H) ticket strip mount is provided to each shelf front.
  • Shelf display dimensions ea. 635 mm (L) x 555 mm (D) x 230 mm (H)
  • Supplied with 2m lead & 13 amp UK plug (13A 230V 50Hz) 2.85 kW.
  • Easy, cleanable surfaces and a durable design ensure low maintenance for users.
  • CE & UKCA Certified equipment.
  • ‘C’ profile safety edge to all exposed edge glass.
  • Re-stocking access by open rear.
  • Toughened glass side panels provide panoramic product display, offer environmental side draught protection & add natural lighting.
  • Display is stabilised with rubber feet.

Options

  • (Code DCOL2) Optional plain polyester powder coating colour.
  • (Code DBH2) Optional brand header graphics black mounting panel.
  • (Code DVG2) Optional vinyl graphic label, applied to brand header panel. Artwork to be provided, size 680(w) x 122/85mm (h) MOQ 10 units.
  • (Code DGDRS2) Optional rear lift up glass doors, hinged toughened 6mm glass – set of 2 per zone, 4 total.
  • (Code DFFH) Optional french fries holder, s/steel collar & 9 no. removable bars: allow fries cartons/bags to be stood in rows.


Food Types

2 Tier Self Help Hot Merchandiser (Straight Shelf).
Food Display Types

Liquid Based Foods (Deck And Shelving Area): Soups, noodles, rice, beans, porridge in tubs/ pots with lids etc.

Food (Deck And Shelving Area): Wrapped or unwrapped pastries, packaged items e.g. katsu chicken, rice and noodle dishes, bagged whole chicken, stews, curry, chilli dishes, grilled burgers and sandwiches, hot baguettes, hot ciabatta, pasta in sauce, ribs with sauce, chicken portions.



Dimensions

2 Tier Self Help Hot Merchandiser (Straight Shelf).
Dimensions

Model

DTTHMS2

Length (mm)

763

Depth (mm)

726

Height (mm)

792

Weight (Uncrated) (kg)

31

Capacity (Litres)

162

Shelving Display Position

Horizontal

Upper/ Lower Zone Control Panel – Location

(Rear) Operator Side

40mm(H) Ticket Strip Mount Each Shelf

Included

Max. Power (kW)

2.85

Electrical Supply

13A 230V 50Hz





Options

2 Tier Self Help Hot Merchandiser (Straight Shelf).
Options

Options

For Model
DTTHMS2

Graphics Header Panel:
Brand header graphics panel,
680 mm (w) x 122/85 mm (h),
powder coated black

DBH2

Vinyl Graphic label:
Vinyl graphic label, 680 mm (w) x 122/85 mm (h),
supplied from artwork provided.
Applied to brand header graphics mounting panel
(MOQ 10 Units)

DVG2

Alternative Colour Finish:
Alternative plain ral colour to black (Ral 9005)

DCOL2

Rear Lift Up Glass Doors:
Rear hinged glass (6 mm) lift up doors (set of 2) 4 no.

DGDRS2

French Fries Holder:
S/steel collar & (9 no.) support bars – allow fries cartons/ bags to be stood in rows.
315 mm (w) x 550 mm(d).
(appx. 27 cartons per holder)

DFFH



(Option DBH2) Graphics Header Panel:
Brand header graphics panel,
680 mm (w) x 122/85 mm (h),
powder coated black







(Option DVG2) Vinyl Graphic label:
Vinyl graphic label, 680 mm (w) x 122/85 mm (h),
supplied from artwork provided.
Applied to brand header graphics mounting panel
(MOQ 10 Units)







(Option DCOL2) Alternative Colour Finish:
Alternative plain ral polyester powder coating colour to black (Ral 9005)









(Option DGDRS2) Rear Lift Up Glass Doors:
Rear hinged glass (6 mm) lift up doors (set of 2) 4 no.









(Option DFFH)
French Fries Holder:
S/steel collar & (9 no.) support bars – allow fries cartons/ bags to be stood in rows.
315 mm (w) x 550 mm(d).
(appx. 27 cartons per holder)
Option example shown opposite/below.



Downloads

General Layout Drawings.
2 Tier Self Help Hot Merchandiser (Straight Shelf).

Spec. Sheet, User Manual.
2 Tier Self Help Hot Merchandiser (Straight Shelf).



Visual

(Wall Sited) 2 Tier Self Help Hot Merchandiser (Straight Shelf).
Visual



Features

(Wall Sited) 2 Tier Self Help Hot Merchandiser (Straight Shelf).
Features

Model Code DTTHMS2W: (Wall Sited Two Tier Straight Shelf)

  • Wall sited table top self help heated merchandiser, open fronted with front (or rear) loading to two display levels.
  • For the display of pre-heated cooked food, unwrapped, packaged or cartoned heated product.
  • Open fronted display used as short term food set down or grab n’ go.
  • 2 no. straight horizontal heated shelves.
  • Controls to front customer side base.
  • Both upper & lower zones independently controlled.
  • Temperature of each heated zone independently adjusted by digital display & infrared top heat regulator.
  • Factory set for 70 – 75°C (+18°C ambient).
  • 430gd s/steel & alluminum in food safe polyester black coating (Ral 9005).
  • Mains power to each zone controlled by separate neon on/off switch.
  • Adjustable static base heat maintains food core, variable jacketed, overhead infrared top heat lamps surround food surface.
  • Energy saving facility: For less busy serving periods, upper or lower zones can be independently switched off to conserve energy.
  • Model dimensions: 763 mm (L) x 726 mm (D) x 792 mm (H).
  • 2 no. s/steel wire shelf grids per shelf, for use with packaged & cartoned heated produce (ea. 553 x 299 mm) .
  • 5 no. removable steel divider bars per tier allow food to be stored in rows.
  • 40 mm (H) ticket strip mount is provided to each shelf front.
  • Shelf display dimensions ea. 635 mm (L) x 555 mm (D) x 230 mm (H)
  • Supplied with 2m lead & 13 amp UK plug (13A 230V 50Hz) 2.85 kW.
  • Easy, cleanable surfaces and a durable design ensure low maintenance for users.
  • CE & UKCA Certified equipment.
  • ‘C’ profile safety edge to all exposed edge glass.
  • Re-stocking access by open rear.
  • Toughened glass side panels provide panoramic product display, offer environmental side draught protection & add natural lighting.
  • Display is stabilised with rubber feet.

Options

  • (Code DCOL2) Optional plain polyester powder coating colour.
  • (Code DBH2) Optional brand header graphics black mounting panel.
  • (Code DVG2) Optional vinyl graphic label, applied to brand header panel. Artwork to be provided, size 680(w) x 122/85mm (h) MOQ 10 units.
  • (Code DGDRS2W) Optional front lift up glass doors, hinged toughened 6mm glass – set of 2 per zone, 4 total.
  • (Code DFFH) Optional french fries holder, s/steel collar & 9 no. removable bars: allow fries cartons/bags to be stood in rows.


Food Types

(Wall Sited) 2 Tier Self Help Hot Merchandiser (Straight Shelf).
Food Display Types

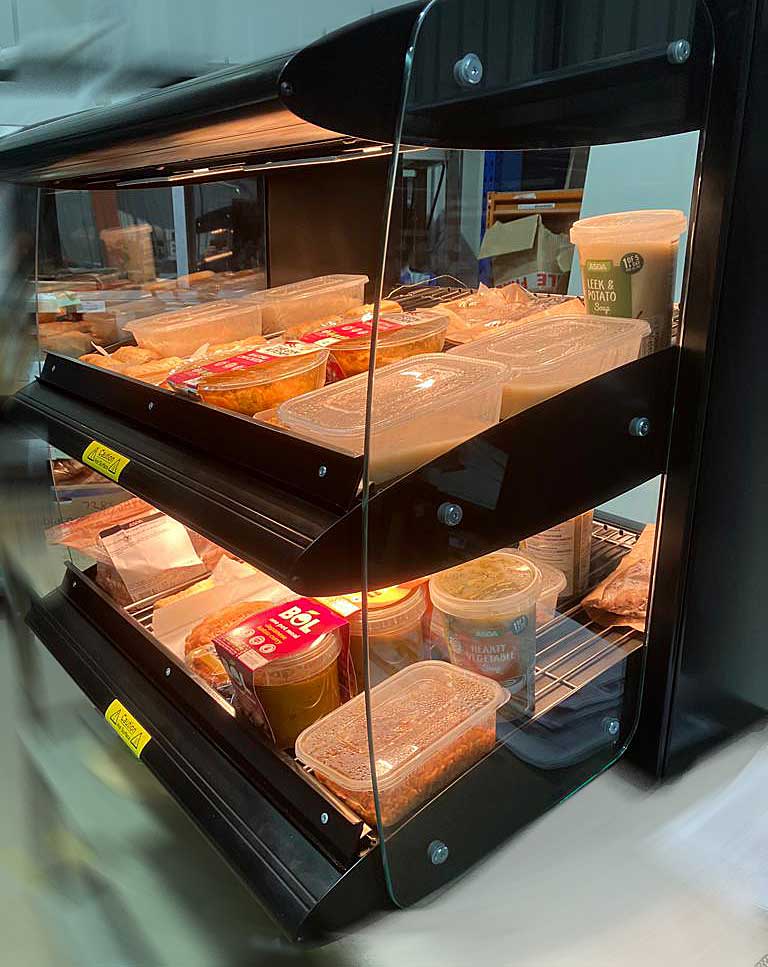

Liquid Based Foods (Deck And Shelving Area): Soups, noodles, rice, beans, porridge in tubs/ pots with lids etc.

Food (Deck And Shelving Area): Wrapped or unwrapped pastries, packaged items e.g. katsu chicken, rice and noodle dishes, bagged whole chicken, stews, curry, chilli dishes, grilled burgers and sandwiches, hot baguettes, hot ciabatta, pasta in sauce, ribs with sauce, chicken portions.



Dimensions

(Wall Sited) 2 Tier Self Help Hot Merchandiser (Straight Shelf).
Dimensions



Model

DTTHMS2W

Length (mm)

763

Depth (mm)

726

Height (mm)

792

Weight (Uncrated) (kg)

31

Capacity (Litres)

162

Shelving Display Position

Horizontal

Upper/ Lower Zone Control Panel – Location

(Front) Customer Side

40mm(H) Ticket Strip Mount Each Shelf

Included

Max. Power (kW)

2.85

Electrical Supply

13A 230V 50Hz







Options

(Wall Sited) 2 Tier Self Help Hot Merchandiser (Straight Shelf).
Options



Options

For Model
DTTHMS2W

Graphics Header Panel:
Brand header graphics panel,
680 mm (w) x 122/85 mm (h),
powder coated black

DBH2

Vinyl Graphic label:
Vinyl graphic label, 680 mm (w) x 122/85 mm (h),
supplied from artwork provided.
Applied to brand header graphics mounting panel
(MOQ 10 Units)

DVG2

Alternative Colour Finish:
Alternative plain ral colour to black (Ral 9005)

DCOL2

Front Lift Up Glass Doors:
Front hinged glass (6 mm) lift up doors (set of 2) 4 no.

DGDRS2W

French Fries Holder:
S/steel collar & (9 no.) support bars – allow fries cartons/ bags to be stood in rows.
315 mm (w) x 550 mm(d).
(appx. 27 cartons per holder)

DFFH



(Option DBH2) Graphics Header Panel:
Brand header graphics panel,
680 mm (w) x 122/85 mm (h),
powder coated black







(Option DVG2) Vinyl Graphic label:
Vinyl graphic label, 680 mm (w) x 122/85 mm (h),
supplied from artwork provided.
Applied to brand header graphics mounting panel
(MOQ 10 Units)







(Option DCOL2) Alternative Colour Finish:
Alternative plain ral polyester powder coating colour to black (Ral 9005)









(Option DGDRS2W) Front Lift Up Glass Doors:
Front hinged glass (6 mm) lift up doors (set of 2) 4 no.









(Option DFFH)
French Fries Holder:
S/steel collar & (9 no.) support bars – allow fries cartons/ bags to be stood in rows.
315 mm (w) x 550 mm(d).
(appx. 27 cartons per holder)
Option example shown opposite/below.



Downloads

General Layout Drawings.
(Wall Sited) 2 Tier Self Help Hot Merchandiser (Straight Shelf).

Spec. Sheet, User Manual.
(Wall Sited) 2 Tier Self Help Hot Merchandiser (Straight Shelf).




Manu
(Left) Model DTTHMS2W+ DGDRS2W (Front Lift Up Glass Doors).

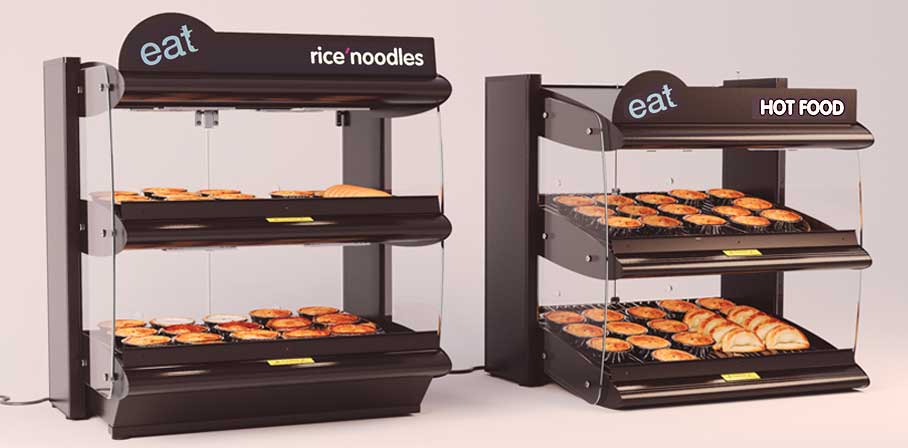

(Right) Model DTTHM2 + DBH2/DVG2 (Branding Panel & Vinyl Graphic).
Model DTTHM2 Front & Rear.(Left) Wall Sited Model DTTHMS2W + DGDRS2W (Front lift Up Glass Doors).

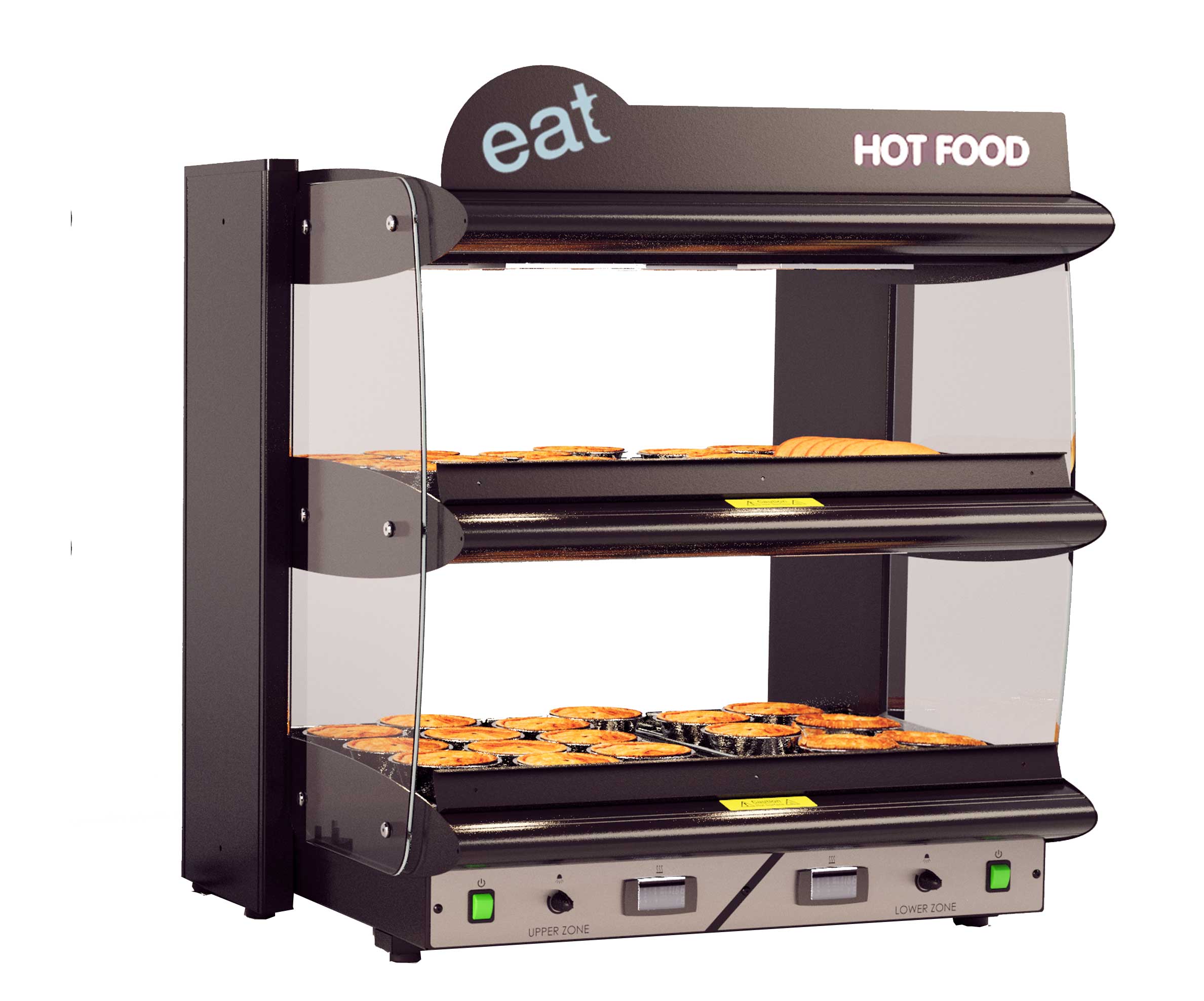

(Right) Wall Sited Model DTTHMS2W + DBH2/ DVG2 (Branding Panel & Vinyl Graphic).
Model DTTHMS2 + DBH2/ DVG2 (Branding Panel & Vinyl Graphic) Front & Rear.
Model DTTHMS2 + DBH2/ DVG2 (Branding Panel & Vinyl Graphic).
Model DTTHM2 + DBH2/ DVG2 (Branding Panel & Vinyl Graphic).

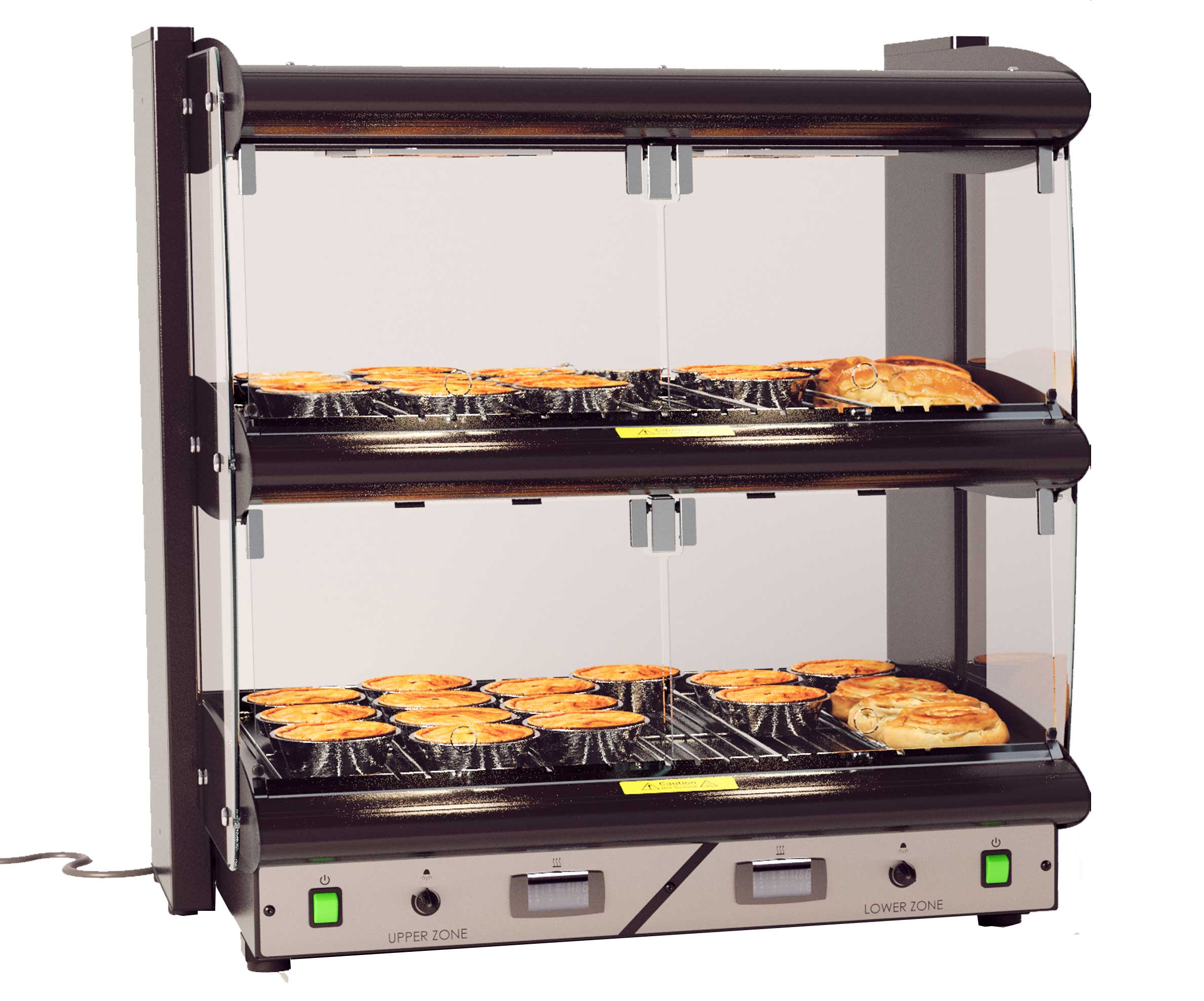

Wall Sited Model DTTHMS2W+ DGDRS2W (Front Lift Up Glass Doors).
Wall Sited Model DTTHM2W + DGDR2W (Front Lift Up Glass Doors).Wall Sited Model DTTHM2W + DBH2/ DVG2 (Branding Panel & Vinyl Graphic) + DFFH (French Fries Holder) Shown To Each Shelf.

.

Follow us, View us, Tweet Us

facebook headerlinked in logo you tube logotwitter logo

.

Glide Dining Carts Price List

Glide catalogue

Drop-Ins Price List

fed catalogue 2018

Fabrication Price List

Tournus Price List

Merchandiser Price List

Backbar Price List


Pages
