Designline drop in displays are elliptically styled displays utilising a clean curved design perspective, enhanced by durable chrome plated aluminium superstructures and lighting ducts, all enclosed within toughened curved glass hoods, sneeze screens and side panels.
Contact Cooled Well![CED Fabrications - Designline Brand - Chilled Logo](https://www.cedfabsltd.co.uk/wp-content/uploads/2011/04/brand-logos-d-chilled-r404A.jpg)
Visual
![page-hedr-d.line-CGD](https://www.cedfabsltd.co.uk/wp-content/uploads/2011/04/page-hedr-d.line-CGD.jpg)
Contact Cooled Well![CED Fabrications - Designline Brand - Chilled Logo](https://www.cedfabsltd.co.uk/wp-content/uploads/2011/04/brand-logos-d-chilled-r404A.jpg)
Features

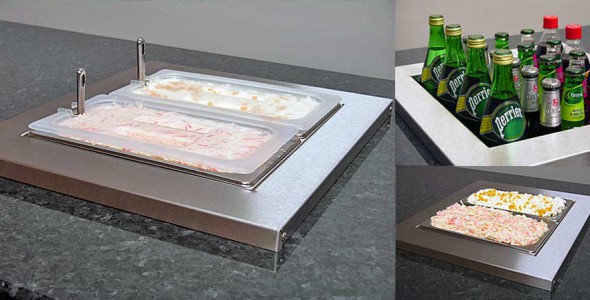

- 2/3 GN size contact cooled drop in display well with integral refrigeration.
- Ideal for holding of salads, garnishes and jacket potato toppings.
- Supplied with 2 no. 1/3 GN x 150mm deep s/steel containers.
- Supplied with 2 no. 1/3 GN clear polypropylene notched lids – for serving spoons.
- Cold contact with container bases ensure food core temperatures are maintained.
- Can achieve temperatures of 0°C to 5°C (max 25°C ambient 55% relative humidity).
- Features remote digital control panel mounted in fascia plate & 2m loom – for fitting into valance panel.
Contact Cooled Well![CED Fabrications - Designline Brand - Chilled Logo](https://www.cedfabsltd.co.uk/wp-content/uploads/2011/04/brand-logos-d-chilled-r404A.jpg)
Food Display Types
Drinks: Still & carbonated, bottled, canned or carton water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.
Food: Sandwich fillings, baked potato fillings etc. – stir product regularly.
Contact Cooled Well![CED Fabrications - Designline Brand - Chilled Logo](https://www.cedfabsltd.co.uk/wp-content/uploads/2011/04/brand-logos-d-chilled-r404A.jpg)
Dimensions.
|
Model
|
CGD
|
|
GN Size
|
2/3 GN
|
|
Length (mm)
|
450
|
|
Depth (mm)
|
500
|
|
Height Above Worktop (mm)
|
35
|
|
Depth Below Worktop (mm)
|
677
|
|
Weight (Un-crated) (kg)
|
35
|
|
Power (kW)
|
0.5
|
|
Electrical Supply
|
13A 230V
|
|
|
|
|
- R290 Refrigerant.
- Features remote digital control panel mounted in fascia plate & 2m loom – for fitting into valance panel.
General Layout Drawings ![CED Fabrications - Designline Brand - Chilled Logo](https://www.cedfabsltd.co.uk/wp-content/uploads/2011/04/brand-logos-d-chilled-r404A.jpg)
Designline Contact Cooled Well
Fitting Instructions.
Designline Contact Cooled Well
