Hot Hold/ Grab n’ Go. These energy efficient, hot merchandisers are factory pre-set at 75°C and offer customers independently controlled grab n’ go hot food holding, within a minimal 763mm (w) footprint. The 13A heated self help s/steel displays are finished in a signature food safe black coating & are ideal for the display of pre-heated cooked food, packaged, cartoned or unwrapped heated product. An optional branded header panel with vinyl transfer can be provided.
Operating. Available as straight or inclined shelf versions, these merchandisers feature digitally controlled static shelf heating to maintain food core, while variable, quartz infrared jacketed top heat lamps surround the food surface. Removable s/steel wire grid shelf covers allow heat circulation around packaged food types.
The lift-out steel bar dividers – also included – allow food to be stored in rows.
The temperature of the heated unit can be independently set using its’ digital display & infrared top heat regulator, these are mounted in the operator side base.
Product temperature is maintained at 70 – 75°C in +18°C ambient.
Low Energy. These open faced, rear loading merchandisers operate with a max. 1.33 kW power supply when both upper and lower heat sources are operating fully.
Function. Panoramic product display is provided through glazed side panels, which also offer environmental side draught protection.
The ergonomic design has ‘touch safe’ extruded alluminum shelf and canopy edges, to allow serve through or grab n’ go use at counter top height.
 The merchandiser can be used either front of house as a short term food set down point, or a hot holding area for wrapped/ unwrapped pre-heated goods.
The units are stabilised with rubber feet and feature a 2m lead and UK 13A plug top (230v 50 Hz). A 40mm (H) ticket strip mount is provided to each shelf front.
Model Types Available.

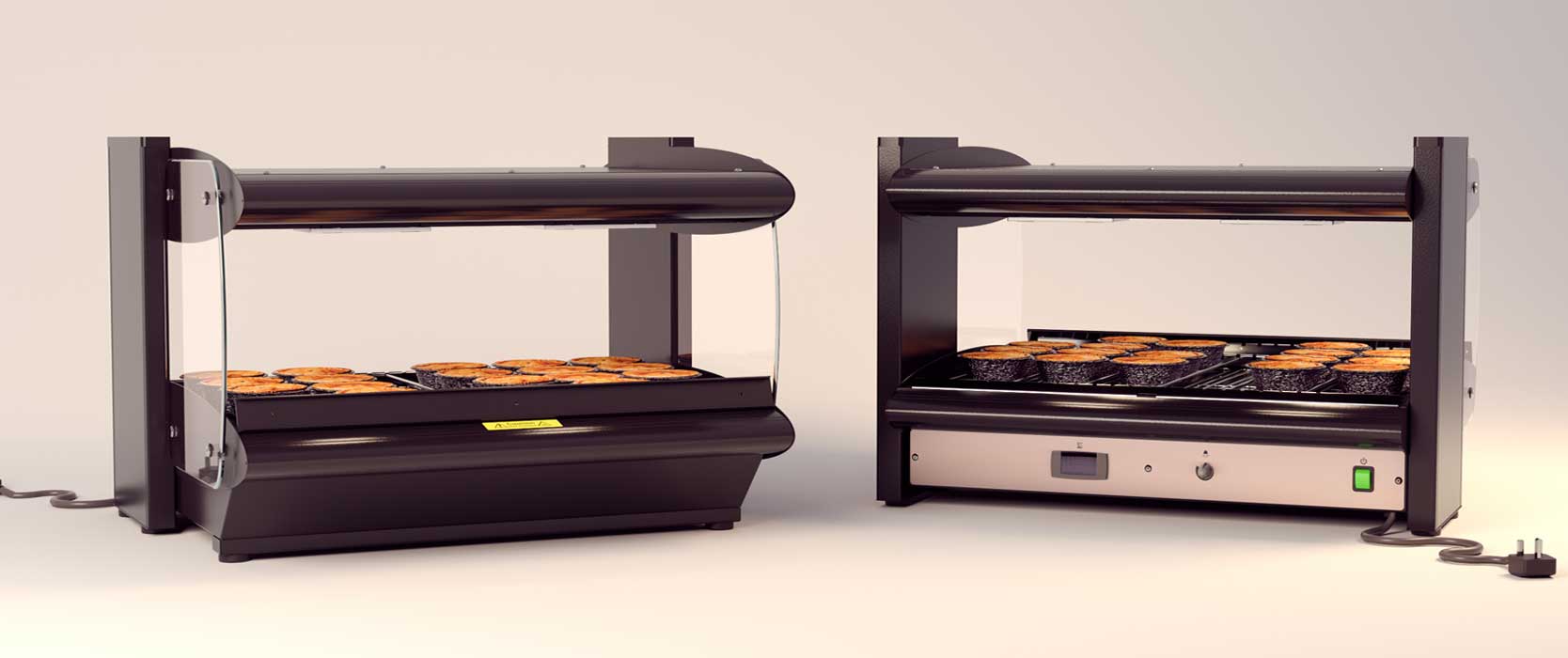

Freestanding.

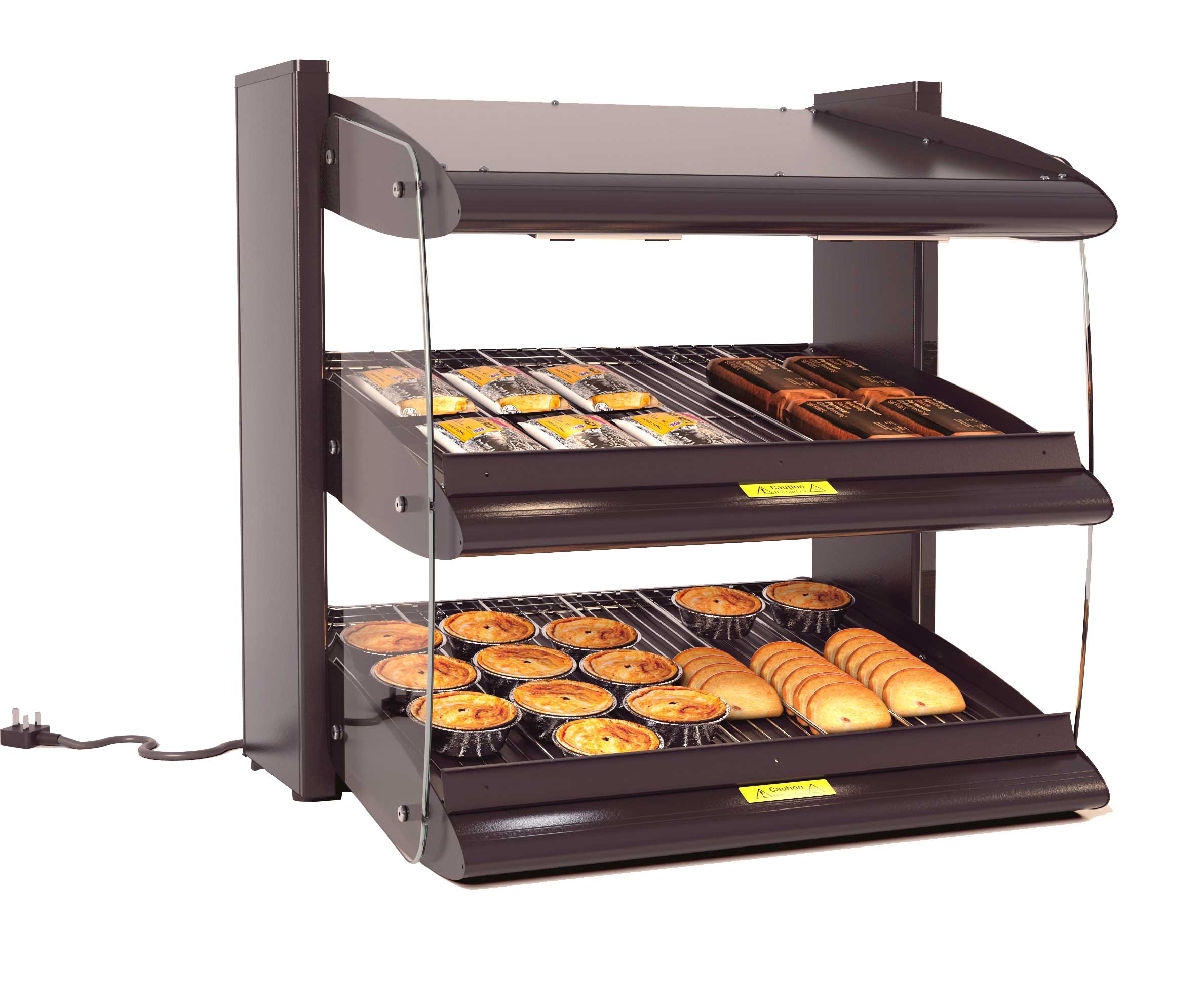

Choose from either single tier or 2 tier versions with inclined or straight display shelves (controls to rear).
Wall Sited. Alternatively choose a wall sited version either single or 2 tier (controls to front customer side) depending on your available location.

Visual

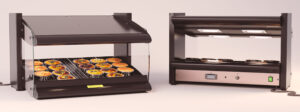

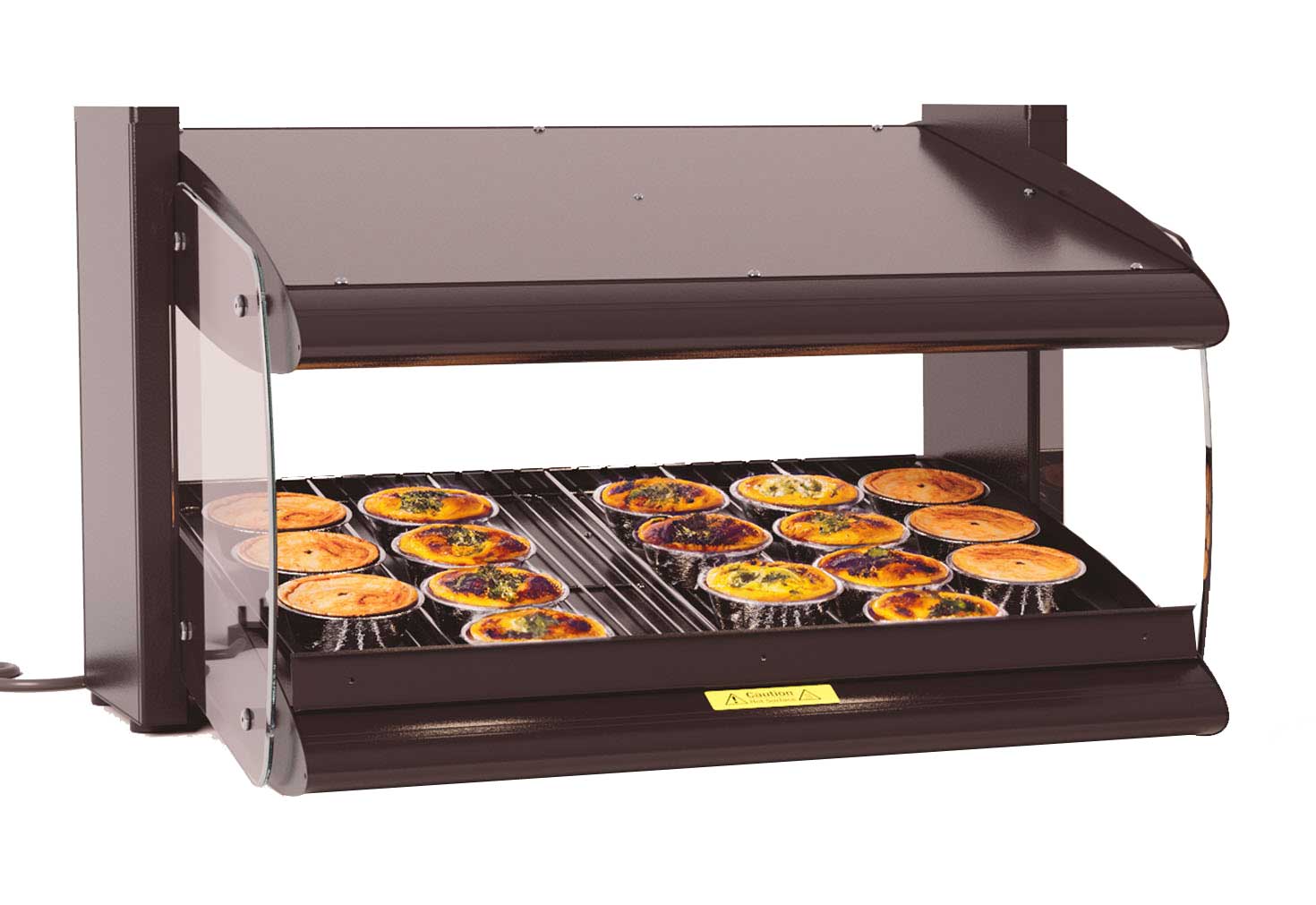

Single Tier Self Help Hot Merchandiser
(Inclined Shelf).

Visual



Features

Single Tier Self Help Hot Merchandiser
(Inclined Shelf).

Features

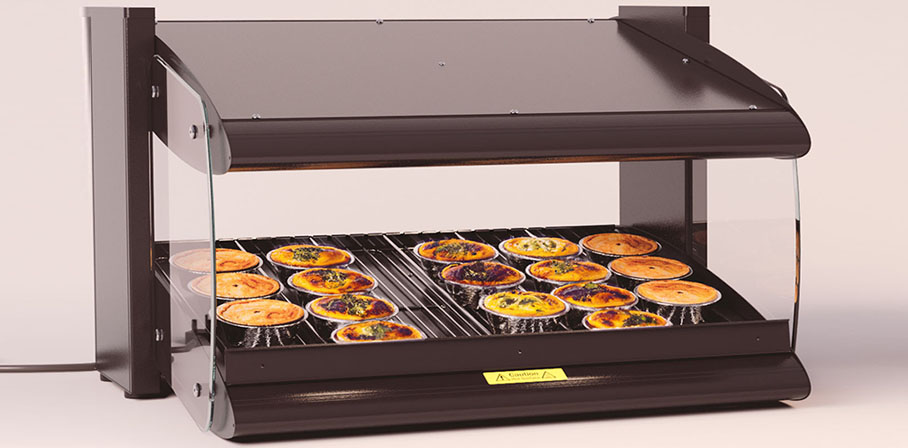

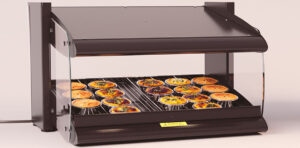

Model Code DTTHM2S: (Single Tier Inclined Shelf)

  • Table top self help heated merchandiser, open fronted with rear loading to display level.
  • For the display of pre-heated cooked food, unwrapped, packaged or cartoned heated product.
  • Open fronted display used as short term food set down or grab n’ go.
  • Inclined heated shelf & canopy.
  • Top & base heating zone independently controlled.

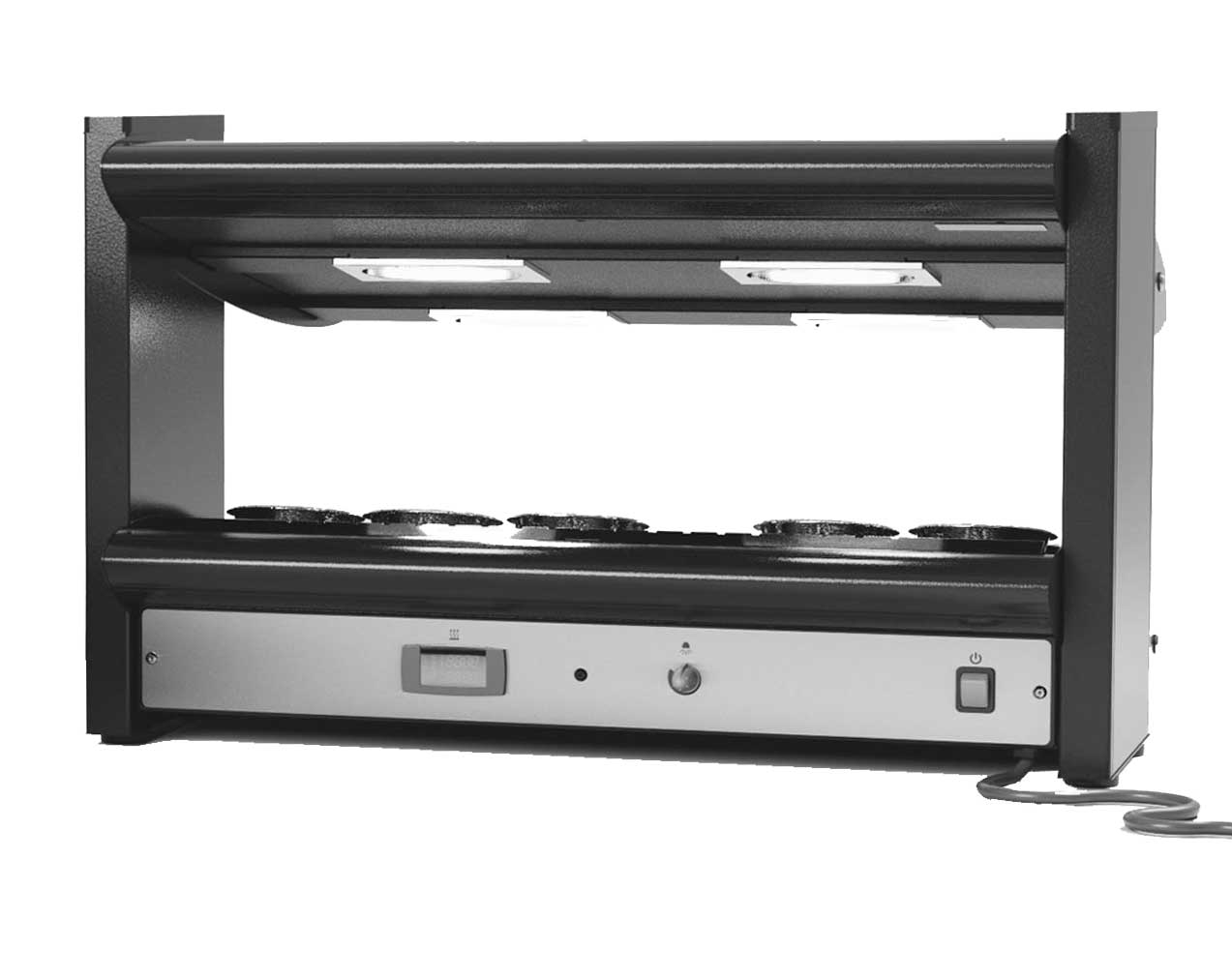

  • Controls to operator side base.
  • Temperature of unit independently adjusted by digital display & infrared top heat regulator.
  • Factory set for 70 – 75°C (+18°C ambient).
  • 430gd s/steel & alluminum in food safe polyester black coating (Ral 9005).
  • Mains power to unit controlled by separate neon on/off switch.
  • Adjustable static base heat maintains food core, variable jacketed, overhead infrared top heat lamps surround food surface.
  • Model dimensions: 763 mm (L) x 715 mm (D) x 480 mm (H).
  • 2 no. s/steel wire shelf grids on base shelf, for use with packaged & cartoned heated produce (299 mm x 553 mm ea.)
  • 5 no. removable steel divider bars allow food to be stored in rows.
  • 40 mm (H) ticket strip mount is provided to shelf front.
  • Shelf display dimensions 635 mm (L) x 555 mm (D) x 237 mm (H)
  • Supplied with 2m lead & 13 amp UK plug (13A 230V 50Hz) 1.33 kW.
  • Easy, cleanable surfaces and a durable design ensure low maintenance for users.
  • CE & UKCA Certified equipment.
  • ‘C’ profile safety edge to all exposed edge glass.
  • Re-stocking access by open rear.
  • Toughened glass side panels provide panoramic product display, offer environmental side draught protection & add natural lighting.
  • Display is stabilised with rubber feet.

Options

  • (Code DCOL2) Optional plain polyester powder coating colour.
  • (Code DBH2) Optional brand header graphics black mounting panel.
  • (Code DVG2) Optional vinyl graphic label, applied to brand header panel. Artwork to be provided, size 680(w) x 122/85mm (h) MOQ 10 units.
  • (Code DGDR2S) Optional rear lift up glass doors, hinged toughened 6mm glass – set of 2.
  • (Code DFFH) Optional french fries holder, s/steel collar & 9 no. removable bars: allow fries cartons/bags to be stood in rows.


Food Types

Single Tier Self Help Hot Merchandiser
(Inclined Shelf).

Food Display Types

Liquid Based Foods (Shelving Area): Soups, noodles, rice, beans, porridge in tubs/ pots with lids etc.

Food (Shelving Area): Wrapped or unwrapped pastries, packaged items e.g. katsu chicken, rice and noodle dishes, bagged whole chicken, stews, curry, chilli dishes, grilled burgers and sandwiches, hot baguettes, hot ciabatta, pasta in sauce, ribs with sauce, chicken portions.



Dimensions

Single Tier Self Help Hot Merchandiser
(Inclined Shelf).

Dimensions

Model

DTTHM2S

Length (mm)

763

Depth (mm)

715

Height (mm)

480

Weight (Uncrated) (kg)

31

Capacity (Litres)

83.5

Shelving Display Position

Inclined

Control Panel – Location

(Rear) Operator Side

40 mm(H) Ticket Strip Mount To Shelf Front

Included

Max. Power (kW)

1.33

Electrical Supply

13A 230V 50Hz






Options

Single Tier Self Help Hot Merchandiser
(Inclined Shelf).

Options

Options

For Model
DTTHM2S

Graphics Header Panel:
Brand header graphics panel,
680 mm (w) x 122/85 mm (h),
powder coated black


DBH2

Vinyl Graphic label:
Vinyl graphic label, 680 mm (w) x 122/85 mm (h),
supplied from artwork provided.
Applied to brand header graphics mounting panel
(MOQ 10 Units)

DVG2

Alternative Colour Finish:
Alternative plain ral colour to black (Ral 9005)

DCOL2

Rear Lift Up Glass Doors:
Rear hinged glass (6 mm) lift up doors (set of 2)

DGDR2S

French Fries Holder:
S/Steel collar & (9 no.) support bars – allow fries cartons/bags to be stood in rows.
315 mm (w) x 550 mm (d).
(appx. 27 cartons per holder)

DFFH2

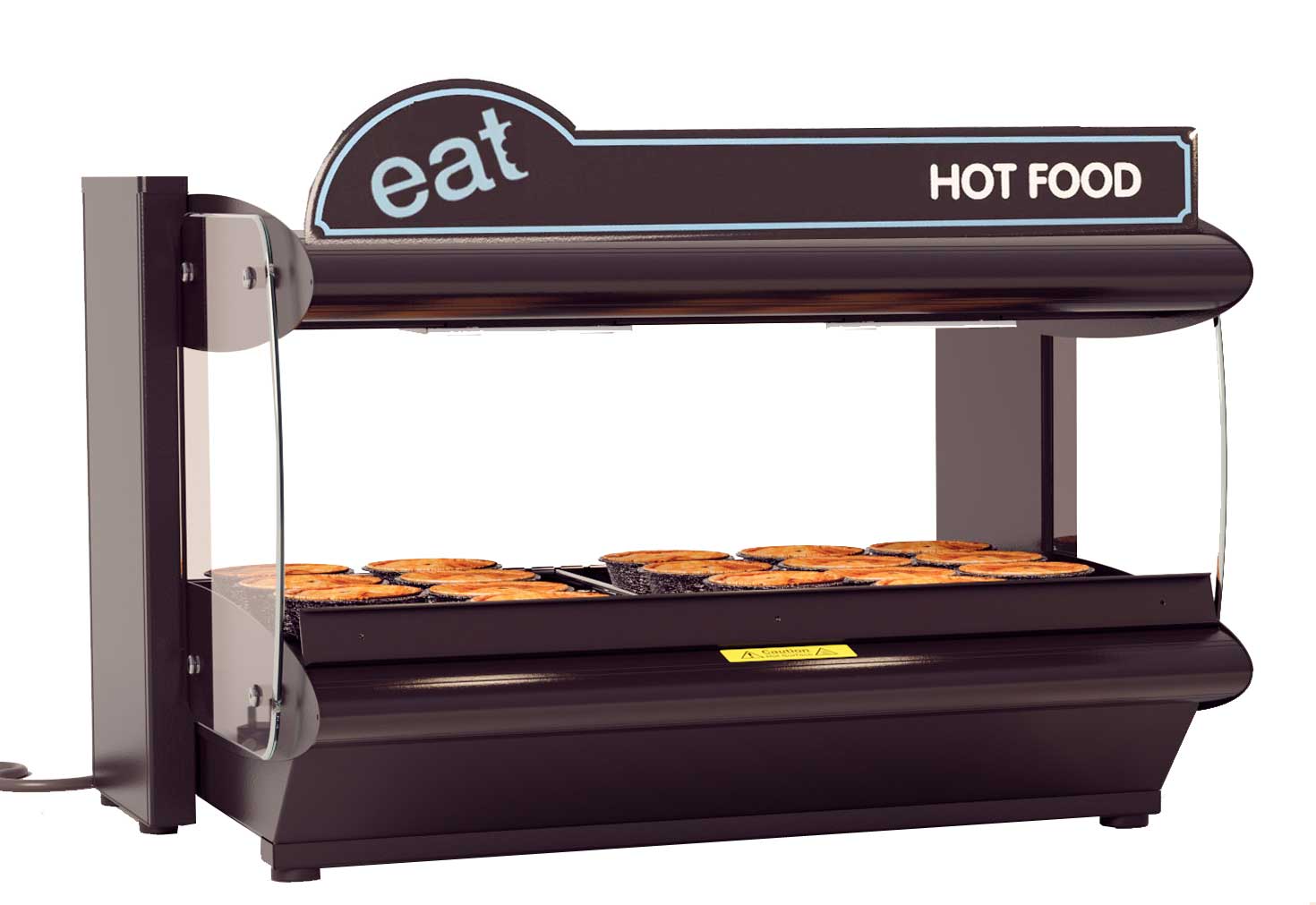

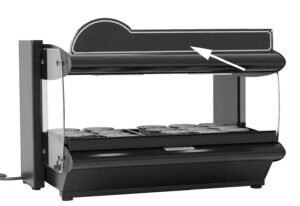

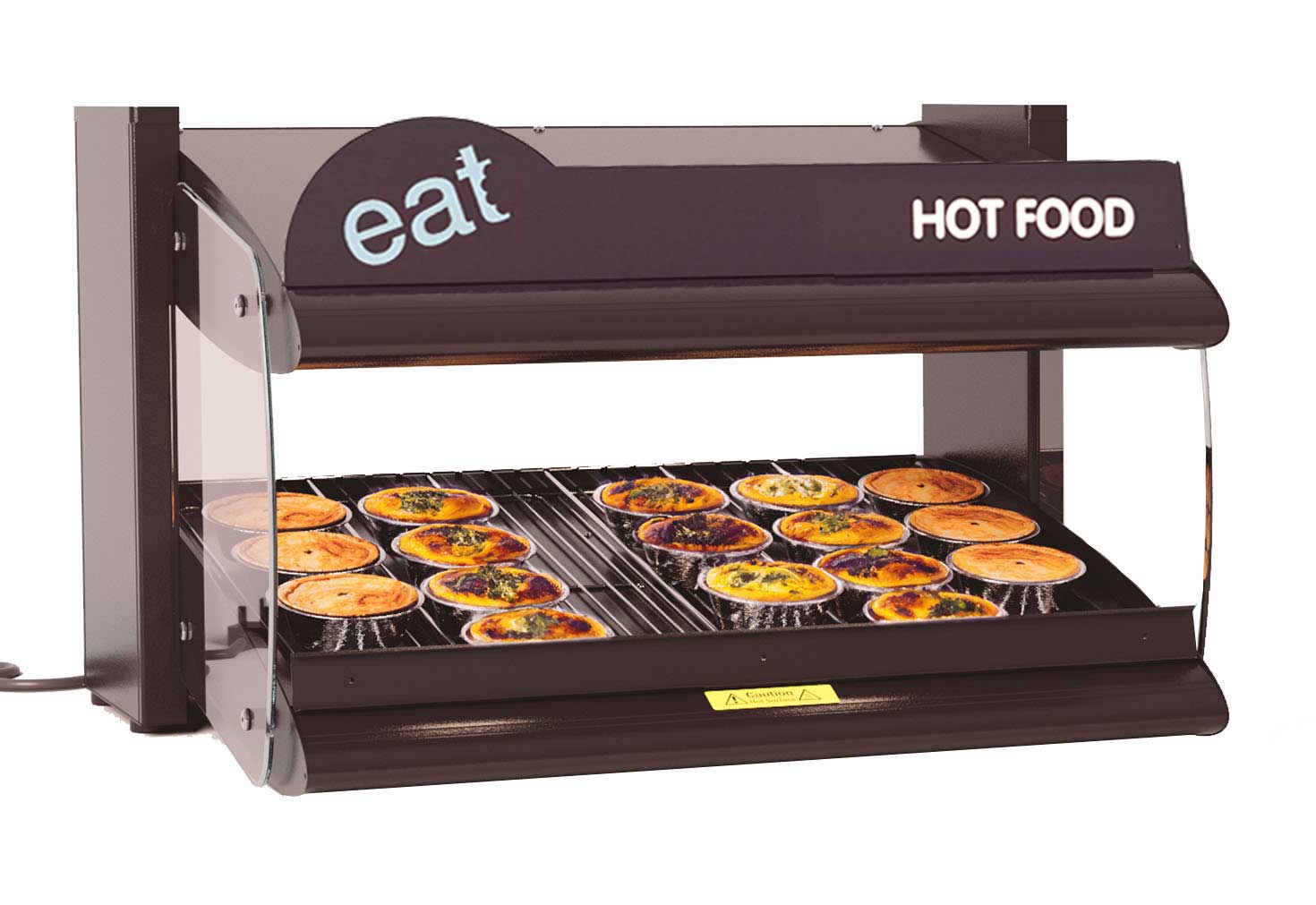

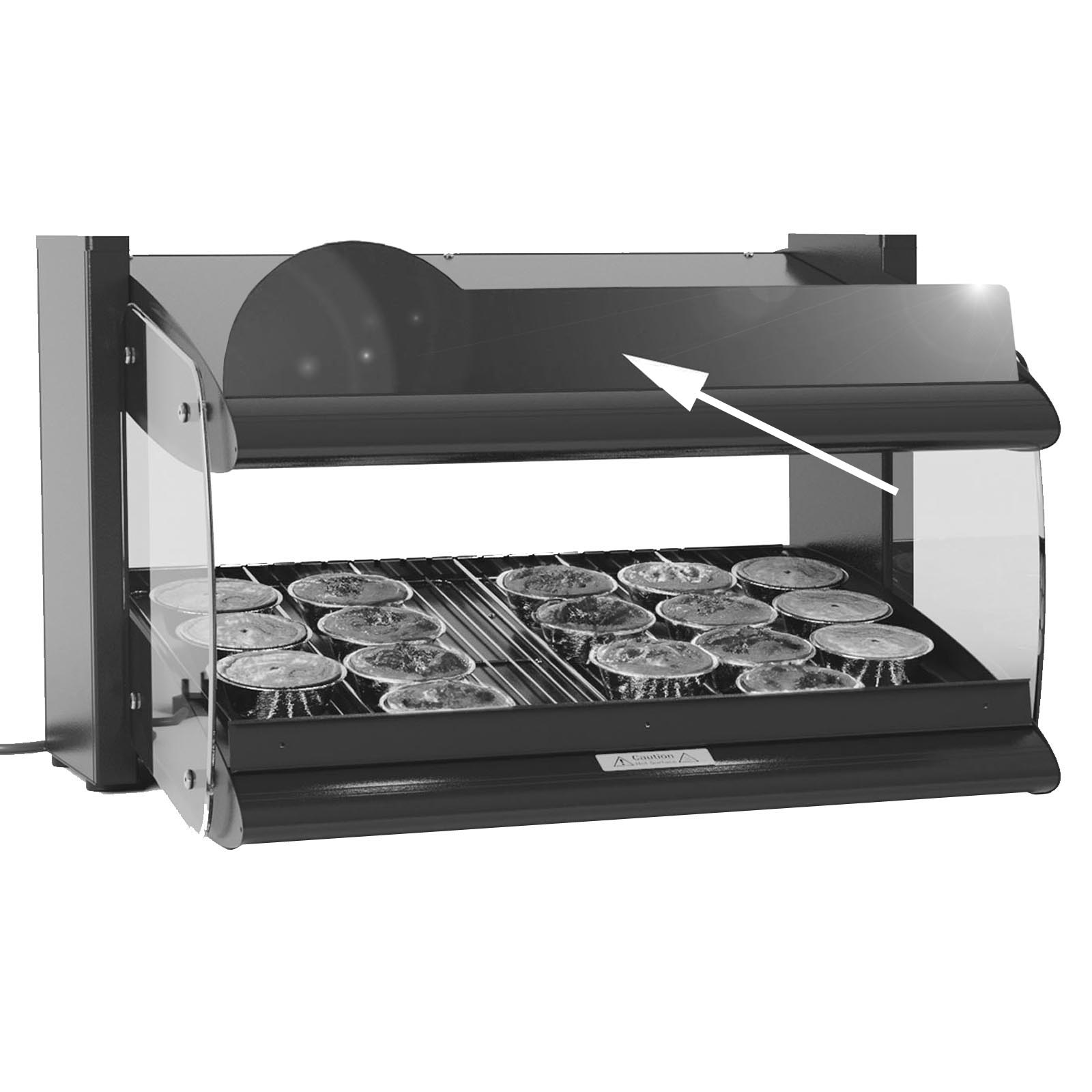

(Option DBH2) Graphics Header Panel:
Brand header graphics panel,
680 mm (w) x 122/85 mm (h),
powder coated black

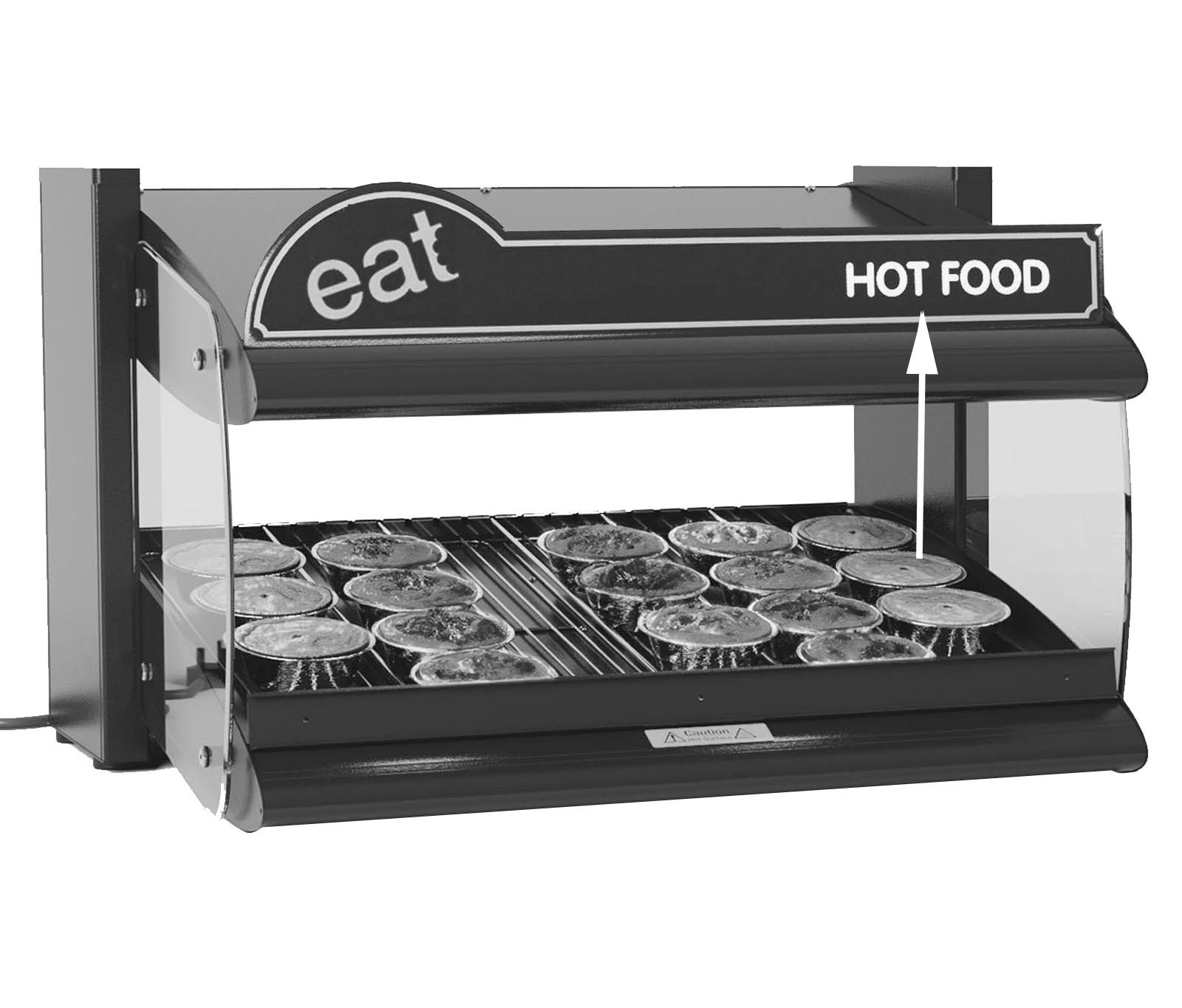

(Option DVG2) Vinyl Graphic label:
Vinyl graphic label, 680 mm (w) x 122/85 mm (h),
supplied from artwork provided.
Applied to brand header graphics mounting panel
(MOQ 10 Units)

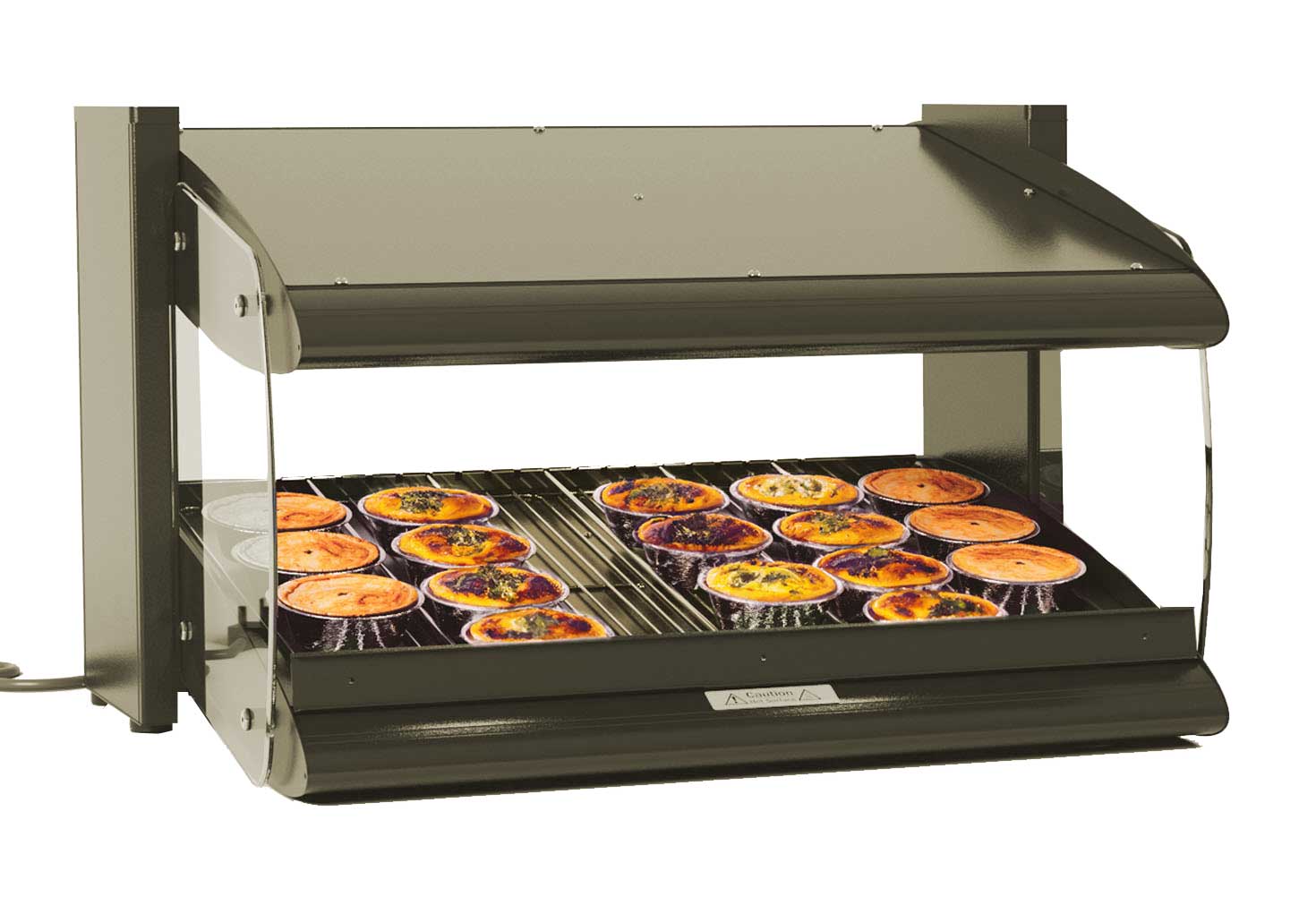

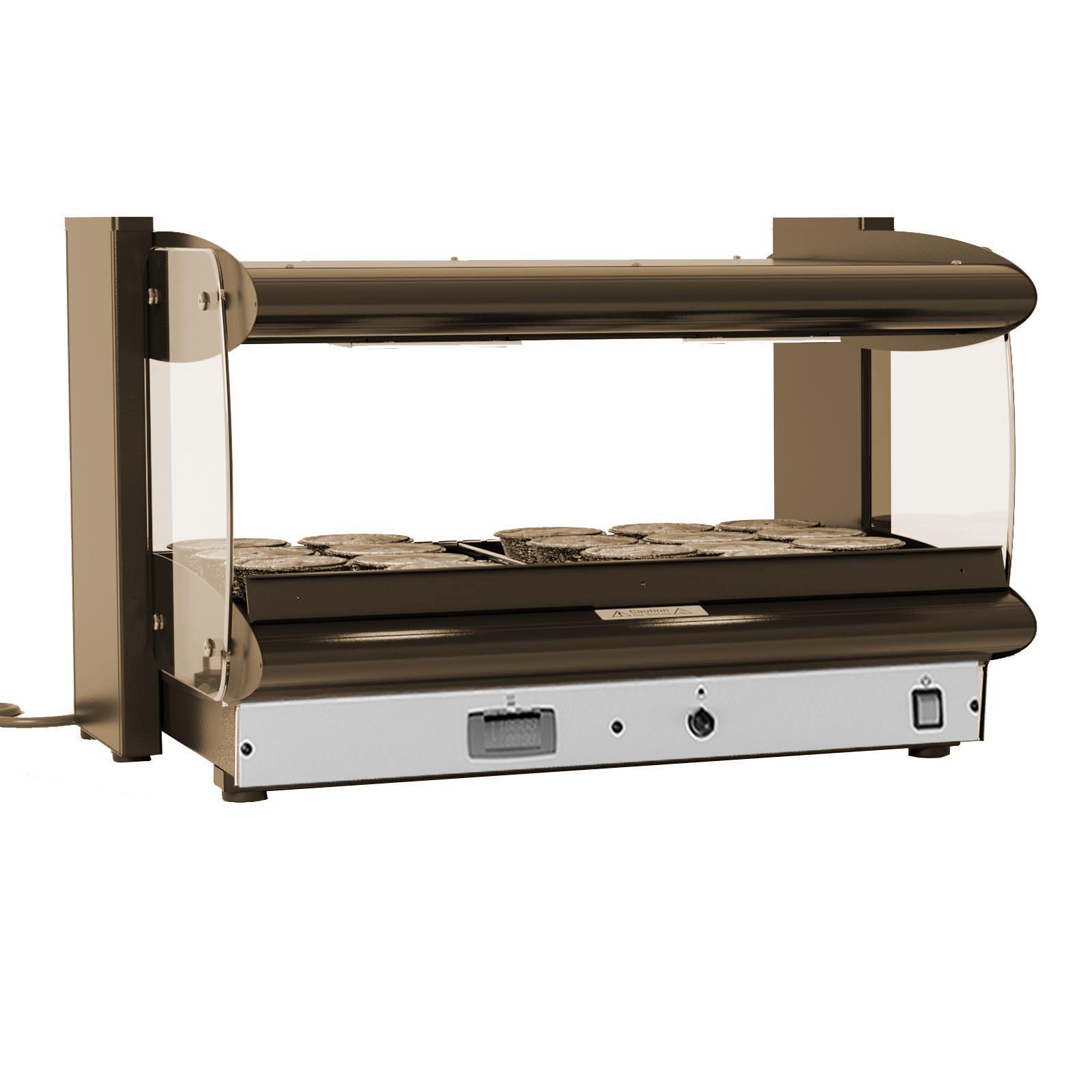

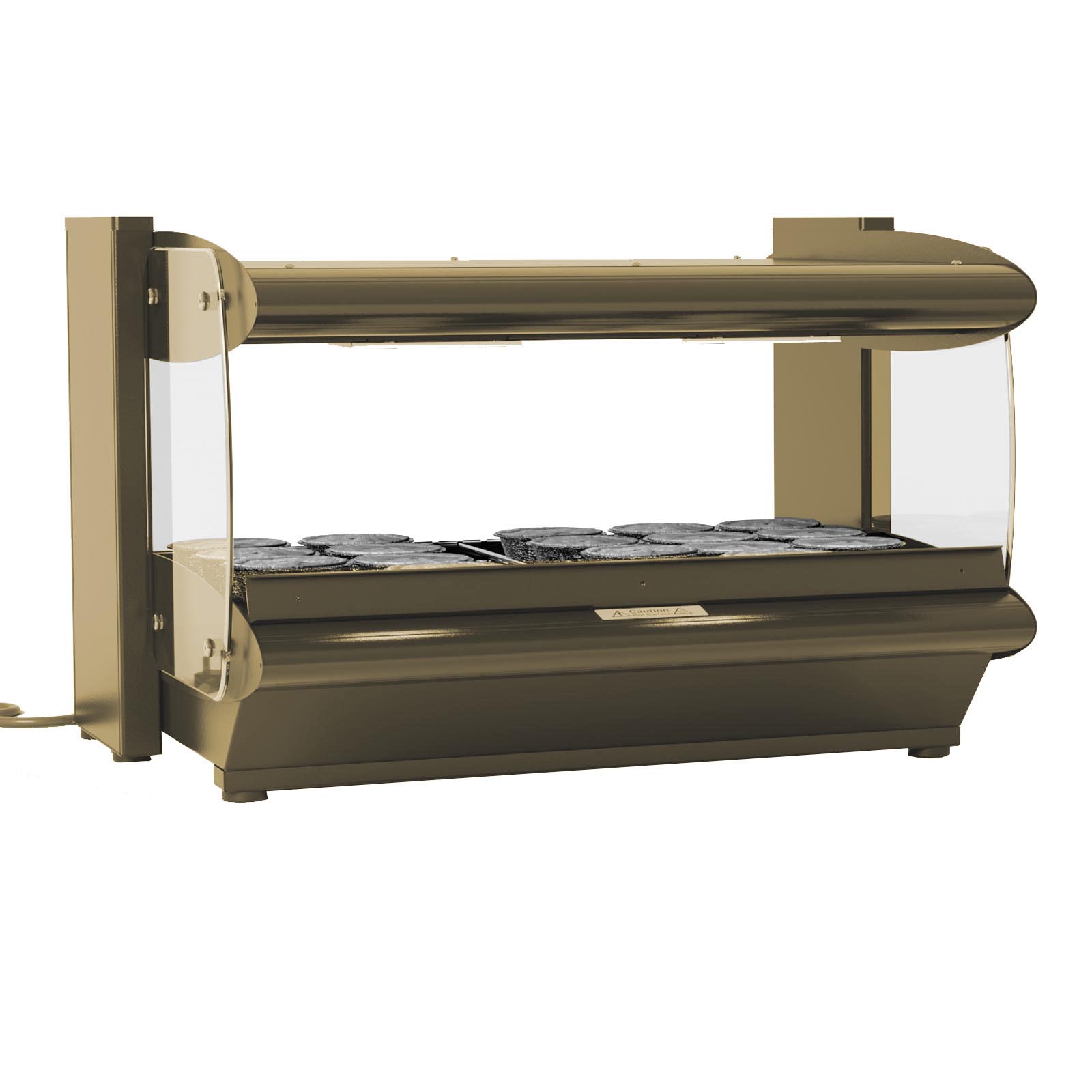

(Option DCOL2) Alternative Colour Finish:
Alternative plain ral polyester powder coating colour to black (Ral 9005)

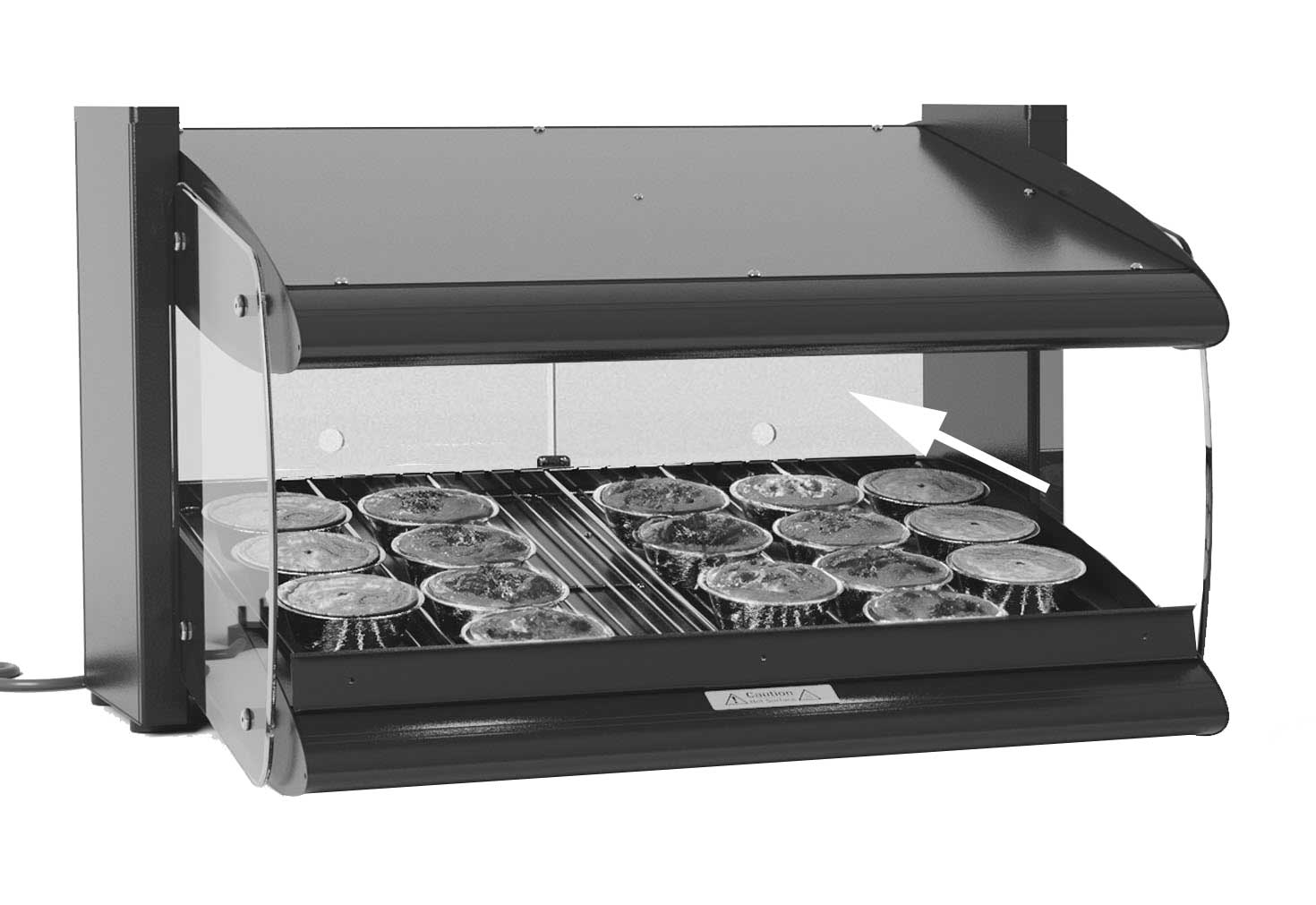

(Option DGDR2S) Rear Lift Up Glass Doors:
Rear hinged glass (6 mm) lift up doors (set of 2).

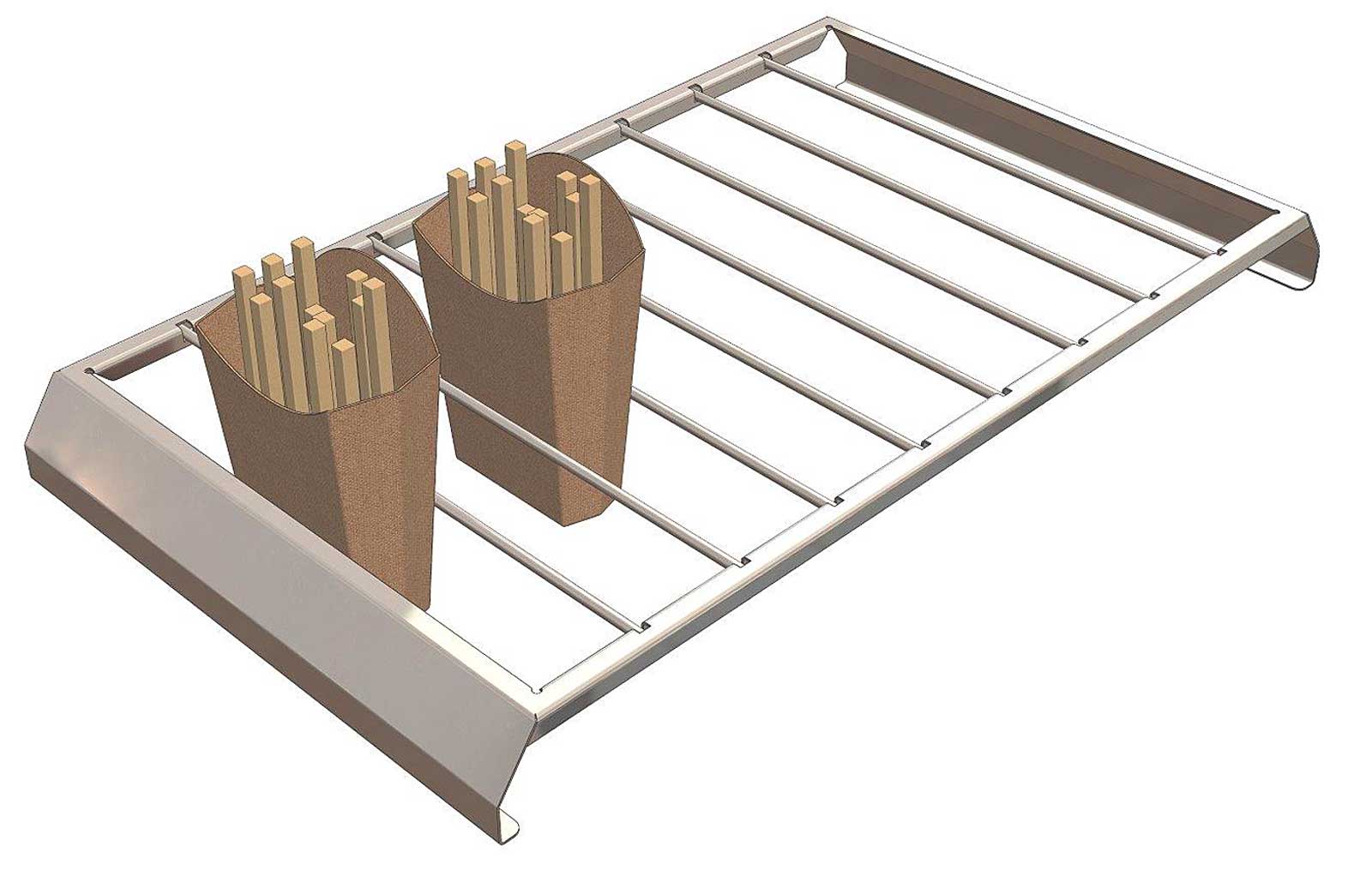

(Option DFFH) French Fries Holder:
S/Steel collar & (9 no.) support bars – allow fries cartons/bags to be stood in rows.
315 mm (w) x 550 mm (d).
(appx. 27 cartons per holder)



Downloads

General Layout Drawings.
Single Tier Self Help Hot Merchandiser
(Inclined Shelf).



Spec. Sheet, User Manual, CE/ UKCA Conformance.
Single Tier Self Help Hot Merchandiser
(Inclined Shelf).




Visual

(Wall Sited) Single Tier Self Help Hot Merchandiser
(Inclined Shelf).

Visual



Features

(Wall Sited) Single Tier Self Help Hot Merchandiser
(Inclined Shelf).

Features

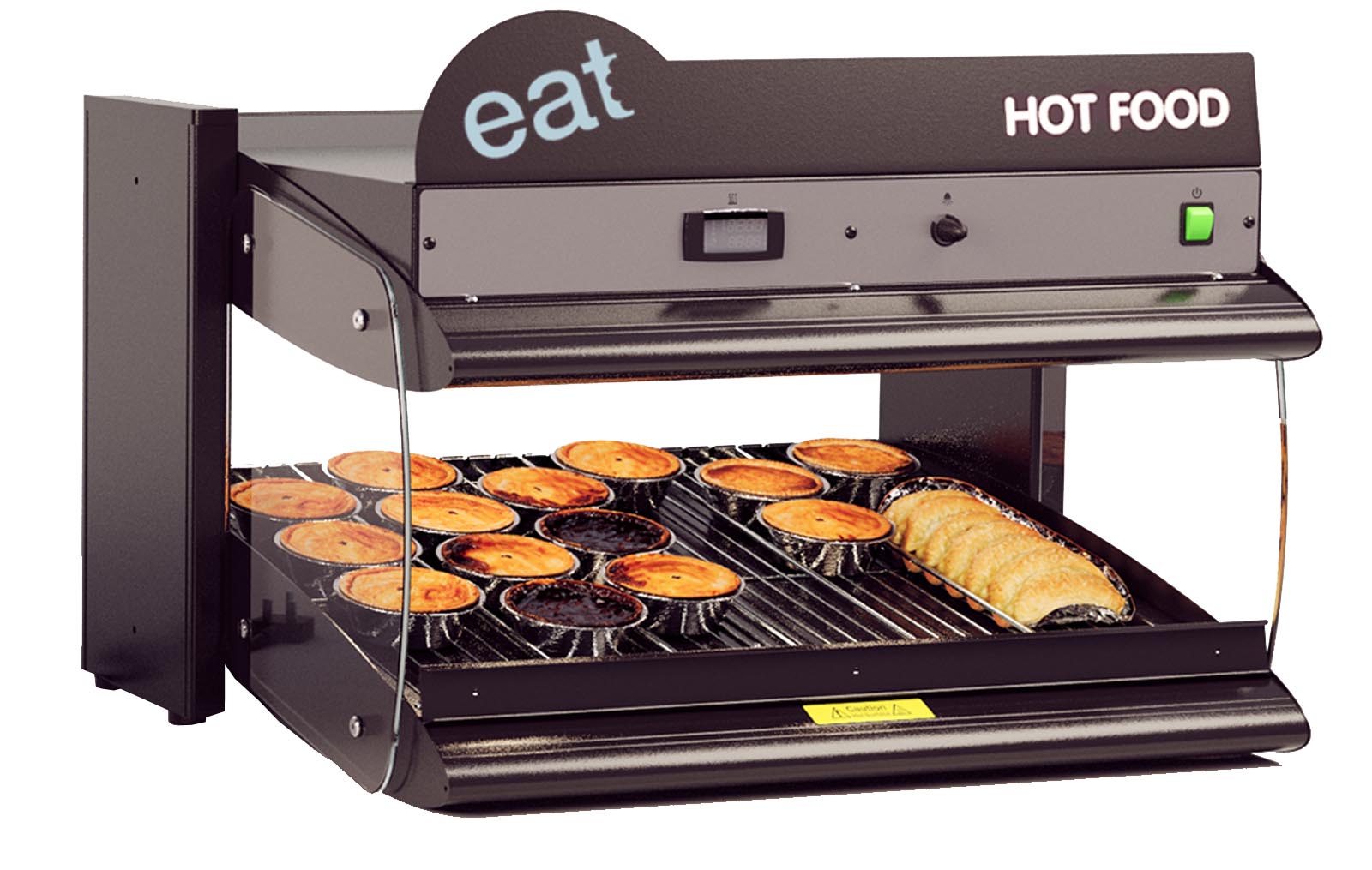

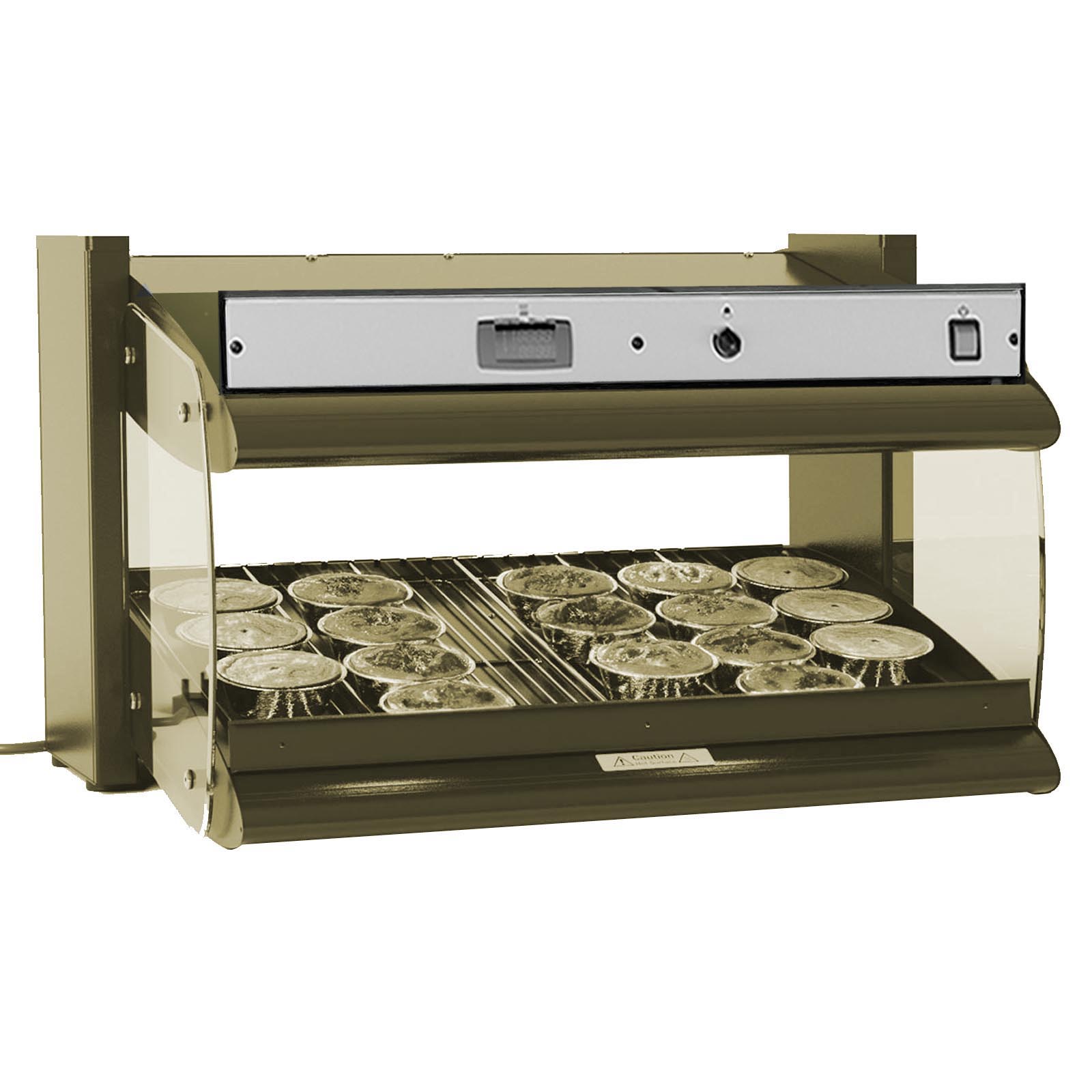

Model Code DTTHM2SW: (Wall Sited Single Tier Inclined Shelf)

  • Wall sited table top self help heated merchandiser, open fronted with front (or rear) loading to display level.
  • For the display of pre-heated cooked food, unwrapped, packaged or cartoned heated product.
  • Open fronted display used as short term food set down or grab n’ go.
  • Inclined heated shelf & canopy.
  • Top & base heating zone independently controlled.
  • Controls to front customer side canopy.
  • Temperature of unit independently adjusted by digital display & infrared top heat regulator.
  • Factory set for 70 – 75°C (+18°C ambient).
  • 430gd s/steel & alluminum in food safe polyester black coating (Ral 9005).
  • Mains power to unit controlled by separate neon on/off switch.
  • Adjustable static base heat maintains food core, variable jacketed, overhead infrared top heat lamps surround food surface.
  • Model dimensions: 763 mm (L) x 715 mm (D) x 480 mm (H).
  • 2 no. s/steel wire shelf grids on base shelf, for use with packaged & cartoned heated produce (299 mm x 553 mm ea.)
  • 5 no. removable steel divider bars allow food to be stored in rows.
  • 40 mm (H) ticket strip mount is provided to shelf front.
  • Shelf display dimensions 635 mm (L) x 555 mm (D) x 237 mm (H)
  • Supplied with 2m lead & 13 amp UK plug (13A 230V 50Hz) 1.33 kW.
  • Easy, cleanable surfaces and a durable design ensure low maintenance for users.
  • CE & UKCA Certified equipment.
  • ‘C’ profile safety edge to all exposed edge glass.
  • Re-stocking access by open rear.
  • Toughened glass side panels provide panoramic product display, offer environmental side draught protection & add natural lighting.
  • Display is stabilised with rubber feet.

Options

  • (Code DCOL2) Optional plain polyester powder coating colour.
  • (Code DBH2) Optional brand header graphics black mounting panel.
  • (Code DVG2) Optional vinyl graphic label, applied to brand header panel. Artwork to be provided, size 680(w) x 122/85mm (h) MOQ 10 units.
  • (Code DGDR2SW) Optional front lift up glass doors, hinged toughened 6mm glass – set of 2.
  • (Code DFFH) Optional french fries holder, s/steel collar & 9 no. removable bars: allow fries cartons/bags to be stood in rows.


Food Types

(Wall Sited) Single Tier Self Help Hot Merchandiser
(Inclined Shelf).

Food Display Types

Liquid Based Foods (Shelving Area): Soups, noodles, rice, beans, porridge in tubs/ pots with lids etc.

Food (Shelving Area): Wrapped or unwrapped pastries, packaged items e.g. katsu chicken, rice and noodle dishes, bagged whole chicken, stews, curry, chilli dishes, grilled burgers and sandwiches, hot baguettes, hot ciabatta, pasta in sauce, ribs with sauce, chicken portions.



Dimensions

(Wall Sited) Single Tier Self Help Hot Merchandiser
(Inclined Shelf).

Dimensions

Model

DTTHM2SW

Length (mm)

763

Depth (mm)

715

Height (mm)

480

Weight (Uncrated) (kg)

31

Capacity (Litres)

83.5

Shelving Display Position

Inclined

Control Panel – Location

(Front) Customer Side

40 mm(H) Ticket Strip Mount To Shelf Front

Included

Max. Power (kW)

1.33

Electrical Supply

13A 230V 50Hz






Options

(Wall Sited) Single Tier Self Help Hot Merchandiser
(Inclined Shelf).

Options

Options

For Model
DTTHM2SW

Graphics Header Panel:
Brand header graphics panel,
680 mm (w) x 122/85 mm (h),
powder coated black


DBH2

Vinyl Graphic label:
Vinyl graphic label, 680 mm (w) x 122/85 mm (h),
supplied from artwork provided.
Applied to brand header graphics mounting panel
(MOQ 10 Units)

DVG2

Alternative Colour Finish:
Alternative plain ral colour to black (Ral 9005)

DCOL2

Front Lift Up Glass Doors:
Front hinged glass (6 mm) lift up doors (set of 2).

DGDR2SW

French Fries Holder:
S/Steel collar & (9 no.) support bars – allow fries cartons/bags to be stood in rows.
315 mm (w) x 550 mm (d).
(appx. 27 cartons per holder)

DFFH2

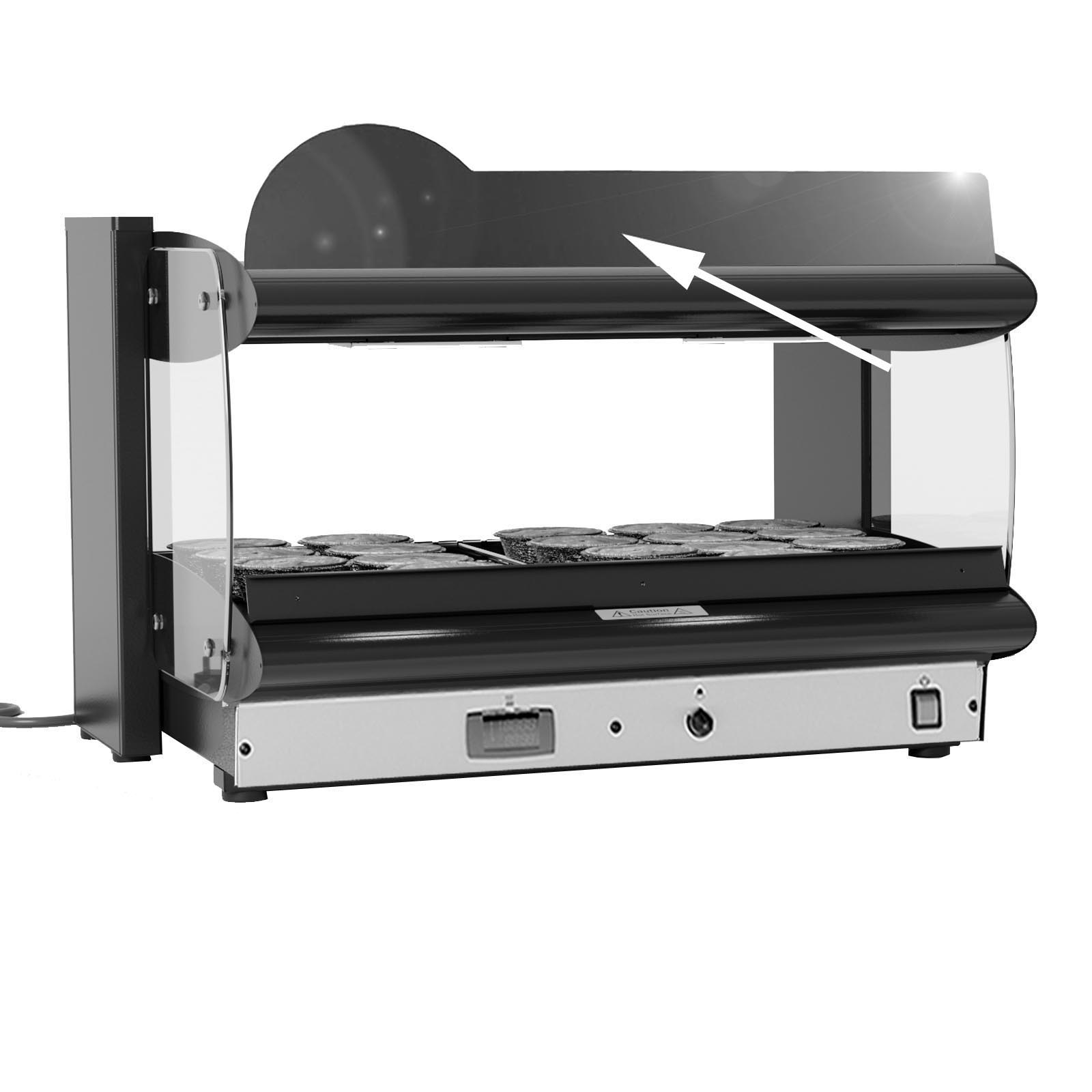

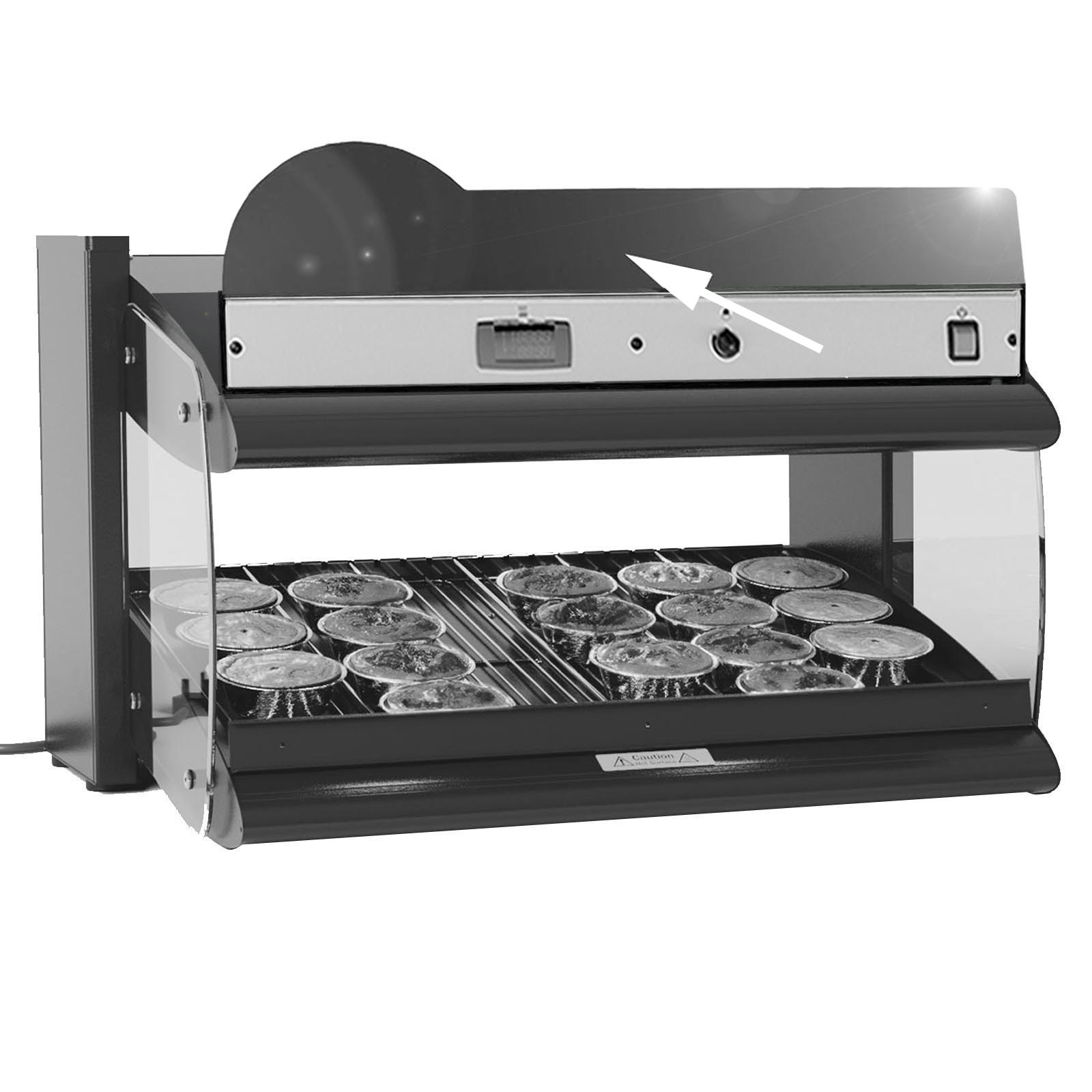

(Option DBH2) Graphics Header Panel:
Brand header graphics panel,
680 mm (w) x 122/85 mm (h),
powder coated black

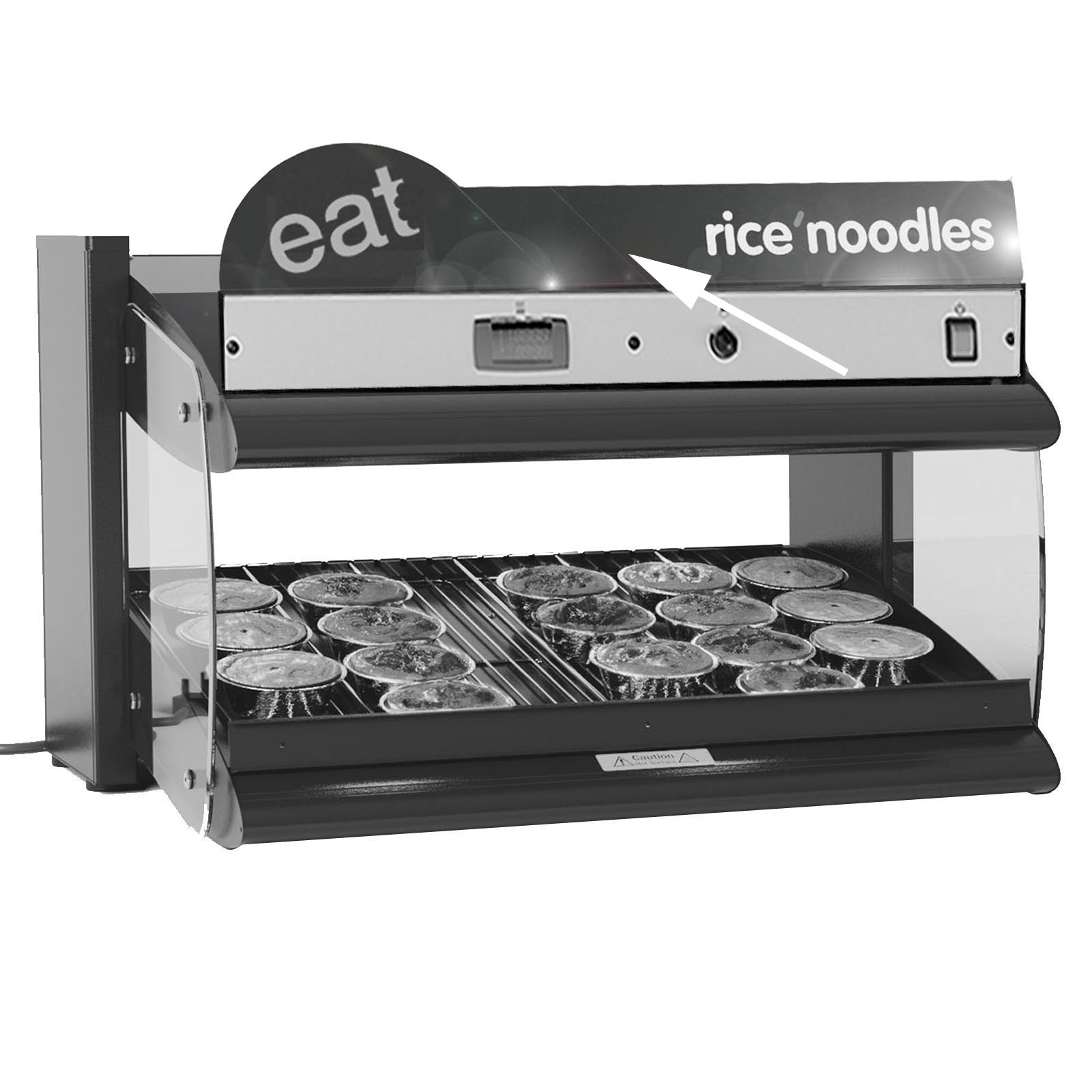

(Option DVG2) Vinyl Graphic label:
Vinyl graphic label, 680 mm (w) x 122/85 mm (h),
supplied from artwork provided.
Applied to brand header graphics mounting panel
(MOQ 10 Units)









(Option DCOL2) Alternative Colour Finish:
Alternative plain ral polyester powder coating colour to black (Ral 9005)

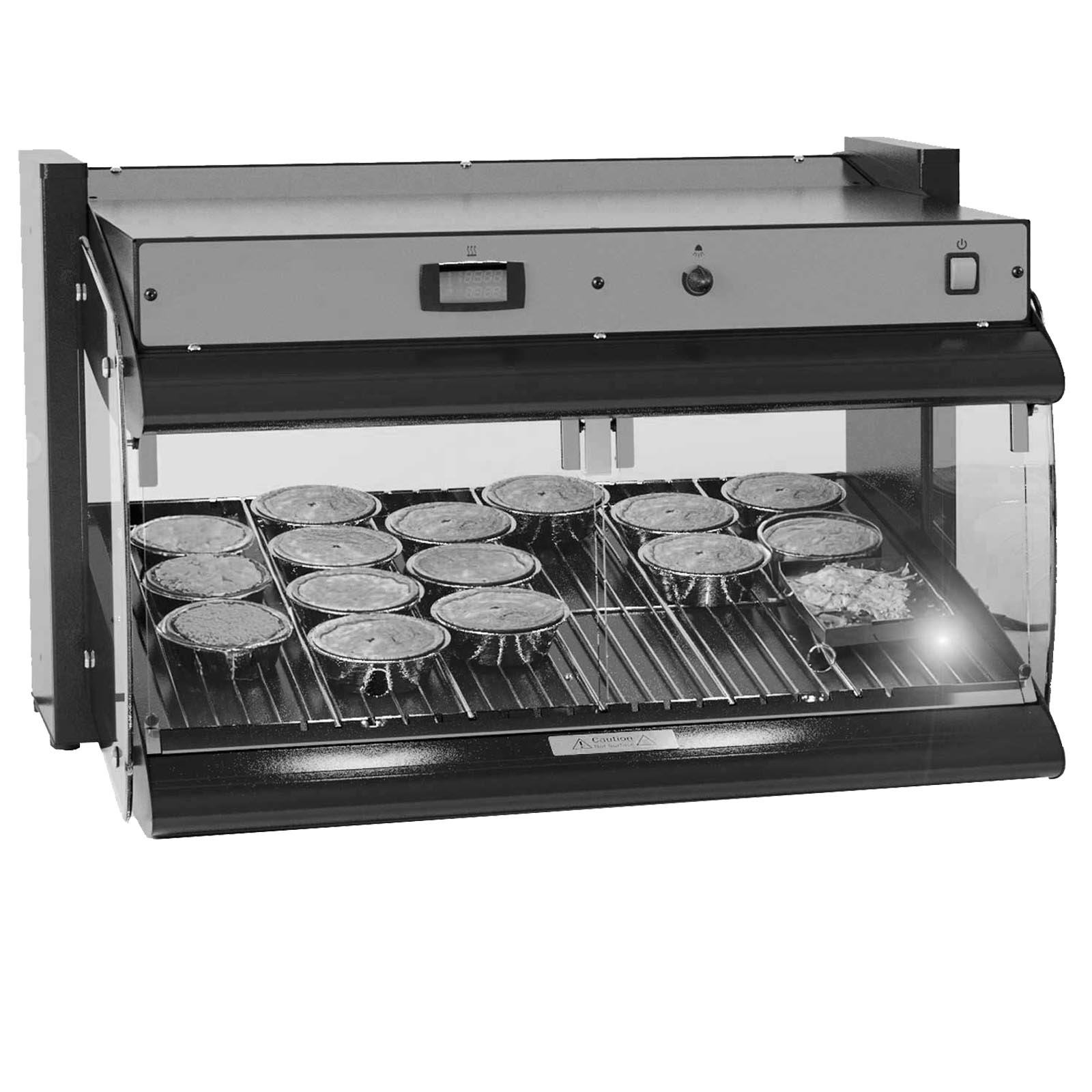

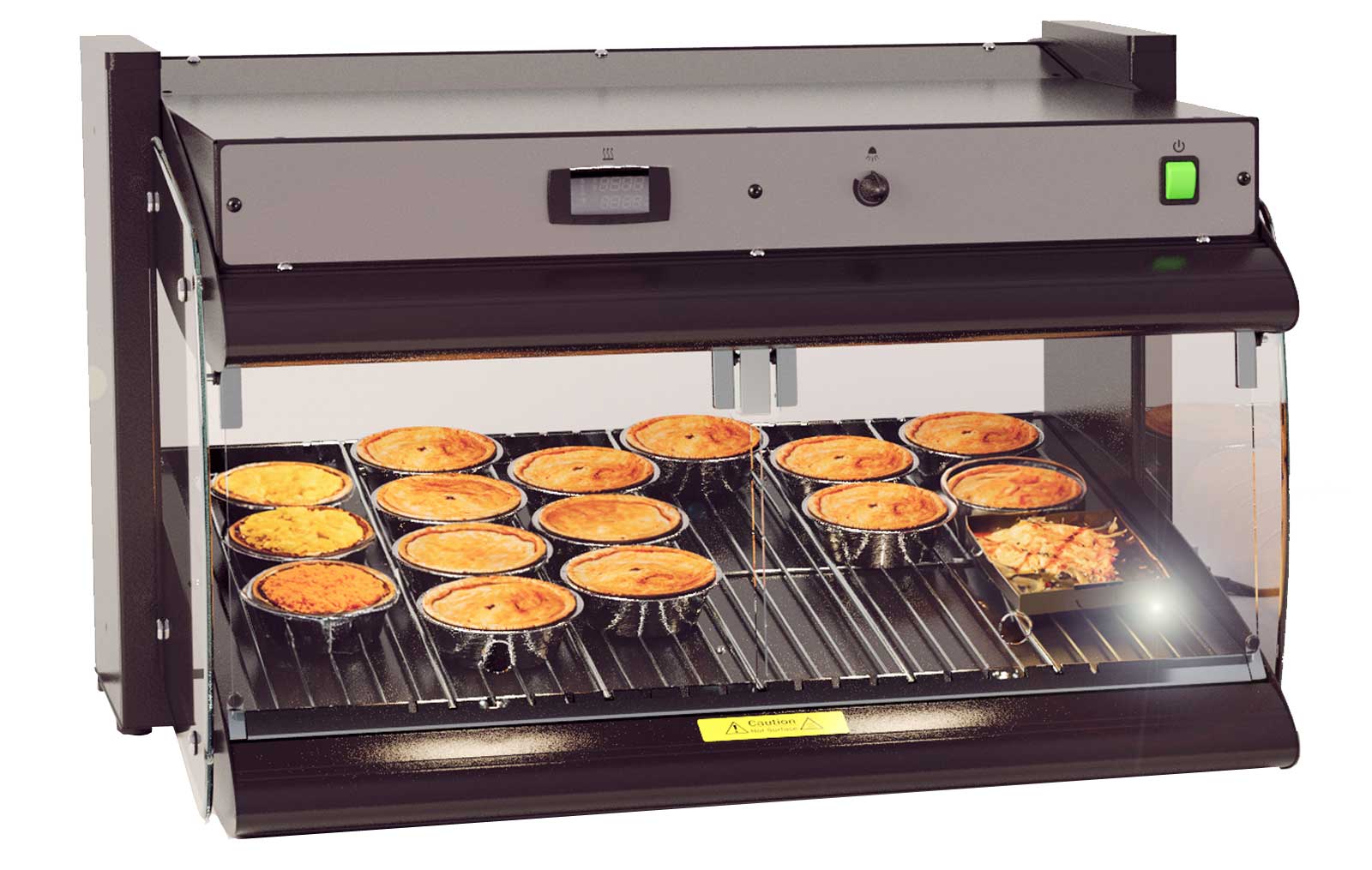

(Option DGDR2SW) Front Lift Up Glass Doors:
Front hinged glass (6 mm) lift up doors (set of 2).









(Option DFFH) French Fries Holder:
S/Steel collar & (9 no.) support bars – allow fries cartons/bags to be stood in rows.
315 mm (w) x 550 mm (d).
(appx. 27 cartons per holder)



Downloads

General Layout Drawings.
(Wall Sited) Single Tier Self Help Hot Merchandiser
(Inclined Shelf).

Spec. Sheet, User Manual, CE/ UKCA Conformance.
(Wall Sited) Single Tier Self Help Hot Merchandiser
(Inclined Shelf).




Visual

Single Tier Self Help Hot Merchandiser
(Straight Shelf).

Visual



Features

Single Tier Self Help Hot Merchandiser
(Straight Shelf).

Features

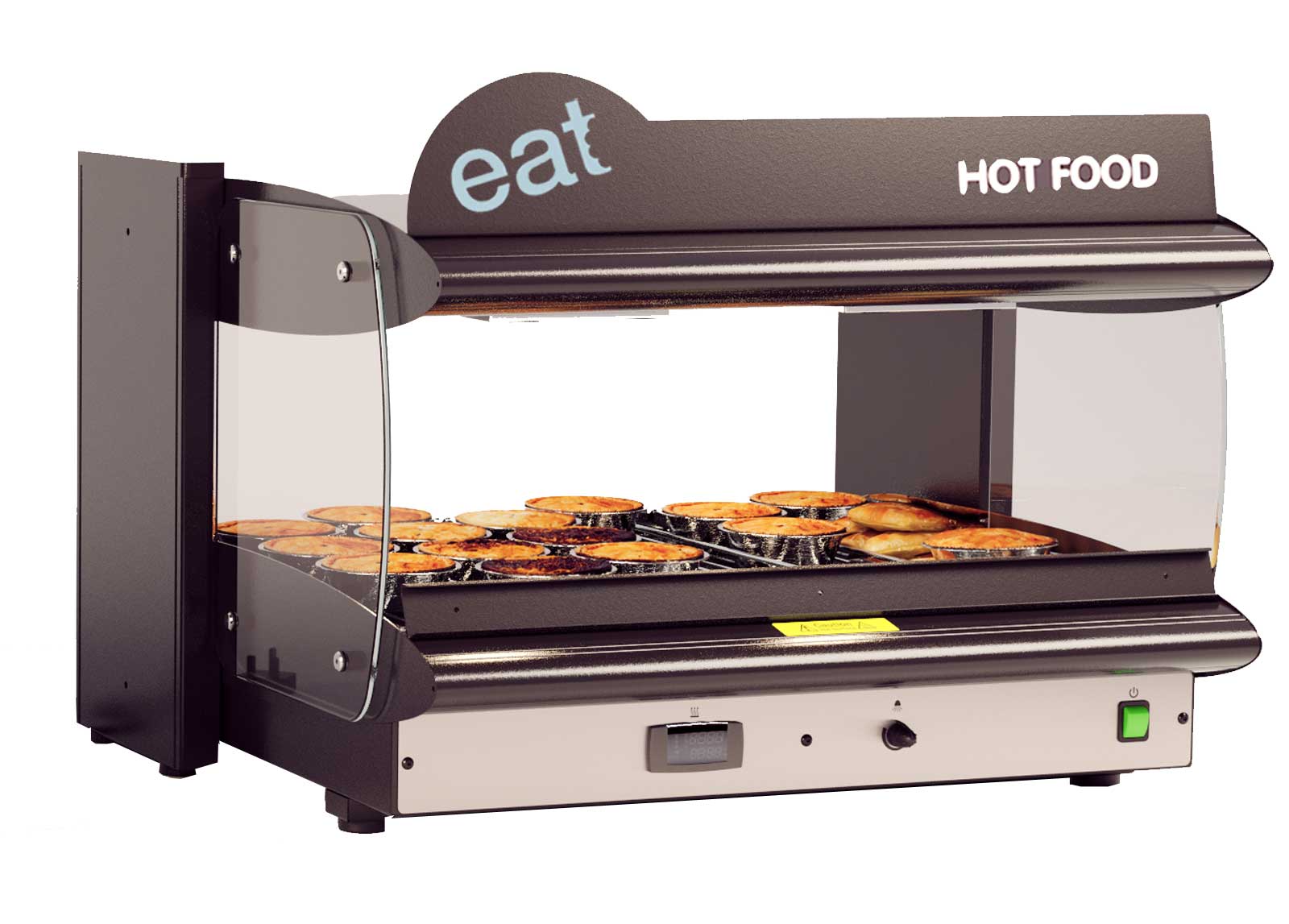

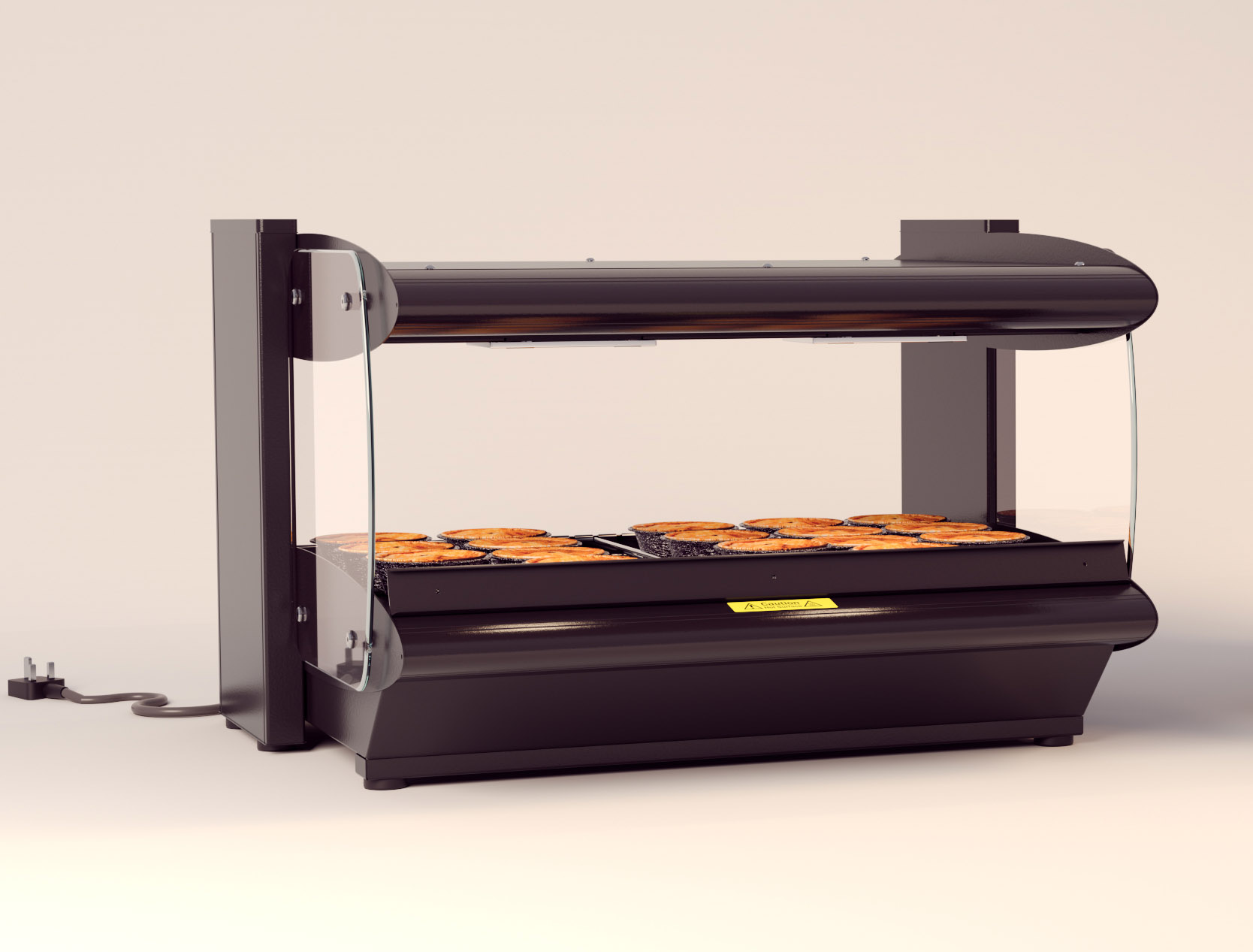

Model Code DTTHMS2S: (Single Tier Straight Shelf)

  • Table top self help heated merchandiser, open fronted with rear loading to display level.
  • For the display of pre-heated cooked food, unwrapped, packaged or cartoned heated product.
  • Open fronted display used as short term food set down or grab n’ go.
  • Horizontal heated shelf & canopy.
  • Controls to operator side base.
  • Top & base heating zone independently controlled.
  • Temperature of unit independently adjusted by digital display & infrared top heat regulator.
  • Factory set for 70 – 75°C (+18°C ambient).
  • 430gd s/steel & alluminum in food safe polyester black coating (Ral 9005).
  • Mains power to unit controlled by separate neon on/off switch.
  • Adjustable static base heat maintains food core, variable jacketed, overhead infrared top heat lamps surround food surface.
  • Model dimensions: 763 mm (L) x 726 mm (D) x 500 mm (H).
  • 2 no. s/steel wire shelf grids on base shelf, for use with packaged & cartoned heated produce (299 mm x 553 mm ea.)
  • 5 no. removable steel divider bars allow food to be stored in rows.
  • 40 mm (H) ticket strip mount is provided to shelf front.
  • Shelf display dimensions 635 mm (L) x 555 mm (D) x 234 mm (H)
  • Supplied with 2m lead & 13 amp UK plug (13A 230V 50Hz) 1.33 kW.
  • Easy, cleanable surfaces and a durable design ensure low maintenance for users.
  • CE & UKCA Certified equipment.
  • ‘C’ profile safety edge to all exposed edge glass.
  • Re-stocking access by open rear.
  • Toughened glass side panels provide panoramic product display, offer environmental side draught protection & add natural lighting.
  • Display is stabilised with rubber feet.

Options

  • (Code DCOL2) Optional plain polyester powder coating colour.
  • (Code DBH2) Optional brand header graphics black mounting panel.
  • (Code DVG2) Optional vinyl graphic label, applied to brand header panel. Artwork to be provided, size 680(w) x 122/85mm (h) MOQ 10 units.

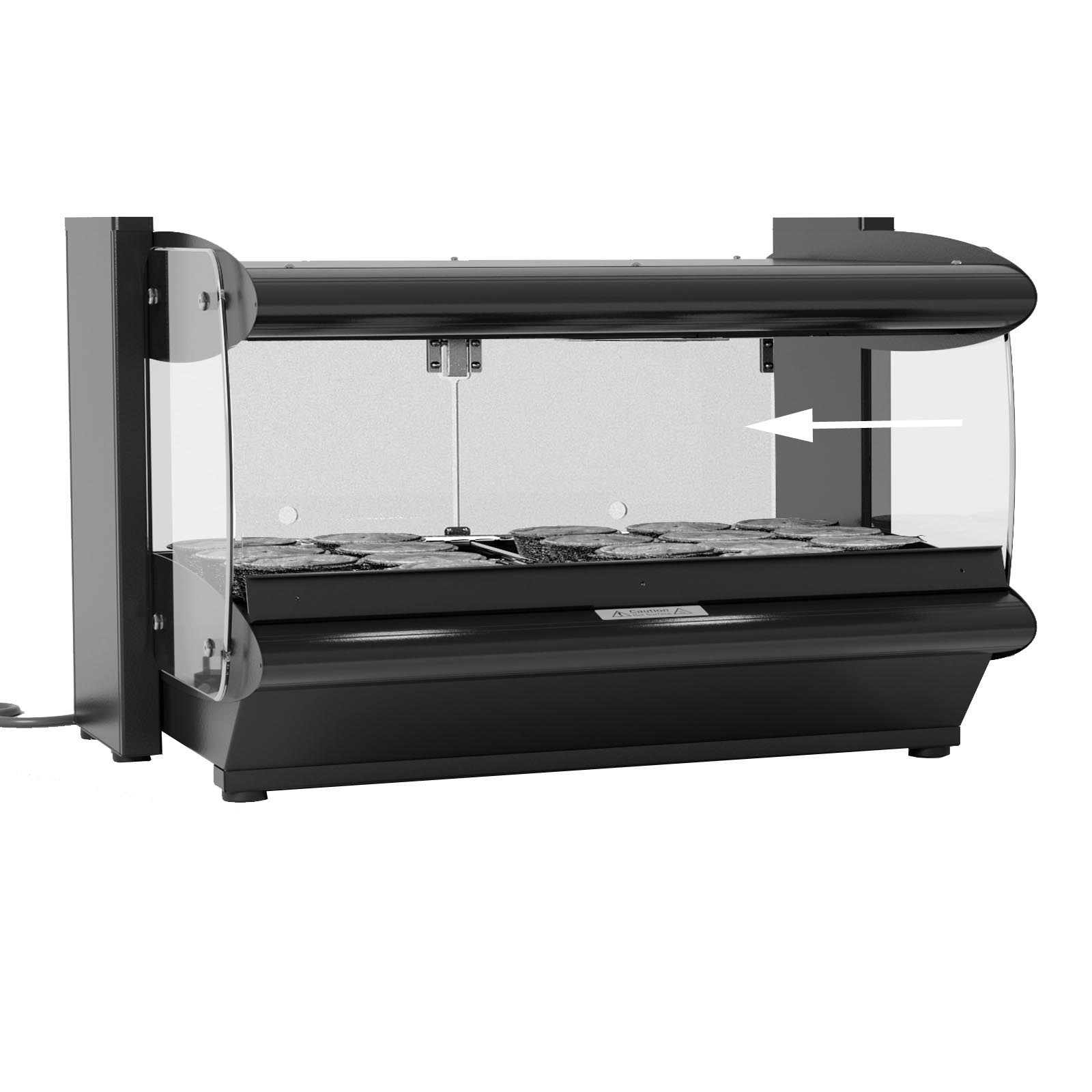

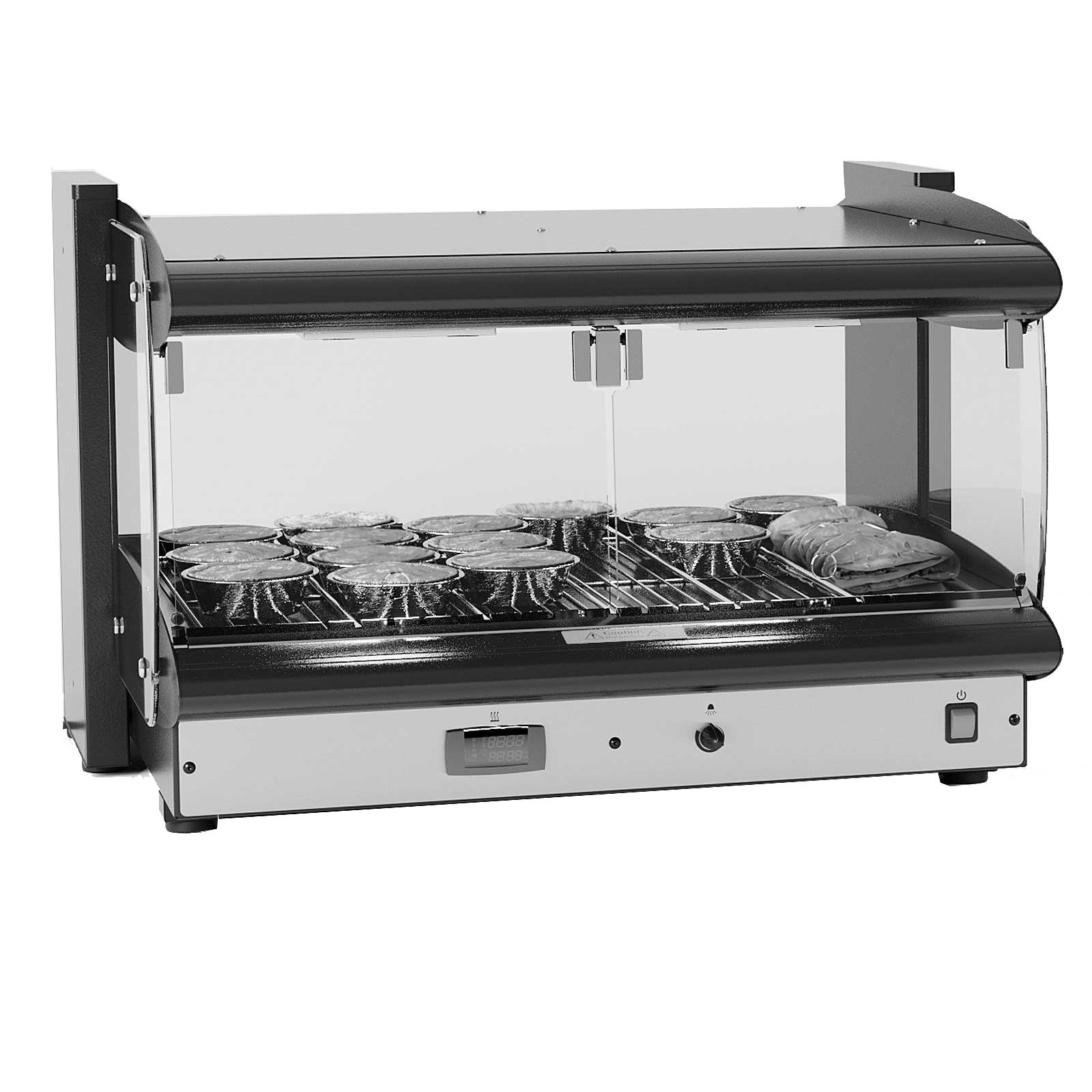

  • (Code DGDRS2S) Optional rear lift up glass doors, hinged toughened 6mm glass – set of 2.
  • (Code DFFH) Optional french fries holder, s/steel collar & 9 no. removable bars: allow fries cartons/bags to be stood in rows.


Food Types

Single Tier Self Help Hot Merchandiser
(Straight Shelf).

Food Display Types

Liquid Based Foods (Shelving Area): Soups, noodles, rice, beans, porridge in tubs/ pots with lids etc.

Food (Shelving Area): Wrapped or unwrapped pastries, packaged items e.g. katsu chicken, rice and noodle dishes, bagged whole chicken, stews, curry, chilli dishes, grilled burgers and sandwiches, hot baguettes, hot ciabatta, pasta in sauce, ribs with sauce, chicken portions.



Dimensions

Single Tier Self Help Hot Merchandiser
(Straight Shelf).

Dimensions

Model

DTTHMS2S

Length (mm)

763

Depth (mm)

726

Height (mm)

500

Weight (Uncrated) (kg)

31

Capacity (Litres)

82.5

Shelving Display Position

Horizontal

Control Panel – Location

(Rear) Operator Side

40 mm(H) Ticket Strip Mount To Shelf Front

Included

Max. Power (kW)

1.33

Electrical Supply

13A 230V 50Hz







Options

Single Tier Self Help Hot Merchandiser
(Straight Shelf).

Options

Options

For Model
DTTHMS2S

Graphics Header Panel:
Brand header graphics panel,
680 mm (w) x 122/85 mm (h),
powder coated black


DBH2

Vinyl Graphic label:
Vinyl graphic label, 680 mm (w) x 122/85 mm (h),
supplied from artwork provided.
Applied to brand header graphics mounting panel
(MOQ 10 Units)

DVG2

Alternative Colour Finish:
Alternative plain ral colour to black (Ral 9005)

DCOL2

Rear Lift Up Glass Doors:
Rear hinged glass (6 mm) lift up doors (set of 2)

DGDRS2S

French Fries Holder:
S/Steel collar & (9 no.) support bars – allow fries cartons/bags to be stood in rows.
315 mm (w) x 550 mm (d).
(appx. 27 cartons per holder)

DFFH



(Option DBH2) Graphics Header Panel:
Brand header graphics panel,
680 mm (w) x 122/85 mm (h),
powder coated black








(Option DVG2) Vinyl Graphic label:
Vinyl graphic label, 680 mm (w) x 122/85 mm (h),
supplied from artwork provided.
Applied to brand header graphics mounting panel
(MOQ 10 Units)





(Option DCOL2) Alternative Colour Finish:
Alternative plain ral polyester powder coating colour to black (Ral 9005)









(Option DGDRS2S) Rear Lift Up Glass Doors:
Rear hinged glass (6 mm) lift up doors (set of 2)









(Option DFFH) French Fries Holder:
S/Steel collar & (9 no.) support bars – allow fries cartons/bags to be stood in rows.
315 mm (w) x 550 mm (d).
(appx. 27 cartons per holder)





Downloads

General Layout Drawings.
Single Tier Self Help Hot Merchandiser
(Straight Shelf).

Spec. Sheet, User Manual, CE/ UKCA Conformance.
Single Tier Self Help Hot Merchandiser
(Straight Shelf).




Visual

(Wall Sited) Single Tier Self Help Hot Merchandiser
(Straight Shelf).

Visual



Features

(Wall Sited) Single Tier Self Help Hot Merchandiser
(Straight Shelf).

Features

Model Code DTTHMS2SW: (Wall Sited Single Tier Straight Shelf)

  • Wall sited table top self help heated merchandiser, open fronted with front (or rear) loading to display level.
  • For the display of pre-heated cooked food, unwrapped, packaged or cartoned heated product.
  • Open fronted display used as short term food set down or grab n’ go.
  • Horizontal heated shelf & canopy.
  • Controls to front customer side base.
  • Top & base heating zone independently controlled.
  • Temperature of unit independently adjusted by digital display & infrared top heat regulator.
  • Factory set for 70 – 75°C (+18°C ambient).
  • 430gd s/steel & alluminum in food safe polyester black coating (Ral 9005).
  • Mains power to unit controlled by separate neon on/off switch.
  • Adjustable static base heat maintains food core, variable jacketed, overhead infrared top heat lamps surround food surface.
  • Model dimensions: 763 mm (L) x 726 mm (D) x 500 mm (H).
  • 2 no. s/steel wire shelf grids on base shelf, for use with packaged & cartoned heated produce (299 mm x 553 mm ea.)
  • 5 no. removable steel divider bars allow food to be stored in rows.
  • 40 mm (H) ticket strip mount is provided to shelf front.
  • Shelf display dimensions 635 mm (L) x 555 mm (D) x 234 mm (H)
  • Supplied with 2m lead & 13 amp UK plug (13A 230V 50Hz) 1.33 kW.
  • Easy, cleanable surfaces and a durable design ensure low maintenance for users.
  • CE & UKCA Certified equipment.
  • ‘C’ profile safety edge to all exposed edge glass.
  • Re-stocking access by open front (or rear).
  • Toughened glass side panels provide panoramic product display, offer environmental side draught protection & add natural lighting.
  • Display is stabilised with rubber feet.

Options

  • (Code DCOL2) Optional plain polyester powder coating colour.
  • (Code DBH2) Optional brand header graphics black mounting panel.
  • (Code DVG2) Optional vinyl graphic label, applied to brand header panel. Artwork to be provided, size 680(w) x 122/85 mm (h) MOQ 10 units.
  • (Code DGDRS2SW) Front lift up glass doors, hinged toughened 6 mm glass – set of 2.
  • (Code DFFH) Optional french fries holder, s/steel collar & 9 no. removable bars: allow fries cartons/bags to be stood in rows.


Food Types

(Wall Sited) Single Tier Self Help Hot Merchandiser
(Straight Shelf).

Food Display Types

Liquid Based Foods (Shelving Area): Soups, noodles, rice, beans, porridge in tubs/ pots with lids etc.

Food (Shelving Area): Wrapped or unwrapped pastries, packaged items e.g. katsu chicken, rice and noodle dishes, bagged whole chicken, stews, curry, chilli dishes, grilled burgers and sandwiches, hot baguettes, hot ciabatta, pasta in sauce, ribs with sauce, chicken portions.



Dimensions

(Wall Sited) Single Tier Self Help Hot Merchandiser
(Straight Shelf).

Dimensions

Model

DTTHMS2SW

Length (mm)

763

Depth (mm)

726

Height (mm)

500

Weight (Uncrated) (kg)

31

Capacity (Litres)

82.5

Shelving Display Position

Horizontal

Control Panel – Location

(Front) Customer Side

40 mm(H) Ticket Strip Mount To Shelf Front

Included

Max. Power (kW)

1.33

Electrical Supply

13A 230V 50Hz





Options

(Wall Sited) Single Tier Self Help Hot Merchandiser
(Straight Shelf).

Options

Options

For Model
DTTHMS2SW

Graphics Header Panel:
Brand header graphics panel,
680 mm (w) x 122/85 mm (h),
powder coated black


DBH2

Vinyl Graphic label:
Vinyl graphic label, 680 mm (w) x 122/85 mm (h),
supplied from artwork provided.
Applied to brand header graphics mounting panel
(MOQ 10 Units)

DVG2

Alternative Colour Finish:
Alternative plain ral colour to black (Ral 9005)

DCOL2

Front Lift Up Glass Doors:
Front hinged glass (6 mm) lift up doors (set of 2)

DGDRS2SW

French Fries Holder:
S/Steel collar & (9 no.) support bars – allow fries cartons/bags to be stood in rows.
315 mm (w) x 550 mm (d).
(appx. 27 cartons per holder)

DFFH



(Option DBH2) Graphics Header Panel:
Brand header graphics panel,
680 mm (w) x 122/85 mm (h),
powder coated black








(Option DVG2) Vinyl Graphic label:
Vinyl graphic label, 680 mm (w) x 122/85 mm (h),
supplied from artwork provided.
Applied to brand header graphics mounting panel
(MOQ 10 Units)







(Option DCOL2) Alternative Colour Finish:
Alternative plain ral polyester powder coating colour to black (Ral 9005)











(Option DGDRS2SW) Front Lift Up Glass Doors:
Front hinged glass (6 mm) lift up doors (set of 2)







(Option DFFH) French Fries Holder:
S/Steel collar & (9 no.) support bars – allow fries cartons/bags to be stood in rows.
315 mm (w) x 550 mm (d).
(appx. 27 cartons per holder)





Downloads

General Layout Drawings.
(Wall Sited) Single Tier Self Help Hot Merchandiser
(Straight Shelf).



Spec. Sheet, User Manual, CE/ UKCA Conformance.
(Wall Sited) Single Tier Self Help Hot Merchandiser
(Straight Shelf).




Manu

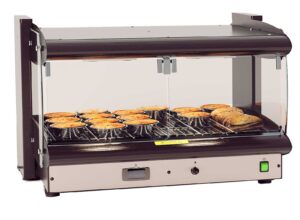

Model DTTHMS2S Front & Rear.
Model DTTHM2S.
Wall Sited Model DTTHMS2SW + DBH2/ DVG2 (Branding Panel & Vinyl Graphic).Wall Sited Model  DTTHMS2SW + DGDRS2SW (Front Lift Up Glass Door).Model DTTHMS2S.
Model DTTHM2S Front & Rear.Wall Sited Model DTTHM2SW + DGDR2SW (Front Lift Up Glass Door)



Option DFFH (French Fries Holder)
