CED Fabrications - Designline Brand - Chilled LogoDesignline drop in displays are elliptically styled displays utilising a clean curved design perspective, enhanced by durable chrome plated aluminium superstructures and lighting ducts, all enclosed within curved toughened glass hoods, sneeze screens and side panels.

Visual

Self Help Cold Well (HT).CED Fabrications - Designline Brand - Chilled Logo
Visual

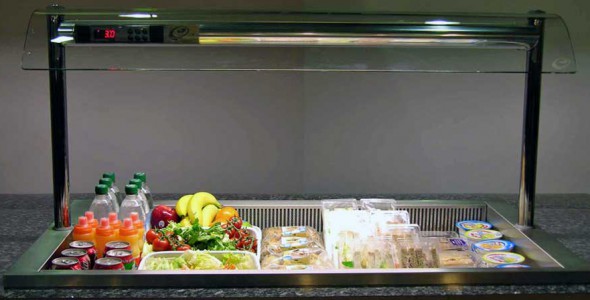

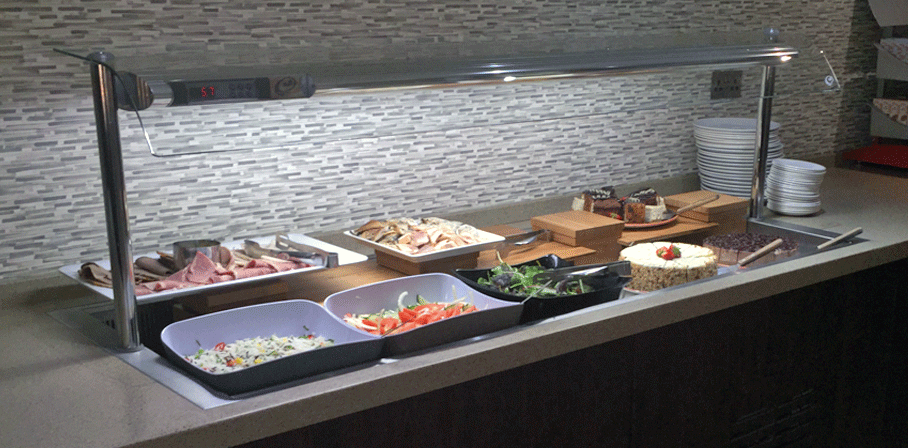

Designline Self Help Cold Well (CW2-6HT)



Features

Self Help Cold Well (HT).CED Fabrications - Designline Brand - Chilled Logo
Features

  • Curved toughened sneeze guard glass profile is designed to compliment other units within the range.
  • Cold fan blown well display features integral energy efficient chilled hydrocarbon refrigeration (HT).
  • Self help application.
  • Features eye-level gantry mounted digital temperature display and control panel (operator side)
  • Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
  • Product illumination is from diffused LED lighting (4000 Kelvin) in an elliptical profile gantry.
  • Integral automatic condensate water evaporation eliminates the need for site drainage.
  • 24-hour operation as standard.
  • Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
  • Superstructure in bright polished steel and aluminium profile
  • Supplied with 2 m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
  • Optional non standard airflow available.
  • Refrigeration condensing unit is housed in an under slung self contained cradle.
  • Self help application – can be factory  converted to assisted service by addition of full height glass screen and end glass (see model below).
  • Features ‘tamper proof’ temperature control facility.
  • Modular removable deck plate system for easier cleaning and maintenance.


Food Types

Self Help Cold Well (HT).CED Fabrications - Designline Brand - Chilled Logo
Food Display Types.



Drinks (Well Area):  Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Well Area): Sandwiches, baguettes, rolls, barm cakes salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, fruit in juice & fruit.



Dimensions

Self Help Cold Well (HT).CED Fabrications - Designline Brand - Chilled Logo
Dimensions

Model

CW2HT

CW3HT

CW4HT

CW5HT

CW6HT

GN Size

2/1 GN

3/1 GN

4/1 GN

5/1 GN

6/1 GN

Storage Capacity (Litres)

44

66

88

110

132

Length (mm)

825

1175

1525

1875

2225

Depth (mm)

660

660

660

660

660

Height Above Worktop (mm)

535

535

535

535

535

Depth Below Worktop (mm)

677

677

677

677

677

Weight (Un-crated) (kg)

94

111

131

144

160

Power (kW)

1.22

1.22

1.46

1.66

1.73

Total Heat Rejection @ 32°C Ambient (Watts)

1080

1080

1340

2010

2317

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V

13A 230V

  • (HT) = R290 Refrigeration.
  • This model has controls fitted on operator side of gantry as standard.
    If controls are required on customer side i.e. for wall sited counters, please state ‘controls to customer side’ when ordering.





Downloads

General Layout DrawingsCED Fabrications - Designline Brand - Chilled Logo
Designline Self Help Cold Well (HT).





General Layout Drawings
Non Standard Airflow Options (Cold Displays).



Fitting Instructions & User Manual
Designline Self Help Cold Well (HT).




COLD-DESIGNLINE-LH-HEADER

Visual

Assisted Service Cold Well (HT).CED Fabrications - Designline Brand - Chilled Logo
Visual

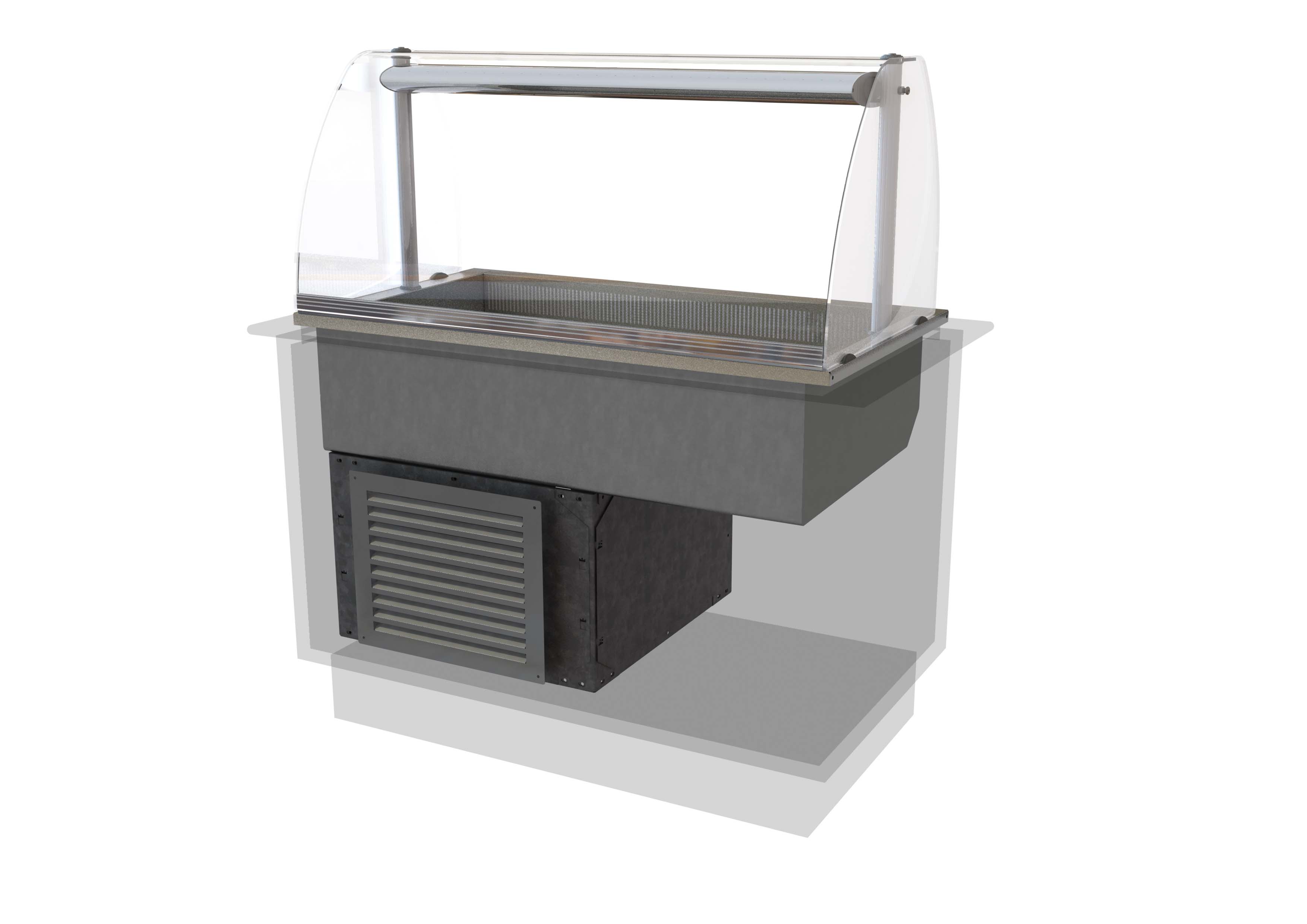

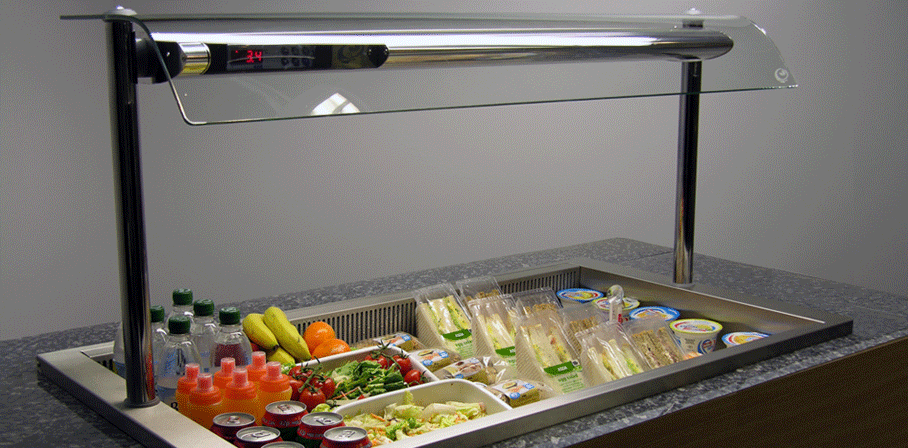

Designline Assisted Service Cold Well (CW2-6HT+AS2-6)



Features

Assisted Service Cold Well (HT).CED Fabrications - Designline Brand - Chilled Logo
Features.

      • Curved full height front & side glass is designed to compliment other units within the range.
      • Cold fan blown well features integral energy efficient chilled hydrocarbon refrigeration (HT).
      • Assisted service application.
      • Features eye-level gantry mounted digital temperature display and control panel (operator side)
      • Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
      • Integral automatic condensate water evaporation eliminates the need for site drainage.
      • 24-hour operation as standard.
      • Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
      • Superstructure in bright polished steel and aluminium profile
      • Supplied with 2 m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
      • Optional non standard airflow available.
      • Product illumination is from diffused triphosphor lighting in an elliptical profile gantry.
      • Superstructure supports a toughened curved sneeze protection glass screen.
      • Refrigeration condensing unit is housed in an under slung self contained cradle.
      • Features eye level gantry mounted digital temperature display and control panel.
      • Assisted service application – can be factory built as self help by addition of curved glass sneeze screen (see model above).
      • Features ‘tamper proof’ temperature control facility.
      • Modular removable deck plate system for easier cleaning and maintenance..


Food Types

Assisted Service Cold Well (HT).CED Fabrications - Designline Brand - Chilled Logo
Food Display Types.



Drinks (Well Area):   Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Well Area): Sandwiches, baguettes, rolls, barm cakes salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, fruit in juice & fruit.



Dimensions

Assisted Service Cold Well (HT).CED Fabrications - Designline Brand - Chilled Logo
Dimensions

Model

CW2HT+AS2

CW3HT+AS3

CW4HT+AS4

CW5HT+AS5

CW6HT+AS6

GN Size

2/1 GN

3/1 GN

4/1 GN

5/1 GN

6/1 GN

Storage Capacity (Litres)

44

66

88

110

132

Length (mm)

825

1175

1525

1875

2225

Depth (mm)

660

660

660

660

660

Height Above Worktop (mm)

535

535

535

535

535

Depth Below Worktop (mm)

677

677

677

677

677

Weight (Un-crated) (kg)

105

123

145

160

177

Power (kW)

1.22

1.22

1.46

1.66

1.73

Total Heat Rejection @ 32°C Ambient (Watts)

1080

1080

1340

2010

2317

Electrical Supply

13A 230V

13A 230V

13A 230V

13A 230V

13A 230V

  • (HT) = R290 Refrigeration.
  • This model has controls fitted on operator side of gantry as standard.


Downloads

General Layout DrawingsCED Fabrications - Designline Brand - Chilled Logo
Designline Assisted Service Cold Wells (HT).





General Layout Drawings
Non Standard Airflow Options (Cold Displays).



Fitting Instructions & User Manual
Designline Assisted Service Cold Wells (HT).
