CED’s Kubus drop in displays are a deco cubist companion to the classic elliptical Designline styling. Kubus displays optimise a clean rectilinear design perspective, enhanced by durable chrome plated  aluminium superstructures and lighting ducts, all enclosed within toughened flat glass hoods, sneeze screens and side panels.

Visual

Self Help Ceran Glass Hotplate.
Visual.

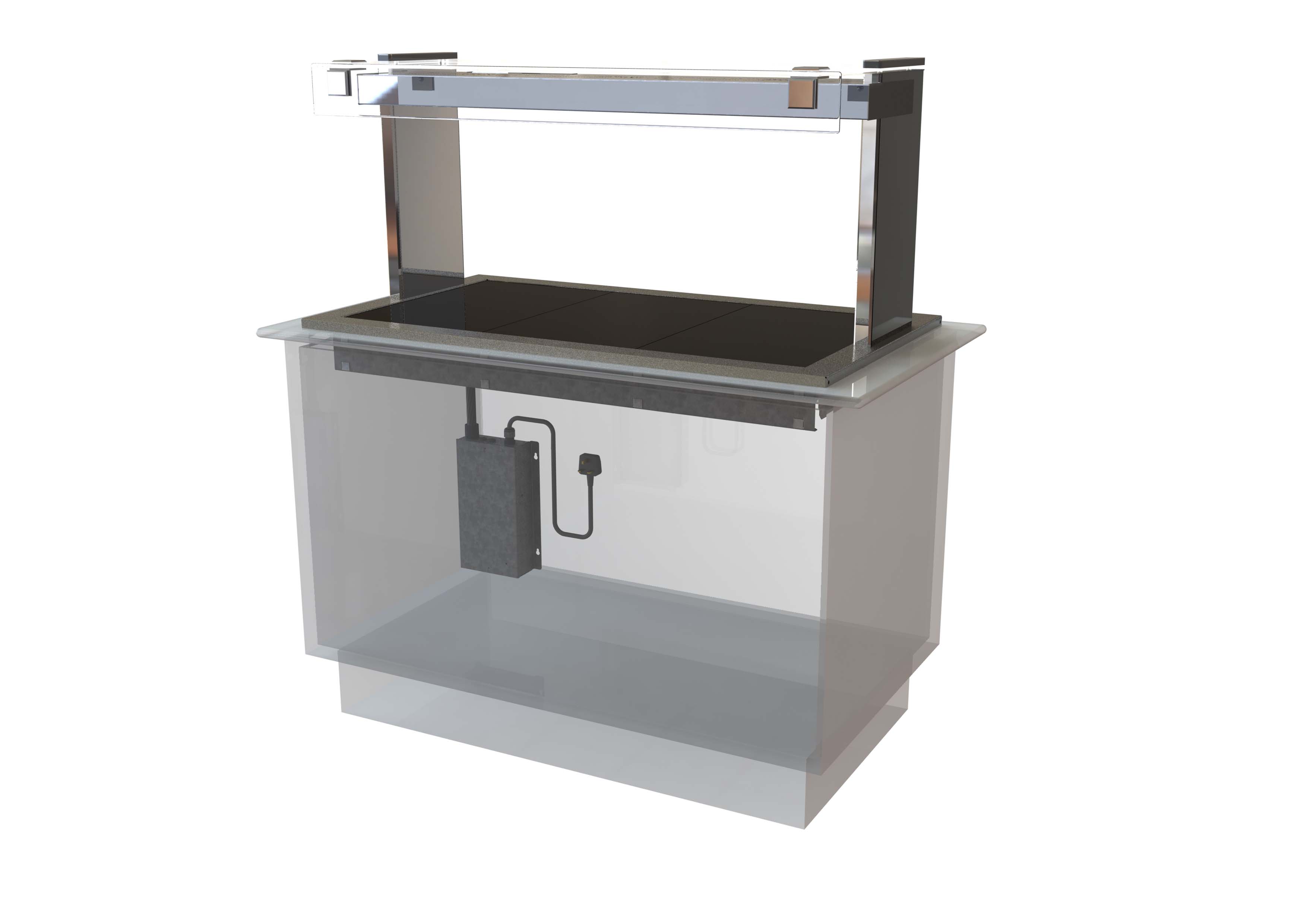

Kubus Self Help Ceran Glass Hotplate (KHP2-6)



Features

Self Help Ceran Glass Hotplate.
Features.

  • Rectilinear flat glass sneeze guard profile is designed to compliment other units within the Kubus range.
  • Ceran glass hotplate display surface for food presentation in flat bottomed oven to tableware dishes.
  • Self help application. Can be factory converted to assisted service by addition of full height glass screen and end glass (see model below).
  • ‘Touch safe’ gantry mounted digital temperature display and eye level control panel (Operator side)
  • Base heat and top heat are separately controlled.
  • Top heat is variably controlled from a gantry mounted dimmer switch.
  • 24-hour operation as standard.
  • Superstructure in bright polished, satin steel and aluminium profile.
  • Supplied with concealed under counter control box on a 2m loom for connection to 13 Amp/ 16 Amp supply.
  • Product illumination/ surface heat is provided from a rectangular profile gantry.
  • Features tamper proof temperature control facility.
  • Base heat output is thermostatically controlled from the gantry mounted control panel giving even heat spread.
  • Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.


Food Types

Self Help Ceran Glass Hotplate.
Food Display Types.



LONG TERM HOLDING (2-4 Hours).

Breakfast: baked beans, tomatoes, bacon, sausage, black pudding, mushrooms, hash browns.

Lunch/ Dinner: stews, curry, chilli dishes,sliced meats in gravy or sauce, pasta in sauce, vegetables, ribs with sauce, chicken portions.



SHORT TERM HOLDING (15-20 mins).

Breakfast/ Brunch: omlettes, fried / boiled eggs, muffins, baked potatoes.

Lunch/ Dinner: battered fish, chips / fries.



Dimensions

Self Help Ceran Glass Hotplate.
Dimensions.

Model

KHP2

KHP3

KHP4

KHP5

KHP6

Capacity

2/1 GN

3/1 GN

4/1 GN

5/1 GN

6/1 GN

Length (mm)

825

1175

1525

1875

2225

Depth (mm)

660

660

660

660

660

Height above worktop (mm)

540

540

540

540

540

Depth below worktop (mm)

92

92

92

92

92

Weight (uncrated) (kg)

51

60

69

78

87

Power (kW)

1.3

1.95

2.6

3.3

3.9

Electrical supply

13A 230V

13A 230V

13A 230V

16A 230V

20A 230V



  • This model has controls fitted on operator side of gantry as standard.
  • If controls are required on customer side i.e. for wall sited counters, please state ‘controls to customer side’ when ordering.


Downloads

General Layout Drawings.
Kubus Self Help Ceran Glass Hotplate.





Fitting Instructions, User Manual, Energy Use.
Kubus Self Help Ceran Glass Hotplate.




website-HOT-KUBUS-HEADER

Visual

Assisted Service Ceran Glass Hotplate.
Visual.

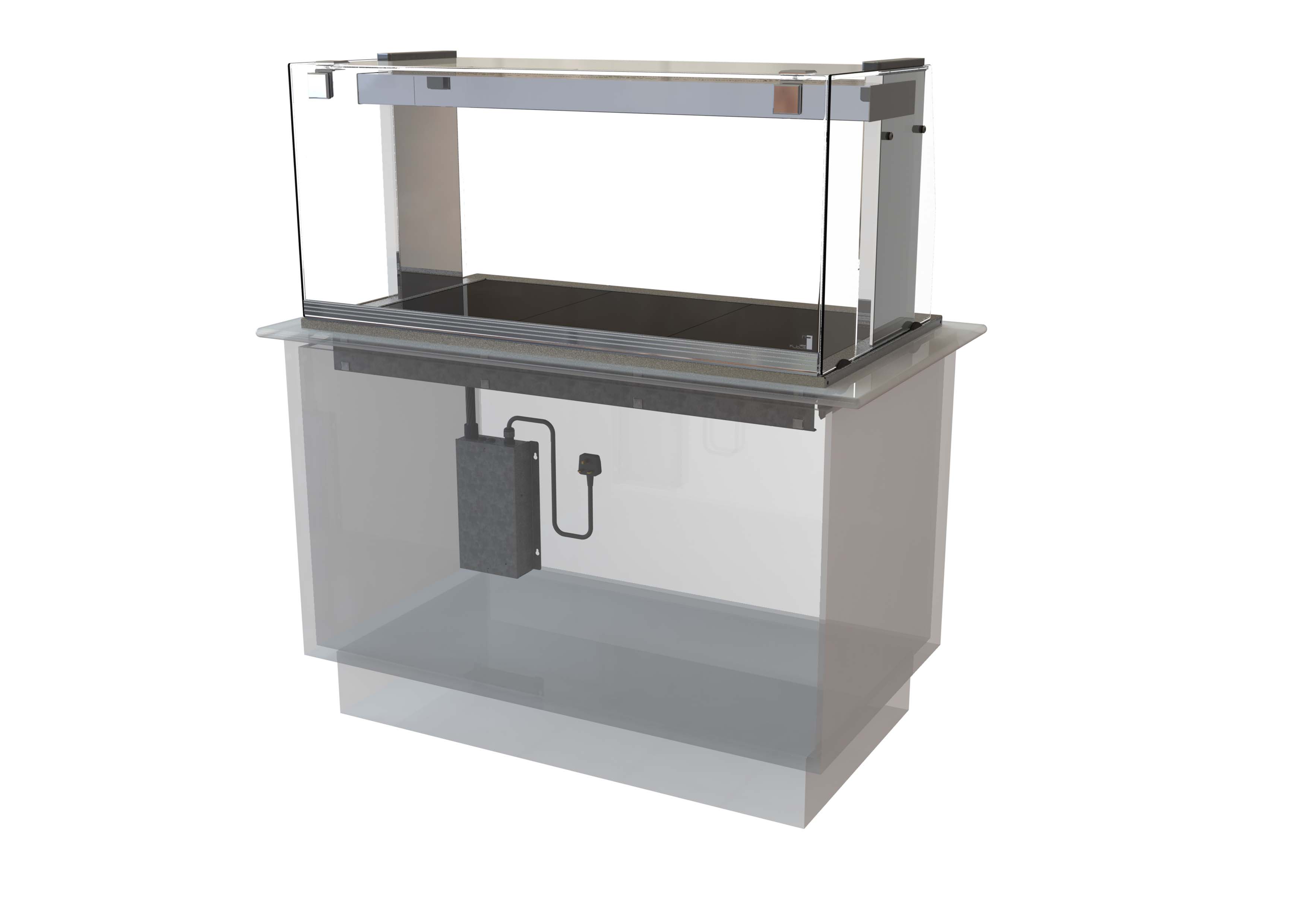

Kubus Assisted Service Ceran Glass Hotplate (KHP2-5+KAS2-5)



Features

Assisted Service Ceran Glass Hotplate.
Features.

  • Rectilinear full height flat front & side glass sneeze guard profile is designed to compliment other units within the Kubus range.
  • Ceran glass hotplate display surface for food presentation in flat bottomed oven to tableware dishes.
  • Assisted service application.
  • ‘Touch safe’ gantry mounted digital temperature display and eye level control panel (Operator side)
  • Base heat and top heat are separately controlled.
  • Top heat is variably controlled from a gantry mounted dimmer switch.
  • 24-hour operation as standard.
  • Superstructure in bright polished, satin steel and aluminium profile.
  • Supplied with concealed under counter control box on a 2m loom for connection to 13 Amp/ 16 Amp supply.
  • Tilting front glass sneeze screen mounted on locking hinge, for ease of cleaning.
  • Product illumination/ surface heat is provided from a rectangular profile gantry.
  • Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
  • Features tamper proof temperature control facility.
  • Base heat output is thermostatically controlled from the gantry mounted control panel giving even heat spread.


Food Types

Assisted Service Ceran Glass Hotplate.
Food Display Examples.



LONG TERM HOLDING (2-4 Hours).

Breakfast: baked beans, tomatoes, bacon, sausage, black pudding, mushrooms, hash browns.

Lunch/ Dinner: stews, curry, chilli dishes,sliced meats in gravy or sauce, pasta in sauce, vegetables, ribs with sauce, chicken portions.



SHORT TERM HOLDING (15-20 mins).

Breakfast/ Brunch:  omlettes, fried / boiled eggs, muffins, baked potatoes.

Lunch/ Dinner: battered fish, chips / fries.



Dimensions

Assisted Service Ceran Glass Hotplate.
Dimensions.

Model

KHP2+KAS2

KHP3+KAS3

KHP4+KAS4

KHP5+KAS5

KHP6+KAS6

Capacity

2/1 GN

3/1 GN

4/1 GN

5/1 GN

6/1 GN

Length (mm)

825

1175

1525

1875

2225

Depth (mm)

660

660

660

660

660

Height above worktop (mm)

540

540

540

540

540

Depth below worktop (mm)

92

92

92

92

92

Weight (uncrated) (kg)

65

76

87

98

109

Power (kW)

1.3

1.95

2.6

3.3

3.9

Electrical supply

13A 230V

13A 230V

13A 230V

16A 230V

20A 230V



  •   Control panel to ‘operator side’ of gantry.


Downloads

General Layout Drawings.
Kubus Assisted Service Ceran Glass Hotplate.





Fitting Instructions, User Manual, Energy Use.
Kubus Assisted Service Ceran Glass Hotplate.




website-HOT-KUBUS-HEADER---

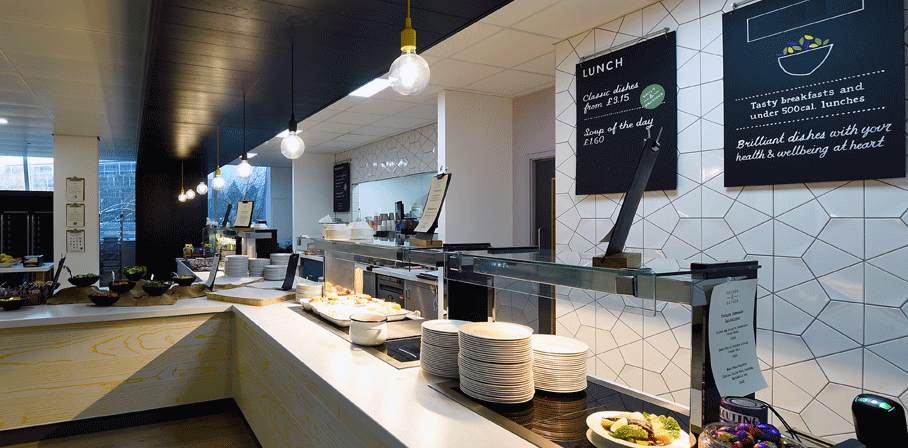

CED-2106-a-Bepoke-Counter
