The dry heat bain marie & hot cupboard forms part of the Glide range of mobile dining carts – a choice of cold, hot & ambient commercial catering carts that combine to form a food severy counter solution as unique as your requirements !

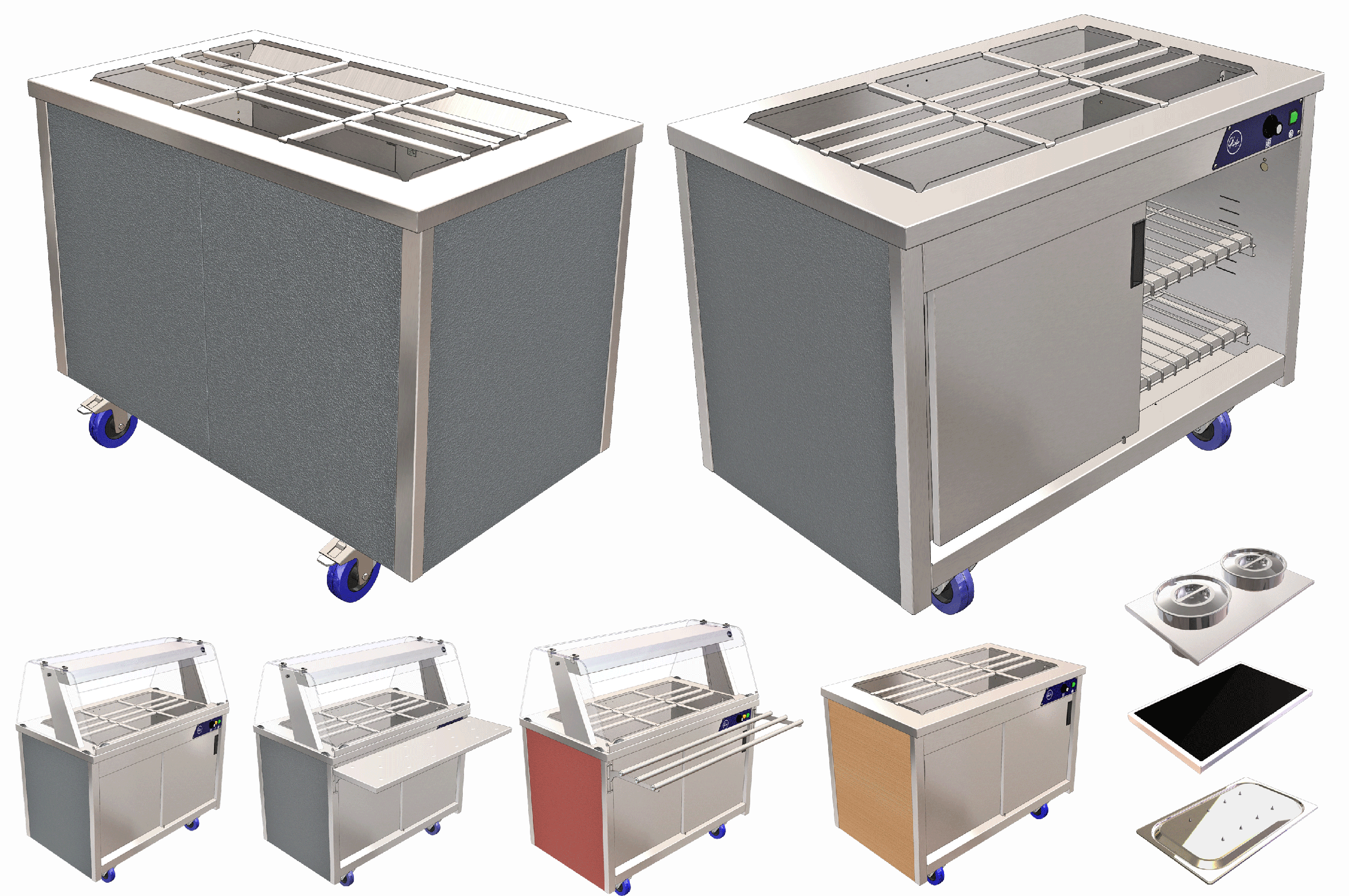

Glide Bain Marie Hot Cupboard (Dry Heat).
The bain marie hot cupboard (no gantry) features a bain marie section with removable container supports, formed in the worktop to accept up to 150mm deep Gn containers (not included).

The containers are heated by both suspended elements and residual heat from the hot cupboard underneath. The hot cupboard uses fan blown heating to evenly distribute heat around the cupboard space. The model is made in 4 sizes to suit your servery layout. All containers must be present when in operation.

The removable container supports allow for a varied mix of GN containers to be displayed per gastronorm section.

Behind lift-off rear sliding s/steel cupboard doors, are two tiers of removable, height adjustable grid shelves for plate/ container storage. The wire shelves help distribute heat around the cupboard and support plate holding, dish storage or up to ten 1-1 Gn size (150mm deep) gastronorm containers (not included), depending on the cupboard size. The front/side base panels are finished in leathergrain plastisol steel, colour merlin grey (BS 18B25), Each model comes with lockable castors.

Height Options.
Low Height Model (Glide Junior)
in 850mm or 800mm high options for junior/ primary use.

Accessories & Finishes.


Folding Steel Solid or Tubular Tray Slides. Tray slides add 40mm to unit depth and are set at the worktop height – 55mm.


Colour Colour Finishes To Side/ Front Panels.
11 alternative choices of durable steel, colour & wood effect finishes for hot cupboard front/ side panels, to compliment other selected models in the servery colour scheme.

Gantry Options.

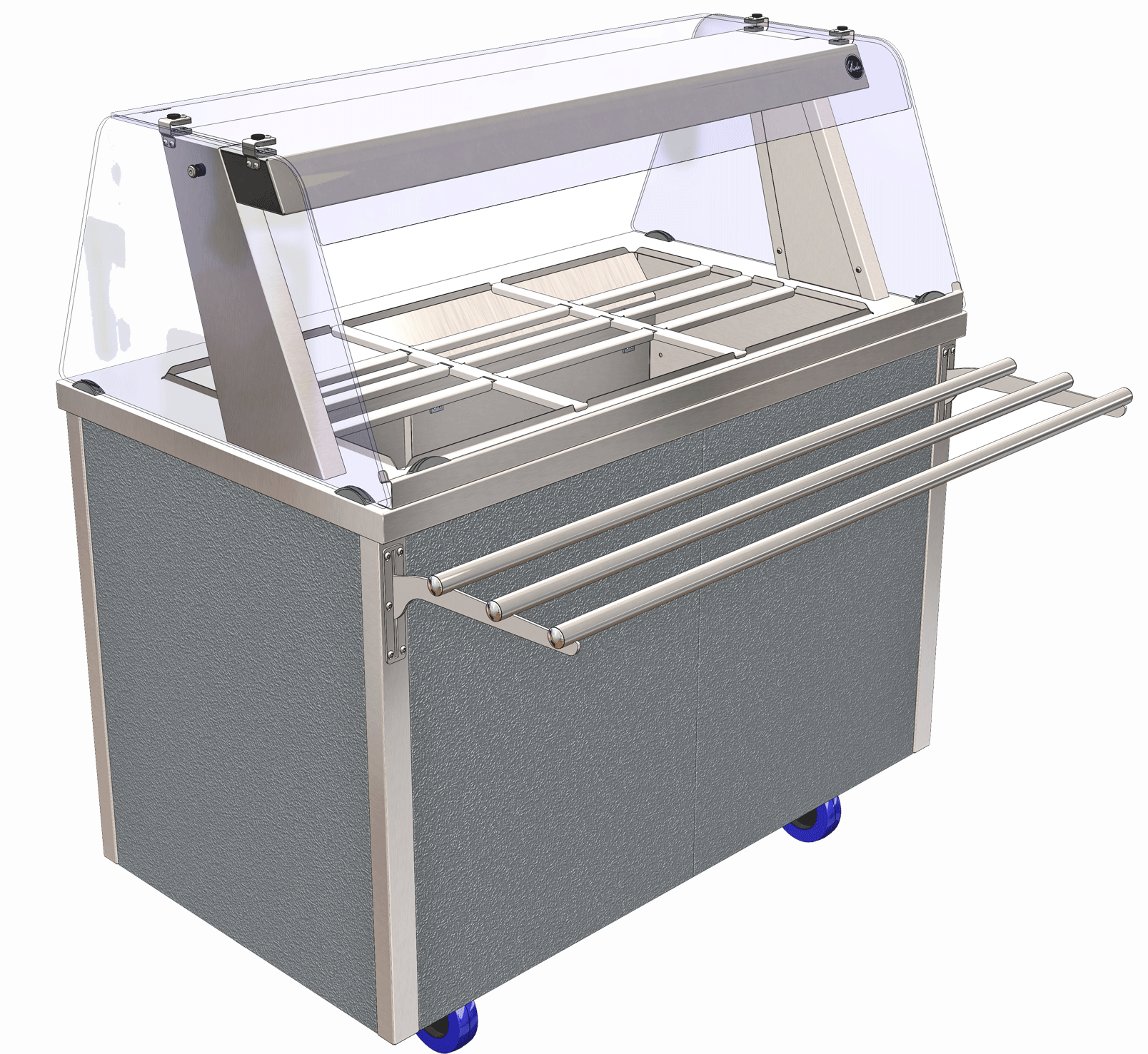

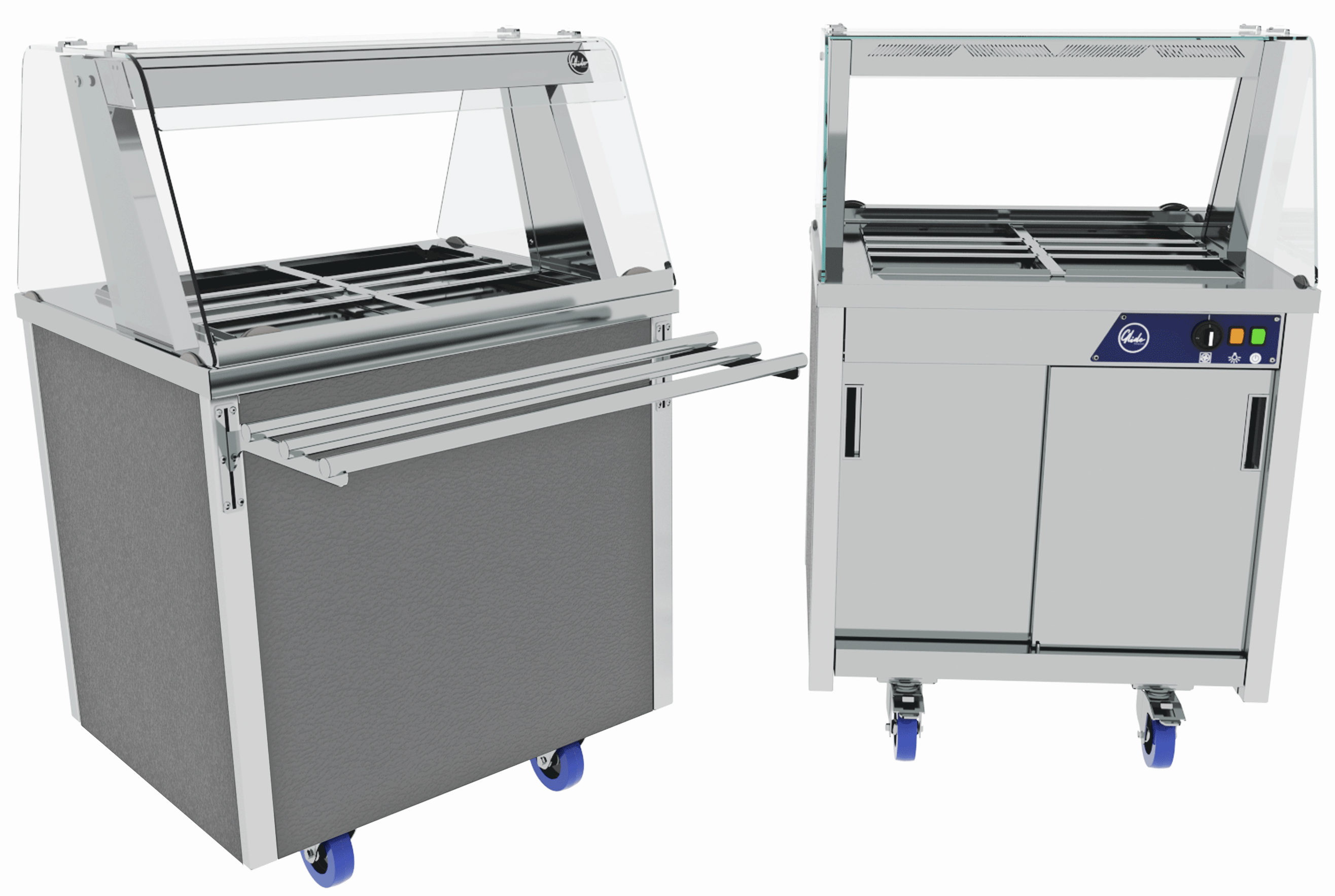

Heated Gantry & Island Heated Gantry.
A reversible self help/ assisted service glass heated gantry or island gantry option provide top heat to the surface of food being held in the bain marie.

gg







Selection Of Bain Marie Inserts. A choice of glass hotplate adaptors for short term holding, a spiked carvery insert & dual 4 litre soup/ gravy container insert – for use with hot gantry option – are available.

Visual

Glide Bain Marie Hot Cupboard (Dry Heat).
Visual



Features

Glide Bain Marie Hot Cupboard (Dry Heat).
Features

  • Glide mobile dining cart, bain marie (dry heat) with hot cupboard storage to rear (no gantry).
  • Free standing application.
  • Heated bain marie formed as open section in worktop, that accommodates 1-1Gn (max.) 150mm deep flat bottom Gn containers with lids (not included).
  • Gn Containers heated by both suspended element & residual heat from hot cupboard underneath.
  • Fan assisted heating to hot cupboard under with thermostat control.

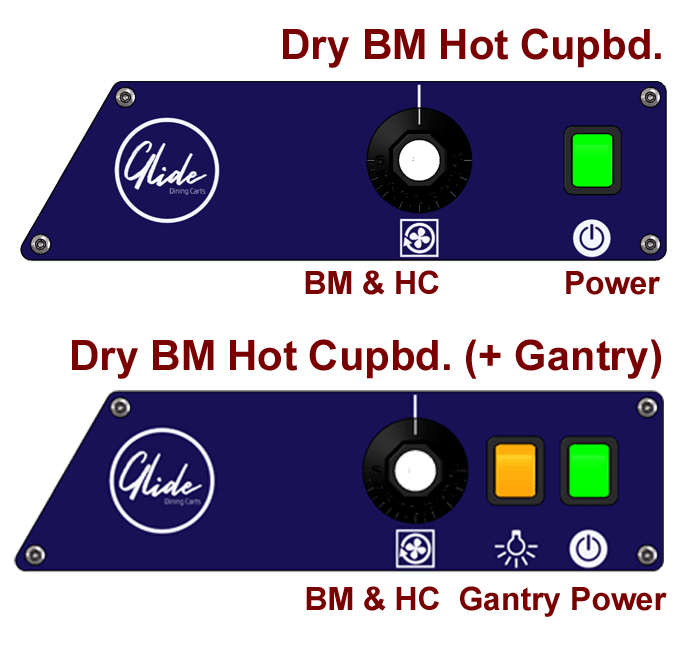

  • Hot cupboard & dry bain marie have a shared thermostatic control, mains power is controlled by neon on/off switch.
  • Hot gantry options are also controlled by neon on/off switches.
  • Supplied with 3m lead & 13 amp UK plug (13A 230v 50Hz), for connection to dedicated 13A SSO.
  • Available in 4 no. gastronorm lengths – 825/1175/1525/1875mm (l) x 700mm (d) x 900mm (h).
  • Front/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Worktop in 304 gd steel, all other external steel surfaces (corner angles/ sliding doors etc.) in 430gd.

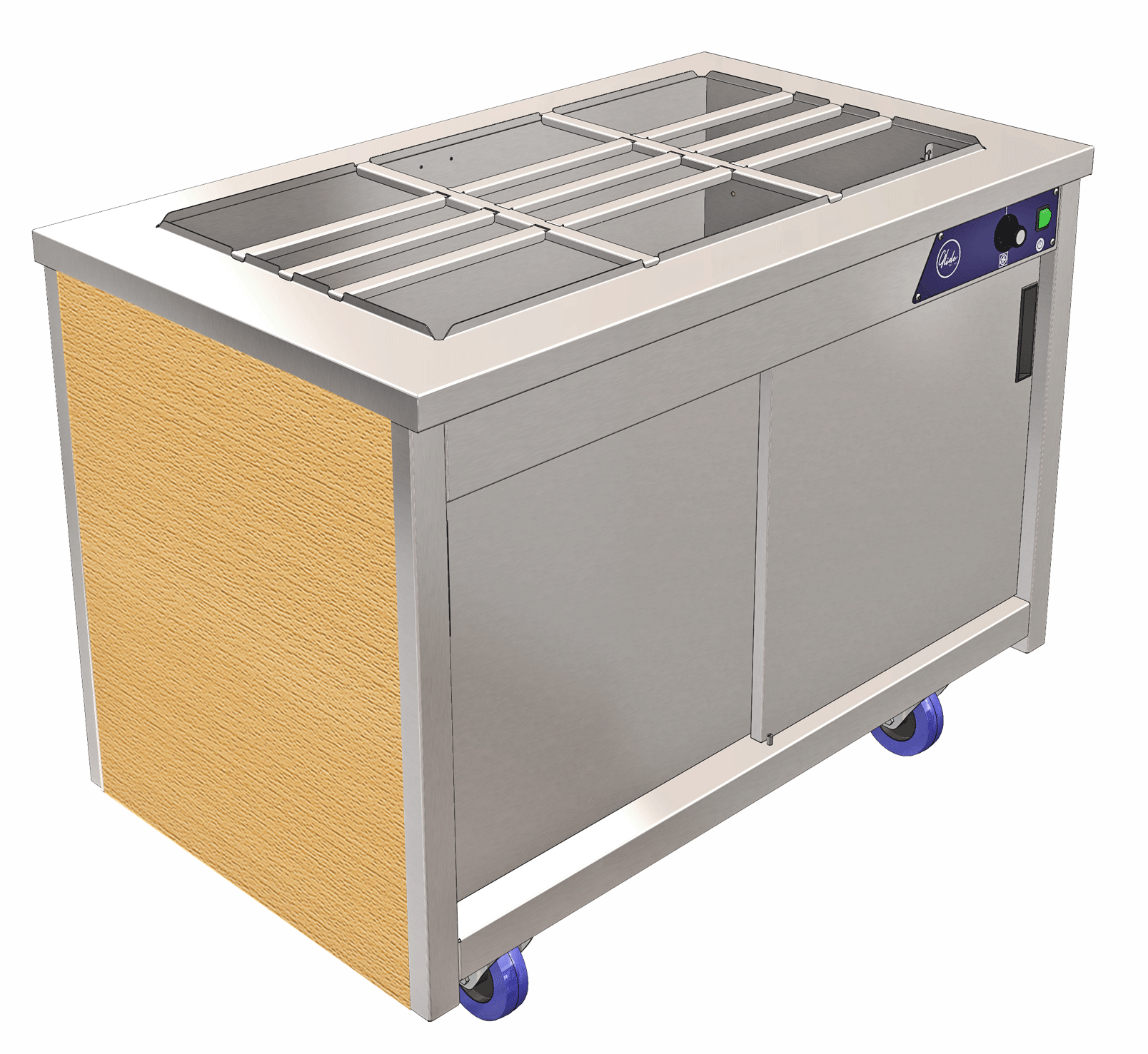

  • Rear hot storage cupboard fitted with removable sliding s/steel doors.
  • Hot cupboard fitted with adjustable height shelving, removable grid shelves, for easy cleaning.
  • Fitted with lockable non-marking rubber tyre castors.
  • Hot cupboard accommodates up to (10) x 1-1 Gn 150mm (d) containers (not included), depending on model size.

Glide Range: Electrical Connections.

  • Most Glide mobile units are operated by 13A plug top connected to a dedicated single socket outlet (SSO) (13A), unless its’ power supply exceeds 13A.
  • If connected to a double socket outlet, care must be taken not to exceed the circuit capacity.

Glide Range: Electrical Trailing Lead Protection.

  • CED recommend the use of  proprietary cable covers to protect overground trailing leads, to reduce trip hazards, limit accidental electrical partial plug disconnection and to keep wire safe from impact damage, as damaged cable wire can cause an electrical fault.
  • HSE GOV.UK Guidance On Planning And Managing Temporary Electrical Installations Re: Cabling.
    ‘Route cables to minimise tripping hazards or potential mechanical damage, and in a position that allows them to be safely installed and removed. Give particular care to the position of cable connections. You can also use cable ramps or similar to protect cables running overground across route ways to help avoid them becoming tripping hazards’

Options

  • Folding s/steel solid tray slide.*
  • Folding s/steel tubular tray rail Ø25 tube.*
  • Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm).*
  • 11 solid colour & woodgrain base panel finishes available.
  • Low height model 850mm (h) available (Option G850H)
  • Low height model 800mm (h) available. (Option G800H)**
  • Bespoke option with extended lead time.**
  • Heated reversible self help/ assisted serve gantry – 397 mm(h) c/w 200w quartz infra red jacketed safety lamps, reversible curved glass sneeze screen & end glass.
  • Heated self help island gantry – 397 mm(h) c/w 200w quartz infra red jacketed safety lamps, double curved glass sneeze screen & end glass.

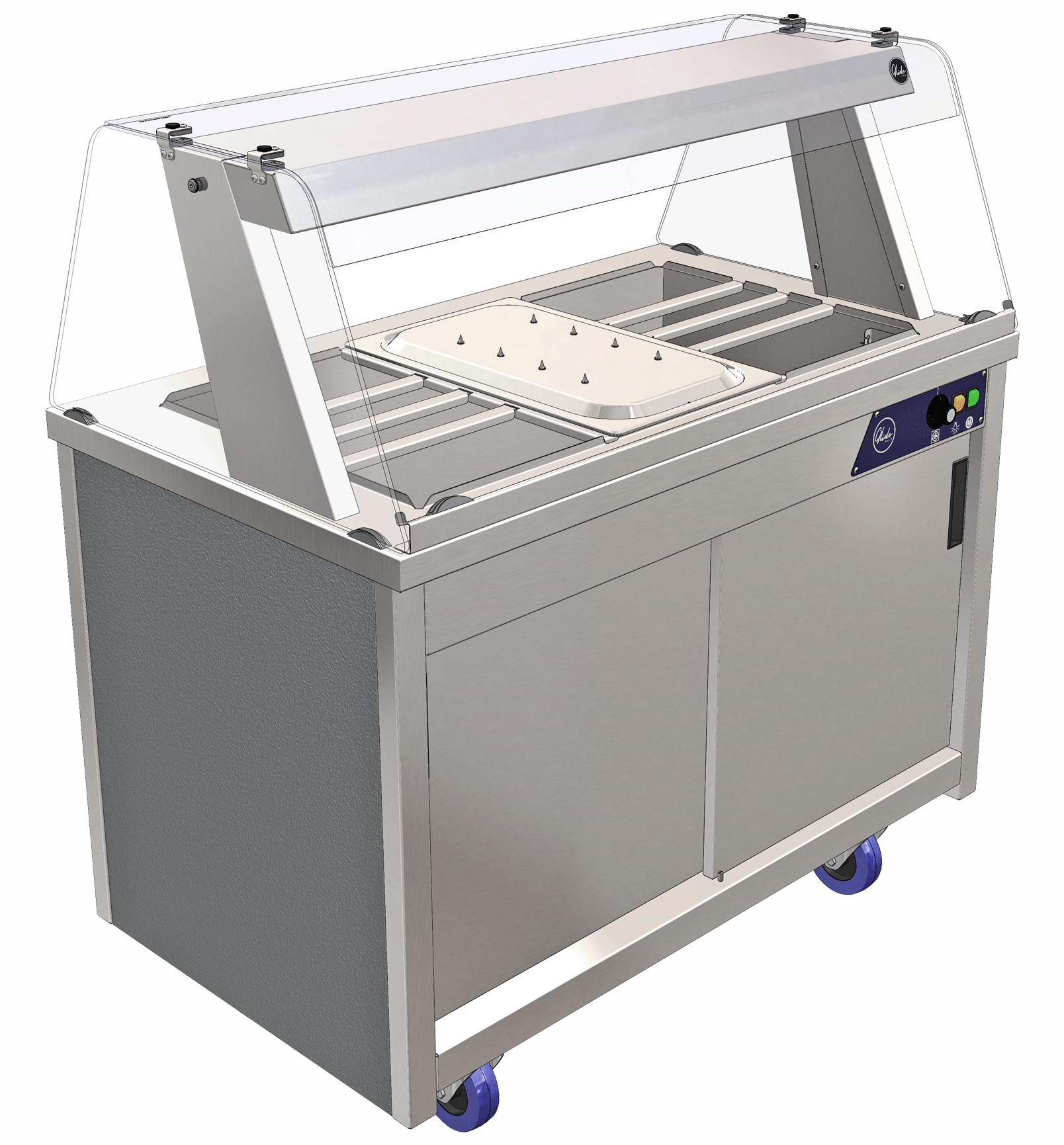

  • Spiked Carving Insert (Bain Marie) – 1/1 Gn removable 8 x spiked carving deck consisting of raised solid s/steel lid & juice collection tray under
    (Collection tray sits on container supports, spiked lid sits on top).***
  • Hot Glass Insert (Bain Marie) – 1/1 Gn removable black toughened glass insert in s/steel surround collar – for short term holding only, ideal for sauce dishes
    (Collar sits on container supports)***
  • Soup Container Insert (Bain Marie) – 1/1 Gn removable insert c/w s/steel collar, includes 2 no. 4.5 litre soup/gravy/custard containers & lids
    (Collar sits on container supports)***
  • ***Bain Marie Inserts for use only in conjunction with heated gantry option.***

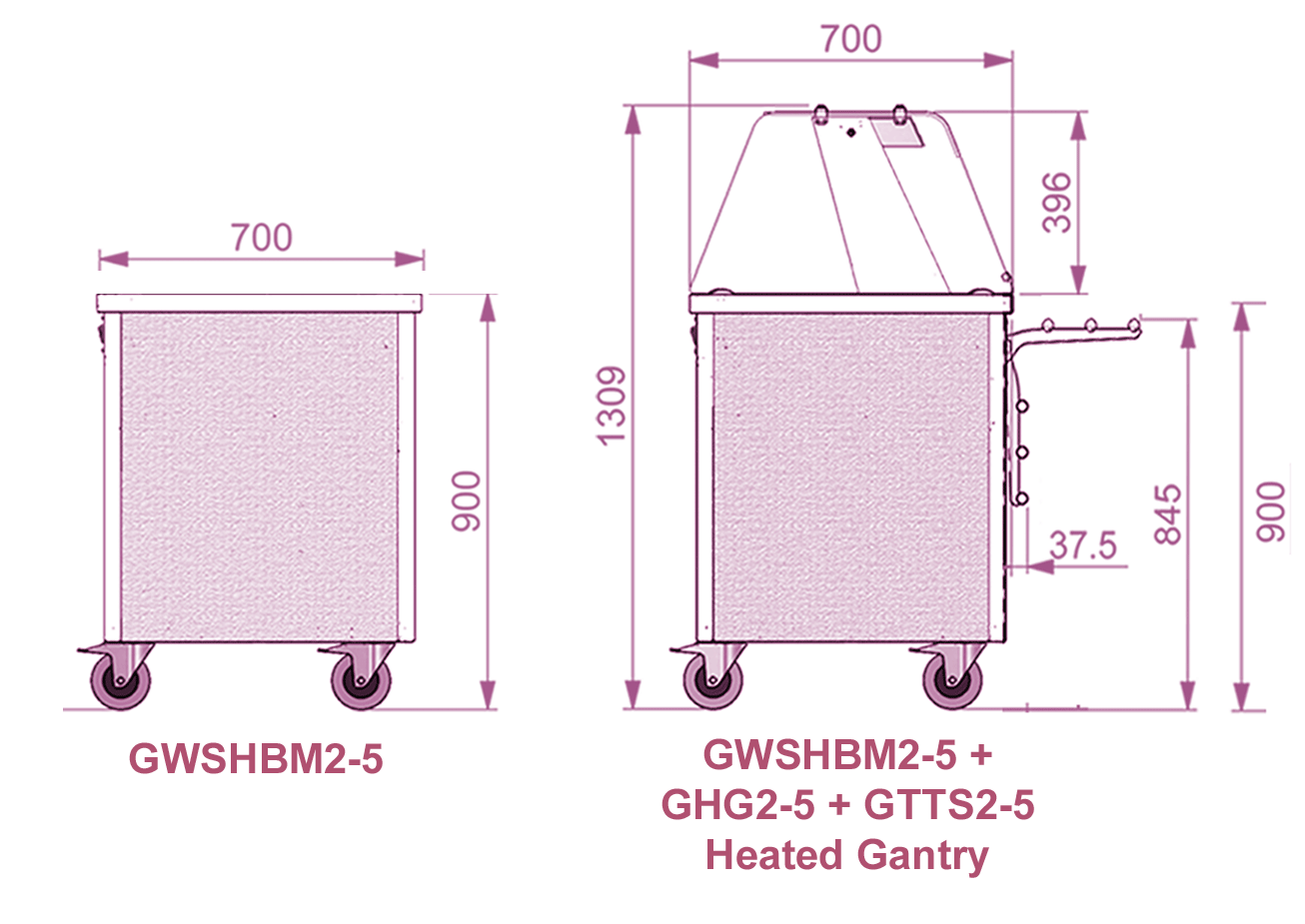

Dimensions

Glide Bain Marie Hot Cupboard (Dry Heat).
Dimensions

Model Code

GHBM2xxx

GHBM3xxx

GHBM4xxx

GHBM5xxx

Capacity (Gn)

2-1

3-1

4-1

5-1

Length (mm)

825

1175

1525

1875

Depth (mm)

700

700

700

700

Height (mm)

900

900

900

900

Total Power (kw)
(No Gantry) Model, 3m lead & Plug, for connection to dedicated 13A SSO.

2.58

2.83

2.83

2.83

Total Power (kw)
Model + Hot Gantry Option

c/w 200w Quartz Infra-red Jacketed Safety Lamps, 3m lead & Plug, for connection to dedicated 13A SSO.

2.08

2.53

2.73

2.93

Fan Assisted Heating

Included

Included

Included

Included

Hot Cupboard Features
Removable Rear S/Steel Sliding Doors, Adjustable Height Shelving &
Removable Chrome Grid Cupboard Shelving

Included

Included

Included

Included

Hot Cupboard Storage Capacity
Max. Qty 1-1 Gn Containers 150mm (h), Containers Not Included

4

6

8

10

Optional Trayslide – Revised Model Depth (mm)
Folding Tray Slide Option In Down Position

740

740

740

740

Optional Trayslide – Revised Model Depth (mm)
Folding Tray Slide Option In Up Position

1000

1000

1000

1000

Optional Trayslide Height (mm)
(Base Unit (h) – 55mm)

845

845

845

845

Model Weight (kg) : (No Gantry) Model

45

67

90

112

+ Optional Hot Gantry Weight (kg)

+7

+9

+12

+16

+(Option GCINS1) Spiked Carving Insert & Collection Tray Weight (kg)
Dims: 325(W) x 530(D) x 24 mm(H) – 1-1 Gn

1

1

1

1

+(Option GHINS1) Hot Glass Insert Weight (kg)
Dims: 324(W) x 520(D) x 27 mm(H) – 1-1 Gn

1

1

1

1

+(Option GSUPI4) Twin Soup Insert & Collar Weight (kg)
Dims: 325(W) x 520(D) x 64 mm(H) – 1-1 Gn

2

2

2

2

+ Optional Hot Island Gantry Weight (kg)

+9

+11

+13

+18

Optional Model Height G850H (mm)

850

850

850

850

Optional Model Height *G800H (mm)
*bespoke option, extended lead time*

800

800

800

800



*When Gantry option is added to model, the control panel with thermostat (HC/BM) & power isolation is replaced with a control panel featuring thermostat (HC/BM), one illuminated rocker switch (gantry) & power isolation*

Options                                                                                          Option Code

Model Code

GHBM2

GHBM3

GHBM4

GHBM5

Glide S/Steel Drop Down Tubular Tray Rail

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm High Model

G850H

G850H

G850H

G850H

Glide 800mm High Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

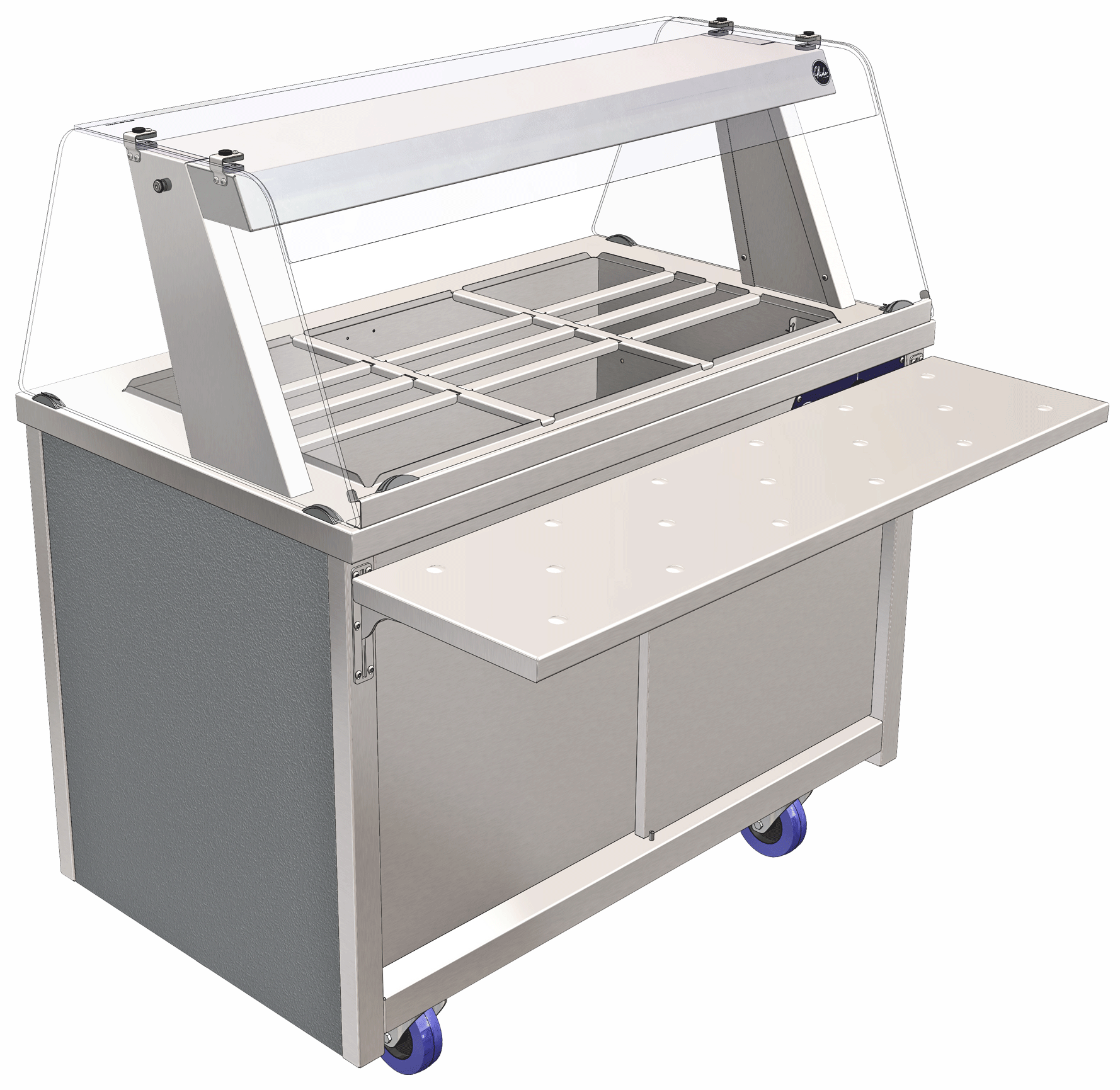

Glide Heated Gantry.
Reversible Curved Glass/ End Glass, 200w quartz infra-red jacketed safety lamps, 397mm (h)
*For adding top heat above the heated bain marie worktop i.e. Gn food container storage*

GHG2

GHG3

GHG4

GHG5

Glide Heated Island Gantry.
Double Curved Glass, End Glass, 200w quartz infra-red jacketed safety lamps, 397mm (h)
*For adding top heat above the heated bain marie worktop i.e. Gn food container storage*

GHIG2

GHIG3

GHIG4

GHIG5

Spiked Carving Insert (Bain Marie)
8 spiked raised solid s/steel carving lid & 1-1 Gn juice collection tray under.
Unit & tray sit on Gn container support collars of BM wktop. frame.
(For use with Hot Gantry option Only).

GCINS1

GCINS1

GCINS1

GCINS1

Hot Glass Insert (Bain Marie)
1/1 Gn removable black toughened glass insert in s/steel surround collar – for short term holding only.
Sits on Gn container support collars of BM wktop. frame.
(For use with Hot Gantry option Only).

GHINS1

GHINS1

GHINS1

GHINS1

2x 4.5 L Soup Insert (Bain Marie)
– 1/1 Gn removable insert c/w s/steel collar, includes 2 no. 4.5 litre soup/gravy/custard containers & lids.
Sits on Gn container support collars of BM wktop. frame.
(For use with Hot Gantry option Only).

GSUPI4

GSUPI4

GSUPI4

GSUPI4

Glide Colour Finish Base Panels (Front & Sides).

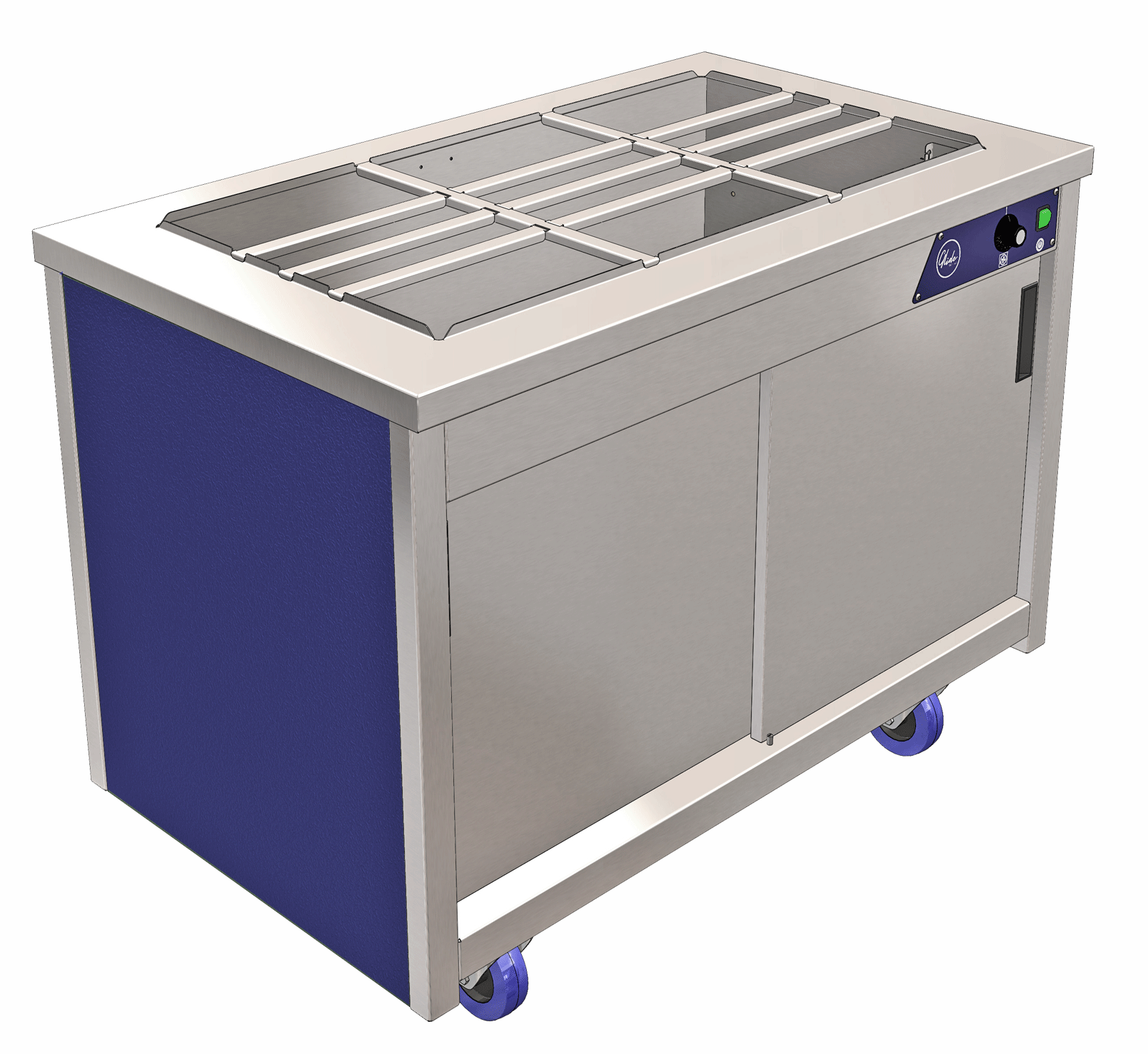

Ocean Blue (BS 18C37)

GBLUECHA2

GBLUECHA3

GBLUECHA4

GBLUECHA5

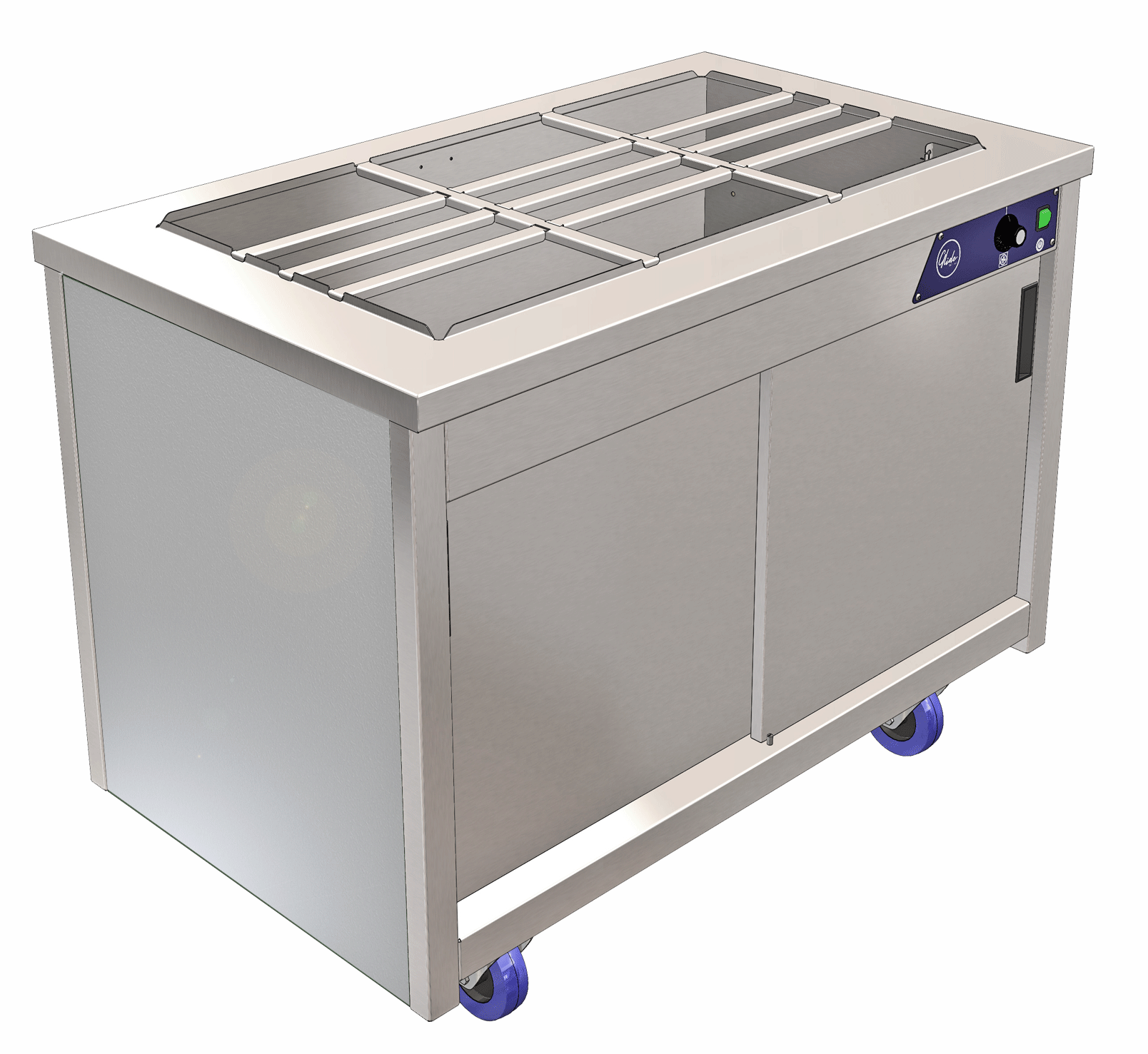

Glide S/Steel Finish Base Panels (Front & Sides).
S/Steel (430 gd)

GSSTLCHA2

GSSTLCHA3

GSSTLCHA4

GSSTLCHA5

Glide Colour Finish Base Panels (Front & Sides).

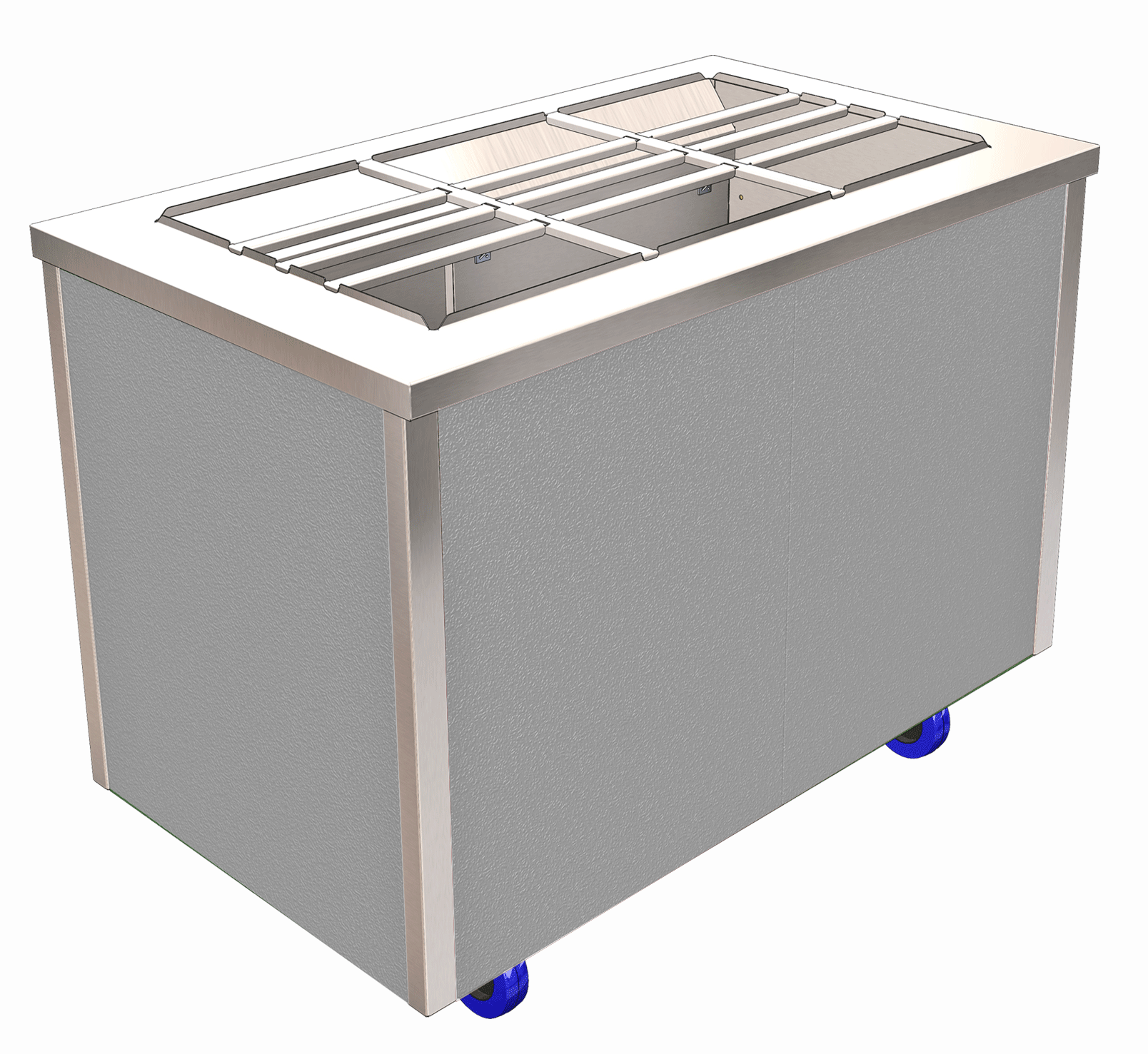

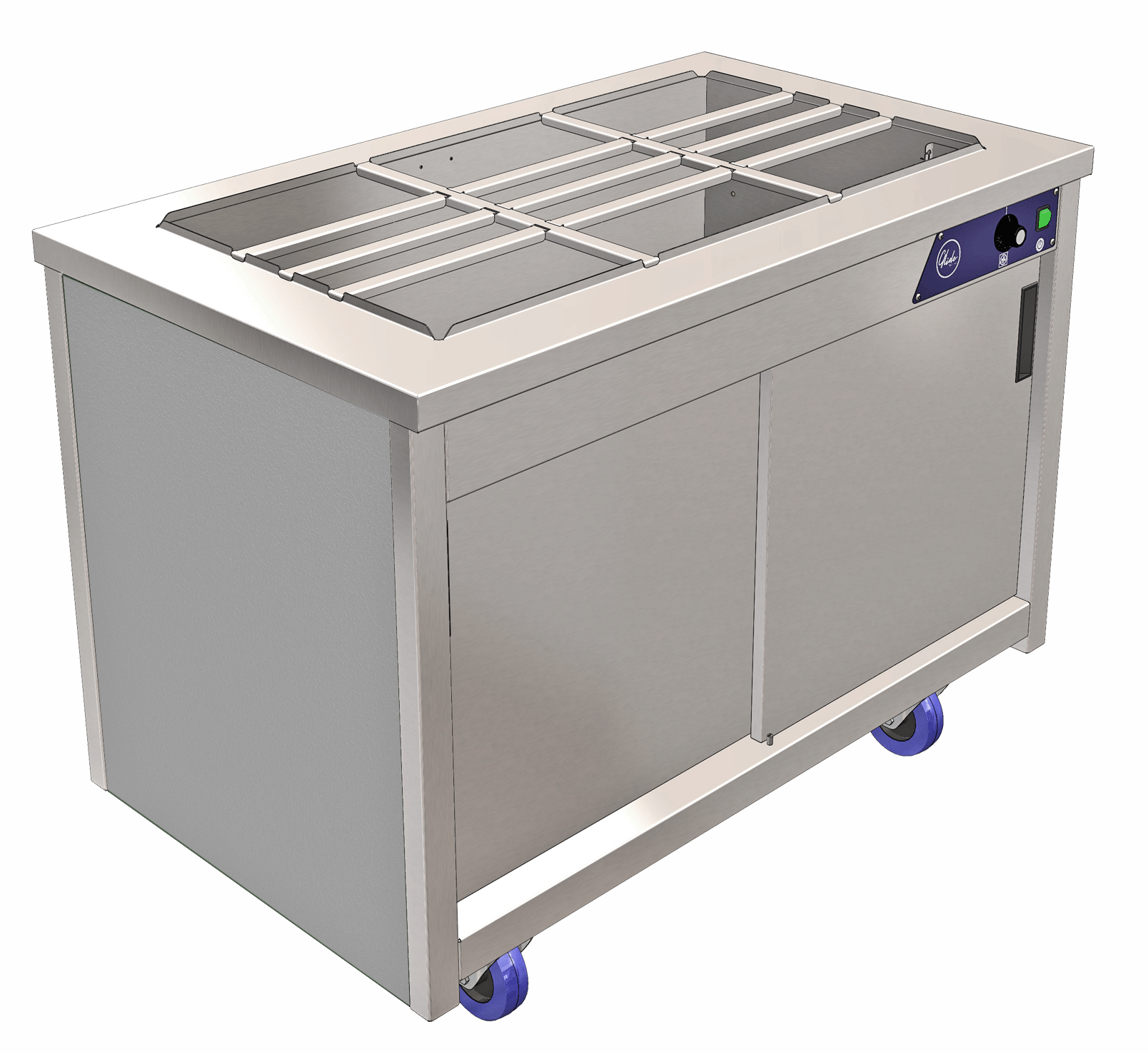

Goosewing Light Grey (BS 10A05)

GGREYCHA2

GGREYCHA3

GGREYCHA4

GGREYCHA5

Glide Colour Finish Base Panels (Front & Sides).

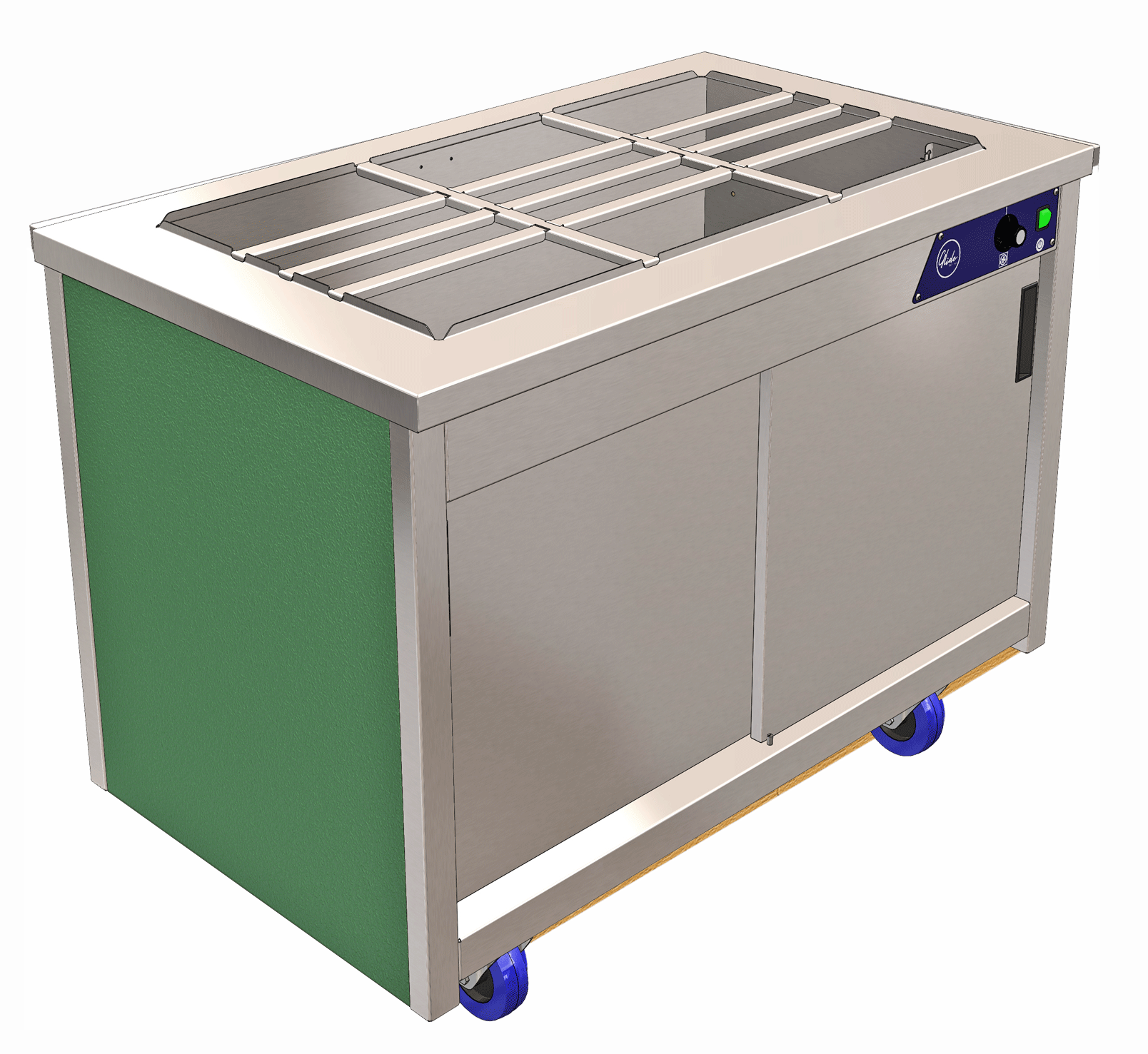

Forest Green (RAL 6002)

GGRENCHA2

GGRENCHA3

GGRENCHA4

GGRENCHA5

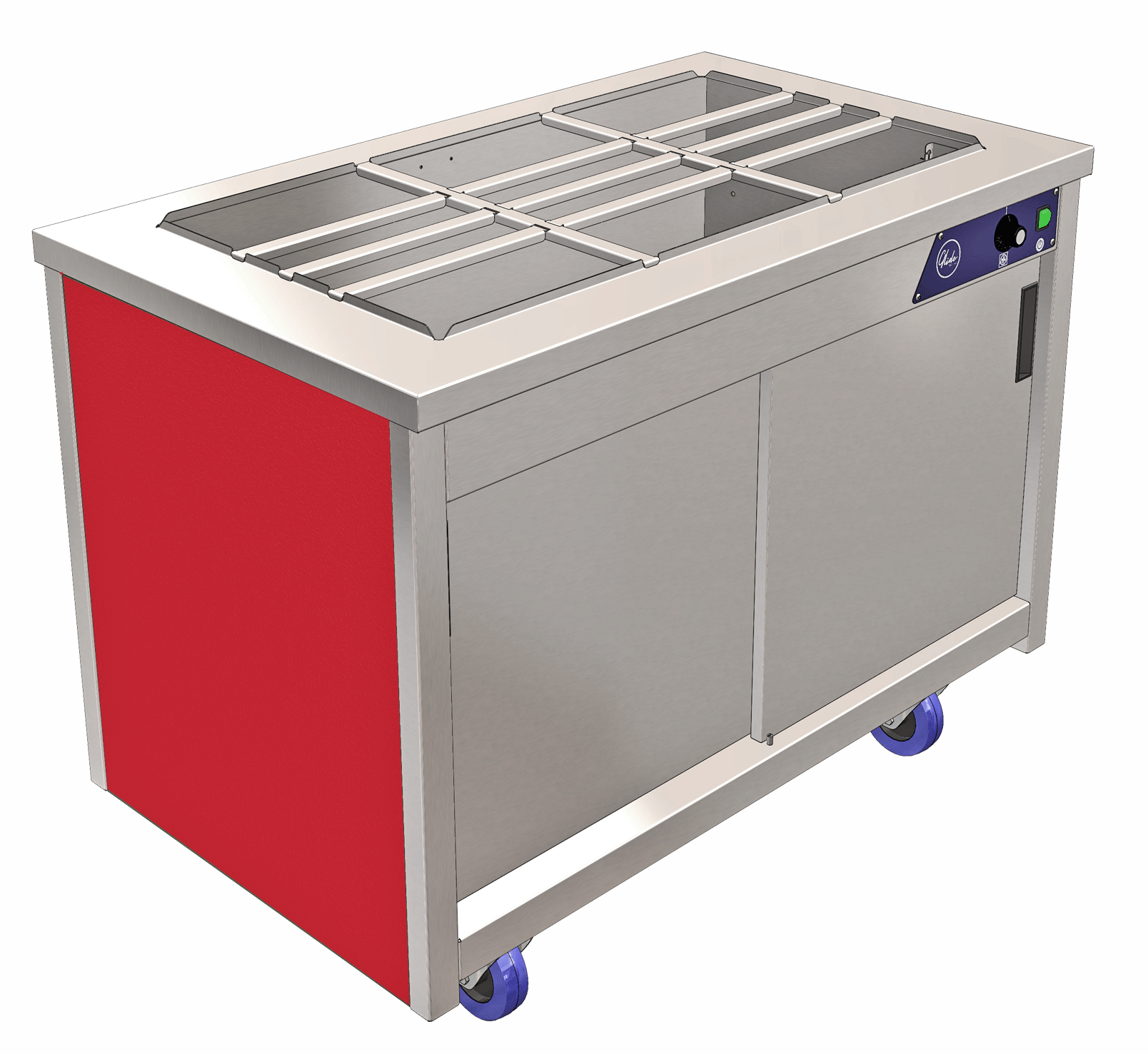

Glide Colour Finish Base Panels (Front & Sides).
Poppy Red (BS 04E5B)

GPREDCHA2

GPREDCHA3

GPREDCHA4

GPREDCHA5

Glide Colour Finish Base Panels (Front & Sides).

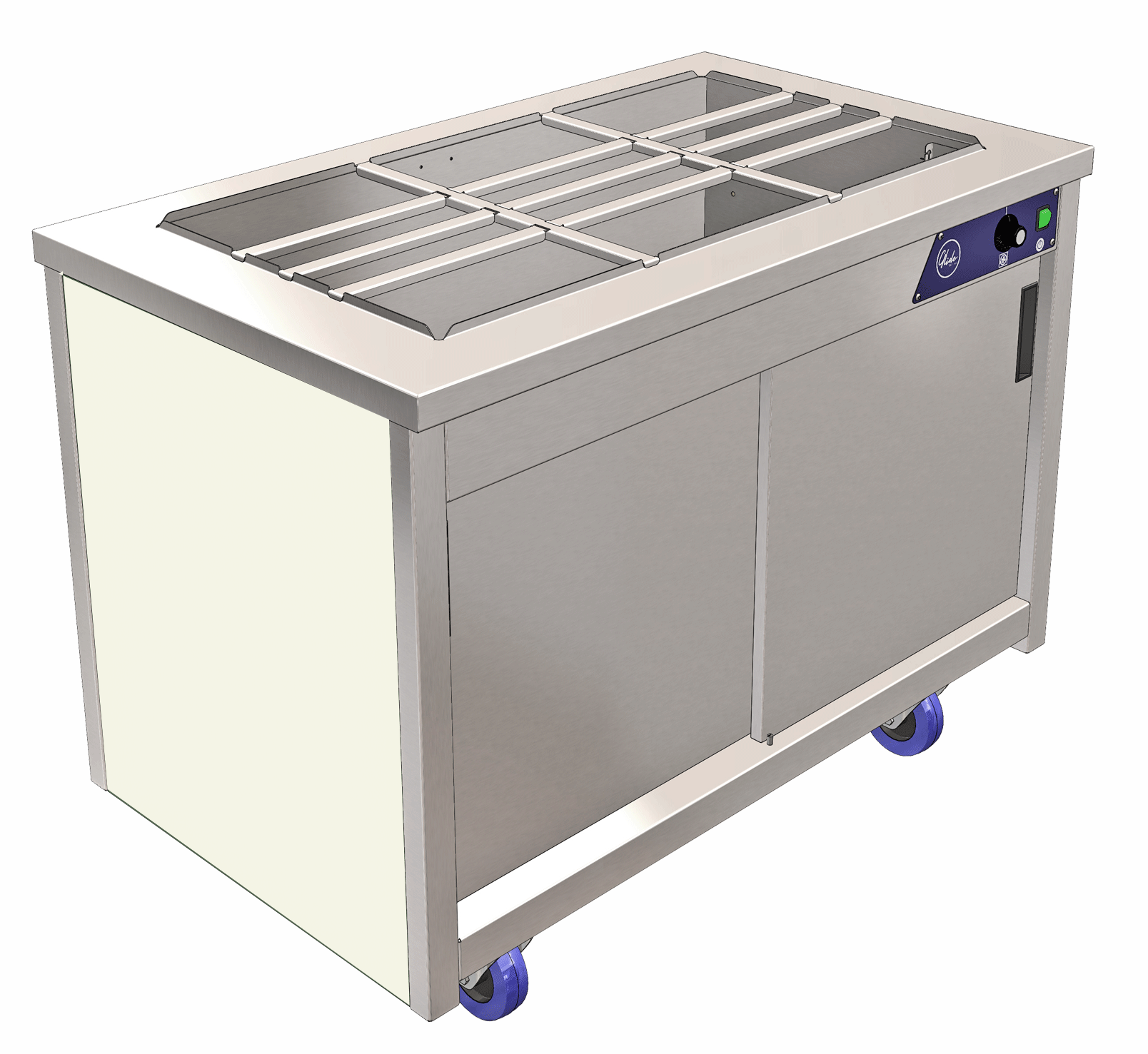

Buttermilk Cream (BS 10C31)

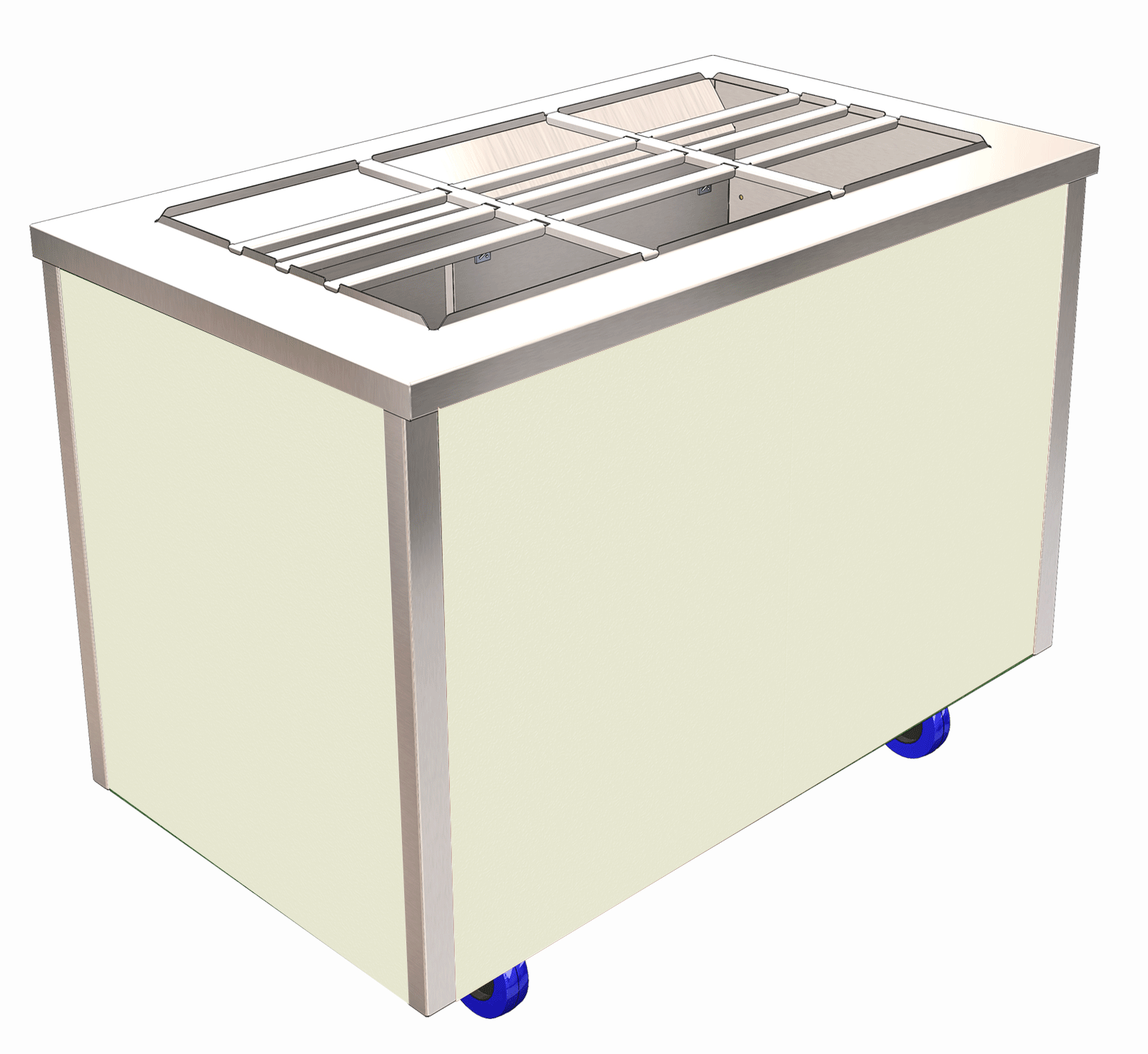

GCREMCHA2

GCREMCHA3

GCREMCHA4

GCREMCHA5

Glide Colour Finish Base Panels (Front & Sides).

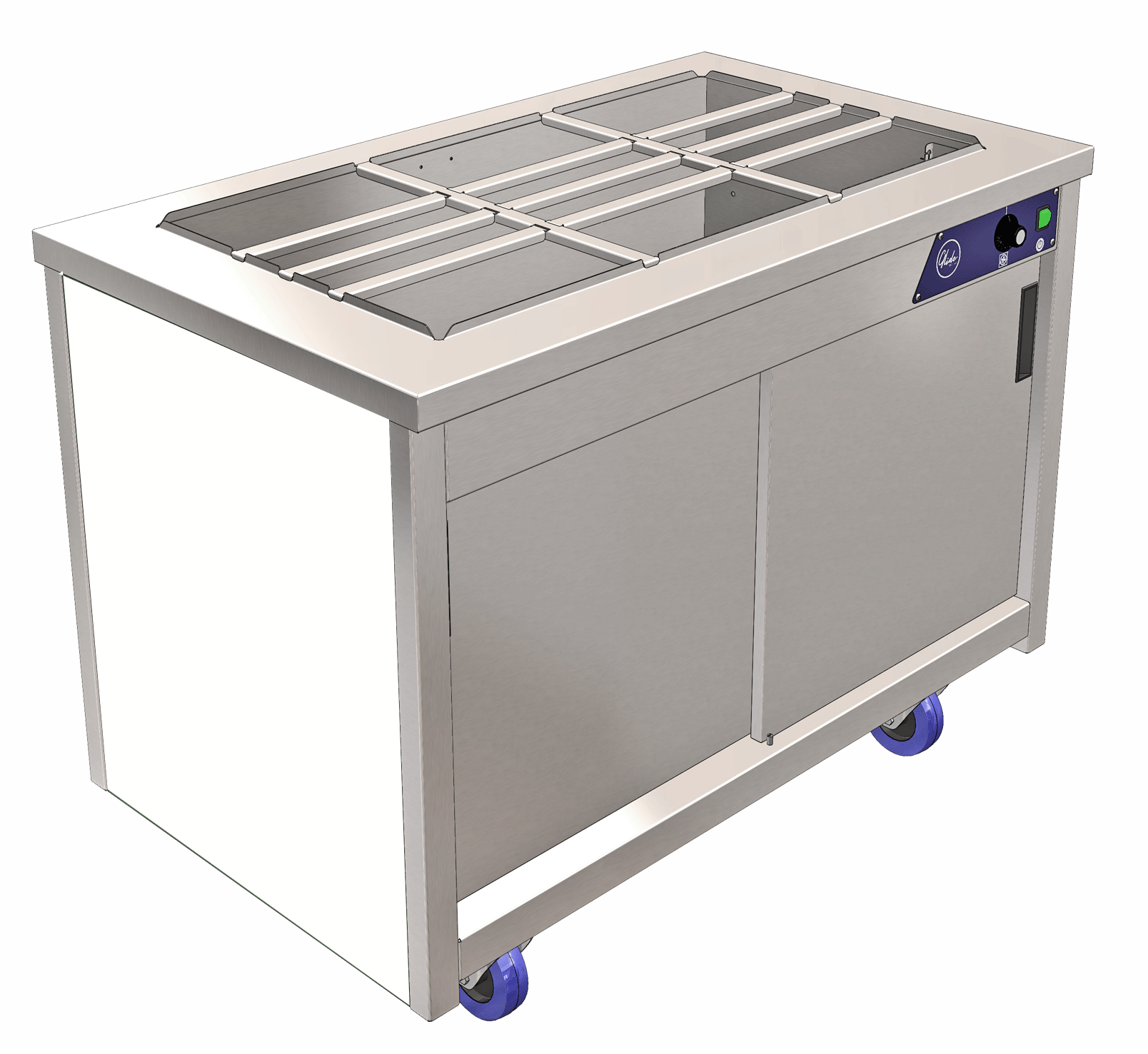

White (BS 00E55)

GWHITCHA2

GWHITCHA3

GWHITCHA4

GWHITCHA5

Glide Colour Finish Base Panels (Front & Sides).

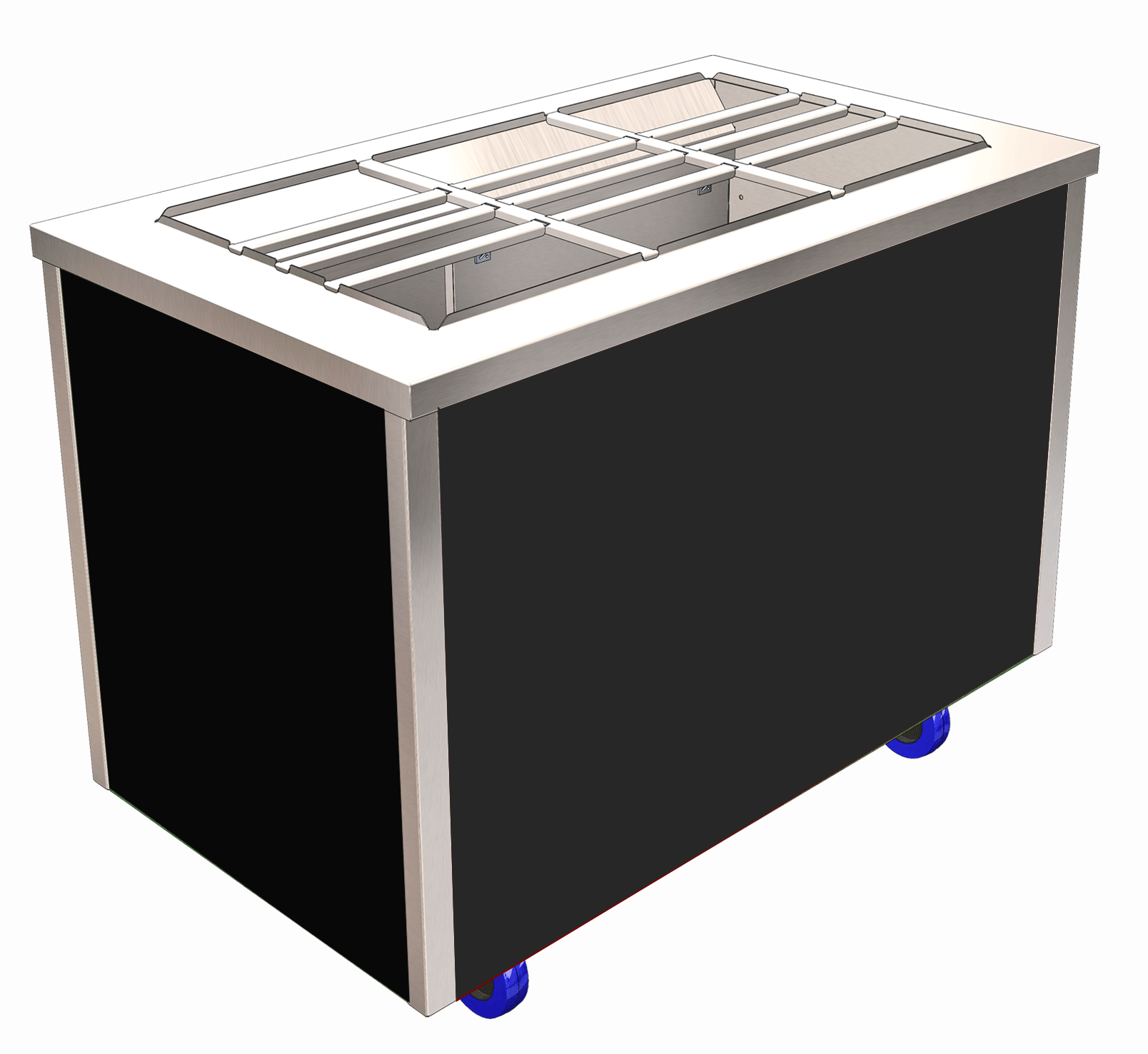

Black (BS 00E53)

GBLAKCHA2

GBLAKCHA3

GBLAKCHA4

GBLAKCHA5

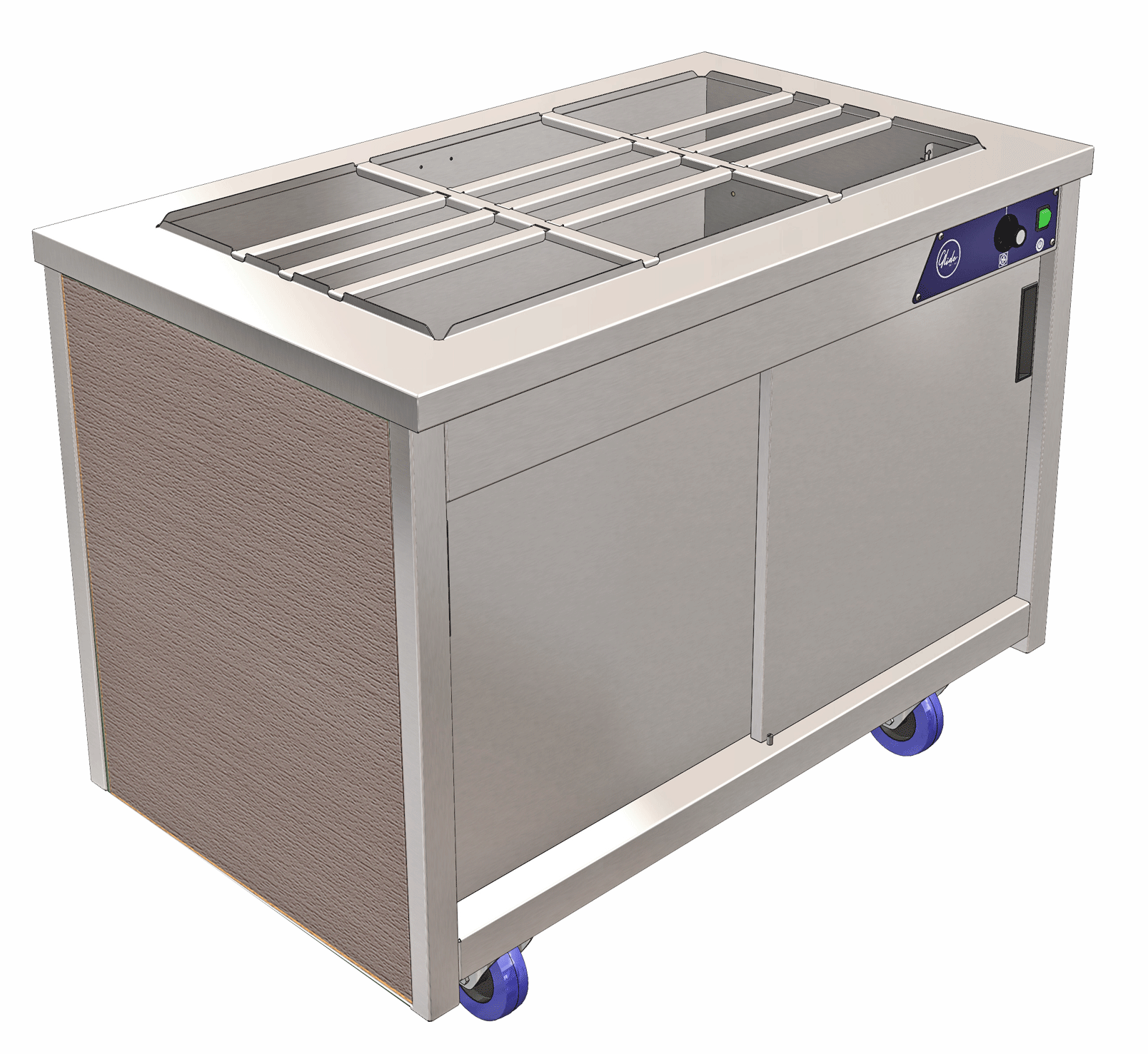

Glide Wood Grain Effect Finish Base Panels (Front & Sides).

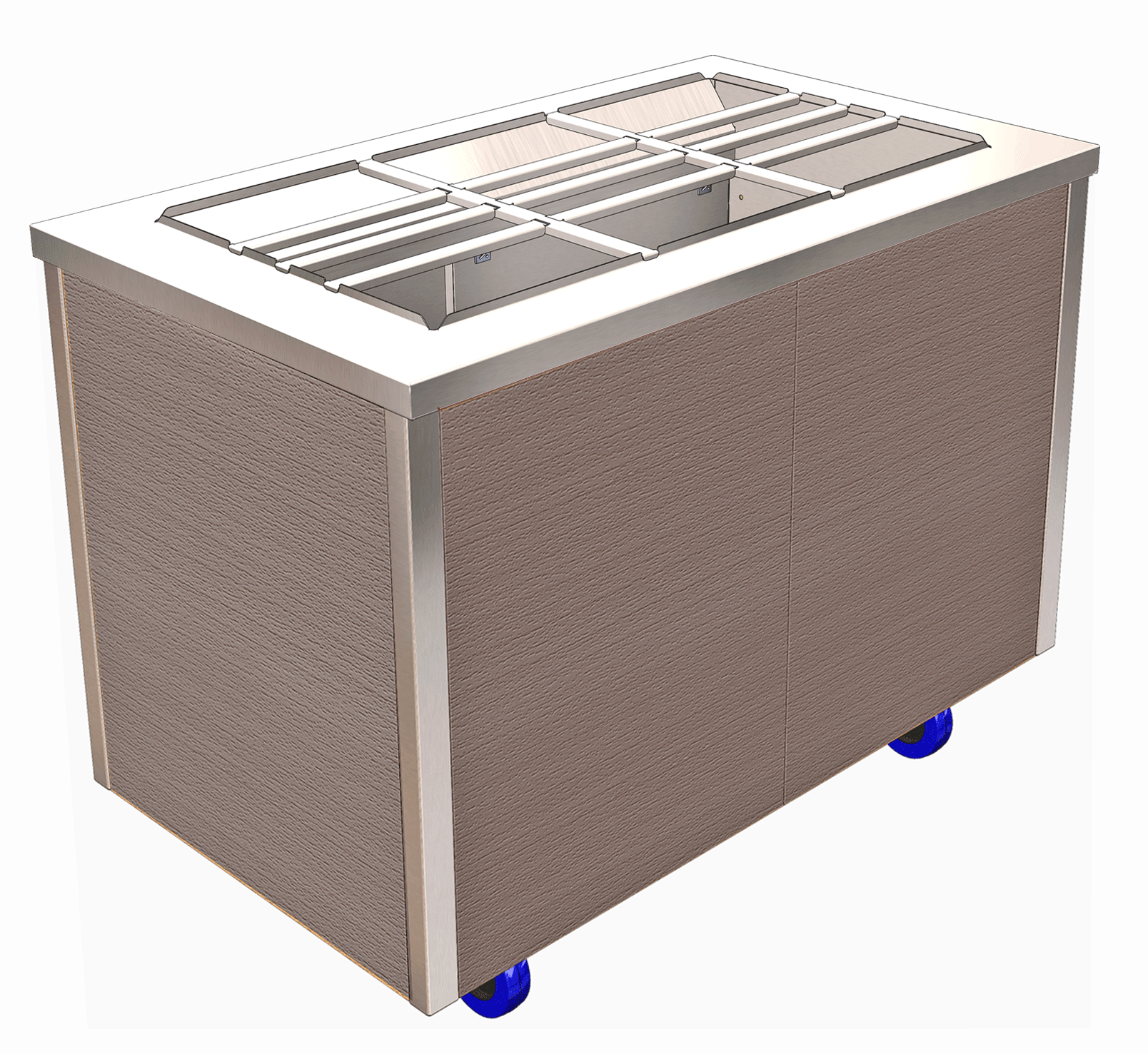

Walnut (DL85)

GWALNCHA2

GWALNCHA3

GWALNCHA4

GWALNCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).

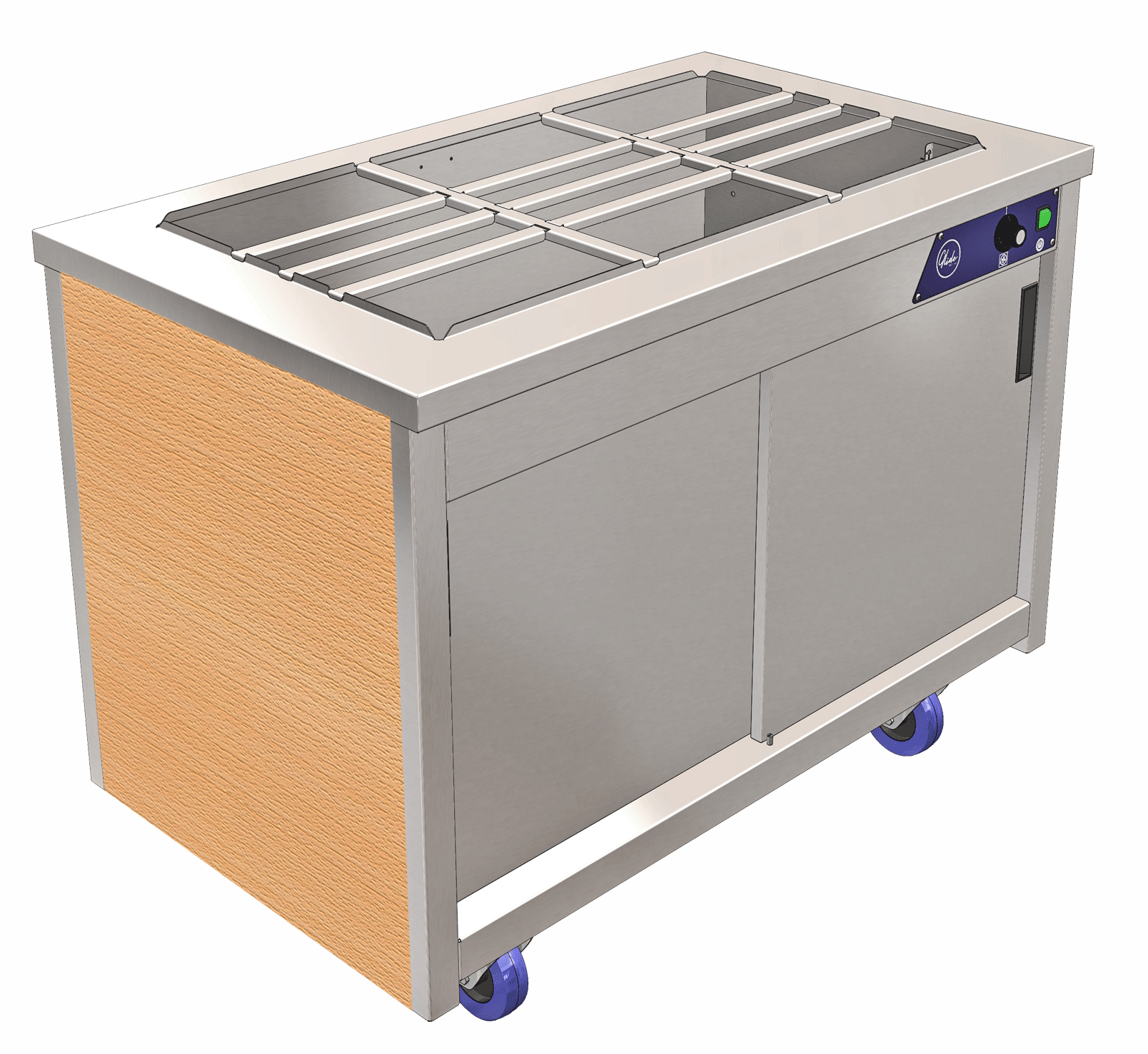

Beech (DL76)

GBEECCHA2

GBEECCHA3

GBEECCHA4

GBEECCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Oak (DL84)

GOAKCHA2

GOAKCHA3

GOAKCHA4

GOAKCHA5



Popular Model Codes & Options

SUMMARY : Popular Model Codes & Options

Model Code

Option Code

Option Code

Option Code

Glide Bain Marie Hot Cupboard (Dry Heat)
(& S/Steel Drop Down
Solid Tray Slide)

GHBM2
GHBM3
GHBM4
GHBM5

GSTS2
GSTS3
GSTS4
GSTS5

GSTS2
GSTS3
GSTS4
GSTS5

Glide Bain Marie Hot Cupboard (Dry Heat)
(& S/Steel Drop Down
Tubular Tray Rail)

GHBM2
GHBM3
GHBM4
GHBM5

GTTS2
GTTS3
GTTS4
GTTS5

YYYY

Glide Bain Marie Hot Cupboard (Dry Heat)
(& Heated Gantry –
Reversible Curved Glass/End Glass)

GHBM2
GHBM3
GHBM4
GHBM5

GHG2
GHG3
GHG4
GHG5

YYYY

Glide Bain Marie Hot Cupboard (Dry Heat)
(& Heated Island Gantry –
Double Curved Sneeze Glass/End Glass)

GHBM2
GHBM3
GHBM4
GHBM5

GHIG2
GHIG3
GHIG4
GHIG5

GPREDCHA2

Glide Bain Marie Hot Cupboard (Dry Heat)
& Colour Panel Finish – Green)

GHBM2
GHBM3
GHBM4
GHBM5

GGRENCHA2
GGRENCHA3
GGRENCHA4
GGRENCHA5

GPREDCHA2

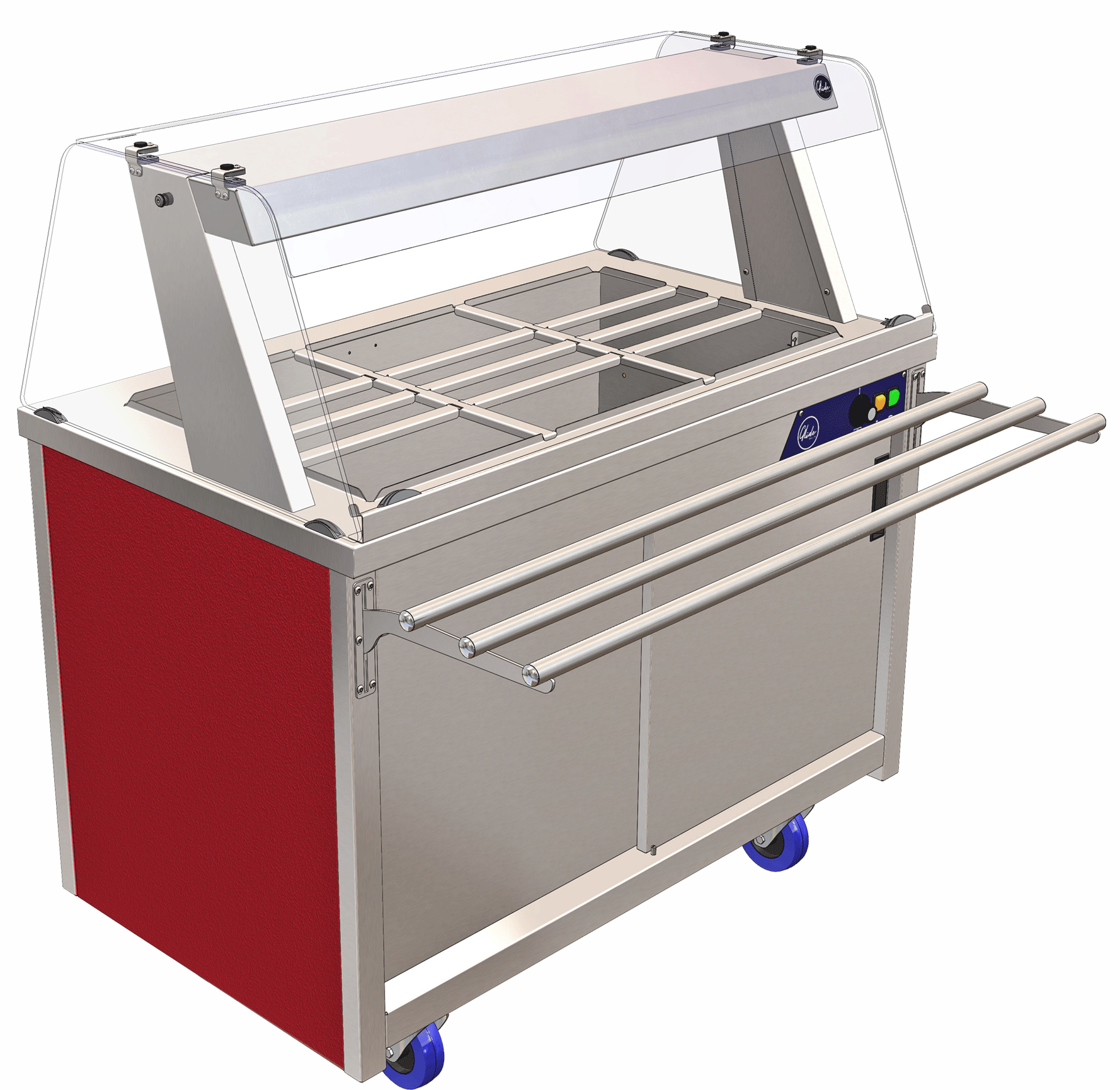

Glide Bain Marie Hot Cupboard (Dry Heat)
(& Heated Gantry) & (S/Steel Drop Down
Tubular Tray Rail) & (Colour Panel Finish Red)

GHBM2
GHBM3
GHBM4
GHBM5

GHG2
GHG3
GHG4
GHG5

GTTS2
GTTS3
GTTS4
GTTS5

GPREDCHA2
GPREDCHA3
GPREDCHA4
GPREDCHA5

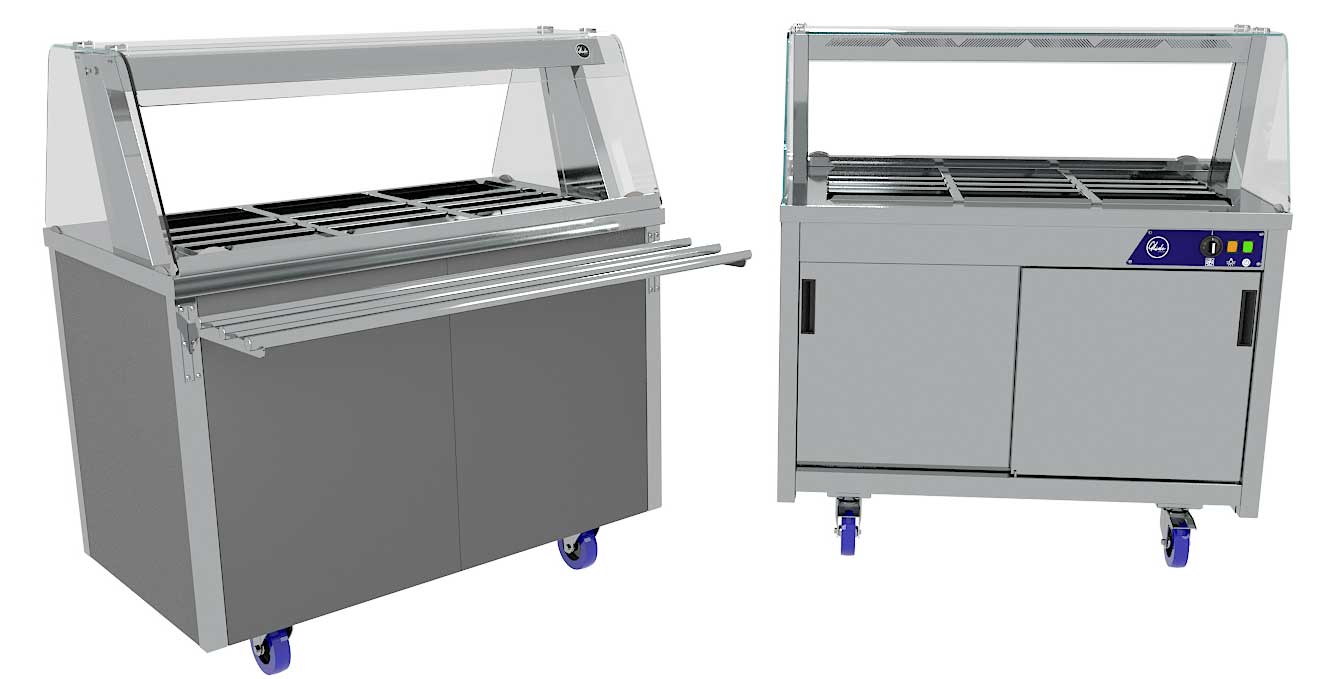

Glide Bain Marie Hot Cupboard (Dry Heat)
(& Heated Gantry) &
(S/Steel Drop Down Tubular Tray Rail)

GHBM2
GHBM3
GHBM4
GHBM5

GHG2
GHG3
GHG4
GHG5

GTTS2
GTTS3
GTTS4
GTTS5

Glide Bain Marie Hot Cupboard (Dry Heat)
(& Heated Gantry) &

(S/Steel Drop Down Solid Tray Slide)

GHBM2
GHBM3
GHBM4
GHBM5

GHG2
GHG3
GHG4
GHG5

GSTS2
GSTS3
GSTS4
GSTS5

GCP1AL
GCP1AL
GCP1AL
GCP1AL


Options

Glide Bain Marie Hot Cupboard (Dry Heat).
Options.

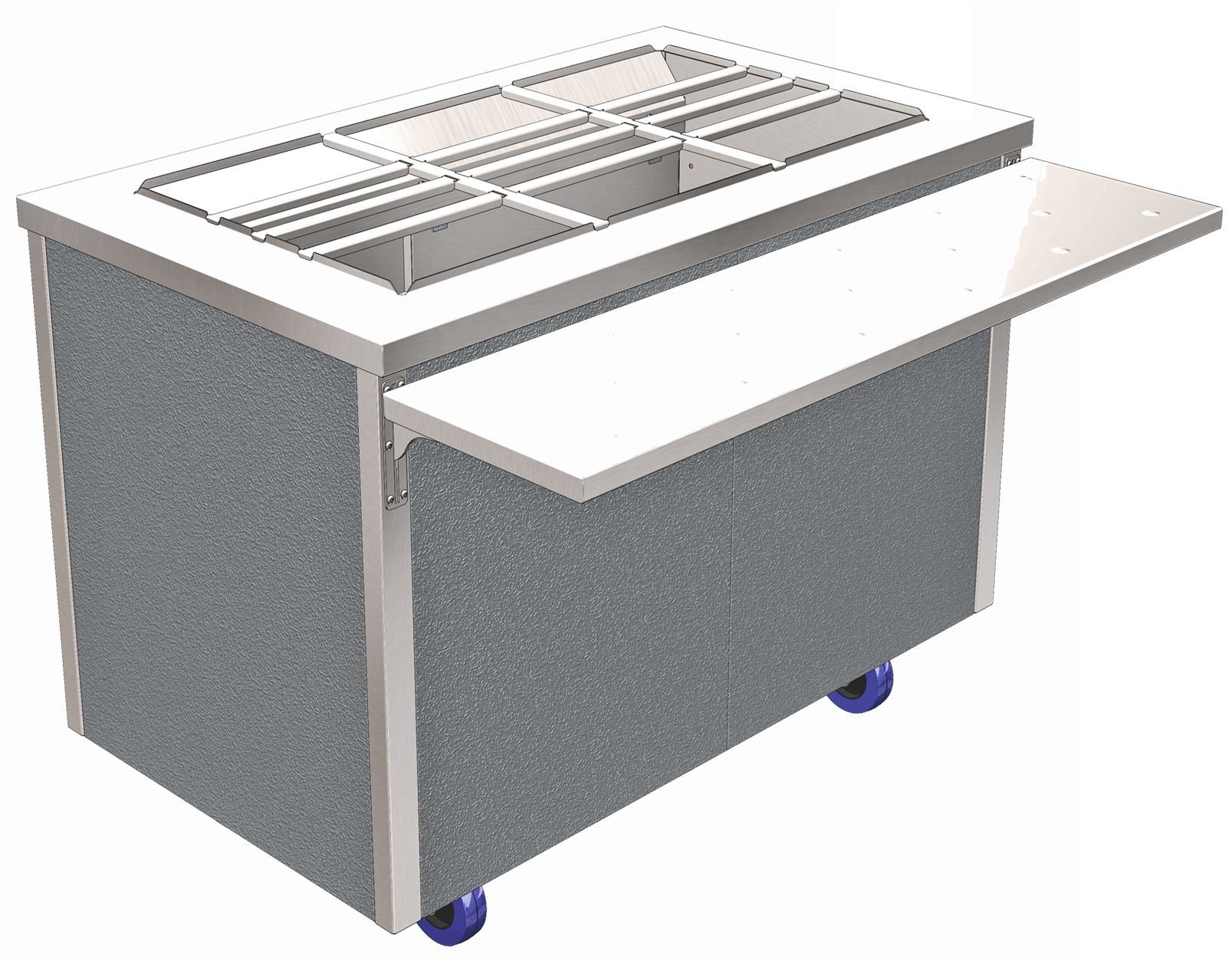

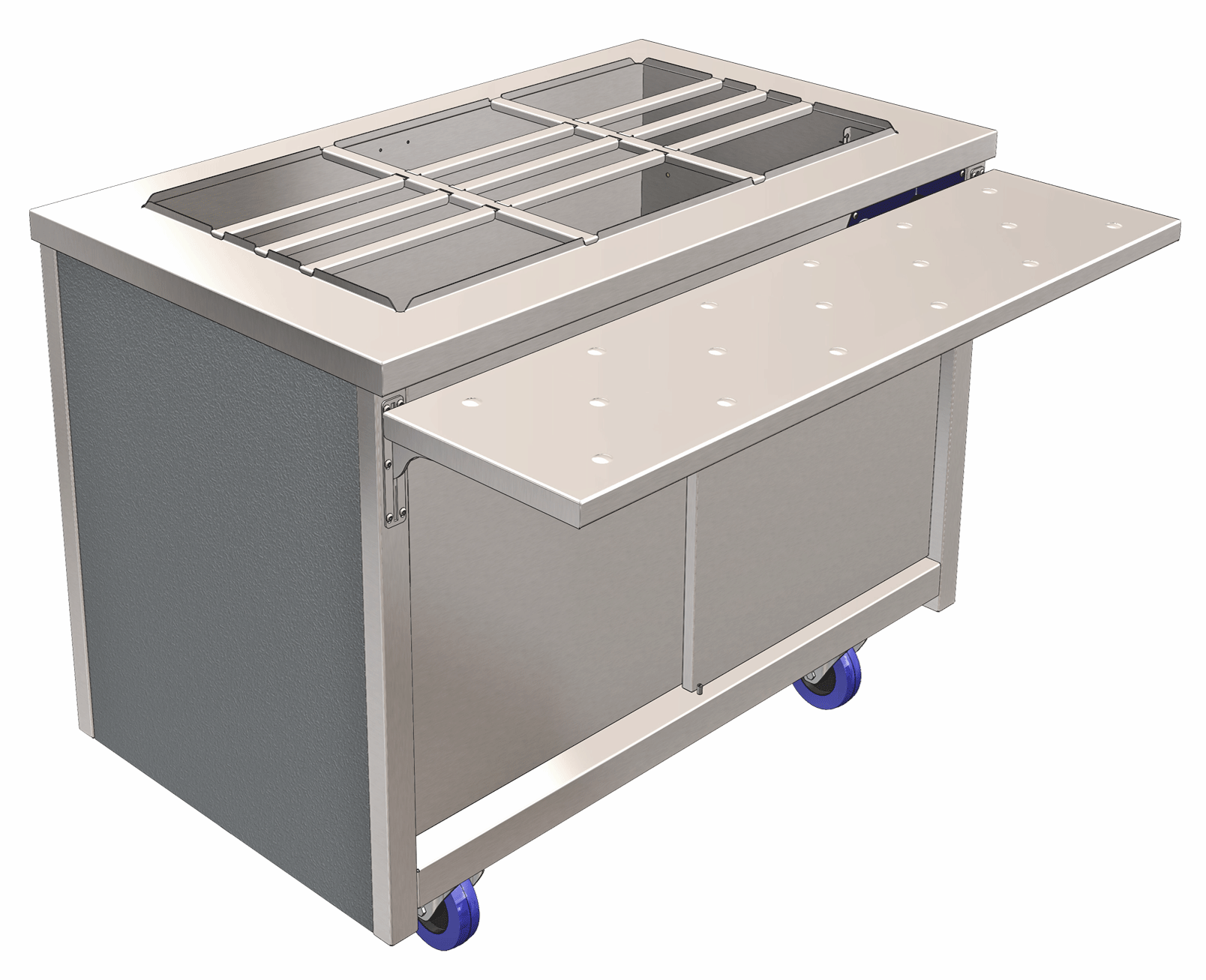

Glide S/Steel Folding Solid Tray Slide.
(Option Codes GSTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type, up position adds 302mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

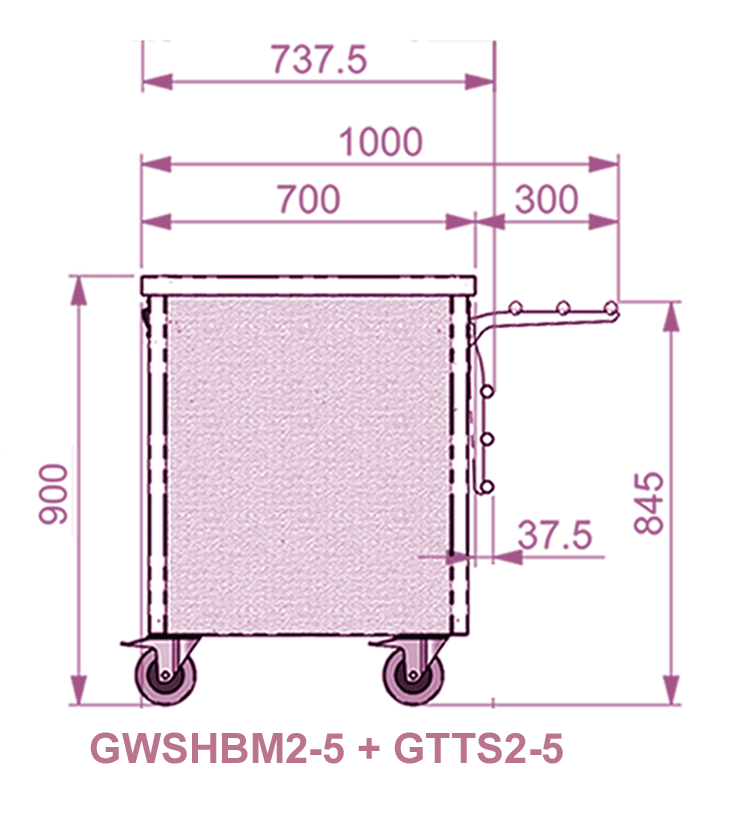

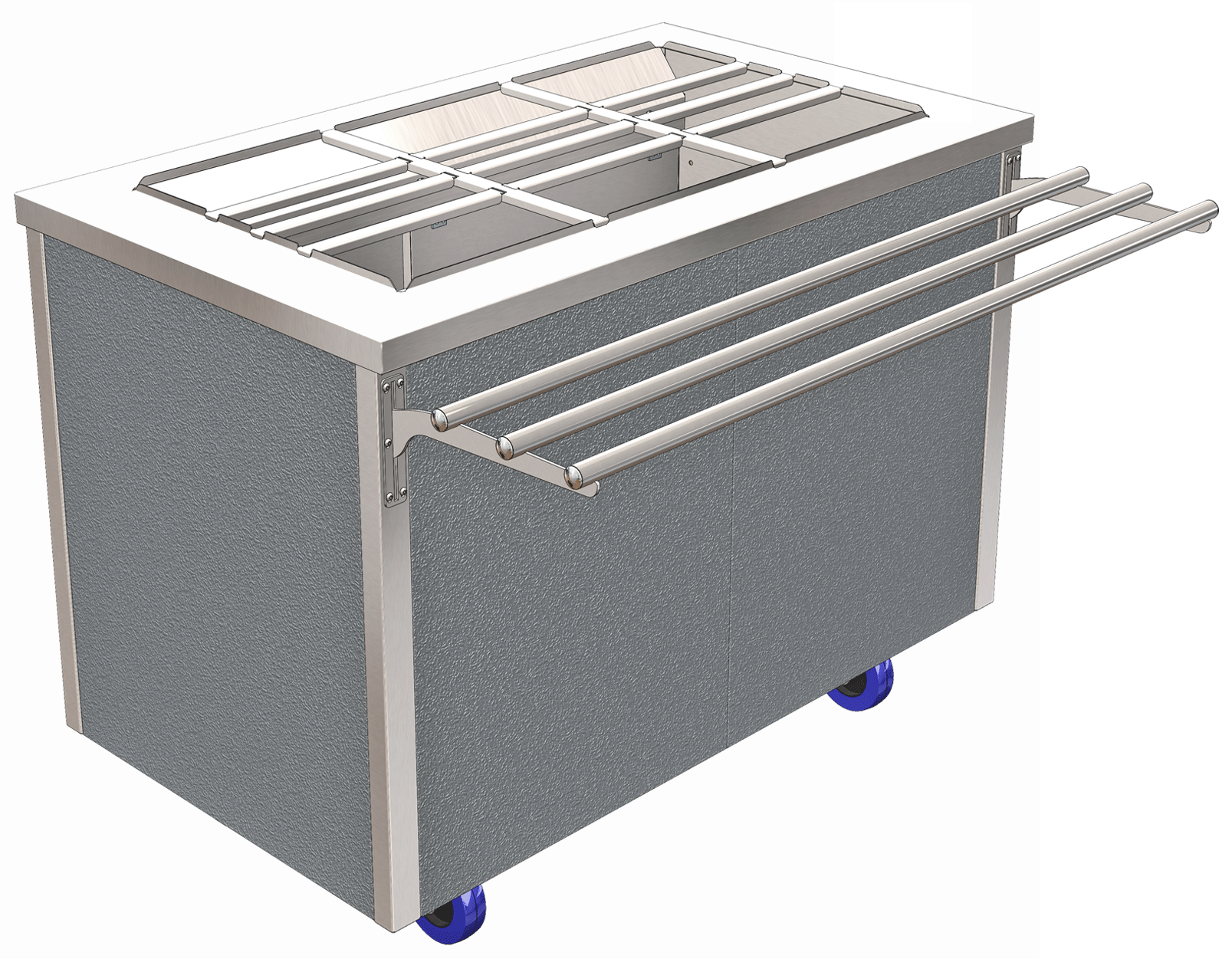

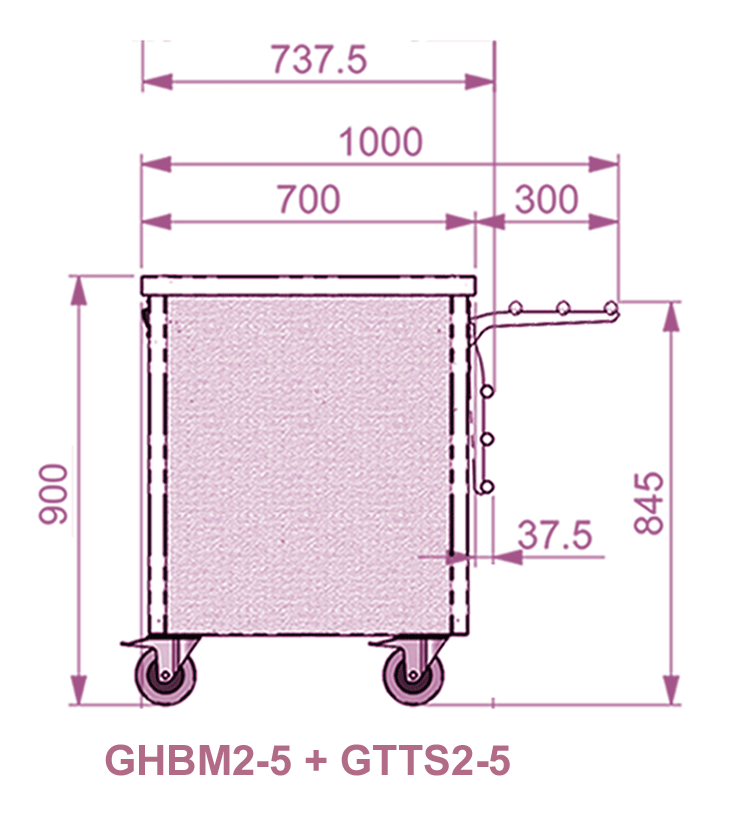

Glide S/Steel Folding Tubular Tray Rail. (Option Codes GTTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube, drop down bracket type, up position adds 298 mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.



Low Height Model (Glide Junior) – 850mm.
(Option Code G850H) Glide junior option: (all cold, hot, ambient, till & corner units) 850mm (h) base unit, c/w 100mm lockable castors. Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model (Glide Junior) – 800mm.
(Option Code G800H) Glide junior option: (all cold, hot, ambient, till & corner units) 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). * Bespoke Option/ Extended Lead Time *

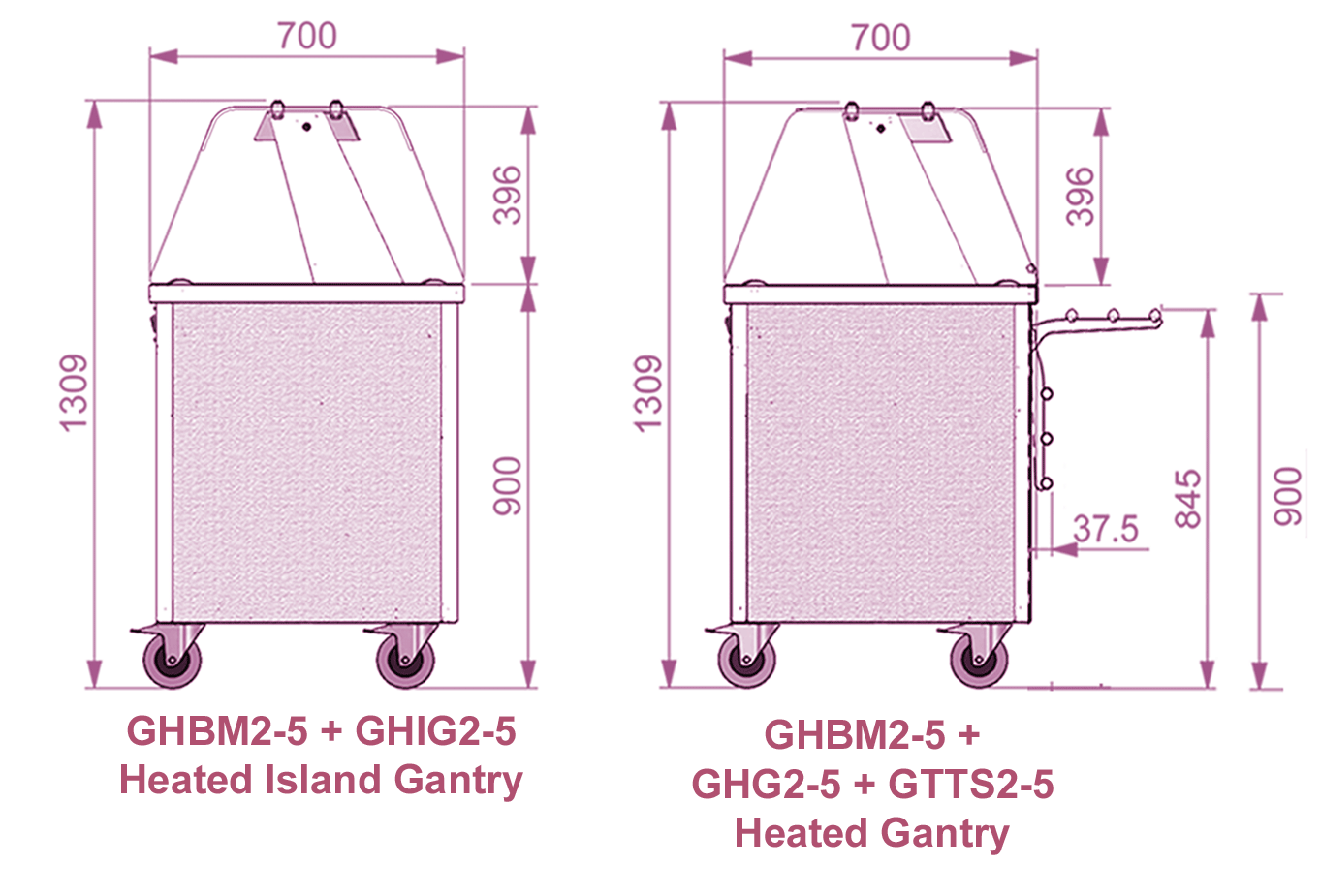

Glide Heated Gantry Options.

*When Gantry option is added to model, the control panel with thermostat (HC/BM) & power isolation is replaced with a control panel featuring thermostat (HC/BM), one illuminated rocker switch (gantry) & power isolation*



P

Glide Heated Gantry.
(Option Codes GHG2 – GHG5) Glide option: 2-1 Gn to 5-1 Gn, heated gantry, s/steel, reversible single curved glass sneeze screen, self help/ ass. serve use, + 397(h) above worktop, fitted with 200w quartz infra-red jacketed safety lamps.
For use above the heated bain marie worktop, adding top heat to Gn food container storage.

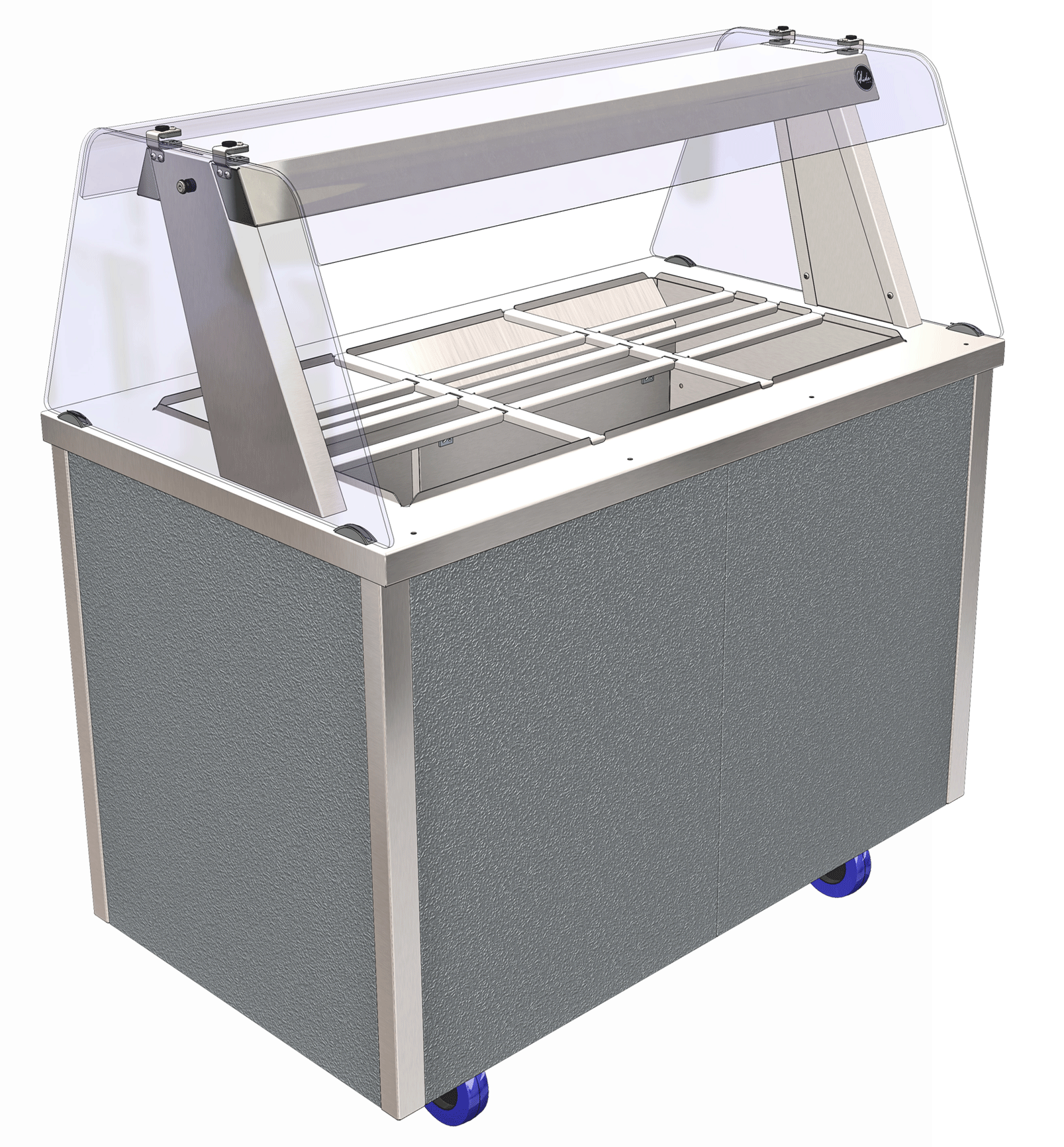

Glide Heated Island Gantry.
(Option Codes GHIG2 – GHIG5) Glide option: 2-1 Gn to 5-1 Gn, heated island gantry, s/steel, double curved glass sneeze screen, self help use, + 397(h) above worktop, fitted with 200w quartz infra-red jacketed safety lamps.
For use above the heated bain marie worktop, adding top heat to Gn food container storage.



Glide Spiked Carving Insert (B. Marie) – 1/1 Gn.
(Option Code GCINS1) Glide option: Sit-on raised solid s/steel spiked carving lid & 20mm(d)1-1 Gn juice collection tray under. Dims. 325mm (w) x 530mm (d) x 24mm(h). Collection tray sits under spiked lid on removable Gn container support collars of BM worktop, spiked carving lid locates on top of juice collection tray. (Use with hot gantry only).

Glide Hot Glass Insert (B. Marie) – 1/1 Gn.
(Option Code GHINS1) Glide option: 1/1 Gn black toughened unheated glass insert in s/steel surround collar – holding surface uses top heat and residual hot cupboard heat for short term holding only, ideal for sauce dishes. Insert sits on Gn container support collars of BM wktop. frame (Use with hot gantry only).

Glide 2 x 4.5 L Soup Insert (B. Marie) – 1/1 Gn.
(Option Code GSUPI4) Glide option: 1-1 Gn soup container insert c/w s/steel support collar, includes 2 no. 4.5 litre soup or gravy containers & notched lids for utensils/ ladles. Dims. 325mm (w) x 520mm (d) x 64mm(h). Soup container support sits on Gn container support collars of BM wktop. frame (Use with hot gantry only).



Glide Colour Finishes To Front/ Side Panels (Hot Cupboard Base).

Blue Finish. (Option Codes GBLUECHA2 – GBLUECHA5) 2-1 Gn to 5-1 Gn full set of front panel/ sides in leathergrain plastisol steel, colour ocean blue (BS 18C37). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).



S/steel Finish. (Option Code GSSTLCHA2 – GSSTLCHA5) 2-1 Gn to 5-1 Gn full set of front panel/ sides in satin s/steel 430 gd. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).

Light Grey Finish. (Option Codes GGREYCHA2 – GGREYCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour goosewing light grey (BS 10A05). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).



Forest Green Finish. (Option Codes GGRENCHA2 – GGRENCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour forest green/heritage (RAL 6002). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).

Poppy Red Finish. (Option Codes GPREDCHA2 – GPREDCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour poppy red (BS 04E5B). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).

Cream Cream Finish. (Option Codes GCREMCHA2 – GCREMCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).

White Finish. (Option Codes GWHITCHA2 – GWHITCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour white (BS 00E55). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).

Black Black  Black Finish. (Option Codes GBLAKCHA2 – GBLAKCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour black (BS 00E53). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).

Beech Woodgrain Finish. (Option Codes GBEECCHA2 – GBEECCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect, DL76 beech finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).

Walnut Walnut Woodgrain Finish. (Option Codes GWALNCHA2 – GWALNCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect panel, DL85 walnut finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).



Oak Woodgrain Finish. (Option Codes GOAKCHA2 – GOAKCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect, DL84 oak finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).



Options                                                                                          Option Code

Model Code

GHBM2

GHBM3

GHBM4

GHBM5

Glide S/Steel Drop Down Tubular Tray Rail

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm High Model

G850H

G850H

G850H

G850H

Glide 800mm High Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

Glide Heated Gantry.
Reversible Curved Glass/ End Glass, 200w quartz infra-red jacketed safety lamps, 397mm (h)
*For adding top heat above the heated bain marie worktop i.e. Gn food container storage*

GHG2

GHG3

GHG4

GHG5

Glide Heated Island Gantry.
Double Curved Glass, End Glass, 200w quartz infra-red jacketed safety lamps, 397mm (h)
*For adding top heat above the heated bain marie worktop i.e. Gn food container storage*

GHIG2

GHIG3

GHIG4

GHIG5

Spiked Carving Insert (Bain Marie)
8 spiked raised solid s/steel carving lid & 1-1 Gn juice collection tray under.
Unit & tray sit on Gn container support collars of BM wktop. frame.
(For use with Hot Gantry option Only).

GCINS1

GCINS1

GCINS1

GCINS1

Hot Glass Insert (Bain Marie)
1/1 Gn removable black toughened glass insert in s/steel surround collar – for short term holding only.
Sits on Gn container support collars of BM wktop. frame.
(For use with Hot Gantry option Only).

GHINS1

GHINS1

GHINS1

GHINS1

2x 4.5 L Soup Insert (Bain Marie)
1/1 Gn removable insert c/w s/steel collar, includes 2 no. 4.5 litre soup/gravy/custard containers & lids.
Sits on Gn container support collars of BM wktop. frame.
(For use with Hot Gantry option Only).

GSUPI4

GSUPI4

GSUPI4

GSUPI4

Glide Colour Finish Base Panels (Front & Sides).
Ocean Blue (BS 18C37)

GBLUECHA2

GBLUECHA3

GBLUECHA4

GBLUECHA5

Glide S/Steel Finish Base Panels (Front & Sides).
S/Steel (430 gd)

GSSTLCHA2

GSSTLCHA3

GSSTLCHA4

GSSTLCHA5

Glide Colour Finish Base Panels (Front & Sides).
Goosewing Light Grey (BS 10A05)

GGREYCHA2

GGREYCHA3

GGREYCHA4

GGREYCHA5

Glide Colour Finish Base Panels (Front & Sides).
Forest Green (RAL 6002)

GGRENCHA2

GGRENCHA3

GGRENCHA4

GGRENCHA5

Glide Colour Finish Base Panels (Front & Sides).
Poppy Red (BS 04E5B)

GPREDCHA2

GPREDCHA3

GPREDCHA4

GPREDCHA5

Glide Colour Finish Base Panels (Front & Sides).
Buttermilk Cream (BS 10C31)

GCREMCHA2

GCREMCHA3

GCREMCHA4

GCREMCHA5

Glide Colour Finish Base Panels (Front & Sides).
White (BS 00E55)

GWHITCHA2

GWHITCHA3

GWHITCHA4

GWHITCHA5

Glide Colour Finish Base Panels (Front & Sides).
Black (BS 00E53)

GBLAKCHA2

GBLAKCHA3

GBLAKCHA4

GBLAKCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Walnut (DL85)

GWALNCHA2

GWALNCHA3

GWALNCHA4

GWALNCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Beech (DL76)

GBEECCHA2

GBEECCHA3

GBEECCHA4

GBEECCHA5



Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Oak (DL84)

GOAKCHA2

GOAKCHA3

GOAKCHA4

GOAKCHA5



Popular Model Codes & Options.

Glide Bain Marie Hot Cupboard (Dry Heat) & (Solid Tray Slide)
Model Code  Option Code
GHBM2         GSTS2
GHBM3         GSTS3
GHBM4         GSTS4
GHBM5         GSTS5

Glide Bain Marie Hot Cupboard (Dry Heat) & (Tubular Tray Rail)
Model Code   Option Code
GHBM2          GTTS2
GHBM3          GTTS3
GHBM4          GTTS4
GHBM5          GTTS5

Glide Bain Marie Hot Cupboard (Dry Heat) & (Heated Gantry)
Model Code Option Code
GHBM2          GHG2
GHBM3          GHG3
GHBM4          GHG4
GHBM5          GHG5





Glide Bain Marie Hot Cupboard (Dry Heat) & (Heated Island Gantry)
Model Code Option Code
GHBM2          GHIG2
GHBM3          GHIG3
GHBM4          GHIG4
GHBM5          GHIG5





Glide Bain Marie Hot Cupboard (Dry Heat) & (Heated Gantry) & (Tray Rail) & (Colour Finish-Red)
Model Code Option Codes
GHBM2         GHG2    GTTS2   GPREDCHA2
GHBM3         GHG3    GTTS3   GPREDCHA3
GHBM4         GHG4    GTTS4   GPREDCHA4
GHBM5         GHG5    GTTS5   GPREDCHA5





Glide Bain Marie Hot Cupboard (Dry Heat) & (Colour Finish-Green)
Model Code Option Code
GHBM2          GGRENCHA2
GHBM3          GGRENCHA3
GHBM4          GGRENCHA4
GHBM5          GGRENCHA5





Glide Bain Marie Hot Cupboard (Dry Heat) & (Heated Gantry) & (Tray Rail)
Model Code Option Code Option Code
GHBM2            GHG2           GTTS2
GHBM3            GHG3           GTTS3
GHBM4            GHG4           GTTS4
GHBM5            GHG5           GTTS5





Glide Bain Marie Hot Cupboard (Dry Heat) & (Heated Gantry/ Solid Tray Slide)
Model Code Option Code Option Code
GHBM2             GHG2           GSTS2
GHBM3             GHG3           GSTS3
GHBM4             GHG4           GSTS4
GHBM5             GHG5           GSTS5



Glide Bain Marie Hot Cupboard (Dry Heat) & (Heated Gantry) & (Spiked Carving Insert)
& (Hot Glass Insert)
& (2x 4.5 L Soup Insert)

Model Code    Option Codes
GHBM2   GHG2   GCINS1   GHINS1   GSUPI4
GHBM3   GHG3   GCINS1   GHINS1   GSUPI4
GHBM4   GHG4   GCINS1   GHINS1   GSUPI4
GHBM5   GHG5   GCINS1   GHINS1   GSUPI4

*Heated Gantry Is Omitted For Clarity In Above Image*



Downloads

General Layout Drawings
Glide Bain Marie Hot Cupboard (Dry Heat).





Specification Sheet, Base Panel Colour Options, User Manual, Energy Facts.
Glide Bain Marie Hot Cupboard (Dry Heat).




Visual

(Wall Sited) Glide Bain Marie Hot Cupboard – Dry Heat.
Visual



Features

(Wall Sited) Glide Bain Marie Hot Cupboard – Dry Heat.
Features



  • Glide mobile dining cart, bain marie (dry heat) with hot cupboard storage to rear (no gantry).
  • Wall sited application (wall, alcove, recess or back to back).
  • Heated bain marie formed as open section in worktop, that accommodates 1-1Gn (max.) 150mm deep flat bottom Gn containers with lids (not included).
  • Gn Containers heated by both suspended element & residual heat from hot cupboard underneath.
  • Fan assisted heating to hot cupboard under with thermostat control.
  • Hot cupboard & dry bain marie have a shared thermostatic control, mains power is controlled by neon on/off switch.
  • Hot gantry options are also controlled by neon on/off switches.
  • Supplied with 3m lead & 13 amp UK plug (13A 230v 50Hz), for connection to dedicated 13A SSO.
  • Available in 4 no. gastronorm lengths – 825/1175/1525/1875mm (l) x 700mm (d) x 900mm (h).
  • Front/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Worktop in 304 gd steel, all other external steel surfaces (corner angles/ sliding doors etc.) in 430gd.
  • Rear hot storage cupboard fitted with removable sliding s/steel doors.
  • Hot cupboard fitted with adjustable height shelving, removable grid shelves, for easy cleaning.
  • Fitted with lockable non-marking rubber tyre castors.
  • Hot cupboard accommodates up to (10) x 1-1 Gn 150mm (d) containers (not included), depending on model size.

Glide Range: Electrical Connections.

  • Most Glide mobile units are operated by 13A plug top connected to a dedicated single socket outlet (SSO) (13A), unless its’ power supply exceeds 13A.
  • If connected to a double socket outlet, care must be taken not to exceed the circuit capacity.

Glide Range: Electrical Trailing Lead Protection.

  • CED recommend the use of  proprietary cable covers to protect overground trailing leads, to reduce trip hazards, limit accidental electrical partial plug disconnection and to keep wire safe from impact damage, as damaged cable wire can cause an electrical fault.
  • HSE GOV.UK Guidance On Planning And Managing Temporary Electrical Installations Re: Cabling.
    ‘Route cables to minimise tripping hazards or potential mechanical damage, and in a position that allows them to be safely installed and removed. Give particular care to the position of cable connections. You can also use cable ramps or similar to protect cables running overground across route ways to help avoid them becoming tripping hazards’

Options

  • Folding s/steel solid tray slide.*
  • Folding s/steel tubular tray rail Ø25 tube.*
  • Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm).*
  • 11 solid colour & woodgrain base panel finishes available.
  • Low height model 850mm (h) available (Option G850H)
  • Low height model 800mm (h) available. (Option G800H)**
  • Bespoke option with extended lead time.**
  • Heated self help gantry – 397 mm(h) c/w 200w quartz infra red jacketed safety lamps, curved toughened glass sneeze screen & end glass.
  • Spiked Carving Insert (Bain Marie) – 1/1 Gn removable 8 x spiked carving deck consisting of raised solid s/steel lid & juice collection tray under
    (Collection tray sits on container supports, spiked lid sits on top).***
  • Hot Glass Insert (Bain Marie) – 1/1 Gn removable black toughened glass insert in s/steel surround collar – for short term holding only, ideal for sauce dishes
    (Collar sits on container supports)***
  • Soup Container Insert (Bain Marie) – 1/1 Gn removable insert c/w s/steel collar, includes 2 no. 4.5 litre soup/gravy/custard containers & lids
    (Collar sits on container supports)***
  • ***Bain Marie Inserts for use only in conjunction with heated gantry option.***


Dimensions

(Wall Sited) Glide Bain Marie Hot Cupboard – Dry Heat.
Dimensions



Model Code

GWSHBM2

GWSHBM3

GWSHBM4

GWSHBM5

Capacity (Gn)

2-1

3-1

4-1

5-1

Length (mm)

825

1175

1525

1875

Depth (mm)

700

700

700

700

Height (mm)

900

900

900

900

Total Power (kw)
(No Gantry) Model, 3m lead & Plug, for connection to dedicated 13A SSO.

2.58

2.83

2.83

2.83

Total Power (kw)
Model + Hot Gantry Option (self help)
c/w 200w Quartz Infra-red Jacketed Safety Lamps, 3m lead & Plug, for connection to dedicated 13A SSO.

2.08

2.53

2.73

2.93

Fan Assisted Heating

Included

Included

Included

Included

Hot Cupboard Features
Removable Front S/Steel Sliding Doors, Adjustable Height Shelving &
Removable Chrome Grid Cupboard Shelving

Included

Included

Included

Included

Cupboard Storage Capacity
Max. Qty 1-1 Gn Containers 150mm (h), Containers Not Included

4

6

8

10

Optional Trayslide – Revised Model Depth (mm)
Folding Tray Slide Option In Down Position

740

740

740

740

Optional Trayslide – Revised Model Depth (mm)
Folding Tray Slide Option In Up Position

1000

1000

1000

1000

Optional Trayslide Height (mm)
(Base Unit (h) – 55mm)

845

845

845

845

Model Weight (kg): (No Gantry) Model

45

67

90

112

+ Optional Hot Gantry Weight (kg)

+7

+9

+12

+16

+(Option GCINS1) Spiked Carving Insert & Collection Tray Weight (kg)
Dims: 325(W) x 530(D) x 24 mm(H) – 1-1 Gn

1

1

1

1

+(Option GHINS1) Hot Glass Insert Weight (kg)
Dims: 324(W) x 520(D) x 27 mm(H) – 1-1 Gn

1

1

1

1

+(Option GSUPI4) Twin Soup Insert & Collar Weight (kg)
Dims: 325(W) x 520(D) x 64 mm(H) – 1-1 Gn

2

2

2

2

Optional Model Height G850H (mm)

850

850

850

850

Optional Model Height *G800H (mm)
*bespoke option, extended lead time*

800

800

800

800



*When Gantry option is added to model, the control panel with thermostat (BM/HC) & power isolation is replaced with a control panel featuring thermostat (BM/HC), one illuminated rocker switch (gantry) & power isolation*



Options                                                                                     Option Code

Model Code

GWSHBM2

GWSHBM3

GWSHBM4

GWSHBM5

Glide S/Steel Drop Down Tubular Tray Rail

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm High Model

G850H

G850H

G850H

G850H

Glide 800mm High Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

(Wall Sited) Glide Heated Gantry. Self Help Curved Glass, End Glass, 200w quartz infra-red jacketed safety lamps, 397mm (h)
*For adding top heat above the heated bain marie worktop i.e. Gn food container storage*

GWSHG2

GWSHG3

GWSHG4

GWSHG5

Spiked Carving Insert (Bain Marie)
8 spiked raised solid s/steel carving lid & 1-1 Gn juice collection tray under.
Unit & tray sit on Gn container support collars of BM wktop. frame.
(For use with Hot Gantry option Only).

GCINS1

GCINS1

GCINS1

GCINS1

Hot Glass Insert (Bain Marie)
1/1 Gn removable black toughened glass insert in s/steel surround collar – for short term holding only.
Sits on Gn container support collars of BM wktop. frame.
(For use with Hot Gantry option Only).

GHINS1

GHINS1

GHINS1

GHINS1

2x 4.5 L Soup Insert (Bain Marie)
– 1/1 Gn removable insert c/w s/steel collar, includes 2 no. 4.5 litre soup/gravy/custard containers & lids.
Sits on Gn container support collars of BM wktop. frame.
(For use with Hot Gantry option Only).

GSUPI4

GSUPI4

GSUPI4

GSUPI4

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Ocean Blue (BS 18C37)

GBLUECHA2

GBLUECHA3

GBLUECHA4

GBLUECHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
S/Steel (430 gd)

GSSTLCHA2

GSSTLCHA3

GSSTLCHA4

GSSTLCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Goosewing Light Grey (BS 10A05)

GGREYCHA2

GGREYCHA3

GGREYCHA4

GGREYCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Forest Green (RAL 6002)

GGRENCHA2

GGRENCHA3

GGRENCHA4

GGRENCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Poppy Red (BS 04E5B)

GPREDCHA2

GPREDCHA3

GPREDCHA4

GPREDCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Buttermilk Cream (BS 10C31)

GCREMCHA2

GCREMCHA3

GCREMCHA4

GCREMCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
White (BS 00E55)

GWHITCHA2

GWHITCHA3

GWHITCHA4

GWHITCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Black (BS 00E53)

GBLAKCHA2

GBLAKCHA3

GBLAKCHA4

GBLAKCHA5

Glide Wood Grain Effect Finish Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Walnut (DL85)

GWALNCHA2

GWALNCHA3

GWALNCHA4

GWALNCHA5

Glide Wood Grain Effect Finish Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Beech (DL76)

GBEECCHA2

GBEECCHA3

GBEECCHA4

GBEECCHA5

Glide Wood Grain Effect Finish Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Oak (DL84)

GOAKCHA2

GOAKCHA3

GOAKCHA4

GOAKCHA5

Popular Model Codes & Options

SUMMARY : Popular Model Codes & Options

Model Code

Option Code

Option Code

Option Code

(Wall Sited) Glide Bain Marie Hot Cupboard – Dry Heat
(& S/Steel Drop Down Solid Tray Slide)

GWSHBM2
GWSHBM3
GWSHBM4
GWSHBM5

GSTS2
GSTS3
GSTS4
GSTS5

GSTS2
GSTS3
GSTS4
GSTS5

(Wall Sited) Glide Bain Marie Hot Cupboard – Dry Heat
(& S/Steel Drop Down Tubular Tray Rail)

GWSHBM2
GWSHBM3
GWSHBM4
GWSHBM5

GTTS2
GTTS3
GTTS4
GTTS5

YYYY

(Wall Sited) Glide Bain Marie Hot Cupboard – Dry Heat
(& Wall Sited Heated Gantry)

GWSHBM2
GWSHBM3
GWSHBM4
GWSHBM5

GWSHG2
GWSHG3
GWSHG4
GWSHG5

(Wall Sited) Glide Bain Marie Hot Cupboard – Dry Heat
(& Wall Sited Heated Gantry/Spiked Carvery Insert)

GWSHBM2
GWSHBM3
GWSHBM4
GWSHBM5

GWSHG2
GWSHG3
GWSHG4
GWSHG5

GCINS1
GCINS1
GCINS1
GCINS1

(Wall Sited) Glide Bain Marie Hot Cupboard – Dry Heat
(& Wall Sited Heated Gantry/ Drop Down Solid Tray Slide)

GWSHBM2
GWSHBM3
GWSHBM4
GWSHBM5

GWSHG2
GWSHG3
GWSHG4
GWSHG5

GSTS2
GSTS3
GSTS4
GSTS5

(Wall Sited) Glide Bain Marie Hot Cupboard – Dry Heat
(& Colour Finish – Green)

GWSHBM2
GWSHBM3
GWSHBM4
GWSHBM5

GGRENCHA2
GGRENCHA3
GGRENCHA4
GGRENCHA5

(Wall Sited) Glide Bain Marie Hot Cupboard – Dry Heat
(& Wall Sited Heated Gantry/ Drop Down Tubular Tray Rail)

GWSHBM2
GWSHBM3
GWSHBM4
GWSHBM5

GWSHG2
GWSHG3
GWSHG4
GWSHG5

GTTS2
GTTS3
GTTS4
GTTS5

(Wall Sited) Glide Bain Marie Hot Cupboard – Dry Heat
(& Wall Sited Heated Gantry/ Drop Down Tubular Tray Rail/ Colour Finish-Red)

GWSHBM2
GWSHBM3
GWSHBM4
GWSHBM5

GWSHG2
GWSHG3
GWSHG4
GWSHG5

GTTS2
GTTS3
GTTS4
GTTS5

GPREDCHA2
GPREDCHA3
GPREDCHA4
GPREDCHA5



Options

(Wall Sited) Glide Bain Marie Hot Cupboard – Dry Heat.
Options.



Glide S/Steel Folding Solid Tray Slide.
(Option Codes GSTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type, up position adds 302mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Glide S/Steel Folding Tubular Tray Rail.
(Option Codes GTTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube, drop down bracket type, up position adds 298 mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Low Height Model ( Glide Junior) – 850mm.
(Option Code G850H) Glide junior option: (all cold, hot, ambient, till & corner units) 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model ( Glide Junior) – 800mm.
(Option Code G800H) Glide junior option: (all cold, hot, ambient, till & corner units) 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). * Bespoke Option/ Extended Lead Time *



(Wall Sited) Glide Heated Gantry Option.

*When Gantry option is added to model, the control panel with thermostat (BM/HC) & power isolation is replaced with a control panel featuring thermostat (BM/HC), one illuminated rocker switch (gantry) & power isolation*







(Wall Sited) Glide Heated Gantry.
(Option Codes GWSHG2 – GWSHG5) Glide option: 2-1 Gn to 5-1 Gn, heated gantry, s/steel, single curved glass sneeze screen, self help use, + 397(h) above worktop, reinforced worktop for heat, fitted with 200w quartz infra-red jacketed safety lamps.
For use above the heated bain marie worktop, adding top heat to Gn food container storage.



Glide Spiked Carving Insert (B. Marie) – 1/1 Gn.
(Option Code GCINS1) Glide option: Sit-on raised solid s/steel spiked carving lid & 20mm(d)1-1 Gn juice collection tray under. Dims. 325mm (w) x 530mm (d) x 24mm(h). Collection tray sits under spiked lid on removable Gn container support collars of BM worktop, spiked carving lid locates on top of juice collection tray. (Use with hot gantry only).

Glide Hot Glass Insert (B. Marie) – 1/1 Gn.
(Option Code GHINS1) Glide option: 1/1 Gn black toughened unheated glass insert in s/steel surround collar – holding surface uses top heat and residual hot cupboard heat for short term holding only, ideal for sauce dishes. Insert sits on Gn container support collars of BM wktop. frame (Use with hot gantry only).

Glide 2 x 4.5 L Soup Insert (B. Marie) – 1/1 Gn.
(Option Code GSUPI4) Glide option: 1-1 Gn soup container insert c/w s/steel support collar, includes 2 no. 4.5 litre soup or gravy containers & notched lids for utensils/ ladles. Dims. 325mm (w) x 520mm (d) x 64mm(h). Soup container support sits on Gn container support collars of BM wktop. frame (Use with hot gantry only).

Glide Colour Finish To Rear & Side Panels (Hot Cupboard Base).

Blue Finish. (Option Codes GBLUECHA2 – GBLUECHA5). Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in leathergrain plastisol steel, colour ocean blue (BS 18C37).  Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.

S/steel Finish. (Option Code GSSTLCHA2 – GSSTLCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in satin s/steel 430 gd. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.

Light Grey Finish. (Option Codes GGREYCHA2 – GGREYCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in leathergrain plastisol steel, colour goosewing light grey (BS 10A05). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.

Forest Green Finish. (Option Codes GGRENCHA2 – GGRENCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in leathergrain plastisol steel, colour forest green/heritage (RAL 6002). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.



Poppy Red Finish. (Option Codes GPREDCHA2 – GPREDCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in leathergrain plastisol steel, colour poppy red (BS 04E5B). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.

Cream Finish. (Option Codes GCREMCHA2 – GCREMCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.

White Finish. (Option Codes GWHITCHA2 – GWHITCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in leathergrain plastisol steel, colour white (BS 00E55). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.

Black Finish. (Option Codes GBLAKCHA2 – GBLAKCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in leathergrain plastisol steel, colour black (BS 00E53). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.

Beech Woodgrain Finish. (Option Codes GBEECCHA2 – GBEECCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in wood grain effect, DL76 beech finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.



Walnut Woodgrain Finish. (Option Codes GWALNCHA2 – GWALNCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in wood grain effect panel, DL85 walnut finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.

Oak Woodgrain Finish. (Option Codes GOAKCHA2 – GOAKCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in wood grain effect panel, DL84 oak finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.



Options                                                                                     Option Code

Model Code

GWSHBM2

GWSHBM3

GWSHBM4

GWSHBM5

Glide S/Steel Drop Down Tubular Tray Rail

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm High Model

G850H

G850H

G850H

G850H

Glide 800mm High Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

(Wall Sited) Glide Heated Gantry. Self Help Curved Glass, End Glass, 200w quartz infra-red jacketed safety lamps, 397mm (h)
*For adding top heat above the heated bain marie worktop i.e. Gn food container storage*

GWSHG2

GWSHG3

GWSHG4

GWSHG5

Spiked Carving Insert (Bain Marie)
8 spiked raised solid s/steel carving lid & 1-1 Gn juice collection tray under.
Unit & tray sit on Gn container support collars of BM wktop. frame.
(For use with Hot Gantry option Only).

GCINS1

GCINS1

GCINS1

GCINS1

Hot Glass Insert (Bain Marie)
1/1 Gn removable black toughened glass insert in s/steel surround collar – for short term holding only.
Sits on Gn container support collars of BM wktop. frame.
(For use with Hot Gantry option Only).

GHINS1

GHINS1

GHINS1

GHINS1

2x 4.5 L Soup Insert (Bain Marie)
1/1 Gn removable insert c/w s/steel collar, includes 2 no. 4.5 litre soup/gravy/custard containers & lids.
Sits on Gn container support collars of BM wktop. frame.
(For use with Hot Gantry option Only).

GSUPI4

GSUPI4

GSUPI4

GSUPI4

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Ocean Blue (BS 18C37)

GBLUECHA2

GBLUECHA3

GBLUECHA4

GBLUECHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
S/Steel (430 gd)

GSSTLCHA2

GSSTLCHA3

GSSTLCHA4

GSSTLCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Goosewing Light Grey (BS 10A05)

GGREYCHA2

GGREYCHA3

GGREYCHA4

GGREYCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Forest Green (RAL 6002)

GGRENCHA2

GGRENCHA3

GGRENCHA4

GGRENCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Poppy Red (BS 04E5B)

GPREDCHA2

GPREDCHA3

GPREDCHA4

GPREDCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Buttermilk Cream (BS 10C31)

GCREMCHA2

GCREMCHA3

GCREMCHA4

GCREMCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
White (BS 00E55)

GWHITCHA2

GWHITCHA3

GWHITCHA4

GWHITCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Black (BS 00E53)

GBLAKCHA2

GBLAKCHA3

GBLAKCHA4

GBLAKCHA5

Glide Wood Grain Effect Finish Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Walnut (DL85)

GWALNCHA2

GWALNCHA3

GWALNCHA4

GWALNCHA5

Glide Wood Grain Effect Finish Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Beech (DL76)

GBEECCHA2

GBEECCHA3

GBEECCHA4

GBEECCHA5



Glide Wood Grain Effect Finish Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Oak (DL84)

GOAKCHA2

GOAKCHA3

GOAKCHA4

GOAKCHA5



Popular Model Codes & Options.

(Wall Sited) Glide Bain Marie Hot Cupboard – Dry Heat & (Solid Tray Slide)
Model Code   Option Code
GWSHP2       GSTS2
GWSHP3       GSTS3
GWSHP4       GSTS4
GWSHP5       GSTS5



(Wall Sited) Glide Bain Marie Hot Cupboard – Dry Heat & (Tubular Tray Rail)
Model Code   Option Code
GWSHP2       GTTS2
GWSHP3       GTTS3
GWSHP4       GTTS4
GWSHP5       GTTS5





(Wall Sited) Glide Bain Marie Hot Cupboard – Dry Heat & (Heated Gantry)
Model Code    Option Code
GWSHP2        GWSHG2
GWSHP3        GWSHG3
GWSHP4        GWSHG4
GWSHP5        GWSHG5





(Wall Sited) Glide Bain Marie Hot Cupboard – Dry Heat & (Heated Gantry) & (Spiked Carving Insert)
Model Code    Option Codes
GWSHP2        GWSHG2    GCP1AL
GWSHP3        GWSHG3    GCP1AL
GWSHP4        GWSHG4    GCP1AL
GWSHP5        GWSHG5    GCP1AL





(Wall Sited) Glide Bain Marie Hot Cupboard – Dry Heat & (Heated Gantry/Drop Down S/Steel Solid Tray Slide)
Model Code     Option Codes
GWSHCP2       GWSHG2        GSTS2
GWSHCP3       GWSHG3        GSTS3
GWSHCP4       GWSHG4        GSTS4
GWSHCP5       GWSHG5        GSTS5



(Wall Sited) Glide Bain Marie Hot Cupboard – Dry Heat & (Colour Finish – Green)
Model Code     Option Code
GWSHP2         GGRENCHA2
GWSHP3         GGRENCHA3
GWSHP4         GGRENCHA4
GWSHP5         GGRENCHA5



(Wall Sited) Glide Bain Marie Hot Cupboard – Dry Heat & (Heated Gantry) & (Drop Down Tubular Tray Rail)
Model Code   Option Codes
GWSHP2       GWSHG2    GTTS2
GWSHP3       GWSHG3    GTTS3
GWSHP4       GWSHG4    GTTS4
GWSHP5       GWSHG5    GTTS5





(Wall Sited) Glide Bain Marie Hot Cupboard – Dry Heat & (Heated Gantry) & (Tray Rail) & (Colour Finish – Red)
Model           Option         Option     Option
GWSHP2     GWSHG2    GTTS2     GPREDCHA2
GWSHP3     GWSHG3    GTTS3     GPREDCHA3
GWSHP4     GWSHG4    GTTS4     GPREDCHA4
GWSHP5     GWSHG5    GTTS5     GPREDCHA5



Downloads

General Layout Drawings
(Wall Sited) Glide Bain Marie Hot Cupboard – Dry Heat.





Specification Sheet, Base Panel Colour Options, User Manual, Energy Facts.
(Wall Sited) Glide Bain Marie Hot Cupboard – Dry Heat.





Model GHBM3 + GHG3 + GTTS3

Model GHBM2 + GHG2 + GTTS2
