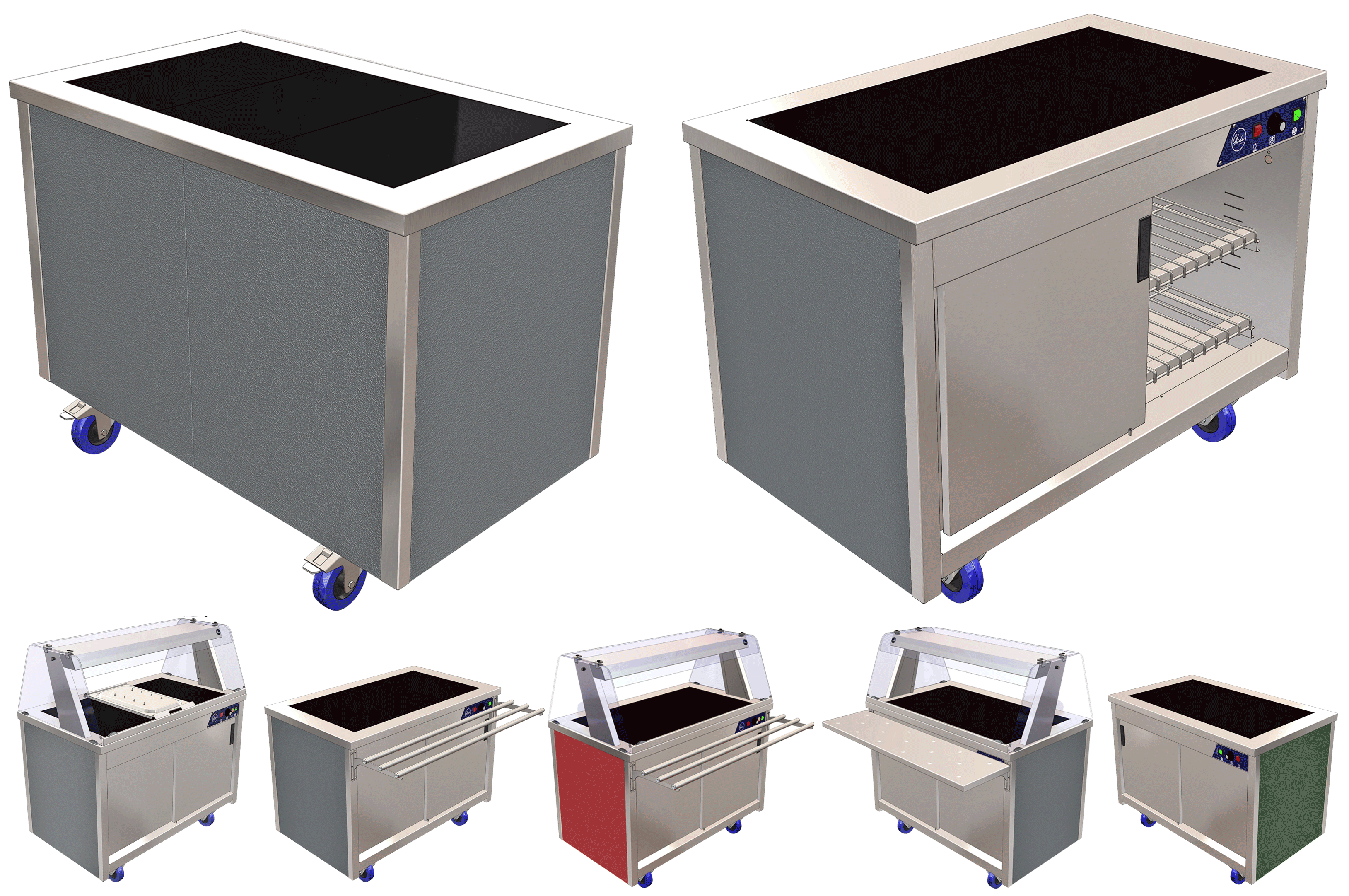

The ceran top hot cupboard forms part of the Glide range of mobile dining carts – a choice of cold, hot & ambient commercial catering carts that combine to form a food severy counter solution as unique as your requirements !

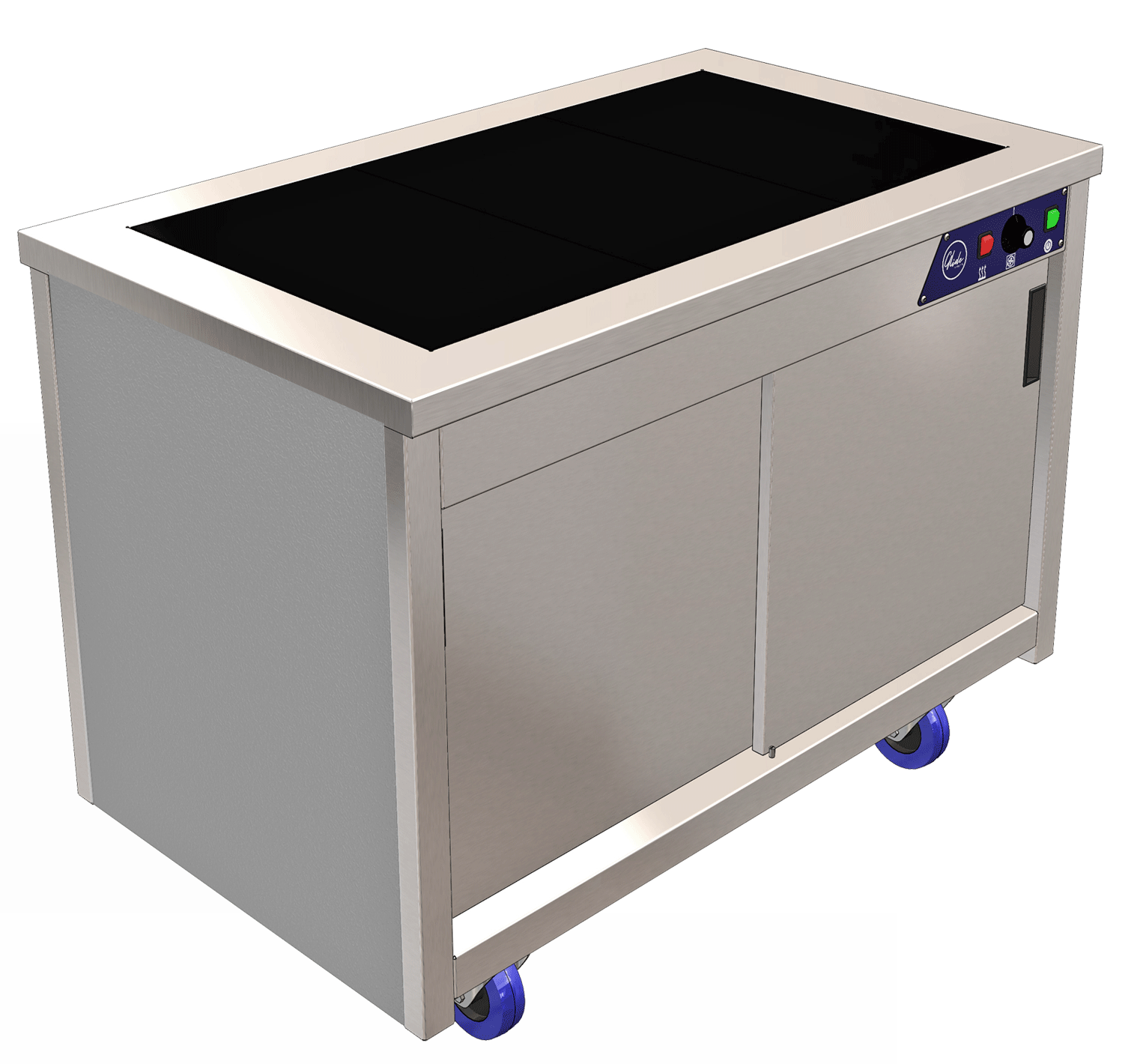

Glide Ceran Top Hot Cupboard.
The ceran top hot cupboard (no gantry) features a heated ceramic glass hotplate section formed in the worktop, that accommodates 1-1 size flat bttm. Gn containers or dishes with lids (not included). The model is made in 4 sizes to suit your servery layout.

The hot cupboard uses fan blown heating to evenly distribute heat around the cupboard space. Behind lift-off rear sliding s/steel cupboard doors, are two tiers of removable, height adjustable grid shelves for plate/ container storage. The wire shelves help distribute heat around the cupboard and support plate holding, dish storage or up to ten 1-1 Gn size (150mm deep) gastronorm containers (not included), depending on the cupboard size.
The front/side base panels are finished in leathergrain plastisol steel, colour merlin grey (BS 18B25), Each model comes with lockable castors.The hot cupboard has thermostatic control. The ceran top & mains power are controlled by neon on/off switches. Gantry options are also controlled by a neon on/off switch.

Height Options.
Low Height Model (Glide Junior)
in 850mm or 800mm high options for junior/ primary use.

Accessories & Finishes.




Folding Steel Solid or Tubular Tray Slides. Tray slides add 40mm to unit depth and are set at the worktop height – 55mm.


Colour Colour Finishes To Side/ Front Panels.
11 alternative choices of durable steel, colour & wood effect finishes for hot cupboard front/ side panels, to compliment other selected models in the servery colour scheme.

Gantry Options.

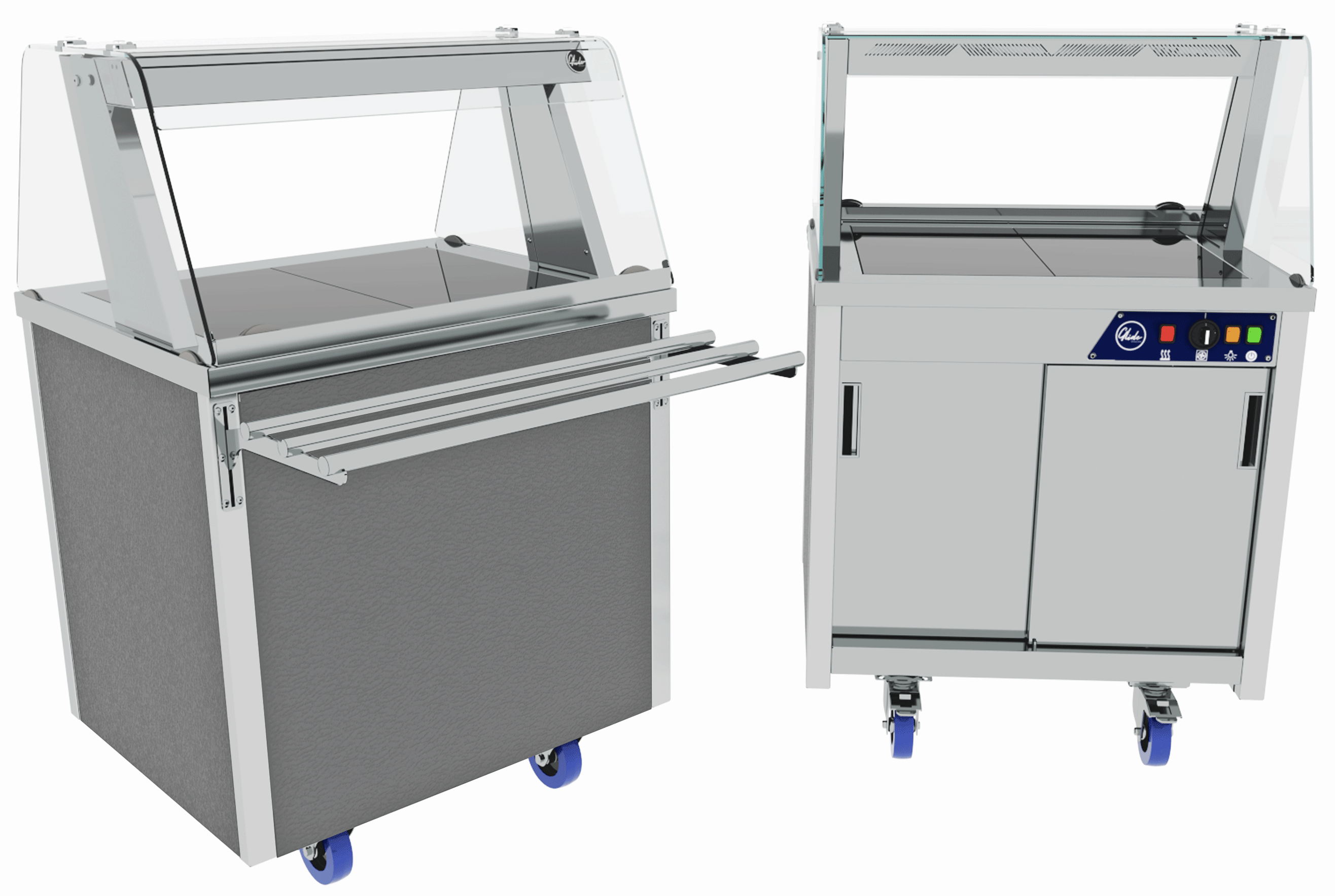

Heated Gantry & Island Heated Gantry.
A reversible self help/ assisted service glass heated gantry or island gantry option provide top heat to the surface of food being held on the ceran top.

Optional Sit-On Spiked Carving Adaptor.
An optional sit-on spiked carvery insert & juice collection tray – with supporting frame – is available for use on the worktop with the hot gantry option (Unit sits on front/ back edges of wktop frame).

gg







Visual

Glide Ceran Top Hot Cupboard.
Visual



Features

Glide Ceran Top Hot Cupboard.
Features

  • Glide mobile dining cart, hot ceran top with hot cupboard storage to rear (no gantry).
  • Free standing application.
  • Heated ceramic glass hotplate section that accommodates 1-1 size flat bottom Gn containers or dishes with lids (not included).
  • Fan assisted heating to hot cupboard under with thermostat control.
  • Hot cupboard has thermostatic control, ceran top & mains power are controlled by neon on/off switches.
  • Hot gantry options are also controlled by neon on/off switches.
  • Supplied with 3m lead & 13 amp UK plug (13A 230v 50Hz).
  • Available in 4 no. gastronorm lengths – 825/1175/1525/1875mm (l) x 700mm (d) x 900mm (h).
  • Front/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Worktop in 304 gd steel, all other external steel surfaces (corner angles/ sliding doors etc.) in 430gd.

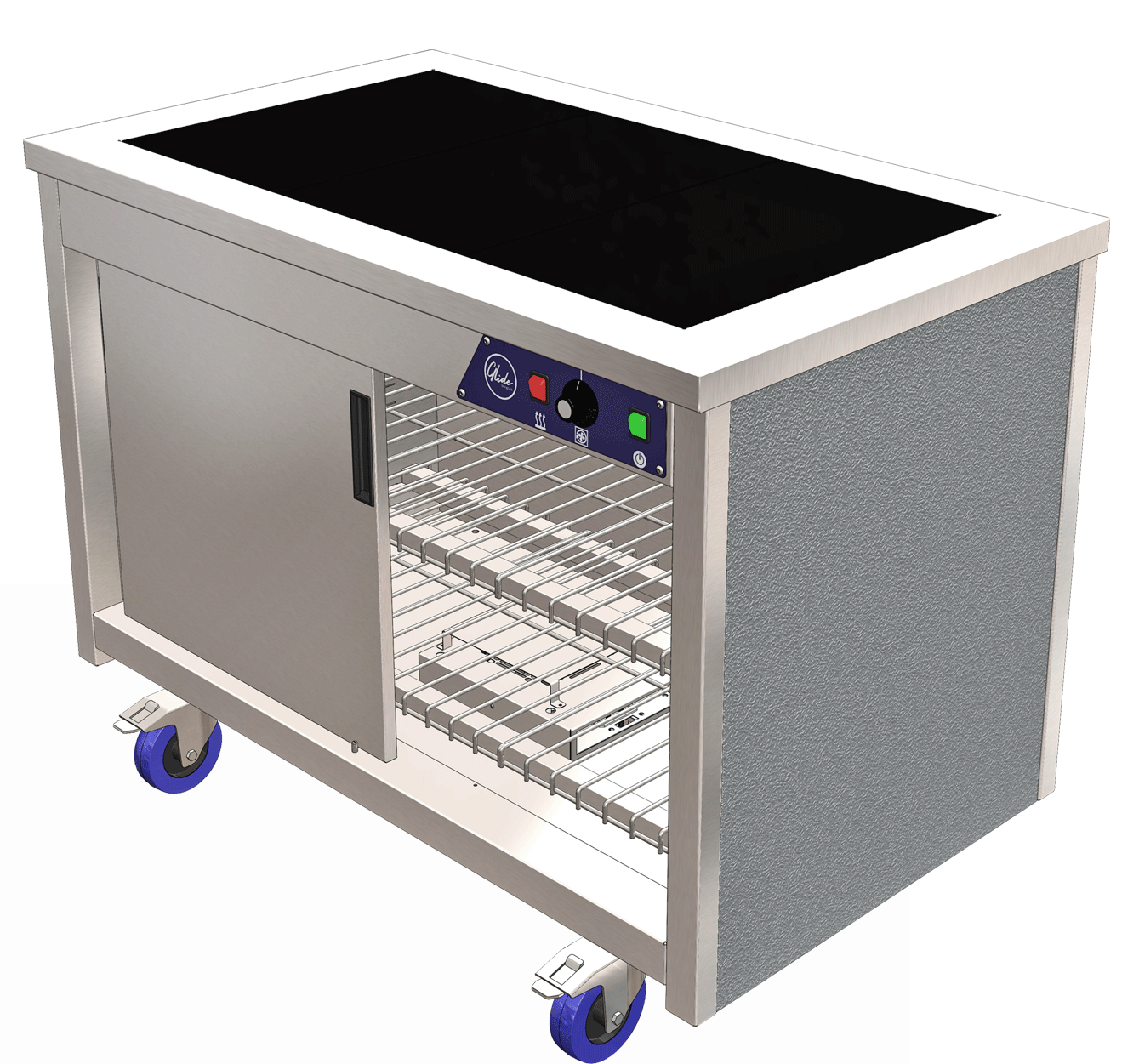

  • Rear hot storage cupboard fitted with removable sliding s/steel doors.
  • Hot cupboard fitted with adjustable height shelving, removable grid shelves, for easy cleaning.
  • Fitted with lockable non-marking rubber tyre castors.
  • Accommodates up to (10) x 1-1 Gn 150mm (d) containers (not included), depending on model size.

Options

  • Folding s/steel solid tray slide.*

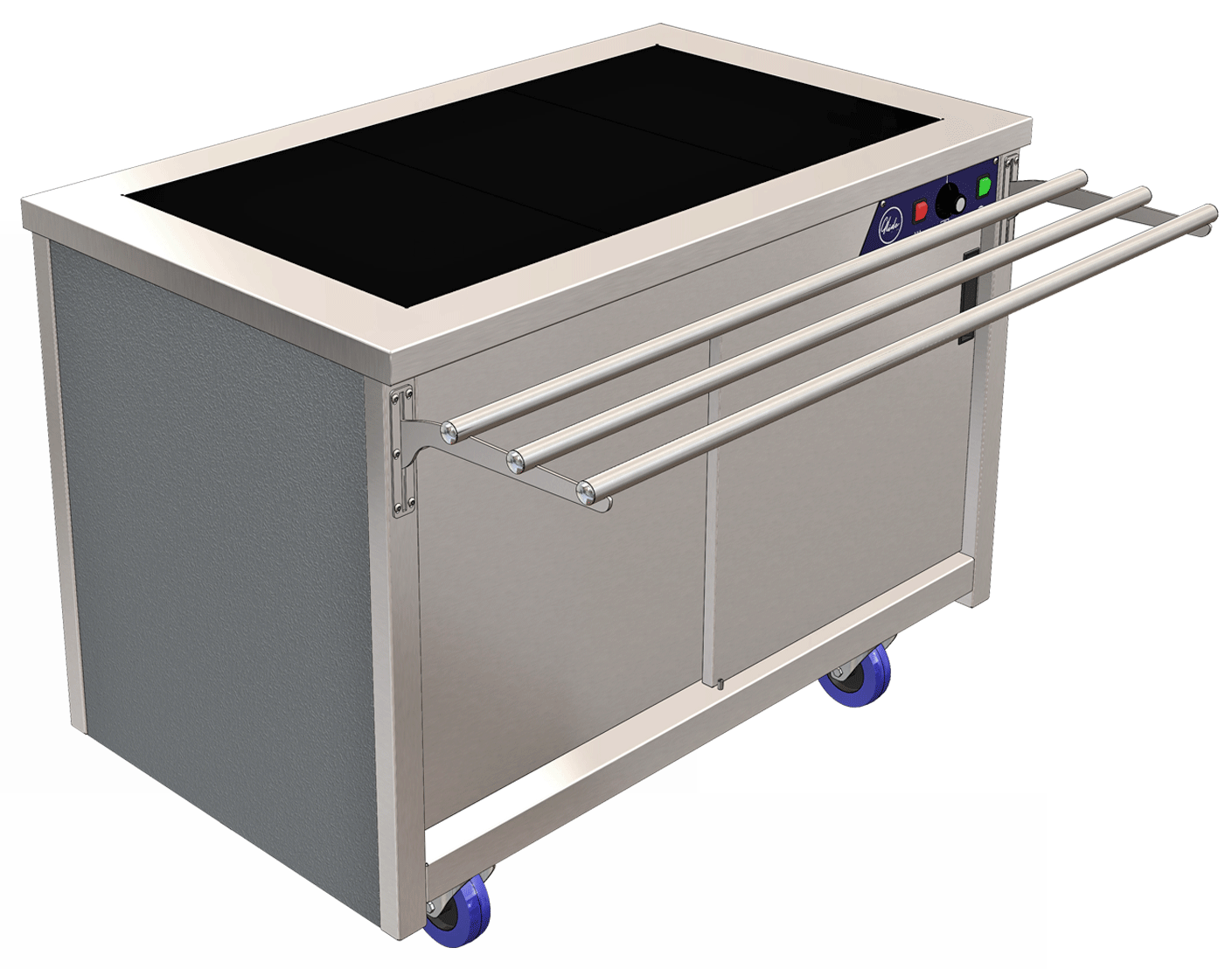

  • Folding s/steel tubular tray rail Ø25 tube.*
  • Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm).*
  • 11 solid colour & woodgrain base panel finishes available.
  • Low height model 850mm (h) available (Option G850H)
  • Low height model 800mm (h) available. (Option G800H)**
  • Bespoke option with extended lead time.**
  • Heated reversible self help/ assisted serve gantry – 397 mm(h) c/w 200w quartz infra red jacketed safety lamps, reversible curved glass sneeze screen & end glass.
  • Heated self help island gantry – 397 mm(h) c/w 200w quartz infra red jacketed safety lamps, double curved glass sneeze screen & end glass.
  • Sit-On Spiked Carving Adaptor (Hotplate) – 1/1 Gn S/steel surround frame with rubber feet. (Unit sits on front/ back edges of wktop. frame. 1-1 Gn juice collection tray under).***
  • For use in conjunction with heated gantry option.***

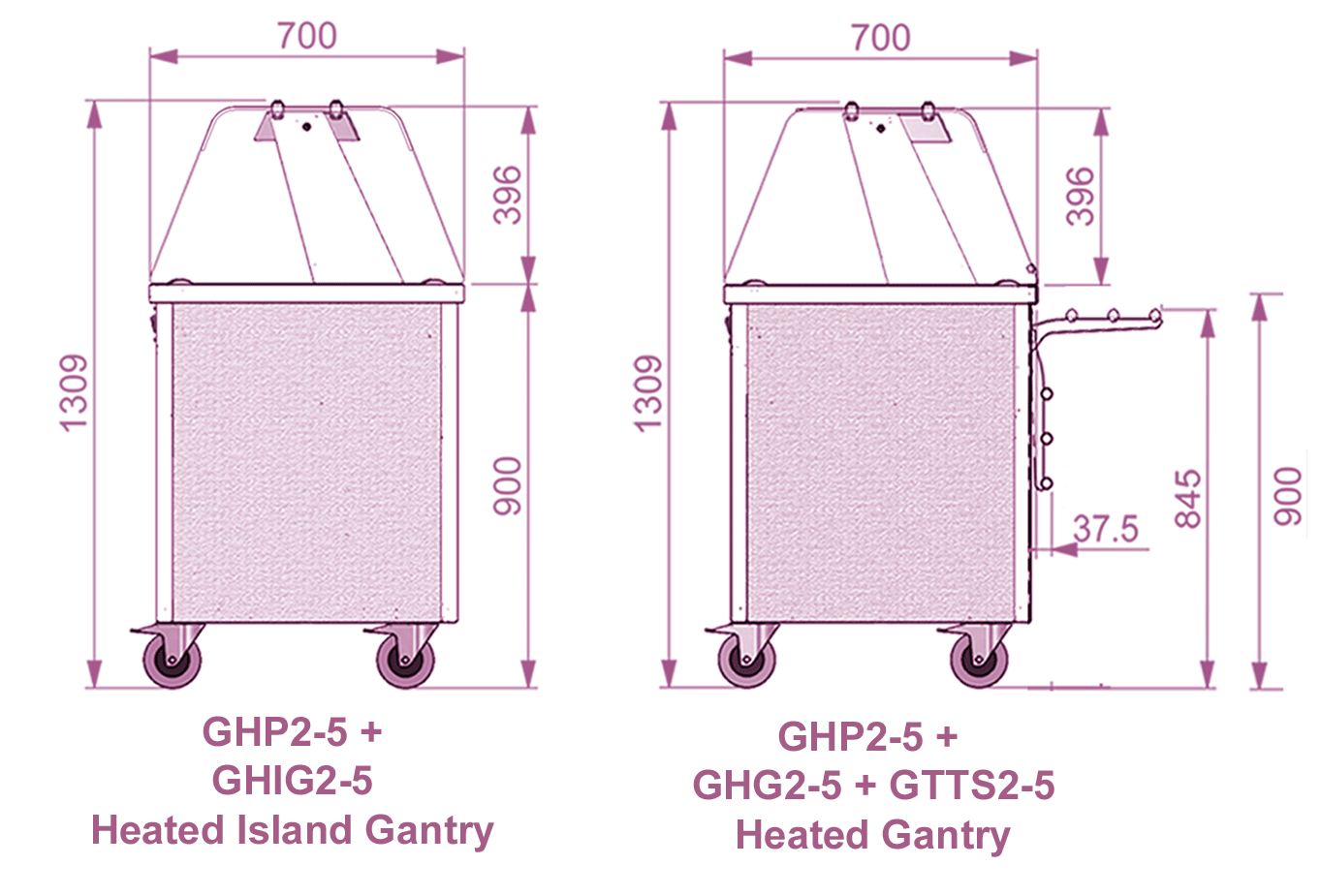

Dimensions

Glide Ceran Top Hot Cupboard.
Dimensions

Model Code

GHP2xxx

GHP3xxx

GHP4xxx

GHP5xxx

Capacity (Gn)

2-1

3-1

4-1

5-1

Length (mm)

825

1175

1525

1875

Depth (mm)

700

700

700

700

Height (mm)

900

900

900

900

Total Power (kw)
Ceran Top Model (No Gantry)
3m lead & Plug.

2.19

2.37

2.55

2.73

Total Power (kw)
Ceran Top Model (+ Hot Gantry Option)

c/w 200w Quartz Infra-red Jacketed Safety Lamps, 3m lead & Plug.

2.56

2.97

2.95

2.83

Fan Assisted Heating

Included

Included

Included

Included

Hot Cupboard Features
Removable Rear S/Steel Sliding Doors, Adjustable Height Shelving &
Removable Chrome Grid Cupboard Shelving

Included

Included

Included

Included

Cupboard Storage Capacity
Max. Qty 1-1 Gn Containers 150mm (h), Containers Not Included

4

6

8

10

Optional Trayslide – Revised Model Depth (mm)
Folding Tray Slide Option In Down Position

740

740

740

740

Optional Trayslide – Revised Model Depth (mm)
Folding Tray Slide Option In Up Position

1000

1000

1000

1000

Optional Trayslide Height (mm)
(Base Unit (h) – 55mm)

845

845

845

845

Model Weight (kg) : Plain Top Model

49

69

92

114

+ Optional Hot Gantry Weight (kg)

+7

+9

+12

+16

+ Optional Sit-On Spiked Carving Adaptor
Weight (kg)

Dims: 325(W) x 599(D) x 31 mm(D) – 1-1 Gn

1

1

1

1

+ Optional Hot Island Gantry Weight (kg)

+9

+11

+13

+18

Optional Model Height G850H (mm)

850

850

850

850

Optional Model Height *G800H (mm)
*bespoke option, extended lead time*

800

800

800

800



*When Gantry option is added to model, the control panel with thermostat/illuminated rocker switch & power isolation is replaced with a control panel featuring thermostat, two illuminated rocker switches & power isolation*

Options                                                                                          Option Code

Model Code

GHP2

GHP3

GHP4

GHP5

Glide S/Steel Drop Down Tubular Tray Rail

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm High Model

G850H

G850H

G850H

G850H

Glide 800mm High Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

Glide Heated Gantry.
Reversible Curved Glass/ End Glass, 200w quartz infra-red jacketed safety lamps, 397mm (h)
*For use above the ceramic glass heated worktop i.e. flat bottomed food container storage*

GHG2

GHG3

GHG4

GHG5

Glide Heated Island Gantry.
Double Curved Glass, End Glass, 200w quartz infra-red jacketed safety lamps, 397mm (h)
*For use above the ceramic glass heated worktop i.e. flat bottomed food container storage*

GHIG2

GHIG3

GHIG4

GHIG5

Sit-On Spiked Carving Adaptor
8 spiked carving lid & 1-1 Gn juice collection tray under. S/steel surround frame with rubber feet.
Unit sits on front/ back edges of wktop frame.
(For use with Hot Gantry option Only).

GCP1AL

GCP1AL

GCP1AL

GCP1AL

Glide Colour Finish Base Panels (Front & Sides).
Ocean Blue (BS 18C37)

GBLUECHA2

GBLUECHA3

GBLUECHA4

GBLUECHA5

Glide S/Steel Finish Base Panels (Front & Sides).
S/Steel (430 gd)

GSSTLCHA2

GSSTLCHA3

GSSTLCHA4

GSSTLCHA5

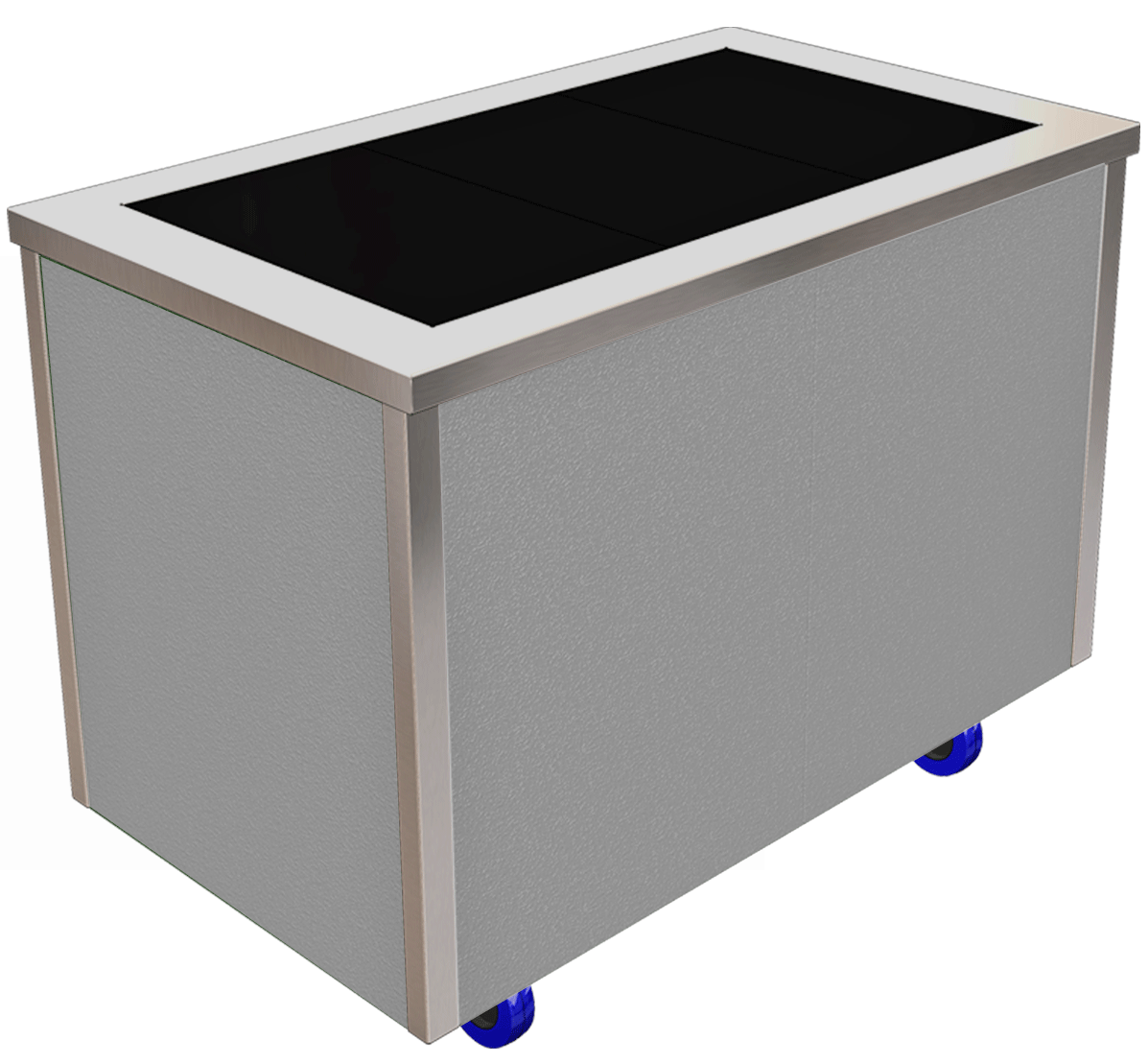

Glide Colour Finish Base Panels (Front & Sides).
Goosewing Light Grey (BS 10A05)

GGREYCHA2

GGREYCHA3

GGREYCHA4

GGREYCHA5

Glide Colour Finish Base Panels (Front & Sides).
Forest Green (RAL 6002)

GGRENCHA2

GGRENCHA3

GGRENCHA4

GGRENCHA5

Glide Colour Finish Base Panels (Front & Sides).
Poppy Red (BS 04E5B)

GPREDCHA2

GPREDCHA3

GPREDCHA4

GPREDCHA5

Glide Colour Finish Base Panels (Front & Sides).
Buttermilk Cream (BS 10C31)

GCREMCHA2

GCREMCHA3

GCREMCHA4

GCREMCHA5

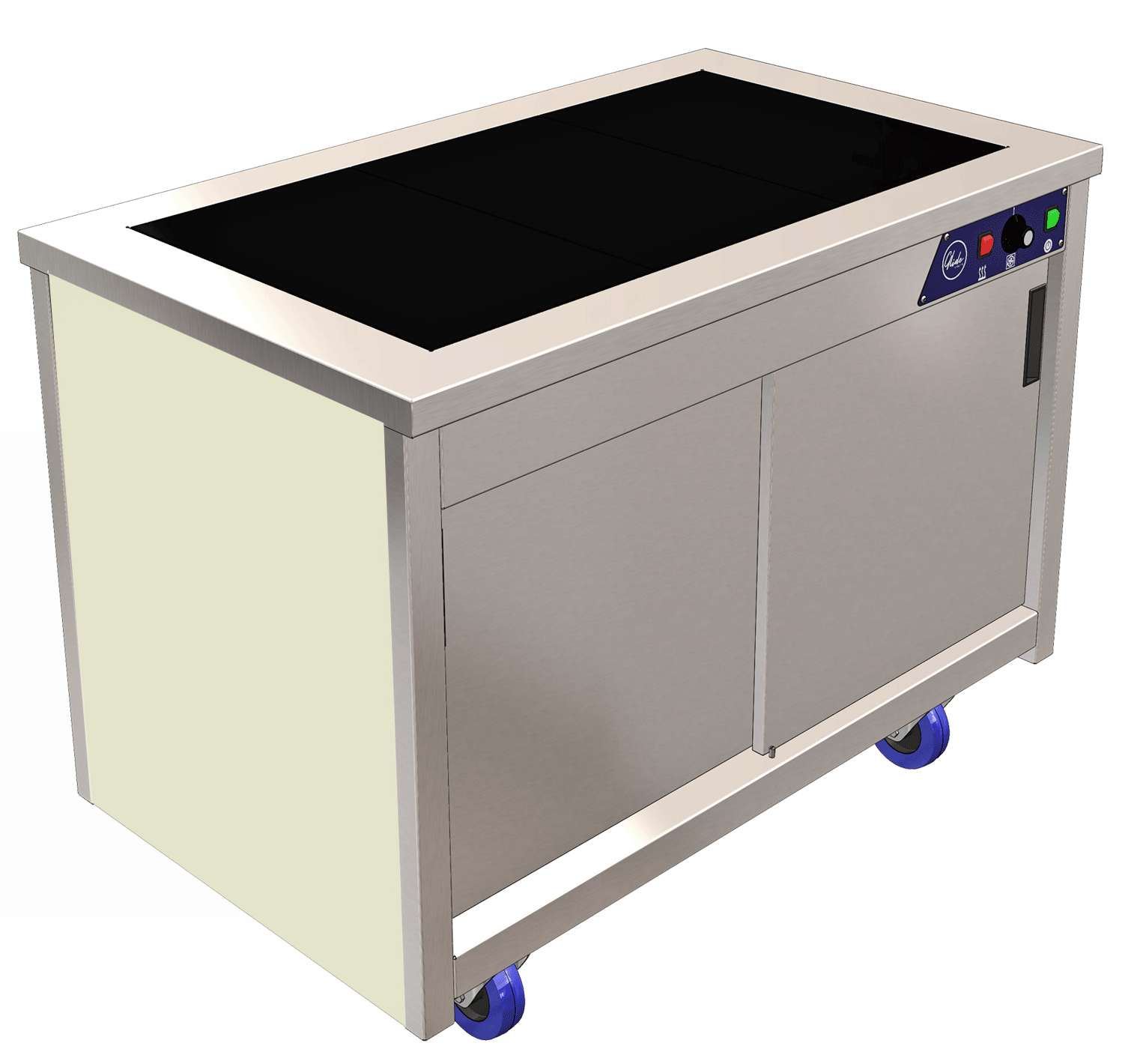

Glide Colour Finish Base Panels (Front & Sides).
White (BS 00E55)

GWHITCHA2

GWHITCHA3

GWHITCHA4

GWHITCHA5

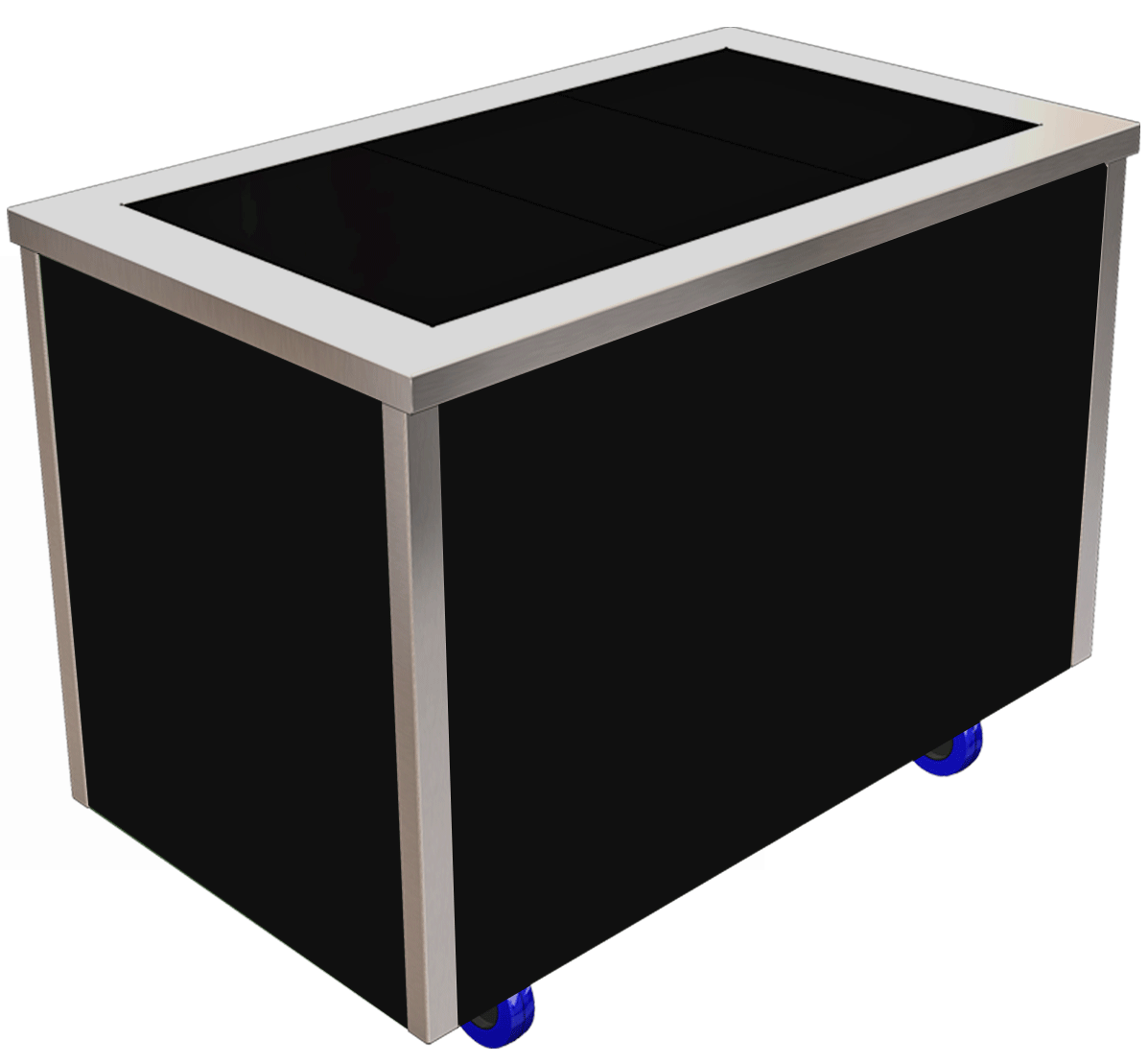

Glide Colour Finish Base Panels (Front & Sides).
Black (BS 00E53)

GBLAKCHA2

GBLAKCHA3

GBLAKCHA4

GBLAKCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Walnut (DL85)

GWALNCHA2

GWALNCHA3

GWALNCHA4

GWALNCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Beech (DL76)

GBEECCHA2

GBEECCHA3

GBEECCHA4

GBEECCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Oak (DL84)

GOAKCHA2

GOAKCHA3

GOAKCHA4

GOAKCHA5





Popular Model Codes & Options

SUMMARY : Popular Model Codes & Options

Model Code

Option Code

Option Code

Option Code

Glide Ceran Top Hot Cupboard
(& S/Steel Drop Down
Solid Tray Slide)

GHP2
GHP3
GHP4
GHP5

GSTS2
GSTS3
GSTS4
GSTS5

GSTS2
GSTS3
GSTS4
GSTS5

Glide Ceran Top Hot Cupboard
(& S/Steel Drop Down
Tubular Tray Rail)

GHP2
GHP3
GHP4
GHP5

GTTS2
GTTS3
GTTS4
GTTS5

YYYY

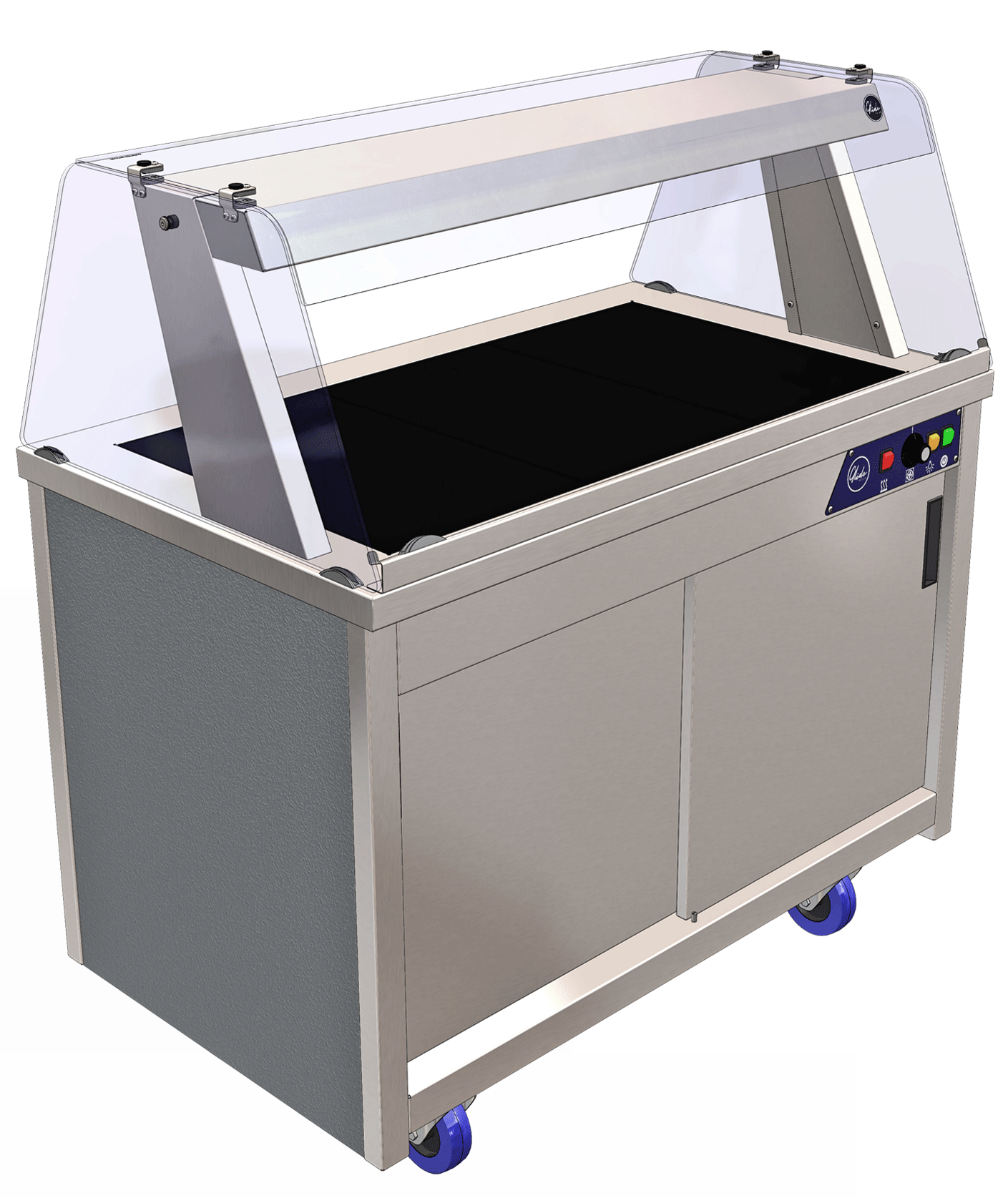

Glide Ceran Top Hot Cupboard
(& Heated Gantry –
Reversible Curved Glass/End Glass)

GHP2
GHP3
GHP4
GHP5

GHG2
GHG3
GHG4
GHG5

YYYY

Glide Ceran Top Hot Cupboard
(& Heated Island Gantry –
Double Curved Sneeze Glass/End Glass)

GHP2
GHP3
GHP4
GHP5

GHIG2
GHIG3
GHIG4
GHIG5

GPREDCHA2

Glide Ceran Top Hot Cupboard
& Colour Panel Finish – Green)

GHP2
GHP3
GHP4
GHP5

GGRENCHA2
GGRENCHA3
GGRENCHA4
GGRENCHA5

GPREDCHA2

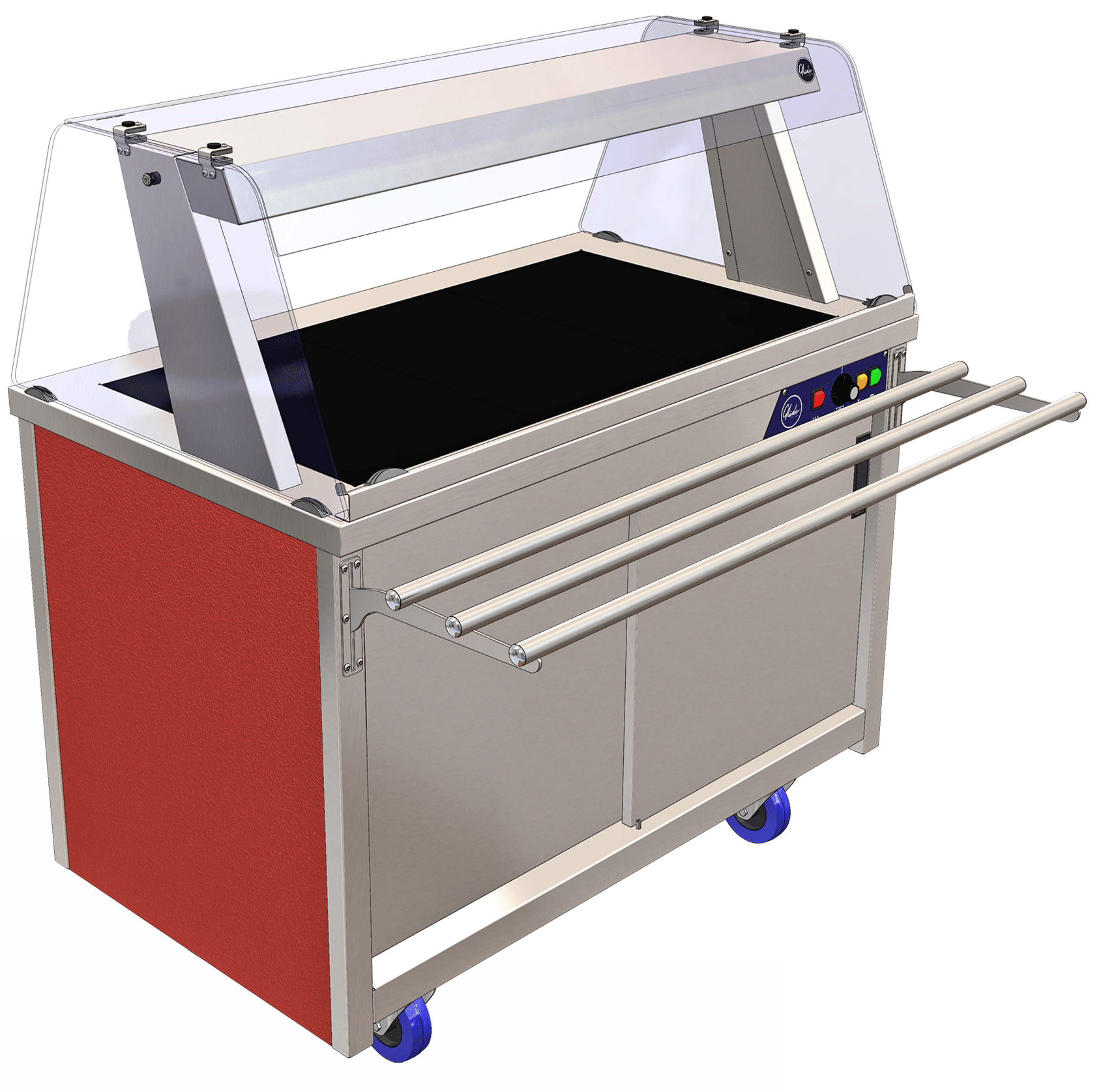

Glide Ceran Top Hot Cupboard
(& Heated Gantry) & (Colour Panel Finish Red)

GHP2
GHP3
GHP4
GHP5

GHG2
GHG3
GHG4
GHG5

GPREDCHA2
GPREDCHA3
GPREDCHA4
GPREDCHA5

XXX
XXX
XXX
XXX

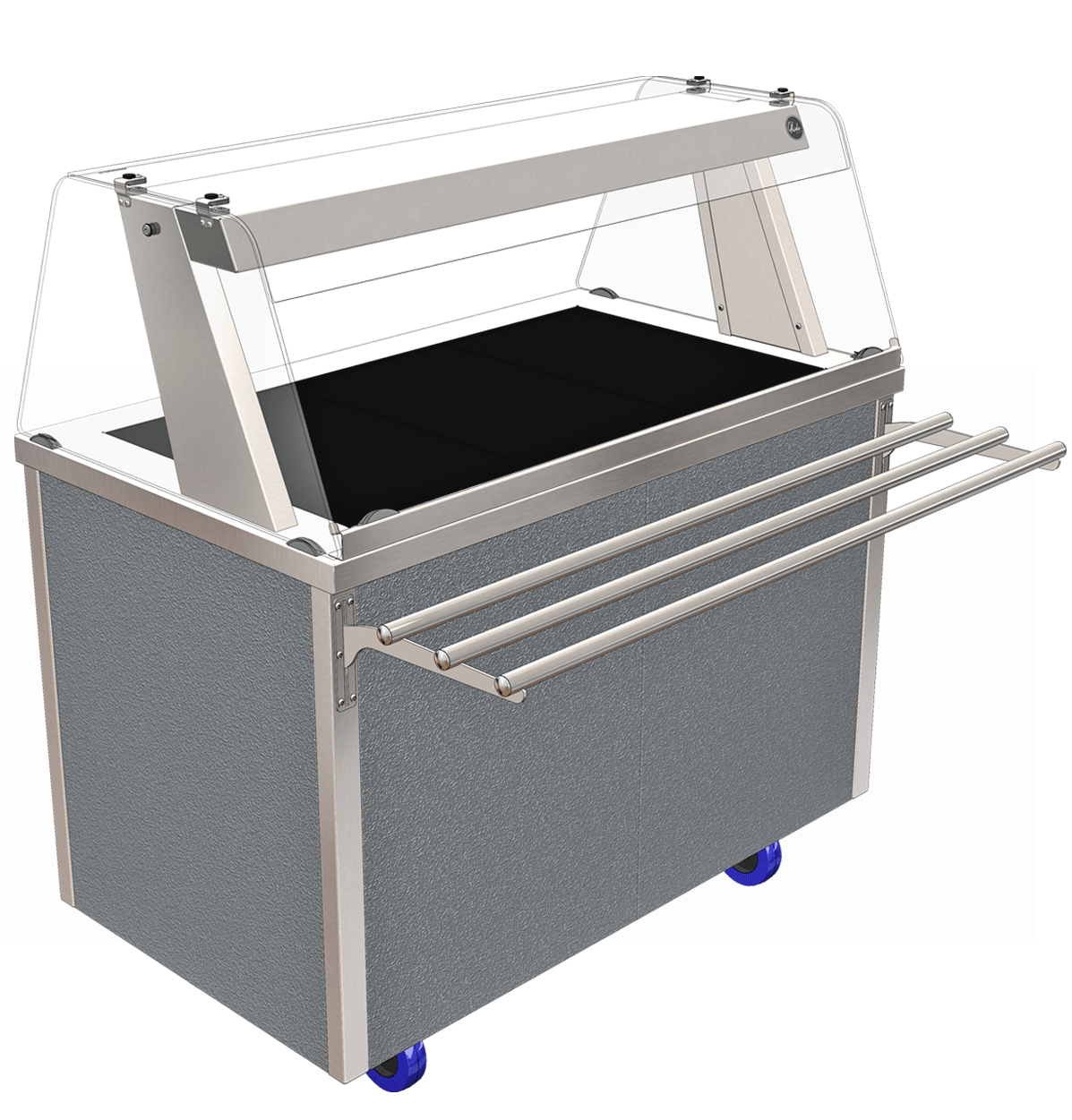

Glide Ceran Top Hot Cupboard
(& Heated Gantry) &
(S/Steel Drop Down Tubular Tray Rail)

GHP2
GHP3
GHP4
GHP5

GHG2
GHG3
GHG4
GHG5

GTTS2
GTTS3
GTTS4
GTTS5

Glide Ceran Top Hot Cupboard
(& Heated Gantry) &
(S/Steel Drop Down Solid Tray Slide)

GHP2
GHP3
GHP4
GHP5

GHG2
GHG3
GHG4
GHG5

GSTS2
GSTS3
GSTS4
GSTS5

Glide Ceran Top Hot Cupboard
(& Heated Gantry) &
(S/Steel Drop Down Tubular Tray Rail) & (Sit-On Spiked Carvery Pad)

GHP2
GHP3
GHP4
GHP5

GHG2
GHG3
GHG4
GHG5

GTTS2
GTTS3
GTTS4
GTTS5

GCP1AL
GCP1AL
GCP1AL
GCP1AL


Options

Glide Ceran Top Hot Cupboard.
Options.

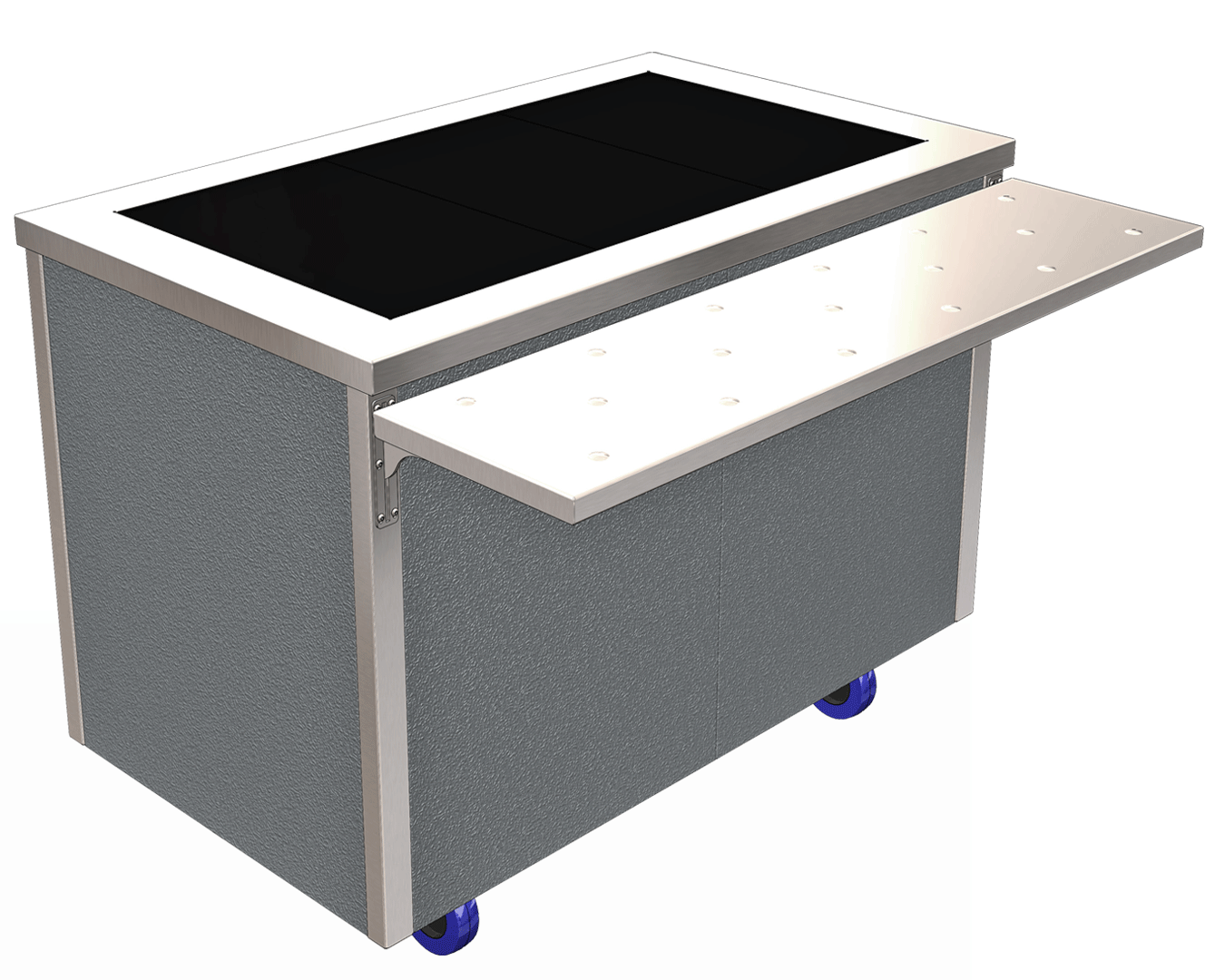

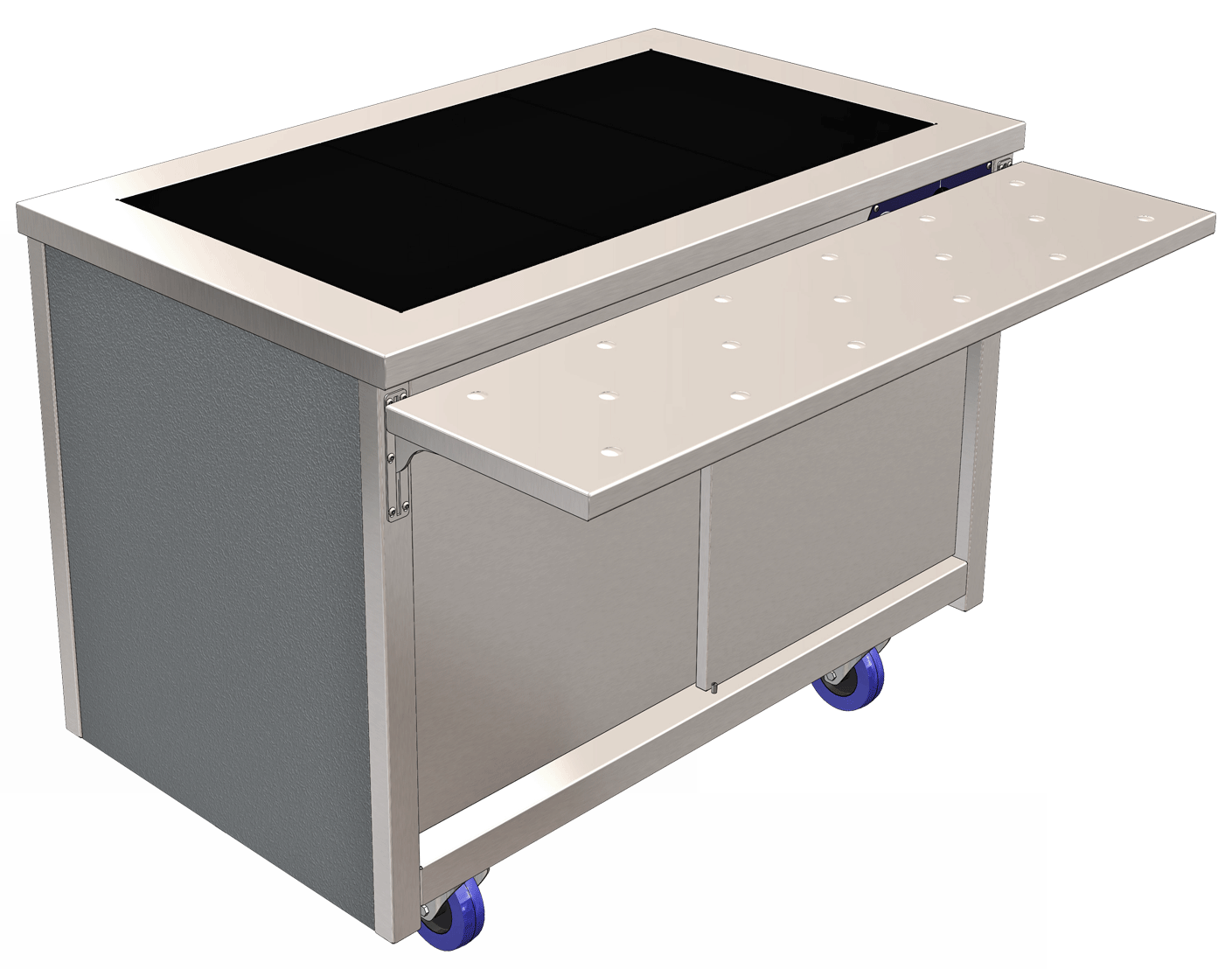

Glide S/Steel Folding Solid Tray Slide.
(Option Codes GSTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type, up position adds 302mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

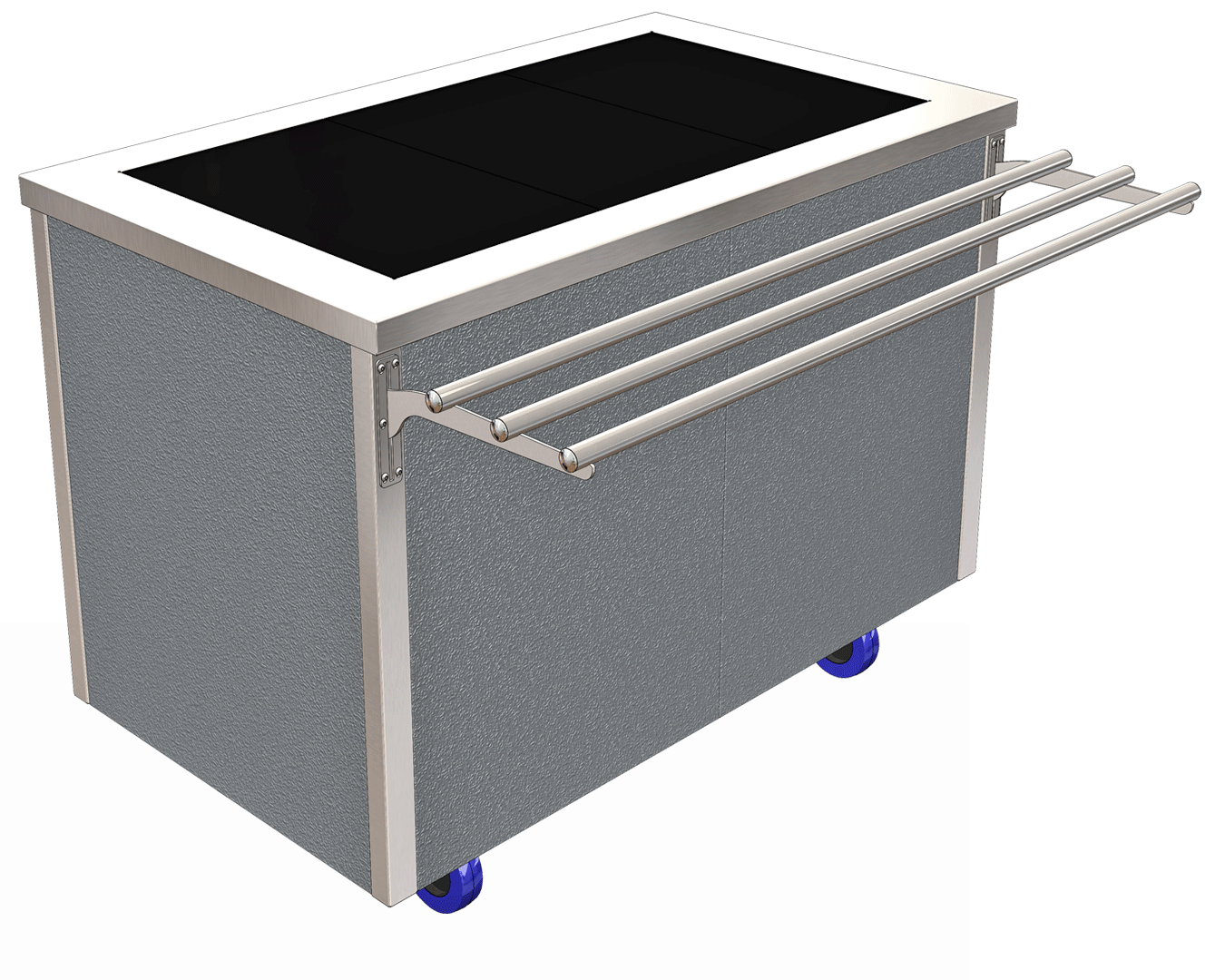

Glide S/Steel Folding Tubular Tray Rail. (Option Codes GTTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube, drop down bracket type, up position adds 298 mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Low Height Model ( Glide Junior) – 850mm.
(Option Code G850H) Glide junior option: (all cold, hot, ambient, till & corner units) 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model ( Glide Junior) – 800mm.
(Option Code G800H) Glide junior option: (all cold, hot, ambient, till & corner units) 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). * Bespoke Option/ Extended Lead Time *



Glide Heated Gantry Options.

*When Gantry option is added to model, the control panel with thermostat/illuminated rocker switch & power isolation is replaced with a control panel featuring thermostat, two illuminated rocker switches & power isolation*





P

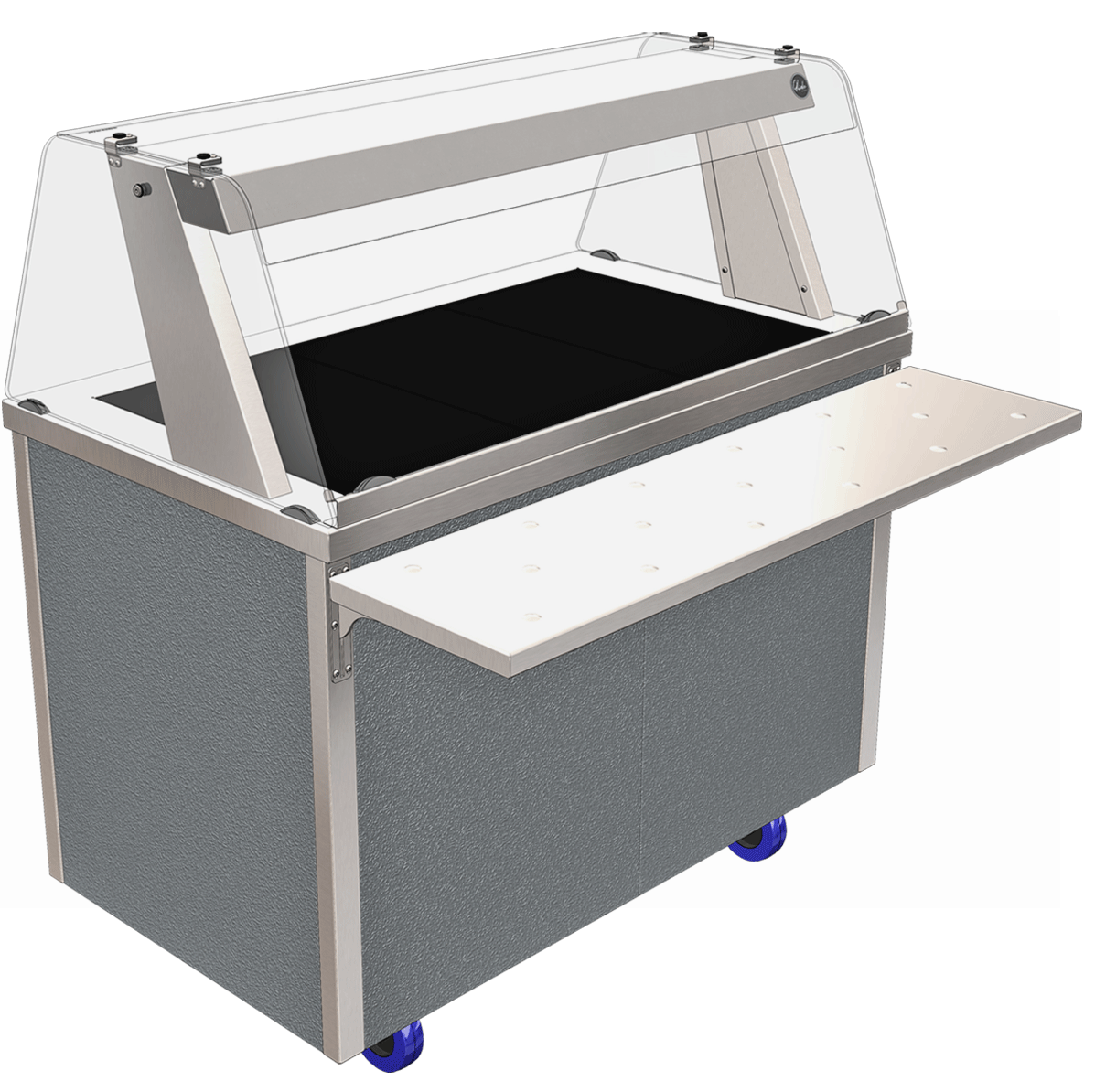

Glide Heated Gantry.
(Option Codes GHG2 – GHG5) Glide option: 2-1 Gn to 5-1 Gn, heated gantry, s/steel, reversible single curved glass sneeze screen, self help/ ass. serve use, + 397(h) above worktop, fitted with 200w quartz infra-red jacketed safety lamps.
For use above the ceramic glass heated worktop i.e. flat bottomed food container storage.

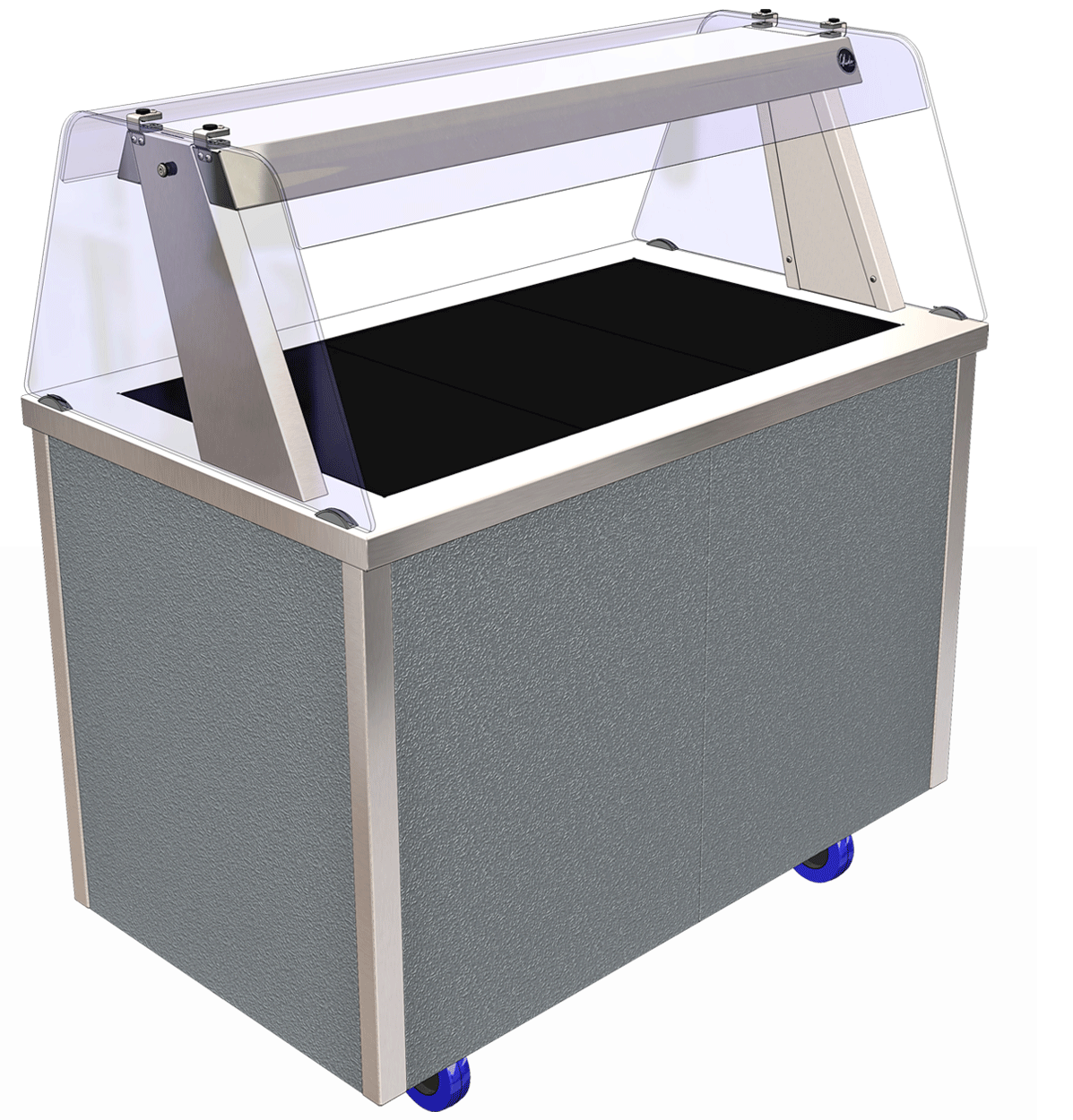

Glide Heated Island Gantry.
(Option Codes GHIG2 – GHIG5) Glide option: 2-1 Gn to 5-1 Gn, heated island gantry, s/steel, double curved glass sneeze screen, self help use, + 397(h) above worktop, fitted with 200w quartz infra-red jacketed safety lamps.
For use above the ceramic glass heated worktop i.e. flat bottomed food container storage.

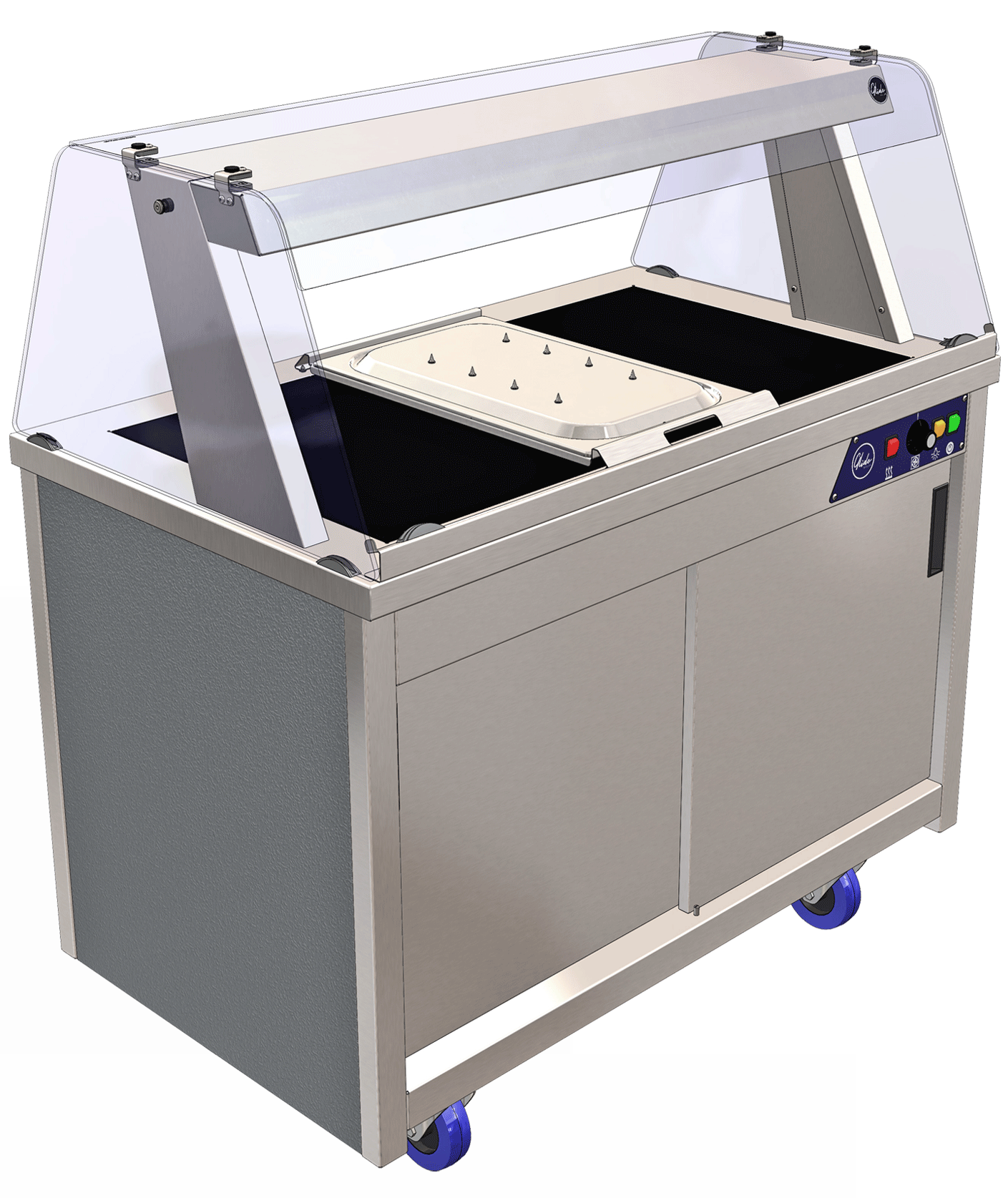

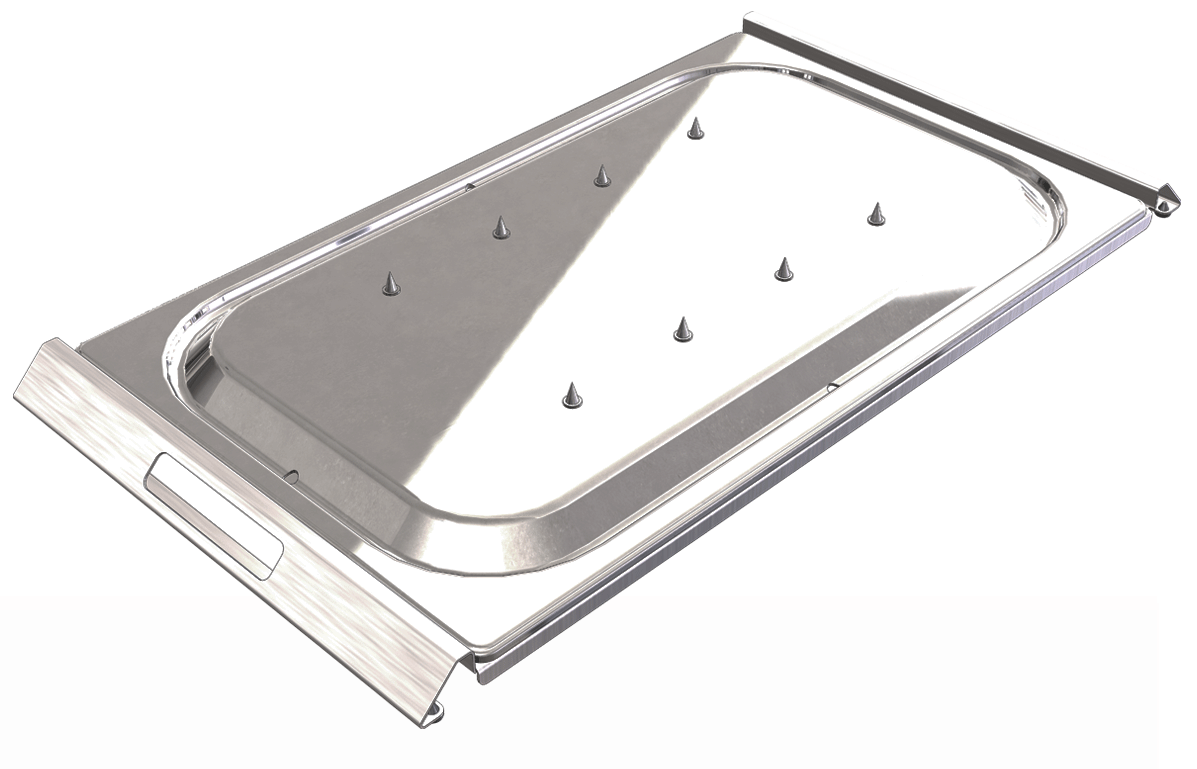

Glide Sit-On Spiked Carving Adaptor (Hotplate) – 1/1 Gn.
(Option Code GCP1AL) Glide option: Sit-on spiked carving lid & 20mm(d)1-1 Gn juice collection tray under. Dims. 599mm (L) x 325mm (w) x 31mm(h). S/steel surround frame with rubber feet. Unit sits on front/ back edges of worktop frame. A shallow amount of water can be added into juice collection tray under, to assist in moisture retention/ enable easier cleaning after serving. (For use with hot gantry option only).



Glide Colour Finishes To Front/ Side Panels (Hot Cupboard Base).

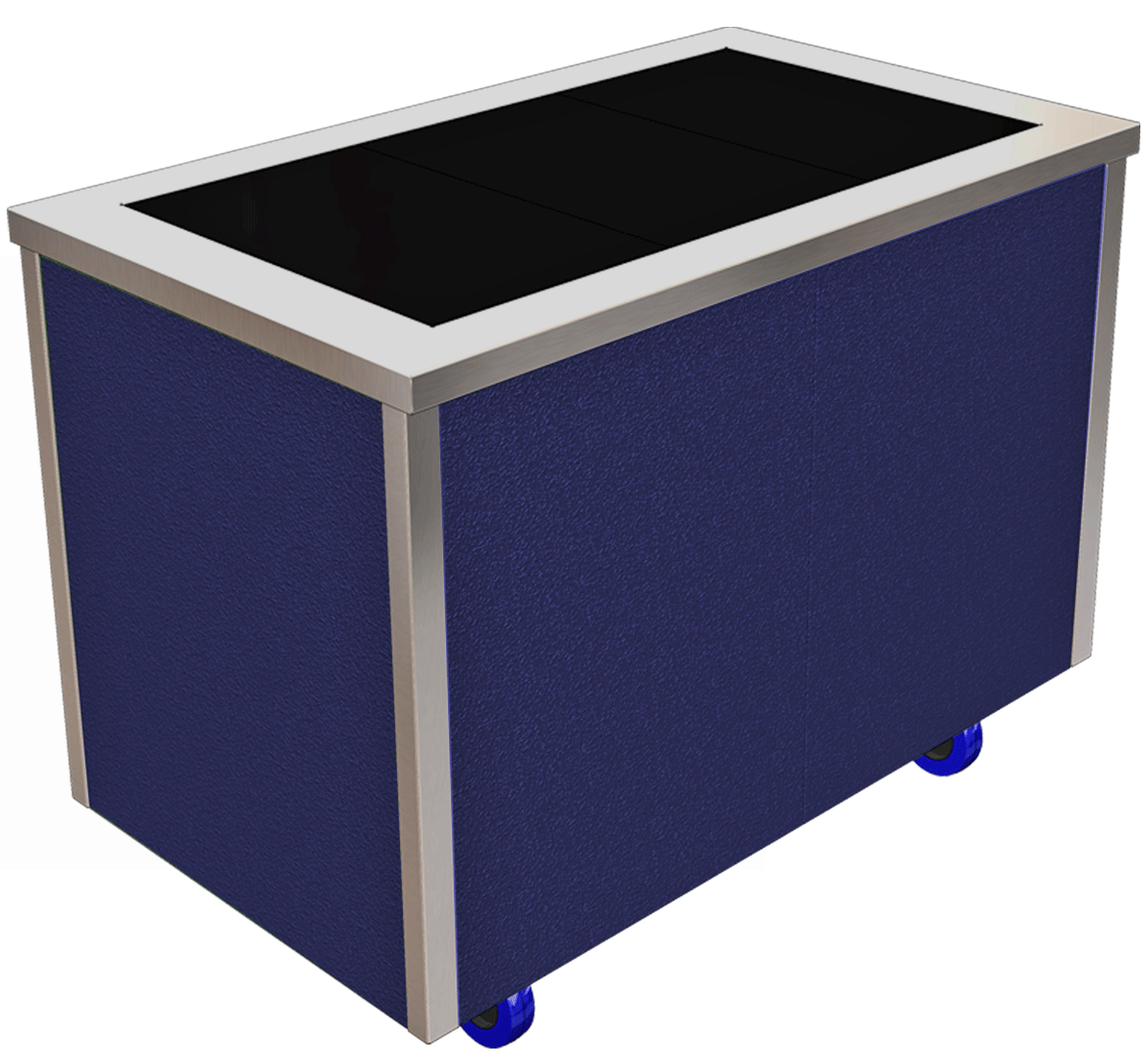

Blue Finish. (Option Codes GBLUECHA2 – GBLUECHA5) 2-1 Gn to 5-1 Gn full set of front panel/ sides in leathergrain plastisol steel, colour ocean blue (BS 18C37). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).

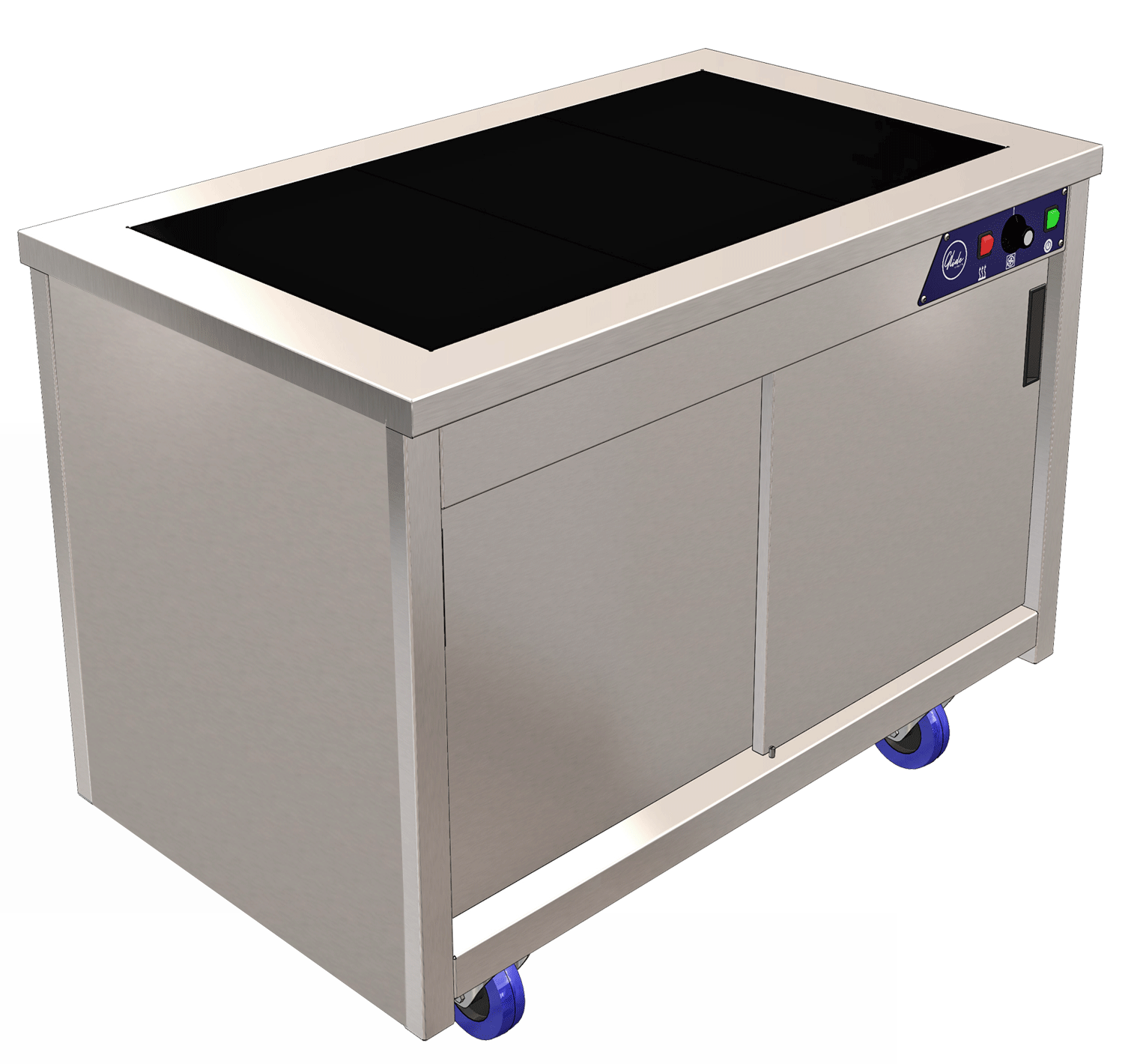

S/steel Finish. (Option Code GSSTLCHA2 – GSSTLCHA5) 2-1 Gn to 5-1 Gn full set of front panel/ sides in satin s/steel 430 gd. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).

Light Grey Finish. (Option Codes GGREYCHA2 – GGREYCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour goosewing light grey (BS 10A05). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).



Forest Green Finish. (Option Codes GGRENCHA2 – GGRENCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour forest green/heritage (RAL 6002). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).

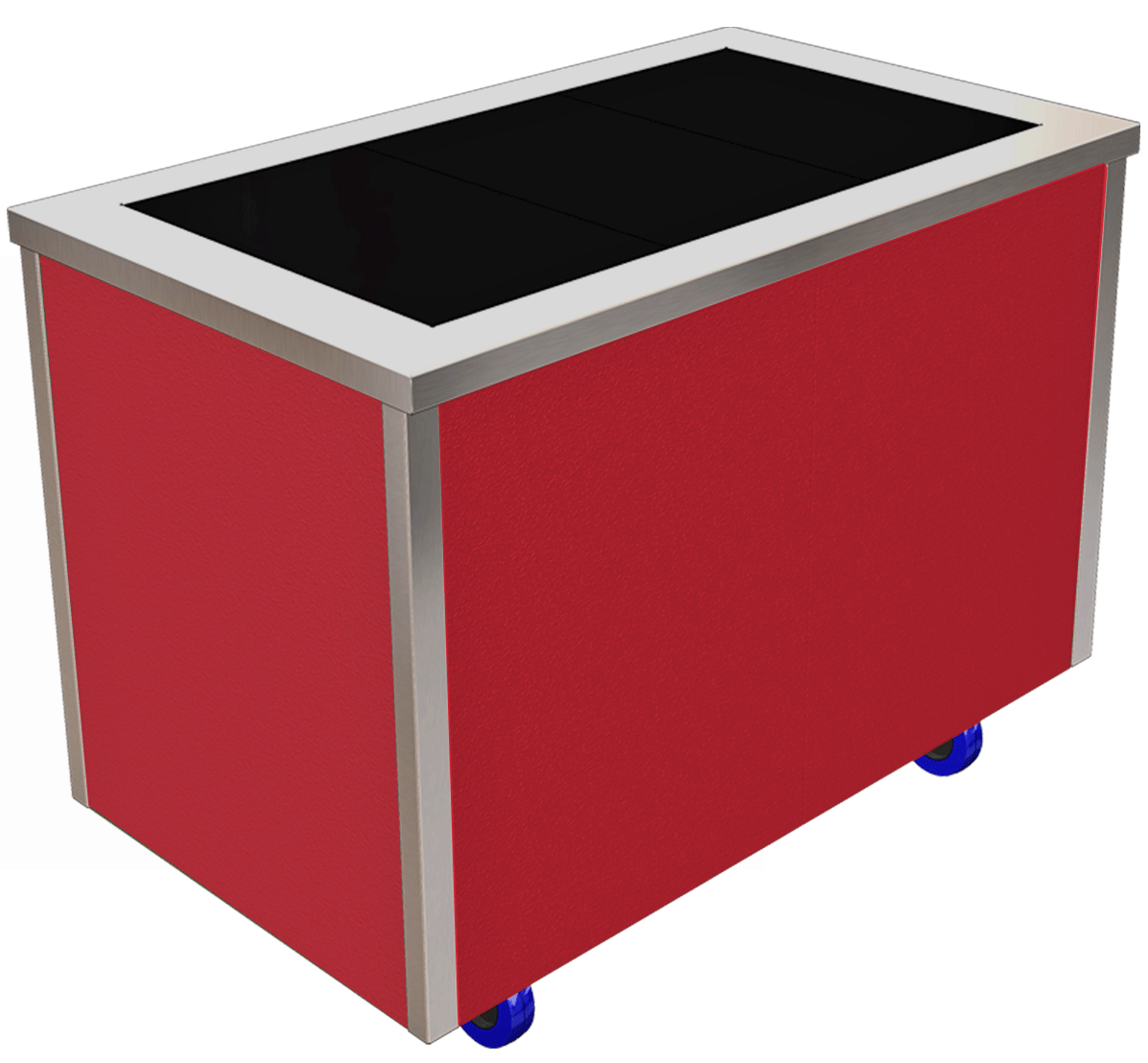

Poppy Red Finish. (Option Codes GPREDCHA2 – GPREDCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour poppy red (BS 04E5B). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).

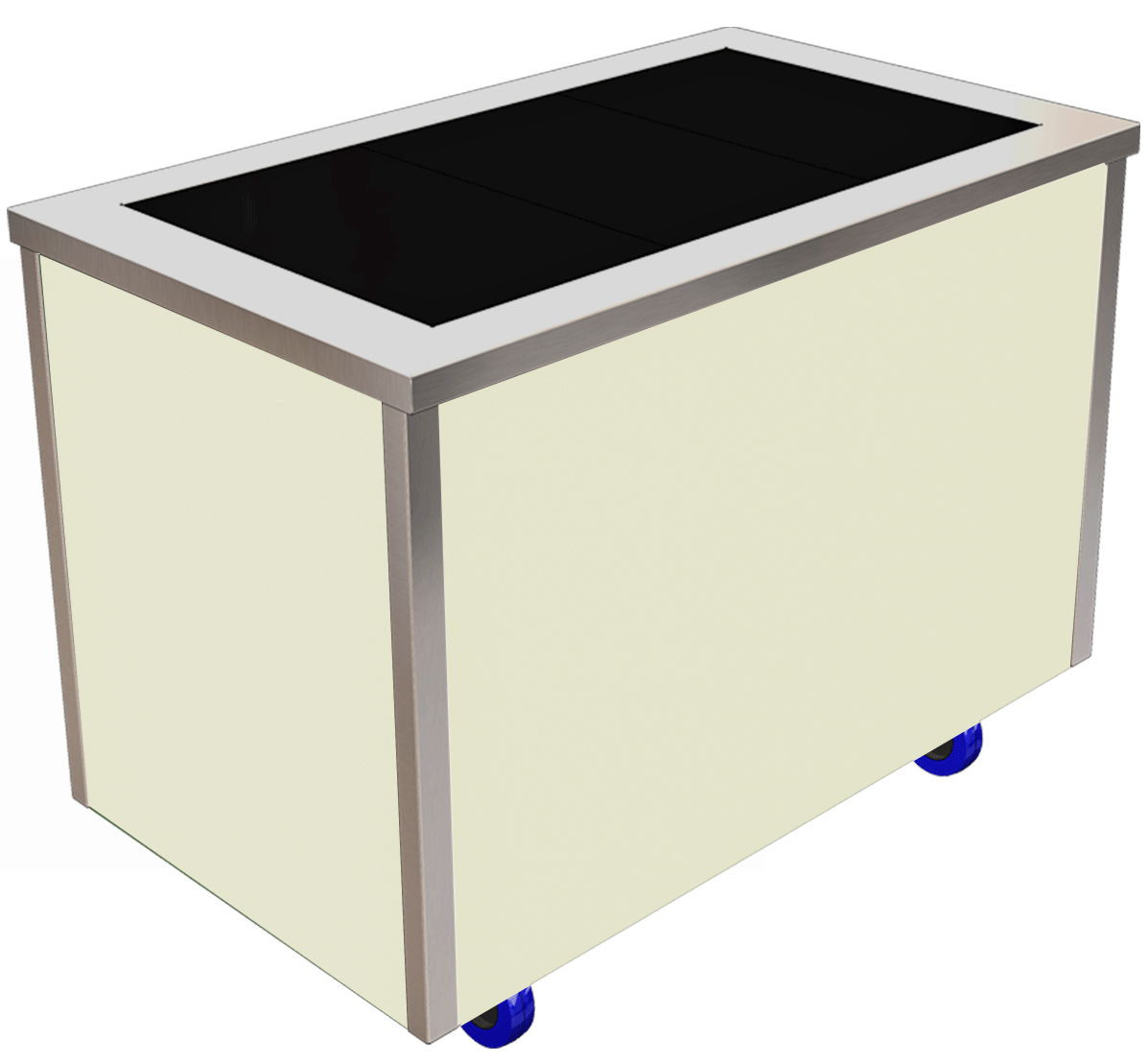

Cream Cream Finish. (Option Codes GCREMCHA2 – GCREMCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).

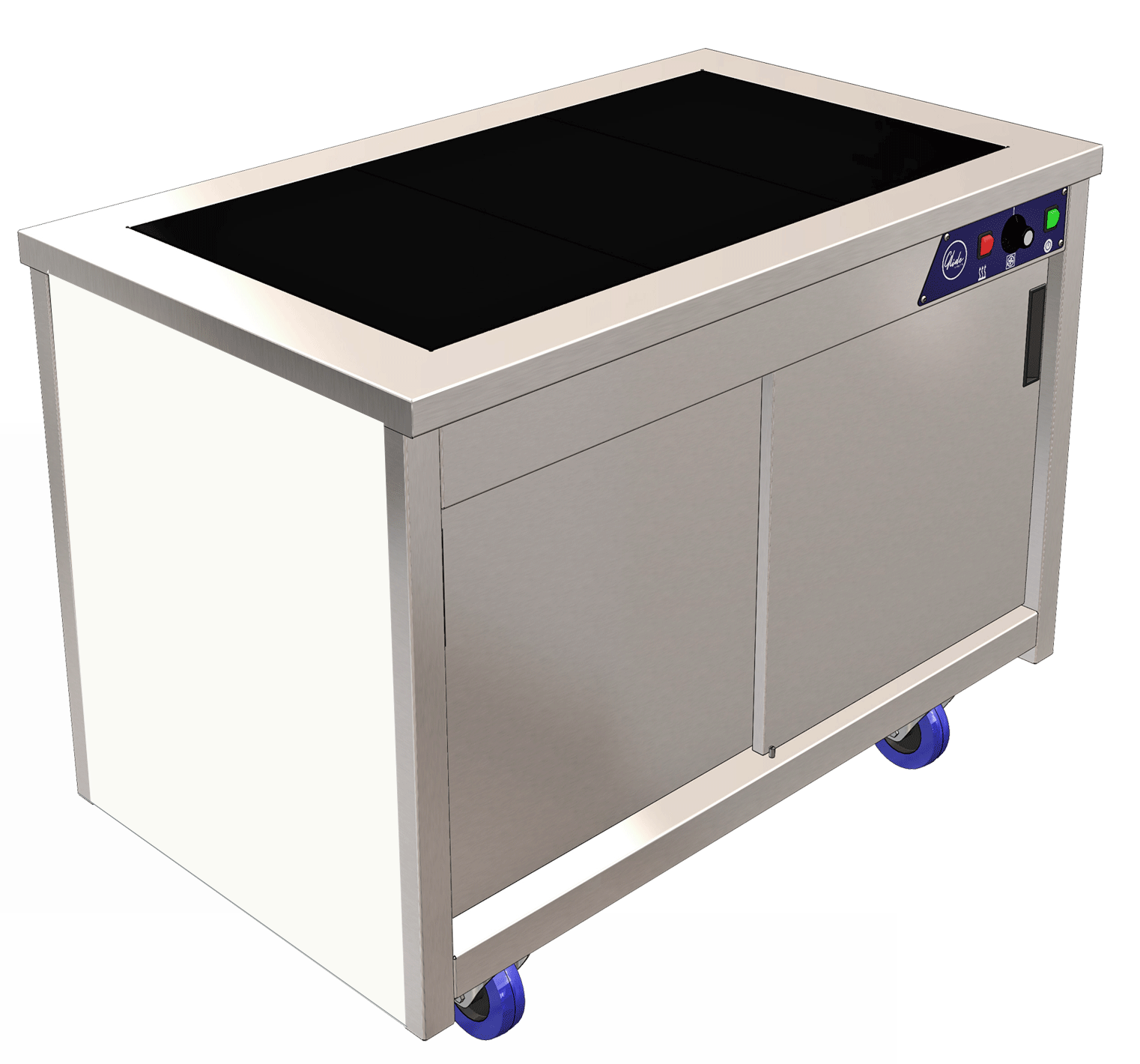

White Finish. (Option Codes GWHITCHA2 – GWHITCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour white (BS 00E55). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).

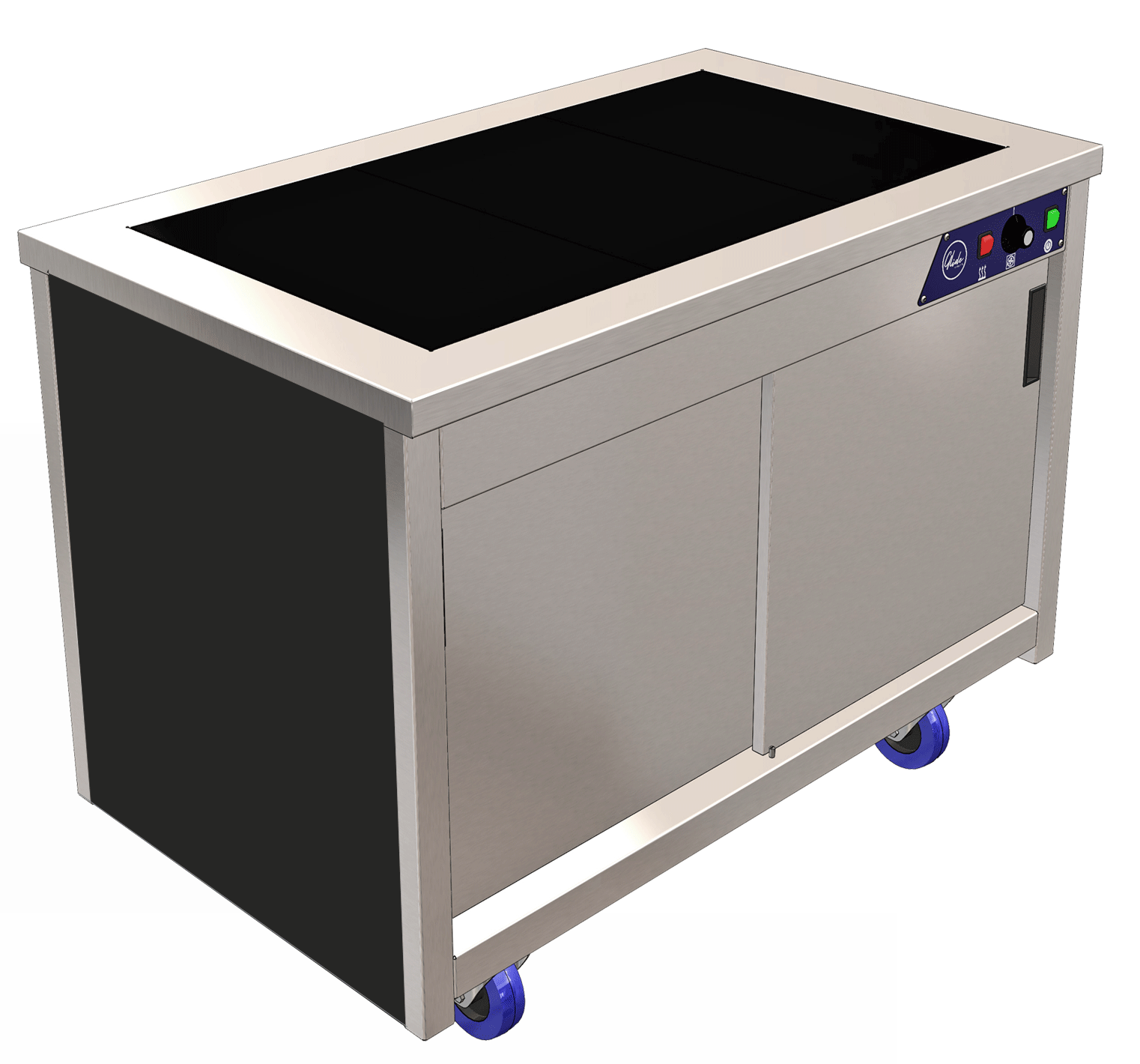

Black Black  Black Finish. (Option Codes GBLAKCHA2 – GBLAKCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in leathergrain plastisol steel, colour black (BS 00E53). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).

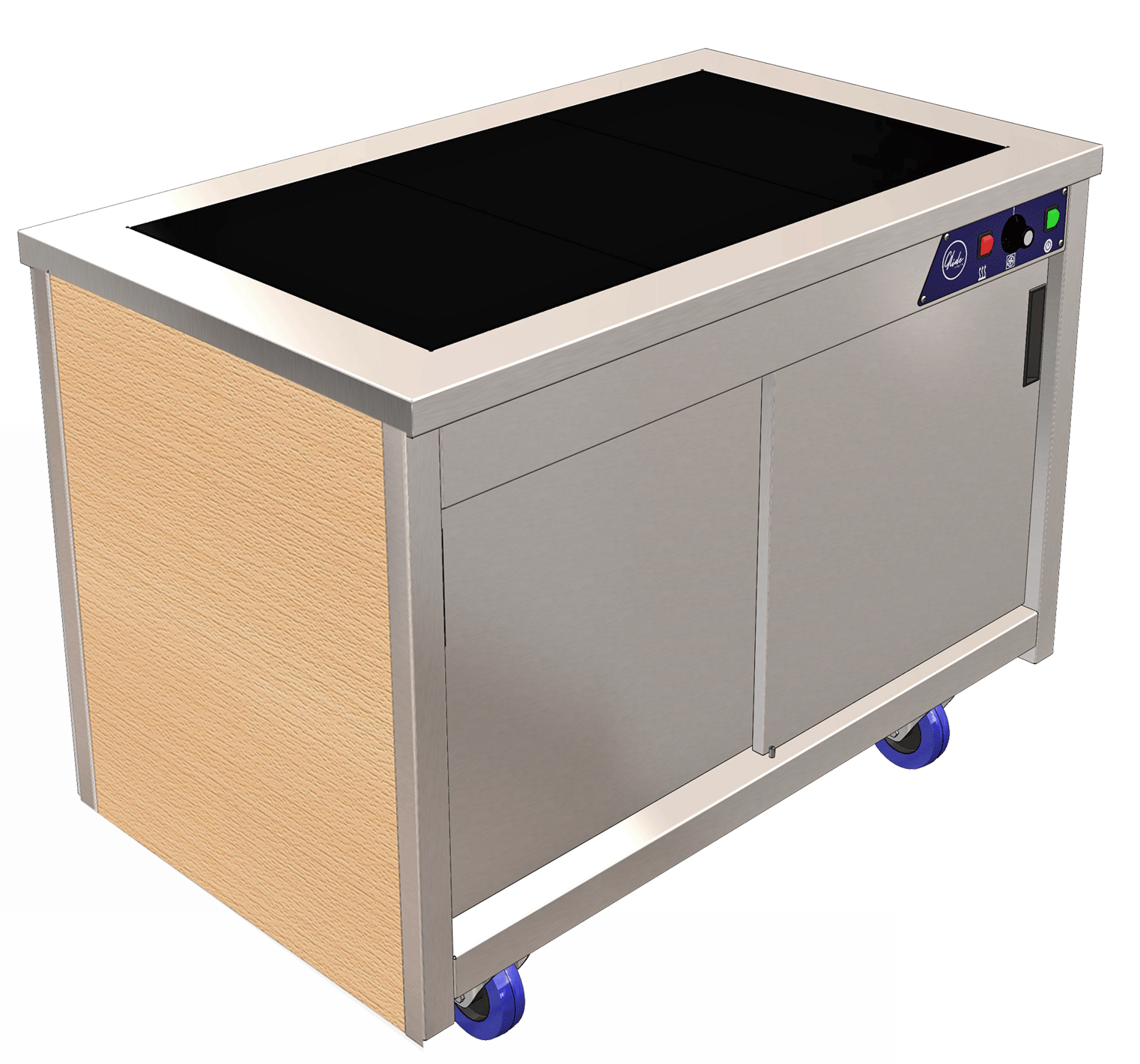

Beech Woodgrain Finish. (Option Codes GBEECCHA2 – GBEECCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect, DL76 beech finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).

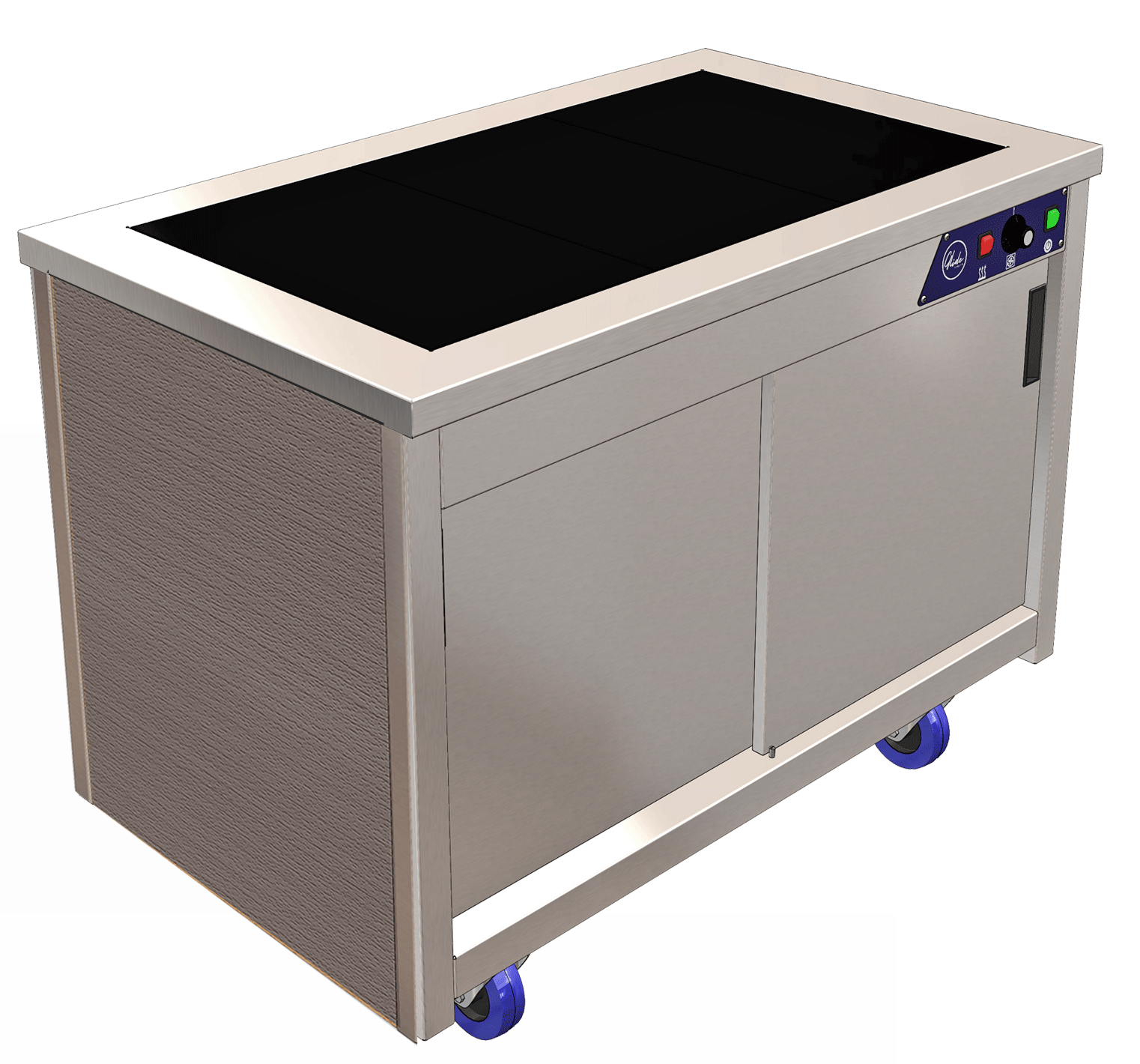

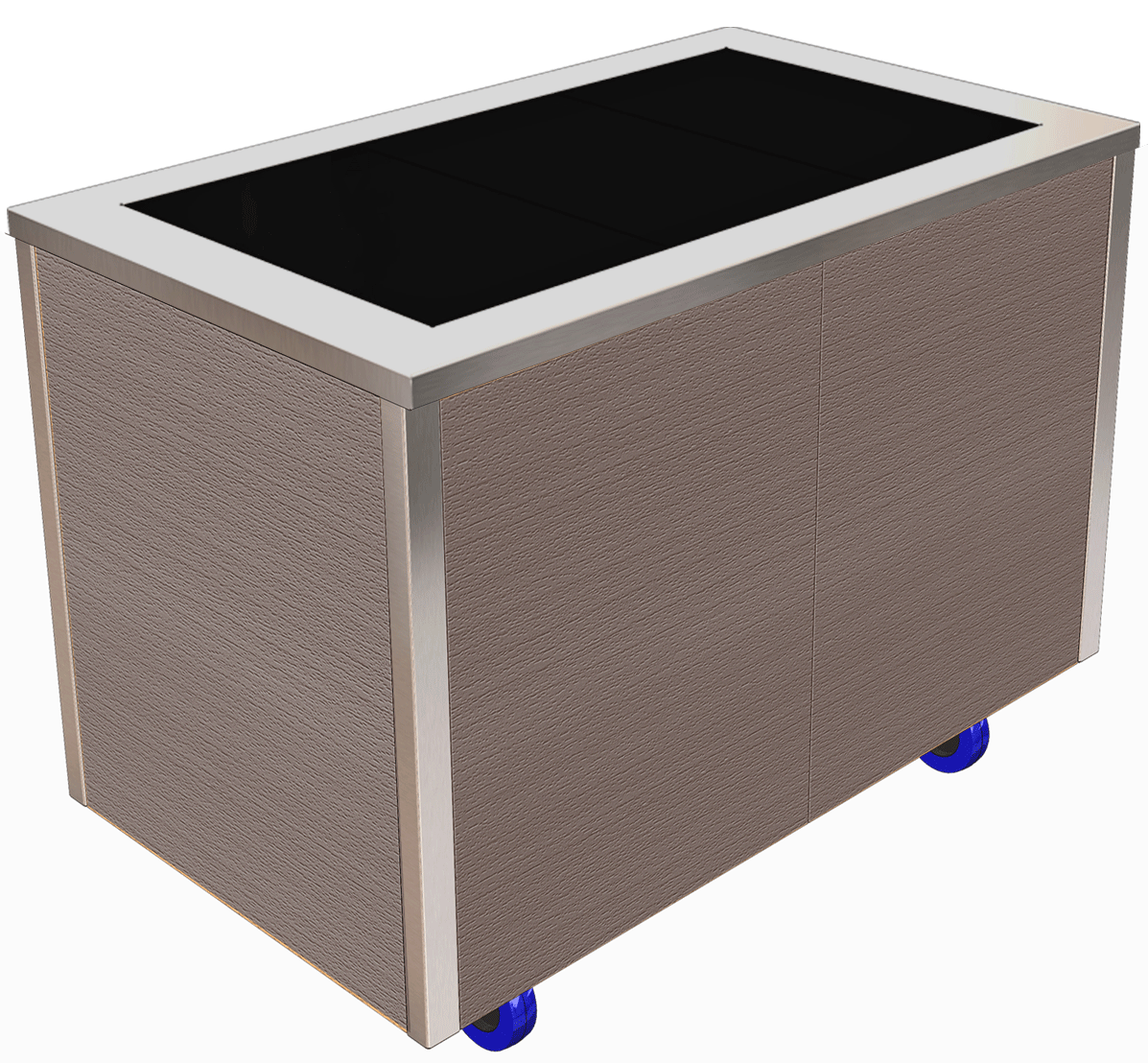

Walnut Walnut Woodgrain Finish. (Option Codes GWALNCHA2 – GWALNCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect panel, DL85 walnut finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).



Oak Woodgrain Finish. (Option Codes GOAKCHA2 – GOAKCHA5) 2-1 Gn to 5-1 Gn full front panel/ sides in wood grain effect, DL84 oak finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix).



Options                                                                                          Option Code

Model Code

GHP2

GHP3

GHP4

GHP5

Glide S/Steel Drop Down Tubular Tray Rail

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm High Model

G850H

G850H

G850H

G850H

Glide 800mm High Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

Glide Heated Gantry.
Reversible Curved Glass/ End Glass, 200w quartz infra-red jacketed safety lamps, 397mm (h)
*For use above the ceramic glass heated worktop i.e. flat bottomed food container storage*

GHG2

GHG3

GHG4

GHG5

Glide Heated Island Gantry.
Double Curved Glass, End Glass, 200w quartz infra-red jacketed safety lamps, 397mm (h)
*For use above the ceramic glass heated worktop i.e. flat bottomed food container storage*

GHIG2

GHIG3

GHIG4

GHIG5

Sit-On Spiked Carving Adaptor
8 spiked carving lid & 1-1 Gn juice collection tray under. S/steel surround frame with rubber feet.
Unit sits on front/ back edges of wktop frame.
(For use with Hot Gantry option Only).

GCP1AL

GCP1AL

GCP1AL

GCP1AL

Glide Colour Finish Base Panels (Front & Sides).
Ocean Blue (BS 18C37)

GBLUECHA2

GBLUECHA3

GBLUECHA4

GBLUECHA5

Glide S/Steel Finish Base Panels (Front & Sides).
S/Steel (430 gd)

GSSTLCHA2

GSSTLCHA3

GSSTLCHA4

GSSTLCHA5

Glide Colour Finish Base Panels (Front & Sides).
Goosewing Light Grey (BS 10A05)

GGREYCHA2

GGREYCHA3

GGREYCHA4

GGREYCHA5

Glide Colour Finish Base Panels (Front & Sides).
Forest Green (RAL 6002)

GGRENCHA2

GGRENCHA3

GGRENCHA4

GGRENCHA5

Glide Colour Finish Base Panels (Front & Sides).
Poppy Red (BS 04E5B)

GPREDCHA2

GPREDCHA3

GPREDCHA4

GPREDCHA5

Glide Colour Finish Base Panels (Front & Sides).
Buttermilk Cream (BS 10C31)

GCREMCHA2

GCREMCHA3

GCREMCHA4

GCREMCHA5

Glide Colour Finish Base Panels (Front & Sides).
White (BS 00E55)

GWHITCHA2

GWHITCHA3

GWHITCHA4

GWHITCHA5

Glide Colour Finish Base Panels (Front & Sides).
Black (BS 00E53)

GBLAKCHA2

GBLAKCHA3

GBLAKCHA4

GBLAKCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Walnut (DL85)

GWALNCHA2

GWALNCHA3

GWALNCHA4

GWALNCHA5

Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Beech (DL76)

GBEECCHA2

GBEECCHA3

GBEECCHA4

GBEECCHA5



Glide Wood Grain Effect Finish Base Panels (Front & Sides).
Oak (DL84)

GOAKCHA2

GOAKCHA3

GOAKCHA4

GOAKCHA5





Popular Model Codes & Options.

Glide Ceran Top Hot Cupboard (& Solid Tray Slide)
Model Code Option Code
GHP2         GSTS2
GHP3         GSTS3
GHP4         GSTS4
GHP5         GSTS5

Glide Ceran Top Hot Cupboard ( & Tubular Tray Rail)
Model Code Option Code
GHP2          GTTS2
GHP3          GTTS3
GHP4          GTTS4
GHP5          GTTS5

Glide Ceran Top Hot Cupboard (& Heated Gantry)
Model Code Option Code
GHP2          GHG2
GHP3          GHG3
GHP4          GHG4
GHP5          GHG5





Glide Ceran Top Hot Cupboard (& Heated Island Gantry)
Model Code Option Code
GHP2          GHIG2
GHP3          GHIG3
GHP4          GHIG4
GHP5          GHIG5





Glide Ceran Top Hot Cupboard (& Heated Gantry/Colour Finish-Red)
Model Code Option Codes
GHP2         GHG2  GPREDCHA2
GHP3         GHG3  GPREDCHA3
GHP4         GHG4  GPREDCHA4
GHP5         GHG5  GPREDCHA5





Glide Ceran Top Hot Cupboard (& Colour Finish-Green)
Model Code Option Code
GHP2          GGRENCHA2
GHP3          GGRENCHA3
GHP4          GGRENCHA4
GHP5          GGRENCHA5





Glide Ceran Top Hot Cupboard (& Heated Gantry/ Tray Rail)
Model Code Option Code Option Code
GHP2            GHG2           GTTS2
GHP3            GHG3           GTTS3
GHP4            GHG4           GTTS4
GHP5            GHG5           GTTS5





Glide Ceran Top Hot Cupboard (& Heated Gantry/ Solid Tray Slide)
Model Code Option Code Option Code
GHP2             GHG2           GSTS2
GHP3             GHG3           GSTS3
GHP4             GHG4           GSTS4
GHP5             GHG5           GSTS5





Glide Ceran Top Hot Cupboard (& Heated Gantry/ Tray Rail/ Sit On Spiked Carving Adaptor)
Model Code Option Codes
GHP2            GHG2  GTTS2  GCP1AL
GHP3            GHG3  GTTS3  GCP1AL
GHP4            GHG4  GTTS4  GCP1AL
GHP5            GHG5  GTTS5  GCP1AL



Downloads

General Layout Drawings
Glide Ceran Top Hot Cupboard.





Specification Sheet, Base Panel Colour Options, User Manual.
Glide Ceran Top Hot Cupboard.




Visual

(Wall Sited) Glide Ceran Top Hot Cupboard.
Visual



Features

(Wall Sited) Glide Ceran Top Hot Cupboard.
Features

  • Glide mobile dining cart, hot ceran top with hot cupboard storage to front (no gantry).
  • Wall sited application (wall, alcove, recess or back to back).
  • Heated ceramic glass hotplate section that accommodates 1-1 size flat bottom Gn containers or dishes with lids (not included).
  • Fan assisted heating to hot cupboard under with thermostat control.
  • Hot cupboard has thermostatic control. Ceran top & mains power are controlled by neon on/off switches.
  • Hot gantry options are also controlled by neon on/off switches.
  • Supplied with 3m lead & 13 amp UK plug (13A 230v 50Hz).
  • Available in 4 no. gastronorm lengths – 825/1175/1525/1875mm (l) x 700mm (d) x 900mm (h).
  • Rear/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Worktop in 304 gd steel, all other external steel surfaces (corner angles/ sliding doors, valance panel etc.) in 430gd.
  • Front facing hot storage cupboard fitted with removable sliding s/steel doors.
  • Hot cupboard fitted with adjustable height shelving, removable grid shelves, for easy cleaning.
  • Fitted with lockable non-marking rubber tyre castors.
  • Accommodates up to (10) x 1-1 Gn 150mm (d) containers (not included), depending on model size.

Options

  • Folding s/steel solid tray slide.*
  • Folding s/steel tubular tray rail Ø25 tube.*
  • Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm).*
  • 11 solid colour & woodgrain base panel finishes available.
  • Low height model 850mm (h) available (Option G850H)
  • Low height model 800mm (h) available. (Option G800H)**
  • Bespoke option with extended lead time.**
  • Heated self help gantry – 397 mm(h) c/w 200w quartz infra red jacketed safety lamps, toughened curved glass sneeze screen & end glass.
  • Sit-On Spiked Carving Adaptor (Hotplate) – 1/1 Gn S/steel surround frame with rubber feet. (Unit sits on front/ back edges of wktop. frame. 1-1 Gn juice collection tray under).***
  • For use in conjunction with heated gantry option.***


Dimensions

(Wall Sited) Glide Ceran Top Hot Cupboard.
Dimensions



Model Code

GWSHP2

GWSHP3

GWSHP4

GWSHP5

Capacity (Gn)

2-1

3-1

4-1

5-1

Length (mm)

825

1175

1525

1875

Depth (mm)

700

700

700

700

Height (mm)

900

900

900

900

Total Power (kw)
Plain Top Model

2.19

2.37

2.55

2.73

Total Power (kw)
Model + Hot Gantry Option (self help)
c/w 200w Quartz Infra-red Jacketed Safety Lamps, 3m lead & Plug.

2.56

2.97

2.95

2.83

Fan Assisted Heating

Included

Included

Included

Included

Hot Cupboard Features
Removable Front S/Steel Sliding Doors, Adjustable Height Shelving &
Removable Chrome Grid Cupboard Shelving

Included

Included

Included

Included

Cupboard Storage Capacity
Max. Qty 1-1 Gn Containers 150mm (h), Containers Not Included

4

6

8

10

Optional Trayslide – Revised Model Depth (mm)
Folding Tray Slide Option In Down Position

740

740

740

740

Optional Trayslide – Revised Model Depth (mm)
Folding Tray Slide Option In Up Position

1000

1000

1000

1000

Optional Trayslide Height (mm)
(Base Unit (h) – 55mm)

845

845

845

845

Model Weight (kg): Plain Top Model

49

69

92

114

+ Optional Hot Gantry Weight (kg)

+7

+9

+12

+16

Optional Model Height G850H (mm)

850

850

850

850

Optional Model Height *G800H (mm)
*bespoke option, extended lead time*

800

800

800

800



*When Gantry option is added to model, the control panel with thermostat/ illuminated rocker switch & power isolation is replaced with a control panel featuring thermostat, two illuminated rocker switches & power isolation*



Options                                                                                     Option Code

Model Code

GWSHP2

GWSHP3

GWSHP4

GWSHP5

Glide S/Steel Drop Down Tubular Tray Rail

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm High Model

G850H

G850H

G850H

G850H

Glide 800mm High Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

(Wall Sited) Glide Heated Gantry. Self Help Curved Glass, End Glass, 200w quartz infra-red jacketed safety lamps, 397mm (h)
*For use above the ceramic glass heated worktop i.e. flat bottomed food container storage*

GWSHG2

GWSHG3

GWSHG4

GWSHG5

Sit-On Spiked Carving Adaptor
8 spiked carving lid & 1-1 Gn juice collection tray under. S/steel surround frame with rubber feet.
Unit sits on front/ back edges of wktop frame.
(For use with Hot Gantry option Only).

GCP1AL

GCP1AL

GCP1AL

GCP1AL

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Ocean Blue (BS 18C37)

GBLUECHA2

GBLUECHA3

GBLUECHA4

GBLUECHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
S/Steel (430 gd)

GSSTLCHA2

GSSTLCHA3

GSSTLCHA4

GSSTLCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Goosewing Light Grey (BS 10A05)

GGREYCHA2

GGREYCHA3

GGREYCHA4

GGREYCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Forest Green (RAL 6002)

GGRENCHA2

GGRENCHA3

GGRENCHA4

GGRENCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Poppy Red (BS 04E5B)

GPREDCHA2

GPREDCHA3

GPREDCHA4

GPREDCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Buttermilk Cream (BS 10C31)

GCREMCHA2

GCREMCHA3

GCREMCHA4

GCREMCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
White (BS 00E55)

GWHITCHA2

GWHITCHA3

GWHITCHA4

GWHITCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Black (BS 00E53)

GBLAKCHA2

GBLAKCHA3

GBLAKCHA4

GBLAKCHA5

Glide Wood Grain Effect Finish Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Walnut (DL85)

GWALNCHA2

GWALNCHA3

GWALNCHA4

GWALNCHA5

Glide Wood Grain Effect Finish Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Beech (DL76)

GBEECCHA2

GBEECCHA3

GBEECCHA4

GBEECCHA5

Glide Wood Grain Effect Finish Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Oak (DL84)

GOAKCHA2

GOAKCHA3

GOAKCHA4

GOAKCHA5

Popular Model Codes & Options

SUMMARY : Popular Model Codes & Options

Model Code

Option Code

Option Code

Option Code

(Wall Sited) Glide Ceran Top Hot Cupboard
(& S/Steel Drop Down Solid Tray Slide)

GWSHP2
GWSHP3
GWSHP4
GWSHP5

GSTS2
GSTS3
GSTS4
GSTS5

GSTS2
GSTS3
GSTS4
GSTS5

(Wall Sited) Glide Ceran Top Hot Cupboard
(& S/Steel Drop Down Tubular Tray Rail)

GWSHP2
GWSHP3
GWSHP4
GWSHP5

GTTS2
GTTS3
GTTS4
GTTS5

YYYY

(Wall Sited) Glide Ceran Top Hot Cupboard
(& Wall Sited Heated Gantry)

GWSHP2
GWSHP3
GWSHP4
GWSHP5

GWSHG2
GWSHG3
GWSHG4
GWSHG5

(Wall Sited) Glide Ceran Top Hot Cupboard
(& Wall Sited Heated Gantry/ Sit-On Spiked Carvery Pad)

GWSHP2
GWSHP3
GWSHP4
GWSHP5

GWSHG2
GWSHG3
GWSHG4
GWSHG5

GCP1AL
GCP1AL
GCP1AL
GCP1AL

(Wall Sited) Glide Ceran Top Hot Cupboard
(& Wall Sited Heated Gantry/ Drop Down Solid Tray Slide)

GWSHP2
GWSHP3
GWSHP4
GWSHP5

GWSHG2
GWSHG3
GWSHG4
GWSHG5

GSTS2
GSTS3
GSTS4
GSTS5

(Wall Sited) Glide Ceran Top Hot Cupboard
(& Colour Finish – Green)

GWSHP2
GWSHP3
GWSHP4
GWSHP5

GGRENCHA2
GGRENCHA3
GGRENCHA4
GGRENCHA5

(Wall Sited) Glide Ceran Top Hot Cupboard
(& Wall Sited Heated Gantry/ Drop Down Tubular Tray Rail)

GWSHP2
GWSHP3
GWSHP4
GWSHP5

GWSHG2
GWSHG3
GWSHG4
GWSHG5

GTTS2
GTTS3
GTTS4
GTTS5

(Wall Sited) Glide Ceran Top Hot Cupboard
(& Wall Sited Heated Gantry/ Drop Down Tubular Tray Rail/ Colour Finish-Red)

GWSHP2
GWSHP3
GWSHP4
GWSHP5

GWSHG2
GWSHG3
GWSHG4
GWSHG5

GTTS2
GTTS3
GTTS4
GTTS5

GPREDCHA2
GPREDCHA3
GPREDCHA4
GPREDCHA5



Options

(Wall Sited) Glide Ceran Top Hot Cupboard.
Options.



Glide S/Steel Folding Solid Tray Slide.
(Option Codes GSTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type, up position adds 302mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.



Glide S/Steel Folding Tubular Tray Rail.
(Option Codes GTTS2-5) Glide option: 2-1 Gn to 5-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube, drop down bracket type, up position adds 298 mm to depth, down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Low Height Model ( Glide Junior) – 850mm.
(Option Code G850H) Glide junior option: (all cold, hot, ambient, till & corner units) 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model ( Glide Junior) – 800mm.
(Option Code G800H) Glide junior option: (all cold, hot, ambient, till & corner units) 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). * Bespoke Option/ Extended Lead Time *



(Wall Sited) Glide Heated Gantry Options.

*When Gantry option is added to model, the control panel with thermostat/ power isolation is replaced with a control panel featuring thermostat & illuminated rocker switch/power isolation*





(Wall Sited) Glide Heated Gantry.
(Option Codes GWSHG2 – GWSHG5) Glide option: 2-1 Gn to 5-1 Gn, heated gantry, s/steel, single curved glass sneeze screen, self help use, + 397(h) above worktop, reinforced worktop for heat, fitted with 200w quartz infra-red jacketed safety lamps.
*For use above the ceramic glass heated worktop i.e. flat bottomed food container storage*



Sit-On Spiked Carving Adaptor
(Option Code GCP1AL) 8 spiked carving lid & 1-1 Gn juice collection tray under. S/steel surround frame with rubber feet.
Unit sits on front/ back edges of wktop frame.*

*For use with Hot Gantry option Only.









Glide Colour Finish To Rear & Side Panels (Hot Cupboard Base).

Blue Finish. (Option Codes GBLUECHA2 – GBLUECHA5). Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in leathergrain plastisol steel, colour ocean blue (BS 18C37).  Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.

S/steel Finish. (Option Code GSSTLCHA2 – GSSTLCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in satin s/steel 430 gd. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.

Light Grey Finish. (Option Codes GGREYCHA2 – GGREYCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in leathergrain plastisol steel, colour goosewing light grey (BS 10A05). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.

Forest Green Finish. (Option Codes GGRENCHA2 – GGRENCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in leathergrain plastisol steel, colour forest green/heritage (RAL 6002). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.



Poppy Red Finish. (Option Codes GPREDCHA2 – GPREDCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in leathergrain plastisol steel, colour poppy red (BS 04E5B). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.

Cream Finish. (Option Codes GCREMCHA2 – GCREMCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.

White Finish. (Option Codes GWHITCHA2 – GWHITCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in leathergrain plastisol steel, colour white (BS 00E55). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.

Black Finish. (Option Codes GBLAKCHA2 – GBLAKCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in leathergrain plastisol steel, colour black (BS 00E53). Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.

Beech Woodgrain Finish. (Option Codes GBEECCHA2 – GBEECCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in wood grain effect, DL76 beech finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.



Walnut Woodgrain Finish. (Option Codes GWALNCHA2 – GWALNCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in wood grain effect panel, DL85 walnut finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.

Oak Woodgrain Finish. (Option Codes GOAKCHA2 – GOAKCHA5) Glide option: wall sited 2-1 Gn to 5-1 Gn size, rear & side panels in wood grain effect panel, DL84 oak finish. Panels lift off for ease of replacement or electrical service access (Electrical service is via the end panel adjacent the operator control panel & has an under-panel mechanical screw fix). Front sliding cupbd. doors/ valance finished in s/steel.



Options                                                                                     Option Code

Model Code

GWSHP2

GWSHP3

GWSHP4

GWSHP5

Glide S/Steel Drop Down Tubular Tray Rail

GTTS2

GTTS3

GTTS4

GTTS5

Glide S/Steel Drop Down Solid Tray Slide

GSTS2

GSTS3

GSTS4

GSTS5

Glide 850mm High Model

G850H

G850H

G850H

G850H

Glide 800mm High Model*
*Extended Lead Time*

G800H

G800H

G800H

G800H

(Wall Sited) Glide Heated Gantry. Self Help Curved Glass, End Glass, 200w quartz infra-red jacketed safety lamps, 397mm (h)
*For use above the ceramic glass heated worktop i.e. flat bottomed food container storage*

GWSHG2

GWSHG3

GWSHG4

GWSHG5

Sit-On Spiked Carving Adaptor
8 spiked carving lid & 1-1 Gn juice collection tray under. S/steel surround frame with rubber feet.
Unit sits on front/ back edges of wktop frame.
(For use with Hot Gantry option Only).

GCP1AL

GCP1AL

GCP1AL

GCP1AL

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Ocean Blue (BS 18C37)

GBLUECHA2

GBLUECHA3

GBLUECHA4

GBLUECHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
S/Steel (430 gd)

GSSTLCHA2

GSSTLCHA3

GSSTLCHA4

GSSTLCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Goosewing Light Grey (BS 10A05)

GGREYCHA2

GGREYCHA3

GGREYCHA4

GGREYCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Forest Green (RAL 6002)

GGRENCHA2

GGRENCHA3

GGRENCHA4

GGRENCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Poppy Red (BS 04E5B)

GPREDCHA2

GPREDCHA3

GPREDCHA4

GPREDCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Buttermilk Cream (BS 10C31)

GCREMCHA2

GCREMCHA3

GCREMCHA4

GCREMCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
White (BS 00E55)

GWHITCHA2

GWHITCHA3

GWHITCHA4

GWHITCHA5

Glide Colour Finish To Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Black (BS 00E53)

GBLAKCHA2

GBLAKCHA3

GBLAKCHA4

GBLAKCHA5

Glide Wood Grain Effect Finish Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Walnut (DL85)

GWALNCHA2

GWALNCHA3

GWALNCHA4

GWALNCHA5

Glide Wood Grain Effect Finish Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Beech (DL76)

GBEECCHA2

GBEECCHA3

GBEECCHA4

GBEECCHA5



Glide Wood Grain Effect Finish Base Cupboard (Rear Cupboard & Side Panels) Sliding Front Doors in S/Steel.
Oak (DL84)

GOAKCHA2

GOAKCHA3

GOAKCHA4

GOAKCHA5



Popular Model Codes & Options.

(Wall Sited) Glide Ceran Top Hot Cupboard (& Solid Tray Slide)
Model Code   Option Code
GWSHP2     GSTS2
GWSHP3     GSTS3
GWSHP4     GSTS4
GWSHP5     GSTS5



(Wall Sited) Glide Ceran Top Hot Cupboard (& Tubular Tray Rail)
Model Code   Option Code
GWSHP2     GTTS2
GWSHP3     GTTS3
GWSHP4     GTTS4
GWSHP5     GTTS5





(Wall Sited) Glide Ceran Top Hot Cupboard (& Heated Gantry)
Model Code    Option Code
GWSHP2      GWSHG2
GWSHP3      GWSHG3
GWSHP4      GWSHG4
GWSHP5      GWSHG5





(Wall Sited) Glide Ceran Top Hot Cupboard (& Heated Gantry/Sit-On Carving Adaptor)
Model Code    Option Codes
GWSHP2        GWSHG2    GCP1AL
GWSHP3        GWSHG3    GCP1AL
GWSHP4        GWSHG4    GCP1AL
GWSHP5        GWSHG5    GCP1AL







(Wall Sited) Glide Ceran Top Hot Cupboard (& Heated Gantry/Drop Down S/Steel Solid Tray Slide)
Model Code     Option Codes
GWSHCP2        GWSHG2        GSTS2
GWSHCP3        GWSHG3        GSTS3
GWSHCP4        GWSHG4        GSTS4
GWSHCP5        GWSHG5        GSTS5





(Wall Sited) Glide Ceran Top Hot Cupboard (& Colour Finish – Green)
Model Code    Option Code
GWSHP2         GGRENCHA2
GWSHP3         GGRENCHA3
GWSHP4         GGRENCHA4
GWSHP5         GGRENCHA5



(Wall Sited) Glide Ceran Top Hot Cupboard (& Heated Gantry/Drop Down Tubular Tray Rail)
Model Code  Option Codes
GWSHP2       GWSHG2    GTTS2
GWSHP3       GWSHG3    GTTS3
GWSHP4       GWSHG4    GTTS4
GWSHP5       GWSHG5    GTTS5





(Wall Sited) Glide Ceran Top Hot Cupboard (& Heated Gantry) (& Tray Rail/ Colour Finish – Red)
Model           Option         Option     Option
GWSHP2     GWSHG2    GTTS2     GPREDCHA2
GWSHP3     GWSHG3    GTTS3     GPREDCHA3
GWSHP4     GWSHG4    GTTS4     GPREDCHA4
GWSHP5     GWSHG5    GTTS5     GPREDCHA5



Downloads

General Layout Drawings

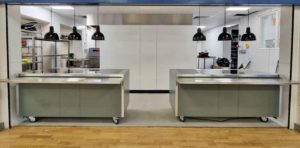

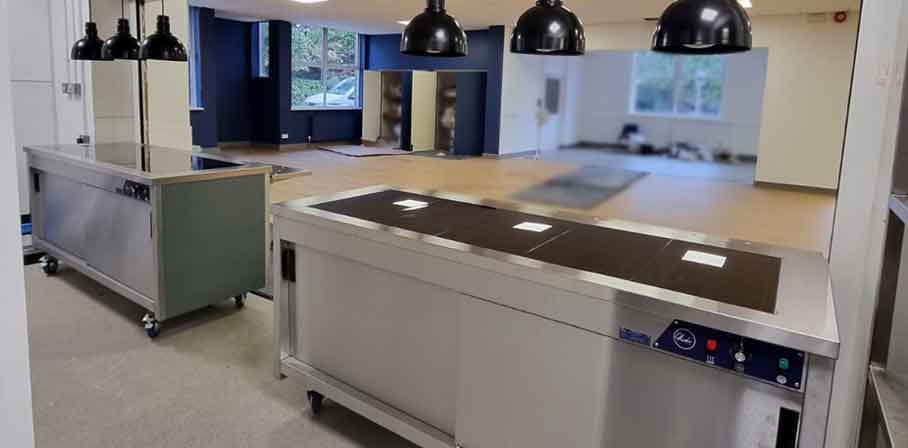

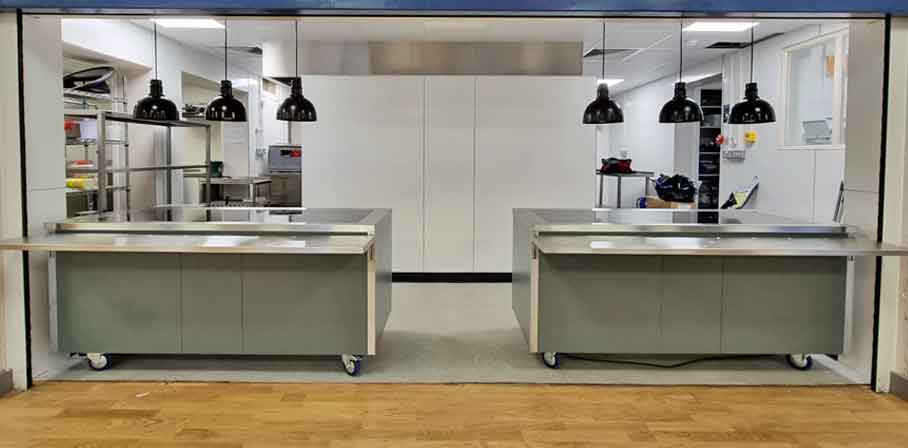

(Wall Sited) Glide Ceran Top Hot Cupboard.





Specification Sheet, Base Panel Colour Options, User Manual.
(Wall Sited) Glide Ceran Top Hot Cupboard.





Model GHP3 + GHG3 + GTTS3
