The twin heated plate dispenser forms part of the Glide range of mobile dining carts – a choice of cold, hot & ambient commercial catering carts that combine to form a food servery counter solution as unique as your requirements !

Glide Twin Heated Plate Dispenser.
The dispenser has two spring loaded, self levelling plate storage sections within a s/steel worktop. Each plate storage section is supplied with a stackable polycarbonate lid, for use during the plate heating process – to retain heat within the dispenser.

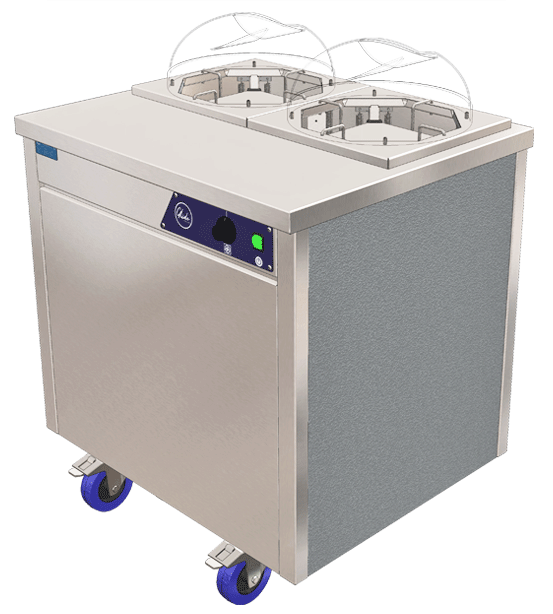

The dispenser has a simple control panel to operator side and is supplied with a 3m lead and a 13A UK plug top (0.75 Kw). The dispenser heats plates by use of a thermostat knob & fan assisted heating, which controls the internal air at a max. temp. of 85 degrees C. A neon power on/off switch is also fitted.

Simple Use & Set Up. Each spring loaded dispenser section is adjusted by lifting the four plate guide rods inwards/ outwards, to enable the storage of various diameter plates, between 8”-12” (205mm-305mm) with a total capacity of 88 -106 plates, depending on type. The springs keep the plates below rising to the top of the dispenser, as top plates are removed. Each dispenser can be easily removed to facilitate spring removal for smaller and lighter weight plates.

Standard Finishes. The customer front /side base panels are in leathergrain plastisol steel, colour merlin grey (BS 18B25). The operator rear panel is in s/steel and the worktop is 304 gd. s/steel & other external surfaces are in 430 gd. s/steel. The plate dispenser base has lockable, non-marking rubber tyre castors fitted.

Versatile Positioning.
The dispenser can suite with other Glide dining carts in the counter run, or be used as freestanding. The plate sections are positioned forwards in the top to allow the rest of the worktop to be used for additional plate or cutlery storage behind. The heated plate dispenser can be customised with accessories such as tray slides, tray rails, colour finishes and low height versions for junior/ primary age use.

A wall sited version of the ambient plate dispenser is also available, for alcoves or recesses, c/w front facing steel base panel, if used with other wall sited Glide models with hot cupbd. bases. (See separate model GWSHPD2).

Height Options. Low Height Model (Glide Junior) – in 850mm or 800mm high options for junior/ primary use.

Accessories & Finishes.

Folding Steel Solid or Tubular Tray Slides Tray slides add 40mm to unit depth and are set at the worktop height – 55mm.Colour Finishes To Front/ Side Panels – 11 alternative choices of durable steel, colour & wood effect finishes for plate dispenser front/ side panels, to compliment other selected models in the servery colour scheme.

Visual

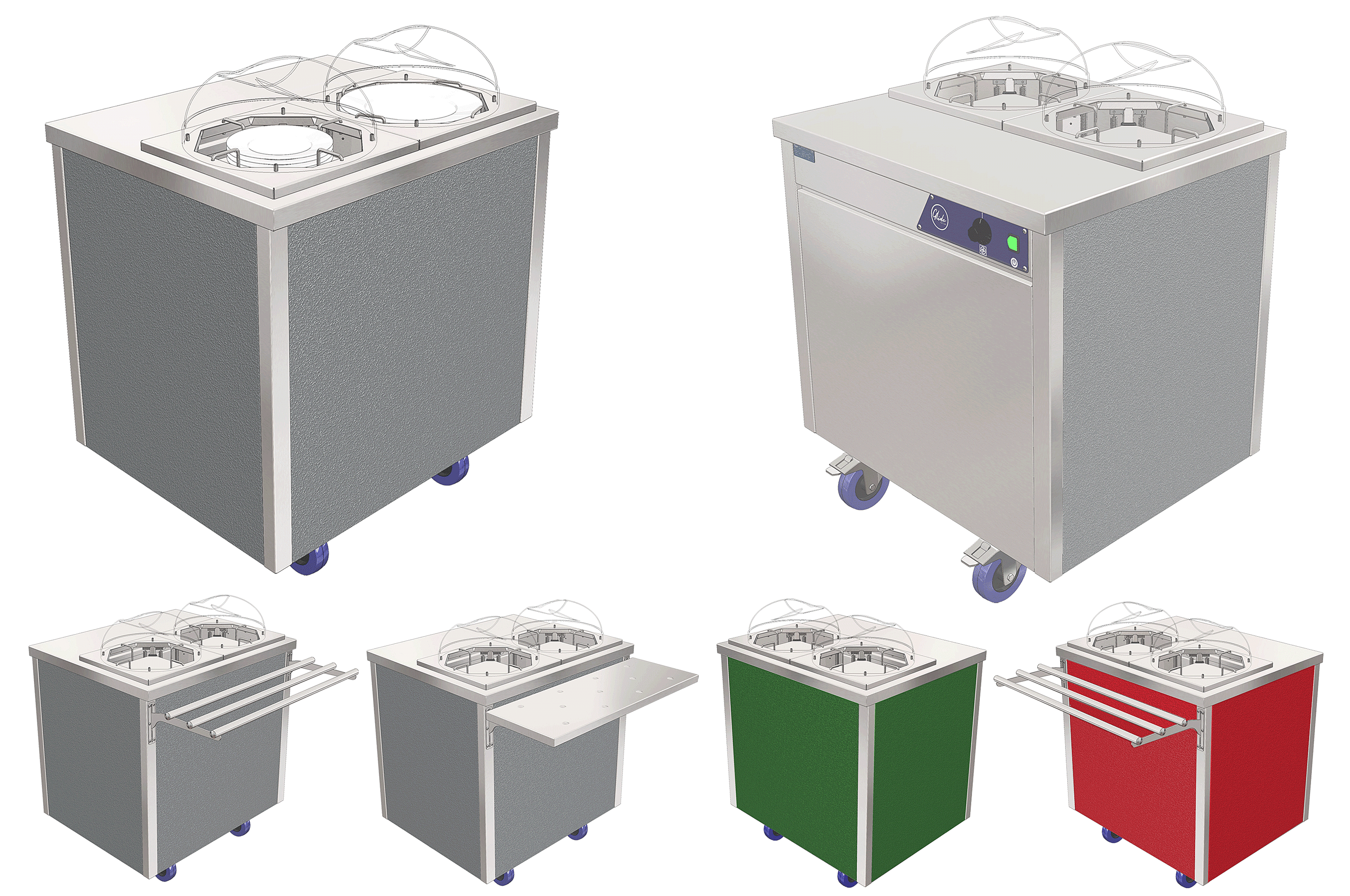

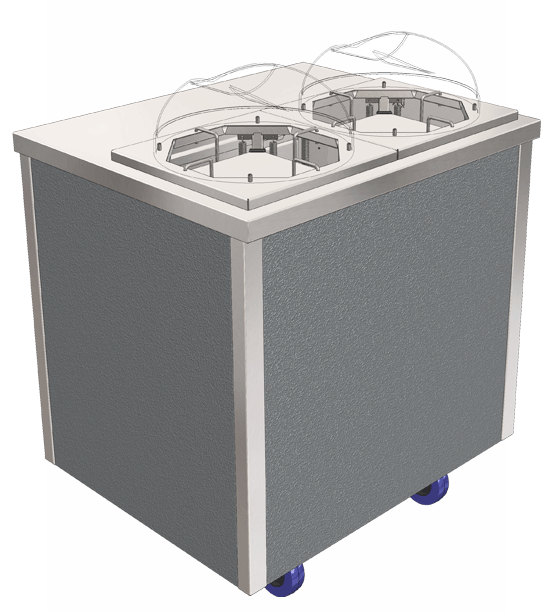

Glide Twin Heated Plate Dispenser.
Visual



Features

Glide Twin Heated Plate Dispenser.
Features

  • Glide mobile dining cart, heated twin plate dispenser trolley.
  • Free standing application.
  • Model Code GHPD2.
  • Spring loaded, self levelling.
  • Each plate dispenser section supplied with a stackable polycarbonate lid, for use during the plate heating process.
  • Fan assisted heating & thermostat which controls internal air at a max. temp. of 85 degrees C.
  • Adjustable to suit 205-305mm (diam.) 8-12″ plates.
  • Unit size 825 mm (l) x 700 mm (d) x 900 mm (h) – 2/1 Gn size.
  • Total capacity 88 -106 plates, depending on plate type.

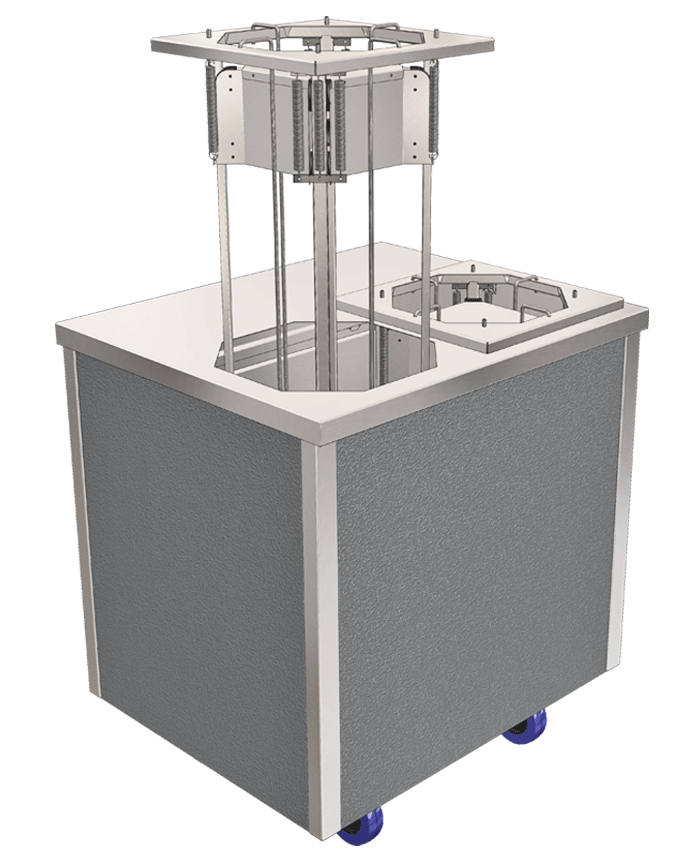

  • Removable plate dispenser sections for weight (spring) adjustment.
  • Front/ side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Worktop in 304 gd steel, all other external steel surfaces (operator side rear base panel/ corner trims etc.) in 430gd.
  • Plate dispenser sections are positioned forwards in the worktop to allow the rest of the worktop to be used for additional storage (lids etc.)
  • Fitted with lockable non-marking rubber tyre castors.
  • Unit weight 55kg.
  • Total power 1.4kW 13A 230v.
  • Fitted with 3m lead & plug top.
  • Neon power on/off switch fitted.
  • Wall sited version (Model GWSHPD2) for alcoves, recesses or within a wall sited counter run.

Options

  • Optional folding s/steel solid tray slide available (option code GSTS2).
  • Optional folding s/steel tubular tray rail Ø25 tube, available (option code GTTS2).
  • Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm).
  • Optional choice of 11 solid colour & woodgrain base outer side panel finishes available.
  • Optional low height model 850mm (h) available.
  • Optional low height model 800mm (h) available.*
  • 800mm (h) = bespoke option with extended lead time*.

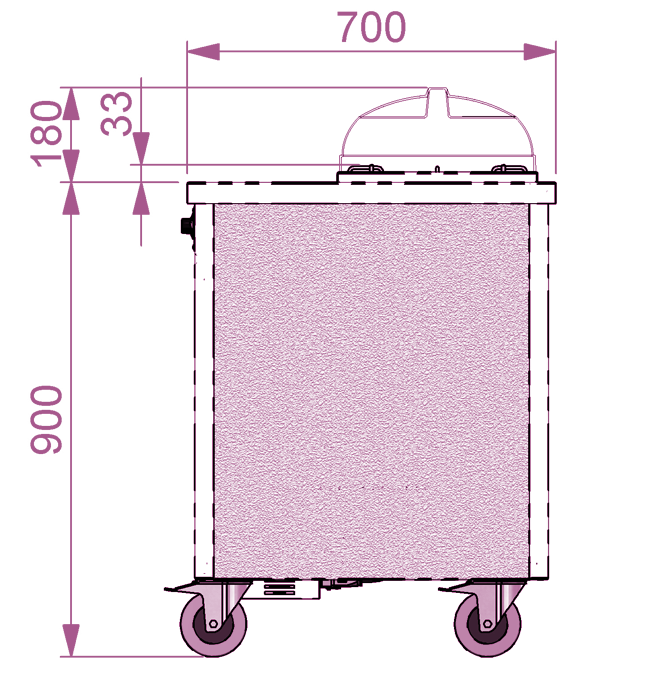

Dimensions

Glide Twin Heated Plate Dispenser.
Dimensions

  • Model Code GHPD2.
  • Glide mobile dining cart, heated twin plate dispenser trolley.
  • 2/1 Gn size.
  • Model dimensions: 825 mm (l) x 700 mm (d) x 900 mm (h).
  • Model weight 55 kg.
  • Each plate dispenser section supplied with a stackable polycarbonate lid, for use during the plate heating process.
  • Fan assisted heating & thermostat which controls internal air at a max. temp. of 85 degrees C.
  • Spring loaded, self levelling dispensers.
  • Dispensers adjustable to suit 205-305mm (diam.) 8-12″ plates.
  • Unit size 825 mm (l) x 700 mm (d) x 900 mm (h) – 2/1 Gn size.
  • Total capacity 88 -106 plates, depending on plate type.
  • Front/ side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Worktop in 304 gd steel, all other external steel surfaces (operator side rear base panel/ corner trims etc.) in 430gd.

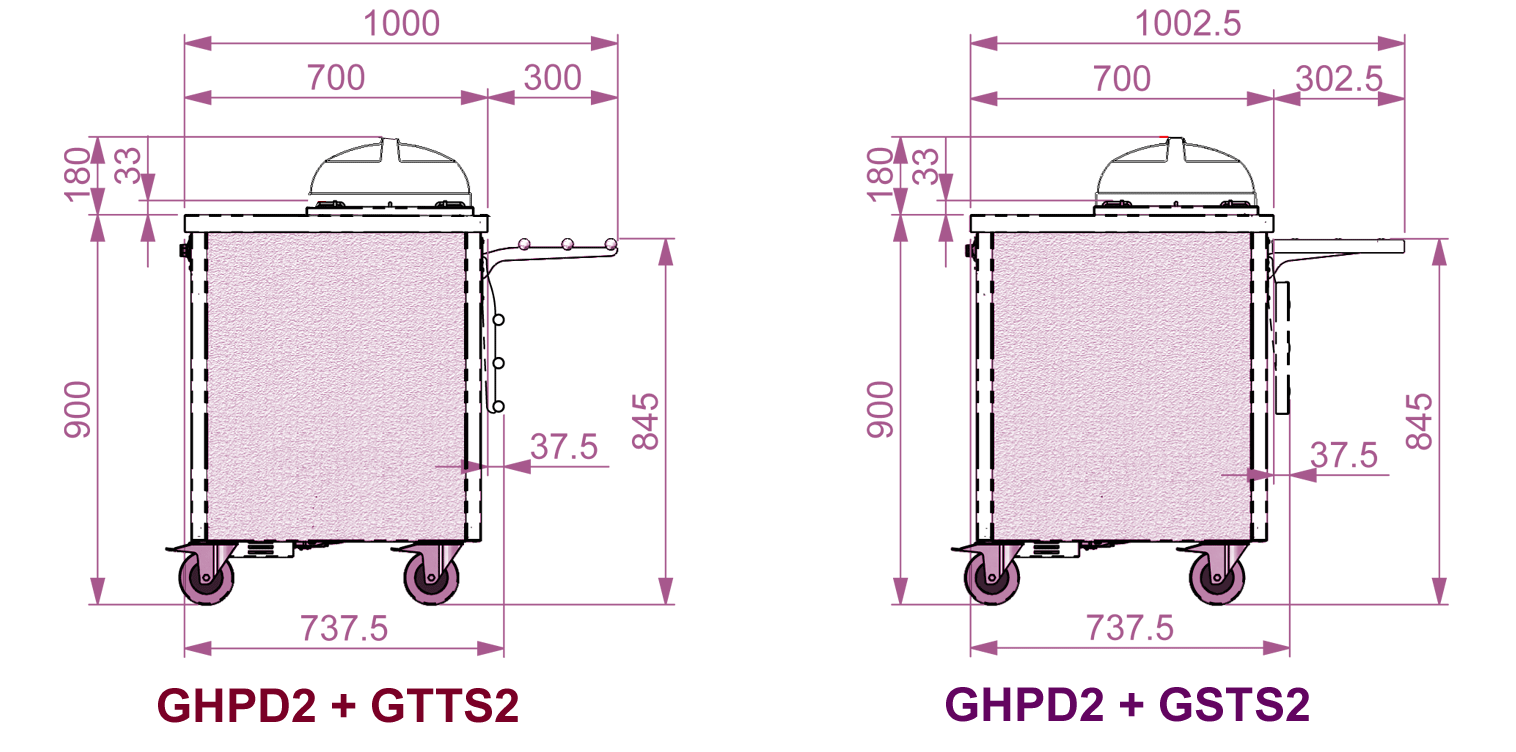

  • Model depth with optional folding tray slide/tray rail fitted: tray slide up = 1000mm (d)/ tray slide down = 740mm (d).
  • Optional tray slide height: for standard 900 mm (h) worktop = 845 mm, low height 850 mm model = 795mm (h), low height 800 mm model = 745mm (h).
  • Supplied With Lockable Castors With Non-Marking Rubber Tyres.
  • 1.4kW 13A 230v total power.
  • Fitted with 3m lead & plug top.

* Control panel to operator side features thermostat control & illuminated rocker switch for power on/off – max air temp. 85° C.


Options : Glide Twin Heated Plate Dispenser (Model GHPD2)

Option

Code

Option

Code

 Option

Code

Solid
S/steel
Tray Slide
(Folding)

GSTS2

Tubular
S/steel Tray
Rail
(Folding)

GTTS2

Low Height
Model
850mm (h)

G850H

Low Height
Model
800mm (h)

G800H

Satin S/steel
Front & Side Panels
(430gd.)

GSSTLCHA2

Colour Front & Side Panels
Ocean Blue
(BS18C37)

GBLUECHA2

Colour Front & Side Panels
Light Grey
(BS10A05)

GGREYCHA2

Colour Front & Side Panels
Forest Green
(RAL6002)

GGRENCHA2

Colour Front & Side Panels
Poppy Red
(BS04E5B)

GPREDCHA2

Colour Front & Side Panels
Cream
(BS10c31)

GCREMCHA2

Colour Front & Side Panels
White
(BS00E55)

GWHITCHA2

Colour Front & Side Panels
Black
(BS00E53)

GBLAKCHA2

Woodgrain Front & Side Panels
Walnut
(DL85)

GWALNCHA2

Woodgrain Front & Side Panels
Beech
(DL76)

GBEECCHA2

Woodgrain Front & Side Panels
Oak
(DL84)

GOAKCHA2





Popular Model Codes & Options

Model

Model Code

Option Code

Option Code



Glide Twin Heated Plate Dispenser
(& Solid Tray Slide)

GHPD2

GSTS2

YYYYX

Glide Twin Heated Plate Dispenser
(& Tubular Tray Rail)

GHPD2

GTTS2

YYYY

Glide Twin Heated Plate Dispenser
(& Colour Finish Ends – Red)

GHPD2

GPREDCHA2

YYYY

Glide Twin Heated Plate Dispenser
(& Tubular Tray Rail & Colour Finish Ends – Red)

GHPD2

GTTS2

GPREDCHA2



Glide Twin Heated Plate Dispenser
(& Solid Tray Slide & Colour Finish Ends – Red)

GHPD2

GSTS2

GPREDCHA2



Glide Twin Heated Plate Dispenser

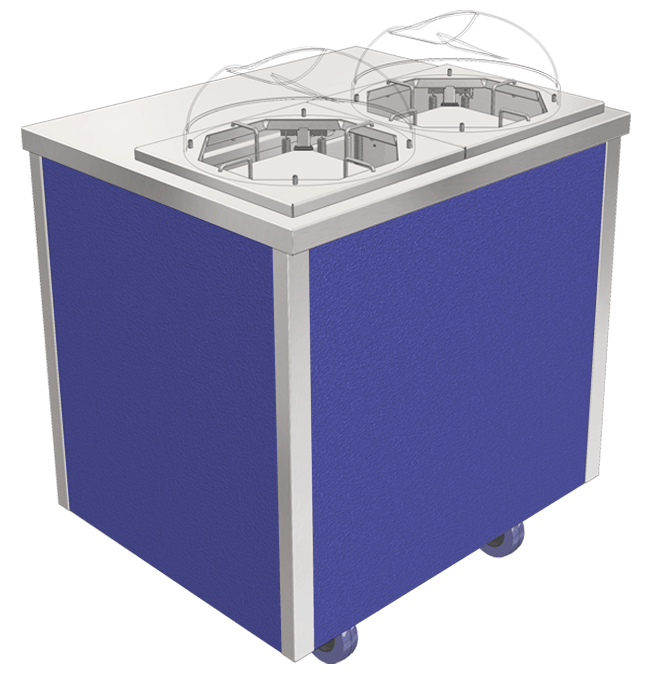

(& Colour Finish Ends – Blue)

GHPD2

GBLUECHA2

YYYY



Options

Glide Twin Heated Plate Dispenser.
Options.

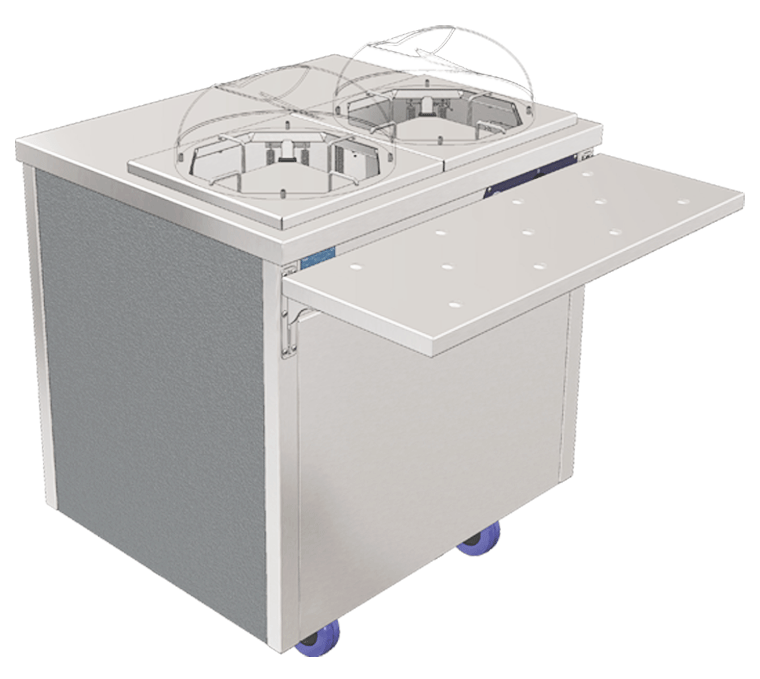

Glide S/Steel Folding Solid Tray Slide.
(GSTS2) Glide option: 2-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type.
Up position adds 302mm to depth. Down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Glide S/Steel Folding Tubular Tray Rail.
(GTTS2) Glide option: 2-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube. Drop down bracket type.
Up position adds 298 mm to depth. Down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

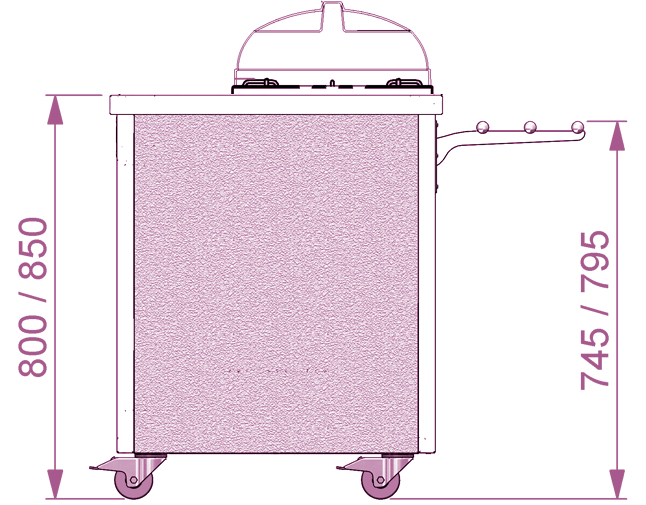

Low Low Height Model ( Glide Junior) – 850mm.
(G850H) Glide junior option: (all cold, hot, ambient, till & corner units) 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model ( Glide Junior) – 800mm.
(G800H) Glide junior option: (all cold, hot, ambient, till & corner units) 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). * Bespoke Option/ Extended Lead Time *

Glide Colour Finishes To Front/ Side Panels.

Blue Finish. (Option Code GBLUECHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour ocean blue (BS 18C37) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

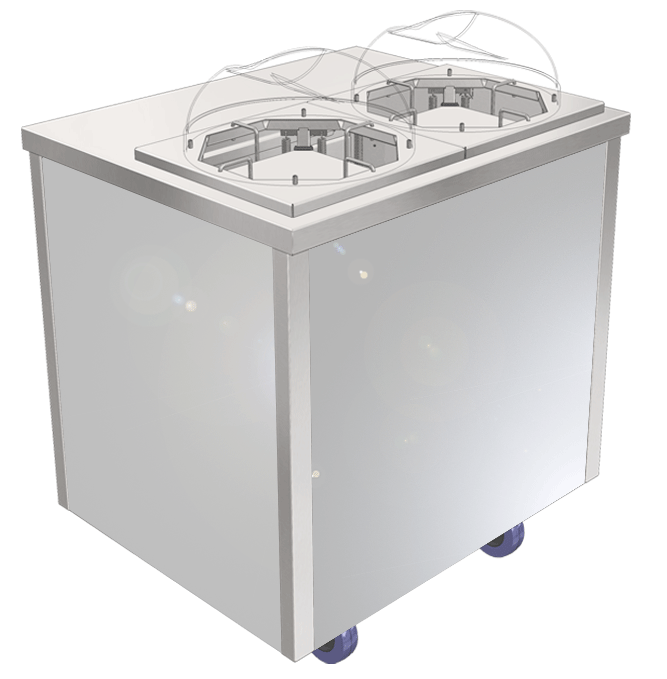

S/steel Finish. (Option Code GSSTLCHA2) 2-1 Gn set of outer side panels in satin s/steel 430 gd. to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

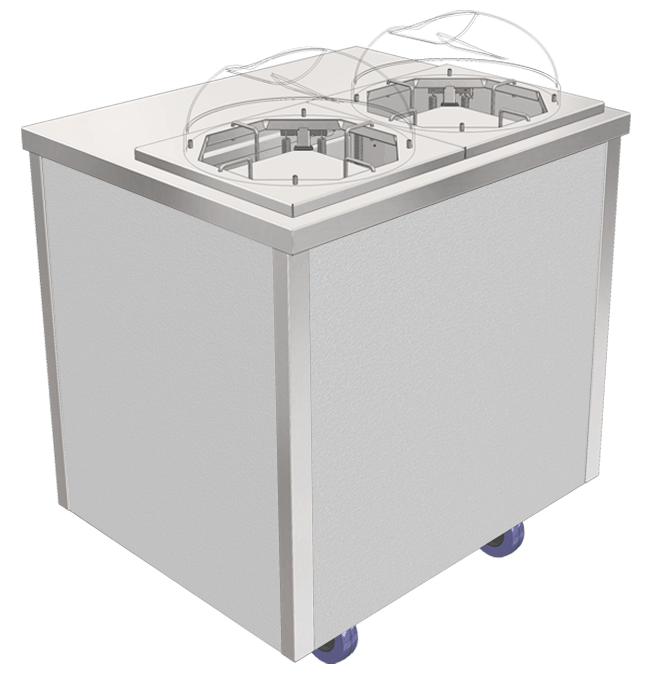

Light Grey Finish. (Option Code GGREYCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour goosewing light grey (BS 10A05) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Forest Green Finish. (Option Code GGRENCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour forest green/heritage (RAL 6002) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Poppy Red Finish. (Option Code GPREDCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour poppy red (BS 04E5B) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

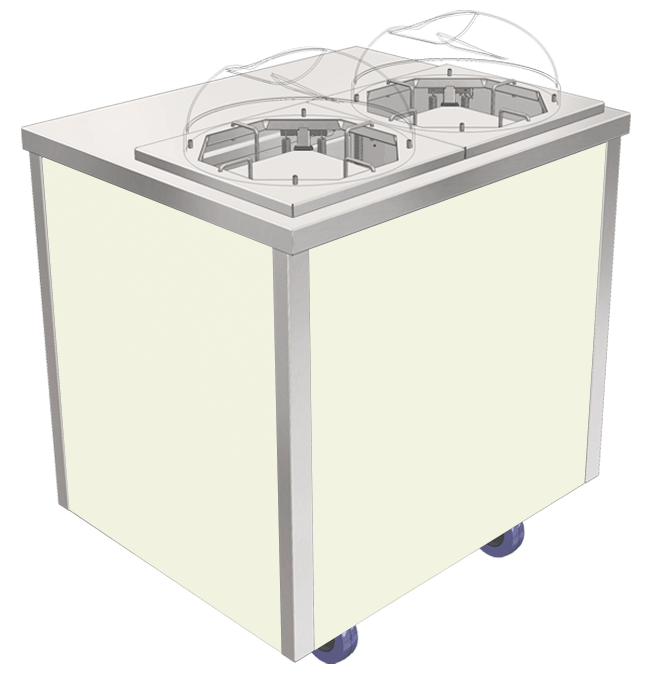

Cream Finish. (Option Code GCREMCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

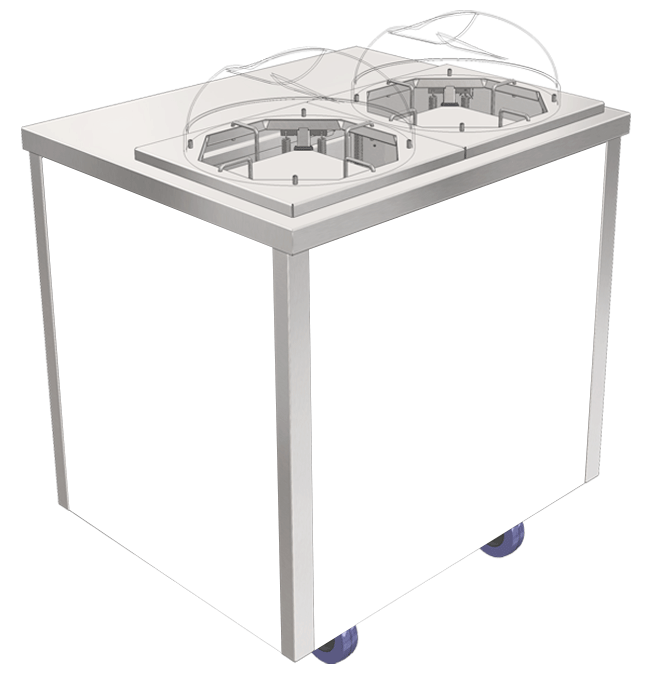

White Finish. (Option Code GWHITCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour white (BS 00E55)  to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

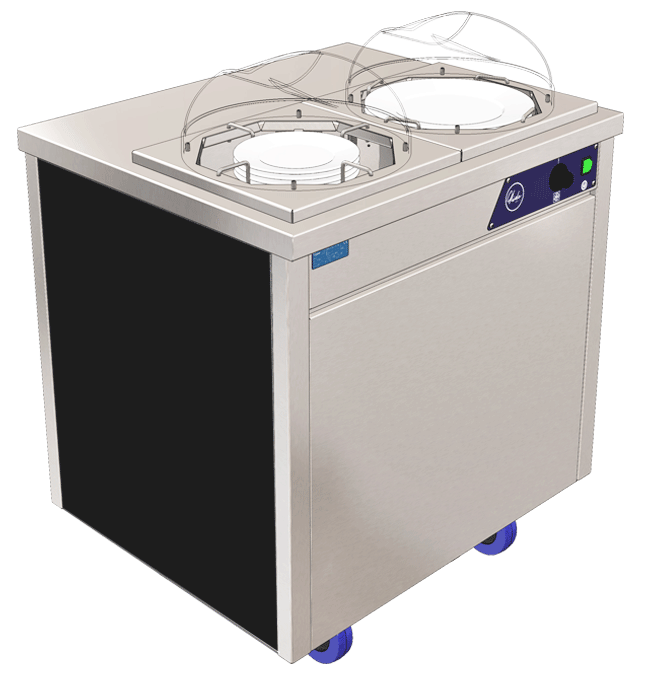

Black Finish. (Option Code GBLAKCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour black (BS 00E53) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

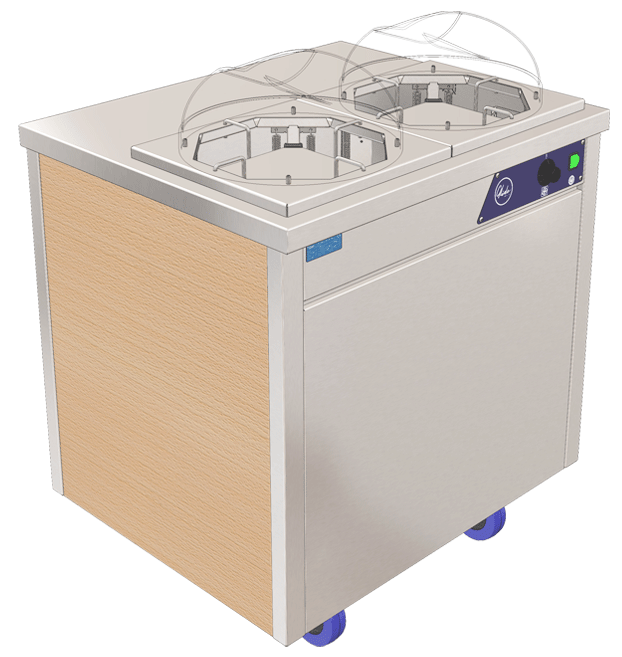

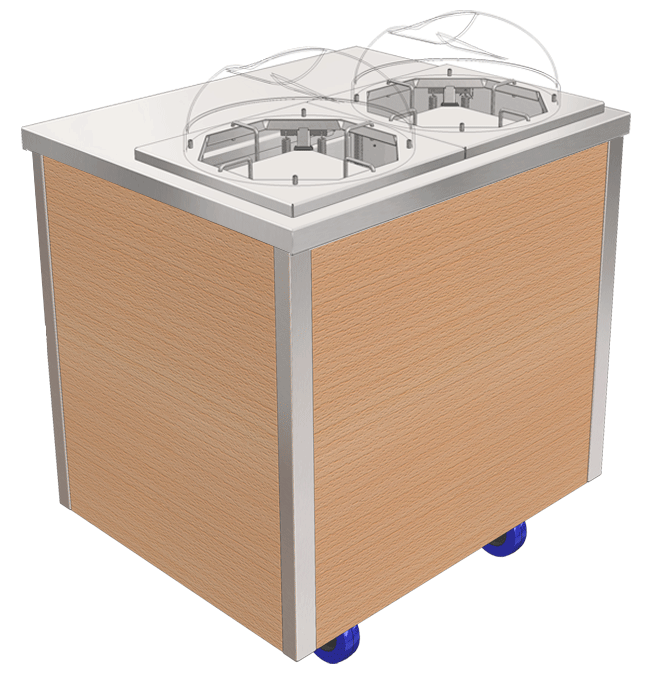

Beech Woodgrain Finish. (Option Code GBEECCHA2) 2-1 Gn set of outer side panels in wood grain effect DL76 beech finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

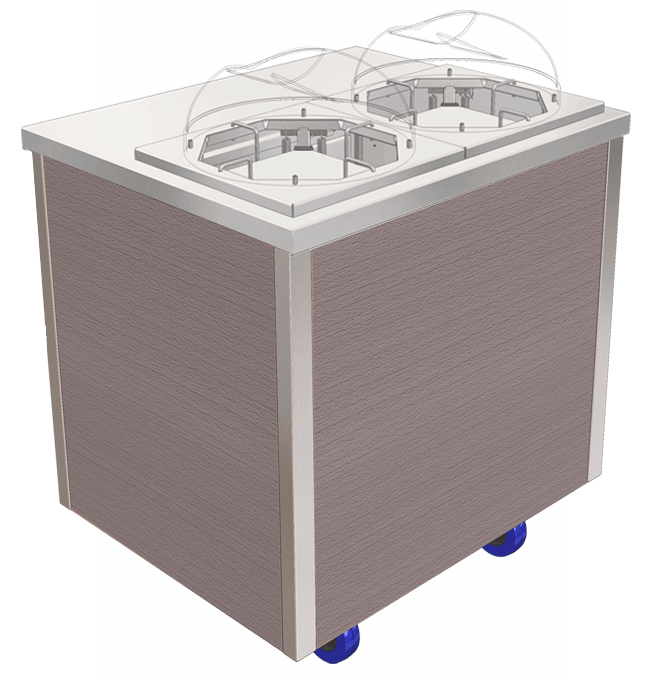

Walnut Woodgrain Finish. (Option Code GWALNCHA2) 2-1 Gn set of outer side panels in wood grain effect panel DL85 walnut finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

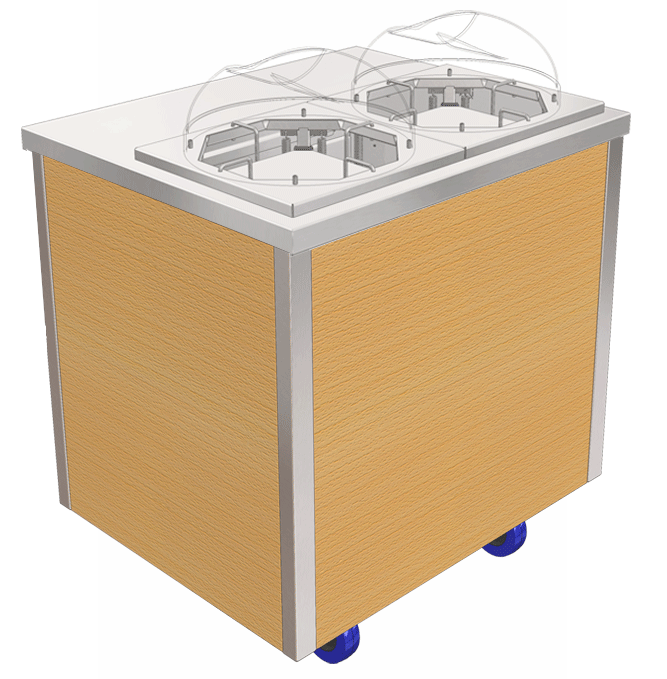

Oak Woodgrain Finish. (Option Code GOAKCHA2)  2-1 Gn set of outer side panels in wood grain effect DL84 oak finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.





Options : Glide Twin Heated Plate Dispenser (Model GHPD2)

Option

Code

Option

Code

 Option

Code

Solid
S/steel
Tray Slide
(Folding)

GSTS2

Tubular
S/steel Tray
Rail
(Folding)

GTTS2

Low Height
Model
850mm (h)

G850H

Low Height
Model
800mm (h)

G800H

Satin S/steel
Front & Side Panels
(430gd.)

GSSTLCHA2

Colour Front & Side Panels
Ocean Blue
(BS18C37)

GBLUECHA2

Colour Front & Side Panels
Light Grey
(BS10A05)

GGREYCHA2

Colour Front & Side Panels
Forest Green
(RAL6002)

GGRENCHA2

Colour Front & Side Panels
Poppy Red
(BS04E5B)

GPREDCHA2

Colour Front & Side Panels
Cream
(BS10c31)

GCREMCHA2

Colour Front & Side Panels
White
(BS00E55)

GWHITCHA2

Colour Front & Side Panels
Black
(BS00E53)

GBLAKCHA2

Woodgrain Front & Side Panels
Walnut
(DL85)

GWALNCHA2

Woodgrain Front & Side Panels
Beech
(DL76)

GBEECCHA2

Woodgrain Front & Side Panels
Oak
(DL84)

GOAKCHA2



Popular Model Codes & Options.

Glide Twin Heated Plate Dispenser
(& Tray Slide).

Model Code      Option Code
GHPD2              GSTS2







Glide Twin Heated Plate Dispenser
(& Tray Rail).

Model Code      Option Code
GHPD2              GTTS2





Glide Twin Heated Plate Dispenser
(& Colour Finish – Red).

Model Code      Option Code
GHPD2             GPREDCHA2







Glide Twin Heated Plate Dispenser
(& Tray Rail & Colour Finish – Red).

Model Code      Option Code    Option Code
GHPD2              GTTS2            GPREDCHA2







Glide Twin Heated Plate Dispenser

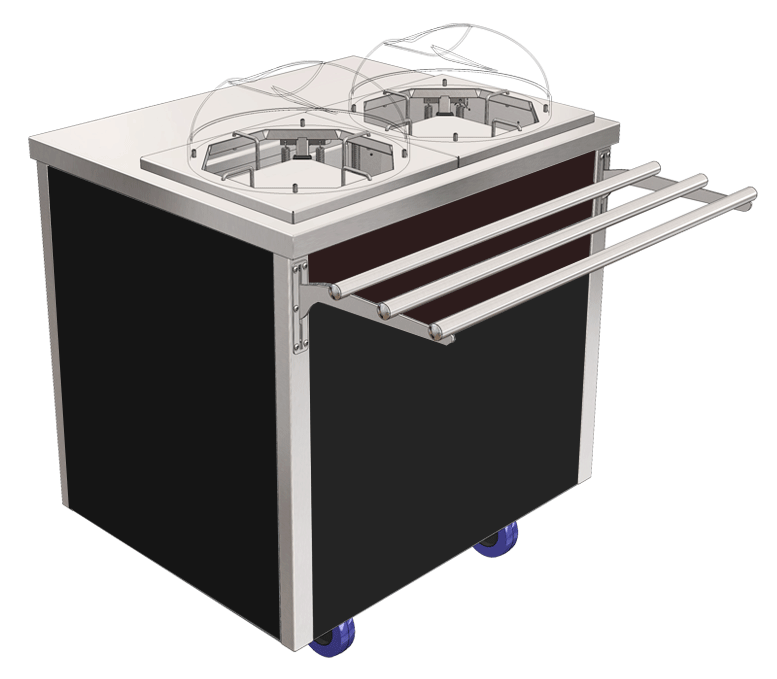

(& Tray Rail & Colour Finish – Black).

Model Code      Option Code     Option Code
GHPD2             GTTS2              GBLAKCHA2







Glide Twin Heated Plate Dispenser

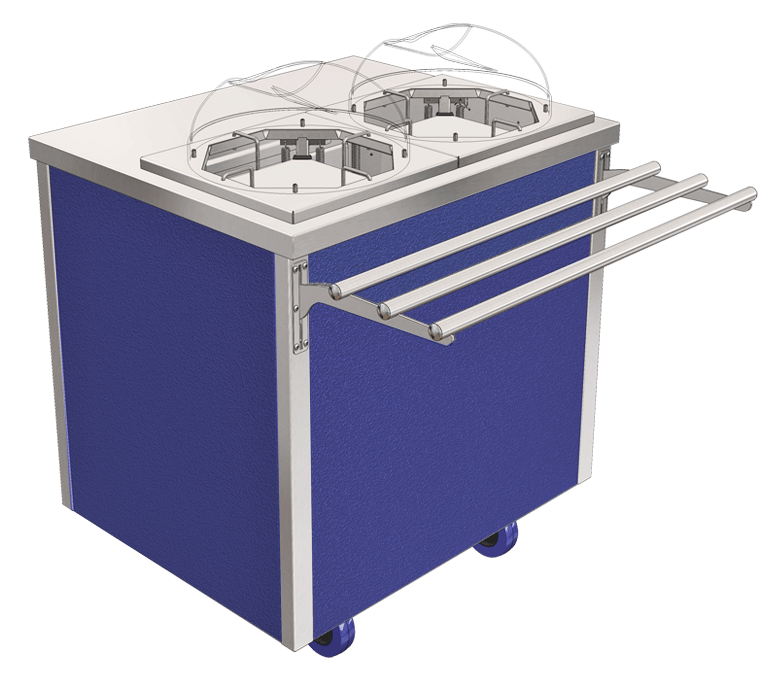

(& Tray Rail & Colour Finish – Blue).

Model Code      Option Code    Option Code
GHPD2              GTTS2            GBLUECHA2





Downloads

General Layout Drawings
Glide Twin Heated Plate Dispenser.







Specification Sheet, Base Panel Colour Options, User Manual.
Glide Twin Heated Plate Dispenser.




Visual

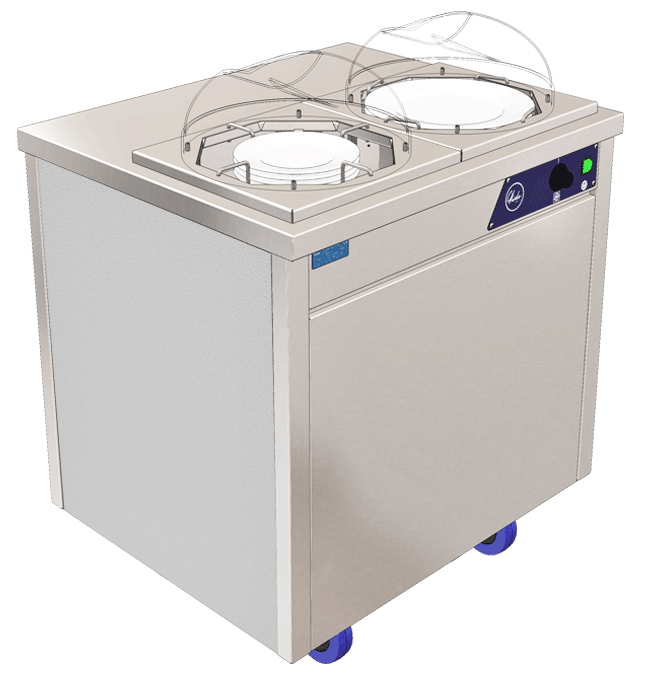

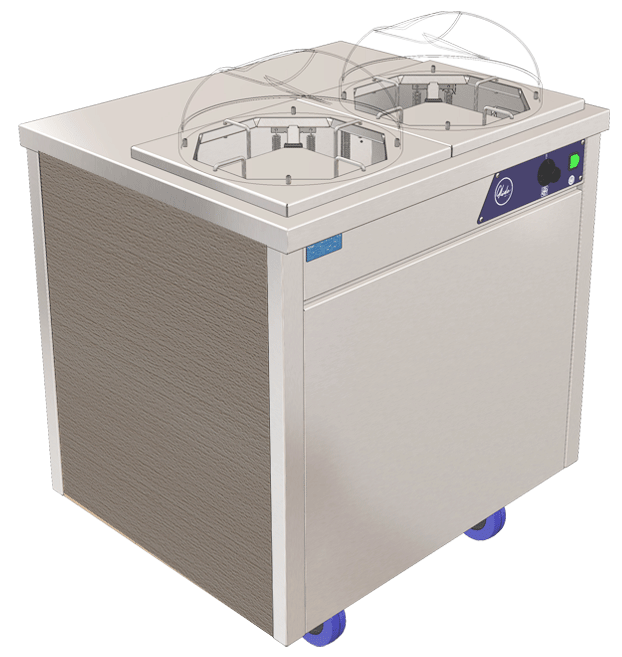

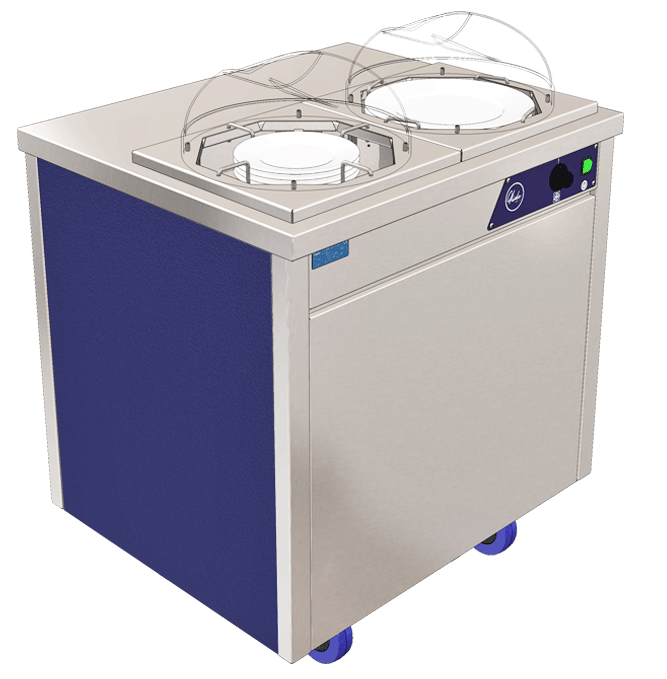

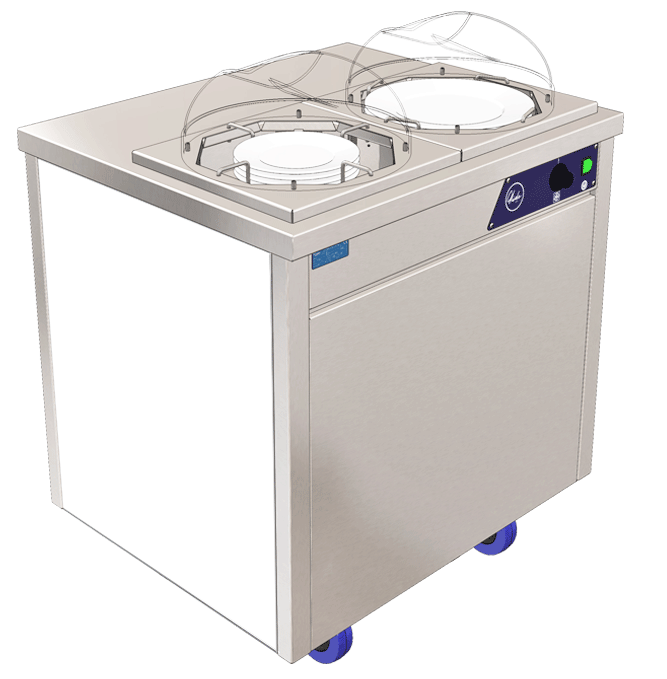

(Wall Sited) Glide Twin Heated Plate Dispenser.
Visual



Features

(Wall Sited) Glide Twin Heated Plate Dispenser.
Features

  • Glide mobile dining cart, heated twin plate dispenser trolley.
  • Wall sited application for use in alcoves, recesses or within a wall sited Glide counter run.
  • Model Code GWSHPD2.
  • Spring loaded, self levelling.
  • Each plate dispenser section supplied with a stackable polycarbonate lid, for use during the plate heating process.
  • Fan assisted heating & thermostat which controls internal air at a max. temp. of 85 degrees C.
  • Control panel to front side features thermostat & illuminated neon rocker switch for power on/off.
  • Adjustable to suit 205-305mm (diam.) 8-12″ plates.
  • Unit size 825 mm (l) x 700 mm (d) x 900 mm (h) – 2/1 Gn size.
  • Total capacity 88 -106 plates, depending on plate type.
  • Removable plate dispenser sections for weight (spring) adjustment.
  • Rear/ side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Worktop in 304 gd s/steel, all other external steel surfaces (customer side front base panel/ corner trims etc.) in 430gd s/steel.
  • Plate dispenser sections are positioned forwards in the worktop to allow the rest of the worktop to be used for additional storage (lids etc.)
  • Fitted with lockable non-marking rubber tyre castors.
  • Unit weight 55kg.
  • Total power 1.4kW 13A 230v.
  • Fitted with 3m lead & plug top.

Options

  • Optional folding s/steel solid tray slide available (option code GSTS2).
  • Optional folding s/steel tubular tray rail Ø25 tube, available (option code GTTS2).
  • Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm).
  • Optional choice of 11 solid colour & woodgrain base outer side panel finishes available.
  • Optional low height model 850mm (h) available.
  • Optional low height model 800mm (h) available.*
  • 800mm (h) = bespoke option with extended lead time*.

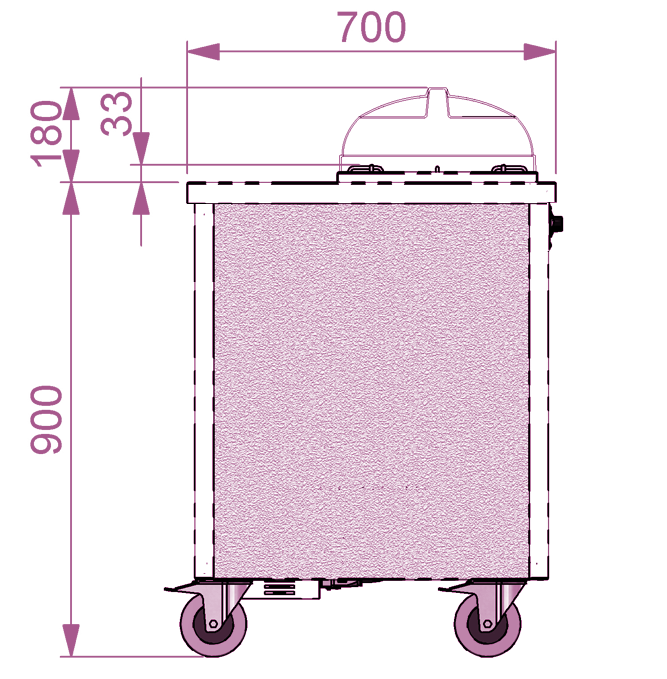

Dimensions

(Wall Sited) Glide Twin Heated Plate Dispenser.
Dimensions

  • Model Code GWSHPD2.
  • (Wall sited) Glide mobile dining cart, heated twin plate dispenser trolley.
  • 2/1 Gn size.
  • Model dimensions: 825 mm (l) x 700 mm (d) x 900 mm (h).
  • Model weight 54 kg.
  • Spring loaded, self levelling dispensers.
  • Each plate dispenser section supplied with a stackable polycarbonate lid.
  • Control panel to front side.
  • Model features fan assisted heating, thermostat control & illuminated neon rocker switch for power on/off – max air temp. 85° C.
  • Dispensers adjustable to suit 205-305mm (diam.) 8-12″ plates.
  • Unit size 825 mm (l) x 700 mm (d) x 900 mm (h) – 2/1 Gn size.
  • Total capacity 88 -106 plates, depending on plate type.
  • Customer side front panel in s/steel finish, to match other wall sited Glide units.
  • Rear & side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
  • Worktop in 304 gd steel, all other external steel surfaces (customer side front base panel/ corner trims etc.) in 430gd.
  • Fitted with lockable non-marking rubber tyre castors.
  • Unit weight 55kg.
  • Model depth with optional folding tray slide/tray rail fitted: tray slide up = 1000mm (d)/ tray slide down = 740mm (d).
  • Optional tray slide height: for standard 900 mm (h) worktop = 845 mm, low height 850 mm model = 795mm (h), low height 800 mm model = 745mm (h).
  • Total power 1.4kW 13A 230v.
  • Fitted with 3m lead & plug top.

* Control panel to front side features thermostat control & illuminated rocker switch for power on/off – max air temp. 85° C.





Options : (Wall Sited) Glide Twin Heated Plate Dispenser (Model GWSHPD2)

Option

Code

Option

Code

 Option

Code

Solid
S/steel
Tray Slide
(Folding)

GSTS2

Tubular
S/steel Tray
Rail
(Folding)

GTTS2

Low Height
Model
850mm (h)

G850H

Low Height
Model
800mm (h)

G800H

Satin S/steel
Side & Rear Panels
(430gd.)

GSSTLCHA2

Colour Side & Rear Panels
Ocean Blue
(BS18C37)

GBLUECHA2

Colour Side & Rear Panels
Light Grey
(BS10A05)

GGREYCHA2

Colour Side & Rear Panels
Forest Green
(RAL6002)

GGRENCHA2

Colour Side & Rear Panels
Poppy Red
(BS04E5B)

GPREDCHA2

Colour Side & Rear Panels
Cream
(BS10c31)

GCREMCHA2

Colour Side & Rear Panels
White
(BS00E55)

GWHITCHA2

Colour Side & Rear Panels
Black
(BS00E53)

GBLAKCHA2

Woodgrain Side & Rear Panels
Walnut
(DL85)

GWALNCHA2

Woodgrain Side & Rear Panels
Beech
(DL76)

GBEECCHA2

Woodgrain Side & Rear Panels
Oak
(DL84)

GOAKCHA2





Popular Model Codes & Options

Model

Model Code

Option Code

Option Code

(Wall Sited) Glide Twin Heated Plate Dispenser
(& Solid Tray Slide)

GWSHPD2

GSTS2

YYYYX

(Wall Sited) Glide Twin Heated Plate Dispenser
(& Tubular Tray Rail)

GWSHPD2

GTTS2

YYYY

(Wall Sited) Glide Twin Heated Plate Dispenser
(& Colour Finish Ends – Red)

GWSHPD2

GPREDCHA2

YYYY

(Wall Sited) Glide Twin Heated Plate Dispenser
(& Tubular Tray Rail & Colour Finish Ends – Red)

GWSHPD2

GTTS2

GPREDCHA2



(Wall Sited) Glide Twin Heated Plate Dispenser
(& Solid Tray Slide & Colour Finish Ends – Red)

GWSHPD2

GSTS2

GPREDCHA2



(Wall Sited) Glide Twin Heated Plate Dispenser
(& Colour Finish Ends – Blue)

GWSHPD2

GBLUECHA2

YYYY



Options

(Wall Sited) Glide Twin Heated Plate Dispenser.
Options.



Glide S/Steel Folding Solid Tray Slide.
(GSTS2) Glide option: 2-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type.
Up position adds 302mm to depth. Down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Glide S/Steel Folding Tubular Tray Rail.
(GTTS2) Glide option: 2-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube. Drop down bracket type.
Up position adds 298 mm to depth. Down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Low Height Model ( Glide Junior) – 850mm.
(G850H) Glide junior option: (all cold, hot, ambient, till & corner units) 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model ( Glide Junior) – 800mm.
(G800H) Glide junior option: (all cold, hot, ambient, till & corner units) 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). * Bespoke Option/ Extended Lead Time *

Glide Colour Finishes To Rear/ Side Panels (Front Panel In S/Steel).

Blue Finish. (Option Code GBLUECHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour ocean blue (BS 18C37) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

S/steel Finish. (Option Code GSSTLCHA2) 2-1 Gn set of outer side panels in satin s/steel 430 gd. to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Light Grey Finish. (Option Code GGREYCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour goosewing light grey (BS 10A05) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Forest Green Finish. (Option Code GGRENCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour forest green/heritage (RAL 6002) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Poppy Red Finish. (Option Code GPREDCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour poppy red (BS 04E5B) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Cream Finish. (Option Code GCREMCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

White Finish. (Option Code GWHITCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour white (BS 00E55)  to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Black Finish. (Option Code GBLAKCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour black (BS 00E53) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Beech Woodgrain Finish. (Option Code GBEECCHA2) 2-1 Gn set of outer side panels in wood grain effect DL76 beech finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Walnut Woodgrain Finish. (Option Code GWALNCHA2) 2-1 Gn set of outer side panels in wood grain effect panel DL85 walnut finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Oak Woodgrain Finish. (Option Code GOAKCHA2)  2-1 Gn set of outer side panels in wood grain effect DL84 oak finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.





Options : (Wall Sited) Glide Twin Heated Plate Dispenser (Model GWSHPD2)

Option

Code

Option

Code

 Option

Code

Solid
S/steel
Tray Slide
(Folding)

GSTS2

Tubular
S/steel Tray
Rail
(Folding)

GTTS2

Low Height
Model
850mm (h)

G850H

Low Height
Model
800mm (h)

G800H

Satin S/steel
Side & Rear Panels
(430gd.)

GSSTLCHA2

Colour Side & Rear Panels
Ocean Blue
(BS18C37)

GBLUECHA2

Colour Side & Rear Panels
Light Grey
(BS10A05)

GGREYCHA2

Colour Side & Rear Panels
Forest Green
(RAL6002)

GGRENCHA2

Colour Side & Rear Panels
Poppy Red
(BS04E5B)

GPREDCHA2

Colour Side & Rear Panels
Cream
(BS10c31)

GCREMCHA2

Colour Side & Rear Panels
White
(BS00E55)

GWHITCHA2

Colour Side & Rear Panels
Black
(BS00E53)

GBLAKCHA2

Woodgrain Side & Rear Panels
Walnut
(DL85)

GWALNCHA2

Woodgrain Side & Rear Panels
Beech
(DL76)

GBEECCHA2

Woodgrain Side & Rear Panels
Oak
(DL84)

GOAKCHA2



 Popular Model Codes & Options.

(Wall Sited) Glide Twin Heated Plate Dispenser
(& Tray Slide).

Model Code      Option Code
GWSHPD2        GSTS2





(Wall Sited) Glide Twin Heated Plate Dispenser (& Tray Rail).
Model Code      Option Code
GWSHPD2        GTTS2





(Wall Sited) Glide Twin Heated Plate Dispenser
(& Colour Finish – Red).

Model Code      Option Code
GWSHPD2        GPREDCHA2







(Wall Sited) Glide Twin Heated Plate Dispenser
(& Tray Rail & Colour Finish – Red).

Model Code      Option Code    Option Code
GWSHPD2        GTTS2             GPREDCHA2





(Wall Sited) Glide Twin Heated Plate Dispenser
(& Tray Slide & Colour Finish – Red).

Model Code      Option Code     Option Code
GWSHPD2        GSTS2             GPREDCHA2







(Wall Sited) Glide Twin Heated Plate Dispenser
(& Colour Finish – Blue).

Model Code      Option Code
GWSHPD2         GBLUECHA2





Downloads

General Layout Drawings
(Wall Sited) Glide Twin Heated Plate Dispenser.






(Wall Sited) Glide Twin Heated Plate Dispenser.
